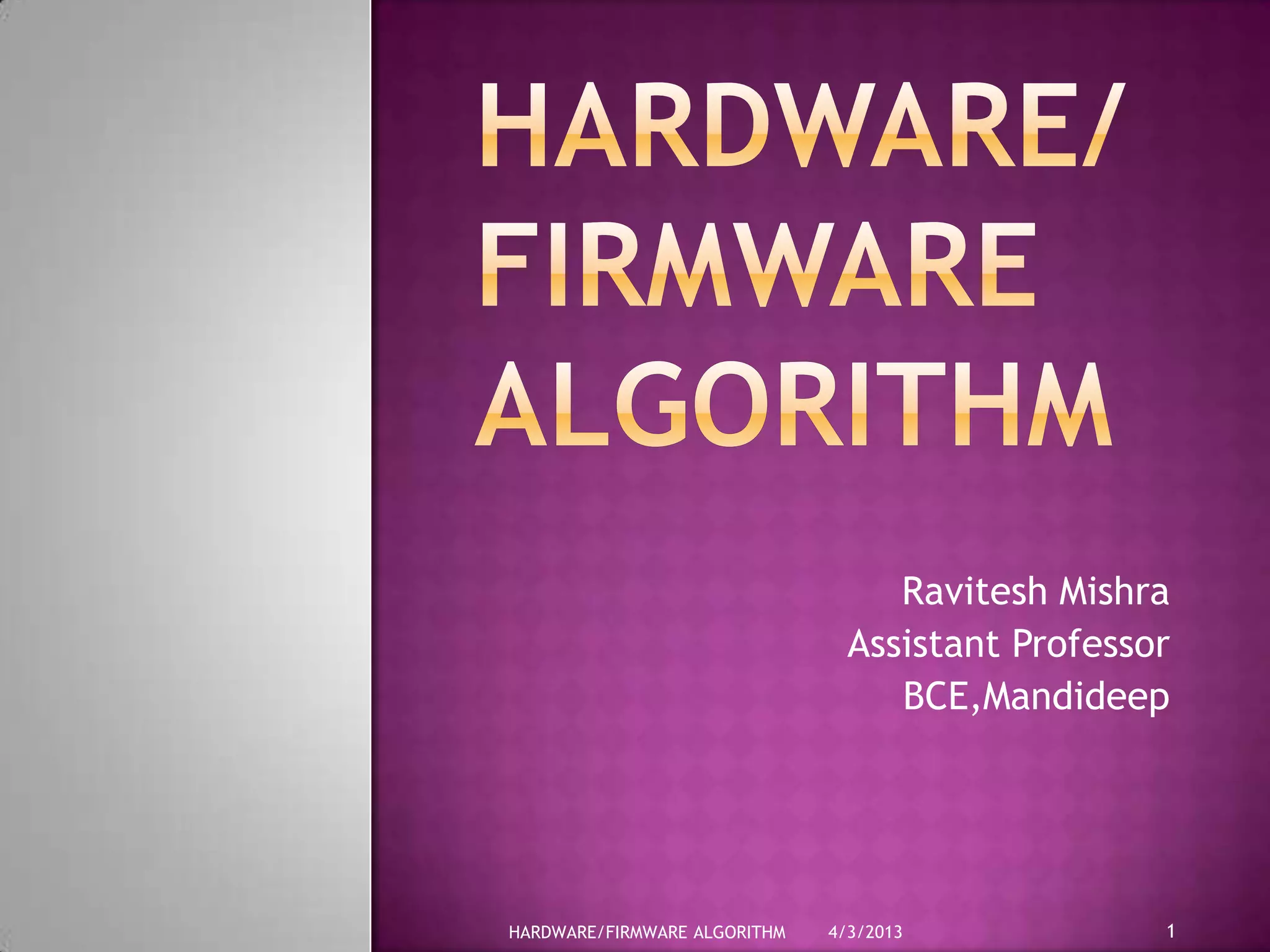

1. Ravitesh Mishra
Assistant Professor
BCE,Mandideep
HARDWARE/FIRMWARE ALGORITHM 4/3/2013 1

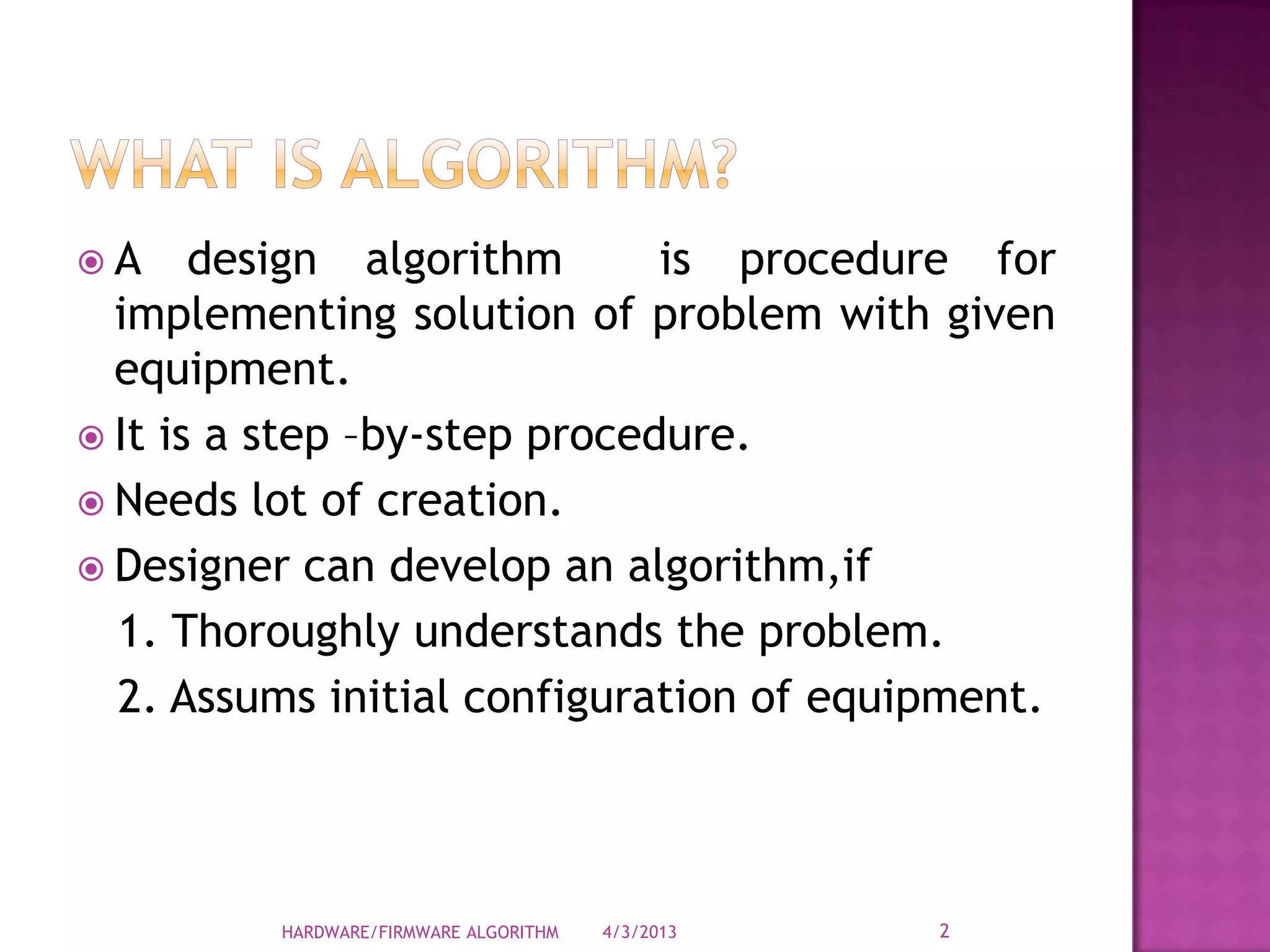

2. A design algorithm is procedure for
implementing solution of problem with given
equipment.
 It is a step –by-step procedure.
 Needs lot of creation.
 Designer can develop an algorithm,if
1. Thoroughly understands the problem.
2. Assums initial configuration of equipment.
HARDWARE/FIRMWARE ALGORITHM 4/3/2013 2

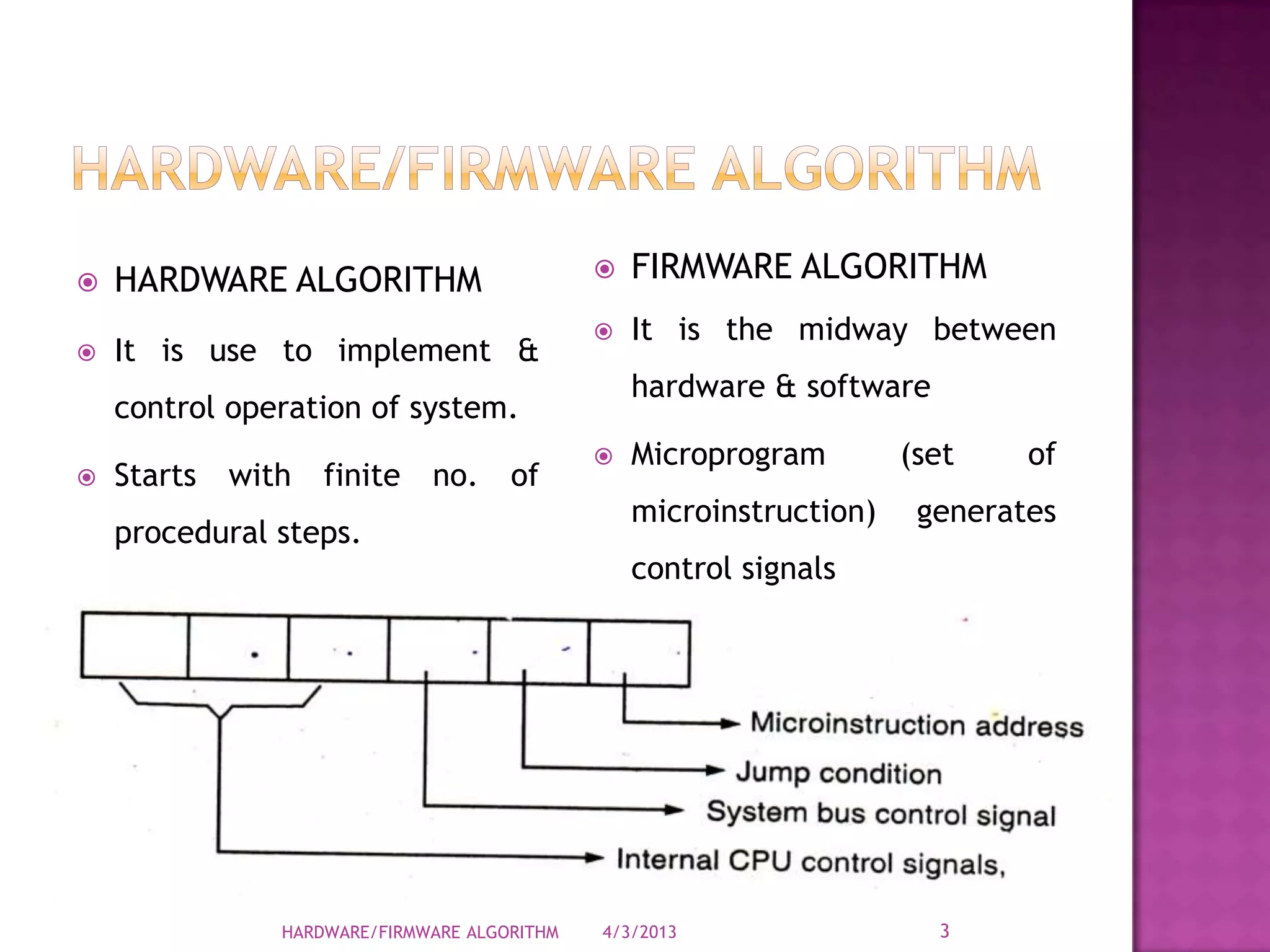

3.  HARDWARE ALGORITHM  FIRMWARE ALGORITHM
 It is the midway between
 It is use to implement &
hardware & software
control operation of system.
 Microprogram (set of
 Starts with finite no. of
microinstruction) generates
procedural steps.
control signals
HARDWARE/FIRMWARE ALGORITHM 4/3/2013 3

4. It adds the number with sign bit. Overflow V is 1 if EX-OR of the
Carry out of sign bit is discarded. last two carries is 1.
HARDWARE/FIRMWARE ALGORITHM 4/3/2013 4
