This document discusses storage systems and components used in personal computers. It covers the low-level and high-level formatting of hard disks, partitioning hard disks into separate areas, and the file allocation table used to locate files. It also summarizes IDE/EIDE hard drives, floppy disks, SCSI interfaces, RAID configurations, and optical disk drives like CD-ROMs.

1. Hard Disks
• Low-level format- organizes both sides of each
platter into tracks and sectors to define where
items will be stored on the disk.
• Partitioning: divide hard disk into separate
areas called partitions; each partition functions
as if it were a separate hard disk drive.
• High-level format defines the file allocation
table (FAT) for each partition, which is a table
of information used to locate files on the disk.

2. Storage Systems
• Hard Drives
– 2 Types: SCSI and IDE
• IDE drives– originally developed as alternative to more expensive SCSI
drives.
– Modern versions called EIDE drives.
– Support up to 4 multigigabyte drives.
– If you want more devices, use SCSI or USB
– Low-level formatted at the factory

3. Low Level Formatting
• Low level format scans disk for defects and
sets aside sectors with defects so they are not
used for data.
• IDE drives should never be low level
formatted by a user or technician. Only high
level format necessary.

4. Installing IDE/EIDE drives
• IDE supports TWO drives in a system
– one master (boot disk) and one slave
– set master and slave using jumpers
• EIDE supports FOUR drives per system
– 2 drives on each of 2 cables
– only one master, all others are slaves
• IDE and EIDE drives both use 40-pin ribbon
cable aligned to pin 1

5. Hard Drive

6. Floppies
• Two sizes
– 3.5 inch
– 5.25 inch
• 3.5 inch holds 1.44 MB for High density and
750 KB for Double Density
• Connected with 34 pin ribbon cable
• Two Floppy Drives possible
• Has twist in cable to distinguish A drive from
B drive

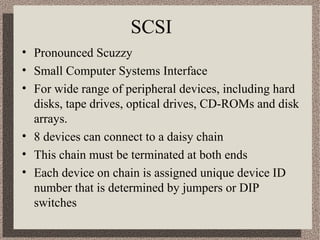

7. SCSI
• Pronounced Scuzzy
• Small Computer Systems Interface
• For wide range of peripheral devices, including hard
disks, tape drives, optical drives, CD-ROMs and disk
arrays.
• 8 devices can connect to a daisy chain
• This chain must be terminated at both ends
• Each device on chain is assigned unique device ID
number that is determined by jumpers or DIP
switches

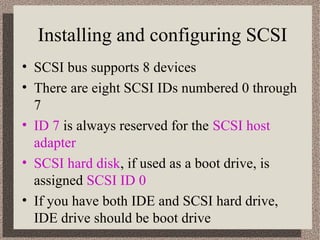

8. Installing and configuring SCSI
• SCSI bus supports 8 devices
• There are eight SCSI IDs numbered 0 through
7
• ID 7 is always reserved for the SCSI host
adapter
• SCSI hard disk, if used as a boot drive, is
assigned SCSI ID 0
• If you have both IDE and SCSI hard drive,
IDE drive should be boot drive

9. Types of SCSIs
• SCSI 1- 5 MB transfer rate, Centronics 50 pin
or DB 25, has 8 bit bus
• SCSI 2 -also SCSI Fast Wide, includes 16 bit
bus , called Wide SCSI, and twice as fast
transfer rate
• SCSI 3- Includes Ultra SCSI, Wide Ultra
SCSI, and Ultra 2 SCSI, 16 bit bus with up to
80 MBps transfer rate

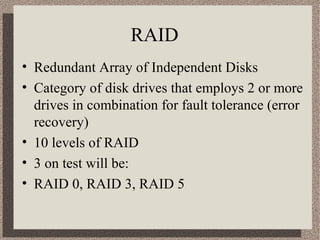

10. RAID
• Redundant Array of Independent Disks
• Category of disk drives that employs 2 or more
drives in combination for fault tolerance (error
recovery)
• 10 levels of RAID
• 3 on test will be:
• RAID 0, RAID 3, RAID 5

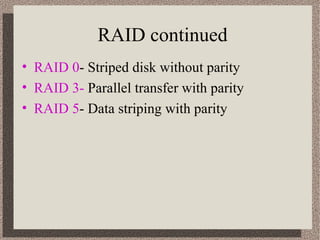

11. RAID continued
• RAID 0- Striped disk without parity
• RAID 3- Parallel transfer with parity
• RAID 5- Data striping with parity

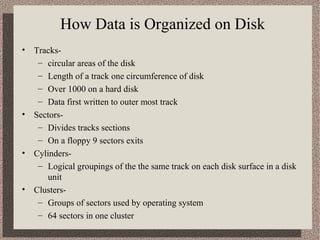

12. How Data is Organized on Disk
•
•
•
•
Tracks– circular areas of the disk
– Length of a track one circumference of disk
– Over 1000 on a hard disk
– Data first written to outer most track
Sectors– Divides tracks sections
– On a floppy 9 sectors exits
Cylinders– Logical groupings of the the same track on each disk surface in a disk
unit
Clusters– Groups of sectors used by operating system
– 64 sectors in one cluster

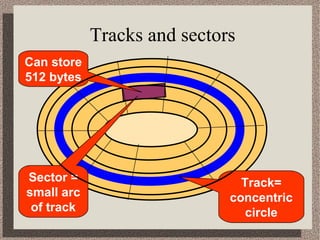

13. Tracks and sectors
Can store
512 bytes
Sector =
small arc
of track
Track=
concentric
circle

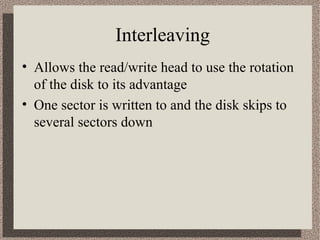

14. Interleaving
• Allows the read/write head to use the rotation
of the disk to its advantage
• One sector is written to and the disk skips to
several sectors down

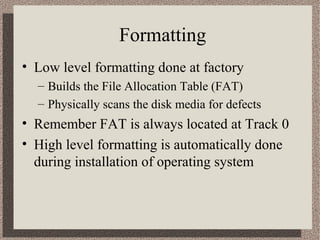

15. Formatting
• Low level formatting done at factory
– Builds the File Allocation Table (FAT)
– Physically scans the disk media for defects
• Remember FAT is always located at Track 0
• High level formatting is automatically done
during installation of operating system

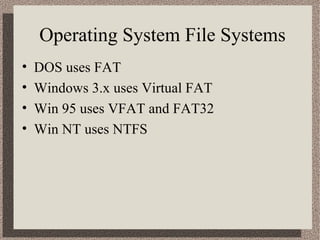

16. Operating System File Systems
•
•
•
•
DOS uses FAT
Windows 3.x uses Virtual FAT
Win 95 uses VFAT and FAT32
Win NT uses NTFS

17. Partitioning
• FDISK command is used
• Divides hard drive into logical subdivisions
which are seen by the operating system as
separate logical hard disks.
• Hard drives divided into primary and extended
partitions. The primary partition boots the
system. Can have up to 4 primary partitions

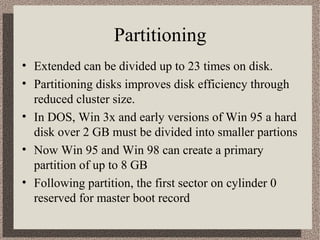

18. Partitioning
• Extended can be divided up to 23 times on disk.
• Partitioning disks improves disk efficiency through
reduced cluster size.
• In DOS, Win 3x and early versions of Win 95 a hard
disk over 2 GB must be divided into smaller partions
• Now Win 95 and Win 98 can create a primary
partition of up to 8 GB
• Following partition, the first sector on cylinder 0
reserved for master boot record

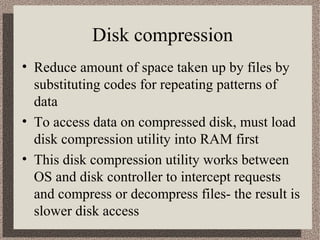

19. Disk compression
• Reduce amount of space taken up by files by
substituting codes for repeating patterns of
data
• To access data on compressed disk, must load
disk compression utility into RAM first
• This disk compression utility works between
OS and disk controller to intercept requests
and compress or decompress files- the result is
slower disk access

20. Backing up data
• Archival: full backup- contains everything
from the hard disk
• Incremental: contains only files that have been
modified since last (previous) backup
• Differential: backs up all the data modified
since last full backup
• Copy backup: copy duplicate of file, directory,
or disk to another disk

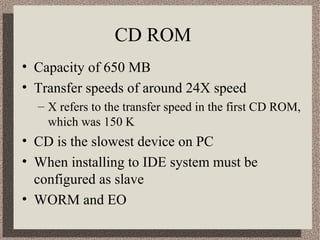

21. CD ROM
• Capacity of 650 MB
• Transfer speeds of around 24X speed
– X refers to the transfer speed in the first CD ROM,
which was 150 K
• CD is the slowest device on PC
• When installing to IDE system must be
configured as slave
• WORM and EO
