The document provides an overview of Gradle for beginners. It discusses Gradle basics like build scripts, conventions over configuration, and the configuration and execution phases. It also covers tasks, plugins, dependencies, repositories, testing, quality assurance, and publishing artifacts. An example project is presented that shows how to build an application with Gradle, including tests, dependencies, plugins, and publishing the build artifacts.

1. Gradle for Beginners
Coding Serbia, 18.10.2013
Joachim Baumann

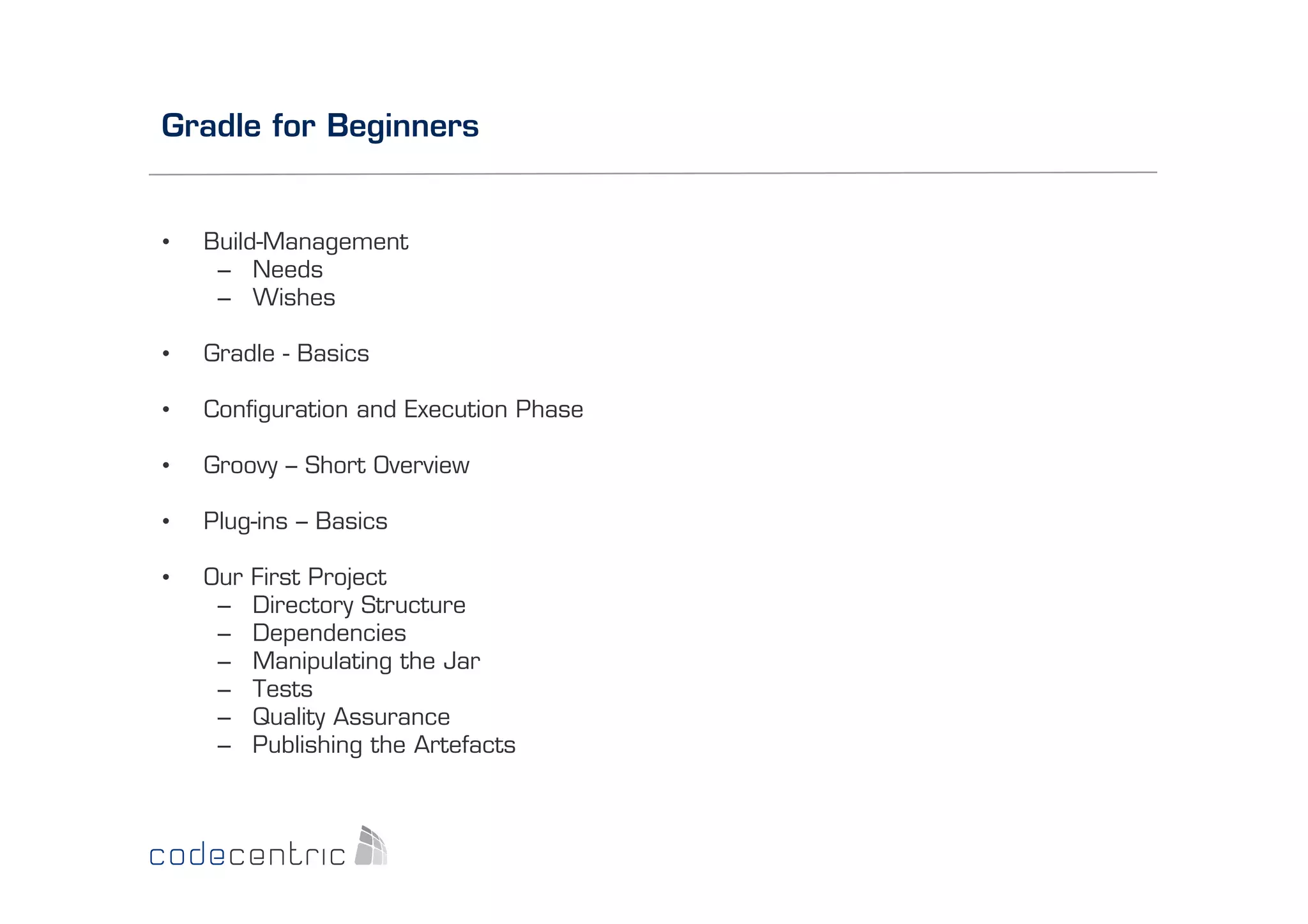

2. Gradle for Beginners
•
Build-Management
– Needs
– Wishes
•
Gradle - Basics
•
Configuration and Execution Phase
•
Groovy – Short Overview
•
Plug-ins – Basics
•
Our
–
–
–
–
–
–
First Project
Directory Structure
Dependencies
Manipulating the Jar
Tests
Quality Assurance
Publishing the Artefacts

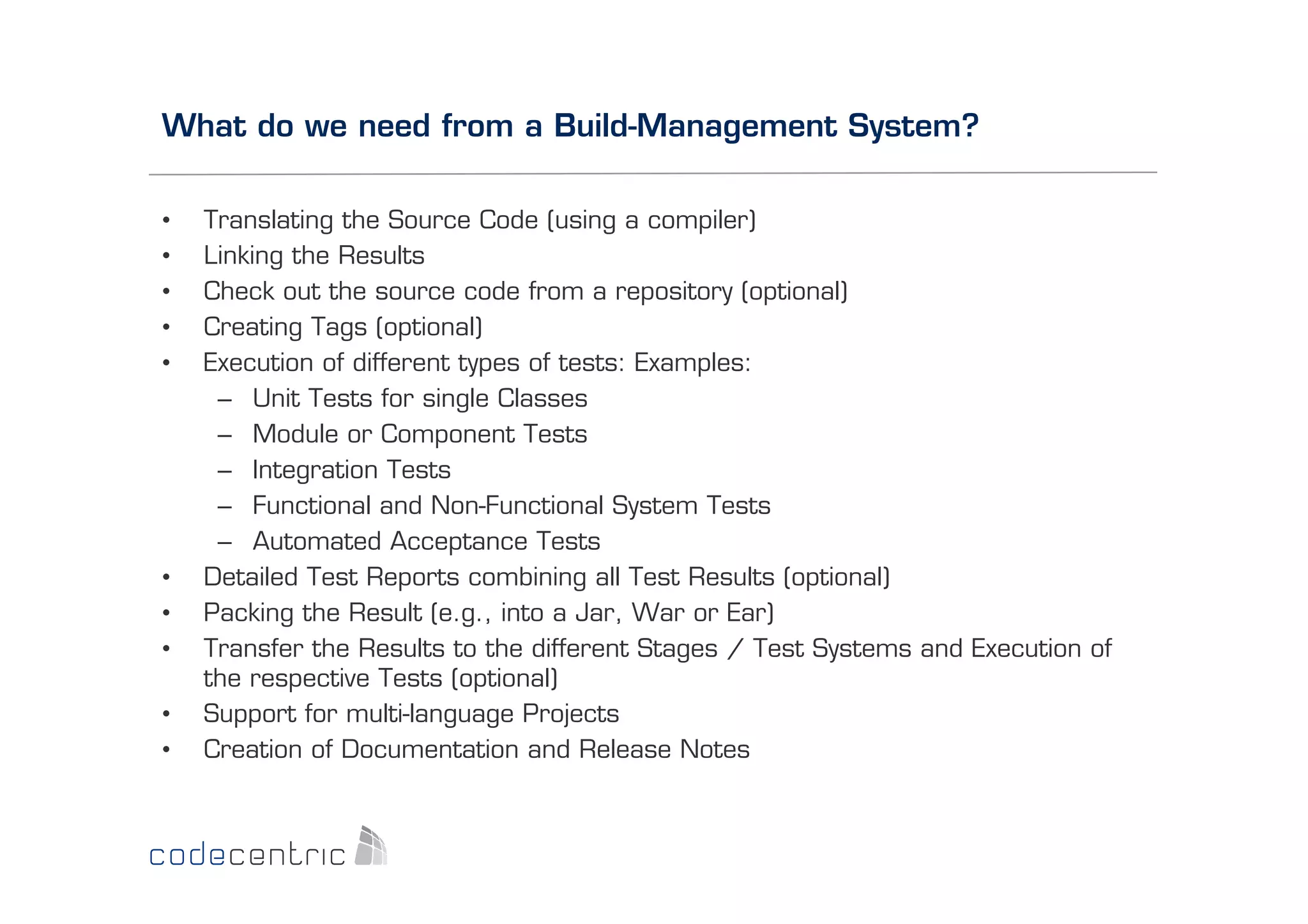

3. What do we need from a Build-Management System?
•
•
•
•
•
•
•
•
•
•
Translating the Source Code (using a compiler)
Linking the Results
Check out the source code from a repository (optional)
Creating Tags (optional)
Execution of different types of tests: Examples:
– Unit Tests for single Classes
– Module or Component Tests
– Integration Tests
– Functional and Non-Functional System Tests
– Automated Acceptance Tests
Detailed Test Reports combining all Test Results (optional)
Packing the Result (e.g., into a Jar, War or Ear)
Transfer the Results to the different Stages / Test Systems and Execution of
the respective Tests (optional)
Support for multi-language Projects
Creation of Documentation and Release Notes

4. What do we wish for in our Build-Management System?
• Explicit Support of the Workflow implemented by the BuildManagement-System
• Simple Modifiability and Extensibility of the Workflow to adapt to
local processes
• Readability and self-documentation of the notation in the build
script
• Use of sensible conventions (e.g., where to find the sources)
• Simple change of the conventions to adap to local environment
• Incremental Build that can identify artefacts that have already
been built
• Parallelisation of independent steps in the workflow to minimize
waiting
• Programmatic access to all artefacts being created by the build
• Status reports that summarize the current state of the build

5. Gradle - Basics
•
Gradle uses build scripts which are named build.gradle
•
Every build script is a Groovy script
•
Two very important Principles
– Convention over Configuration
– Don’t Repeat Yourself
•
Gradle creates a dynamic model of the workflow as a Directed Acyclic Graph
(DAG)
•
(Nearly) Everything is convention and can be changed
tset
tseTelipmoc
dliub
elipmoc
elbmessa

6. Configuration Phase
•
•
•
•
Executes the build script
The contained Groovy- and DSL-commands configure the underlying
object tree
The root of the object tree is the Project object
– Is directly available in the script (methods and properties)
Creation of new Tasks that can be used
Manipulation of the DAG
•
Our first script build.gradle
•
println ”Hello from the configuration phase"

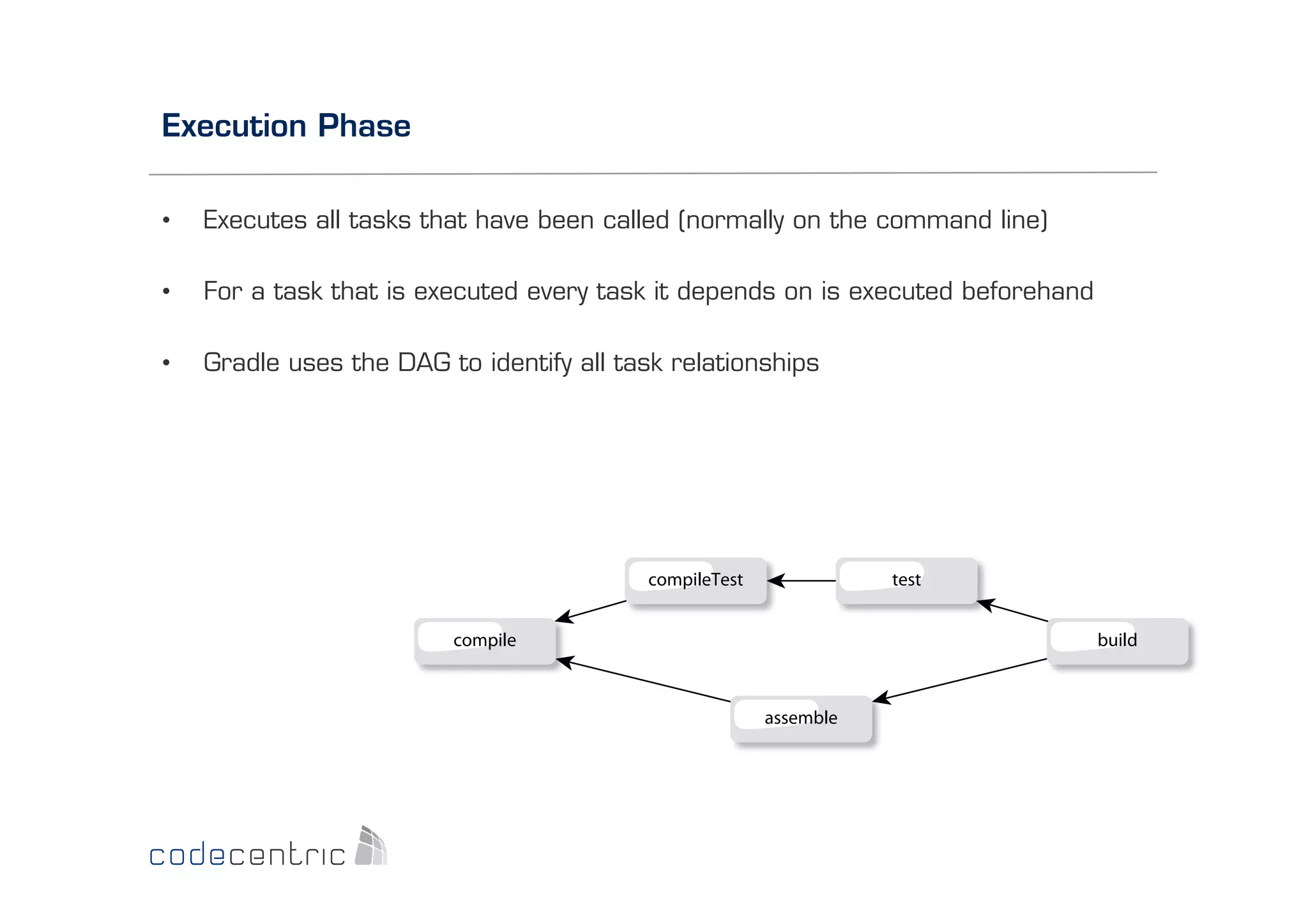

7. Execution Phase
•
Executes all tasks that have been called (normally on the command line)
•
For a task that is executed every task it depends on is executed beforehand
•
Gradle uses the DAG to identify all task relationships
tset
tseTelipmoc
dliub
elipmoc
elbmessa

8. Task Definition
•
•
Takes an (optional) configuration closure
Alternatively: can be configured directly
•
•
The operator << (left-shift) appends an action (a closure) to this task’s list of actions
Equivalent to doLast()
•
Insert at the beginning of the list with doFirst()
task halloTask
halloTask.doLast { print "from the " }
halloTask << { println "execution phase" }
halloTask.doFirst { print "Hello " }
task postHallo (dependsOn: halloTask) << {
println "End"
}
postHallo { // configuration closure
dependsOn halloTask
}

9. Groovy – Short Overview
•
Simplified Java Syntax
– Semicolon optional
– GString
– Everything is an Object
– Simplification e.g., “println”
•
Scripts
•
Operator Overloading
– Predefined
• Example <<
• Operator for secure navigation a.?b
– You can provide your own implementations
•
Named Parameters
•
Closures
•
Collection Iterators

10. Plug-ins - Basics
•
Plug-ins encapsulate functionality
•
Can be written in any VM-language
– Groovy is a good choice
•
Possible Plug-in Sources
– Plug-ins packed with Gradle
– Plug-ins included using URLs (don’t do it)
– Plug-ins provided by repositories (use your own repository)
– Self-written Plug-ins (normally in the directory buildSrc)
•
Plug-ins
– Extend objects
– Provide new objects and / or abstractions
– Configure existing objects
•
Plug-ins are load with the command apply plugin
apply plugin: ‘java’

11. Our first Project
•
We use the Java Plug-in
•
Default paths used by the
Java Plug-in
– Derived from Maven
Conventions

12. The Class HelloWorld
package de.gradleworkshop;
import java.util.ArrayList;
import java.util.List;
public class HelloWorld {
public static void main(String[] args) {
HelloWorld hw = new HelloWorld();
for(String greeting : hw.generateGreetingsData())
System.out.println(greeting);
}
public List<String> generateGreetingsData() {
List <String> greetings = new ArrayList <String>();
greetings.add("Hallo Welt");
return greetings;
}
}

13. Manipulation of the Manifest
•
Every Jar-Archive contains a file MANIFEST.MF
•
Is generated by Gradle (see directory build/tmp/jar/MANIFEST.MF)
•
Contains information e.g., about the main class of the jar
•
Can be changed
jar {
manifest {
attributes 'Main-Class':
'de.gradleworkshop.HelloWorld'
}
}
•
Alternatively
jar.manifest.attributes 'Main-Class':
'de.gradleworkshop.HelloWorld'

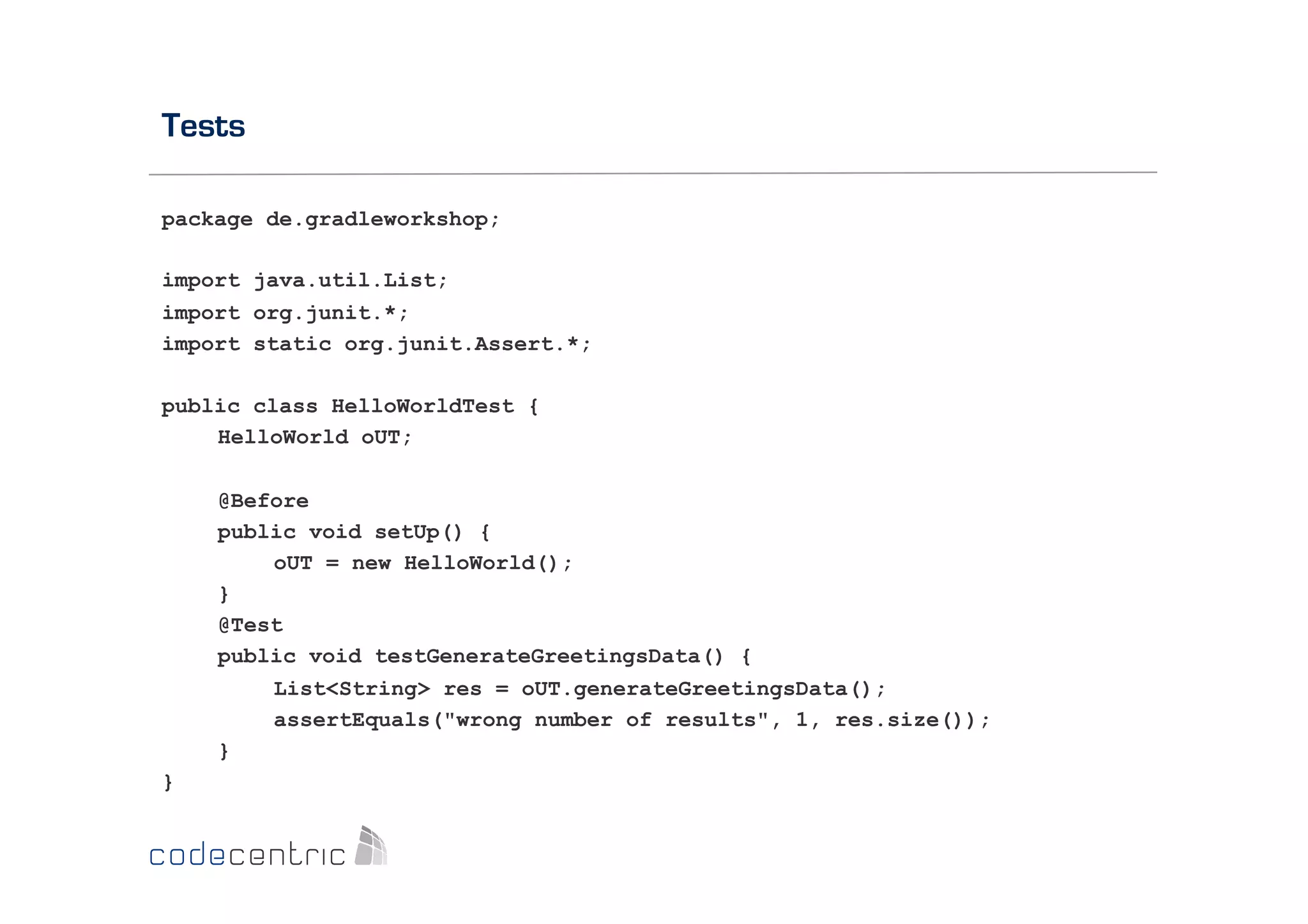

14. Tests
package de.gradleworkshop;
import java.util.List;
import org.junit.*;
import static org.junit.Assert.*;
public class HelloWorldTest {
HelloWorld oUT;
@Before
public void setUp() {
oUT = new HelloWorld();
}
@Test
public void testGenerateGreetingsData() {
List<String> res = oUT.generateGreetingsData();
assertEquals("wrong number of results", 1, res.size());
}
}

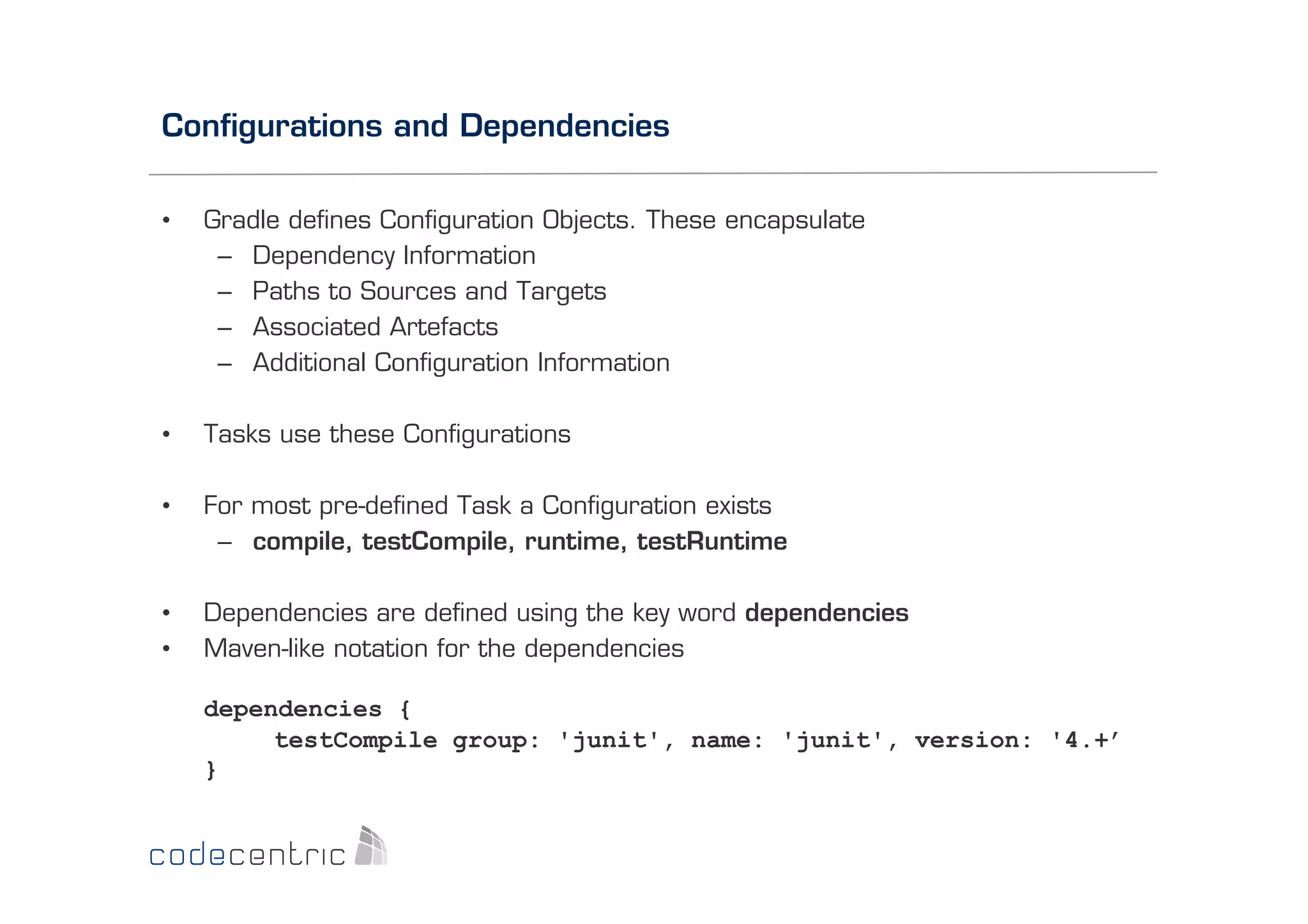

15. Configurations and Dependencies
•
Gradle defines Configuration Objects. These encapsulate
– Dependency Information
– Paths to Sources and Targets
– Associated Artefacts
– Additional Configuration Information
•
Tasks use these Configurations
•
For most pre-defined Task a Configuration exists
– compile, testCompile, runtime, testRuntime
•
•
Dependencies are defined using the key word dependencies
Maven-like notation for the dependencies
dependencies {
testCompile group: 'junit', name: 'junit', version: '4.+’
}

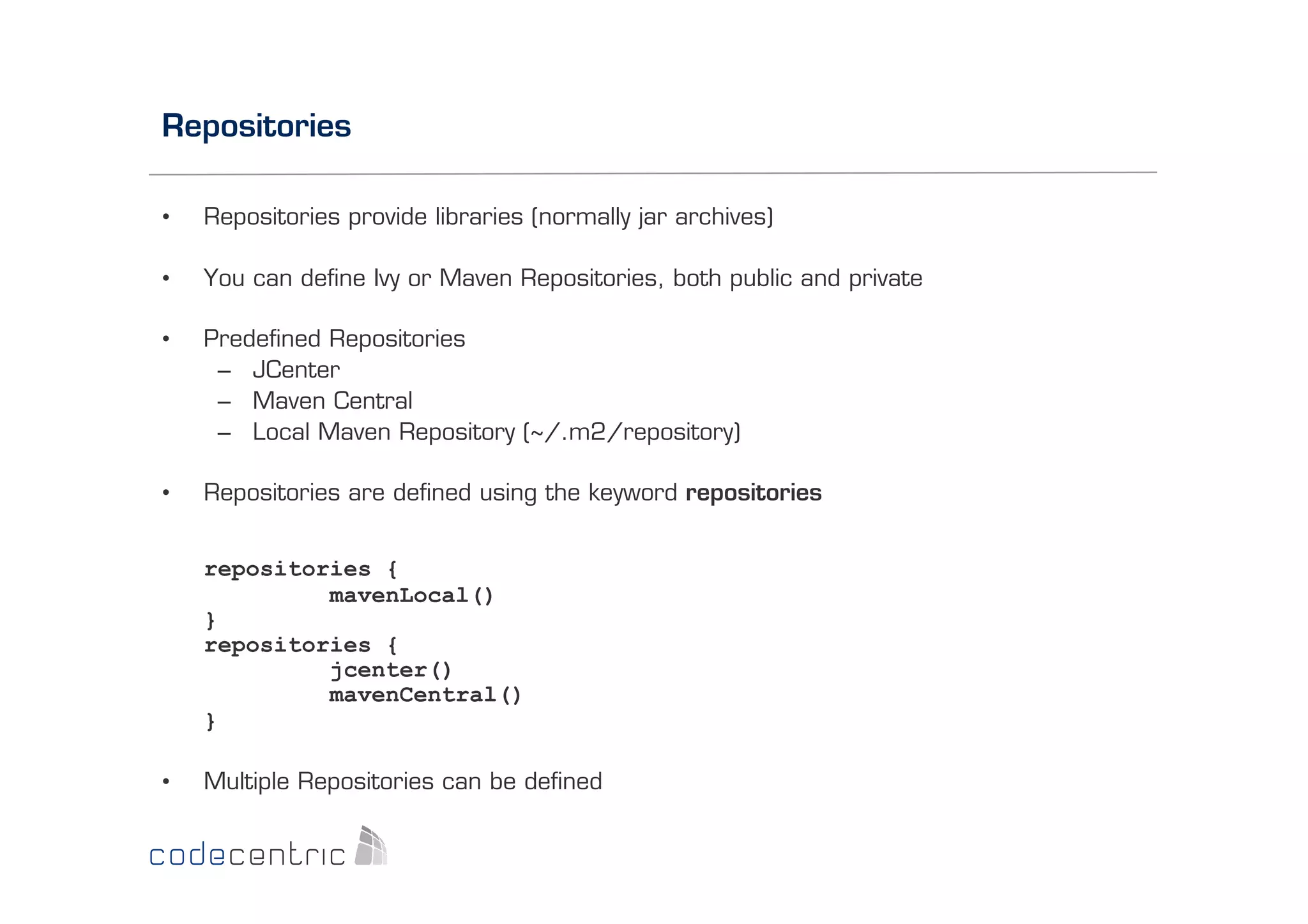

16. Repositories
•
Repositories provide libraries (normally jar archives)
•
You can define Ivy or Maven Repositories, both public and private
•
Predefined Repositories
– JCenter
– Maven Central
– Local Maven Repository (~/.m2/repository)
•
Repositories are defined using the keyword repositories
repositories {
mavenLocal()
}
repositories {
jcenter()
mavenCentral()
}
•
Multiple Repositories can be defined

17. The Application Plug-in
•
The Application-Plug-in
– Adds a Task run
– Creates start scripts, that can be used with the Task run
– Creates a Task distZip, that packs all necessary files into a ziparchive
– Definition of the Main Class
mainClassName = "de.gradleworkshop.HelloWorld"
– Usage with
apply plugin: 'application'

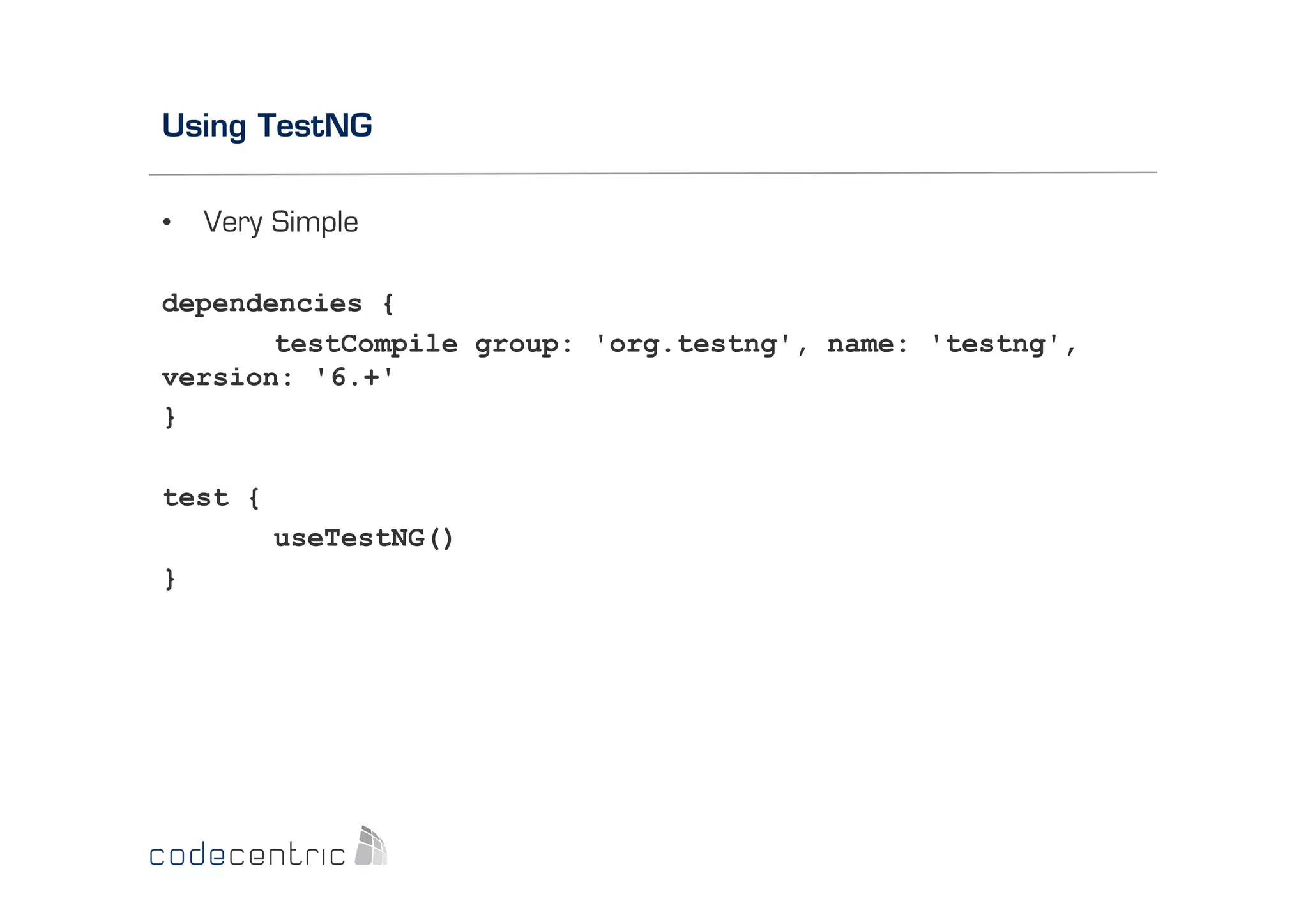

18. Using TestNG
•
Very Simple
dependencies {
testCompile group: 'org.testng', name: 'testng',
version: '6.+'
}
test {
useTestNG()
}

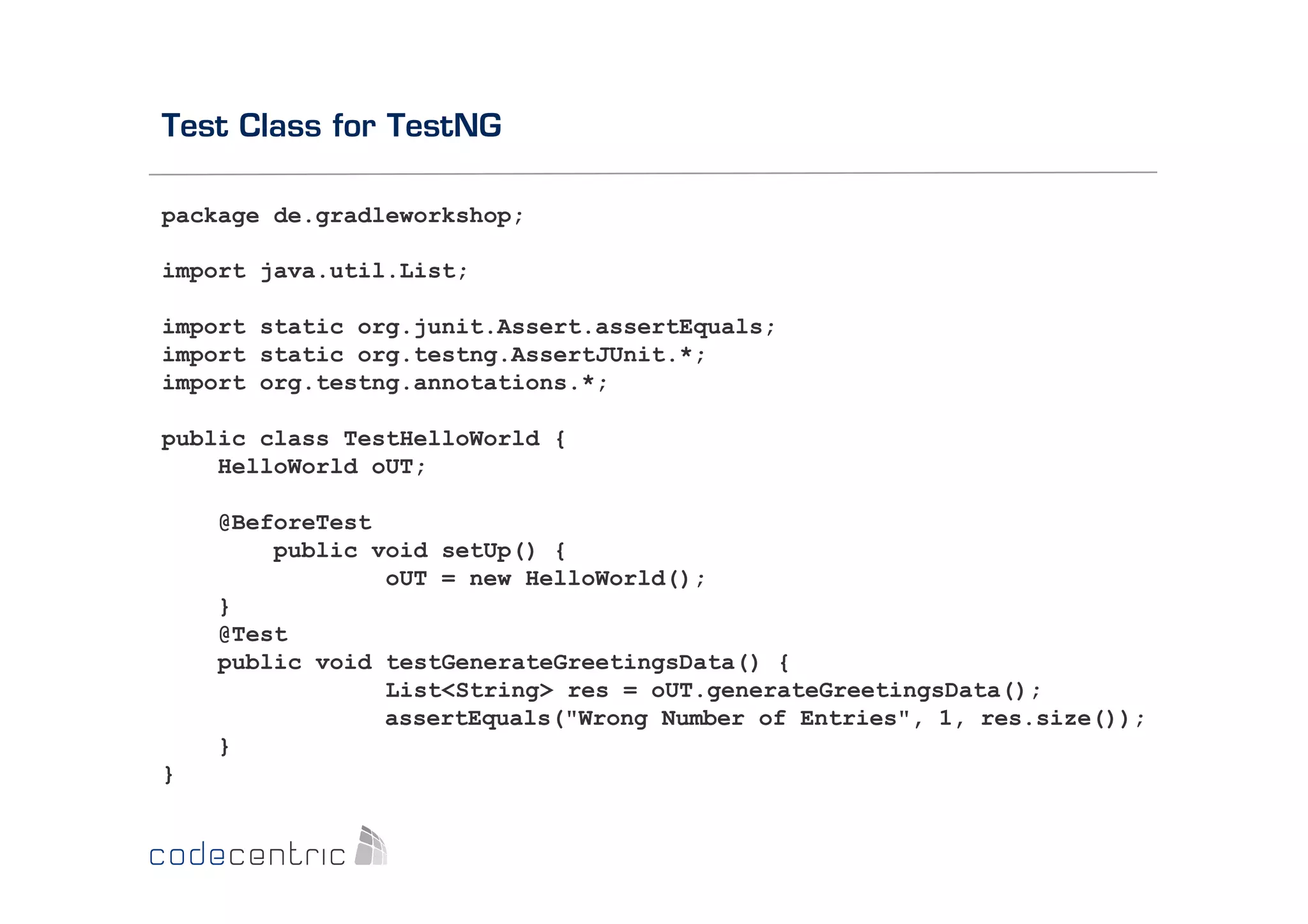

19. Test Class for TestNG
package de.gradleworkshop;
import java.util.List;
import static org.junit.Assert.assertEquals;
import static org.testng.AssertJUnit.*;
import org.testng.annotations.*;
public class TestHelloWorld {
HelloWorld oUT;
@BeforeTest
public void setUp() {
oUT = new HelloWorld();
}
@Test
public void testGenerateGreetingsData() {
List<String> res = oUT.generateGreetingsData();
assertEquals("Wrong Number of Entries", 1, res.size());
}
}

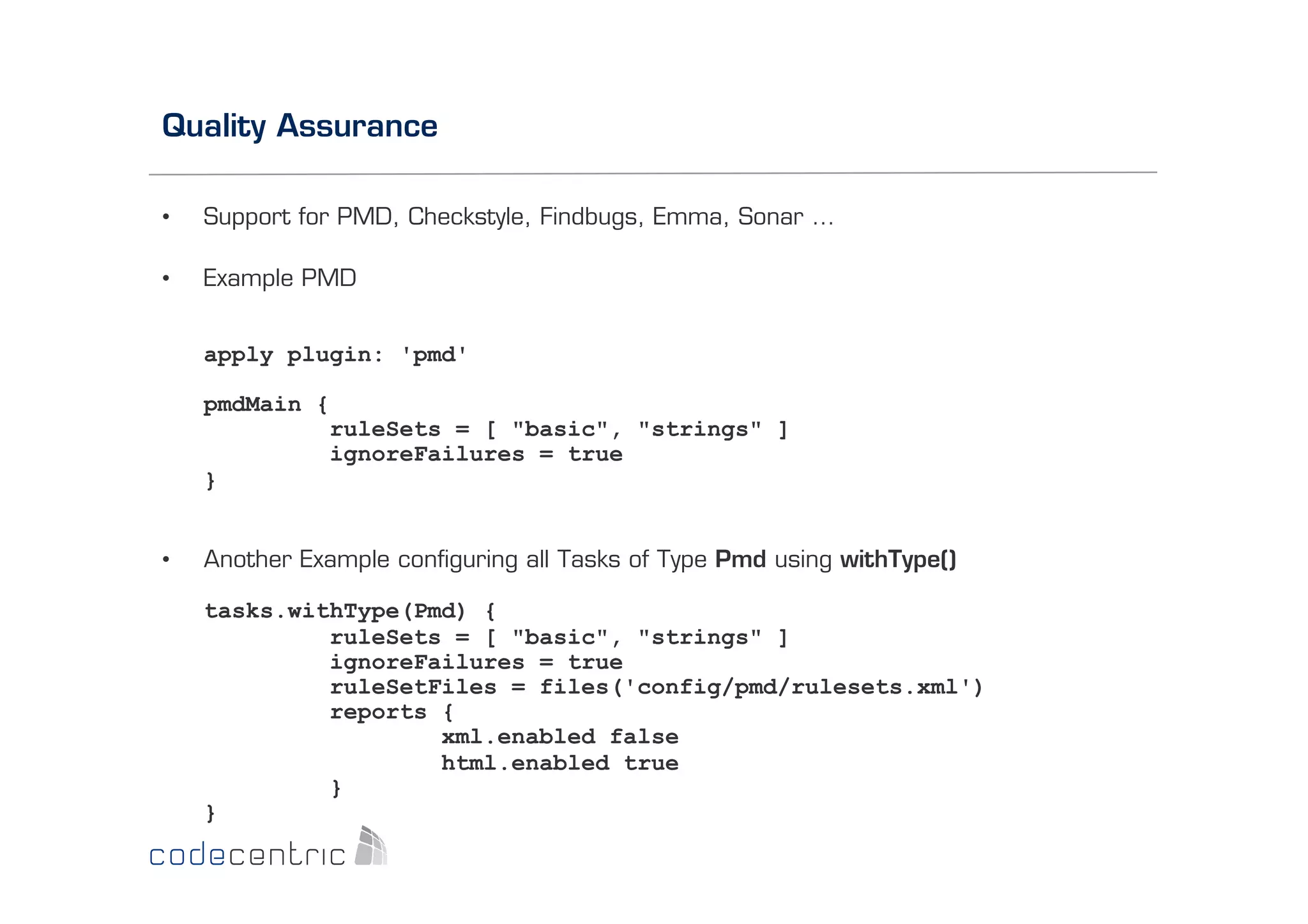

20. Quality Assurance
•
Support for PMD, Checkstyle, Findbugs, Emma, Sonar …
•
Example PMD
apply plugin: 'pmd'
pmdMain {
ruleSets = [ "basic", "strings" ]
ignoreFailures = true
}
•
Another Example configuring all Tasks of Type Pmd using withType()
tasks.withType(Pmd) {
ruleSets = [ "basic", "strings" ]
ignoreFailures = true
ruleSetFiles = files('config/pmd/rulesets.xml')
reports {
xml.enabled false
html.enabled true
}
}

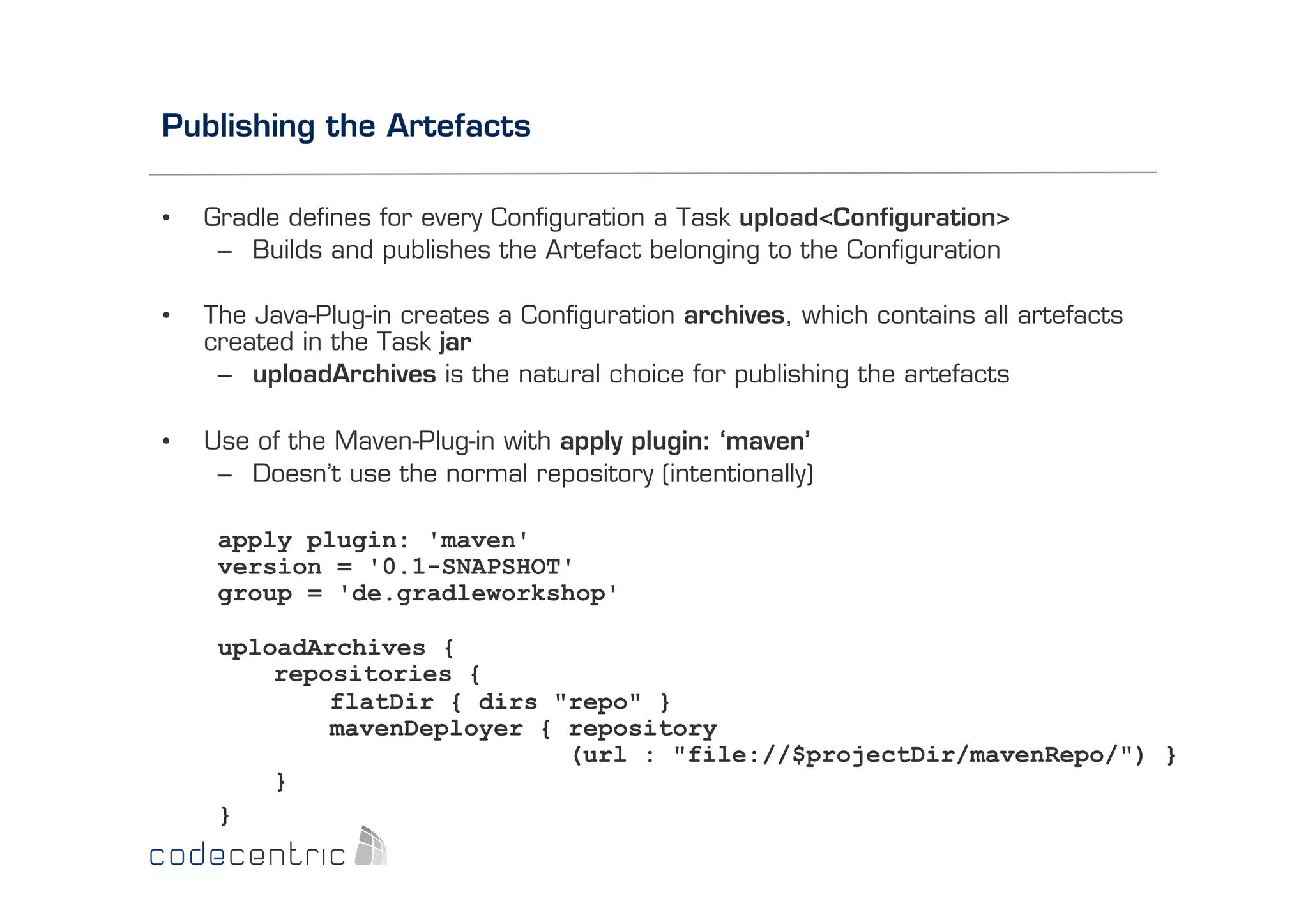

21. Publishing the Artefacts
•
Gradle defines for every Configuration a Task upload<Configuration>
– Builds and publishes the Artefact belonging to the Configuration
•
The Java-Plug-in creates a Configuration archives, which contains all artefacts
created in the Task jar
– uploadArchives is the natural choice for publishing the artefacts
•
Use of the Maven-Plug-in with apply plugin: ‘maven’
– Doesn’t use the normal repository (intentionally)
apply plugin: 'maven'
version = '0.1-SNAPSHOT'
group = 'de.gradleworkshop'
uploadArchives {
repositories {
flatDir { dirs "repo" }
mavenDeployer { repository
(url : "file://$projectDir/mavenRepo/") }
}
}

22. The whole Script (less than 20 lines)
apply plugin: 'java'
apply plugin: 'pmd'
jar.manifest.attributes 'Main-Class': 'de.gradleworkshop.HelloWorld'
pmdMain {
ruleSets = [ "basic", "strings" ]
ignoreFailures = true
}
repositories { mavenCentral() }
dependencies {
testCompile group: 'junit', name: 'junit', version: '4.+'
}
apply plugin: ‘maven’
version = '0.1-SNAPSHOT’
group = 'de.gradleworkshop’
uploadArchives {
repositories {
flatDir { dirs "repo" }
mavenDeployer { repository (url : "file:///gradleWS/myRepo/")
} } }

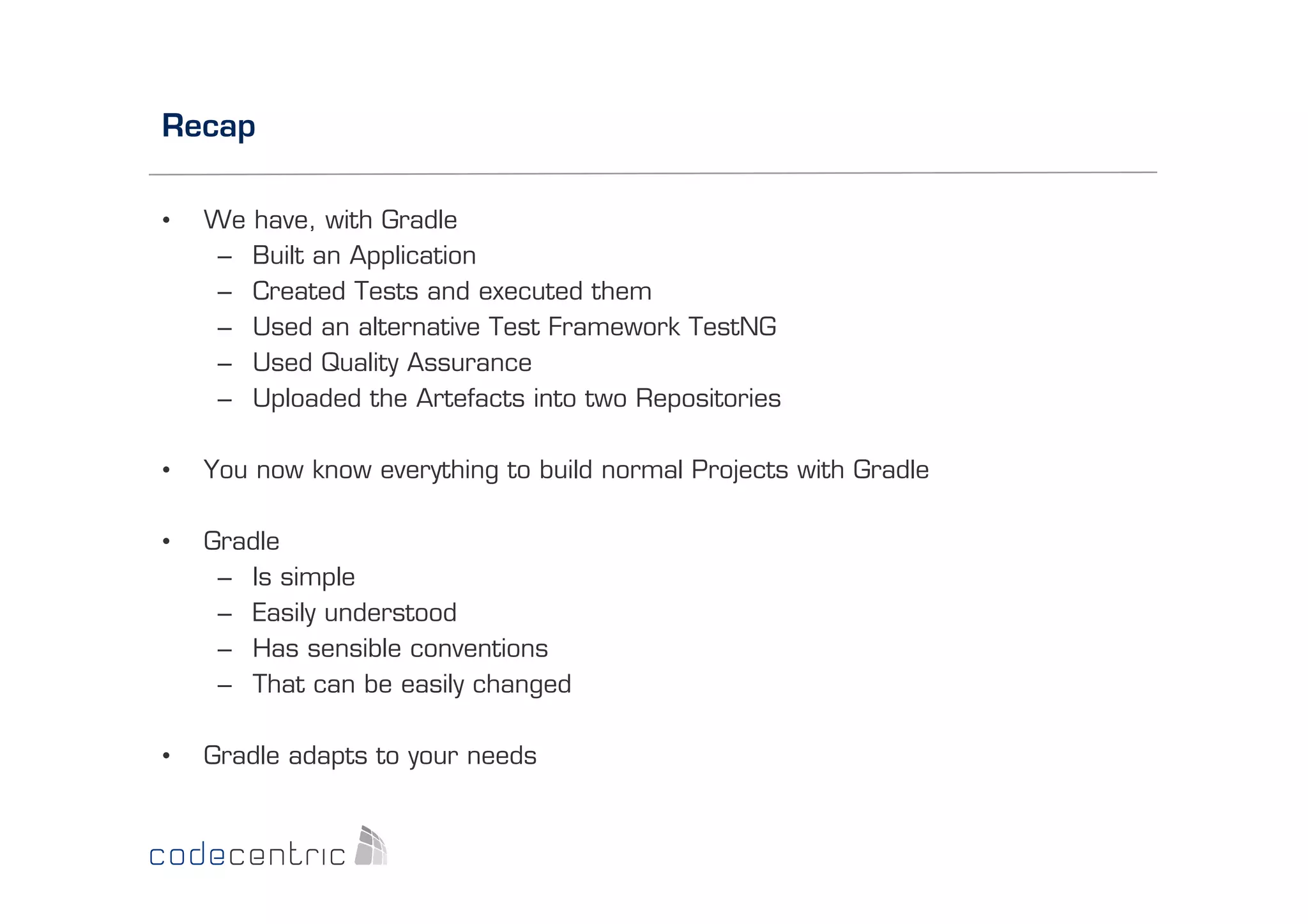

23. Recap
•
We have, with Gradle
– Built an Application
– Created Tests and executed them
– Used an alternative Test Framework TestNG
– Used Quality Assurance
– Uploaded the Artefacts into two Repositories
•
You now know everything to build normal Projects with Gradle
•
Gradle
– Is simple
– Easily understood
– Has sensible conventions
– That can be easily changed
•
Gradle adapts to your needs

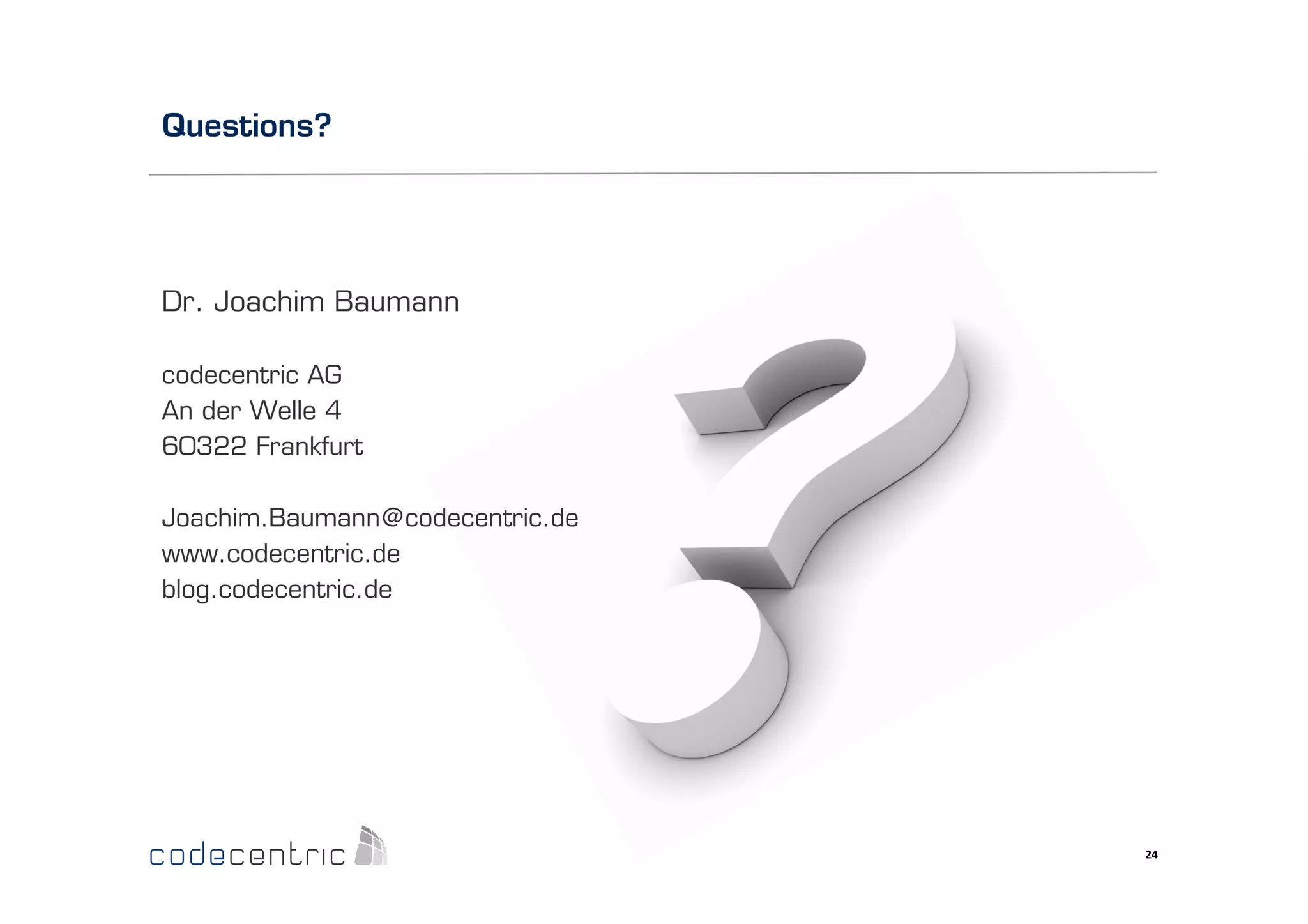

24. Questions?
Dr. Joachim Baumann
codecentric AG
An der Welle 4
60322 Frankfurt
Joachim.Baumann@codecentric.de
www.codecentric.de
blog.codecentric.de
