1. Gradle
Tomek Kaczanowski
http://kaczanowscy.pl/tomek
2010

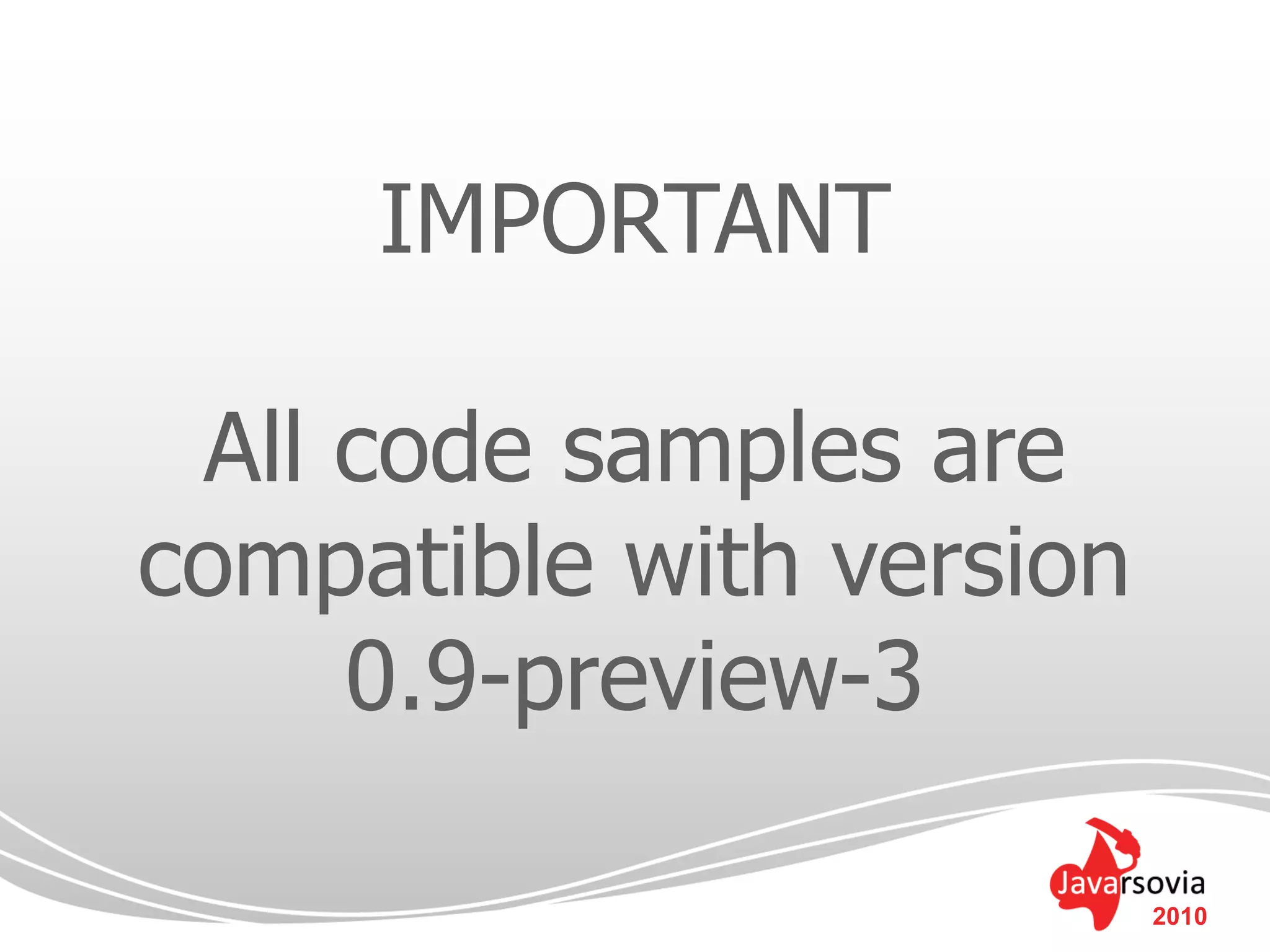

2. IMPORTANT
All code samples are
compatible with version
0.9-preview-3
2010

3. There are
no simple builds
2010

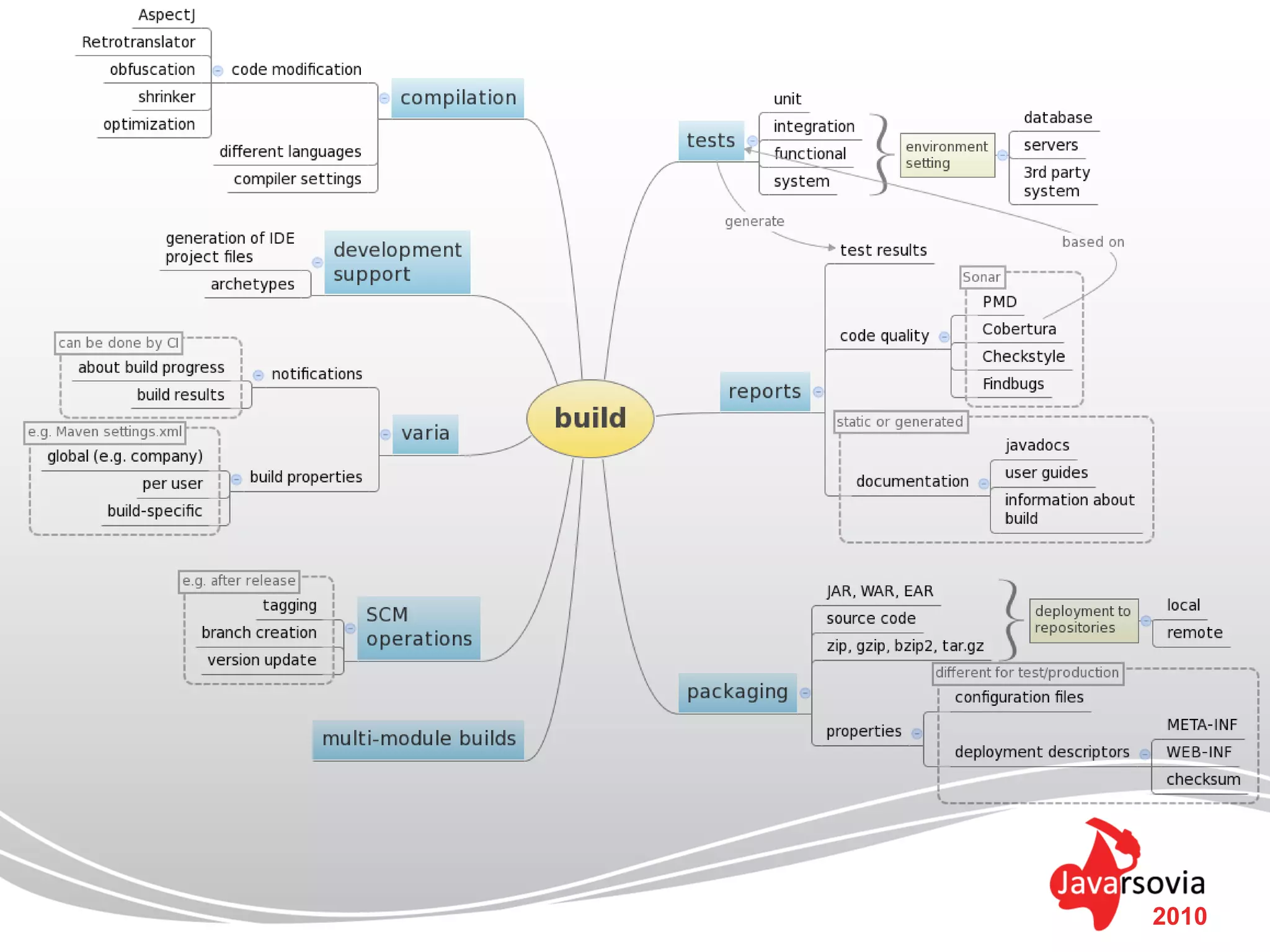

4. 2010

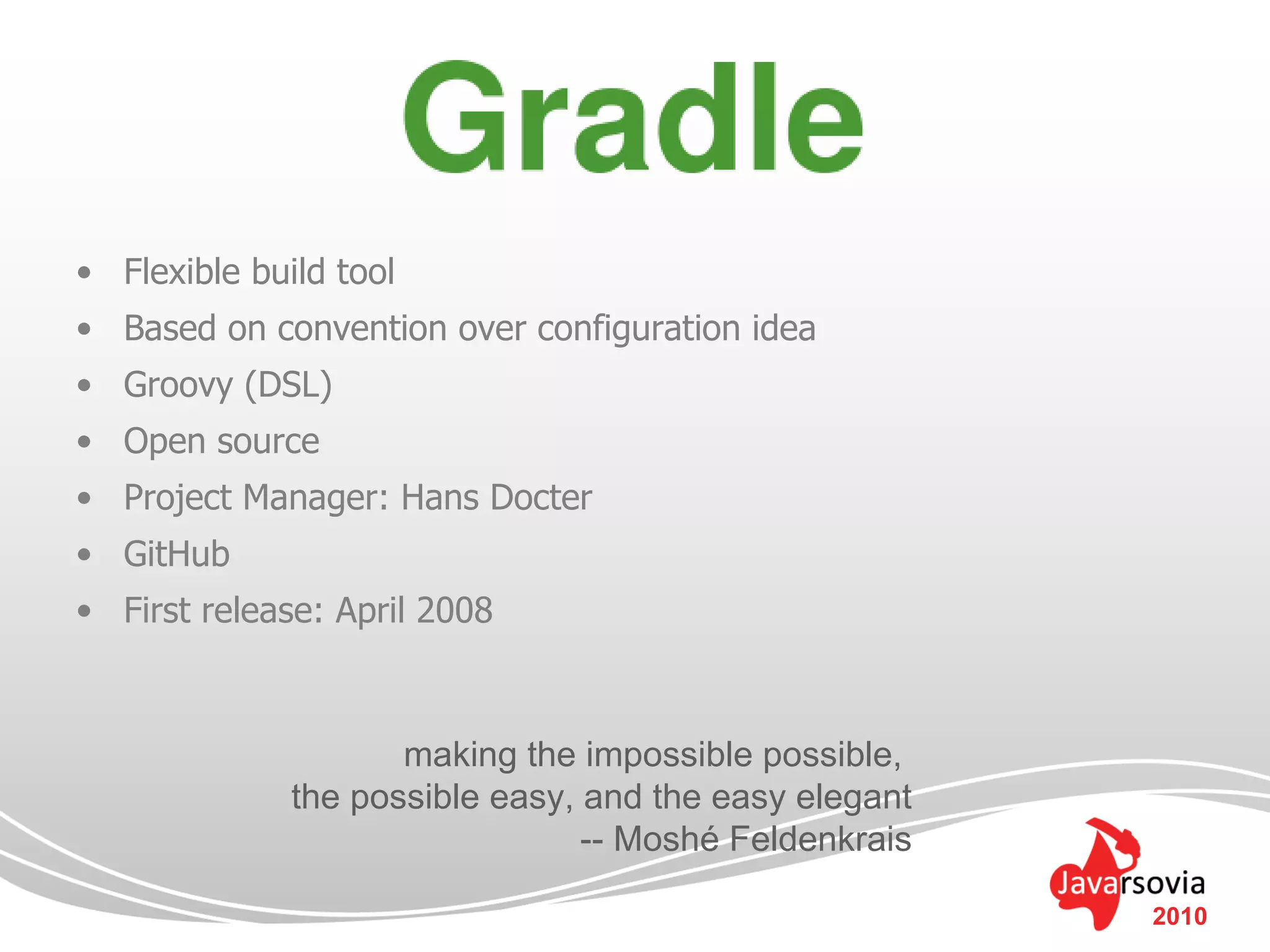

5. • Flexible build tool
• Based on convention over configuration idea
• Groovy (DSL)
• Open source
• Project Manager: Hans Docter
• GitHub
• First release: April 2008
making the impossible possible,
the possible easy, and the easy elegant
-- Moshé Feldenkrais
2010

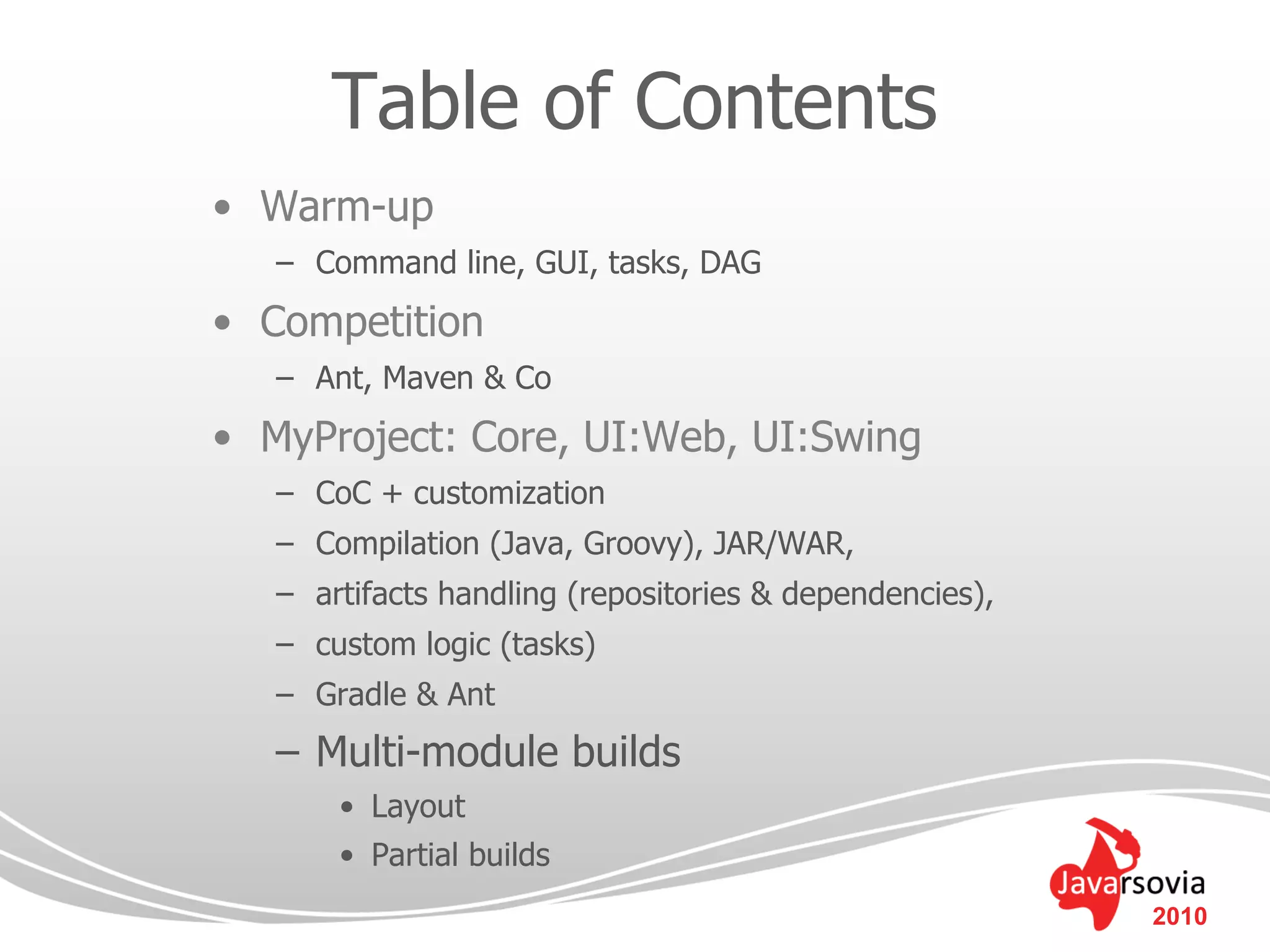

6. Table of Contents
• Warm-up
– Command line, GUI, tasks, DAG

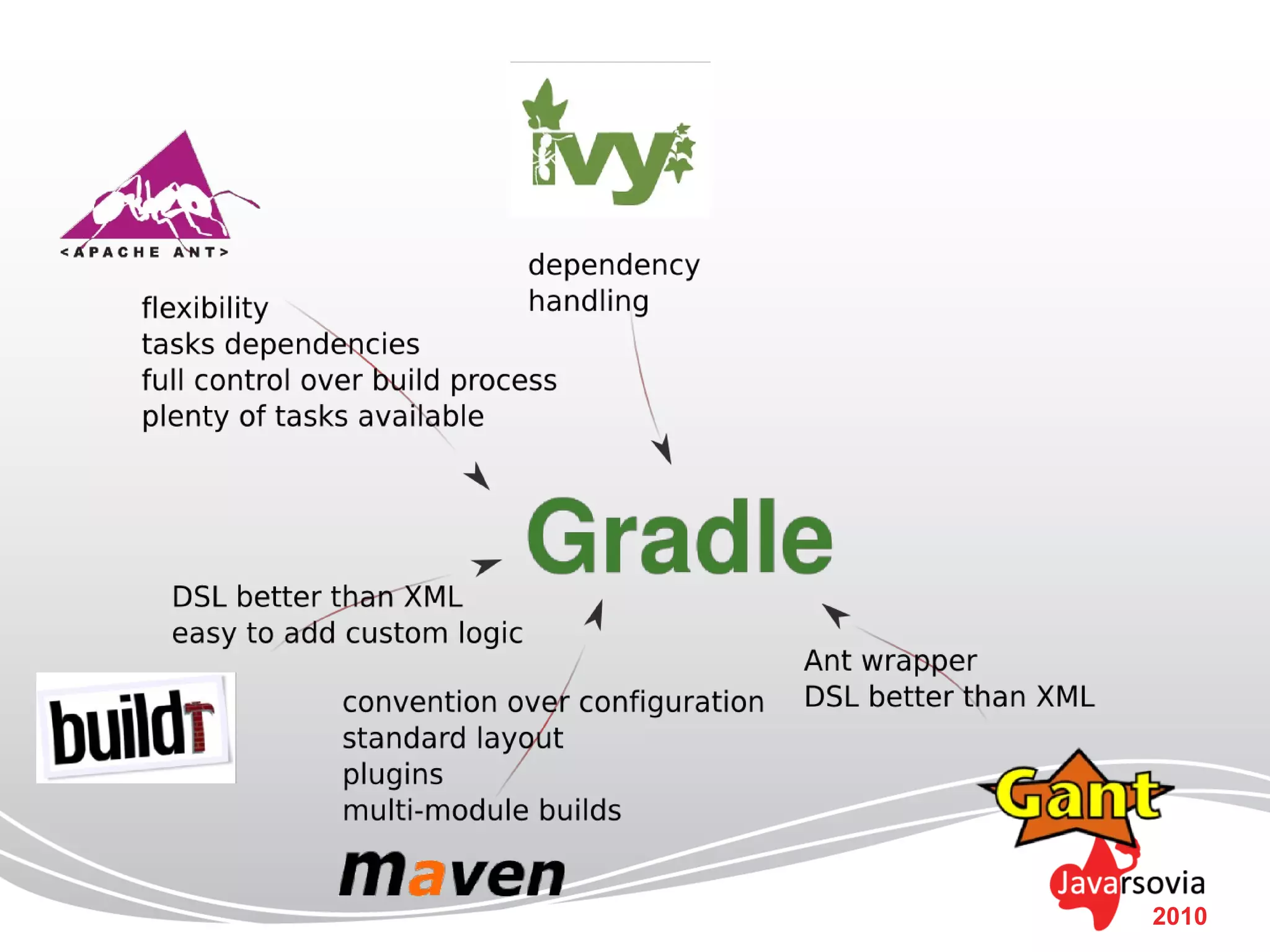

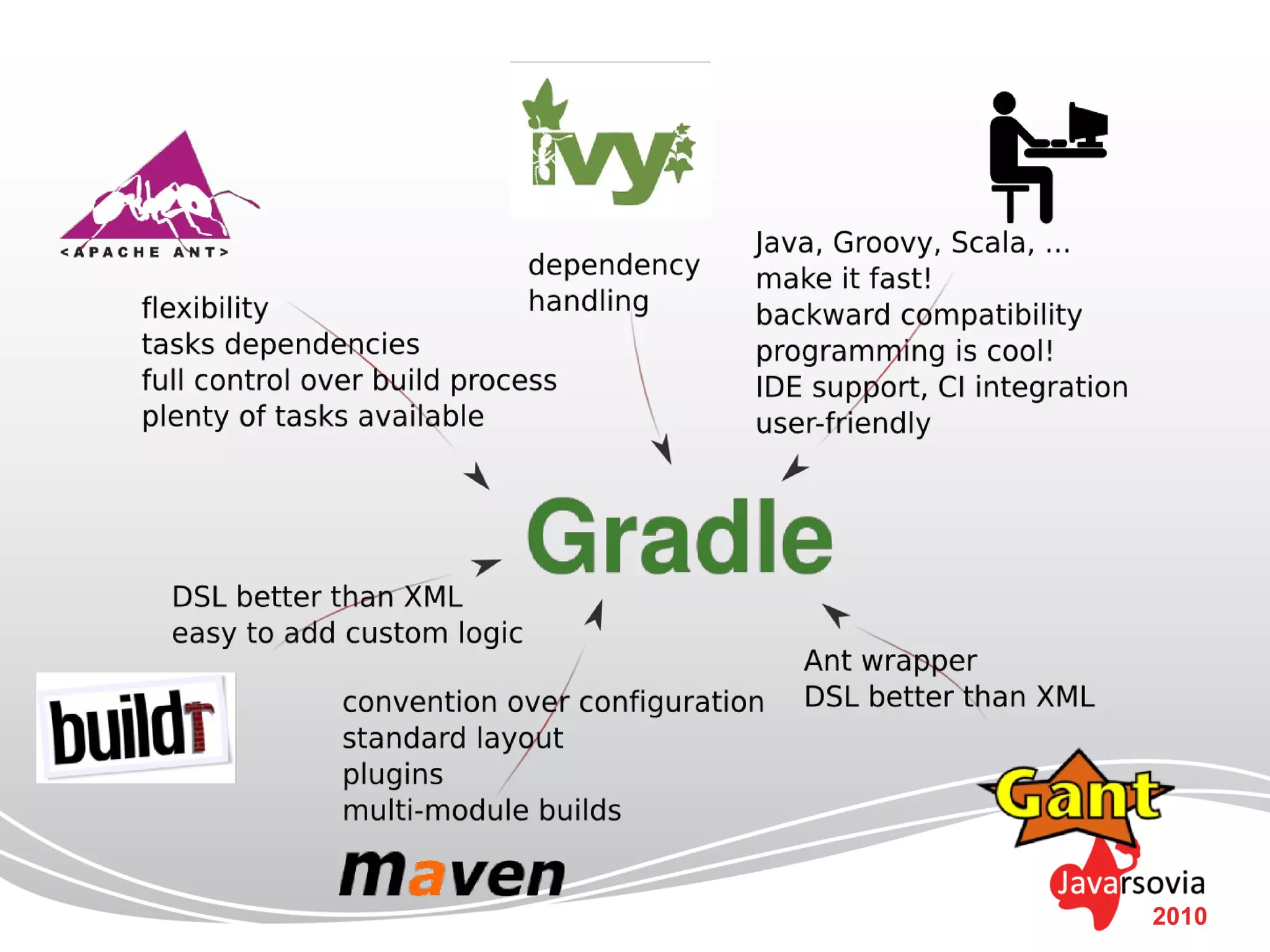

• Competition
– Ant, Maven & Co
• MyProject: Core, UI:Web, UI:Swing
– CoC + customization
– Compilation (Java, Groovy), JAR/WAR,
– artifacts handling (repositories & dependencies),
– custom logic (tasks)
– Gradle & Ant

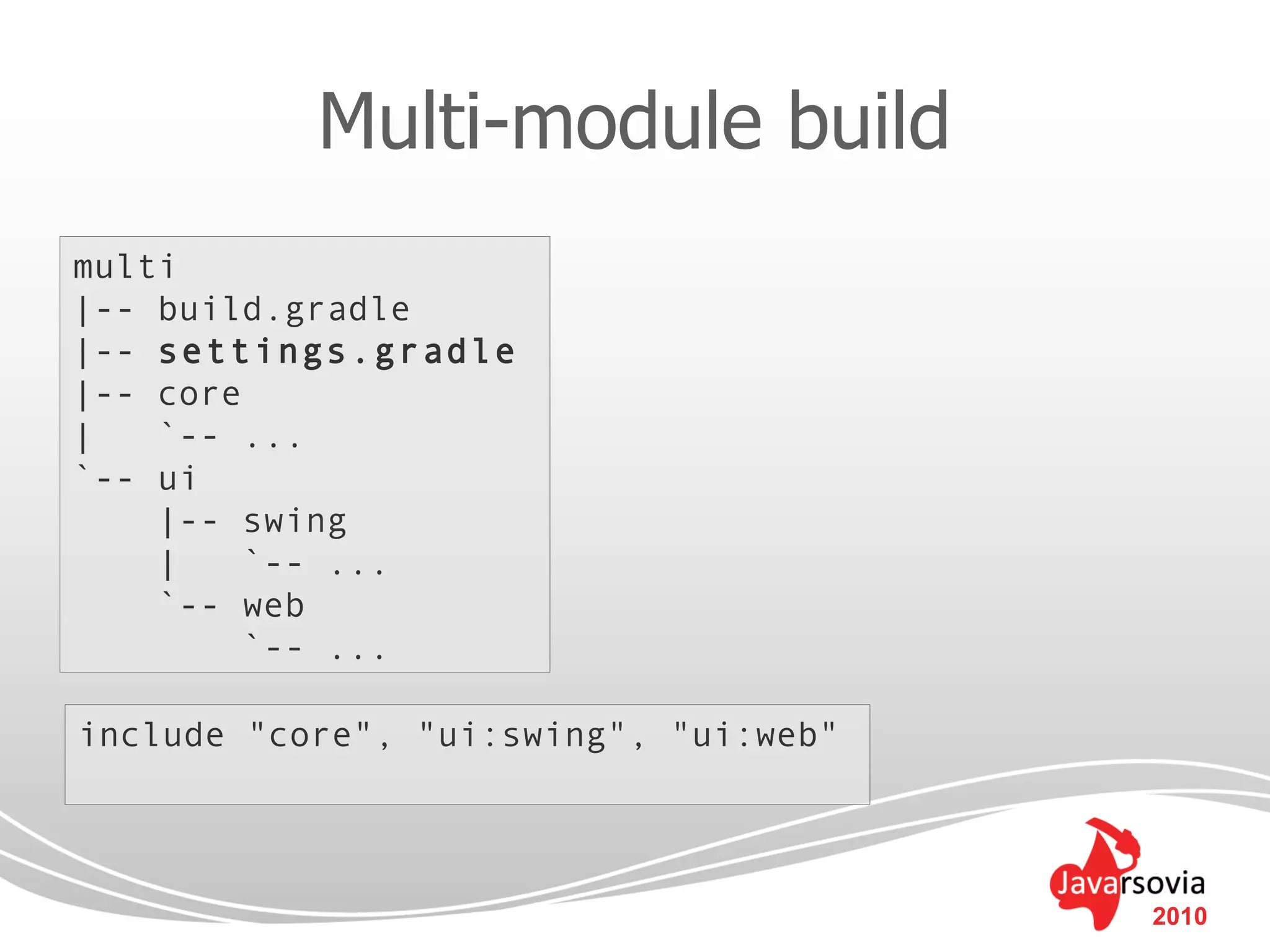

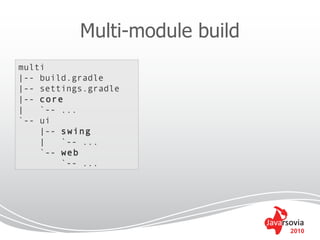

– Multi-module builds
• Layout
• Partial builds
2010

7. Intro
2010

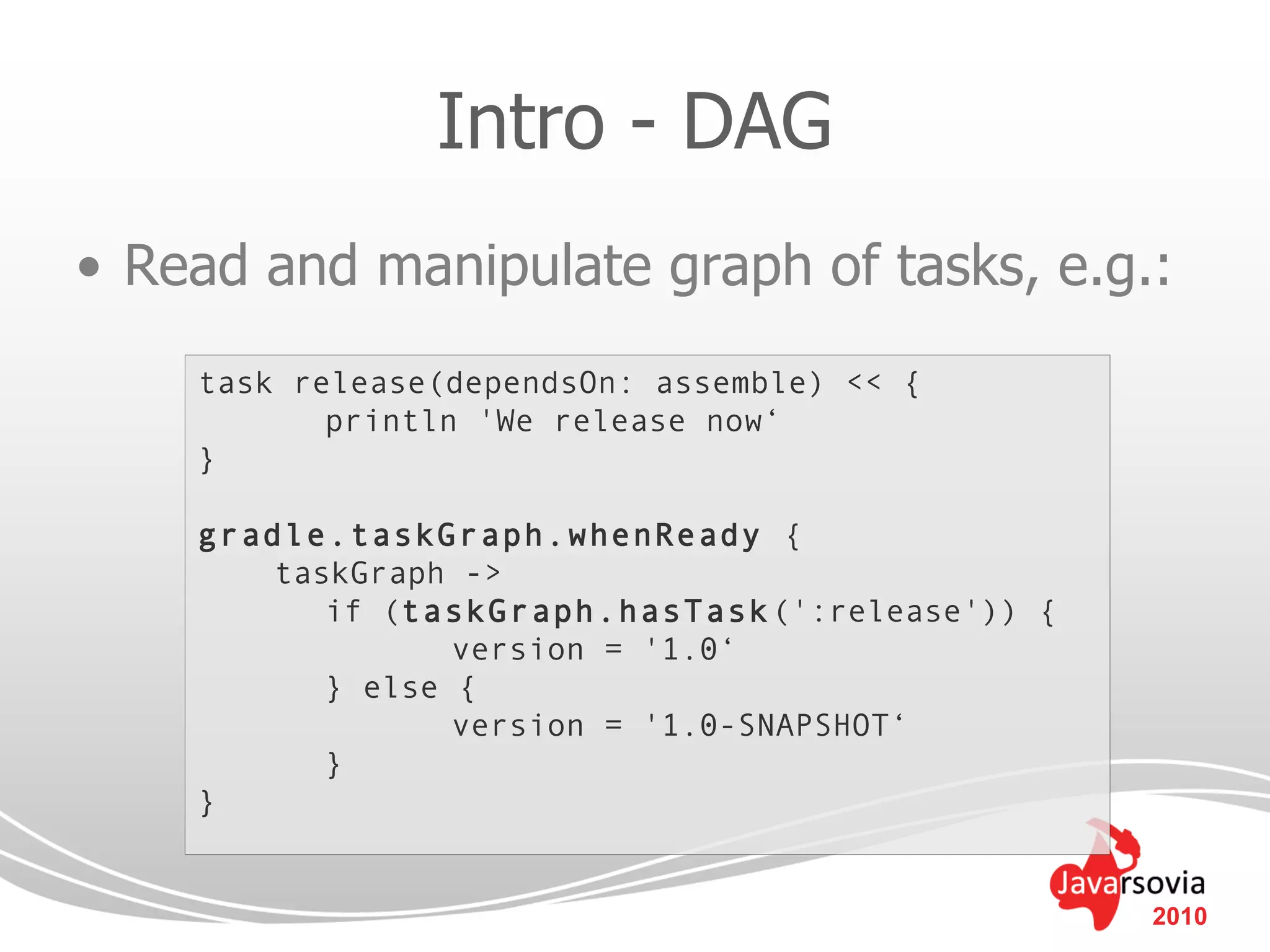

8. Intro - DAG
• Read and manipulate graph of tasks, e.g.:
task release(dependsOn: assemble) << {
println 'We release now‘
}
gradle.taskGraph.whenReady {
taskGraph ->
if (taskGraph.hasTask (':release')) {
version = '1.0‘
} else {
version = '1.0-SNAPSHOT‘
}
}
2010

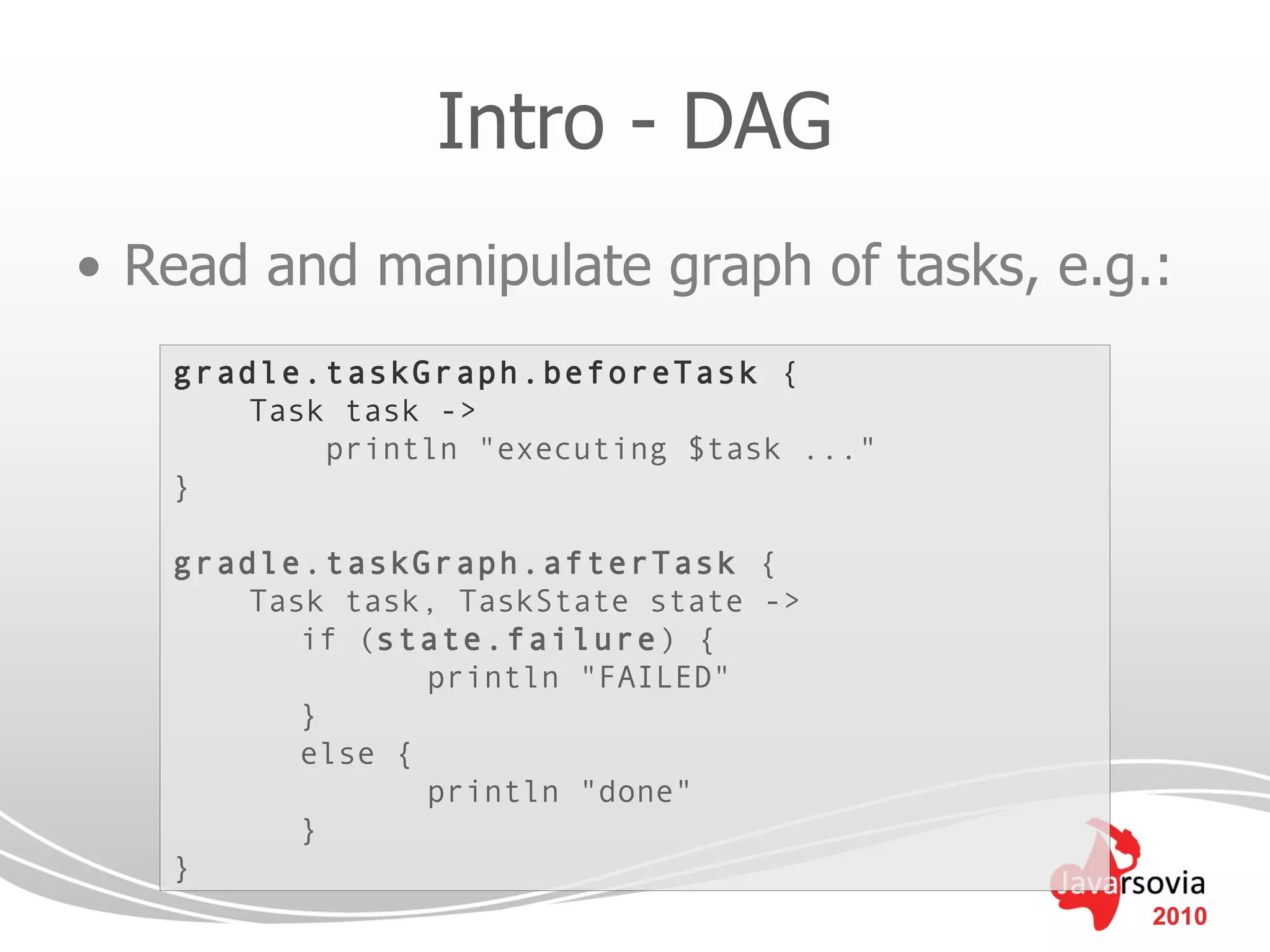

9. Intro - DAG
• Read and manipulate graph of tasks, e.g.:
gradle.taskGraph.beforeTask {
Task task ->
println "executing $task ..."
}
gradle.taskGraph.afterTask {
Task task, TaskState state ->
if (state.failure ) {
println "FAILED"
}
else {
println "done"
}
}
2010

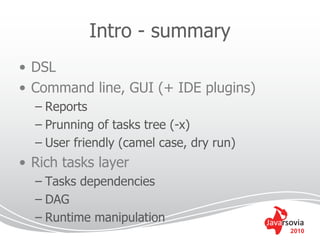

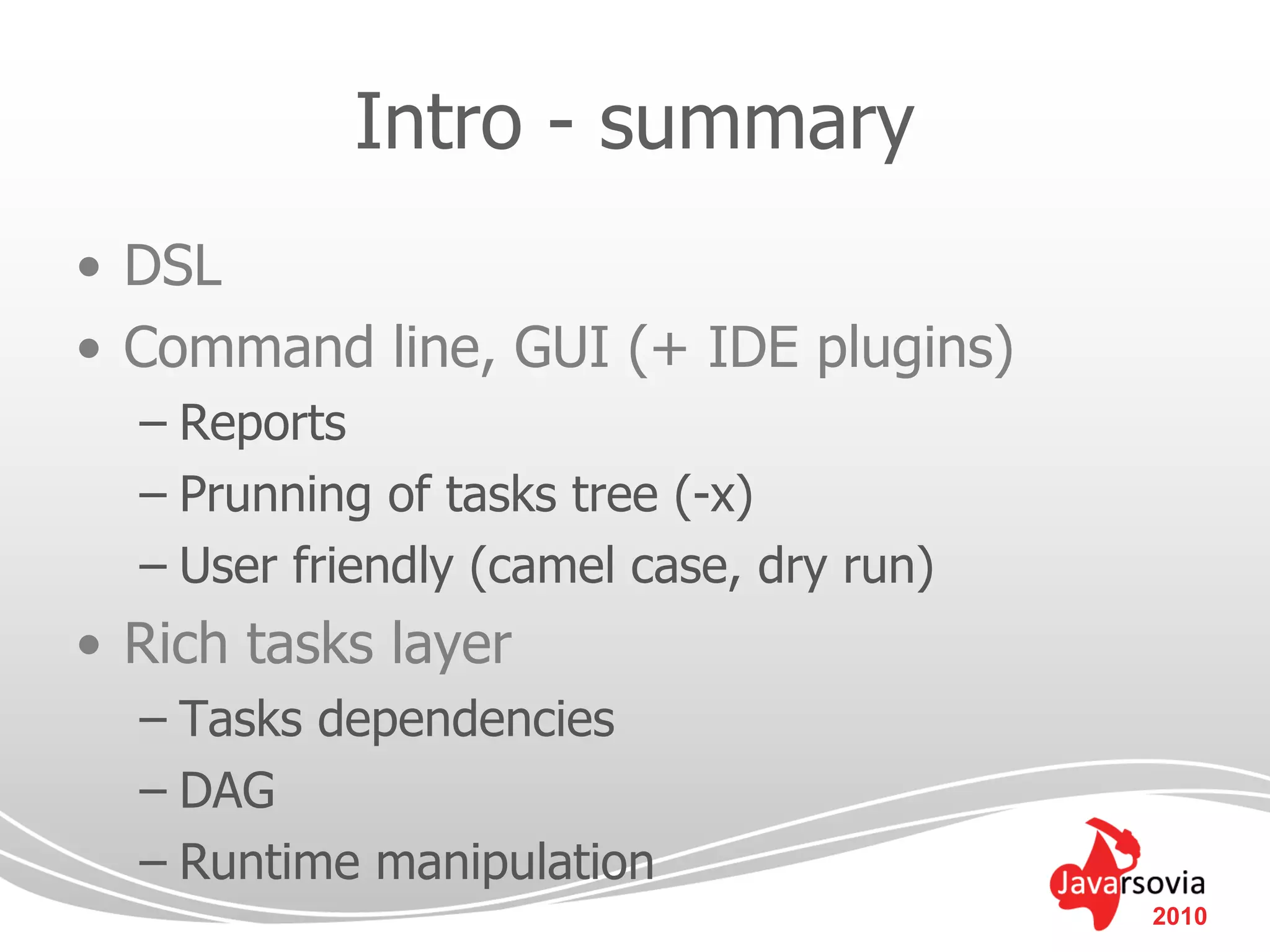

10. Intro - summary
• DSL
• Command line, GUI (+ IDE plugins)
– Reports
– Prunning of tasks tree (-x)
– User friendly (camel case, dry run)
• Rich tasks layer
– Tasks dependencies
– DAG
– Runtime manipulation
2010

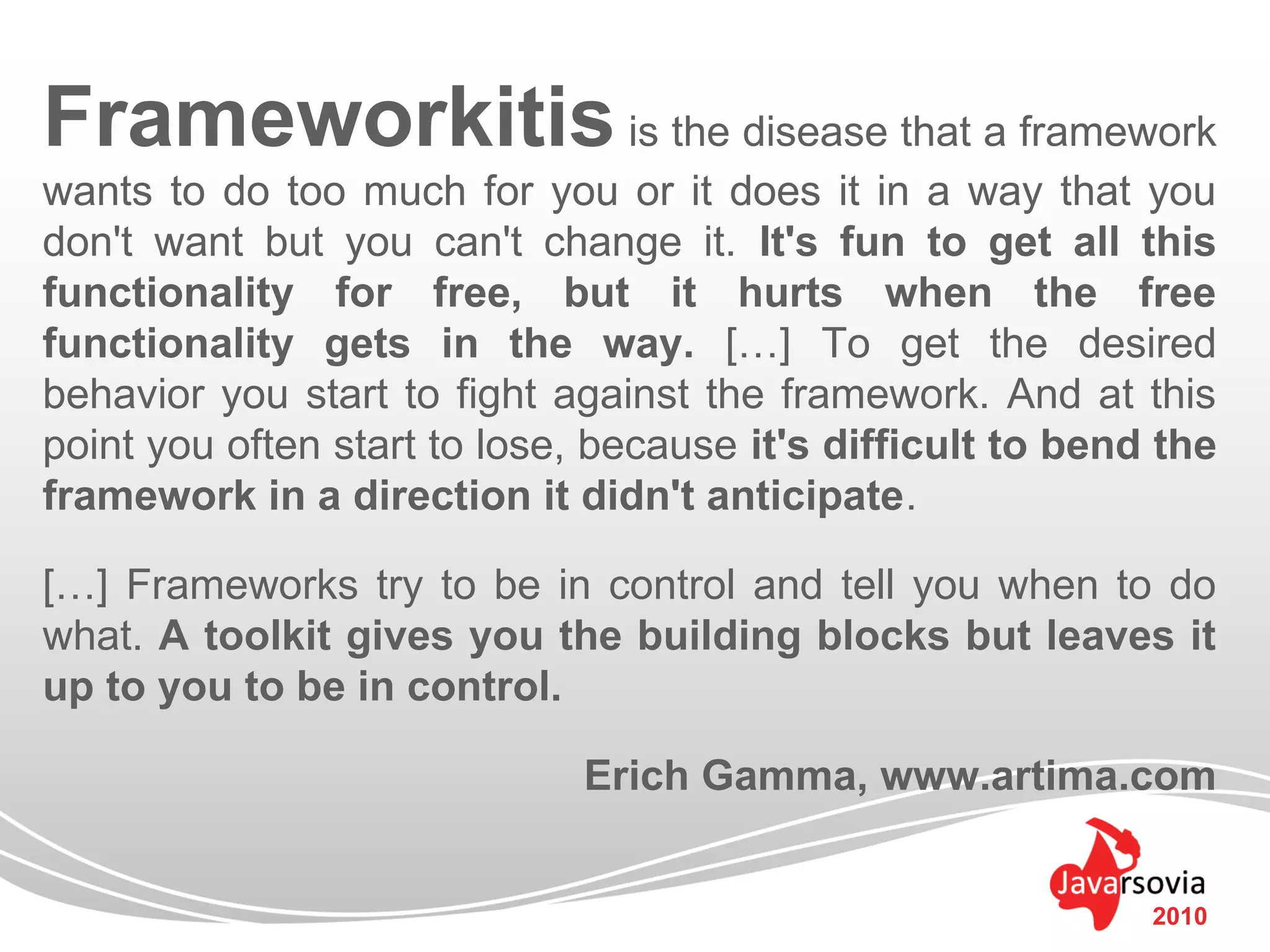

11. Frameworkitis is the disease that a framework
wants to do too much for you or it does it in a way that you
don't want but you can't change it. It's fun to get all this
functionality for free, but it hurts when the free
functionality gets in the way. […] To get the desired
behavior you start to fight against the framework. And at this
point you often start to lose, because it's difficult to bend the
framework in a direction it didn't anticipate.
[…] Frameworks try to be in control and tell you when to do
what. A toolkit gives you the building blocks but leaves it
up to you to be in control.
Erich Gamma, www.artima.com
2010

12. 2010

13. 2010

14. 2010

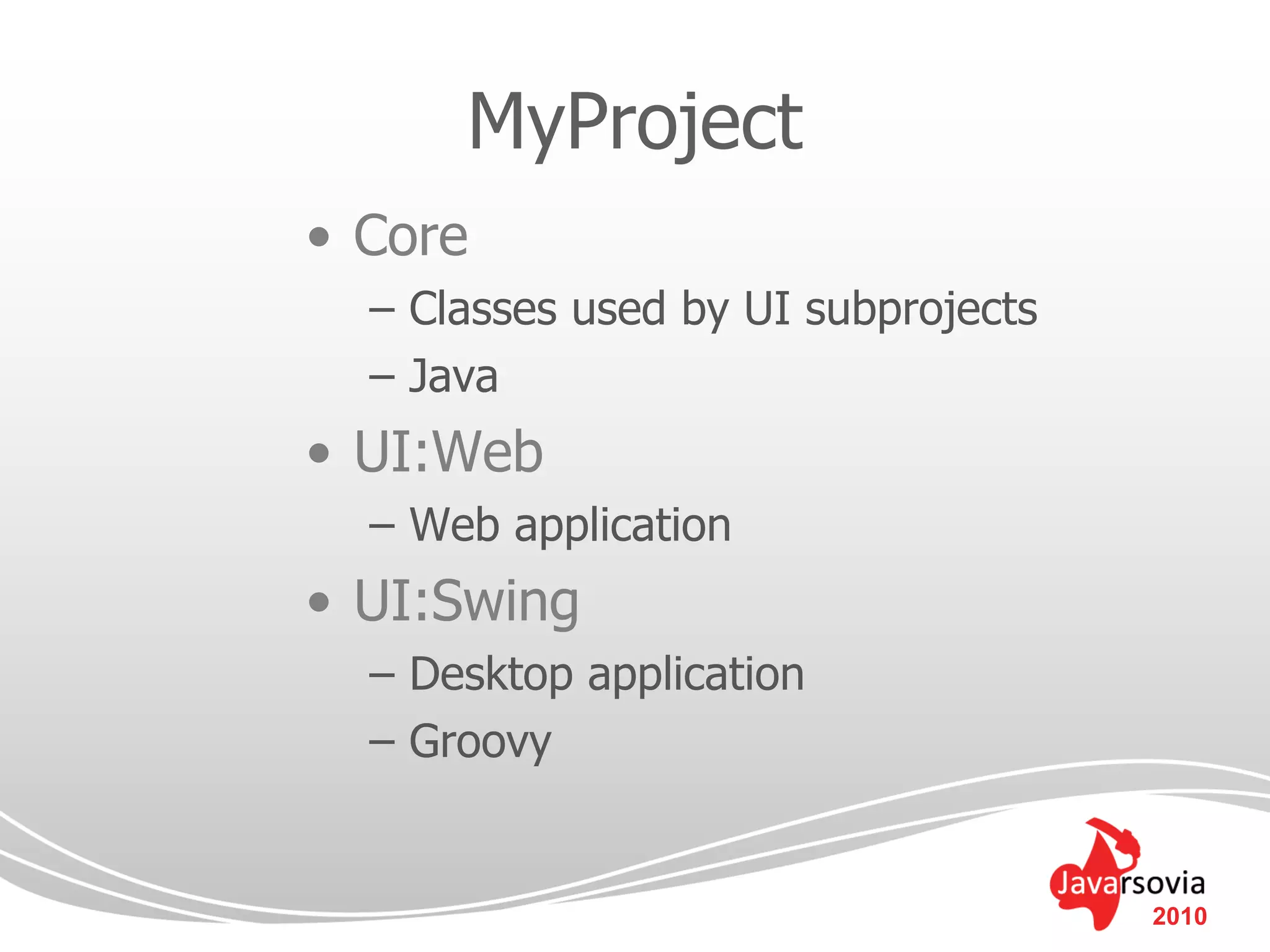

15. MyProject
• Core
– Classes used by UI subprojects
– Java
• UI:Web
– Web application
• UI:Swing
– Desktop application
– Groovy
2010

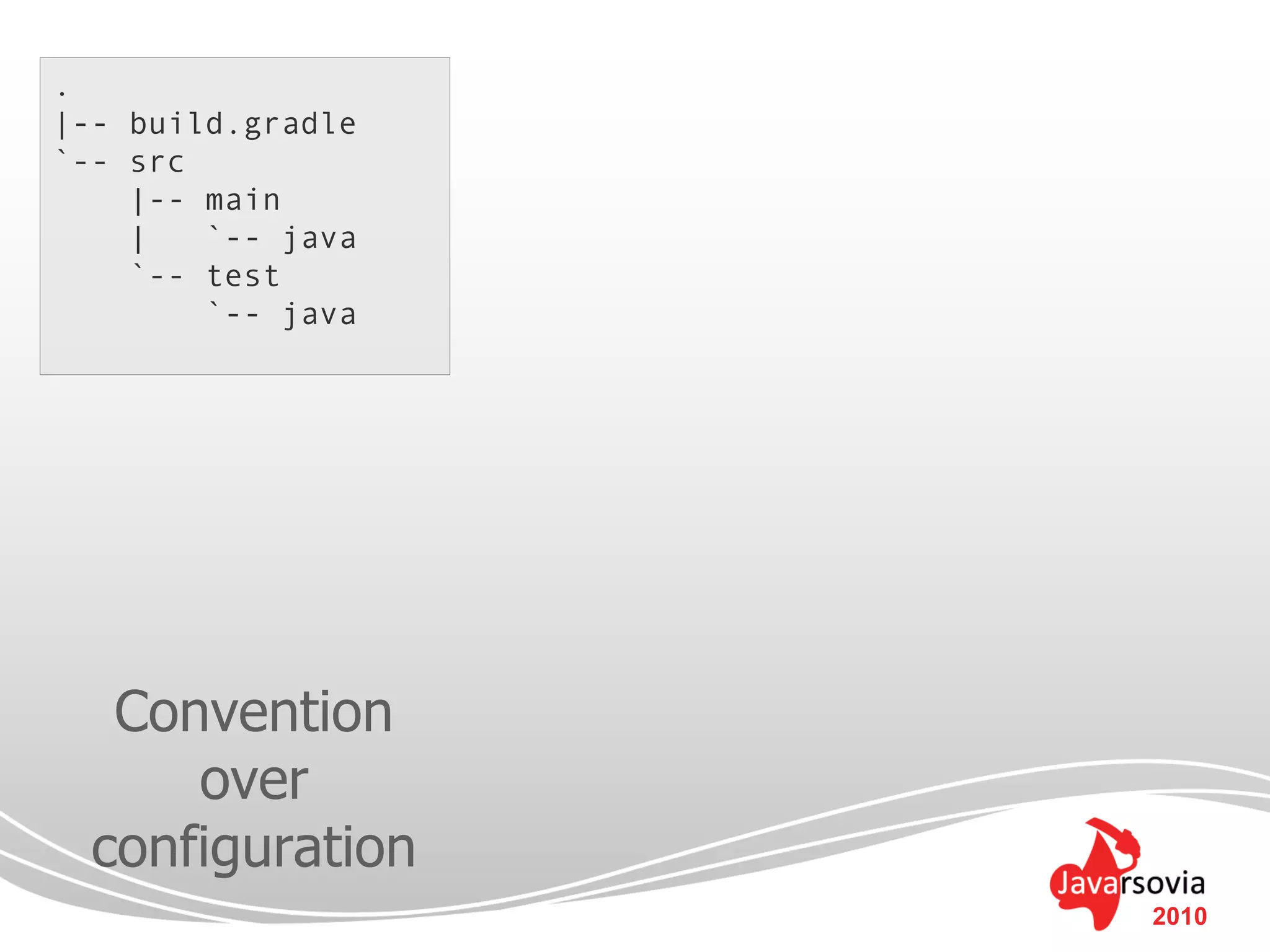

16. .
|-- build.gradle
`-- src
|-- main
| `-- java
`-- test
`-- java
Convention
over
configuration
2010

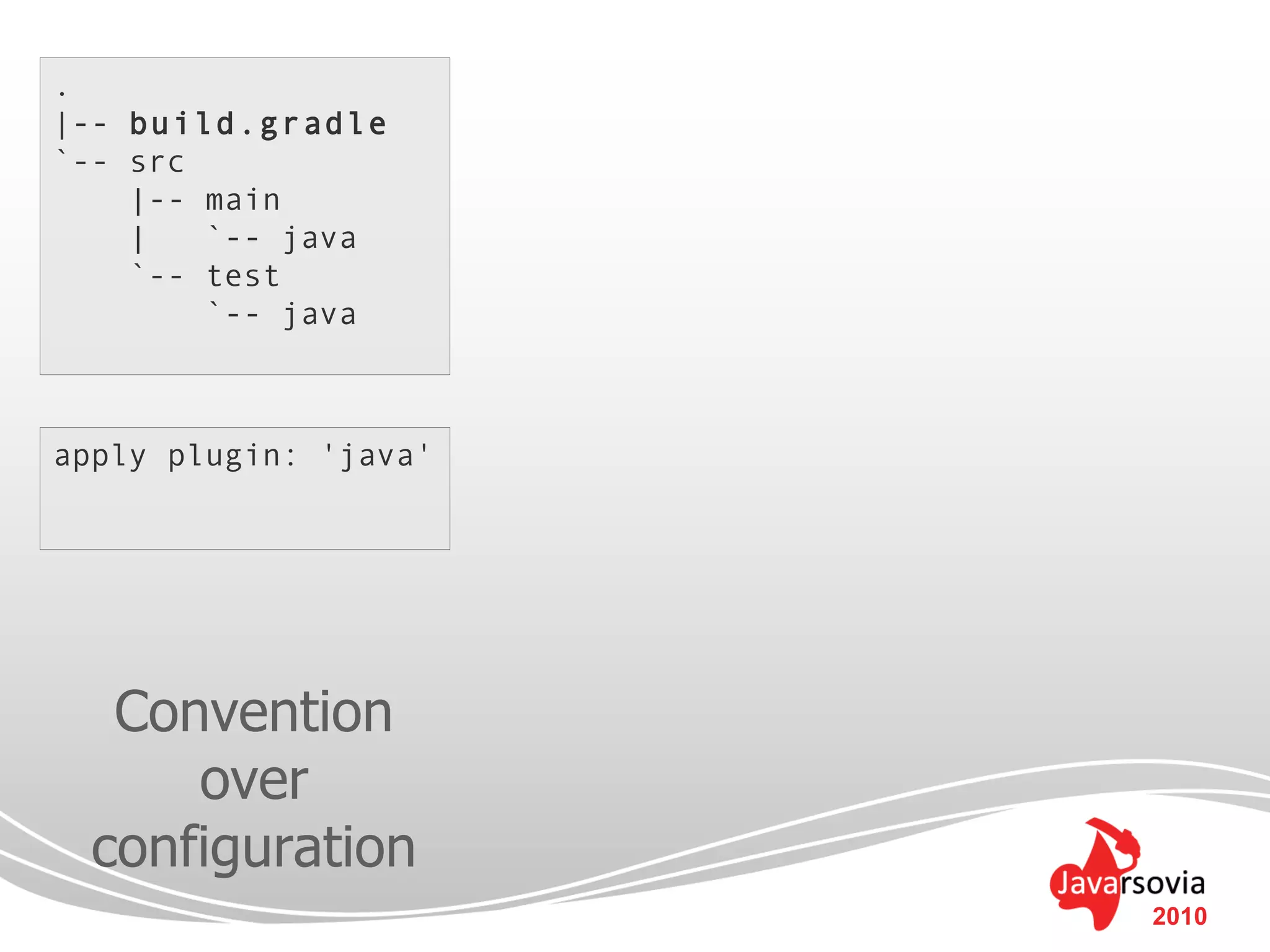

17. .
|-- build.gradle
`-- src
|-- main
| `-- java
`-- test
`-- java
apply plugin: 'java'
Convention
over
configuration
2010

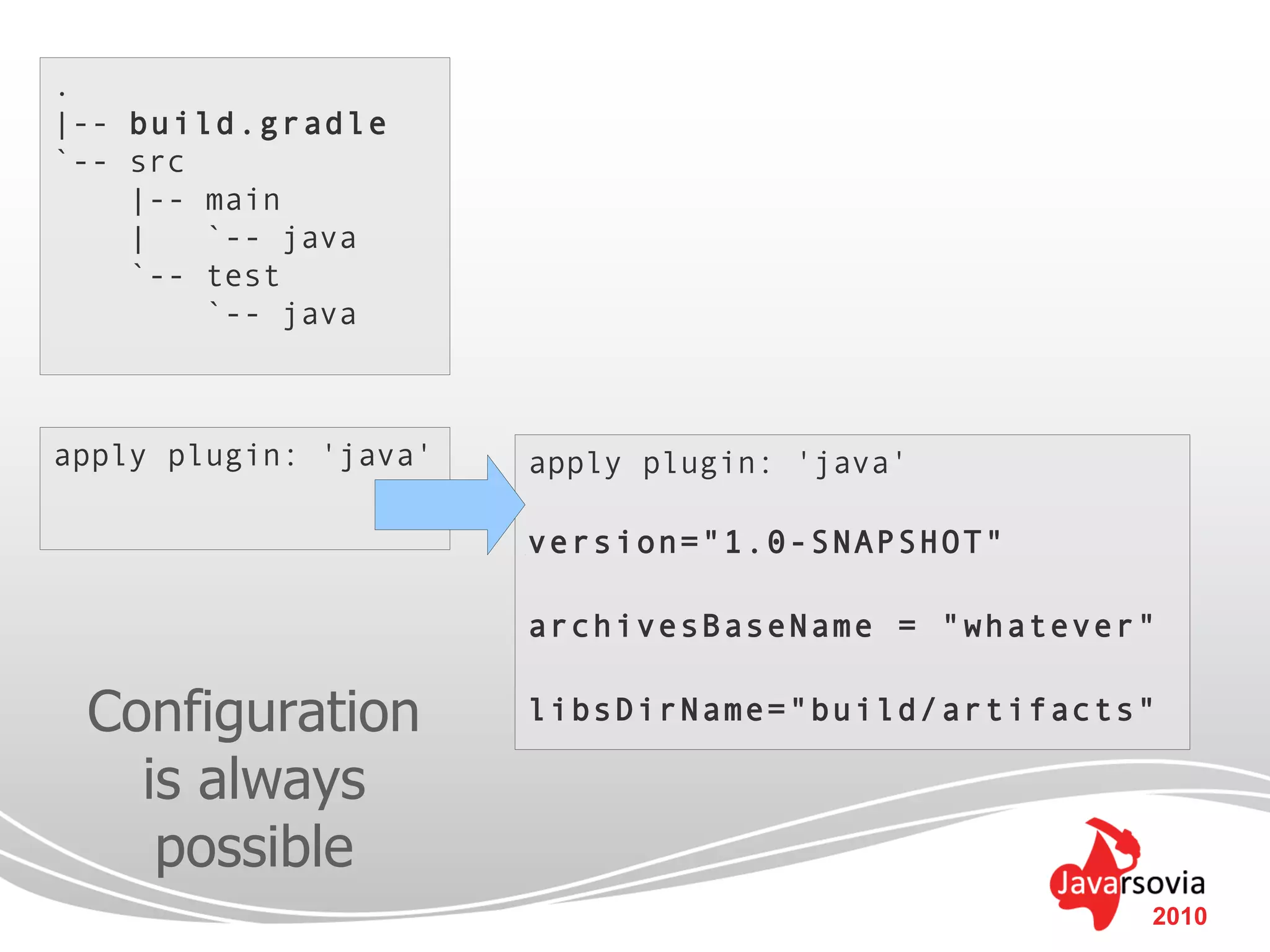

18. .
|-- build.gradle
`-- src
|-- main
| `-- java
`-- test
`-- java
apply plugin: 'java' apply plugin: 'java'
version="1.0-SNAPSHOT"
archivesBaseName = "whatever"
Configuration libsDirName="build/artifacts"
is always
possible
2010

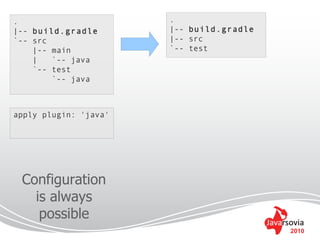

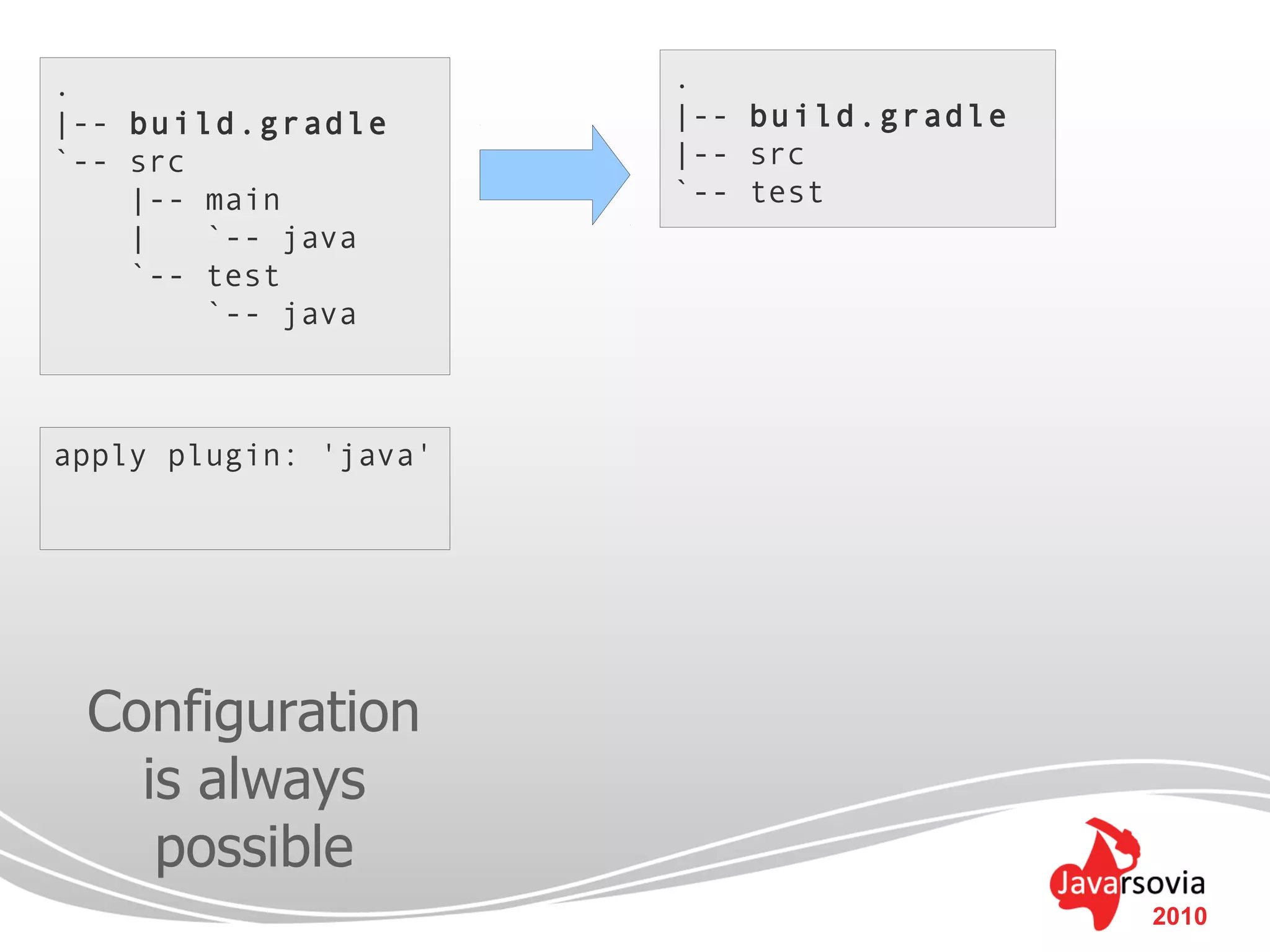

19. . .
|-- build.gradle |-- build.gradle
`-- src |-- src
|-- main `-- test
| `-- java
`-- test
`-- java
apply plugin: 'java'
Configuration
is always
possible
2010

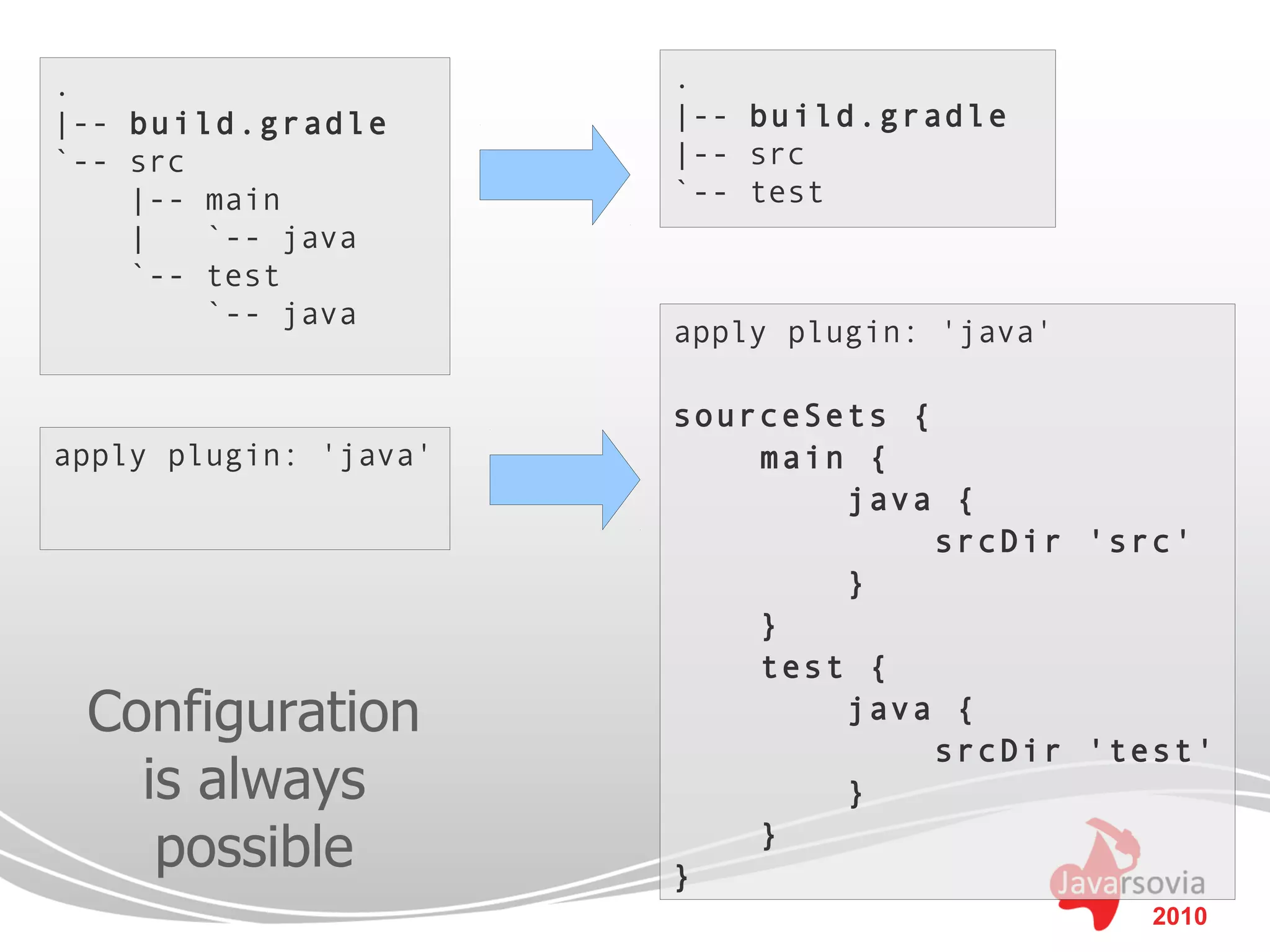

20. . .
|-- build.gradle |-- build.gradle
`-- src |-- src
|-- main `-- test
| `-- java
`-- test
`-- java
apply plugin: 'java'
sourceSets {
apply plugin: 'java' main {
java {
srcDir 'src'
}
}
test {
Configuration java {
srcDir 'test'
is always }
possible }
}
2010

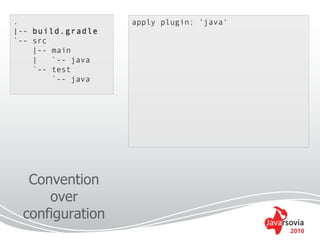

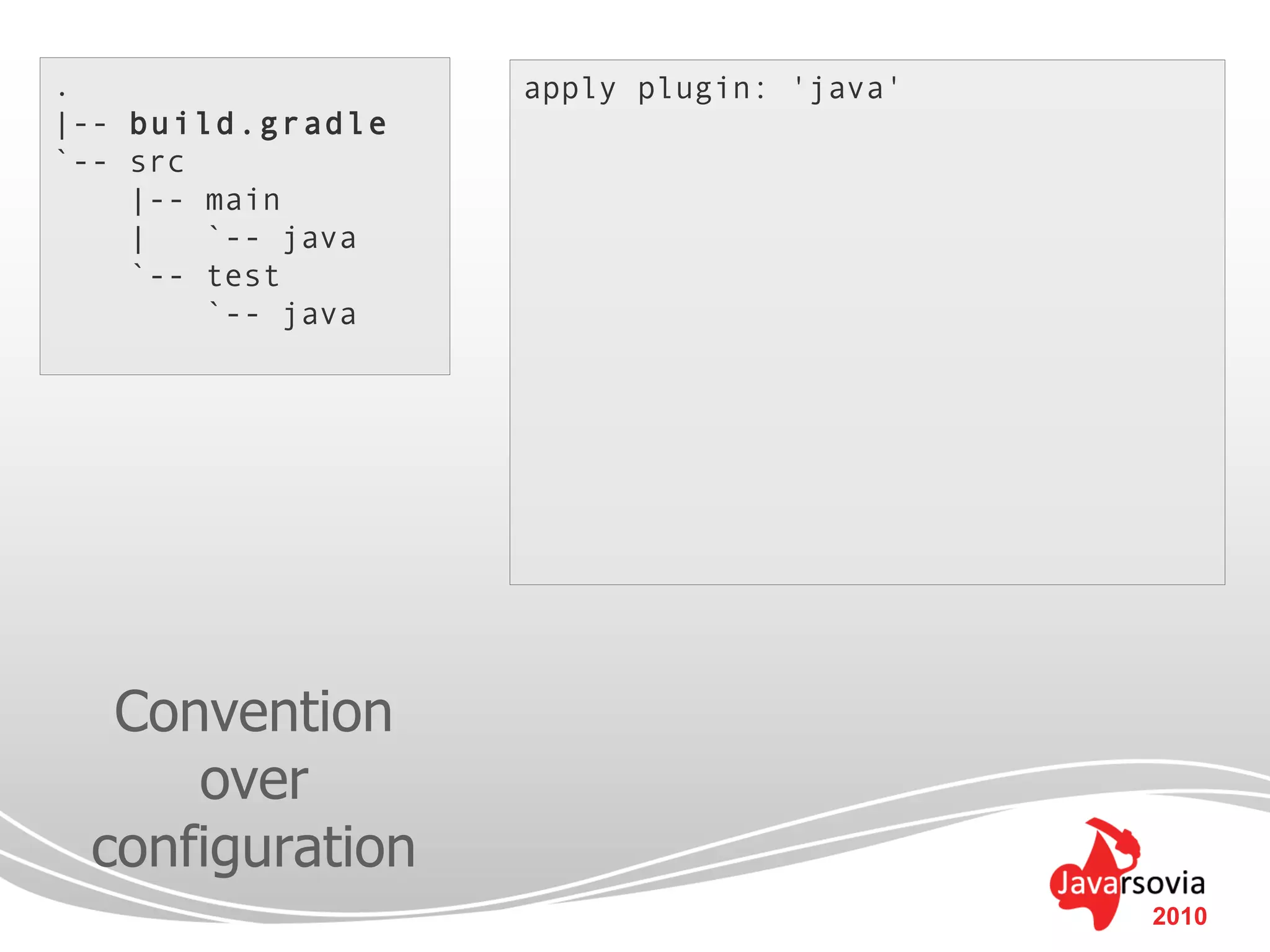

21. . apply plugin: 'java'
|-- build.gradle
`-- src
|-- main
| `-- java
`-- test
`-- java
Convention
over
configuration
2010

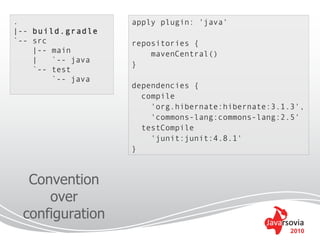

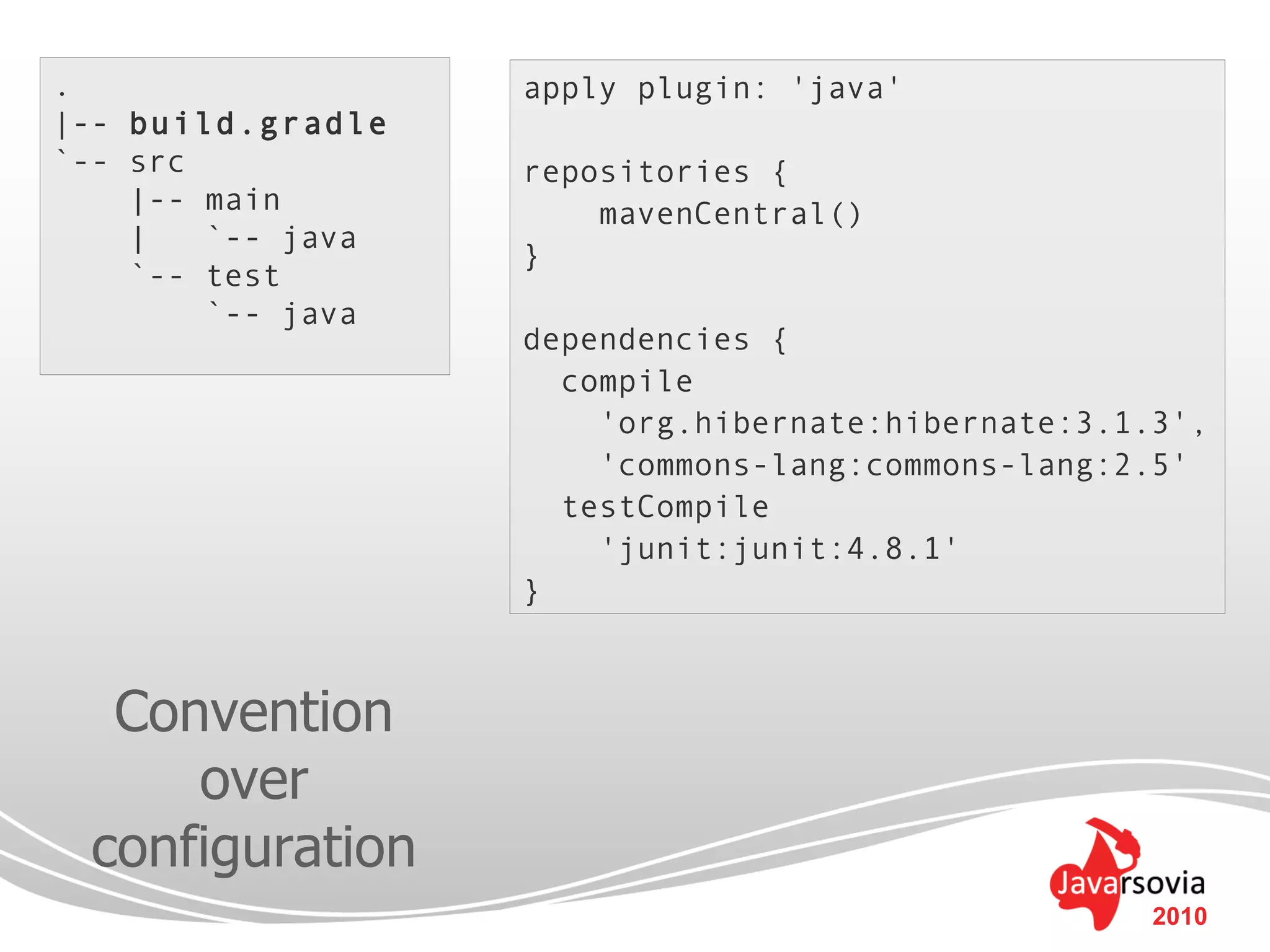

22. . apply plugin: 'java'
|-- build.gradle
`-- src repositories {
|-- main mavenCentral()
| `-- java
}
`-- test
`-- java
dependencies {
compile
'org.hibernate:hibernate:3.1.3',
'commons-lang:commons-lang:2.5'
testCompile
'junit:junit:4.8.1'
}
Convention
over
configuration
2010

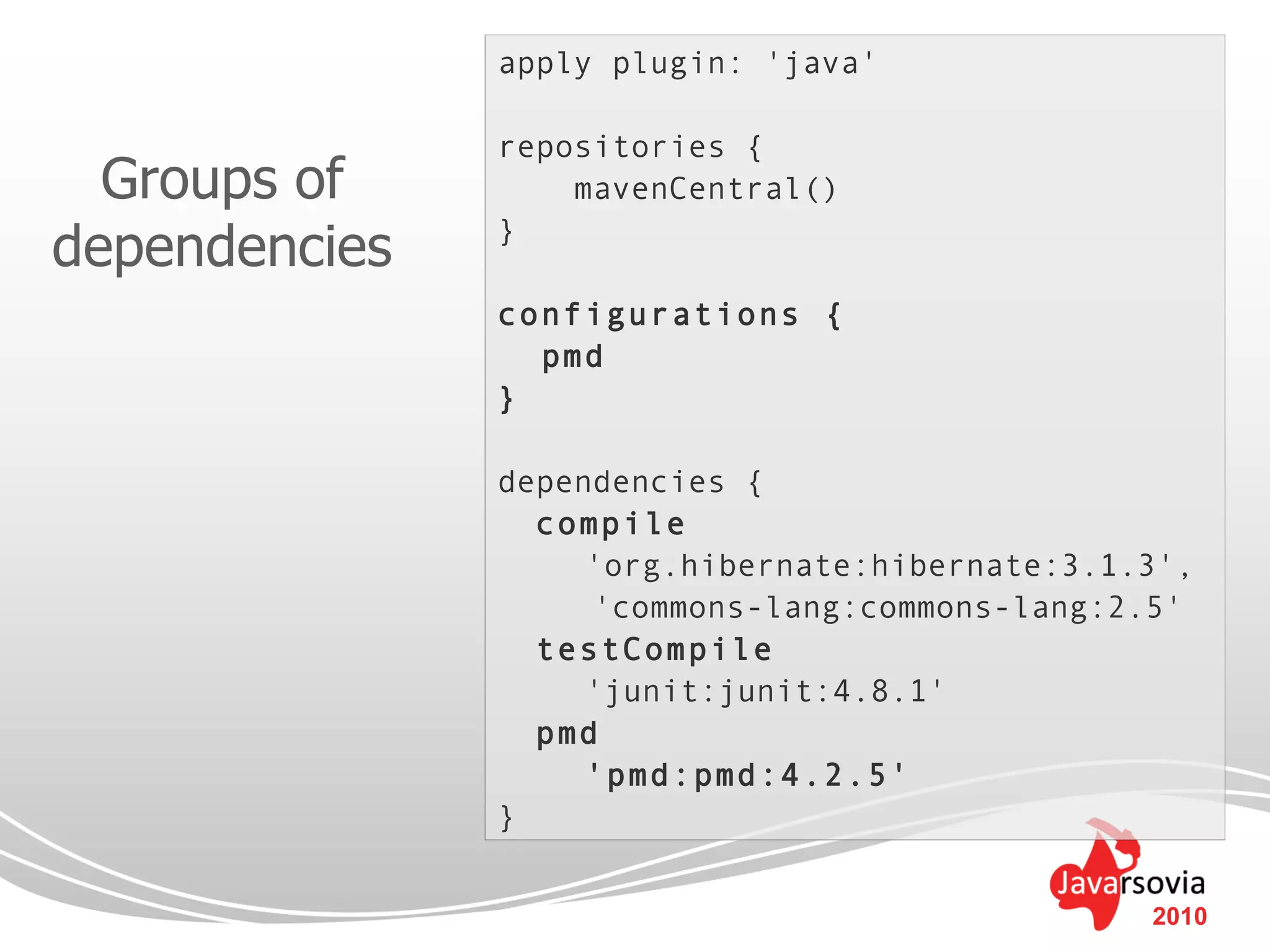

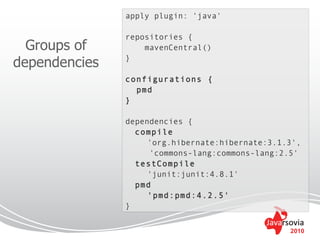

23. apply plugin: 'java'
repositories {
Groups of mavenCentral()
dependencies }
configurations {
pmd
}
dependencies {
compile
'org.hibernate:hibernate:3.1.3',
'commons-lang:commons-lang:2.5'
testCompile
'junit:junit:4.8.1'
pmd
'pmd:pmd:4.2.5'
}
2010

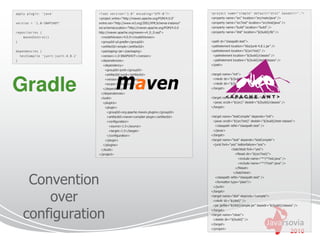

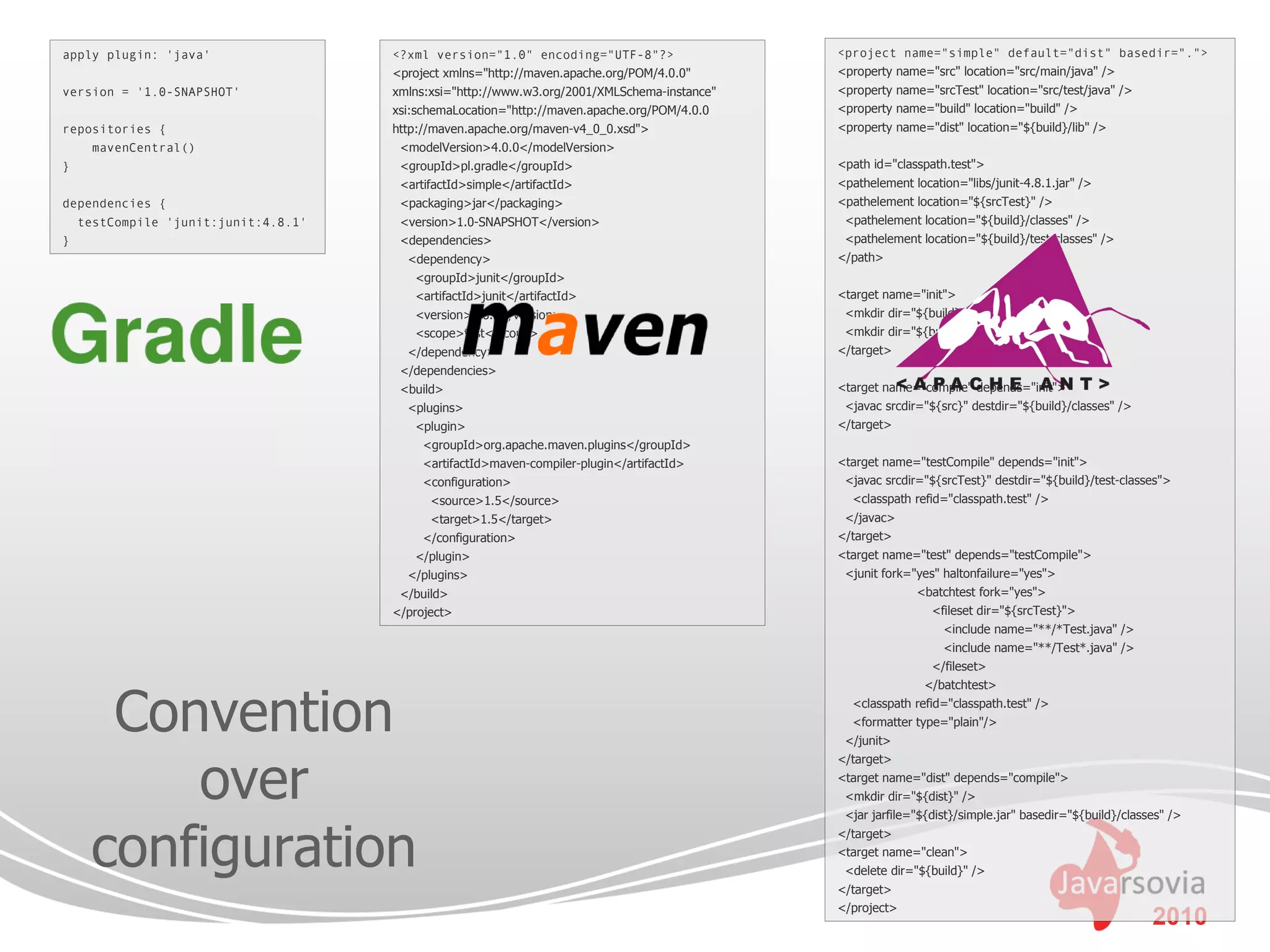

24. apply plugin: 'java' <?xml version="1.0" encoding="UTF-8"?> <project name="simple" default="dist" basedir=".">
<project xmlns="http://maven.apache.org/POM/4.0.0" <property name="src" location="src/main/java" />
version = '1.0-SNAPSHOT' xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" <property name="srcTest" location="src/test/java" />
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 <property name="build" location="build" />
repositories { http://maven.apache.org/maven-v4_0_0.xsd"> <property name="dist" location="${build}/lib" />
mavenCentral() <modelVersion>4.0.0</modelVersion>
} <groupId>pl.gradle</groupId> <path id="classpath.test">
<artifactId>simple</artifactId> <pathelement location="libs/junit-4.8.1.jar" />
dependencies { <packaging>jar</packaging> <pathelement location="${srcTest}" />
testCompile 'junit:junit:4.8.1' <version>1.0-SNAPSHOT</version> <pathelement location="${build}/classes" />
} <dependencies> <pathelement location="${build}/test-classes" />
<dependency> </path>
<groupId>junit</groupId>
<artifactId>junit</artifactId> <target name="init">
<version>4.8.1</version> <mkdir dir="${build}/classes" />
<scope>test</scope> <mkdir dir="${build}/test-classes" />
</dependency> </target>
</dependencies>
<build> <target name="compile" depends="init">
<plugins> <javac srcdir="${src}" destdir="${build}/classes" />
<plugin> </target>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId> <target name="testCompile" depends="init">
<configuration> <javac srcdir="${srcTest}" destdir="${build}/test-classes">
<source>1.5</source> <classpath refid="classpath.test" />
<target>1.5</target> </javac>
</configuration> </target>
</plugin> <target name="test" depends="testCompile">
</plugins> <junit fork="yes" haltonfailure="yes">
</build> <batchtest fork="yes">
</project> <fileset dir="${srcTest}">
<include name="**/*Test.java" />
<include name="**/Test*.java" />
</fileset>
Convention
</batchtest>
<classpath refid="classpath.test" />
<formatter type="plain"/>
</junit>
over
</target>
<target name="dist" depends="compile">
<mkdir dir="${dist}" />
<jar jarfile="${dist}/simple.jar" basedir="${build}/classes" />
configuration
</target>
<target name="clean">
<delete dir="${build}" />
</target>
</project>
2010

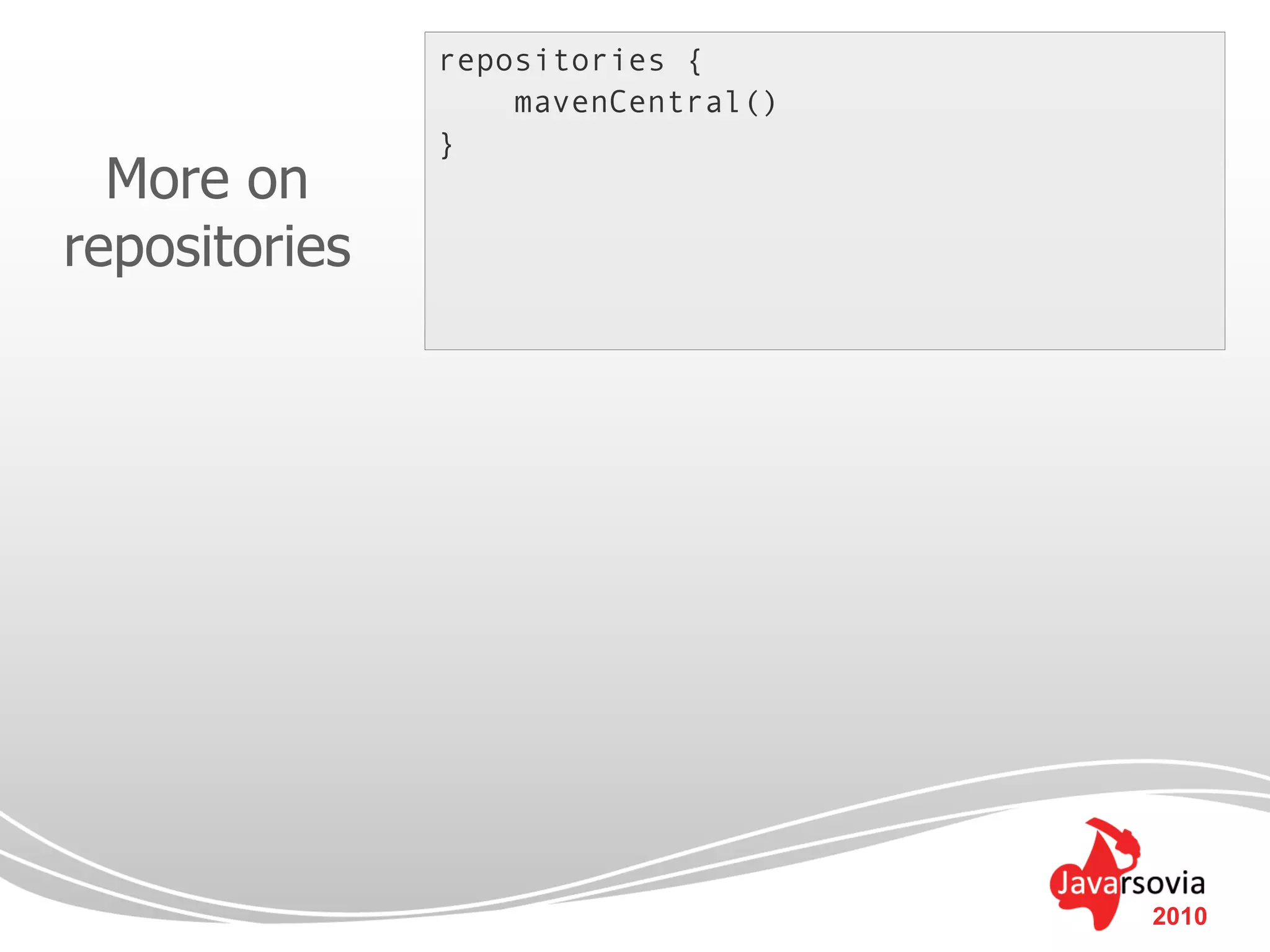

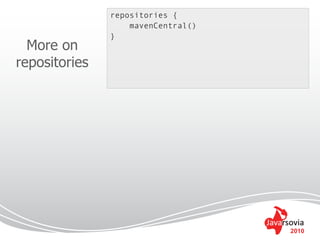

25. repositories {
mavenCentral()
}
More on
repositories
2010

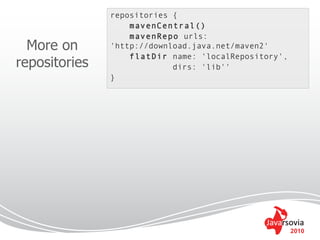

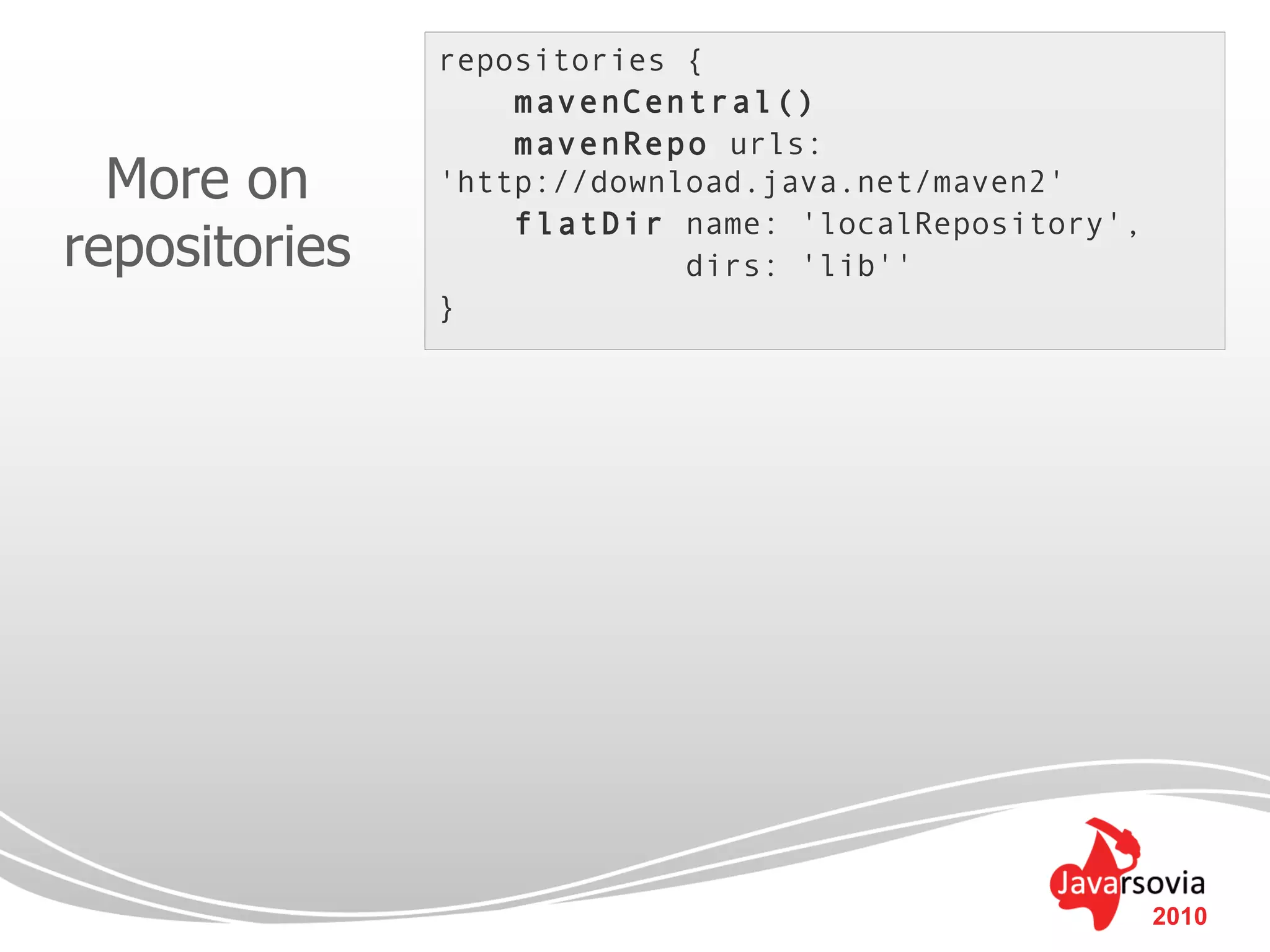

26. repositories {
mavenCentral()
mavenRepo urls:
More on 'http://download.java.net/maven2'
flatDir name: 'localRepository',
repositories dirs: 'lib''
}
2010

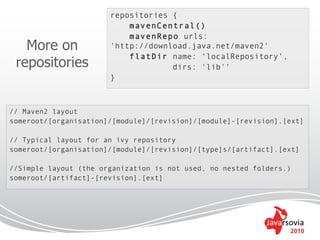

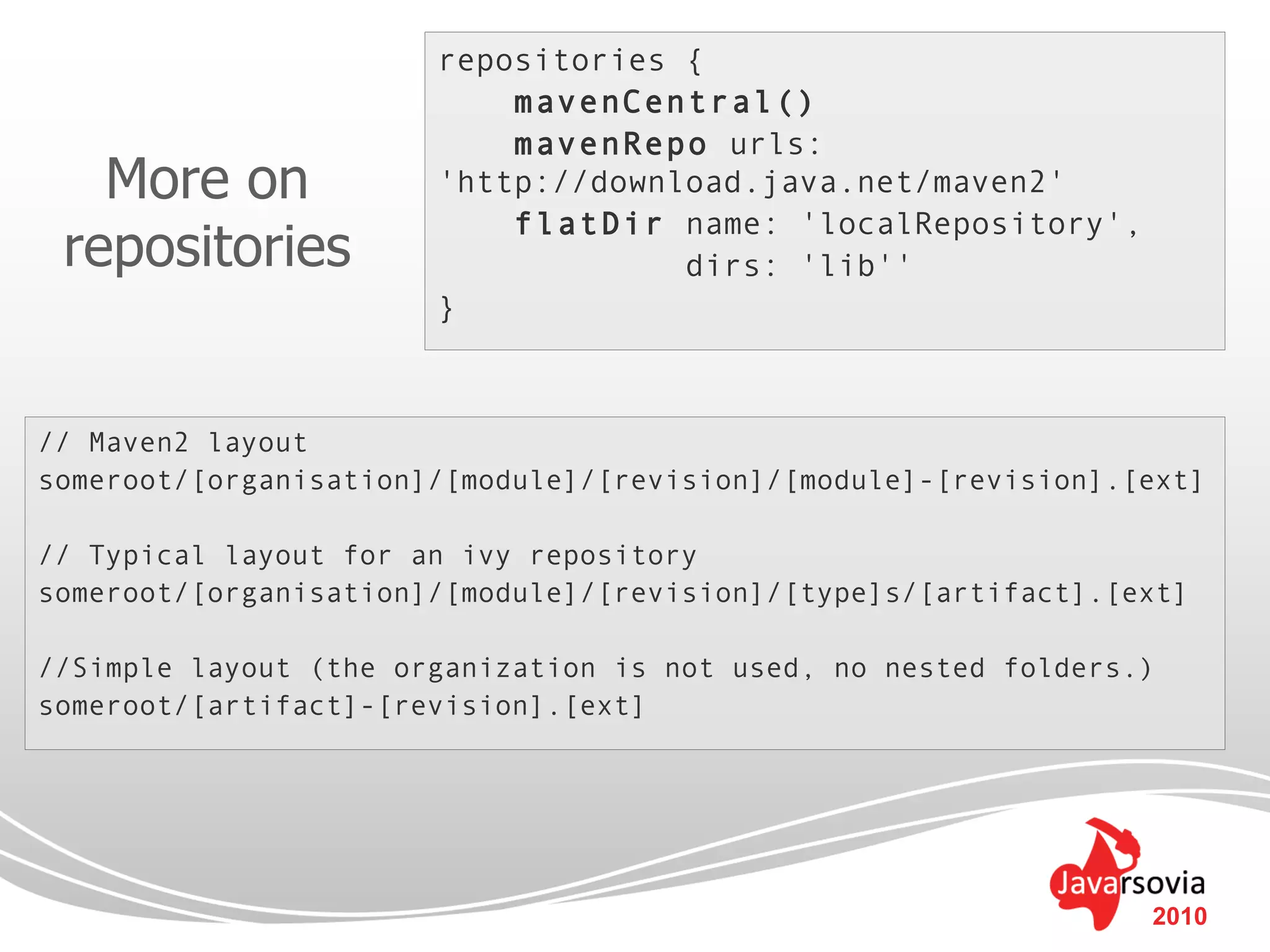

27. repositories {
mavenCentral()
mavenRepo urls:
More on 'http://download.java.net/maven2'
flatDir name: 'localRepository',
repositories dirs: 'lib''
}
// Maven2 layout
someroot/[organisation]/[module]/[revision]/[module]-[revision].[ext]
// Typical layout for an ivy repository
someroot/[organisation]/[module]/[revision]/[type]s/[artifact].[ext]
//Simple layout (the organization is not used, no nested folders.)
someroot/[artifact]-[revision].[ext]
2010

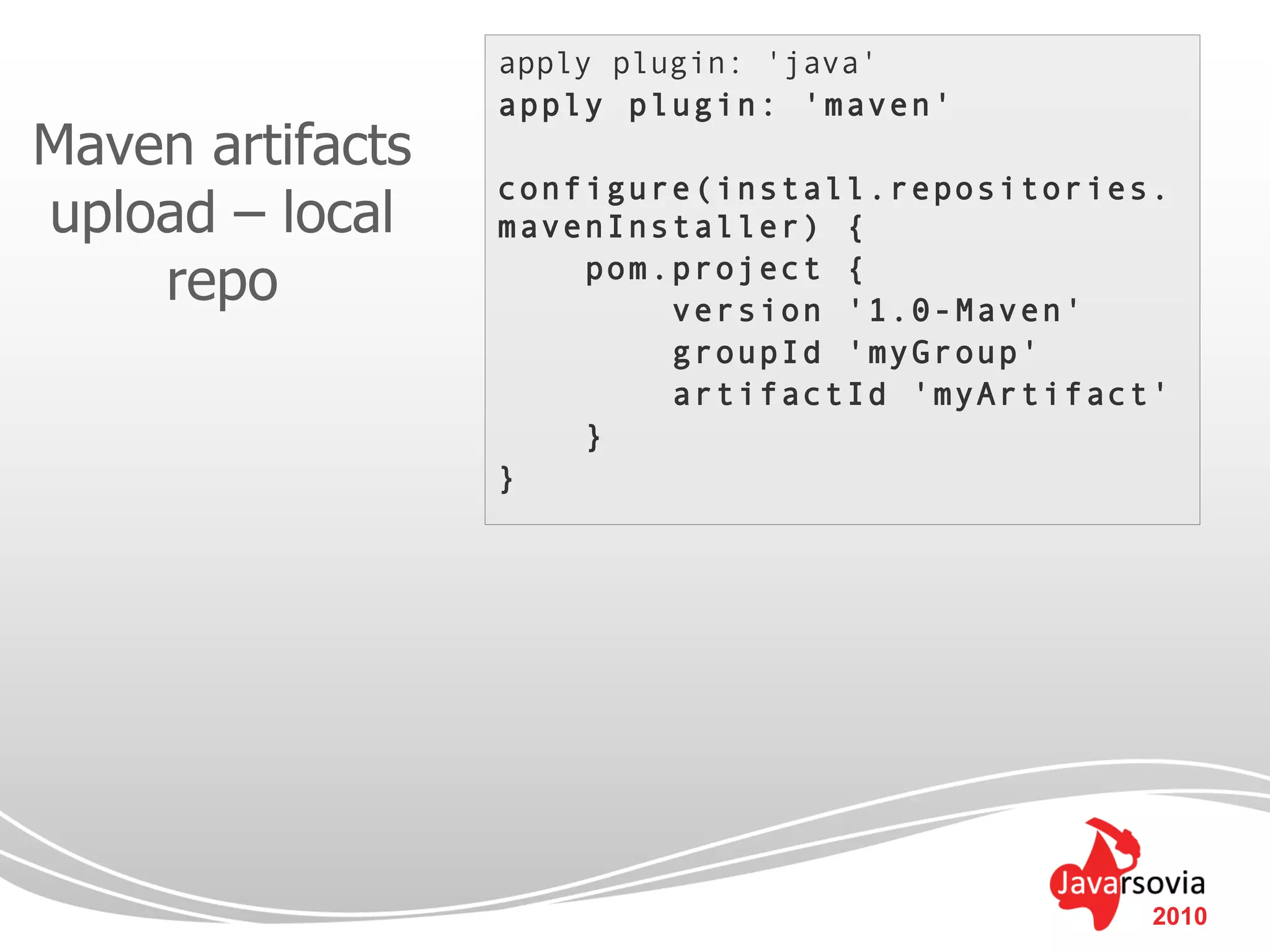

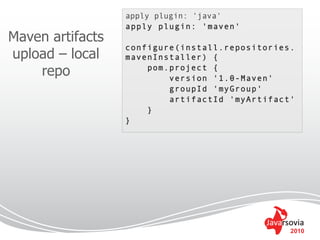

28. apply plugin: 'java'
apply plugin: 'maven'
Maven artifacts
configure(install.repositories.
upload – local mavenInstaller) {
repo pom.project {
version '1.0-Maven'
groupId 'myGroup'
artifactId 'myArtifact'
}
}
2010

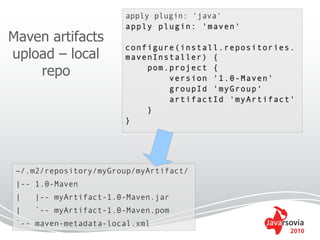

29. apply plugin: 'java'
apply plugin: 'maven'
Maven artifacts
configure(install.repositories.
upload – local mavenInstaller) {
repo pom.project {
version '1.0-Maven'
groupId 'myGroup'
artifactId 'myArtifact'
}
}
~/.m2/repository/myGroup/myArtifact/
|-- 1.0-Maven
| |-- myArtifact-1.0-Maven.jar
| `-- myArtifact-1.0-Maven.pom
`-- maven-metadata-local.xml
2010

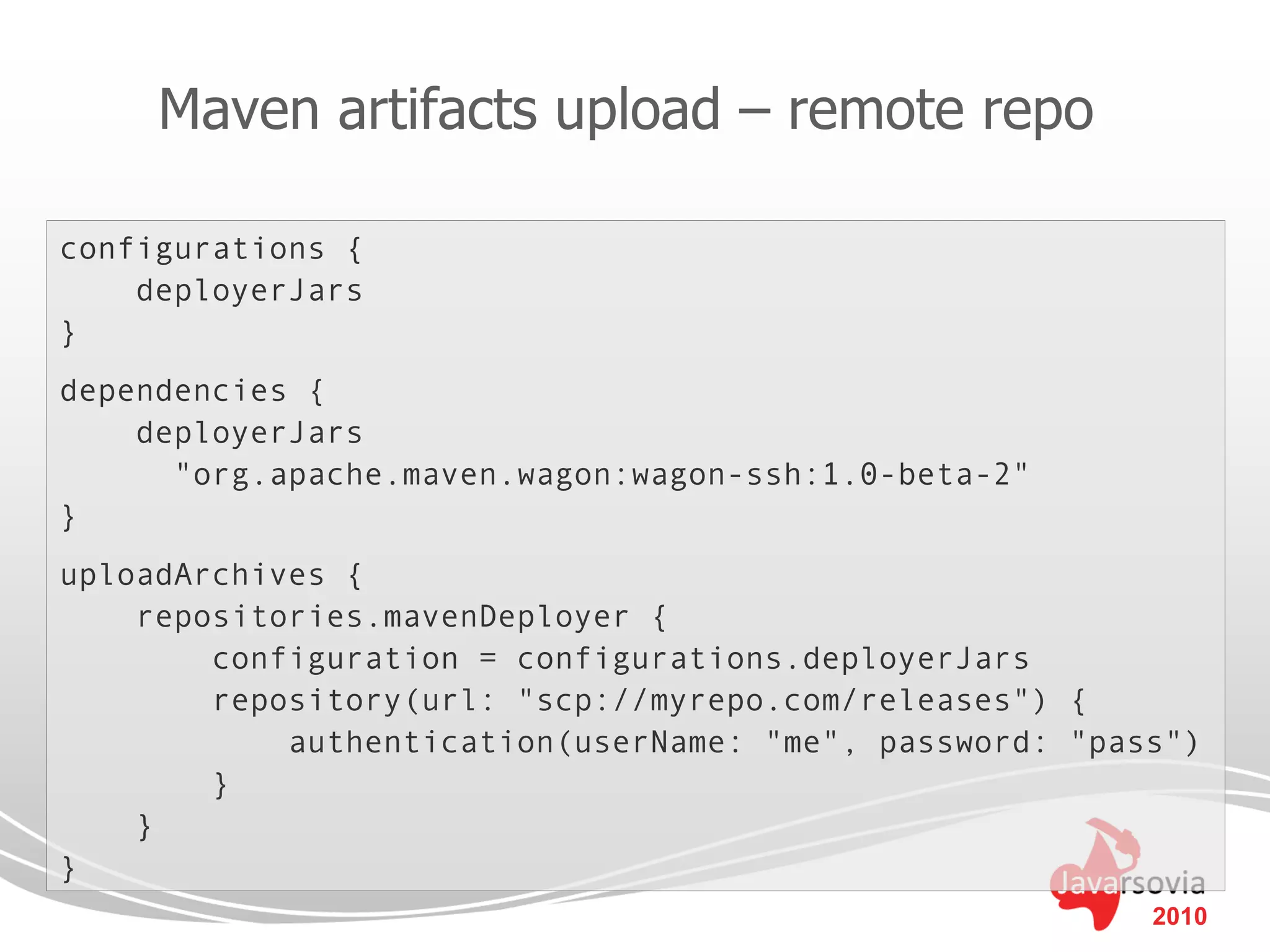

30. Maven artifacts upload – remote repo
configurations {
deployerJars
}
dependencies {
deployerJars
"org.apache.maven.wagon:wagon-ssh:1.0-beta-2"
}
uploadArchives {
repositories.mavenDeployer {
configuration = configurations.deployerJars
repository(url: "scp://myrepo.com/releases") {
authentication(userName: "me", password: "pass")
}
}
}
2010

31. Core
2010

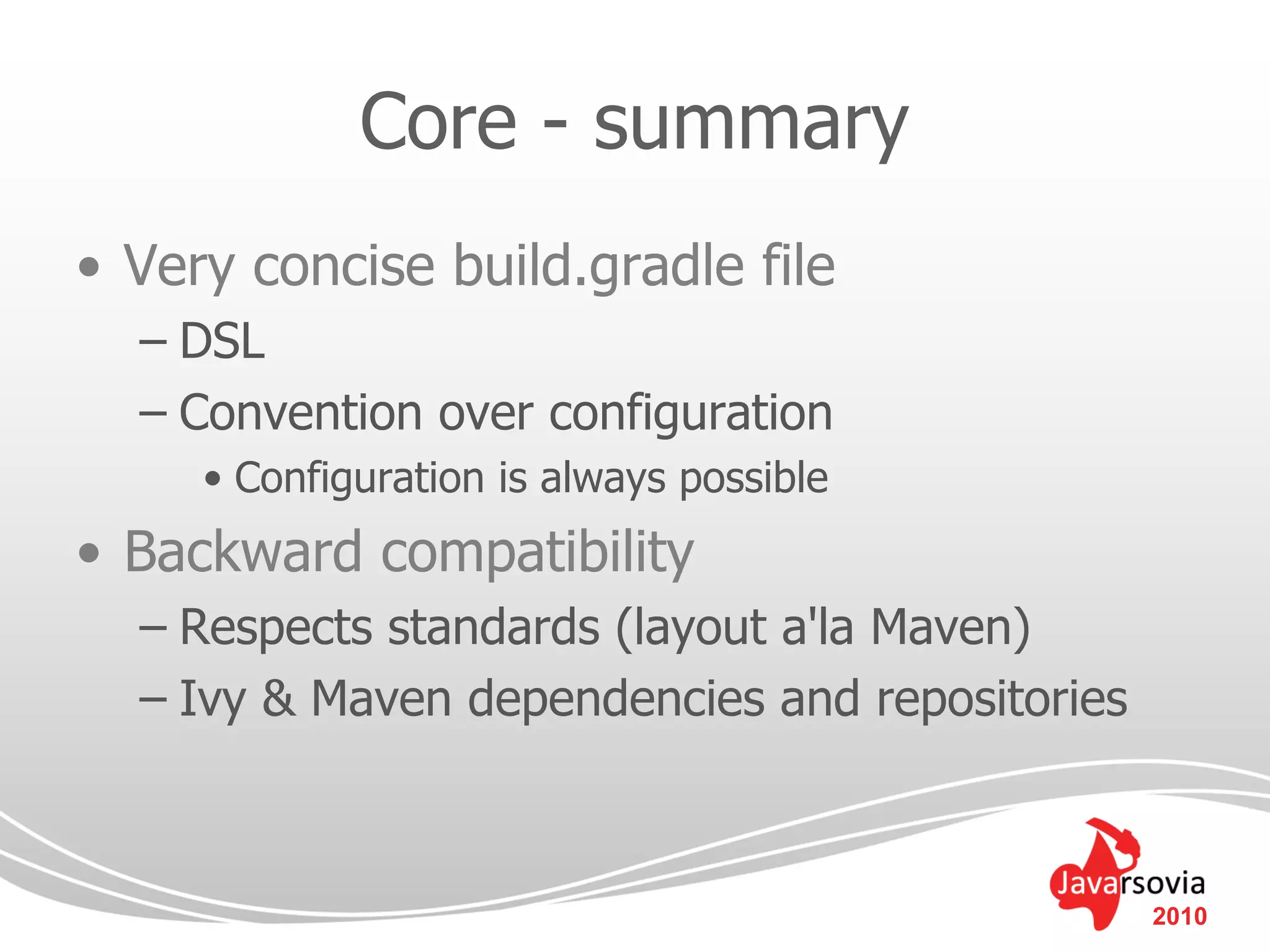

32. Core - summary
• Very concise build.gradle file
– DSL
– Convention over configuration
• Configuration is always possible
• Backward compatibility
– Respects standards (layout a'la Maven)
– Ivy & Maven dependencies and repositories
2010

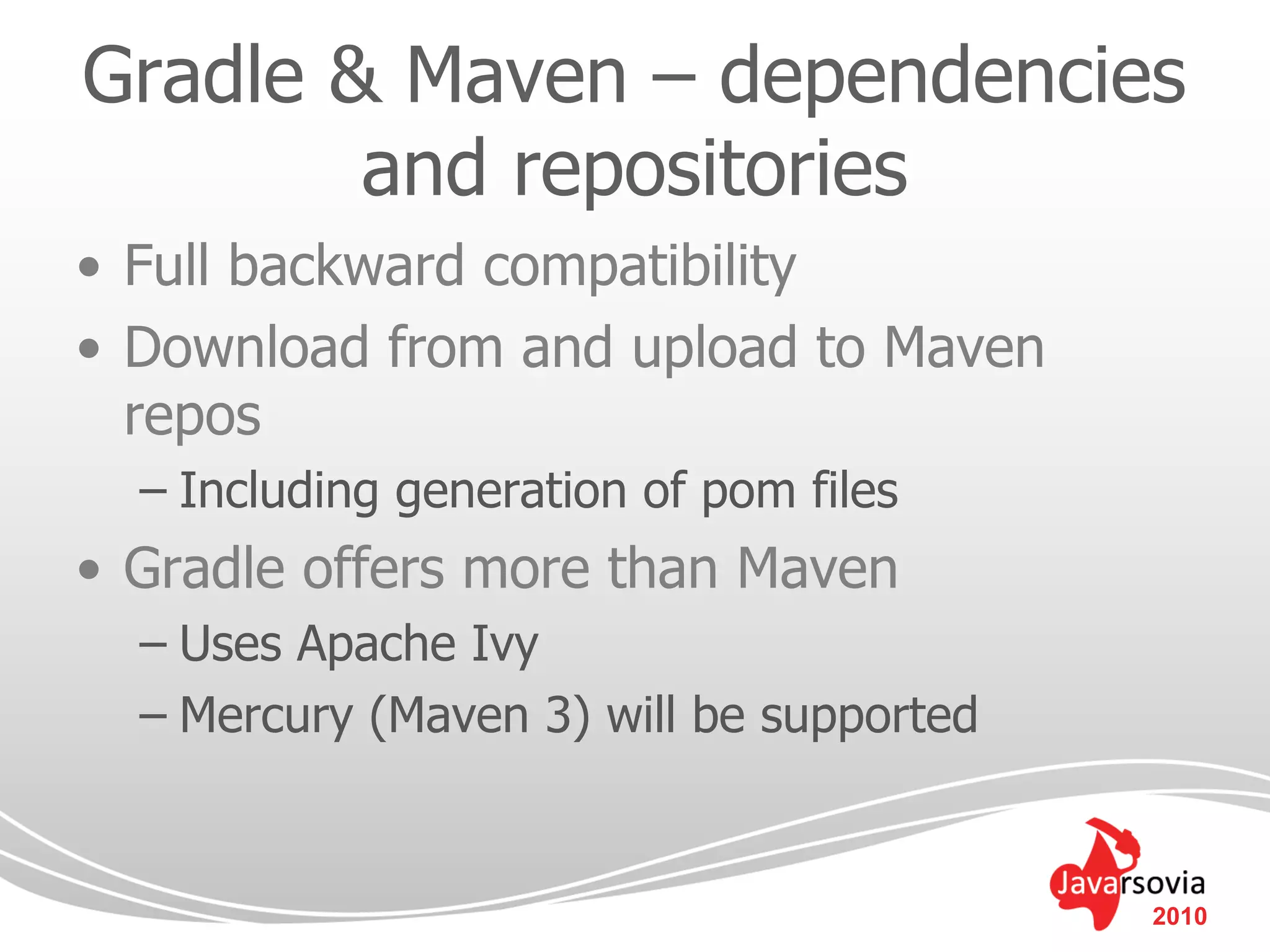

33. Gradle & Maven – dependencies
and repositories
• Full backward compatibility
• Download from and upload to Maven
repos
– Including generation of pom files
• Gradle offers more than Maven
– Uses Apache Ivy
– Mercury (Maven 3) will be supported
2010

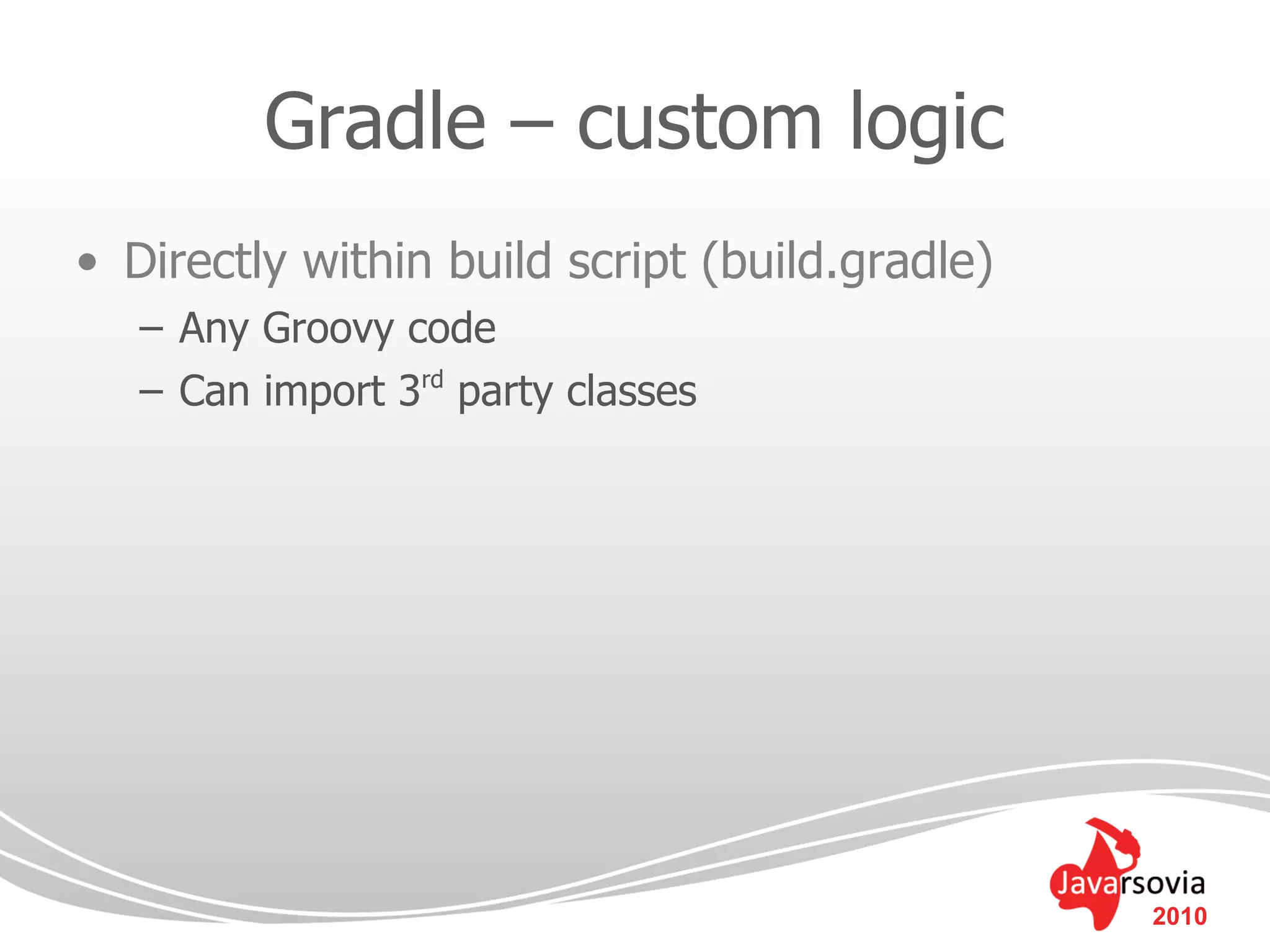

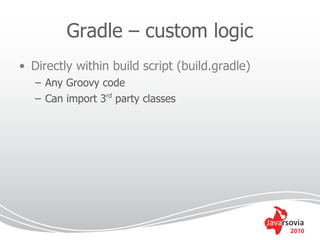

34. Gradle – custom logic
• Directly within build script (build.gradle)
– Any Groovy code
– Can import 3rd party classes
2010

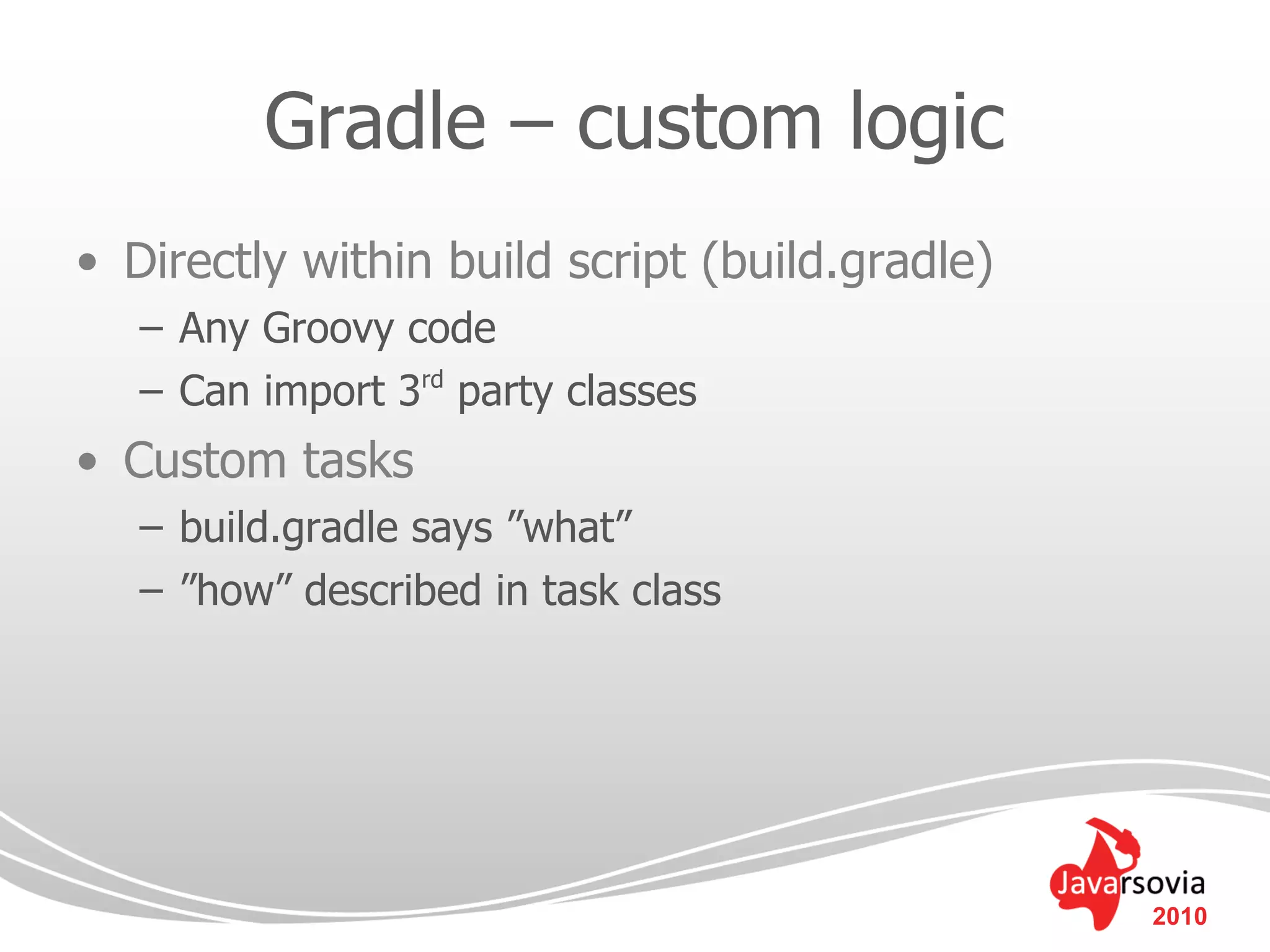

35. Gradle – custom logic
• Directly within build script (build.gradle)
– Any Groovy code
– Can import 3rd party classes
• Custom tasks
– build.gradle says ”what”
– ”how” described in task class
2010

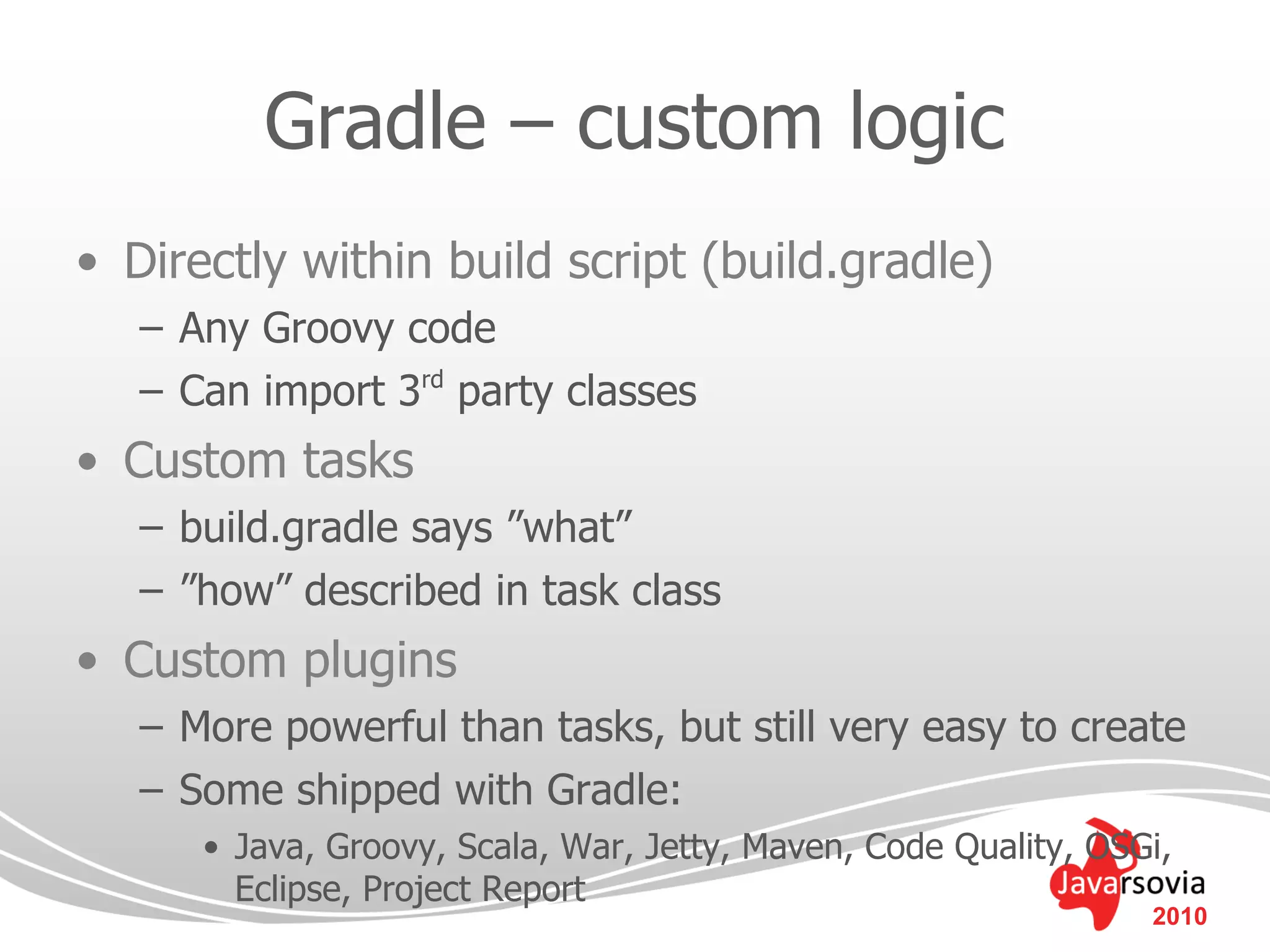

36. Gradle – custom logic
• Directly within build script (build.gradle)
– Any Groovy code
– Can import 3rd party classes
• Custom tasks
– build.gradle says ”what”
– ”how” described in task class
• Custom plugins
– More powerful than tasks, but still very easy to create
– Some shipped with Gradle:
• Java, Groovy, Scala, War, Jetty, Maven, Code Quality, OSGi,
Eclipse, Project Report
2010

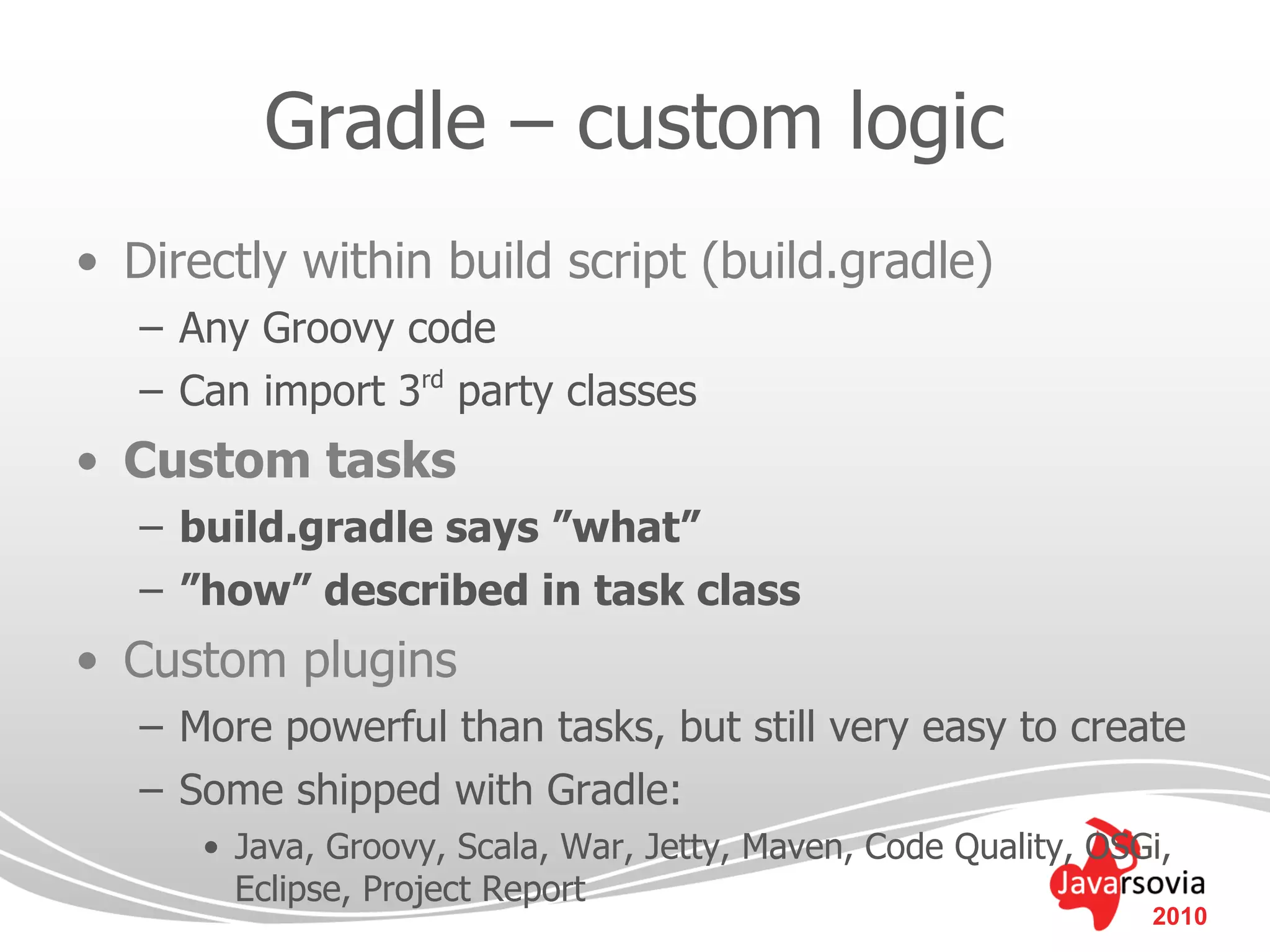

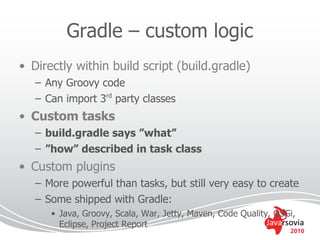

37. Gradle – custom logic
• Directly within build script (build.gradle)
– Any Groovy code
– Can import 3rd party classes
• Custom tasks
– build.gradle says ”what”
– ”how” described in task class
• Custom plugins
– More powerful than tasks, but still very easy to create
– Some shipped with Gradle:
• Java, Groovy, Scala, War, Jetty, Maven, Code Quality, OSGi,
Eclipse, Project Report
2010

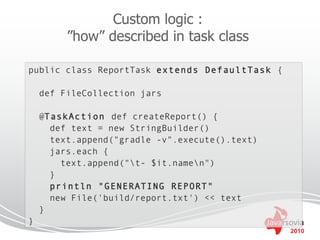

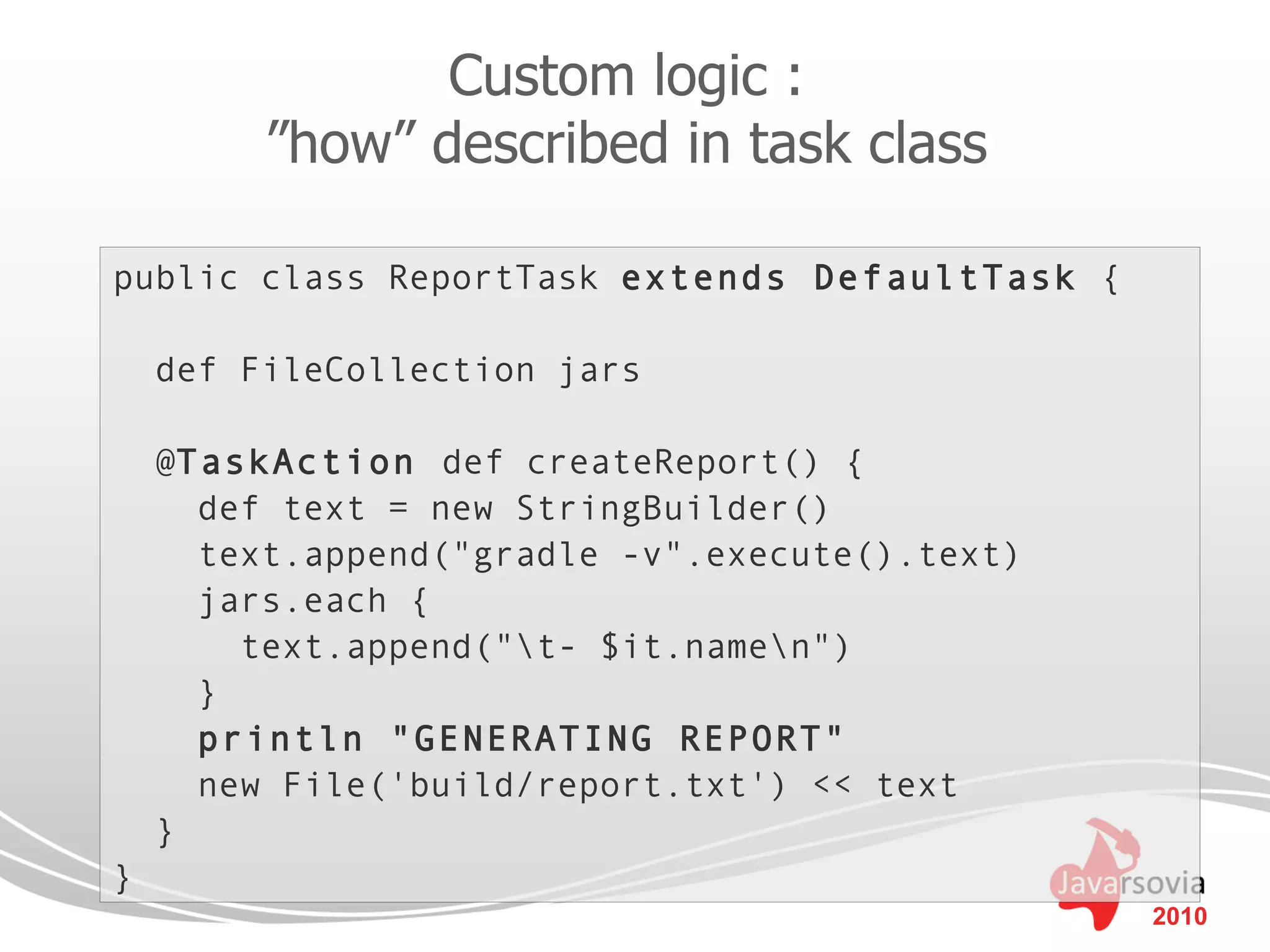

38. Custom logic :
”how” described in task class
public class ReportTask extends DefaultTask {
def FileCollection jars
@TaskAction def createReport() {
def text = new StringBuilder()
text.append("gradle -v".execute().text)
jars.each {
text.append("t- $it.namen")
}
println "GENERATING REPORT"
new File('build/report.txt') << text
}
}
2010

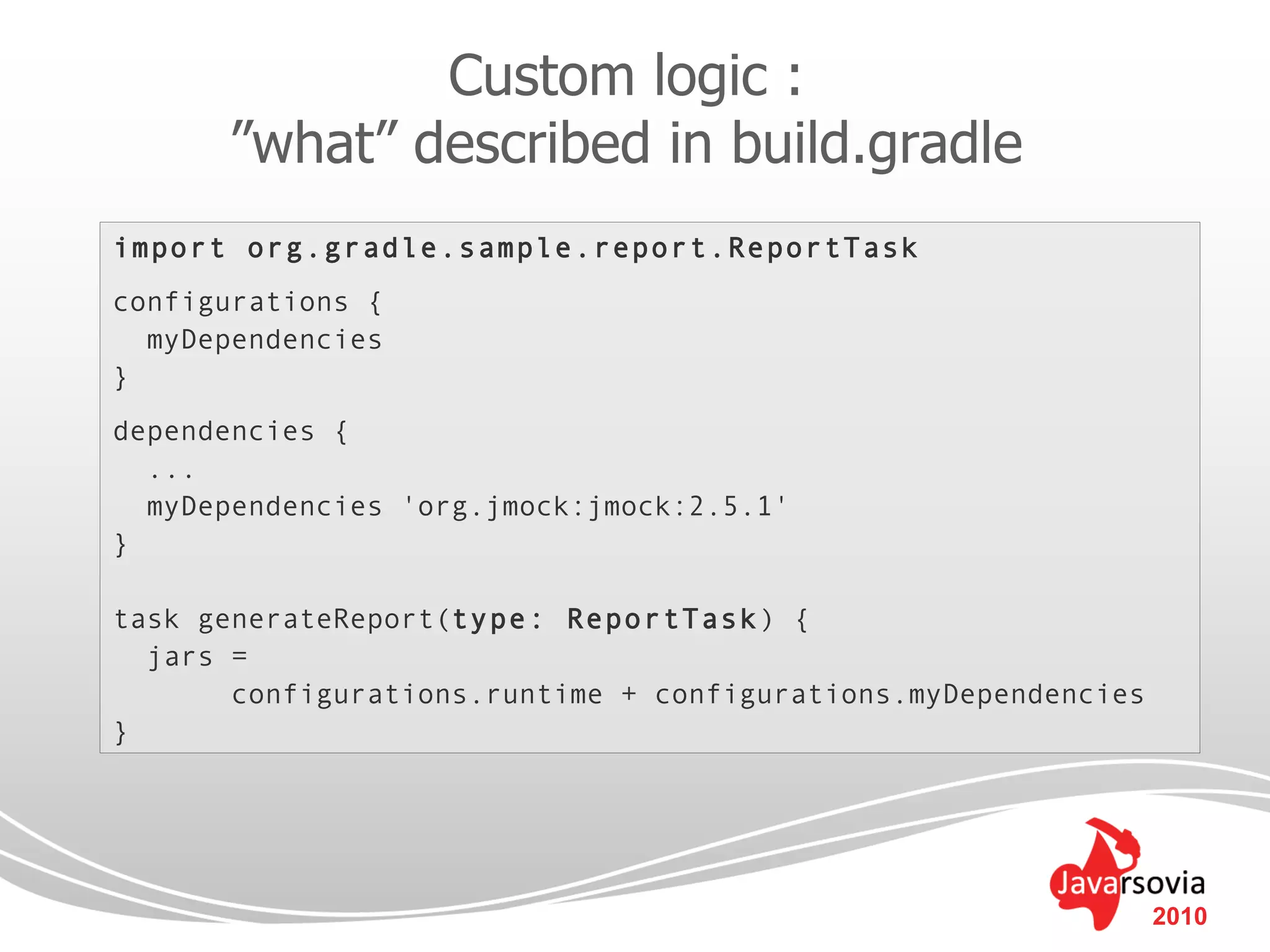

39. Custom logic :
”what” described in build.gradle
import org.gradle.sample.report.ReportTask
configurations {
myDependencies
}
dependencies {
...
myDependencies 'org.jmock:jmock:2.5.1'
}
task generateReport(type: ReportTask) {
jars =
configurations.runtime + configurations.myDependencies
}
2010

40. Gradle – custom logic
2010

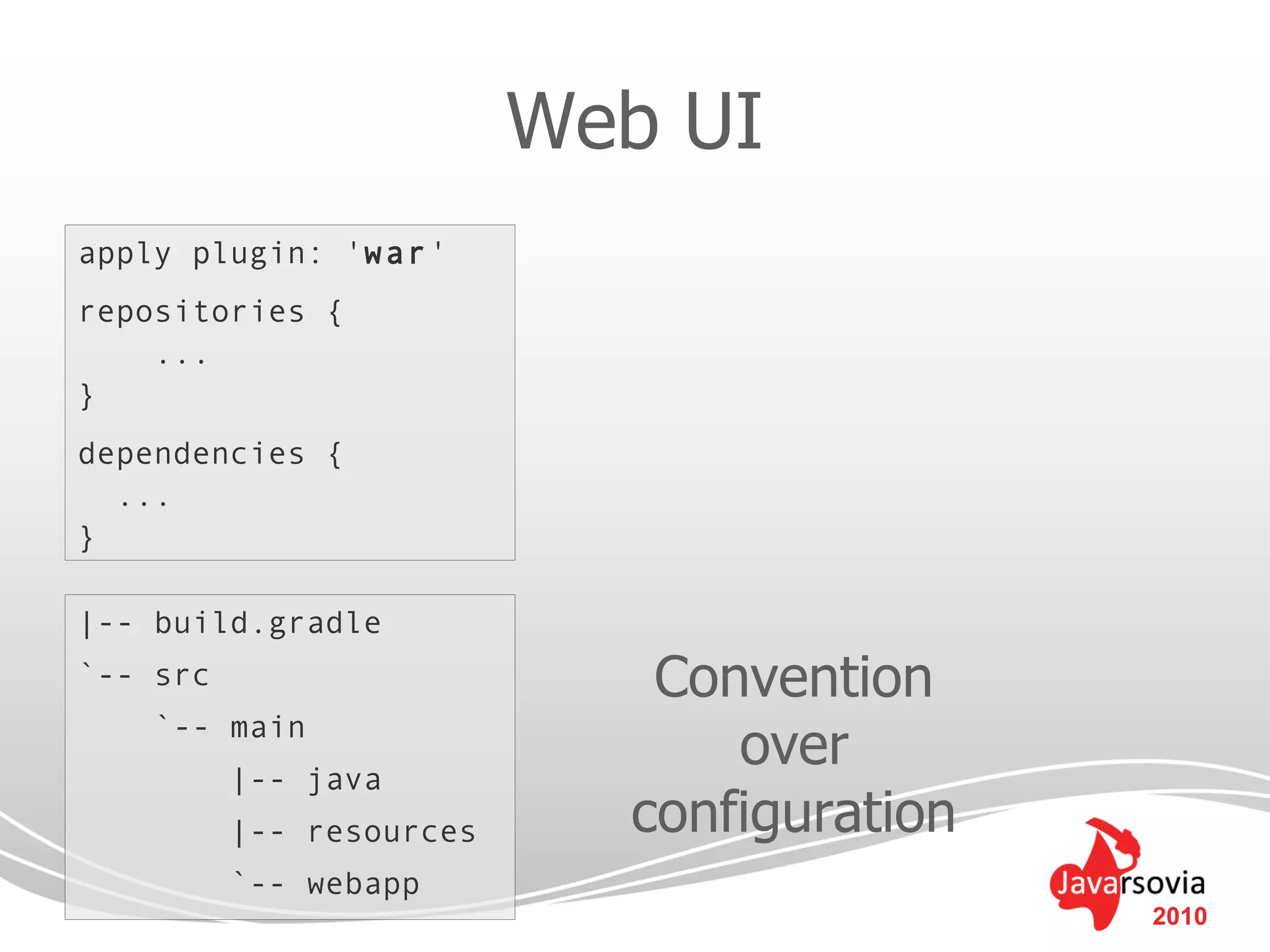

41. Web UI
apply plugin: 'war'
repositories {
...
}
dependencies {
...
}
|-- build.gradle
`-- src Convention
`-- main
|-- java
over
|-- resources configuration
`-- webapp
2010

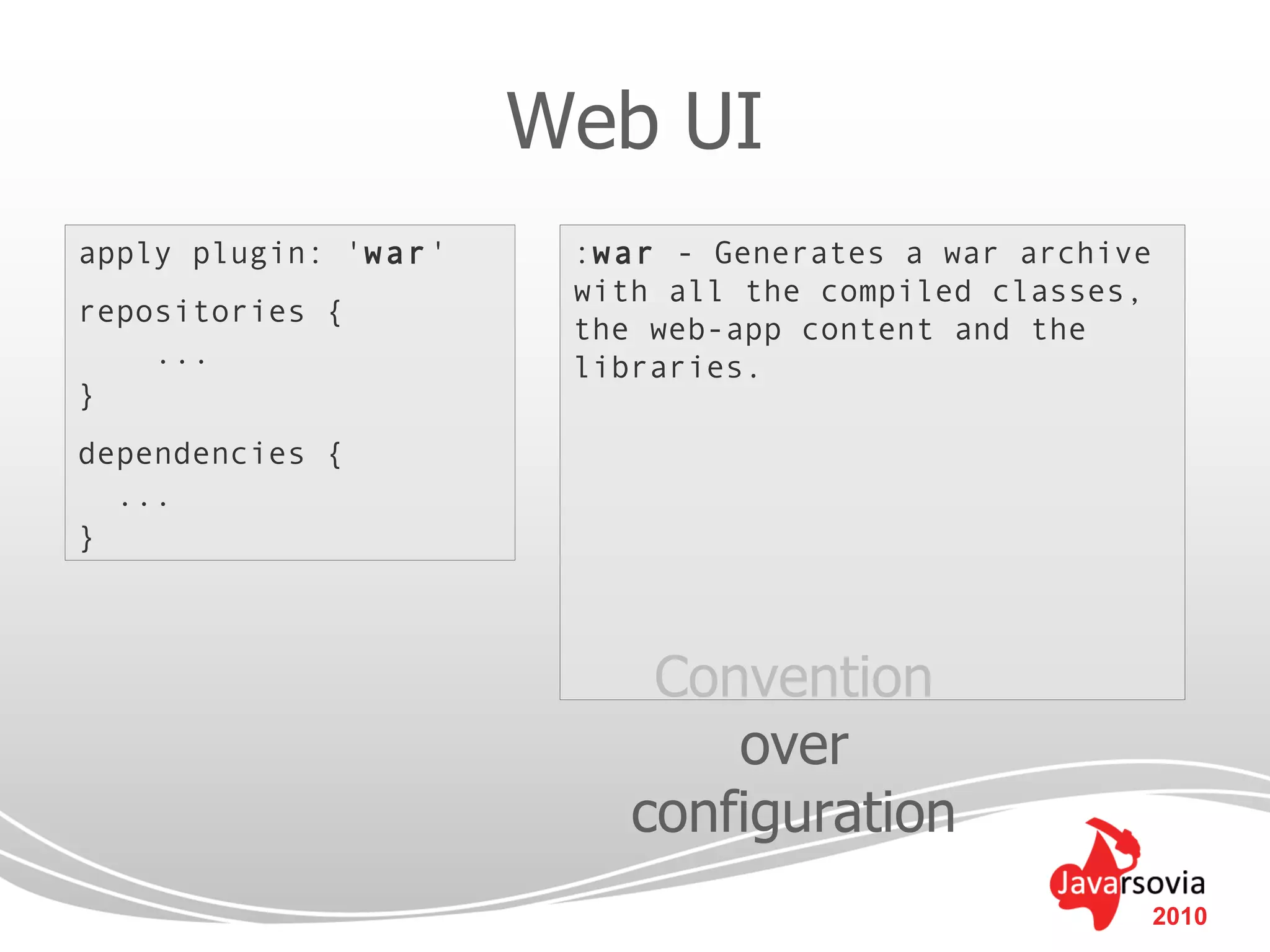

42. Web UI
apply plugin: 'war' :war - Generates a war archive
with all the compiled classes,
repositories {
the web-app content and the
... libraries.
}
dependencies {
...
}
Convention
over
configuration
2010

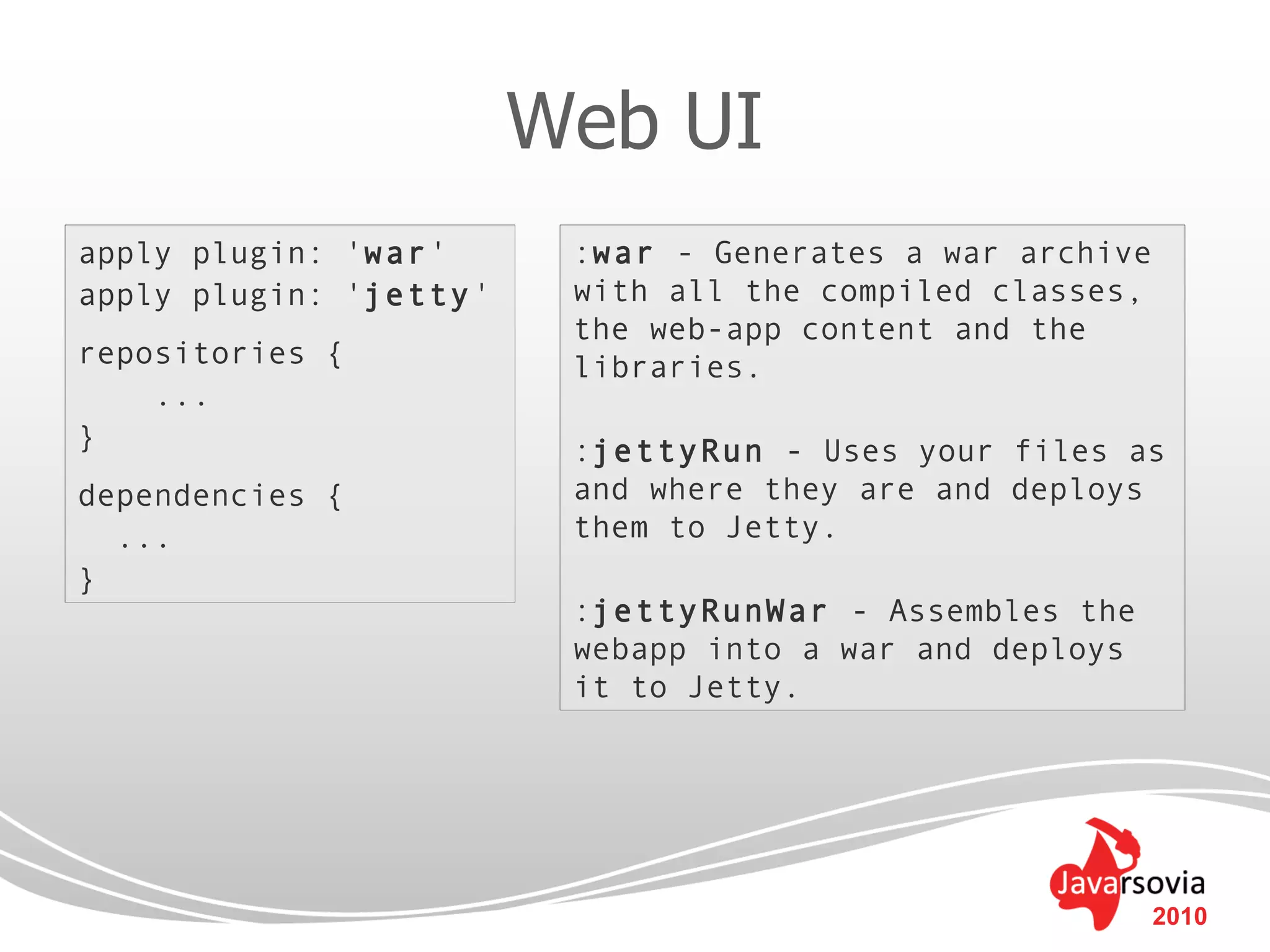

43. Web UI
apply plugin: 'war' :war - Generates a war archive
apply plugin: 'jetty' with all the compiled classes,
the web-app content and the
repositories { libraries.
...
} :jettyRun - Uses your files as
dependencies { and where they are and deploys
... them to Jetty.
}
:jettyRunWar - Assembles the
webapp into a war and deploys
it to Jetty.
2010

44. Web UI
2010

45. Gradle & Ant – import of build.xml
<project>
<target name="hello">
<echo>Hello, from Ant</echo>
</target>
</project>
2010

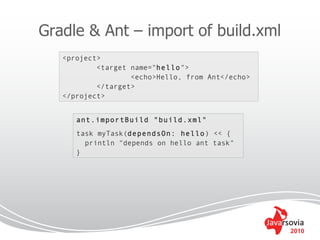

46. Gradle & Ant – import of build.xml
<project>
<target name="hello">
<echo>Hello, from Ant</echo>
</target>
</project>
ant.importBuild "build.xml"
task myTask(dependsOn: hello) << {
println "depends on hello ant task"
}
2010

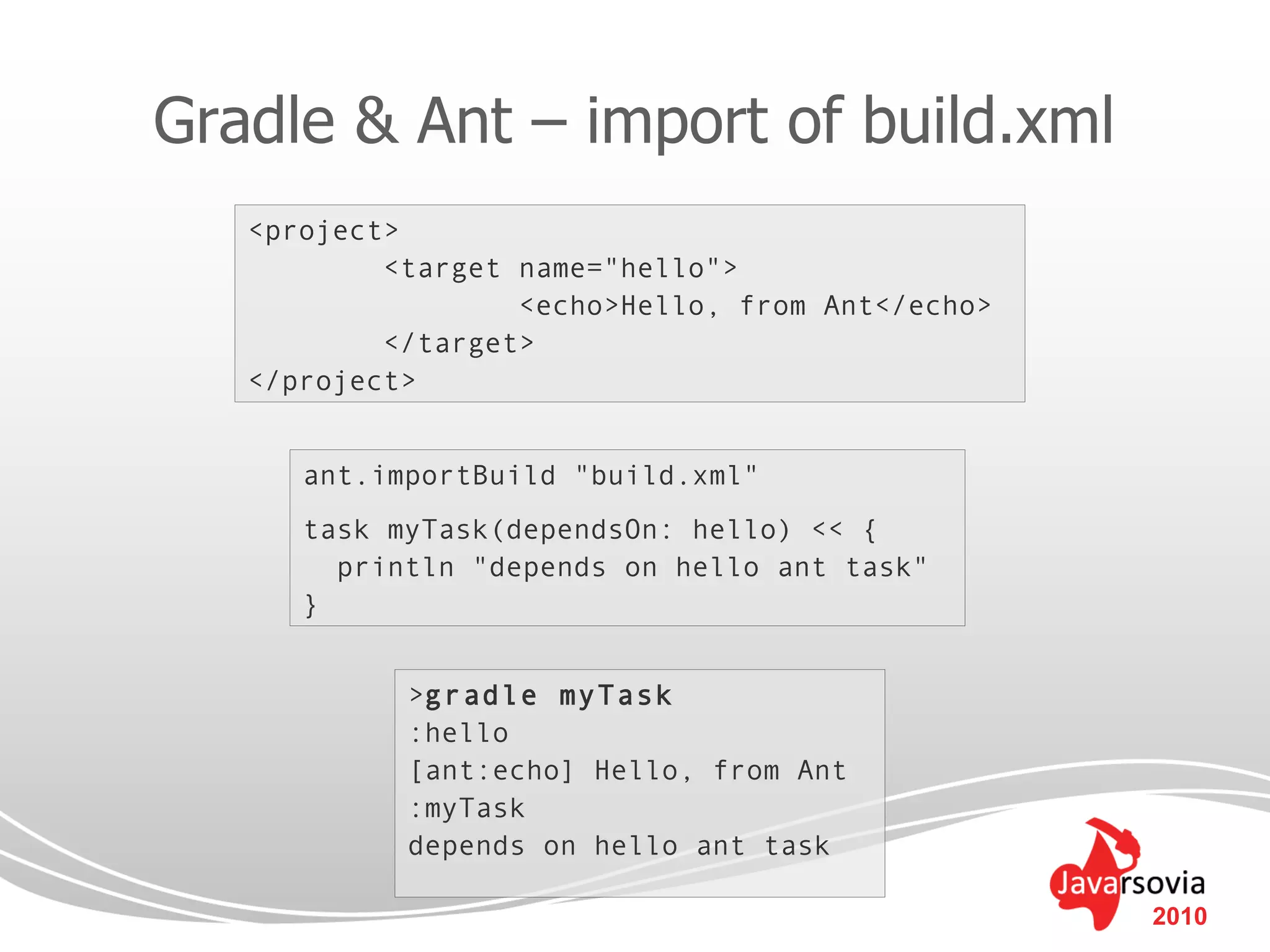

47. Gradle & Ant – import of build.xml
<project>
<target name="hello">
<echo>Hello, from Ant</echo>
</target>
</project>
ant.importBuild "build.xml"
task myTask(dependsOn: hello) << {
println "depends on hello ant task"
}
>gradle myTask
:hello
[ant:echo] Hello, from Ant
:myTask
depends on hello ant task
2010

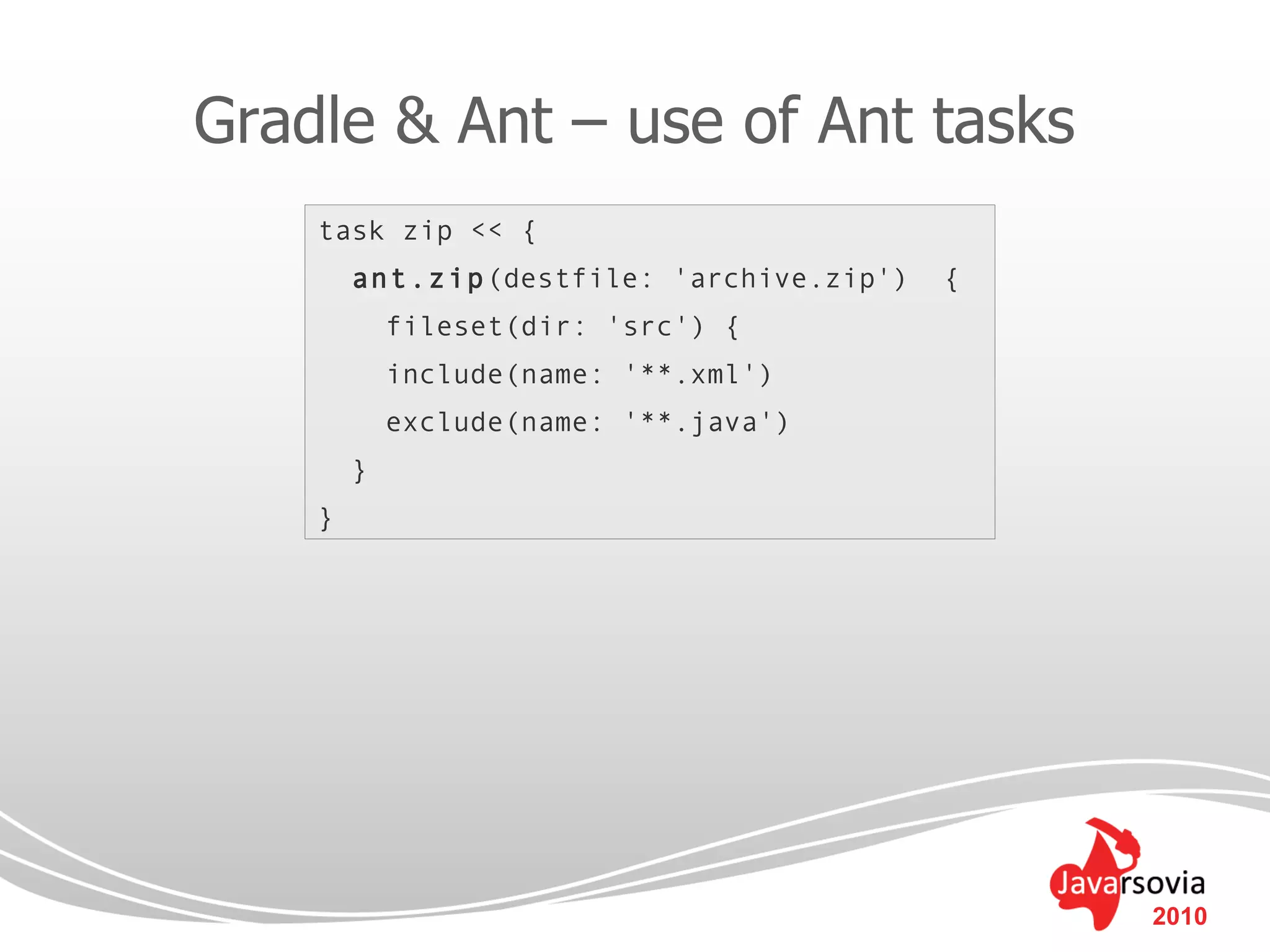

48. Gradle & Ant – use of Ant tasks
task zip << {
ant.zip(destfile: 'archive.zip') {
fileset(dir: 'src') {
include(name: '**.xml')
exclude(name: '**.java')
}
}
2010

49. Gradle & Ant – use of Ant tasks
task zip << {
ant.zip(destfile: 'archive.zip') {
fileset(dir: 'src') {
include(name: '**.xml')
exclude(name: '**.java')
}
}
task dist(type: Zip) {
from 'src/dist‘
from configurations.runtime
into('libs‘)
}
2010

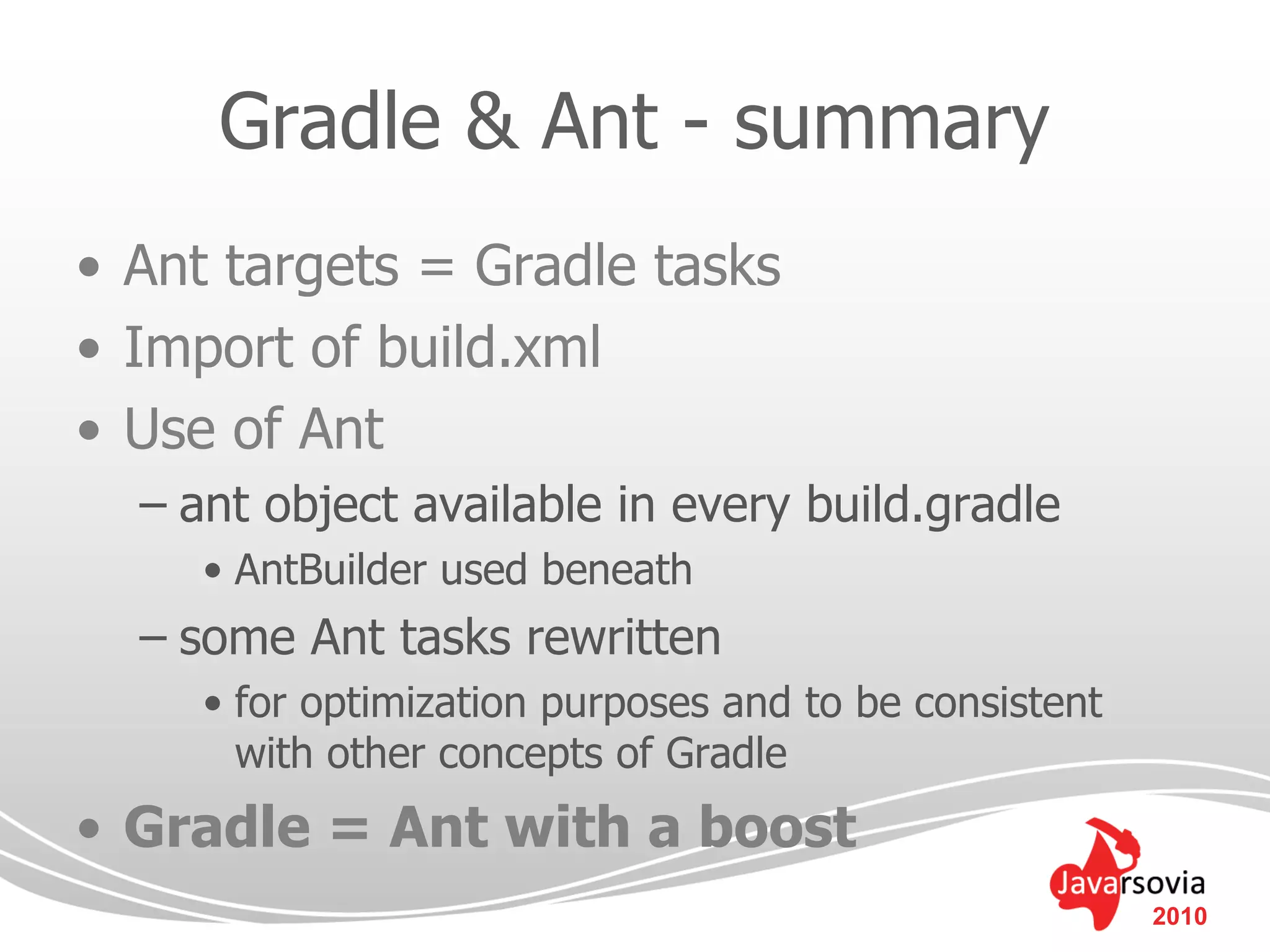

50. Gradle & Ant - summary
• Ant targets = Gradle tasks
• Import of build.xml
• Use of Ant
– ant object available in every build.gradle
• AntBuilder used beneath
– some Ant tasks rewritten
• for optimization purposes and to be consistent
with other concepts of Gradle
• Gradle = Ant with a boost
2010

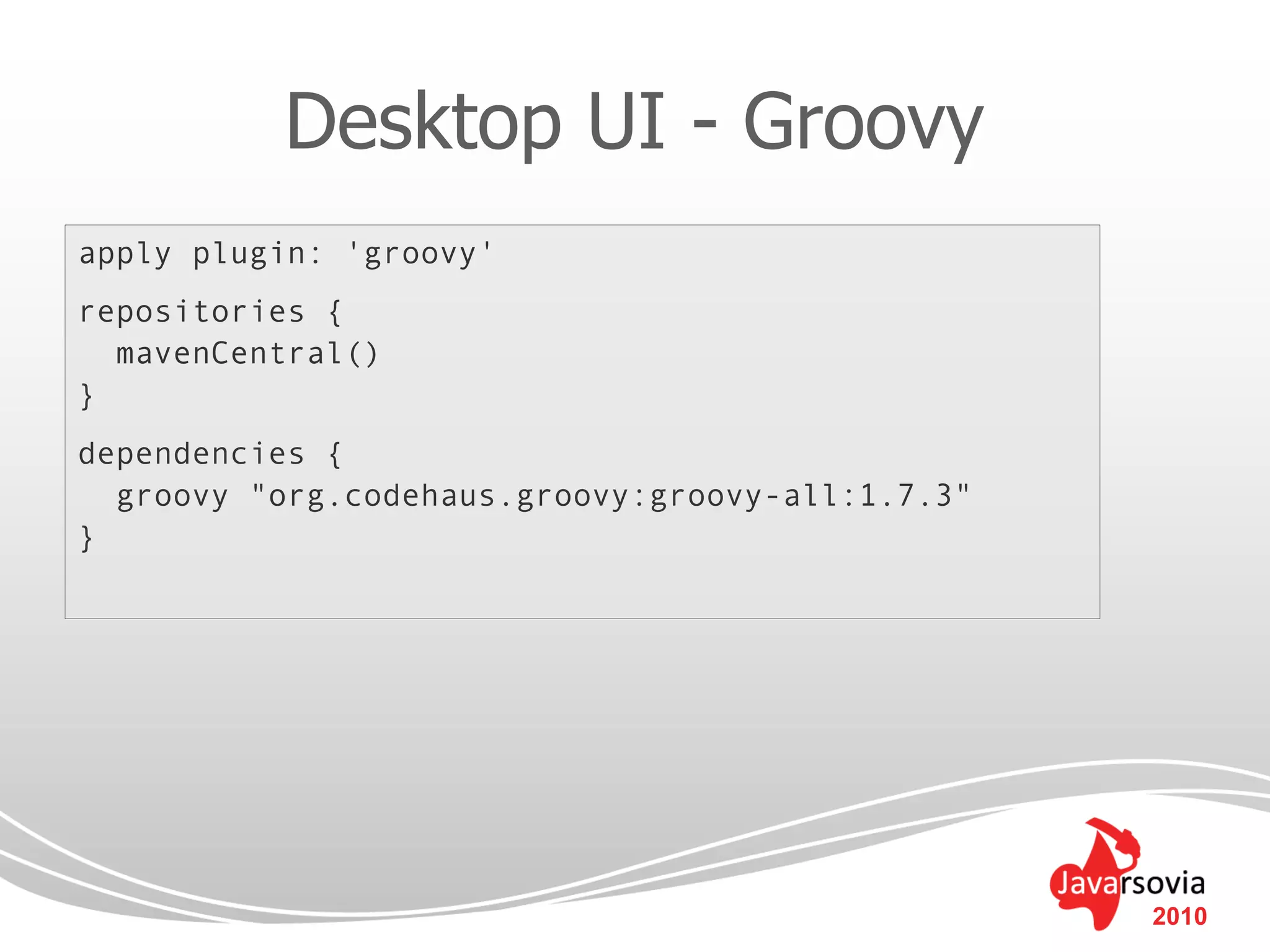

51. Desktop UI - Groovy
apply plugin: 'groovy'
repositories {
mavenCentral()
}
dependencies {
groovy "org.codehaus.groovy:groovy-all:1.7.3"
}
2010

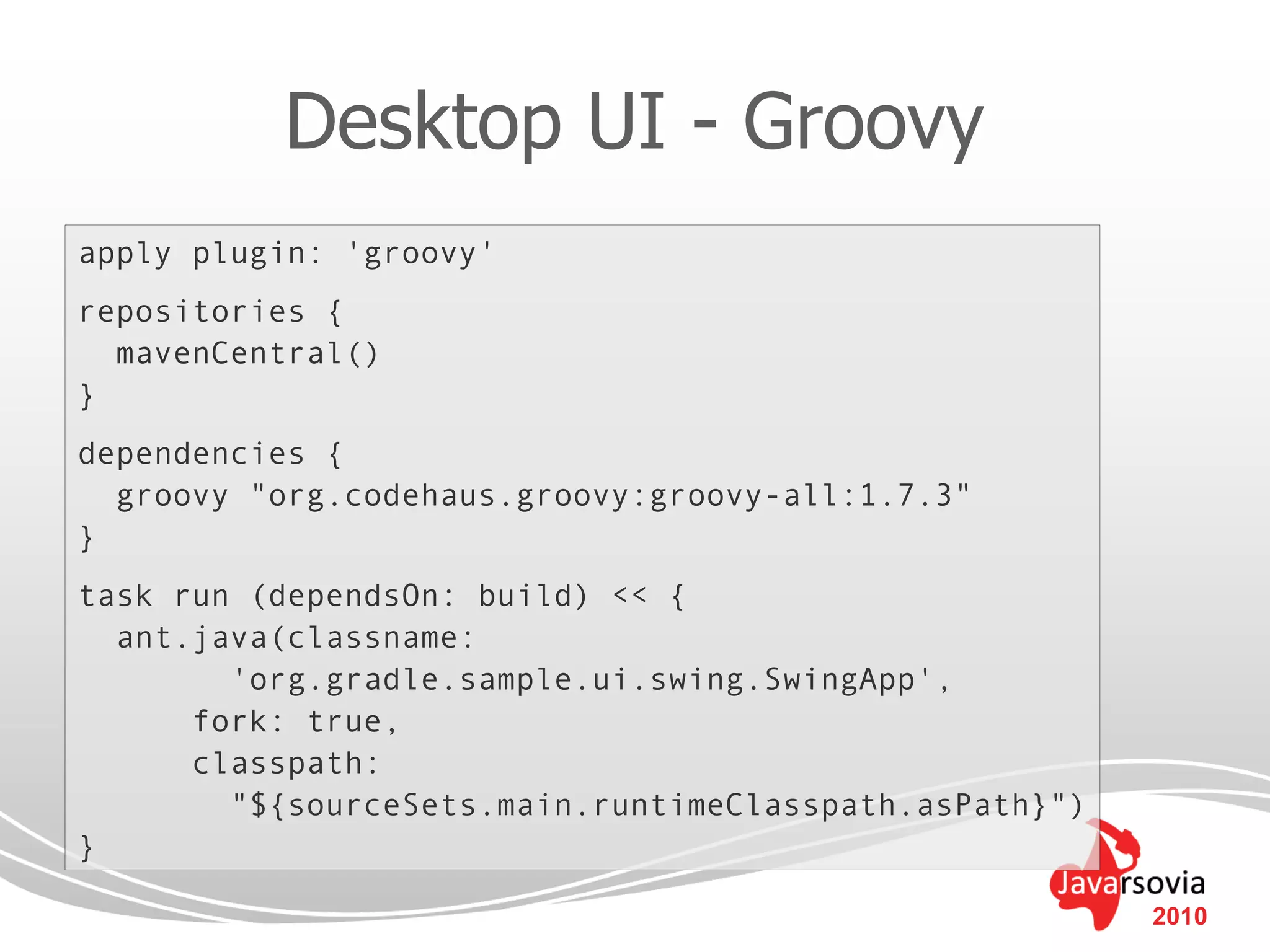

52. Desktop UI - Groovy
apply plugin: 'groovy'
repositories {
mavenCentral()
}
dependencies {
groovy "org.codehaus.groovy:groovy-all:1.7.3"
}
task run (dependsOn: build) << {
ant.java(classname:
'org.gradle.sample.ui.swing.SwingApp',
fork: true,
classpath:
"${sourceSets.main.runtimeClasspath.asPath}")
}
2010

53. Desktop UI
2010

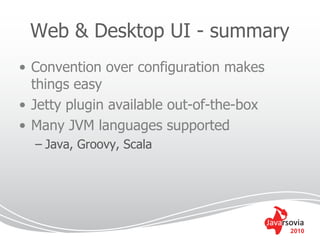

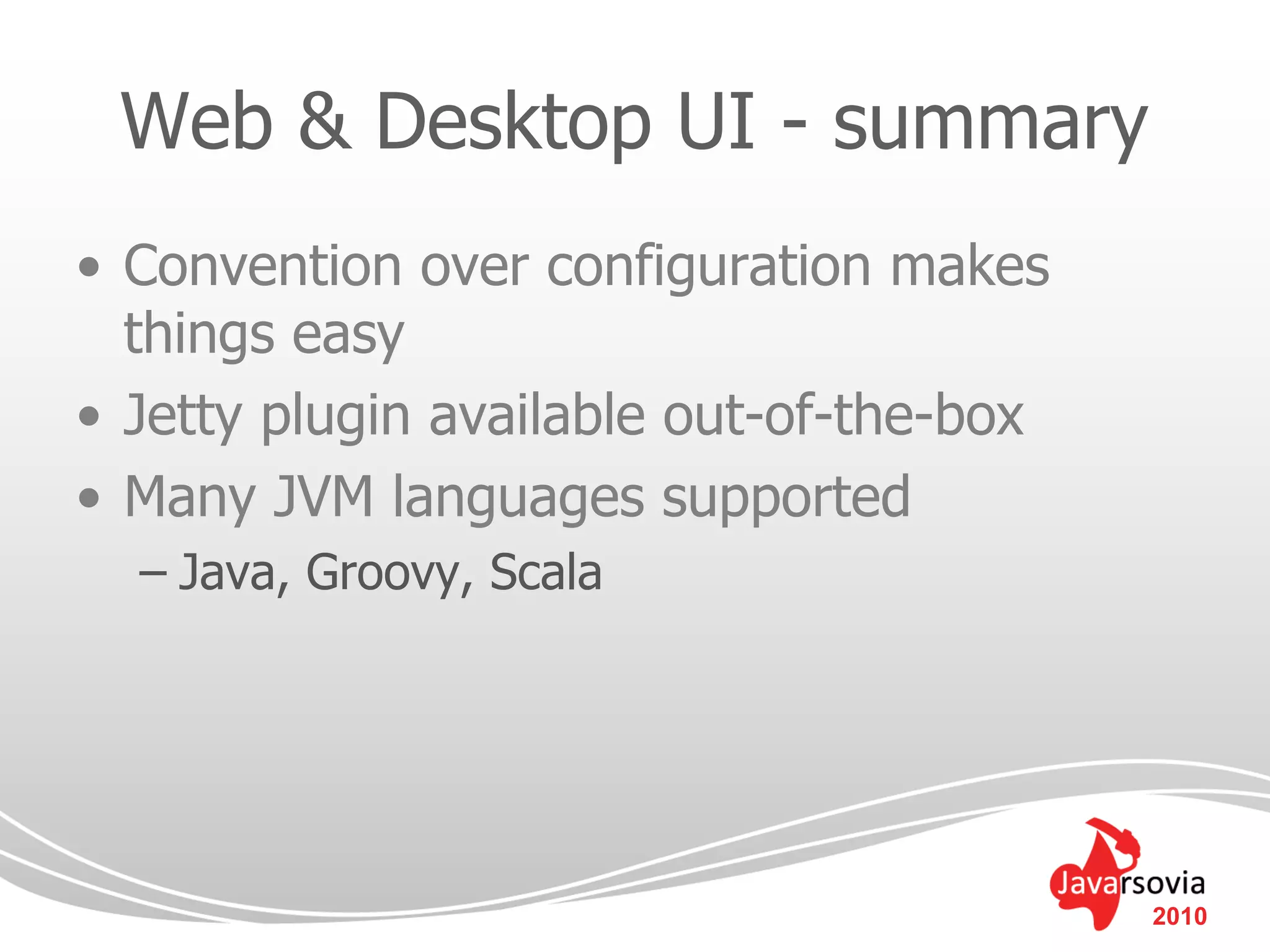

54. Web & Desktop UI - summary
• Convention over configuration makes
things easy
• Jetty plugin available out-of-the-box
• Many JVM languages supported
– Java, Groovy, Scala
2010

55. Multi-module build
multi
|-- build.gradle
|-- settings.gradle
|-- core
| `-- ...
`-- ui
|-- swing
| `-- ...
`-- web
`-- ...
2010

56. Multi-module build
multi
|-- build.gradle
|-- settings.gradle
|-- core
| `-- ...
|-- frontend
| |-- swing
| | `-- ...
| |-- android
| | `-- ...
| `-- web
| `-- ...
`-- backend
`-- swing
`-- ...
2010

57. Multi-module build
multi
|-- build.gradle
|-- settings.gradle
|-- core
| `-- ...
`-- ui
|-- swing
| `-- ...
`-- web
`-- ...
include "core", "ui:swing", "ui:web"
2010

58. Multi-module build
2010

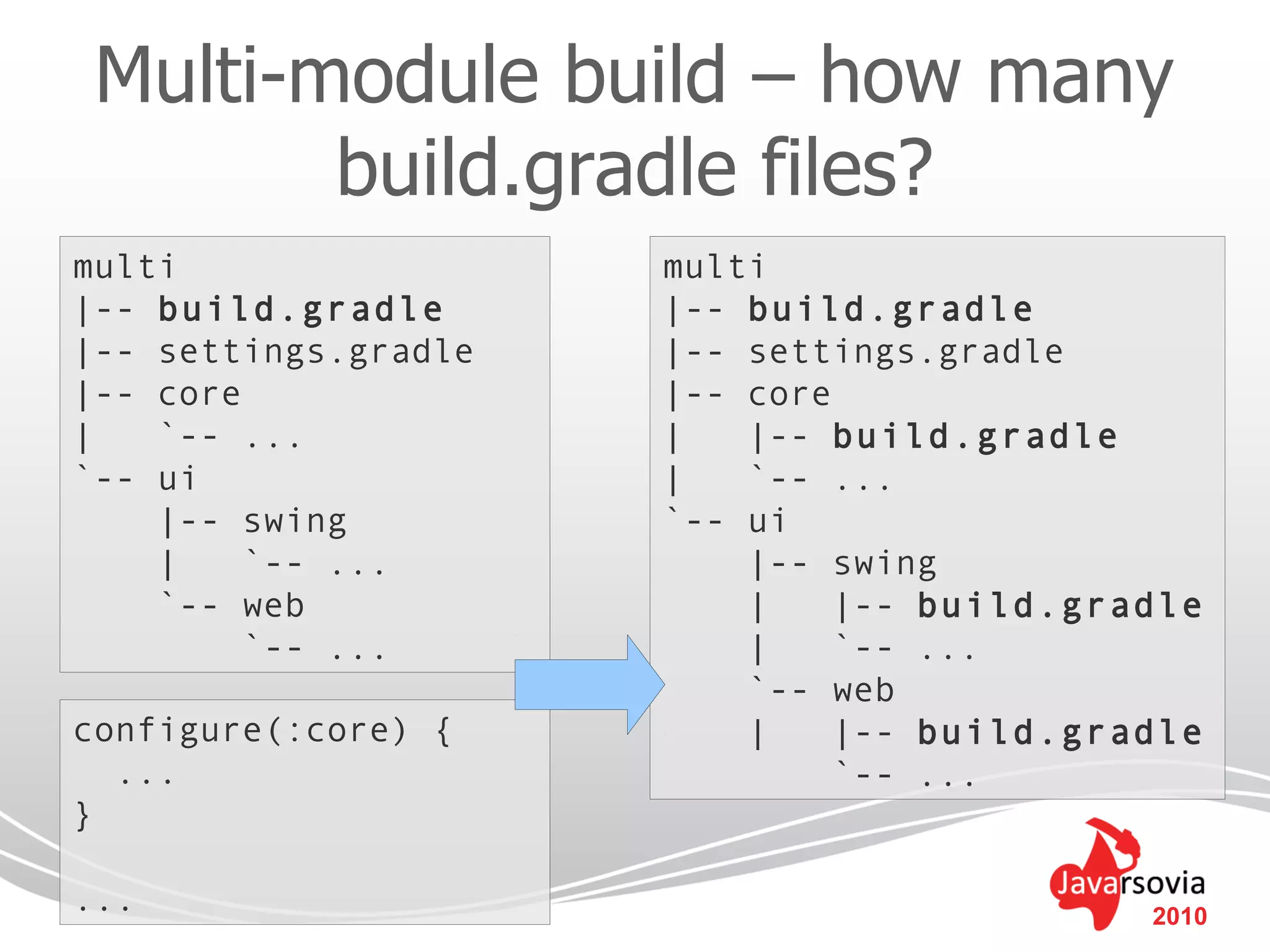

59. Multi-module build – how many
build.gradle files?
multi multi
|-- build.gradle |-- build.gradle
|-- settings.gradle |-- settings.gradle
|-- core |-- core
| `-- ... | |-- build.gradle
`-- ui | `-- ...
|-- swing `-- ui
| `-- ... |-- swing
`-- web | |-- build.gradle
`-- ... | `-- ...
`-- web
configure(:core) { | |-- build.gradle
... `-- ...
}
... 2010

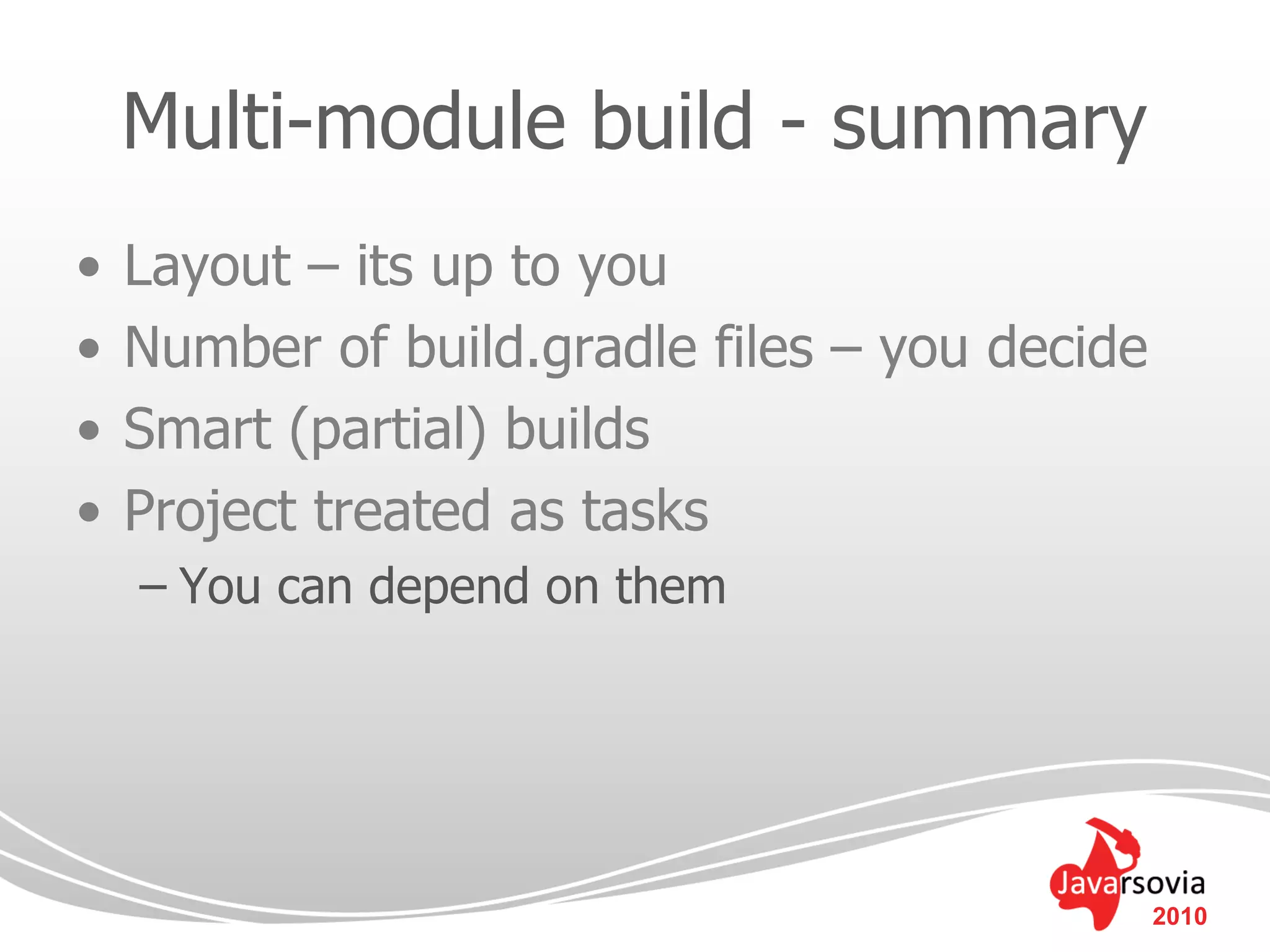

60. Multi-module build - summary
• Layout – its up to you
• Number of build.gradle files – you decide
• Smart (partial) builds
• Project treated as tasks
– You can depend on them
2010

61. 2010

62. 2010

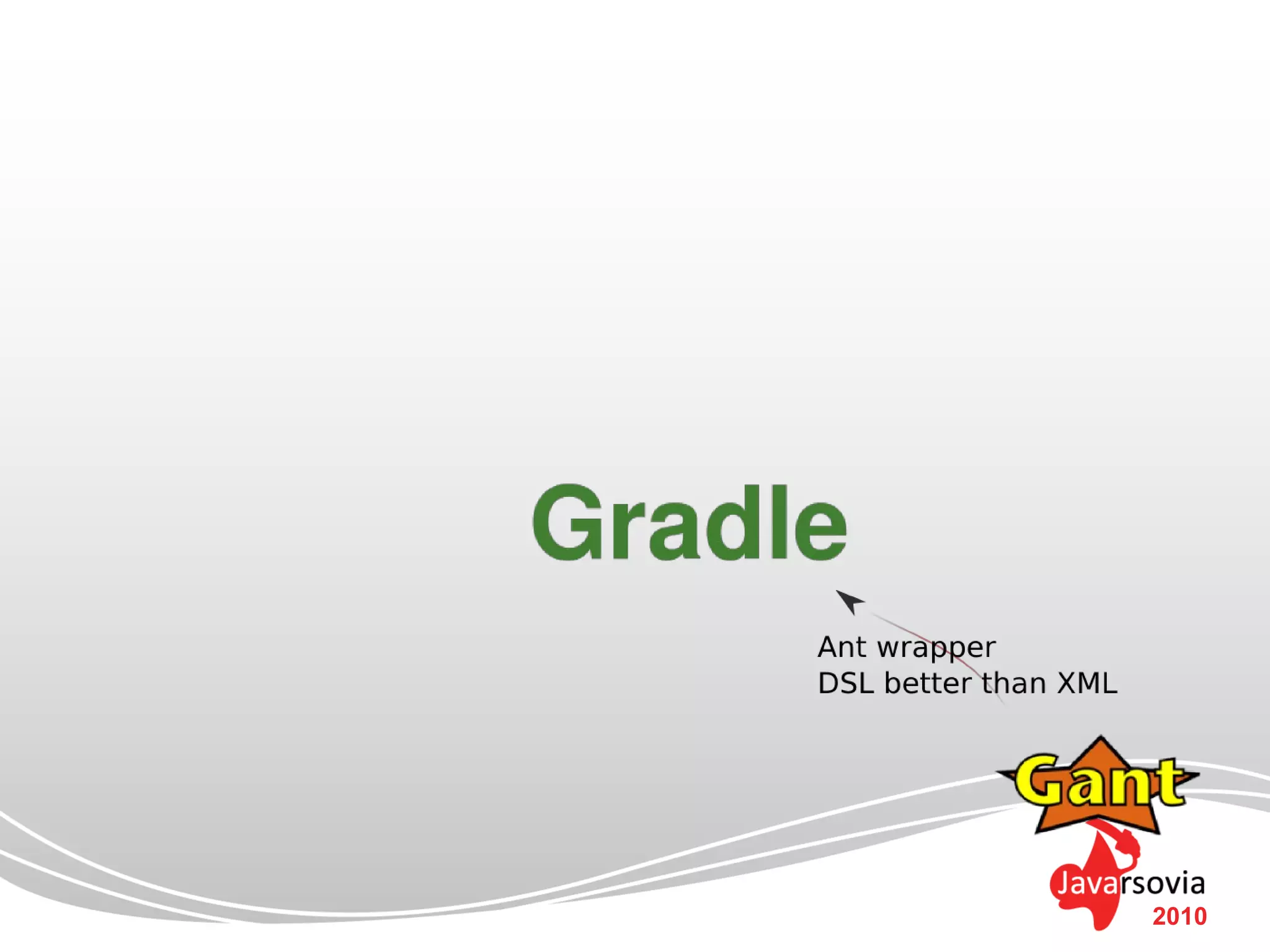

63. 2010

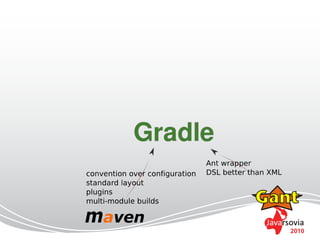

64. 2010

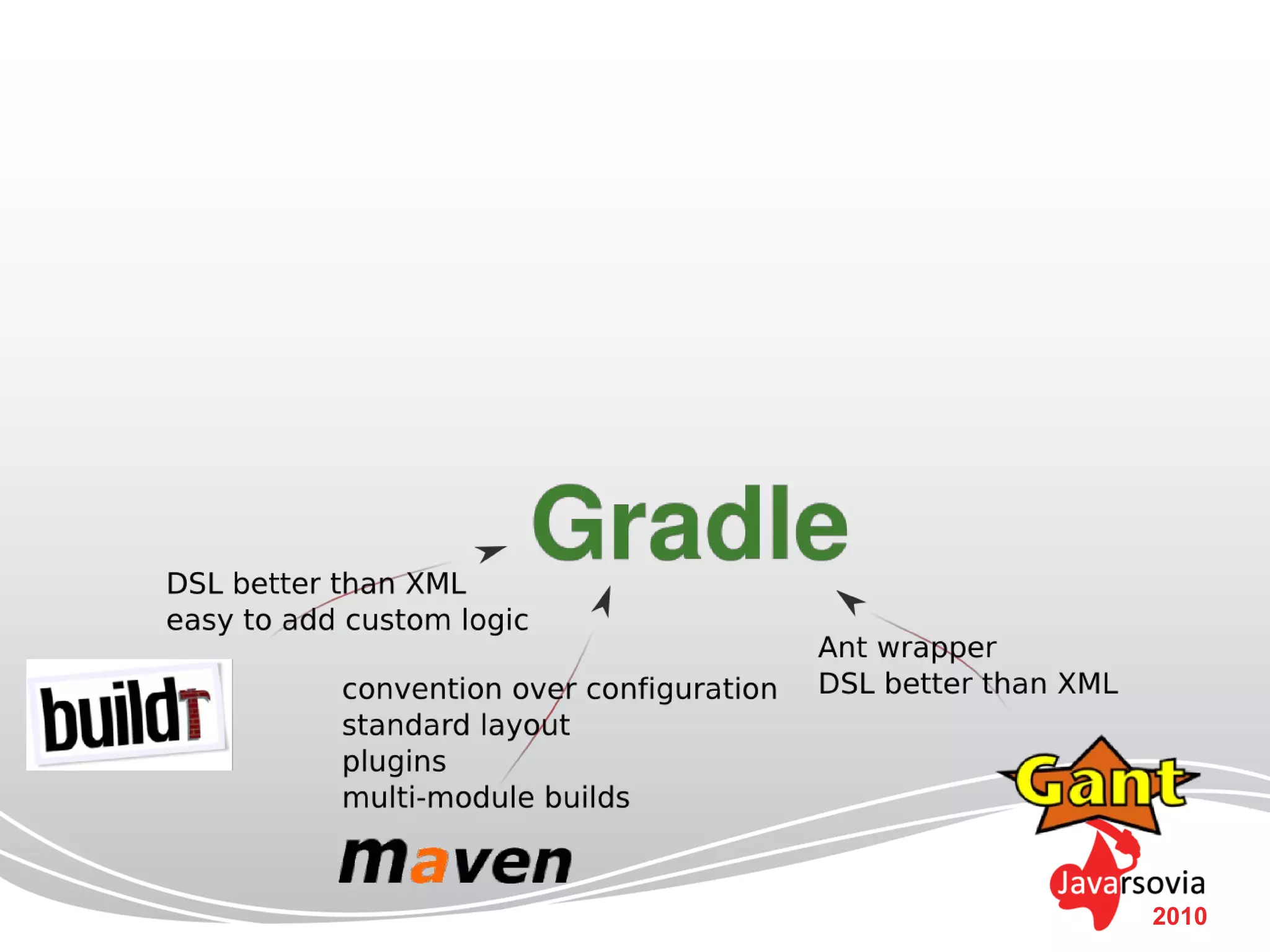

65. 2010

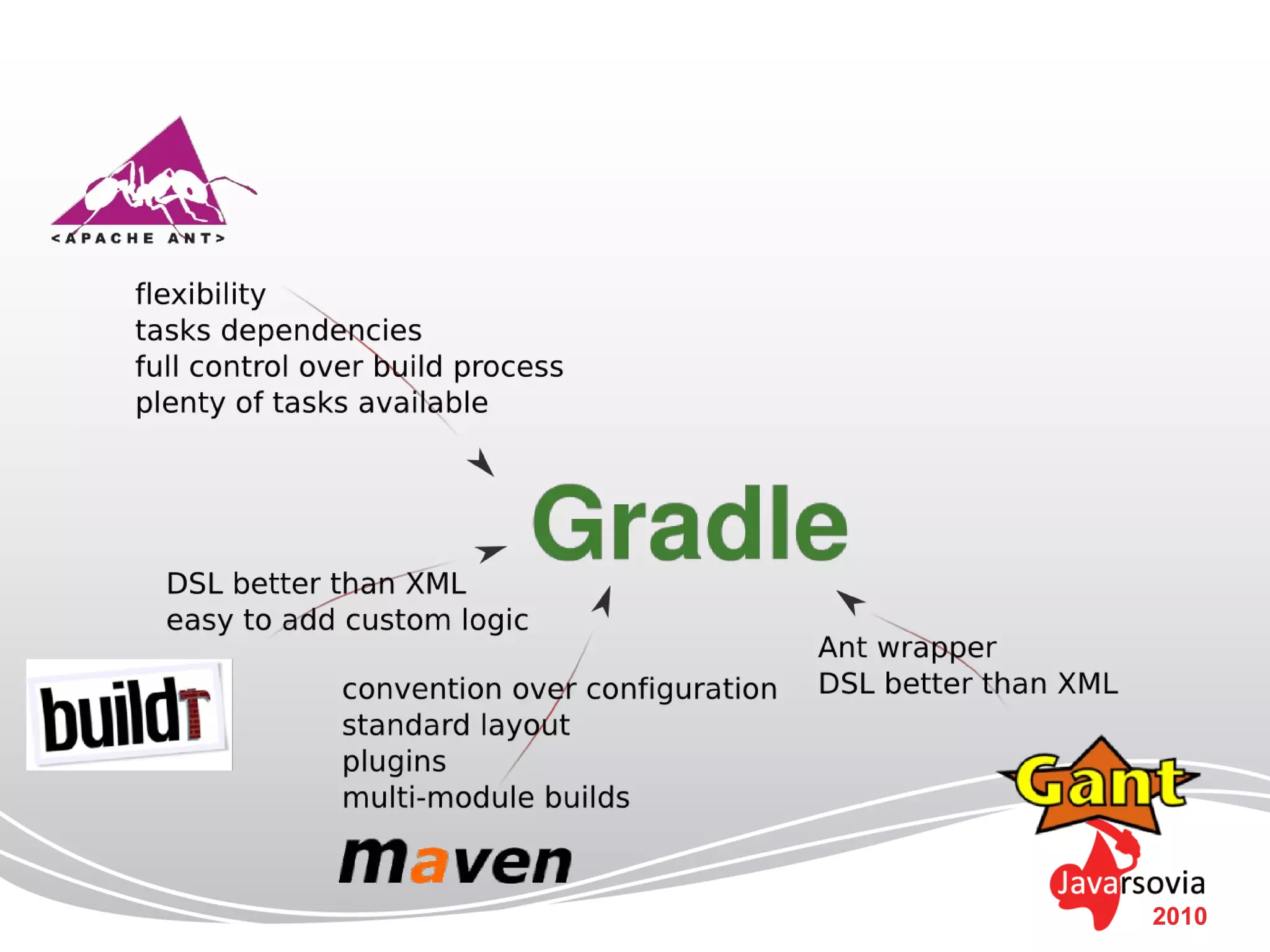

66. 2010

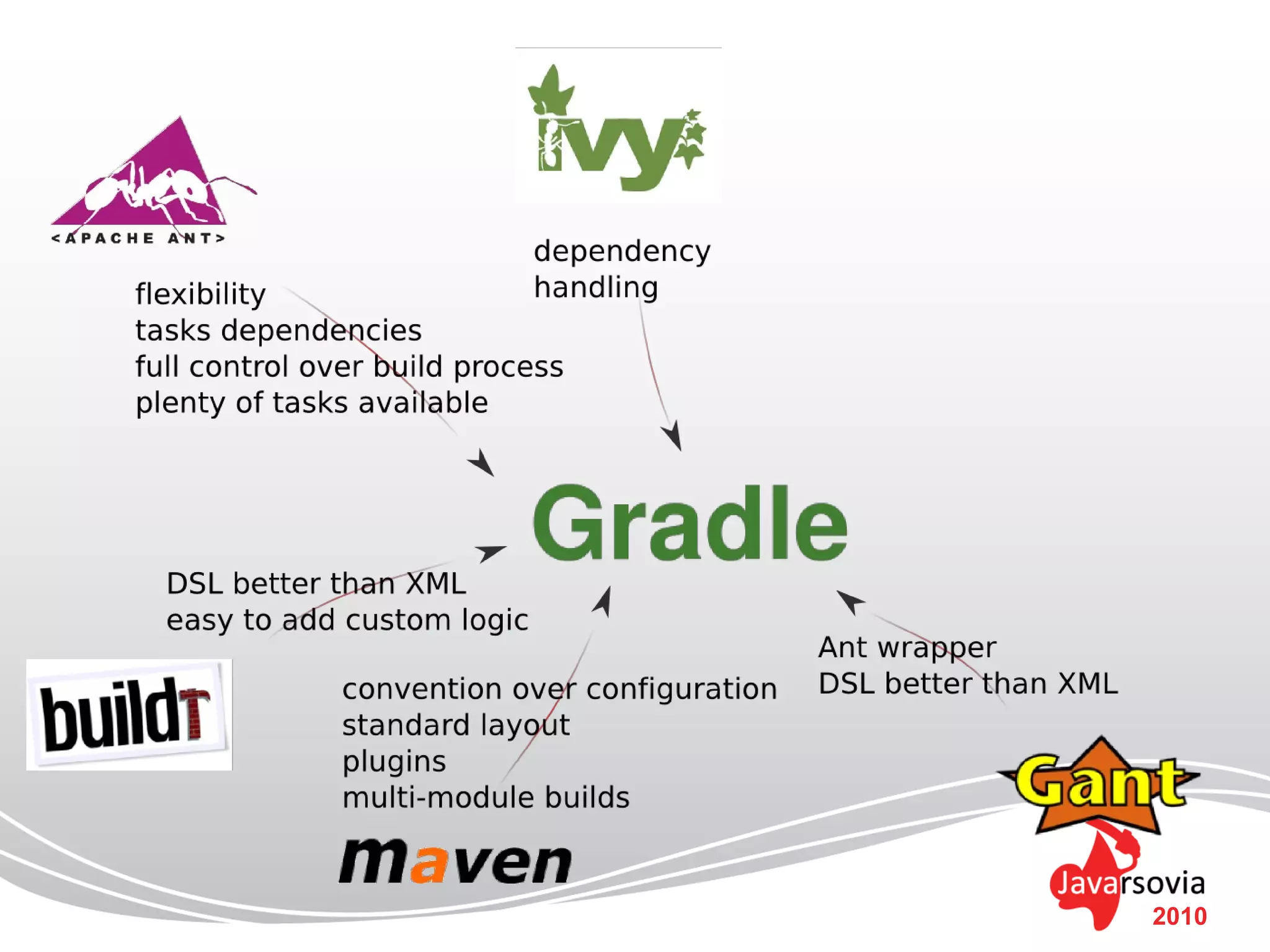

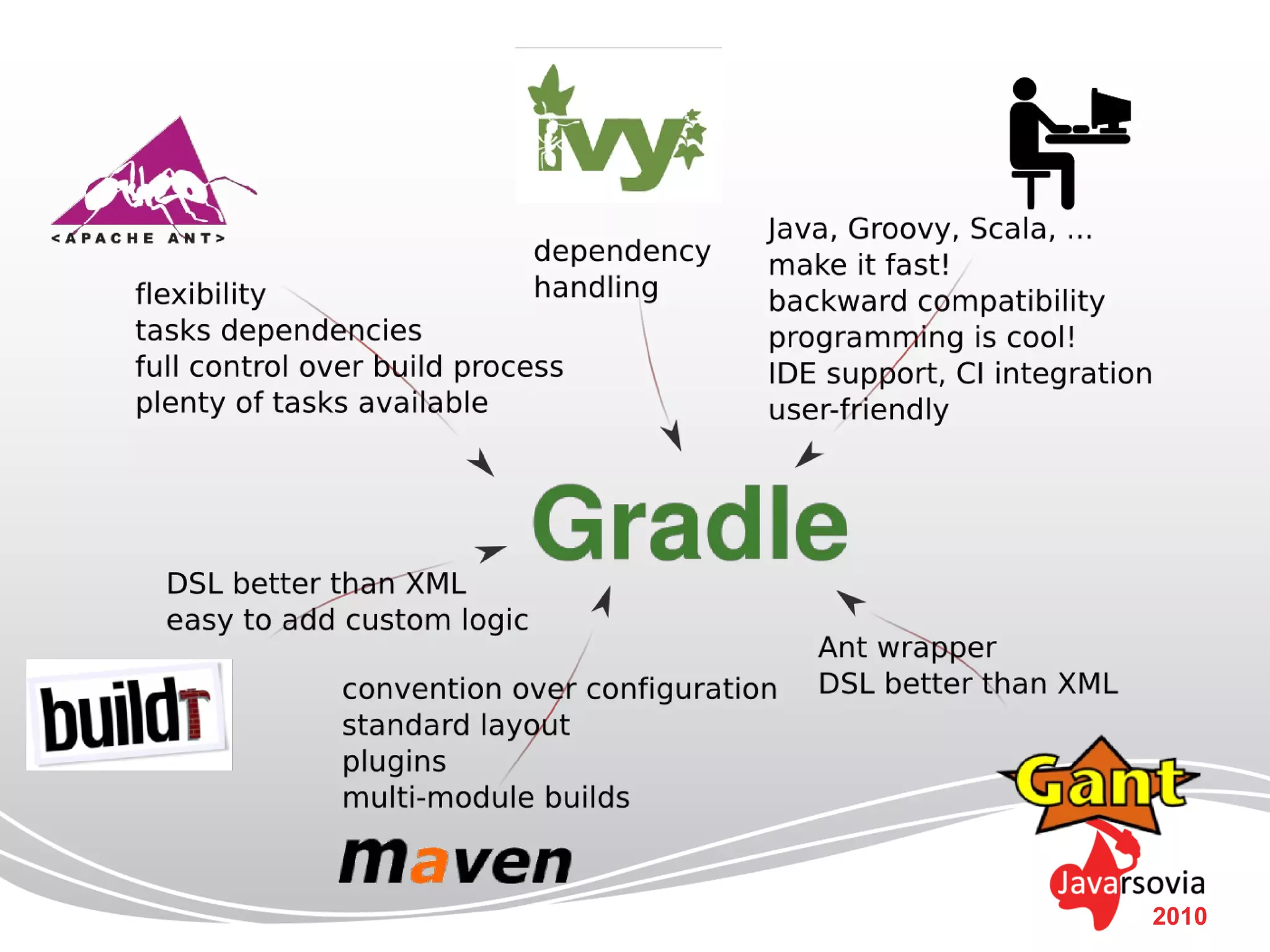

67. 2010

68. Use
Gradle
for your next project
2010

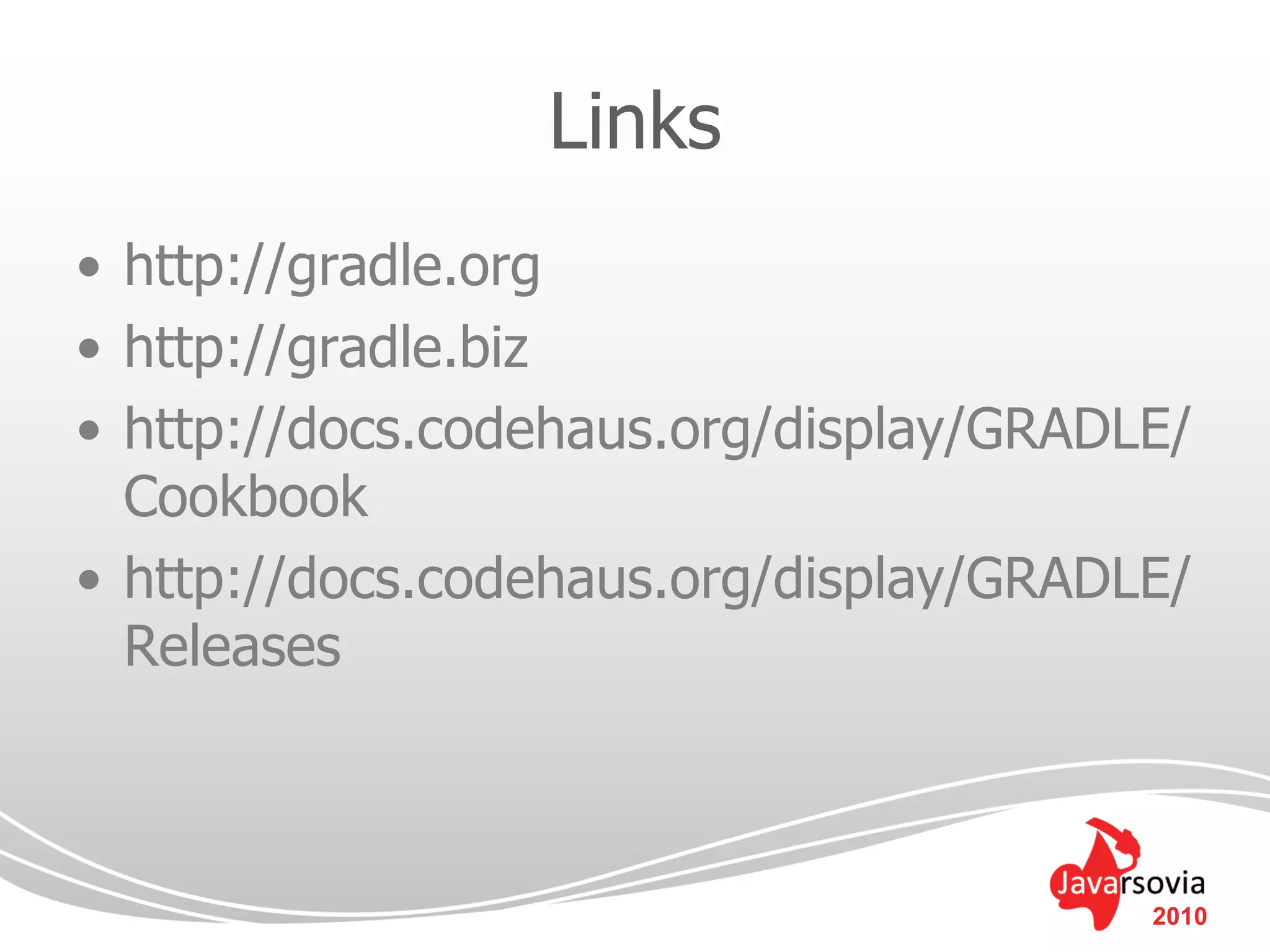

69. Links
• http://gradle.org
• http://gradle.biz
• http://docs.codehaus.org/display/GRADLE/
Cookbook
• http://docs.codehaus.org/display/GRADLE/
Releases
2010

70. Thank you
Tomek Kaczanowski
http://kaczanowscy.pl/tomek
Would be great if you could provide some feedback at
tkaczano@poczta.onet.pl
2010
