1. H4n Handy Recorder
Tutorial
By: Carolyn McKenzie

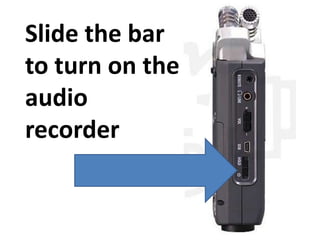

2. Slide the bar
to turn on the
audio
recorder

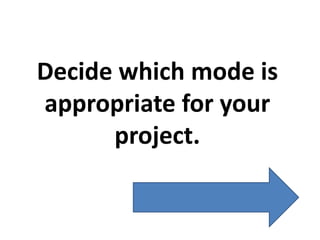

3. Decide which mode is
appropriate for your
project.

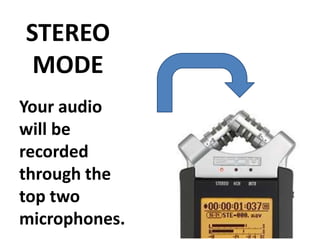

4. STEREO
MODE
Your audio
will be
recorded
through the
top two
microphones.

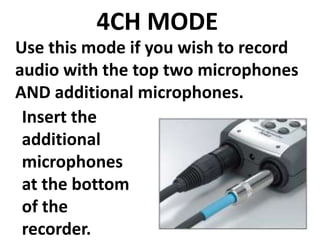

5. 4CH MODE
Use this mode if you wish to record
audio with the top two microphones
AND additional microphones.
Insert the
additional
microphones
at the bottom
of the
recorder.

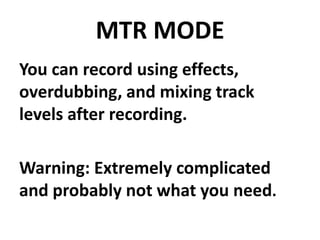

6. MTR MODE
You can record using effects,
overdubbing, and mixing track
levels after recording.
Warning: Extremely complicated
and probably not what you need.

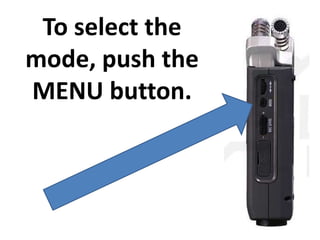

7. To select the
mode, push the
MENU button.

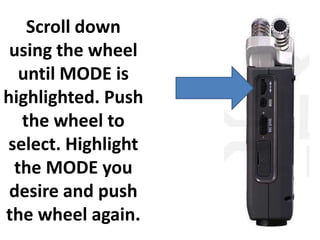

8. Scroll down
using the wheel
until MODE is
highlighted. Push
the wheel to
select. Highlight
the MODE you
desire and push
the wheel again.

9. Before you start
recording, make
sure you do not
record
unwanted
background
noise by utilizing
our fabulous
Lady Gaga sound
booth.

10. To begin
recording, hit
the record
button twice.
Hitting it
once will only
put the
device on
standby.

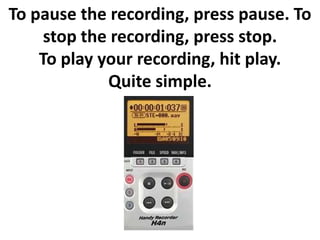

11. To pause the recording, press pause. To
stop the recording, press stop.
To play your recording, hit play.
Quite simple.

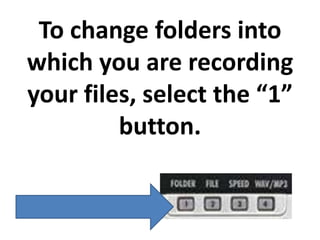

12. To change folders into
which you are recording
your files, select the “1”
button.

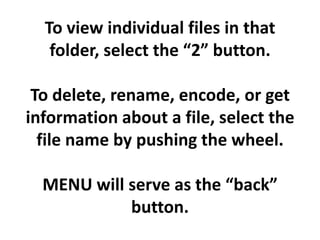

13. To view individual files in that
folder, select the “2” button.
To delete, rename, encode, or get
information about a file, select the
file name by pushing the wheel.
MENU will serve as the “back”
button.

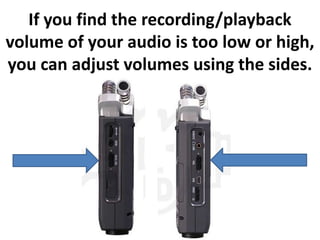

14. If you find the recording/playback
volume of your audio is too low or high,
you can adjust volumes using the sides.

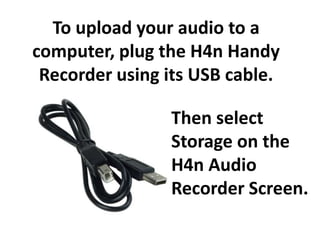

15. To upload your audio to a
computer, plug the H4n Handy
Recorder using its USB cable.
Then select
Storage on the
H4n Audio
Recorder Screen.

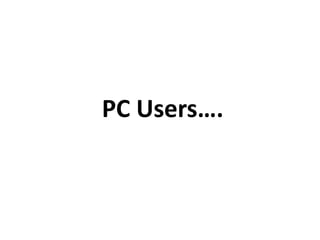

16. PC Users….

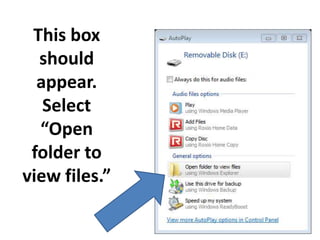

17. This box
should
appear.
Select
“Open
folder to
view files.”

18. However, it is very likely this
convenient box will not appear. In
this case select:
Start (My) Computer
Removable Disk (E)

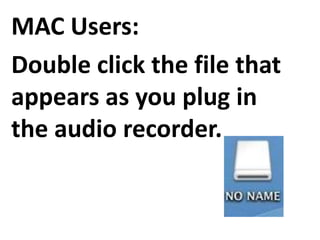

19. MAC Users:
Double click the file that
appears as you plug in
the audio recorder.

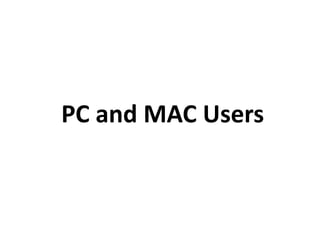

20. PC and MAC Users

21. Select the MODE you recorded
with to access your files.

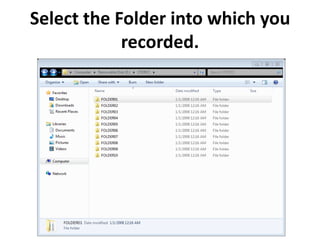

22. Select the Folder into which you
recorded.

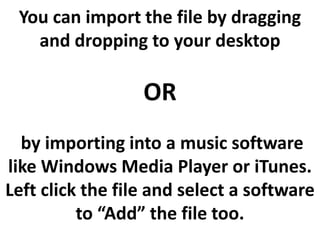

23. You can import the file by dragging
and dropping to your desktop
OR
by importing into a music software
like Windows Media Player or iTunes.
Left click the file and select a software
to “Add” the file too.

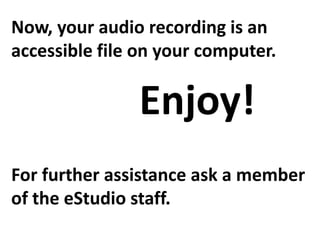

24. Now, your audio recording is an
accessible file on your computer.
Enjoy!
For further assistance ask a member
of the eStudio staff.

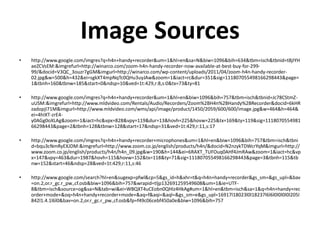

25. Image Sources
• http://www.google.com/imgres?q=h4n+handy+recorder&um=1&hl=en&sa=N&biw=1096&bih=634&tbm=isch&tbnid=t8jIYH
aeZCVsEM:&imgrefurl=http://winarco.com/zoom-h4n-handy-recorder-now-available-at-best-buy-for-299-
99/&docid=V3QC_3ouzr7gGM&imgurl=http://winarco.com/wp-content/uploads/2011/04/zoom-h4n-handy-recorder-
02.jpg&w=500&h=432&ei=sgkXT4mpNqTc0QHu3uyJAw&zoom=1&iact=rc&dur=351&sig=111807055498166298443&page=
1&tbnh=160&tbnw=185&start=0&ndsp=10&ved=1t:429,r:8,s:0&tx=73&ty=81
• http://www.google.com/imgres?q=h4n+handy+recorder&um=1&hl=en&biw=1096&bih=757&tbm=isch&tbnid=Jc78CStmZ-
uUSM:&imgrefurl=http://www.mldvideo.com/Rentals/Audio/Recorders/Zoom%2BH4n%2BHandy%2BRecorder&docid=6kHR
zadopjI71M&imgurl=http://www.mldvideo.com/wms/api/image/product/1450/2059/600/600/image.jpg&w=464&h=464&
ei=4hIXT-zrE4-
y0AGg0oXLAg&zoom=1&iact=hc&vpx=828&vpy=119&dur=13&hovh=225&hovw=225&tx=169&ty=119&sig=1118070554981
66298443&page=2&tbnh=128&tbnw=128&start=17&ndsp=31&ved=1t:429,r:11,s:17
• http://www.google.com/imgres?q=h4n+handy+recorder+microphones&um=1&hl=en&biw=1096&bih=757&tbm=isch&tbni
d=bqu3cNmRyEXJDM:&imgrefurl=http://www.zoom.co.jp/english/products/h4n/&docid=N2nzykTDWcrYqM&imgurl=http://
www.zoom.co.jp/english/products/h4n/h4n_09.jpg&w=190&h=144&ei=6RAXT_TUFOuq0AHf4JmRAw&zoom=1&iact=hc&vp
x=147&vpy=463&dur=1987&hovh=115&hovw=152&tx=118&ty=71&sig=111807055498166298443&page=3&tbnh=115&tb
nw=152&start=46&ndsp=28&ved=1t:429,r:11,s:46
• http://www.google.com/search?hl=en&sugexp=pfwl&cp=5&gs_id=h&xhr=t&q=h4n+handy+recorder&gs_sm=&gs_upl=&bav
=on.2,or.r_gc.r_pw.,cf.osb&biw=1096&bih=757&wrapid=tljp132691259549608&um=1&ie=UTF-
8&tbm=isch&source=og&sa=N&tab=wi&ei=WBQXT4uCEobn0QHIz4HkAg#um=1&hl=en&tbm=isch&sa=1&q=h4n+handy+rec
order+mode+&oq=h4n+handy+recorder+mode+&aq=f&aqi=&aql=&gs_sm=e&gs_upl=16917l18023l0l18237l6l6l0l0l0l0l205l
842l1.4.1l6l0&bav=on.2,or.r_gc.r_pw.,cf.osb&fp=f49c06cebf450a0e&biw=1096&bih=757

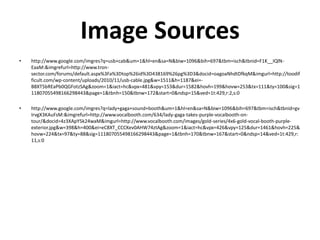

26. Image Sources
