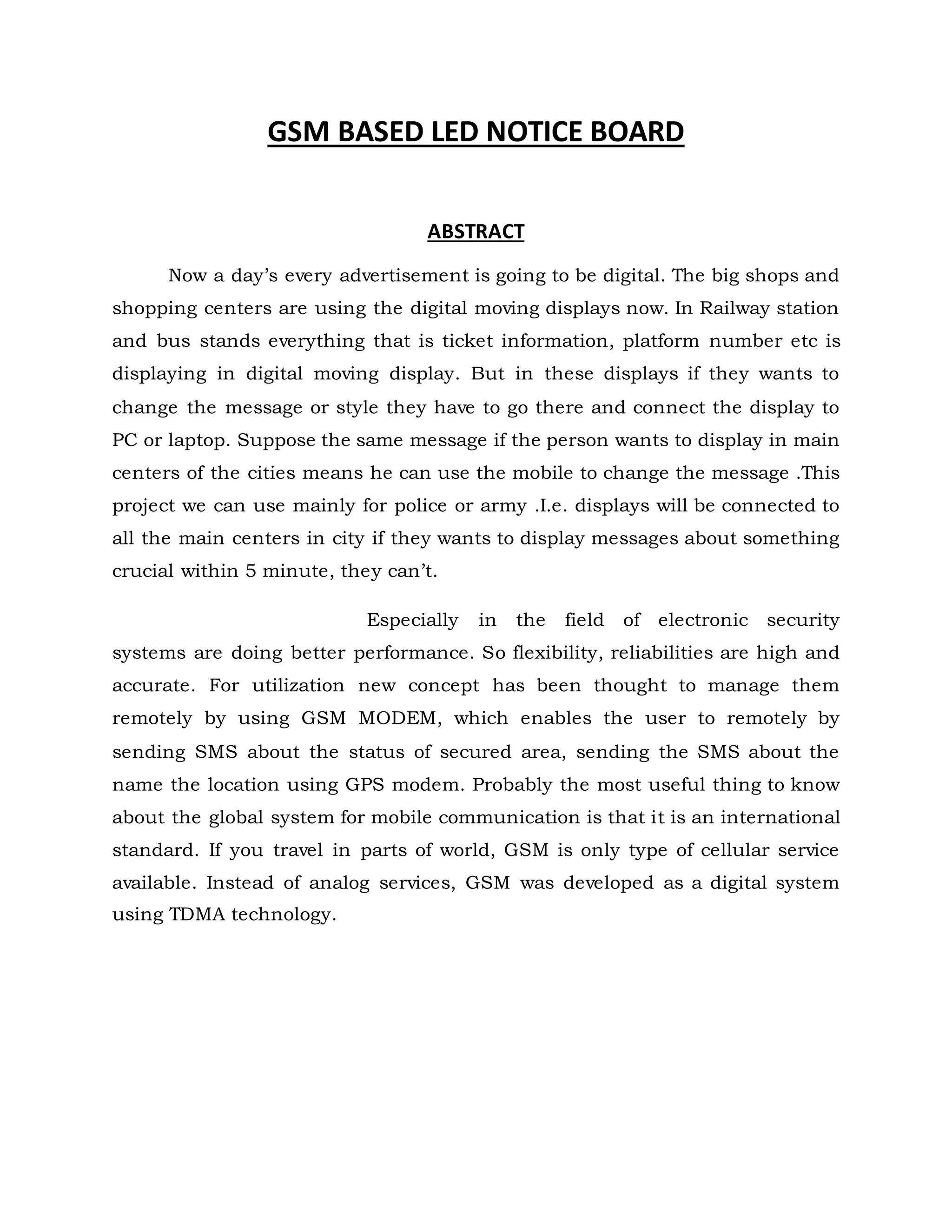

1. GSM BASED LED NOTICE BOARD
ABSTRACT
Now a day’s every advertisement is going to be digital. The big shops and
shopping centers are using the digital moving displays now. In Railway station
and bus stands everything that is ticket information, platform number etc is
displaying in digital moving display. But in these displays if they wants to
change the message or style they have to go there and connect the display to
PC or laptop. Suppose the same message if the person wants to display in main
centers of the cities means he can use the mobile to change the message .This
project we can use mainly for police or army .I.e. displays will be connected to
all the main centers in city if they wants to display messages about something
crucial within 5 minute, they can’t.
Especially in the field of electronic security
systems are doing better performance. So flexibility, reliabilities are high and
accurate. For utilization new concept has been thought to manage them
remotely by using GSM MODEM, which enables the user to remotely by
sending SMS about the status of secured area, sending the SMS about the
name the location using GPS modem. Probably the most useful thing to know
about the global system for mobile communication is that it is an international
standard. If you travel in parts of world, GSM is only type of cellular service
available. Instead of analog services, GSM was developed as a digital system
using TDMA technology.

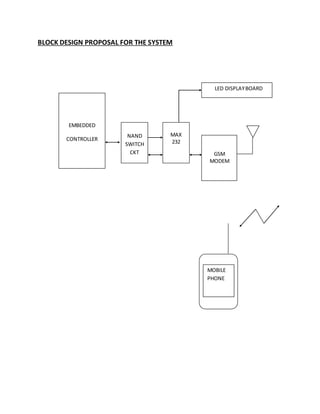

2. BLOCK DESIGN PROPOSAL FOR THE SYSTEM
EMBEDDED
CONTROLLER
MAX
232
LED DISPLAYBOARD
LCD
MOBILE
MOBILE
PHONE
GSM
MODEM
NAND
SWITCH
CKT

3. ADVANTAGES
1. In place of paper we use electronic board for important notices to issue
or display, thus saving environment.
2. Mainly used in schools, industries ,bus station, railway stations and
public utility places etc
3. Also used in the advertising agencies.
HARDWARE REQUIREMENT FOR IMPLEMENTATION OF THE
FUNCTION MODULE
 CONTROLER (AT89S52).
 GSM MODULES.
 LCD.
 POWER SUPPLY UNIT
 MAX 232 IC.
 MISCELLINOIUS COMPONENTS.
SOFTWARE REQUIREMENT FOR IMPLEMENTATION OF THE
FUNCTION MODULE
FOR AT89S52 BASED:
 The KEIL U version IDE which Keil C51 Product is a complete software
development environment for the 8051 microcontroller family.
 Us Flash+ Ver. 4.0.0 programmer for MCS51 microcontrollers developed by
UC micro systems.
