1. Git.
From the thorns to the stars.
Сергей Моренец
25 апреля 2013 г.

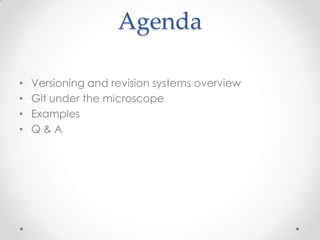

2. Agenda
• Versioning and revision systems overview
• Git under the microscope
• Examples
• Q & A

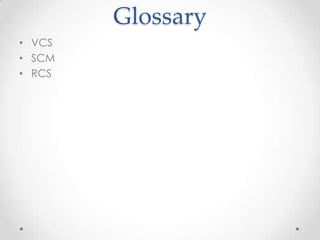

3. Glossary
• VCS
• SCM
• RCS

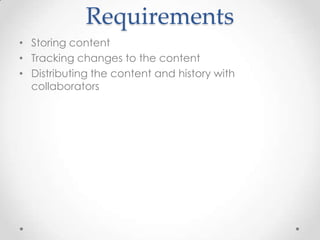

4. Requirements
• Storing content
• Tracking changes to the content
• Distributing the content and history with
collaborators

5. Lost in selection

6. Magic pill

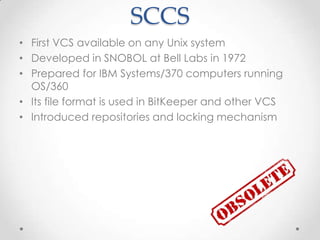

7. SCCS
• First VCS available on any Unix system
• Developed in SNOBOL at Bell Labs in 1972
• Prepared for IBM Systems/370 computers running
OS/360
• Its file format is used in BitKeeper and other VCS
• Introduced repositories and locking mechanism

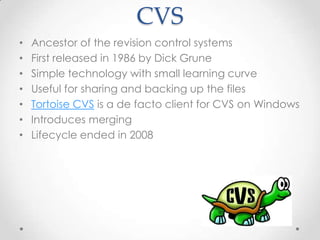

8. CVS
• Ancestor of the revision control systems
• First released in 1986 by Dick Grune
• Simple technology with small learning curve
• Useful for sharing and backing up the files
• Tortoise CVS is a de facto client for CVS on Windows
• Introduces merging
• Lifecycle ended in 2008

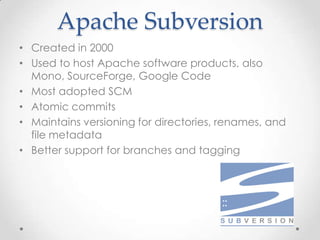

9. Apache Subversion
• Created in 2000
• Used to host Apache software products, also
Mono, SourceForge, Google Code
• Most adopted SCM
• Atomic commits
• Maintains versioning for directories, renames, and
file metadata
• Better support for branches and tagging

10. Centralized VCS

11. Distributed VCS

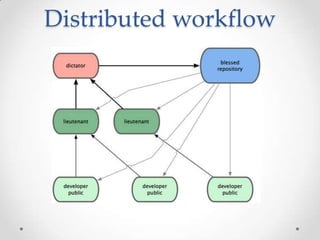

12. Distributed workflow

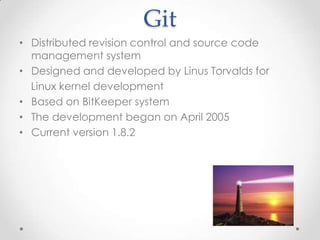

14. Git
• Distributed revision control and source code
management system
• Designed and developed by Linus Torvalds for
Linux kernel development
• Based on BitKeeper system
• The development began on April 2005
• Current version 1.8.2

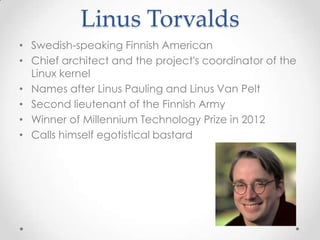

15. Linus Torvalds
• Swedish-speaking Finnish American
• Chief architect and the project's coordinator of the
Linux kernel
• Names after Linus Pauling and Linus Van Pelt
• Second lieutenant of the Finnish Army
• Winner of Millennium Technology Prize in 2012
• Calls himself egotistical bastard

16. Git
The information manager
from hell

17. Git
Global information
TRACKER

18. Junio Hamano
• Graduated from Tokyo university
• Git coordinator since 2005
• Participated in the Linux development
• Currently Google developer

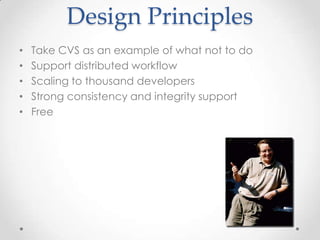

19. Design Principles
• Take CVS as an example of what not to do
• Support distributed workflow
• Scaling to thousand developers
• Strong consistency and integrity support
• Free

20. Features
• Rapid branches and merging
• Distributed development
• Compatibility and emulation
• Performance breakthrough
• Revisions hashing
• Garbage collector
• Packed data storage

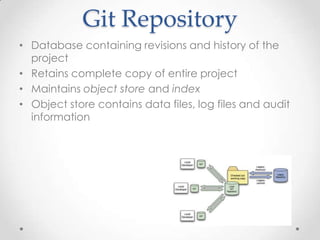

21. Git Repository
• Database containing revisions and history of the
project
• Retains complete copy of entire project
• Maintains object store and index
• Object store contains data files, log files and audit
information

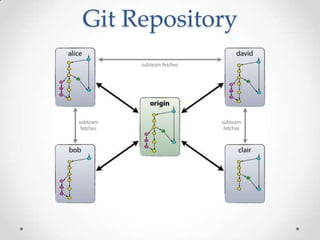

22. Git Repository

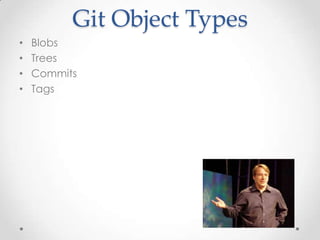

23. Git Object Types
• Blobs
• Trees
• Commits
• Tags

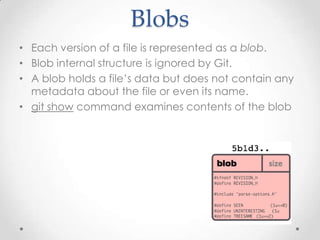

24. Blobs
• Each version of a file is represented as a blob.
• Blob internal structure is ignored by Git.
• A blob holds a file’s data but does not contain any
metadata about the file or even its name.
• git show command examines contents of the blob

25. Trees
• A tree object represents one level of directory
information.
• It records blob identifiers and path names for all the
files in one directory.
• It can also recursively reference other sub-trees
objects
• Can be examined by git show or git ls-tree
commands

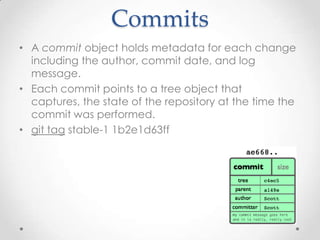

26. Commits
• A commit object holds metadata for each change
including the author, commit date, and log
message.
• Each commit points to a tree object that
captures, the state of the repository at the time the
commit was performed.
• git tag stable-1 1b2e1d63ff

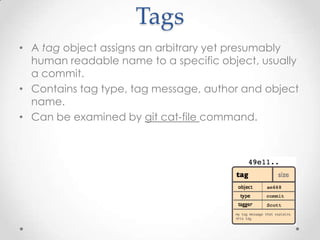

27. Tags
• A tag object assigns an arbitrary yet presumably
human readable name to a specific object, usually
a commit.
• Contains tag type, tag message, author and object
name.
• Can be examined by git cat-file command.

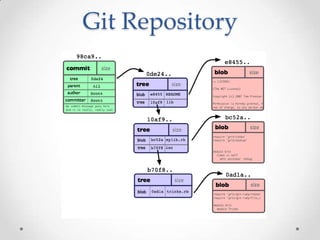

28. Git Repository

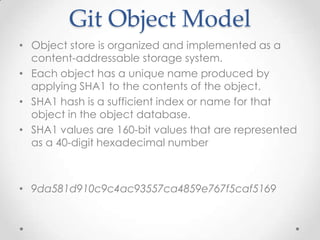

29. Git Object Model
• Object store is organized and implemented as a
content-addressable storage system.
• Each object has a unique name produced by
applying SHA1 to the contents of the object.
• SHA1 hash is a sufficient index or name for that
object in the object database.
• SHA1 values are 160-bit values that are represented
as a 40-digit hexadecimal number
• 9da581d910c9c4ac93557ca4859e767f5caf5169

30. Advantages
• Git can determine equality of the objects by
comparing names.
• The same content stored in two repositories will
always be stored under the same name.
• Corruptions errors can be detected by checking
that the object's name is still the SHA1 hash of its
contents.

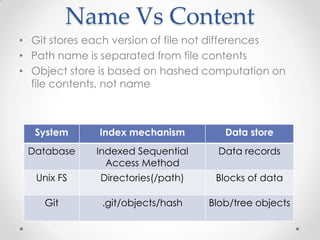

31. Name Vs Content
• Git stores each version of file not differences
• Path name is separated from file contents
• Object store is based on hashed computation on
file contents, not name
System Index mechanism Data store
Database Indexed Sequential
Access Method
Data records
Unix FS Directories(/path) Blocks of data
Git .git/objects/hash Blob/tree objects

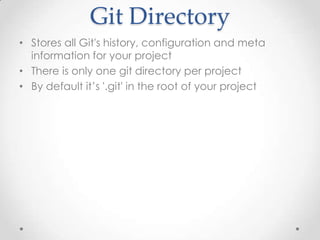

32. Git Directory
• Stores all Git's history, configuration and meta
information for your project
• There is only one git directory per project
• By default it’s '.git' in the root of your project

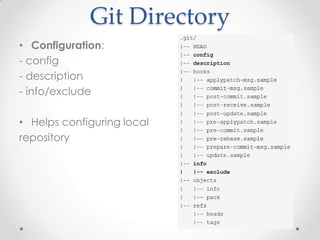

33. Git Directory
• Configuration:
- config
- description
- info/exclude
• Helps configuring local
repository

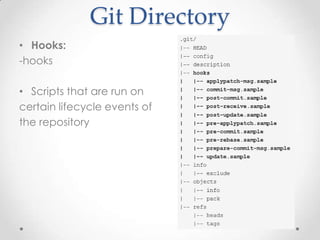

34. Git Directory
• Hooks:
-hooks
• Scripts that are run on
certain lifecycle events of
the repository

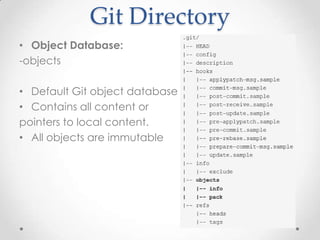

35. Git Directory
• Object Database:
-objects
• Default Git object database
• Contains all content or
pointers to local content.
• All objects are immutable

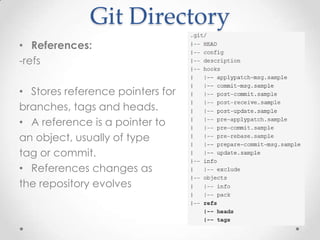

36. Git Directory
• References:
-refs
• Stores reference pointers for
branches, tags and heads.
• A reference is a pointer to
an object, usually of type
tag or commit.
• References changes as
the repository evolves

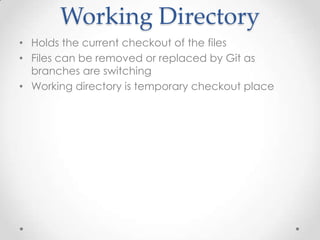

37. Working Directory
• Holds the current checkout of the files
• Files can be removed or replaced by Git as
branches are switching
• Working directory is temporary checkout place

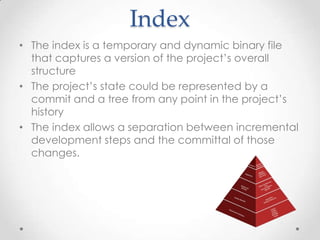

38. Index
• The index is a temporary and dynamic binary file
that captures a version of the project’s overall
structure
• The project’s state could be represented by a
commit and a tree from any point in the project’s
history
• The index allows a separation between incremental
development steps and the committal of those
changes.

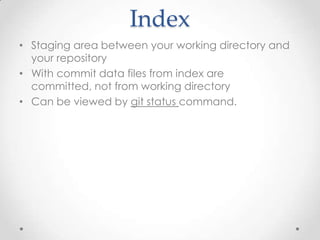

39. Index
• Staging area between your working directory and
your repository
• With commit data files from index are
committed, not from working directory
• Can be viewed by git status command.

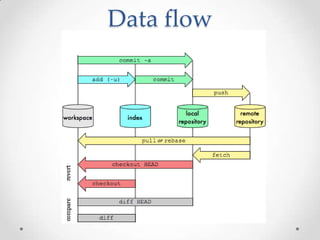

40. Data flow

41. Git Usage
• Command-line tool(Git Bash)
• Git GUI
• IDE Plugin(JGit-based)

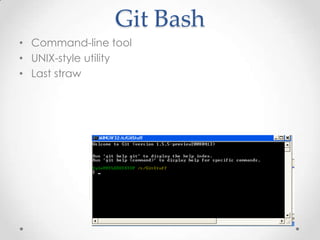

42. Git Bash
• Command-line tool
• UNIX-style utility
• Last straw

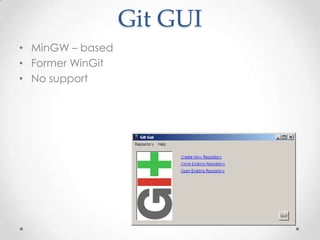

43. Git GUI
• MinGW – based
• Former WinGit
• No support

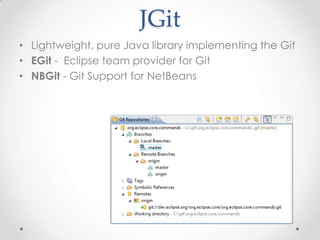

44. JGit
• Lightweight, pure Java library implementing the Git
• EGit - Eclipse team provider for Git
• NBGit - Git Support for NetBeans

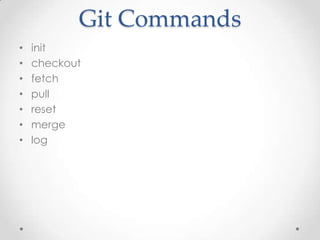

45. Git Commands
• init
• checkout
• fetch
• pull
• reset
• merge
• log

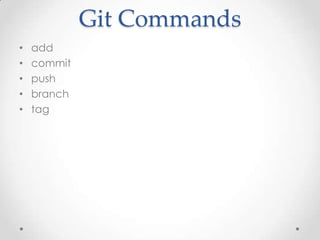

46. Git Commands
• add
• commit
• push
• branch
• tag

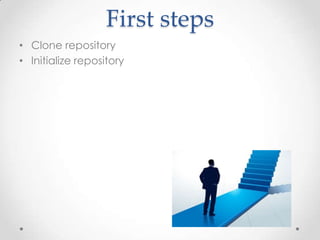

47. First steps
• Clone repository
• Initialize repository

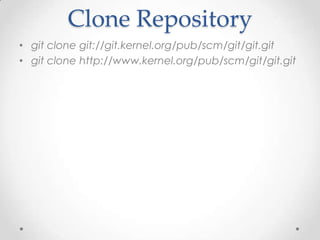

48. Clone Repository
• git clone git://git.kernel.org/pub/scm/git/git.git
• git clone http://www.kernel.org/pub/scm/git/git.git

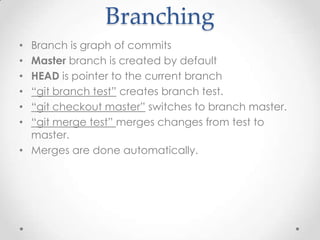

49. Branching
• Branch is graph of commits
• Master branch is created by default
• HEAD is pointer to the current branch
• “git branch test” creates branch test.
• “git checkout master” switches to branch master.
• “git merge test” merges changes from test to
master.
• Merges are done automatically.

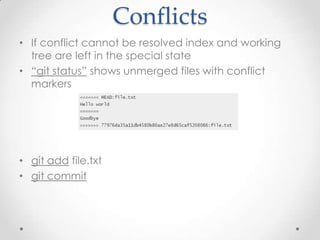

50. Conflicts
• If conflict cannot be resolved index and working
tree are left in the special state
• “git status” shows unmerged files with conflict
markers
• git add file.txt
• git commit

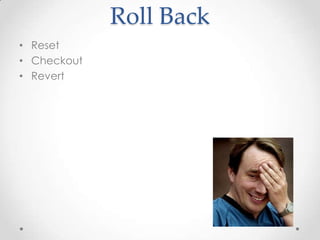

51. Roll Back
• Reset
• Checkout
• Revert

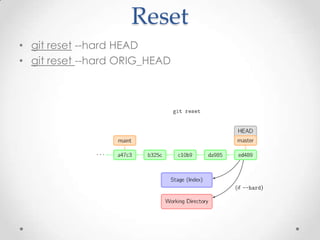

52. Reset
• git reset --hard HEAD
• git reset --hard ORIG_HEAD

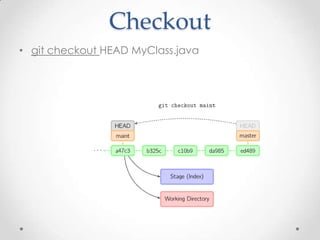

53. Checkout
• git checkout HEAD MyClass.java

54. Revert
• Rollbacks the last commit(s) in the repository
• git revert HEAD
• git revert HEAD~1 –m 2

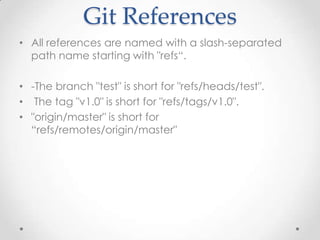

55. Git References
• All references are named with a slash-separated
path name starting with "refs“.
• -The branch "test" is short for "refs/heads/test".
• The tag "v1.0" is short for "refs/tags/v1.0".
• "origin/master" is short for
“refs/remotes/origin/master"

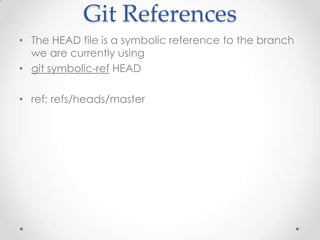

56. Git References
• The HEAD file is a symbolic reference to the branch
we are currently using
• git symbolic-ref HEAD
• ref: refs/heads/master

57. Advanced Git

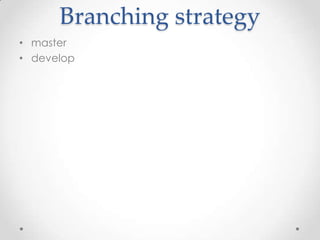

58. Branching strategy
• master
• develop

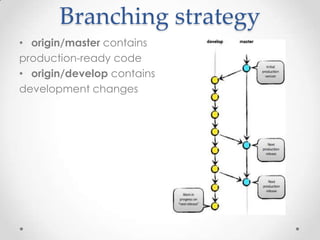

59. Branching strategy
• origin/master contains
production-ready code
• origin/develop contains
development changes

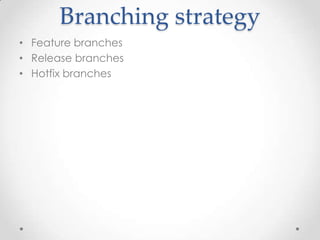

60. Branching strategy
• Feature branches
• Release branches
• Hotfix branches

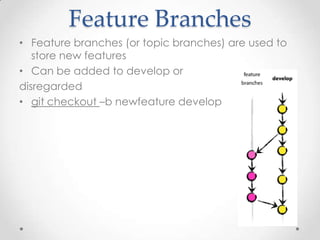

61. Feature Branches
• Feature branches (or topic branches) are used to
store new features
• Can be added to develop or
disregarded
• git checkout –b newfeature develop

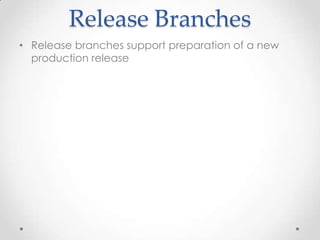

62. Release Branches
• Release branches support preparation of a new
production release

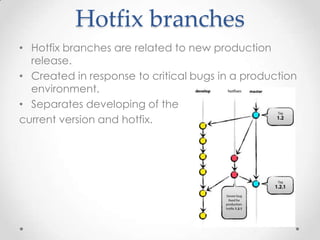

63. Hotfix branches
• Hotfix branches are related to new production
release.
• Created in response to critical bugs in a production
environment.
• Separates developing of the
current version and hotfix.

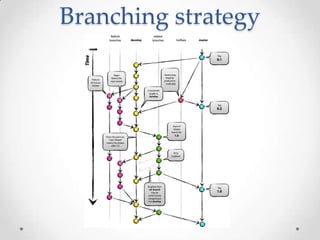

64. Branching strategy

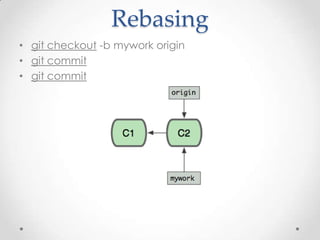

65. Rebasing
• git checkout -b mywork origin
• git commit
• git commit

66. Rebasing

67. Rebasing
• git merge origin

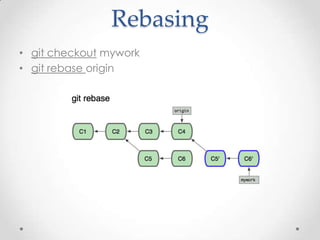

68. Rebasing
• git checkout mywork
• git rebase origin

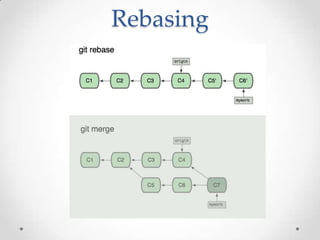

69. Rebasing

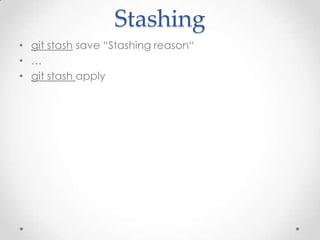

70. Stashing
• git stash save “Stashing reason“
• …
• git stash apply

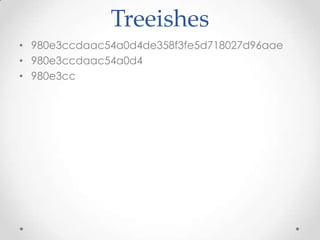

71. Treeishes
• 980e3ccdaac54a0d4de358f3fe5d718027d96aae
• 980e3ccdaac54a0d4
• 980e3cc

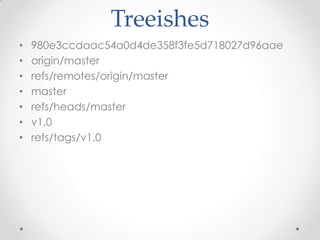

72. Treeishes
• 980e3ccdaac54a0d4de358f3fe5d718027d96aae
• origin/master
• refs/remotes/origin/master
• master
• refs/heads/master
• v1.0
• refs/tags/v1.0

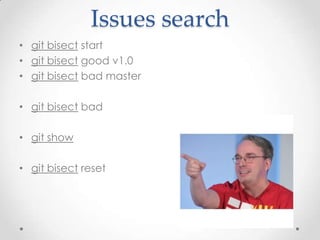

73. Issues search
• git bisect start
• git bisect good v1.0
• git bisect bad master
• git bisect bad
• git show
• git bisect reset

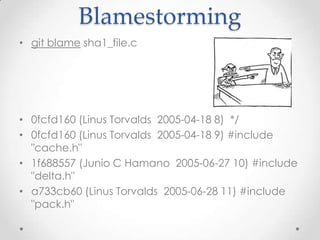

74. Blamestorming
• git blame sha1_file.c
• 0fcfd160 (Linus Torvalds 2005-04-18 8) */
• 0fcfd160 (Linus Torvalds 2005-04-18 9) #include
"cache.h"
• 1f688557 (Junio C Hamano 2005-06-27 10) #include
"delta.h"
• a733cb60 (Linus Torvalds 2005-06-28 11) #include
"pack.h"

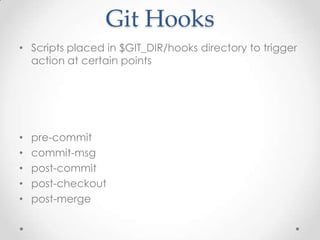

75. Git Hooks
• Scripts placed in $GIT_DIR/hooks directory to trigger
action at certain points
• pre-commit
• commit-msg
• post-commit
• post-checkout
• post-merge

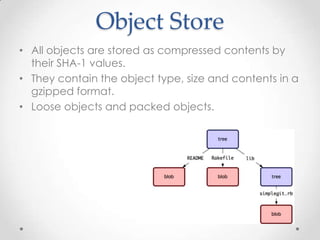

76. Object Store
• All objects are stored as compressed contents by
their SHA-1 values.
• They contain the object type, size and contents in a
gzipped format.
• Loose objects and packed objects.

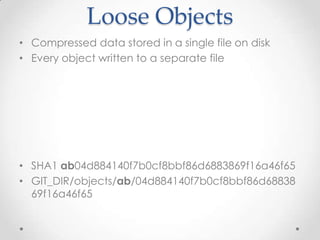

77. Loose Objects
• Compressed data stored in a single file on disk
• Every object written to a separate file
• SHA1 ab04d884140f7b0cf8bbf86d6883869f16a46f65
• GIT_DIR/objects/ab/04d884140f7b0cf8bbf86d68838
69f16a46f65

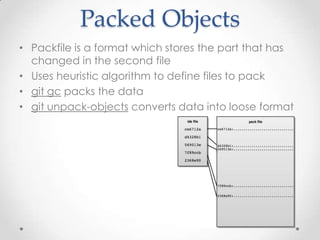

78. Packed Objects
• Packfile is a format which stores the part that has
changed in the second file
• Uses heuristic algorithm to define files to pack
• git gc packs the data
• git unpack-objects converts data into loose format

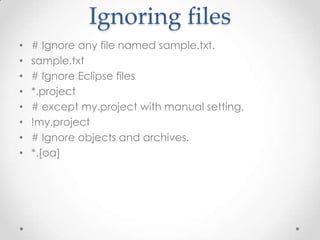

79. Ignoring files
• # Ignore any file named sample.txt.
• sample.txt
• # Ignore Eclipse files
• *.project
• # except my.project with manual setting.
• !my.project
• # Ignore objects and archives.
• *.[oa]

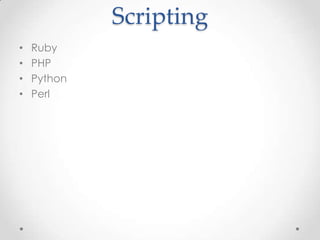

80. Scripting
• Ruby
• PHP
• Python
• Perl

81. Migration
• Script support
• CVS
• SVN
• Perforce
• Mercurial
• fast-support tool

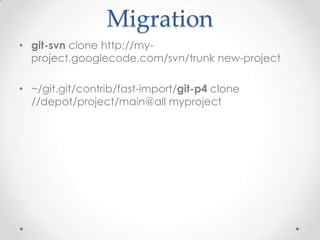

82. Migration
• git-svn clone http://my-
project.googlecode.com/svn/trunk new-project
• ~/git.git/contrib/fast-import/git-p4 clone
//depot/project/main@all myproject

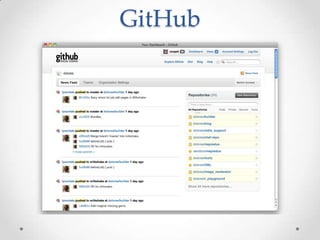

83. GitHub

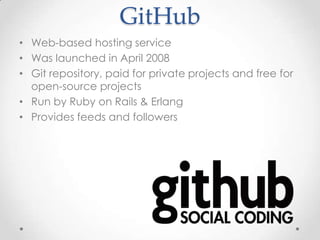

84. GitHub
• Web-based hosting service
• Was launched in April 2008
• Git repository, paid for private projects and free for
open-source projects
• Run by Ruby on Rails & Erlang
• Provides feeds and followers

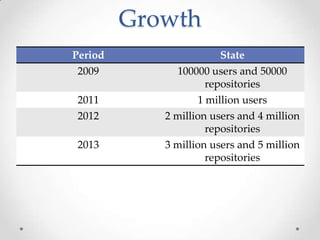

85. Growth
Period State
2009 100000 users and 50000
repositories
2011 1 million users
2012 2 million users and 4 million
repositories
2013 3 million users and 5 million
repositories

86. Octocat
• Introduced by Tom Preston-Werner, cofounder of
GitHub
• Composed of octopus and cat words

87. Octocat

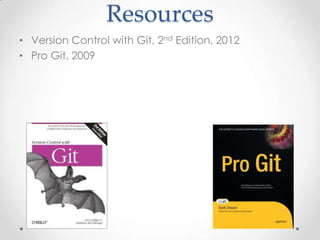

88. Resources
• Version Control with Git, 2nd Edition, 2012
• Pro Git, 2009

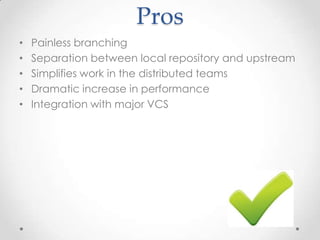

89. Pros
• Painless branching
• Separation between local repository and upstream
• Simplifies work in the distributed teams
• Dramatic increase in performance
• Integration with major VCS

90. Cons
• Repository security risks
• Latest revision question
• Pessimistic locks
• Big learning curve
• Commit identifiers
• Not optimal for single developers

91. Q&A
• Сергей Моренец, morenets@mail.ru
