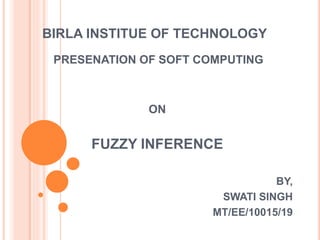

1. BIRLA INSTITUE OF TECHNOLOGY
PRESENATION OF SOFT COMPUTING
ON
FUZZY INFERENCE
BY,
SWATI SINGH
MT/EE/10015/19

2. CONTENTS
 INRODUCTION
 PREDICATE LOGIC
 INFERRING IN FUZZY LOGIC
 FUZZY LOGIC INFERENCE
 SOME EXAMPLES ON GMT AND GMP
 PRACTICAL EXAMPLES
 CONCLUSION

3. INTRODUCTION
 Fuzzy inference: From a set of fuzzy rules we can infer some
other fuzzy rules.
 Fuzzy inference is the process of formulating the mapping
from a given input to an output using fuzzy logic.
 There are three types of fuzzy inference system that can be
implemented in fuzzy logic tool box: Mamdani-type ,
Sugeno-type and The Standard Additive Model (SAM).
 Application of fuzzy inference system (FIS) coupled with
Mamdani's method in modeling and optimization of process
parameters for biotreatment of real textile wastewater.
A fuzzy logic-based diagnosis system was developed to
optimize the process parameters for the decolourization of a
real textile wastewater.

4. PREDICATE LOGIC
 Predicate logic is a two valued logic.
 Either it is one or zero, True or false.
 There are some rules with the help of that rule we can infer some
other set of rules.
 Some operations on predicate calculus are:
 Modus Ponens: P , P Q then, Q
It states that if P is the first rule , and P implies Q is the second,
then we can infer that the third rule to be Q.
 Modus Tonens: P Q , NOT Q are the two rules then we
can infer that NOT Q is the third rule
 Chain rule : P Q , Q R are the two rules then, we can
infer that P R ( P implies R is the third rule ).

5. INFERRING IN FUZZY LOGIC
 Generalized Modus Ponens ( GMP):
If x is A ,then y is B …….1st rule
x is A………………………….2nd rule
Then, we can infer that y is B as the 3rd rule.
 Generalized Modus Tollens ( GMT):
If x is A ,then y is B …….1st rule
y is B………………………….2nd rule
Then, we can infer that x is A as the 3rd rule.
where A, A, B, B are fuzzy sets on the universe of x and y.

6. FUZZY INFERRING PROCEDURE
 A, A, B, B are fuzzy sets on the universe of x and y.
 To compute the membership function of A and B the max-
min composition of fuzzy sets A and B, respectively with
R(x , y) , where R is the implication relation used.

7. SOME EXAMPLES
 EXAMPLE OF GMP:
 P : if x is A , then y is B
Where, A = {(x1,0.6),(x2,0.9),(x3,0.7)}
We have to derive the conclusion in the form y is B
SOL:
AXB = AXY =

9.  EXAMPLE OF GMT :
 Assume that a proposition if x is A and y is B is given
where,
 A= {(x1, 0.5), (x2, 1), (x3, 0.6)}, B = {(y1, 1),(y2, 0.4)}
 And second proposition as y is B is given by,
B= {(y1, 0.9), (y2, 0.7)}
So, we have to conclude that x is A .
Now ,

11. PRACTICAL EXAMPLE
 Apply the fuzzy GMP rule to deduce rotation is quite slow.
 Given that ,
1. If temp is high then rotation is slow
2. Temperature is very high
Let,
X= {30,40,50,60,70,80,90,100} be the set of temperature.
Y ={10,20,30,40,50,60} be the set of rotations per minute.
 The fuzzy set High (H), Very high (VH), Slow (S) and Quiet Slow
(QS)
H= {(70,1),(80,1),(90,0.3)}
VH = {(80,0.6),(90,0.9),(100,1)}
S = {(30,0.8),(40,1),(50,0.6)}
QS = {(10,1),(20,0.8),(30,0.5)}

12.  Now, we can solve for if temp is high then rotation is slow
R= (H X S) U (H X Y)
 For temp is very high :
To deduce rotation is ‘quite slow’ we make use of
QS = VH 0 R (x , y)
H X S =
H X Y =

13.  R = (H X S) U (H X Y) =
 Q = VH X R (x , y) = [0.6 0.9 1]
 Q = [ 0.8 0.9 0.7]
 Hence we derive QS = {(10,0.8),(20,0.9),(30,0.7)}

14. CONCLUSION
 We can the steps of fuzzy logic as , firstly forms a rule
base with the help of linguistic language. We do the
fuzzification of the inputs, by the help of the fuzzified
inputs, and the rule base , we infer some of the rules
which we wanted. And we analyzed the output of the
system. The procedure of doing fuzzy inference is been
explained in the slides.
