1. FUEL
INJECTOR
By- Tejesh Dixit

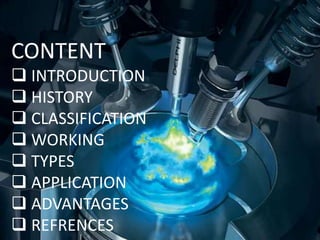

2. CONTENT
 INTRODUCTION
 HISTORY
 CLASSIFICATION
 WORKING
 TYPES
 APPLICATION
 ADVANTAGES
 REFRENCES

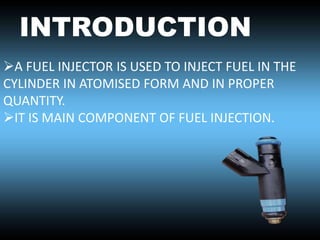

3. INTRODUCTION
A FUEL INJECTOR IS USED TO INJECT FUEL IN THE
CYLINDER IN ATOMISED FORM AND IN PROPER
QUANTITY.
IT IS MAIN COMPONENT OF FUEL INJECTION.

5. CLASSIFICATION
MECHANICAL FUEL INJECTOR
ELECTRONIC FUEL INJECTOR

6. MECHANICAL
FUEL INJECTOR
IT USES A SINGLE
PLUNGER PISTON
WITHIN A PLUNGER
BARREL FOR
PUMPING FUEL.

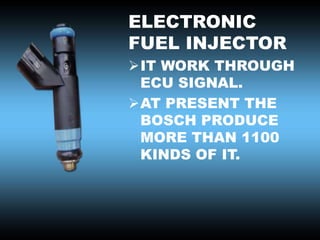

7. ELECTRONIC
FUEL INJECTOR
IT WORK THROUGH
ECU SIGNAL.
AT PRESENT THE
BOSCH PRODUCE
MORE THAN 1100
KINDS OF IT.

8. WORKING

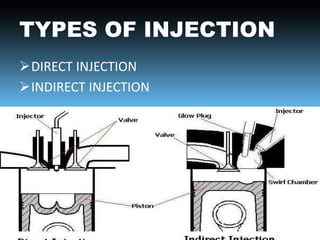

9. TYPES OF INJECTION
DIRECT INJECTION
INDIRECT INJECTION

12. ADVANTAGES
IMPROVE FUEL CONSUMPTION
EMMISION
BETTER PERFORMANCE
GREEN TECHNOLOGY

13. References
Wikipedia
Howstuffswork.com
Youtube.com
IC ENGINE BY V Ganesan
www.eng1.zu.edu
Resources.hwb.wales.gov.uk

14. THANK YOU
ANY QUERIES?
