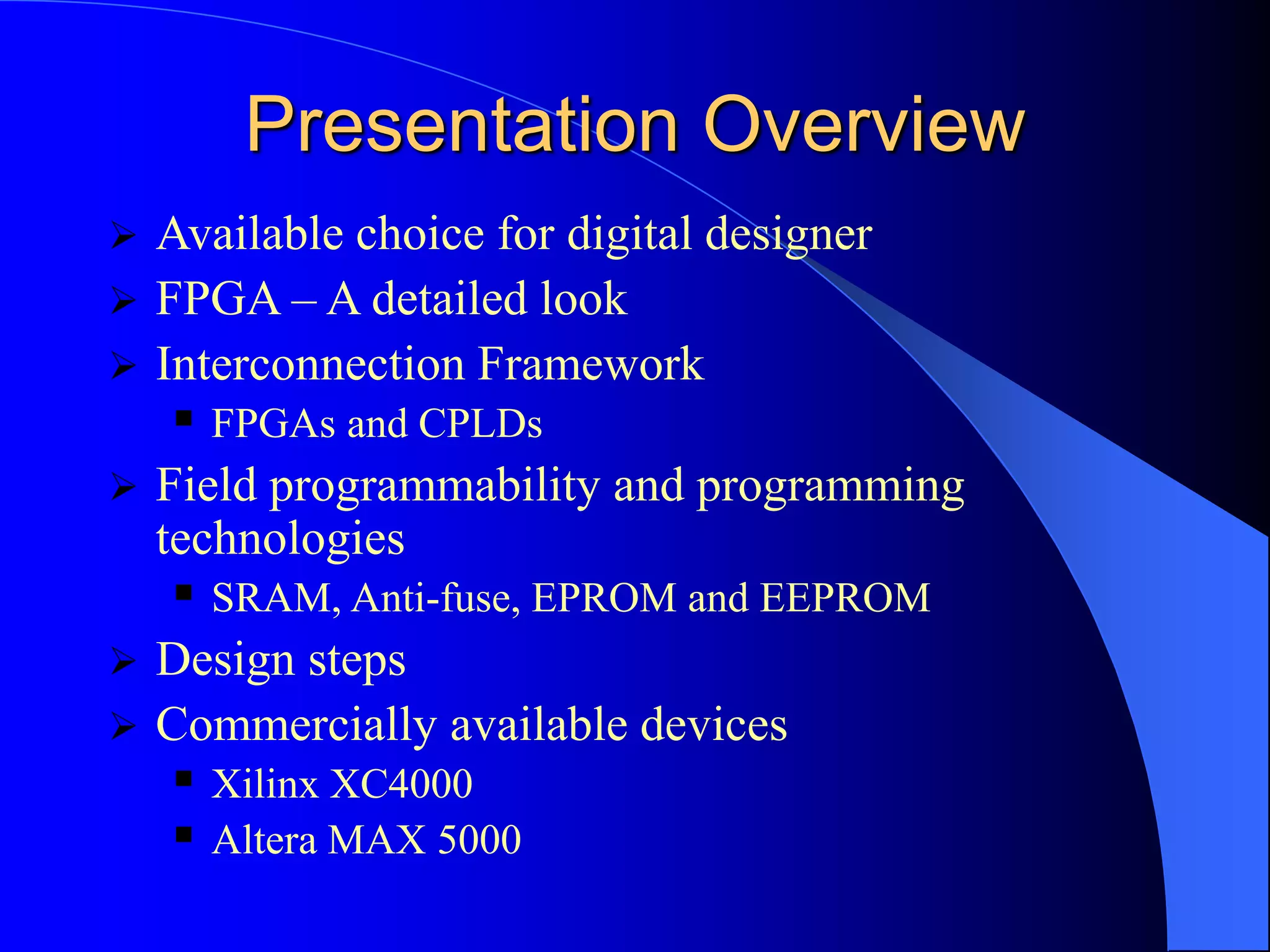

2. Presentation Overview
Available choice for digital designer
FPGA – A detailed look
Interconnection Framework
FPGAs and CPLDs
Field programmability and programming
technologies
SRAM, Anti-fuse, EPROM and EEPROM
Design steps
Commercially available devices
Xilinx XC4000
Altera MAX 5000
3. Designer’s Choice
Digital designer has various options
SSI (small scale integrated circuits) or MSI (medium scale
integrated circuits) components
Difficulties arises as design size increases
Interconnections grow with complexity resulting in a
prolonged testing phase
Simple programmable logic devices
PALs (programmable array logic)
PLAs (programmable logic array)
Architecture not scalable; Power consumption and delays play
an important role in extending the architecture to complex
designs
Implementation of larger designs leads to same difficulty as
that of discrete components
4. Designer’s Choice
Quest for high capacity; Two choices
available
MPGA (Masked Programmable Logic Devices)
Customized during fabrication
Low volume expensive
Prolonged time-to-market and high financial risk
FPGA (Field Programmable Logic Devices)
Customized by end user
Implements multi-level logic function
Fast time to market and low risk
5. FPGA – A Quick Look
Two dimensional array of customizable logic
block placed in an interconnect array
Like PLDs programmable at users site
Like MPGAs, implements thousands of gates of
logic in a single device
Employs logic and interconnect structure capable of
implementing multi-level logic
Scalable in proportion with logic removing many of the size
limitations of PLD derived two level architecture
FPGAs offer the benefit of both MPGAs and
PLDs!
6. FPGA – A Detailed Look
Based on the principle of functional completeness
FPGA: Functionally complete elements (Logic
Blocks) placed in an interconnect framework
Interconnection framework comprises of wire
segments and switches; Provide a means to
interconnect logic blocks
Circuits are partitioned to logic block size,
mapped and routed
7. A Fictitious FPGA Architecture
(With Multiplexer As Functionally Complete Cell)
Basic building block
8. Interconnection Framework
Granularity and interconnection structure
has caused a split in the industry
FPGA
– Fine grained
– Variable length
interconnect segments
– Timing in general is not
predictable; Timing
extracted after placement
and route
9. Interconnection Framework
CPLD
– Coarse grained
(SPLD like blocks)
– Programmable crossbar
interconnect structure
– Interconnect structure uses
continuous metal lines
– The switch matrix may or may not
be fully populated
– Timing predictable if fully
populated
– Architecture does not scale well
10. Field Programmability
Field programmability is achieved through
switches (Transistors controlled by memory
elements or fuses)
Switches control the following aspects
Interconnection among wire segments
Configuration of logic blocks
Distributed memory elements controlling the
switches and configuration of logic blocks are
together called “Configuration Memory”
11. Technology of Programmable
Elements
Vary from vendor to vendor. All share the
common property: Configurable in one of the two
positions – ‘ON’ or ‘OFF’
Can be classified into three categories:
SRAM based
Fuse based
EPROM/EEPROM/Flash based
Desired properties:
Minimum area consumption
Low on resistance; High off resistance
Low parasitic capacitance to the attached wire
Reliability in volume production
12. SRAM Programming
Technology
Employs SRAM (Static RAM) cells
to control pass transistors and/or
transmission gates
SRAM cells control the configuration
of logic block as well
Volatile
Needs an external storage
Needs a power-on configuration
mechanism
In-circuit re-programmable
Lesser configuration time
Occupies relatively larger area
13. Anti-fuse Programming
Technology
Though implementation differ, all anti-fuse
programming elements share common property
Uses materials which normally resides in high
impedance state
But can be fused irreversibly into low impedance state
by applying high voltage
14. Anti-fuse Programming
Technology
Very low ON Resistance (Faster implementation
of circuits)
Limited size of anti-fuse elements; Interconnects
occupy relatively lesser area
Offset : Larger transistors needed for programming
One Time Programmable
Cannot be re-programmed
(Design changes are not possible)
Retain configuration after power off
15. EPROM, EEPROM or Flash
Based Programming Technology
EPROM Programming Technology
Two gates: Floating and Select
Normal mode:
No charge on floating gate
Transistor behaves as normal n-channel transistor
Floating gate charged by applying high voltage
Threshold of transistor (as seen by gate) increases
Transistor turned off permanently
Re-programmable by exposing to UV radiation
17. EPROM Programming
Technology
No external storage mechanism
Re-programmable (Not all!)
Not in-system re-programmable
Re-programming is a time consuming task
18. EEPROM Programming
Technology
Two gates: Floating and Select
Functionally equivalent to EPROM; Construction
and structure differ
Electrically Erasable: Re-programmable by
applying high voltage
(No UV radiation expose!)
When un-programmed, the threshold (as seen by
select gate) is negative!
20. EEPROM Programming
Technology
Re-programmable; In general, in-system re-
programmable
Re-programming consumes lesser time
compared to EPROM technology
Multiple voltage sources may be required
Area occupied is twice that of EPROM!
21. An Example
Modulo-4 counter:
Specification
Modulo-4 counter: Logic
Implementation
23. Design Steps Involved in
Designing With FPGAs
Understand and define design
requirements
Design description
Behavioural simulation (Source
code interpretation)
Synthesis
Functional or Gate level
simulation
Implementation
Fitting
Place and Route
Timing or Post layout simulation
Programming, Test and Debug
24. Commercially Available
Devices
Architecture differs from vendor to vendor
Characterized by
Structure and content of logic block
Structure and content of routing resources
To examine, look at some of available
devices
FPGA: Xilinx (XC4000)
CPLD: Altera (MAX 5K)
25. Xilinx FPGAs
Symmetric Array based; Array
consists of CLBs with LUTs
and D-Flipflops
N-input LUTs can implement
any n-input boolean function
Array embedded within the
periphery of IO blocks
Array elements interleaved with
routing resources (wire
segments, switch matrix and
single connection points)
Employs SRAM technology
Generic Xilinx Architecture
26. XC 4000
XC4000 CLB
3 LUTs and 2 Flip-flops in a
two stage arrangement
2 Outputs: Can be registered or
combinational
External signals can also be
registered
More of internal signals are
available for connections
Can implement any two
independent functions of four
variables or any single function
of five variables
28. XC 4000
XC4000 Routing Architecture
Wire segments
Single length lines
Spans single CLB
Connects adjacent CLBs
Used to connect signals that do not have critical timing requirements
Double length lines
Spans two CLBs
Uses half as much switch as a single length connection
Long lines
Low skew; Used for signals such as clock
Relatively rare resource
Switch Matrix
Every line is connected to lines on the other three direction
Each connection requires six transistors
29. ALTERA CPLDS
Hierarchical PLD structure
First level: LABs (Functional
blocks); LAB is similar to
SPLDs
Second Level: Interconnections
among LABs
LAB consists of
Product term array
Product term distribution
Macro-cells
Expander product terms
Interconnection region: PIA
EPROM/EEPROM based
Example: MAX5K, MAX7K
Altera generic architecture
30. MAX 5000
Three wide AND gate feed an OR gate (Sum of products)
XOR gate may be used in arithmetic operations or in polarity selection
One flipflop per macrocell; Outputs may be registered
Flipflop preset and clear are via product terms; Clock may be either system
clock or internally generated
Output may be driven out or fedback
Feedback is both local and global; Local feedback is within macrocell and is
quicker
MAX5K Macrocell
31. MAX 5000
Number of product terms to macrocell limited
Wider functions implemented via expander product terms
Foldback NAND structure
Inputs are from PIA, expander product term and macrocell
feedback
Outputs of expander product term are sent to other macrocell
and to itself
MAX5000 Expander Product Term
32. MAX 5000
Second level of hierarchy:
connections among LABs
LABs are connected via PIA
Interconnections may be
global or local; Global
interconnects uses PIA
PIA consists of long wiring
segments:
Spans entire length of chip and
passes adjacent to each LAB
PIA fully populated
Predictable timing
MAX5000 Architecture
33. SRAM FPGA -- EEPROM
FPGA
An FPGA is similar to several other types of
devices which have been around for quite a
while, the difference being that an FPGA is
simply much more expandable and versatile.
The devices which FPGAs get compared to
most often are CPLDs (Complex
Programmable Logic Devices), which are
similar in function but typically have way less
logic gates inside them; Customizable CPU
design is much more feasible with an FPGA.
Once upon a time, CPLDs also had the
distinct advantage of retaining their
34. SRAM FPGA -- EEPROM
FPGA
when turned off; When FPGAs first came out,
they used simple SRAM to hold their
configuration, which of course would be lost
when the device lost power. Back then, the
FPGA had to be programmed from scratch
every time it was turned on, usually from a
separate serial ROM chip. But today, FPGAs
come in Flash, EPROM, and EEPROM
variants, which will retain configuration, and
which can also be re-programmed. (Fuse
and anti-fuse FPGAs also exist, which act
like PROMs in that they are one-time
35. SRAM FPGA -- EEPROM
FPGA
afterward.) Despite this, however, most
FPGAs still use SRAM for reasons of
simplicity (when you need to reprogram it, it's
easier to re-encode a small ROM chip than to
reprogram a large FPGA chip), so count on
having to use a separate boot ROM for the
FPGA.
Use of an FPGA is broadly divided into two
main stages: The first is "configuration
mode", the mode in which the FPGA is when
you first power it up. Configuration mode is,
as you may have guessed, where you
36. SRAM FPGA -- EEPROM
FPGA
this is when you load your code into it,
dictating how the pins behave. Once
configuration is complete, the FPGA
goes into "user mode", its main mode of
operation, where the programmed
circuit actually starts functioning.
37. Product – FPGA vs ASIC
Comparison:
FPGA benefits vs ASICs:
- Design time: 9 month design cycle vs 2-3 years
- Cost: No $3-5 M upfront (NRE) design cost.
No $100-500K mask-set cost
- Volume: High initial ASIC cost recovered only in very high volume products
Due to Moore’s law, many ASIC market requirements now met by FPGAs
- Eg. Virtex II Pro has 4 processors, 10 Mb memory, IO
Resulting Market Shift:
Dramatic decline in number of ASIC design starts:
- 11,000 in ’97
- 1,500 in ’02
FPGAs as a % of Logic market:
- Increase from 10 to 22% in past 3-4 years
FPGAs (or programmable logic) is the fastest growing segment of the
semiconductor industry!!
