Fog Computing

FOG COMPUTING
WITH MOBILE
NETWORK
Adnyesh Dalpati
www.iotians.net www.facebook.com/iotians

A bit of me
■ A Lead SolutionArchitect andTechnologist who
has worked hands on in different technologies
from last 12+ years
■ Developed applications for Investment Banks,
Stock Markets, Cloud Service Providers and
Telecom Companies
■ Plays chess and a theatre enthusiast where he has
led and directed many plays
Adnyesh Dalpati

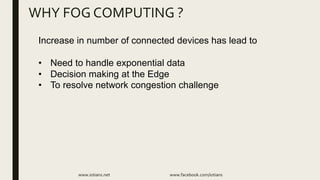

WHY FOG COMPUTING ?
Increase in number of connected devices has lead to
• Need to handle exponential data
• Decision making at the Edge
• To resolve network congestion challenge

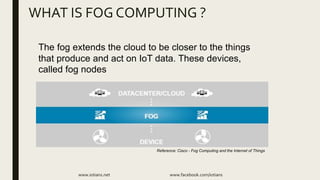

WHAT IS FOG COMPUTING ?
The fog extends the cloud to be closer to the things
that produce and act on IoT data. These devices,
called fog nodes
Reference: Cisco - Fog Computing and the Internet of Things

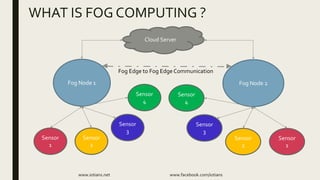

WHAT IS FOG COMPUTING ?
Sensor
1
Sensor
2
Sensor
3
Sensor
4
Fog Node 1
Sensor
1
Sensor
2
Sensor
3
Sensor
4
Fog Node 2
Cloud Server
Fog Edge to Fog Edge Communication

WHAT IS MOBILE EDGE COMPUTING ?
Mobile Edge (ME) 1
Mobile Edge (ME) 2
Mobile Network
Operator
(MNO) Core
Network
Cloud Servers
Mobile Users
Mobile Users
RNC 1
RNC 2

FOG/MEC/CLOUD INTERCONNECT
Cloud
ME 1
[RNC 1]
Fog
Node 1
Fog
Node 2
Fog
Node 3
Location A Location B Location C
Location
A2
Location
A1
Location
A3
ME 2
[RNC 2]
Fog
Node 1
Fog
Node 2
Fog
Node 3
Location
B2
Location
B1
Location
B3
ME 3
[RNC 3]
Fog
Node 1
Fog
Node 2
Fog
Node 3
Location
C2
Location
C1
Location
C3

Fog Computing at Edge Mobile Edge Computing Cloud Computing
Power Low Medium – High High
Latency Milliseconds Sub Seconds Seconds – Minutes
Bandwidth ConnectionType Spectrum Speed Depending upon
connection type, location
etc.
Data Storage /
Storage Period
Minimum /Transient to
few hours/days
Scalable but limited to
space in RNC. Can be
stored for few
days/months
Scalable and Persistent
Computation
Power
Low Medium High
Security Limited access points
DataTransit distance is
minimal
Tampering of devices
could be an issue
Servers are inside Data
Centres
The endpoints are
secured
limited
Servers are well
monitored
high and vulnerable
COMPARISON

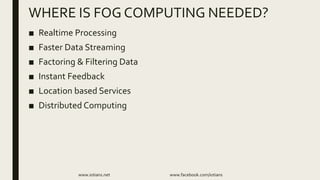

■ Realtime Processing
■ Faster Data Streaming
■ Factoring & Filtering Data
■ Instant Feedback
■ Location based Services
■ Distributed Computing
WHERE IS FOG COMPUTING NEEDED?

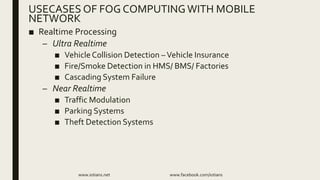

■ Realtime Processing
– Ultra Realtime
■ VehicleCollision Detection –Vehicle Insurance
■ Fire/Smoke Detection in HMS/ BMS/ Factories
■ Cascading System Failure
– Near Realtime
■ Traffic Modulation
■ Parking Systems
■ Theft Detection Systems
USECASES OF FOG COMPUTINGWITH MOBILE
NETWORK

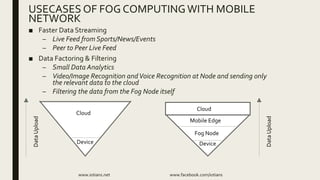

■ Faster Data Streaming
– Live Feed from Sports/News/Events
– Peer to Peer Live Feed
■ Data Factoring & Filtering
– Small Data Analytics
– Video/Image Recognition andVoice Recognition at Node and sending only
the relevant data to the cloud
– Filtering the data from the Fog Node itself
NETWORK
Device
Cloud
DataUpload
Cloud
Device
Fog Node
DataUpload
Mobile Edge

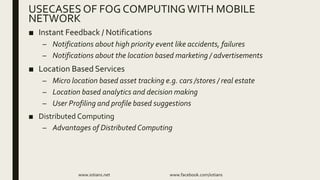

■ Instant Feedback / Notifications
– Notifications about high priority event like accidents, failures
– Notifications about the location based marketing / advertisements
■ Location Based Services
– Micro location based asset tracking e.g. cars /stores / real estate
– Location based analytics and decision making
– User Profiling and profile based suggestions
■ Distributed Computing
– Advantages of Distributed Computing
NETWORK

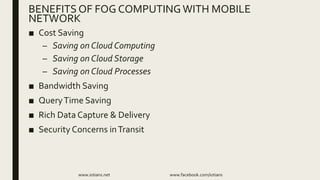

■ Cost Saving
– Saving on Cloud Computing
– Saving on Cloud Storage
– Saving on Cloud Processes
■ Bandwidth Saving
■ QueryTime Saving
■ Rich Data Capture & Delivery
■ Security Concerns inTransit
BENEFITS OF FOG COMPUTINGWITH MOBILE
NETWORK

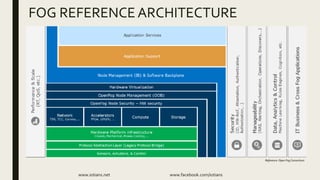

FOG REFERENCE ARCHITECTURE
Reference: Open Fog Consortium

FOG DEPLOYMENT ON AIRPORT

FOG DEPLOYMENT OFTRAFFIC
SIGNAL

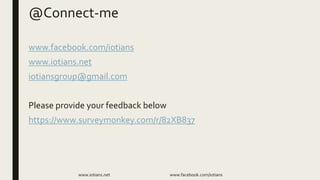

www.facebook.com/iotians
www.iotians.net
iotiansgroup@gmail.com
Please provide your feedback below
https://www.surveymonkey.com/r/82XB837
