FLUIDS MECHANICS
CIVIL ENGINEERING
ABDUL MUJEEB
A S S I S TA N T P R O F E S S O R
K V G C E , S U L L I A
FLUIDS MECHANICS

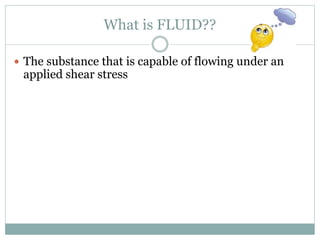

What is FLUID??
 The substance that is capable of flowing under an
applied shear stress

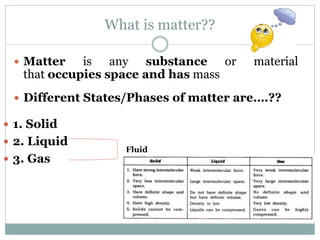

What is matter??
 Matter is any substance or material
that occupies space and has mass
 Different States/Phases of matter are….??
 1. Solid
 2. Liquid
 3. Gas

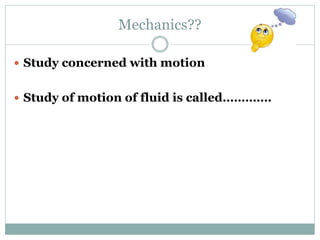

Fluid
Mechanics??
 Study concerned with motion
 Study of motion of fluid is called………….

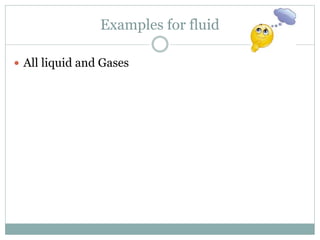

Examples for fluid
 All liquid and Gases

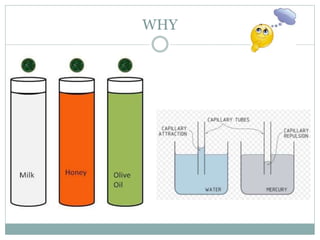

WHY
WHY
WHY
Non Newtonian Fluid

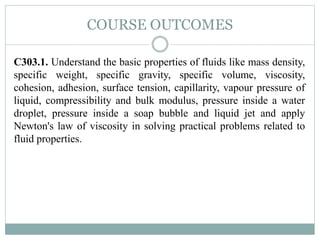

COURSE OUTCOMES
C303.1. Understand the basic properties of fluids like mass density,
specific weight, specific gravity, specific volume, viscosity,
cohesion, adhesion, surface tension, capillarity, vapour pressure of
liquid, compressibility and bulk modulus, pressure inside a water
droplet, pressure inside a soap bubble and liquid jet and apply
Newton's law of viscosity in solving practical problems related to
fluid properties.

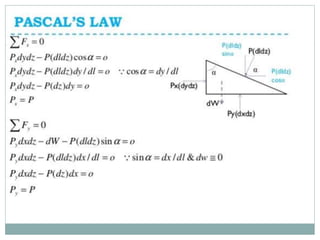

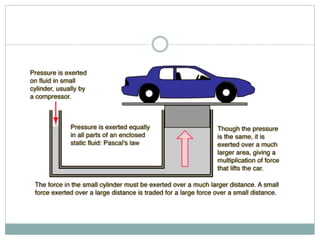

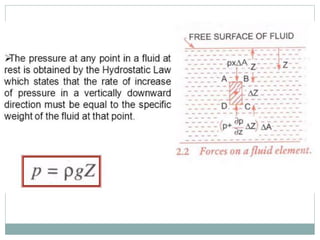

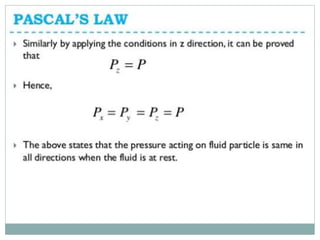

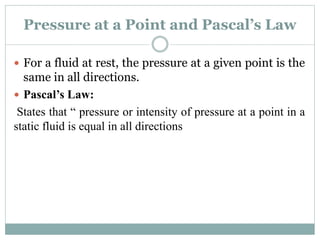

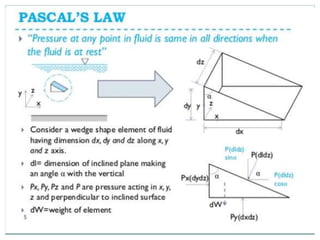

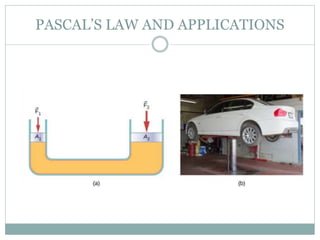

PASCAL’S LAW AND APPLICATIONS
PASCAL’S LAW AND APPLICATIONS

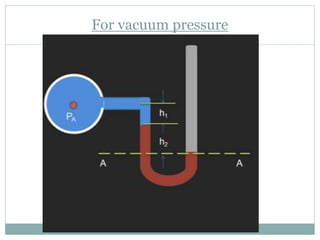

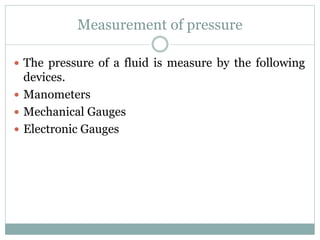

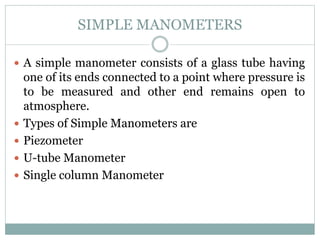

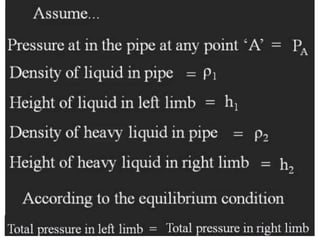

Measurement of Head/Pressure

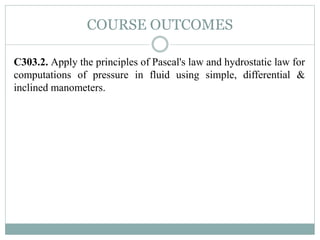

COURSE OUTCOMES
C303.2. Apply the principles of Pascal's law and hydrostatic law for
computations of pressure in fluid using simple, differential &
inclined manometers.

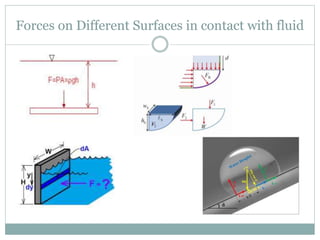

Forces on Different Surfaces in contact with fluid

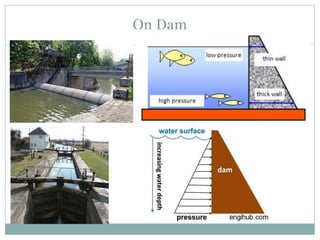

On Dam

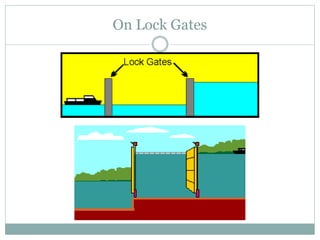

On Lock Gates

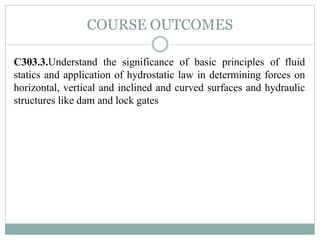

COURSE OUTCOMES
C303.3.Understand the significance of basic principles of fluid
statics and application of hydrostatic law in determining forces on
horizontal, vertical and inclined and curved surfaces and hydraulic
structures like dam and lock gates

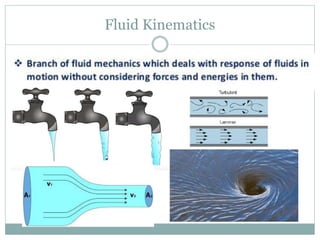

Fluid Kinematics

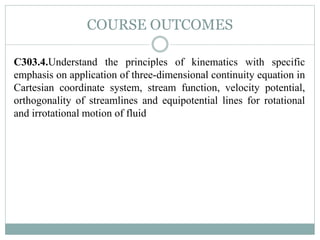

COURSE OUTCOMES
C303.4.Understand the principles of kinematics with specific
emphasis on application of three-dimensional continuity equation in
Cartesian coordinate system, stream function, velocity potential,
orthogonality of streamlines and equipotential lines for rotational
and irrotational motion of fluid

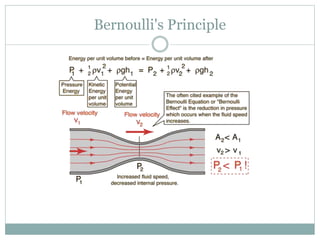

Bernoulli's Principle

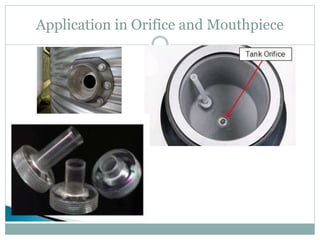

Application in Orifice and Mouthpiece
Venturimeter

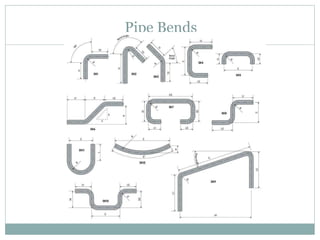

Pipe Bends

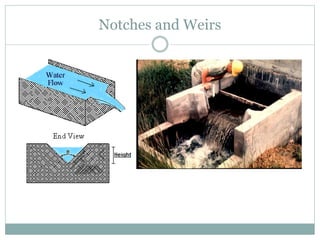

Notches and Weirs

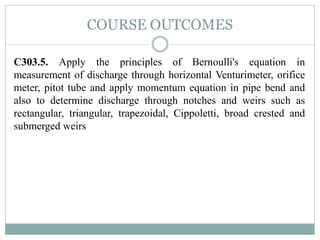

COURSE OUTCOMES
C303.5. Apply the principles of Bernoulli's equation in
measurement of discharge through horizontal Venturimeter, orifice
meter, pitot tube and apply momentum equation in pipe bend and
also to determine discharge through notches and weirs such as
rectangular, triangular, trapezoidal, Cippoletti, broad crested and
submerged weirs

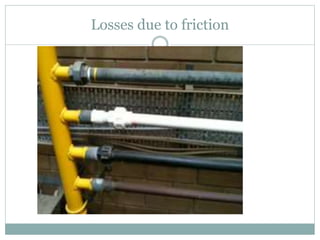

Losses due to friction

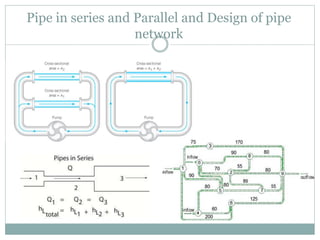

Pipe in series and Parallel and Design of pipe
network

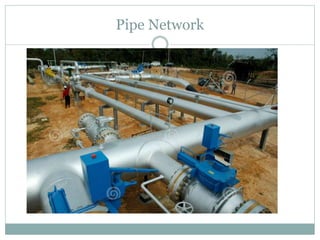

Pipe Network

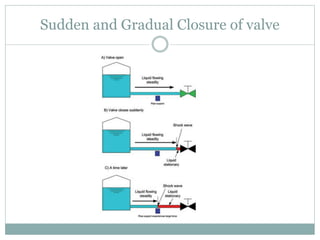

Sudden and Gradual Closure of valve
COURSE OUTCOMES
C303.6. Apply fundamental concepts of fluid mechanics in solving
fluid flow problems in pipes connected in parallel and series, head
losses in pipe due to friction and sudden expansion, design of pipe
and analysis of pipe networks by Hardy cross method and also to
study the effect of water hammer due to sudden and gradual closure
of rigid and elastic valve.

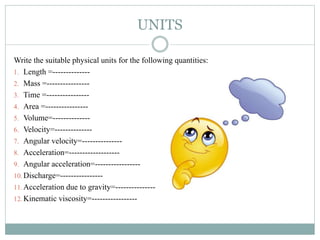

UNITS
Write the suitable physical units for the following quantities:
1. Length =--------------
2. Mass =----------------
3. Time =----------------
4. Area =----------------
5. Volume=--------------
6. Velocity=--------------
7. Angular velocity=---------------
8. Acceleration=-------------------
9. Angular acceleration=-----------------
10. Discharge=----------------
11. Acceleration due to gravity=---------------
12. Kinematic viscosity=-----------------

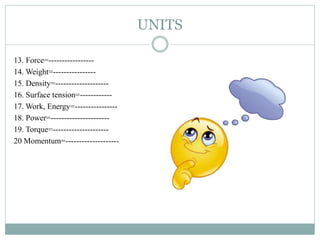

UNITS
13. Force=-----------------
14. Weight=----------------
15. Density=--------------------
16. Surface tension=------------
17. Work, Energy=----------------
18. Power=----------------------
19. Torque=---------------------
20 Momentum=--------------------

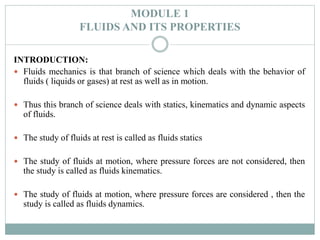

MODULE 1
FLUIDS AND ITS PROPERTIES
INTRODUCTION:
 Fluids mechanics is that branch of science which deals with the behavior of
fluids ( liquids or gases) at rest as well as in motion.
 Thus this branch of science deals with statics, kinematics and dynamic aspects
of fluids.
 The study of fluids at rest is called as fluids statics
 The study of fluids at motion, where pressure forces are not considered, then
the study is called as fluids kinematics.
 The study of fluids at motion, where pressure forces are considered , then the
study is called as fluids dynamics.

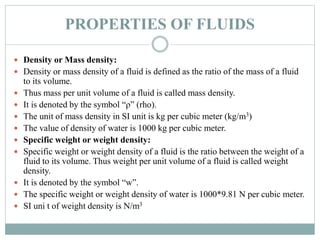

PROPERTIES OF FLUIDS
 Density or Mass density:
 Density or mass density of a fluid is defined as the ratio of the mass of a fluid
to its volume.
 Thus mass per unit volume of a fluid is called mass density.
 It is denoted by the symbol “ρ” (rho).
 The unit of mass density in SI unit is kg per cubic meter (kg/m3)
 The value of density of water is 1000 kg per cubic meter.
 Specific weight or weight density:
 Specific weight or weight density of a fluid is the ratio between the weight of a
fluid to its volume. Thus weight per unit volume of a fluid is called weight
density.
 It is denoted by the symbol “w”.
 The specific weight or weight density of water is 1000*9.81 N per cubic meter.
 SI uni t of weight density is N/m3
 Specific volume:
 It is defined as the volume of a fluid occupied by a unit mass.
 Or, volume per unit mass of a fluid is called specific volume.
Specific gravity:
 Specific gravity is defined as the ratio of the weight density or density of a
fluid to the weight density or density of a standard fluid.
 For liquids, the standard fluid is taken water and for gasses, standard fluid
is taken air.
 Specific gravity is also called as relative density.
 It is dimensionless quantity and is denoted by S.
 Numerical Problems………………
Fluids mechanics class 1 -Module 1

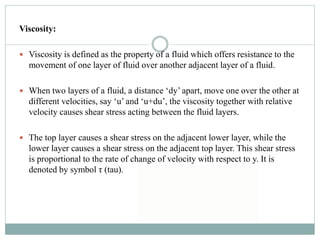

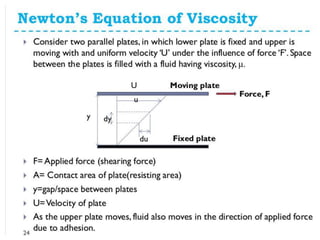

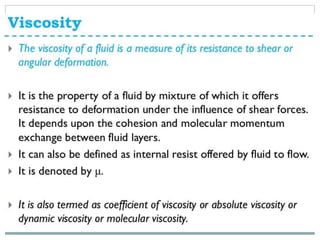

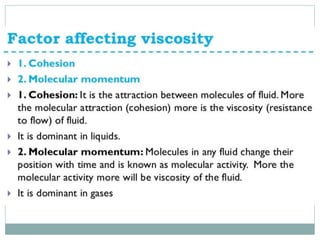

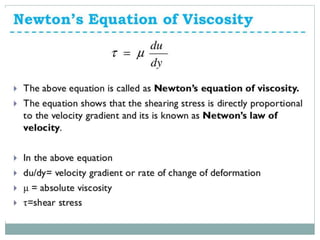

Viscosity:
 Viscosity is defined as the property of a fluid which offers resistance to the
movement of one layer of fluid over another adjacent layer of a fluid.

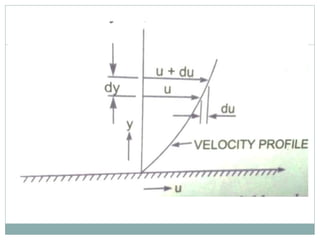

 When two layers of a fluid, a distance ‘dy’ apart, move one over the other at
different velocities, say ‘u’ and ‘u+du’, the viscosity together with relative
velocity causes shear stress acting between the fluid layers.
 The top layer causes a shear stress on the adjacent lower layer, while the
lower layer causes a shear stress on the adjacent top layer. This shear stress
is proportional to the rate of change of velocity with respect to y. It is
denoted by symbol τ (tau).
Fluids mechanics class 1 -Module 1

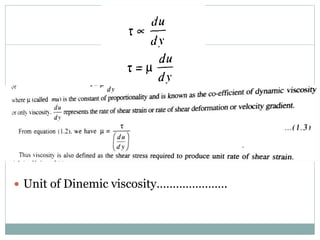

 Unit of Dinemic viscosity………………….
Fluids mechanics class 1 -Module 1
Fluids mechanics class 1 -Module 1

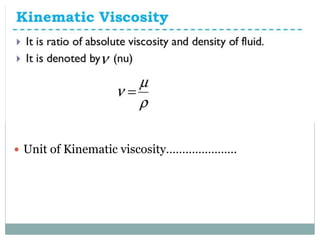

 Unit of Kinematic viscosity………………….
Fluids mechanics class 1 -Module 1
Fluids mechanics class 1 -Module 1
Newtonian and Non Newtonian fluid
 The fluids that obey this law is called Newtonian
fluid and that not obey are called Non Newtonian
fluid.
Why water forms droplets
ADHESION
 It is intermolecular attractive force between
molecules of different kind or phase
COHESION
 It is intermolecular attractive force between
molecules of same kind or same phase
Adhesion and Cohesion: Water on Pine
Needles
Fluids mechanics class 1 -Module 1
Fluids mechanics class 1 -Module 1
Fluids mechanics class 1 -Module 1

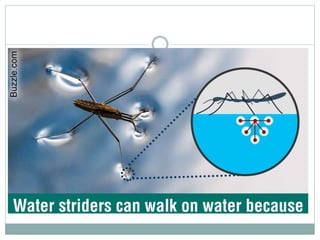

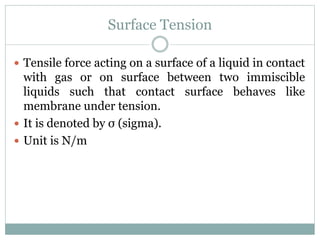

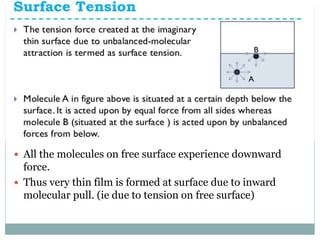

Surface Tension
 Tensile force acting on a surface of a liquid in contact
with gas or on surface between two immiscible
liquids such that contact surface behaves like
membrane under tension.
 It is denoted by σ (sigma).
 Unit is N/m
 All the molecules on free surface experience downward
force.
 Thus very thin film is formed at surface due to inward
molecular pull. (ie due to tension on free surface)
....DownloadsSurface Tension.mp4

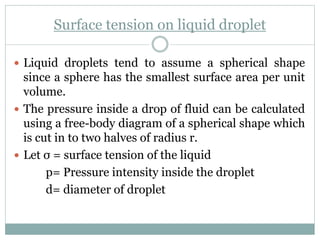

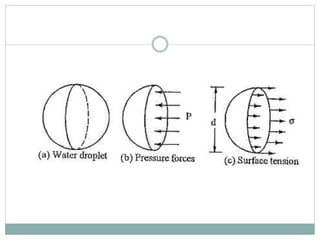

Surface tension on liquid droplet
 Liquid droplets tend to assume a spherical shape
since a sphere has the smallest surface area per unit
volume.
 The pressure inside a drop of fluid can be calculated
using a free-body diagram of a spherical shape which
is cut in to two halves of radius r.
 Let σ = surface tension of the liquid
p= Pressure intensity inside the droplet
d= diameter of droplet
Fluids mechanics class 1 -Module 1

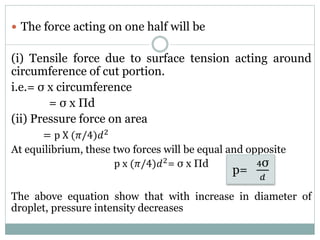

 The force acting on one half will be
(i) Tensile force due to surface tension acting around
circumference of cut portion.
i.e.= σ x circumference
= σ x Πd
(ii) Pressure force on area
= p X (𝜋/4)𝑑2
At equilibrium, these two forces will be equal and opposite
p x (𝜋/4)𝑑2= σ x Πd
The above equation show that with increase in diameter of
droplet, pressure intensity decreases
p=
4σ
𝑑

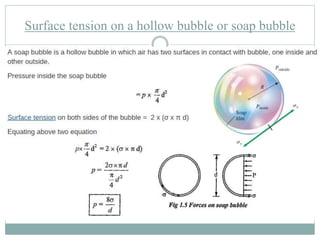

Surface tension on a hollow bubble or soap bubble

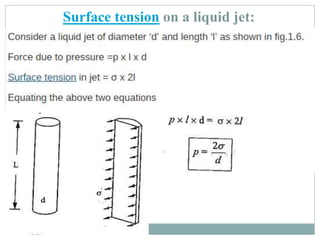

Surface tension on a liquid jet:
What happens if bread is dipped in tea? Why?
After few minutes….!!!

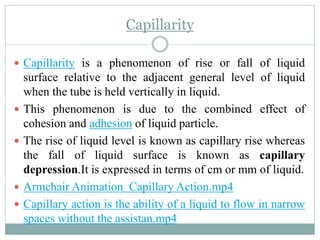

Capillarity
 Capillarity is a phenomenon of rise or fall of liquid
surface relative to the adjacent general level of liquid
when the tube is held vertically in liquid.
 This phenomenon is due to the combined effect of
cohesion and adhesion of liquid particle.
 The rise of liquid level is known as capillary rise whereas
the fall of liquid surface is known as capillary
depression.It is expressed in terms of cm or mm of liquid.
 Armchair Animation Capillary Action.mp4
 Capillary action is the ability of a liquid to flow in narrow
spaces without the assistan.mp4

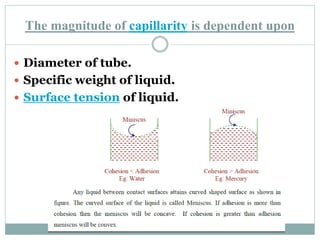

The magnitude of capillarity is dependent upon
 Diameter of tube.
 Specific weight of liquid.
 Surface tension of liquid.

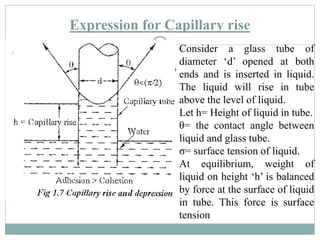

Expression for Capillary rise
Consider a glass tube of
diameter ‘d’ opened at both
ends and is inserted in liquid.
The liquid will rise in tube
above the level of liquid.
Let h= Height of liquid in tube.
θ= the contact angle between
liquid and glass tube.
σ= surface tension of liquid.
At equilibrium, weight of
liquid on height ‘h’ is balanced
by force at the surface of liquid
in tube. This force is surface
tension
 The weight of the liquid column of height ‘h’ in the tube =
Area of the tube x h x Specific weight
 The surface tension force acting around the circumference
of the tube = σ x πd.
 The vertical component of this force = σ x πd x Cosθ —(i)

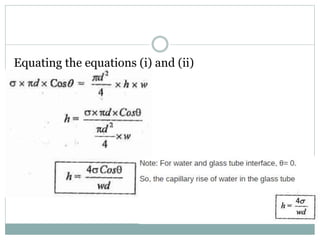

Equating the equations (i) and (ii)

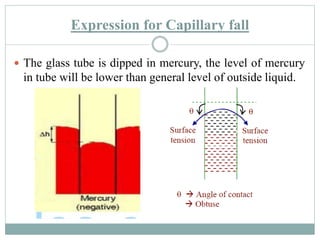

Expression for Capillary fall
 The glass tube is dipped in mercury, the level of mercury
in tube will be lower than general level of outside liquid.

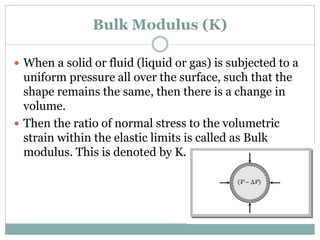

Bulk Modulus (K)
 When a solid or fluid (liquid or gas) is subjected to a
uniform pressure all over the surface, such that the
shape remains the same, then there is a change in
volume.
 Then the ratio of normal stress to the volumetric
strain within the elastic limits is called as Bulk
modulus. This is denoted by K.
 where p = increase in pressure;
 V = original volume;
 ΔV = change in volume
 The negative sign shows that with increase in
pressure p, the volume decreases by Δ V i.e. if p is
positive, Δ V is negative.

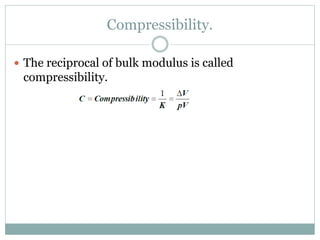

Compressibility.
 The reciprocal of bulk modulus is called
compressibility.

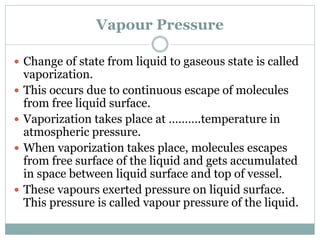

Vapour Pressure
 Change of state from liquid to gaseous state is called
vaporization.
 This occurs due to continuous escape of molecules
from free liquid surface.
 Vaporization takes place at ……….temperature in
atmospheric pressure.
 When vaporization takes place, molecules escapes
from free surface of the liquid and gets accumulated
in space between liquid surface and top of vessel.
 These vapours exerted pressure on liquid surface.
This pressure is called vapour pressure of the liquid.
Why does food cook faster in a pressure
cooker?
Trekking to KUMARA PARVATHA……!!!

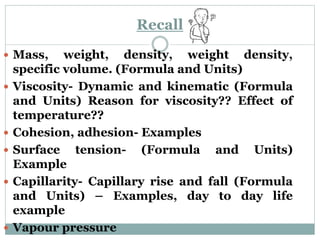

Recall
 Mass, weight, density, weight density,
specific volume. (Formula and Units)

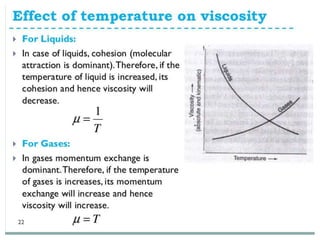

 Viscosity- Dynamic and kinematic (Formula
and Units) Reason for viscosity?? Effect of
temperature??
 Cohesion, adhesion- Examples
 Surface tension- (Formula and Units)
Example
 Capillarity- Capillary rise and fall (Formula
and Units) – Examples, day to day life
example
 Vapour pressure
Part-2
Fluid pressure and its
measurements

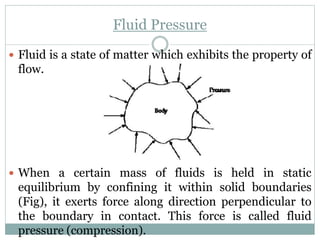

Fluid Pressure
 Fluid is a state of matter which exhibits the property of
flow.
 When a certain mass of fluids is held in static
equilibrium by confining it within solid boundaries
(Fig), it exerts force along direction perpendicular to
the boundary in contact. This force is called fluid
pressure (compression).

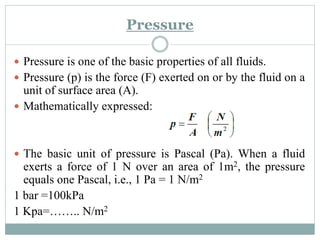

Pressure
 Pressure is one of the basic properties of all fluids.
 Pressure (p) is the force (F) exerted on or by the fluid on a
unit of surface area (A).
 Mathematically expressed:
 The basic unit of pressure is Pascal (Pa). When a fluid
exerts a force of 1 N over an area of 1m2, the pressure
equals one Pascal, i.e., 1 Pa = 1 N/m2
1 bar =100kPa
1 Kpa=…….. N/m2
Pressure at a Point and Pascal’s Law
 For a fluid at rest, the pressure at a given point is the
same in all directions.
 Pascal’s Law:
States that “ pressure or intensity of pressure at a point in a
static fluid is equal in all directions
Fluids mechanics class 1 -Module 1
Fluids mechanics class 1 -Module 1
Fluids mechanics class 1 -Module 1
Fluids mechanics class 1 -Module 1
Pressure variation in a fluid at rest
Fluids mechanics class 1 -Module 1

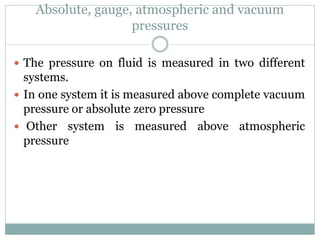

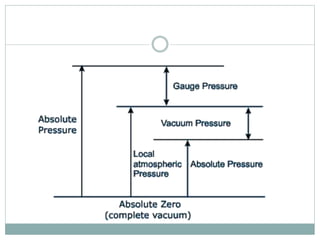

Absolute, gauge, atmospheric and vacuum
pressures
 The pressure on fluid is measured in two different
systems.
 In one system it is measured above complete vacuum
pressure or absolute zero pressure
 Other system is measured above atmospheric
pressure

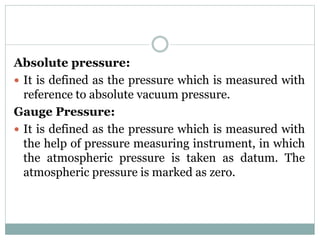

Absolute pressure:
 It is defined as the pressure which is measured with
reference to absolute vacuum pressure.
Gauge Pressure:
 It is defined as the pressure which is measured with
the help of pressure measuring instrument, in which
the atmospheric pressure is taken as datum. The
atmospheric pressure is marked as zero.
Fluids mechanics class 1 -Module 1

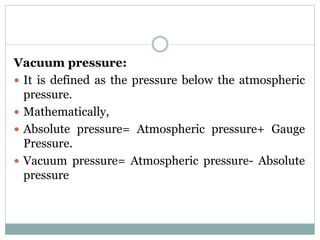

Vacuum pressure:
 It is defined as the pressure below the atmospheric
pressure.
 Mathematically,
 Absolute pressure= Atmospheric pressure+ Gauge
Pressure.
 Vacuum pressure= Atmospheric pressure- Absolute
pressure
Measurement of pressure
 The pressure of a fluid is measure by the following
devices.
 Manometers
 Mechanical Gauges
 Electronic Gauges
MANOMETERS
 Manometers are defined as the devices used for
measuring the pressure at a point in a fluid by
balancing the column of fluid by the same or another
column of the fluid.
 They are classified as
 A) Simple manometers
 B) Differential Manometers
SIMPLE MANOMETERS
 A simple manometer consists of a glass tube having
one of its ends connected to a point where pressure is
to be measured and other end remains open to
atmosphere.
 Types of Simple Manometers are
 Piezometer
 U-tube Manometer
 Single column Manometer
Piezometer
 It is the simplest form of manometer used for
measuring gauge pressures.
 One end of this manometer is connected to the point
where the pressure is to be measured and the other
end is open to atmosphere.
 The rise of liquid gives the pressure head at that
point.
Piezometer

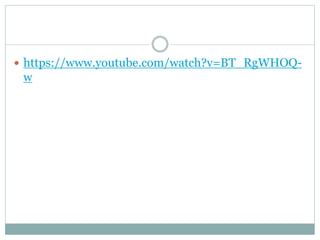

 https://www.youtube.com/watch?v=BT_RgWHOQ-
w

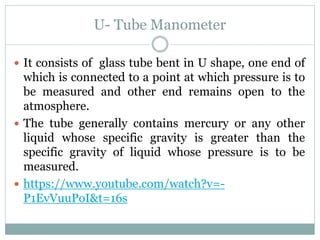

U- Tube Manometer
 It consists of glass tube bent in U shape, one end of
which is connected to a point at which pressure is to
be measured and other end remains open to the
atmosphere.
 The tube generally contains mercury or any other
liquid whose specific gravity is greater than the
specific gravity of liquid whose pressure is to be
measured.
 https://www.youtube.com/watch?v=-
P1EvVuuPoI&t=16s

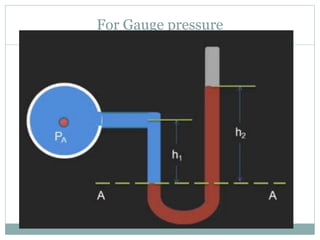

For Gauge pressure
Fluids mechanics class 1 -Module 1

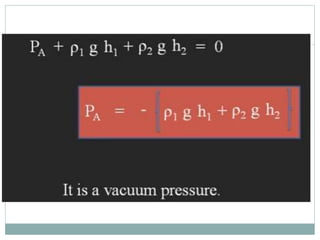

For vacuum pressure
Fluids mechanics class 1 -Module 1

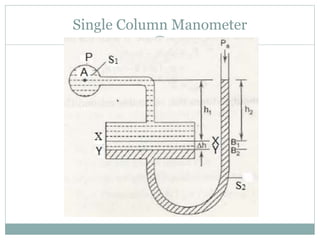

Single Column Manometer
Differential Manometer

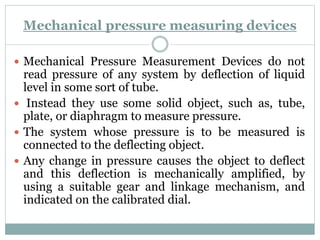

Mechanical pressure measuring devices
 Mechanical Pressure Measurement Devices do not
read pressure of any system by deflection of liquid
level in some sort of tube.
 Instead they use some solid object, such as, tube,
plate, or diaphragm to measure pressure.
 The system whose pressure is to be measured is
connected to the deflecting object.
 Any change in pressure causes the object to deflect
and this deflection is mechanically amplified, by
using a suitable gear and linkage mechanism, and
indicated on the calibrated dial.
Commonly used Mechanical Gauges
 Bourdon tube pressure gauge
 Diaphragm pressure gauge
 Bellows pressure gauge
 Dead-wight pressure gauge

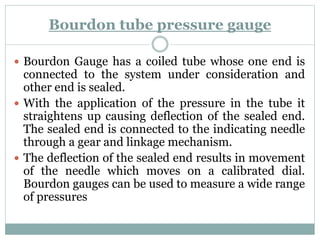

Bourdon tube pressure gauge
 Bourdon Gauge has a coiled tube whose one end is
connected to the system under consideration and
other end is sealed.
 With the application of the pressure in the tube it
straightens up causing deflection of the sealed end.
The sealed end is connected to the indicating needle
through a gear and linkage mechanism.
 The deflection of the sealed end results in movement
of the needle which moves on a calibrated dial.
Bourdon gauges can be used to measure a wide range
of pressures

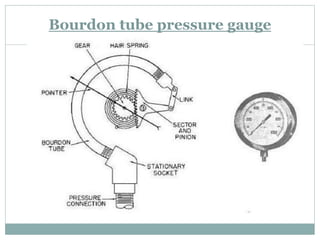

Bourdon tube pressure gauge

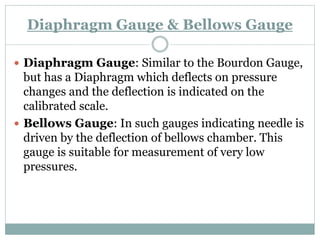

Diaphragm Gauge & Bellows Gauge
 Diaphragm Gauge: Similar to the Bourdon Gauge,
but has a Diaphragm which deflects on pressure
changes and the deflection is indicated on the
calibrated scale.
 Bellows Gauge: In such gauges indicating needle is
driven by the deflection of bellows chamber. This
gauge is suitable for measurement of very low
pressures.

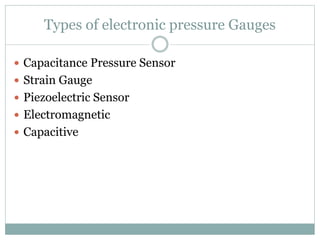

Types of electronic pressure Gauges
 Capacitance Pressure Sensor
 Strain Gauge
 Piezoelectric Sensor
 Electromagnetic
 Capacitive
Electronic Pressure Transmitters /
Sensors Principle
 Most electronic pressure sensors incorporate one of
the previously discussed elements are the primary
pressure detector, and it is used to vary a measurable
electrical quantity to produce a proportionately
variable electronic signal. Because the energy form is
transferred from a mechanical to an electrical
nature, these devices are often classified as
transducer

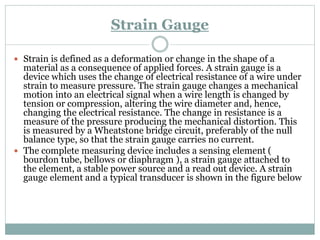

Strain Gauge
 Strain is defined as a deformation or change in the shape of a
material as a consequence of applied forces. A strain gauge is a
device which uses the change of electrical resistance of a wire under
strain to measure pressure. The strain gauge changes a mechanical
motion into an electrical signal when a wire length is changed by
tension or compression, altering the wire diameter and, hence,
changing the electrical resistance. The change in resistance is a
measure of the pressure producing the mechanical distortion. This
is measured by a Wheatstone bridge circuit, preferably of the null
balance type, so that the strain gauge carries no current.
 The complete measuring device includes a sensing element (
bourdon tube, bellows or diaphragm ), a strain gauge attached to

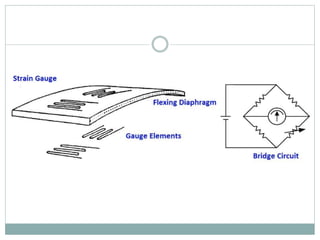

the element, a stable power source and a read out device. A strain
gauge element and a typical transducer is shown in the figure below
Fluids mechanics class 1 -Module 1

More Related Content

What's hot

Fluid dynamics 1
Fluid dynamics 1Fluid dynamics 1
Fluid dynamics 1
guest7b51c7

Fluid Mechanics - Hydrostatic Pressure
Fluid Mechanics - Hydrostatic PressureFluid Mechanics - Hydrostatic Pressure
Fluid Mechanics - Hydrostatic Pressure
Malla Reddy University

Fluid mechanics - Motion of Fluid Particles and Stream
Fluid mechanics - Motion of Fluid Particles and StreamFluid mechanics - Motion of Fluid Particles and Stream
Fluid mechanics - Motion of Fluid Particles and Stream
Viraj Patel

A STUDY ON VISCOUS FLOW (With A Special Focus On Boundary Layer And Its Effects)
A STUDY ON VISCOUS FLOW (With A Special Focus On Boundary Layer And Its Effects)A STUDY ON VISCOUS FLOW (With A Special Focus On Boundary Layer And Its Effects)
A STUDY ON VISCOUS FLOW (With A Special Focus On Boundary Layer And Its Effects)
Rajibul Alam

Pascal's principle
Pascal's principlePascal's principle
Pascal's principle
Nurul Fadhilah

Fluid kinematics and dynamics
Fluid kinematics and dynamicsFluid kinematics and dynamics
Fluid kinematics and dynamics
technicalpiyush1

Bernoulli's Principle
Bernoulli's PrincipleBernoulli's Principle
Bernoulli's Principle
eliseb

Introduction to fluid mechanics
Introduction to fluid mechanicsIntroduction to fluid mechanics
Introduction to fluid mechanics
Mohsin Siddique

CE 6451 FMM Unit 1 Properties of fluids
CE 6451 FMM  Unit 1 Properties of fluidsCE 6451 FMM  Unit 1 Properties of fluids
CE 6451 FMM Unit 1 Properties of fluids
Asha A

Fluid Mechanics
Fluid MechanicsFluid Mechanics
Fluid Mechanics
Sourabh sharma

Stream lines and streak lines
Stream lines and streak linesStream lines and streak lines
Stream lines and streak lines
Zia Ullah

Chapter 1. introduction to fluid mechanics
Chapter 1. introduction to fluid mechanicsChapter 1. introduction to fluid mechanics
Chapter 1. introduction to fluid mechanics
kidanemariam tesera

Applications of Fluid Mechanics
Applications of Fluid MechanicsApplications of Fluid Mechanics
Applications of Fluid Mechanics
shannoncaseyeduc6505

Fluid dynamic
Fluid dynamicFluid dynamic
Fluid dynamic
Mohsin Siddique

Pascal's principle
Pascal's principlePascal's principle
Pascal's principle
Serghei Urban

Flow In Pipes
Flow In PipesFlow In Pipes
Flow In Pipes
Ila Lee

Applications of fluid mechanics
Applications of fluid mechanicsApplications of fluid mechanics
Applications of fluid mechanics
Vishu Sharma

Fluid Mechanics - Fluid Properties
Fluid Mechanics - Fluid PropertiesFluid Mechanics - Fluid Properties
Fluid Mechanics - Fluid Properties
Malla Reddy University

kinematics of fluids basics
kinematics of fluids basicskinematics of fluids basics
kinematics of fluids basics
adharshsvcet

Fluid statics
Fluid staticsFluid statics
Fluid statics
Mohsin Siddique


What's hot (20)

Fluid dynamics 1
Fluid dynamics 1Fluid dynamics 1
Fluid dynamics 1

Fluid Mechanics - Hydrostatic Pressure
Fluid Mechanics - Hydrostatic PressureFluid Mechanics - Hydrostatic Pressure
Fluid Mechanics - Hydrostatic Pressure

Fluid mechanics - Motion of Fluid Particles and Stream
Fluid mechanics - Motion of Fluid Particles and StreamFluid mechanics - Motion of Fluid Particles and Stream
Fluid mechanics - Motion of Fluid Particles and Stream

A STUDY ON VISCOUS FLOW (With A Special Focus On Boundary Layer And Its Effects)
A STUDY ON VISCOUS FLOW (With A Special Focus On Boundary Layer And Its Effects)A STUDY ON VISCOUS FLOW (With A Special Focus On Boundary Layer And Its Effects)
A STUDY ON VISCOUS FLOW (With A Special Focus On Boundary Layer And Its Effects)

Pascal's principle
Pascal's principlePascal's principle
Pascal's principle

Fluid kinematics and dynamics
Fluid kinematics and dynamicsFluid kinematics and dynamics
Fluid kinematics and dynamics

Bernoulli's Principle
Bernoulli's PrincipleBernoulli's Principle
Bernoulli's Principle

Introduction to fluid mechanics
Introduction to fluid mechanicsIntroduction to fluid mechanics
Introduction to fluid mechanics

CE 6451 FMM Unit 1 Properties of fluids
CE 6451 FMM  Unit 1 Properties of fluidsCE 6451 FMM  Unit 1 Properties of fluids
CE 6451 FMM Unit 1 Properties of fluids

Fluid Mechanics
Fluid MechanicsFluid Mechanics
Fluid Mechanics

Stream lines and streak lines
Stream lines and streak linesStream lines and streak lines
Stream lines and streak lines

Chapter 1. introduction to fluid mechanics
Chapter 1. introduction to fluid mechanicsChapter 1. introduction to fluid mechanics
Chapter 1. introduction to fluid mechanics

Applications of Fluid Mechanics
Applications of Fluid MechanicsApplications of Fluid Mechanics
Applications of Fluid Mechanics

Fluid dynamic
Fluid dynamicFluid dynamic
Fluid dynamic

Pascal's principle
Pascal's principlePascal's principle
Pascal's principle

Flow In Pipes
Flow In PipesFlow In Pipes
Flow In Pipes

Applications of fluid mechanics
Applications of fluid mechanicsApplications of fluid mechanics
Applications of fluid mechanics

Fluid Mechanics - Fluid Properties
Fluid Mechanics - Fluid PropertiesFluid Mechanics - Fluid Properties
Fluid Mechanics - Fluid Properties

kinematics of fluids basics
kinematics of fluids basicskinematics of fluids basics
kinematics of fluids basics

Fluid statics
Fluid staticsFluid statics
Fluid statics


Similar to Fluids mechanics class 1 -Module 1

fmm notes.pdf
fmm notes.pdffmm notes.pdf
fmm notes.pdf
DEEPAKKUMARD4

section 1.pdf
section 1.pdfsection 1.pdf
section 1.pdf
HimanshuBhardwaj339717

notch final.pdf
notch final.pdfnotch final.pdf
notch final.pdf
vishwanath76

Fluid Properties.pptx
Fluid Properties.pptxFluid Properties.pptx
Fluid Properties.pptx
Vishal Chaudhari

Liquid & electrochemistry
Liquid & electrochemistryLiquid & electrochemistry
Liquid & electrochemistry
ShivshankarMore1

Properties of Fluids, Fluid Statics, Pressure Measurement
Properties of Fluids, Fluid Statics, Pressure MeasurementProperties of Fluids, Fluid Statics, Pressure Measurement
Properties of Fluids, Fluid Statics, Pressure Measurement
Indrajeet sahu

Mechanics-of-Fluids.ppt
Mechanics-of-Fluids.pptMechanics-of-Fluids.ppt
Mechanics-of-Fluids.ppt
rudramadhabswain1

HYDRAULICS_INTRODUCTION.pptx
HYDRAULICS_INTRODUCTION.pptxHYDRAULICS_INTRODUCTION.pptx
HYDRAULICS_INTRODUCTION.pptx
kushpatel927805

Fluid and Hydraulic machine Introduction
Fluid and Hydraulic machine IntroductionFluid and Hydraulic machine Introduction
Fluid and Hydraulic machine Introduction
SACHINNikam39

Properties of fluids
Properties of fluidsProperties of fluids
Properties of fluids
Pranit Mehta

Fluid mechanics ( 2019 2020)
Fluid mechanics ( 2019 2020)Fluid mechanics ( 2019 2020)
Fluid mechanics ( 2019 2020)
Yuri Melliza

Fluid mechanics notes
Fluid mechanics notesFluid mechanics notes
Fluid mechanics notes
shone john

FLUID MECHANICS AND HYDRAULIC MACHINES
FLUID MECHANICS AND HYDRAULIC MACHINES FLUID MECHANICS AND HYDRAULIC MACHINES
FLUID MECHANICS AND HYDRAULIC MACHINES
reddyveeraakhilkumarreddy

FLUID MECHANICS_101718.pptx
FLUID MECHANICS_101718.pptxFLUID MECHANICS_101718.pptx
FLUID MECHANICS_101718.pptx
MdRuga

FluidMechanics wren 201 Lecture 1.pptx
FluidMechanics wren 201 Lecture 1.pptxFluidMechanics wren 201 Lecture 1.pptx
FluidMechanics wren 201 Lecture 1.pptx
AliyuAliyu16

unit 1 24erdgfgdhgvncfluid mechanics.pptx
unit 1 24erdgfgdhgvncfluid mechanics.pptxunit 1 24erdgfgdhgvncfluid mechanics.pptx
unit 1 24erdgfgdhgvncfluid mechanics.pptx
AnanthKrishnan31

Fluid
FluidFluid
Fluid Mechanics.pdf
Fluid Mechanics.pdfFluid Mechanics.pdf
Fluid Mechanics.pdf
MashalAhmad2

year one mech fluid Rev sheet
year one mech fluid Rev sheetyear one mech fluid Rev sheet
year one mech fluid Rev sheet
dr walid

FMM- UNIT I FLUID PROPERTIES AND FLOW CHARACTERISTICS
FMM- UNIT I FLUID PROPERTIES AND FLOW CHARACTERISTICSFMM- UNIT I FLUID PROPERTIES AND FLOW CHARACTERISTICS
FMM- UNIT I FLUID PROPERTIES AND FLOW CHARACTERISTICS
Karthik R


Similar to Fluids mechanics class 1 -Module 1 (20)

fmm notes.pdf
fmm notes.pdffmm notes.pdf
fmm notes.pdf

section 1.pdf
section 1.pdfsection 1.pdf
section 1.pdf

notch final.pdf
notch final.pdfnotch final.pdf
notch final.pdf

Fluid Properties.pptx
Fluid Properties.pptxFluid Properties.pptx
Fluid Properties.pptx

Liquid & electrochemistry
Liquid & electrochemistryLiquid & electrochemistry
Liquid & electrochemistry

Properties of Fluids, Fluid Statics, Pressure Measurement
Properties of Fluids, Fluid Statics, Pressure MeasurementProperties of Fluids, Fluid Statics, Pressure Measurement
Properties of Fluids, Fluid Statics, Pressure Measurement

Mechanics-of-Fluids.ppt
Mechanics-of-Fluids.pptMechanics-of-Fluids.ppt
Mechanics-of-Fluids.ppt

HYDRAULICS_INTRODUCTION.pptx
HYDRAULICS_INTRODUCTION.pptxHYDRAULICS_INTRODUCTION.pptx
HYDRAULICS_INTRODUCTION.pptx

Fluid and Hydraulic machine Introduction
Fluid and Hydraulic machine IntroductionFluid and Hydraulic machine Introduction
Fluid and Hydraulic machine Introduction

Properties of fluids
Properties of fluidsProperties of fluids
Properties of fluids

Fluid mechanics ( 2019 2020)
Fluid mechanics ( 2019 2020)Fluid mechanics ( 2019 2020)
Fluid mechanics ( 2019 2020)

Fluid mechanics notes
Fluid mechanics notesFluid mechanics notes
Fluid mechanics notes

FLUID MECHANICS AND HYDRAULIC MACHINES
FLUID MECHANICS AND HYDRAULIC MACHINES FLUID MECHANICS AND HYDRAULIC MACHINES
FLUID MECHANICS AND HYDRAULIC MACHINES

FLUID MECHANICS_101718.pptx
FLUID MECHANICS_101718.pptxFLUID MECHANICS_101718.pptx
FLUID MECHANICS_101718.pptx

FluidMechanics wren 201 Lecture 1.pptx
FluidMechanics wren 201 Lecture 1.pptxFluidMechanics wren 201 Lecture 1.pptx
FluidMechanics wren 201 Lecture 1.pptx

unit 1 24erdgfgdhgvncfluid mechanics.pptx
unit 1 24erdgfgdhgvncfluid mechanics.pptxunit 1 24erdgfgdhgvncfluid mechanics.pptx
unit 1 24erdgfgdhgvncfluid mechanics.pptx

Fluid
FluidFluid
Fluid

Fluid Mechanics.pdf
Fluid Mechanics.pdfFluid Mechanics.pdf
Fluid Mechanics.pdf

year one mech fluid Rev sheet
year one mech fluid Rev sheetyear one mech fluid Rev sheet
year one mech fluid Rev sheet

FMM- UNIT I FLUID PROPERTIES AND FLOW CHARACTERISTICS
FMM- UNIT I FLUID PROPERTIES AND FLOW CHARACTERISTICSFMM- UNIT I FLUID PROPERTIES AND FLOW CHARACTERISTICS
FMM- UNIT I FLUID PROPERTIES AND FLOW CHARACTERISTICS


More from Mujeeb Muji

Axial flow reaction turbines/ Kaplan Turbine
Axial flow reaction turbines/ Kaplan TurbineAxial flow reaction turbines/ Kaplan Turbine
Axial flow reaction turbines/ Kaplan Turbine
Mujeeb Muji

Water Supply and Treatment Engineering- Module 1
Water Supply and Treatment Engineering- Module 1Water Supply and Treatment Engineering- Module 1
Water Supply and Treatment Engineering- Module 1
Mujeeb Muji

Theodolite angle measurement
Theodolite angle measurementTheodolite angle measurement
Theodolite angle measurement
Mujeeb Muji

Compass surveying
Compass surveyingCompass surveying
Compass surveying
Mujeeb Muji

levelling
levellinglevelling
levelling
Mujeeb Muji

tacheometric surveying
tacheometric surveyingtacheometric surveying
tacheometric surveying
Mujeeb Muji

Theodolitetraversing
TheodolitetraversingTheodolitetraversing
Theodolitetraversing
Mujeeb Muji

Perpendicular Offset
Perpendicular Offset Perpendicular Offset
Perpendicular Offset
Mujeeb Muji

Reciprocal ranging or Indirect Ranging
Reciprocal ranging or Indirect RangingReciprocal ranging or Indirect Ranging
Reciprocal ranging or Indirect Ranging
Mujeeb Muji

Direct Ranging
Direct RangingDirect Ranging
Direct Ranging
Mujeeb Muji

Introduction on instruments used for chaining
Introduction on instruments used for chainingIntroduction on instruments used for chaining
Introduction on instruments used for chaining
Mujeeb Muji

Aerial Photogrammetry
Aerial Photogrammetry Aerial Photogrammetry
Aerial Photogrammetry
Mujeeb Muji

Field Astronomy
Field AstronomyField Astronomy
Field Astronomy
Mujeeb Muji

Glass powder replacement for cement.by ananth k p coorg
Glass powder replacement for cement.by ananth k p coorgGlass powder replacement for cement.by ananth k p coorg
Glass powder replacement for cement.by ananth k p coorg
Mujeeb Muji


More from Mujeeb Muji (14)

Axial flow reaction turbines/ Kaplan Turbine
Axial flow reaction turbines/ Kaplan TurbineAxial flow reaction turbines/ Kaplan Turbine
Axial flow reaction turbines/ Kaplan Turbine

Water Supply and Treatment Engineering- Module 1
Water Supply and Treatment Engineering- Module 1Water Supply and Treatment Engineering- Module 1
Water Supply and Treatment Engineering- Module 1

Theodolite angle measurement
Theodolite angle measurementTheodolite angle measurement
Theodolite angle measurement

Compass surveying
Compass surveyingCompass surveying
Compass surveying

levelling
levellinglevelling
levelling

tacheometric surveying
tacheometric surveyingtacheometric surveying
tacheometric surveying

Theodolitetraversing
TheodolitetraversingTheodolitetraversing
Theodolitetraversing

Perpendicular Offset
Perpendicular Offset Perpendicular Offset
Perpendicular Offset

Reciprocal ranging or Indirect Ranging
Reciprocal ranging or Indirect RangingReciprocal ranging or Indirect Ranging
Reciprocal ranging or Indirect Ranging

Direct Ranging
Direct RangingDirect Ranging
Direct Ranging

Introduction on instruments used for chaining
Introduction on instruments used for chainingIntroduction on instruments used for chaining
Introduction on instruments used for chaining

Aerial Photogrammetry
Aerial Photogrammetry Aerial Photogrammetry
Aerial Photogrammetry

Field Astronomy
Field AstronomyField Astronomy
Field Astronomy

Glass powder replacement for cement.by ananth k p coorg
Glass powder replacement for cement.by ananth k p coorgGlass powder replacement for cement.by ananth k p coorg
Glass powder replacement for cement.by ananth k p coorg


Recently uploaded

Red Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdfRed Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdf
mdfkobir

JORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdfJORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdf
WilliamsNuezEspetia

carpentry-11-module-1.docx 1 identifying tools
carpentry-11-module-1.docx 1 identifying toolscarpentry-11-module-1.docx 1 identifying tools
carpentry-11-module-1.docx 1 identifying tools
ChristopherAltizen2

ECONOMIC FEASIBILITY AND ENVIRONMENTAL IMPLICATIONS OF PERMEABLE PAVEMENT IN ...
ECONOMIC FEASIBILITY AND ENVIRONMENTAL IMPLICATIONS OF PERMEABLE PAVEMENT IN ...ECONOMIC FEASIBILITY AND ENVIRONMENTAL IMPLICATIONS OF PERMEABLE PAVEMENT IN ...
ECONOMIC FEASIBILITY AND ENVIRONMENTAL IMPLICATIONS OF PERMEABLE PAVEMENT IN ...
Fady M. A Hassouna

Technical Seminar of Mca computer vision .ppt
Technical Seminar of Mca computer vision .pptTechnical Seminar of Mca computer vision .ppt
Technical Seminar of Mca computer vision .ppt
AnkitaVerma776806

ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented ArchitectureANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
Divya Rajasekar

Red Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdfRed Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdf
mdfkobir

OME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptxOME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptx
shanmugamram247

Generative AI and Large Language Models (LLMs)
Generative AI and Large Language Models (LLMs)Generative AI and Large Language Models (LLMs)
Generative AI and Large Language Models (LLMs)
rkpv2002

AI chapter1 introduction to artificial intelligence
AI chapter1 introduction to artificial intelligenceAI chapter1 introduction to artificial intelligence
AI chapter1 introduction to artificial intelligence
GeethaAL

The world of Technology Management MEM 814.pptx
The world of Technology Management MEM 814.pptxThe world of Technology Management MEM 814.pptx
The world of Technology Management MEM 814.pptx
engrasjadshahzad

UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt
UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.pptUNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt
UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt
shanmugamram247

System Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th editionSystem Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th edition
mnassar75g

Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...
RohitGhulanavar2

Girls call Service Ludhiana 000XX00000 Provide Best And Top Girl Service And ...
Girls call Service Ludhiana 000XX00000 Provide Best And Top Girl Service And ...Girls call Service Ludhiana 000XX00000 Provide Best And Top Girl Service And ...
Girls call Service Ludhiana 000XX00000 Provide Best And Top Girl Service And ...
singharadhana4778

Disaster Management and Mitigation presentation
Disaster Management and Mitigation presentationDisaster Management and Mitigation presentation
Disaster Management and Mitigation presentation
RajaRamannaTarigoppu

Buy a fake University of Washington diploma
Buy a fake University of Washington diplomaBuy a fake University of Washington diploma
Buy a fake University of Washington diploma
College diploma

How to Formulate A Good Research Question
How to Formulate A  Good Research QuestionHow to Formulate A  Good Research Question
How to Formulate A Good Research Question
rkpv2002

ISO 9001 - 2015 Quality Management Awareness.pdf
ISO 9001 - 2015 Quality Management Awareness.pdfISO 9001 - 2015 Quality Management Awareness.pdf
ISO 9001 - 2015 Quality Management Awareness.pdf
InfoDqms

NOVEC 1230 Fire Suppression System Presentation
NOVEC 1230 Fire Suppression System PresentationNOVEC 1230 Fire Suppression System Presentation
NOVEC 1230 Fire Suppression System Presentation
miniruwan1


Recently uploaded (20)

Red Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdfRed Hat Enterprise Linux Administration 9.0 RH124 pdf
Red Hat Enterprise Linux Administration 9.0 RH124 pdf

JORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdfJORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdf

carpentry-11-module-1.docx 1 identifying tools
carpentry-11-module-1.docx 1 identifying toolscarpentry-11-module-1.docx 1 identifying tools
carpentry-11-module-1.docx 1 identifying tools

ECONOMIC FEASIBILITY AND ENVIRONMENTAL IMPLICATIONS OF PERMEABLE PAVEMENT IN ...
ECONOMIC FEASIBILITY AND ENVIRONMENTAL IMPLICATIONS OF PERMEABLE PAVEMENT IN ...ECONOMIC FEASIBILITY AND ENVIRONMENTAL IMPLICATIONS OF PERMEABLE PAVEMENT IN ...
ECONOMIC FEASIBILITY AND ENVIRONMENTAL IMPLICATIONS OF PERMEABLE PAVEMENT IN ...

Technical Seminar of Mca computer vision .ppt
Technical Seminar of Mca computer vision .pptTechnical Seminar of Mca computer vision .ppt
Technical Seminar of Mca computer vision .ppt

ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented ArchitectureANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture

Red Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdfRed Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdf

OME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptxOME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptx

Generative AI and Large Language Models (LLMs)
Generative AI and Large Language Models (LLMs)Generative AI and Large Language Models (LLMs)
Generative AI and Large Language Models (LLMs)

AI chapter1 introduction to artificial intelligence
AI chapter1 introduction to artificial intelligenceAI chapter1 introduction to artificial intelligence
AI chapter1 introduction to artificial intelligence

The world of Technology Management MEM 814.pptx
The world of Technology Management MEM 814.pptxThe world of Technology Management MEM 814.pptx
The world of Technology Management MEM 814.pptx

UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt
UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.pptUNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt
UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt

System Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th editionSystem Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th edition

Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...

Girls call Service Ludhiana 000XX00000 Provide Best And Top Girl Service And ...
Girls call Service Ludhiana 000XX00000 Provide Best And Top Girl Service And ...Girls call Service Ludhiana 000XX00000 Provide Best And Top Girl Service And ...
Girls call Service Ludhiana 000XX00000 Provide Best And Top Girl Service And ...

Disaster Management and Mitigation presentation
Disaster Management and Mitigation presentationDisaster Management and Mitigation presentation
Disaster Management and Mitigation presentation

Buy a fake University of Washington diploma
Buy a fake University of Washington diplomaBuy a fake University of Washington diploma
Buy a fake University of Washington diploma

How to Formulate A Good Research Question
How to Formulate A  Good Research QuestionHow to Formulate A  Good Research Question
How to Formulate A Good Research Question

ISO 9001 - 2015 Quality Management Awareness.pdf
ISO 9001 - 2015 Quality Management Awareness.pdfISO 9001 - 2015 Quality Management Awareness.pdf
ISO 9001 - 2015 Quality Management Awareness.pdf

NOVEC 1230 Fire Suppression System Presentation
NOVEC 1230 Fire Suppression System PresentationNOVEC 1230 Fire Suppression System Presentation
NOVEC 1230 Fire Suppression System Presentation


Fluids mechanics class 1 -Module 1

  • 2. ABDUL MUJEEB A S S I S TA N T P R O F E S S O R K V G C E , S U L L I A FLUIDS MECHANICS
  • 3. What is FLUID??  The substance that is capable of flowing under an applied shear stress
  • 4. What is matter??  Matter is any substance or material that occupies space and has mass  Different States/Phases of matter are….??  1. Solid  2. Liquid  3. Gas Fluid
  • 5. Mechanics??  Study concerned with motion  Study of motion of fluid is called………….
  • 6. Examples for fluid  All liquid and Gases
  • 7. WHY
  • 8. WHY
  • 9. WHY
  • 11. COURSE OUTCOMES C303.1. Understand the basic properties of fluids like mass density, specific weight, specific gravity, specific volume, viscosity, cohesion, adhesion, surface tension, capillarity, vapour pressure of liquid, compressibility and bulk modulus, pressure inside a water droplet, pressure inside a soap bubble and liquid jet and apply Newton's law of viscosity in solving practical problems related to fluid properties.
  • 12. PASCAL’S LAW AND APPLICATIONS
  • 13. PASCAL’S LAW AND APPLICATIONS
  • 15. COURSE OUTCOMES C303.2. Apply the principles of Pascal's law and hydrostatic law for computations of pressure in fluid using simple, differential & inclined manometers.
  • 16. Forces on Different Surfaces in contact with fluid
  • 19. COURSE OUTCOMES C303.3.Understand the significance of basic principles of fluid statics and application of hydrostatic law in determining forces on horizontal, vertical and inclined and curved surfaces and hydraulic structures like dam and lock gates
  • 21. COURSE OUTCOMES C303.4.Understand the principles of kinematics with specific emphasis on application of three-dimensional continuity equation in Cartesian coordinate system, stream function, velocity potential, orthogonality of streamlines and equipotential lines for rotational and irrotational motion of fluid
  • 23. Application in Orifice and Mouthpiece
  • 27. COURSE OUTCOMES C303.5. Apply the principles of Bernoulli's equation in measurement of discharge through horizontal Venturimeter, orifice meter, pitot tube and apply momentum equation in pipe bend and also to determine discharge through notches and weirs such as rectangular, triangular, trapezoidal, Cippoletti, broad crested and submerged weirs
  • 28. Losses due to friction
  • 29. Pipe in series and Parallel and Design of pipe network
  • 31. Sudden and Gradual Closure of valve
  • 32. COURSE OUTCOMES C303.6. Apply fundamental concepts of fluid mechanics in solving fluid flow problems in pipes connected in parallel and series, head losses in pipe due to friction and sudden expansion, design of pipe and analysis of pipe networks by Hardy cross method and also to study the effect of water hammer due to sudden and gradual closure of rigid and elastic valve.
  • 33. UNITS Write the suitable physical units for the following quantities: 1. Length =-------------- 2. Mass =---------------- 3. Time =---------------- 4. Area =---------------- 5. Volume=-------------- 6. Velocity=-------------- 7. Angular velocity=--------------- 8. Acceleration=------------------- 9. Angular acceleration=----------------- 10. Discharge=---------------- 11. Acceleration due to gravity=--------------- 12. Kinematic viscosity=-----------------
  • 34. UNITS 13. Force=----------------- 14. Weight=---------------- 15. Density=-------------------- 16. Surface tension=------------ 17. Work, Energy=---------------- 18. Power=---------------------- 19. Torque=--------------------- 20 Momentum=--------------------
  • 35. MODULE 1 FLUIDS AND ITS PROPERTIES INTRODUCTION:  Fluids mechanics is that branch of science which deals with the behavior of fluids ( liquids or gases) at rest as well as in motion.  Thus this branch of science deals with statics, kinematics and dynamic aspects of fluids.  The study of fluids at rest is called as fluids statics  The study of fluids at motion, where pressure forces are not considered, then the study is called as fluids kinematics.  The study of fluids at motion, where pressure forces are considered , then the study is called as fluids dynamics.
  • 36. PROPERTIES OF FLUIDS  Density or Mass density:  Density or mass density of a fluid is defined as the ratio of the mass of a fluid to its volume.  Thus mass per unit volume of a fluid is called mass density.  It is denoted by the symbol “ρ” (rho).  The unit of mass density in SI unit is kg per cubic meter (kg/m3)  The value of density of water is 1000 kg per cubic meter.  Specific weight or weight density:  Specific weight or weight density of a fluid is the ratio between the weight of a fluid to its volume. Thus weight per unit volume of a fluid is called weight density.  It is denoted by the symbol “w”.  The specific weight or weight density of water is 1000*9.81 N per cubic meter.  SI uni t of weight density is N/m3
  • 37.  Specific volume:  It is defined as the volume of a fluid occupied by a unit mass.  Or, volume per unit mass of a fluid is called specific volume. Specific gravity:  Specific gravity is defined as the ratio of the weight density or density of a fluid to the weight density or density of a standard fluid.  For liquids, the standard fluid is taken water and for gasses, standard fluid is taken air.  Specific gravity is also called as relative density.  It is dimensionless quantity and is denoted by S.  Numerical Problems………………
  • 39. Viscosity:  Viscosity is defined as the property of a fluid which offers resistance to the movement of one layer of fluid over another adjacent layer of a fluid.  When two layers of a fluid, a distance ‘dy’ apart, move one over the other at different velocities, say ‘u’ and ‘u+du’, the viscosity together with relative velocity causes shear stress acting between the fluid layers.  The top layer causes a shear stress on the adjacent lower layer, while the lower layer causes a shear stress on the adjacent top layer. This shear stress is proportional to the rate of change of velocity with respect to y. It is denoted by symbol τ (tau).
  • 41.  Unit of Dinemic viscosity………………….
  • 44.  Unit of Kinematic viscosity………………….
  • 47. Newtonian and Non Newtonian fluid  The fluids that obey this law is called Newtonian fluid and that not obey are called Non Newtonian fluid.
  • 48. Why water forms droplets
  • 49. ADHESION  It is intermolecular attractive force between molecules of different kind or phase
  • 50. COHESION  It is intermolecular attractive force between molecules of same kind or same phase
  • 51. Adhesion and Cohesion: Water on Pine Needles
  • 55. Surface Tension  Tensile force acting on a surface of a liquid in contact with gas or on surface between two immiscible liquids such that contact surface behaves like membrane under tension.  It is denoted by σ (sigma).  Unit is N/m
  • 56.  All the molecules on free surface experience downward force.  Thus very thin film is formed at surface due to inward molecular pull. (ie due to tension on free surface)
  • 58. Surface tension on liquid droplet  Liquid droplets tend to assume a spherical shape since a sphere has the smallest surface area per unit volume.  The pressure inside a drop of fluid can be calculated using a free-body diagram of a spherical shape which is cut in to two halves of radius r.  Let σ = surface tension of the liquid p= Pressure intensity inside the droplet d= diameter of droplet
  • 60.  The force acting on one half will be (i) Tensile force due to surface tension acting around circumference of cut portion. i.e.= σ x circumference = σ x Πd (ii) Pressure force on area = p X (𝜋/4)𝑑2 At equilibrium, these two forces will be equal and opposite p x (𝜋/4)𝑑2= σ x Πd The above equation show that with increase in diameter of droplet, pressure intensity decreases p= 4σ 𝑑
  • 61. Surface tension on a hollow bubble or soap bubble
  • 62. Surface tension on a liquid jet:
  • 63. What happens if bread is dipped in tea? Why?
  • 65. Capillarity  Capillarity is a phenomenon of rise or fall of liquid surface relative to the adjacent general level of liquid when the tube is held vertically in liquid.  This phenomenon is due to the combined effect of cohesion and adhesion of liquid particle.  The rise of liquid level is known as capillary rise whereas the fall of liquid surface is known as capillary depression.It is expressed in terms of cm or mm of liquid.  Armchair Animation Capillary Action.mp4  Capillary action is the ability of a liquid to flow in narrow spaces without the assistan.mp4
  • 66. The magnitude of capillarity is dependent upon  Diameter of tube.  Specific weight of liquid.  Surface tension of liquid.
  • 67. Expression for Capillary rise Consider a glass tube of diameter ‘d’ opened at both ends and is inserted in liquid. The liquid will rise in tube above the level of liquid. Let h= Height of liquid in tube. θ= the contact angle between liquid and glass tube. σ= surface tension of liquid. At equilibrium, weight of liquid on height ‘h’ is balanced by force at the surface of liquid in tube. This force is surface tension
  • 68.  The weight of the liquid column of height ‘h’ in the tube = Area of the tube x h x Specific weight  The surface tension force acting around the circumference of the tube = σ x πd.  The vertical component of this force = σ x πd x Cosθ —(i)
  • 69. Equating the equations (i) and (ii)
  • 70. Expression for Capillary fall  The glass tube is dipped in mercury, the level of mercury in tube will be lower than general level of outside liquid.
  • 71. Bulk Modulus (K)  When a solid or fluid (liquid or gas) is subjected to a uniform pressure all over the surface, such that the shape remains the same, then there is a change in volume.  Then the ratio of normal stress to the volumetric strain within the elastic limits is called as Bulk modulus. This is denoted by K.
  • 72.  where p = increase in pressure;  V = original volume;  ΔV = change in volume  The negative sign shows that with increase in pressure p, the volume decreases by Δ V i.e. if p is positive, Δ V is negative.
  • 73. Compressibility.  The reciprocal of bulk modulus is called compressibility.
  • 74. Vapour Pressure  Change of state from liquid to gaseous state is called vaporization.  This occurs due to continuous escape of molecules from free liquid surface.  Vaporization takes place at ……….temperature in atmospheric pressure.  When vaporization takes place, molecules escapes from free surface of the liquid and gets accumulated in space between liquid surface and top of vessel.  These vapours exerted pressure on liquid surface. This pressure is called vapour pressure of the liquid.
  • 75. Why does food cook faster in a pressure cooker?
  • 76. Trekking to KUMARA PARVATHA……!!!
  • 77. Recall  Mass, weight, density, weight density, specific volume. (Formula and Units)  Viscosity- Dynamic and kinematic (Formula and Units) Reason for viscosity?? Effect of temperature??  Cohesion, adhesion- Examples  Surface tension- (Formula and Units) Example  Capillarity- Capillary rise and fall (Formula and Units) – Examples, day to day life example  Vapour pressure
  • 78. Part-2 Fluid pressure and its measurements
  • 79. Fluid Pressure  Fluid is a state of matter which exhibits the property of flow.  When a certain mass of fluids is held in static equilibrium by confining it within solid boundaries (Fig), it exerts force along direction perpendicular to the boundary in contact. This force is called fluid pressure (compression).
  • 80. Pressure  Pressure is one of the basic properties of all fluids.  Pressure (p) is the force (F) exerted on or by the fluid on a unit of surface area (A).  Mathematically expressed:  The basic unit of pressure is Pascal (Pa). When a fluid exerts a force of 1 N over an area of 1m2, the pressure equals one Pascal, i.e., 1 Pa = 1 N/m2 1 bar =100kPa 1 Kpa=…….. N/m2
  • 81. Pressure at a Point and Pascal’s Law  For a fluid at rest, the pressure at a given point is the same in all directions.  Pascal’s Law: States that “ pressure or intensity of pressure at a point in a static fluid is equal in all directions
  • 86. Pressure variation in a fluid at rest
  • 88. Absolute, gauge, atmospheric and vacuum pressures  The pressure on fluid is measured in two different systems.  In one system it is measured above complete vacuum pressure or absolute zero pressure  Other system is measured above atmospheric pressure
  • 89. Absolute pressure:  It is defined as the pressure which is measured with reference to absolute vacuum pressure. Gauge Pressure:  It is defined as the pressure which is measured with the help of pressure measuring instrument, in which the atmospheric pressure is taken as datum. The atmospheric pressure is marked as zero.
  • 91. Vacuum pressure:  It is defined as the pressure below the atmospheric pressure.  Mathematically,  Absolute pressure= Atmospheric pressure+ Gauge Pressure.  Vacuum pressure= Atmospheric pressure- Absolute pressure
  • 92. Measurement of pressure  The pressure of a fluid is measure by the following devices.  Manometers  Mechanical Gauges  Electronic Gauges
  • 93. MANOMETERS  Manometers are defined as the devices used for measuring the pressure at a point in a fluid by balancing the column of fluid by the same or another column of the fluid.  They are classified as  A) Simple manometers  B) Differential Manometers
  • 94. SIMPLE MANOMETERS  A simple manometer consists of a glass tube having one of its ends connected to a point where pressure is to be measured and other end remains open to atmosphere.  Types of Simple Manometers are  Piezometer  U-tube Manometer  Single column Manometer
  • 95. Piezometer  It is the simplest form of manometer used for measuring gauge pressures.  One end of this manometer is connected to the point where the pressure is to be measured and the other end is open to atmosphere.  The rise of liquid gives the pressure head at that point.
  • 98. U- Tube Manometer  It consists of glass tube bent in U shape, one end of which is connected to a point at which pressure is to be measured and other end remains open to the atmosphere.  The tube generally contains mercury or any other liquid whose specific gravity is greater than the specific gravity of liquid whose pressure is to be measured.  https://www.youtube.com/watch?v=- P1EvVuuPoI&t=16s
  • 105. Mechanical pressure measuring devices  Mechanical Pressure Measurement Devices do not read pressure of any system by deflection of liquid level in some sort of tube.  Instead they use some solid object, such as, tube, plate, or diaphragm to measure pressure.  The system whose pressure is to be measured is connected to the deflecting object.  Any change in pressure causes the object to deflect and this deflection is mechanically amplified, by using a suitable gear and linkage mechanism, and indicated on the calibrated dial.
  • 106. Commonly used Mechanical Gauges  Bourdon tube pressure gauge  Diaphragm pressure gauge  Bellows pressure gauge  Dead-wight pressure gauge
  • 107. Bourdon tube pressure gauge  Bourdon Gauge has a coiled tube whose one end is connected to the system under consideration and other end is sealed.  With the application of the pressure in the tube it straightens up causing deflection of the sealed end. The sealed end is connected to the indicating needle through a gear and linkage mechanism.  The deflection of the sealed end results in movement of the needle which moves on a calibrated dial. Bourdon gauges can be used to measure a wide range of pressures
  • 109. Diaphragm Gauge & Bellows Gauge  Diaphragm Gauge: Similar to the Bourdon Gauge, but has a Diaphragm which deflects on pressure changes and the deflection is indicated on the calibrated scale.  Bellows Gauge: In such gauges indicating needle is driven by the deflection of bellows chamber. This gauge is suitable for measurement of very low pressures.
  • 110. Types of electronic pressure Gauges  Capacitance Pressure Sensor  Strain Gauge  Piezoelectric Sensor  Electromagnetic  Capacitive
  • 111. Electronic Pressure Transmitters / Sensors Principle  Most electronic pressure sensors incorporate one of the previously discussed elements are the primary pressure detector, and it is used to vary a measurable electrical quantity to produce a proportionately variable electronic signal. Because the energy form is transferred from a mechanical to an electrical nature, these devices are often classified as transducer
  • 112. Strain Gauge  Strain is defined as a deformation or change in the shape of a material as a consequence of applied forces. A strain gauge is a device which uses the change of electrical resistance of a wire under strain to measure pressure. The strain gauge changes a mechanical motion into an electrical signal when a wire length is changed by tension or compression, altering the wire diameter and, hence, changing the electrical resistance. The change in resistance is a measure of the pressure producing the mechanical distortion. This is measured by a Wheatstone bridge circuit, preferably of the null balance type, so that the strain gauge carries no current.  The complete measuring device includes a sensing element ( bourdon tube, bellows or diaphragm ), a strain gauge attached to the element, a stable power source and a read out device. A strain gauge element and a typical transducer is shown in the figure below
