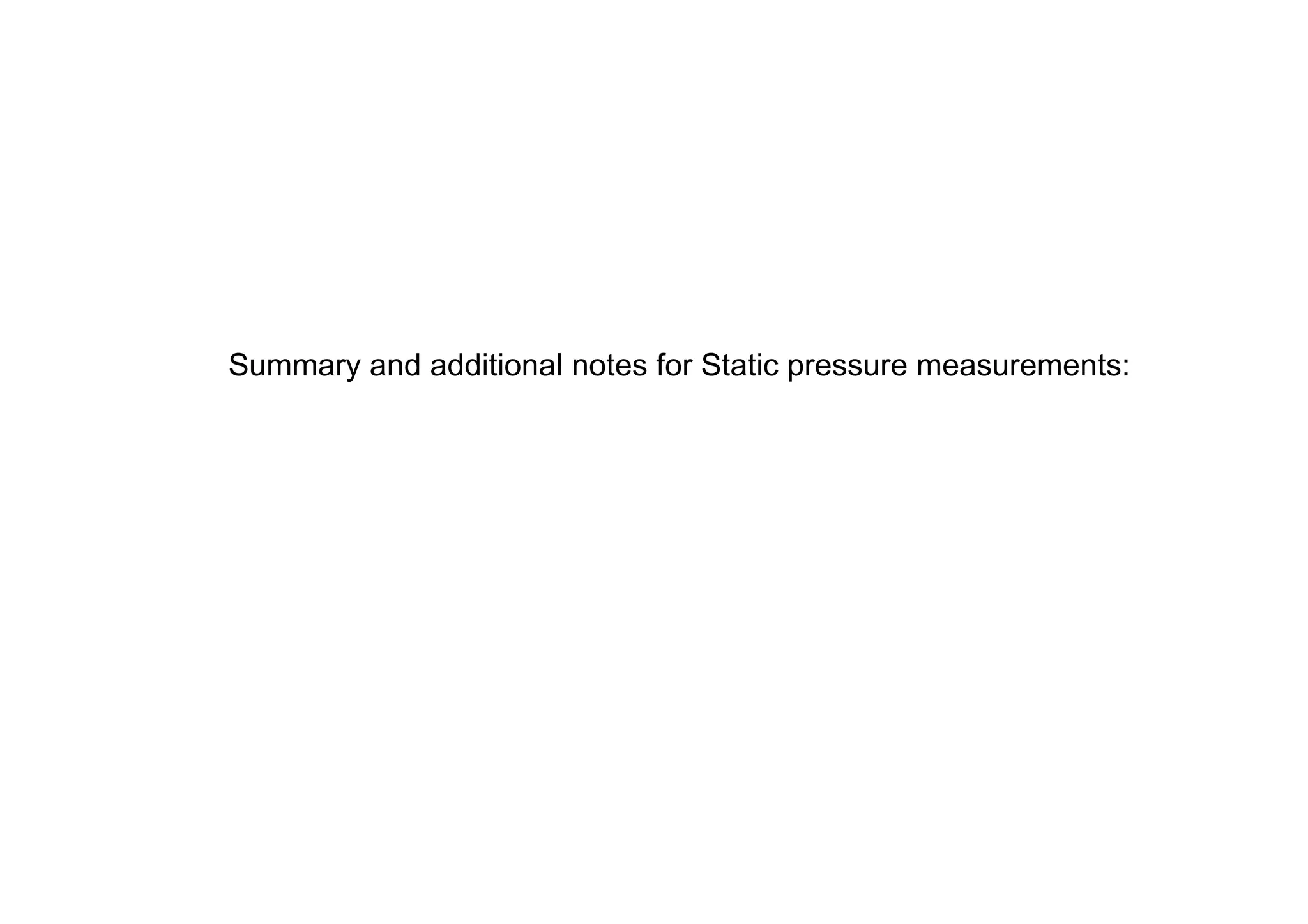

The document discusses various methods for measuring static pressure, total pressure, and flow direction in fluid flows. It describes probes that can measure static pressure, total pressure, and the yaw and pitch angles to determine flow direction. These include single-tube probes, multi-tube probes like the NACA short prism probe, and 7-hole probes that can determine all three velocity components. Calibration curves are used to relate probe pressures to flow properties like velocity, static pressure, and direction angles. Care must be taken when using probes in flows with large velocity or pressure gradients.
In this PPt u will see
1.Introduction
2.principle
3.construction
4.working
5.advantages and disadvantages
6.application
of Diaphragm and bellows pressure gauge
Presentation gives brief overview of Linear and angular measurements related to engineering, different types of instruments used for Linear and angular measurements such as vernier calipers ,micrometers,their types,non precision measuring instruments etc.
In this PPt u will see
1.Introduction
2.principle
3.construction
4.working
5.advantages and disadvantages
6.application
of Diaphragm and bellows pressure gauge
Presentation gives brief overview of Linear and angular measurements related to engineering, different types of instruments used for Linear and angular measurements such as vernier calipers ,micrometers,their types,non precision measuring instruments etc.
Please refer this file just as reference material. More concentration should on class room work and text book methodology.
Introduction to Mechanical Measurement
Voltmeter & Transformers: Types and Applications.Diksha Prakash
This presentation gives an insight into the various types of voltmeters and transformers that exist. The are both electronic measuring instruments. All the types of voltmeters and transformers have been discussed alogwith numerical examples and their solutions.
Types of Transducers
Analog and Digital Transducer
Characteristic of Transducer
Selection factor of Transducer
Measurement of Displacement
LVDT and RVDT
Different types of strain Gauges
Manometers
Pressure Measuring Elements
Hall Effect
Thermocouple
Please refer this file just as reference material. More concentration should on class room work and text book methodology.
Introduction to Mechanical Measurement
Voltmeter & Transformers: Types and Applications.Diksha Prakash
This presentation gives an insight into the various types of voltmeters and transformers that exist. The are both electronic measuring instruments. All the types of voltmeters and transformers have been discussed alogwith numerical examples and their solutions.
Types of Transducers
Analog and Digital Transducer
Characteristic of Transducer
Selection factor of Transducer
Measurement of Displacement
LVDT and RVDT
Different types of strain Gauges
Manometers
Pressure Measuring Elements
Hall Effect
Thermocouple
Naca 2415 finding lift coefficient using cfd, theoretical and javafoileSAT Journals
Abstract In this paper we have studied the experimental characteristic graph of NACA 2415.The experimental graphs were taken from the book, “Theory of wing section” by IRA H. ABBOTT. We used these graphs for the validation of our results. Then we use CFD to simulate the experimental flow conditions and check the results and compare them with the experimental results. We meshed the airfoil in ICEM CFD so that the meshing is very precise. We then calculate the NACA 2415 airfoil’s lift at different angle of attack theoretically and using CFD analysis and compare them with the experimental values. We find the errors between experimental and CFD values as well as experimental and theoretical values. We used another simulation software called Javafoil and used it for comparison. Keywords: Experimental, CFD, Theoretical, Javafoil
Effect of spikes integrated to airfoil at supersonic speedeSAT Journals
Abstract
The objective of this is to analyse the flow field over an aerofoil section integrated with spikes at supersonic speed (Mach number
greater than 1). Use of spike integrated with aerofoil changes the flow characteristics over aerofoil and hence aerodynamic lift
and drag. The experiment consists of flow visualization graphs and measurement of coefficient of aerodynamic drag and lift.
Here we are using different shapes of spike like sharp edge and hemi spherical edge. In this we will compare the flow over
aerofoil with spike and without spike. The flow analysis is done by using Computational fluid dynamics (CFD). CFD is the study
of external flow over a body or internal flow through the body. CFD is aiding aero-dynamist to better understand the flow physics
and in turn to design efficient models. In short, CFD is playing a strong role as a design tool as well as a research tool.
Keywords: NACA 651-412 airfoil, spike, Ansys Fluent, Ansys ICEM CFD, Pressure Coefficient
A comparative flow analysis of naca 6409 and naca 4412 aerofoileSAT Journals
Abstract
In this work, flow analysis of two aerofoils (NACA 6409 and NACA 4412) was investigated. Drag force, lift force as well as the overall pressure distribution over the aerofoils were also analysed. By changing the angle of attack, variation in different properties has been observed. The outcome of this investigation was shown and computed by using ANSYS workbench 14.5. The pressure distributions as well as coefficient of lift to coefficient of drag ratio of these two aerofoils were visualized and compared. From this result, we compared the better aerofoil between these two aerofoils. The whole analysis is solely based on the principle of finite element method and computational fluid dynamics (CFD). Finally, by comparing different properties i.e drag and lift coefficients, pressure distribution over the aerofoils, it was found that NACA 4412 aerofoil is more efficient for practical applications than NACA 6409 aerofoil.
Keywords: NACA, Drag Lift, CFD, ANSYS FLUENT, SolidWorks
Numerical simulation and optimization of high performance supersonic nozzle a...eSAT Journals
Abstract The Principle purpose of a nozzle is to accelerate the flow to higher exit velocities. The fluid acceleration is based on the design criteria and characteristics. To achieve good performance characteristics with minimum energy losses a nozzle must satisfy all the design requirements at all operating conditions. This is possible only when the nozzle theory is assumed to be isentropic irrespective of the changes in pressure, temperature and density which is generally caused due to formation of a Shock Wave. The thesis focuses on the design, development and optimization of a Supersonic Convergent-Divergent Nozzle where the analytical results are validated using theory calculations. The simulation work is carried out for CD Nozzles with different angles of divergence keeping the other inputs fixed. The objective of the proposed thesis is to show the best Expansion ratio, Nozzle Pressure ratio (NPR) and Nozzle Area Ratio(NAR) where the thrust obtained by the supersonic nozzle is maximum. The simulation is then repeated for expansion gas the results of which are later compared with standard air to show which possesses better performance characteristics. The Nozzle design chosen is based upon existing literature studies. Key Words: CD Nozzle, Expansion Ratio, Nozzle Pressure Ratio (NPR), Nozzle Area Ratio(NAR),Divergence Angle etc…
Design Analysis Of Uav (Unmanned Air Vehicle) Using NACA 0012 Aerofoil ProfileDr. Bhuiyan S. M. Ebna Hai
This research work is concerned with the application of conceptual design of Unmanned Air Vehicle (UAV). UAV is used for surveillance and reconnaissance to serve for the defense as well as national security and intelligence purpose. Here NACA 0012 aerofoil profile is used to design UAV by using CFD (Computational Fluid Dynamics) software. The aim of this research is to investigate the flow patterns and determine the aerodynamic characteristics of NACA 0012 profile by varying the angle of attack and Reynolds Number numerically. The research is carried out with symmetric aerofoil with the chord length of 0.1m. The research work explained different aerodynamic characteristics like lift force and drag force, lift and drag coefficient, pressure distribution over aerofoil etc.
The flow across an airfoil is studied for different angle of attack. The CFD analysis results are documented and studied for different angle of attack using fluent & gambit.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
CW RADAR, FMCW RADAR, FMCW ALTIMETER, AND THEIR PARAMETERSveerababupersonal22
It consists of cw radar and fmcw radar ,range measurement,if amplifier and fmcw altimeterThe CW radar operates using continuous wave transmission, while the FMCW radar employs frequency-modulated continuous wave technology. Range measurement is a crucial aspect of radar systems, providing information about the distance to a target. The IF amplifier plays a key role in signal processing, amplifying intermediate frequency signals for further analysis. The FMCW altimeter utilizes frequency-modulated continuous wave technology to accurately measure altitude above a reference point.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
NUMERICAL SIMULATIONS OF HEAT AND MASS TRANSFER IN CONDENSING HEAT EXCHANGERS...ssuser7dcef0
Power plants release a large amount of water vapor into the
atmosphere through the stack. The flue gas can be a potential
source for obtaining much needed cooling water for a power
plant. If a power plant could recover and reuse a portion of this
moisture, it could reduce its total cooling water intake
requirement. One of the most practical way to recover water
from flue gas is to use a condensing heat exchanger. The power
plant could also recover latent heat due to condensation as well
as sensible heat due to lowering the flue gas exit temperature.
Additionally, harmful acids released from the stack can be
reduced in a condensing heat exchanger by acid condensation. reduced in a condensing heat exchanger by acid condensation.
Condensation of vapors in flue gas is a complicated
phenomenon since heat and mass transfer of water vapor and
various acids simultaneously occur in the presence of noncondensable
gases such as nitrogen and oxygen. Design of a
condenser depends on the knowledge and understanding of the
heat and mass transfer processes. A computer program for
numerical simulations of water (H2O) and sulfuric acid (H2SO4)
condensation in a flue gas condensing heat exchanger was
developed using MATLAB. Governing equations based on
mass and energy balances for the system were derived to
predict variables such as flue gas exit temperature, cooling
water outlet temperature, mole fraction and condensation rates
of water and sulfuric acid vapors. The equations were solved
using an iterative solution technique with calculations of heat
and mass transfer coefficients and physical properties.
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
2. Determination of static pressure a) Wall tapping b) static tube
Error in pressure is function of:
3. Error in pressure is function of:
And it is also function of laminar or tubulent condition of the wall-bounded flow.
Here,
(e.g. In a pipe flow, D is
the diameter of pipe)
7. Flow Direction Measurements
To describe a flow-field, both the flow
direction and velocity magnitude are
needed.
The flow direction measurements also allow
a better alignment of the probe to the flow
direction as required for accurate static
pressure measurements.
Variations of the velocity component in the
plane perpendicular to the probe stem are
measured by the yaw angle. Variations of
the velocity direction in the plane
perpendicular to it are measured by the
pitch angle.
8. Yaw Angle Measurements
The simplest geometry of a directional probe is a slanted tube.
It consists of a total head probe with its nose cut at an angle A.
9. Yaw Angle Measurements
Rotating the probe around the stem axis
allows the flow angle to be defined by
seeking the maximum pressure reading.
The response of the slanted tube to inlet
flow angle allows the determination of the
yaw angle within ±5° only.
One pressure measurement is therefore
not sufficient to provide accurate
directional information.
10. Yaw Angle Measurements
The large pressure gradients
observed at negative yaw (α) angles
can be used for an accurate
definition of the flow direction by
measuring the pressure difference
between two symmetric slanted
tubes (ex: A=30° and A=-30°)
Different probe geometries based on
this principle:
Conrad’s “Cobra” probe is
the most widely used.
11. Yaw Angle Measurements
Typical examples of probes which combine total, static-pressure and
direction measurements are shown on Fig. 3.5
12. Yaw Angle Measurements
Typical examples of probes which combine total, static-pressure and
direction measurements are shown on Fig. 3.5
13. Yaw Angle Measurements
There are two ways in which a pressure
sensitive direction probe can be used.
The simpler and more direct one is the
method in which the probe is rotated to
balance the pressure difference between
the two orifices. The flow angle is then
just the rotation angle of the probe.
NACA short prism probe
14. Yaw Angle Measurements
In the alternative approach, the
probe is in a fixed position
facing the flow and the flow
direction is defined from the
measured pressure difference
by means of a calibration
curve.
15. Yaw Angle Measurements
A typical calibration curve of a NACA short
prism probe is shown on Fig. 3.6
The pressure difference PL-PR, varies linearly
with the yaw angle.
16. Yaw Angle Measurements
The variation of measured
static pressure and total
pressure with yaw angle:
Yaw angle
17. Yaw Angle Measurements
A typical dependence on
pitch angle of zero yaw
angle, static and total
pressure:
Pitch angle
18. Yaw Angle Measurements
Other directional probes are: cylinder probes, aerofoils and bent tube
(finger probes)
20. Three dimensional flow direction probes
Adding a pair of symmetrically slanted tubes in the plane perpendicular
to the yaw plane, allows the simultaneous definition of pitch and yaw
angle.
22. Three dimensional flow direction probes
The calibration is more
complex as it requires a
symmetric variation of the
yaw angle at different pitch
angles.
The calibration curves allow
the calculation of pitch and
yaw angle, static and total
pressure, as a function of
Pop , PL, PR, PU, PD
23. Three dimensional flow direction probes
Other probe geometries:
••Conrad’s four holes probe has four holes for directional measurements and total
and static pressure holes for velocity measurements.
•The collar downstream of the static pressure holes is adjusted in such away to
maintain the measured static pressure close to the true value over a wide range
of Mach numbers.
24. Three dimensional flow direction probes
Adjusting the probe during the
measurements to zero yaw angle
allows a simpler calibration in function
of the pitch only
Pitch angle
only.
26. Seven-Hole Pressure Probe Coordinate System is
Defined By Pitch and Yaw Angles
r
cosθ u V cos cos
= ⋅ ⋅
r
= ⋅
v V sin
θ ψ
θ
r
w = V ⋅ cos ⋅ sin
θ ψ
Probe
V∞ θ
Pitch
ψ Yaw
θ
ψ
Pitch
Dial
Computer Controlled
Rotary Table
Stepper Motor
27. Velocity Invariant, Non-Dimensional Seven-Hole Probe
Pressure Coefficients
0.035"
0 109"
3
4
5
Flow Angle Coefficients:
PB PC C C
C C
−
0.109"
7
2 6
1
B C
( )
A
P P
P P
2
C 1 C +
C
= +
α Pitch
C
P −
P
4 1
A
=
P
P P
P PB PC 3
= β Yaw
C
7
P P
P P
P
3 6
B
−
=
−
C
Total and Static Pressure Coefficients:
P P
7 − Total
P −PStatic
C
C
7
P P
P P
P
2 5
7
C
−
=
−
−
P P P
P P
7
P
Static
7
Total Static =
−
=
−
P
1
6
6
P
1
=
= Σ
i
i
⎛
V ( )( )
2
P7 P 1 CPStatic CPTotal =
⎝ ⎜
⎞
⎠ ⎟
− + −
r
ρ
i=
28. Seven-Hole Probe Angular Sensitivity Must be
Calibrated in a Uniform Flow Field
V
Probe
5
4
θ = -28°
ψ = 30°
V∞ θ
3 θ = 28°
2
1
ψ = 30°
(Cpβ )
ψ
0
-1
e Coefficient
Δψ = 5°
aw Pressure Δθ = 4° Dial
Pitch
Di l
-2
-3
Ya 4
-4
-5
θ = -28°
ψ = -30°
Constant Pitch (θ)
Computer Controlled
-6 θ = 28°
-7
ψ = -30°
Constant Yaw (ψ)
Rotary Table -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4
Stepper Motor Pitch Pressure Coefficient (Cpα )
30. Computation of Flow Direction, Flow Velocity, total pressure, static
pressure from Seven-Hole Pressure Probe
Measure Probe
Pressures
(P1, P2, P3, P4,
P P P ) CPtotal = , ψ)
Interpolate on probe calibration
data to find total and static
pressure coefficients:
C ƒ(θ )
CPstatic = ƒ(θ , ψ)
P5, P6, P7)
Compute total and static pressure: ( )
P = P − P −
PC
P =
P P P C
Total 7 7 Ptotal
1,7 PStatic − ( P7 −
)
P)CPstatic Compute:
CPα = ƒ(Pi)i=1,7
CPβ = ƒ(Pi)i=1 7
Compute magnitude of flow velocity:
P = mean (Pi )i=1,7
rV
2
( )( ) P7 P 1 CPStatic CPTotal
=
⎛
⎝ ⎜
⎞
⎠ ⎟
− + −
ρ
Compute velocity components:
( ) ( )
( )
u =
Vcos cos
v =
Vsin
r
r
Θ Ψ
Θ
Interpolate on probe
calibration data to
find flow angles:
θ = ƒ(CPα , CPβ) r
w = V cos ( Θ ) sin( Ψ
)
ψ = ƒ(CPα , CPβ)
32. Mach Number Influence
A properly designed and constructed directional probe should not be
affected by changes in Reynolds or Mach number, as long as the flow is
symmetrical about the probe axis.
The accuracy of a directional probe will not be impaired, even not in
supersonic flows, if the probe is parallel with the flow, because this will
give a symmetric shock pattern.
However, a fixed probe at non-zero incidence may be seriously in error,
because the shock on one side may be very different from its counterpart,
which will affect the measurement.
The static pressure measurement however is very sensitive to Mach
number and yaw angle.
33. Mach Number Influence
Mach number and geometry of the probe head have an influence on
angular sensitivity: S=PL-PR/(P0-Ps)
34. Velocity and pressure gradients
The finite distance between the slanted tube orifices prevents an accurate
measurement of the flow direction in flows with a velocity gradient.
Th fl l The flow angle distribution shown on Fig. 3.14 is measured in the wake behind a
compressor blade, by means of a NACA short prism directional probe.
The measured sinusoidal variation of the flow angle in the wake is uniquely due to
the probe size.
35. Velocity and pressure gradients
Large velocity gradients occurring in transonic flows where expansion
waves, shocks and wakes are interfering require special probes to assure
accurate measurements.
36. Velocity and pressure gradients
The requirement of measuring total pressure, static pressure and the differential pressure for
flow angle, simultaneously in one point, is not feasible and has to be replaced by:
A A. Measurement of all values along a line perpendicular to a two dimensional flow-field by
means of separate sensing elements (neptune and needle probe)
B. Use of very compact probes, having all sensing elements, or at least the total and static
pressure holes, close together (wedge and truncated cone probe)
38. Velocity and pressure gradients
•NACA short prism probes have to be excluded for
transonic flow measurements because of the long
distance between the total and static pressure orifices.
•AVA wedge probe and VKI needle probe is
used to measure the transonic flow
downstream of turbine cascades.
39. •A paper on calibration of 5 hole probes:
Reichert BA and Wendt BJ (1994) A New Algorithm for Five-Hole Probe Calibration,
Data Reduction, and Uncertainty Analysis. NASA Technical Memorandum 106458
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19950005965_1995105965.pdf
•You can find an example code in the following website for the calibration of 5 hole
Probe:
http://www.nongnu.org/fivehole/download.html
