1. Project
Presentation FOR
MAJOR
Project(BCA 692)
BCA 6TH Sem,2014

2. SMART BOARD
(A Departmental E-Info System of GNIT)
Done By:
1.Rupai Bhadra (Roll No- 14301211019)
2.Saikat Rakshit(Roll No- 14301211020)
3.Kaushik Bhadra(Roll No-14301211009)
4.Kaushik Chakraborty(Roll No-14301211010)
3.
1.

3. INTRODUCTION
Domain Description:
– “Smart Board” is basically for the digital information system for
the computer application department containing the information
regarding questions, assignments and other departmental events or
activities.
– “Smart Board” is a website where students and teachers can get a
glimpse of the departmental activities.
– It has mainly three types of users – Admin,
Teacher and Students. Other external users can
visit the website without logging in to the system

4. Advantages
This website is benefit to the student for
Admission section and saving the timing. This
website is benefit to the college activities, and
other details are known. This website is used
academic Institute Technology. This website is
advantage for content all faculties and
students friends and solved to the any
problem easily.
•

5. Feasibility Study
1.It is technically feasible, since the whole system is designed into
the latest technologies like
ASP.NET and MS Access and SQL Server
2. It is Behavioral feasible, since the system is providing a attractive
user interface to the operator/end user, so he feel very easy to
work onto it. Response to operator/end user is very fast and
very good.
3. It is economically feasible, it will only require a single operator to
operate the system, whois responsible for entering the data into
the database via a user interface provided to him
4. only a single person to operate the whole system thus reduces
the cost to operate the system.

6. The following modules are involved in this project
 Student Details
 Teacher Details
 Course Details
 Departmental Information
 Admin Details

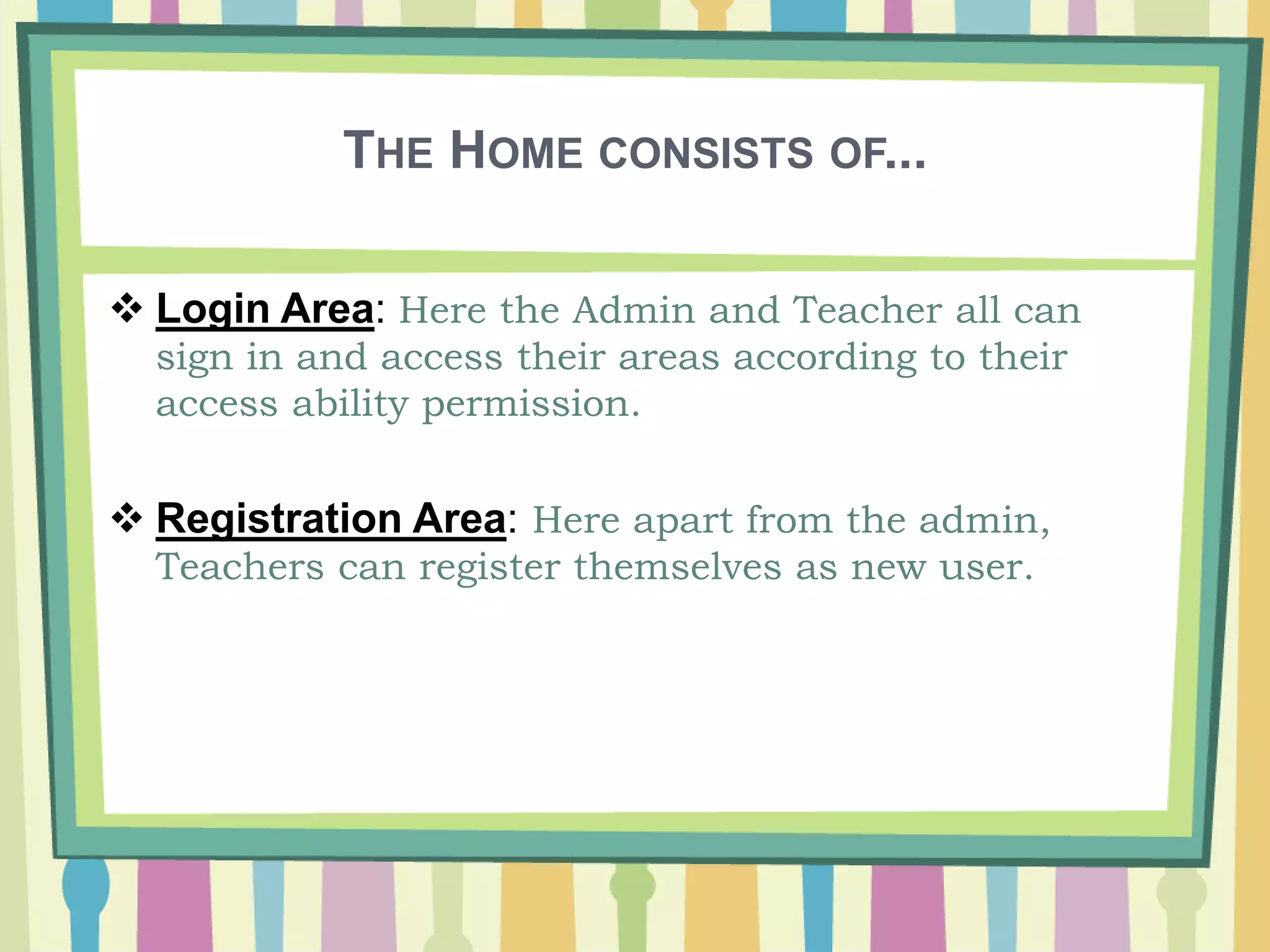

7. THE HOME CONSISTS OF...
 Login Area: Here the Admin and Teacher all can
sign in and access their areas according to their
access ability permission.
 Registration Area: Here apart from the admin,
Teachers can register themselves as new user.

8. Project Division
 Gallery: Here Teachers or Admin can update the
pictures of the events related to department.
 Faculty Profile: Here all can see all the faculty
information of Computer Application department.
 Student Corner: Here all can see the students
achievements information of Computer Application
department.

9. OBJECTIVES...
• Our project “Smart Board” is a website to get the
information about several events and activities
regarding our department. In this user can create own
personal account. Each User easily logs in personal
account and gets the data for department. User can
also be search the faculty, our friends and etc.
• The system can access by every students/faculties/
or any other users of the institution through the
website by signing in.

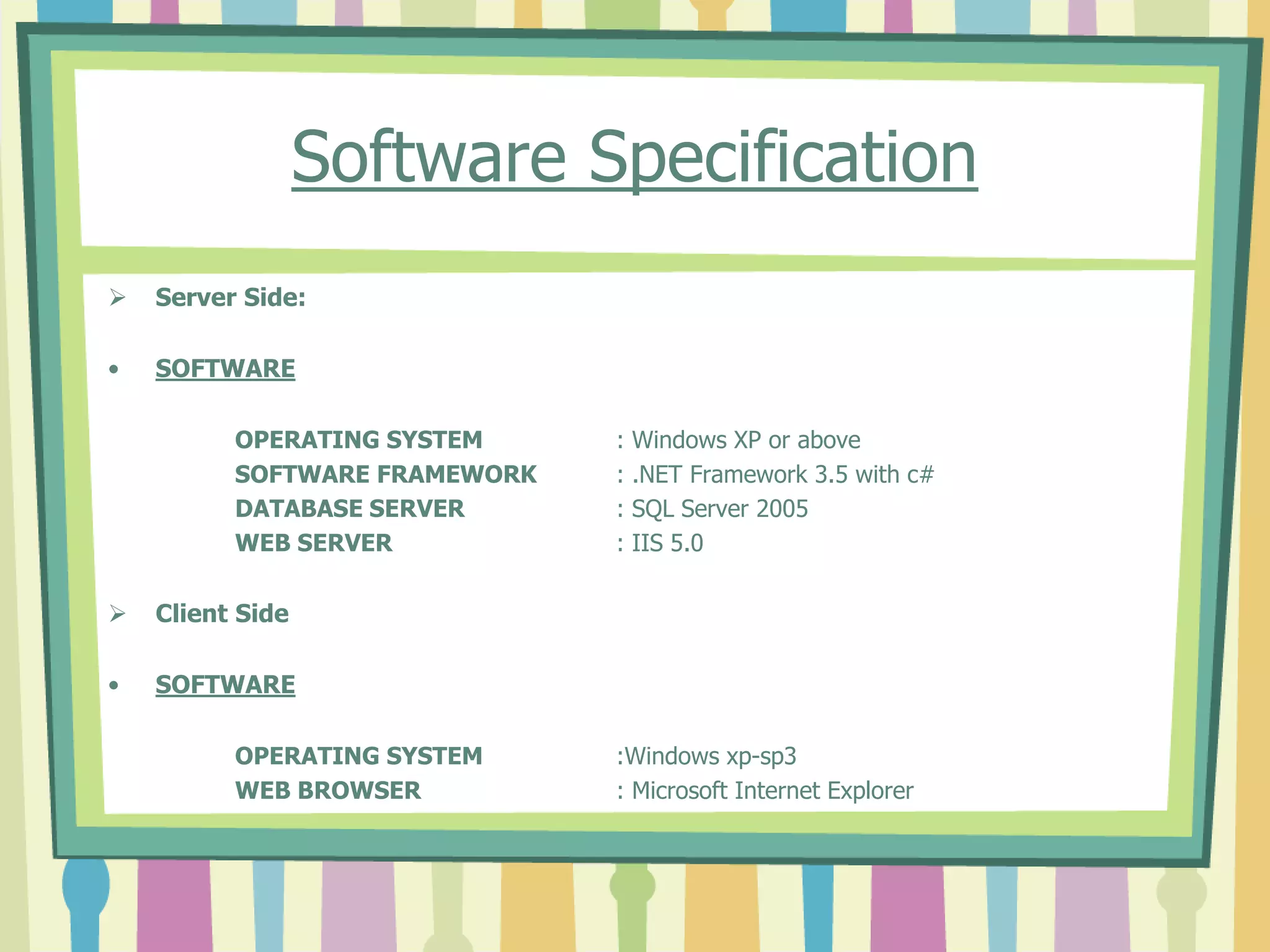

10. Software Specification
 Server Side:
• SOFTWARE
OPERATING SYSTEM : Windows XP or above
SOFTWARE FRAMEWORK : .NET Framework 3.5 with c#
DATABASE SERVER : SQL Server 2005
WEB SERVER : IIS 5.0
 Client Side
• SOFTWARE
OPERATING SYSTEM :Windows xp-sp3
WEB BROWSER : Microsoft Internet Explorer

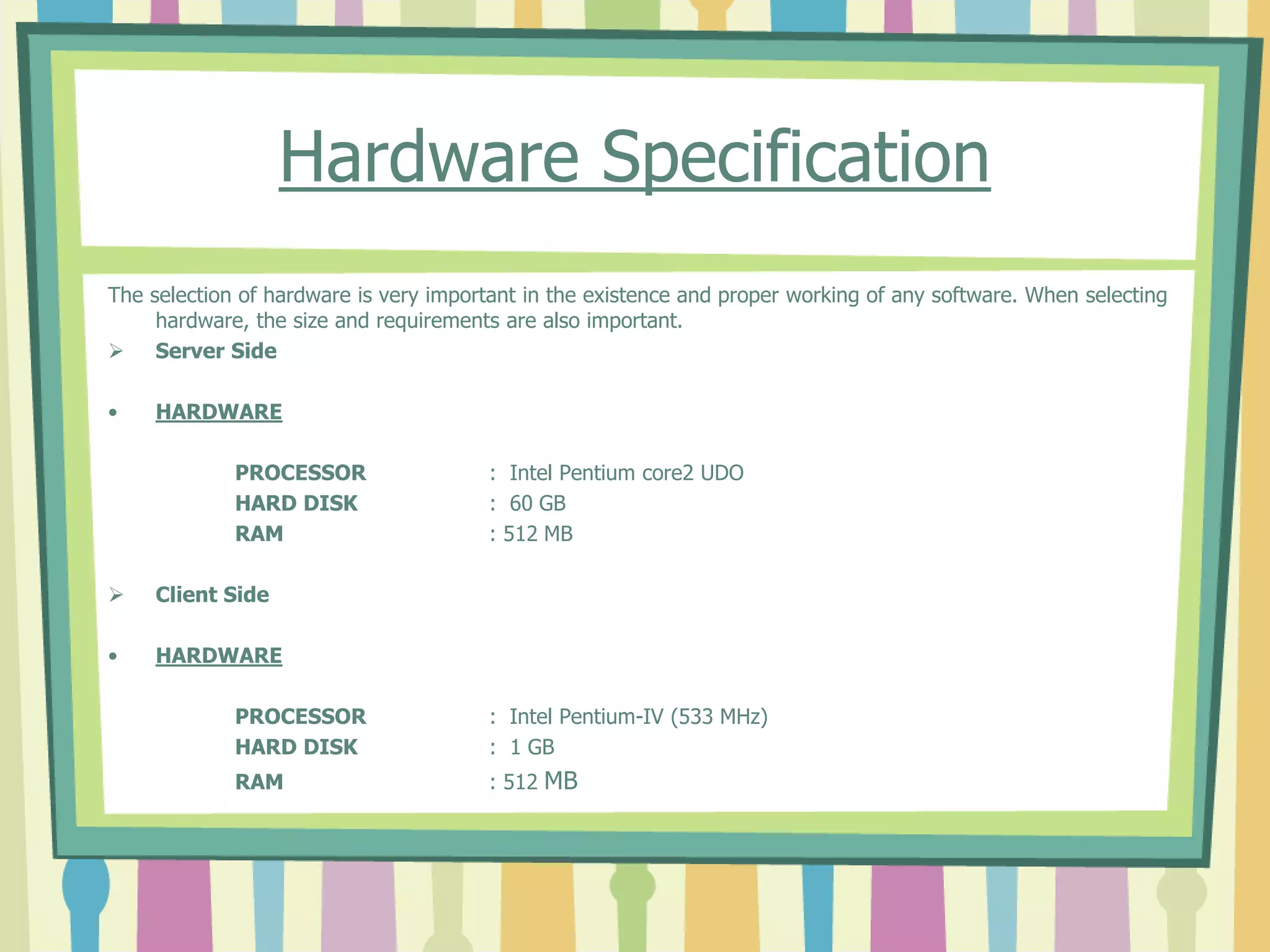

11. Hardware Specification
The selection of hardware is very important in the existence and proper working of any software. When selecting
hardware, the size and requirements are also important.
 Server Side
• HARDWARE
PROCESSOR : Intel Pentium core2 UDO
HARD DISK : 60 GB
RAM : 512 MB
 Client Side
• HARDWARE
PROCESSOR : Intel Pentium-IV (533 MHz)
HARD DISK : 1 GB
RAM : 512 MB

12. Purpose
1.Student Admission System Supports the student admission and
registration
2.process, the maintenance of student personal, academic and fee
related data.
3.Database maintained by this system usually contains the student’s
personal,
4.academic and its fee related information. It focuses on storing
and processing (insertion,updation) by using web pages
5. Generates student information in formatted html tables,
generates the fees invoice.
6. Generate Student’s Academic Detail Report.

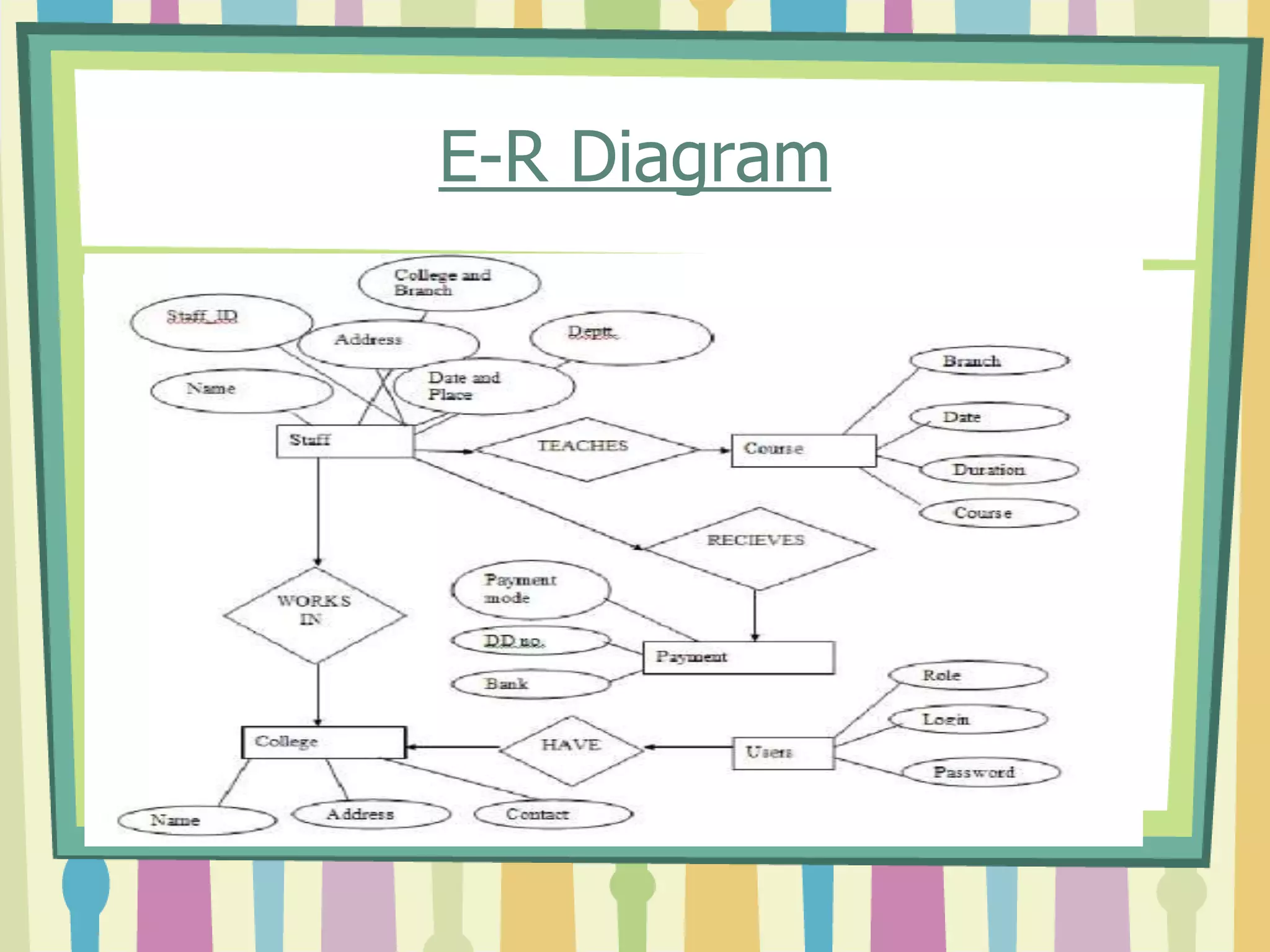

13. E-R Diagram

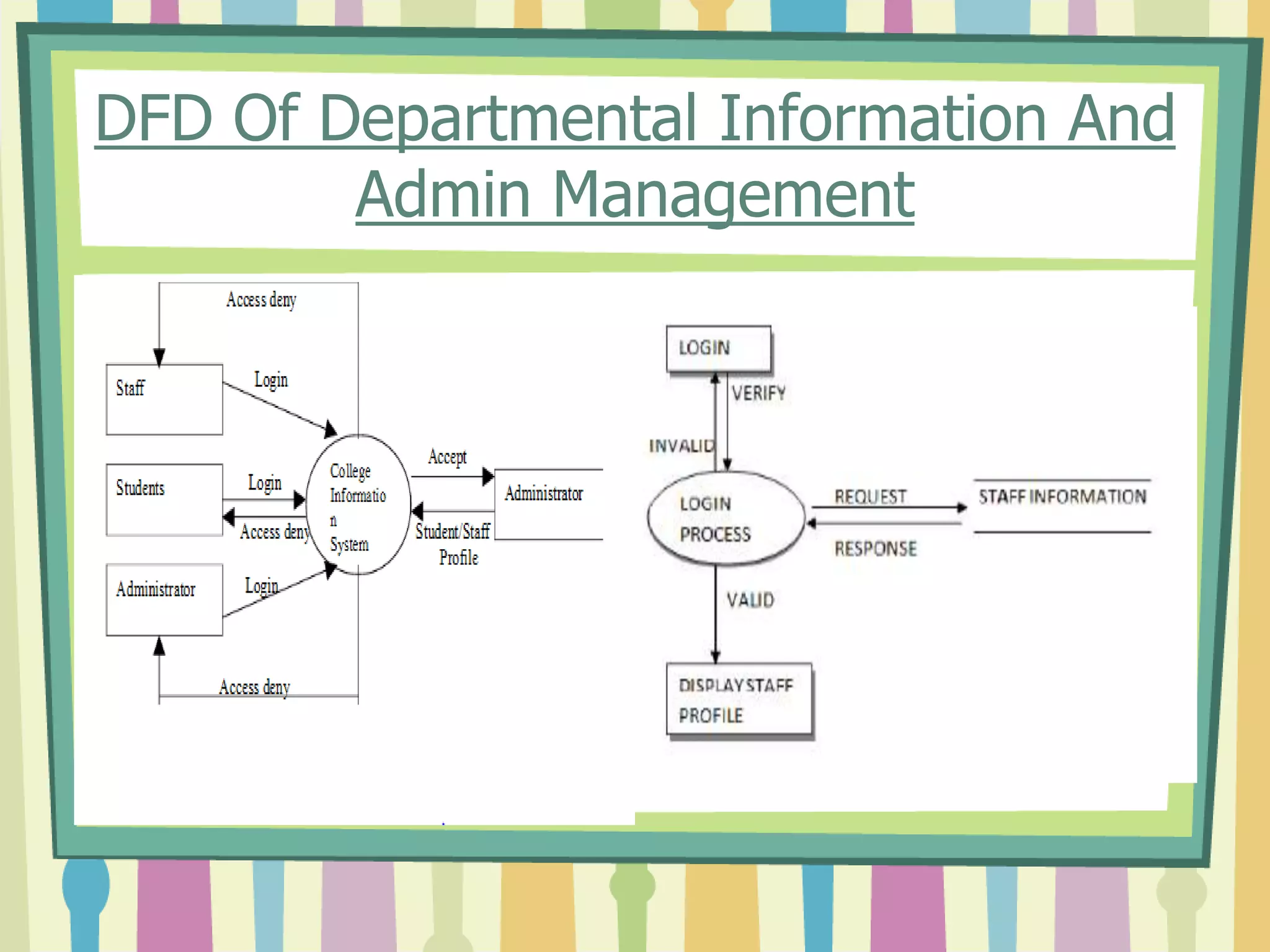

14. DFD Of Departmental Information And
Admin Management

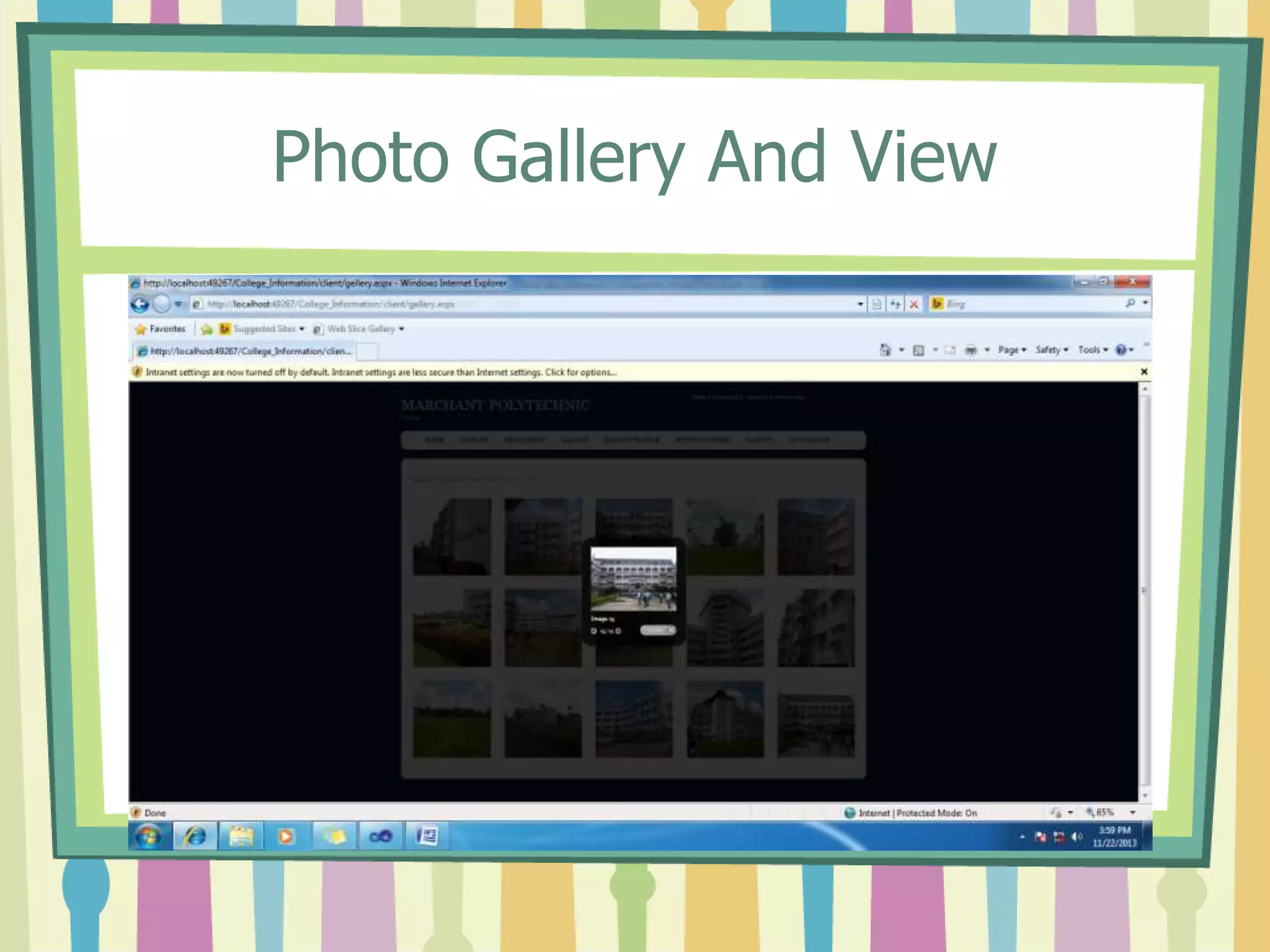

15. Photo Gallery And View

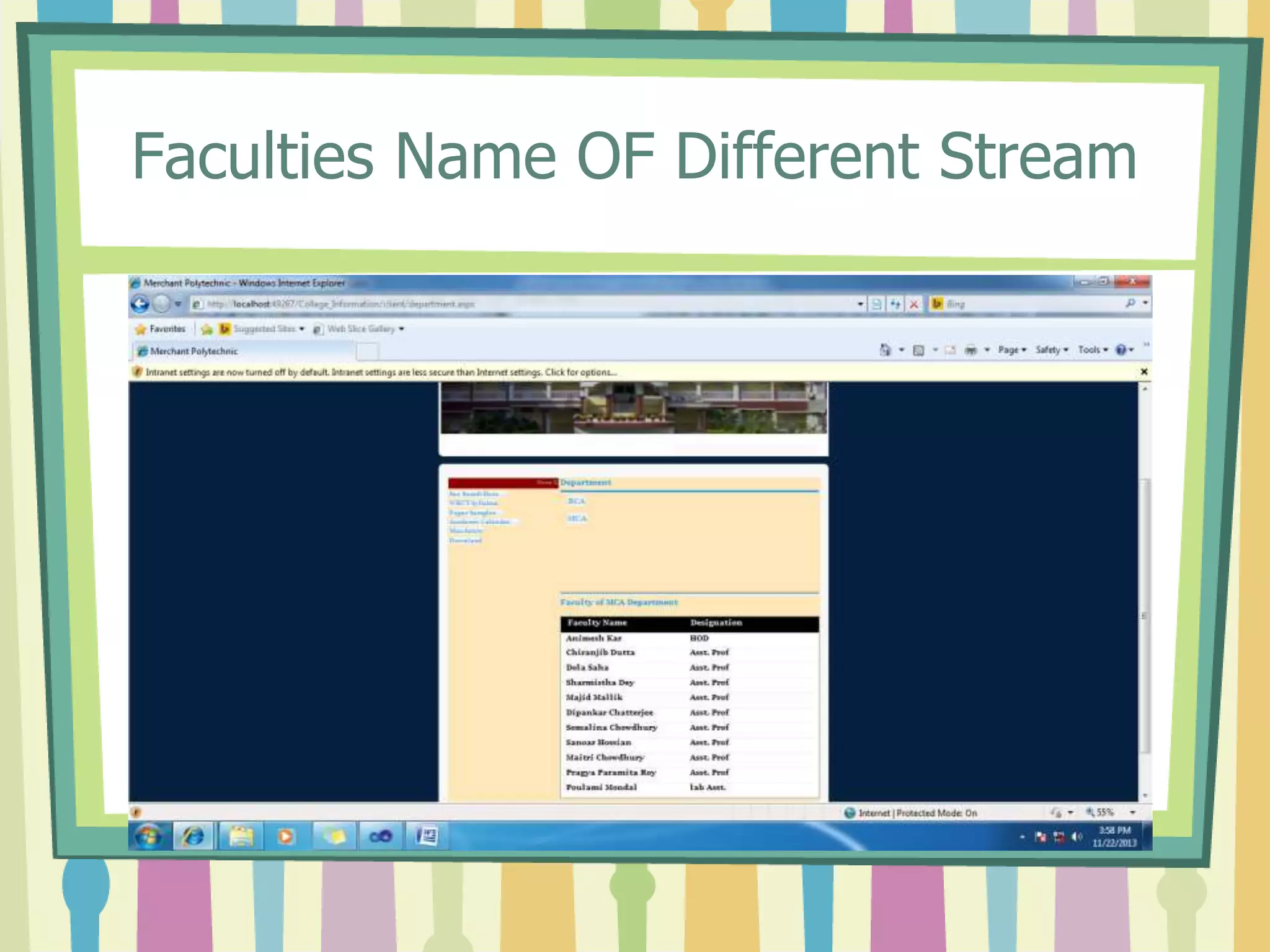

16. Faculties Name OF Different Stream

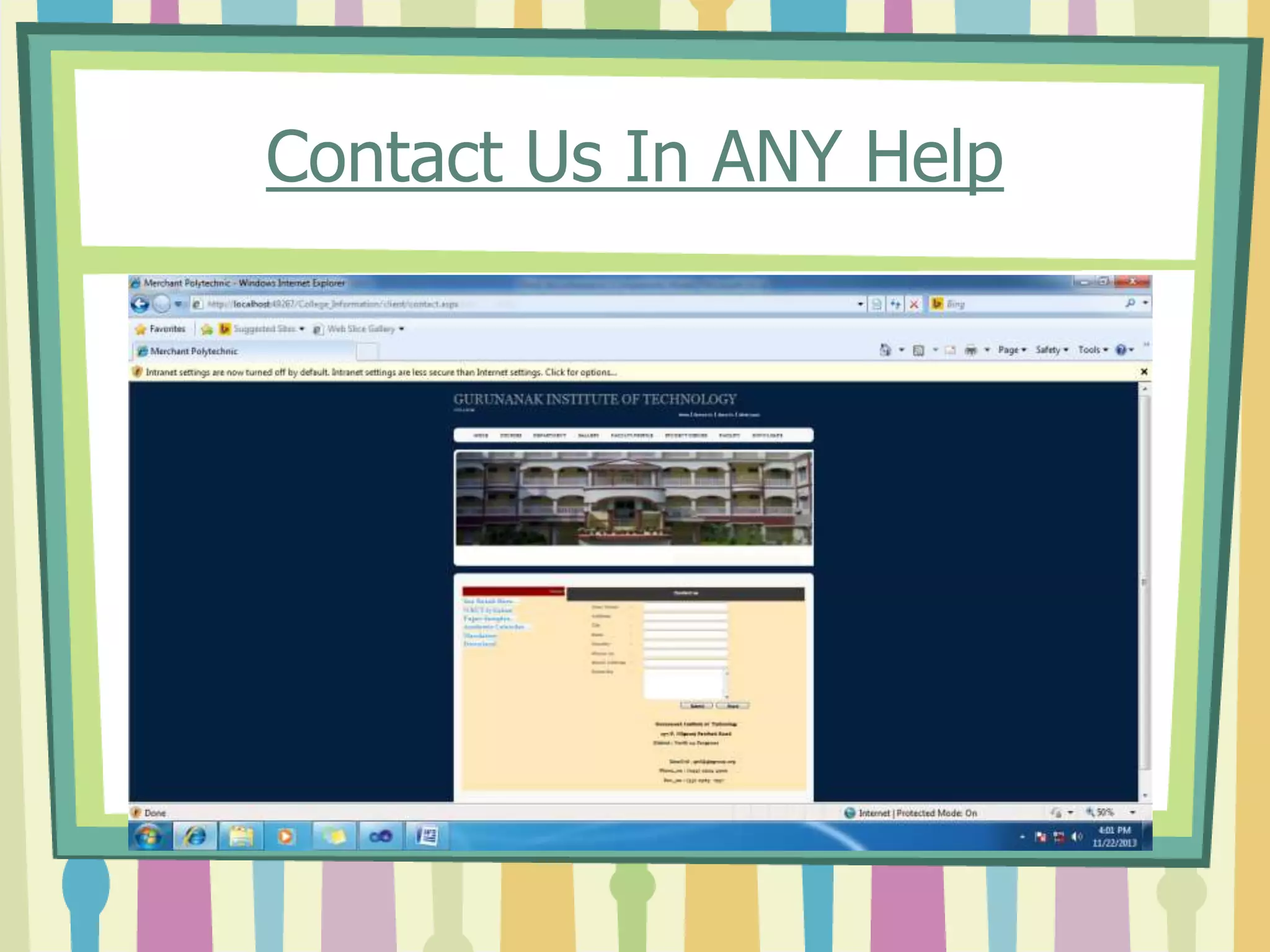

17. Contact Us In ANY Help

18. Admin login Information

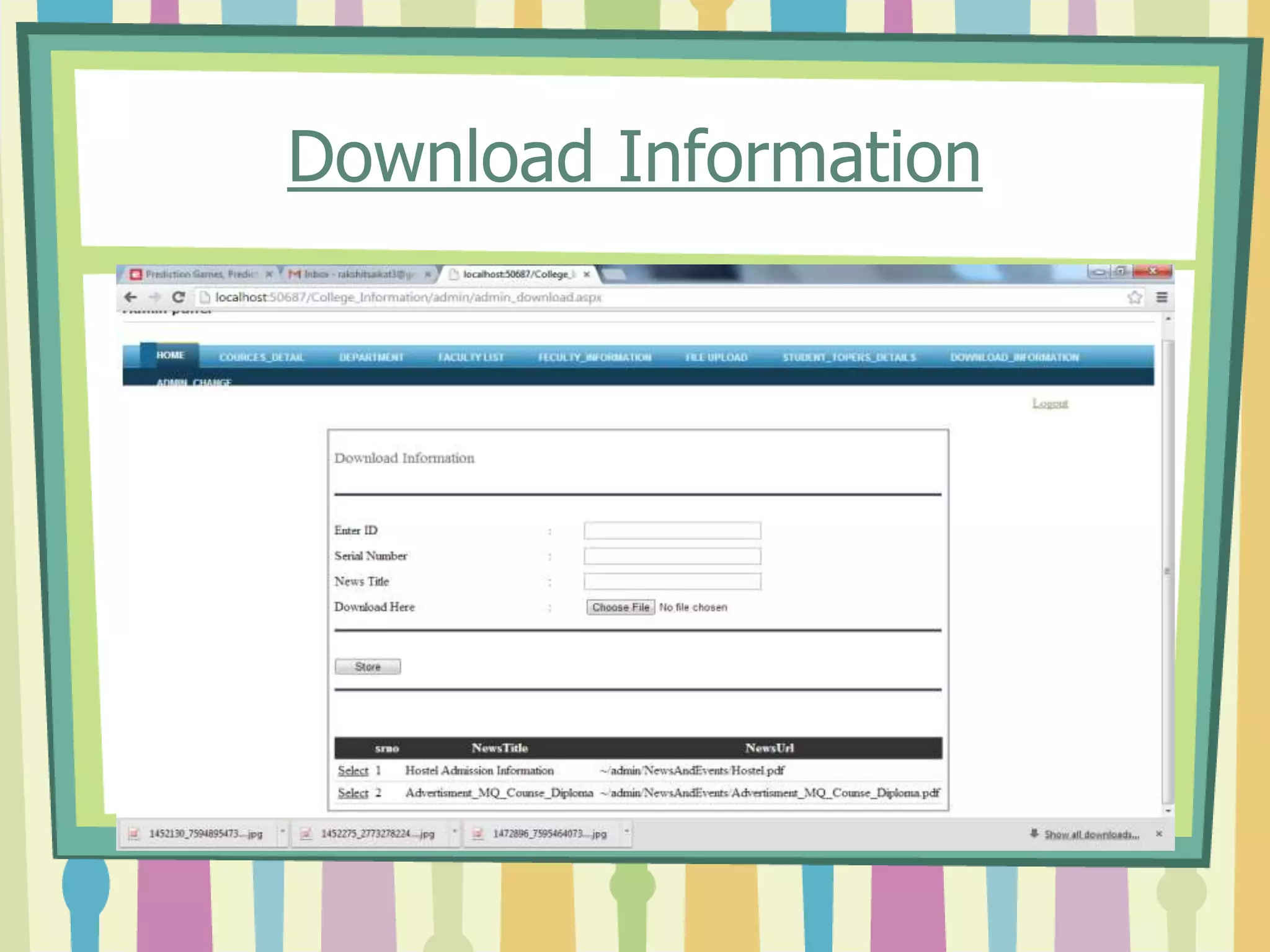

19. Download Information

20. Student Corner

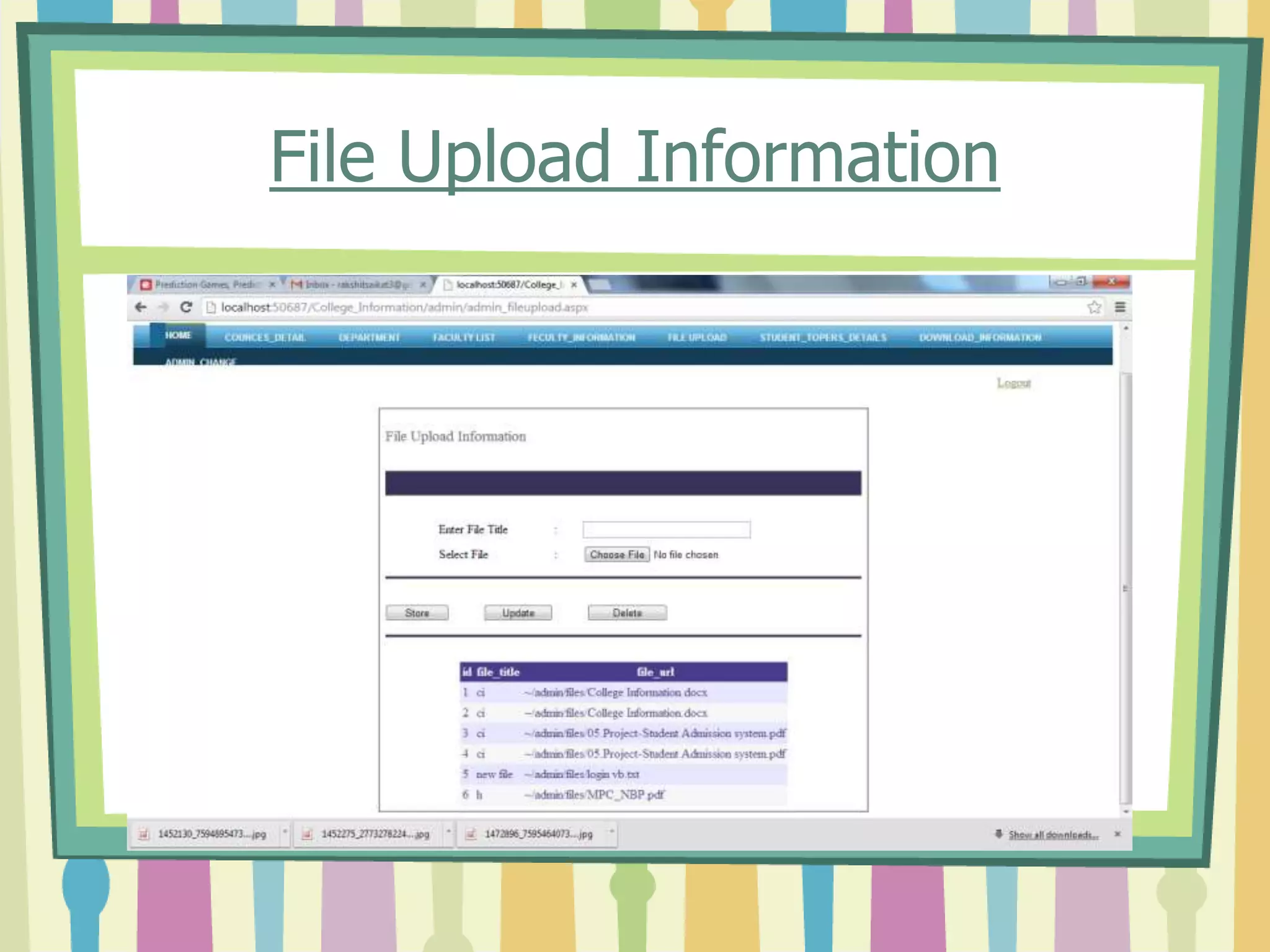

21. File Upload Information

22. Thank You
