SocketStream is a web framework designed for creating real-time single-page applications, leveraging WebSockets to eliminate the need for continuous server polling and providing a seamless user experience. It supports a variety of client-side frameworks and code preprocessors, allowing developers flexibility in architecture and technology choices. Additionally, SocketStream emphasizes efficient resource management, enabling features like live reloading, session management, and custom API creation.

2. A web framework for
single page apps

3. Created by
Owen Barnes
@temporalwave
!
!
(my boss at a former company)

4. About me
Paul Jensen
@paulbjensen
!
!
(I’m the new lead developer)

5. Where to begin?

6. Why Single Page
Apps?

7. With a traditional web app,
the user has to refresh the
page to see new information

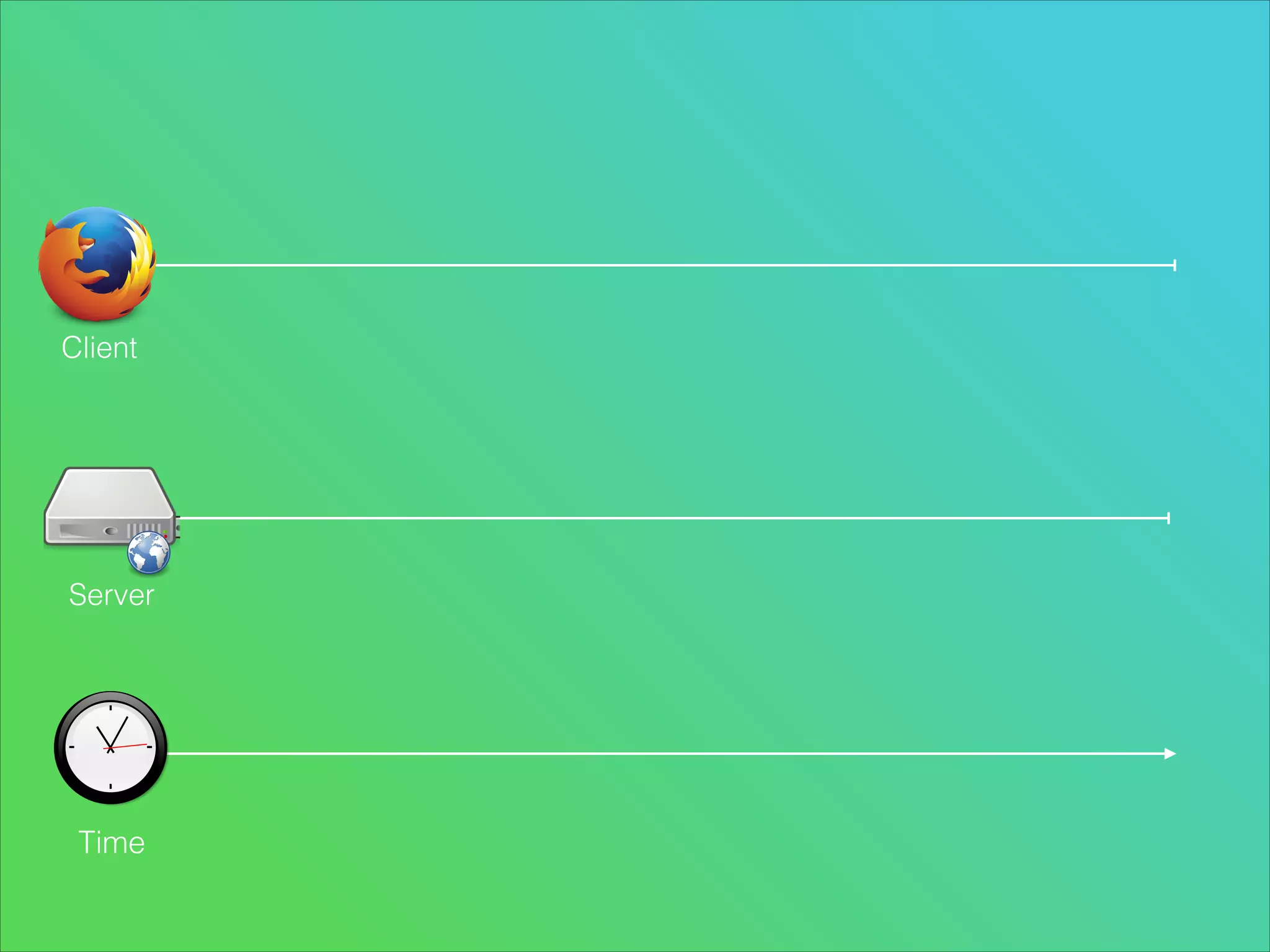

8. Client
Server
Time

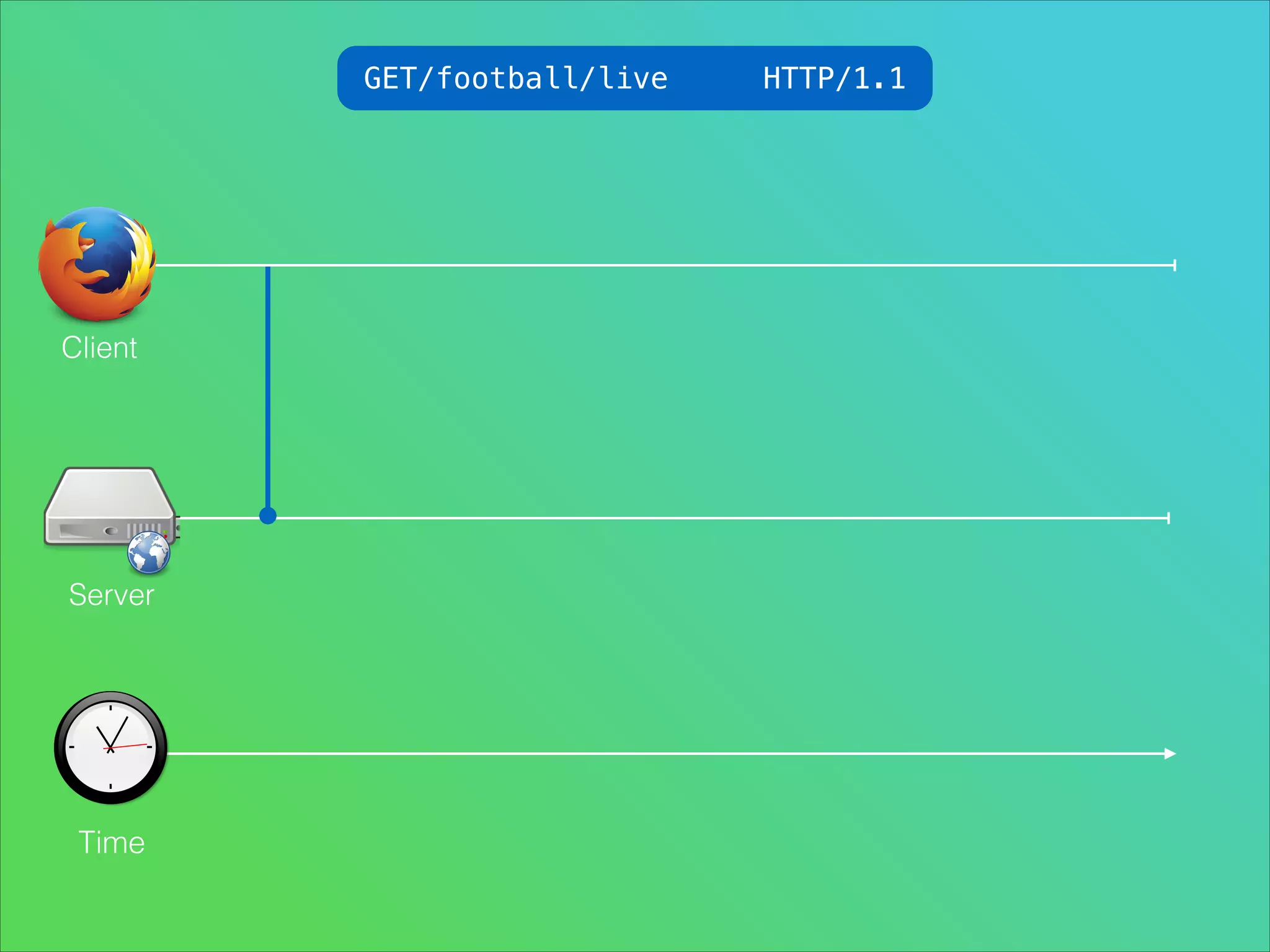

9. GET/football/live
Client
Server
Time
HTTP/1.1

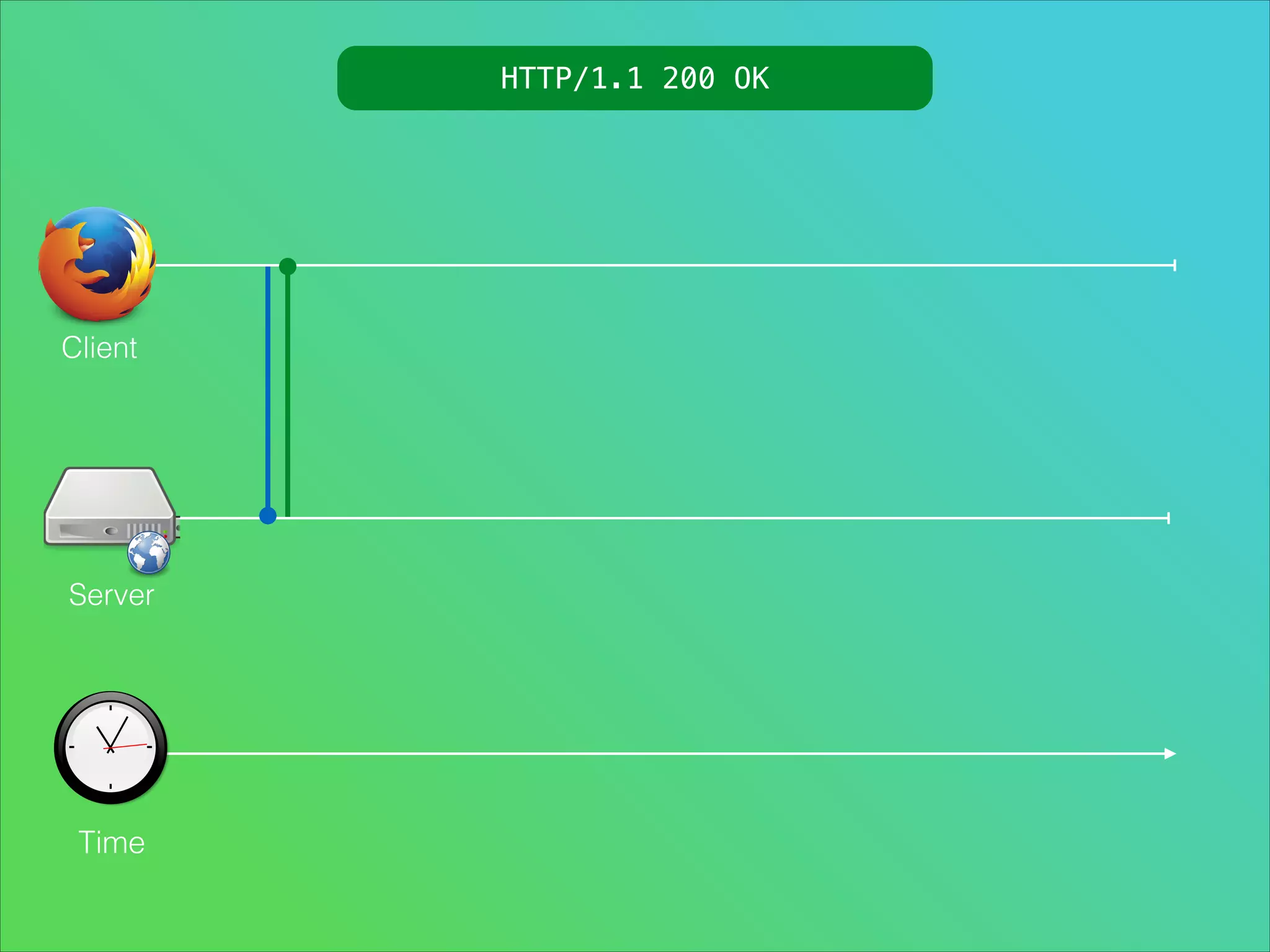

10. HTTP/1.1 200 OK
Client
Server
Time

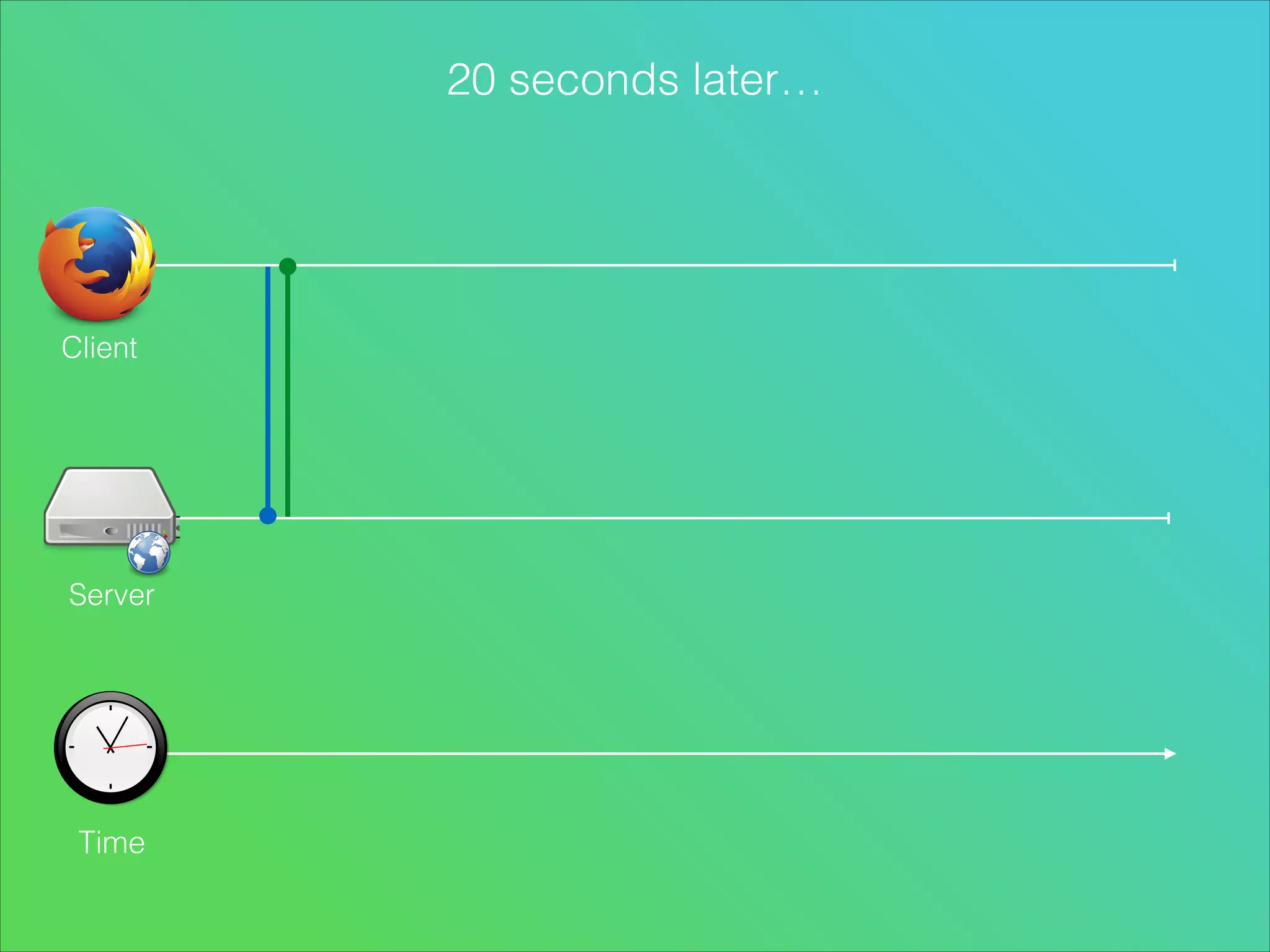

11. 20 seconds later…
Client
Server
Time

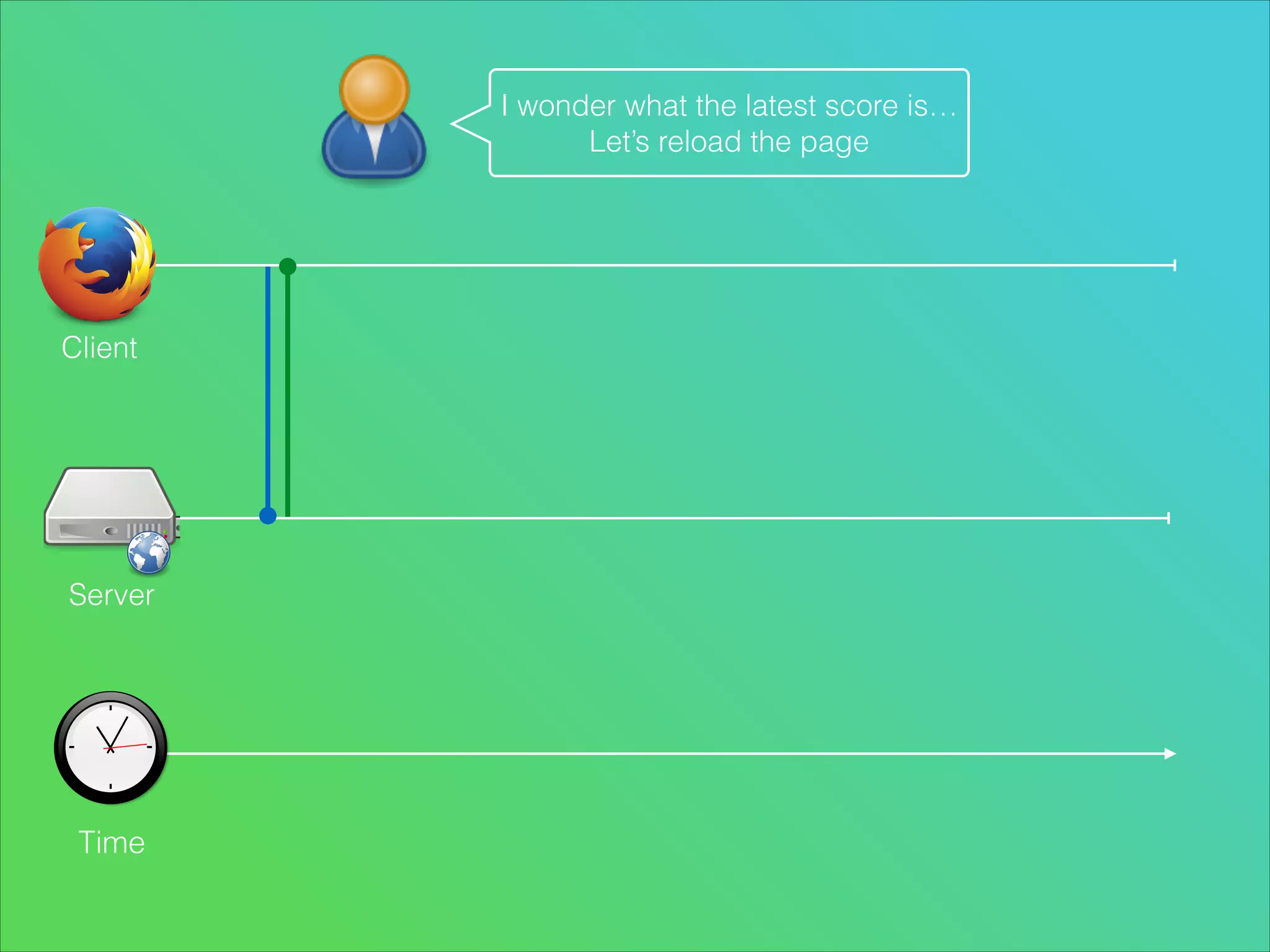

12. I wonder what the latest score is…
Let’s reload the page
Client
Server
Time

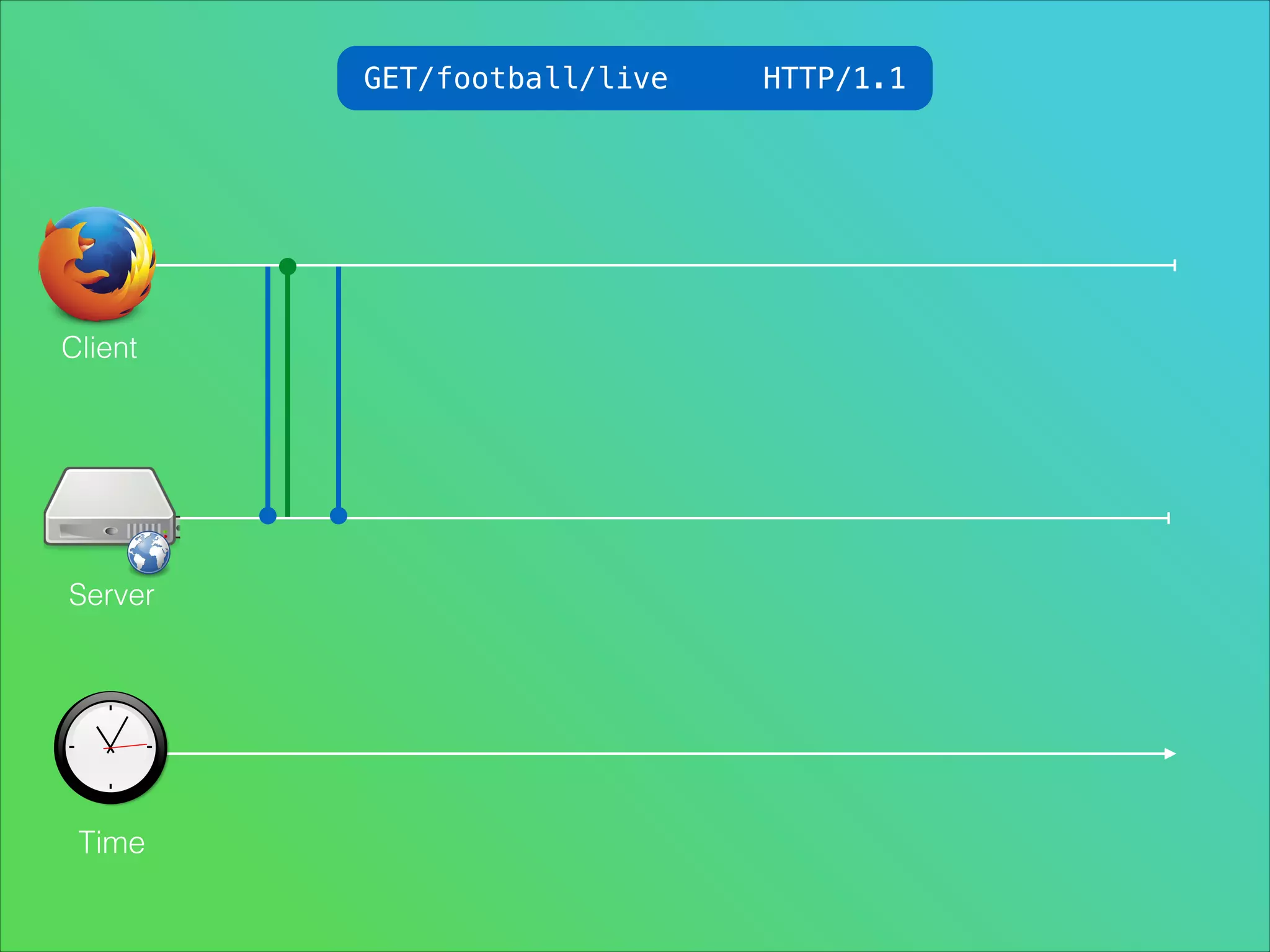

13. GET/football/live
Client
Server
Time
HTTP/1.1

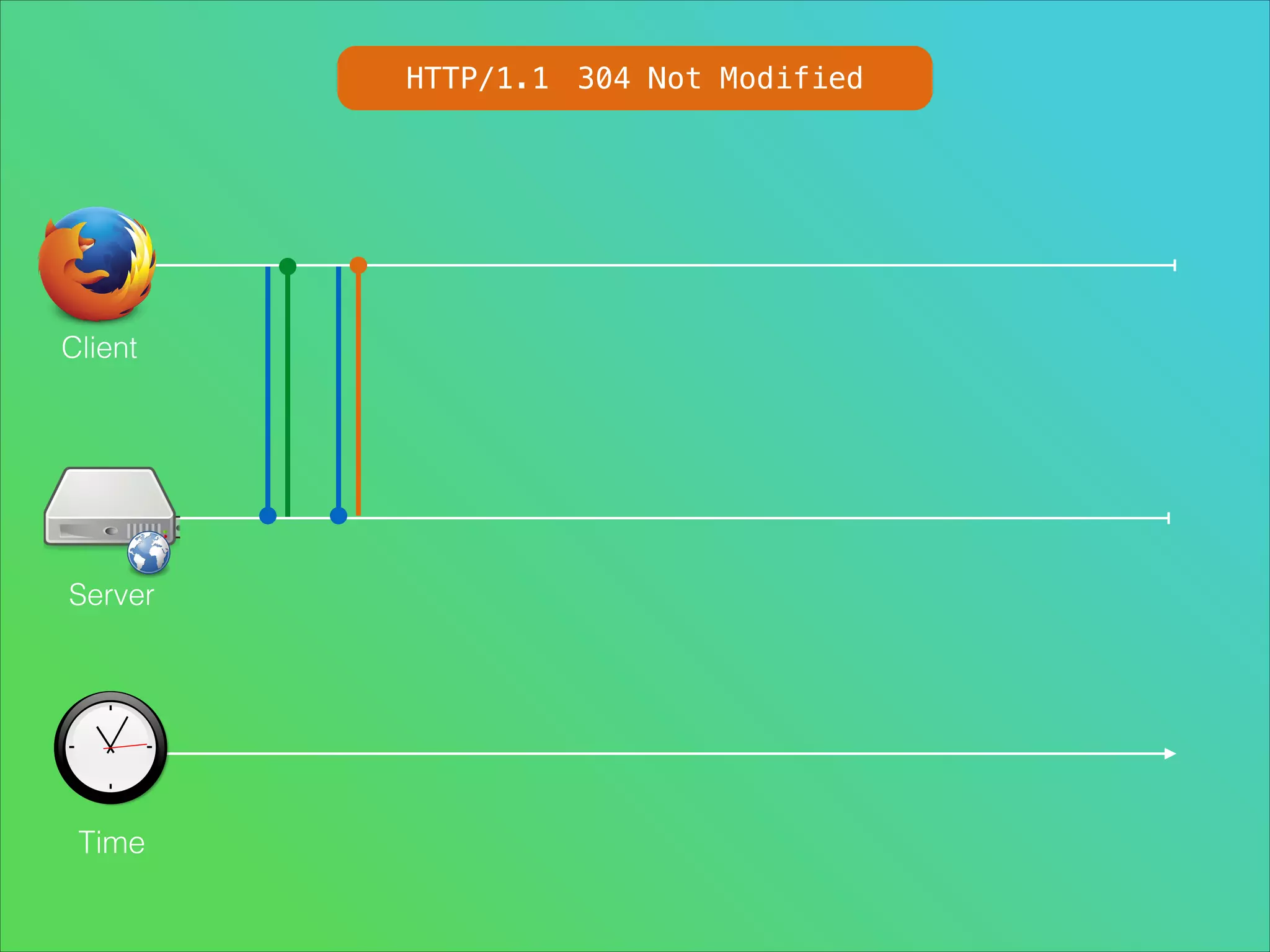

14. HTTP/1.1 304 Not Modified
Client
Server
Time

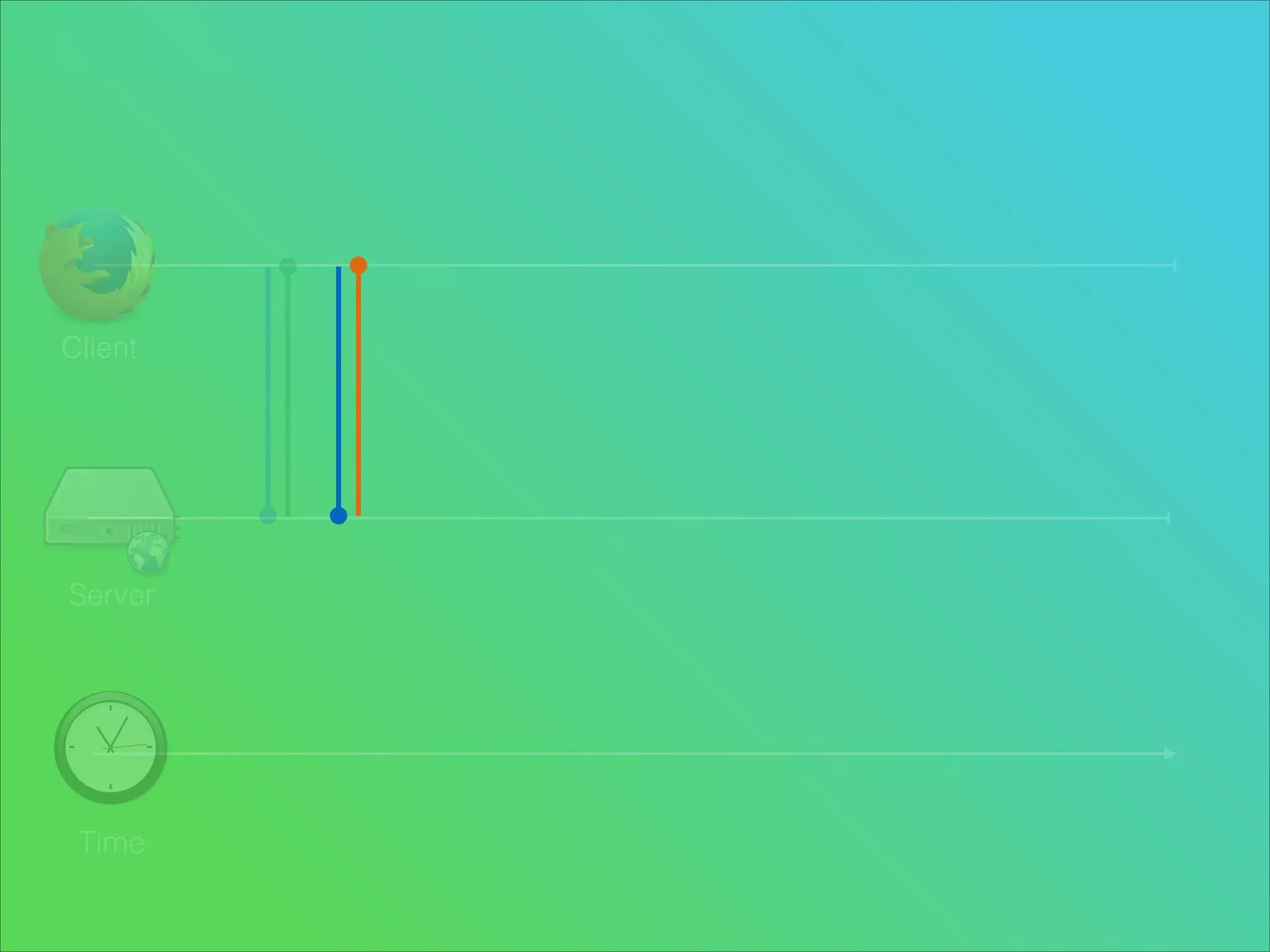

15. Client
Server
Time

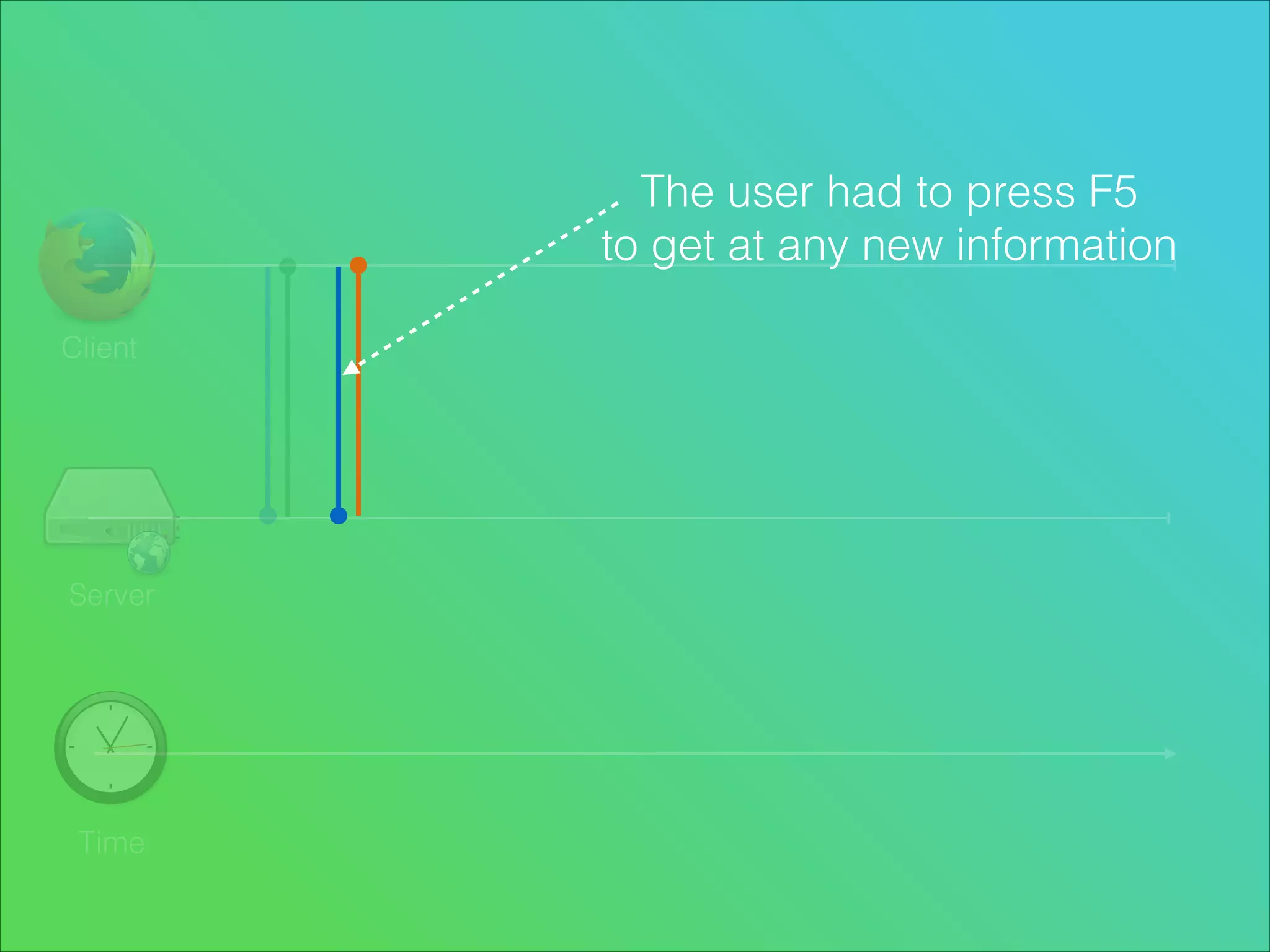

16. The user had to press F5
to get at any new information
Client
Server
Time

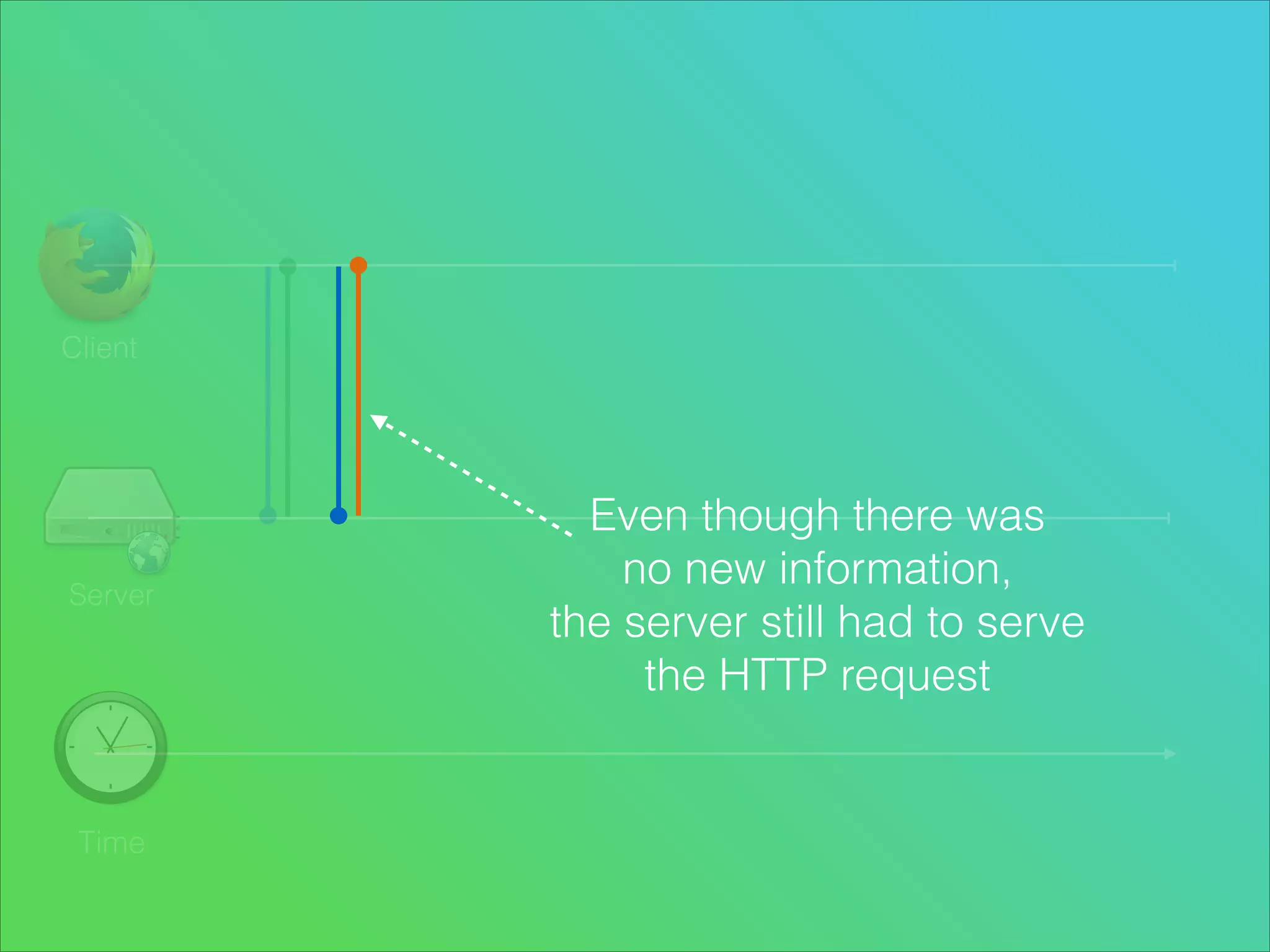

17. Client
Server
Time
Even though there was
no new information,
the server still had to serve
the HTTP request

18. This is not a fun experience

19. How do we make this
better?

20. Client
Server
Time

21. We could use AJAX to
update the page

22. We’d save the user
having to press the F5 key

23. What else can we do?

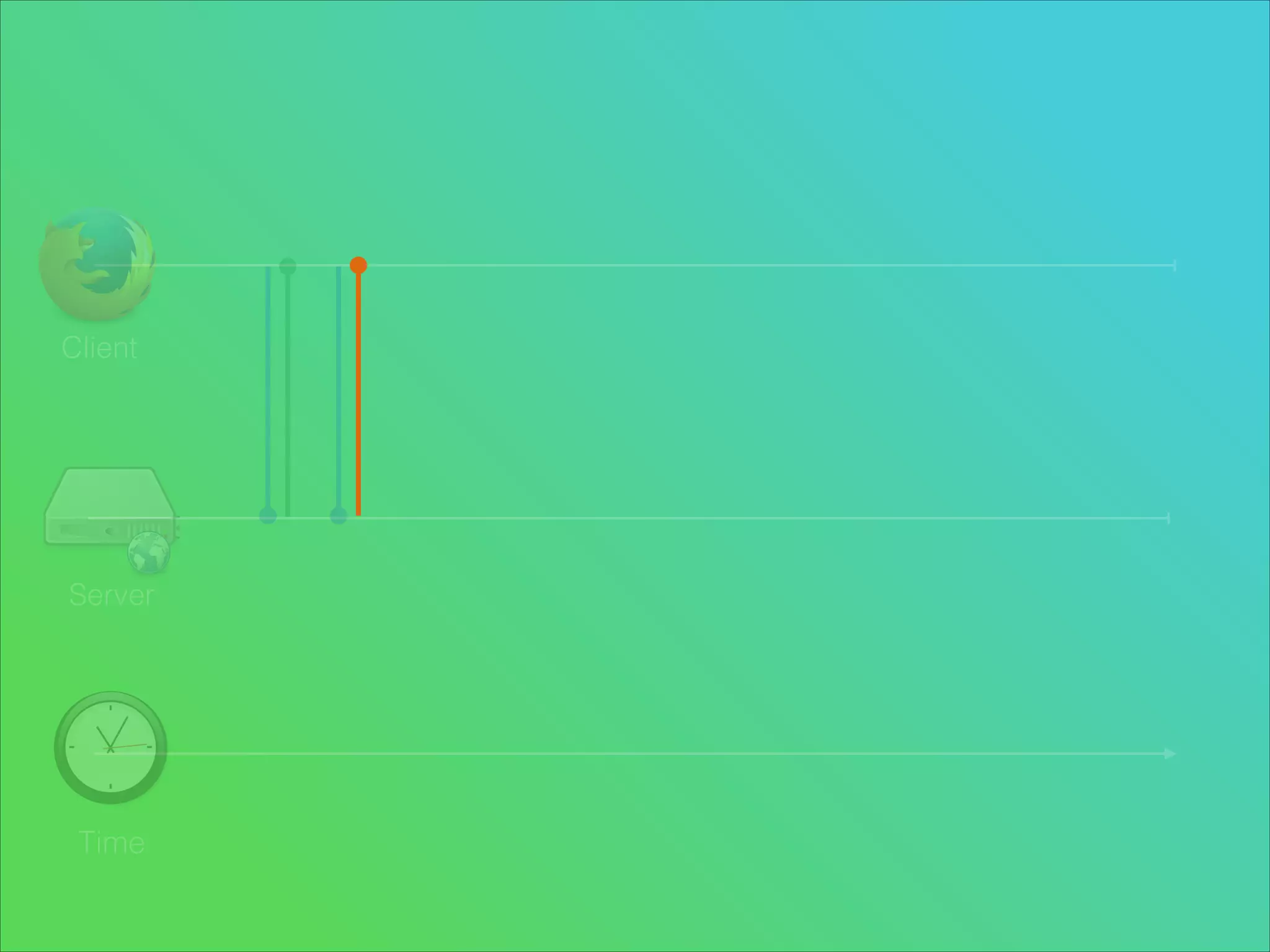

24. Client
Server
Time

25. Optimise the response

26. GZIP the response
data, and …

27. Avoid sending data we
already have on the client

28. We could also
separate the HTML
from the data

29. Reuse the HTML on
the client

30. …and use the server to
provide you with just
data

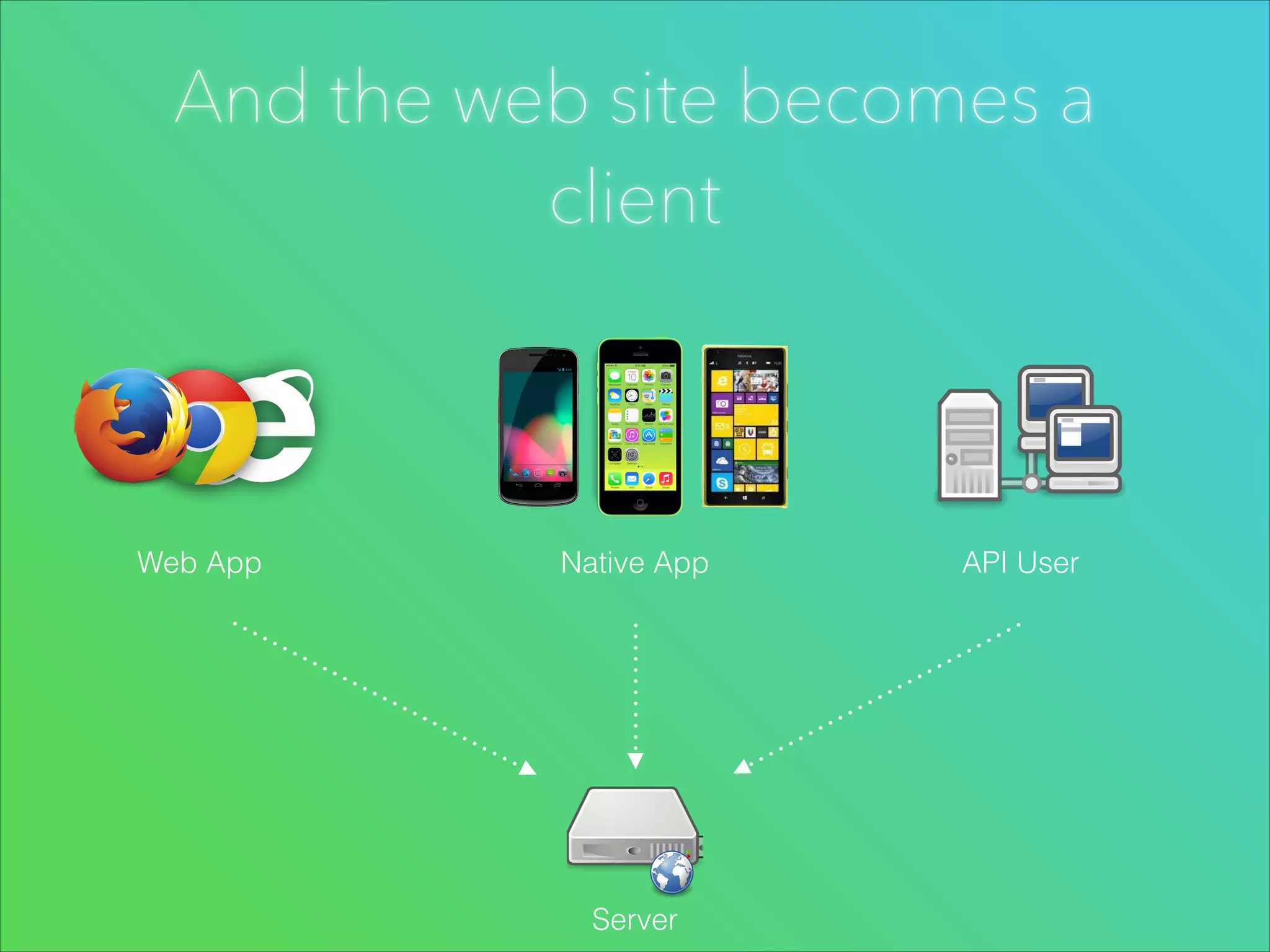

31. And the web site becomes a
client
Web App
Native App
Server
API User

32. The server is just an API

33. A beautiful separation
of concerns

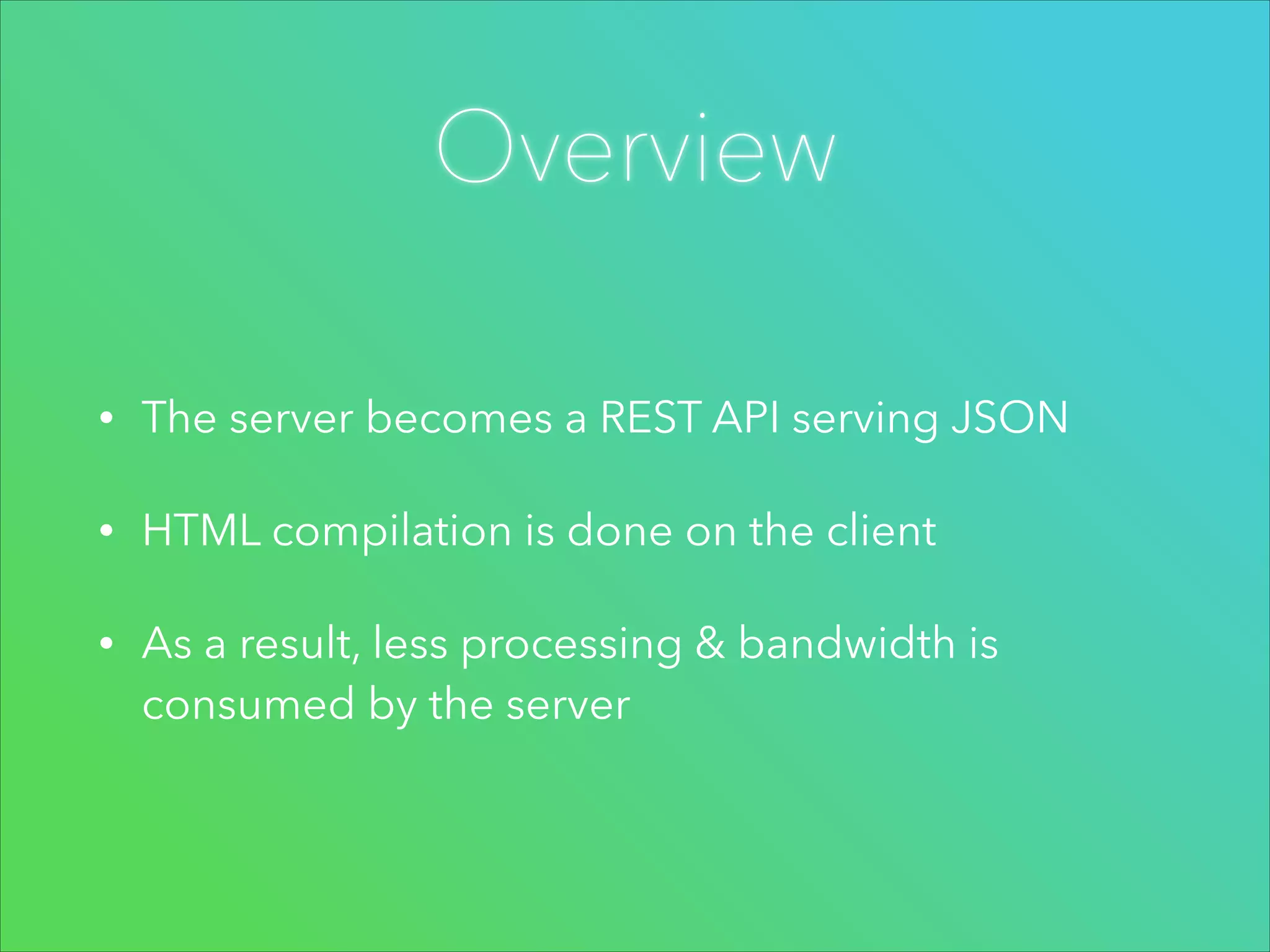

34. Overview
•
The server becomes a REST API serving JSON
•
HTML compilation is done on the client
•
As a result, less processing & bandwidth is
consumed by the server

35. Why Realtime?

36. Client
Server
Time

37. Polling the server every
[n] seconds for new
data is redundant

38. There has to be a
better way

39. What if the server could
send its client(s) new
data as soon as it came
about?

40. We can, thanks to
WebSockets

41. WebSockets allows data
to be sent both ways

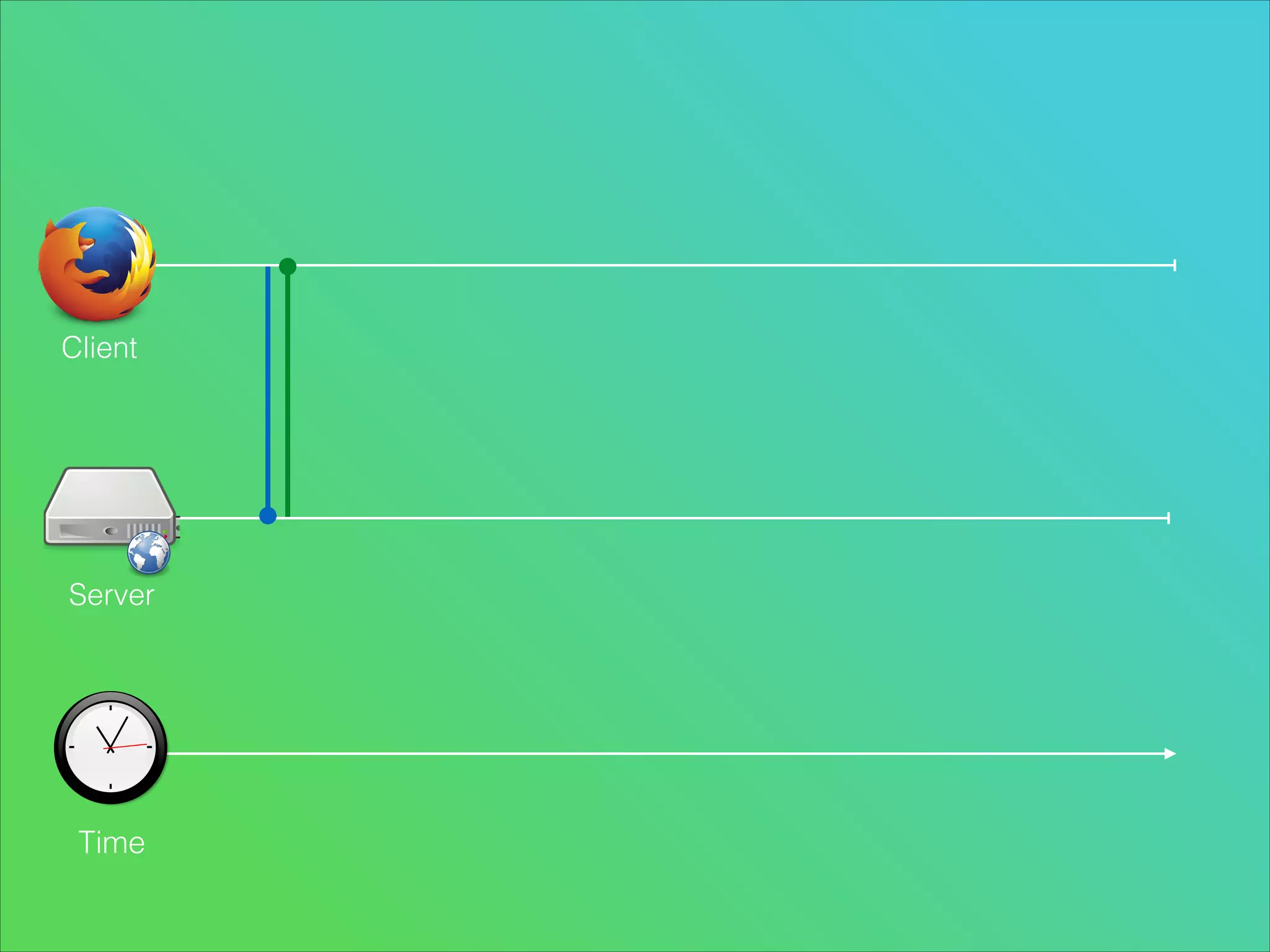

42. Client
Server
Time

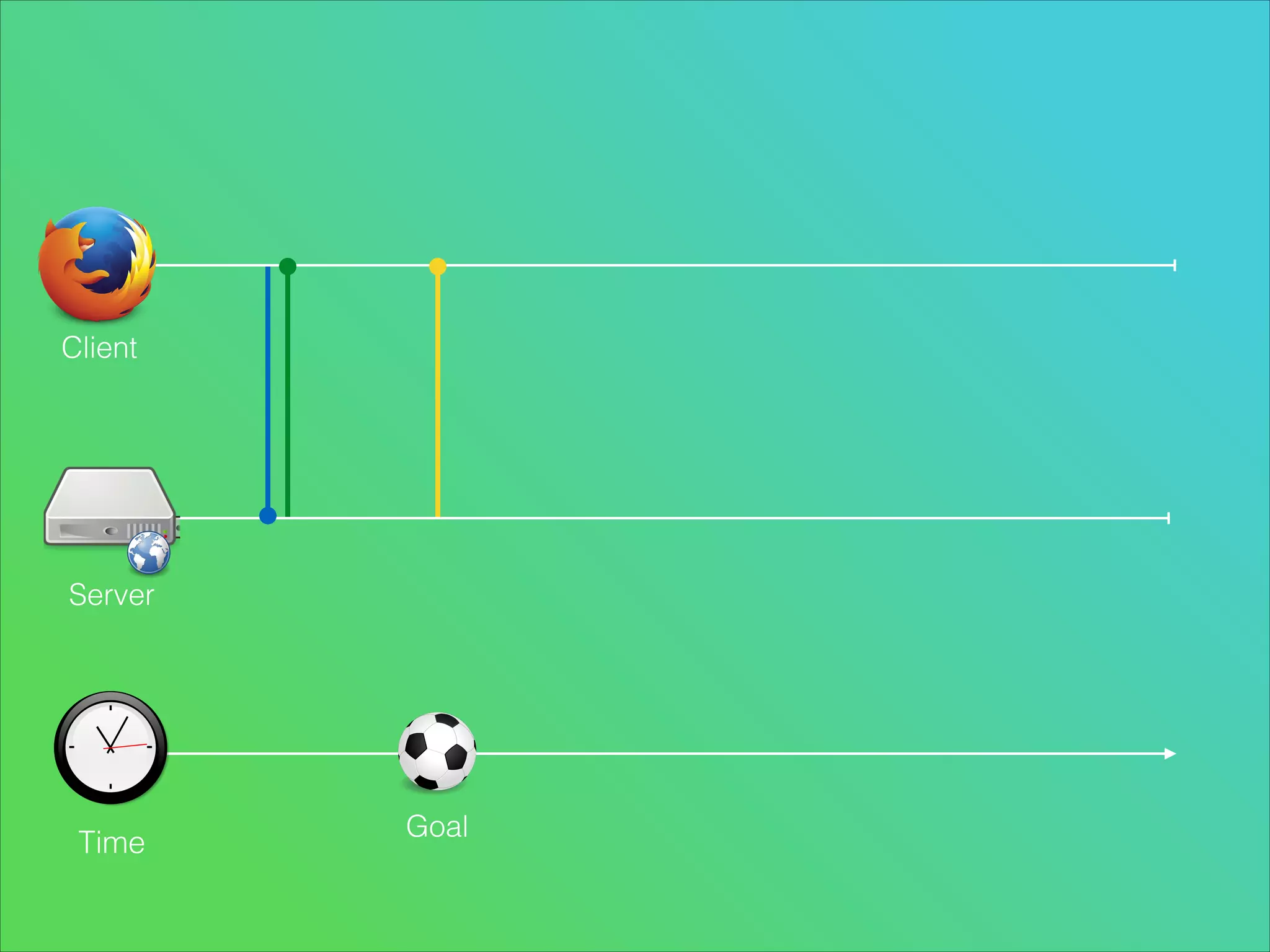

43. Client
Server
Time
Goal

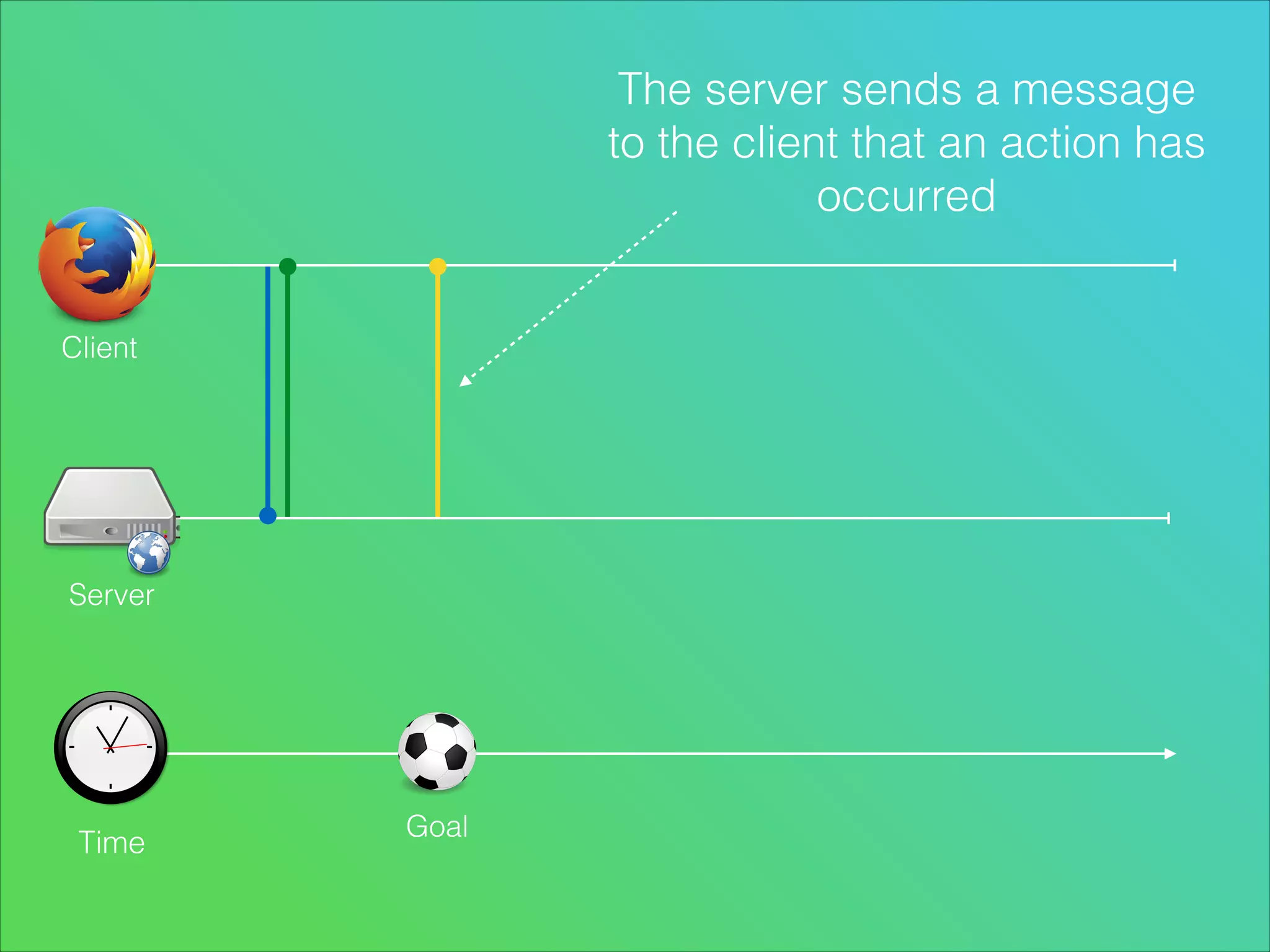

44. The server sends a message
to the client that an action has
occurred
Client
Server
Time
Goal

45. We eliminate the need
to poll the server for
new data

46. Overview
•
We can replace AJAX polling with WebSockets,
and provide a better user experience as a result
•
We also remove the need to make redundant
polling requests back to the server.
•
We use WebSockets for sending/receiving JSON

47. Single Page Apps
+
The Realtime Web

48. There are many ways
to build this kind of
app

49. You could build it
mostly from scratch, and
use Express + Socket.io

50. Or alternatively, you
could use a web
framework like Meteor
or Firebase

51. SocketStream is
somewhere in-between
these 2 approaches

52. It provides tools to help
with building realtime
single page apps...

53. ... Whilst trying not to
restrict what
technologies you can
use with your app

54. For example, we don't
provide an ORM.
Instead, you choose the
database & the ORM

55. Also, we don't mandate using a
specific client-side framework
!
You can use BackBone, Angular,
Ember, or something else, that is
entirely your choice.

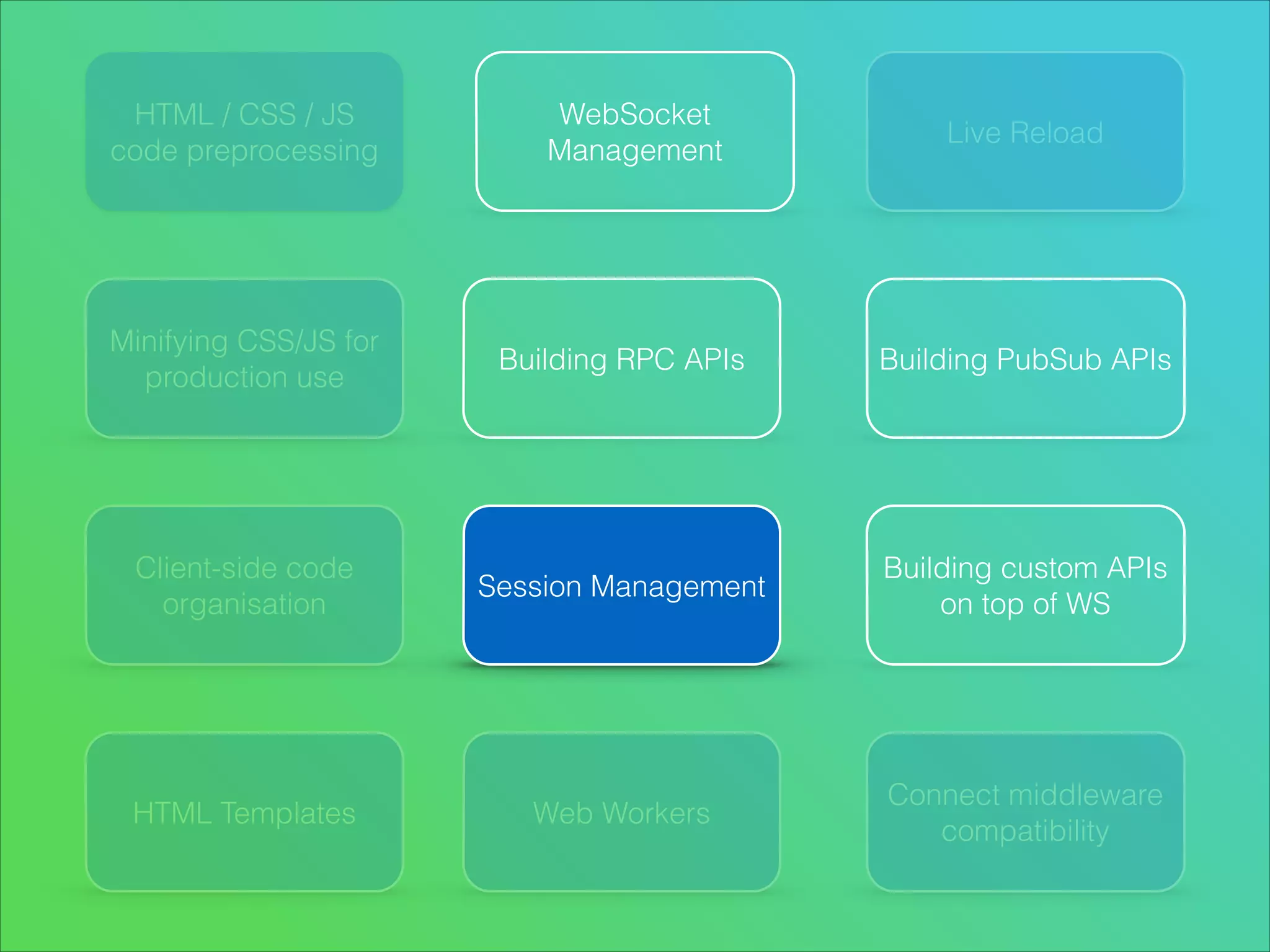

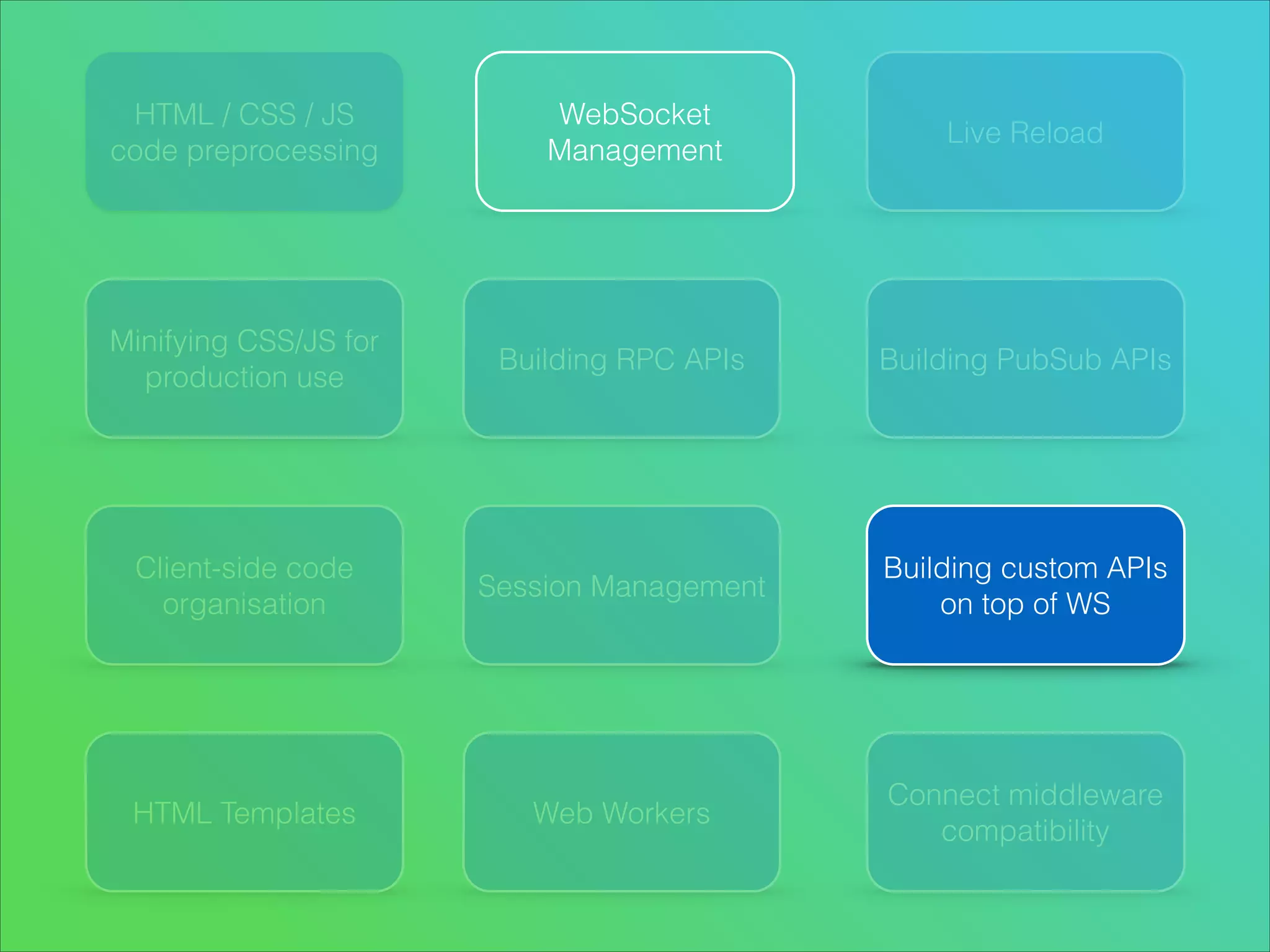

56. What we focus on
instead are these
things:

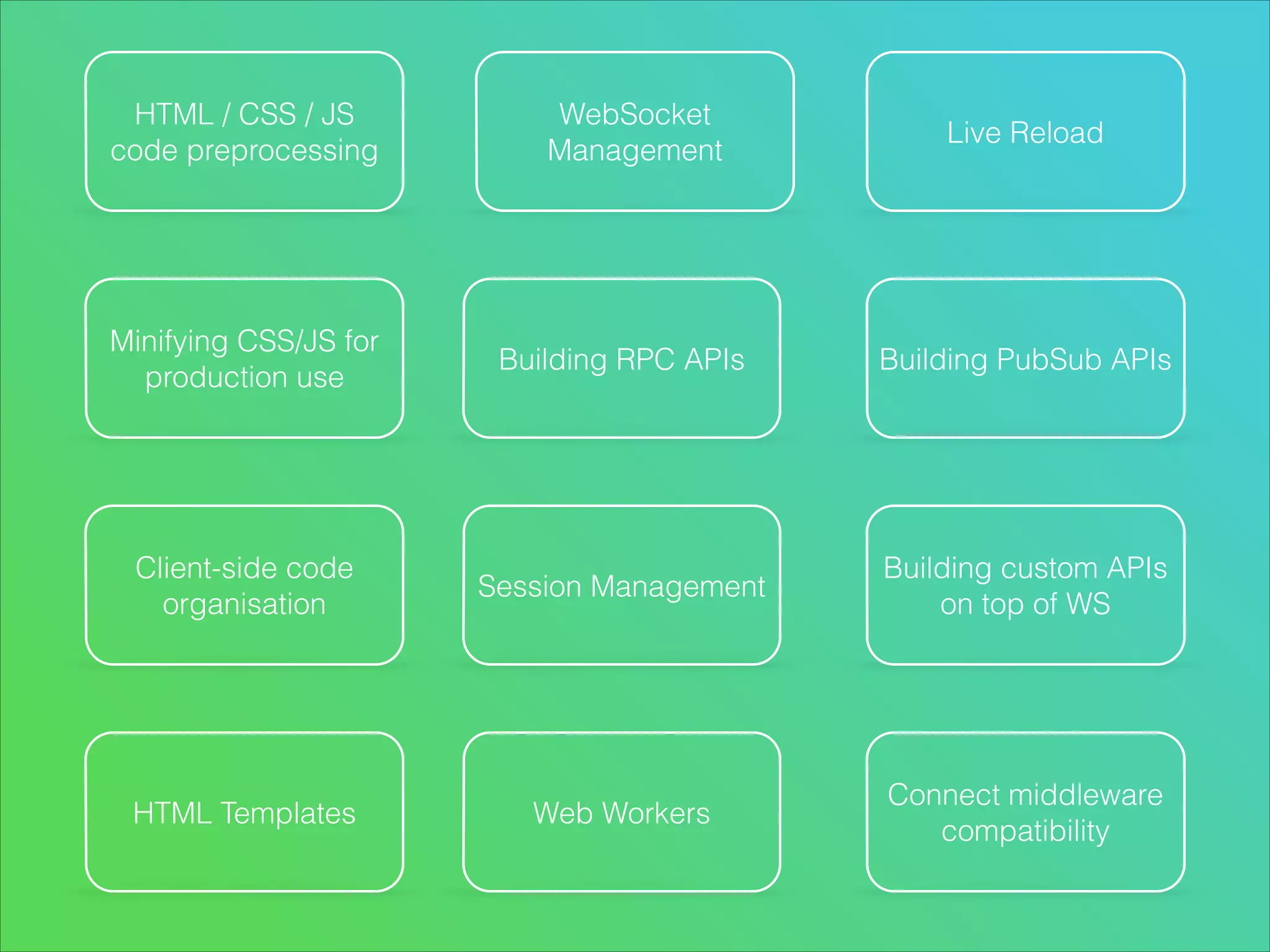

57. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

58. I'll run through each of
these, 1-by-1. But first,
let's look at how to use
SocketStream

59. Getting started
npm install -g socketstream
!
socketstream new my_app

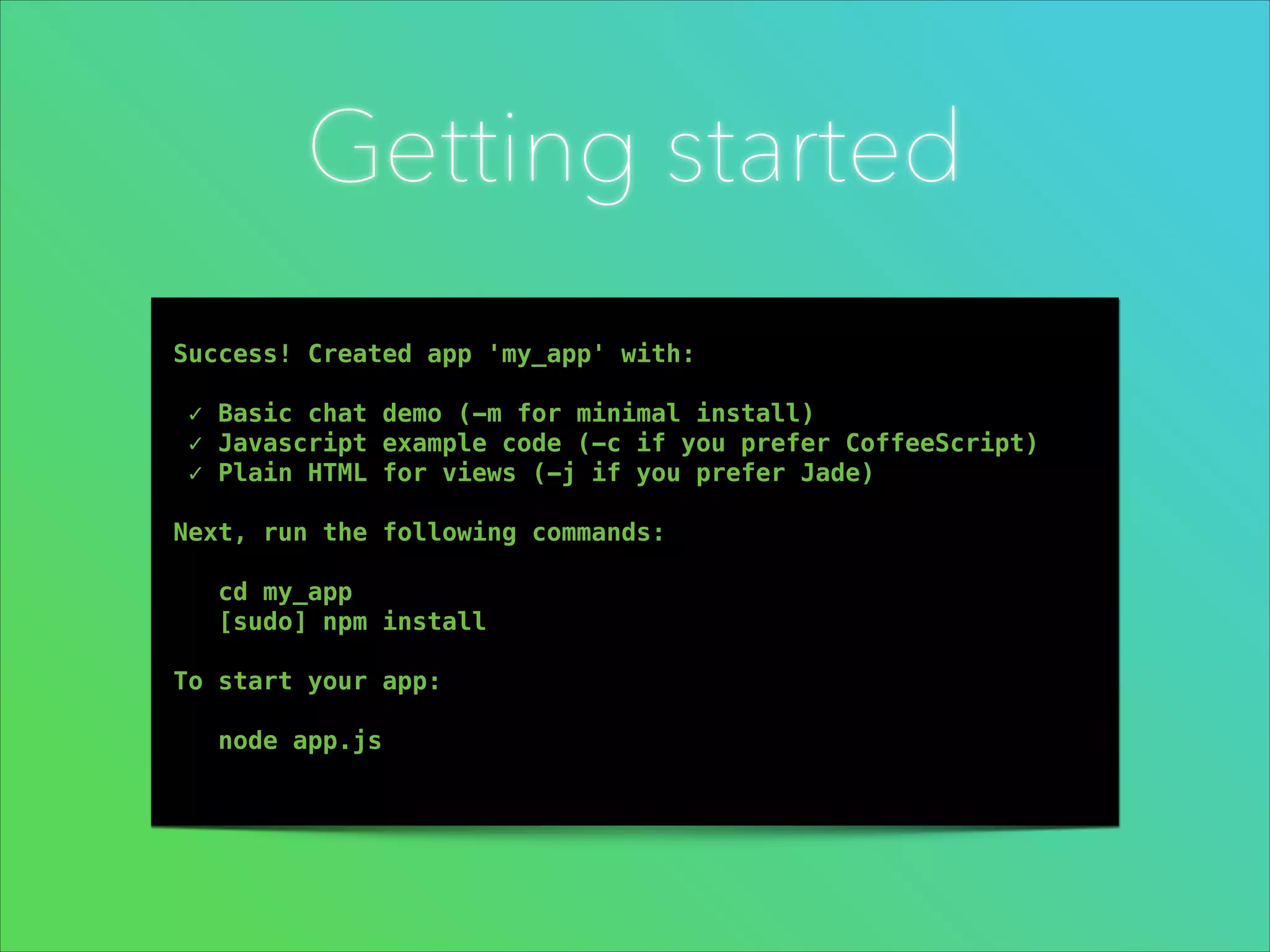

60. Getting started
!
!
!
!
Success! Created app 'my_app' with:
✓ Basic chat demo (-m for minimal install)
✓ Javascript example code (-c if you prefer CoffeeScript)
✓ Plain HTML for views (-j if you prefer Jade)
Next, run the following commands:
cd my_app
[sudo] npm install
To start your app:
node app.js

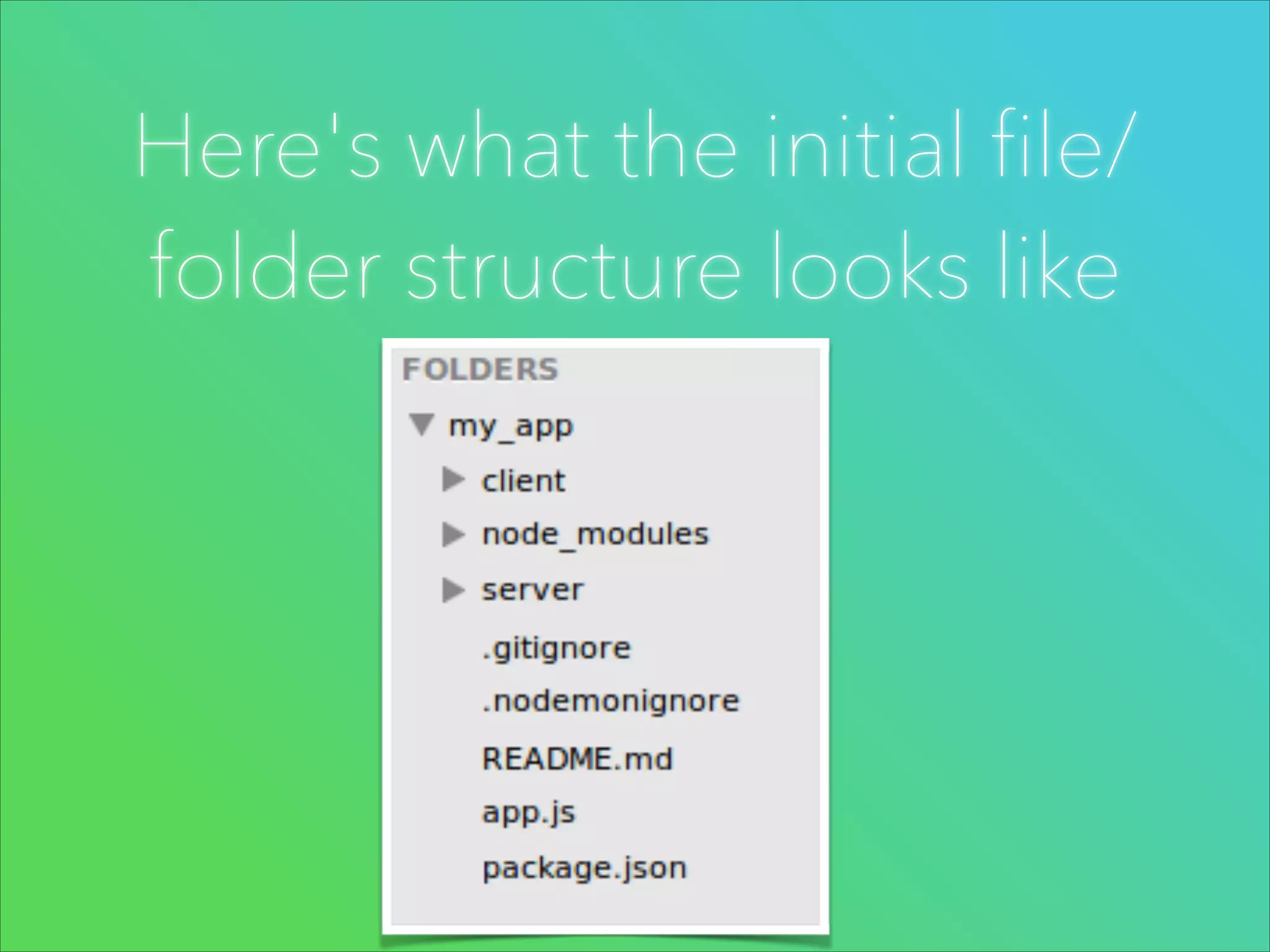

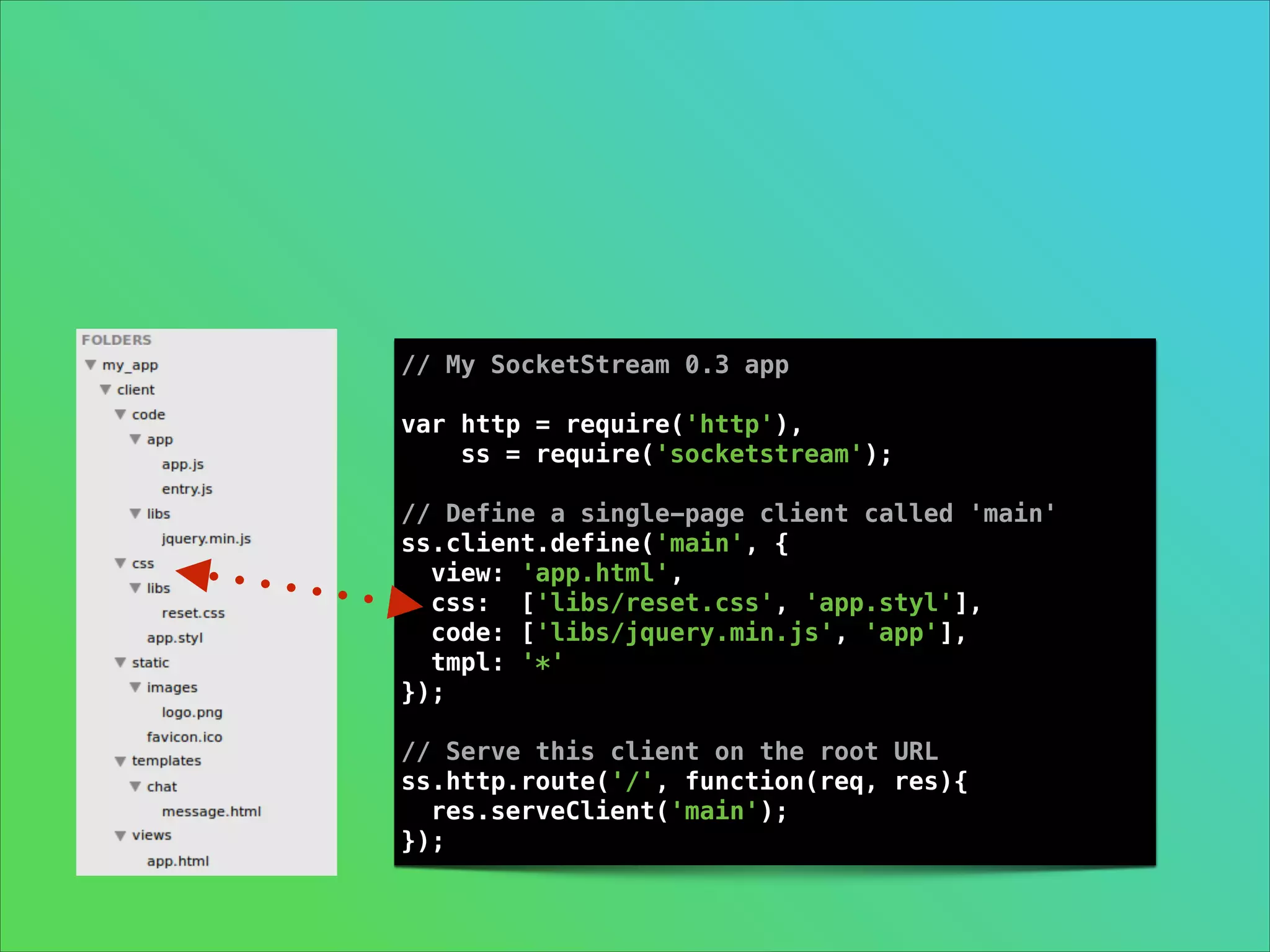

61. Here's what the initial file/
folder structure looks like

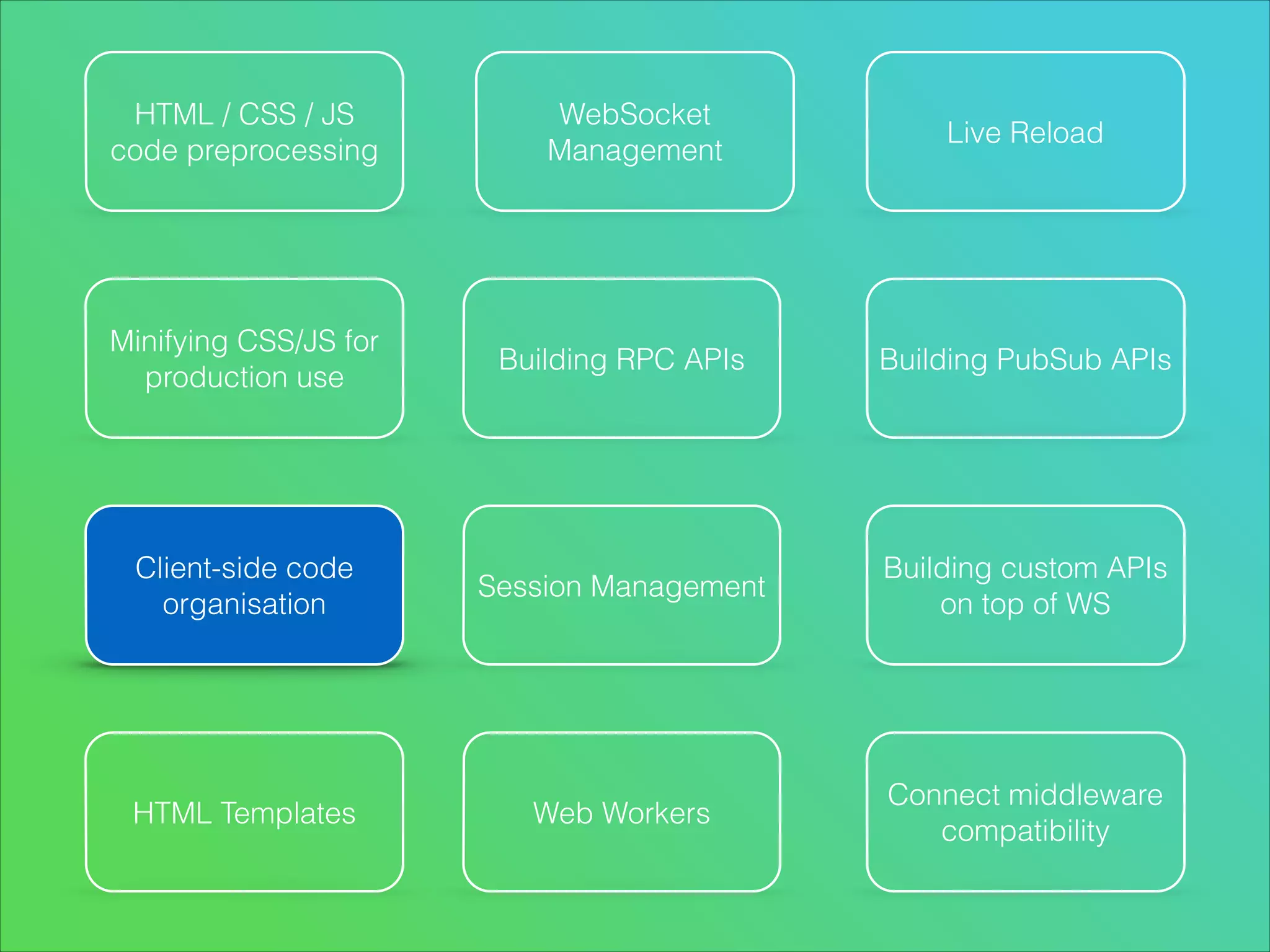

62. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

63. Client code is organised
into 5 sub-folders

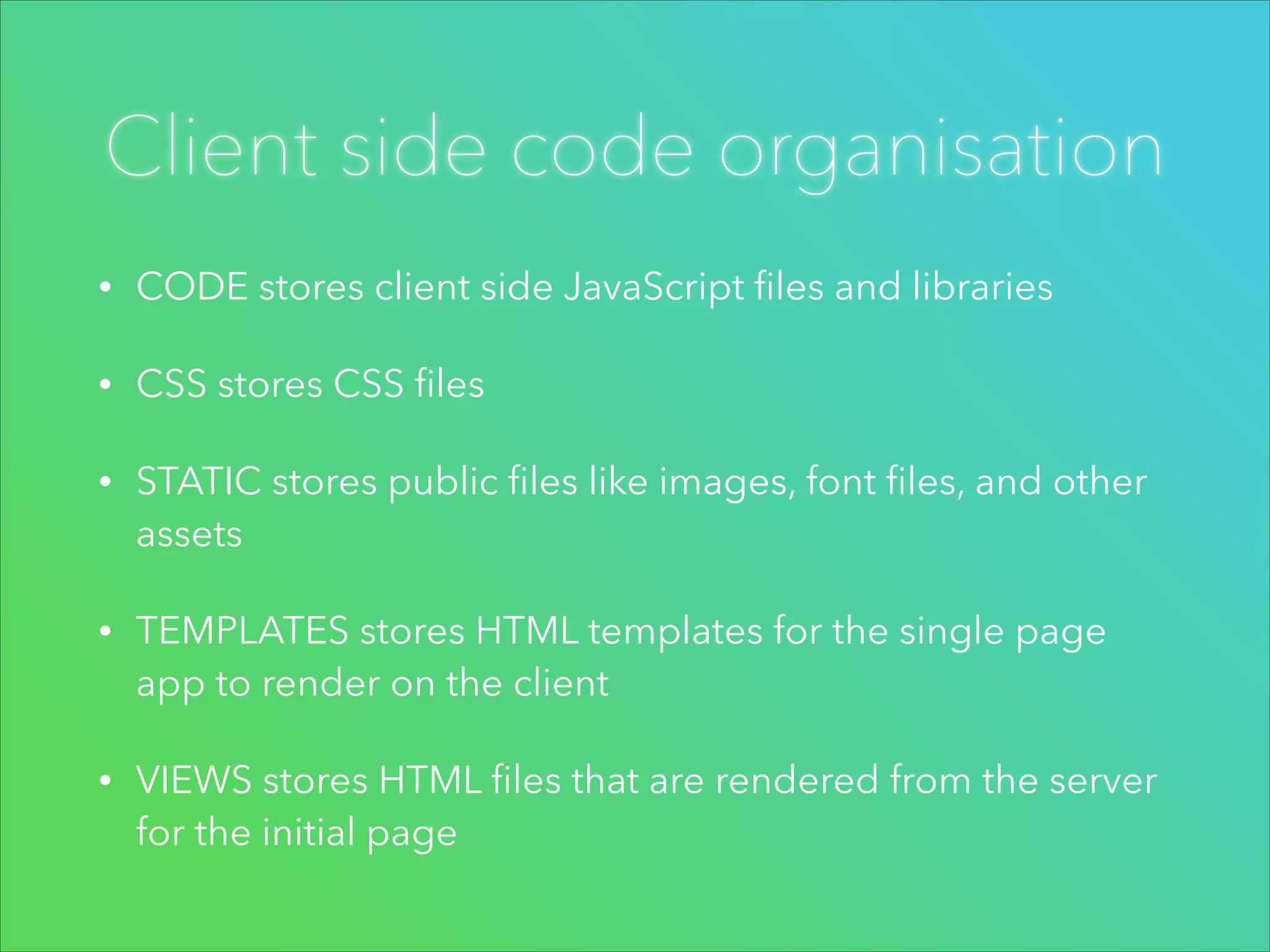

64. Client side code organisation
•
CODE stores client side JavaScript files and libraries
•
CSS stores CSS files
•
STATIC stores public files like images, font files, and other
assets
•
TEMPLATES stores HTML templates for the single page
app to render on the client
•
VIEWS stores HTML files that are rendered from the server
for the initial page

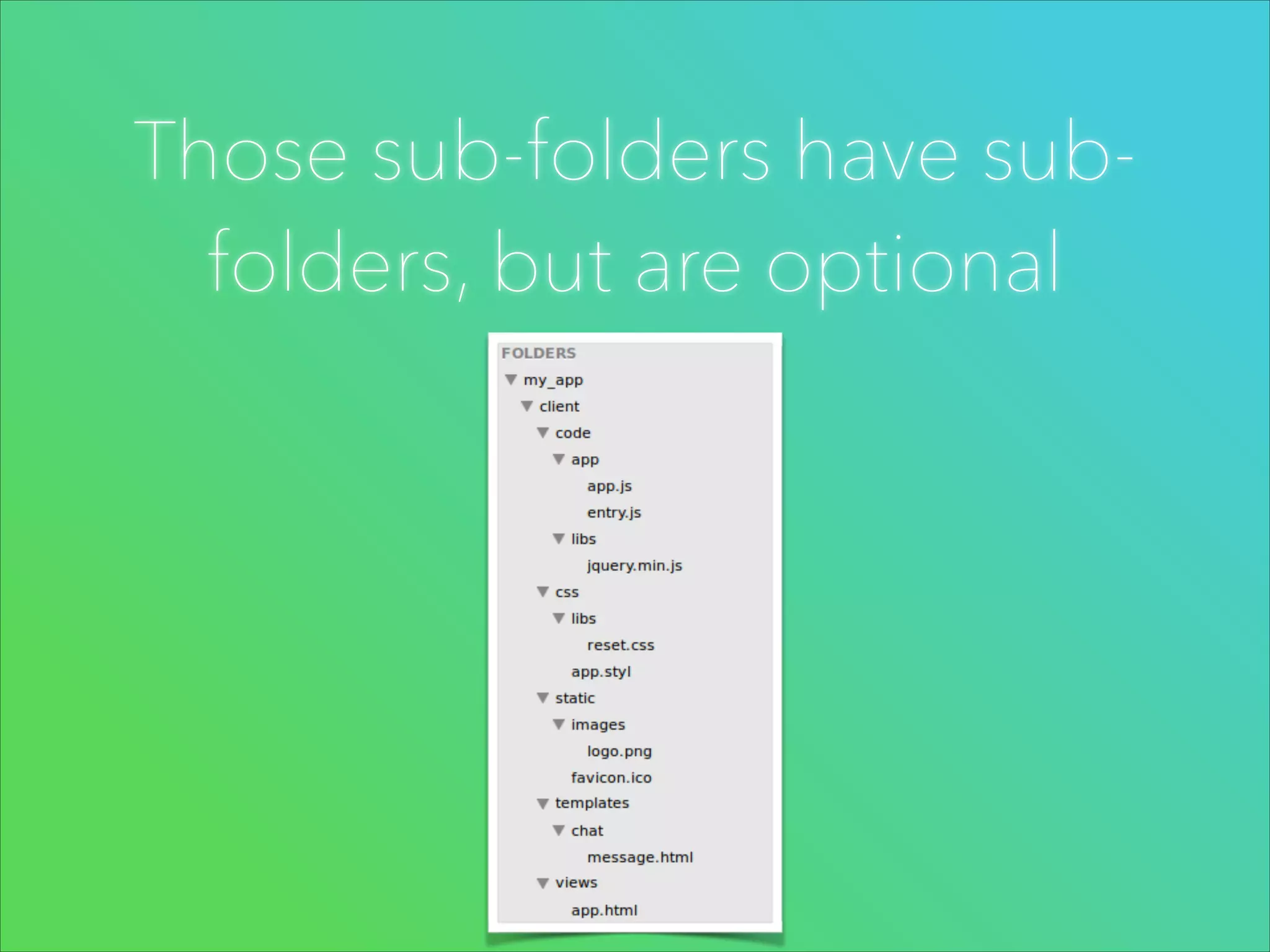

65. Those sub-folders have subfolders, but are optional

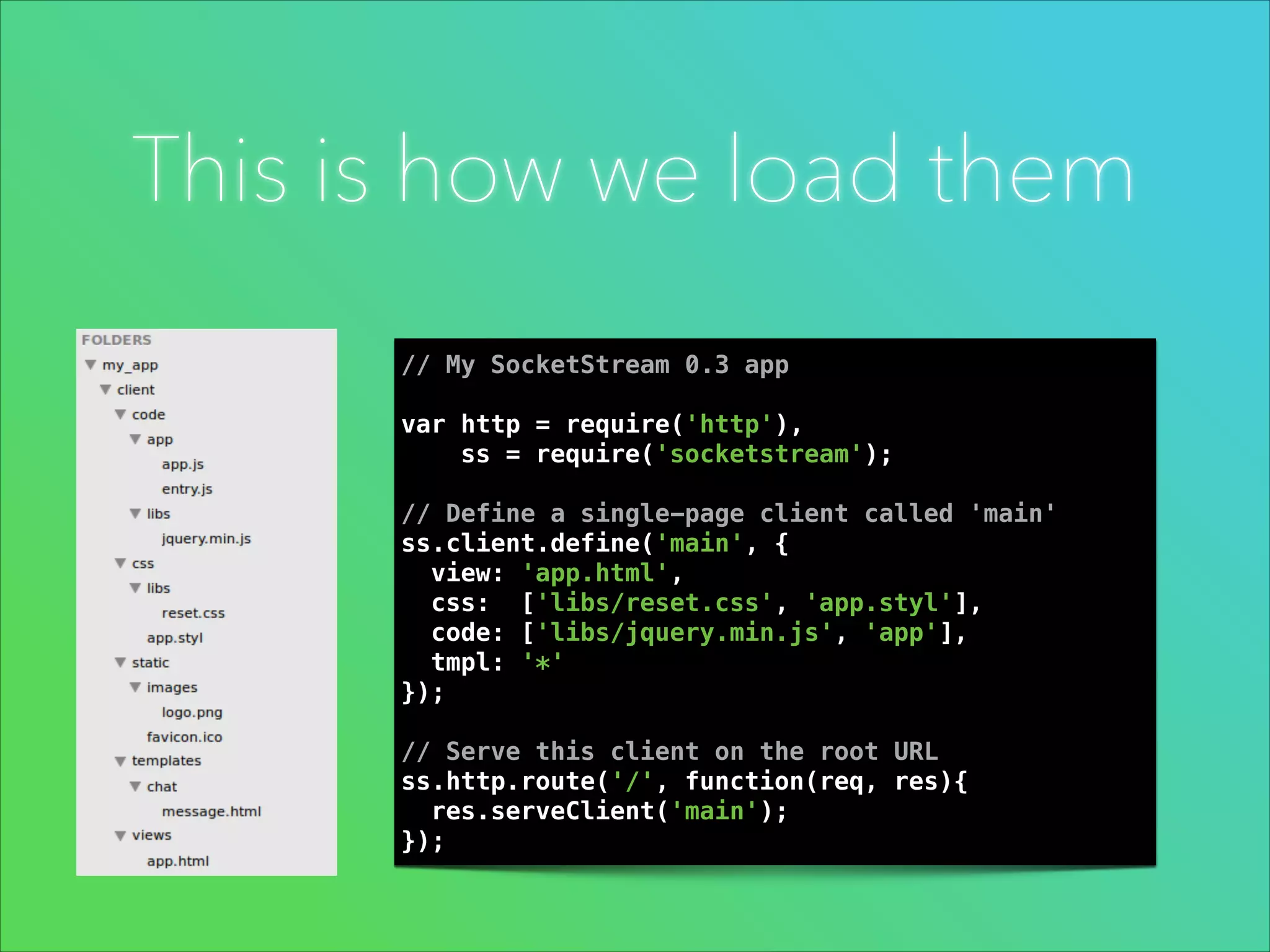

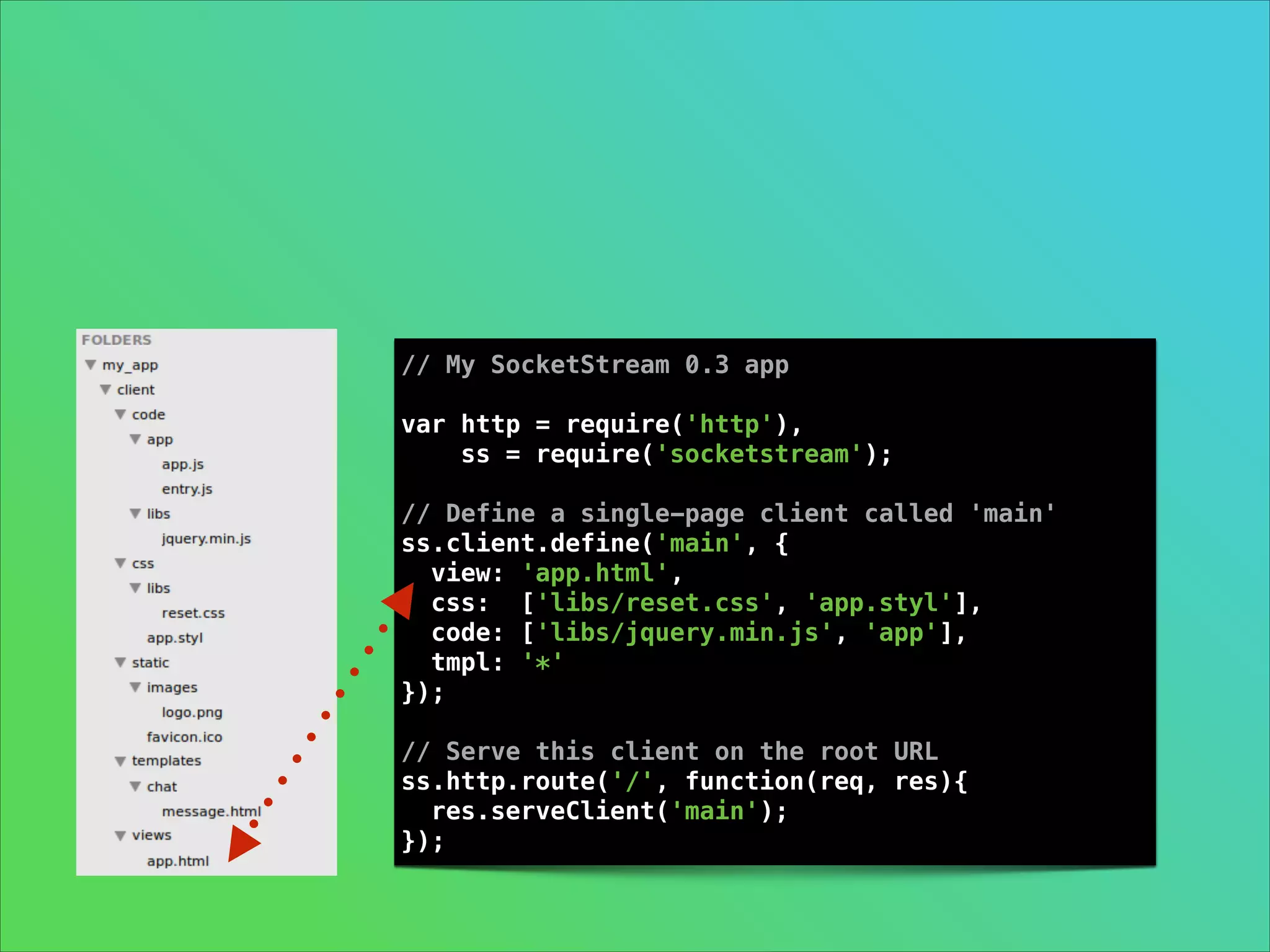

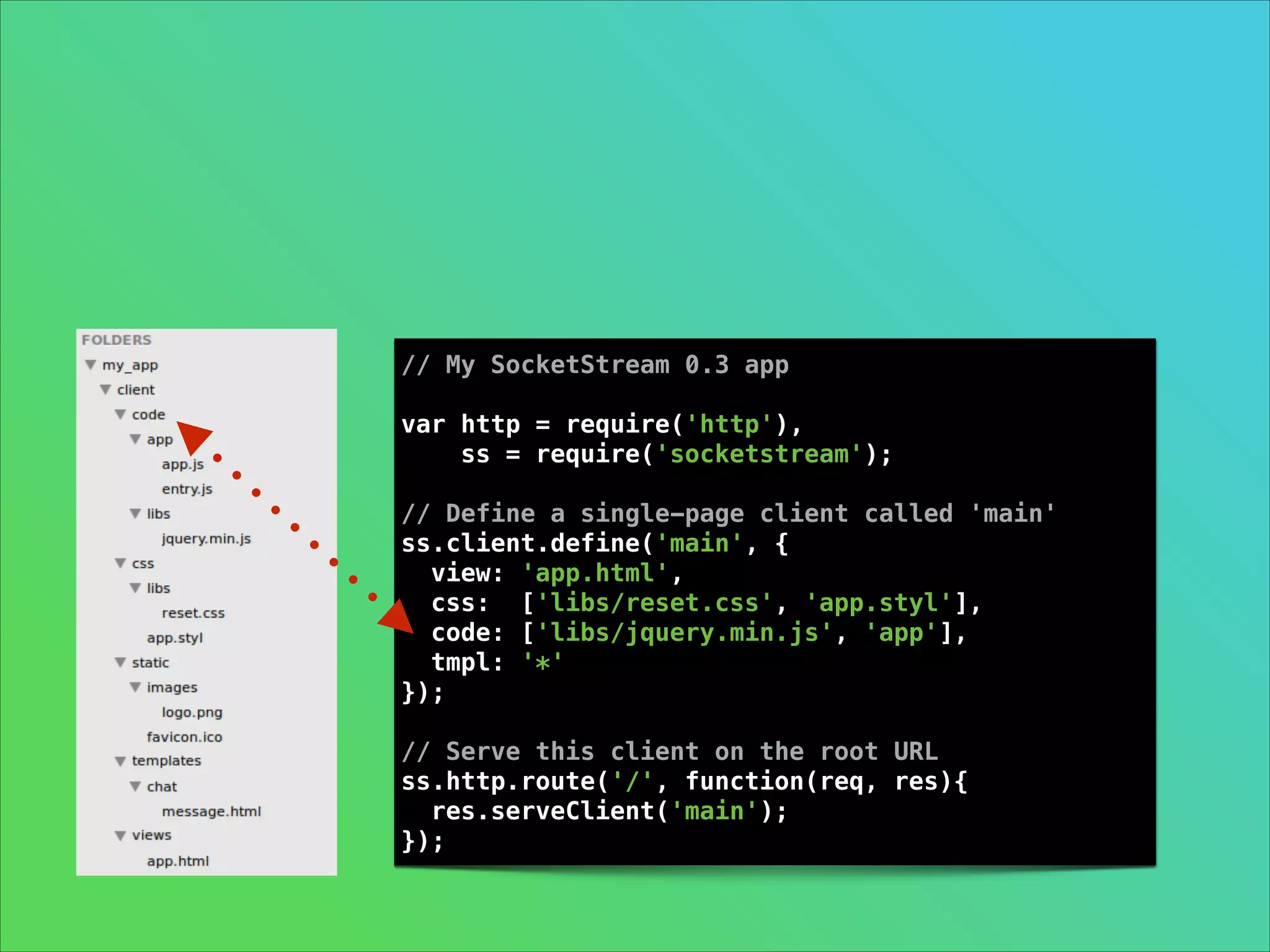

66. This is how we load them
// My SocketStream 0.3 app
!
var http = require('http'),
ss = require('socketstream');
!
// Define a single-page client called 'main'
ss.client.define('main', {
view: 'app.html',
css: ['libs/reset.css', 'app.styl'],
code: ['libs/jquery.min.js', 'app'],
tmpl: '*'
});
!
// Serve this client on the root URL
ss.http.route('/', function(req, res){
res.serveClient('main');
});

67. // My SocketStream 0.3 app
!
var http = require('http'),
ss = require('socketstream');
!
// Define a single-page client called 'main'
ss.client.define('main', {
view: 'app.html',
css: ['libs/reset.css', 'app.styl'],
code: ['libs/jquery.min.js', 'app'],
tmpl: '*'
});
!
// Serve this client on the root URL
ss.http.route('/', function(req, res){
res.serveClient('main');
});

68. // My SocketStream 0.3 app
!
var http = require('http'),
ss = require('socketstream');
!
// Define a single-page client called 'main'
ss.client.define('main', {
view: 'app.html',
css: ['libs/reset.css', 'app.styl'],
code: ['libs/jquery.min.js', 'app'],
tmpl: '*'
});
!
// Serve this client on the root URL
ss.http.route('/', function(req, res){
res.serveClient('main');
});

69. // My SocketStream 0.3 app
!
var http = require('http'),
ss = require('socketstream');
!
// Define a single-page client called 'main'
ss.client.define('main', {
view: 'app.html',
css: ['libs/reset.css', 'app.styl'],
code: ['libs/jquery.min.js', 'app'],
tmpl: '*'
});
!
// Serve this client on the root URL
ss.http.route('/', function(req, res){
res.serveClient('main');
});

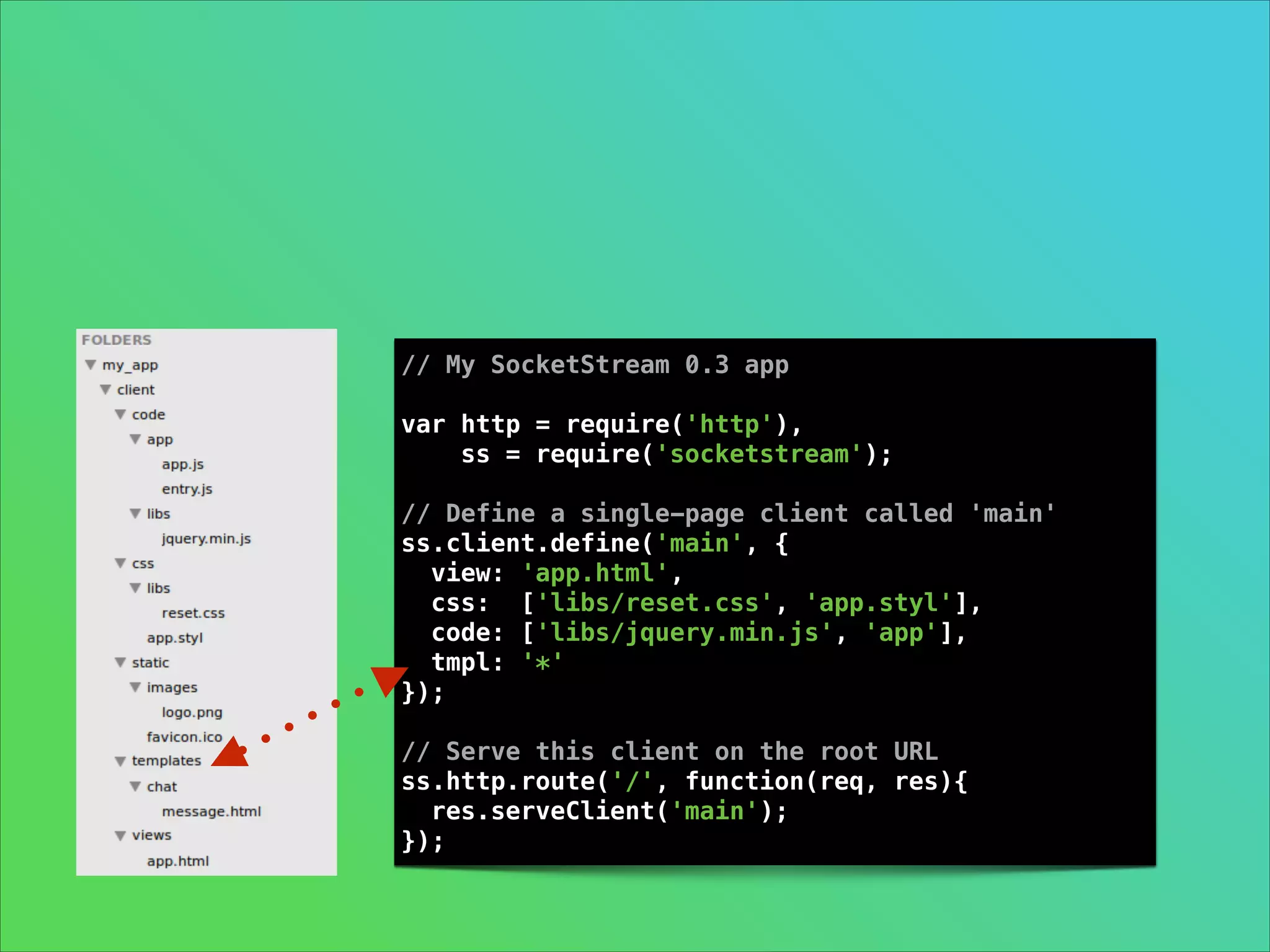

70. // My SocketStream 0.3 app
!
var http = require('http'),
ss = require('socketstream');
!
// Define a single-page client called 'main'
ss.client.define('main', {
view: 'app.html',
css: ['libs/reset.css', 'app.styl'],
code: ['libs/jquery.min.js', 'app'],
tmpl: '*'
});
!
// Serve this client on the root URL
ss.http.route('/', function(req, res){
res.serveClient('main');
});

71. // My SocketStream 0.3 app
!
var http = require('http'),
ss = require('socketstream');
!
// Define a single-page client called 'main'
ss.client.define('main', {
view: 'app.html',
css: ['libs/reset.css', 'app.styl'],
code: ['libs/jquery.min.js', 'app'],
tmpl: '*'
});
!
// Serve this client on the root URL
ss.http.route('/', function(req, res){
res.serveClient('main');
});

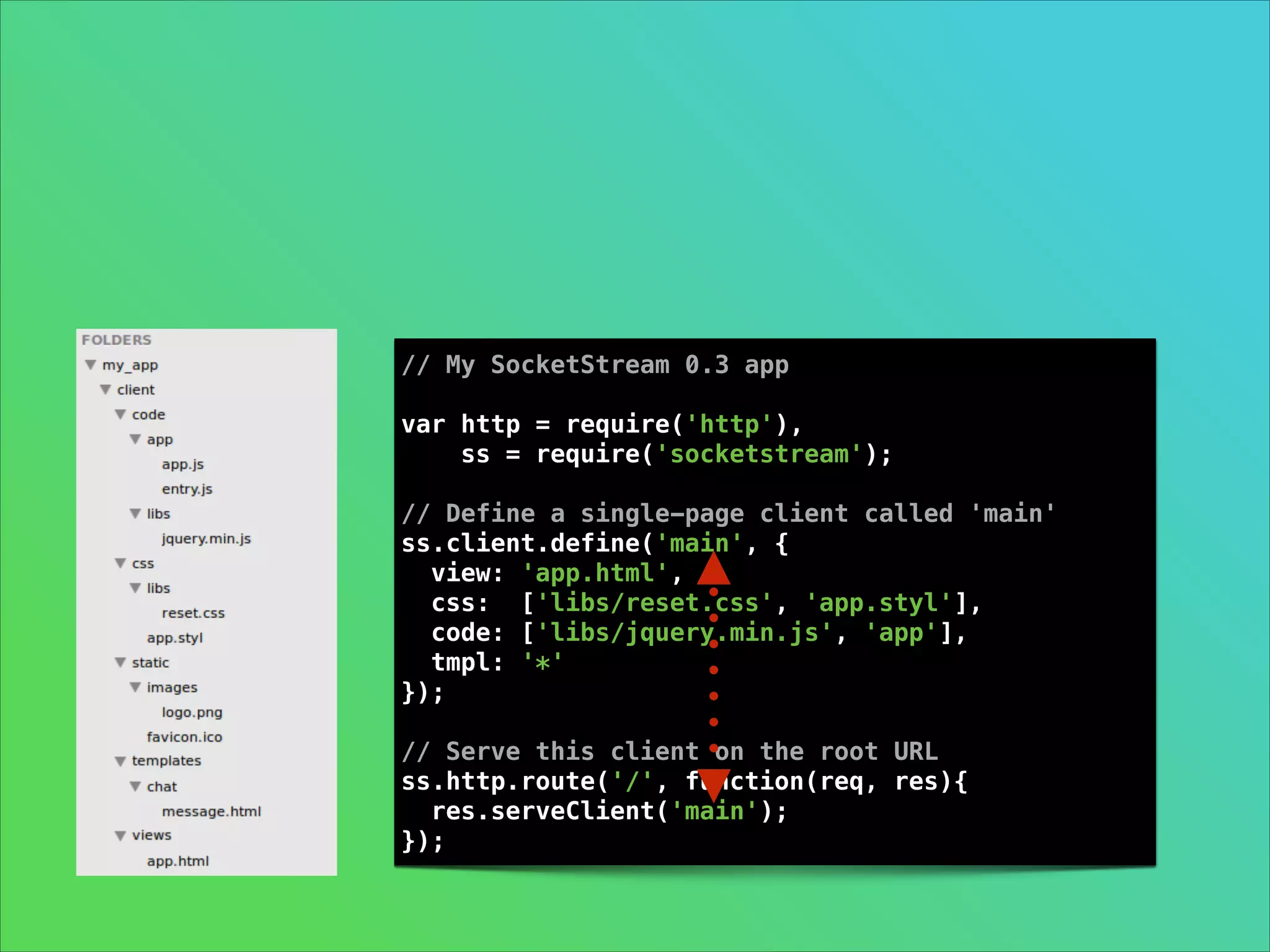

72. // My SocketStream 0.3 app
!
var http = require('http'),
ss = require('socketstream');
!
// Define a single-page client called 'main'
ss.client.define('main', {
view: 'app.html',
css: ['libs/reset.css', 'app.styl'],
code: ['libs/jquery.min.js', 'app'],
tmpl: '*'
});
!
// Serve this client on the root URL
ss.http.route('/', function(req, res){
res.serveClient('main');
});

73. SocketStream uses
Browserify to handle
requiring JS files

74. Browserify allows us to
use a Node.js style of
requiring JS files

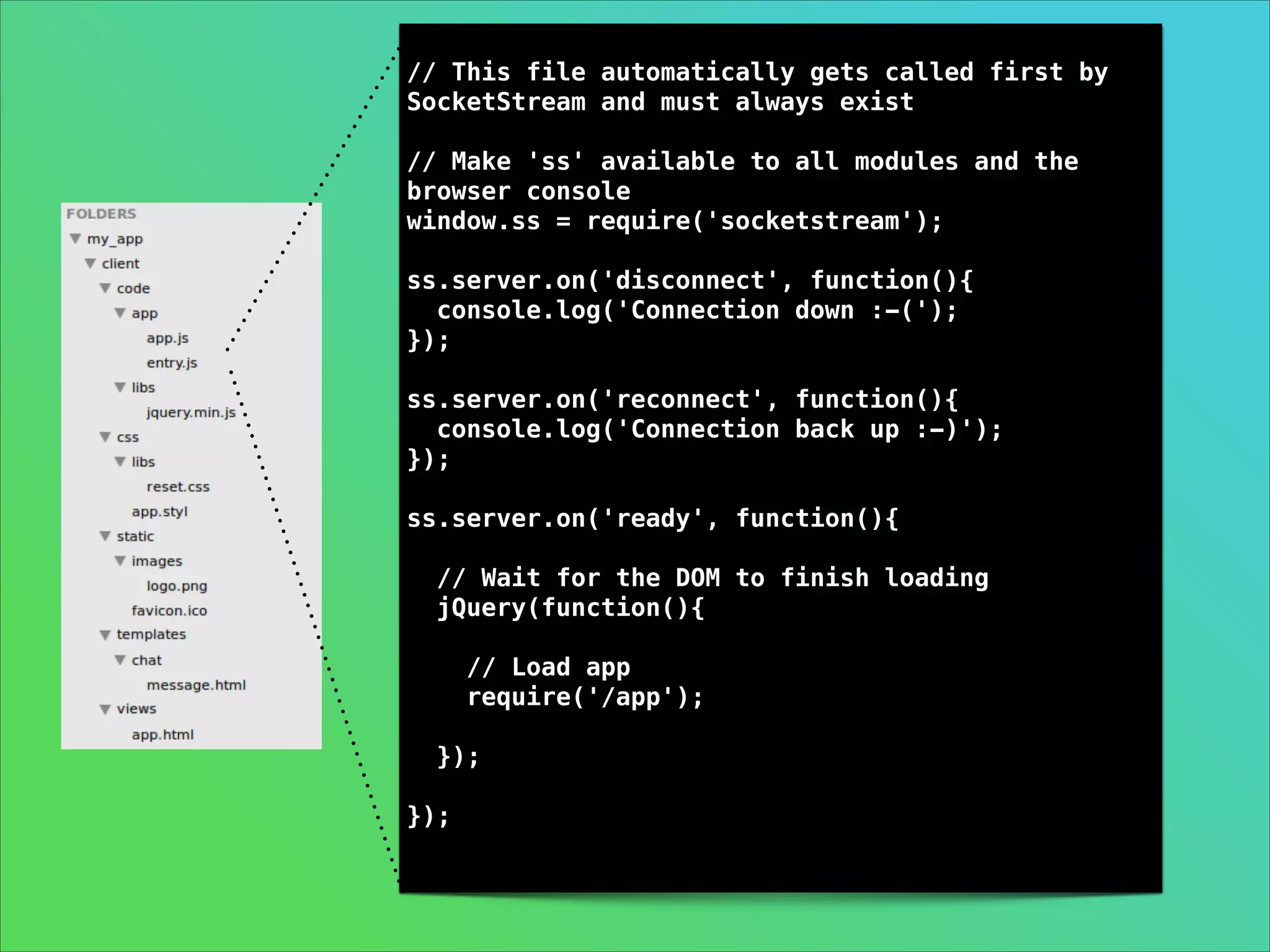

75. // This file automatically gets called first by
SocketStream and must always exist
!
// Make 'ss' available to all modules and the
browser console
window.ss = require('socketstream');
!
ss.server.on('disconnect', function(){
console.log('Connection down :-(');
});
!
ss.server.on('reconnect', function(){
console.log('Connection back up :-)');
});
!
ss.server.on('ready', function(){
!
!
!
// Wait for the DOM to finish loading
jQuery(function(){
// Load app
require('/app');
});
});

76. // This file automatically gets called first by
SocketStream and must always exist
!
// Make 'ss' available to all modules and the
browser console
window.ss = require('socketstream');
!
ss.server.on('disconnect', function(){
console.log('Connection down :-(');
});
!
ss.server.on('reconnect', function(){
console.log('Connection back up :-)');
});
!
ss.server.on('ready', function(){
!
!
!
// Wait for the DOM to finish loading
jQuery(function(){
// Load app
require('/app');
});
});

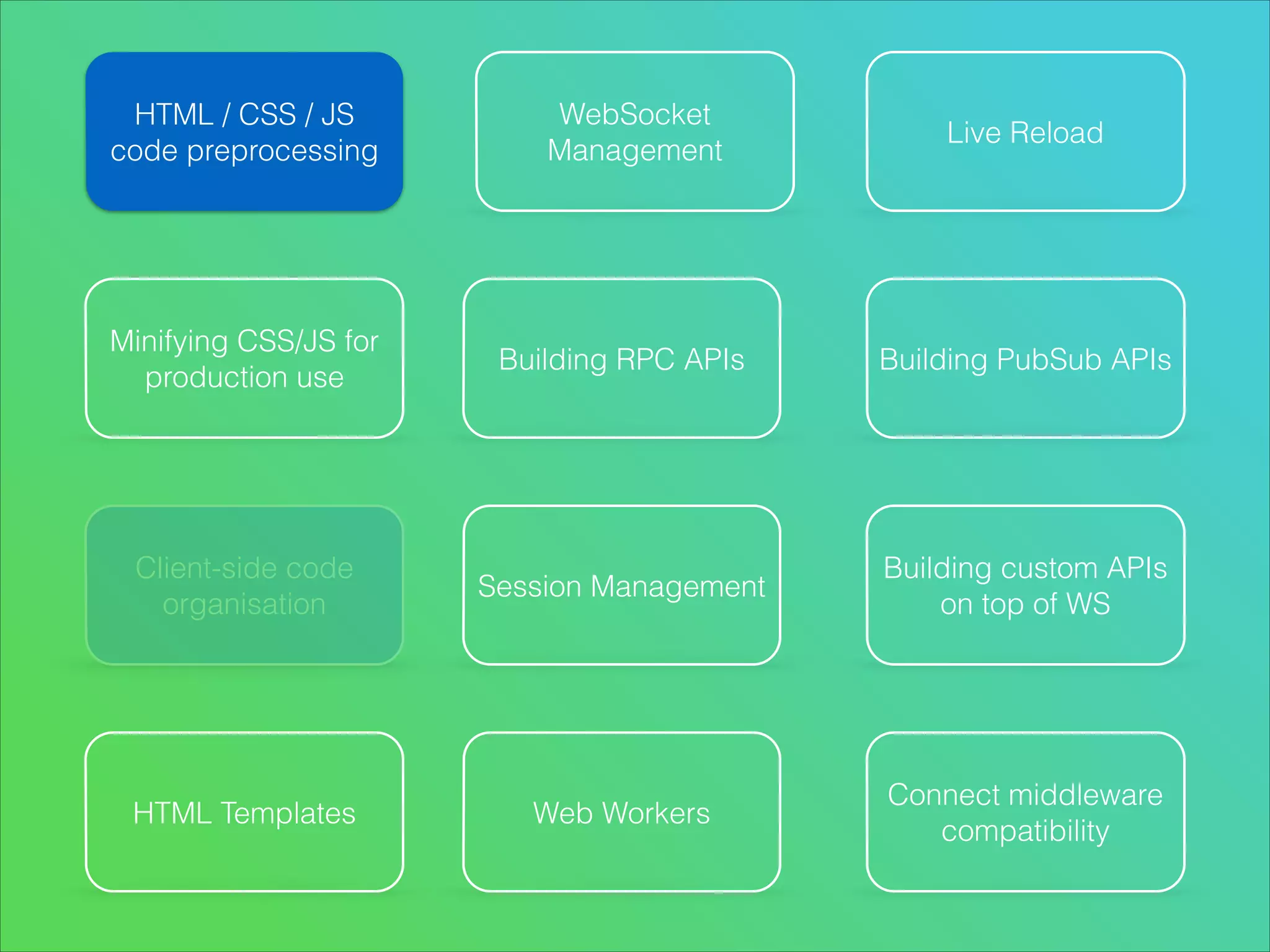

77. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

78. Over the years, developers
have come up with new
languages to generate
HTML, CSS, and JavaScript

79. SocketStream allows
developers to use these
code preprocessors in
their apps

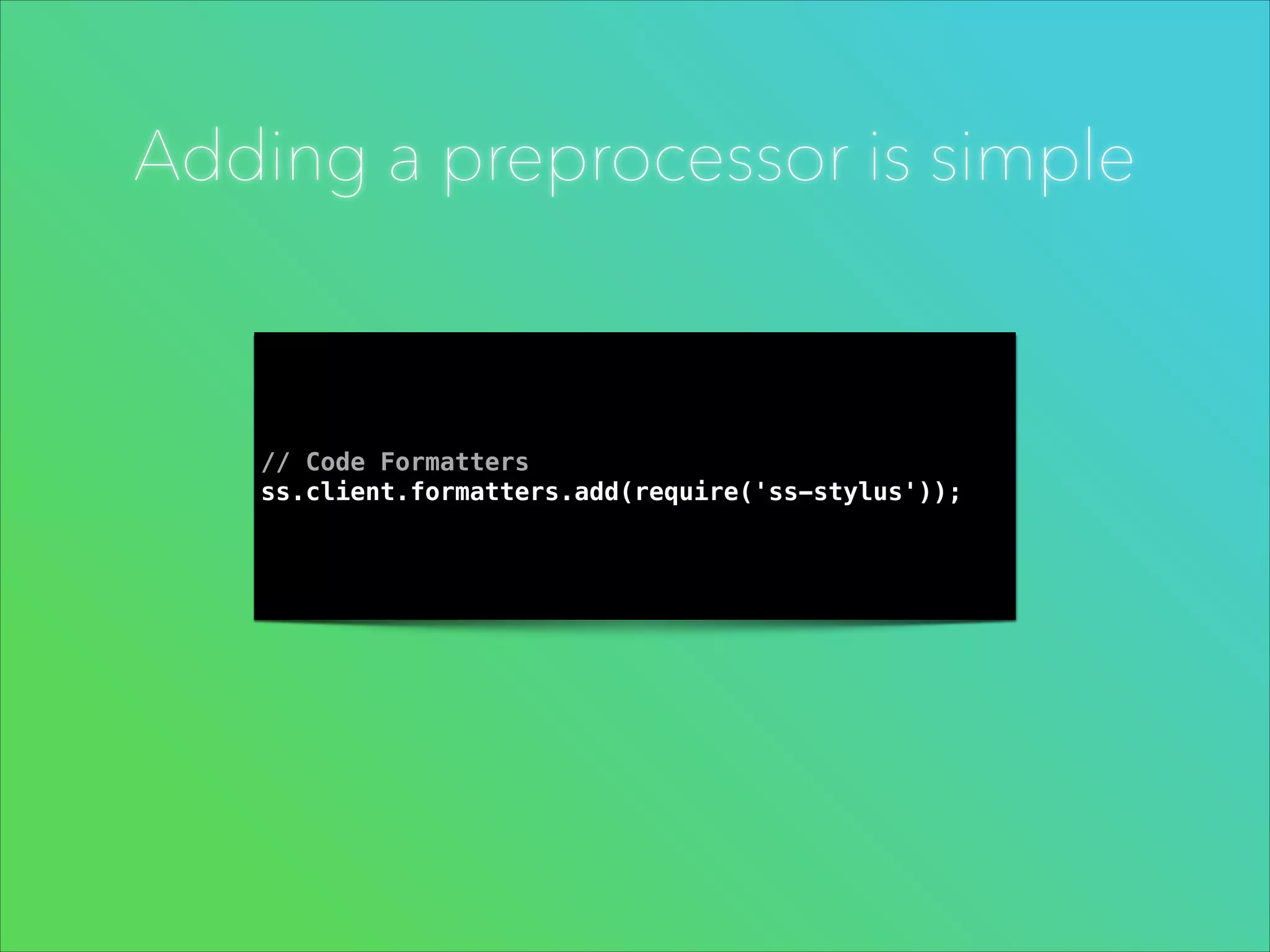

80. Adding a preprocessor is simple
// Code Formatters
ss.client.formatters.add(require('ss-stylus'));

81. For Javascript
•
SS-COFFEE - supports using CoffeeScript
•
SS-GORILLA - supports using GorillaScript

82. For CSS
•
SS-STYLUS - supports using Stylus
•
SS-LESS - supports using Less

83. For HTML Views
•
SS-JADE - supports using Jade

84. For HTML Templating
•
SS-HOGAN - supports using Twitter's Hogan.js
•
SS-COFFEEKUP - supports using CoffeeKup

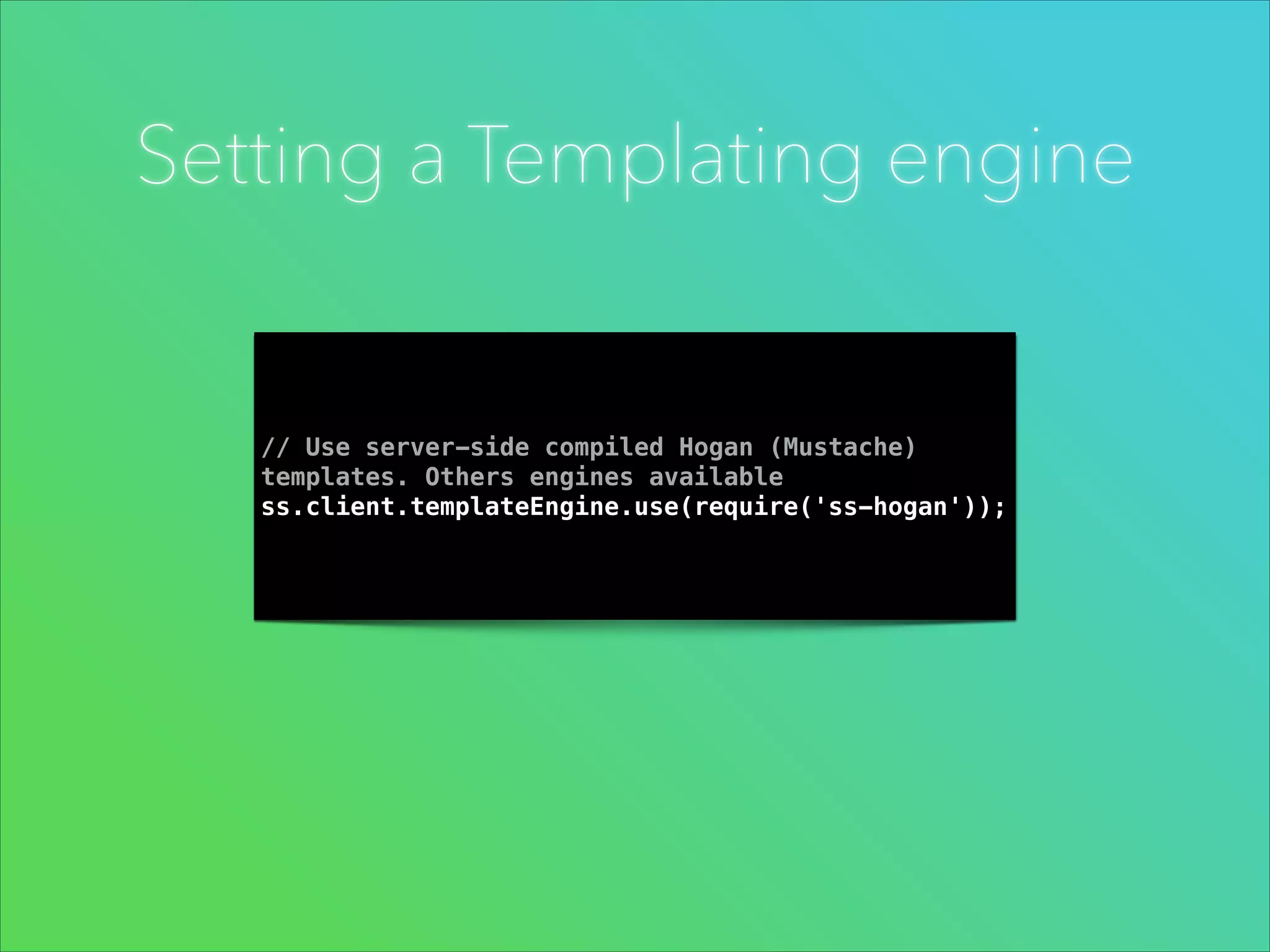

85. Setting a Templating engine
// Use server-side compiled Hogan (Mustache)
templates. Others engines available
ss.client.templateEngine.use(require('ss-hogan'));

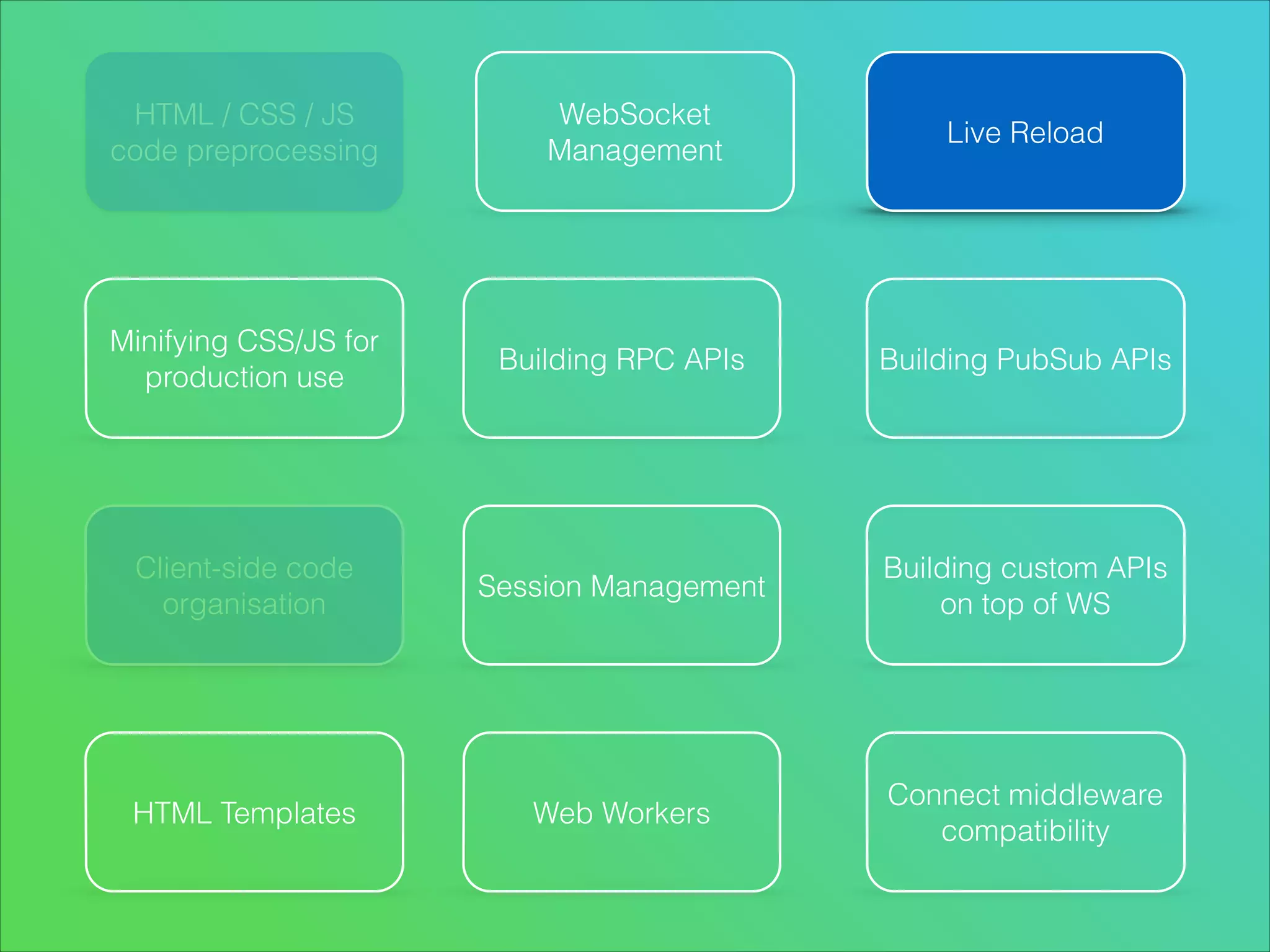

86. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

87. Having to press F5 to reload
the page in order to view
changes to HTML/CSS/JS...

88. ... is not a fun experience

89. In development mode,
SocketStream will watch the
client files for changes, and
reload the page when they
occur

90. In the case of CSS,
SocketStream will apply
the changes without
reloading the page

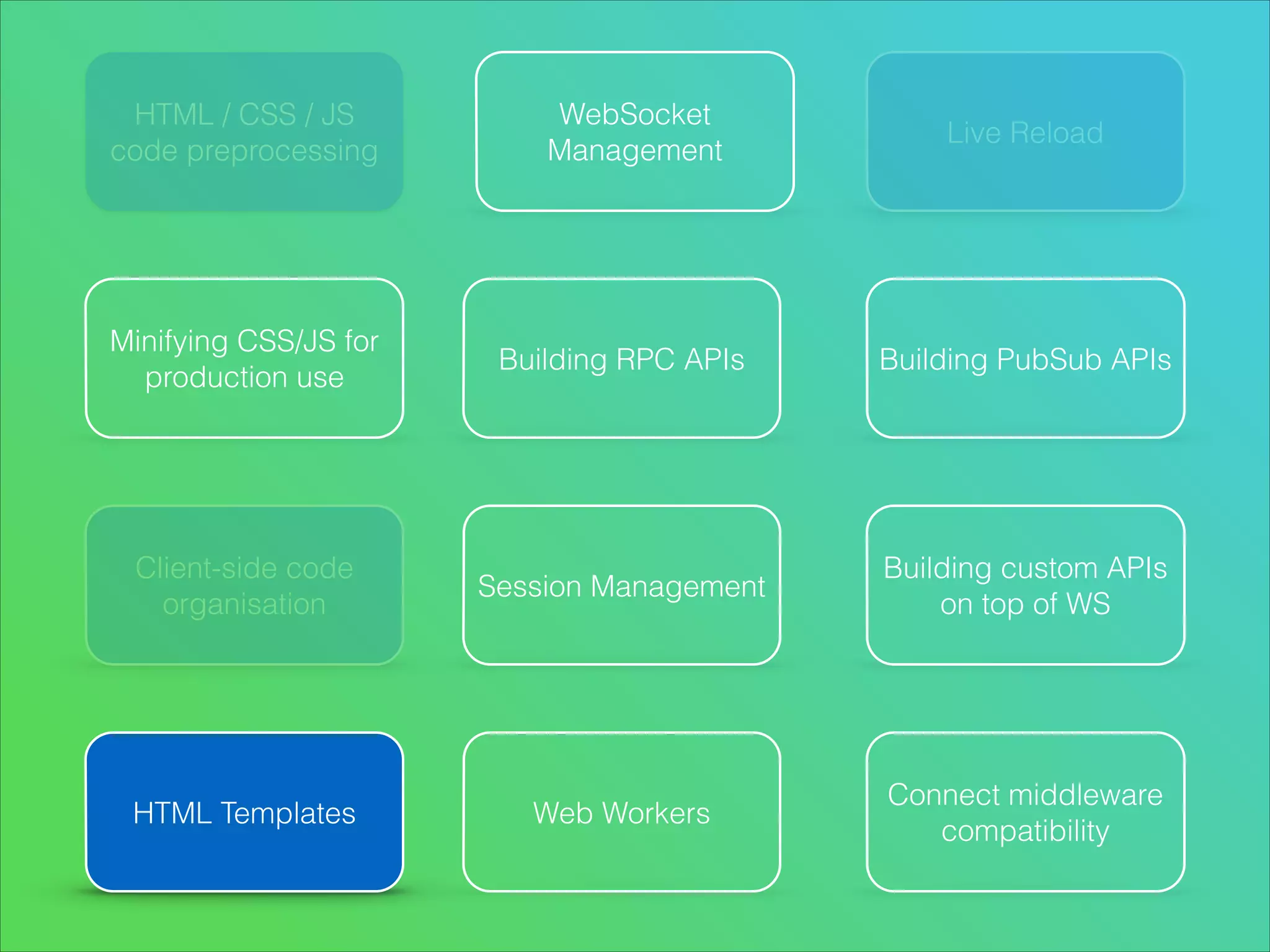

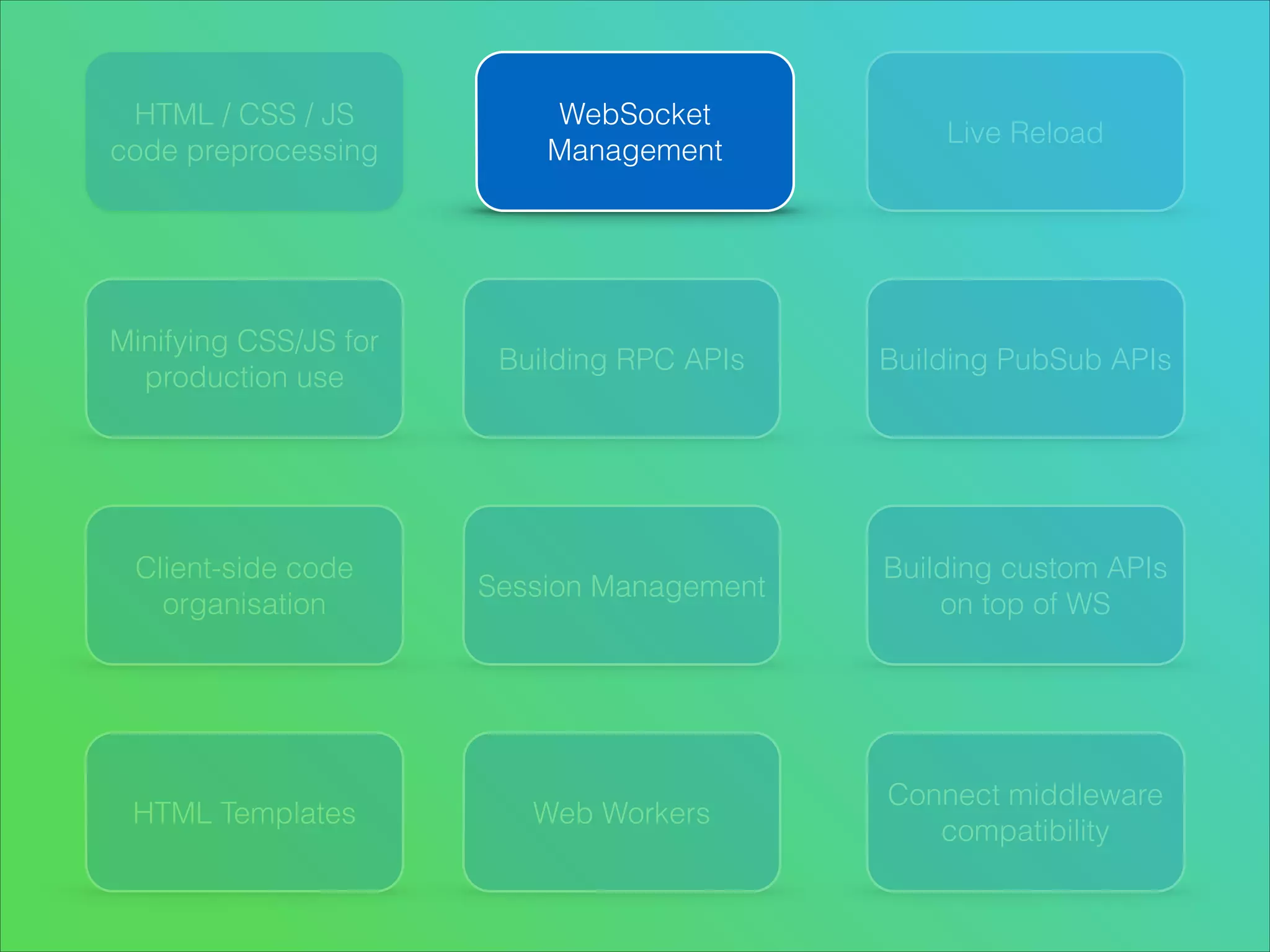

91. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

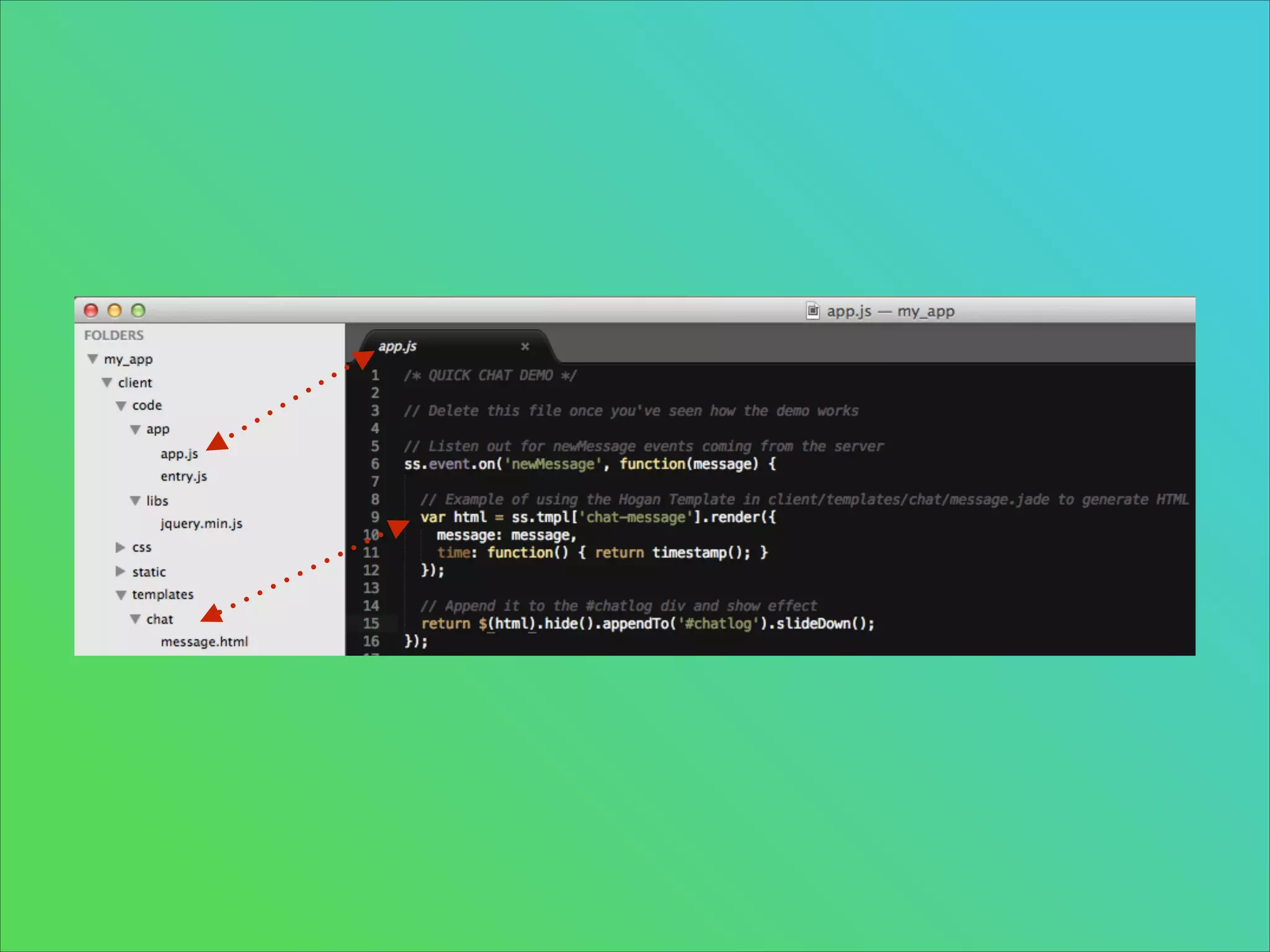

92. Client-side HTML
templates are made
available to the browser
via the ss.tmpl object

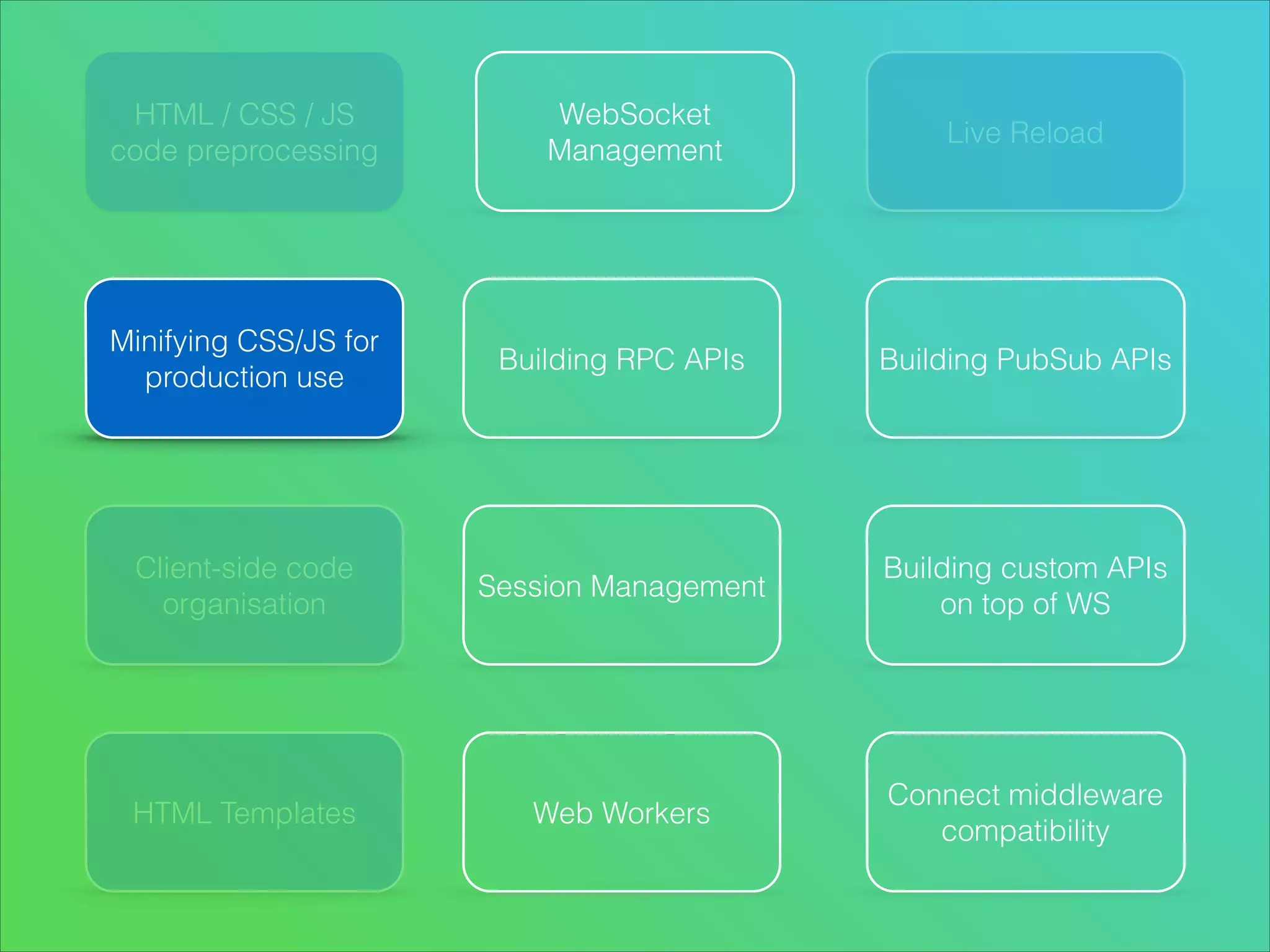

94. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

95. When you're building a
single page app, you'll
have a lot of JS files, and
maybe a few CSS files

96. But serving a HTML
page with lots of these
files can take time, and
is inefficient

97. SocketStream provides a
way to concatenate, minify,
and GZip these files into 1
JS and 1 CSS file

98. This saves bytes being
transferred, as well as
reducing the number of
HTTP requests you make

99. Also, you can tell
SocketStream to load
these files from a CDN

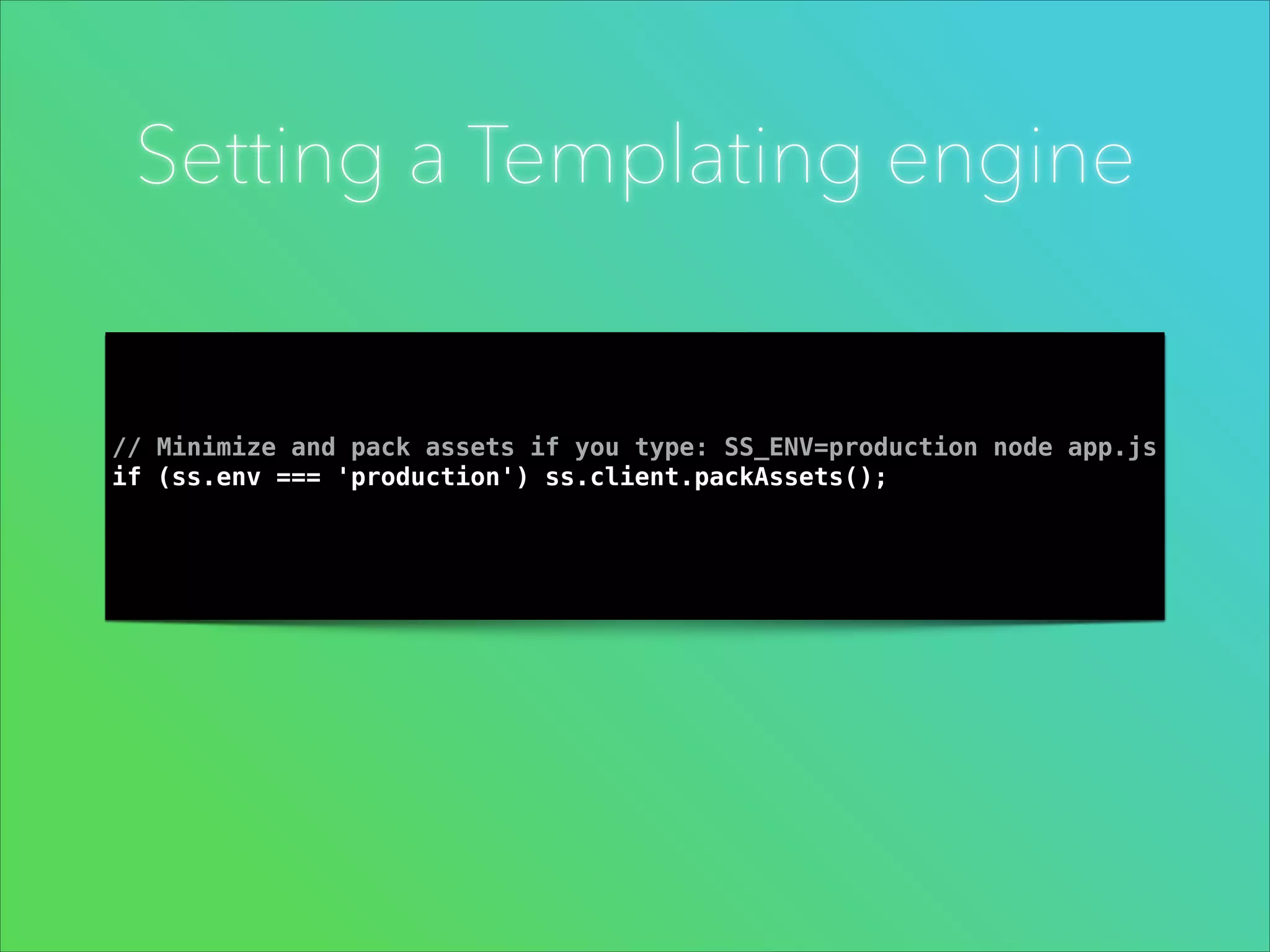

100. Setting a Templating engine
// Minimize and pack assets if you type: SS_ENV=production node app.js
if (ss.env === 'production') ss.client.packAssets();

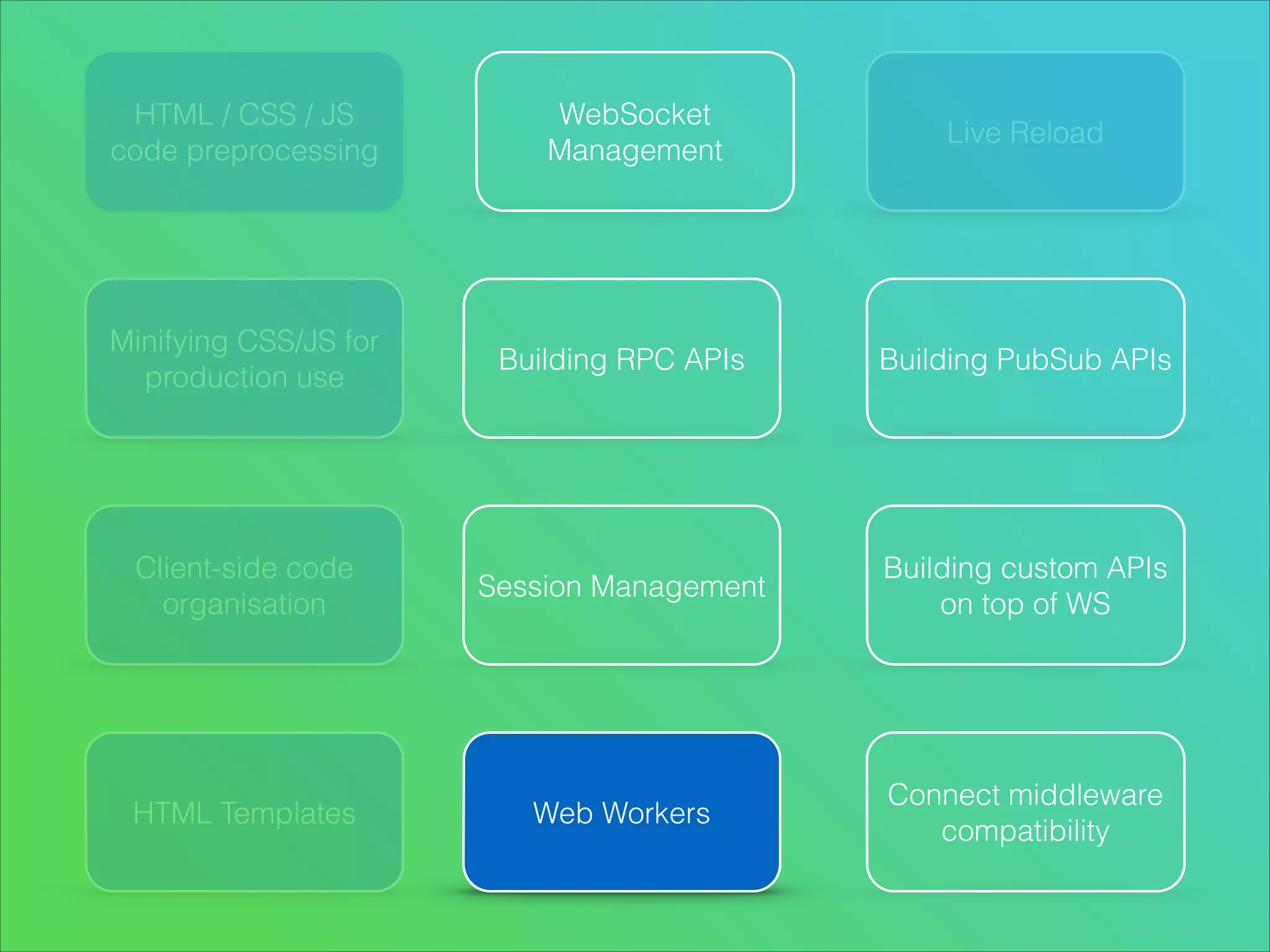

101. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

102. Web Workers are handy
for intensive client-side
JS operations

103. SocketStream provides
support for using Web
Workers in your app

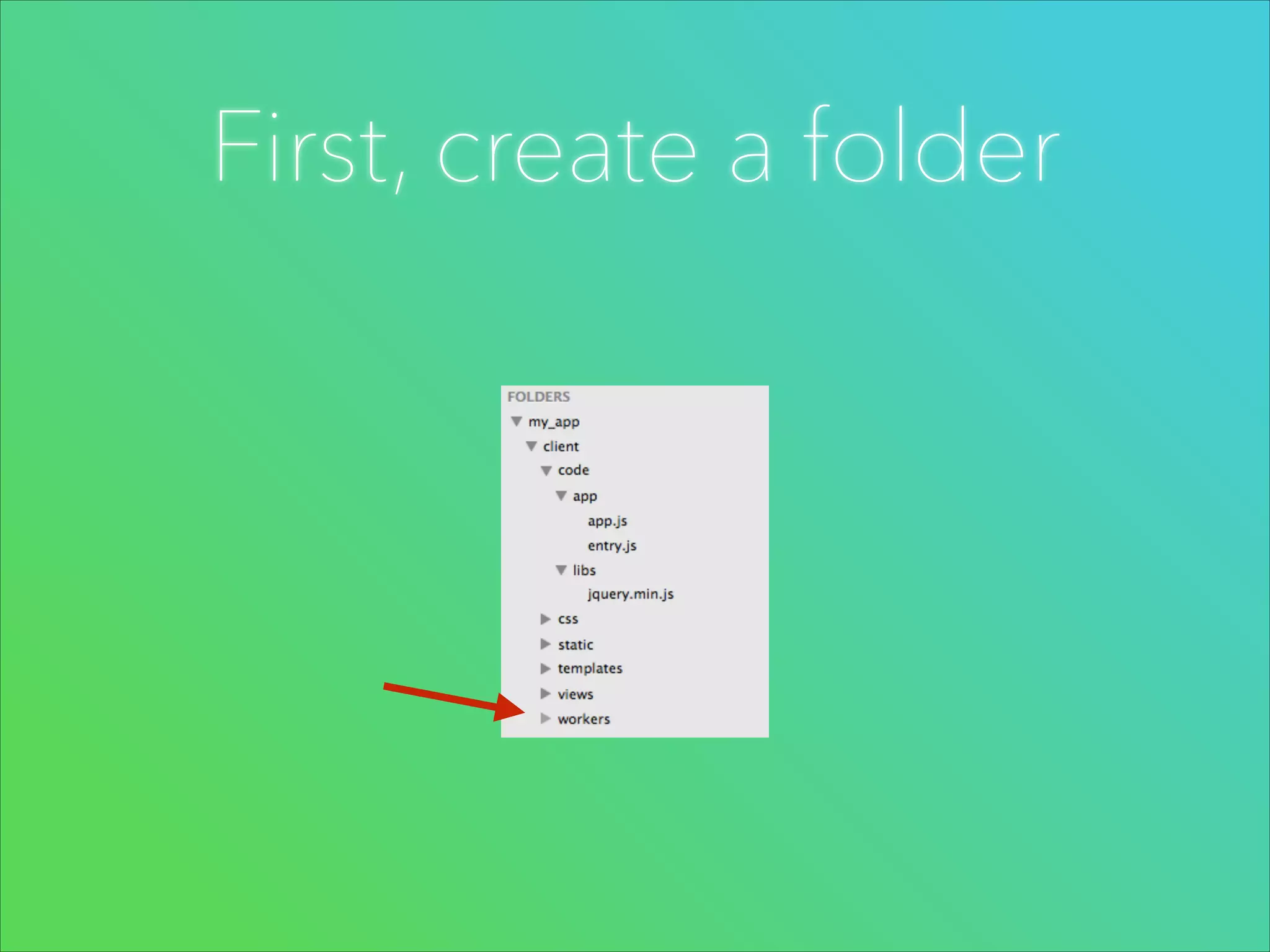

104. First, create a folder

105. Next, put your web worker files in
that folder

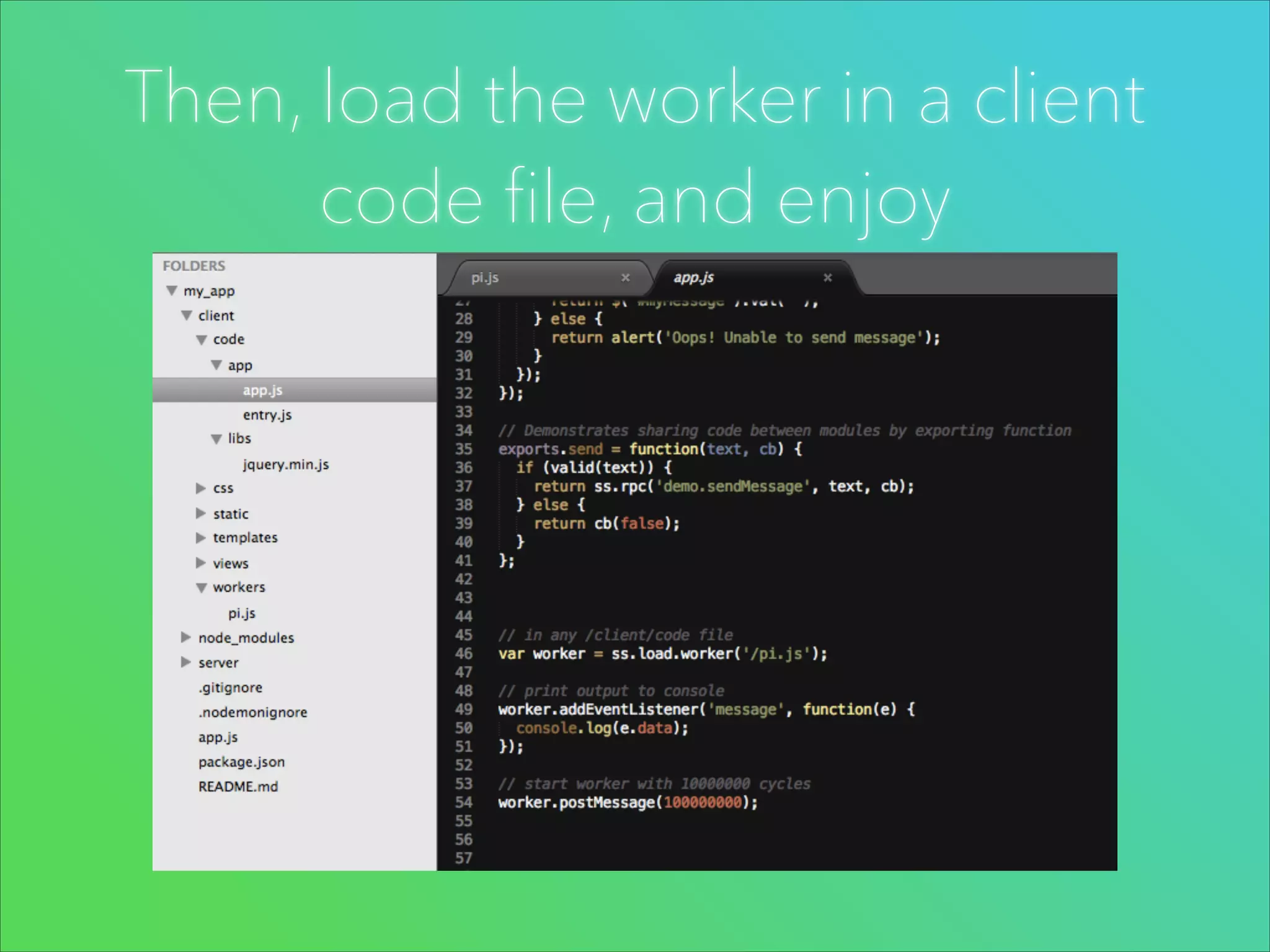

106. Then, load the worker in a client
code file, and enjoy

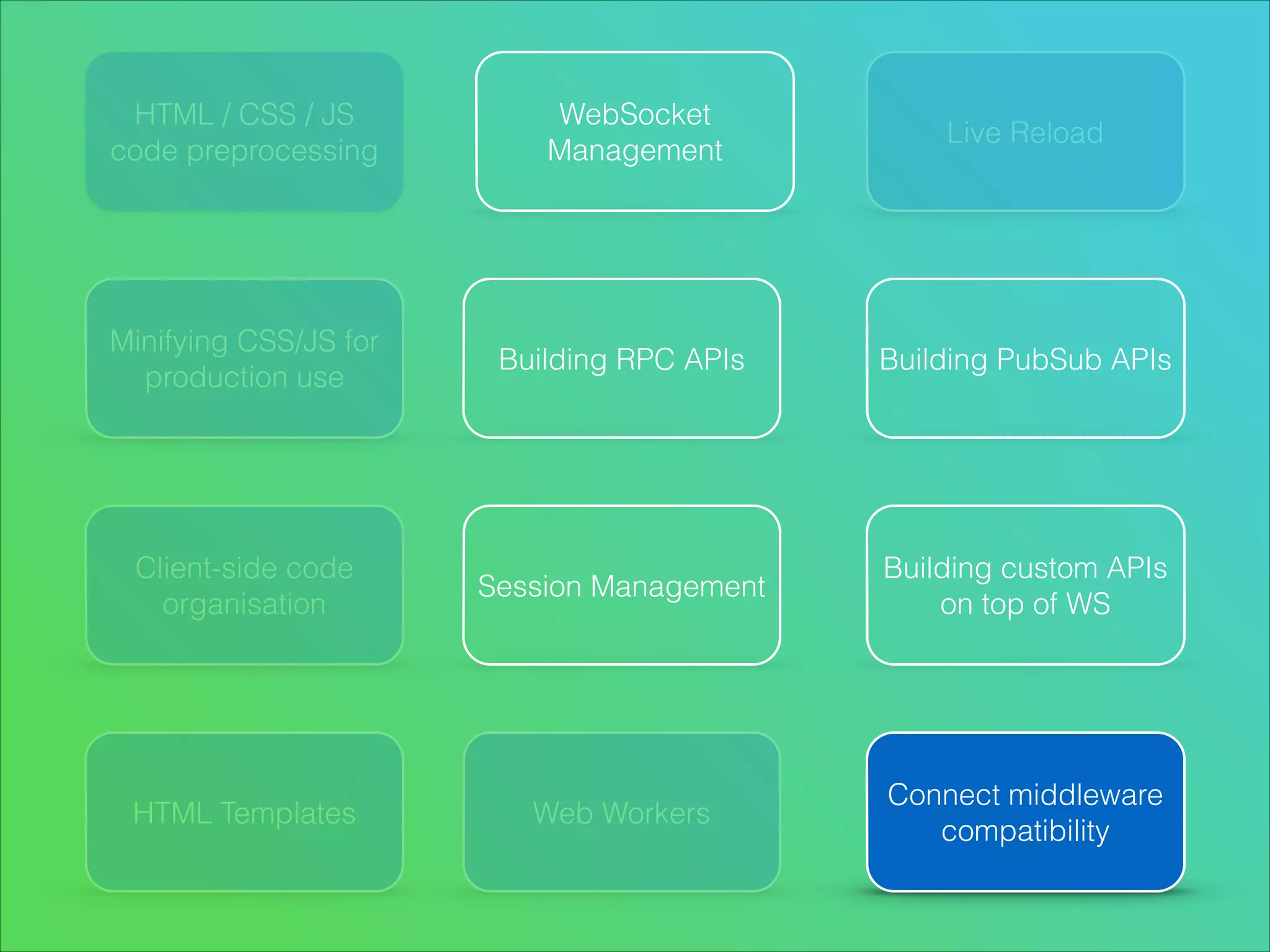

107. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

108. SocketStream uses
Connect middleware to
support HTTP features

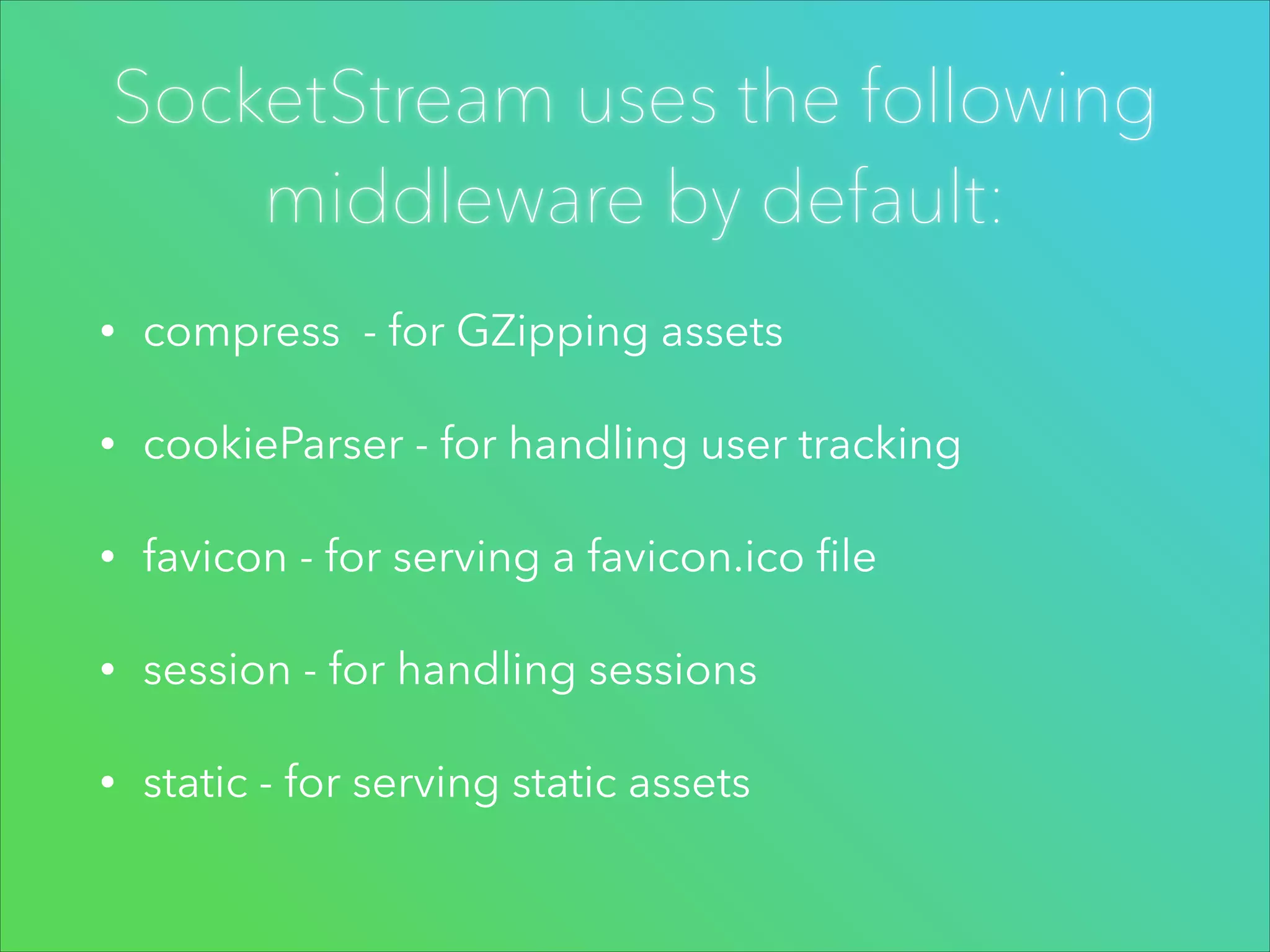

109. SocketStream uses the following
middleware by default:
•
compress - for GZipping assets
•
cookieParser - for handling user tracking
•
favicon - for serving a favicon.ico file
•
session - for handling sessions
•
static - for serving static assets

110. SocketStream uses the following
middleware by default:
•
compress middleware is loaded first, before all
other middleware
•
static middleware is loaded last, after all other
middleware

111. SocketStream provides
a way to load custom
middleware into the
connect stack

112. ss.http.middleware.prepend()
ss.http.middleware.append()

113. This allows you to use all
of the connect
middleware out there
today, i.e. EveryAuth

114. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

115. We use connect’s session
middleware, so authentication
can be done with either
EveryAuth, PassportJS, or you
can roll your own.

116. We also recommend
using connect-redis

117. Both HTTP and
WebSocket interfaces
can get/set the session
data

118. Via HTTP
// app.js
ss.http.router.on('/updateSession', function(req, res) {
req.session.myVar = 4321;
res.end('req.session.myVar has been updated to', req.session.myVar);
});

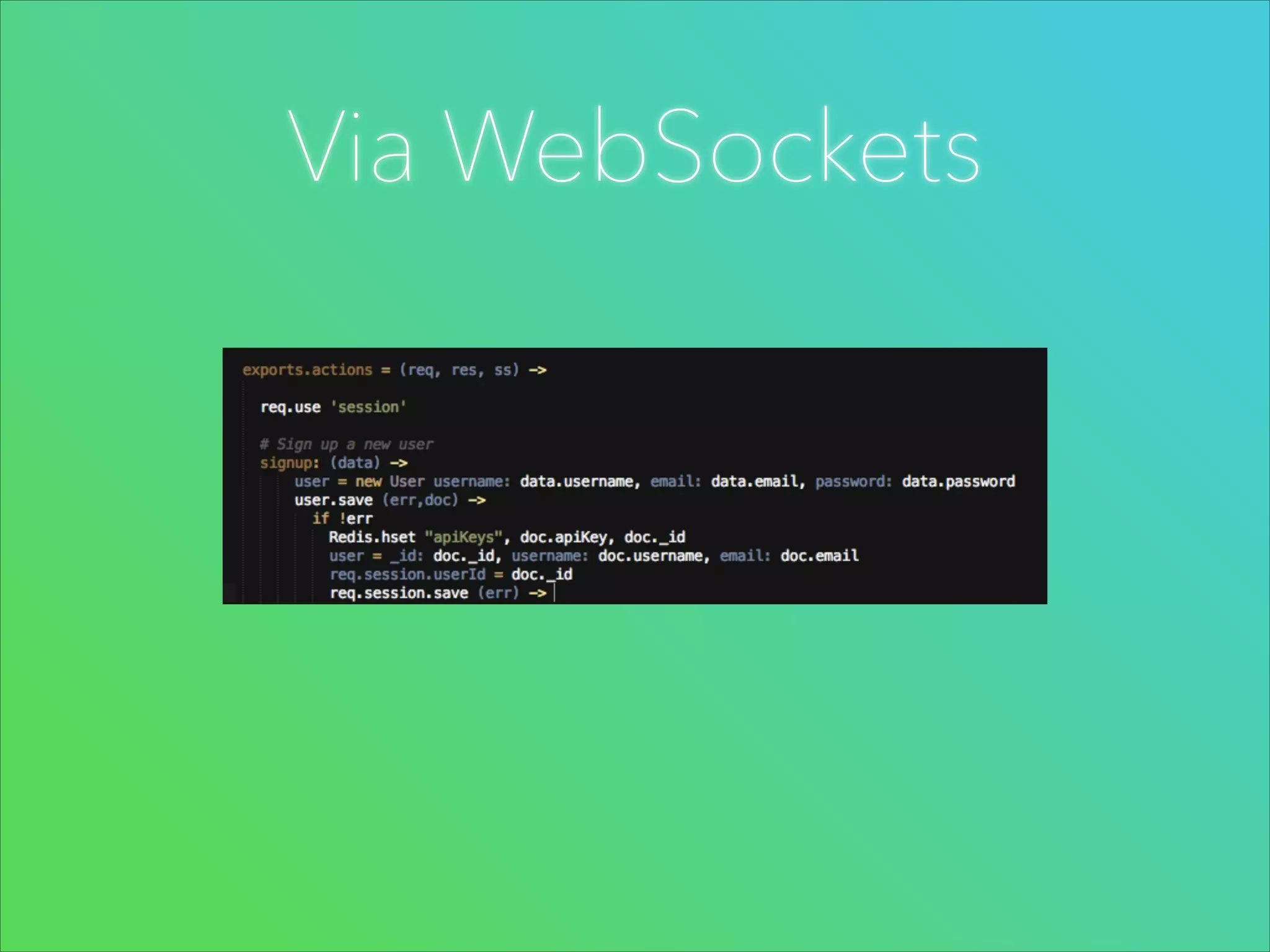

119. Via WebSockets

120. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

121. RPC is a common
pattern for clients
requesting data from
the server

122. SocketStream provides
a way to construct RPC
APIs with flexibility

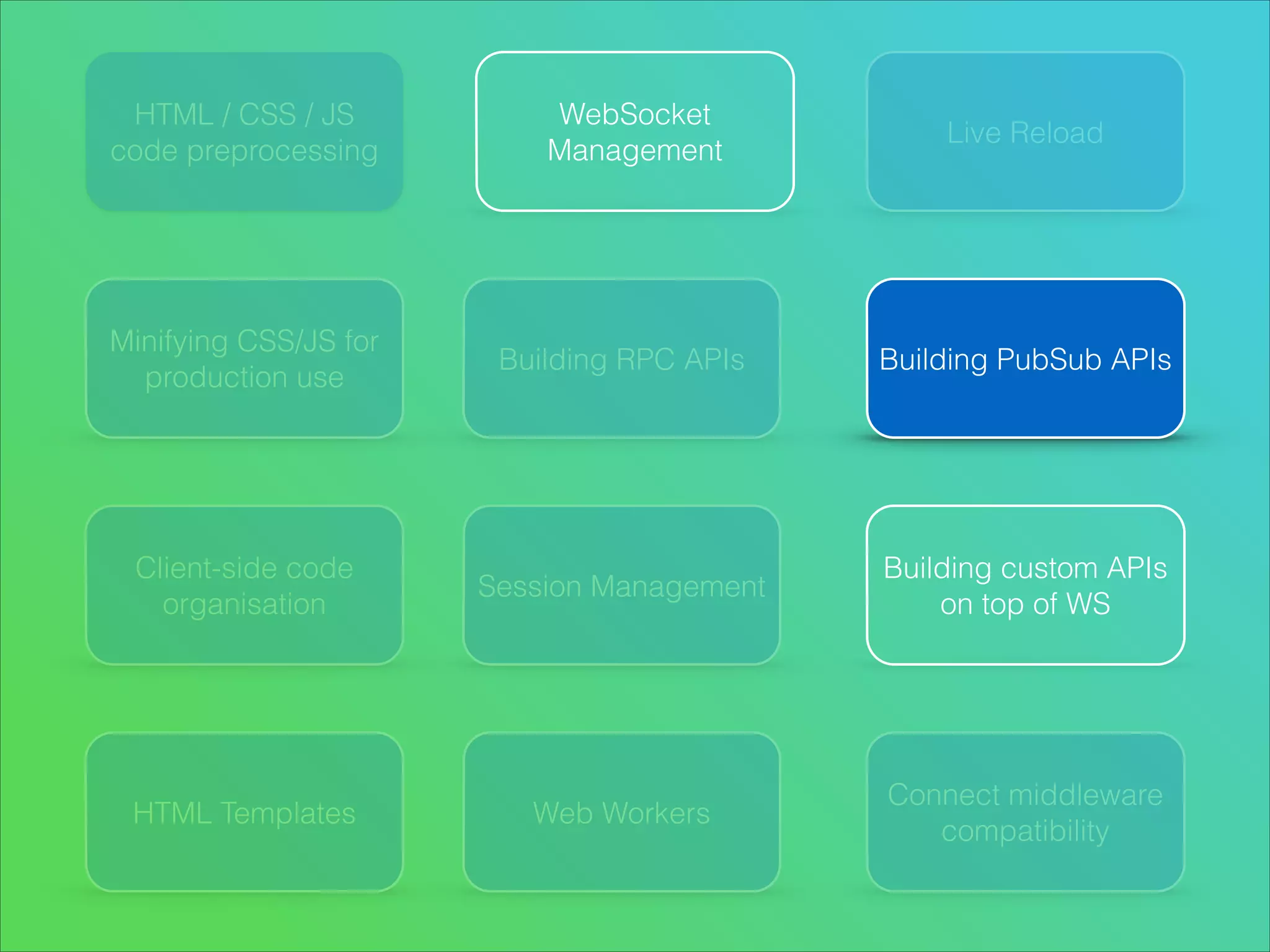

125. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

126. PubSub is a great
pattern for Single Page
Apps

127. SocketStream handles
this in various ways:

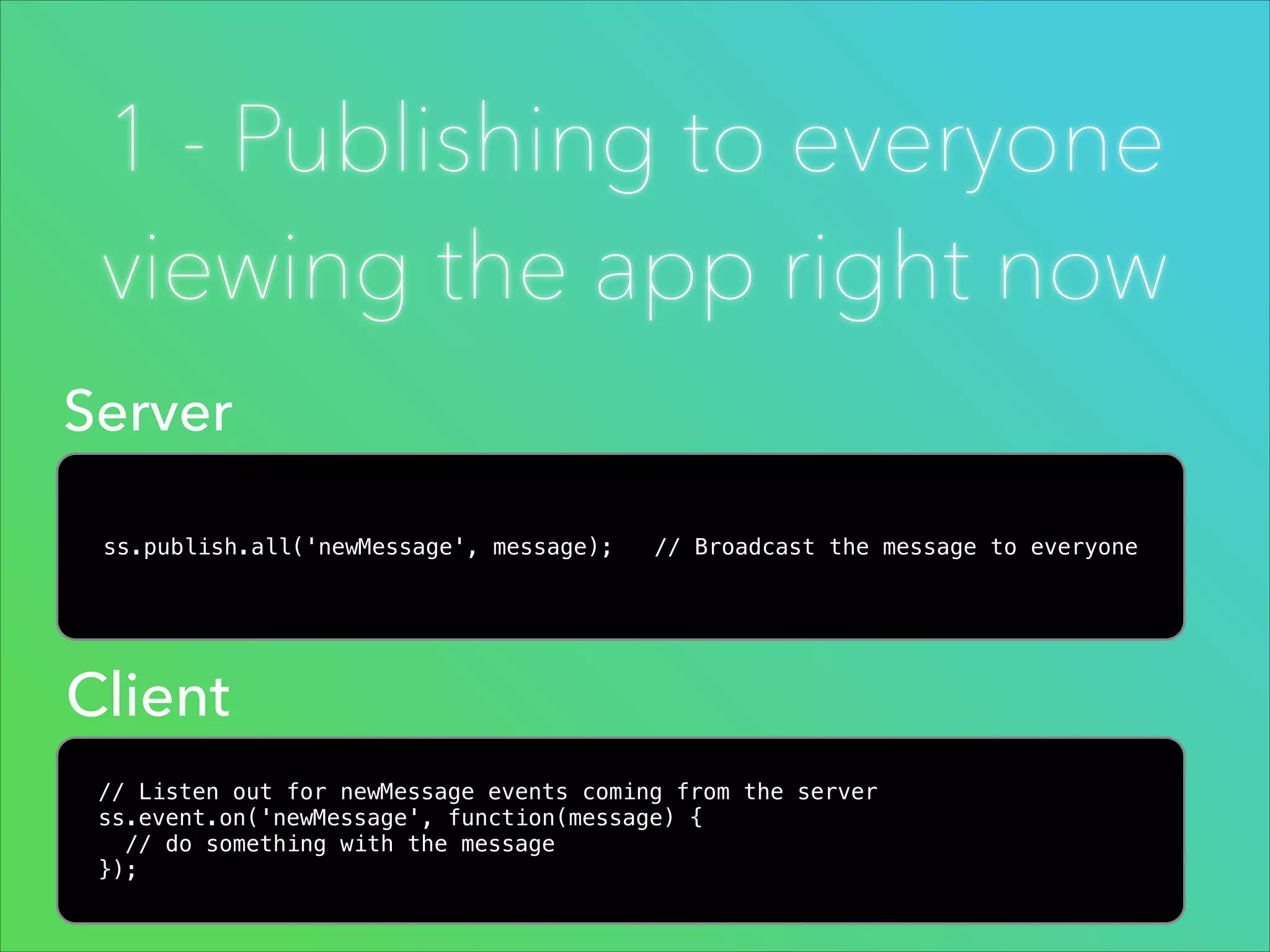

128. 1 - Publishing to everyone
viewing the app right now
Server
ss.publish.all('newMessage', message);
// Broadcast the message to everyone
Client
// Listen out for newMessage events coming from the server
ss.event.on('newMessage', function(message) {
// do something with the message
});

129. 2 - Sending to private channels
Server (subscribe/unsubscribe the session )
// in a /server/rpc file after calling req.use('session') middleware
!
req.session.channel.subscribe('disney')
!
req.session.channel.unsubscribe('kids')
!
req.session.channel.reset()
// unsubscribes the session from every channel
req.session.channel.list()
// shows what channels are subscribed to
!

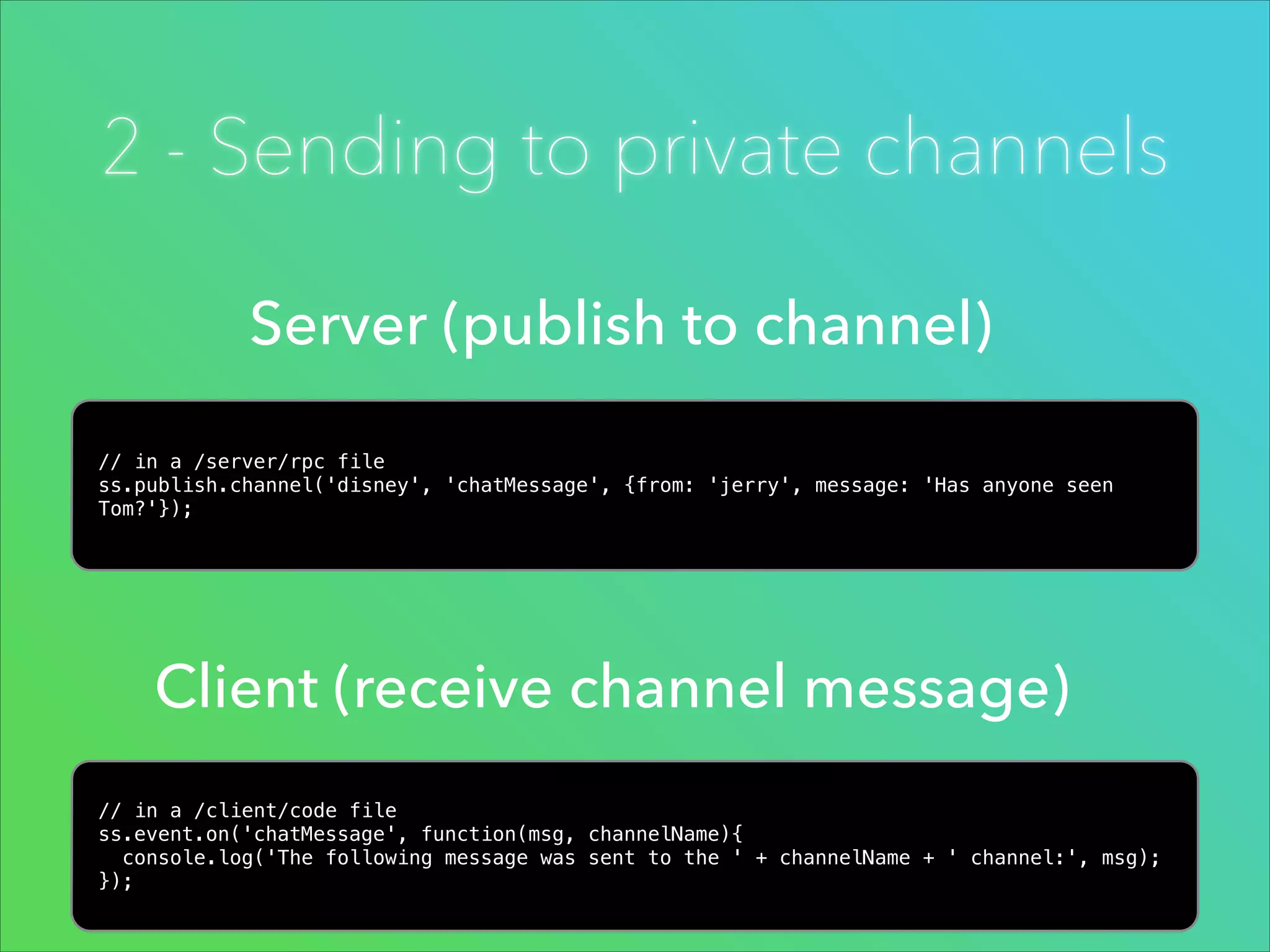

130. 2 - Sending to private channels
Server (publish to channel)
// in a /server/rpc file
ss.publish.channel('disney', 'chatMessage', {from: 'jerry', message: 'Has anyone seen
Tom?'});
Client (receive channel message)
// in a /client/code file
ss.event.on('chatMessage', function(msg, channelName){
console.log('The following message was sent to the ' + channelName + ' channel:', msg);
});

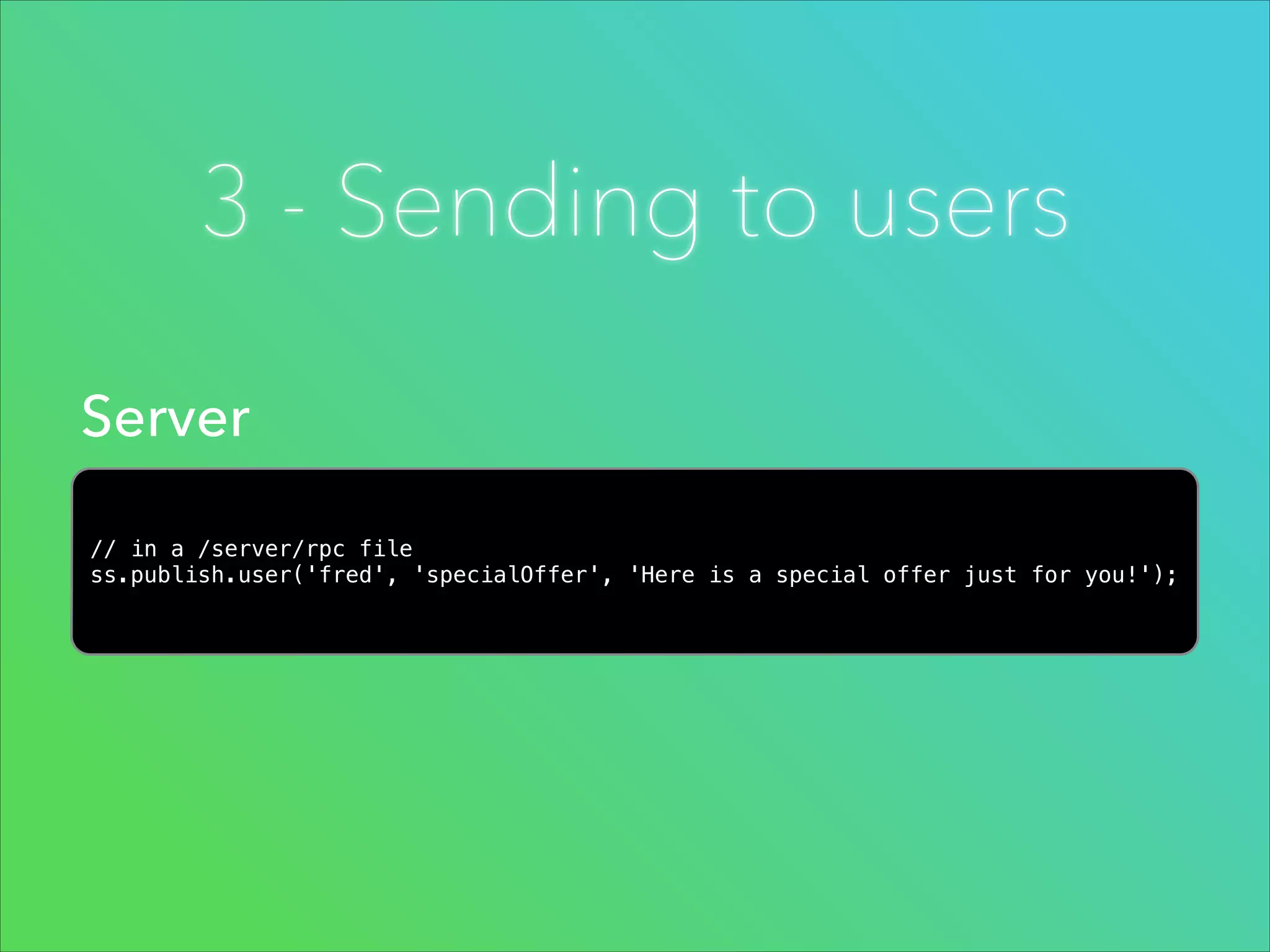

131. 3 - Sending to users
Server
// in a /server/rpc file
ss.publish.user('fred', 'specialOffer', 'Here is a special offer just for you!');

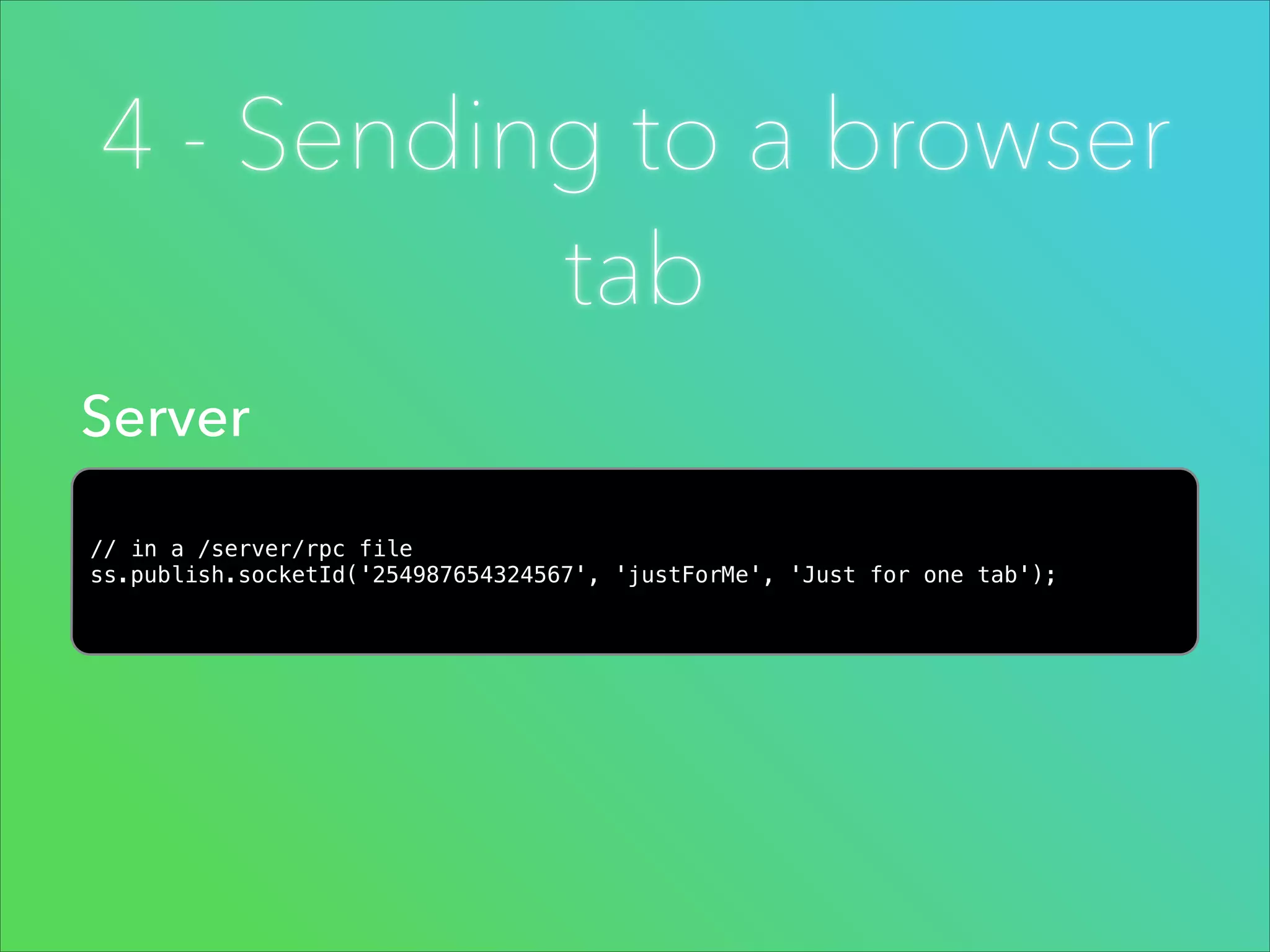

132. 4 - Sending to a browser
tab
Server
// in a /server/rpc file
ss.publish.socketId('254987654324567', 'justForMe', 'Just for one tab');

133. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

134. On top of RPC and PubSub,
SocketStream provides you
with a way to create custom
request responders

135. Request Response is
basically a WebSocket
message handler

136. It allows you to write
message handling for
games, where every
byte matters

137. HTML / CSS / JS
code preprocessing
Minifying CSS/JS for
production use
Client-side code
organisation
HTML Templates
WebSocket
Management
Live Reload
Building RPC APIs
Building PubSub APIs
Session Management
Building custom APIs
on top of WS
Web Workers
Connect middleware
compatibility

138. WebSockets are not
immortal…

139. They are mangled by
mobile networks…

140. Blocked by firewalls…

141. Routed to dead ends by
proxy servers

142. And severed by train
tunnels

143. Also, browser support
for WebSockets isn’t
guaranteed

144. You need a transport
strategy

145. Originally, SocketStream
used Socket.io

146. But Socket.io asserted
that if a browser
supported WebSockets,
then it would work

147. They learned from this,
by building Engine.io

148. I created the transport
wrapper for Engine.io in
SocketStream for
Bechtel & Dashku

149. And designed it to
reconnect the client
when severed

150. Months later, it made it’s
way into SocketStream’s
core.

151. SocketStream let’s you
use this, alongside
SockJS

152. …and that is
SocketStream in a
nutshell. Whew!

153. Let’s look at some
SocketStream apps in
the wild

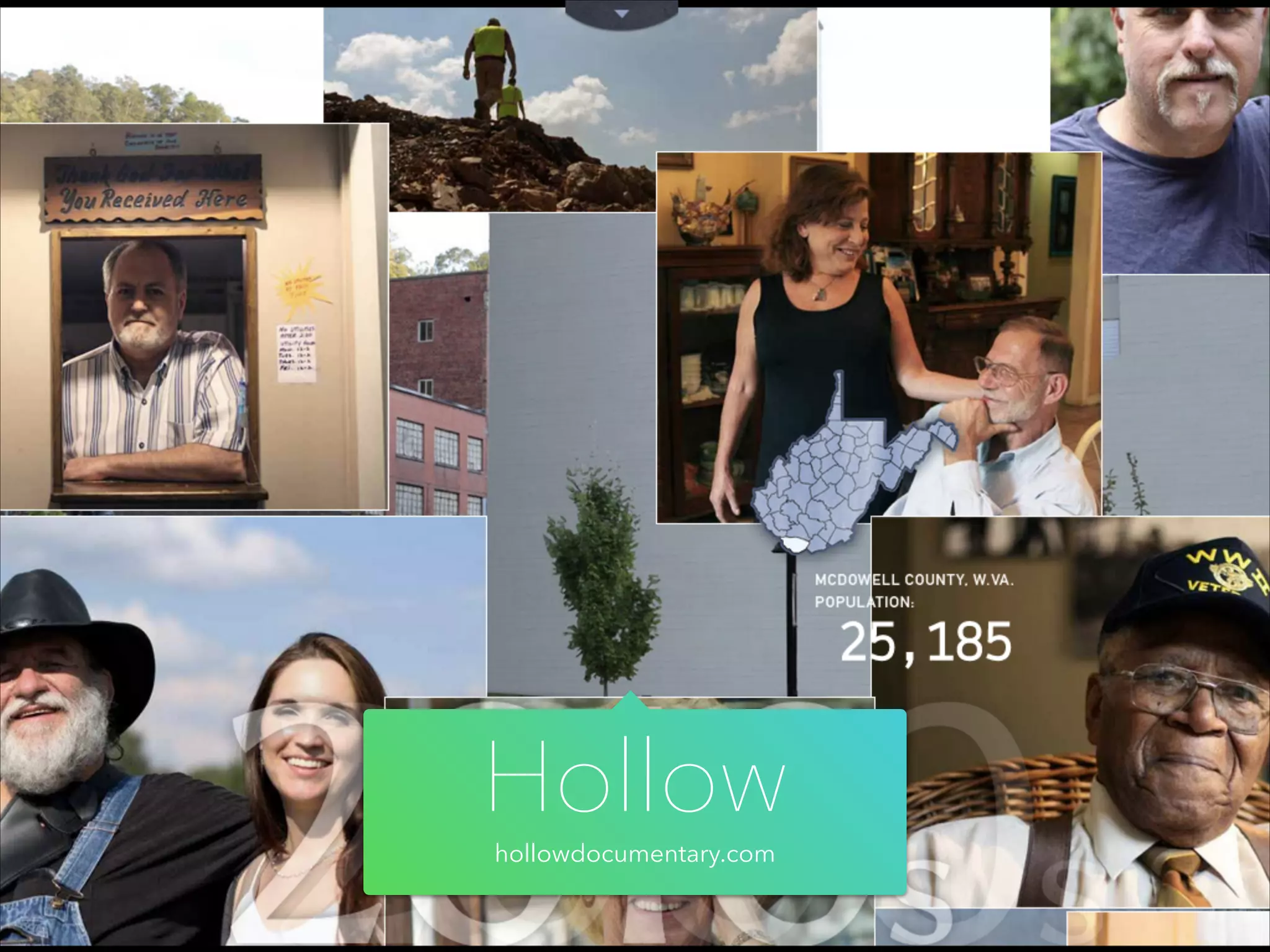

154. Hollow
hollowdocumentary.com

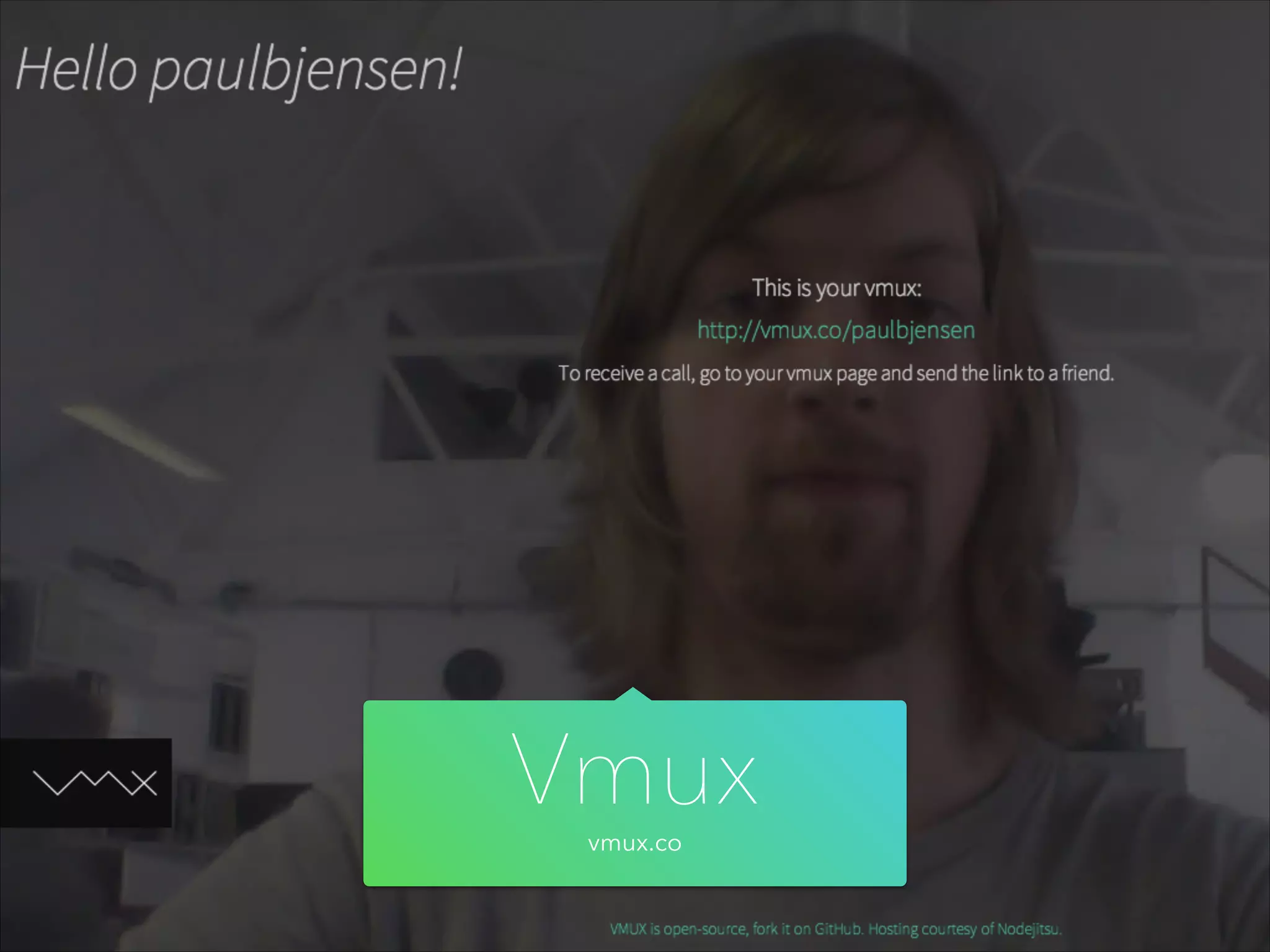

155. Vmux
vmux.co

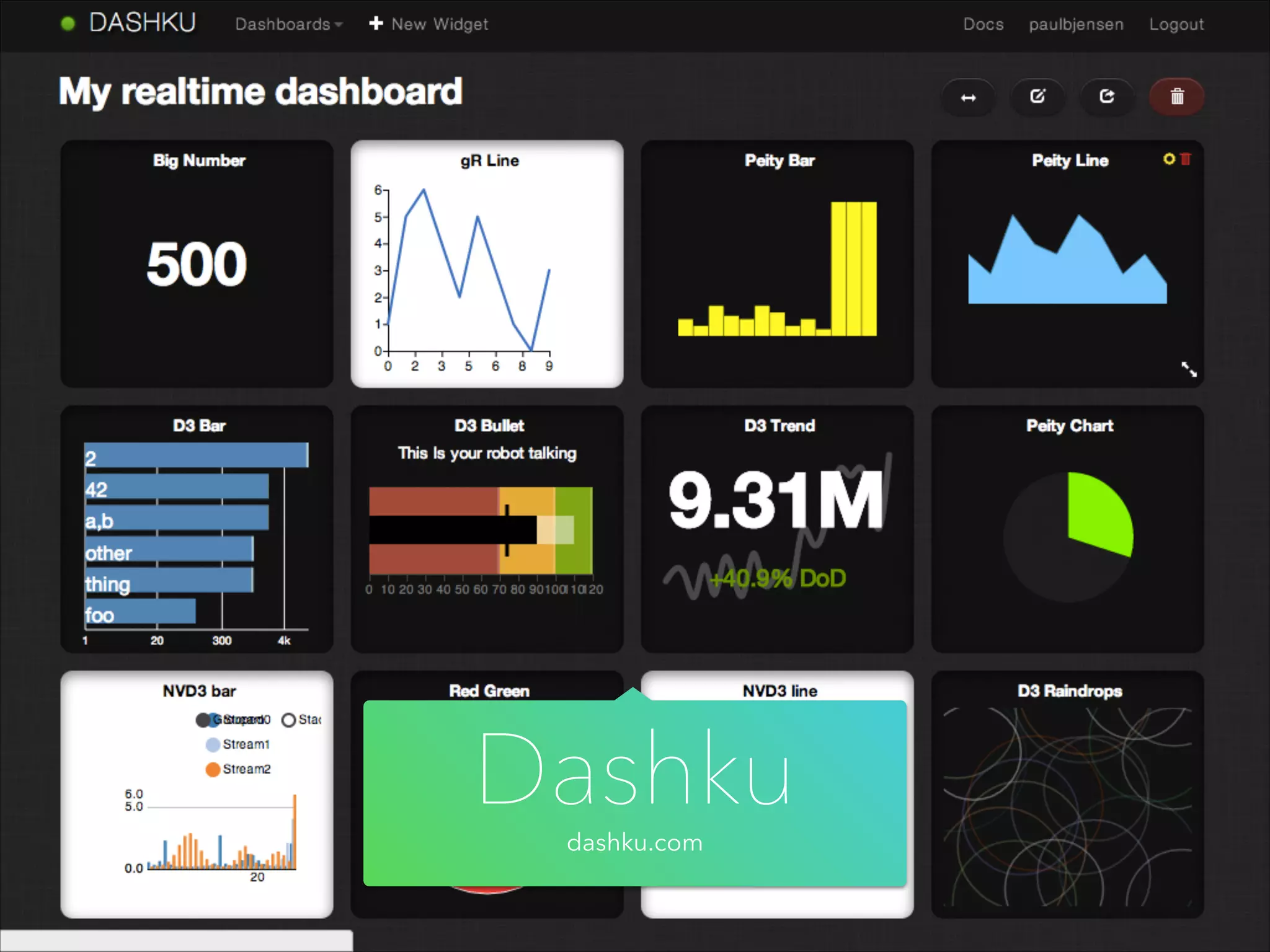

156. Dashku
dashku.com

157. SocketStream plugins

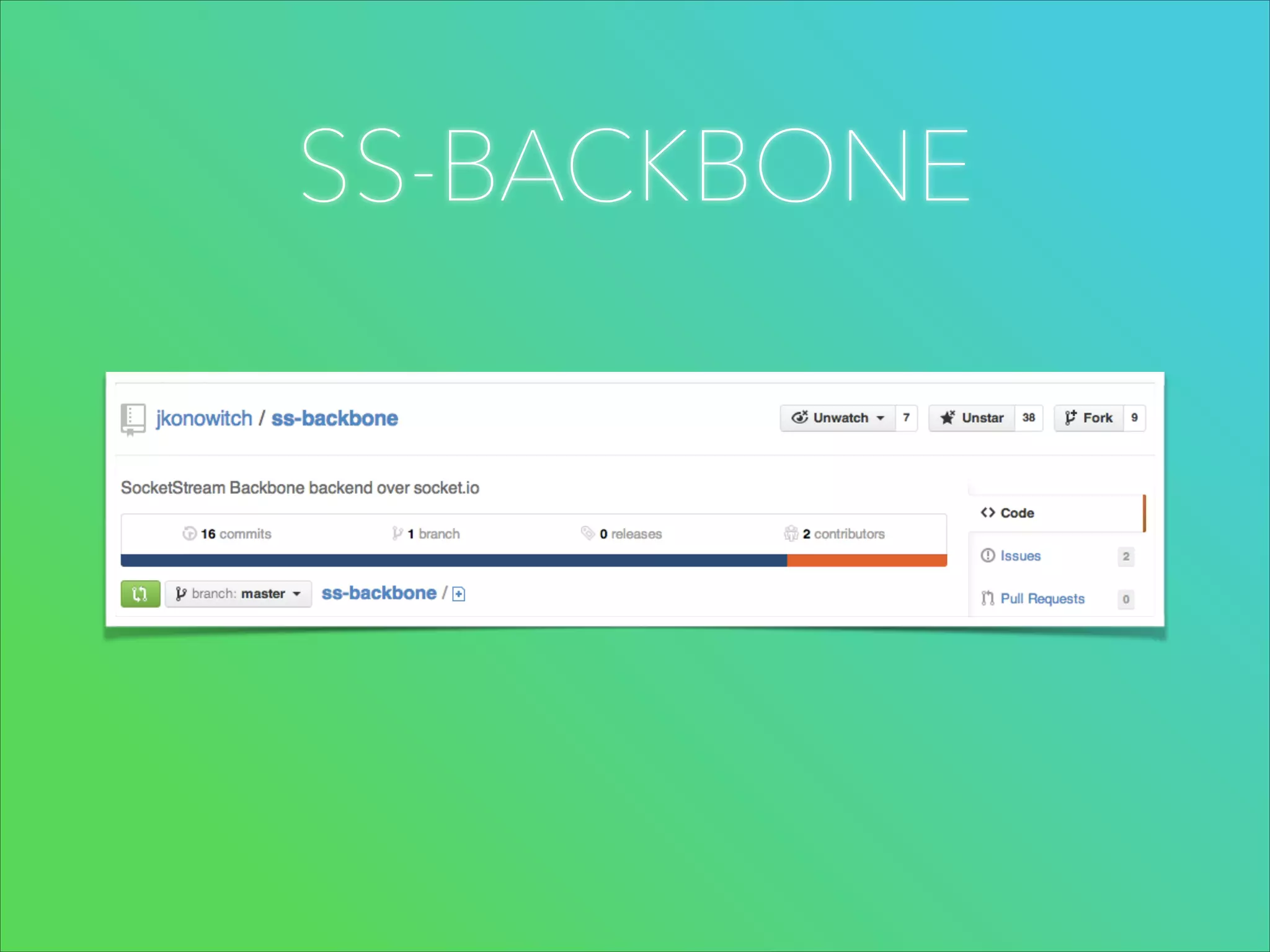

158. SS-BACKBONE

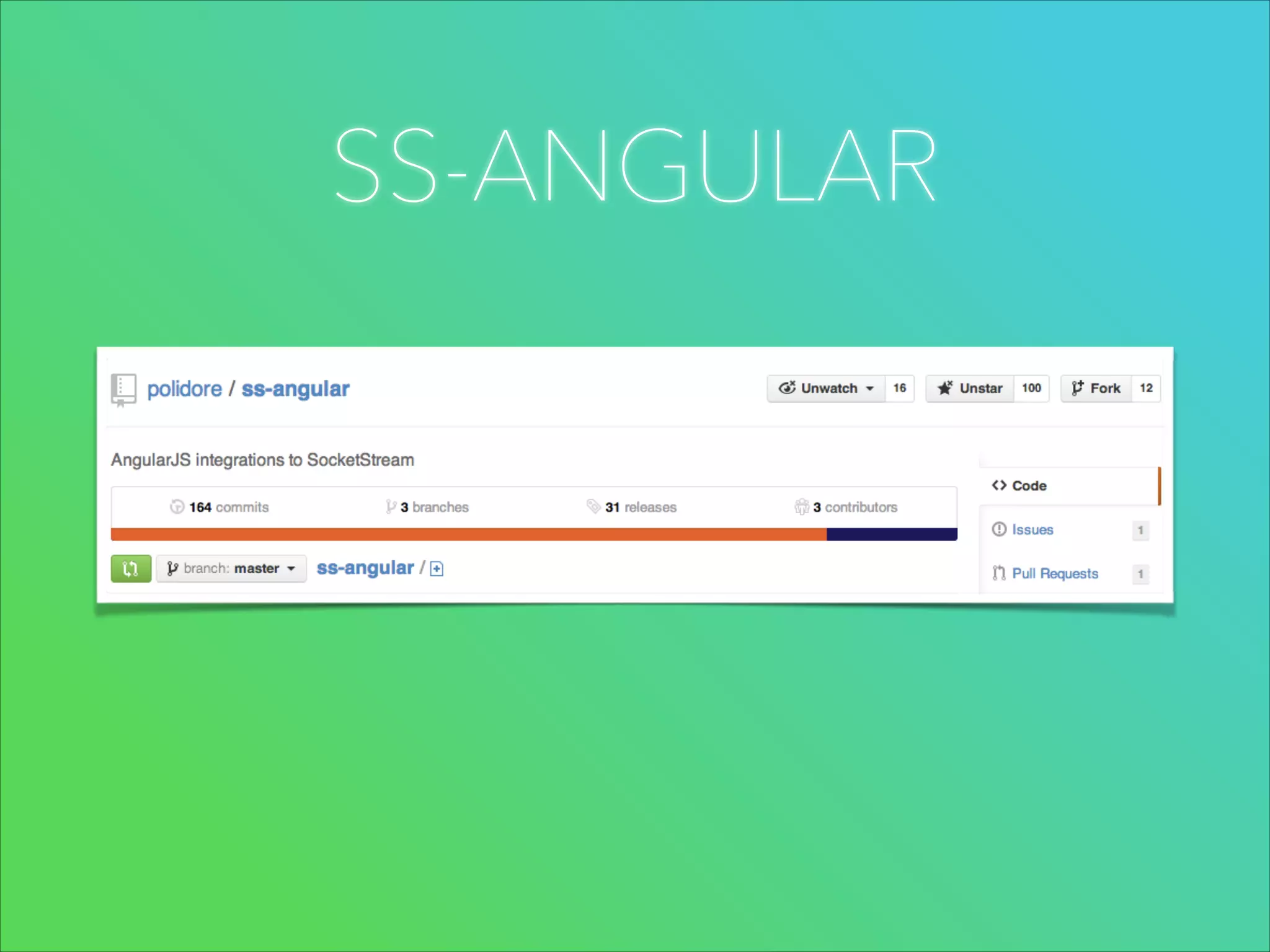

159. SS-ANGULAR

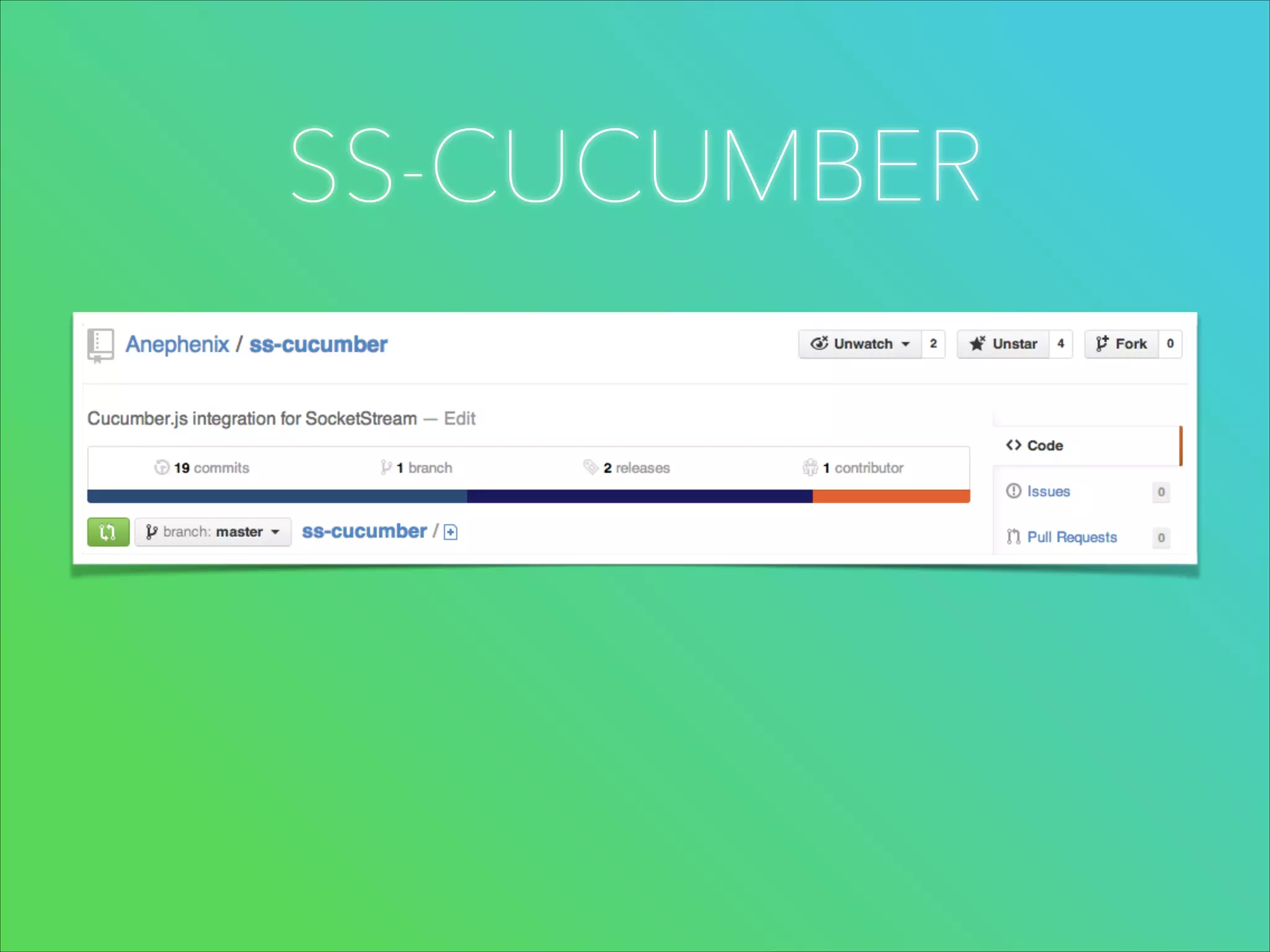

160. SS-CUCUMBER

161. Tips for deploying
SocketStream in
production

162. 1 - Check your server’s
ulimit configuration
(This can bite you hard)

163. I learned this when Dashku went
#1 on Hacker News in 45min

164. 2 - Use HTTPS, but
handle it at the load
balancer level rather
than at the app level

165. HTTPS helps to improve
the stability of WebSocket
connections, especially
on mobile devices

166. But Node’s HTTPS
implementation is
noticeably slower than
using HAProxy or Nginx

167. Where is SocketStream
going next?

168. We’re in the process of
getting SocketStream’s
test coverage up

169. We’re also trying to
close some ancient
bugs

170. We also need better
documentation

171. We’re giving the web
site an overhaul

172. And we want to
document how
SocketStream’s internals
function, to help build 0.4

173. but what about 0.4?

174. …0.4 is starting to look like these:

175. I promise you all, it’s
coming in June 2014

176. Thank You
