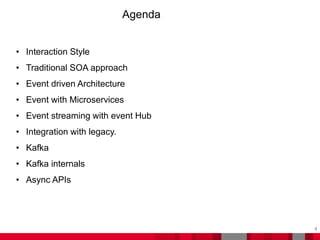

4. Agenda
4
• Interaction Style
• Traditional SOA approach
• Event driven Architecture
• Event with Microservices
• Event streaming with event Hub
• Integration with legacy.
• Kafka
• Kafka internals
• Async APIs

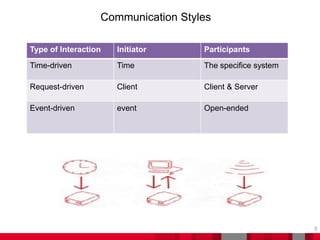

5. Communication Styles
5
Type of Interaction Initiator Participants
Time-driven Time The specifice system
Request-driven Client Client & Server
Event-driven event Open-ended

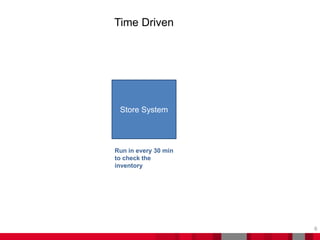

6. Time Driven
6
Store System
Run in every 30 min
to check the
inventory

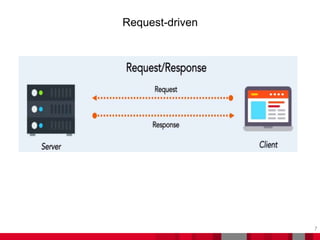

7. Request-driven
7

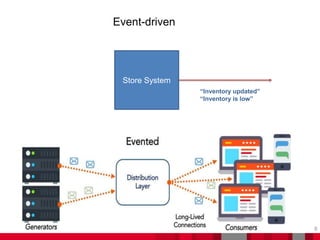

8. Event-driven
8
Store System
“Inventory updated”
“Inventory is low”

9. 9Document Title - Name - Function - Business Unit DD/MM/YYYY
Event Notification

10. • Anything happened (or didnt happen).
• A change in the state.
• An event is always named in the past tense and is immutabled
• A condition that triggers a notification.
CustomerAddressChanged
InventoryUpdated
SalesOrderCreated
PurschaseOrderCreated
10
Events

11. • “Real-time” events as they happen at the producer
• Push notifications
• One-way “fire-and-forget”
• Immediate action at the consumers
• Informational (“someone logged in”), not commands (“audit this”)
11

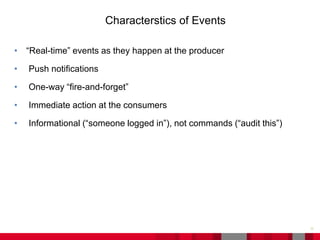

Characterstics of Events

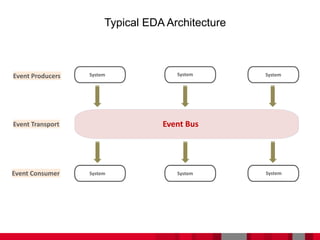

12. Typical EDA Architecture
Event Bus
System SystemSystem
System System System
Event Producers
Event Transport
Event Consumer

13. • Supports the business demands for better service (no
batch, less waiting)
• No point-to-point integrations (fire & forget)
• Fault tolerance, scalability, versatility, and other benefits of
loose coupling.
• Powerful real-time response and analytics.
• Greater operational efficiencies
13

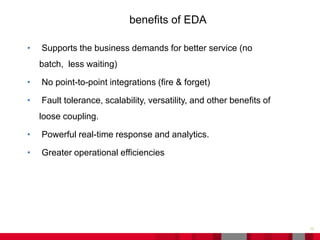

benefits of EDA

14. Where we do come from?
1
4

15. 15Document Title - Name - Function - Business Unit DD/MM/YYYY

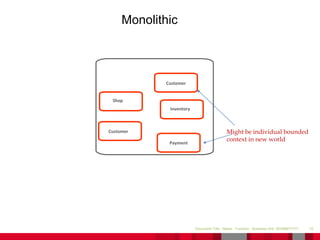

Monolithic
Shop
Customer
Customer
Inventory
Payment
Might be individual bounded
context in new world

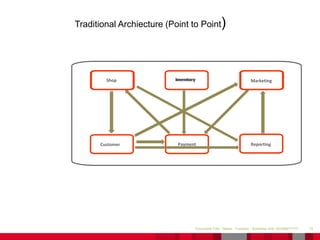

16. 16Document Title - Name - Function - Business Unit DD/MM/YYYY
Traditional Archiecture (Point to Point)
Shop
Customer
MarketingInventory
Payment Reporting
Inventory

17. 17Document Title - Name - Function - Business Unit DD/MM/YYYY

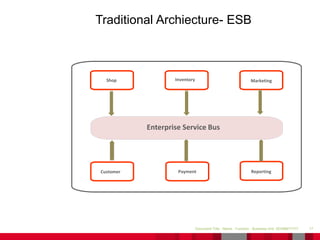

Traditional Archiecture- ESB
Shop
Customer
MarketingInventory
Payment Reporting
Enterprise Service Bus

18. 18Document Title - Name - Function - Business Unit DD/MM/YYYY

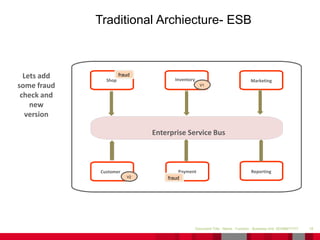

Traditional Archiecture- ESB
Shop
Customer
MarketingInventory
Payment Reporting
Lets add
some fraud
check and
new
version
V1
V2
Enterprise Service Bus
fraud
fraud

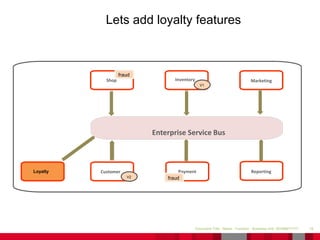

19. 19Document Title - Name - Function - Business Unit DD/MM/YYYY
Lets add loyalty features
Shop
Customer
MarketingInventory
Payment Reporting
V1
V2
Enterprise Service Bus
fraud
fraud
Loyalty

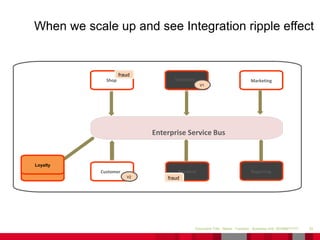

20. 20Document Title - Name - Function - Business Unit DD/MM/YYYY
When we scale up and see Integration ripple effect
Shop
Customer
MarketingInventory
Payment Reporting
V1
V2
Enterprise Service Bus
fraud
fraud
Loyalty
Loyalty

21. • SOA is all about dividing domain logic into separate systems and
exposing it as services
• In some cases business logic will, by its very nature, be spread out
over many systems or across various domain (cross domain).
• The result is domain pollution and bloat in the SOA systems.

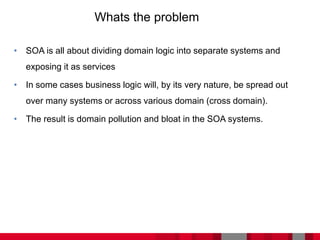

Whats the problem

22. 22Document Title - Name - Function - Business Unit DD/MM/YYYY

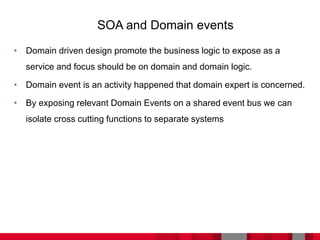

23. • Domain driven design promote the business logic to expose as a
service and focus should be on domain and domain logic.
• Domain event is an activity happened that domain expert is concerned.
• By exposing relevant Domain Events on a shared event bus we can
isolate cross cutting functions to separate systems
SOA and Domain events

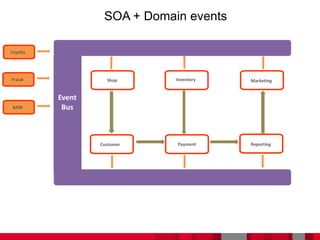

24. SOA + Domain events
Shop
Customer
Marketing
Reporting
Inventory
Payment
Event
Bus
Loyalty
Fraud
BAM

25. “You make me complete”
SOA EDA

26. Event Driven (Async) in Microservices
Shop DBShop logicShop API
Customer DBCustomer logicCustomer API
Payment DBPayment logicPayment API
Event Hub
Shop Microservices
Payment Microservices
Customer Microservices
Producer,
Consumer
Consumer
Consumer

27. 27Document Title - Name - Function - Business Unit DD/MM/YYYY

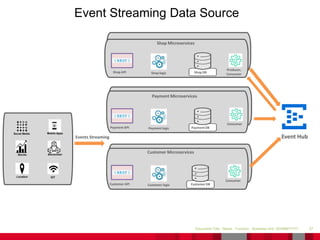

Event Streaming Data Source
Shop DBShop logicShop API
Customer DBCustomer logicCustomer API
Payment DBPayment logicPayment API
Event Hub
Shop Microservices
Payment Microservices
Customer Microservices
Producer,
Consumer
Consumer
Consumer
Mobile AppsSocial Media
Stocks Blockchain
Location IOT
Events Streaming

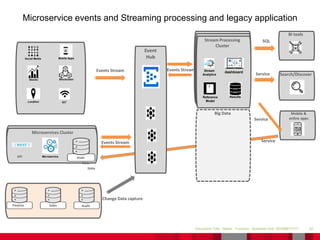

28. 28Document Title - Name - Function - Business Unit DD/MM/YYYY
Microservice events and Streaming processing
StateMicroserviceAPI
Microservices Cluster
Mobile AppsSocial Media
Stocks Blockchain
Location IOT
Events Stream
Event
Hub
Events Stream
Stream Processing
Cluster
Stream
Analytics
dashboard
Events Stream
Reference
Model
Results
BI tools
Search/Discover
Mobile &
online apps
SQL
Service
Service
Service

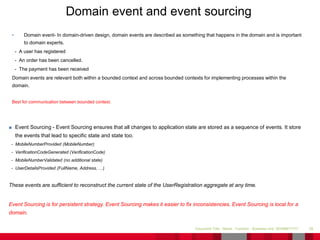

29. • Domain event- In domain-driven design, domain events are described as something that happens in the domain and is important
to domain experts.
- A user has registered
- An order has been cancelled.
- The payment has been received
Domain events are relevant both within a bounded context and across bounded contexts for implementing processes within the
domain.
Best for communication between bounded context.
29Document Title - Name - Function - Business Unit DD/MM/YYYY
Domain event and event sourcing
■ Event Sourcing - Event Sourcing ensures that all changes to application state are stored as a sequence of events. It store
the events that lead to specific state and state too.
- MobileNumberProvided (MobileNumber)
- VerificationCodeGenerated (VerificationCode)
- MobileNumberValidated (no additional state)
- UserDetailsProvided (FullName, Address, …)
These events are sufficient to reconstruct the current state of the UserRegistration aggregate at any time.
Event Sourcing is for persistent strategy. Event Sourcing makes it easier to fix inconsistencies. Event Sourcing is local for a
domain.

30. Why Kafka for event-driven?
3
0

31. 31Document Title - Name - Function - Business Unit DD/MM/YYYY

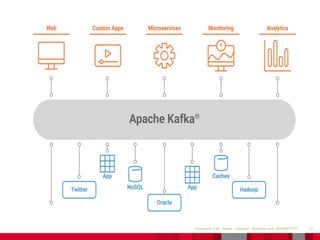

32. 32Document Title - Name - Function - Business Unit DD/MM/YYYY

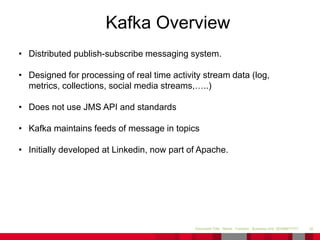

Kafka Overview
• Distributed publish-subscribe messaging system.
• Designed for processing of real time activity stream data (log,
metrics, collections, social media streams,…..)
• Does not use JMS API and standards
• Kafka maintains feeds of message in topics
• Initially developed at Linkedin, now part of Apache.

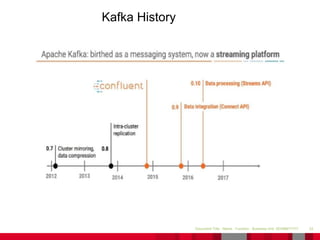

33. 33Document Title - Name - Function - Business Unit DD/MM/YYYY
Kafka History

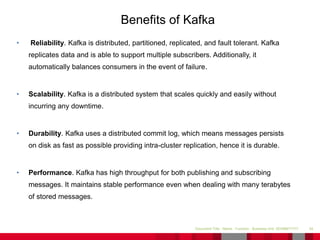

34. • Reliability. Kafka is distributed, partitioned, replicated, and fault tolerant. Kafka
replicates data and is able to support multiple subscribers. Additionally, it
automatically balances consumers in the event of failure.
• Scalability. Kafka is a distributed system that scales quickly and easily without
incurring any downtime.
• Durability. Kafka uses a distributed commit log, which means messages persists
on disk as fast as possible providing intra-cluster replication, hence it is durable.
• Performance. Kafka has high throughput for both publishing and subscribing
messages. It maintains stable performance even when dealing with many terabytes
of stored messages.
34Document Title - Name - Function - Business Unit DD/MM/YYYY
Benefits of Kafka

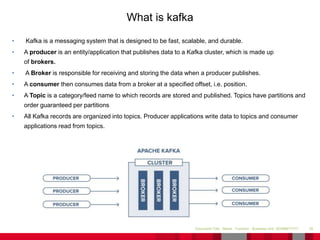

35. • Kafka is a messaging system that is designed to be fast, scalable, and durable.
• A producer is an entity/application that publishes data to a Kafka cluster, which is made up
of brokers.
• A Broker is responsible for receiving and storing the data when a producer publishes.
• A consumer then consumes data from a broker at a specified offset, i.e. position.
• A Topic is a category/feed name to which records are stored and published. Topics have partitions and
order guaranteed per partitions
• All Kafka records are organized into topics. Producer applications write data to topics and consumer
applications read from topics.
35Document Title - Name - Function - Business Unit DD/MM/YYYY
What is kafka

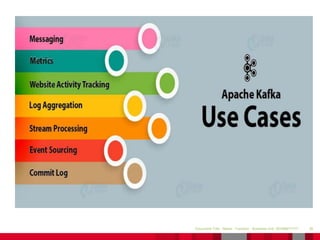

36. 36Document Title - Name - Function - Business Unit DD/MM/YYYY

37. 37Document Title - Name - Function - Business Unit DD/MM/YYYY

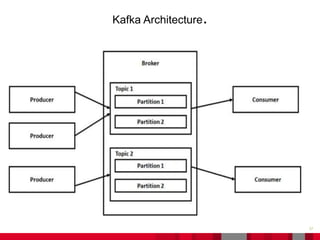

Kafka Architecture.

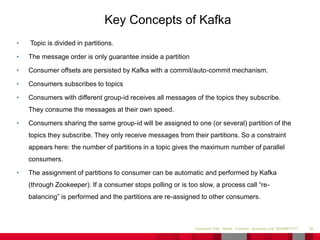

38. • Topic is divided in partitions.
• The message order is only guarantee inside a partition
• Consumer offsets are persisted by Kafka with a commit/auto-commit mechanism.
• Consumers subscribes to topics
• Consumers with different group-id receives all messages of the topics they subscribe.
They consume the messages at their own speed.
• Consumers sharing the same group-id will be assigned to one (or several) partition of the
topics they subscribe. They only receive messages from their partitions. So a constraint
appears here: the number of partitions in a topic gives the maximum number of parallel
consumers.
• The assignment of partitions to consumer can be automatic and performed by Kafka
(through Zookeeper). If a consumer stops polling or is too slow, a process call “re-
balancing” is performed and the partitions are re-assigned to other consumers.
38Document Title - Name - Function - Business Unit DD/MM/YYYY
Key Concepts of Kafka

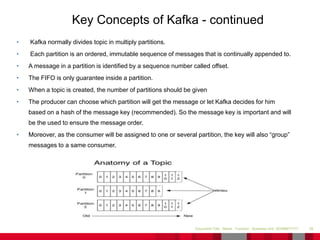

39. • Kafka normally divides topic in multiply partitions.
• Each partition is an ordered, immutable sequence of messages that is continually appended to.
• A message in a partition is identified by a sequence number called offset.
• The FIFO is only guarantee inside a partition.
• When a topic is created, the number of partitions should be given
• The producer can choose which partition will get the message or let Kafka decides for him
based on a hash of the message key (recommended). So the message key is important and will
be the used to ensure the message order.
• Moreover, as the consumer will be assigned to one or several partition, the key will also “group”
messages to a same consumer.
39Document Title - Name - Function - Business Unit DD/MM/YYYY
Key Concepts of Kafka - continued

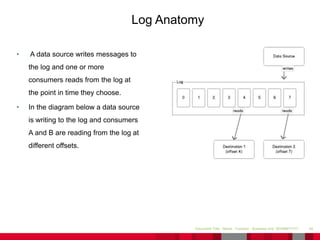

40. • A data source writes messages to
the log and one or more
consumers reads from the log at
the point in time they choose.
• In the diagram below a data source
is writing to the log and consumers
A and B are reading from the log at
different offsets.
40Document Title - Name - Function - Business Unit DD/MM/YYYY
Log Anatomy

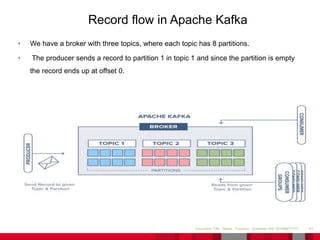

41. • We have a broker with three topics, where each topic has 8 partitions.
• The producer sends a record to partition 1 in topic 1 and since the partition is empty
the record ends up at offset 0.
41Document Title - Name - Function - Business Unit DD/MM/YYYY
Record flow in Apache Kafka

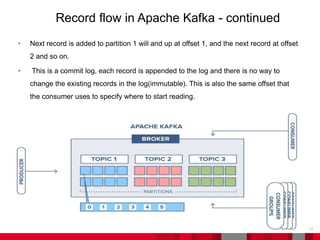

42. • Next record is added to partition 1 will and up at offset 1, and the next record at offset
2 and so on.
• This is a commit log, each record is appended to the log and there is no way to
change the existing records in the log(immutable). This is also the same offset that
the consumer uses to specify where to start reading.
42Document Title - Name - Function - Business Unit DD/MM/YYYY
Record flow in Apache Kafka - continued

43. 43Document Title - Name - Function - Business Unit DD/MM/YYYY

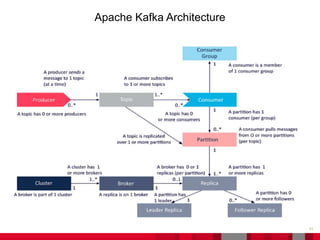

Apache Kafka Architecture

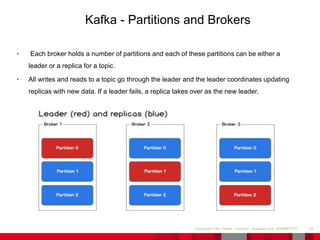

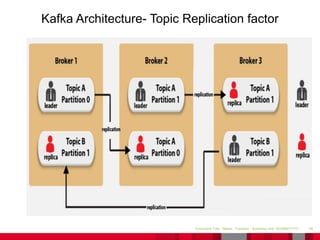

44. • Each broker holds a number of partitions and each of these partitions can be either a
leader or a replica for a topic.
• All writes and reads to a topic go through the leader and the leader coordinates updating
replicas with new data. If a leader fails, a replica takes over as the new leader.
44Document Title - Name - Function - Business Unit DD/MM/YYYY
Kafka - Partitions and Brokers

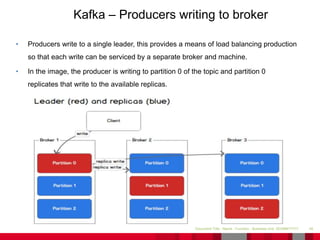

45. • Producers write to a single leader, this provides a means of load balancing production
so that each write can be serviced by a separate broker and machine.
• In the image, the producer is writing to partition 0 of the topic and partition 0
replicates that write to the available replicas.
45Document Title - Name - Function - Business Unit DD/MM/YYYY
Kafka – Producers writing to broker

46. 46Document Title - Name - Function - Business Unit DD/MM/YYYY
Kafka Architecture- Topic Replication factor

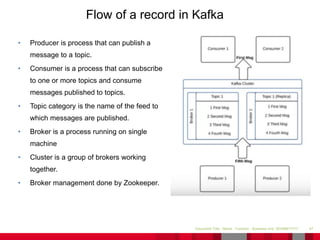

47. • Producer is process that can publish a
message to a topic.
• Consumer is a process that can subscribe
to one or more topics and consume
messages published to topics.
• Topic category is the name of the feed to
which messages are published.
• Broker is a process running on single
machine
• Cluster is a group of brokers working
together.
• Broker management done by Zookeeper.
47Document Title - Name - Function - Business Unit DD/MM/YYYY
Flow of a record in Kafka

48. • Auto Scalable infrastructure.
• Multi language support (SDKs)
• Event Streaming Database
• GUI driven management and monitoring
• Enterprise Grade security
• Diagnostic Logs
• Data Monitor
• Global Resilience
• Disaster Recovery
• Connector with legacy application
• Retention management
• Flexible DevOps
• …..
Document Title - Name - Function - Business Unit DD/MM/YYYY
What are capabilites of events hub

49. • Traditional message broker (not really event driven)
49Document Title - Name - Function - Business Unit DD/MM/YYYY
Alternatives of event-hub or kafka?

50. 50Document Title - Name - Function - Business Unit DD/MM/YYYY

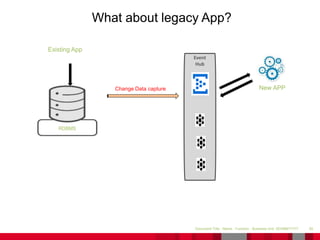

What about legacy App?
RDBMS
Existing App
Event
Hub
New APPChange Data capture

51. • Attunity Replicate
• Debezium (open source)
• IBM IIDR
• Oracle GoldenGate for Big Data
• SQ Data
51Document Title - Name - Function - Business Unit DD/MM/YYYY
Change data capture tools

52. 52Document Title - Name - Function - Business Unit DD/MM/YYYY
Microservice events and Streaming processing and legacy application
StateMicroserviceAPI
Microservices Cluster
Mobile AppsSocial Media
Stocks Blockchain
Location IOT
Events Stream
Event
Hub
Events Stream
Stream Processing
Cluster
Stream
Analytics
dashboard
Events Stream
Reference
Model
Results
BI tools
Search/Discover
Mobile &
online apps
SQL
Service
Service
Service
State
State
Finance Sales Audit
Change Data capture
Big Data

53. 53Document Title - Name - Function - Business Unit DD/MM/YYYY

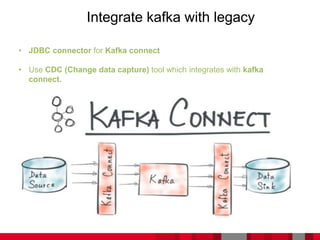

54. Integrate kafka with legacy
• JDBC connector for Kafka connect
• Use CDC (Change data capture) tool which integrates with kafka
connect.

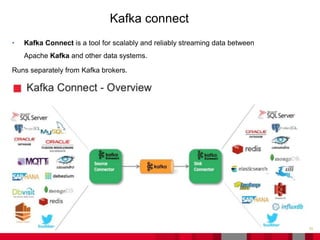

55. • Kafka Connect is a tool for scalably and reliably streaming data between
Apache Kafka and other data systems.
Runs separately from Kafka brokers.
55Document Title - Name - Function - Business Unit DD/MM/YYYY
Kafka connect

56. • How do manage the event lifecycle?
• We have API management platform for APIs.
56Document Title - Name - Function - Business Unit DD/MM/YYYY
Async API - https://www.asyncapi.com/
Event lifecycle
- Design
- Documentation
- Code generation
- Event management
- Test
- Monitoring

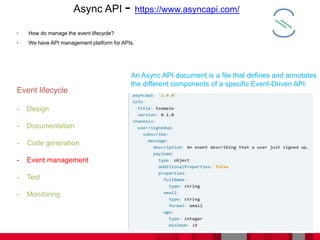

An Async API document is a file that defines and annotates
the different components of a specific Event-Driven API.

57. 57Document Title - Name - Function - Business Unit DD/MM/YYYY
OpenAPI- AsyncAPI comparison

58. Summary
5
8

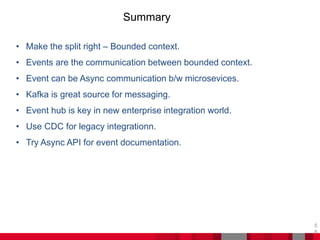

• Make the split right – Bounded context.
• Events are the communication between bounded context.
• Event can be Async communication b/w microsevices.
• Kafka is great source for messaging.
• Event hub is key in new enterprise integration world.
• Use CDC for legacy integrationn.
• Try Async API for event documentation.

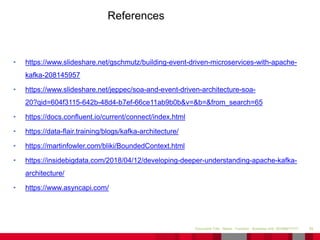

59. • https://www.slideshare.net/gschmutz/building-event-driven-microservices-with-apache-
kafka-208145957
• https://www.slideshare.net/jeppec/soa-and-event-driven-architecture-soa-
20?qid=604f3115-642b-48d4-b7ef-66ce11ab9b0b&v=&b=&from_search=65
• https://docs.confluent.io/current/connect/index.html
• https://data-flair.training/blogs/kafka-architecture/
• https://martinfowler.com/bliki/BoundedContext.html
• https://insidebigdata.com/2018/04/12/developing-deeper-understanding-apache-kafka-
architecture/
• https://www.asyncapi.com/
59Document Title - Name - Function - Business Unit DD/MM/YYYY
References

60. Questions?
6
0
