1. Richard Thomson
Senior Software Engineer, NVIDIA
@LegalizeAdulthd
http://LegalizeAdulthood.wordpress.com
legalize@xmission.com

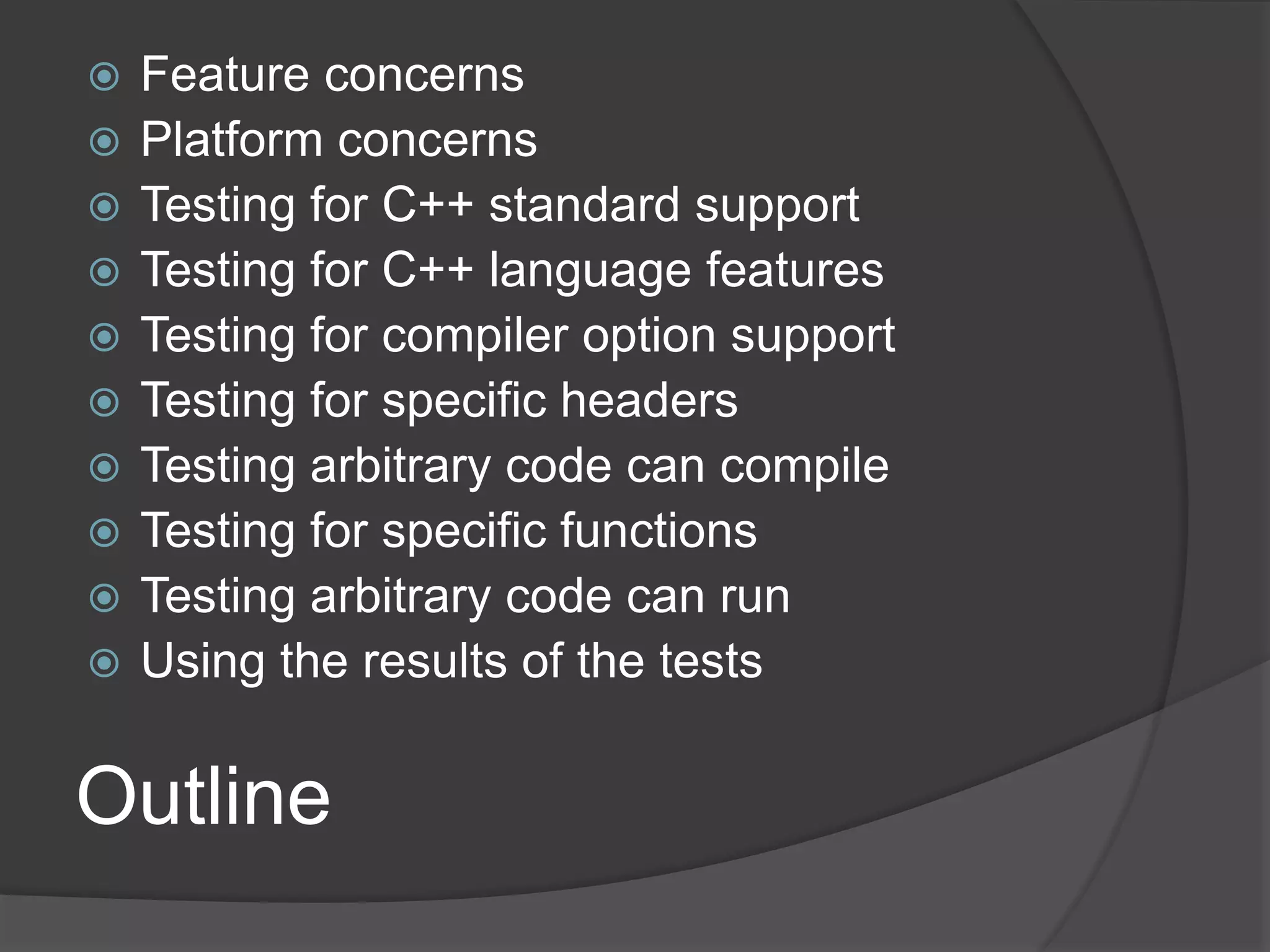

2. Outline
 Feature concerns
 Platform concerns
 Testing for C++ standard support
 Testing for C++ language features
 Testing for compiler option support
 Testing for specific headers
 Testing arbitrary code can compile
 Testing for specific functions
 Testing arbitrary code can run
 Using the results of the tests

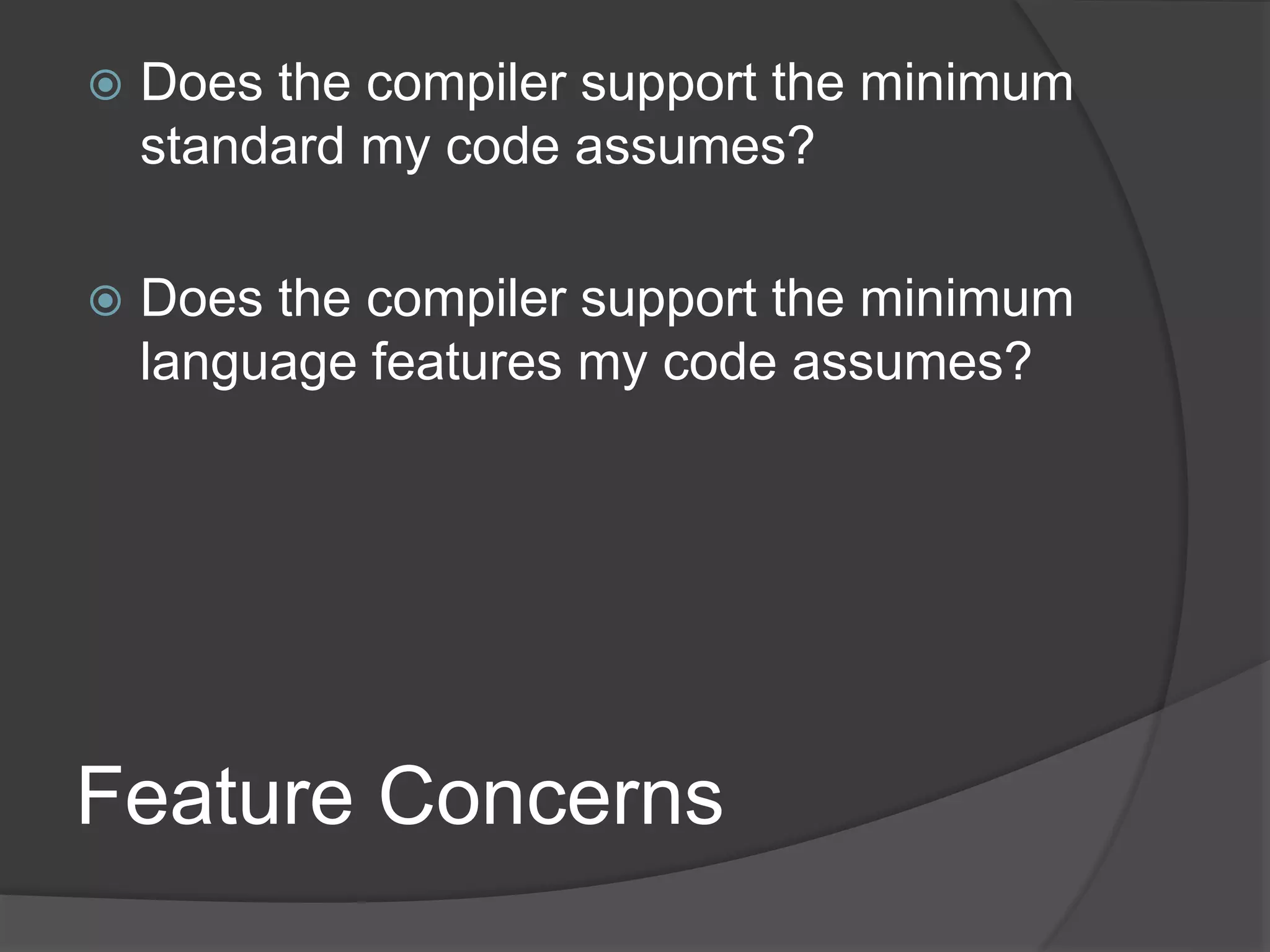

3. Feature Concerns
 Does the compiler support the minimum
standard my code assumes?
 Does the compiler support the minimum
language features my code assumes?

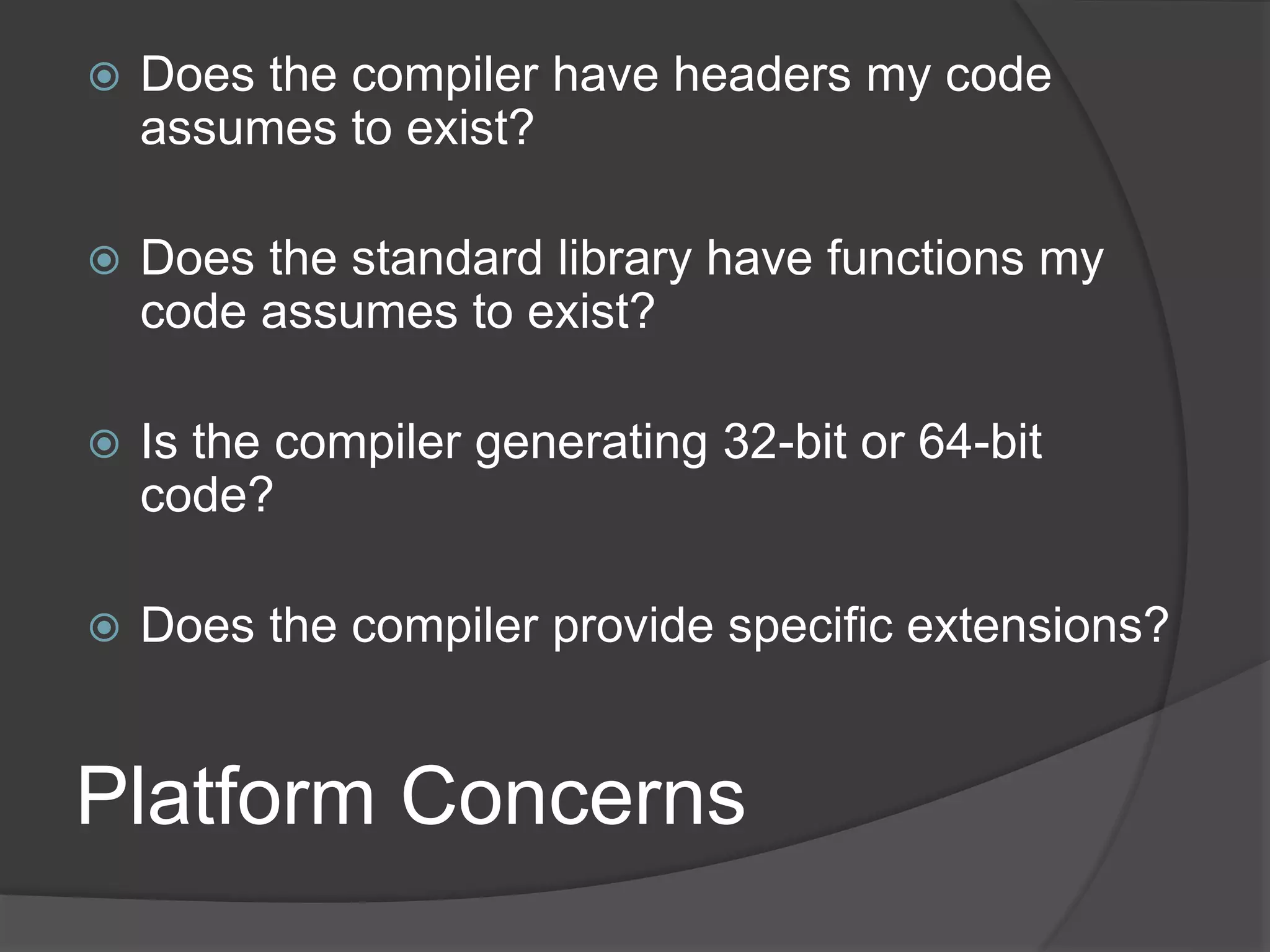

4. Platform Concerns
 Does the compiler have headers my code
assumes to exist?
 Does the standard library have functions my
code assumes to exist?
 Is the compiler generating 32-bit or 64-bit
code?
 Does the compiler provide specific extensions?

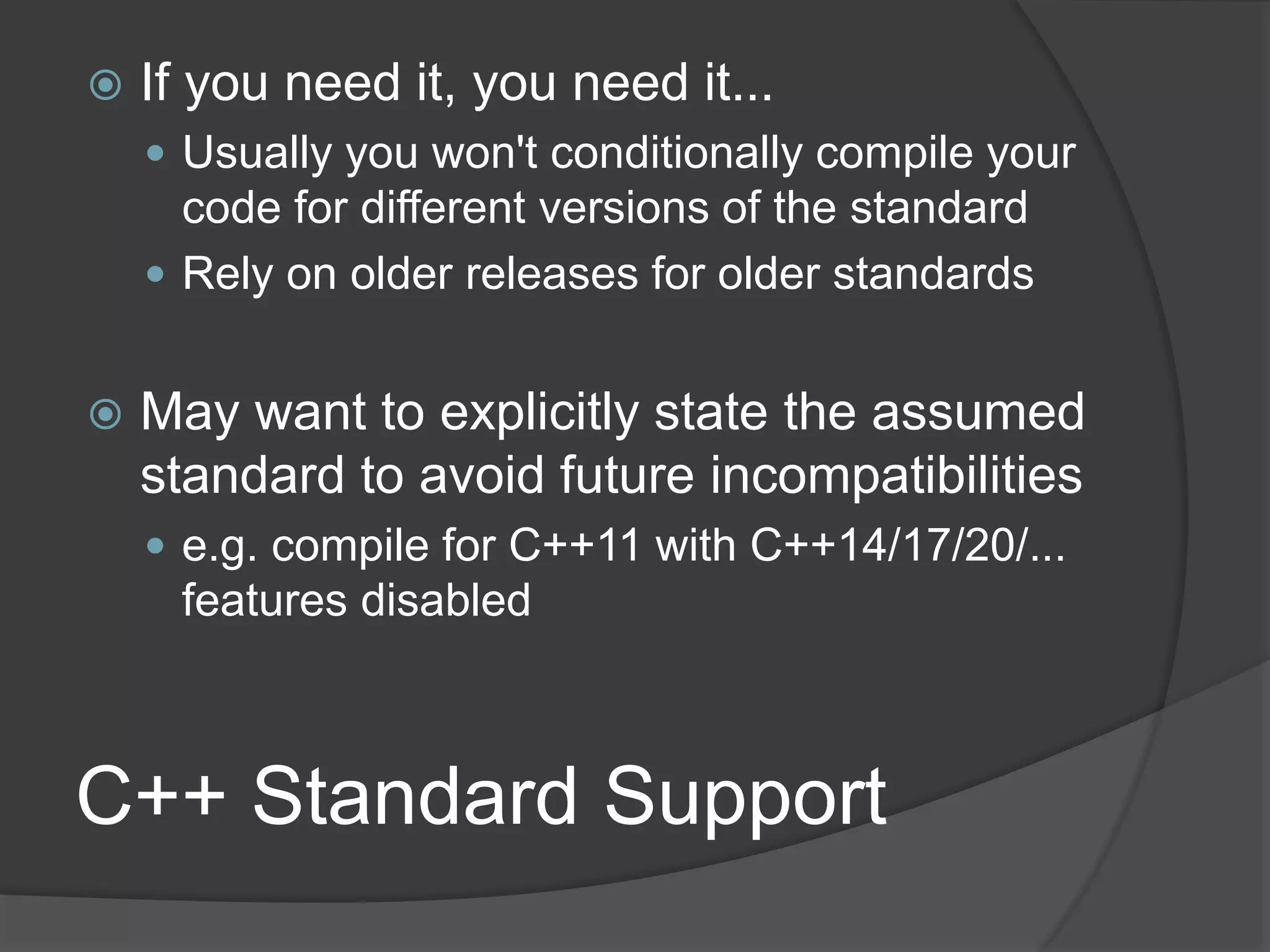

5. C++ Standard Support
 If you need it, you need it...
 Usually you won't conditionally compile your
code for different versions of the standard
 Rely on older releases for older standards
 May want to explicitly state the assumed
standard to avoid future incompatibilities
 e.g. compile for C++11 with C++14/17/20/...
features disabled

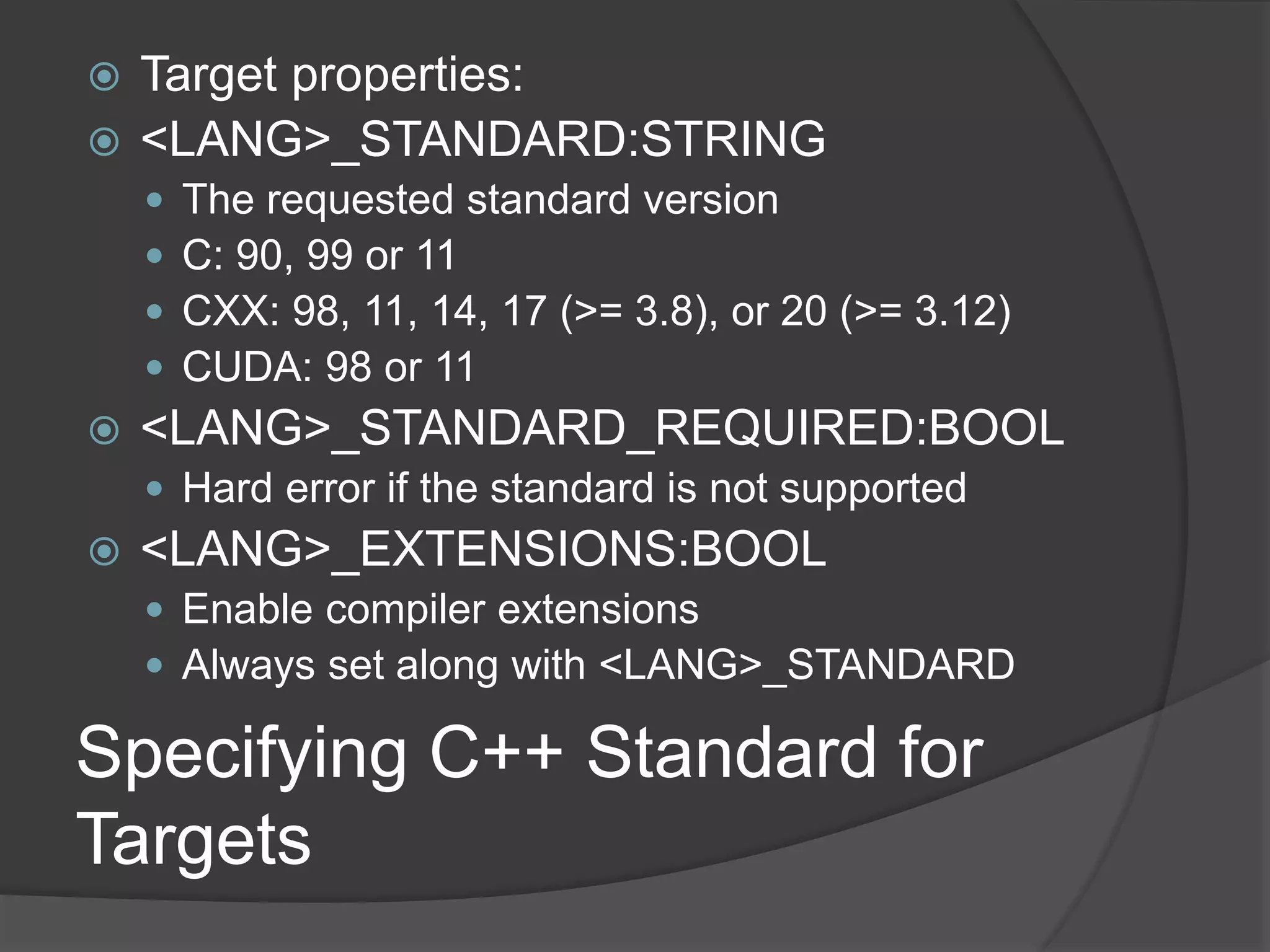

6. Specifying C++ Standard for
Targets
 Target properties:
 <LANG>_STANDARD:STRING
 The requested standard version
 C: 90, 99 or 11
 CXX: 98, 11, 14, 17 (>= 3.8), or 20 (>= 3.12)
 CUDA: 98 or 11
 <LANG>_STANDARD_REQUIRED:BOOL
 Hard error if the standard is not supported
 <LANG>_EXTENSIONS:BOOL
 Enable compiler extensions
 Always set along with <LANG>_STANDARD

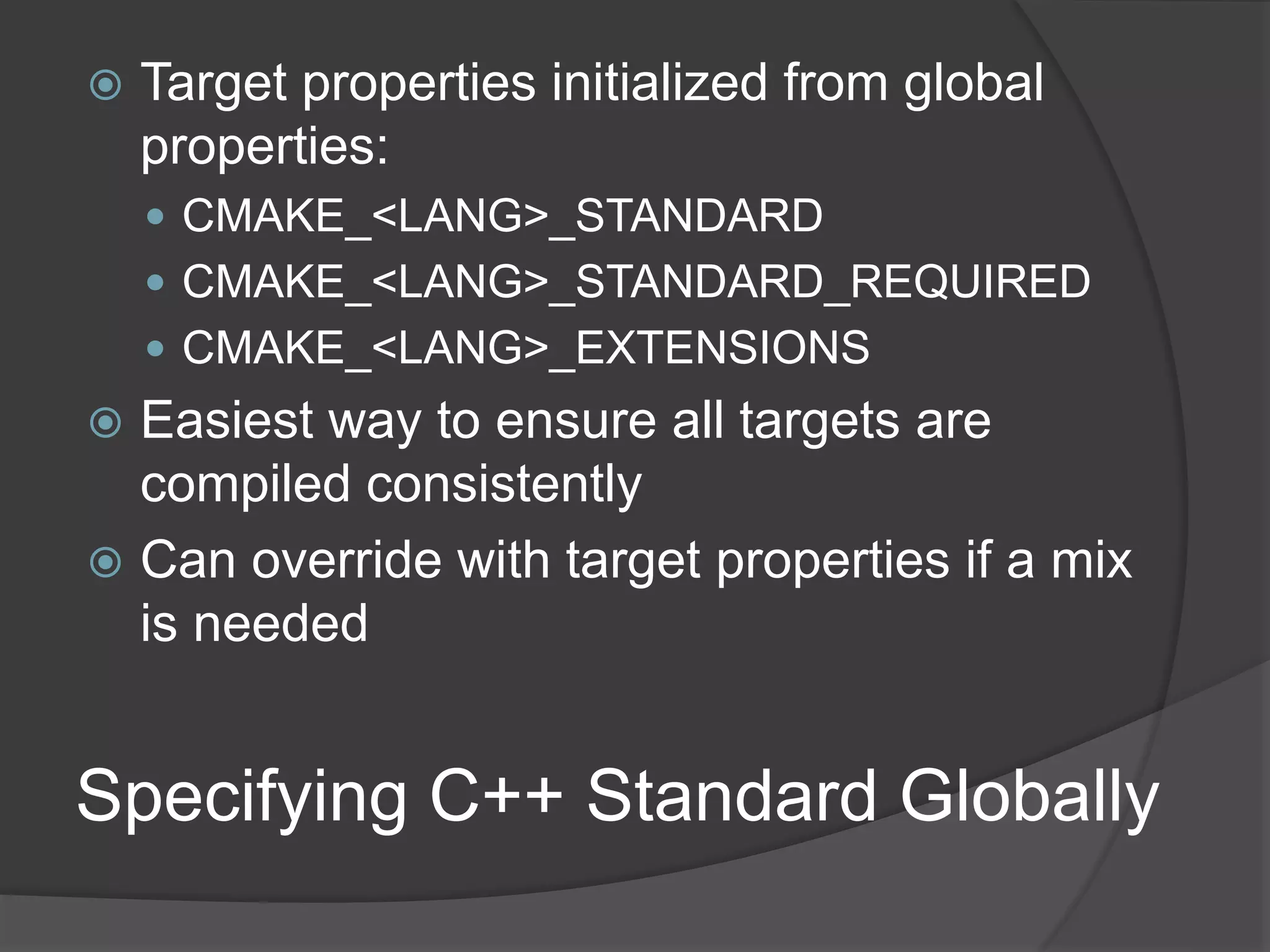

7. Specifying C++ Standard Globally
 Target properties initialized from global
properties:
 CMAKE_<LANG>_STANDARD
 CMAKE_<LANG>_STANDARD_REQUIRED
 CMAKE_<LANG>_EXTENSIONS
 Easiest way to ensure all targets are
compiled consistently
 Can override with target properties if a mix
is needed

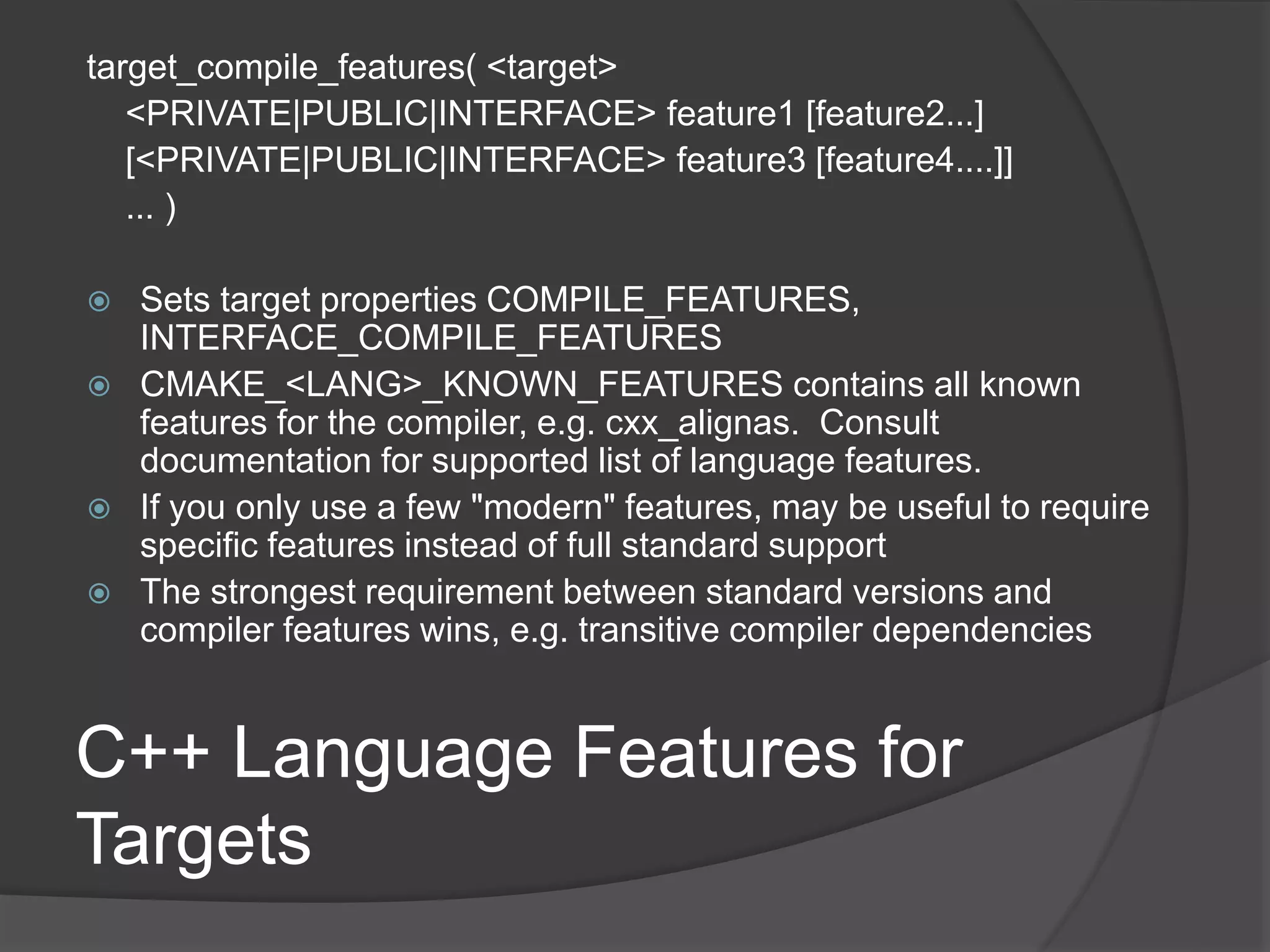

8. C++ Language Features for
Targets
target_compile_features( <target>
<PRIVATE|PUBLIC|INTERFACE> feature1 [feature2...]
[<PRIVATE|PUBLIC|INTERFACE> feature3 [feature4....]]
... )
 Sets target properties COMPILE_FEATURES,
INTERFACE_COMPILE_FEATURES
 CMAKE_<LANG>_KNOWN_FEATURES contains all known
features for the compiler, e.g. cxx_alignas. Consult
documentation for supported list of language features.
 If you only use a few "modern" features, may be useful to require
specific features instead of full standard support
 The strongest requirement between standard versions and
compiler features wins, e.g. transitive compiler dependencies

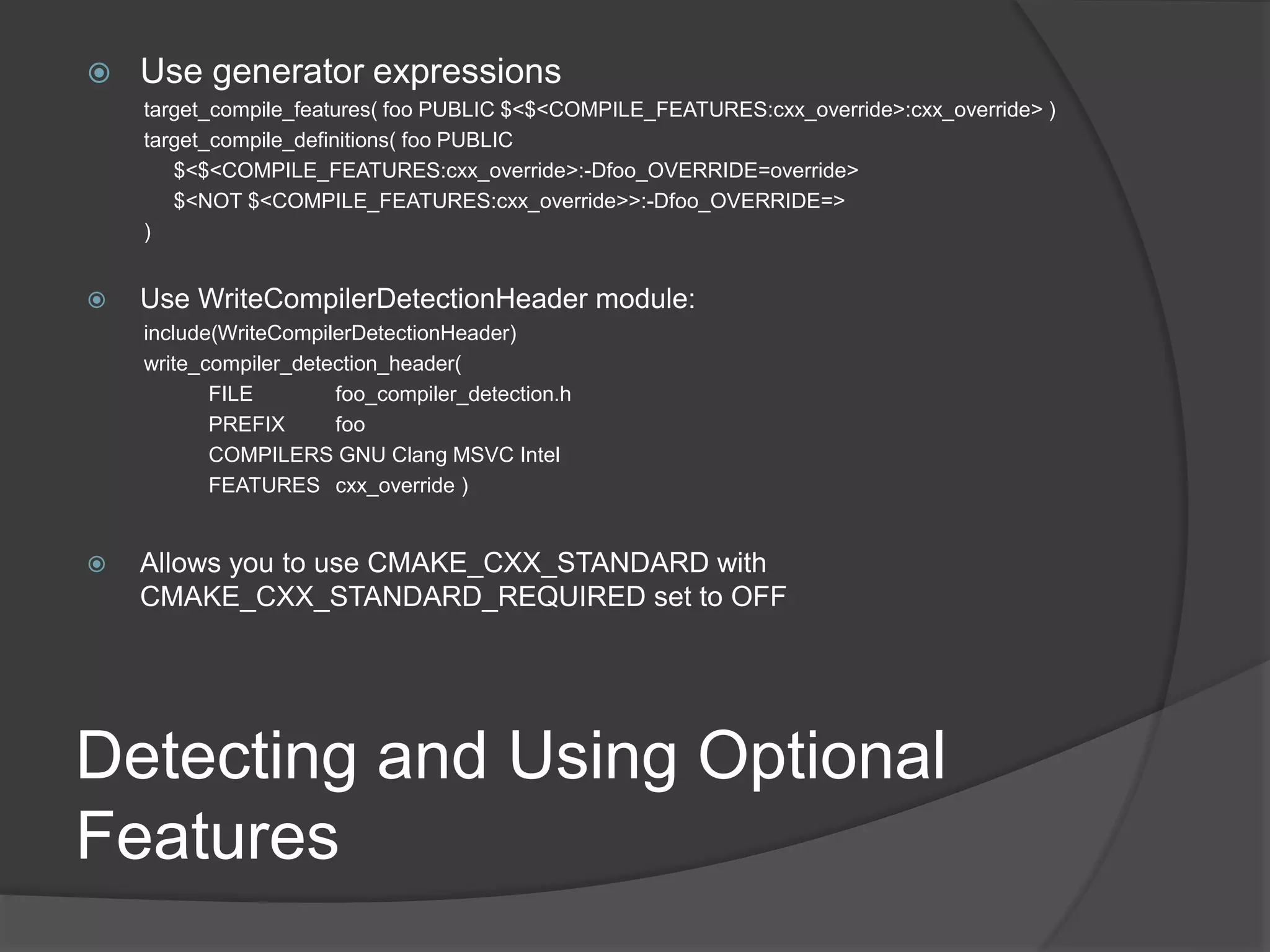

9. Detecting and Using Optional
Features
 Use generator expressions
target_compile_features( foo PUBLIC $<$<COMPILE_FEATURES:cxx_override>:cxx_override> )
target_compile_definitions( foo PUBLIC
$<$<COMPILE_FEATURES:cxx_override>:-Dfoo_OVERRIDE=override>
$<NOT $<COMPILE_FEATURES:cxx_override>>:-Dfoo_OVERRIDE=>
)
 Use WriteCompilerDetectionHeader module:
include(WriteCompilerDetectionHeader)
write_compiler_detection_header(
FILE foo_compiler_detection.h
PREFIX foo
COMPILERS GNU Clang MSVC Intel
FEATURES cxx_override )
 Allows you to use CMAKE_CXX_STANDARD with
CMAKE_CXX_STANDARD_REQUIRED set to OFF

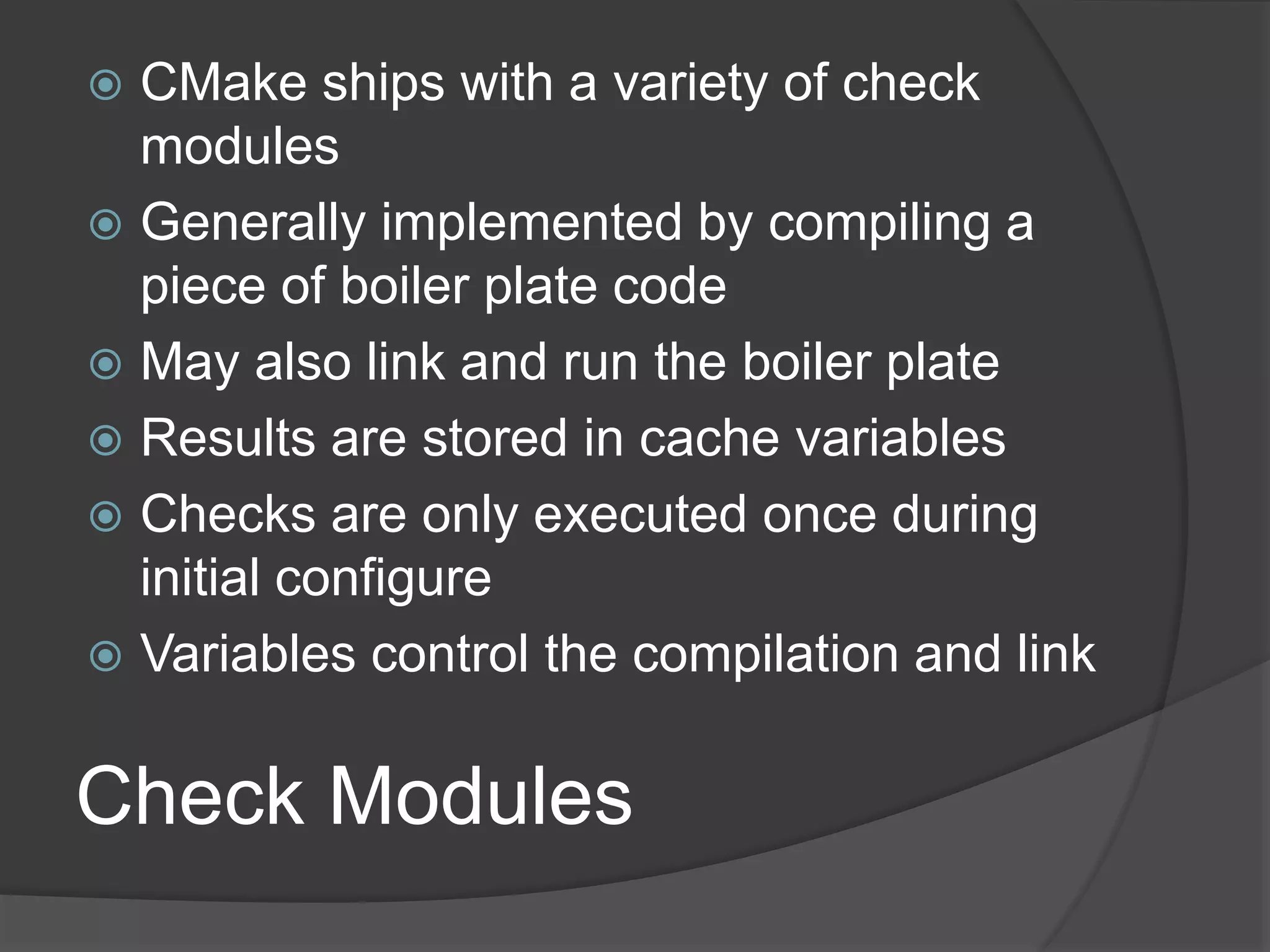

10. Check Modules
 CMake ships with a variety of check
modules
 Generally implemented by compiling a
piece of boiler plate code
 May also link and run the boiler plate
 Results are stored in cache variables
 Checks are only executed once during
initial configure
 Variables control the compilation and link

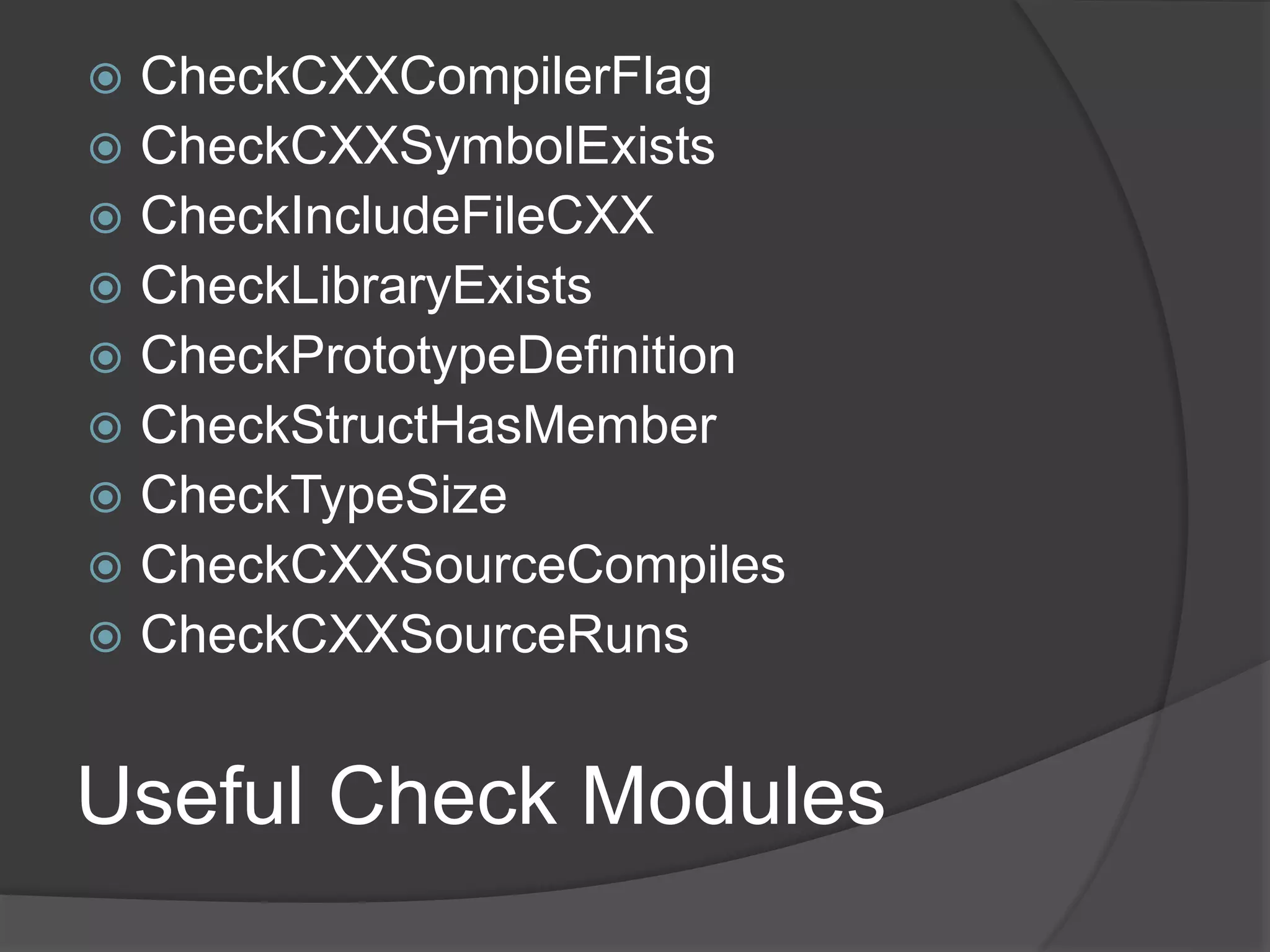

11. Useful Check Modules
 CheckCXXCompilerFlag
 CheckCXXSymbolExists
 CheckIncludeFileCXX
 CheckLibraryExists
 CheckPrototypeDefinition
 CheckStructHasMember
 CheckTypeSize
 CheckCXXSourceCompiles
 CheckCXXSourceRuns

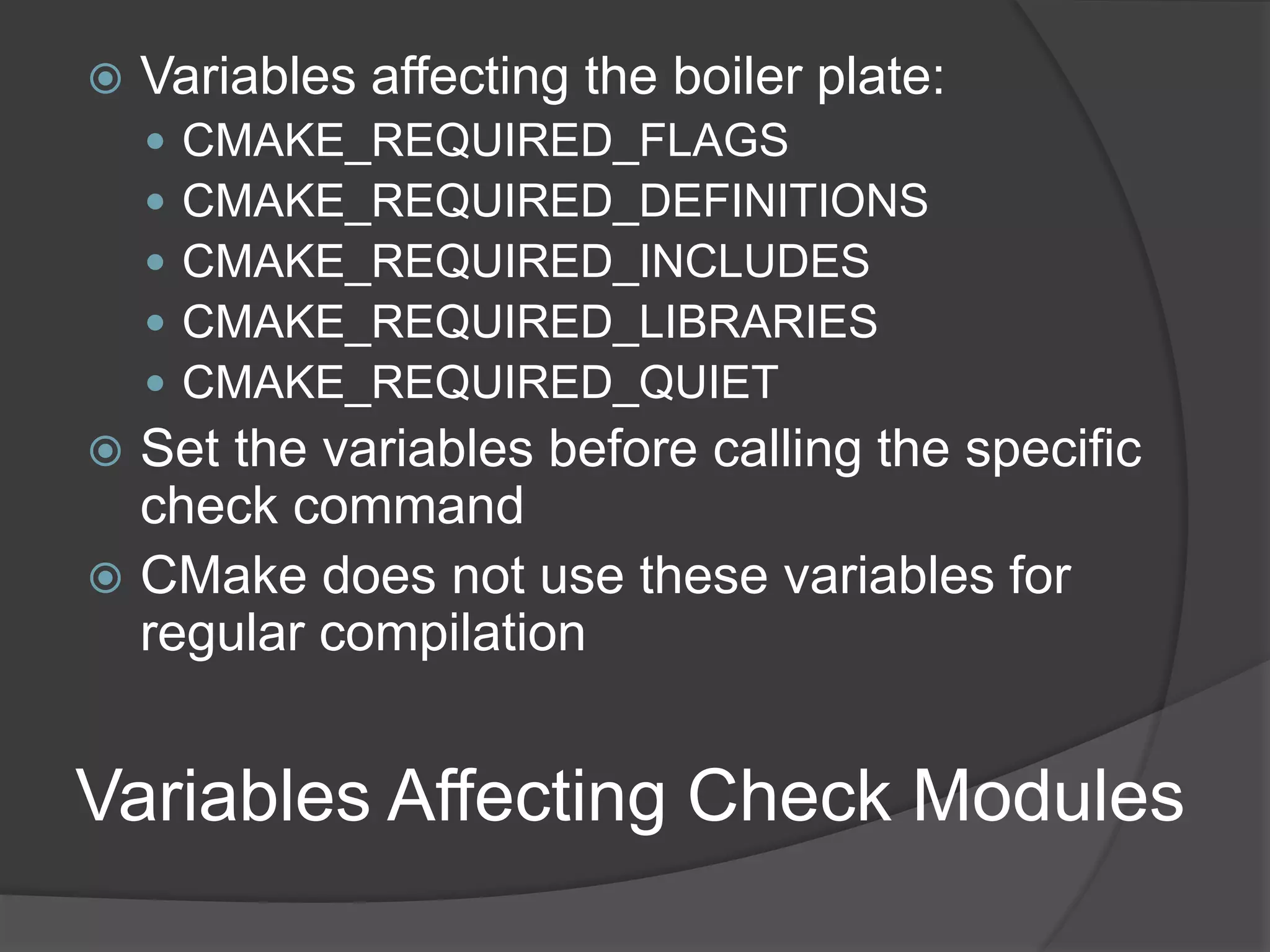

12. Variables Affecting Check Modules
 Variables affecting the boiler plate:
 CMAKE_REQUIRED_FLAGS
 CMAKE_REQUIRED_DEFINITIONS
 CMAKE_REQUIRED_INCLUDES
 CMAKE_REQUIRED_LIBRARIES
 CMAKE_REQUIRED_QUIET
 Set the variables before calling the specific
check command
 CMake does not use these variables for
regular compilation

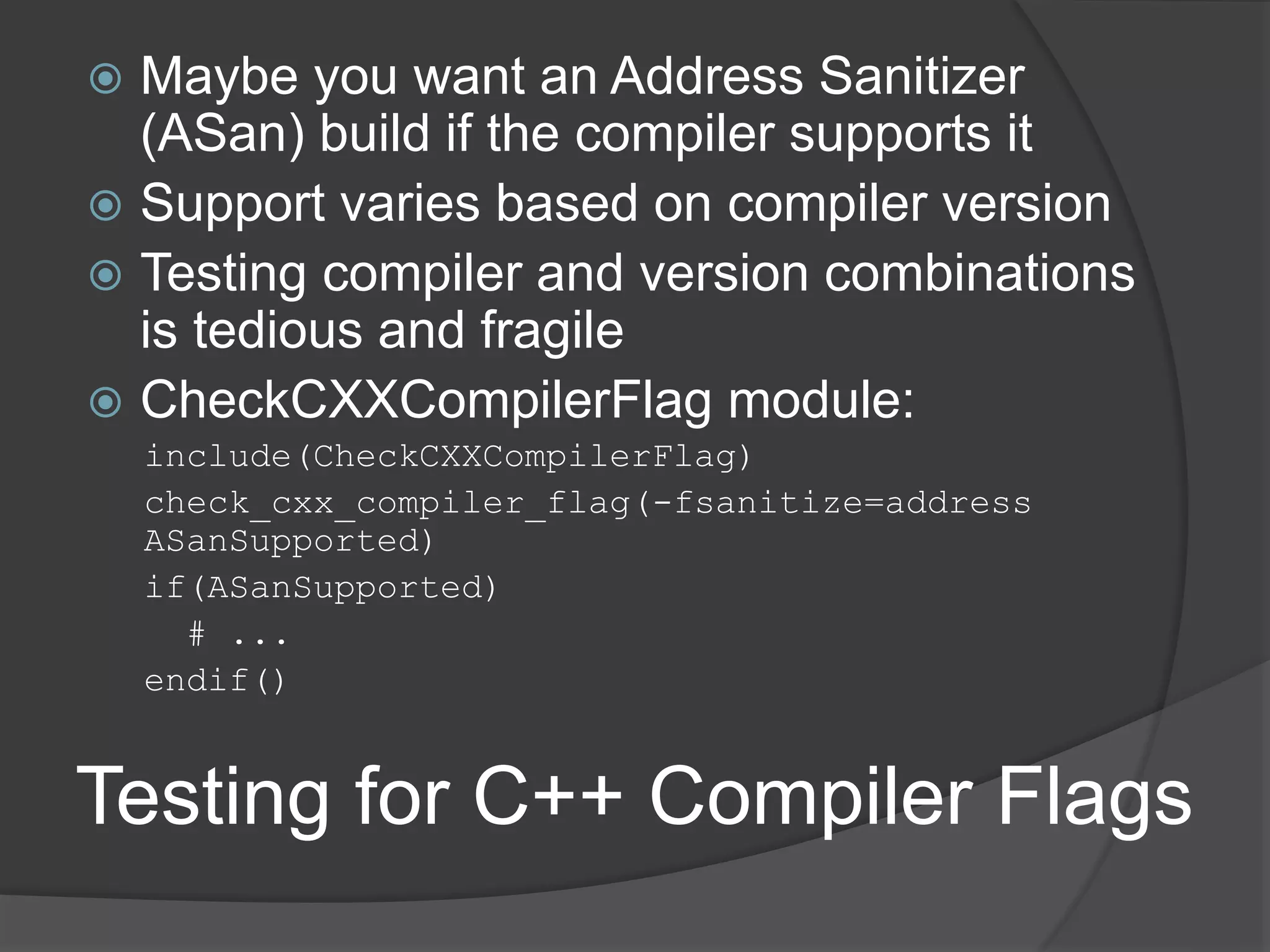

13. Testing for C++ Compiler Flags
 Maybe you want an Address Sanitizer
(ASan) build if the compiler supports it
 Support varies based on compiler version
 Testing compiler and version combinations
is tedious and fragile
 CheckCXXCompilerFlag module:
include(CheckCXXCompilerFlag)
check_cxx_compiler_flag(-fsanitize=address
ASanSupported)
if(ASanSupported)
# ...
endif()

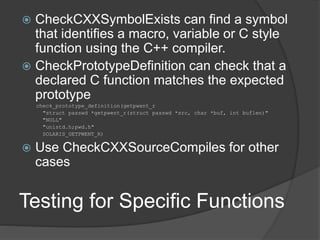

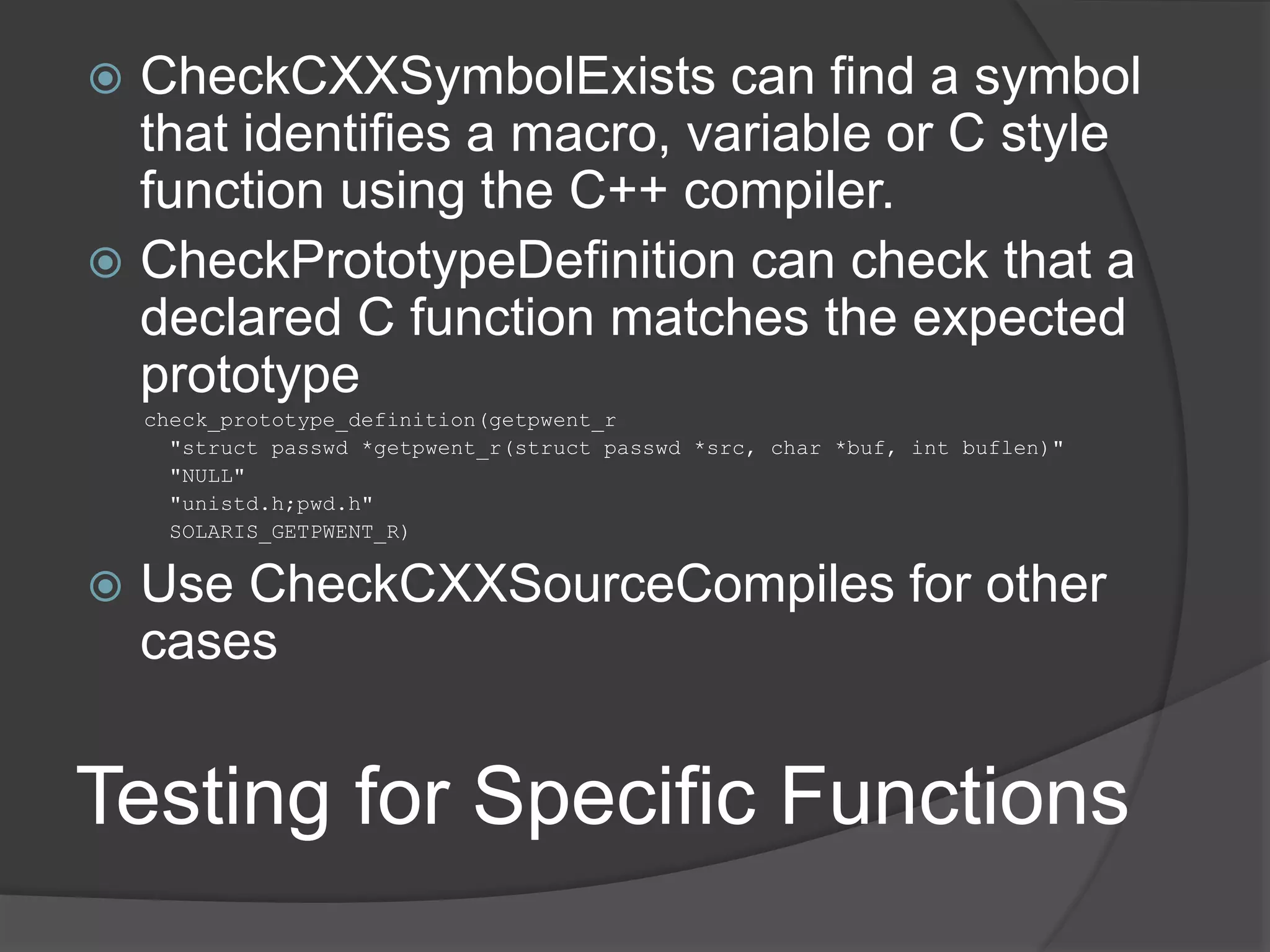

14. Testing for Specific Functions
 CheckCXXSymbolExists can find a symbol
that identifies a macro, variable or C style
function using the C++ compiler.
 CheckPrototypeDefinition can check that a
declared C function matches the expected
prototype
check_prototype_definition(getpwent_r
"struct passwd *getpwent_r(struct passwd *src, char *buf, int buflen)"
"NULL"
"unistd.h;pwd.h"
SOLARIS_GETPWENT_R)
 Use CheckCXXSourceCompiles for other
cases

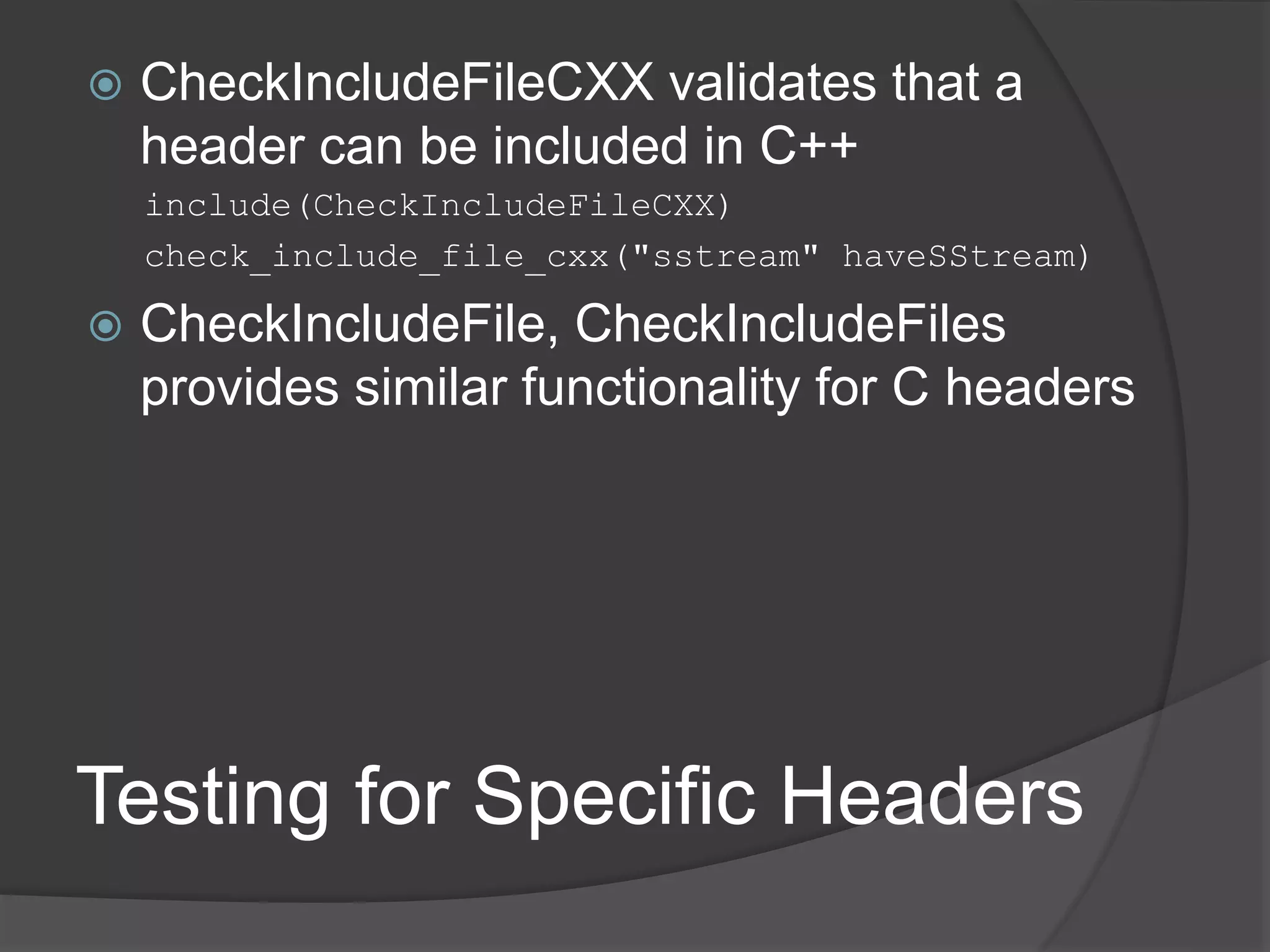

15. Testing for Specific Headers
 CheckIncludeFileCXX validates that a
header can be included in C++
include(CheckIncludeFileCXX)
check_include_file_cxx("sstream" haveSStream)
 CheckIncludeFile, CheckIncludeFiles
provides similar functionality for C headers

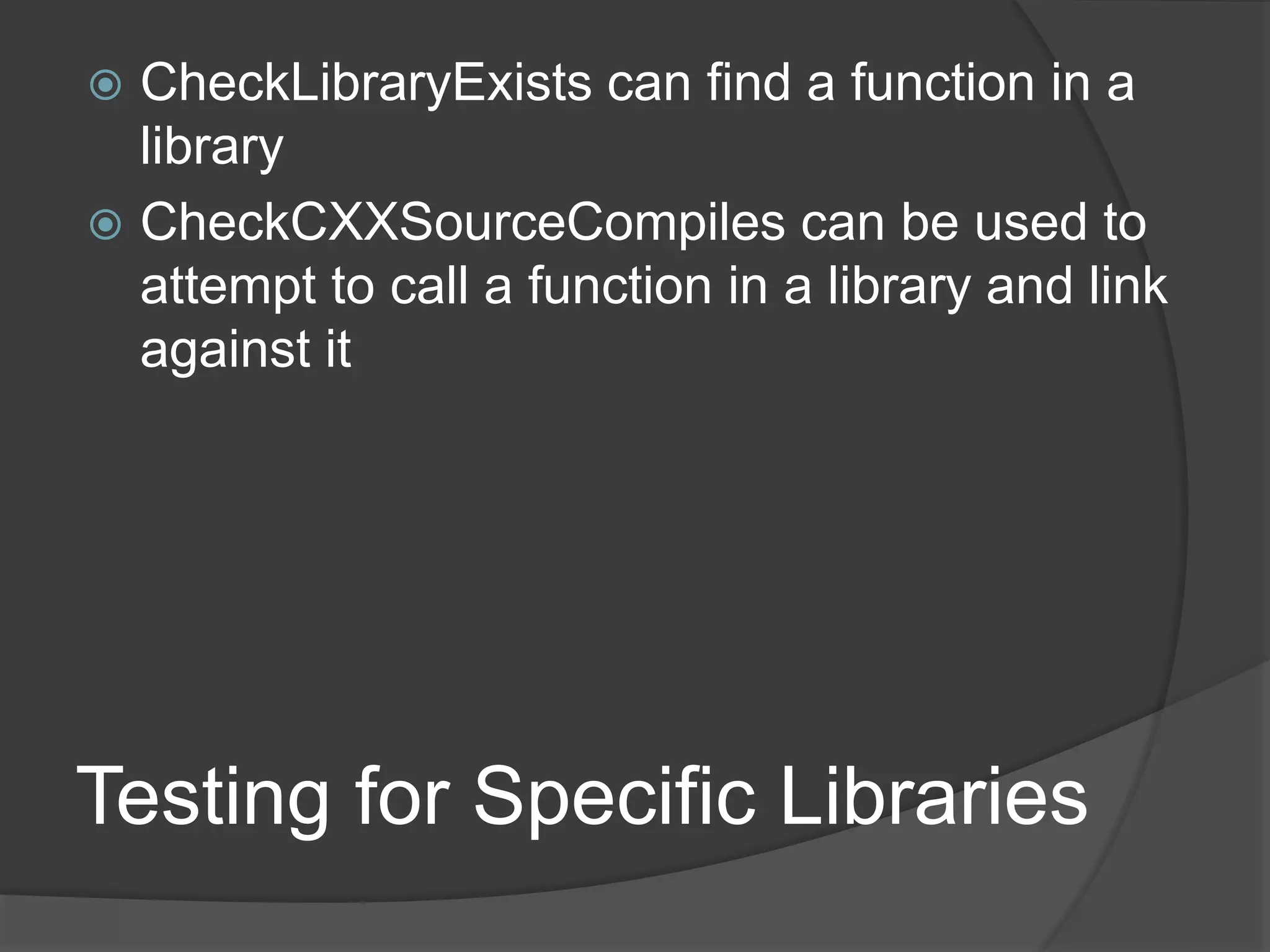

16. Testing for Specific Libraries
 CheckLibraryExists can find a function in a
library
 CheckCXXSourceCompiles can be used to
attempt to call a function in a library and link
against it

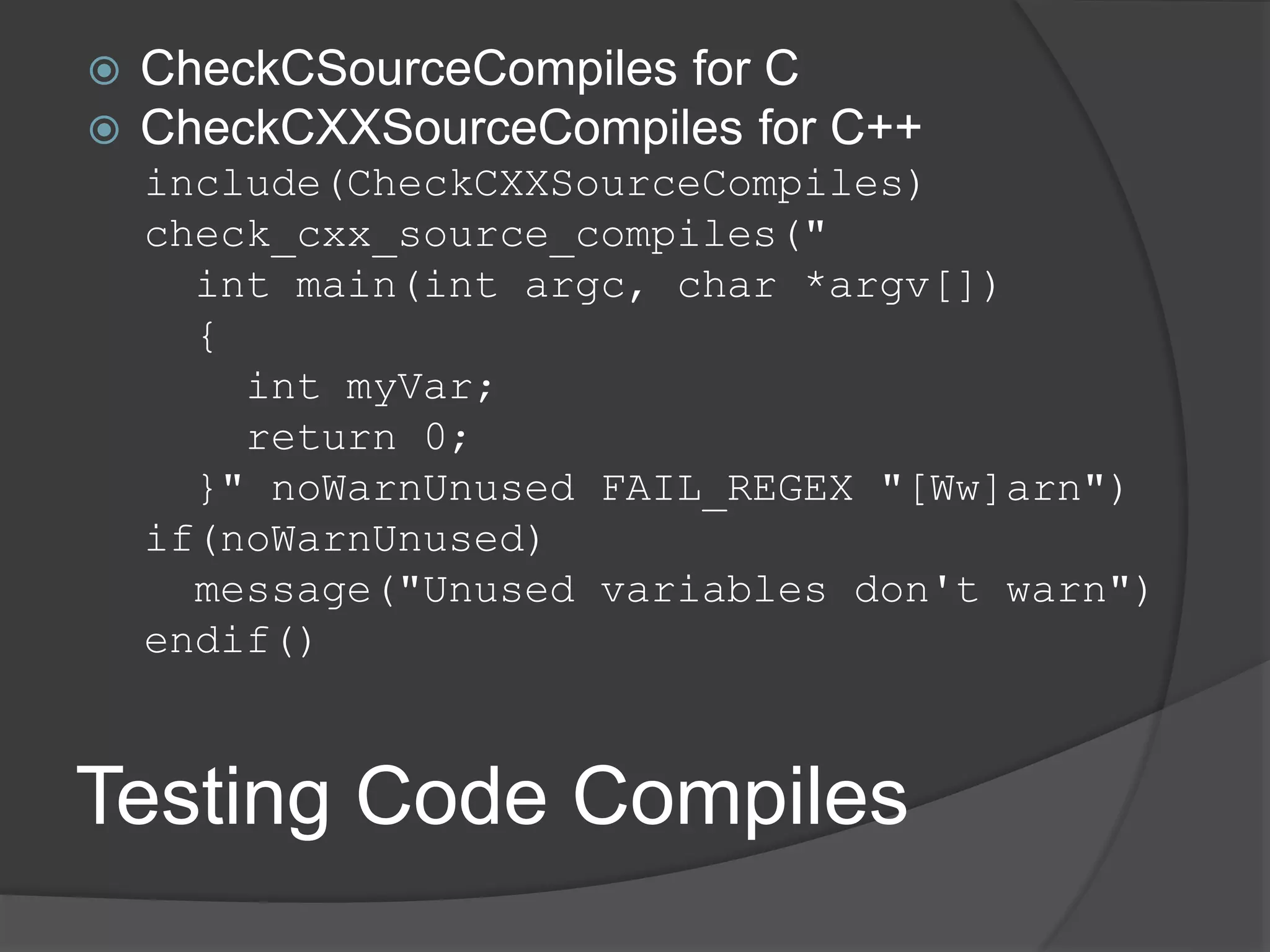

17. Testing Code Compiles
 CheckCSourceCompiles for C
 CheckCXXSourceCompiles for C++
include(CheckCXXSourceCompiles)
check_cxx_source_compiles("
int main(int argc, char *argv[])
{
int myVar;
return 0;
}" noWarnUnused FAIL_REGEX "[Ww]arn")
if(noWarnUnused)
message("Unused variables don't warn")
endif()

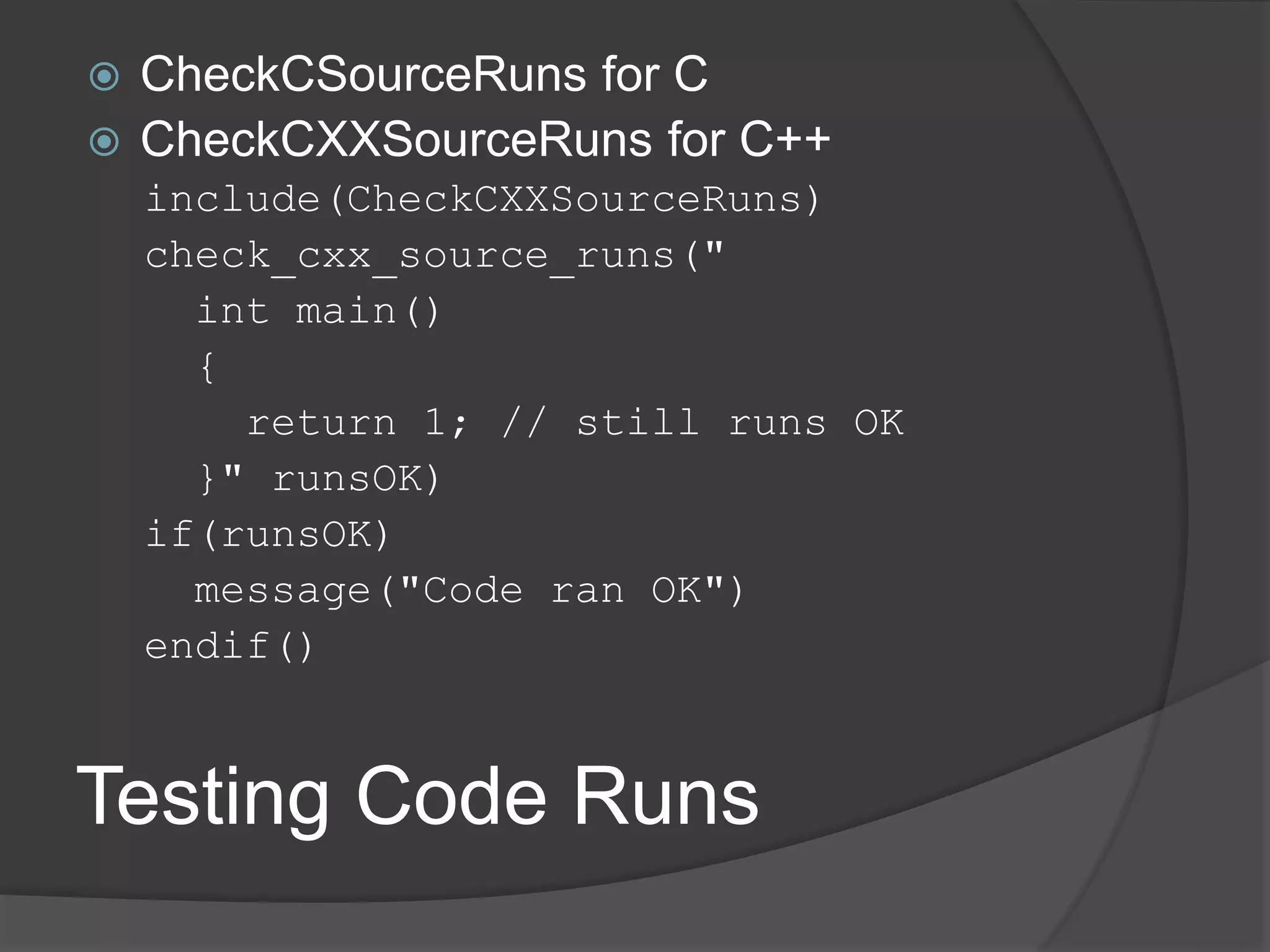

18. Testing Code Runs
 CheckCSourceRuns for C
 CheckCXXSourceRuns for C++
include(CheckCXXSourceRuns)
check_cxx_source_runs("
int main()
{
return 1; // still runs OK
}" runsOK)
if(runsOK)
message("Code ran OK")
endif()

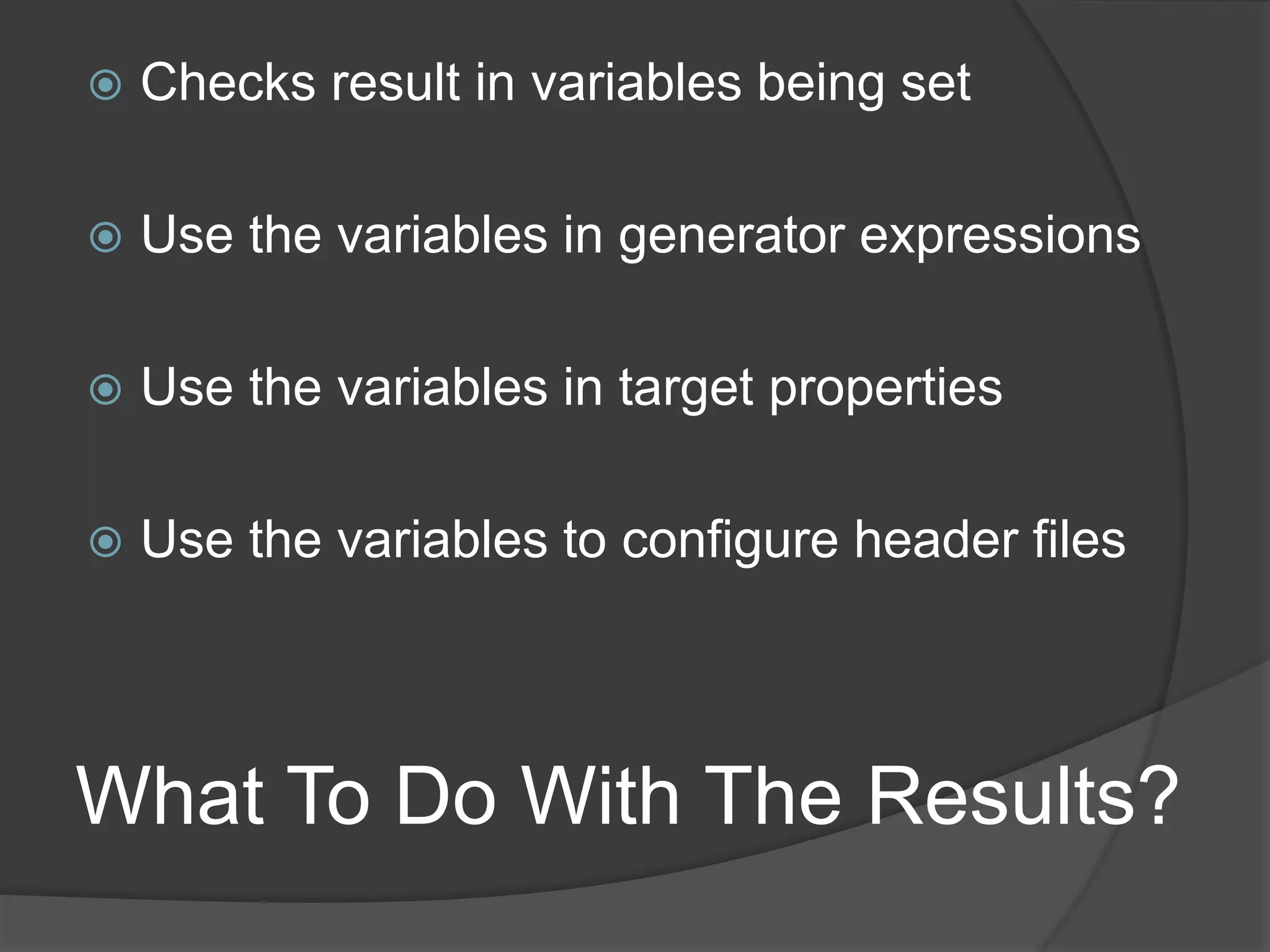

19. What To Do With The Results?
 Checks result in variables being set
 Use the variables in generator expressions
 Use the variables in target properties
 Use the variables to configure header files

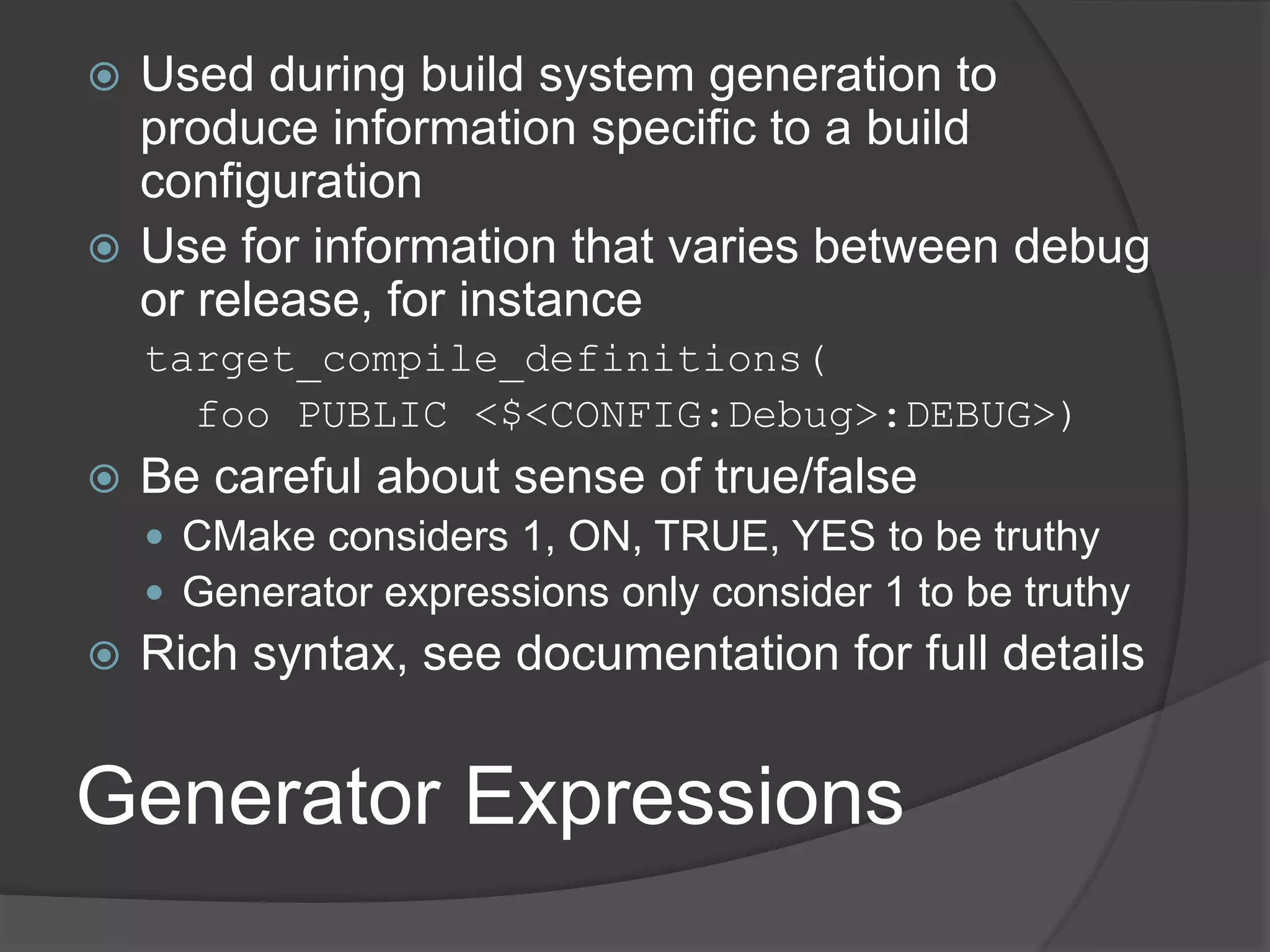

20. Generator Expressions
 Used during build system generation to
produce information specific to a build
configuration
 Use for information that varies between debug
or release, for instance
target_compile_definitions(
foo PUBLIC <$<CONFIG:Debug>:DEBUG>)
 Be careful about sense of true/false
 CMake considers 1, ON, TRUE, YES to be truthy
 Generator expressions only consider 1 to be truthy
 Rich syntax, see documentation for full details

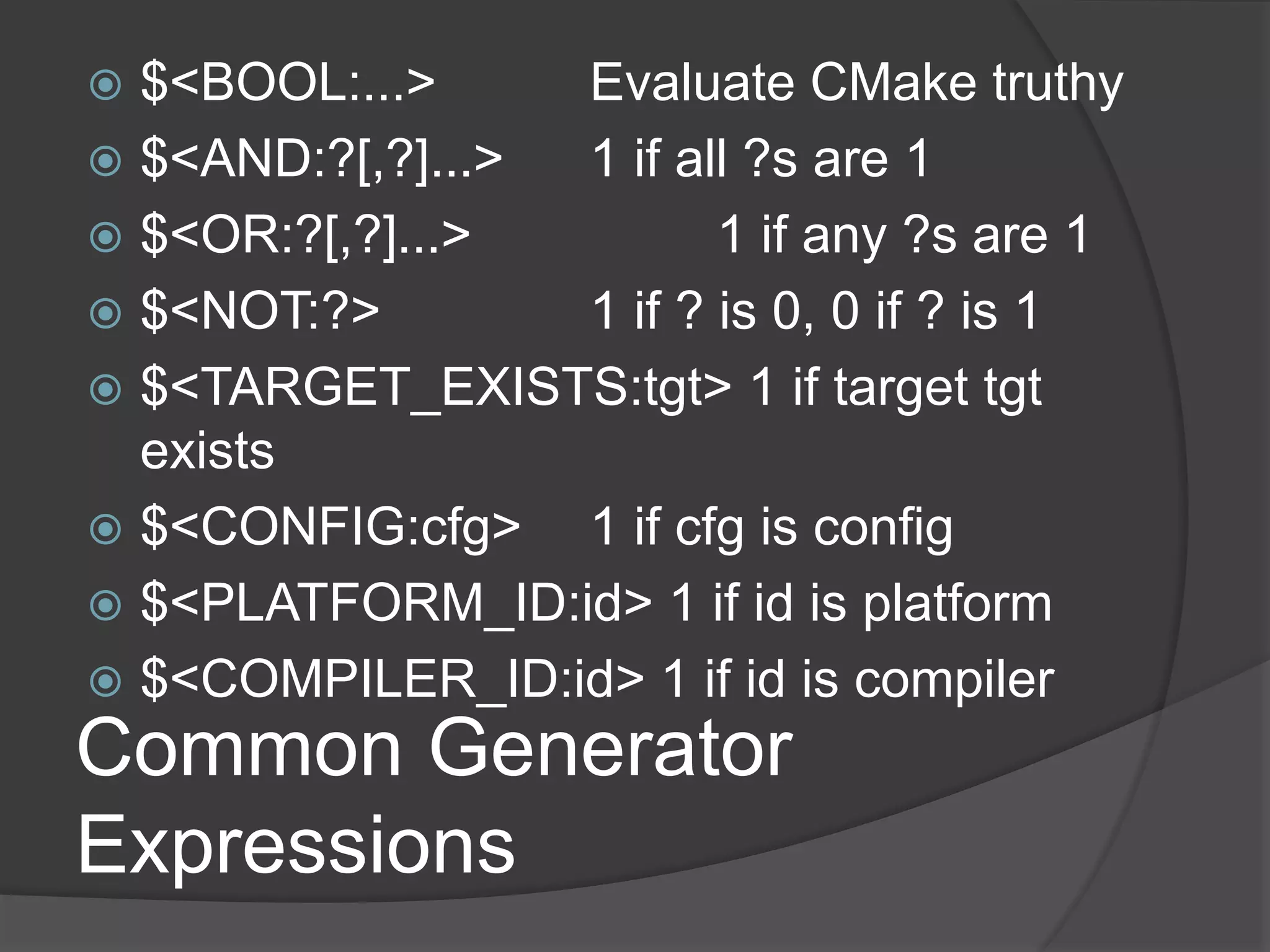

21. Common Generator
Expressions
 $<BOOL:...> Evaluate CMake truthy
 $<AND:?[,?]...> 1 if all ?s are 1
 $<OR:?[,?]...> 1 if any ?s are 1
 $<NOT:?> 1 if ? is 0, 0 if ? is 1
 $<TARGET_EXISTS:tgt> 1 if target tgt
exists
 $<CONFIG:cfg> 1 if cfg is config
 $<PLATFORM_ID:id> 1 if id is platform
 $<COMPILER_ID:id> 1 if id is compiler

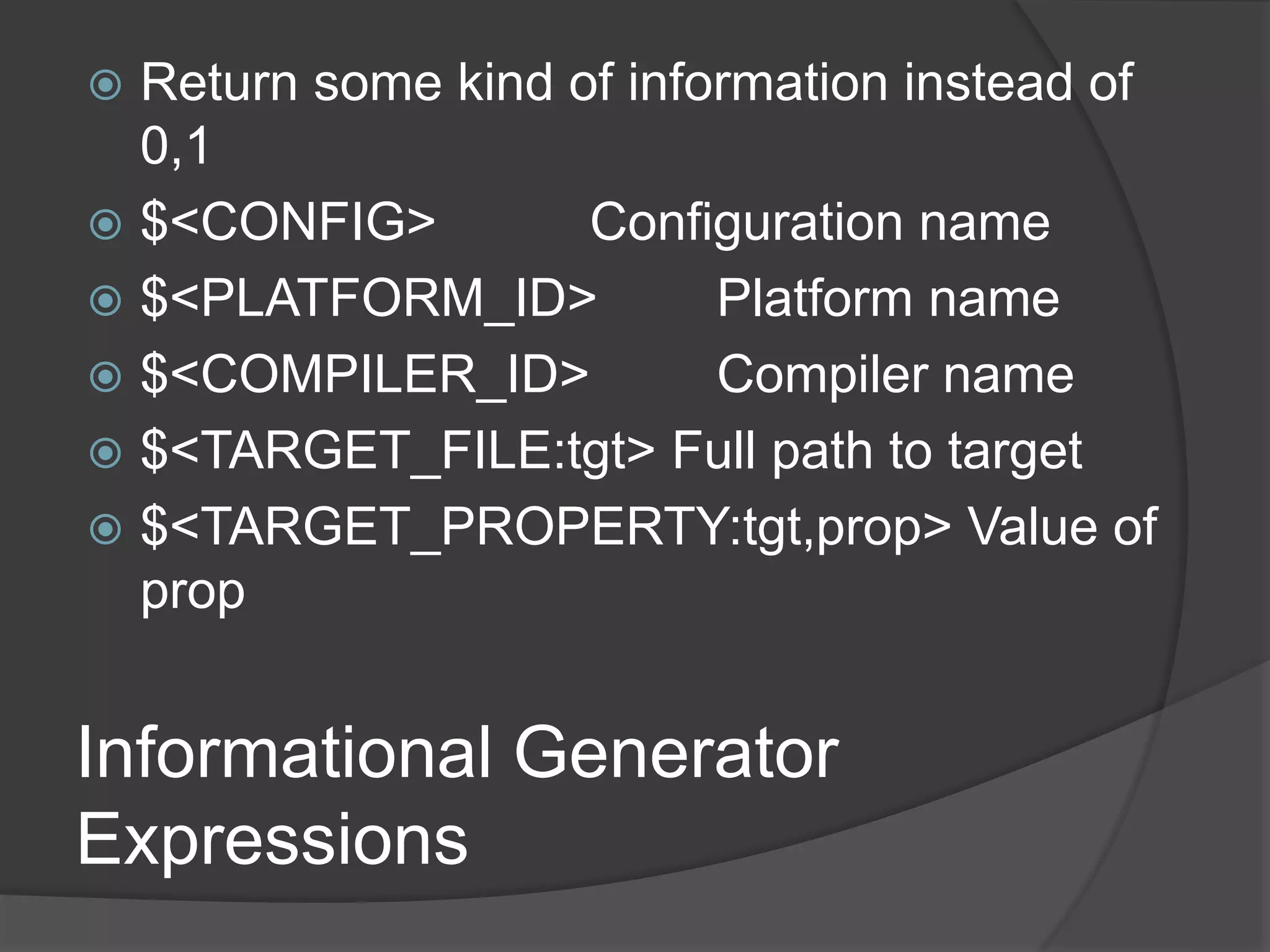

22. Informational Generator
Expressions
 Return some kind of information instead of
0,1
 $<CONFIG> Configuration name
 $<PLATFORM_ID> Platform name
 $<COMPILER_ID> Compiler name
 $<TARGET_FILE:tgt> Full path to target
 $<TARGET_PROPERTY:tgt,prop> Value of
prop

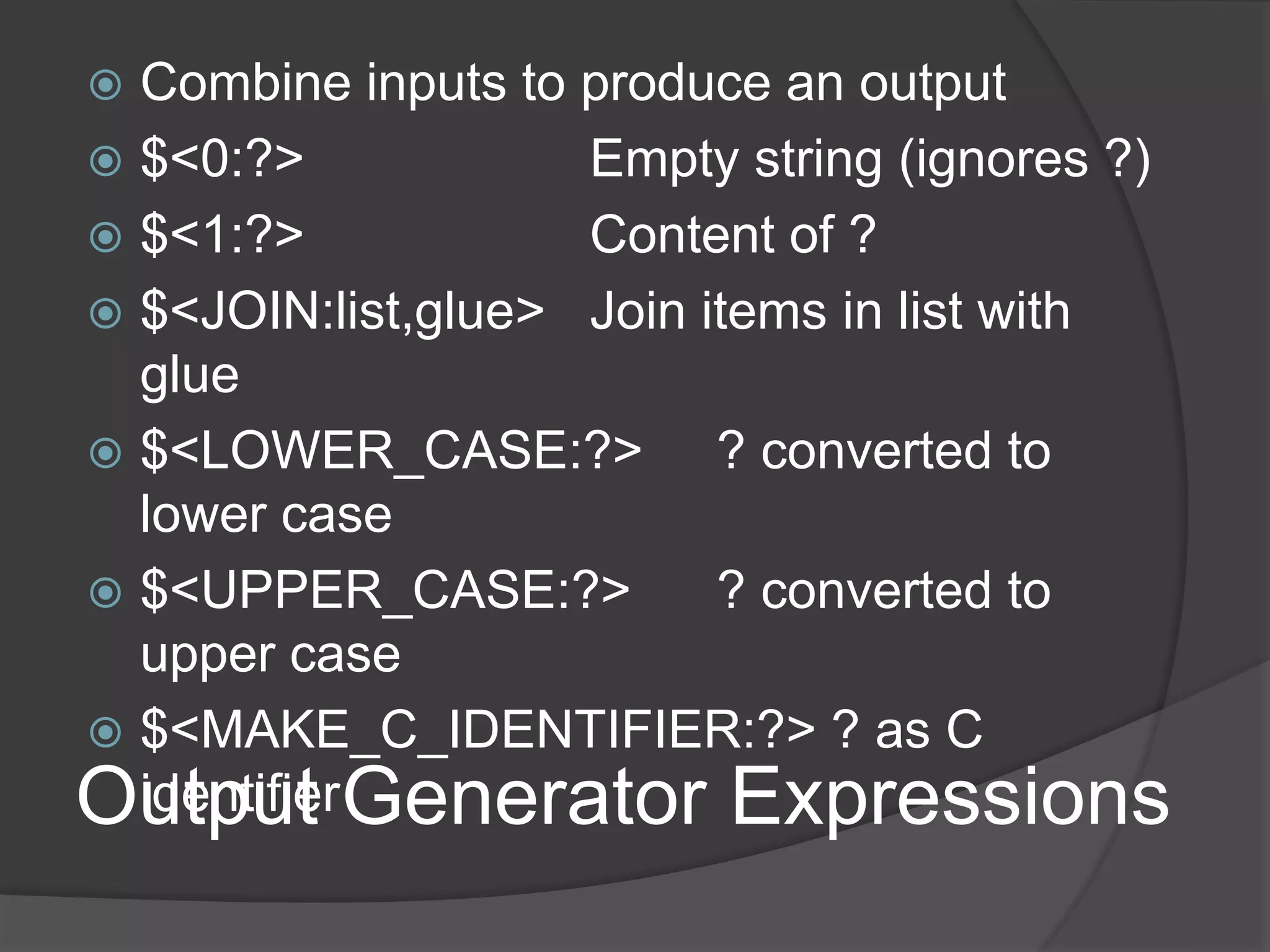

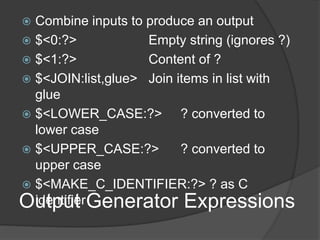

23. Output Generator Expressions
 Combine inputs to produce an output
 $<0:?> Empty string (ignores ?)
 $<1:?> Content of ?
 $<JOIN:list,glue> Join items in list with
glue
 $<LOWER_CASE:?> ? converted to
lower case
 $<UPPER_CASE:?> ? converted to
upper case
 $<MAKE_C_IDENTIFIER:?> ? as C
identifier

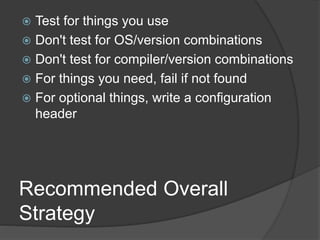

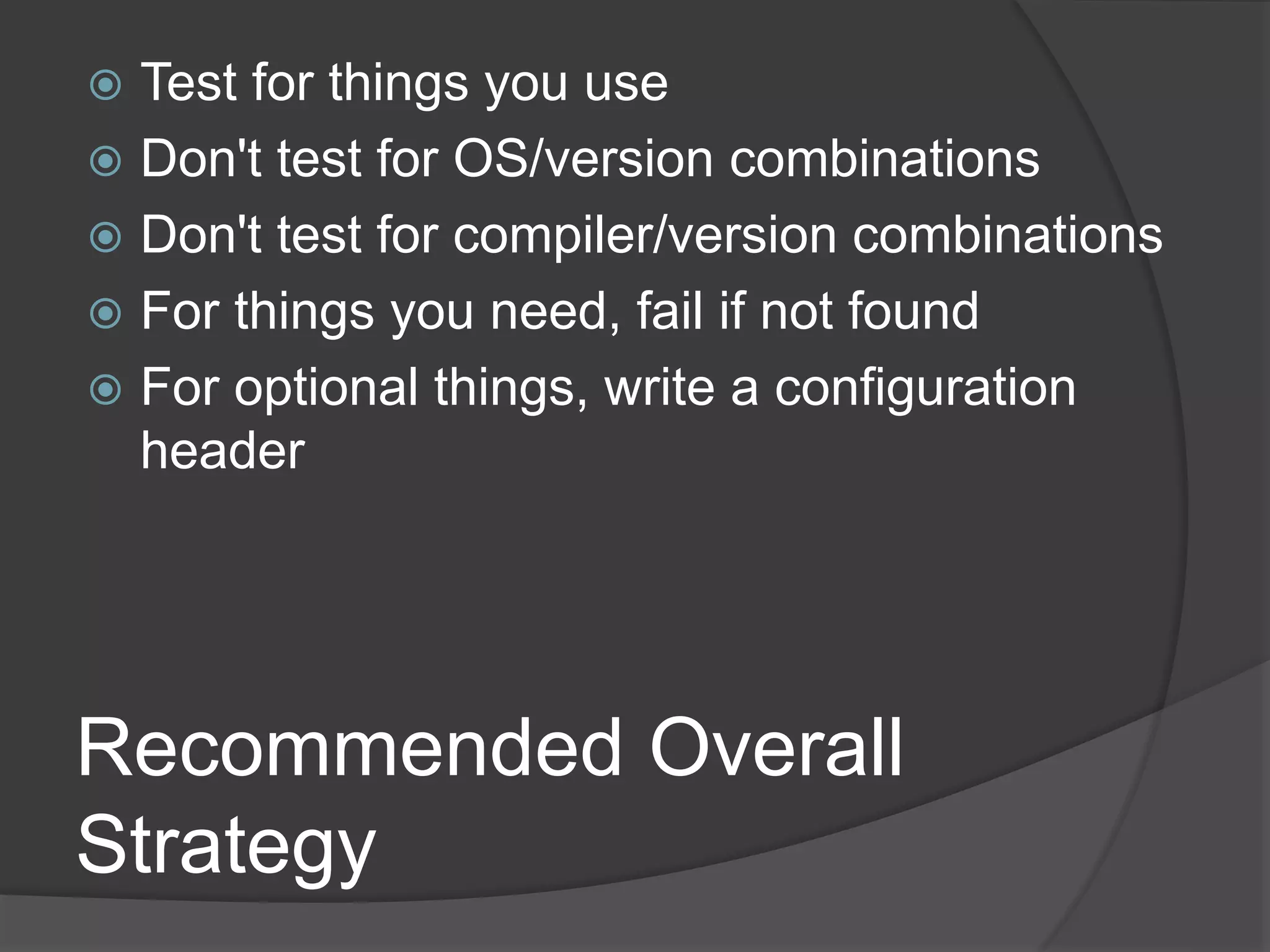

24. Recommended Overall
Strategy
 Test for things you use
 Don't test for OS/version combinations
 Don't test for compiler/version combinations
 For things you need, fail if not found
 For optional things, write a configuration
header

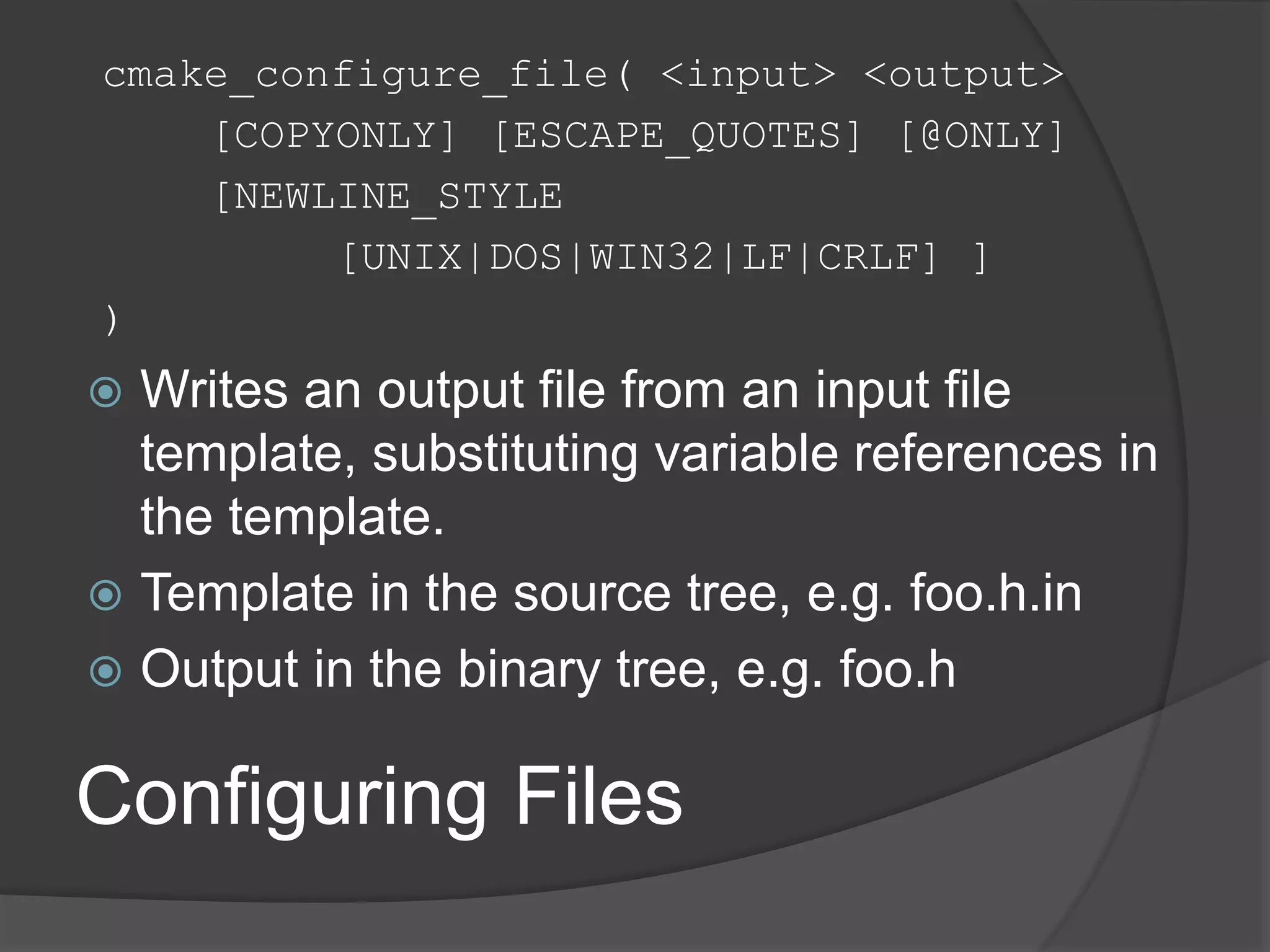

25. Configuring Files
cmake_configure_file( <input> <output>
[COPYONLY] [ESCAPE_QUOTES] [@ONLY]
[NEWLINE_STYLE
[UNIX|DOS|WIN32|LF|CRLF] ]
)
 Writes an output file from an input file
template, substituting variable references in
the template.
 Template in the source tree, e.g. foo.h.in
 Output in the binary tree, e.g. foo.h

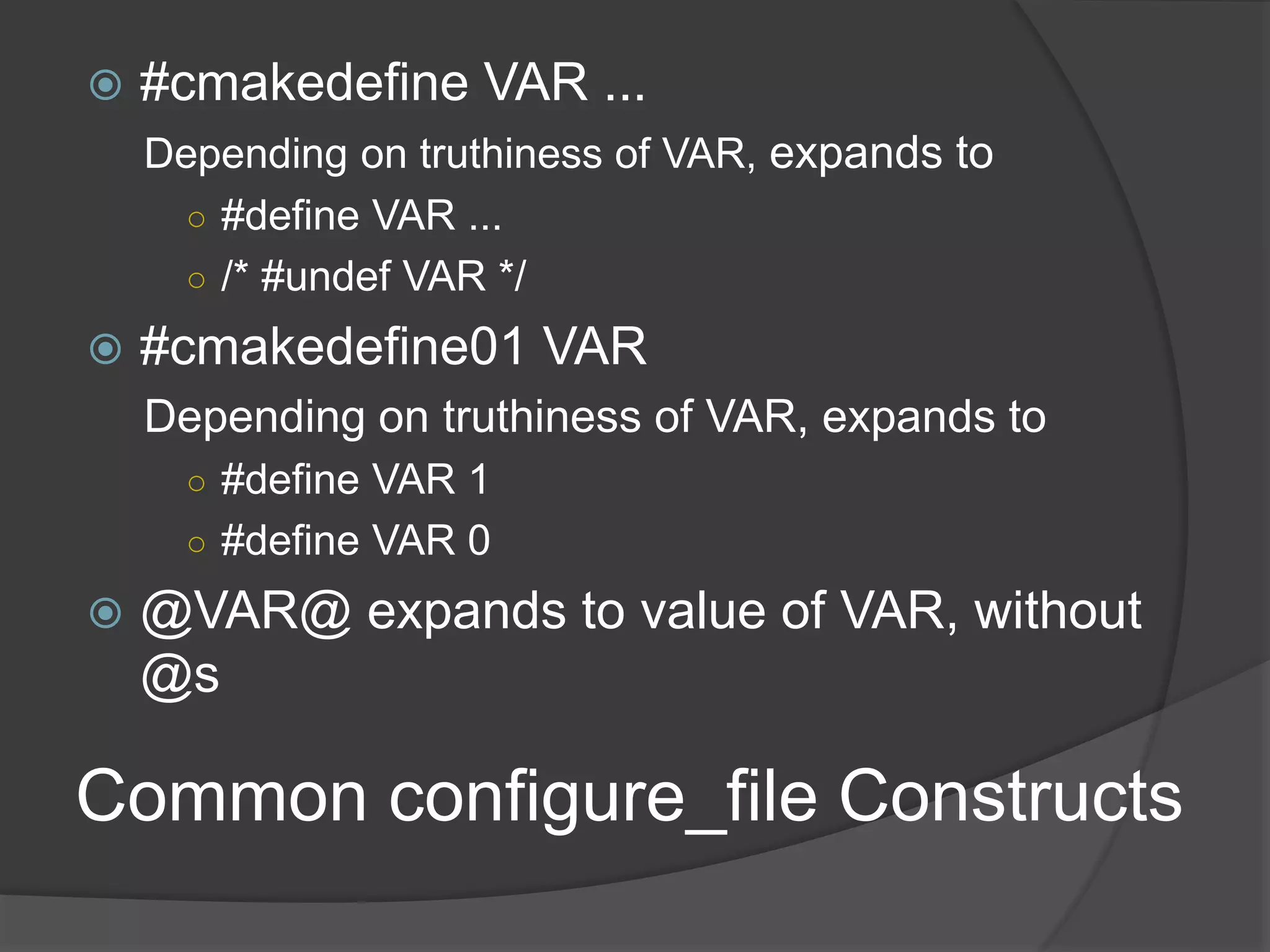

26. Common configure_file Constructs
 #cmakedefine VAR ...
Depending on truthiness of VAR, expands to
○ #define VAR ...
○ /* #undef VAR */
 #cmakedefine01 VAR
Depending on truthiness of VAR, expands to
○ #define VAR 1
○ #define VAR 0
 @VAR@ expands to value of VAR, without
@s

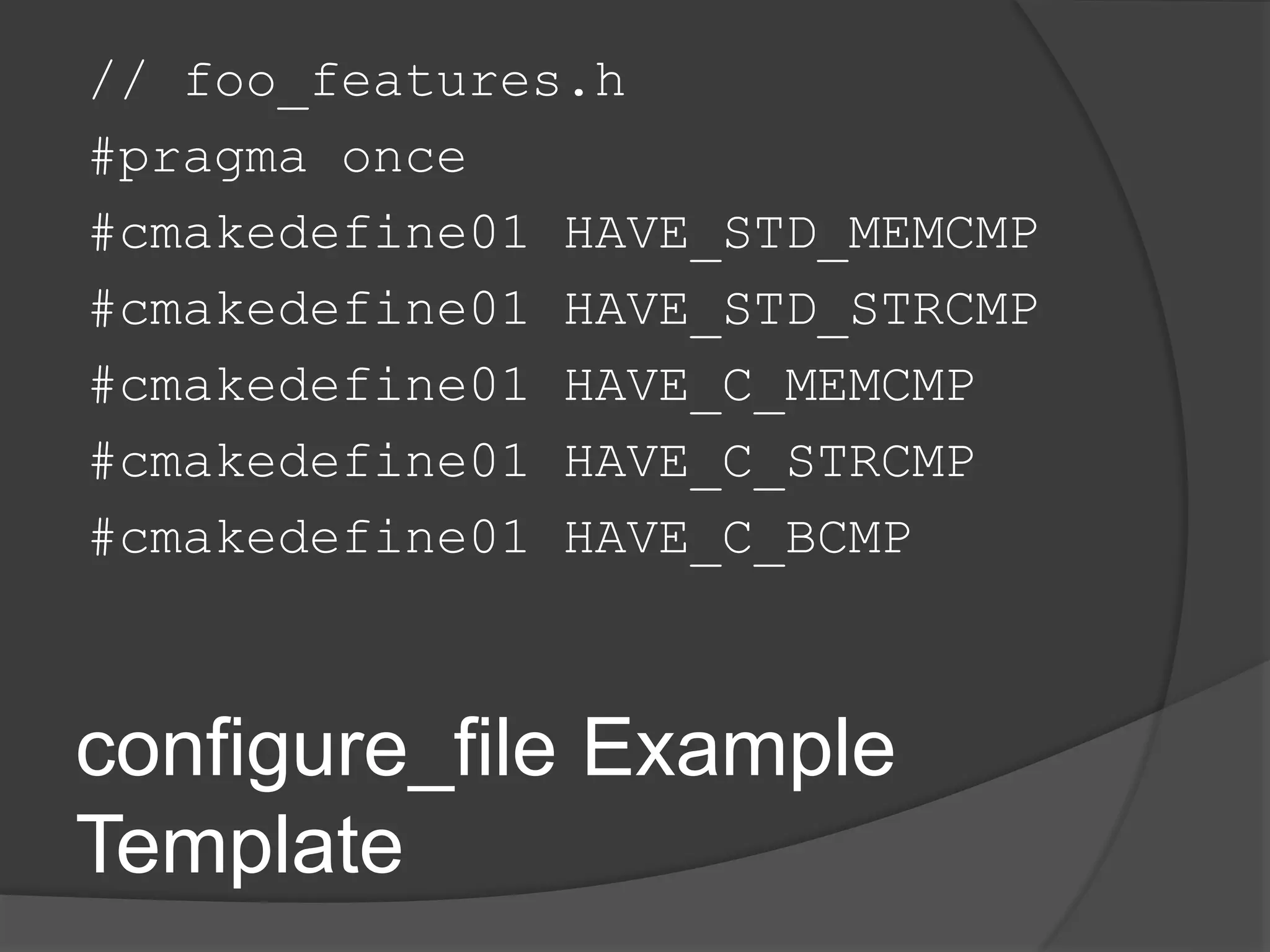

27. configure_file Example
Template
// foo_features.h
#pragma once
#cmakedefine01 HAVE_STD_MEMCMP
#cmakedefine01 HAVE_STD_STRCMP
#cmakedefine01 HAVE_C_MEMCMP
#cmakedefine01 HAVE_C_STRCMP
#cmakedefine01 HAVE_C_BCMP

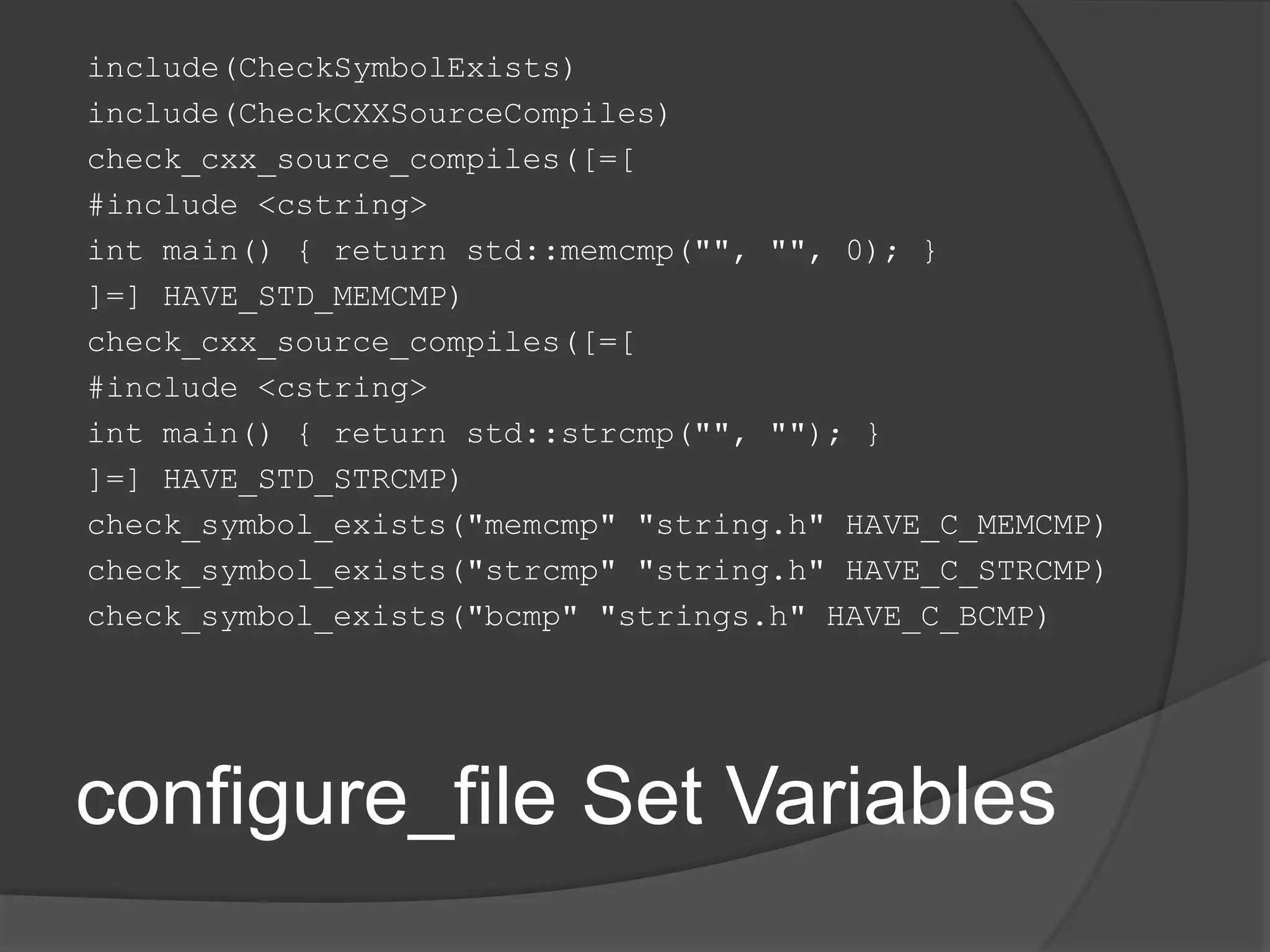

28. configure_file Set Variables
include(CheckSymbolExists)
include(CheckCXXSourceCompiles)
check_cxx_source_compiles([=[
#include <cstring>
int main() { return std::memcmp("", "", 0); }
]=] HAVE_STD_MEMCMP)
check_cxx_source_compiles([=[
#include <cstring>
int main() { return std::strcmp("", ""); }
]=] HAVE_STD_STRCMP)
check_symbol_exists("memcmp" "string.h" HAVE_C_MEMCMP)
check_symbol_exists("strcmp" "string.h" HAVE_C_STRCMP)
check_symbol_exists("bcmp" "strings.h" HAVE_C_BCMP)

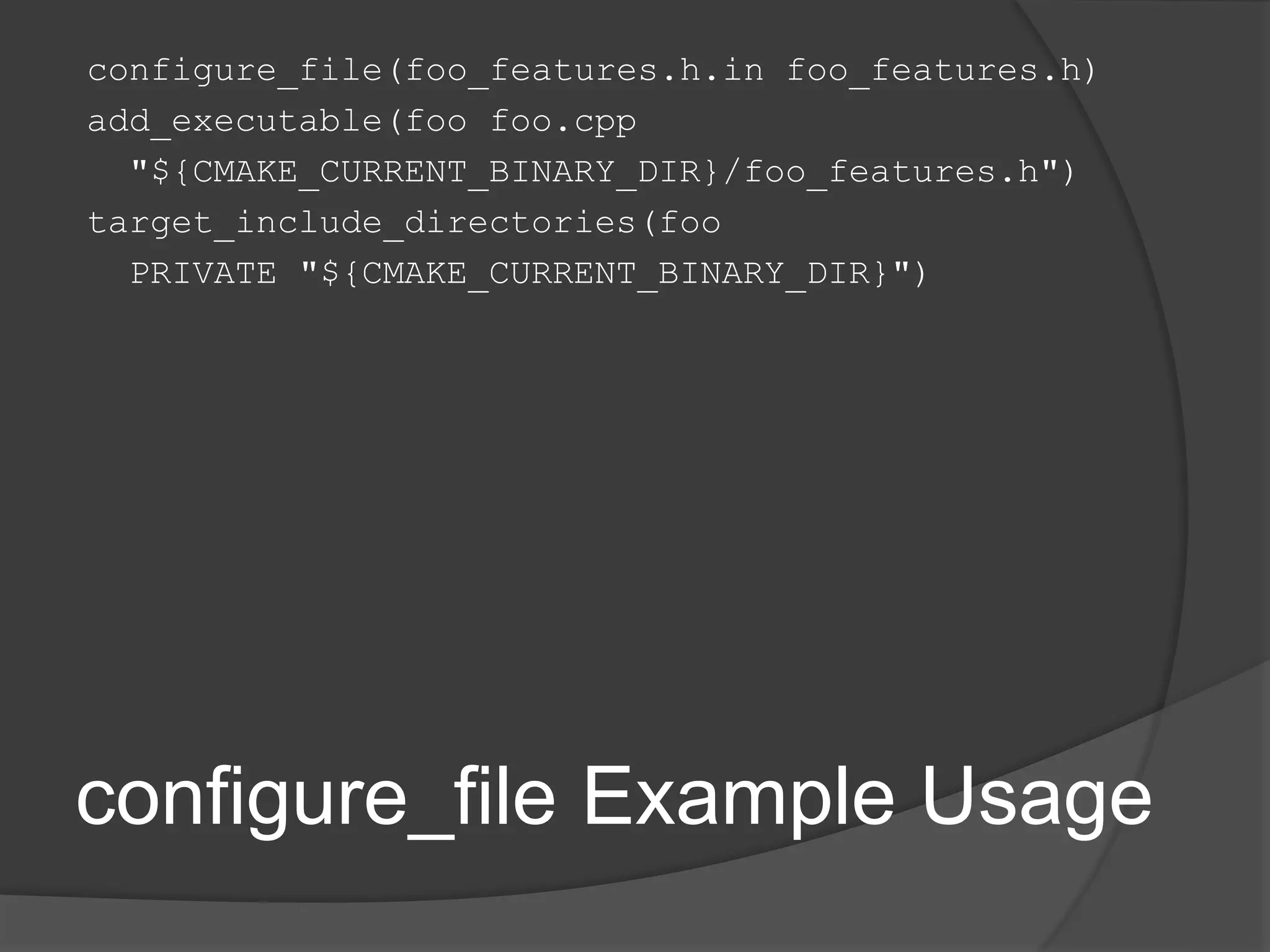

29. configure_file Example Usage
configure_file(foo_features.h.in foo_features.h)
add_executable(foo foo.cpp
"${CMAKE_CURRENT_BINARY_DIR}/foo_features.h")
target_include_directories(foo
PRIVATE "${CMAKE_CURRENT_BINARY_DIR}")

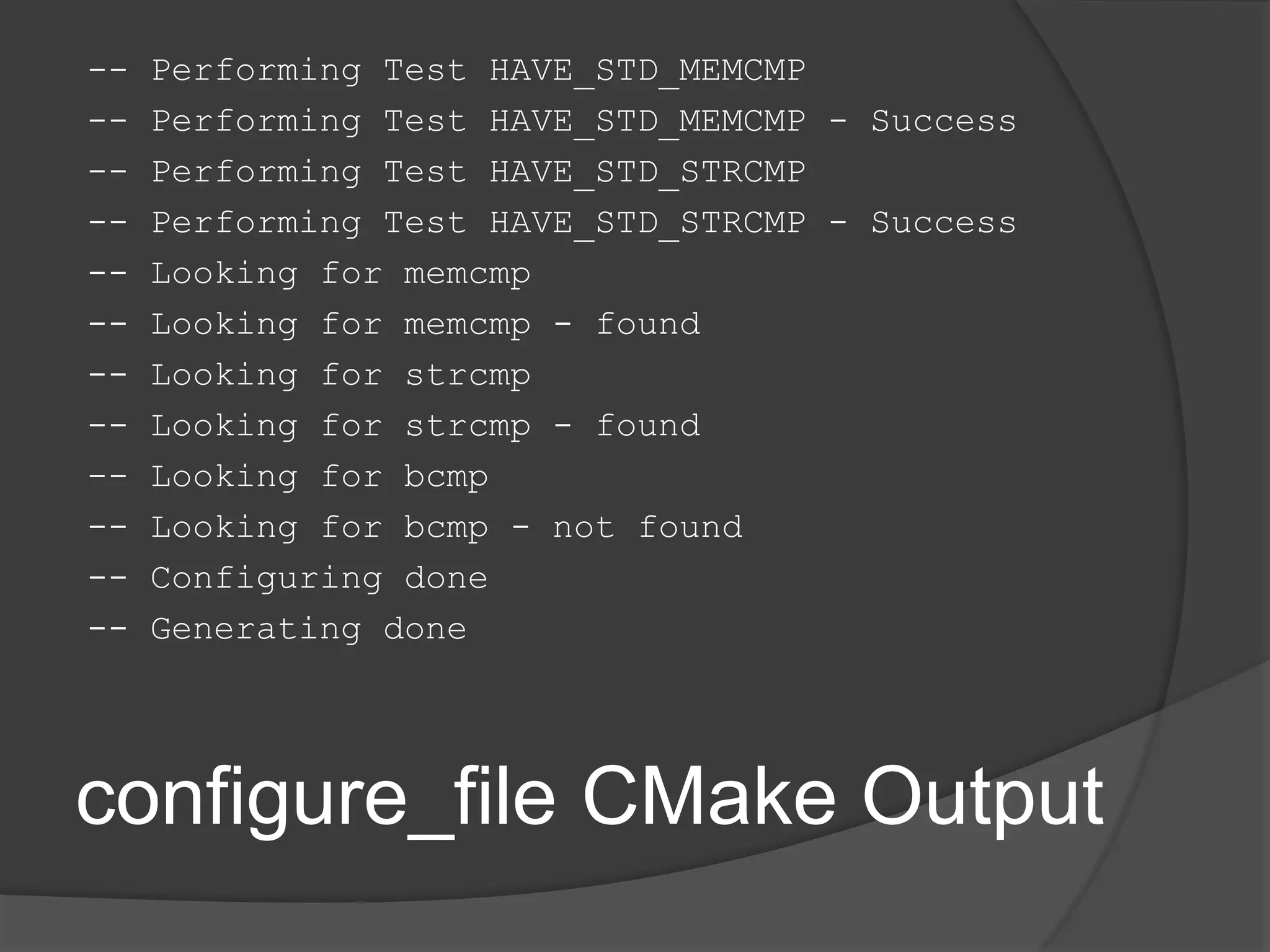

30. configure_file CMake Output
-- Performing Test HAVE_STD_MEMCMP
-- Performing Test HAVE_STD_MEMCMP - Success
-- Performing Test HAVE_STD_STRCMP
-- Performing Test HAVE_STD_STRCMP - Success
-- Looking for memcmp
-- Looking for memcmp - found
-- Looking for strcmp
-- Looking for strcmp - found
-- Looking for bcmp
-- Looking for bcmp - not found
-- Configuring done
-- Generating done

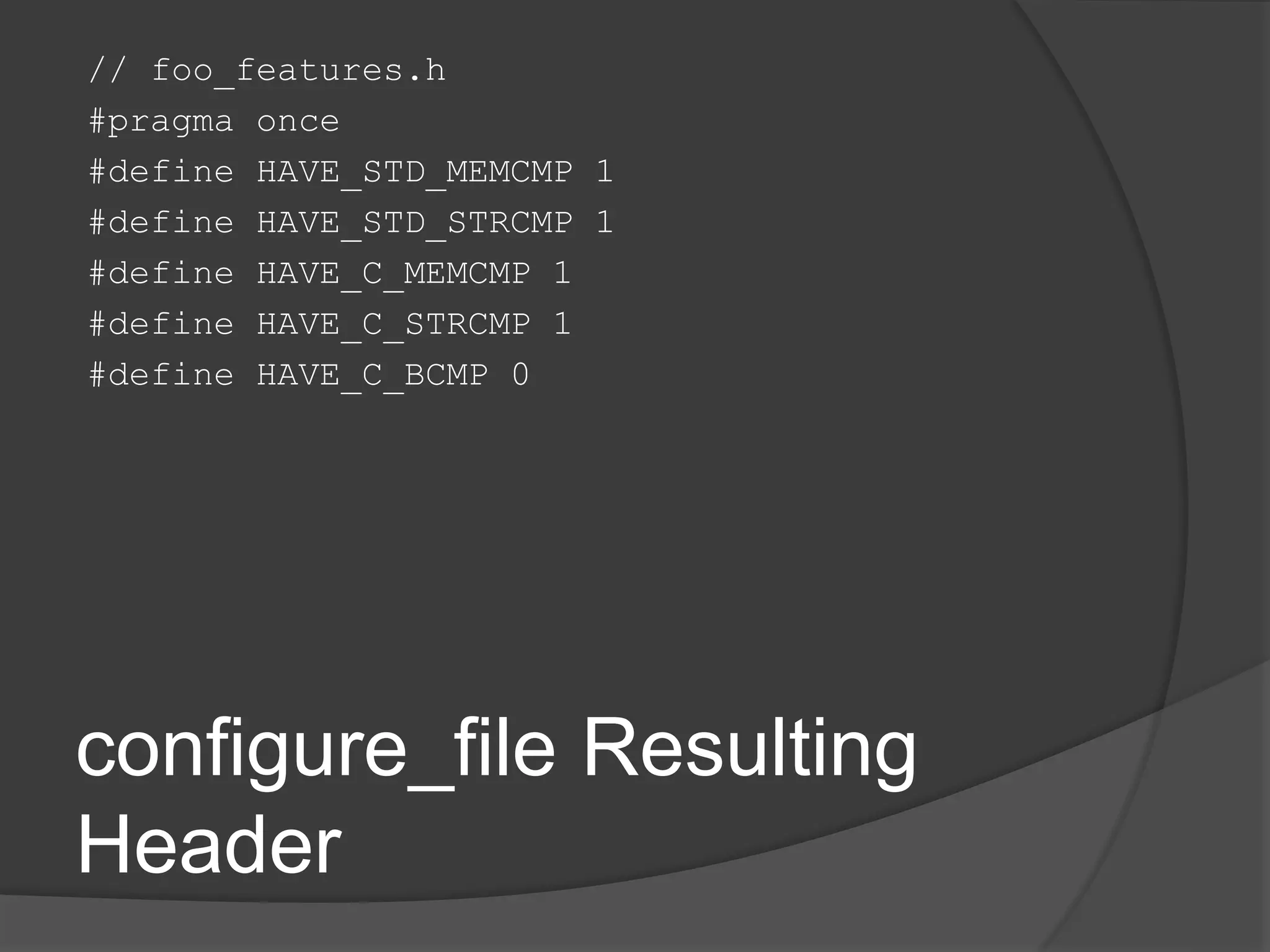

31. configure_file Resulting
Header
// foo_features.h
#pragma once
#define HAVE_STD_MEMCMP 1
#define HAVE_STD_STRCMP 1
#define HAVE_C_MEMCMP 1
#define HAVE_C_STRCMP 1
#define HAVE_C_BCMP 0

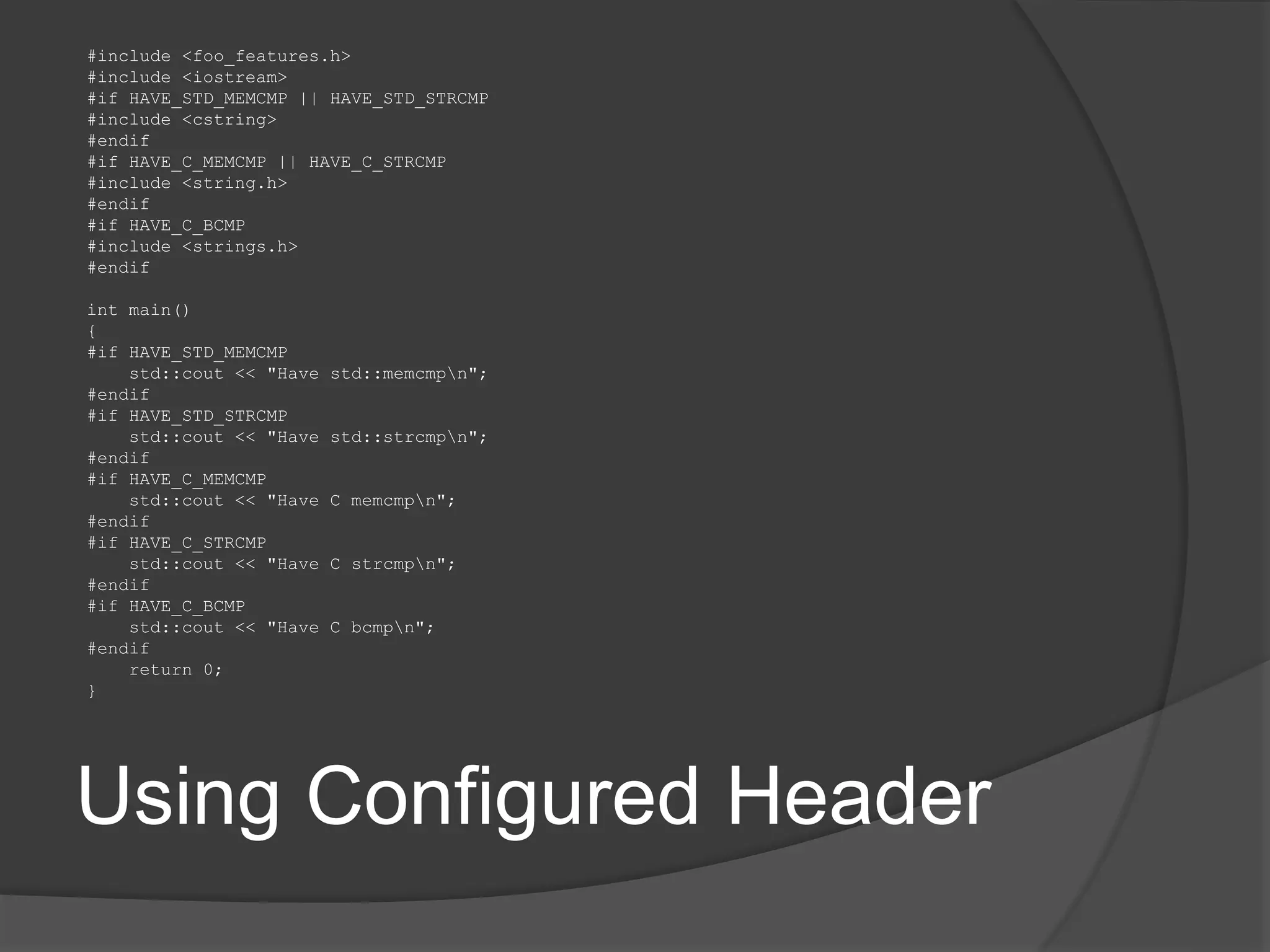

32. Using Configured Header
#include <foo_features.h>
#include <iostream>
#if HAVE_STD_MEMCMP || HAVE_STD_STRCMP
#include <cstring>
#endif
#if HAVE_C_MEMCMP || HAVE_C_STRCMP
#include <string.h>
#endif
#if HAVE_C_BCMP
#include <strings.h>
#endif
int main()
{
#if HAVE_STD_MEMCMP
std::cout << "Have std::memcmpn";
#endif
#if HAVE_STD_STRCMP
std::cout << "Have std::strcmpn";
#endif
#if HAVE_C_MEMCMP
std::cout << "Have C memcmpn";
#endif
#if HAVE_C_STRCMP
std::cout << "Have C strcmpn";
#endif
#if HAVE_C_BCMP
std::cout << "Have C bcmpn";
#endif
return 0;
}

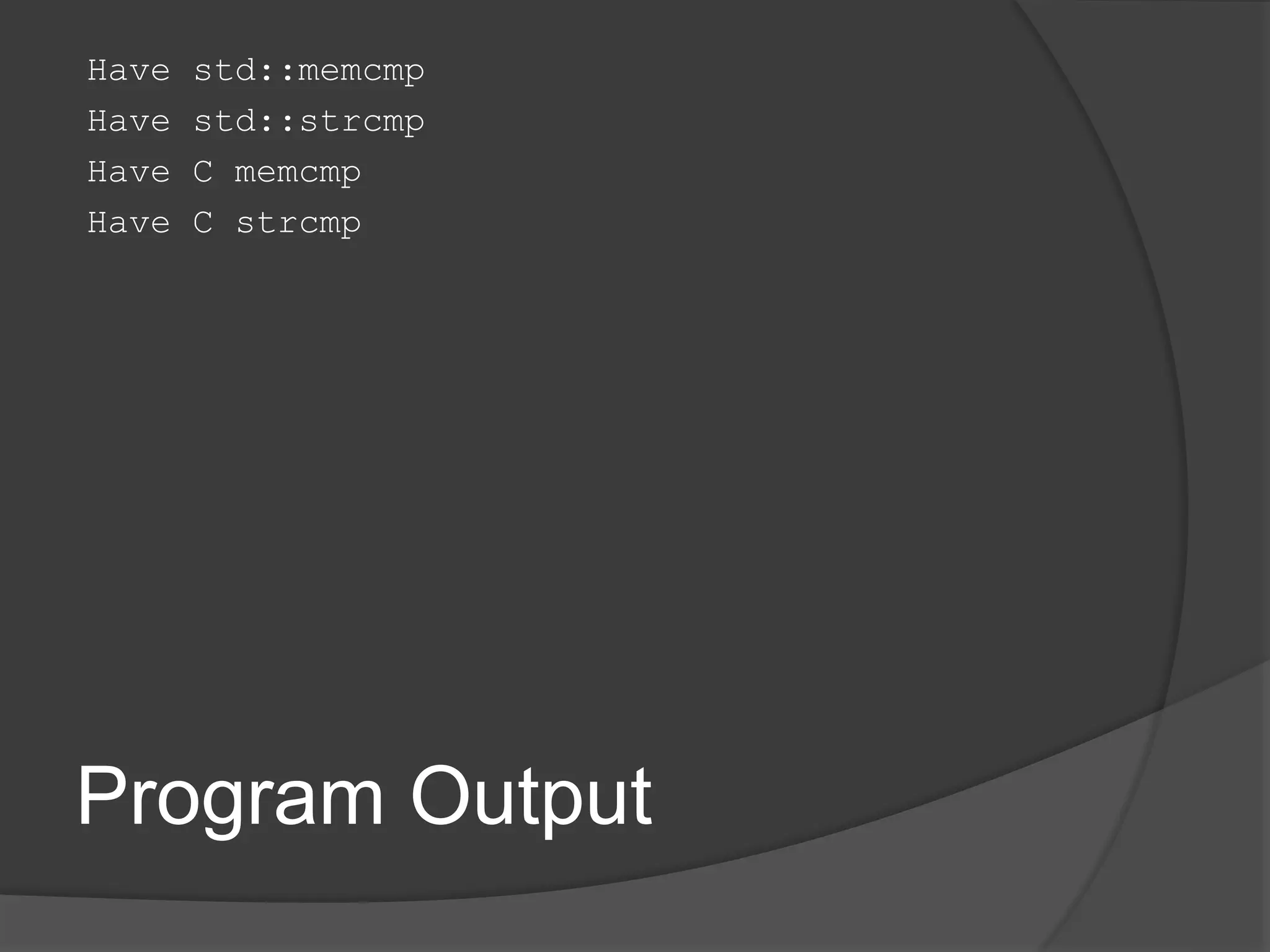

33. Program Output
Have std::memcmp
Have std::strcmp
Have C memcmp
Have C strcmp
