1. HHVM + HACK
A quick introduction

2. HHVM
• Stands for HipHop Virtual Machine
• Executes scripts written in PHP (5.4) and Hack
• Drop-in replacement for php-fpm
• Use together with FastCGI-enabled webserver
(like Apache or nginx)

3. Timeline
• 2008: Facebook begins work on HipHop, a PHP to C++ compiler
• 2010: Facebook opensources the compiler (HPHPc) and dev interpreter/
debugger (HPHPi and HPHPd)
• 2010: Facebook begins work on HHVM
• 2013: HPHPc deprecated, replaced by HHVM in Facebook production servers
• 2013: HHVM 2.3.0 adds FastCGI support
• 2014: HHVM 3.0.0 adds Hack support

4. Installation
• Ubuntu
add-apt-repository -y ppa:mapnik/boost!
wget -O - http://dl.hhvm.com/conf/hhvm.gpg.key | sudo apt-key add -!
echo "deb http://dl.hhvm.com/ubuntu precise main" > /etc/apt/sources.list.d/hhvm.list!
apt-get update!
apt-get install hhvm!
• Note: there is no more hhvm-fastcgi package. For the latest
code, you can use hhvm-nightly
• https://github.com/facebook/hhvm/wiki/Prebuilt-Packages-on-
Ubuntu-12.04

5. Installation
• OSX (using Homebrew)
brew tap homebrew/dupes!
brew tap homebrew/versions!
brew tap mcuadros/homebrew-hhvm!
brew install hhvm --HEAD!
• https://github.com/facebook/hhvm/wiki/Building-and-
installing-HHVM-on-OSX-10.9
• Unfortunately, the typechecker (hh_server / hh_client)
does not build on OSX

6. Installation
• Windows
• … just use Vagrant and Virtualbox

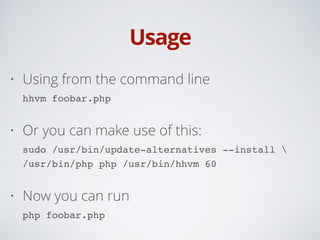

7. Usage
• Using from the command line
hhvm foobar.php
• Or you can make use of this:
sudo /usr/bin/update-alternatives --install
/usr/bin/php php /usr/bin/hhvm 60
• Now you can run
php foobar.php

8. Usage
• Apache 2.2: install libapache2-mod-fastcgi
<IfModule mod_fastcgi.c>!
Alias /hhvm.fastcgi /var/www/fastcgi/hhvm.fastcgi!
FastCGIExternalServer /var/www/fastcgi/hhvm.fastcgi -socket /var/run/hhvm/socket -pass-header
!! ! Authorization -idle-timeout 300!
<Directory "/var/www/fastcgi">!
<Files "hhvm.fastcgi">!
Order deny,allow!
</Files>!
</Directory>!
!
AddHandler hhvm-hack-extension .hh!
AddHandler hhvm-php-extension .php!
!
Action hhvm-hack-extension /hhvm.fastcgi virtual!
Action hhvm-php-extension /hhvm.fastcgi virtual!
</IfModule>

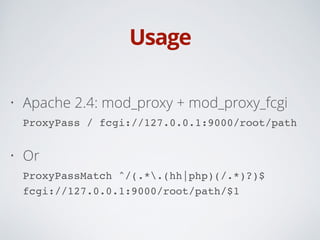

9. Usage
• Apache 2.4: mod_proxy + mod_proxy_fcgi
ProxyPass / fcgi://127.0.0.1:9000/root/path
• Or
ProxyPassMatch ^/(.*.(hh|php)(/.*)?)$
fcgi://127.0.0.1:9000/root/path/$1

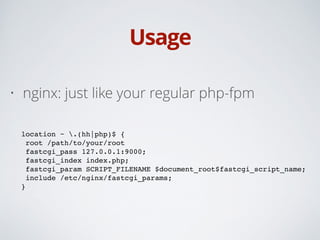

10. Usage
• nginx: just like your regular php-fpm
location ~ .(hh|php)$ {!
root /path/to/your/root!
fastcgi_pass 127.0.0.1:9000;!
fastcgi_index index.php;!
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;!
include /etc/nginx/fastcgi_params;!
}

11. Using with Composer
• Add to .bashrc or equivalent:
alias composer="hhvm -v ResourceLimit.SocketDefaultTimeout=30
-v Http.SlowQueryThreshold=30000 /usr/local/bin/composer"
• Up to 5x faster

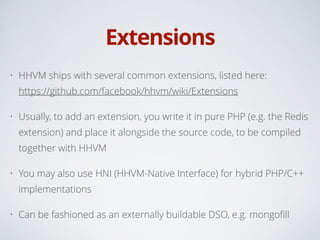

12. Extensions
• HHVM ships with several common extensions, listed here:
https://github.com/facebook/hhvm/wiki/Extensions
• Usually, to add an extension, you write it in pure PHP (e.g. the Redis
extension) and place it alongside the source code, to be compiled
together with HHVM
• You may also use HNI (HHVM-Native Interface) for hybrid PHP/C++
implementations
• Can be fashioned as an externally buildable DSO, e.g. mongofill

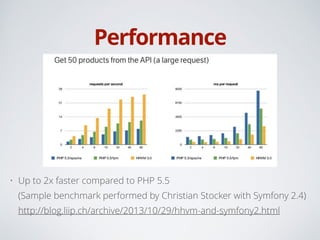

13. Performance
• Up to 2x faster compared to PHP 5.5
(Sample benchmark performed by Christian Stocker with Symfony 2.4)
http://blog.liip.ch/archive/2013/10/29/hhvm-and-symfony2.html

14. Caveats
• PHP 5.5 generator syntax incompatibility (#1627, #1787, #1871)
• Missing PHP 5.4 Closure::bind and Closure::bindTo (#1203)
• Cannot set multiple cookies with same name but different path (#2494, #2526)
• func_get_args() returns arguments by references instead of values (#1027) (wontfix)
• array_key_exists(), reset(), end(), etc. don't work with ArrayAccess (#1221) (wontfix)
• missing fastcgi_finish_request() equivalent (#1230)
• https://github.com/facebook/hhvm/issues?labels=php5+incompatibility&state=open

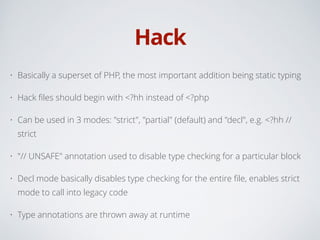

15. Hack
• Basically a superset of PHP, the most important addition being static typing
• Hack files should begin with <?hh instead of <?php
• Can be used in 3 modes: "strict", "partial" (default) and "decl", e.g. <?hh //
strict
• "// UNSAFE" annotation used to disable type checking for a particular block
• Decl mode basically disables type checking for the entire file, enables strict
mode to call into legacy code
• Type annotations are thrown away at runtime

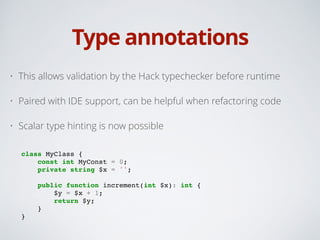

16. Type annotations
• This allows validation by the Hack typechecker before runtime
• Paired with IDE support, can be helpful when refactoring code
• Scalar type hinting is now possible
class MyClass {!
const int MyConst = 0;!
private string $x = '';!
!
public function increment(int $x): int {!
$y = $x + 1;!
return $y;!
}!
}

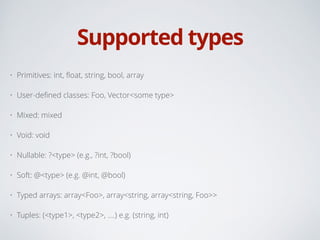

17. Supported types
• Primitives: int, float, string, bool, array
• User-defined classes: Foo, Vector<some type>
• Mixed: mixed
• Void: void
• Nullable: ?<type> (e.g., ?int, ?bool)
• Soft: @<type> (e.g. @int, @bool)
• Typed arrays: array<Foo>, array<string, array<string, Foo>>
• Tuples: (<type1>, <type2>, ....) e.g. (string, int)

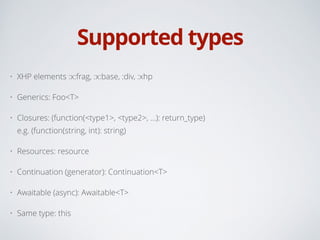

18. Supported types
• XHP elements :x:frag, :x:base, :div, :xhp
• Generics: Foo<T>
• Closures: (function(<type1>, <type2>, ...): return_type)
e.g. (function(string, int): string)
• Resources: resource
• Continuation (generator): Continuation<T>
• Awaitable (async): Awaitable<T>
• Same type: this

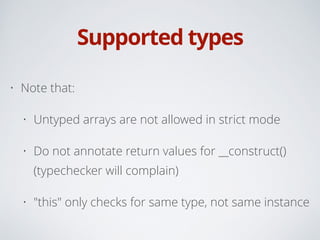

19. Supported types
• Note that:
• Untyped arrays are not allowed in strict mode
• Do not annotate return values for __construct()
(typechecker will complain)
• "this" only checks for same type, not same instance

20. Generics
class Box<T> {!
protected T $data;!
!
public function __construct(T $data) {!
$this->data = $data;!
}!
public function setData(T $data): void {!
$this->data = $data;!
}!
public function getData(): T {!
return $this->data;!
}!
}!
!
function swap<T>(Box<T> $a, Box<T> $b): T {!
$temp = $a->getData();!
$a->setData($b->getData());!
$b->setData($temp);!
return $temp;!
}!
• For each instance, once a type is associated with T, it’s fixed

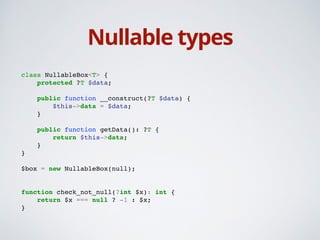

21. Nullable types
class NullableBox<T> {!
protected ?T $data;!
!
public function __construct(?T $data) {!
$this->data = $data;!
}!
!
public function getData(): ?T {!
return $this->data;!
}!
}!
!
$box = new NullableBox(null);!
!
!
function check_not_null(?int $x): int {!
return $x === null ? -1 : $x;!
}!

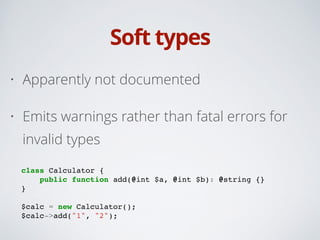

22. Soft types
• Apparently not documented
• Emits warnings rather than fatal errors for
invalid types
!
!
class Calculator {!
public function add(@int $a, @int $b): @string {}!
}!
!
$calc = new Calculator();!
$calc->add("1", "2");

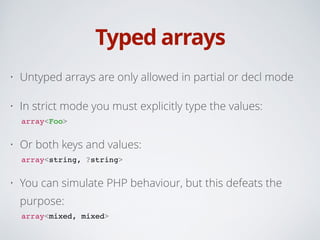

23. Typed arrays
• Untyped arrays are only allowed in partial or decl mode
• In strict mode you must explicitly type the values:
array<Foo>!
• Or both keys and values:
array<string, ?string>!
• You can simulate PHP behaviour, but this defeats the
purpose:
array<mixed, mixed>

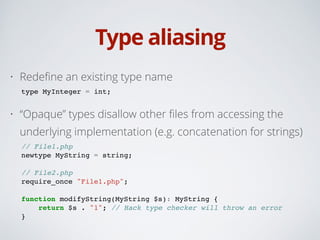

24. Type aliasing
• Redefine an existing type name
type MyInteger = int;!
• “Opaque” types disallow other files from accessing the
underlying implementation (e.g. concatenation for strings)
// File1.php!
newtype MyString = string;!
!
// File2.php!
require_once "File1.php";!
!
function modifyString(MyString $s): MyString {!
return $s . "1"; // Hack type checker will throw an error!
}

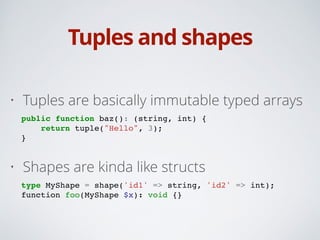

25. Tuples and shapes
• Tuples are basically immutable typed arrays
public function baz(): (string, int) {!
return tuple("Hello", 3);!
}!
• Shapes are kinda like structs
type MyShape = shape('id1' => string, 'id2' => int);!
function foo(MyShape $x): void {}

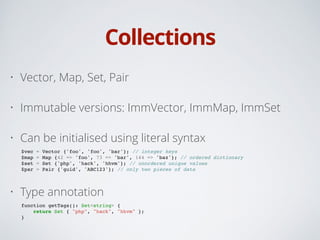

26. Collections
• Vector, Map, Set, Pair
• Immutable versions: ImmVector, ImmMap, ImmSet
• Can be initialised using literal syntax
$vec = Vector {'foo', 'foo', 'bar'}; // integer keys!
$map = Map {42 => 'foo', 73 => 'bar', 144 => 'baz'}; // ordered dictionary!
$set = Set {'php', 'hack', 'hhvm'}; // unordered unique values!
$par = Pair {'guid', 'ABC123'}; // only two pieces of data!
• Type annotation
function getTags(): Set<string> {!
return Set { "php", "hack", "hhvm" };!
}

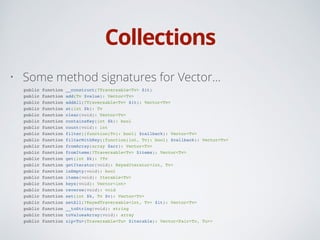

27. Collections
• Some method signatures for Vector…
public function __construct(?Traversable<Tv> $it)!
public function add(Tv $value): Vector<Tv>!
public function addAll(?Traversable<Tv> $it): Vector<Tv>!
public function at(int $k): Tv!
public function clear(void): Vector<Tv>!
public function containsKey(int $k): bool!
public function count(void): int!
public function filter((function(Tv): bool) $callback): Vector<Tv>!
public function filterWithKey((function(int, Tv): bool) $callback): Vector<Tv>!
public function fromArray(array $arr): Vector<Tv>!
public function fromItems(?Traversable<Tv> $items): Vector<Tv>!
public function get(int $k): ?Tv!
public function getIterator(void): KeyedIterator<int, Tv>!
public function isEmpty(void): bool!
public function items(void): Iterable<Tv>!
public function keys(void): Vector<int>!
public function reverse(void): void!
public function set(int $k, Tv $v): Vector<Tv>!
public function setAll(?KeyedTraversable<int, Tv> $it): Vector<Tv>!
public function __toString(void): string!
public function toValuesArray(void): array!
public function zip<Tu>(Traversable<Tu> $iterable): Vector<Pair<Tv, Tu>>

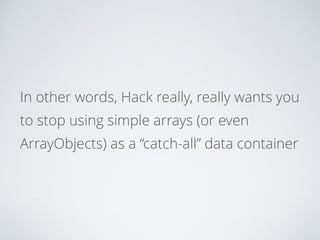

28. In other words, Hack really, really wants you
to stop using simple arrays (or even
ArrayObjects) as a “catch-all” data container

29. Lambdas
• Use the lambda arrow ==>
(Because -> and => are already taken):
function concat(): (function(string, string): string) {!
return ($x, $y) ==> {!
return $y . $x;!
};!
}!
• Implicitly capture variables from outer scope
Can be an expression:
function foo(): (function(string): string) {!
$x = 'bar';!
return $y ==> $y . $x;!
}

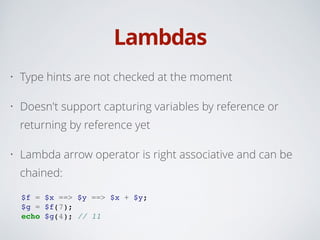

30. Lambdas
• Type hints are not checked at the moment
• Doesn't support capturing variables by reference or
returning by reference yet
• Lambda arrow operator is right associative and can be
chained:
!
$f = $x ==> $y ==> $x + $y;!
$g = $f(7);!
echo $g(4); // 11

31. Variadic functions
function sum(...): int {!
$s = 0;!
foreach (func_get_args() as $e) {!
$s += $e;!
}!
return $s;!
}!
• Cannot be type annotated, unfortunately

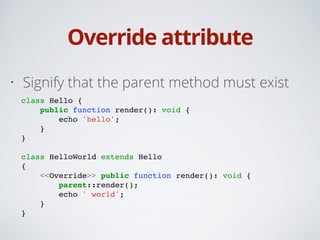

32. Override attribute
• Signify that the parent method must exist
class Hello {!
public function render(): void {!
echo 'hello';!
}!
}!
!
class HelloWorld extends Hello!
{!
<<Override>> public function render(): void {!
parent::render();!
echo ' world';!
}!
}

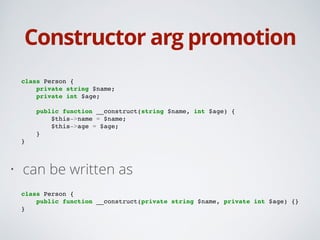

33. Constructor arg promotion
class Person {!
private string $name;!
private int $age;!
!
public function __construct(string $name, int $age) {!
$this->name = $name;!
$this->age = $age;!
}!
}!
• can be written as
!
class Person {!
public function __construct(private string $name, private int $age) {}!
}

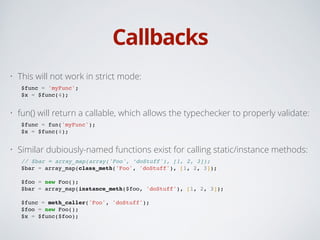

34. Callbacks
• This will not work in strict mode:
$func = 'myFunc';!
$x = $func(4);!
• fun() will return a callable, which allows the typechecker to properly validate:
$func = fun('myFunc');!
$x = $func(4);!
• Similar dubiously-named functions exist for calling static/instance methods:
// $bar = array_map(array('Foo', ‘doStuff'), [1, 2, 3]);!
$bar = array_map(class_meth('Foo', 'doStuff'), [1, 2, 3]);!
!
$foo = new Foo();!
$bar = array_map(instance_meth($foo, 'doStuff'), [1, 2, 3]);!
!
$func = meth_caller('Foo', 'doStuff');!
$foo = new Foo();!
$x = $func($foo);

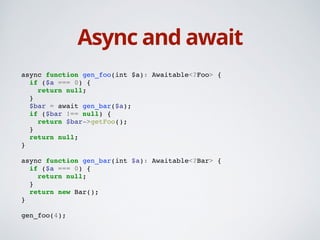

35. Async and await
async function gen_foo(int $a): Awaitable<?Foo> {!
if ($a === 0) {!
return null;!
}!
$bar = await gen_bar($a);!
if ($bar !== null) {!
return $bar->getFoo();!
}!
return null;!
}!
!
async function gen_bar(int $a): Awaitable<?Bar> {!
if ($a === 0) {!
return null;!
}!
return new Bar();!
}!
!
gen_foo(4);

36. Running the type checker
• Run hh_client (it will launch hh_server for you) or
hh_server --check .
• Recursively looks for directories that contain
a .hhconfig file (it won’t run if this is missing)
• Optionally return output in json format
• Note: does not follow symlinks

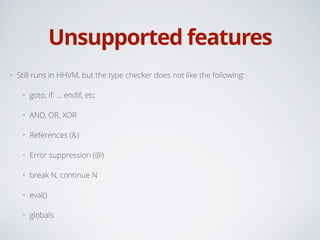

37. Unsupported features
• Still runs in HHVM, but the type checker does not like the following:
• goto, if: … endif; etc
• AND, OR, XOR
• References (&)
• Error suppression (@)
• break N, continue N
• eval()
• globals

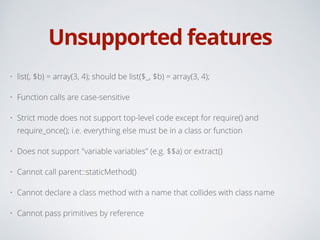

38. Unsupported features
• list(, $b) = array(3, 4); should be list($_, $b) = array(3, 4);
• Function calls are case-sensitive
• Strict mode does not support top-level code except for require() and
require_once(); i.e. everything else must be in a class or function
• Does not support "variable variables" (e.g. $$a) or extract()
• Cannot call parent::staticMethod()
• Cannot declare a class method with a name that collides with class name
• Cannot pass primitives by reference

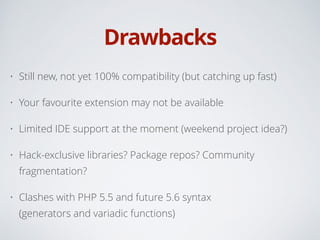

39. Drawbacks
• Still new, not yet 100% compatibility (but catching up fast)
• Your favourite extension may not be available
• Limited IDE support at the moment (weekend project idea?)
• Hack-exclusive libraries? Package repos? Community
fragmentation?
• Clashes with PHP 5.5 and future 5.6 syntax
(generators and variadic functions)

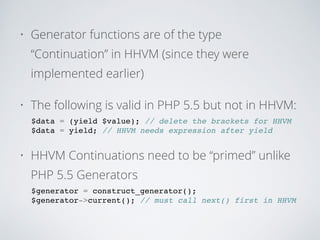

40. • Generator functions are of the type
“Continuation” in HHVM (since they were
implemented earlier)
• The following is valid in PHP 5.5 but not in HHVM:
$data = (yield $value); // delete the brackets for HHVM!
$data = yield; // HHVM needs expression after yield!
• HHVM Continuations need to be “primed” unlike
PHP 5.5 Generators
$generator = construct_generator();!
$generator->current(); // must call next() first in HHVM!

41. • Proposed PHP 5.6 syntax for variadic
functions:
function fn($arg, ...$args) {}!
function fn($arg, &...$args) {}!
function fn($arg, callable ...$args) {}!
• Type-hinting and arguments by value not
supported in HHVM / Hack
function fn(...): void {}

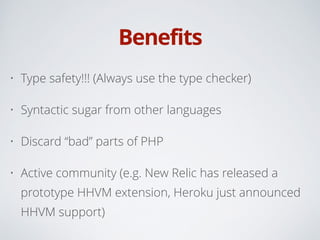

42. Benefits
• Type safety!!! (Always use the type checker)
• Syntactic sugar from other languages
• Discard “bad” parts of PHP
• Active community (e.g. New Relic has released a
prototype HHVM extension, Heroku just announced
HHVM support)

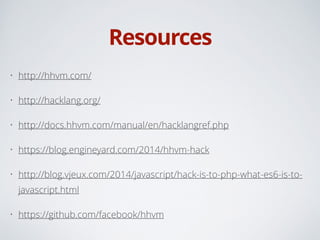

43. Resources
• http://hhvm.com/
• http://hacklang.org/
• http://docs.hhvm.com/manual/en/hacklangref.php
• https://blog.engineyard.com/2014/hhvm-hack
• http://blog.vjeux.com/2014/javascript/hack-is-to-php-what-es6-is-to-
javascript.html
• https://github.com/facebook/hhvm

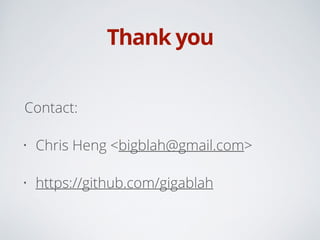

44. Thank you
Contact:
• Chris Heng <bigblah@gmail.com>
• https://github.com/gigablah
