The document discusses Autoconf and Automake, which are tools used to automatically generate Makefiles and configure scripts from simple descriptions of a project's build requirements. Autoconf generates configure scripts that can build software on different systems by checking for features like libraries, headers, and functions. Automake generates Makefiles from simple descriptions of build targets and dependencies in Makefile.am files. Together, these tools help developers more easily build portable software projects across a variety of Unix systems.

1. Autoconf & Automake [email_address]

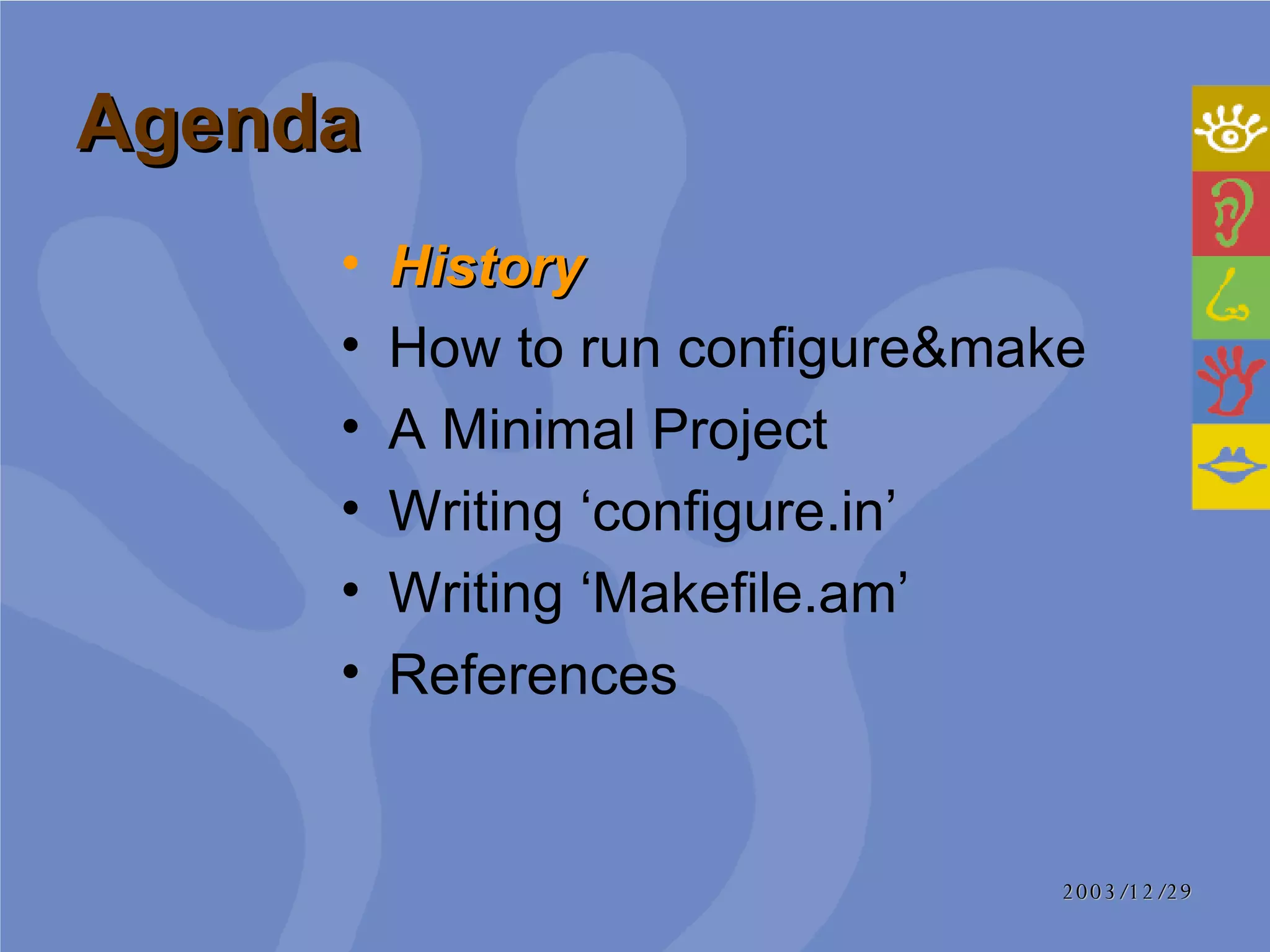

2. Agenda History How to run configure&make A Minimal Project Writing ‘configure.in’ Writing ‘Makefile.am’ References

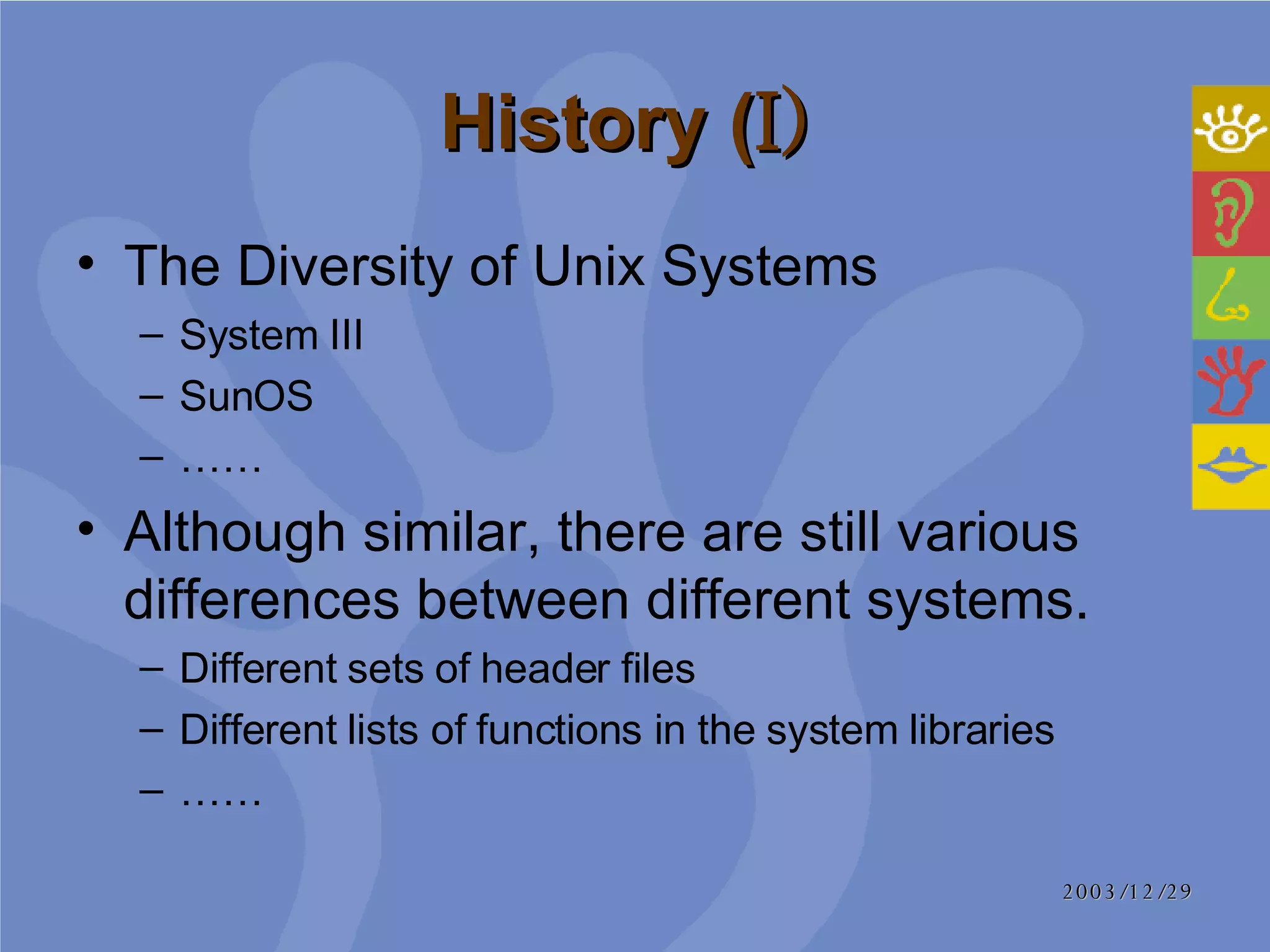

3. History ( I) The Diversity of Unix Systems System III SunOS …… Although similar, there are still various differences between different systems. Different sets of header files Different lists of functions in the system libraries ……

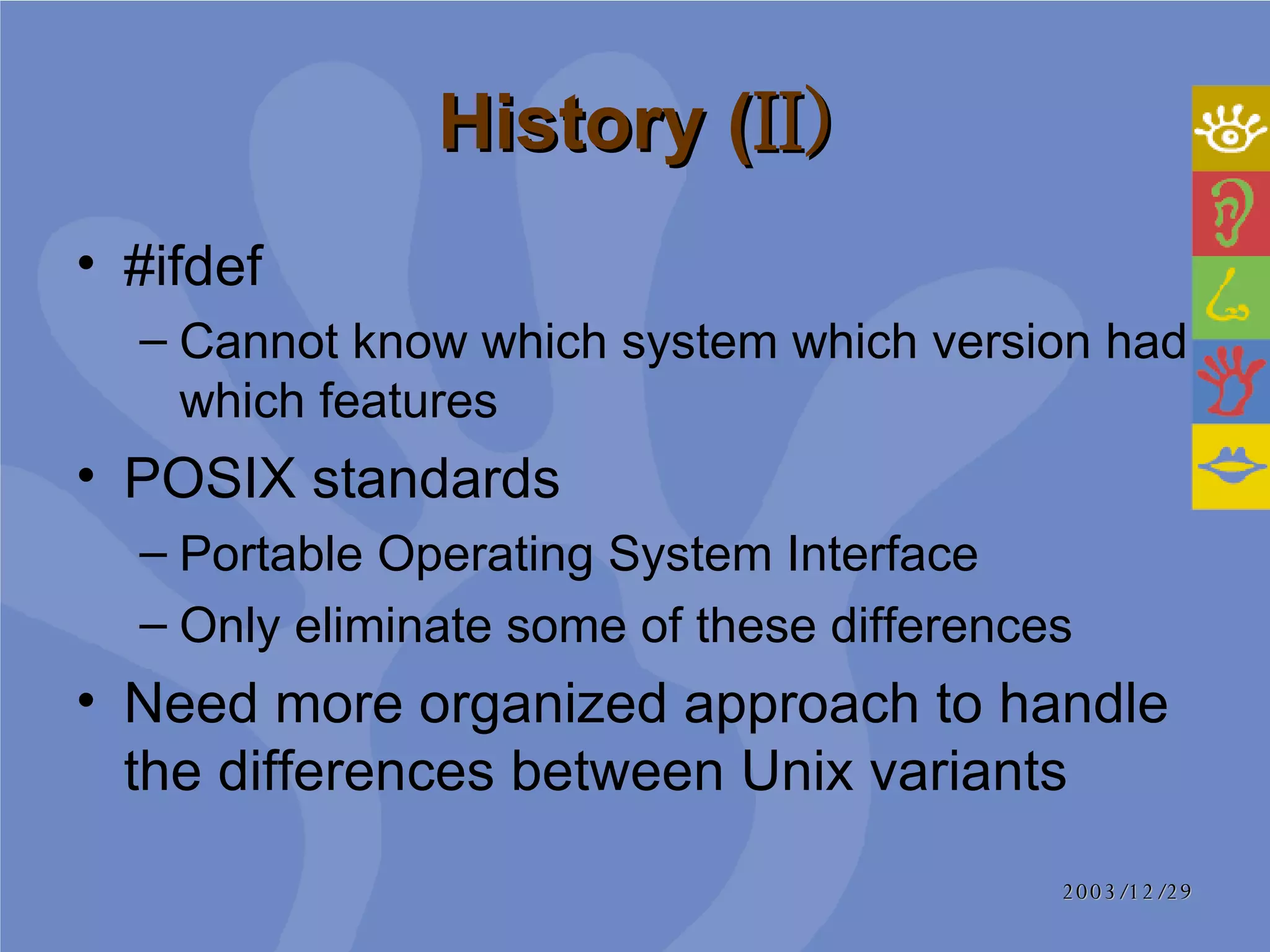

4. History ( II) #ifdef Cannot know which system which version had which features POSIX standards Portable Operating System Interface Only eliminate some of these differences Need more organized approach to handle the differences between Unix variants

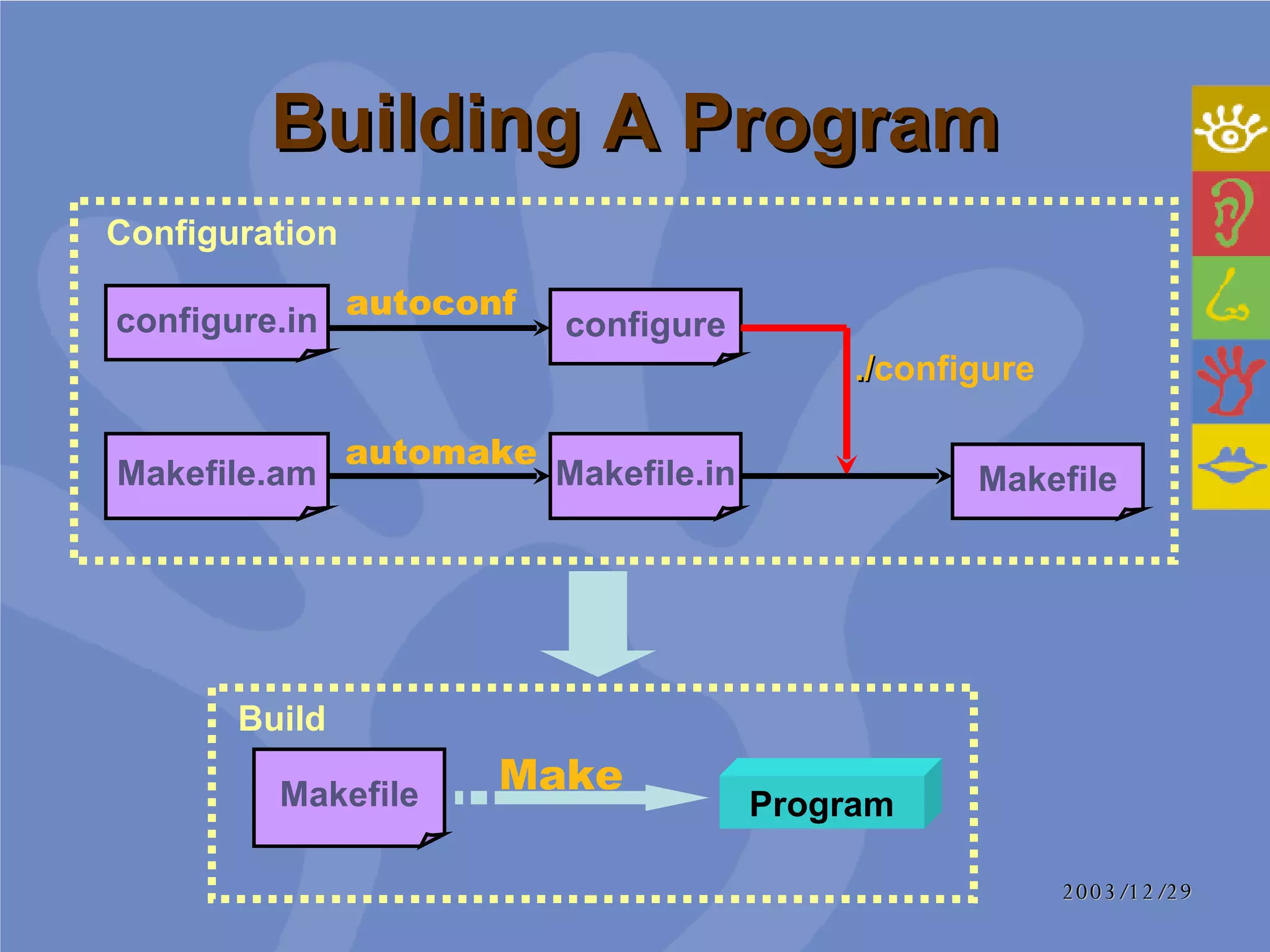

5. Building A Program Makefile configure Makefile.am Makefile Program Makefile.in configure.in Configuration Build Make automake autoconf ./ configure

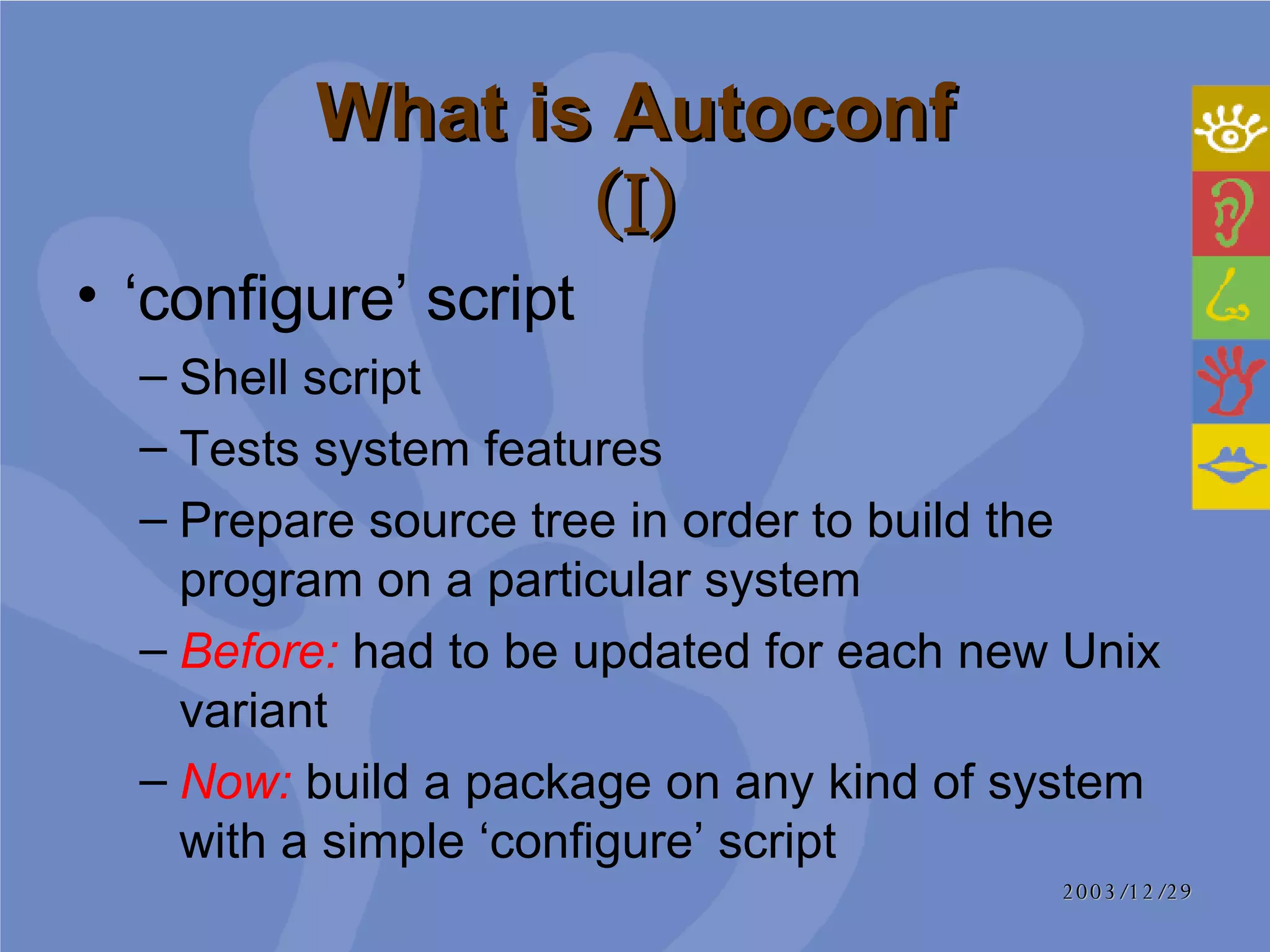

6. What is Autoconf (I) ‘ configure’ script Shell script Tests system features Prepare source tree in order to build the program on a particular system Before: had to be updated for each new Unix variant Now: build a package on any kind of system with a simple ‘configure’ script

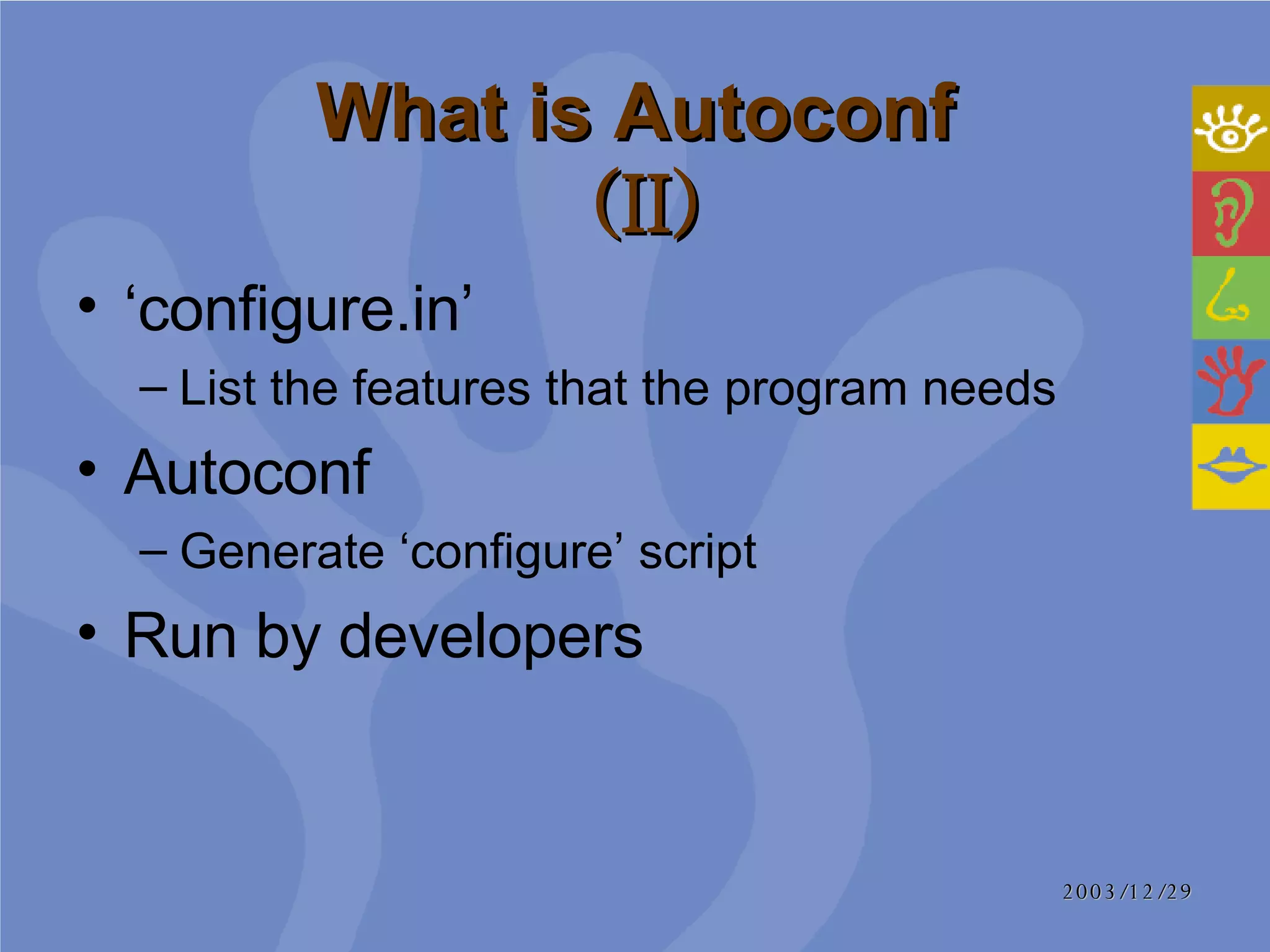

7. What is Autoconf (II) ‘ configure.in’ List the features that the program needs Autoconf Generate ‘configure’ script Run by developers

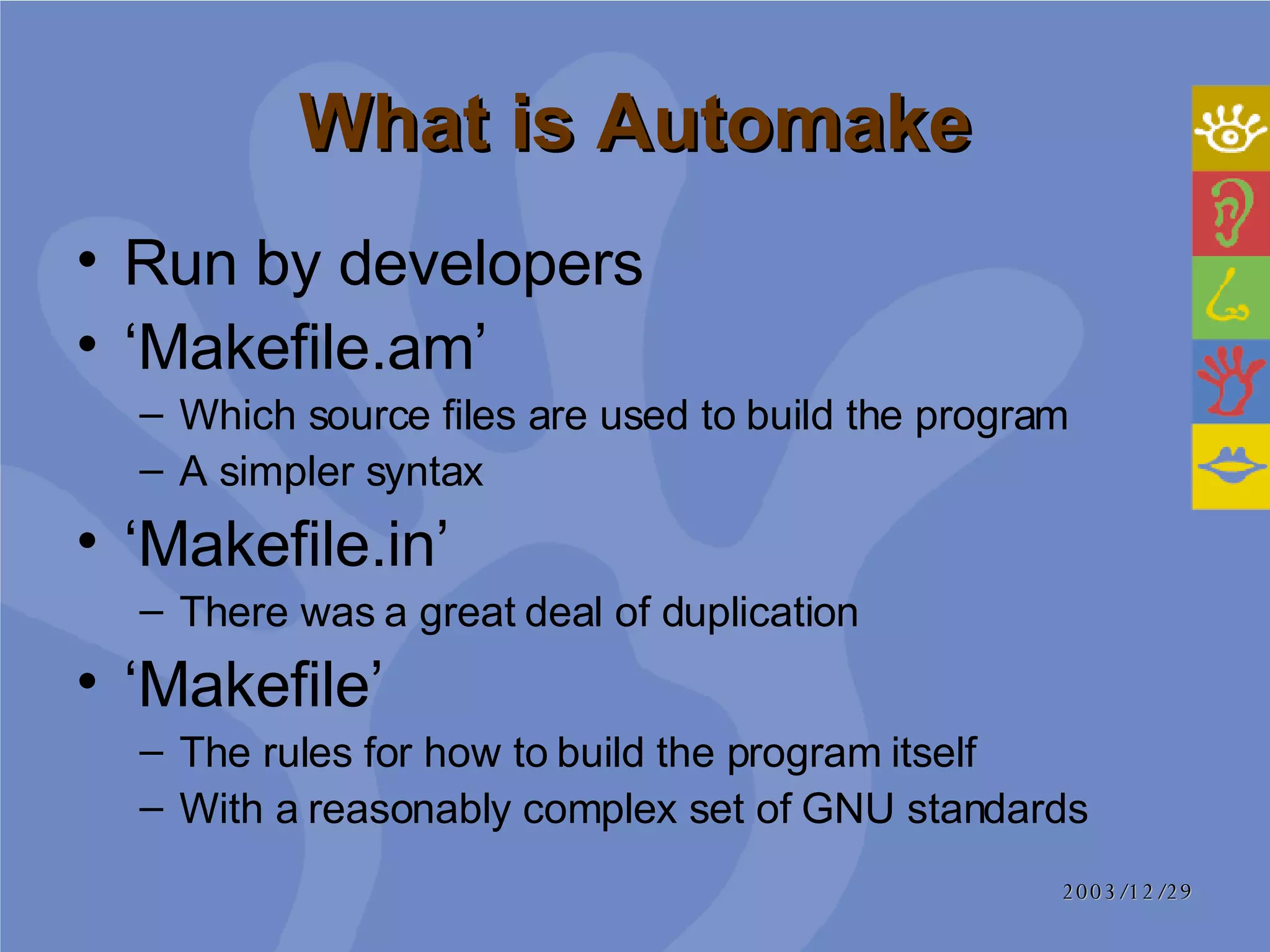

8. What is Automake Run by developers ‘ Makefile.am’ Which source files are used to build the program A simpler syntax ‘ Makefile.in’ There was a great deal of duplication ‘ Makefile’ The rules for how to build the program itself With a reasonably complex set of GNU standards

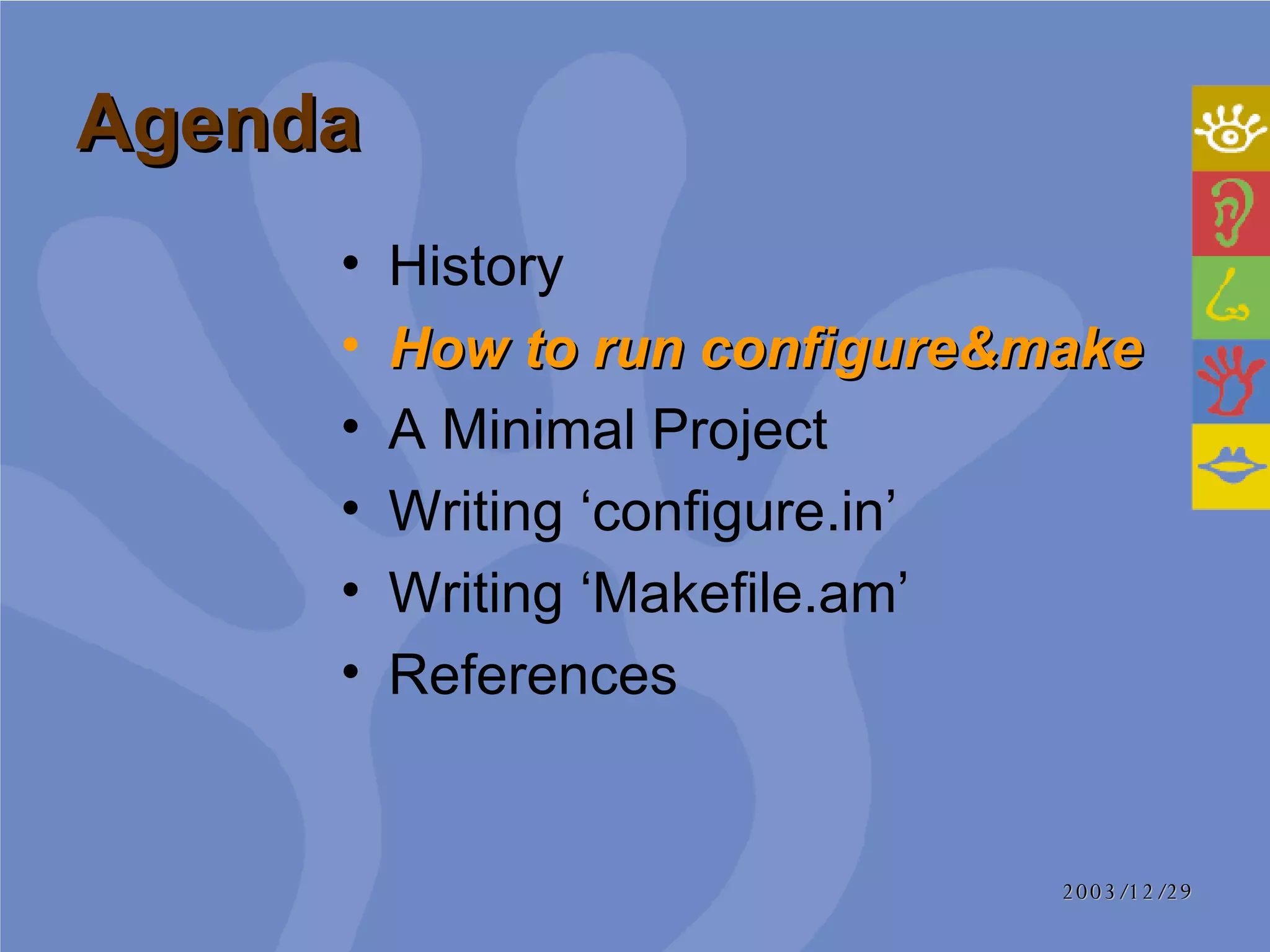

9. Agenda History How to run configure&make A Minimal Project Writing ‘configure.in’ Writing ‘Makefile.am’ References

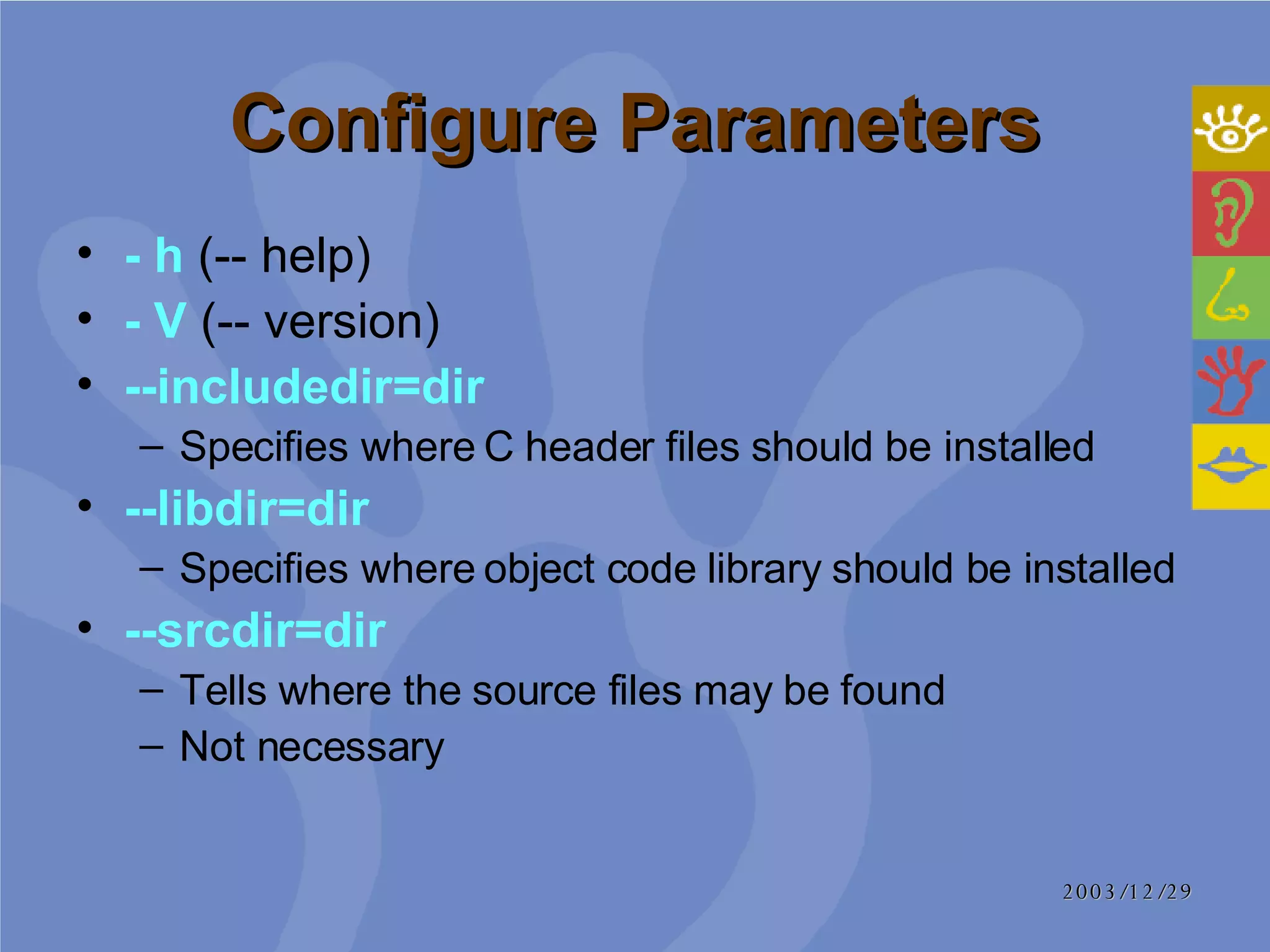

10. Configure Parameters - h (-- help) - V (-- version) --includedir=dir Specifies where C header files should be installed --libdir=dir Specifies where object code library should be installed --srcdir=dir Tells where the source files may be found Not necessary

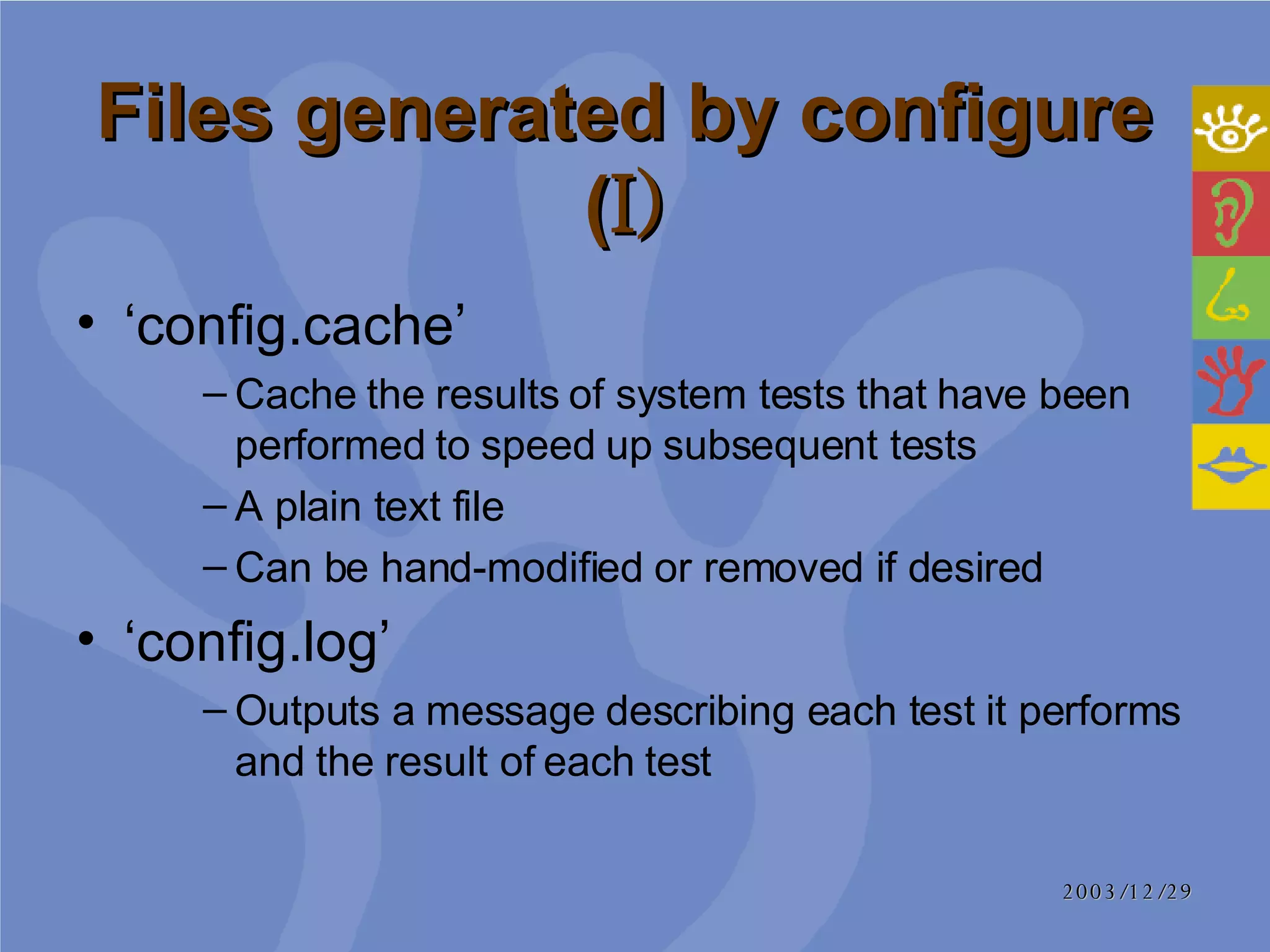

11. Files generated by configure ( I) ‘ config.cache’ Cache the results of system tests that have been performed to speed up subsequent tests A plain text file Can be hand-modified or removed if desired ‘ config.log’ Outputs a message describing each test it performs and the result of each test

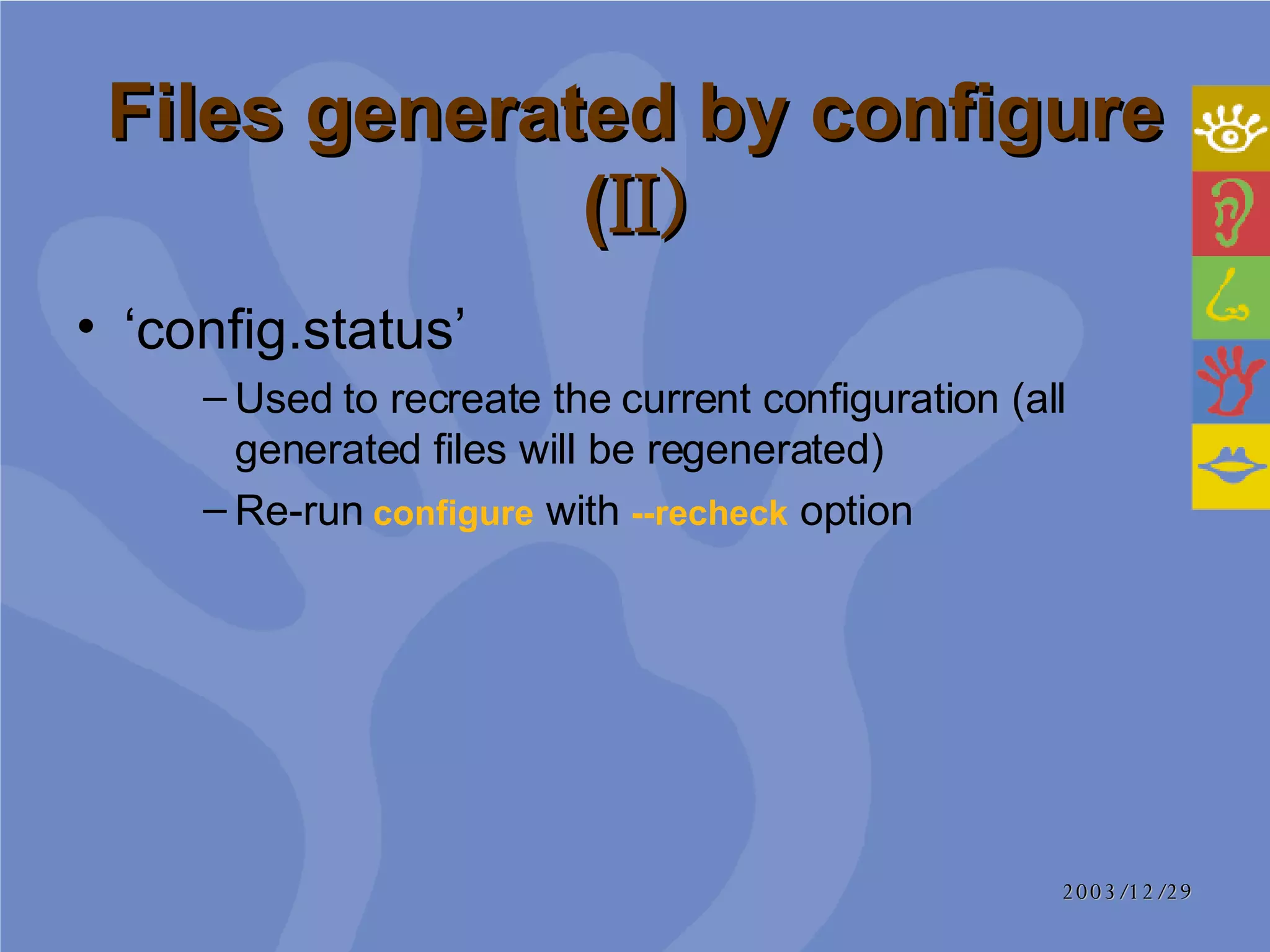

12. Files generated by configure ( II) ‘ config.status’ Used to recreate the current configuration (all generated files will be regenerated) Re-run configure with --recheck option

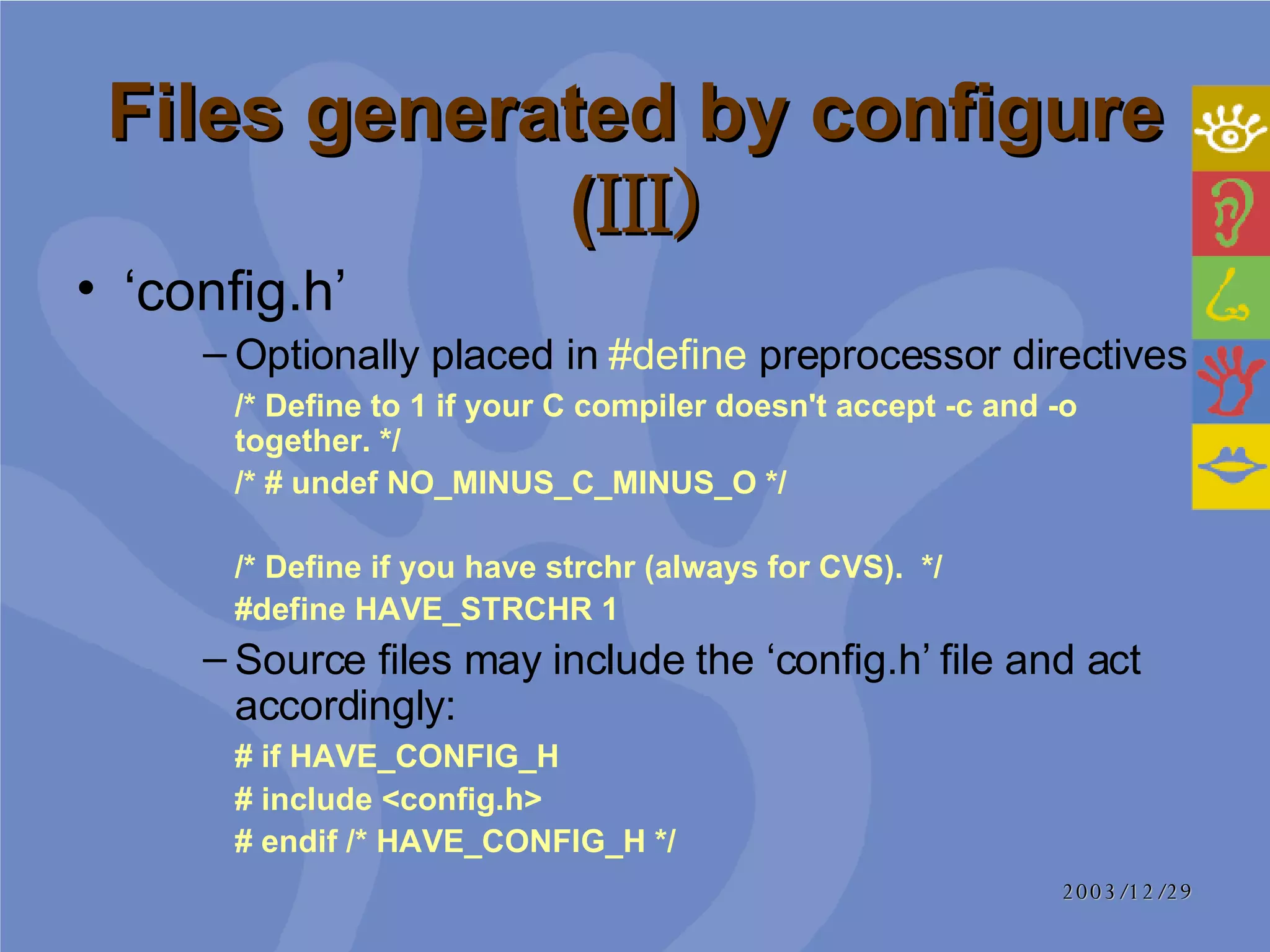

13. Files generated by configure ( III) ‘ config.h’ Optionally placed in #define preprocessor directives /* Define to 1 if your C compiler doesn't accept -c and -o together. */ /* # undef NO_MINUS_C_MINUS_O */ /* Define if you have strchr (always for CVS). */ #define HAVE_STRCHR 1 Source files may include the ‘config.h’ file and act accordingly: # if HAVE_CONFIG_H # include <config.h> # endif /* HAVE_CONFIG_H */

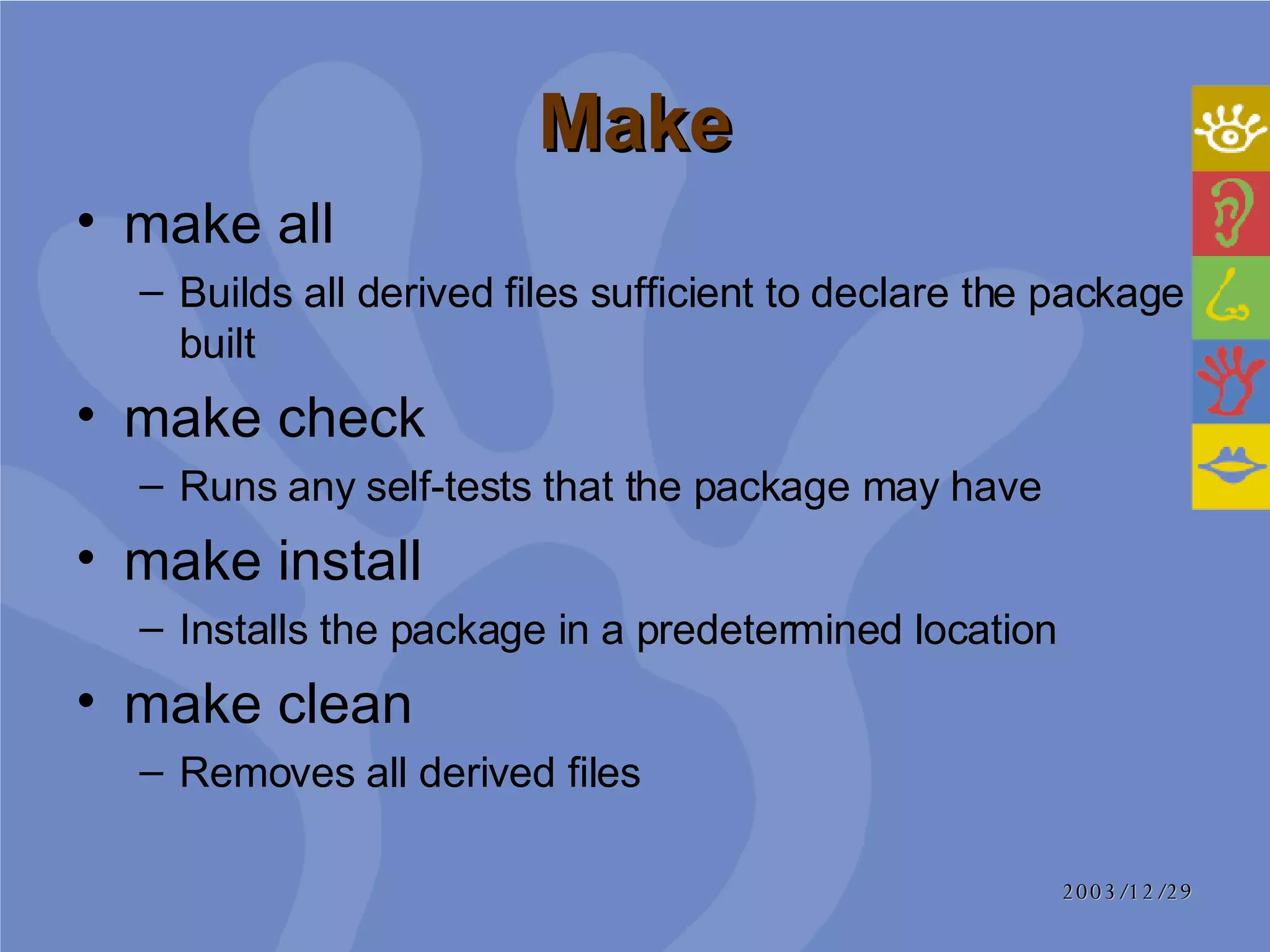

14. Make make all Builds all derived files sufficient to declare the package built make check Runs any self-tests that the package may have make install Installs the package in a predetermined location make clean Removes all derived files

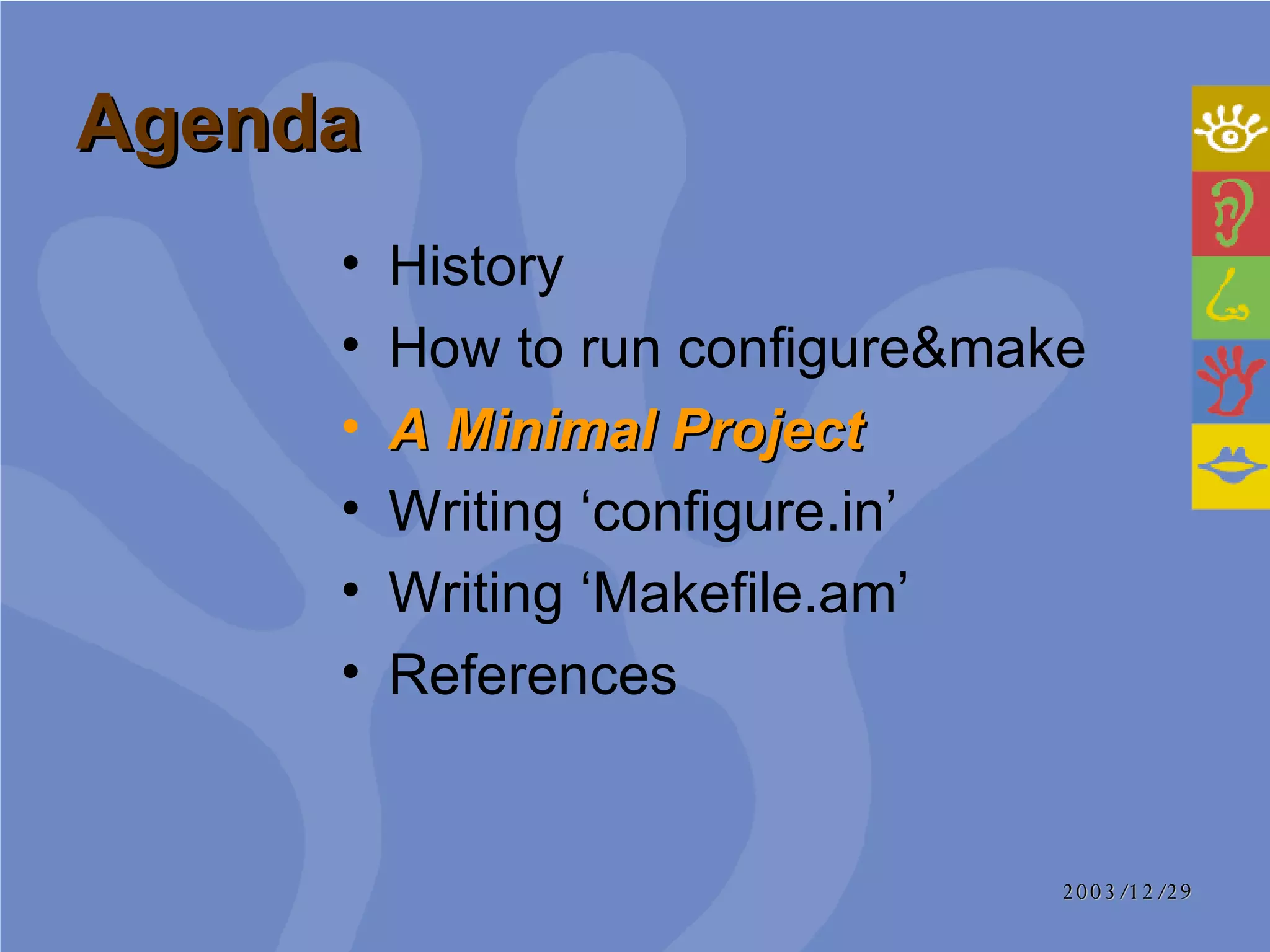

15. Agenda History How to run configure&make A Minimal Project Writing ‘configure.in’ Writing ‘Makefile.am’ References

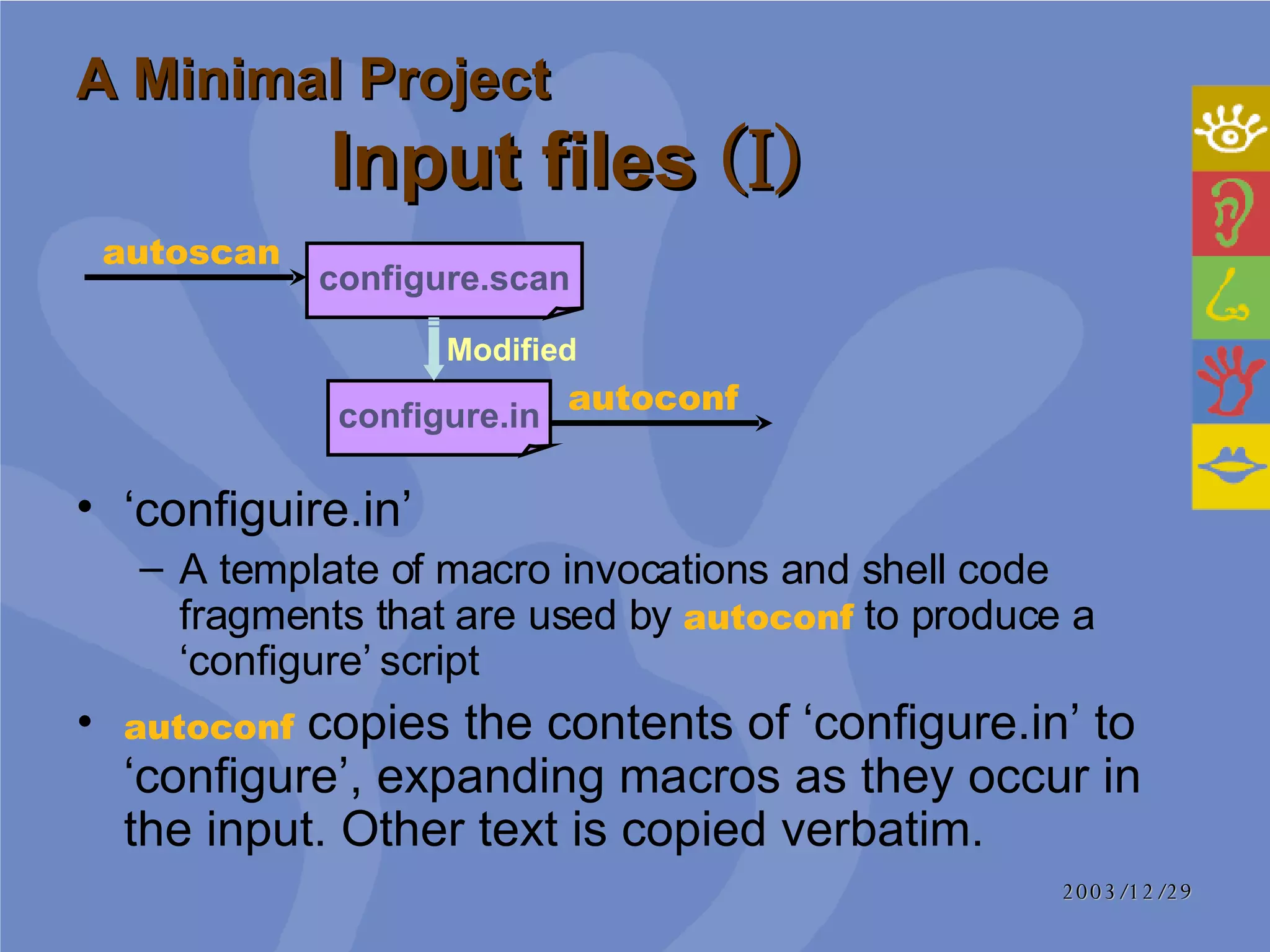

16. A Minimal Project Input files (I) ‘ configuire.in’ A template of macro invocations and shell code fragments that are used by autoconf to produce a ‘configure’ script autoconf copies the contents of ‘configure.in’ to ‘configure’, expanding macros as they occur in the input. Other text is copied verbatim. autoconf configure.in configure.scan autoscan Modified

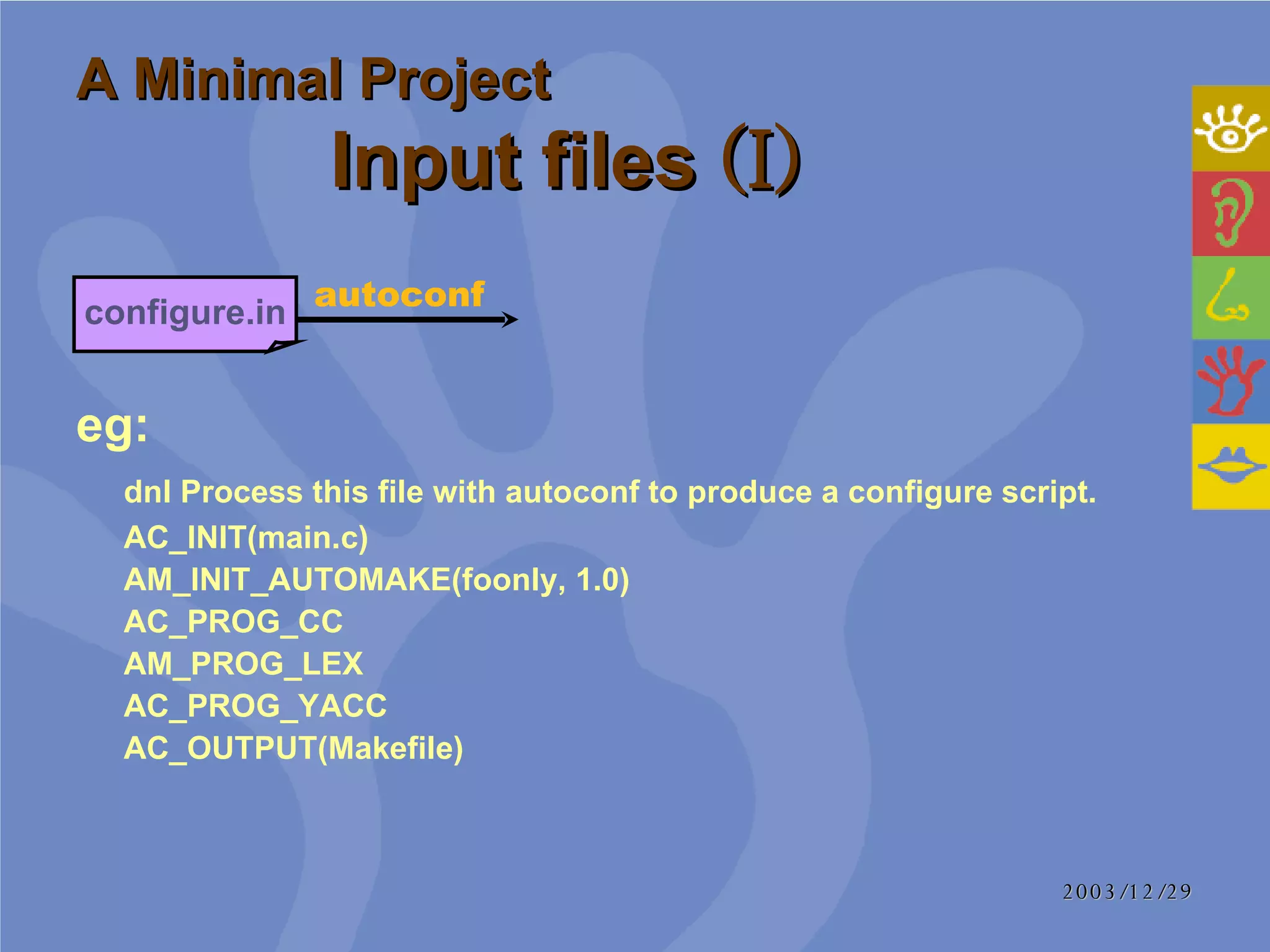

17. A Minimal Project Input files (I) eg: dnl Process this file with autoconf to produce a configure script. AC_INIT(main.c) AM_INIT_AUTOMAKE(foonly, 1.0) AC_PROG_CC AM_PROG_LEX AC_PROG_YACC AC_OUTPUT(Makefile) autoconf configure.in

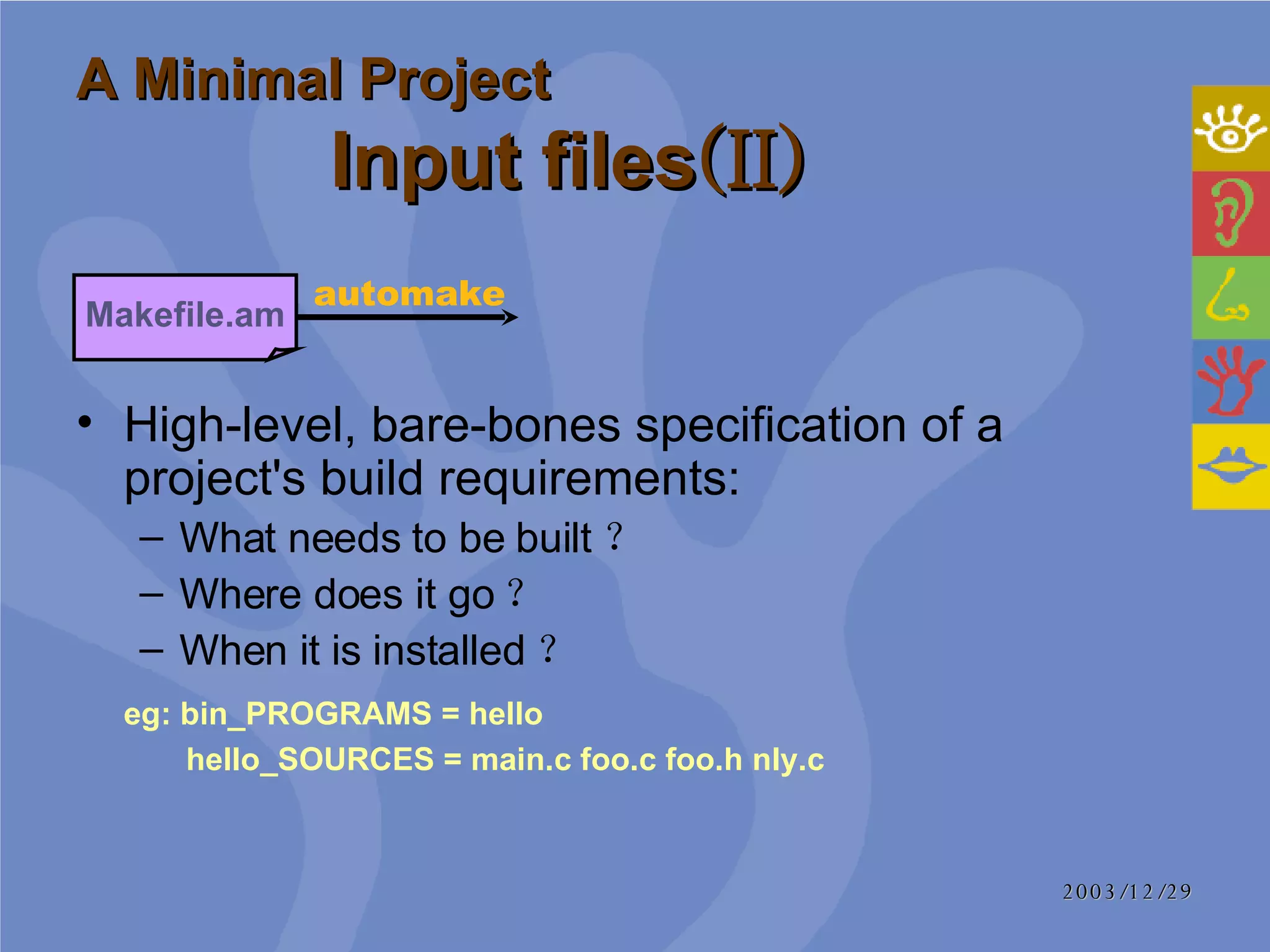

18. A Minimal Project Input files (II) High-level, bare-bones specification of a project's build requirements: What needs to be built ？ Where does it go ？ When it is installed ？ eg: bin_PROGRAMS = hello hello_SOURCES = main.c foo.c foo.h nly.c Makefile.am automake

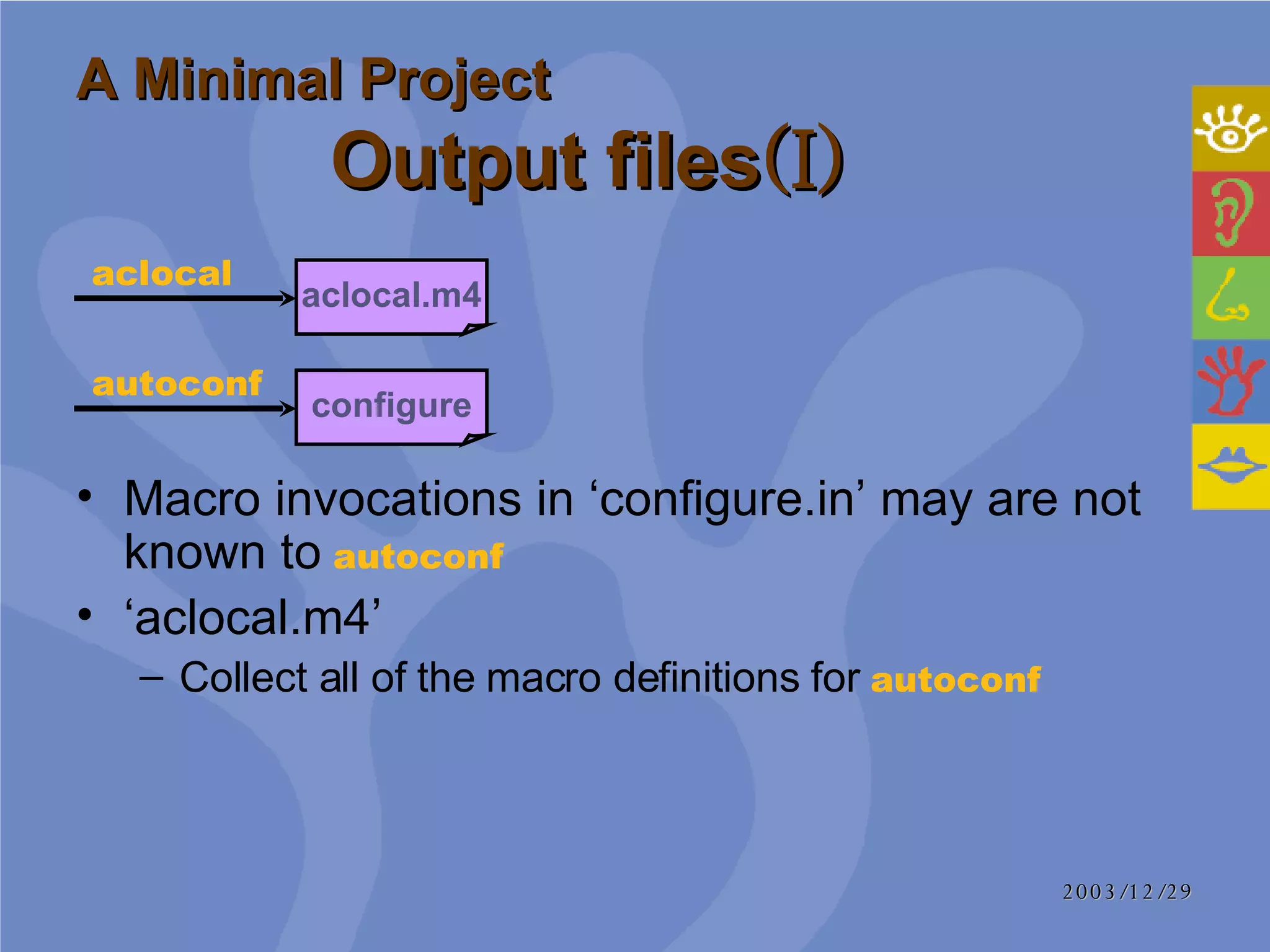

19. A Minimal Project Output files (I) Macro invocations in ‘configure.in’ may are not known to autoconf ‘ aclocal.m4’ Collect all of the macro definitions for autoconf aclocal.m4 aclocal configure autoconf

20. A Minimal Project Output files (II) $ automake --add-missing automake: configure.in: installing ./install-sh automake: configure.in: installing ./mkinstalldirs automake: configure.in: installing ./missing automake: Makefile.am: installing ./INSTALL automake: Makefile.am: required file ./NEWS not found automake: Makefile.am: required file ./README not found automake: Makefile.am: installing ./COPYING automake: Makefile.am: required file ./AUTHORS not found automake: Makefile.am: required file ./ChangeLog not found Makefile.in automake $ touch NEWS README AUTHORS ChangeLog $ automake --add-missing

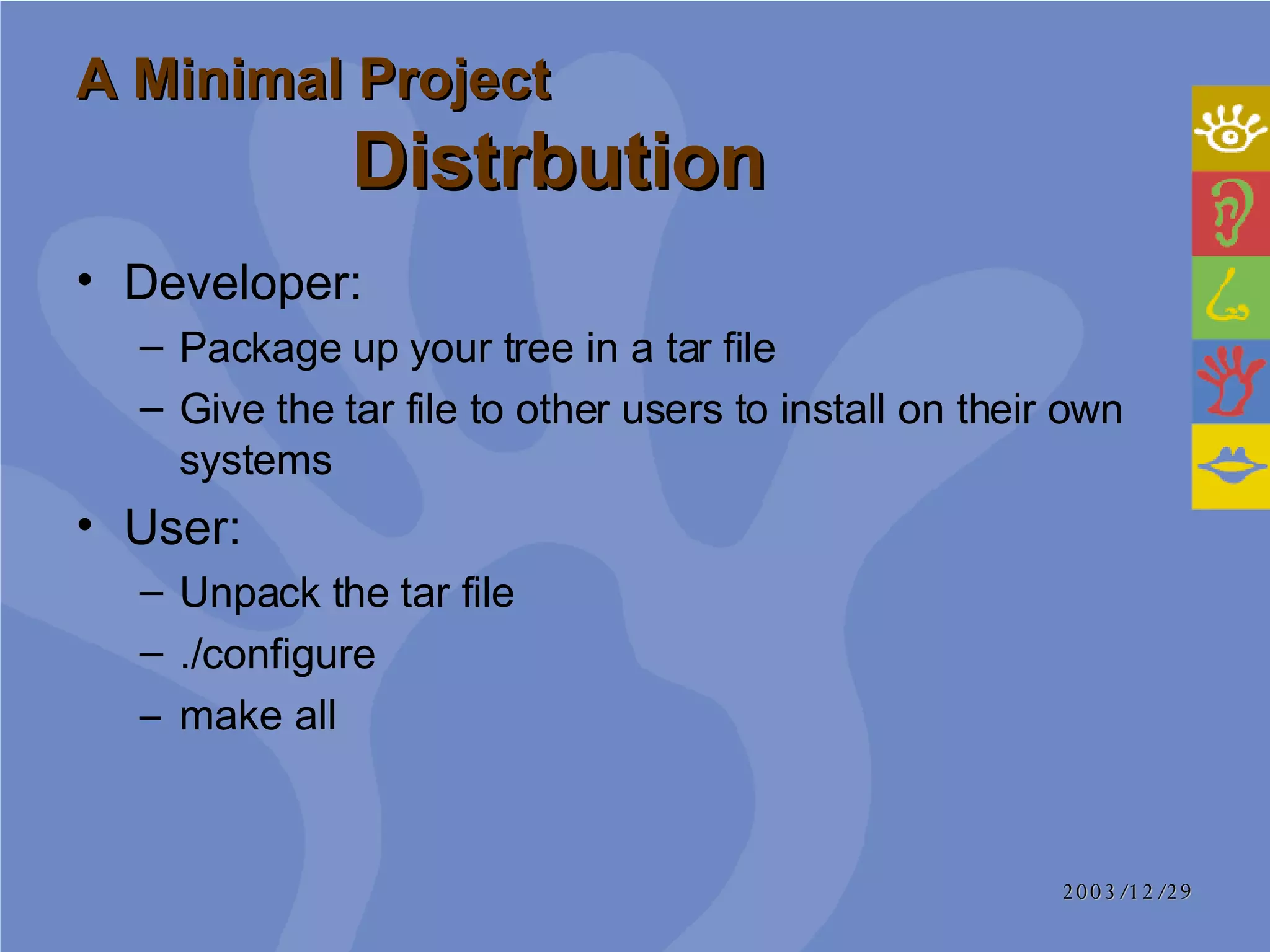

21. A Minimal Project Distrbution Developer: Package up your tree in a tar file Give the tar file to other users to install on their own systems User: Unpack the tar file ./ configure make all

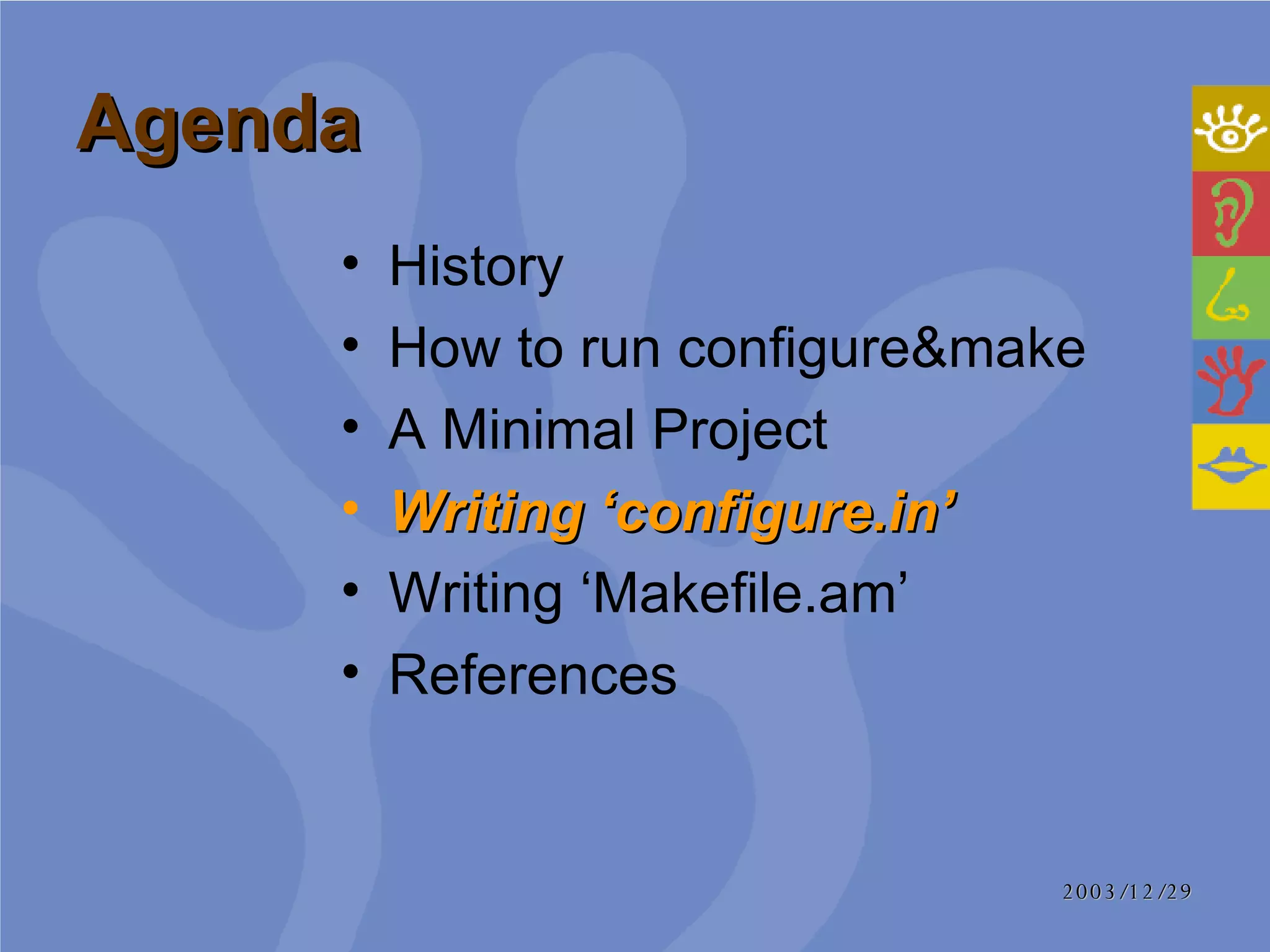

22. Agenda History How to run configure&make A Minimal Project Writing ‘configure.in’ Writing ‘Makefile.am’ References

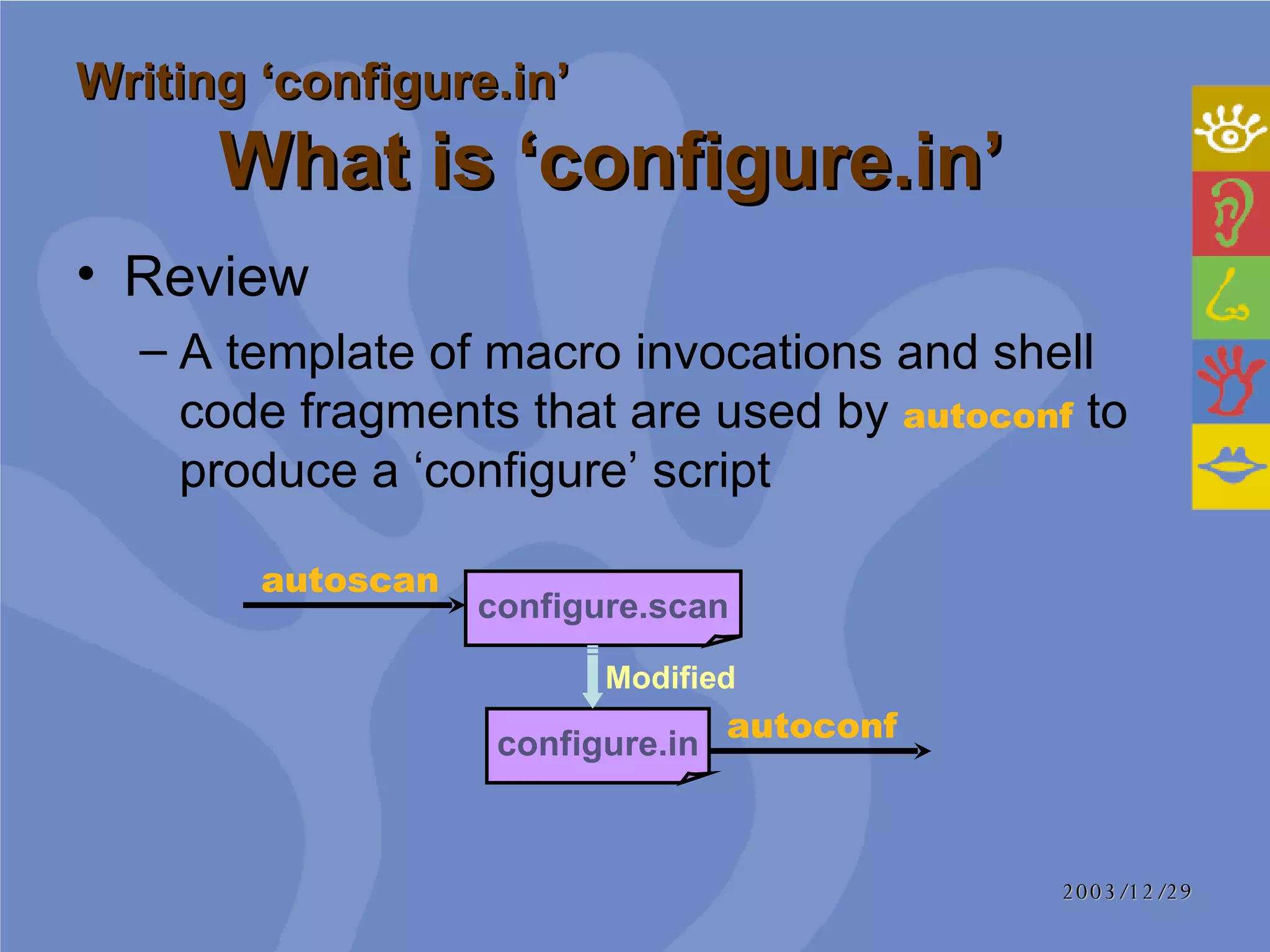

23. Review A template of macro invocations and shell code fragments that are used by autoconf to produce a ‘configure’ script Writing ‘configure.in’ What is ‘configure.in’ autoconf configure.in configure.scan autoscan Modified

24. What constructs are portable and what constructs aren't portable? How do I decide what to check for? What shouldn't I check for? What shouldn't I put in `configure.in'? In what order should I run my checks? Writing ‘configure.in’ Frequent Question

25. Boilerplate Programs Libraries Headers Typedefs and structures Functions Output Writing ‘configure.in’ Standard Ordering

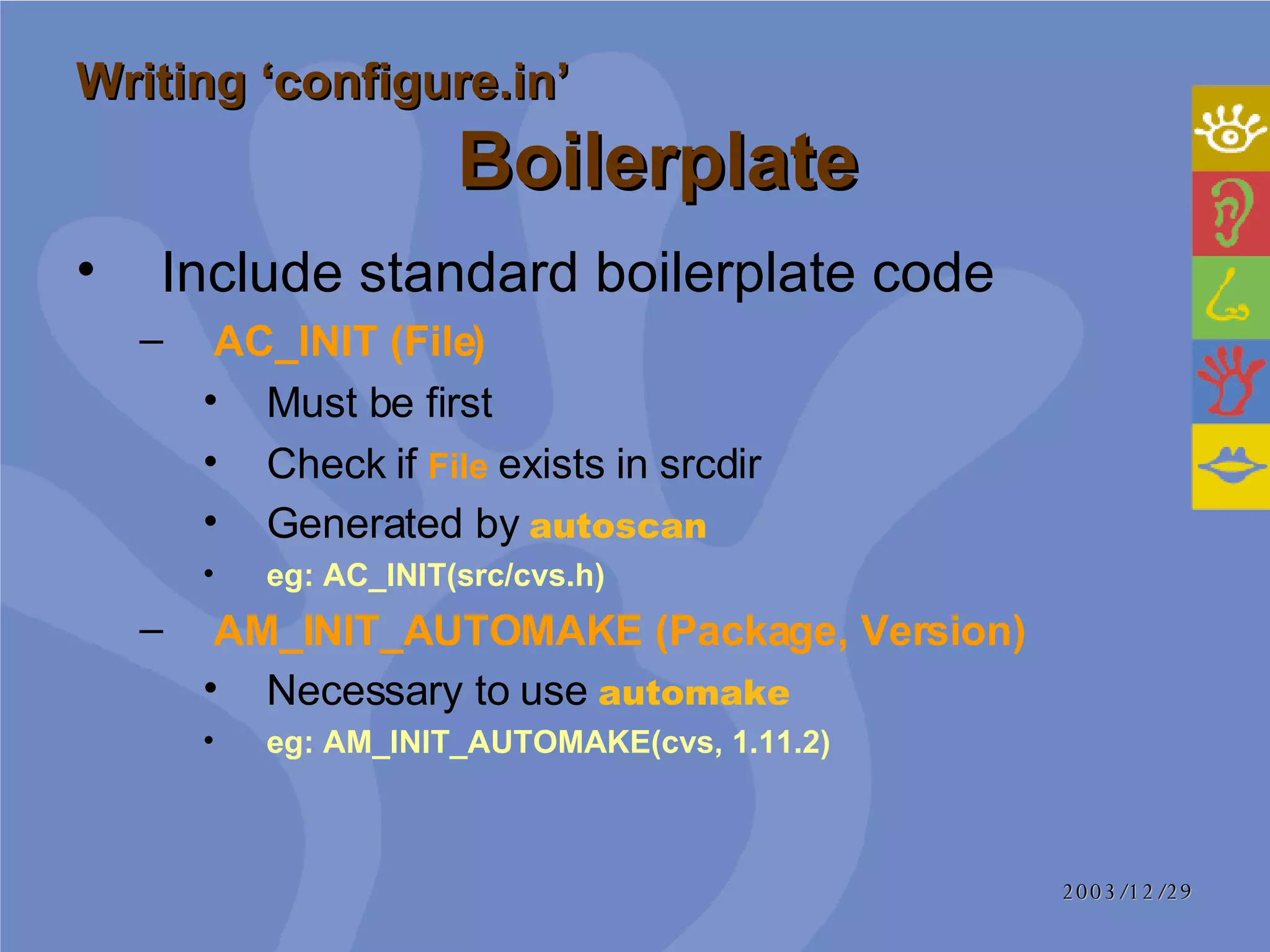

26. Include standard boilerplate code AC_INIT (File) Must be first Check if File exists in srcdir Generated by autoscan eg: AC_INIT(src/cvs.h) AM_INIT_AUTOMAKE (Package, Version) Necessary to use automake eg: AM_INIT_AUTOMAKE(cvs, 1.11.2) Writing ‘configure.in’ Boilerplate

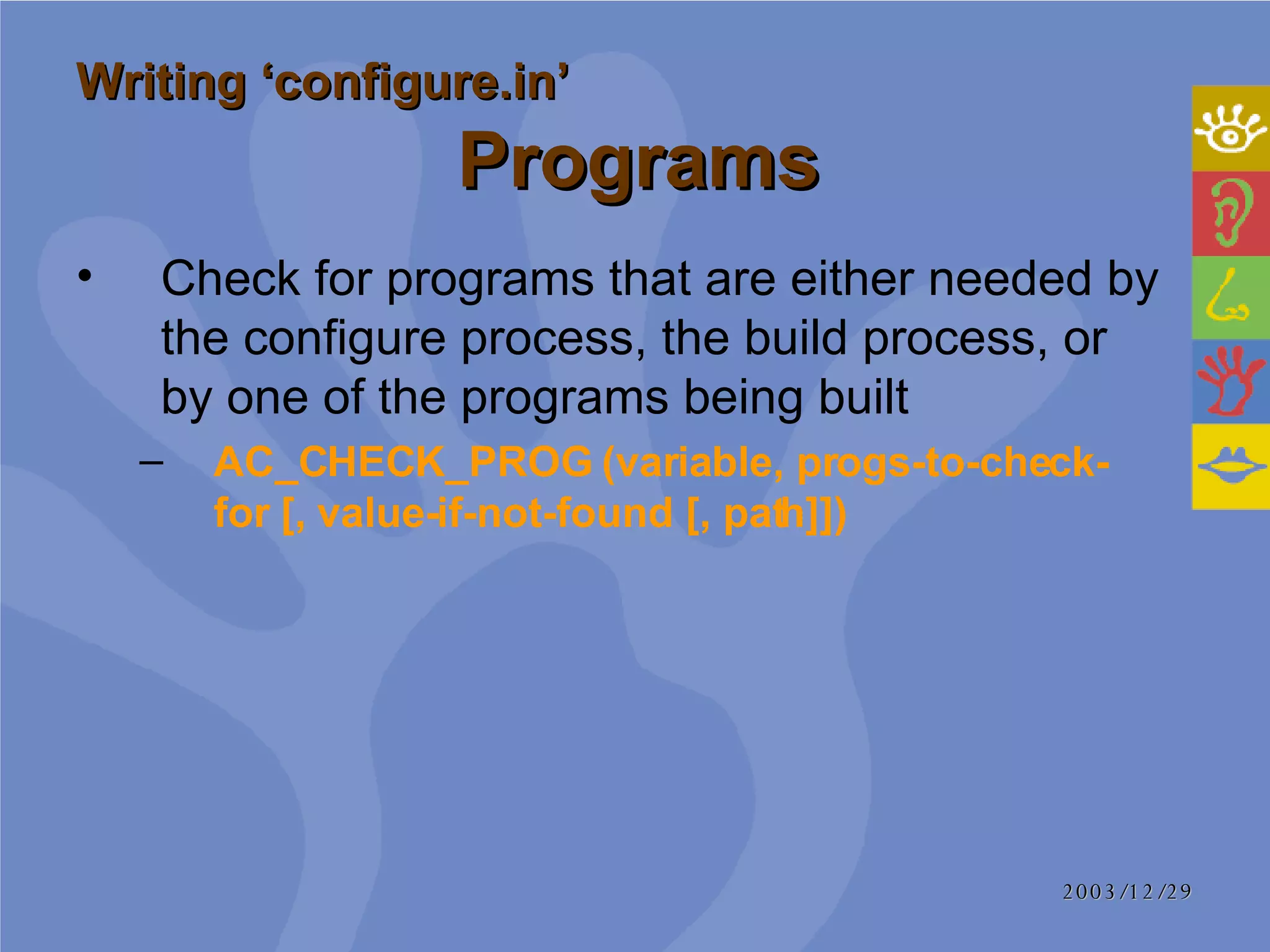

27. Check for programs that are either needed by the configure process, the build process, or by one of the programs being built AC_CHECK_PROG (variable, progs-to-check-for [, value-if-not-found [, path]]) Writing ‘configure.in’ Programs

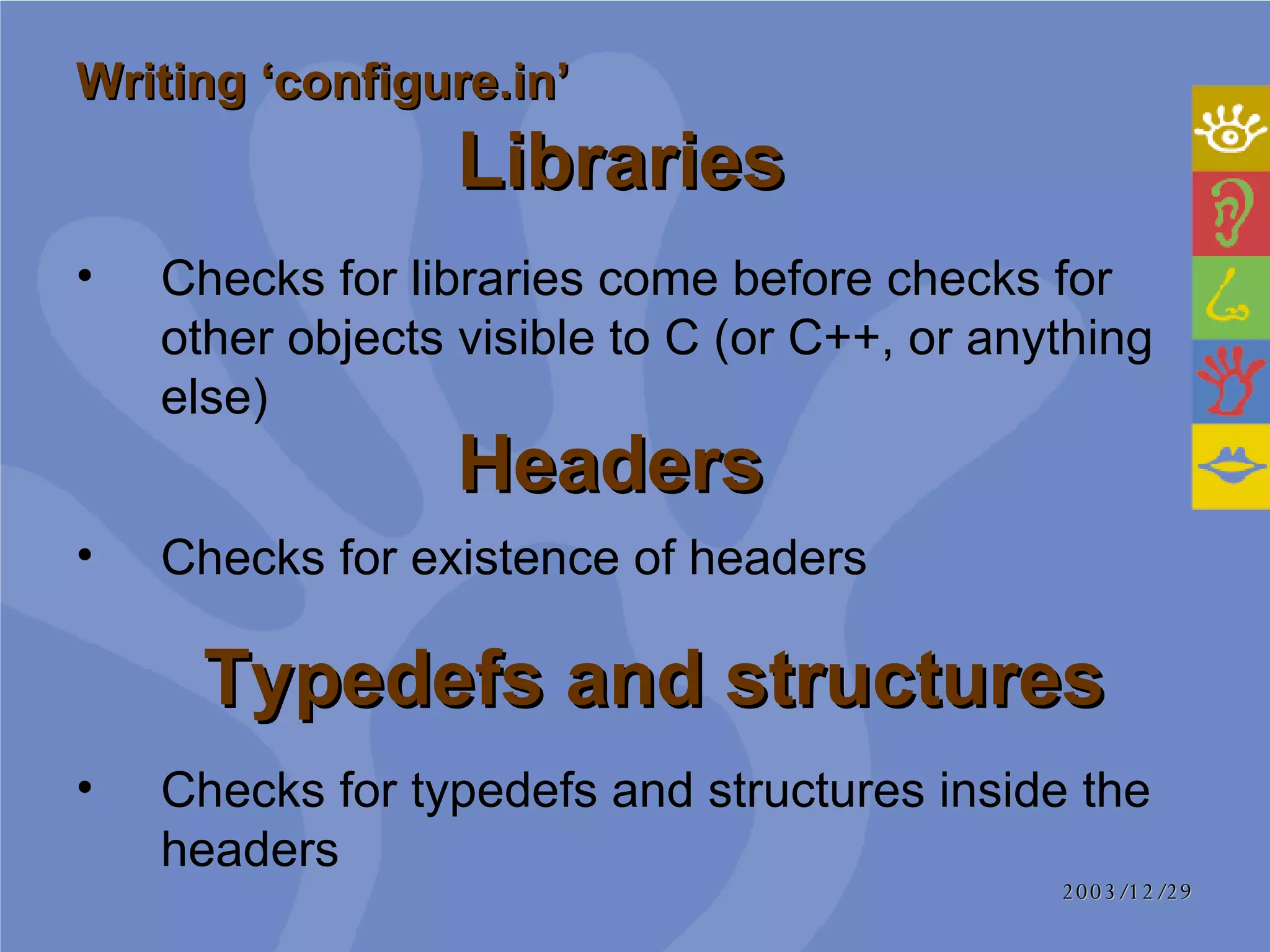

28. Checks for libraries come before checks for other objects visible to C (or C++, or anything else) Writing ‘configure.in’ Libraries Headers Checks for existence of headers Typedefs and structures Checks for typedefs and structures inside the headers

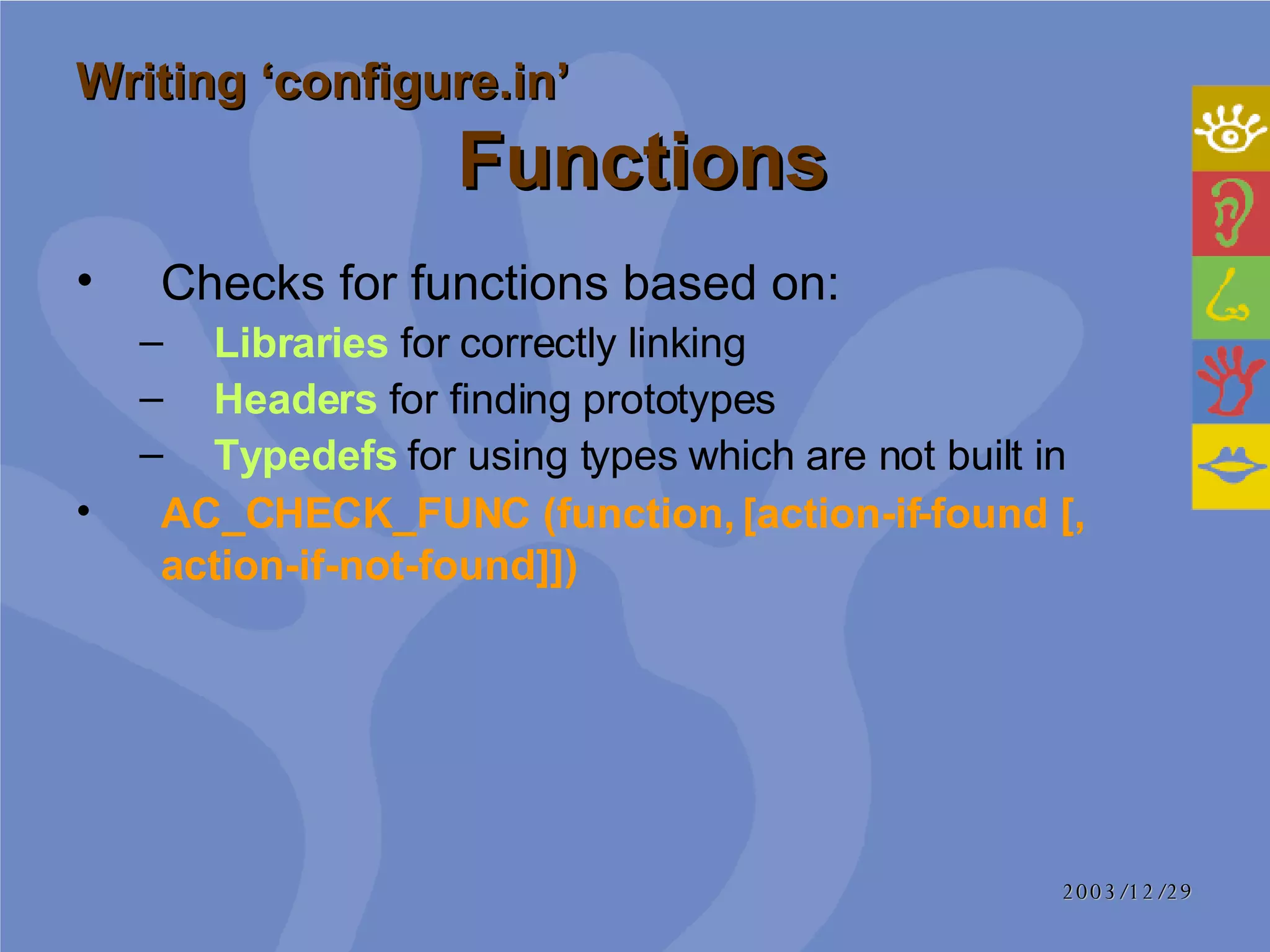

29. Checks for functions based on: Libraries for correctly linking Headers for finding prototypes Typedefs for using types which are not built in AC_CHECK_FUNC (function, [action-if-found [, action-if-not-found]]) Writing ‘configure.in’ Functions

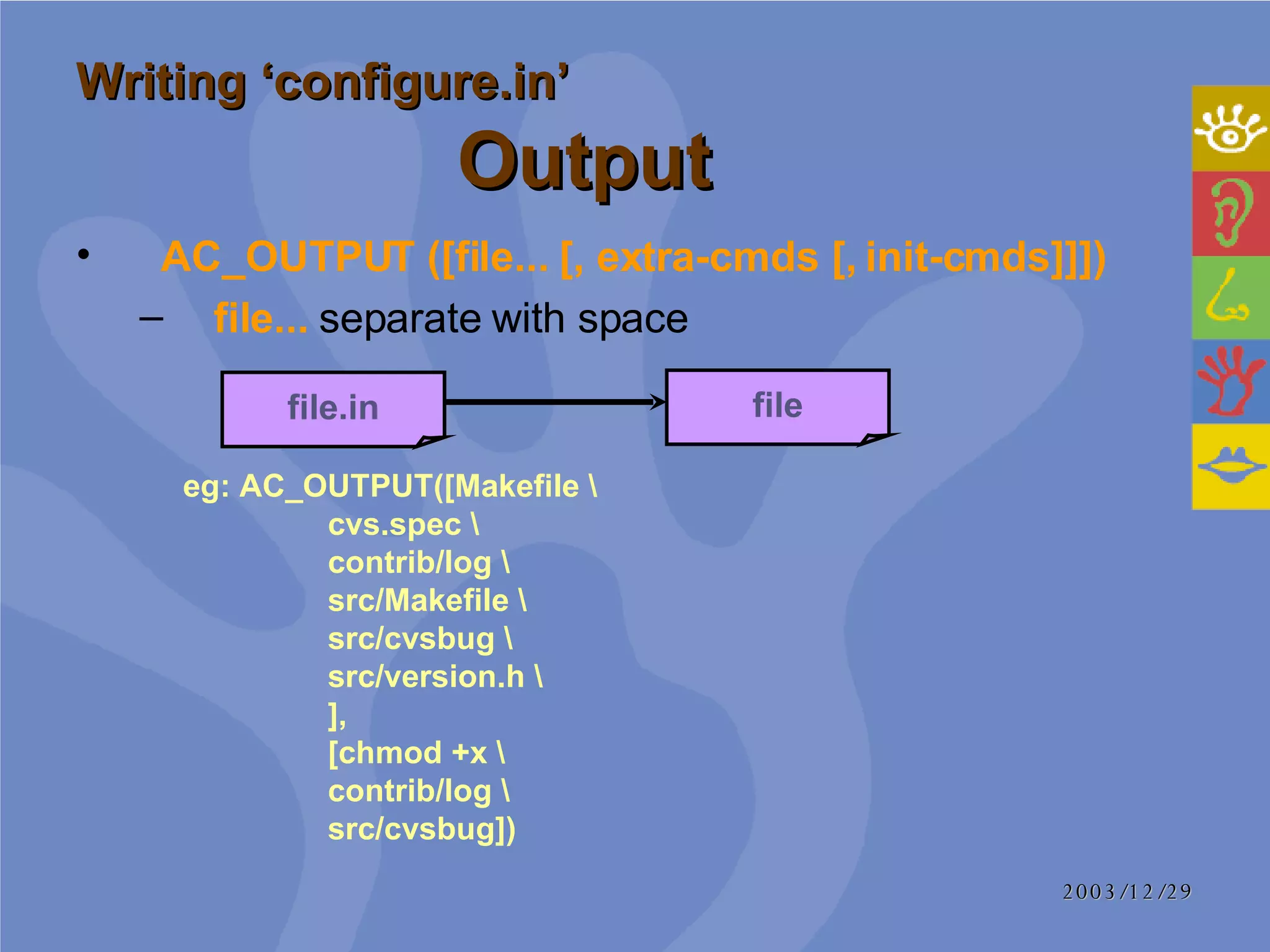

30. Writing ‘configure.in’ Output AC_OUTPUT ([file... [, extra-cmds [, init-cmds]]]) file... separate with space file.in file eg: AC_OUTPUT([Makefile \ cvs.spec \ contrib/log \ src/Makefile \ src/cvsbug \ src/version.h \ ], [chmod +x \ contrib/log \ src/cvsbug])

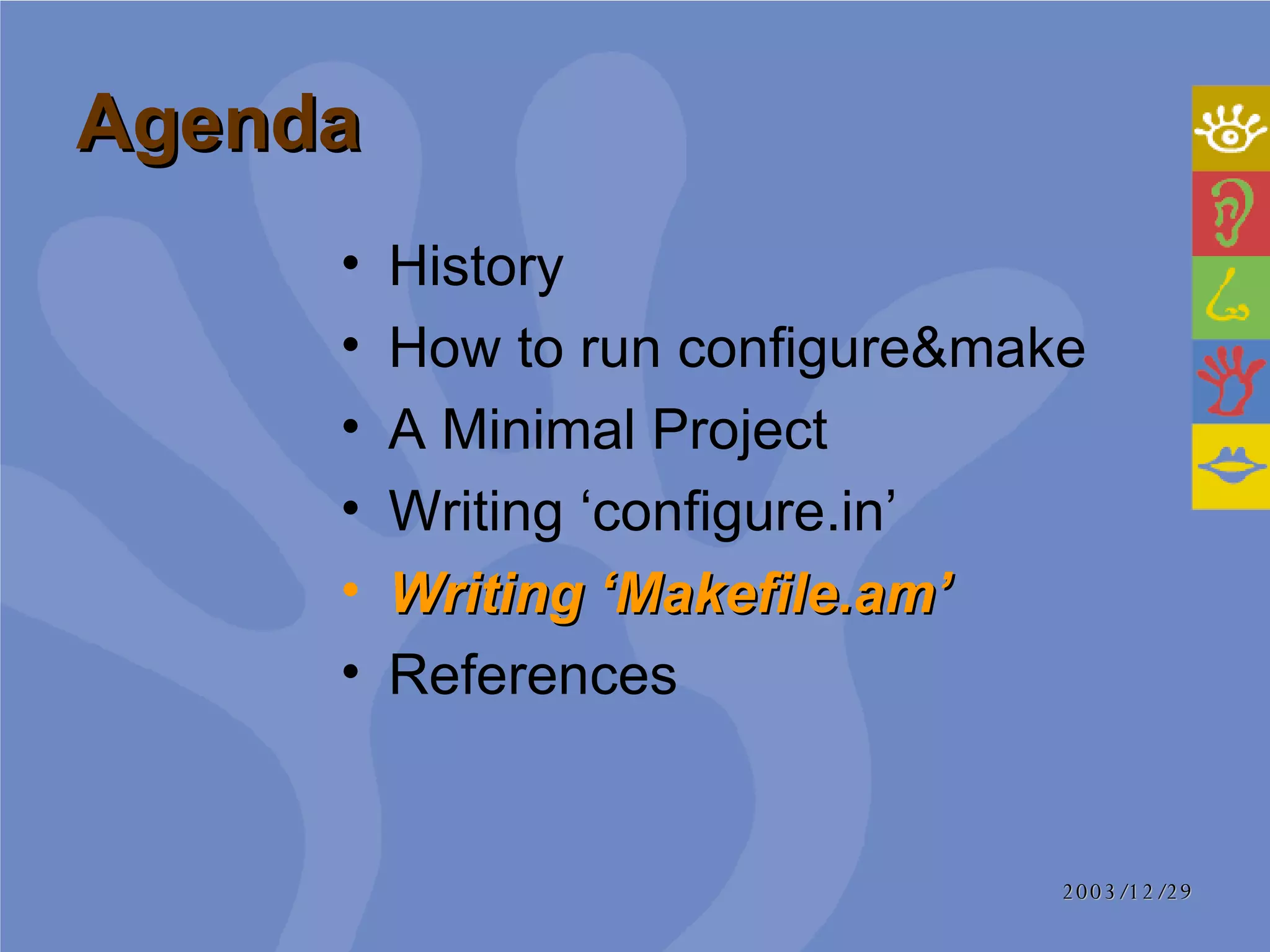

31. Agenda History How to run configure&make A Minimal Project Writing ‘configure.in’ Writing ‘Makefile.am’ References

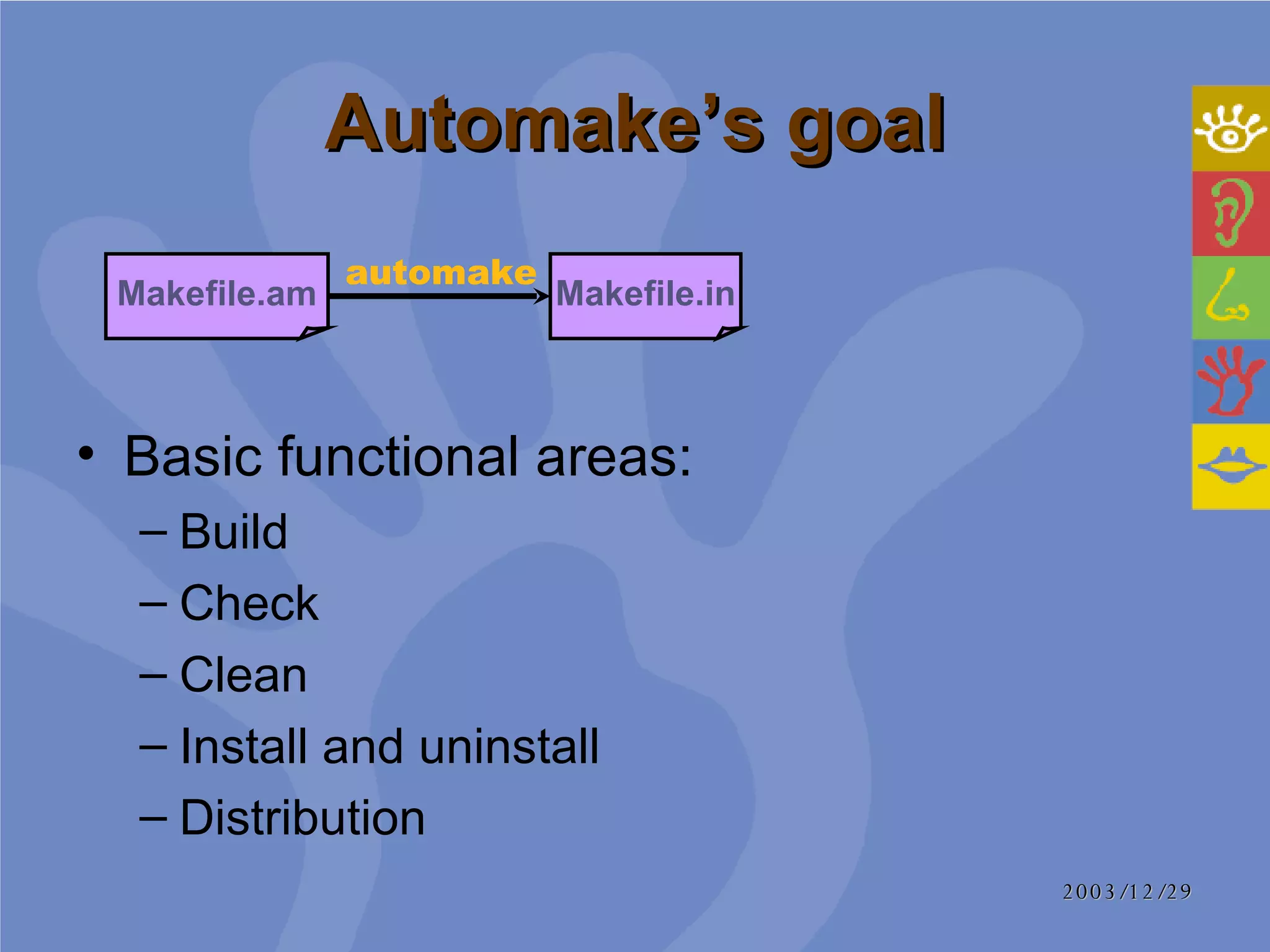

32. Automake’s goal Basic functional areas: Build Check Clean Install and uninstall Distribution Makefile.am Makefile.in automake

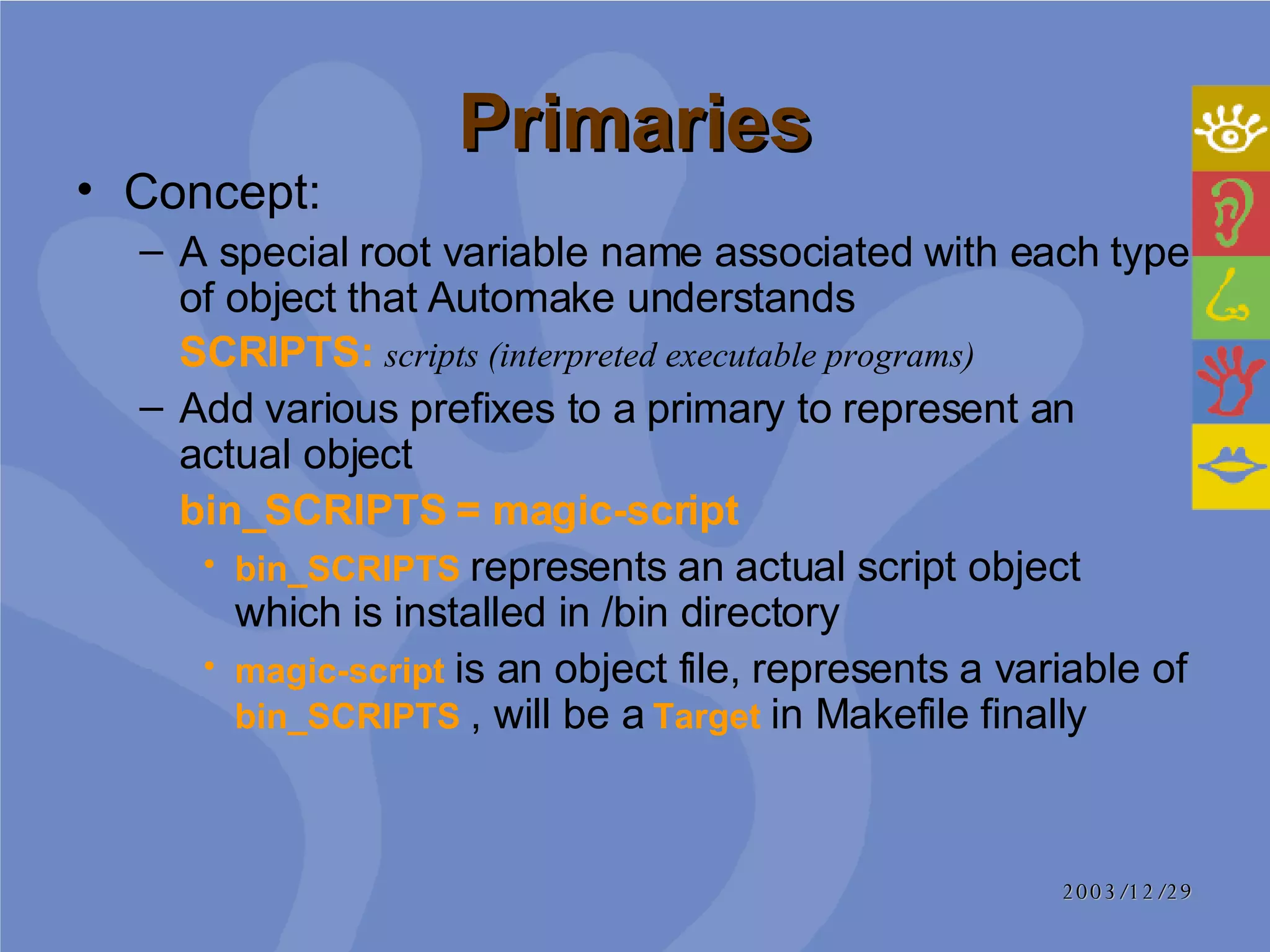

33. Primaries Concept: A special root variable name associated with each type of object that Automake understands SCRIPTS: scripts (interpreted executable programs) Add various prefixes to a primary to represent an actual object bin_SCRIPTS = magic-script bin_SCRIPTS represents an actual script object which is installed in /bin directory magic-script is an object file, represents a variable of bin_SCRIPTS , will be a Target in Makefile finally

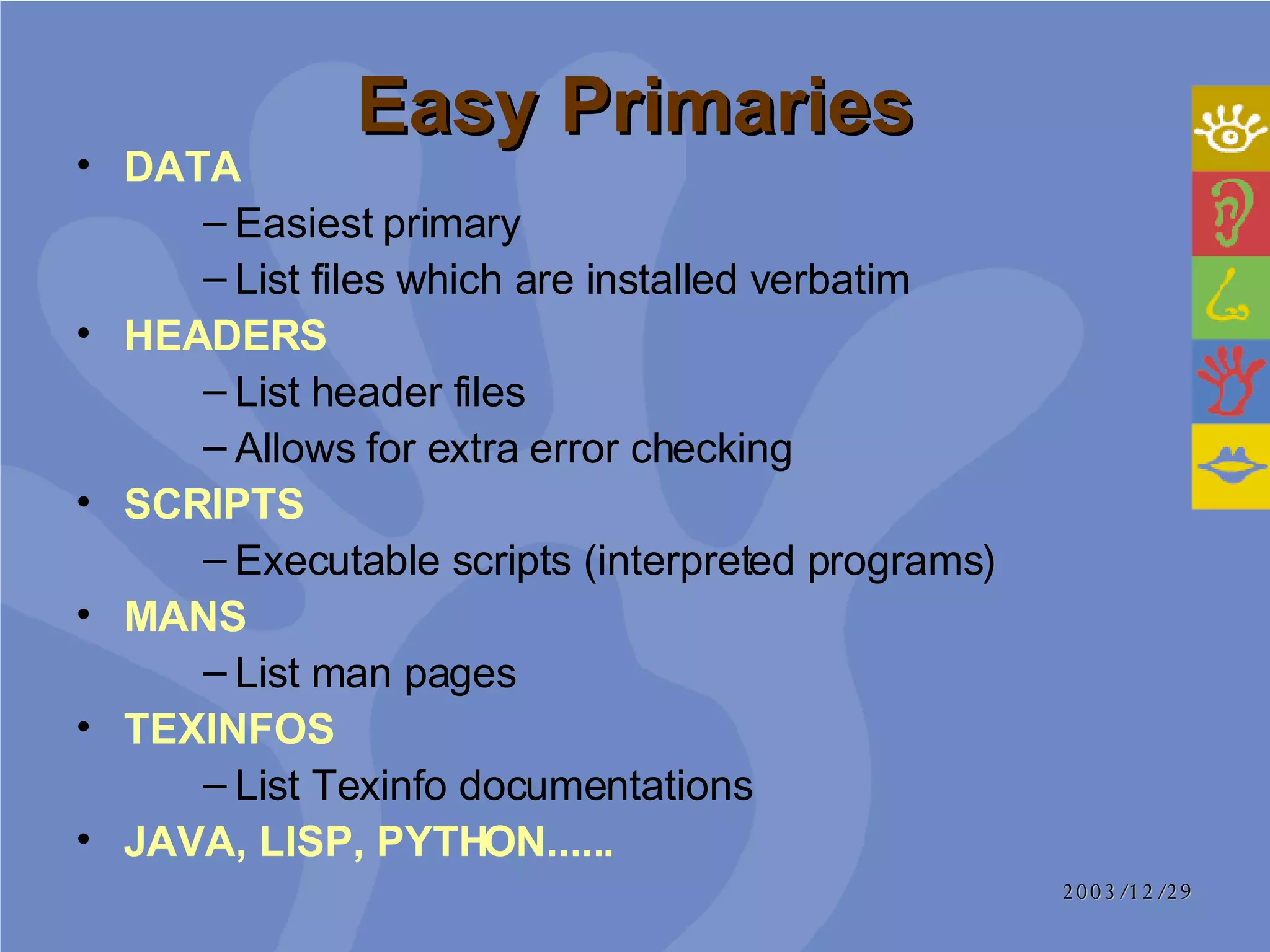

34. Easy Primaries DATA Easiest primary List files which are installed verbatim HEADERS List header files Allows for extra error checking SCRIPTS Executable scripts (interpreted programs) MANS List man pages TEXINFOS List Texinfo documentations JAVA, LISP, PYTHON......

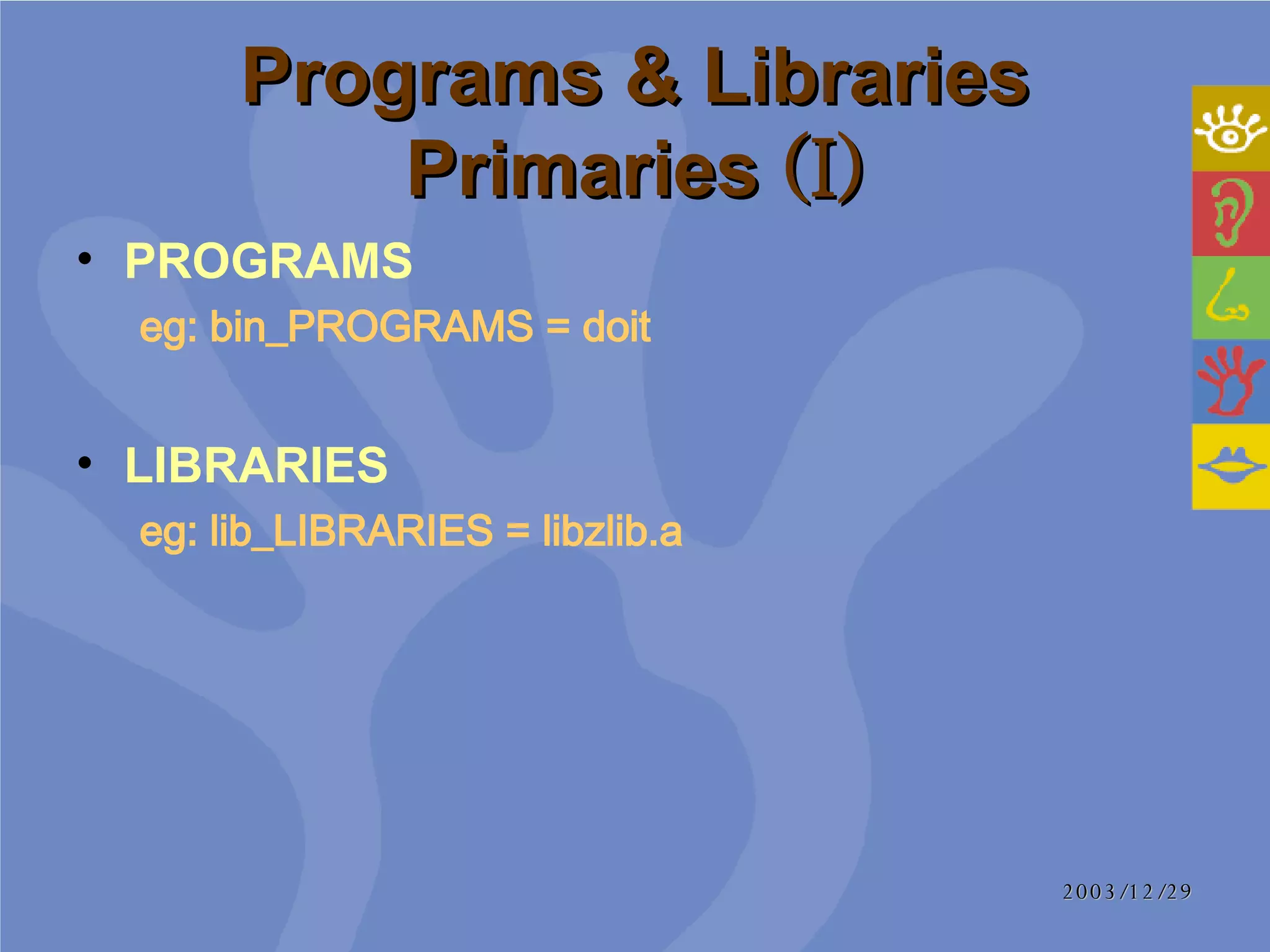

35. Programs & Libraries Primaries (I) PROGRAMS eg: bin_PROGRAMS = doit LIBRARIES eg: lib_LIBRARIES = libzlib.a

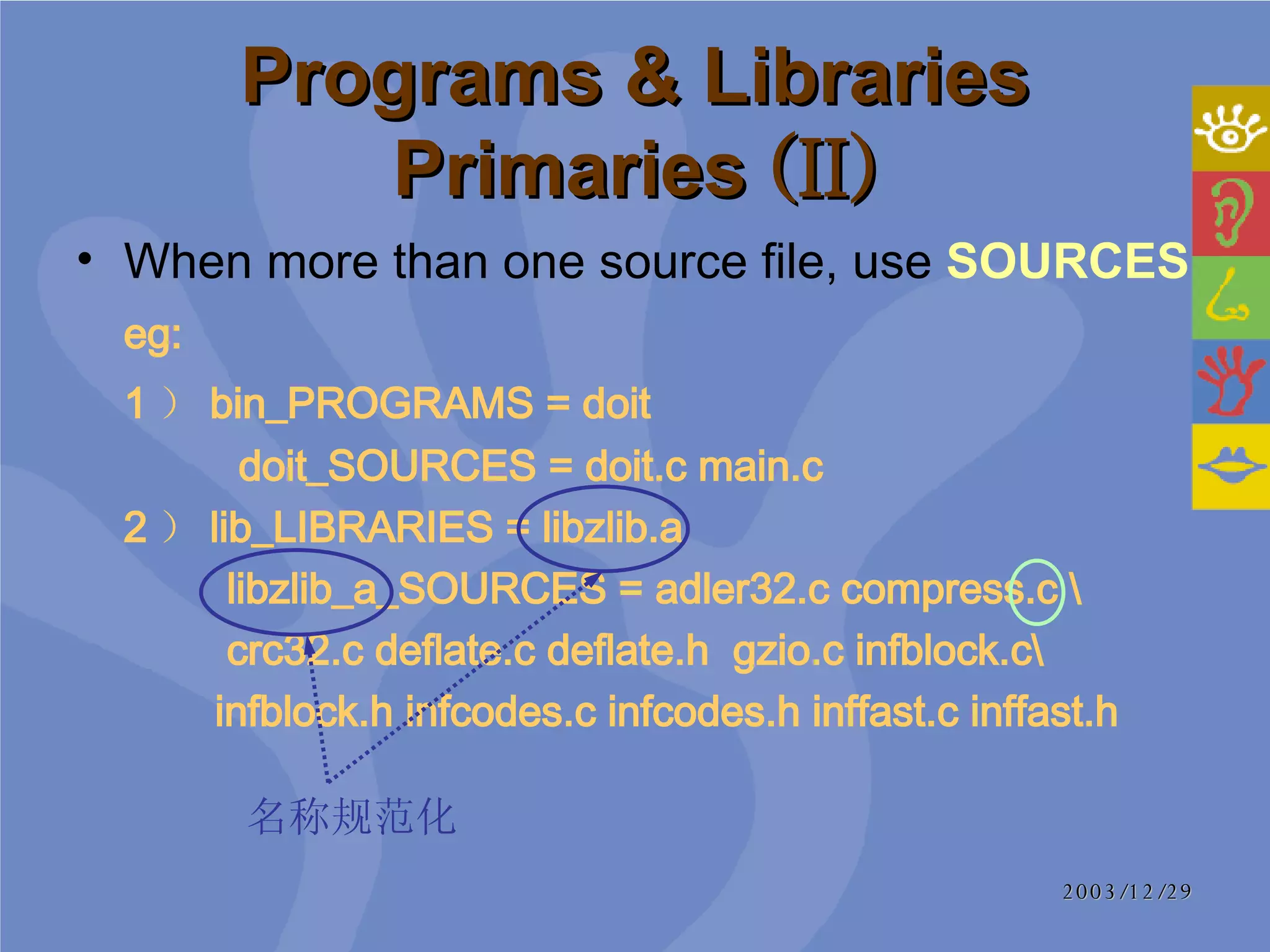

36. Programs & Libraries Primaries (II) When more than one source file, use SOURCES eg: 1 ） bin_PROGRAMS = doit doit_SOURCES = doit.c main.c 2 ） lib_LIBRARIES = libzlib.a libzlib_a_SOURCES = adler32.c compress.c \ crc32.c deflate.c deflate.h gzio.c infblock.c\ infblock.h infcodes.c infcodes.h inffast.c inffast.h 名称规范化

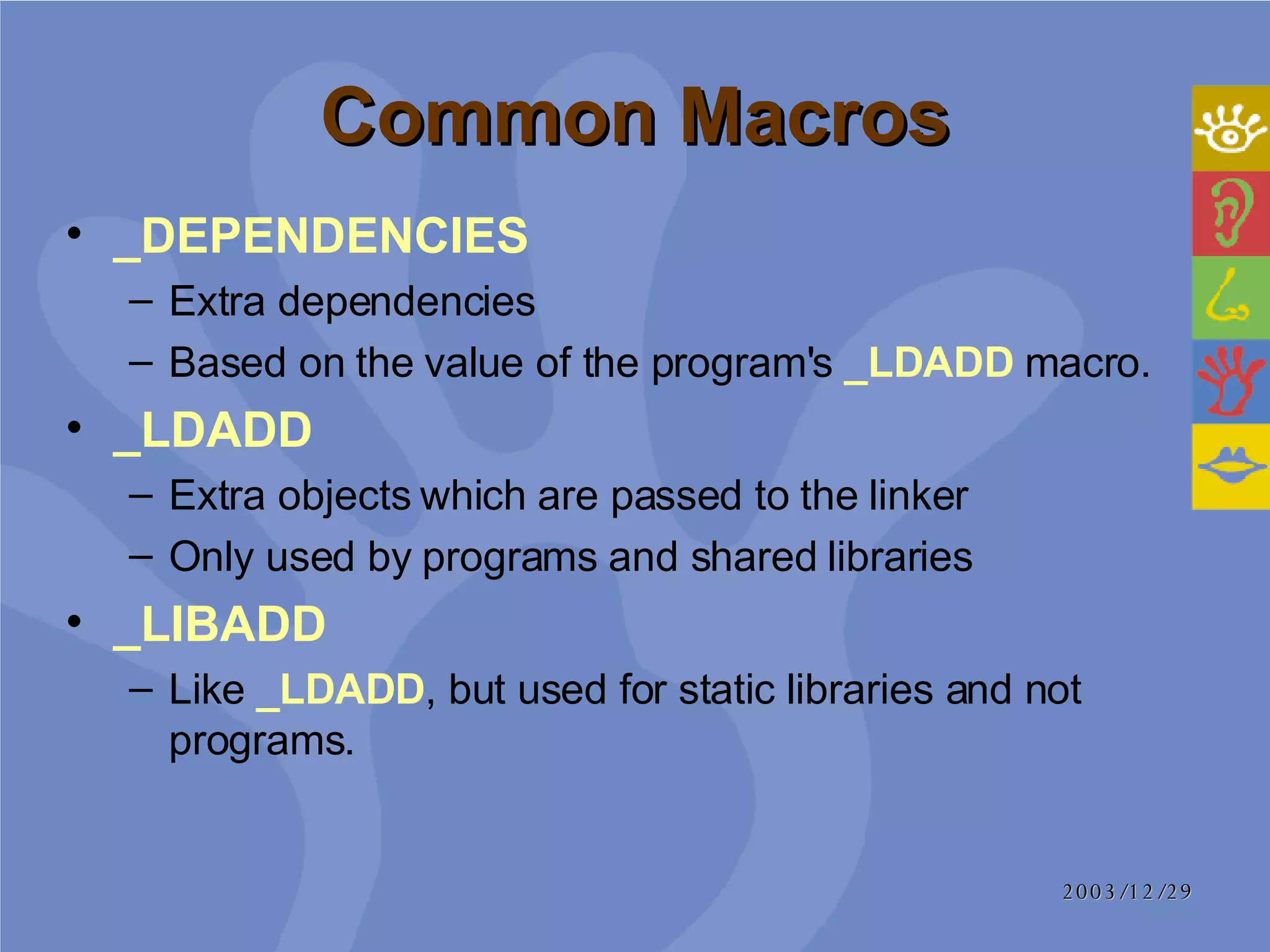

37. Common Macros _DEPENDENCIES Extra dependencies Based on the value of the program's _LDADD macro. _LDADD Extra objects which are passed to the linker Only used by programs and shared libraries _LIBADD Like _LDADD , but used for static libraries and not programs.

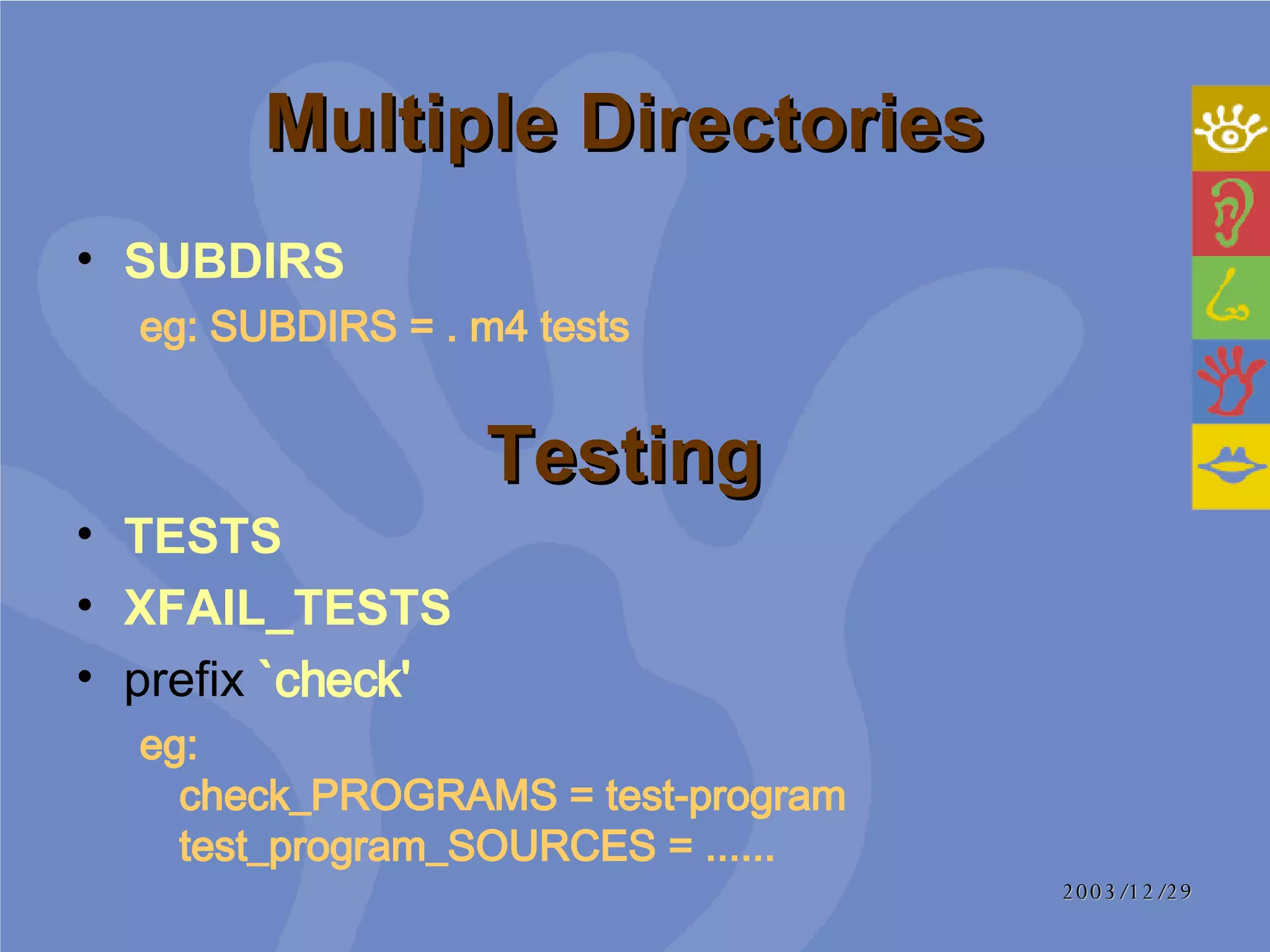

38. Multiple Directories SUBDIRS eg: SUBDIRS = . m4 tests Testing TESTS XFAIL_TESTS prefix `check' eg: check_PROGRAMS = test-program test_program_SOURCES = ......

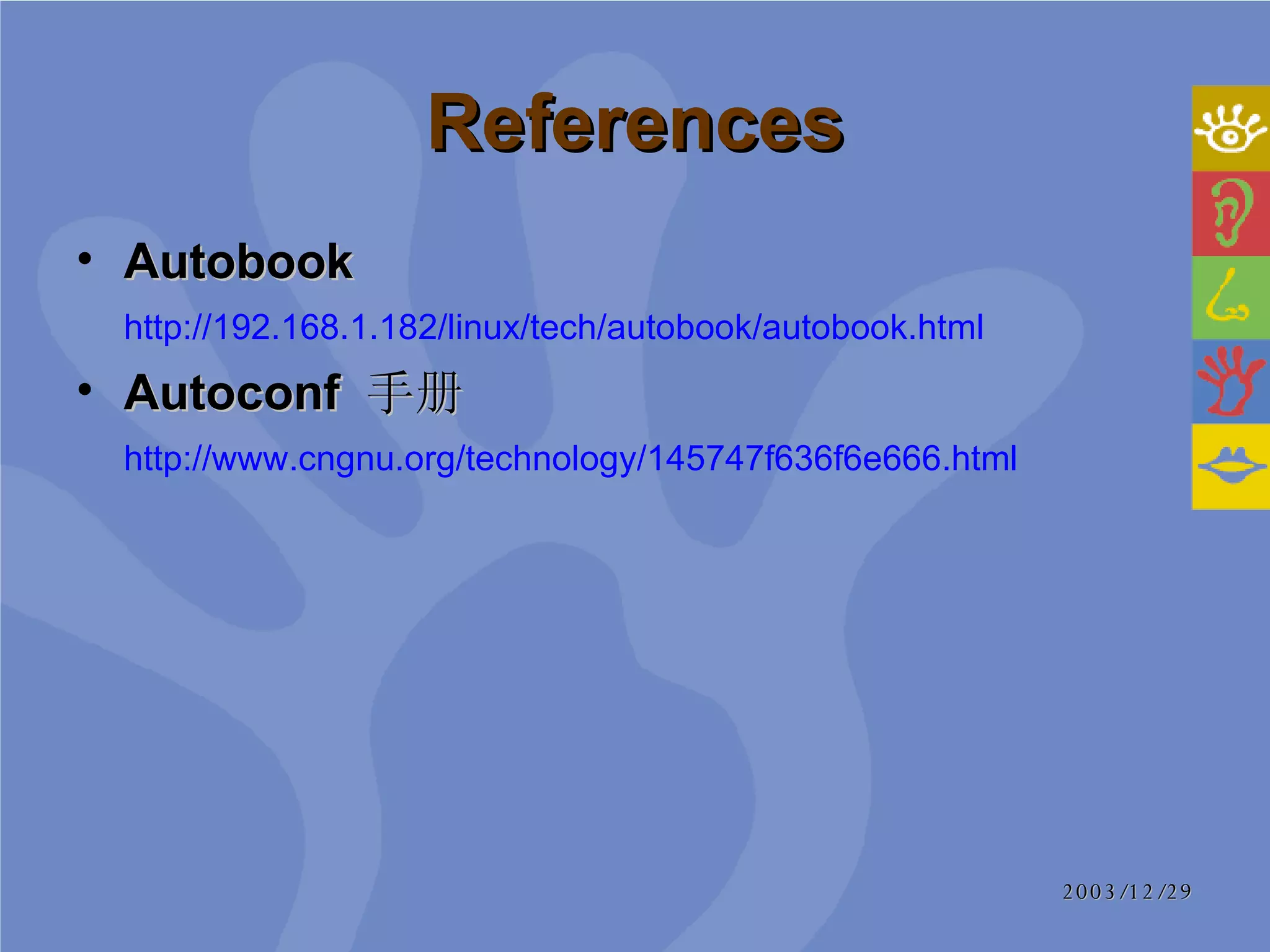

39. 2003/12/29 References Autobook http://192.168.1.182/ linux /tech/ autobook / autobook .html Autoconf 手册 http://www. cngnu .org/technology/145747f636f6e666.html

40. Thank you!
