This document discusses factors that affect potential and kinetic energy. It defines kinetic energy as the energy of moving objects, which can be calculated using the formula KE = 1/2mv^2, where m is mass and v is velocity. Potential energy is defined as stored energy due to an object's position or state, which depends on mass, gravitational force, and height or position. Potential energy is calculated as PE = mgh, where m is mass, g is acceleration due to gravity (9.8 m/s^2), and h is height. Several examples are provided to demonstrate calculating kinetic and potential energy.

1. Factors Affecting Potential
and Kinetic Energy
PREPARED BY:
CECILIA B. SARITA

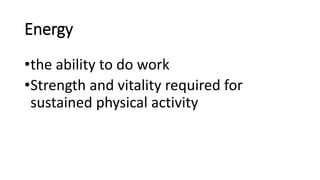

2. Energy
•the ability to do work
•Strength and vitality required for
sustained physical activity

3. KINETIC ENERGY
•The word “kinetic” in English comes from
the Greek word kinetikos (moving)
•When work is being done
•Energy in motion

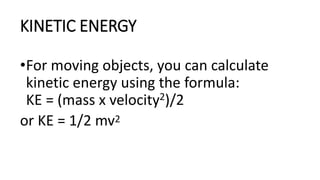

4. KINETIC ENERGY
•For moving objects, you can calculate
kinetic energy using the formula:
KE = (mass x velocity2)/2
or KE = 1/2 mv2

5. POTENTIAL ENERGY
•present when the work is waiting to be done,
or when there is the potential for work to be
performed.
•It is affected by the mass of the objects and
gravitational force
•The acceleration due to gravity is 9.8 m/s2

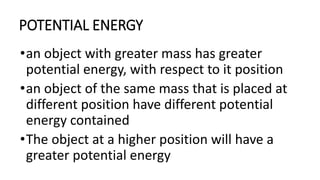

6. POTENTIAL ENERGY
•an object with greater mass has greater
potential energy, with respect to it position
•an object of the same mass that is placed at
different position have different potential
energy contained
•The object at a higher position will have a
greater potential energy

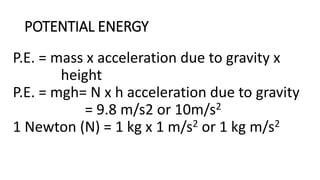

7. POTENTIAL ENERGY
P.E. = mass x acceleration due to gravity x
height
P.E. = mgh= N x h acceleration due to gravity
= 9.8 m/s2 or 10m/s2
1 Newton (N) = 1 kg x 1 m/s2 or 1 kg m/s2

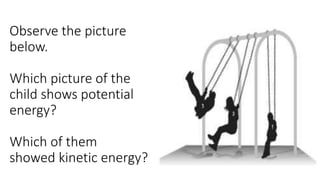

8. Observe the picture
below.
Which picture of the
child shows potential
energy?
Which of them
showed kinetic energy?

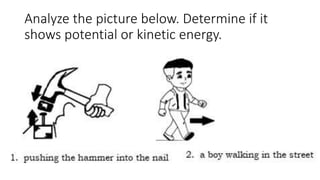

9. Analyze the picture below. Determine if it
shows potential or kinetic energy.

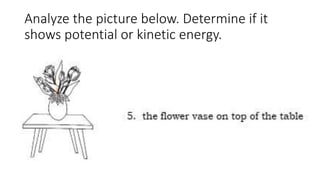

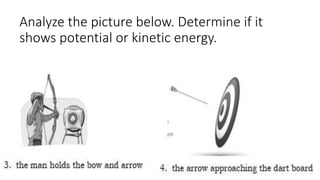

10. Analyze the picture below. Determine if it
shows potential or kinetic energy.

11. Analyze the picture below. Determine if it
shows potential or kinetic energy.

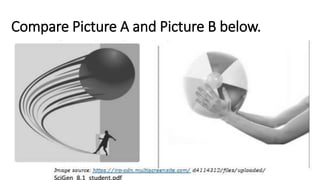

12. Compare Picture A and Picture B below.

13. Guide Questions:
1. Which picture shows potential energy?
2. Which picture shows kinetic energy?
3. What factor (s) affect the potential
energy?
4. What factor (s) affect kinetic energy?

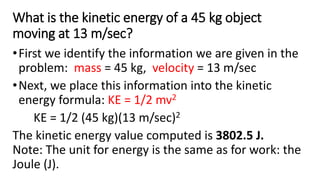

14. What is the kinetic energy of a 45 kg object
moving at 13 m/sec?
•First we identify the information we are given in the
problem: mass = 45 kg, velocity = 13 m/sec
•Next, we place this information into the kinetic
energy formula: KE = 1/2 mv2
KE = 1/2 (45 kg)(13 m/sec)2
The kinetic energy value computed is 3802.5 J.
Note: The unit for energy is the same as for work: the
Joule (J).

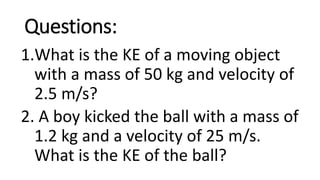

15. Questions:
1.What is the KE of a moving object
with a mass of 50 kg and velocity of
2.5 m/s?
2. A boy kicked the ball with a mass of
1.2 kg and a velocity of 25 m/s.
What is the KE of the ball?

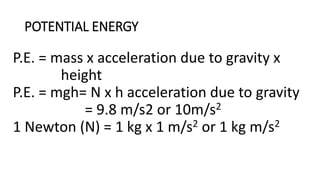

16. POTENTIAL ENERGY
P.E. = mass x acceleration due to gravity x
height
P.E. = mgh= N x h acceleration due to gravity
= 9.8 m/s2 or 10m/s2
1 Newton (N) = 1 kg x 1 m/s2 or 1 kg m/s2

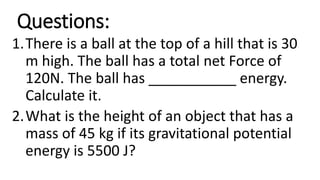

17. Questions:
1.There is a ball at the top of a hill that is 30
m high. The ball has a total net Force of
120N. The ball has ___________ energy.
Calculate it.
2.What is the height of an object that has a
mass of 45 kg if its gravitational potential
energy is 5500 J?

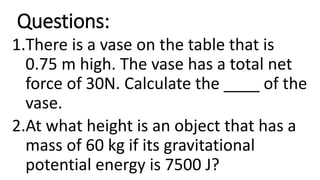

18. Questions:
1.There is a vase on the table that is
0.75 m high. The vase has a total net
force of 30N. Calculate the ____ of the
vase.
2.At what height is an object that has a
mass of 60 kg if its gravitational
potential energy is 7500 J?

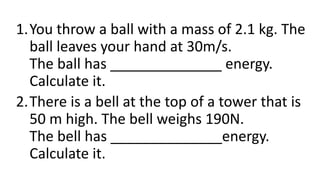

19. 1.You throw a ball with a mass of 2.1 kg. The
ball leaves your hand at 30m/s.
The ball has ______________ energy.
Calculate it.
2.There is a bell at the top of a tower that is
50 m high. The bell weighs 190N.
The bell has ______________energy.
Calculate it.

20. 1.At what height is an object that has a mass
of 56 kg if its gravitational potential energy
is 9800 J?
2.There is a blender at the cabinet that is 5
m high. The blender weighs 50N.
The blender has ___________ energy.
Calculate it.
