Exploring the Salesforce REST API

Exploring the
Salesforce REST
API
Jay Hurst
Director, Product Management
@extraidea

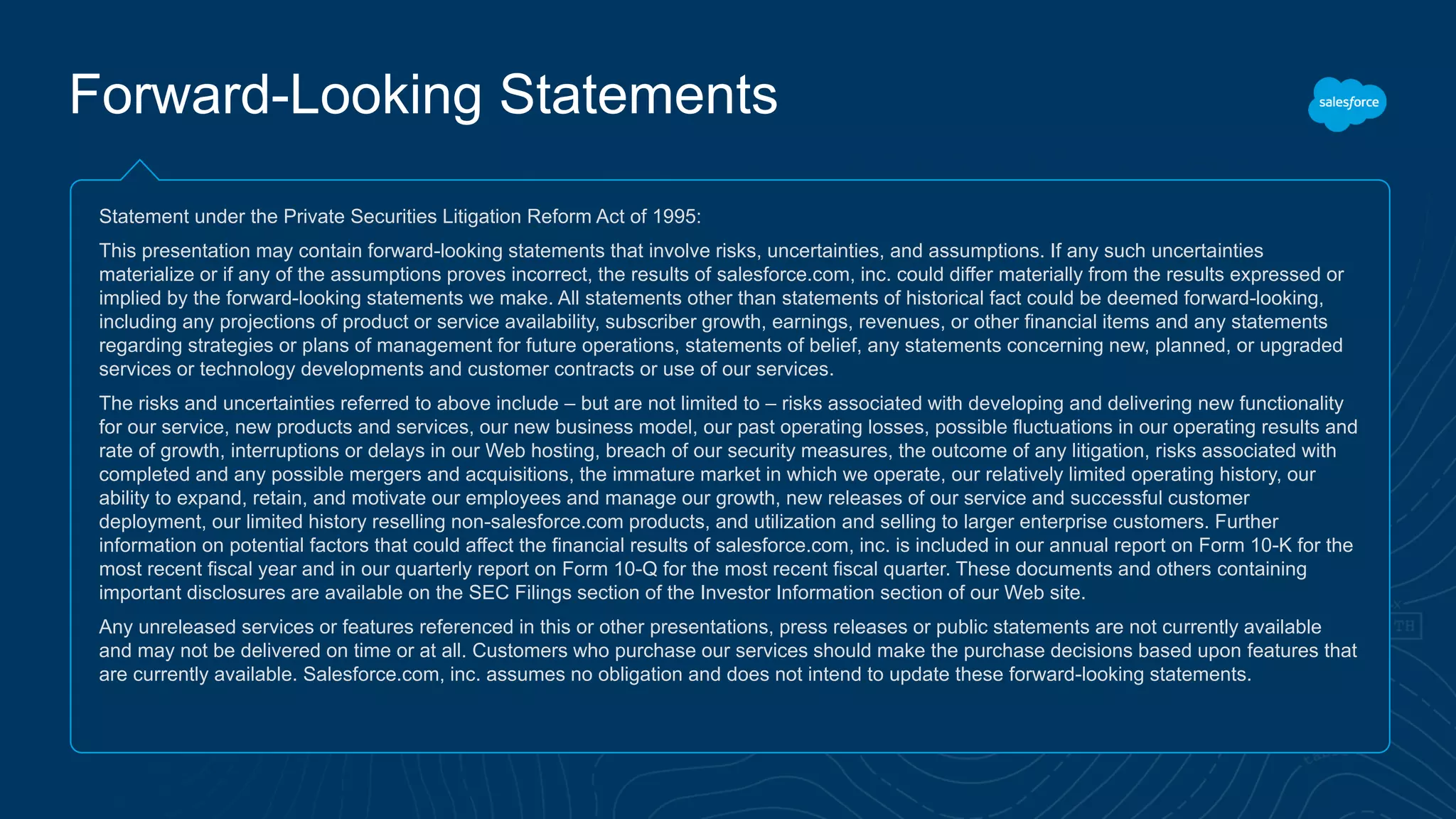

Forward-Looking Statements
Statement under the Private Securities Litigation Reform Act of 1995:
This presentation may contain forward-looking statements that involve risks, uncertainties, and assumptions. If any such uncertainties
materialize or if any of the assumptions proves incorrect, the results of salesforce.com, inc. could differ materially from the results expressed or
implied by the forward-looking statements we make. All statements other than statements of historical fact could be deemed forward-looking,
including any projections of product or service availability, subscriber growth, earnings, revenues, or other financial items and any statements
regarding strategies or plans of management for future operations, statements of belief, any statements concerning new, planned, or upgraded
services or technology developments and customer contracts or use of our services.
The risks and uncertainties referred to above include – but are not limited to – risks associated with developing and delivering new functionality
for our service, new products and services, our new business model, our past operating losses, possible fluctuations in our operating results and
rate of growth, interruptions or delays in our Web hosting, breach of our security measures, the outcome of any litigation, risks associated with
completed and any possible mergers and acquisitions, the immature market in which we operate, our relatively limited operating history, our
ability to expand, retain, and motivate our employees and manage our growth, new releases of our service and successful customer
deployment, our limited history reselling non-salesforce.com products, and utilization and selling to larger enterprise customers. Further
information on potential factors that could affect the financial results of salesforce.com, inc. is included in our annual report on Form 10-K for the
most recent fiscal year and in our quarterly report on Form 10-Q for the most recent fiscal quarter. These documents and others containing
important disclosures are available on the SEC Filings section of the Investor Information section of our Web site.
Any unreleased services or features referenced in this or other presentations, press releases or public statements are not currently available
and may not be delivered on time or at all. Customers who purchase our services should make the purchase decisions based upon features that
are currently available. Salesforce.com, inc. assumes no obligation and does not intend to update these forward-looking statements.

Many customers are facing a set of challenges around
building client applications against the Salesforce REST
API.
Raise your hand if you:
• Have used the REST API in Salesforce
• Have tried to build a client application using the REST API but have
faced issues with the number of round trips
• Have a need to design efficient APIs and want to reduce the number of
API round trips to the Salesforce server
Building Streamlined APIs

Bulk
REST
Metadata
SOAP
Tooling
Streaming
INTEGRATIONLAYER
Point & Click
Integration Tools
Page
Builder
DECLARATIVE DEVELOPMENT
GLOBAL ENTERPRISE CLOUD INFRASTRUCTURE
PLATFORM SERVICES
APP MANAGEMENT & DEPLOYMENT
Workflow
Engine
UI FrameworkSharing &
Permissions
Global
Search
Reports &
Dashboards
Files
& Content
Authentication CollaborationEvent Log
Framework
Translation
Workbench
App
Builder
Process
Builder
Schema
Builder
Multi-Tenant Network
& Firewall
Auto
Updates
Backup &
Geodiversity
Security Trust
IDECLI Agile
Accelerator
Store
Builder
Dev
Console
Sandbox
Metadata
Heroku DX node.js
PROGRAMMATIC DEVELOPMENT
Database Smart
Containers
Heroku
Add-ons
Heroku
Button
Ruby
Identity
Global
Data Centers
Data
Storage
Single code
base
Python Java APEXPHP
Offline
Salesforce1 Mobile
Container Geolocation
Push
NotificationsSDK Mobile Identity
MOBILE SERVICES
Community
Builder
Page
Builder
App Cloud Gives You Tools for Building Any App
Full spectrum of capabilities from enterprise control to elastic flexibility

REST API
• Best suited for browser or mobile applications which do not
need to access high amounts of records
• Access data over REST
• XML or JSON
• Synchronous
• Authenticate with OAuth 2.0 (connected app)
https://www.salesforce.com/us/developer/docs/api_rest/

Anatomy of a REST API Call
https://na44.salesforce.com/services/data/v37.0/sobjects/Account/0010000000ABc12
Instance of Saleforce
API Type
API Version
API Subtype
Entity
Record ID

What is a Composite API?
• An API that is built by combining existing API functions
• A single request to an API can perform multiple functions
• Orchestration of the composite APIs allow developer
controlled business logic and functionality
• Responses from one API method can be directed as inputs into another method
• Multiple APIs can be used in a single call to improve performance
• Compositions are key for designing efficient API for use in
mobile development

Salesforce Composite Resources

Batching REST Resource
• Resource which accepts multiple REST calls to execute
• A single Batch REST request can execute up to 25 sub-requests
• Sub-requests contains the resource (URI) and the method to execute
• Each sub-request is an unrelated API call
• Sub-requests are executed serially, in order, and as the running user
• As each sub-request completes, the call is committed
• Has one optional parameter
• haltOnError - indicates if the batch should stop on any error that is encountered
• The response will be a JSON object of responses from the
sub requests

Batch REST API Diagram
/services/data/v37.0/sobjects/Account
/services/data/v37.0/sobjects/Contact
/services/data/v37.0/sobjects/Case
/services/data/v37.0/sobjects/Task
/services/data/v37.0/composite/batch

Example Batch Request
{"batchRequests" : haltonerror:true, [
{"method" : "POST",
"url" : "v34.0/sobjects/account/",
"richInput" : {"Name" : "NewName", "Industry" : "Tech"}},
{"method" : "GET",
"url" : "v34.0/sobjects/account/describe/"},
{"method" : "GET",
"url" : "v34.0/query?q=select id, name, industry from
account order by createddate desc limit 10"
}]
}

Example Successful Batch Response
{"hasErrors" : false,
"results" : [{
"statusCode" : 201,
"result": {"id" : "001B0000003xiArIAI”, "success" : true, "errors" : [ ]}
},
{
"statusCode" : 200,
"result": {"actionOverrides" : [ ], "activateable" : false, ...,
"undeletable" : true, "updateable" : true}
},
{
"statusCode" : 200,
"result": {"totalSize" : 10, "done" : true,
"records" : [{
"attributes" : {"type" : "Account”, "url" : "/services/data/v34.0/
sobjects/Account/001B0000003xiArIAI”},
...
}]
}
}]
}

Example Unsuccessful Batch Response
{"hasErrors" : true,
"results" : [{
"result" : [{"message" : "Required fields are missing: [Name]”,"errorCode" :
"REQUIRED_FIELD_MISSING",
"fields" : [ "Name" ]}],
"statusCode" : 400
},{
"result”:[{"message”:"Cannot access this resource in a batch request”,
"errorCode”: "INVALID_BATCH_REQUEST”}],
"statusCode" : 400
},{
"result" : [{
"message" : "nselect ids, name, industry from accountn^nERROR at Row:
1:Column:8nNo such column 'ids' on entity 'Account'. If you are
attempting to use a custom field, be sure to append the
'__c' after the custom field name. Please reference your WSDL or
the describe call for the appropriate names.”, "errorCode" :
"INVALID_FIELD"}],
"statusCode" : 400
}]}

TreeSave REST Resource
• Creates SObject trees with the same top level object type
• A recursive data structure that contains a root record, its data, and its child
records represented as other sObject trees
• The REST resource manages all of the ID creations and mapping
• Create an Account, Contact, Opportunity, and Note in a single call
• The request can contain the following:
• Up to a total of 200 records across all trees
• Up to five records of different types
• SObject trees up to five levels deep
• You can create 200 top level records, by only providing the top level

TreeSave API Diagram
/services/data/v37.0/composite/tree/Account

Using the TreeSave REST Resource
• The dev provides the record relations via a reference ID
• ReferenceId is used to link related records and to return errors
• Only Insert is supported
• Triggers, processes, and workflow rules fire separately for each of the
object levels
• EX – All triggers fire for all the top level records, then all fire for the second level
records, then third, etc…
• All records are rolled back on any error
• Error will indicate which referenceId had the error so that the developer can take
the appropriate action

Example TreeSave Request
{"records" :[
{"attributes" : {"type" : "Account", "referenceId" : "ref1"},
"name" : "SampleAccount”, "phone" : "1234567890”, "website" :
"www.salesforce.com", "numberOfEmployees”: "100”, "type" : "Analyst”,
"industry" : "Banking",
"Contacts" : {
"records" : [
{"attributes" : {"type" : "Contact", "referenceId" : "ref2"},
"lastname" : "Smith”, "title" : "President”, "email" :
"sample@salesforce.com" },
{"attributes" : {"type" : "Contact", "referenceId" : "ref3"},
"lastname" : "Evans”, "title" : "Vice President”, "email" :
"sample@salesforce.com”}]
}},
{"attributes" : {"type" : "Account", "referenceId" : "ref4"},
"name”: "SampleAccount2”, "phone”: "1234567890”, "website" :
"www.salesforce2.com", "numberOfEmployees”: "100”, "type" : "Analyst”,
"industry" : "Banking”}]
}

Example Successful TreeSave Response
{
"hasErrors" : false,
"results" : [ {
"referenceId" : "ref1",
"id" : "001B0000003xiAwIAI"
}, {
"id" : "001B0000003xiAxIAI"
}, {
"id" : "003B0000003l3L5IAI"
}, {
"id" : "003B0000003l3L6IAI"
} ]
}

Example Unsuccessful TreeSave Response
{
"hasErrors" : true,
"results" : [ {
"errors" : [ {
"statusCode" : "REQUIRED_FIELD_MISSING",
"message" : "Required fields are missing: [Name]",
"fields" : [ "Name" ]
} ]
} ]
}

Current Composite APIs on Salesforce
• There are a number of existing Composite resources
• The Batching REST resource allows for the sending of multiple REST calls in a
single round trip
• The calls are unrelated, simply reduces round trips
• The TreeSave REST resource allows creation of multiple records in a single call
• Limited to insert and all-or-none saves
• Apex REST can be used to build custom logic
• Requires complete design by the developer

Building a Composite API on Salesforce
• A new API which will be a combination of Batch and
TreeSave
• Outputs from one API call can be Inputs into another using the developer
assigned referenceId
• Ex - @Account1.id can be used in a later query, as a reference field, or in an action
• Friendly URLs will assist in navigating the resource hierarchy
• Ability to crawl the resource tree easily
• Ex - /services/data/v36.0/sobjects/Account/001X00000000123/Contacts will give you a list
of all Contacts on a the designated Account
• This will allow multiple CRUD operations to collections
• This will allow a simple layer of orchestration to the REST API

Composite REST API Diagram
/services/data/v37.0/query/?q=select id
from account limit 4
/services/data/v37.0/sobjects/Case/describ
e
/services/data/v37.0/tree/Account
Query
Describe

Composite API Request
{"compositeRequest" : [{
"type" : "rest", "method" : "POST",
"url" : "/v30.0/sobjects/Account",
"referenceId" : "Account1",
"richInput" : {"Name" : "Salesforce"}
},{
"type" : "rest", "method" : "PATCH",
"referenceId" : "Contact1",
"url" : "/v30.0/sobjects/Contact/0030000000AB3d",
"richInput" : {"accountId" : "@{Account1.Id}"}
},{
"type" : "rest", "method" : "GET",
"referenceId" : "ContactsOfAccount1",
"url" : "/v30.0/sobjects/Account/@{Account1.Id}/Contacts"
}]}

Example Successful Composite Response
[{
"id" : "001B000000E8mNSIAZ",
"success" : true,
"errors" : [ ]
},
null,
{
"totalSize" : 1,
"done" : true,
"records" : [ {
"attributes" : {
"type" : "Contact",
"url" : "/services/data/v37.0/sobjects/Contact/003B0000006dUZMIA2"
},
"Id" : "003B0000006dUZMIA2",
…
} ]
} ]

What did we Learn?
• What is the Salesforce REST API
• Existing Features that begin to support
composite actions
• Batching API
• TreeSave API
• Composite API
• Demos of existing resources

Exploring the Salesforce REST API

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Exploring the Salesforce REST API

Similar to Exploring the Salesforce REST API (20)

More from Salesforce Developers

More from Salesforce Developers (20)

Recently uploaded

Recently uploaded (20)

Exploring the Salesforce REST API
