![What's wrong with this picture?
public with sharing class MyController
{
public String theId;
public MyController(ApexPages.StandardController standardController)
{
theId = (String) ApexPages.currentPage().getParameters().get('id');
}
public PageReference actionCheckInvoices()
{
// Read the Account record
Account accountRecord = [select Id, Name from Account where Id = :theId];
// Do some processing on the Account record ... then update it
update accountRecord;
return null;
}
}
public with sharing class MyBatchJob implements Database.Batchable<SObject>
{
public void execute(Database.batchableContext info, List<Account> accounts)
{
for(Account account : accounts)
{
MyController myController = new MyController(new ApexPages.StandardController(account));
myController.actionCheckInvoices();
}
}
public Database.QueryLocator start(Database.BatchableContext info) { ... }
public void finish(Database.batchableContext info) { ... }
}
Developer “A” writes an
Apex Controller first
Developer “B” writes an
Apex Batch job later.](https://image.slidesharecdn.com/buildingstrongfoundationsapexenterprisepatterns-final-4thnov2013-131212224258-phpapp02/85/Apex-Enterprise-Patterns-Building-Strong-Foundations-4-320.jpg)
![Developing and calling a Service Layer
public with sharing class AccountService
{
public static void checkOutstandingInvoices(Set<Id> accountIds)
{
// Read the Account records
List<Account> accountRecords = [select Id, Name from Account where Id in :accountIds];
// Do some processing on the Account and Invoice records ... then update them.
update accountRecords;
}
}
Developer “A”
follows Service
Layer pattern.
AccountService.cls
Service Contract
public PageReference actionCheckInvoices()
{
try {
// Process the Account record
AccountService.checkOutstandingInvoices(new Set<Id> { theId });
} catch (Exception e) { ApexPage.addMessages(e); }
return null;
}
Developer “A”
writes Controller
code to consume
the Service.
MyController.cls
public void execute(Database.batchableContext info, List<Account> accounts)
{
try {
// Process Account records
Set<Id> accountIds = new Map<Id, Account>(accounts).keySet();
AccountService.checkOutstandingInvoices(accountIds);
} catch (Exception e) { emailError(e); }
}
MyBatch.cls
Developer “B”
then reuses the
Developer “A”
code safely.](https://image.slidesharecdn.com/buildingstrongfoundationsapexenterprisepatterns-final-4thnov2013-131212224258-phpapp02/85/Apex-Enterprise-Patterns-Building-Strong-Foundations-17-320.jpg)
Uploaded bySalesforce Developers
Apex Enterprise Patterns: Building Strong Foundations
The document discusses Apex Enterprise Patterns and best practices for developing in Salesforce, focusing on separation of concerns (SoC) and the 'don't repeat yourself' (DRY) principle. It highlights common issues encountered in Apex development, provides guidelines for structuring applications with service, domain, and selector layers, and outlines strategies for avoiding pitfalls related to error handling and governor limits. The document also includes references to design patterns, example code snippets, and resources for further reading.
More Related Content
Similar to Apex Enterprise Patterns: Building Strong Foundations
Apex Enterprise Patterns: Building Strong Foundations
- 1. Building Strong Foundations ApexEnterprise Patterns Andrew Fawcett, FinancialForce.com, CTO @andyinthecloud
- 2. All about FinancialForce.com Revolutionizingthe Back Office #1 Accounting, Billing and PSA Apps on the Salesforce platform ▪ Native apps ▪ San Francisco HQ, 595 Market St ▪ R&D in San Francisco, Harrogate UK, and Granada ES ▪ We are hiring! Meet us at Rehab!
- 3. What's wrong withthis picture?
- 4. What's wrong withthis picture? public with sharing class MyController { public String theId; public MyController(ApexPages.StandardController standardController) { theId = (String) ApexPages.currentPage().getParameters().get('id'); } public PageReference actionCheckInvoices() { // Read the Account record Account accountRecord = [select Id, Name from Account where Id = :theId]; // Do some processing on the Account record ... then update it update accountRecord; return null; } } public with sharing class MyBatchJob implements Database.Batchable<SObject> { public void execute(Database.batchableContext info, List<Account> accounts) { for(Account account : accounts) { MyController myController = new MyController(new ApexPages.StandardController(account)); myController.actionCheckInvoices(); } } public Database.QueryLocator start(Database.BatchableContext info) { ... } public void finish(Database.batchableContext info) { ... } } Developer “A” writes an Apex Controller first Developer “B” writes an Apex Batch job later.

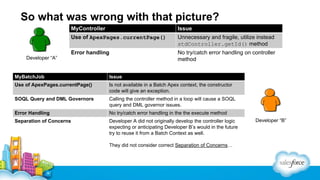

- 5. So what waswrong with that picture? MyController MyController Issue Use of ApexPages.currentPage() Unnecessary and fragile, utilize instead stdController.getId() method Error handling No try/catch error handling on controller method Developer “A” MyBatchJob Issue Use of ApexPages.currentPage() Is not available in a Batch Apex context, the constructor code will give an exception. SOQL Query and DML Governors Calling the controller method in a loop will cause a SOQL query and DML governor issues. Error Handling No try/catch error handling in the the execute method Separation of Concerns Developer A did not originally develop the controller logic expecting or anticipating Developer B’s would in the future try to reuse it from a Batch Context as well. They did not consider correct Separation of Concerns… Developer “B”
- 6. Pattern Checklist Separation ofConcerns Service Layer Domain Layer Selector Layer ☐ ☐ ☐ ☐
- 7. So what is“Separation of Concerns” then? “The goal is to design systems so that functions can be optimized independently of other functions, so that failure of one function does not cause other functions to fail, and in general to make it easier to understand, design and manage complex interdependent systems” Wikipedia, “Separation of Concerns”

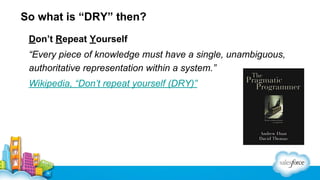

- 8. So what is“DRY” then? Don’t Repeat Yourself “Every piece of knowledge must have a single, unambiguous, authoritative representation within a system.” Wikipedia, “Don’t repeat yourself (DRY)”

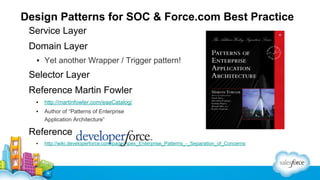

- 9. Design Patterns forSOC & Force.com Best Practice Service Layer Domain Layer ▪ Yet another Wrapper / Trigger pattern! Selector Layer Reference Martin Fowler ▪ http://martinfowler.com/eaaCatalog/ ▪ Author of “Patterns of Enterprise Application Architecture” Reference ▪ http://wiki.developerforce.com/page/Apex_Enterprise_Patterns_-_Separation_of_Concerns
- 10. Demo! “takeaway” aSample Force.com Application! GitHub: financialforcedev/fflib-apex-common-samplecode

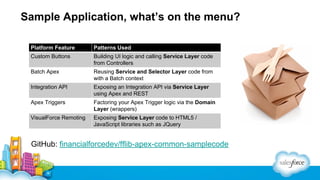

- 11. Sample Application, what’son the menu? Platform Feature Patterns Used Custom Buttons Building UI logic and calling Service Layer code from Controllers Batch Apex Reusing Service and Selector Layer code from with a Batch context Integration API Exposing an Integration API via Service Layer using Apex and REST Apex Triggers Factoring your Apex Trigger logic via the Domain Layer (wrappers) VisualForce Remoting Exposing Service Layer code to HTML5 / JavaScript libraries such as JQuery GitHub: financialforcedev/fflib-apex-common-samplecode

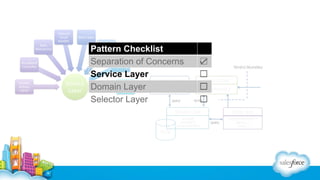

- 12. Pattern Checklist Separation ofConcerns Service Layer Domain Layer Selector Layer ☑ ☐ ☐ ☐
- 13.

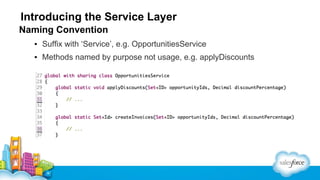

- 14. Introducing the ServiceLayer Naming Convention ▪ Suffix with ‘Service’, e.g. OpportunitiesService ▪ Methods named by purpose not usage, e.g. applyDiscounts

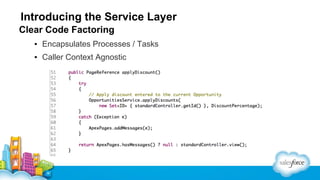

- 15. Introducing the ServiceLayer Clear Code Factoring ▪ Encapsulates Processes / Tasks ▪ Caller Context Agnostic

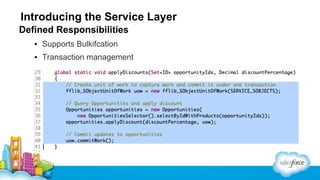

- 16. Introducing the ServiceLayer Defined Responsibilities ▪ Supports Bulkifcation ▪ Transaction management
- 17. Developing and callinga Service Layer public with sharing class AccountService { public static void checkOutstandingInvoices(Set<Id> accountIds) { // Read the Account records List<Account> accountRecords = [select Id, Name from Account where Id in :accountIds]; // Do some processing on the Account and Invoice records ... then update them. update accountRecords; } } Developer “A” follows Service Layer pattern. AccountService.cls Service Contract public PageReference actionCheckInvoices() { try { // Process the Account record AccountService.checkOutstandingInvoices(new Set<Id> { theId }); } catch (Exception e) { ApexPage.addMessages(e); } return null; } Developer “A” writes Controller code to consume the Service. MyController.cls public void execute(Database.batchableContext info, List<Account> accounts) { try { // Process Account records Set<Id> accountIds = new Map<Id, Account>(accounts).keySet(); AccountService.checkOutstandingInvoices(accountIds); } catch (Exception e) { emailError(e); } } MyBatch.cls Developer “B” then reuses the Developer “A” code safely.

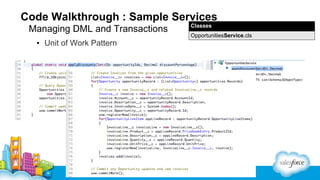

- 18. Code Walkthrough :Sample Services Managing DML and Transactions ▪ Unit of Work Pattern Classes OpportunitiesService.cls

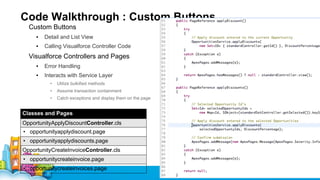

- 19. Code Walkthrough :Custom Buttons Custom Buttons ▪ Detail and List View ▪ Calling Visualforce Controller Code Visualforce Controllers and Pages ▪ Error Handling ▪ Interacts with Service Layer • Utilize bulkified methods • Assume transaction containment • Catch exceptions and display them on the page Classes and Pages OpportunityApplyDiscountController.cls • opportunityapplydiscount.page • opportunityapplydiscounts.page OpportunityCreateInvoiceController.cls • opportunitycreateinvoice.page • opportunitycreateinvoices.page

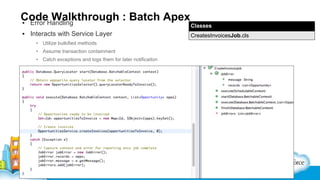

- 20. CodeHandling Walkthrough : BatchApex ▪ Error Classes ▪ Interacts with Service Layer CreatesInvoicesJob.cls • Utilize bulkified methods • Assume transaction containment • Catch exceptions and logs them for later notificaiton

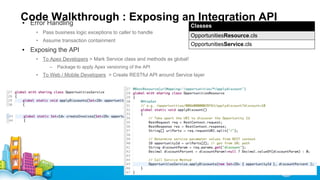

- 21. CodeHandling Walkthrough : Exposingan Integration API ▪ Error Classes • Pass business logic exceptions to caller to handle • Assume transaction containment OpportunitiesResource.cls OpportunitiesService.cls ▪ Exposing the API • To Apex Developers > Mark Service class and methods as global! – Package to apply Apex versioning of the API • To Web / Mobile Developers > Create RESTful API around Service layer
- 22. Code Walkthrough :Visualforce Remoting An “Opportunities Discount Console” Classes OpportunityConsoleController.cls ▪ Developer uses a Rich HTML5 Client Library, such as JQuery • Is not using traditional Visualforce markup or action functions on the controller ▪ Utilizing static “remote” methods on the controller (stateless controller) • Able to consume the Service layer functions also! • Assumes transactional integrity • Assumes the caller (JavaScript client) to handle exceptions
- 23. Pattern Checklist Separation ofConcerns Service Layer Domain Layer Selector Layer ☑ ☑ ☐ ☐
- 24.

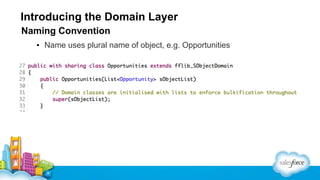

- 25. Introducing the DomainLayer Naming Convention ▪ Name uses plural name of object, e.g. Opportunities

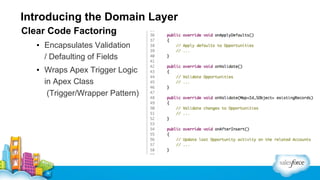

- 26. Introducing the DomainLayer Clear Code Factoring ▪ Encapsulates Validation / Defaulting of Fields ▪ Wraps Apex Trigger Logic in Apex Class (Trigger/Wrapper Pattern)
- 27. Introducing the DomainLayer Defined Responsibilities ▪ Enforces Bulkifcation for logic ▪ Platform security best practice (honors Users profile) ▪ Encapsulates ALL logic / behavior for each object • e.g. onValidate, onBeforeInsert and applyDiscount

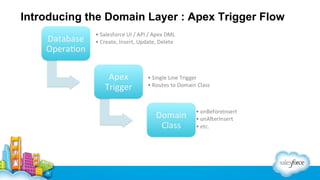

- 28. Introducing the DomainLayer : Apex Trigger Flow

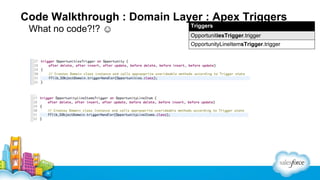

- 29. Code Walkthrough :Domain Layer : Apex Triggers What no code?!? ☺ Triggers OpportunitiesTrigger.trigger OpportunityLineItemsTrigger.trigger
- 30. Code Walkthrough :Domain Layer : Domain Classes Bulkified Wrappers ▪ Base class fflib_SObjectDomain ▪ Apex Trigger Callers ▪ Support for DML Free Testing ▪ Able to apply Object Orientated Programming Apex Classes Opportunities.cls OpportunityLineItems.cls Accounts.cls

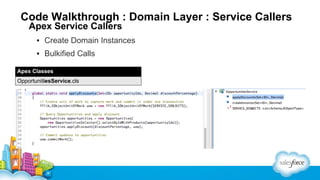

- 31. Code Walkthrough :Domain Layer : Service Callers Apex Service Callers ▪ Create Domain Instances ▪ Bulkified Calls Apex Classes OpportunitiesService.cls

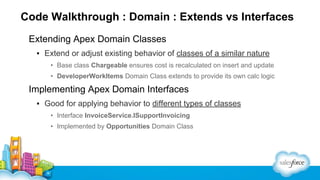

- 32. Code Walkthrough :Domain : Extends vs Interfaces Extending Apex Domain Classes ▪ Extend or adjust existing behavior of classes of a similar nature • Base class Chargeable ensures cost is recalculated on insert and update • DeveloperWorkItems Domain Class extends to provide its own calc logic Implementing Apex Domain Interfaces ▪ Good for applying behavior to different types of classes • Interface InvoiceService.ISupportInvoicing • Implemented by Opportunities Domain Class

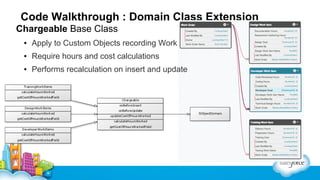

- 33. Code Walkthrough :Domain Class Extension Chargeable Base Class ▪ Apply to Custom Objects recording Work ▪ Require hours and cost calculations ▪ Performs recalculation on insert and update

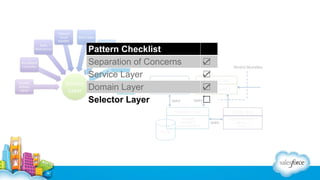

- 34. Pattern Checklist Separation ofConcerns Service Layer Domain Layer Selector Layer ☑ ☑ ☑ ☐
- 35.

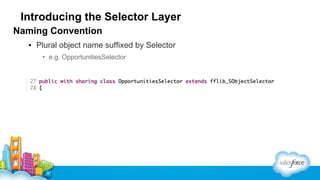

- 36. Introducing the SelectorLayer Naming Convention ▪ Plural object name suffixed by Selector • e.g. OpportunitiesSelector
- 37. Introducing the SelectorLayer Clear Code Factoring ▪ Encapsulates Query Logic

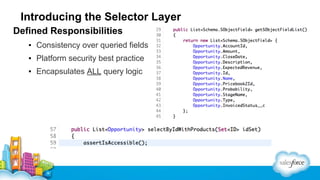

- 38. Introducing the SelectorLayer Defined Responsibilities ▪ Consistency over queried fields ▪ Platform security best practice ▪ Encapsulates ALL query logic
- 39. Code Walkthrough :Selector Layer Encapsulate Query Fields and Logic ▪ Base class fflib_SObjectSelector ▪ Defines Common Fields ▪ Default SOQL Helpers, FieldSet Support Apex Classes OpportunitiesSelector.cls OpportunityLineItemsSelector.cls ProductsSelector.cls PricebooksSelector.cls PricebookEntriesSelector.cls

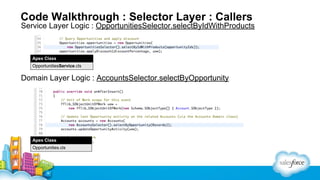

- 40. Code Walkthrough :Selector Layer : Callers Service Layer Logic : OpportunitiesSelector.selectByIdWithProducts Apex Class OpportunitiesService.cls Domain Layer Logic : AccountsSelector.selectByOpportunity Apex Class Opportunities.cls

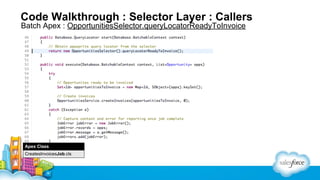

- 41. Code Walkthrough :Selector Layer : Callers Batch Apex : OpportunitiesSelector.queryLocatorReadyToInvoice Apex Class CreatesInvoicesJob.cls
- 42. Pattern Checklist Separation ofConcerns Service Layer Domain Layer Selector Layer ☑ ☑ ☑ ☑
- 43.
- 44.

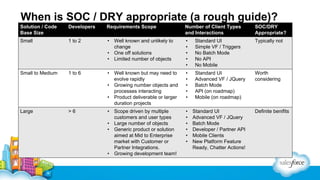

- 45. When is SOC/ DRY appropriate (a rough guide)? Solution / Code Base Size Developers Requirements Scope Number of Client Types and Interactions SOC/DRY Appropriate? Small 1 to 2 • Well known and unlikely to change One off solutions Limited number of objects • • • • • Standard UI Simple VF / Triggers No Batch Mode No API No Mobile Typically not Well known but may need to evolve rapidly Growing number objects and processes interacting Product deliverable or larger duration projects • • • • • Standard UI Advanced VF / JQuery Batch Mode API (on roadmap) Mobile (on roadmap) Worth considering Scope driven by multiple customers and user types Large number of objects Generic product or solution aimed at Mid to Enterprise market with Customer or Partner Integrations. Growing development team! • • • • • • Standard UI Advanced VF / JQuery Batch Mode Developer / Partner API Mobile Clients New Platform Feature Ready, Chatter Actions! • • Small to Medium 1 to 6 • • • Large >6 • • • • Definite benifits

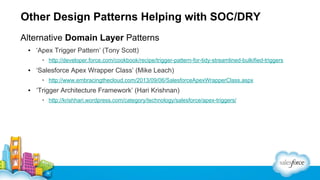

- 46. Other Design PatternsHelping with SOC/DRY Alternative Domain Layer Patterns ▪ ‘Apex Trigger Pattern’ (Tony Scott) • http://developer.force.com/cookbook/recipe/trigger-pattern-for-tidy-streamlined-bulkified-triggers ▪ ‘Salesforce Apex Wrapper Class’ (Mike Leach) • http://www.embracingthecloud.com/2013/09/06/SalesforceApexWrapperClass.aspx ▪ ‘Trigger Architecture Framework’ (Hari Krishnan) • http://krishhari.wordpress.com/category/technology/salesforce/apex-triggers/
- 47.
