1. Developing a Web App with
Heroku Connect
Case Study https://sif.illuminate.org
Mars Hall
Customer Facing Architect, Heroku
@marsi

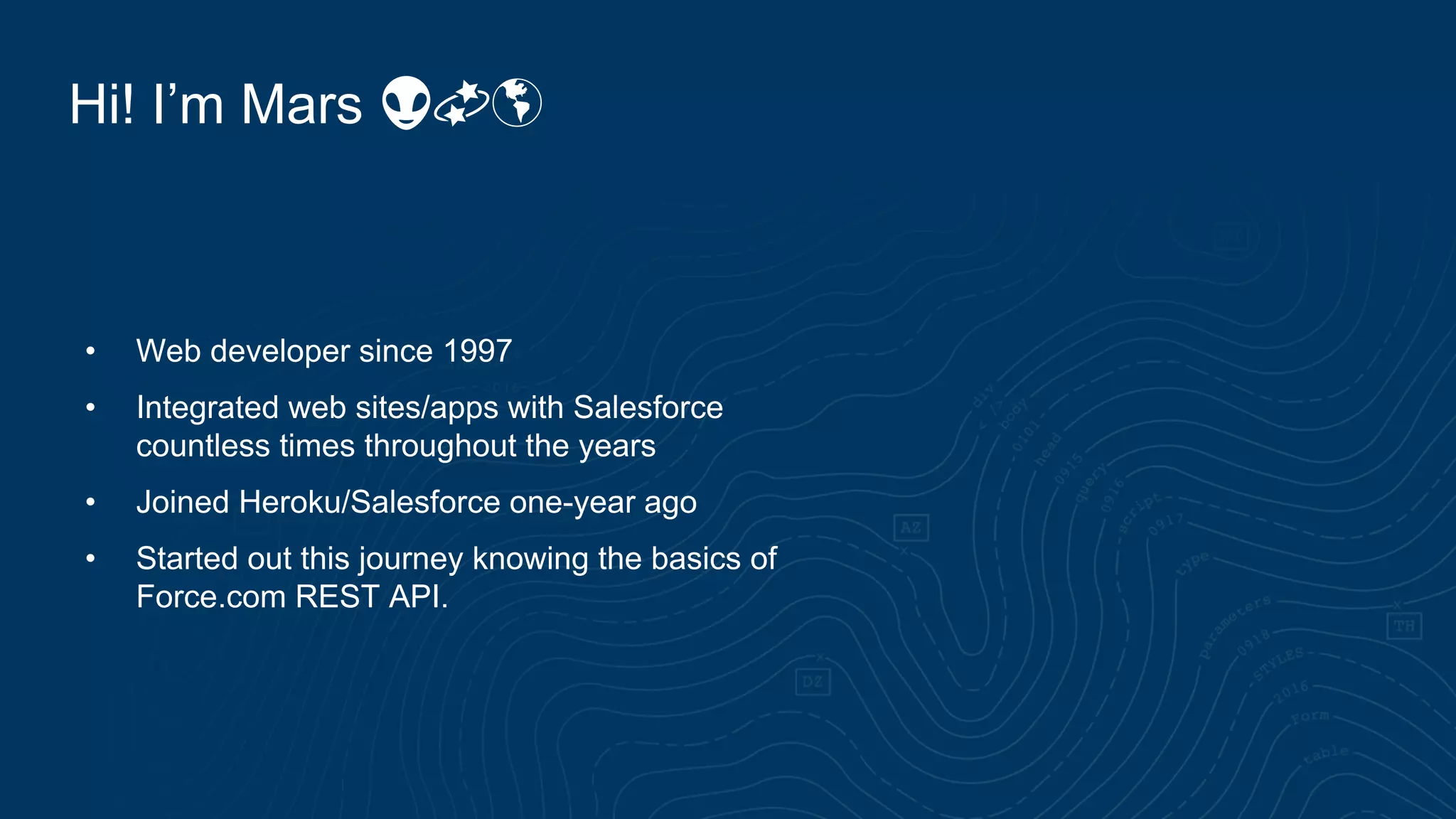

2. Hi! I’m Mars 👽💫🌎
• Web developer since 1997
• Integrated web sites/apps with Salesforce
countless times throughout the years
• Joined Heroku/Salesforce one-year ago
• Started out this journey knowing the basics of
Force.com REST API.

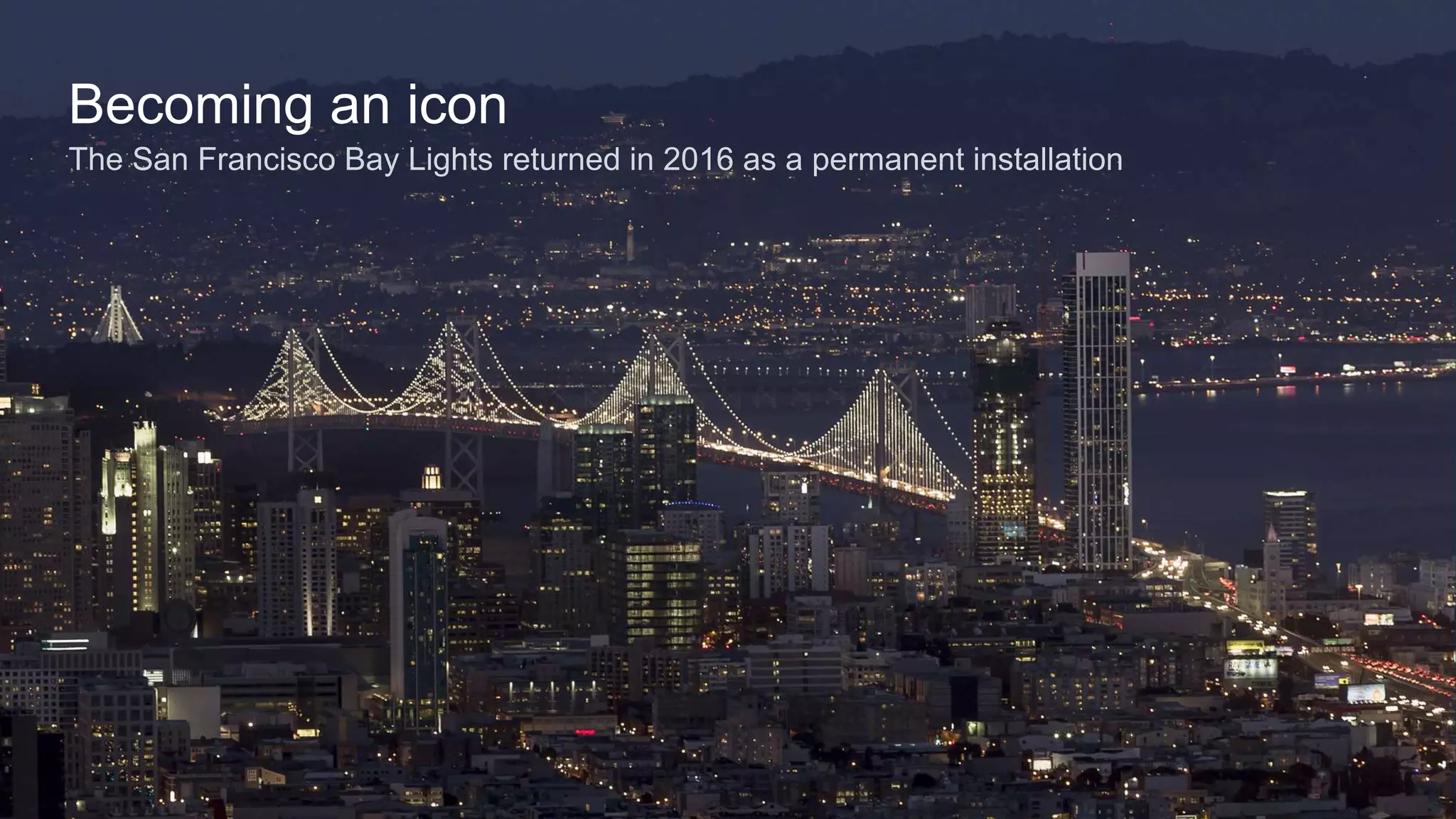

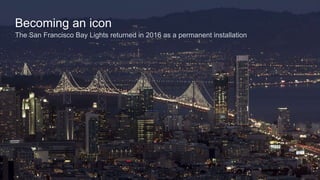

3. Becoming an icon
The San Francisco Bay Lights returned in 2016 as a permanent installation

4. +
Illuminate Salesforce.org
Public works of art Donor management

5. Create personal connection with the art
Through dedication of individual Bay Lights
“Dedicated to my love”

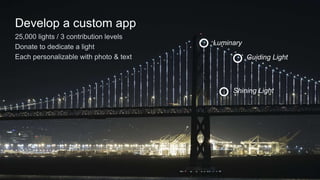

6. Develop a custom app
25,000 lights / 3 contribution levels
Donate to dedicate a light
Each personalizable with photo & text
Luminary
Guiding Light
Shining Light

7. Design requirements
Creativity thrives under constraints

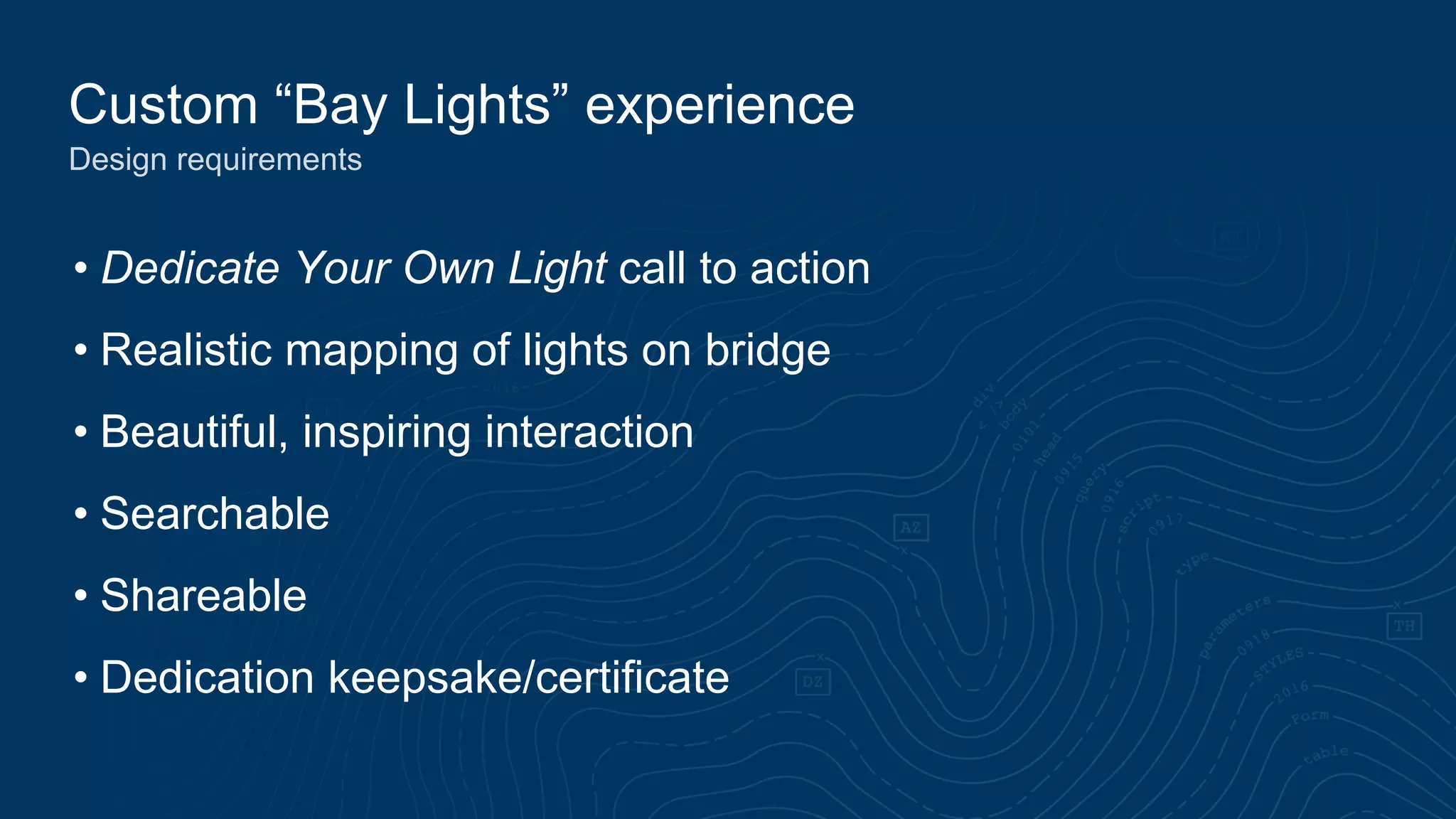

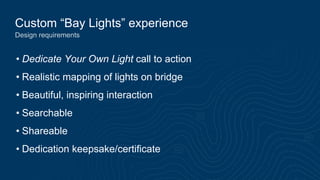

8. Custom “Bay Lights” experience
Design requirements
• Dedicate Your Own Light call to action
• Realistic mapping of lights on bridge
• Beautiful, inspiring interaction
• Searchable
• Shareable
• Dedication keepsake/certificate

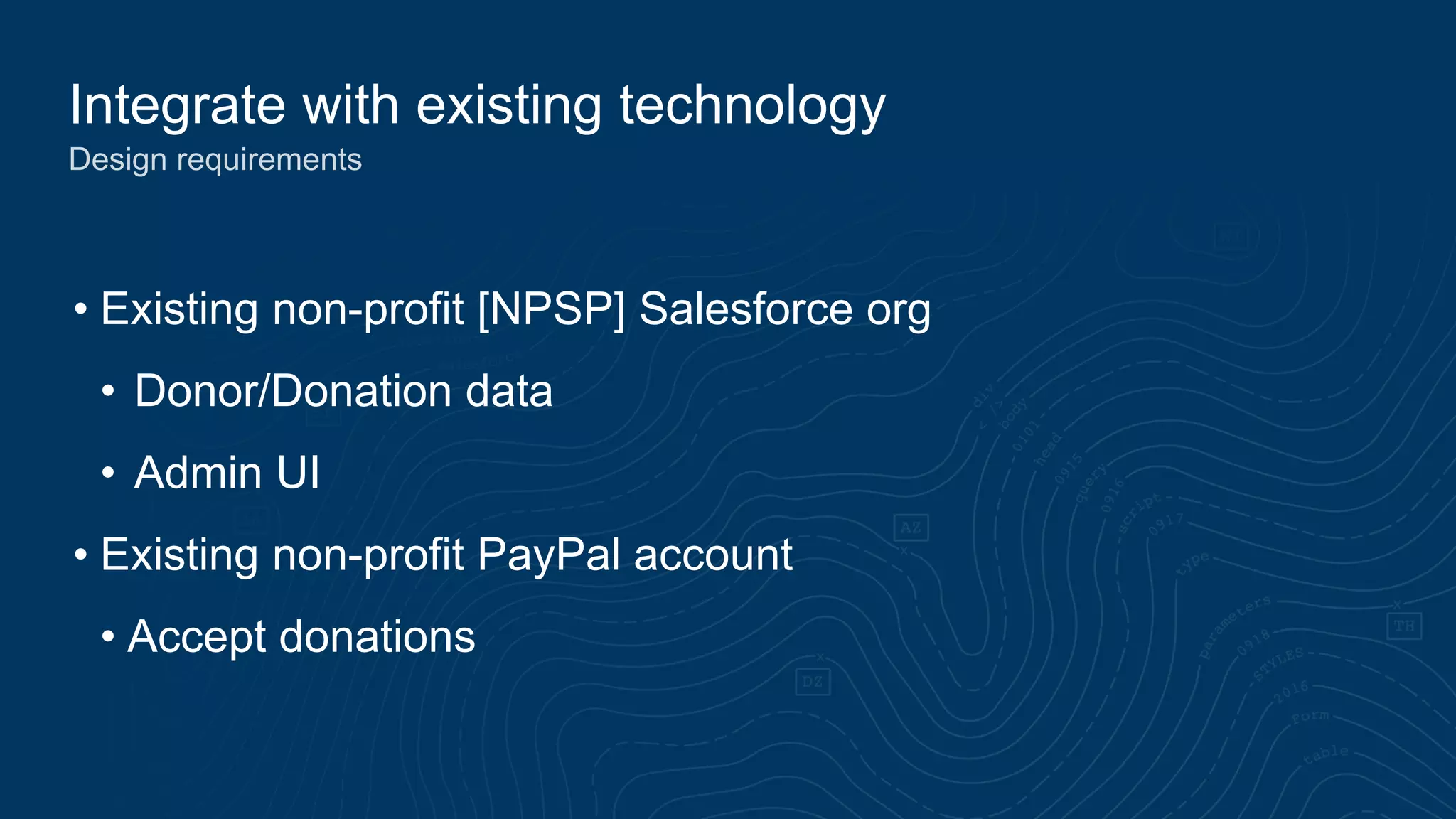

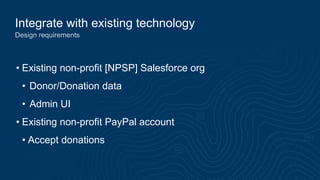

9. Integrate with existing technology
Design requirements
• Existing non-profit [NPSP] Salesforce org
• Donor/Donation data
• Admin UI
• Existing non-profit PayPal account
• Accept donations

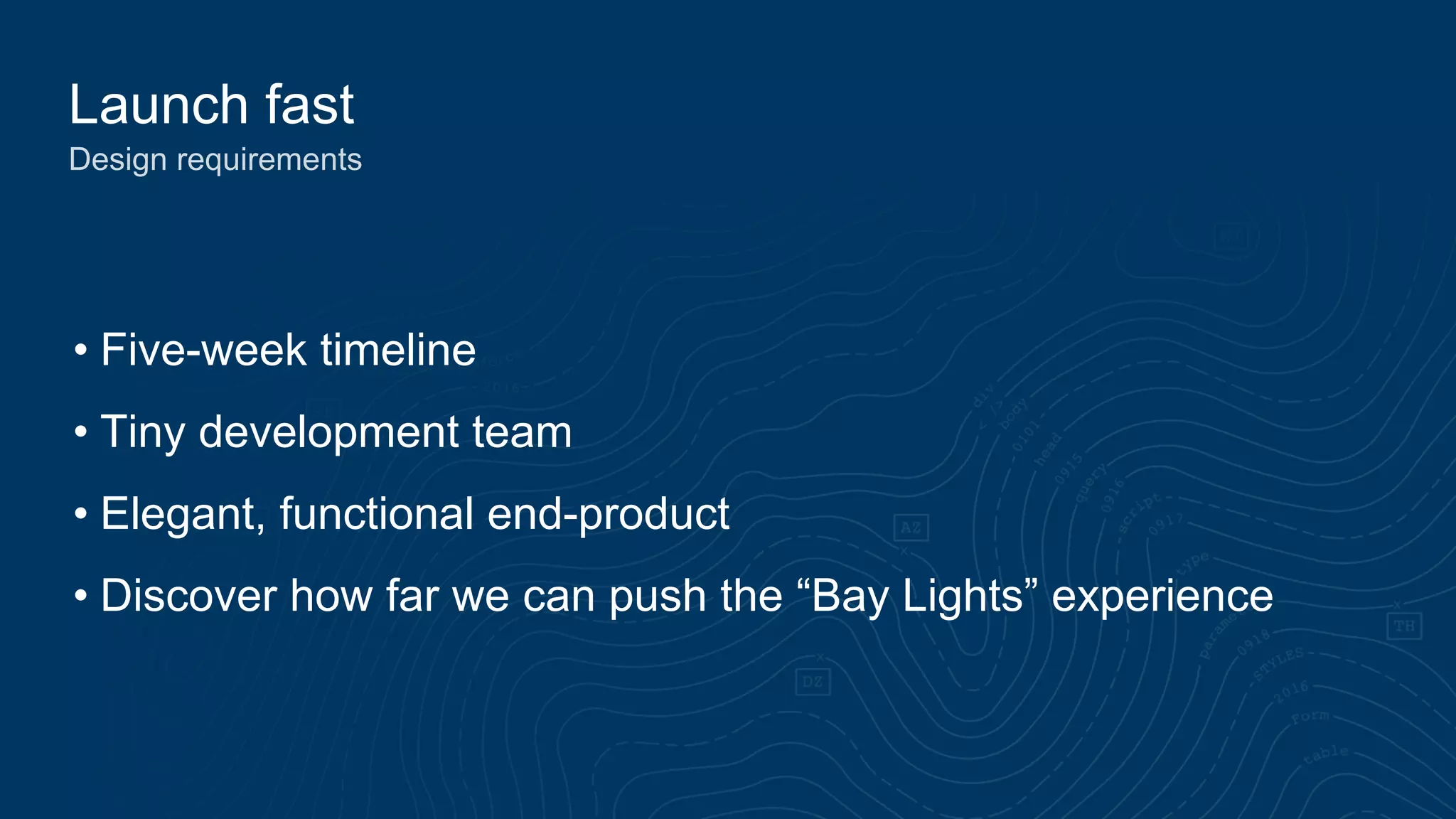

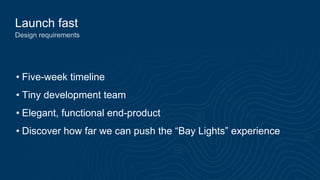

10. Launch fast
Design requirements
• Five-week timeline
• Tiny development team
• Elegant, functional end-product
• Discover how far we can push the “Bay Lights” experience

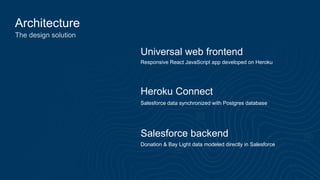

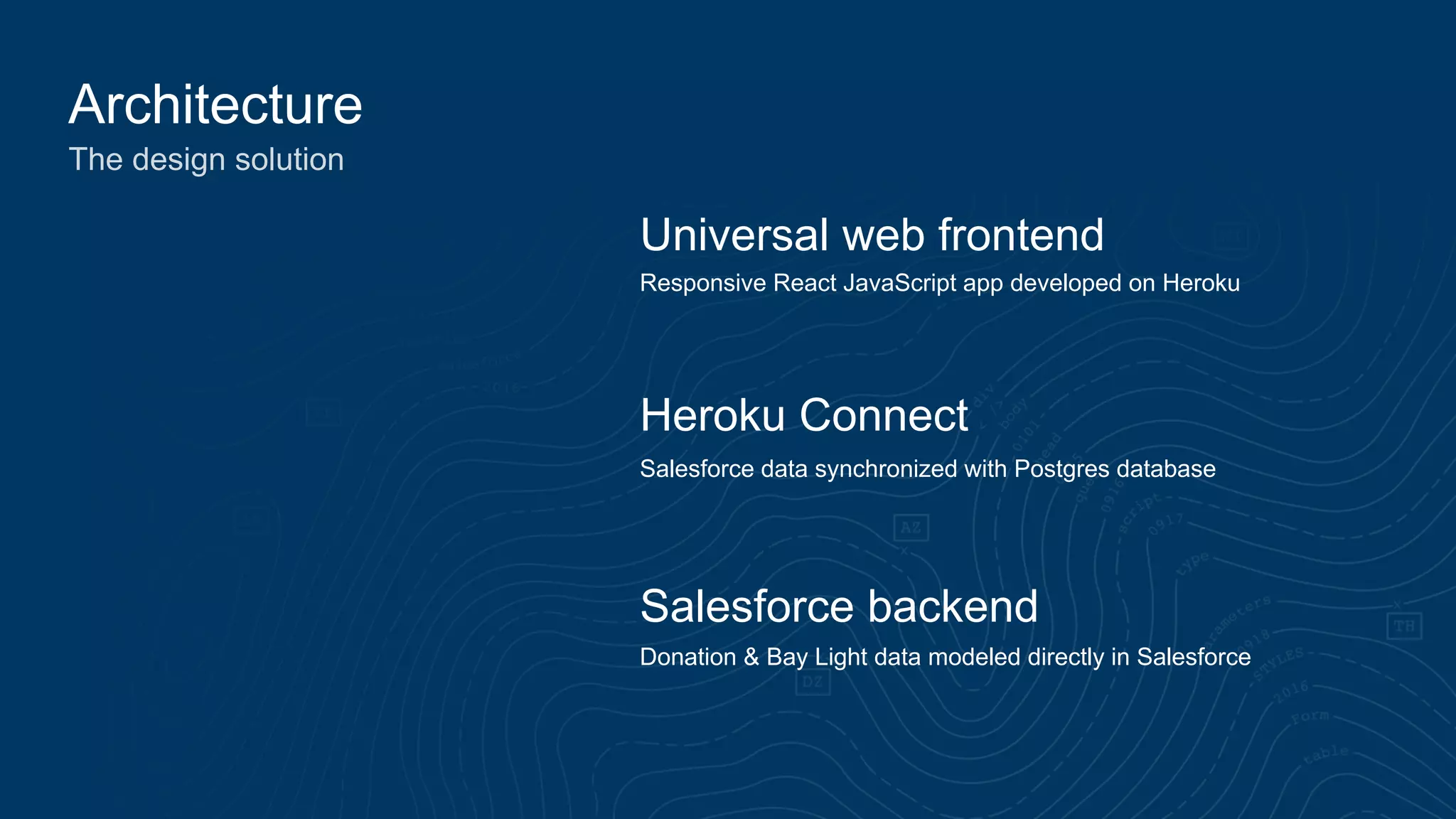

11. Architecture
The design solution
Universal web frontend
Heroku Connect
Salesforce backend
Responsive React JavaScript app developed on Heroku
Donation & Bay Light data modeled directly in Salesforce
Salesforce data synchronized with Postgres database

12. Simple can be harder than complex:
You have to work hard to get your thinking clean,
to make it simple.
— Steve Jobs

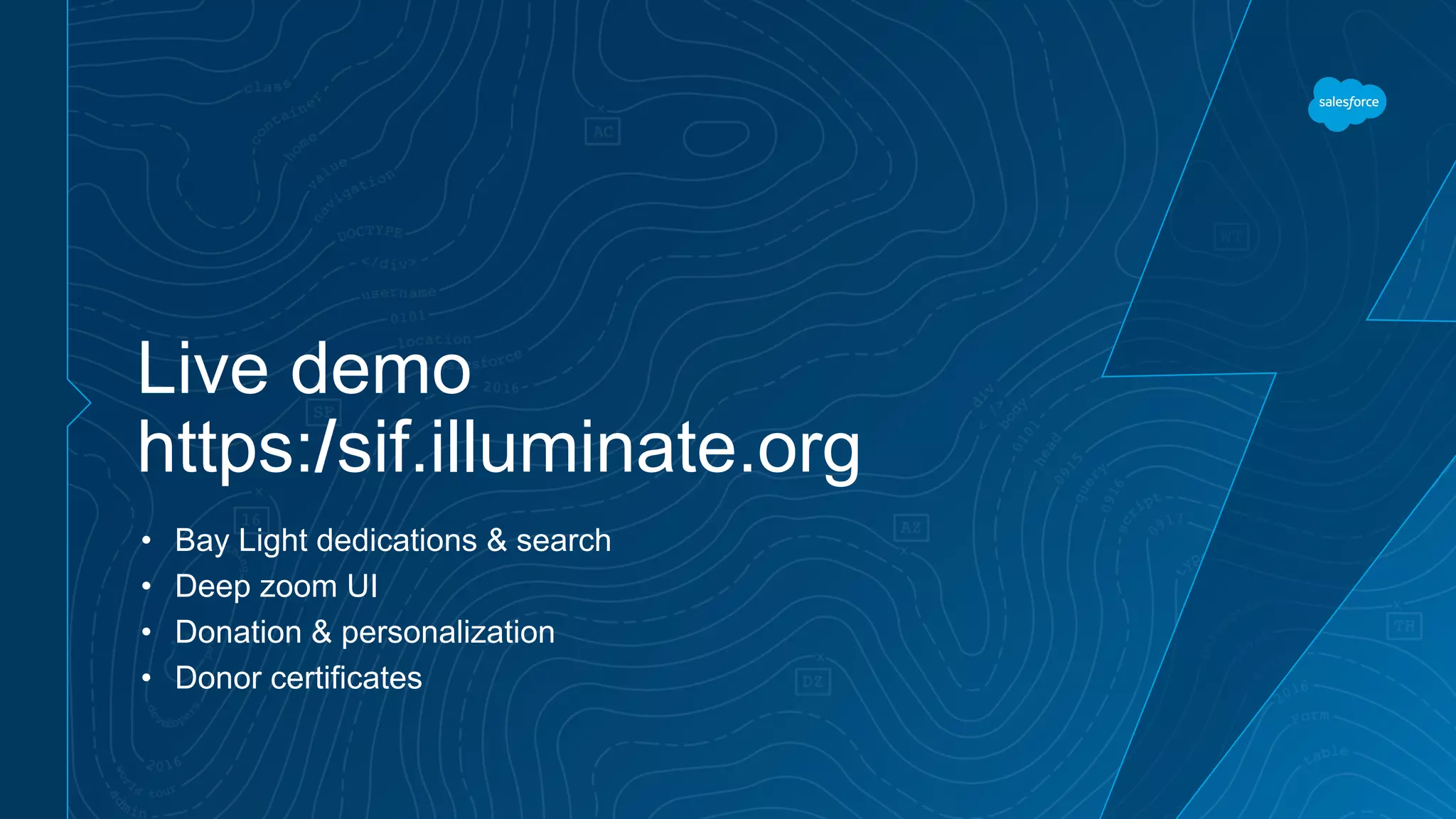

13. Live demo
https://sif.illuminate.org
• Bay Light dedications & search
• Deep zoom UI
• Donation & personalization
• Donor certificates

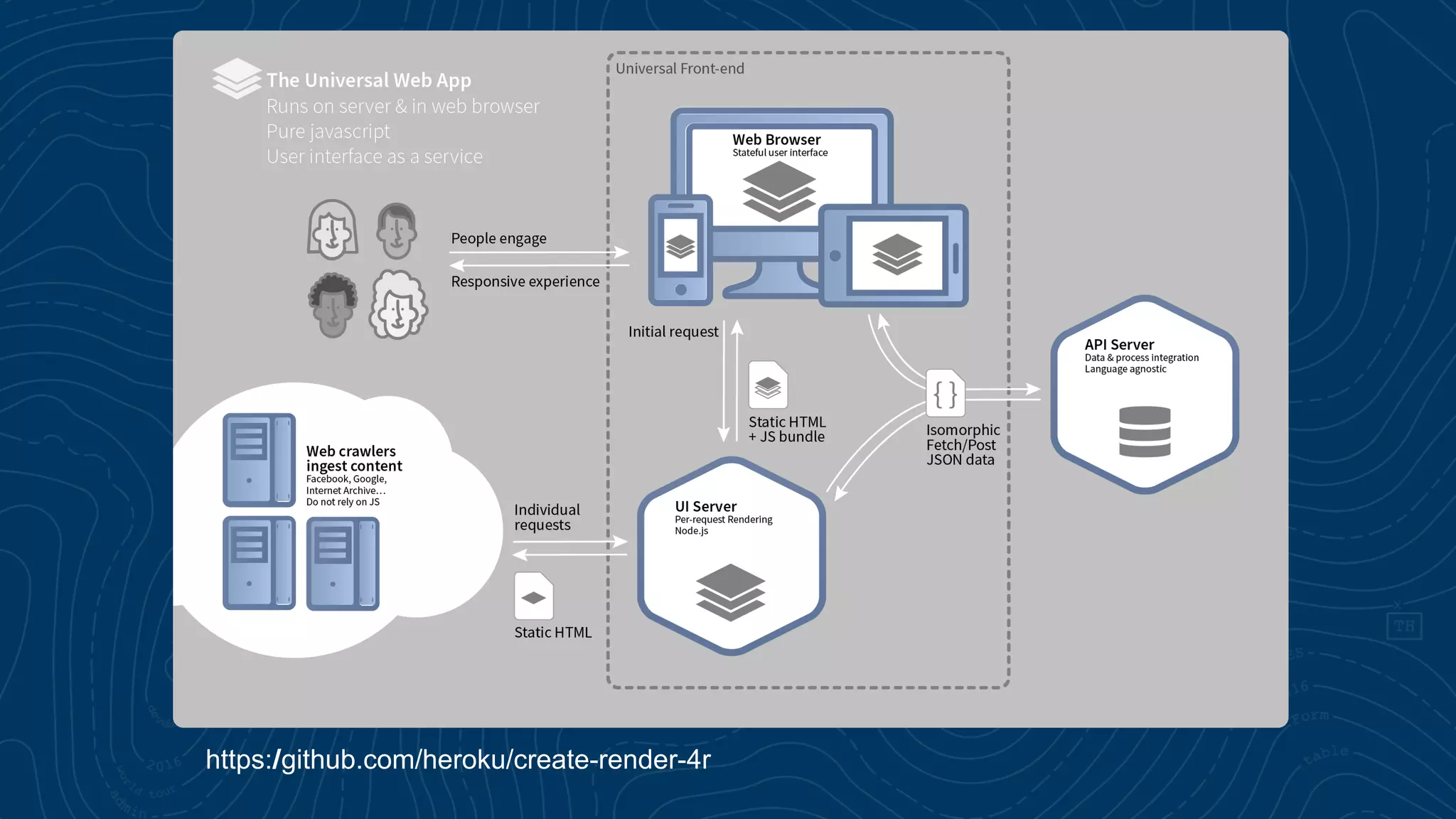

14. https://github.com/heroku/create-render-4r

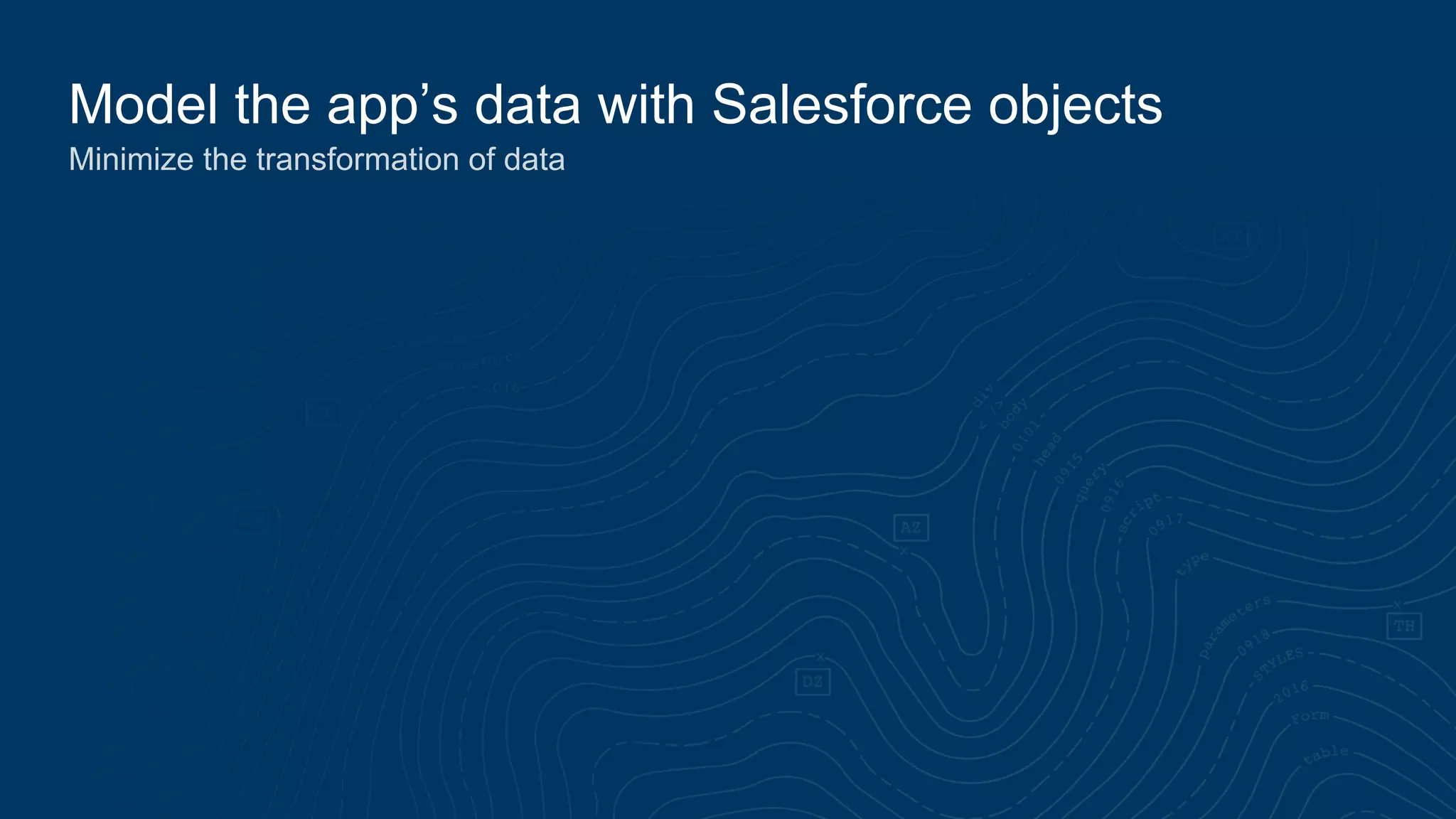

15. Model the app’s data with Salesforce objects
Minimize the transformation of data

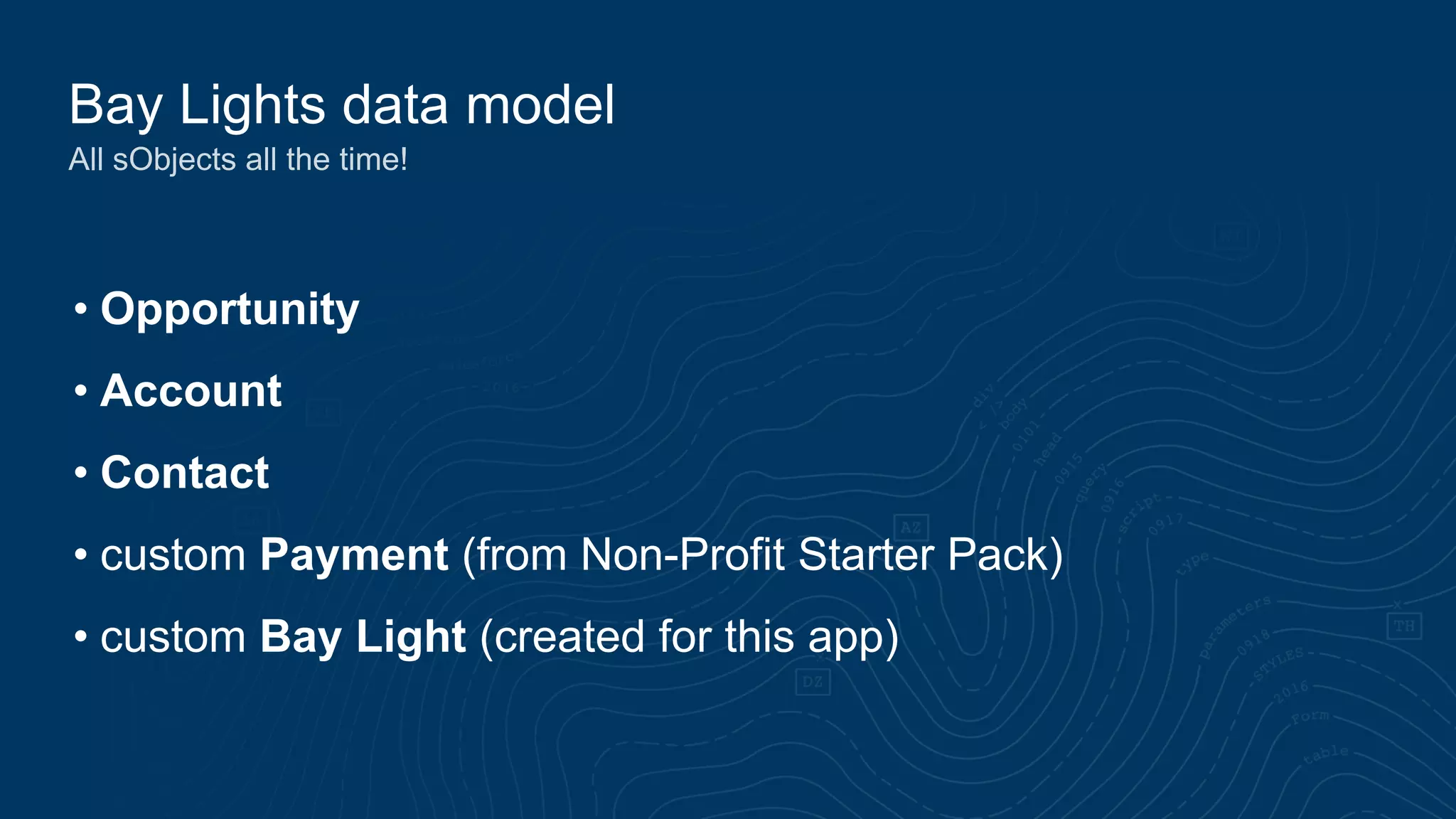

16. Bay Lights data model
All sObjects all the time!
• Opportunity
• Account
• Contact
• custom Payment (from Non-Profit Starter Pack)
• custom Bay Light (created for this app)

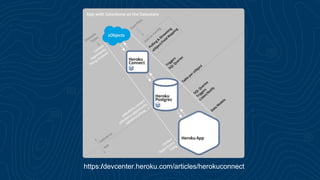

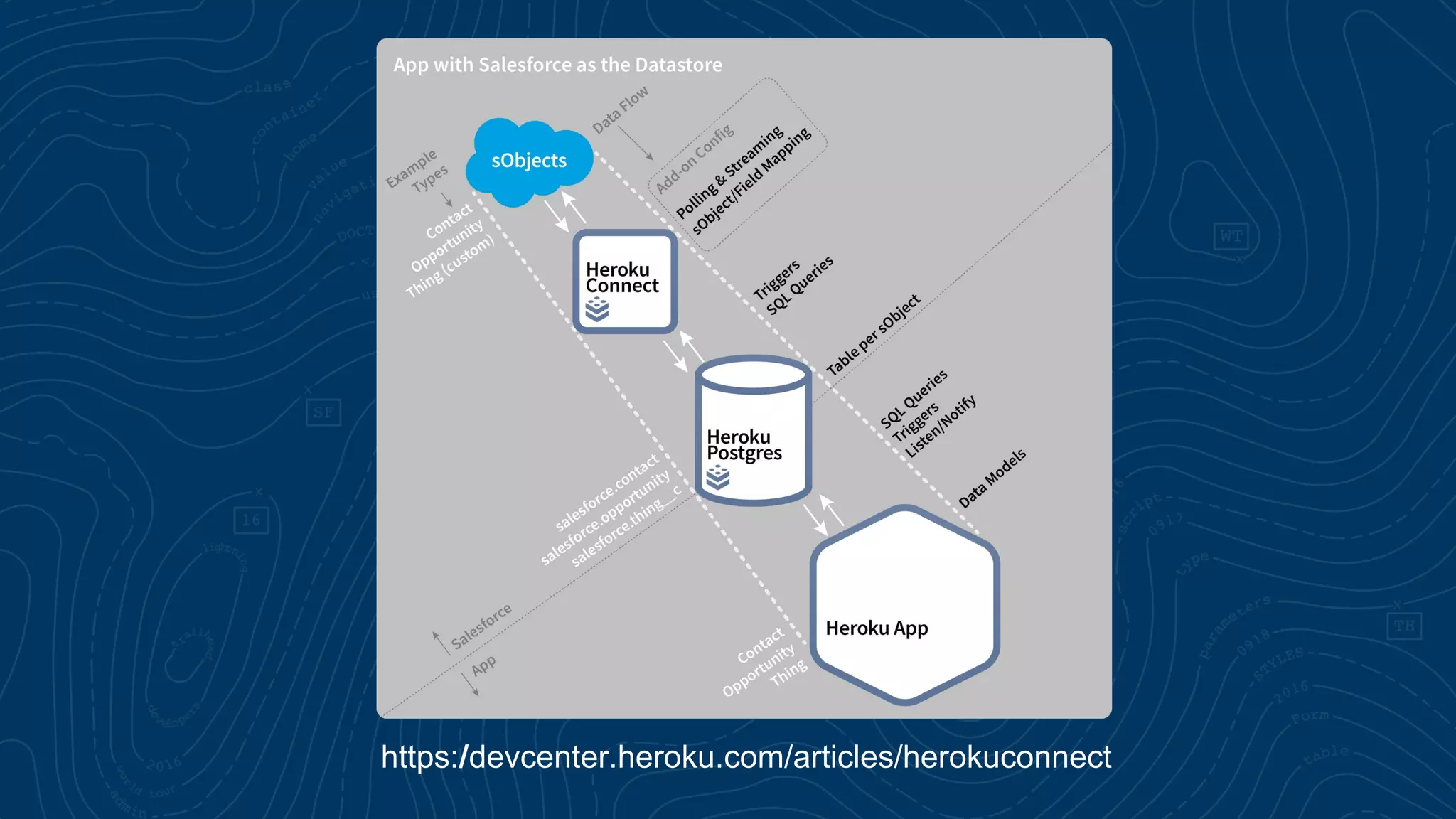

17. https://devcenter.heroku.com/articles/herokuconnect

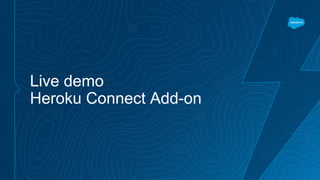

18. Live demo
Heroku Connect Add-on

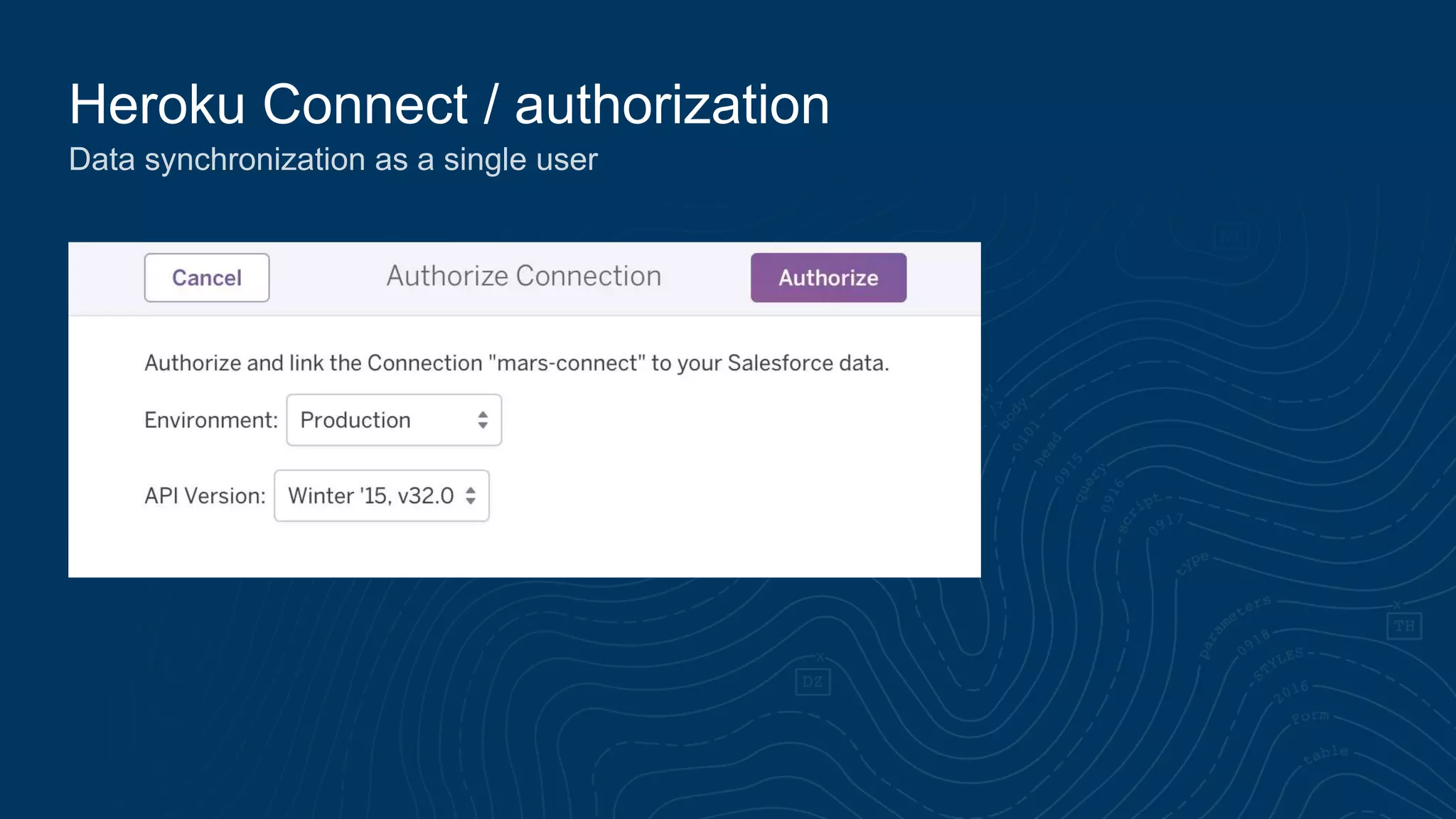

19. Heroku Connect / authorization
Data synchronization as a single user

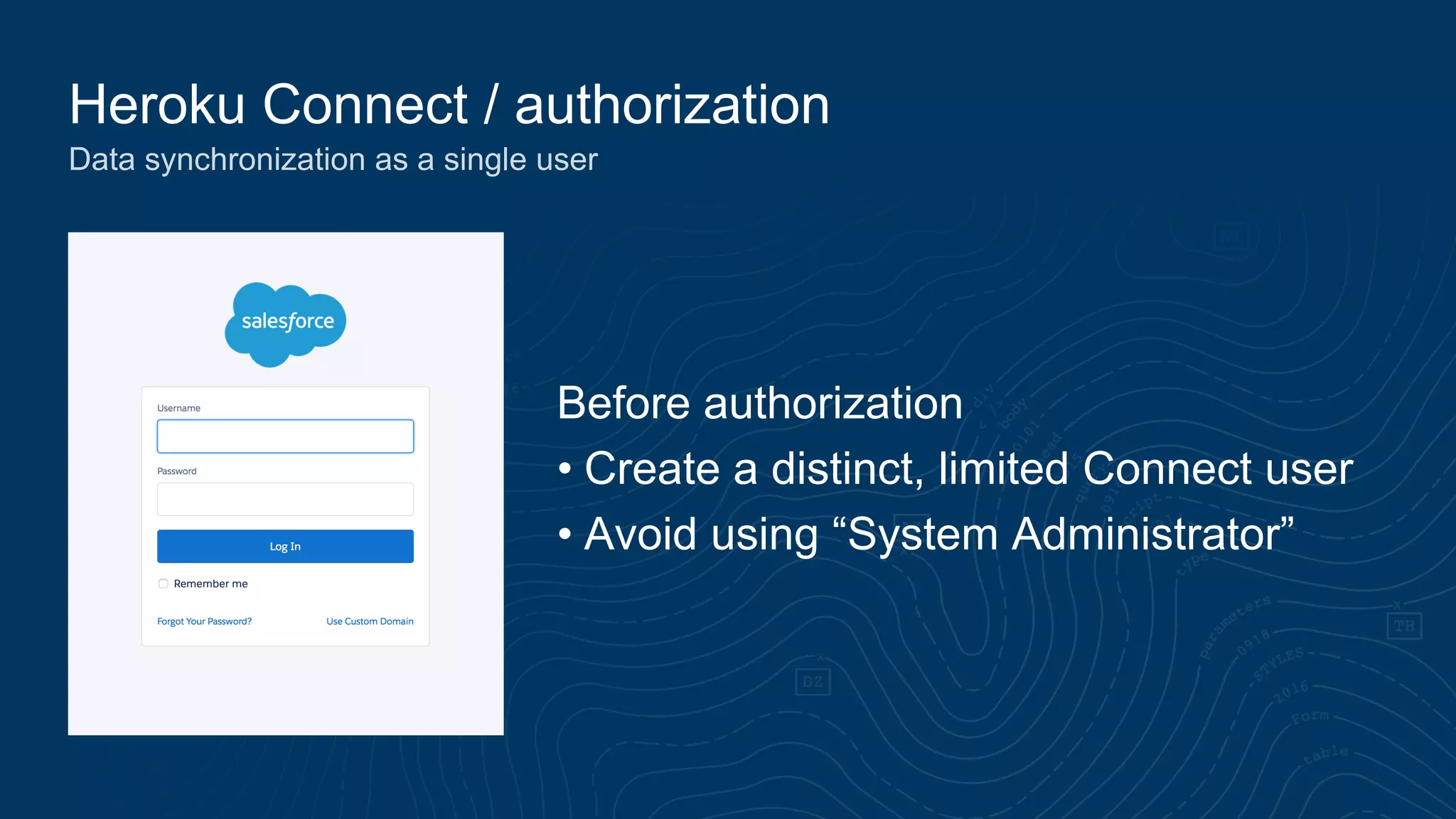

20. Heroku Connect / authorization
Data synchronization as a single user
Before authorization
• Create a distinct, limited Connect user
• Avoid using “System Administrator”

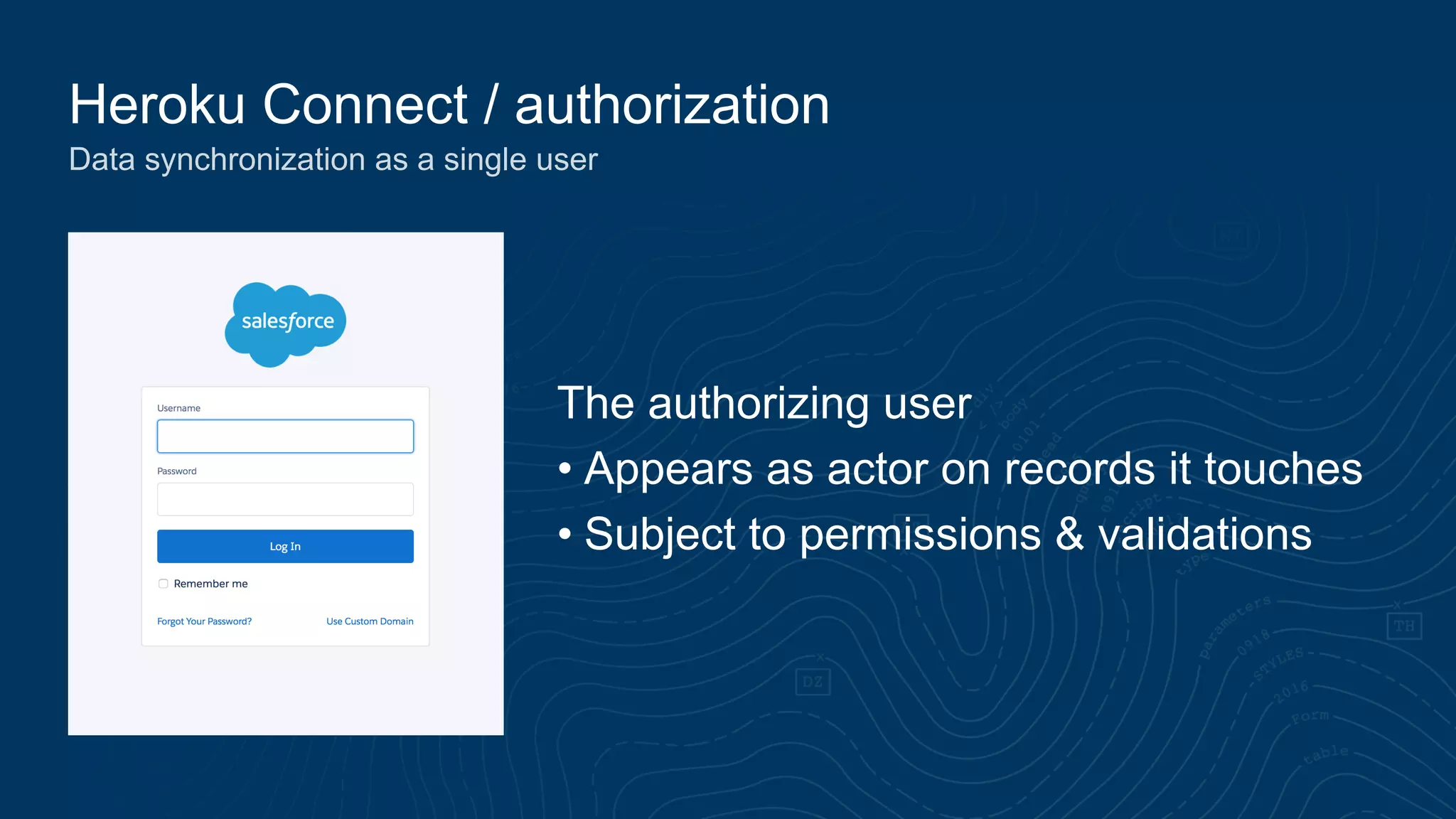

21. Heroku Connect / authorization
Data synchronization as a single user
The authorizing user
• Appears as actor on records it touches
• Subject to permissions & validations

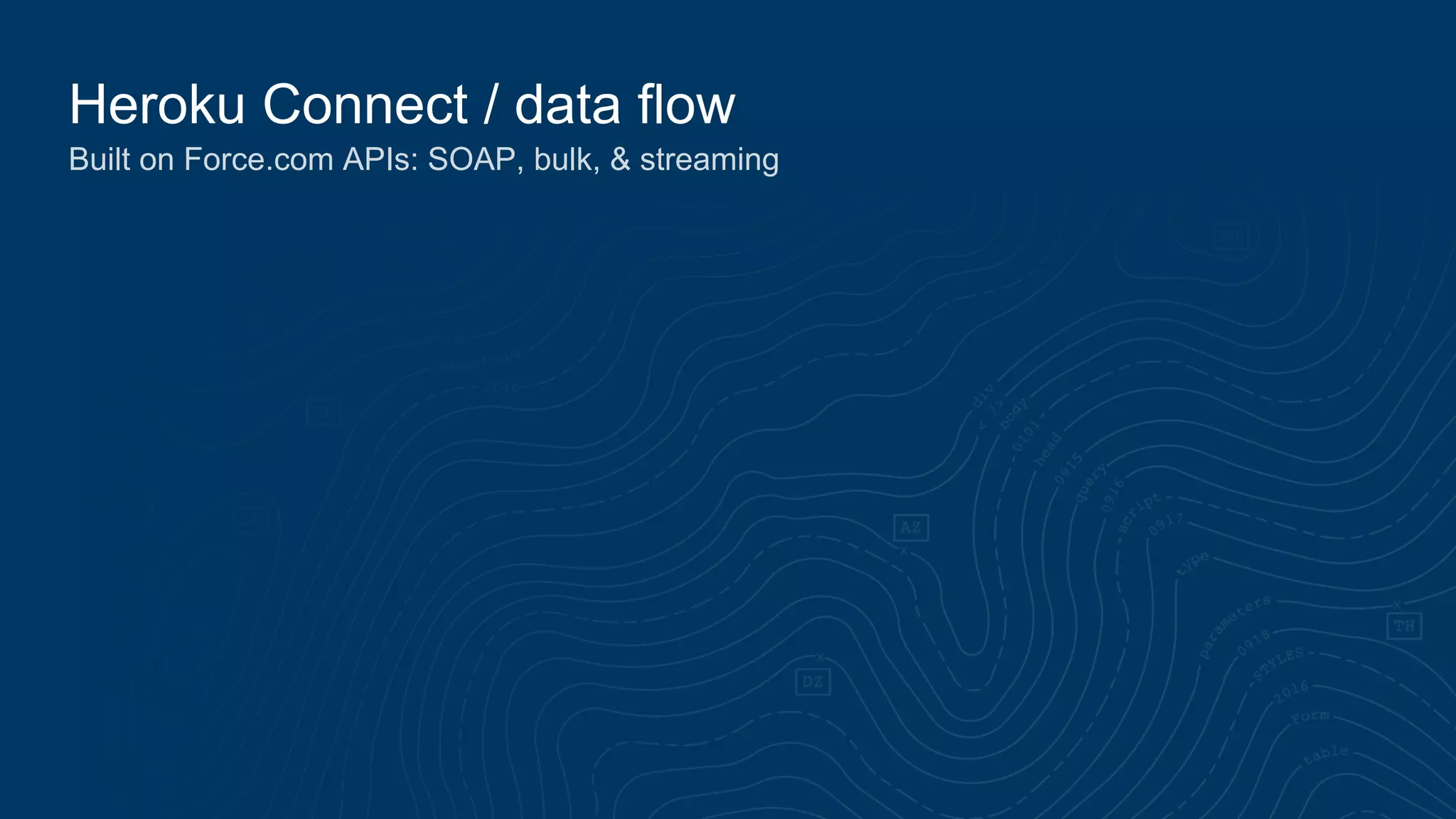

22. Heroku Connect / data flow
Built on Force.com APIs: SOAP, bulk, & streaming

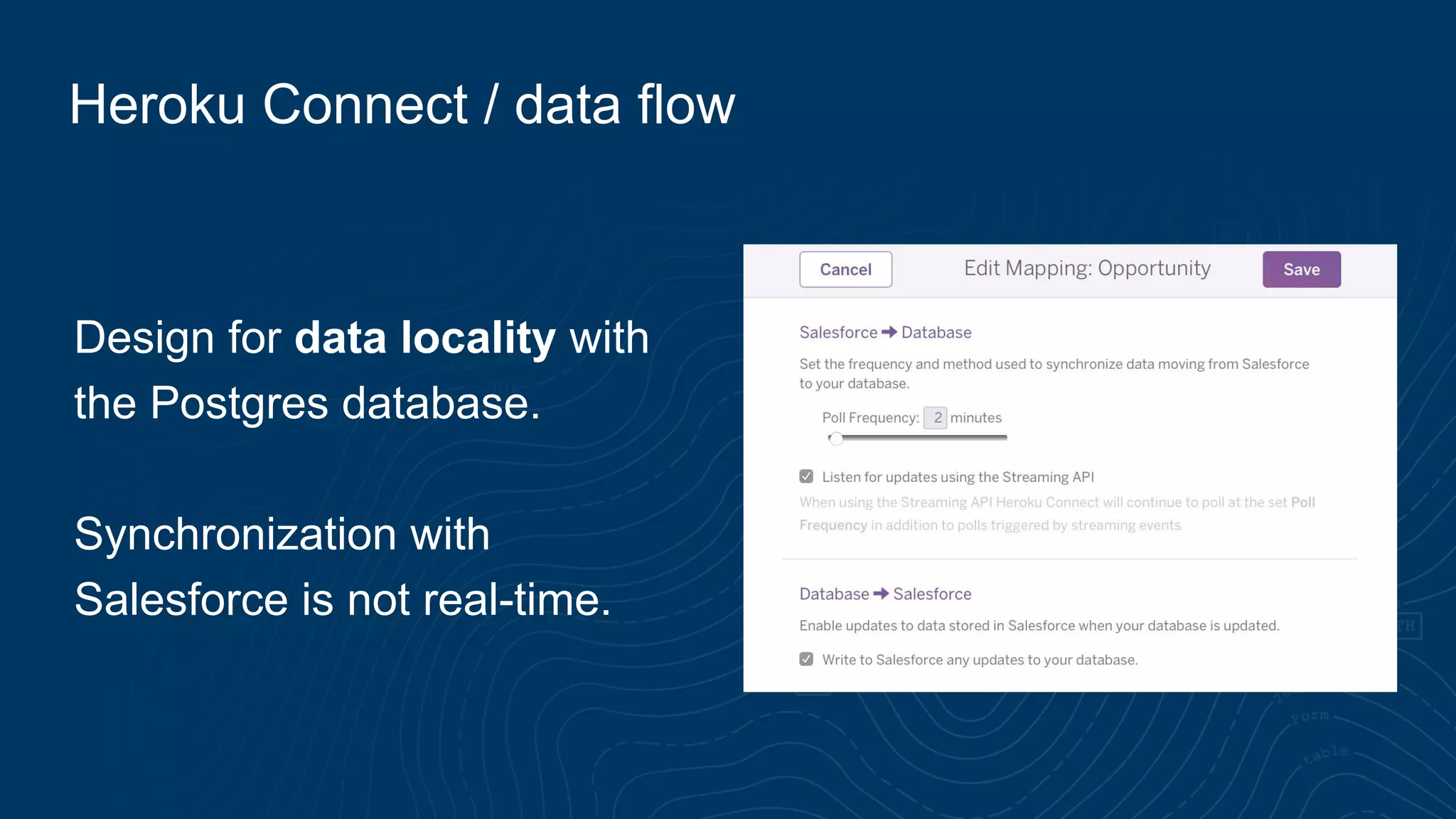

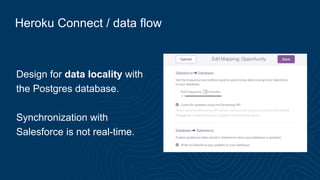

23. Heroku Connect / data flow
Design for data locality with
the Postgres database.
Synchronization with
Salesforce is not real-time.

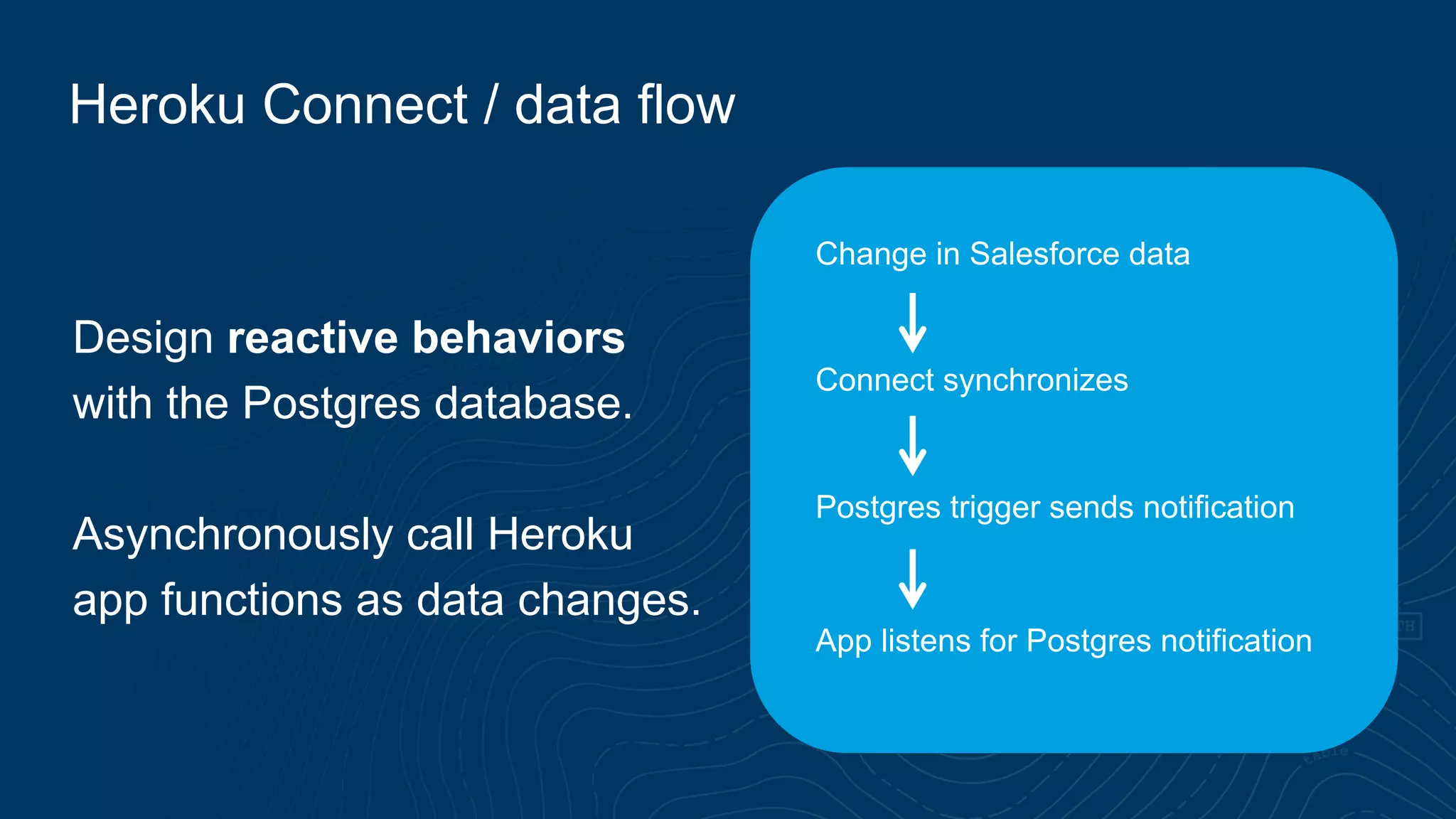

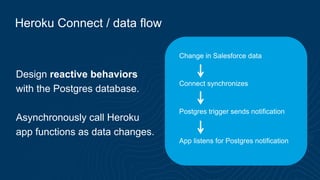

24. Heroku Connect / data flow
Design reactive behaviors
with the Postgres database.
Asynchronously call Heroku
app functions as data changes.
Change in Salesforce data
Connect synchronizes
Postgres trigger sends notification
App listens for Postgres notification

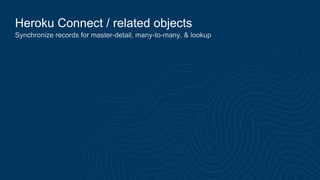

25. Heroku Connect / related objects
Synchronize records for master-detail, many-to-many, & lookup

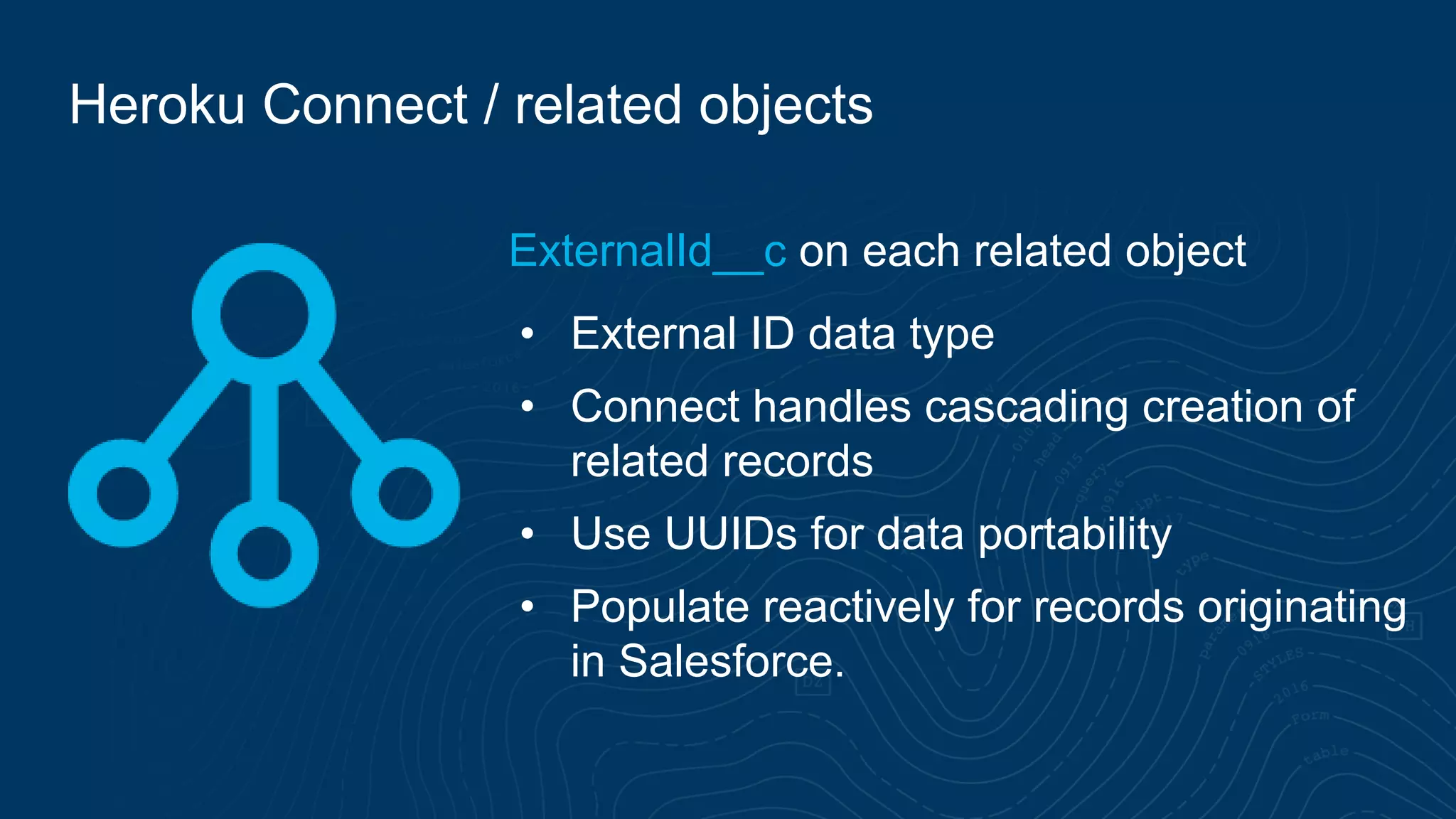

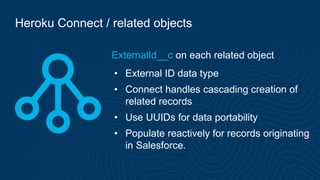

26. Heroku Connect / related objects
ExternalId__c on each related object
• External ID data type
• Connect handles cascading creation of
related records
• Use UUIDs for data portability
• Populate reactively for records originating
in Salesforce.

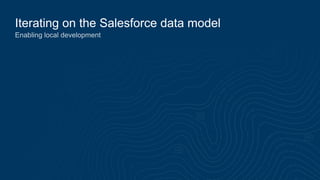

27. Iterating on the Salesforce data model
Enabling local development

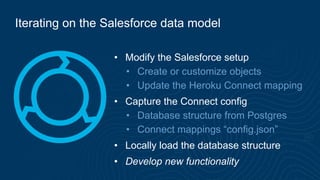

28. Iterating on the Salesforce data model
• Modify the Salesforce setup
• Create or customize objects
• Update the Heroku Connect mapping
• Capture the Connect config
• Database structure from Postgres
• Connect mappings “config.json”
• Locally load the database structure
• Develop new functionality

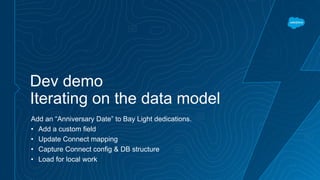

29. Dev demo
Iterating on the data model
Add an “Anniversary Date” to Bay Light dedications.
• Add a custom field
• Update Connect mapping
• Capture Connect config & DB structure
• Load for local work

30. Pipelines & org integration
Test new Heroku app features with Salesforce

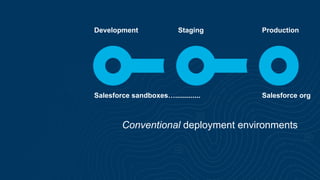

31. Conventional deployment environments
Development Staging Production
Salesforce sandboxes…............. Salesforce org

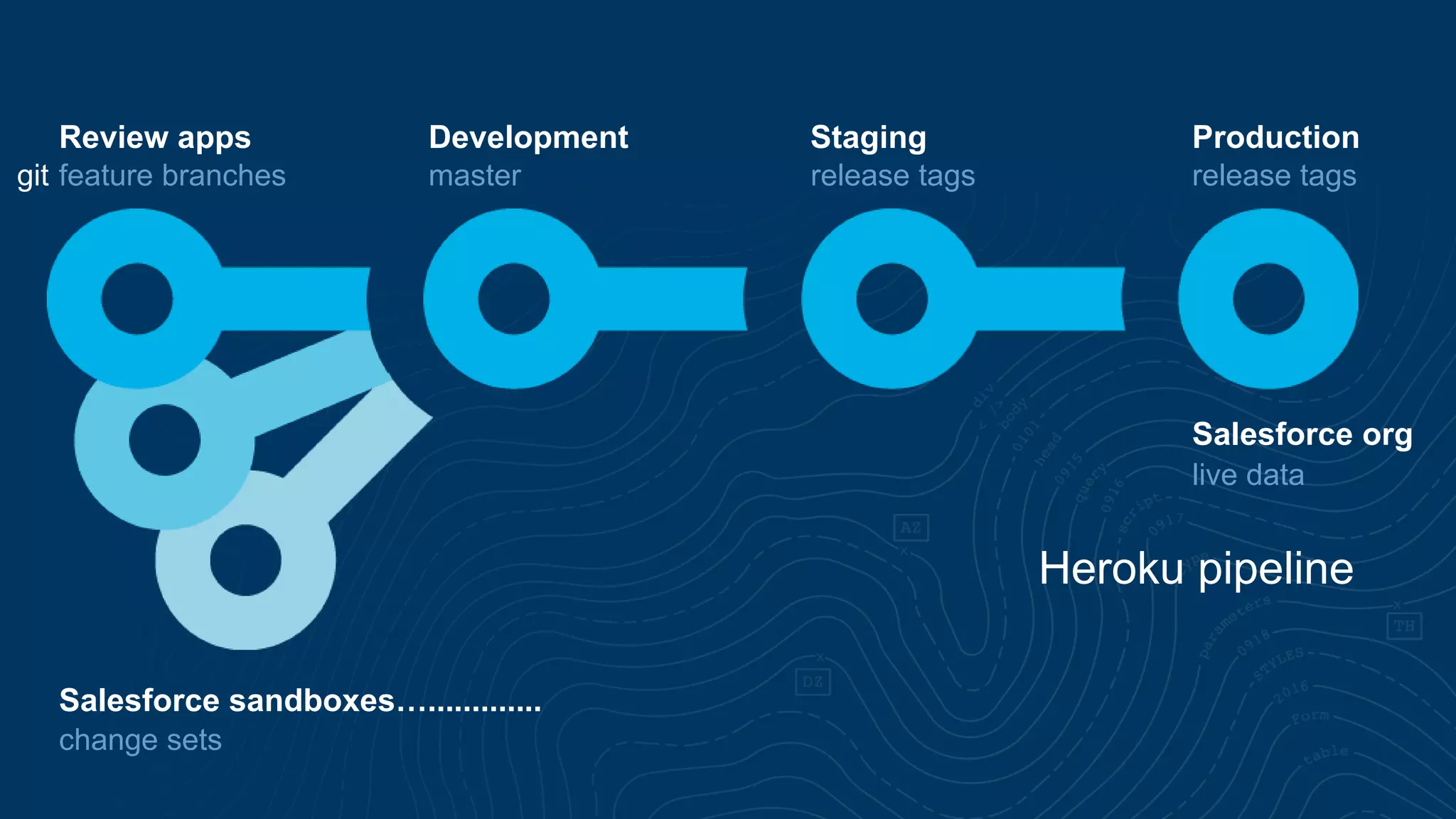

32. Development Staging Production
Heroku pipeline
Review apps
Salesforce sandboxes….............
Salesforce org
feature branches master release tags release tags
change sets
live data
git

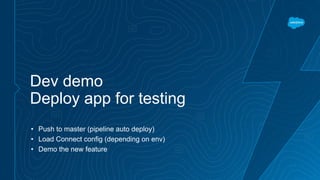

33. Dev demo
Deploy app for testing
• Push to master (pipeline auto deploy)
• Load Connect config (depending on env)
• Demo the new feature

34. Unified admin experience
Salesforce as the admin UI

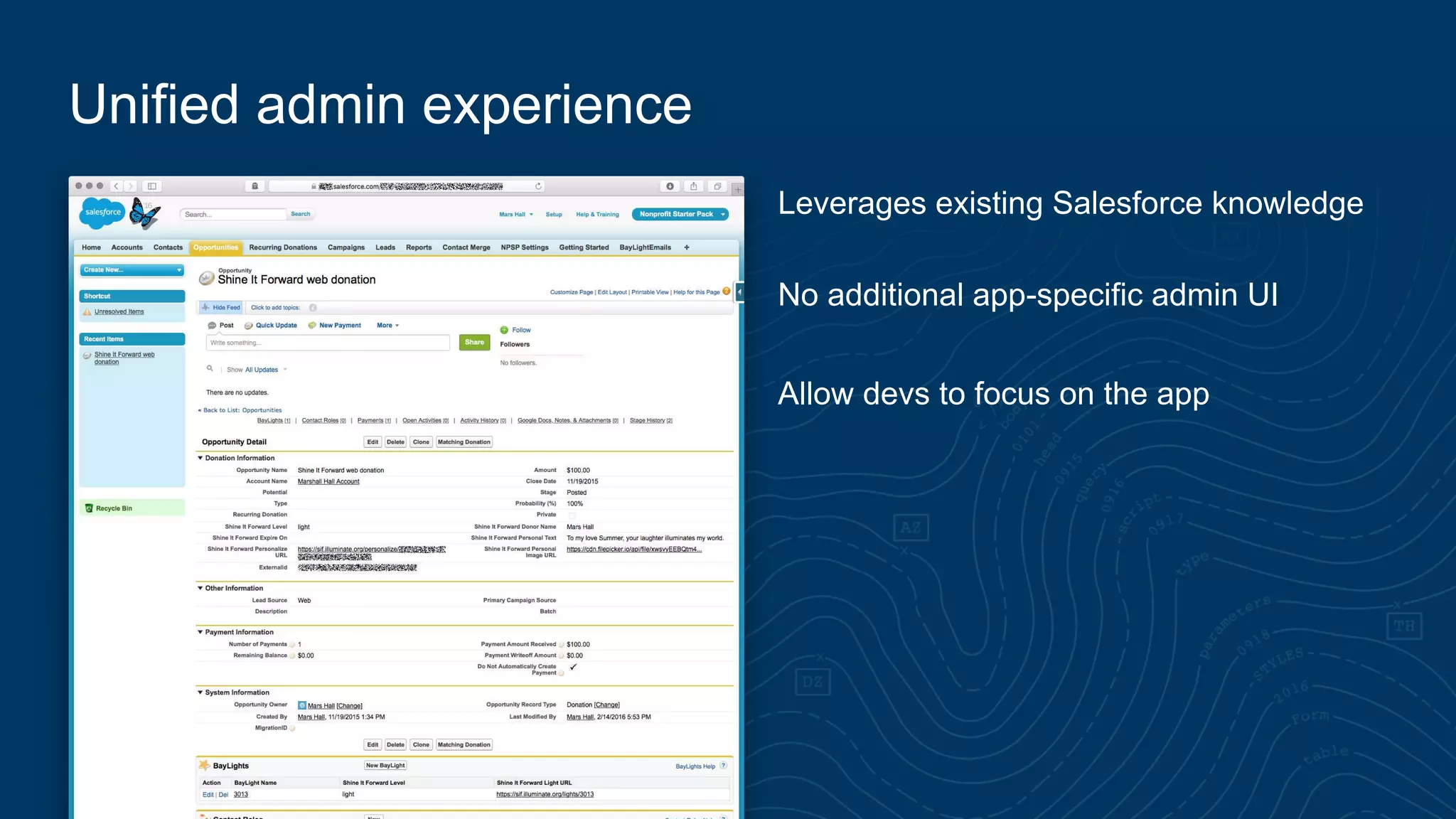

35. Unified admin experience
Leverages existing Salesforce knowledge
No additional app-specific admin UI
Allow devs to focus on the app

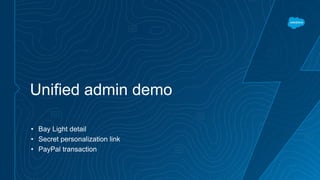

36. Unified admin demo
• Bay Light detail
• Secret personalization link
• PayPal transaction

37. thank y u
Mars Hall
Customer Facing Architect, Heroku
@marsi
