1. Microsoft
Excel 2010
Chapter 5
Creating, Sorting, and
Querying a Table

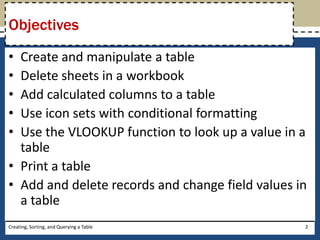

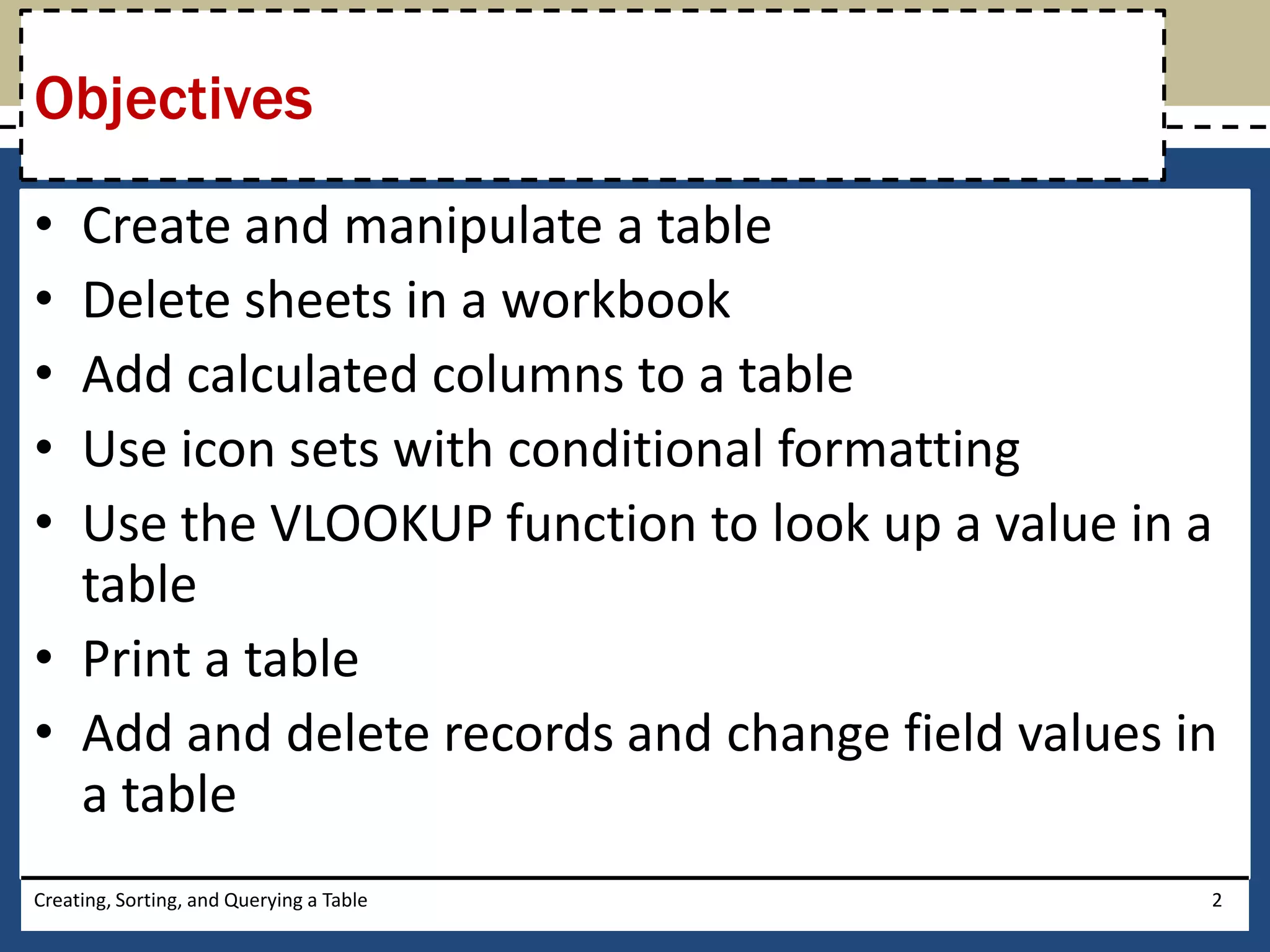

2. Objectives
• Create and manipulate a table
• Delete sheets in a workbook
• Add calculated columns to a table
• Use icon sets with conditional formatting
• Use the VLOOKUP function to look up a value in a
table
• Print a table
• Add and delete records and change field values in
a table
Creating, Sorting, and Querying a Table 2

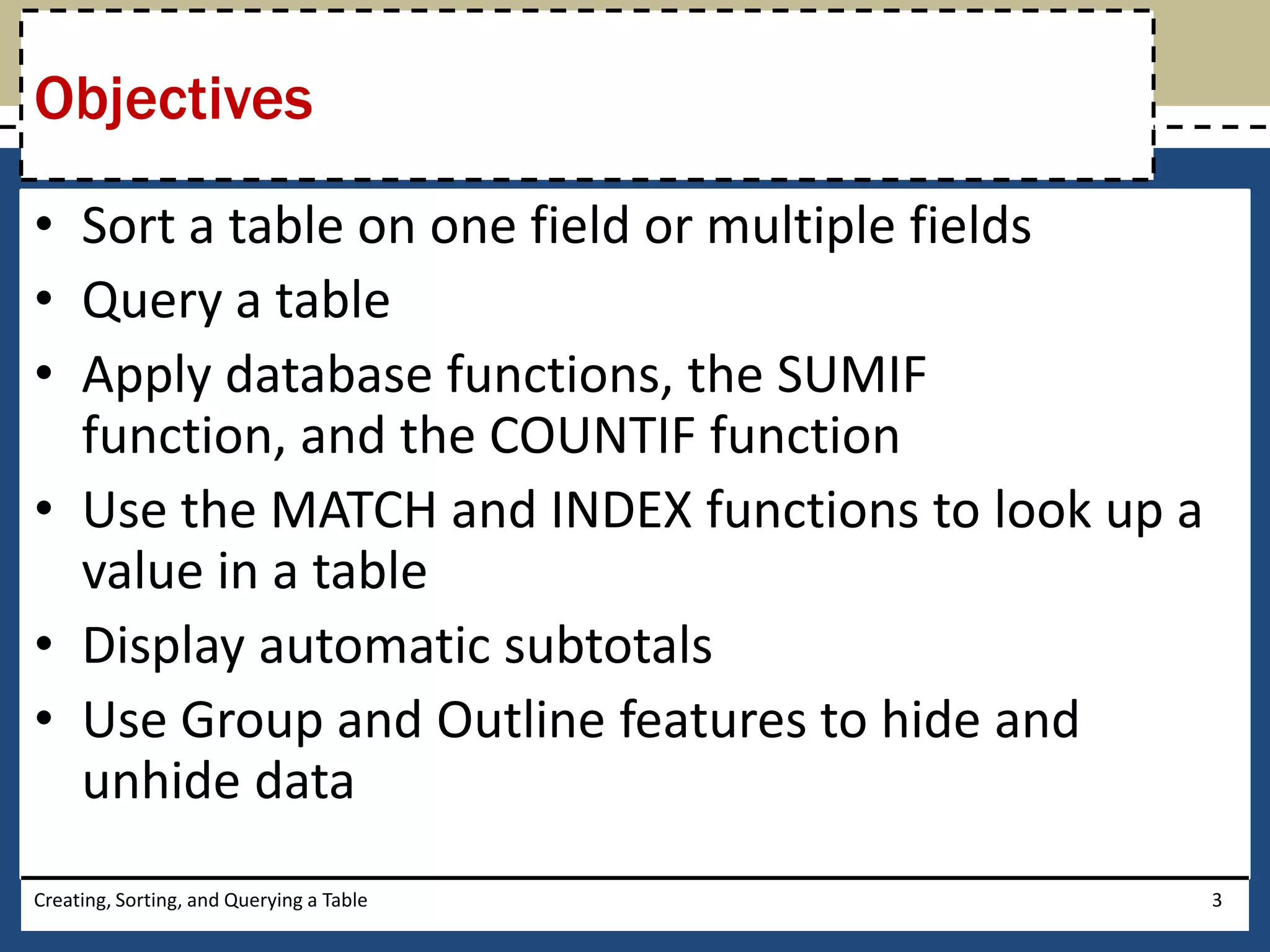

3. Objectives
• Sort a table on one field or multiple fields
• Query a table
• Apply database functions, the SUMIF
function, and the COUNTIF function
• Use the MATCH and INDEX functions to look up a
value in a table
• Display automatic subtotals
• Use Group and Outline features to hide and
unhide data
Creating, Sorting, and Querying a Table 3

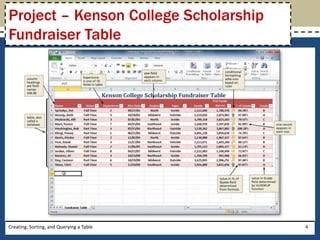

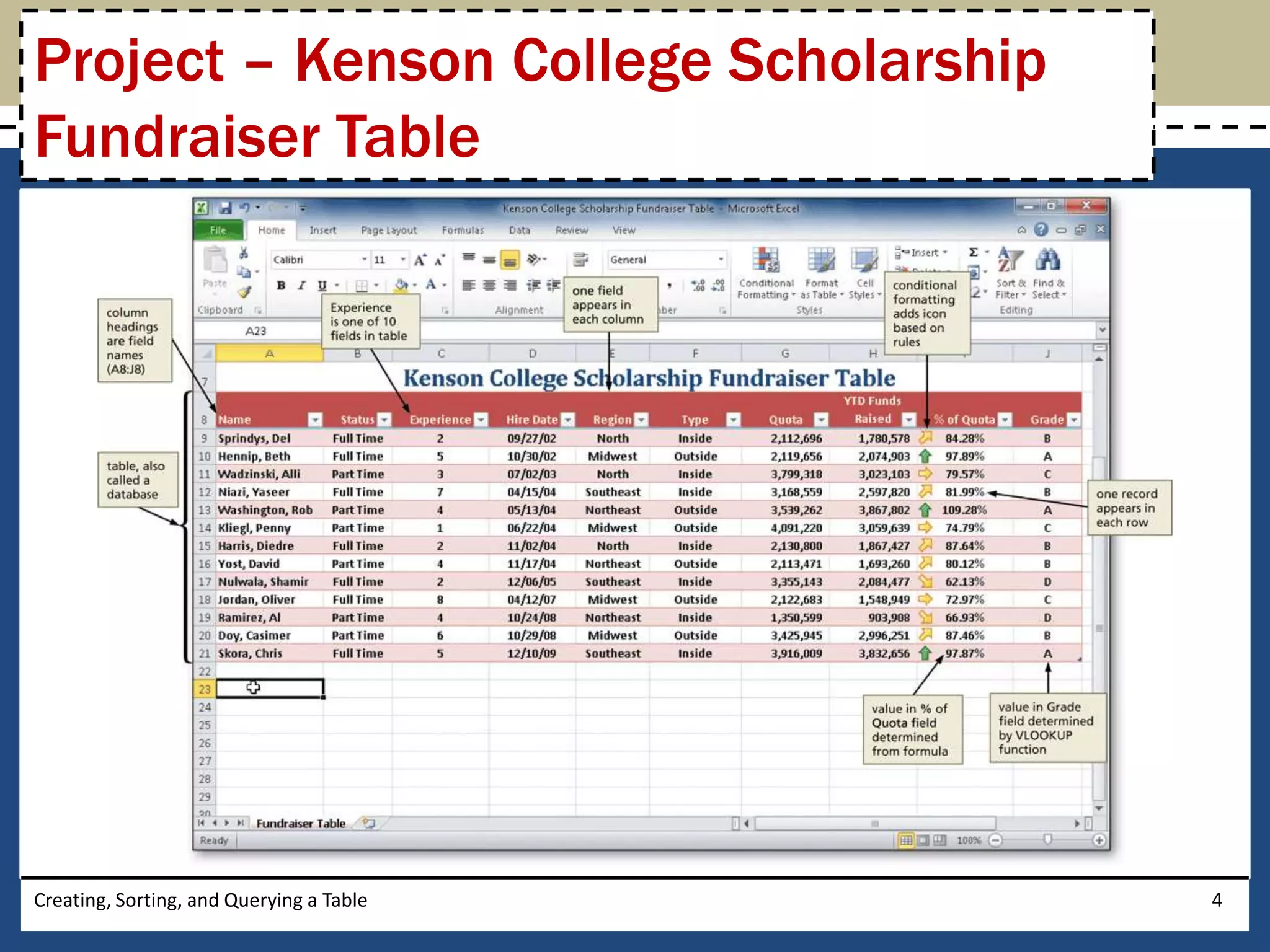

4. Project – Kenson College Scholarship
Fundraiser Table
Creating, Sorting, and Querying a Table 4

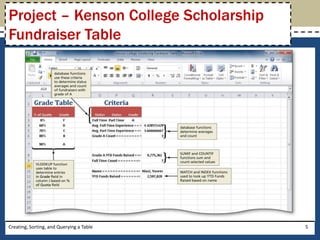

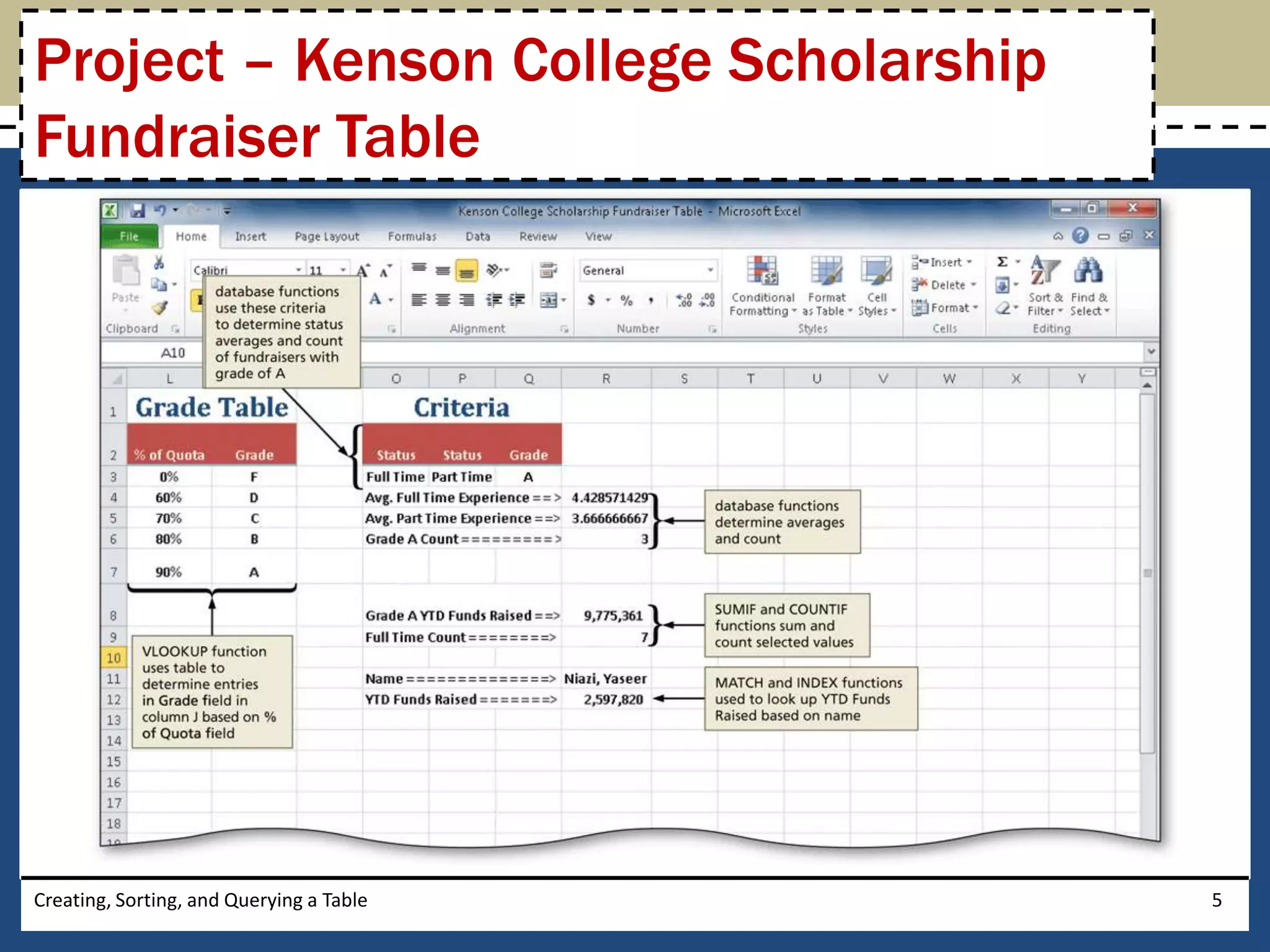

5. Project – Kenson College Scholarship
Fundraiser Table
Creating, Sorting, and Querying a Table 5

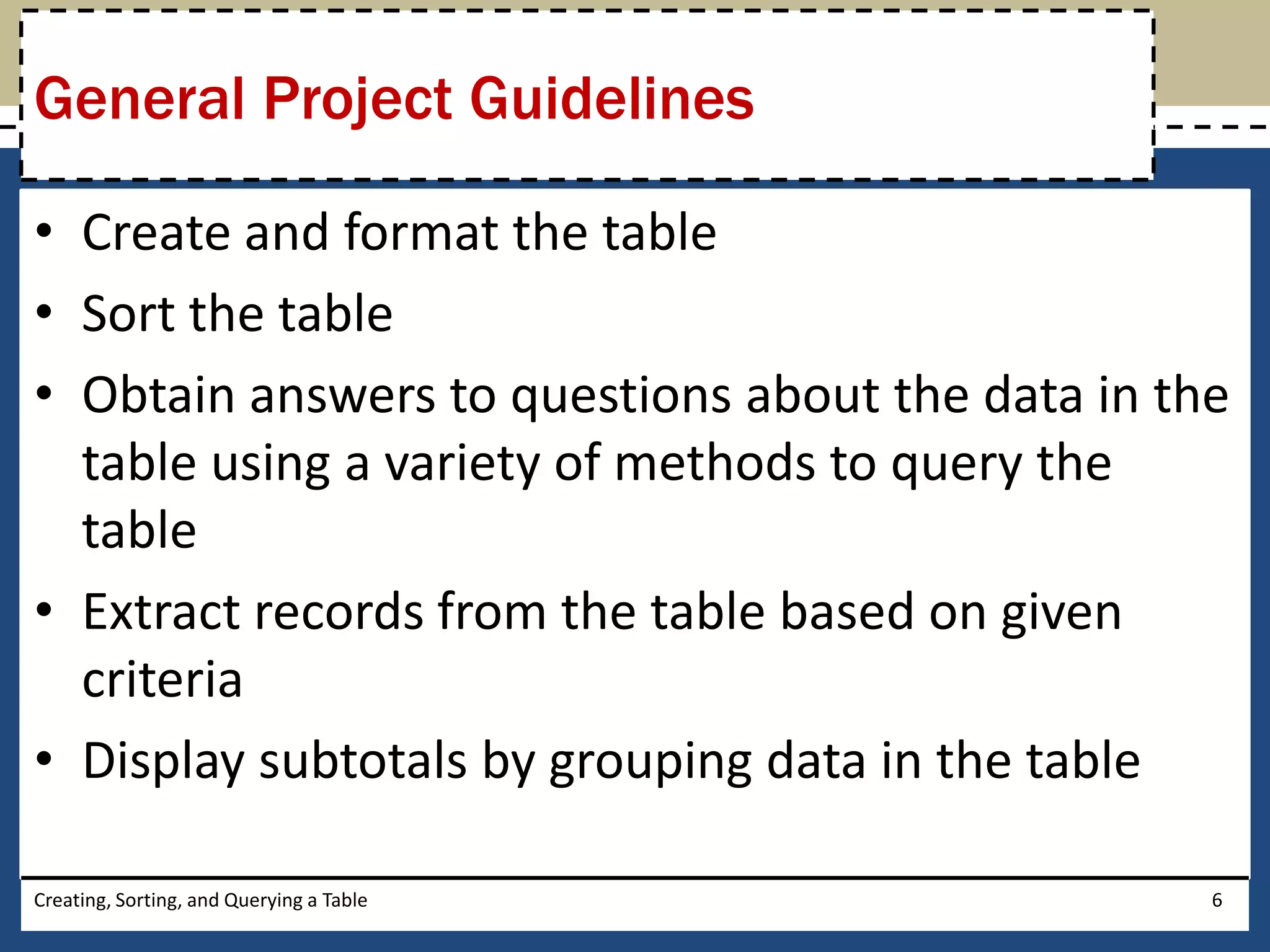

6. General Project Guidelines
• Create and format the table
• Sort the table
• Obtain answers to questions about the data in the
table using a variety of methods to query the
table
• Extract records from the table based on given
criteria
• Display subtotals by grouping data in the table
Creating, Sorting, and Querying a Table 6

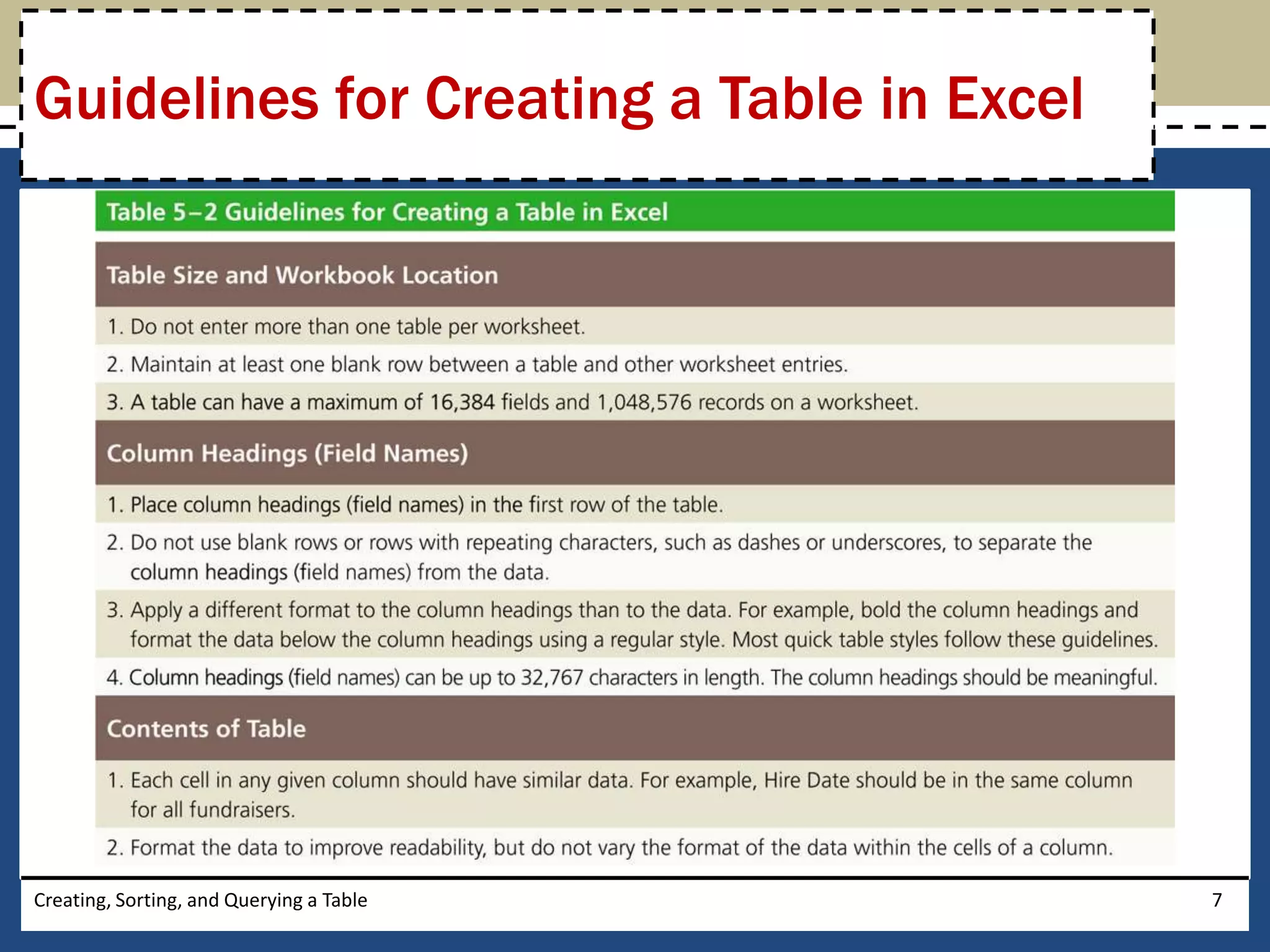

7. Guidelines for Creating a Table in Excel
Creating, Sorting, and Querying a Table 7

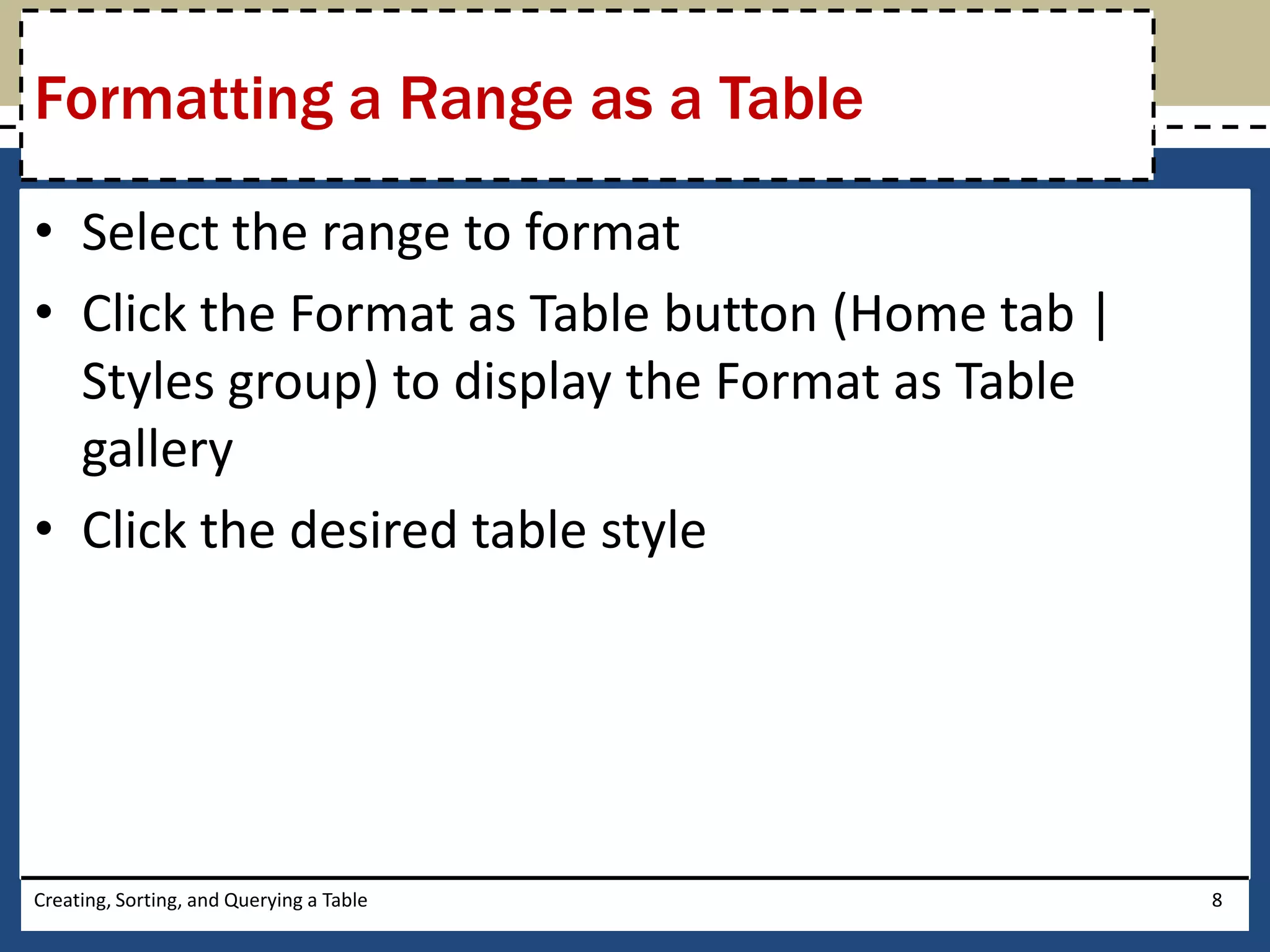

8. Formatting a Range as a Table
• Select the range to format
• Click the Format as Table button (Home tab |
Styles group) to display the Format as Table
gallery
• Click the desired table style
Creating, Sorting, and Querying a Table 8

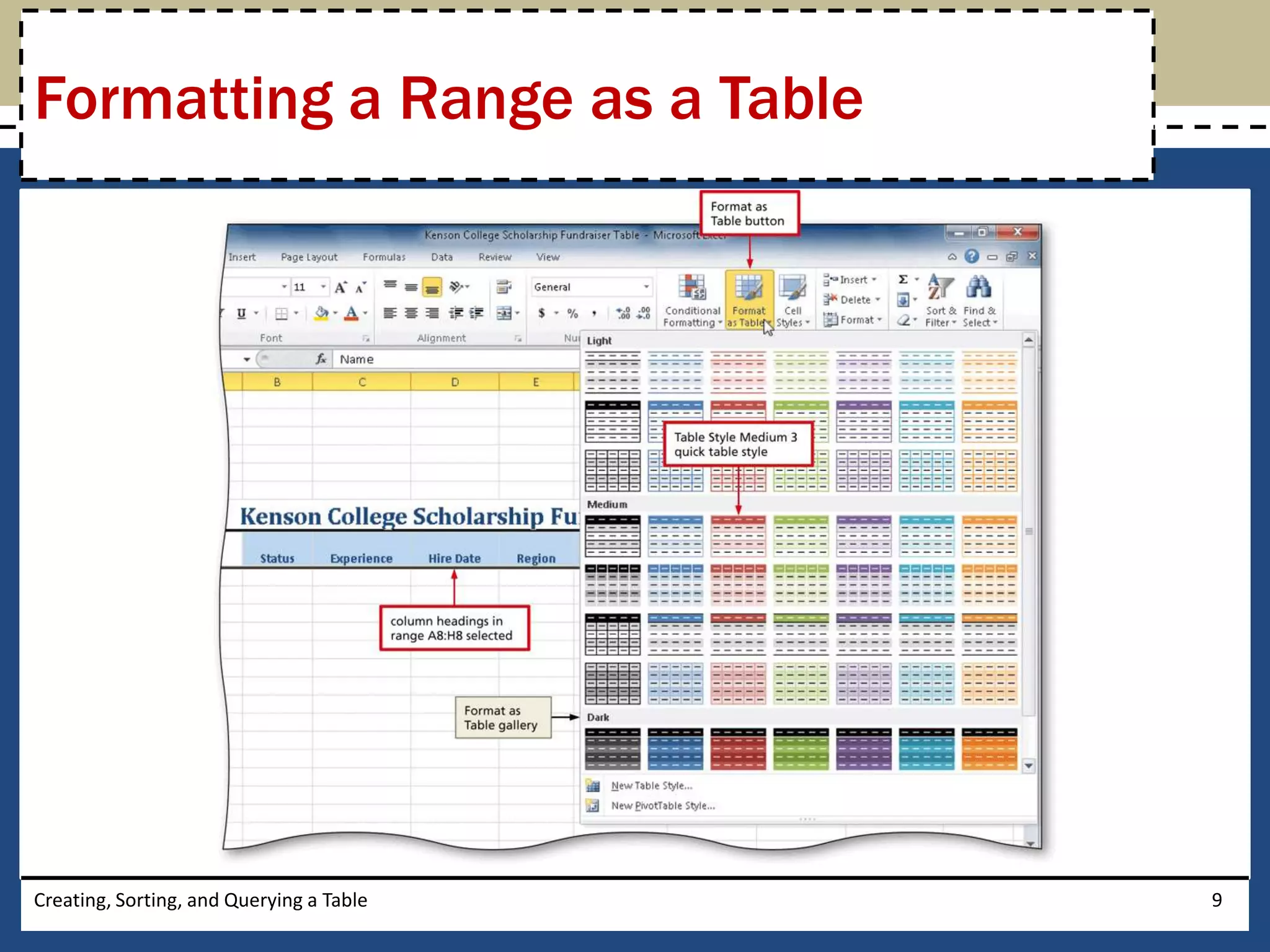

9. Formatting a Range as a Table
Creating, Sorting, and Querying a Table 9

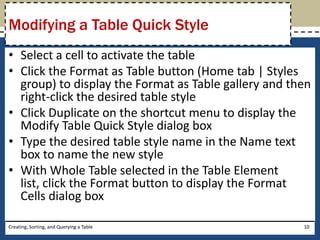

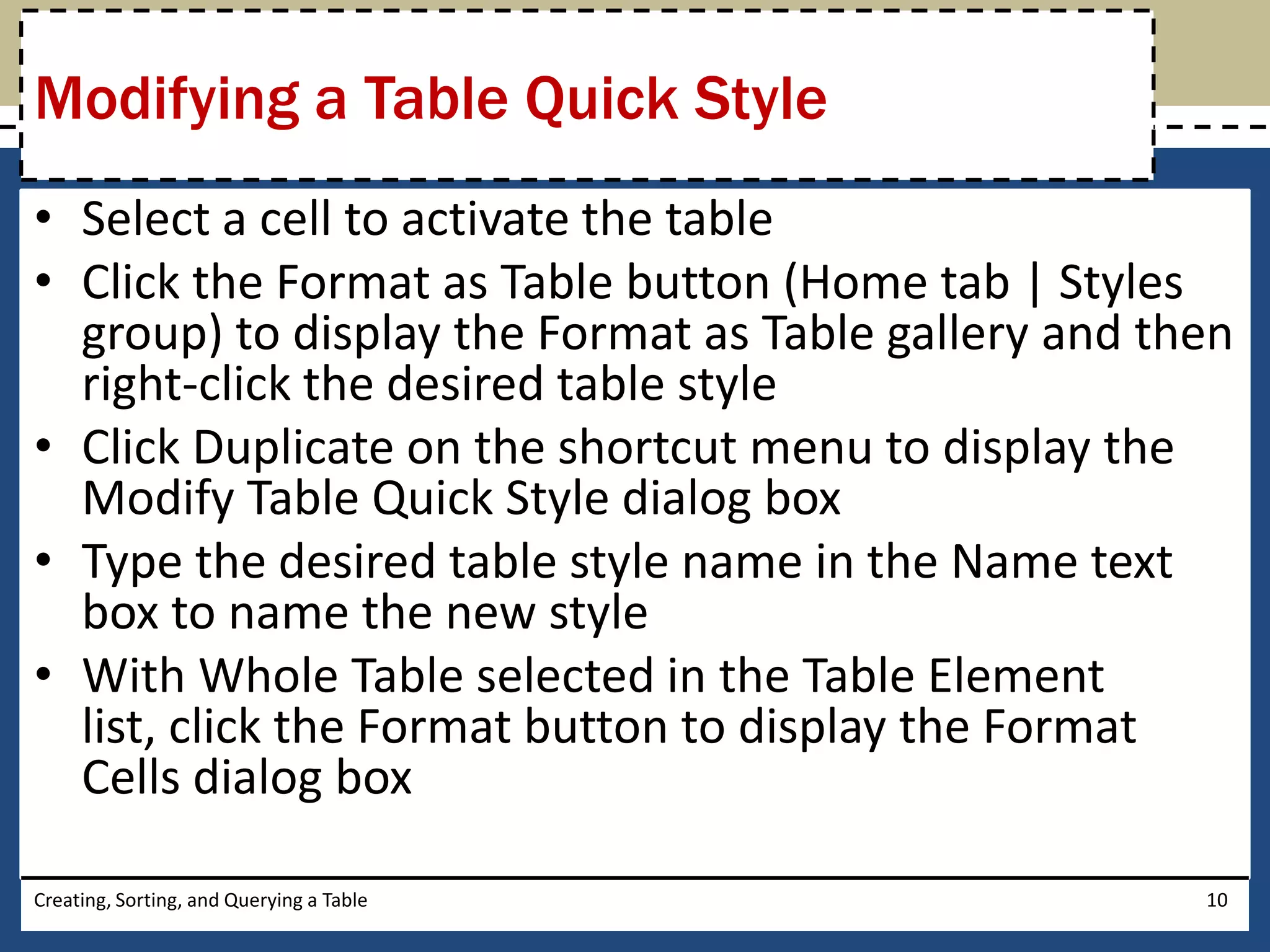

10. Modifying a Table Quick Style
• Select a cell to activate the table
• Click the Format as Table button (Home tab | Styles
group) to display the Format as Table gallery and then
right-click the desired table style
• Click Duplicate on the shortcut menu to display the
Modify Table Quick Style dialog box
• Type the desired table style name in the Name text
box to name the new style
• With Whole Table selected in the Table Element
list, click the Format button to display the Format
Cells dialog box
Creating, Sorting, and Querying a Table 10

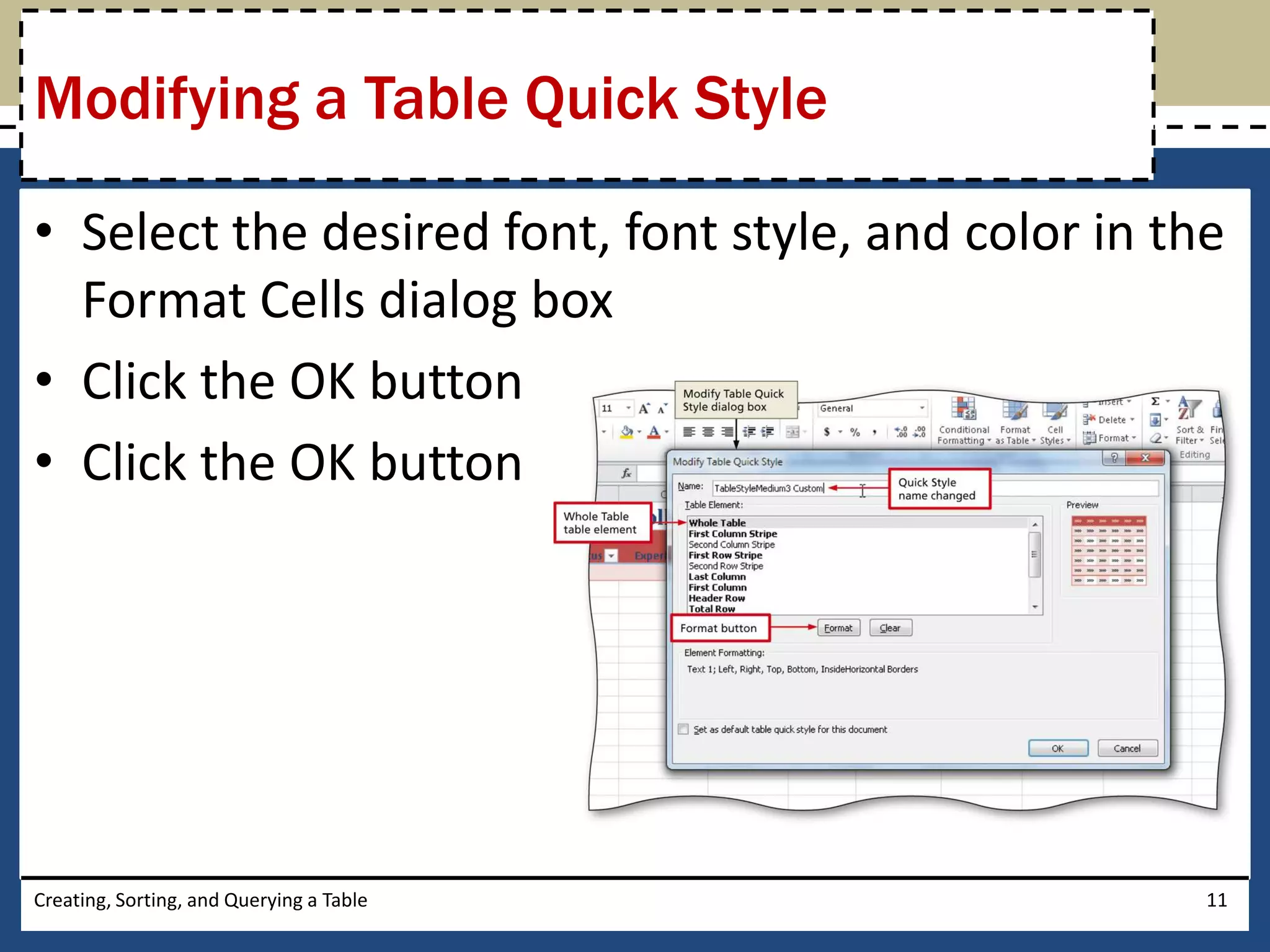

11. Modifying a Table Quick Style
• Select the desired font, font style, and color in the
Format Cells dialog box
• Click the OK button
• Click the OK button
Creating, Sorting, and Querying a Table 11

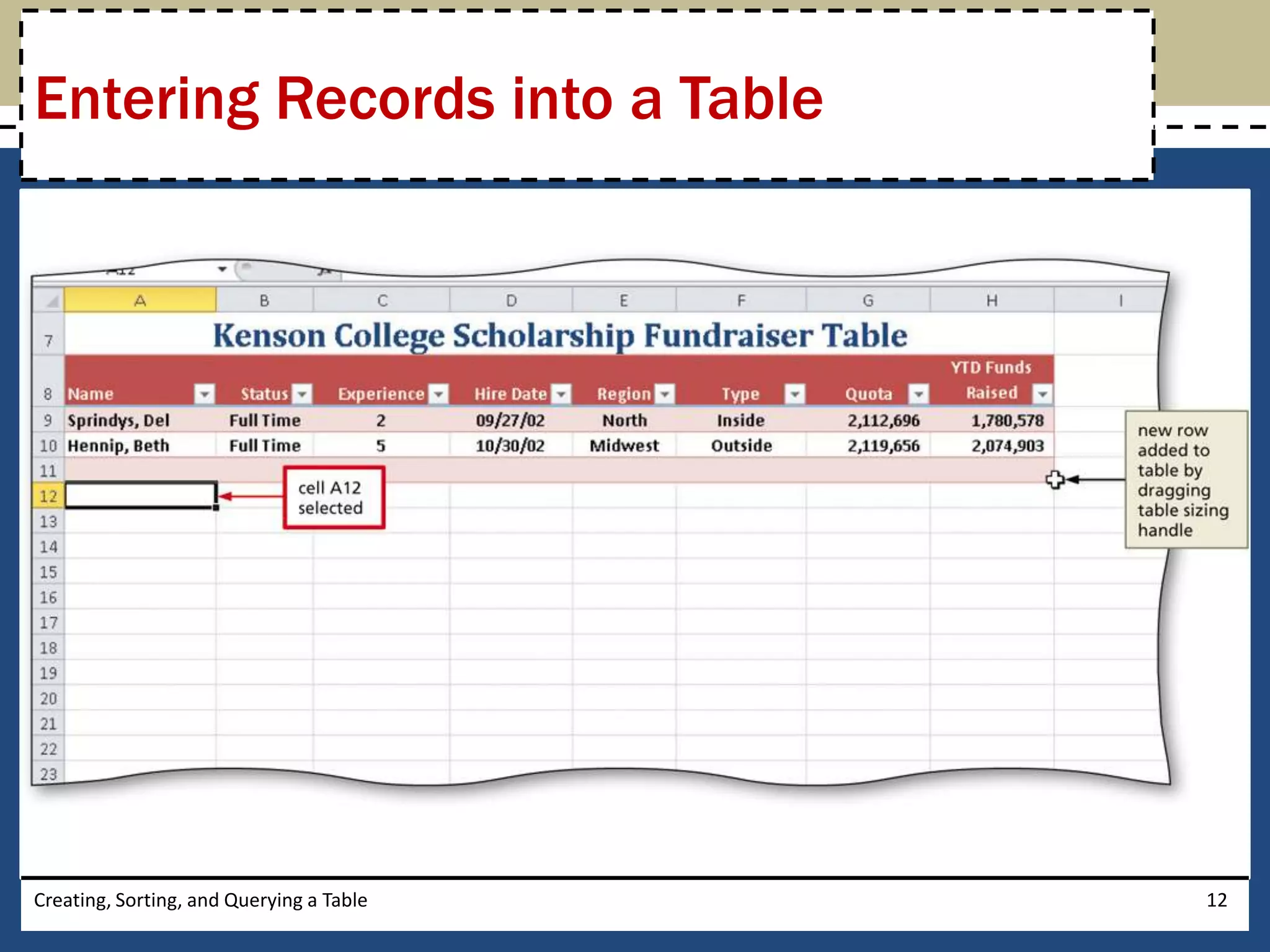

12. Entering Records into a Table
Creating, Sorting, and Querying a Table 12

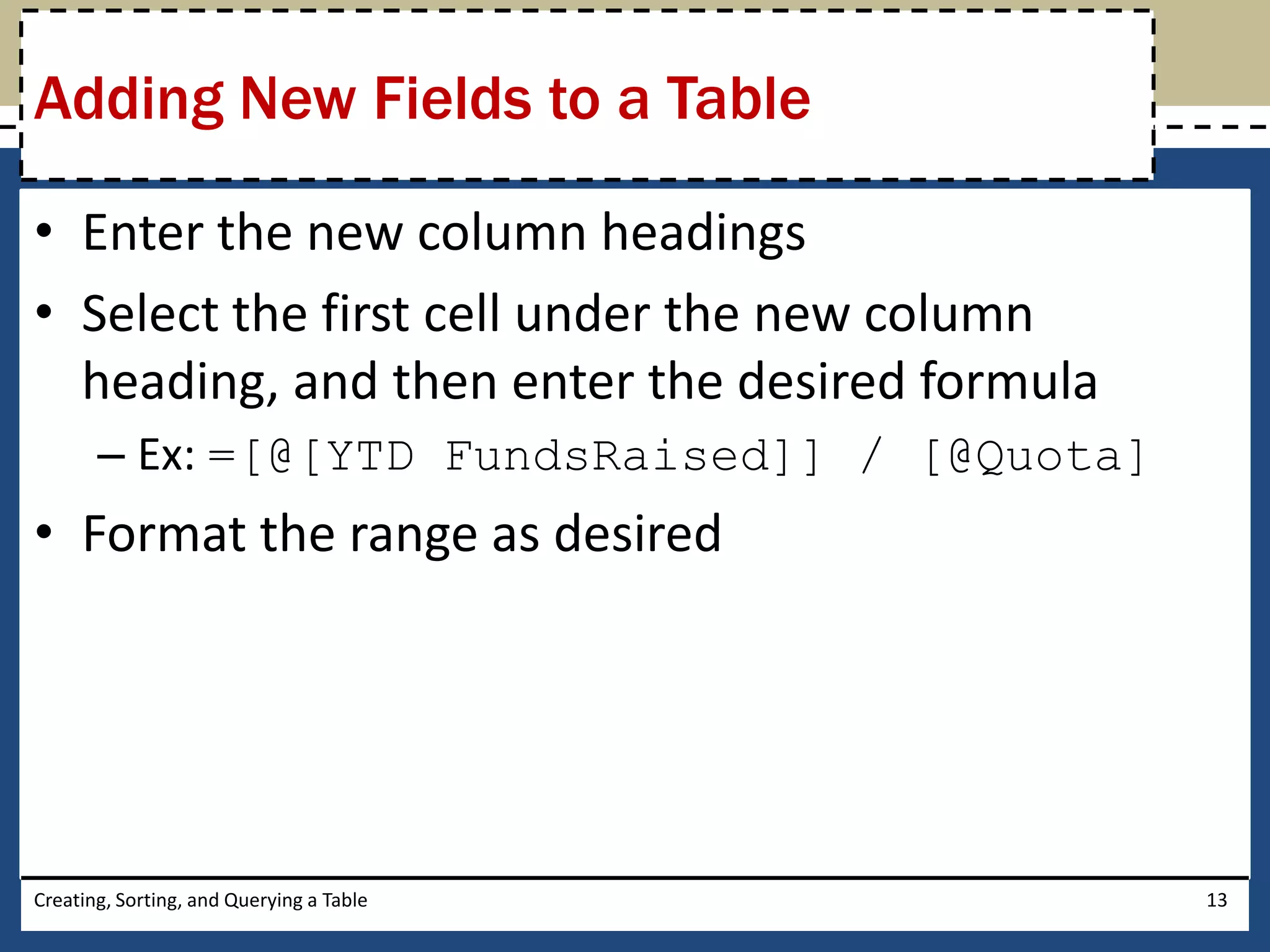

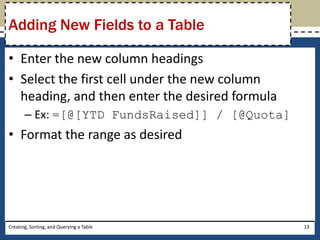

13. Adding New Fields to a Table
• Enter the new column headings
• Select the first cell under the new column
heading, and then enter the desired formula
– Ex: =[@[YTD FundsRaised]] / [@Quota]
• Format the range as desired
Creating, Sorting, and Querying a Table 13

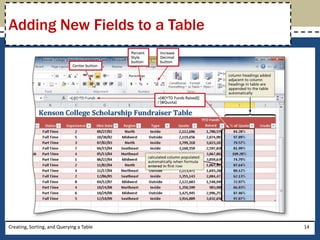

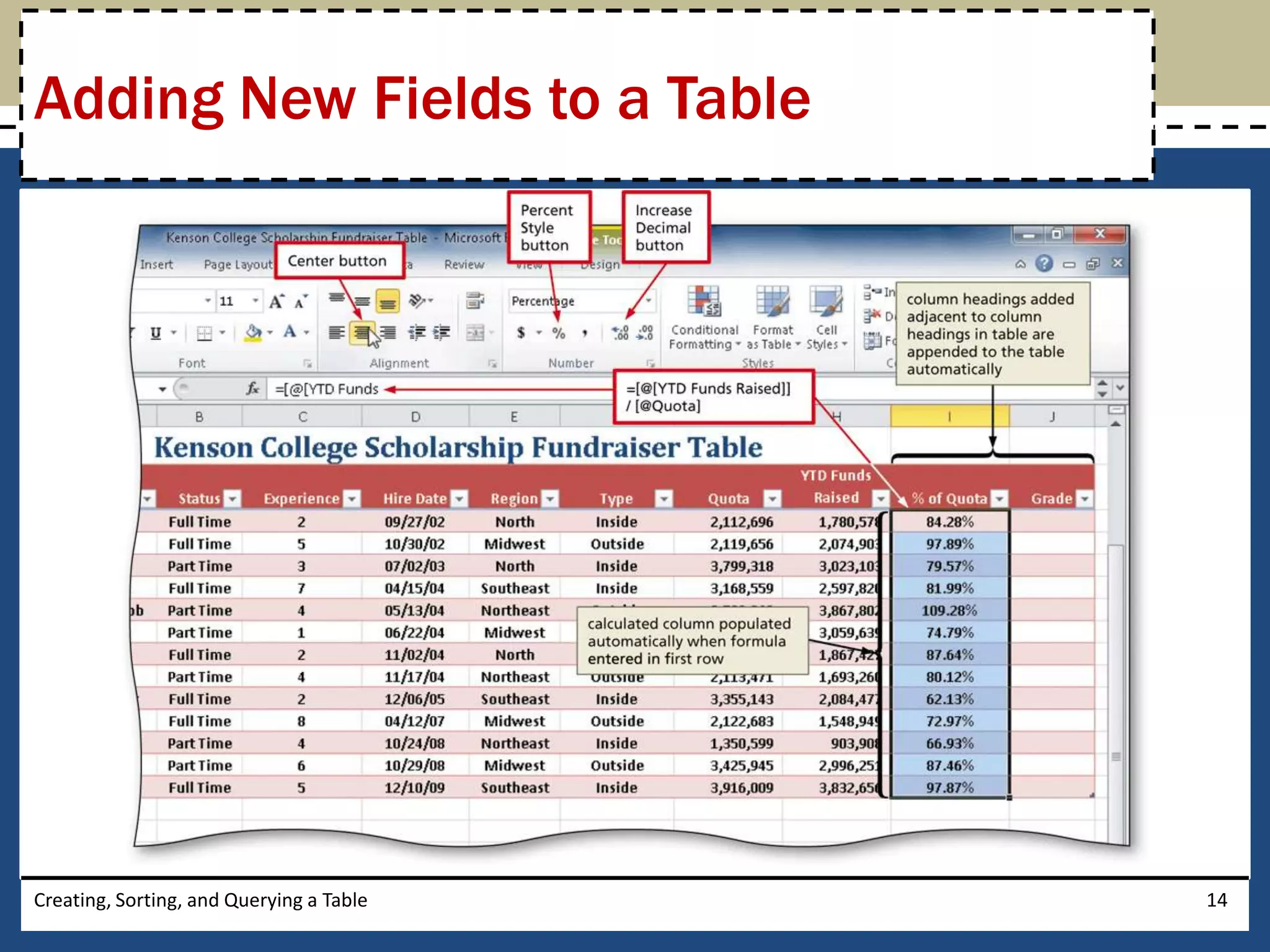

14. Adding New Fields to a Table
Creating, Sorting, and Querying a Table 14

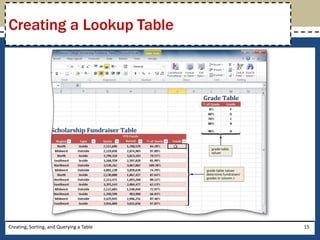

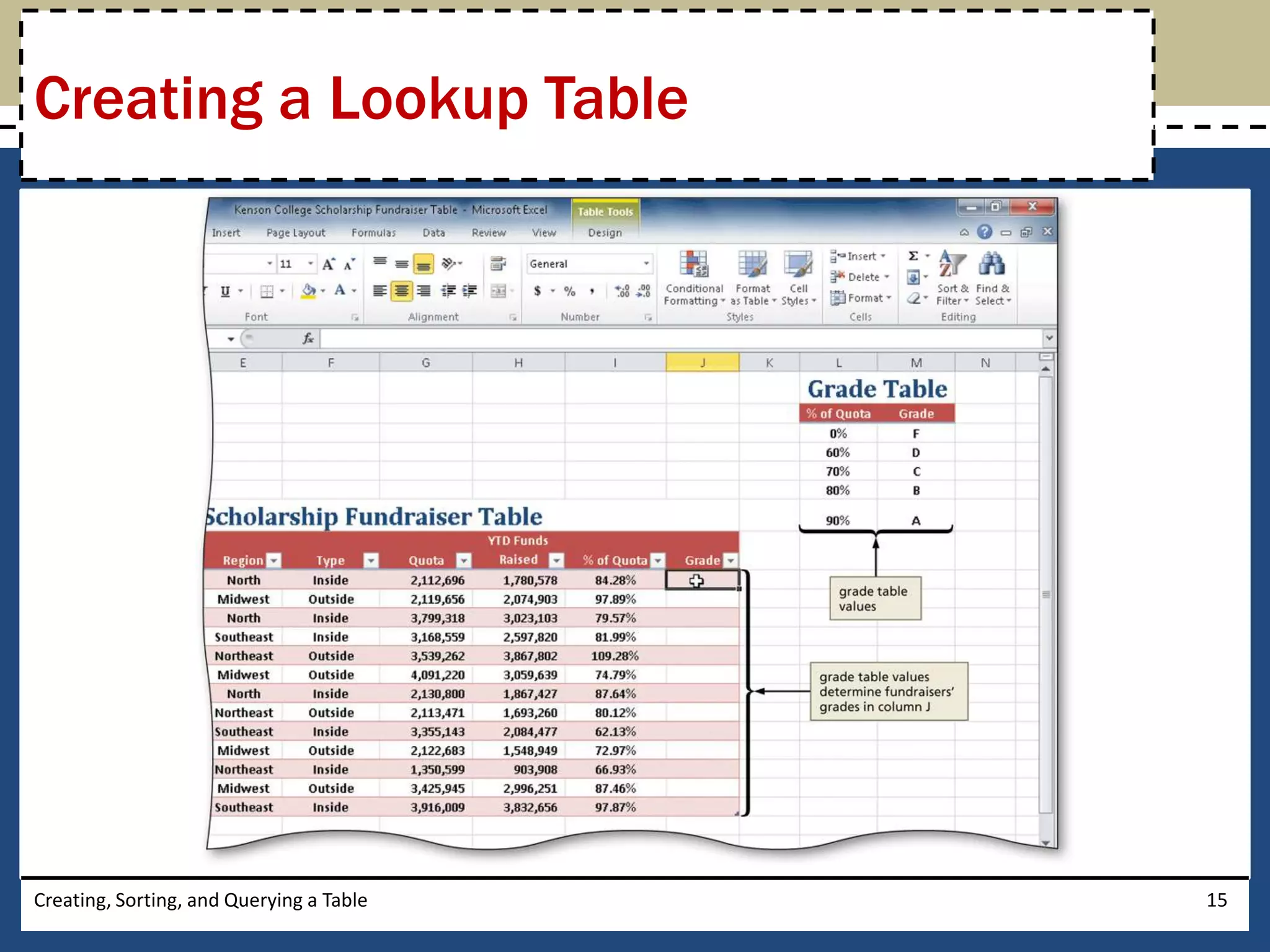

15. Creating a Lookup Table
Creating, Sorting, and Querying a Table 15

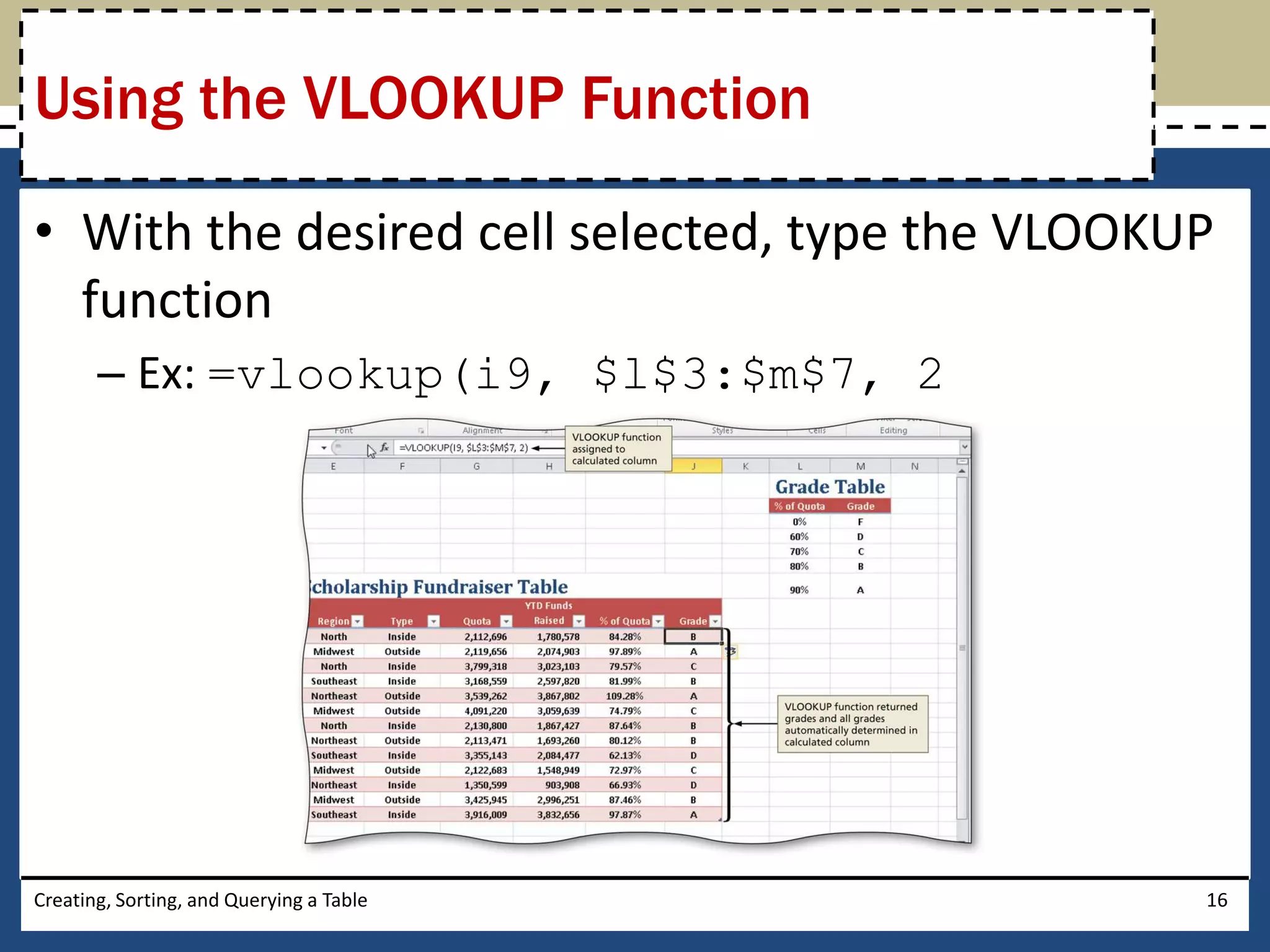

16. Using the VLOOKUP Function
• With the desired cell selected, type the VLOOKUP
function
– Ex: =vlookup(i9, $l$3:$m$7, 2
Creating, Sorting, and Querying a Table 16

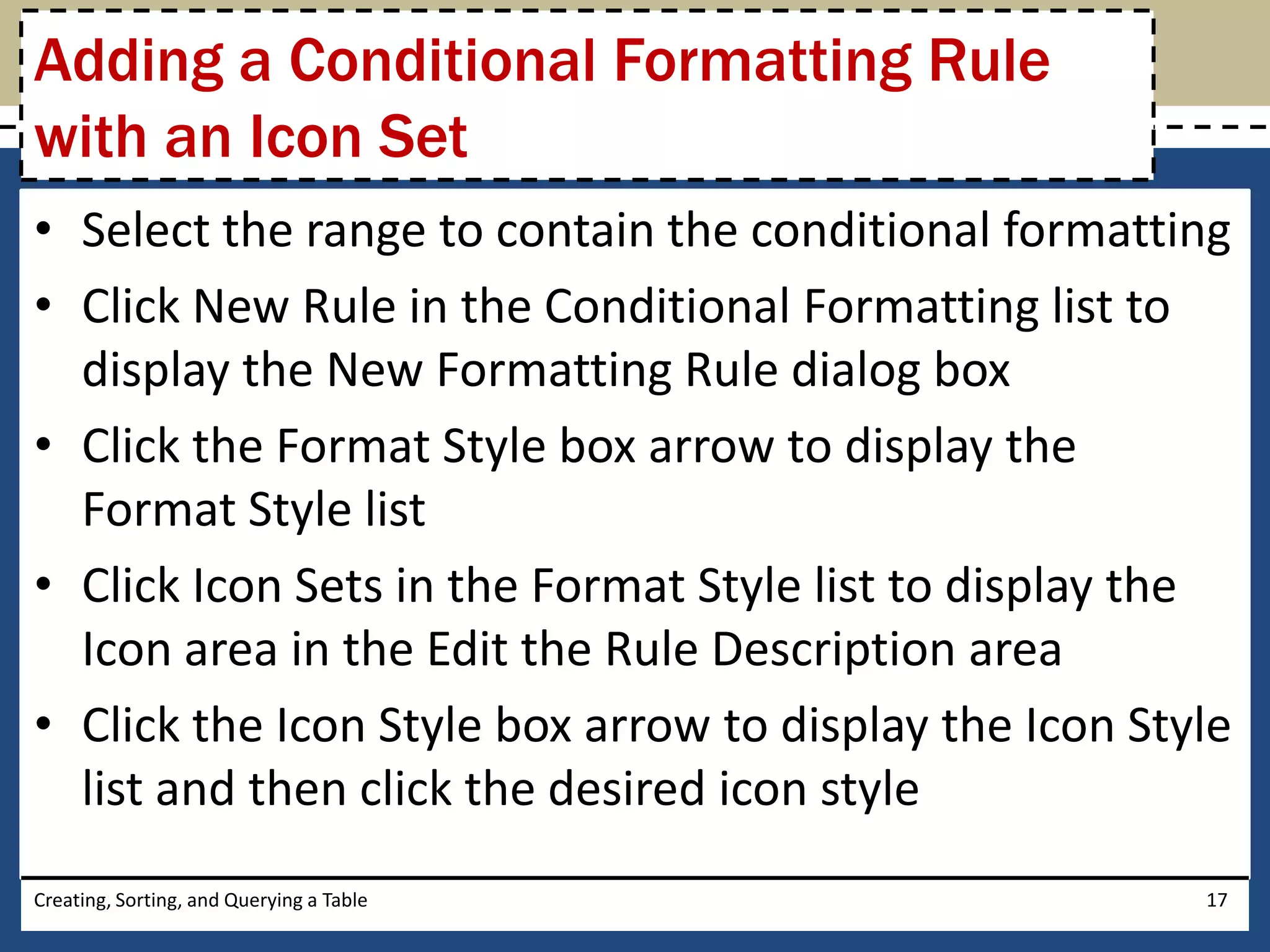

17. Adding a Conditional Formatting Rule
with an Icon Set
• Select the range to contain the conditional formatting
• Click New Rule in the Conditional Formatting list to
display the New Formatting Rule dialog box
• Click the Format Style box arrow to display the
Format Style list
• Click Icon Sets in the Format Style list to display the
Icon area in the Edit the Rule Description area
• Click the Icon Style box arrow to display the Icon Style
list and then click the desired icon style
Creating, Sorting, and Querying a Table 17

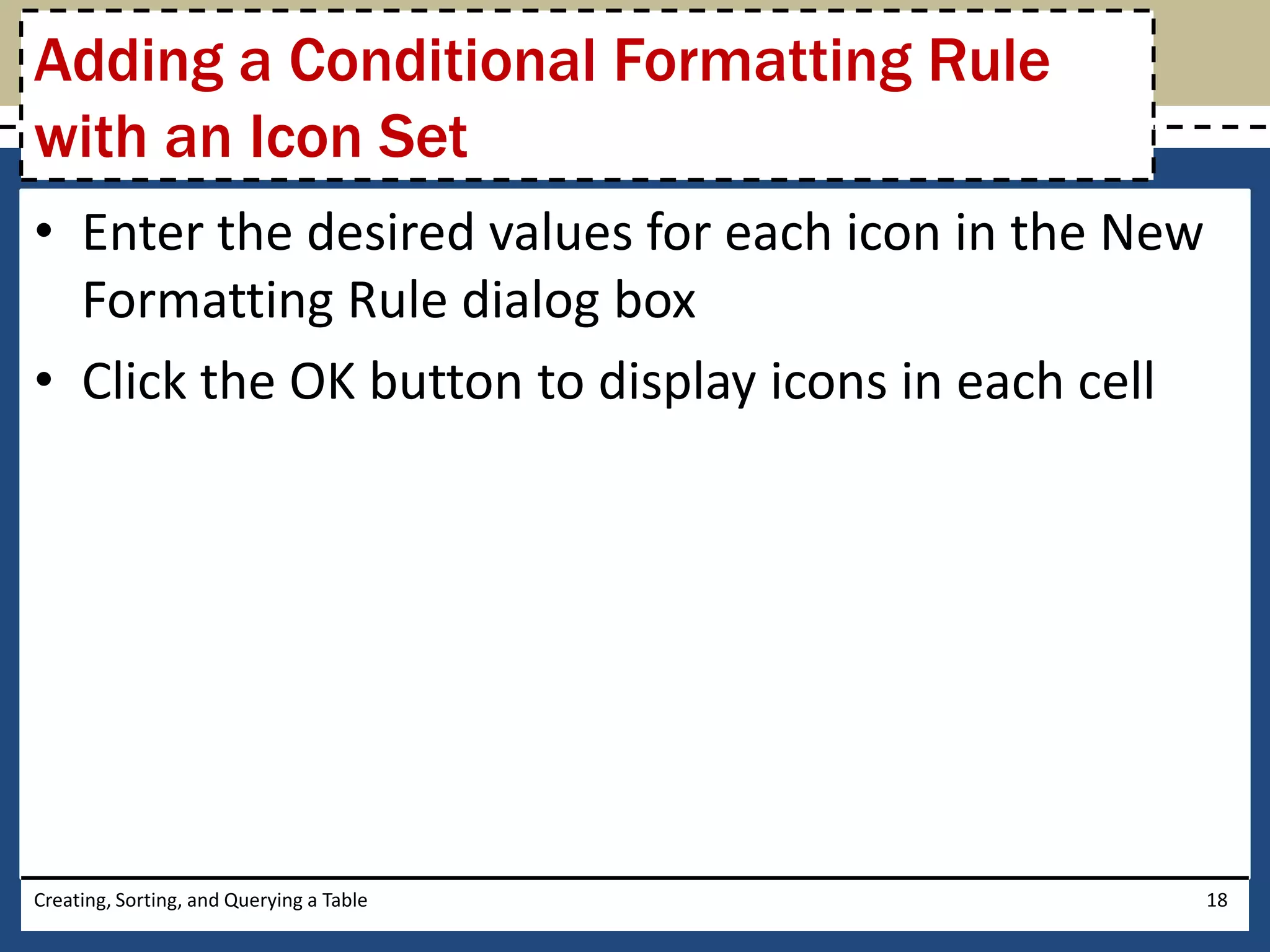

18. Adding a Conditional Formatting Rule
with an Icon Set
• Enter the desired values for each icon in the New
Formatting Rule dialog box
• Click the OK button to display icons in each cell
Creating, Sorting, and Querying a Table 18

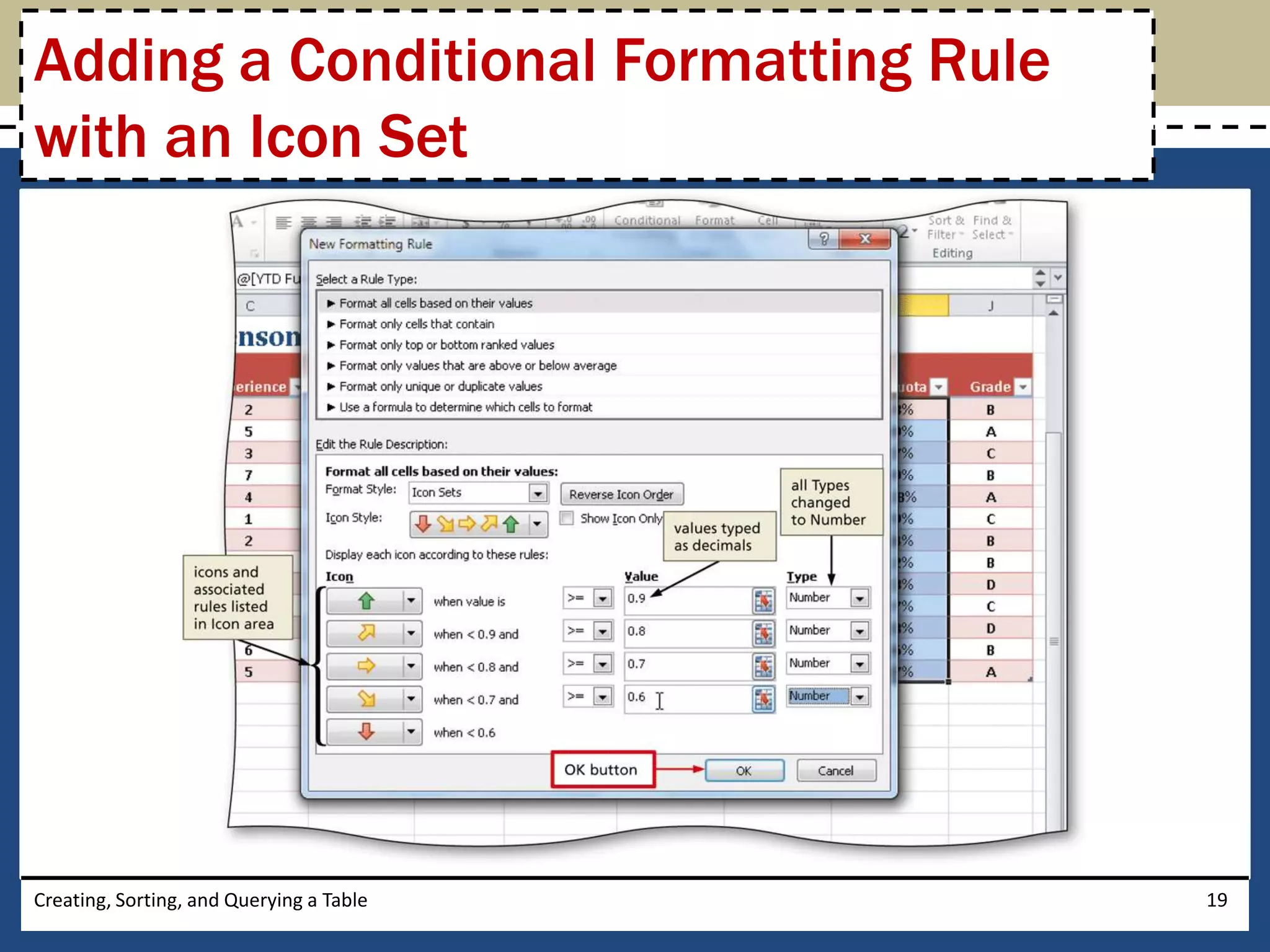

19. Adding a Conditional Formatting Rule
with an Icon Set
Creating, Sorting, and Querying a Table 19

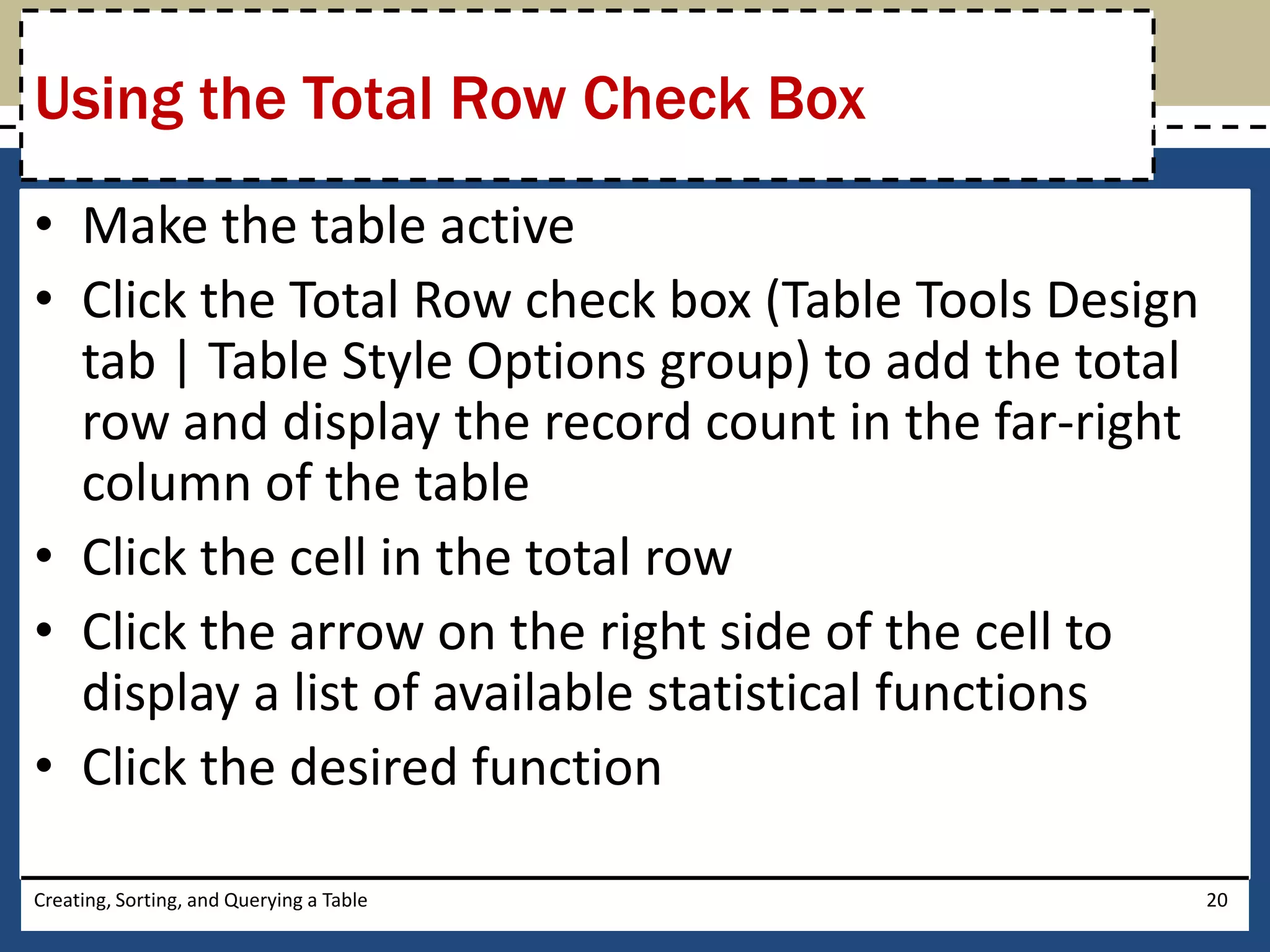

20. Using the Total Row Check Box
• Make the table active
• Click the Total Row check box (Table Tools Design
tab | Table Style Options group) to add the total
row and display the record count in the far-right
column of the table
• Click the cell in the total row
• Click the arrow on the right side of the cell to
display a list of available statistical functions
• Click the desired function
Creating, Sorting, and Querying a Table 20

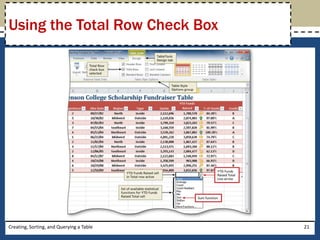

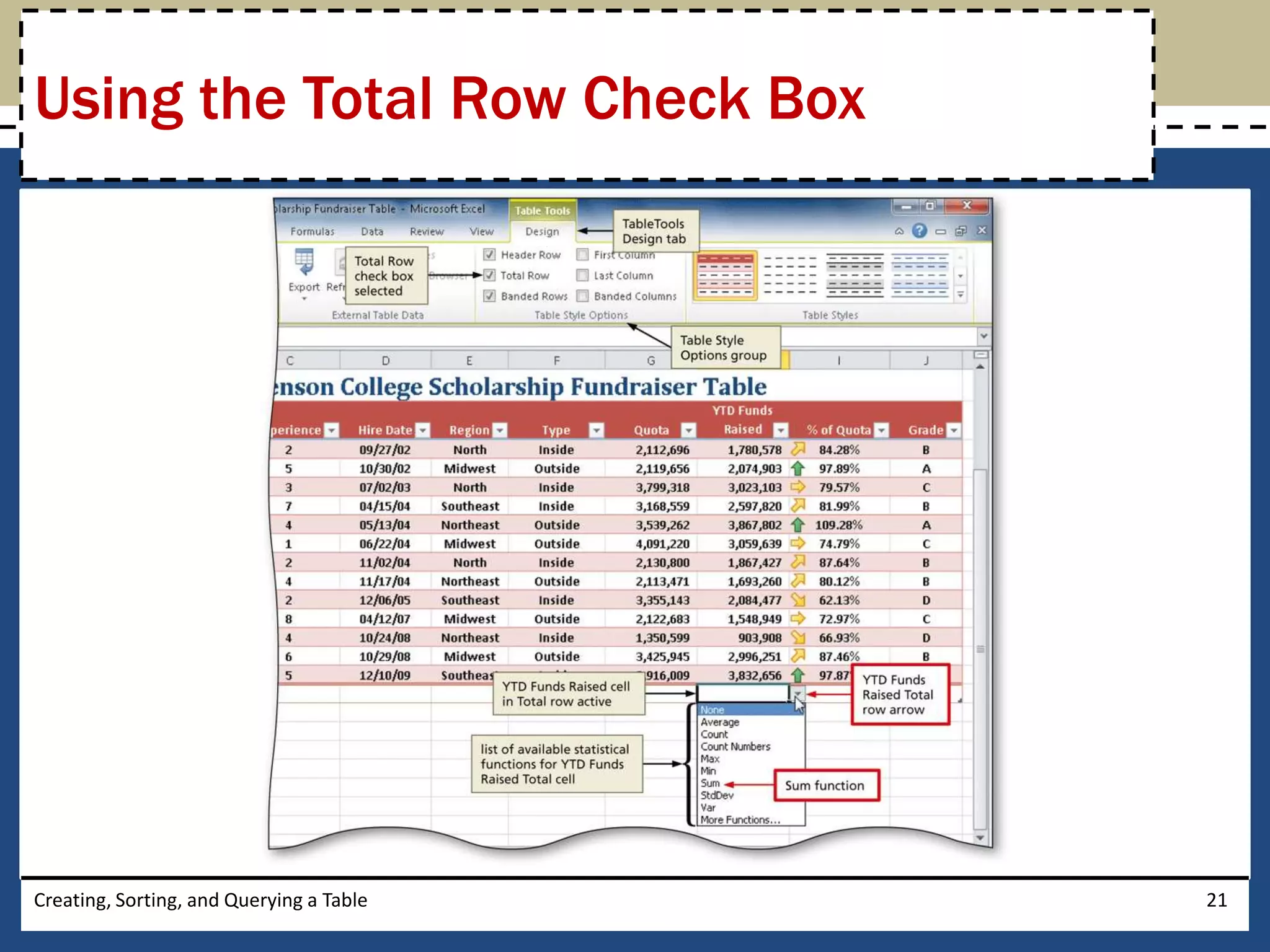

21. Using the Total Row Check Box
Creating, Sorting, and Querying a Table 21

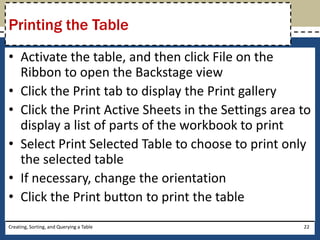

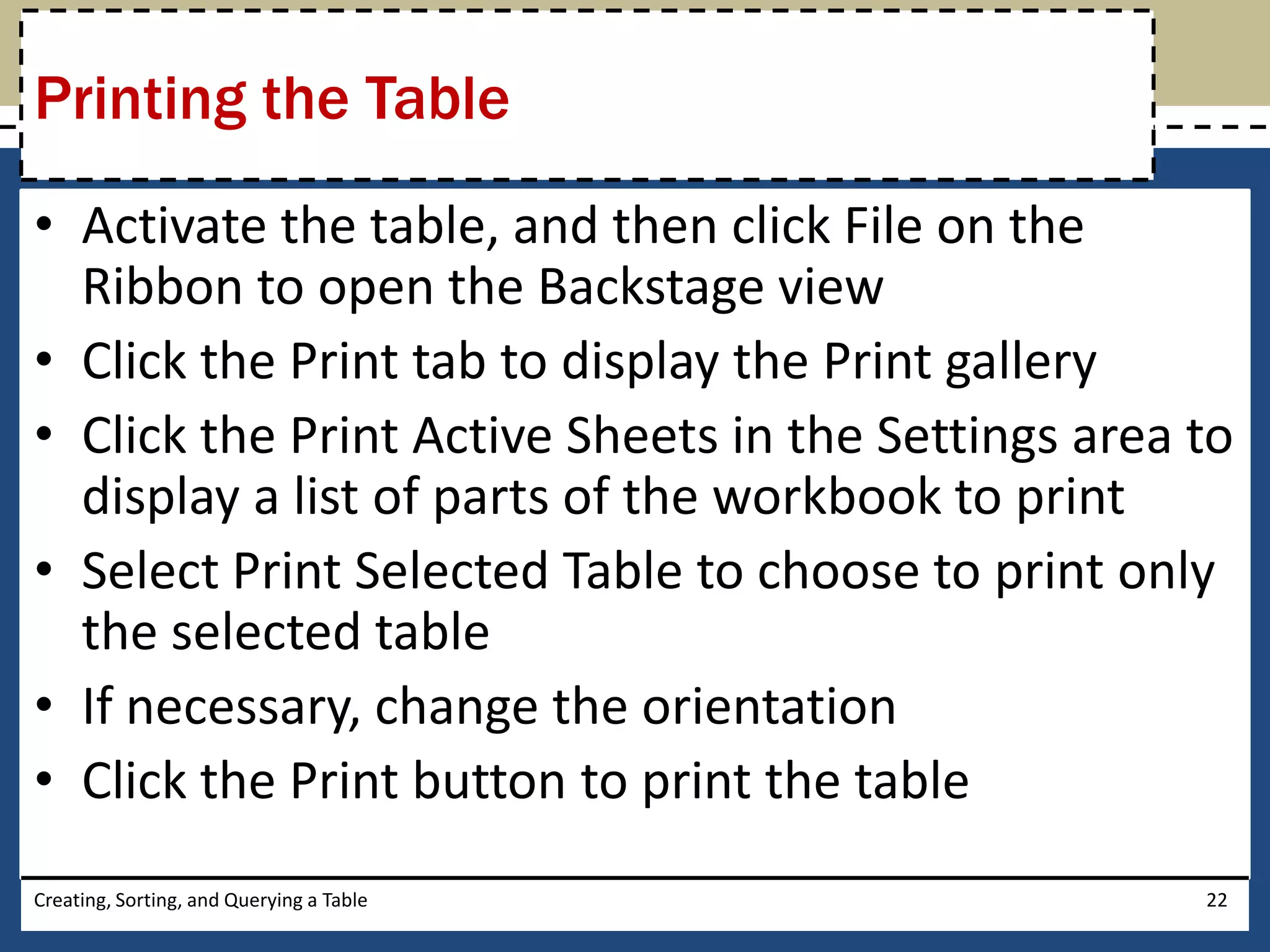

22. Printing the Table
• Activate the table, and then click File on the
Ribbon to open the Backstage view
• Click the Print tab to display the Print gallery
• Click the Print Active Sheets in the Settings area to
display a list of parts of the workbook to print
• Select Print Selected Table to choose to print only
the selected table
• If necessary, change the orientation
• Click the Print button to print the table
Creating, Sorting, and Querying a Table 22

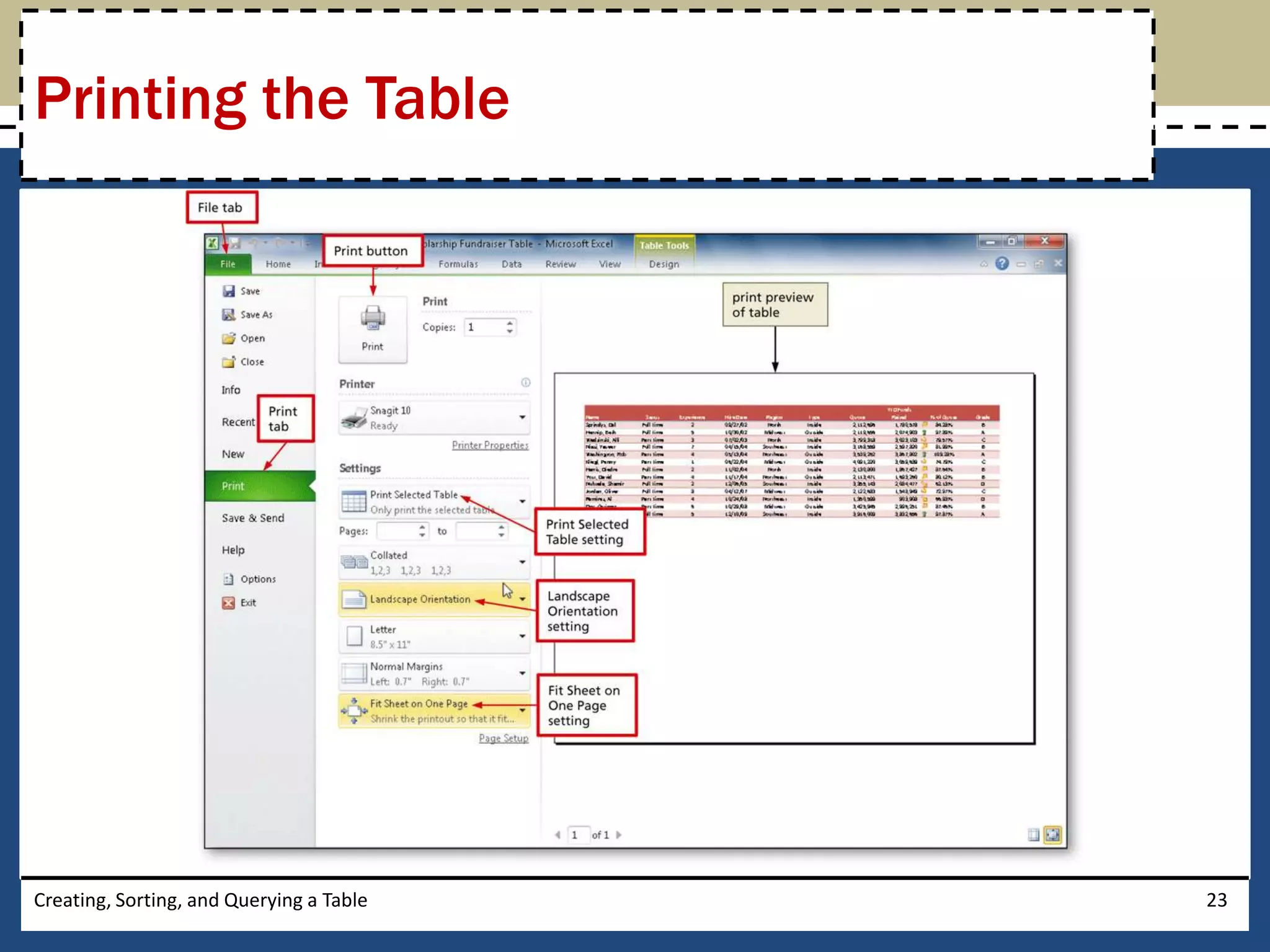

23. Printing the Table
Creating, Sorting, and Querying a Table 23

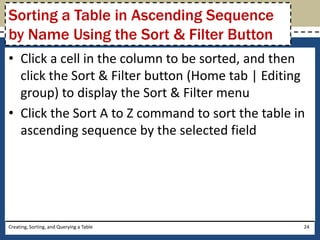

24. Sorting a Table in Ascending Sequence
by Name Using the Sort & Filter Button
• Click a cell in the column to be sorted, and then
click the Sort & Filter button (Home tab | Editing
group) to display the Sort & Filter menu
• Click the Sort A to Z command to sort the table in
ascending sequence by the selected field
Creating, Sorting, and Querying a Table 24

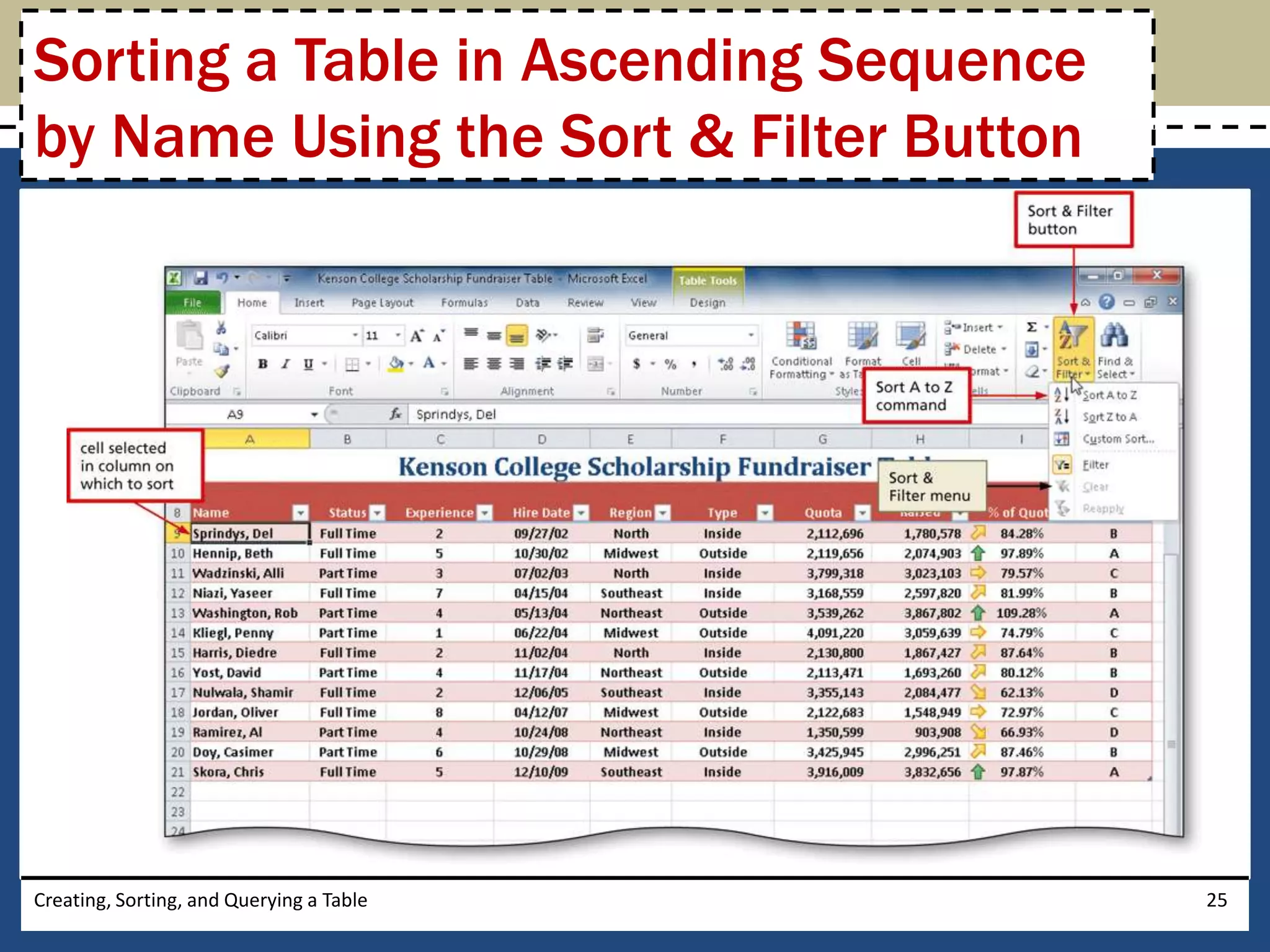

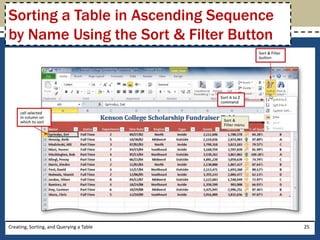

25. Sorting a Table in Ascending Sequence
by Name Using the Sort & Filter Button
Creating, Sorting, and Querying a Table 25

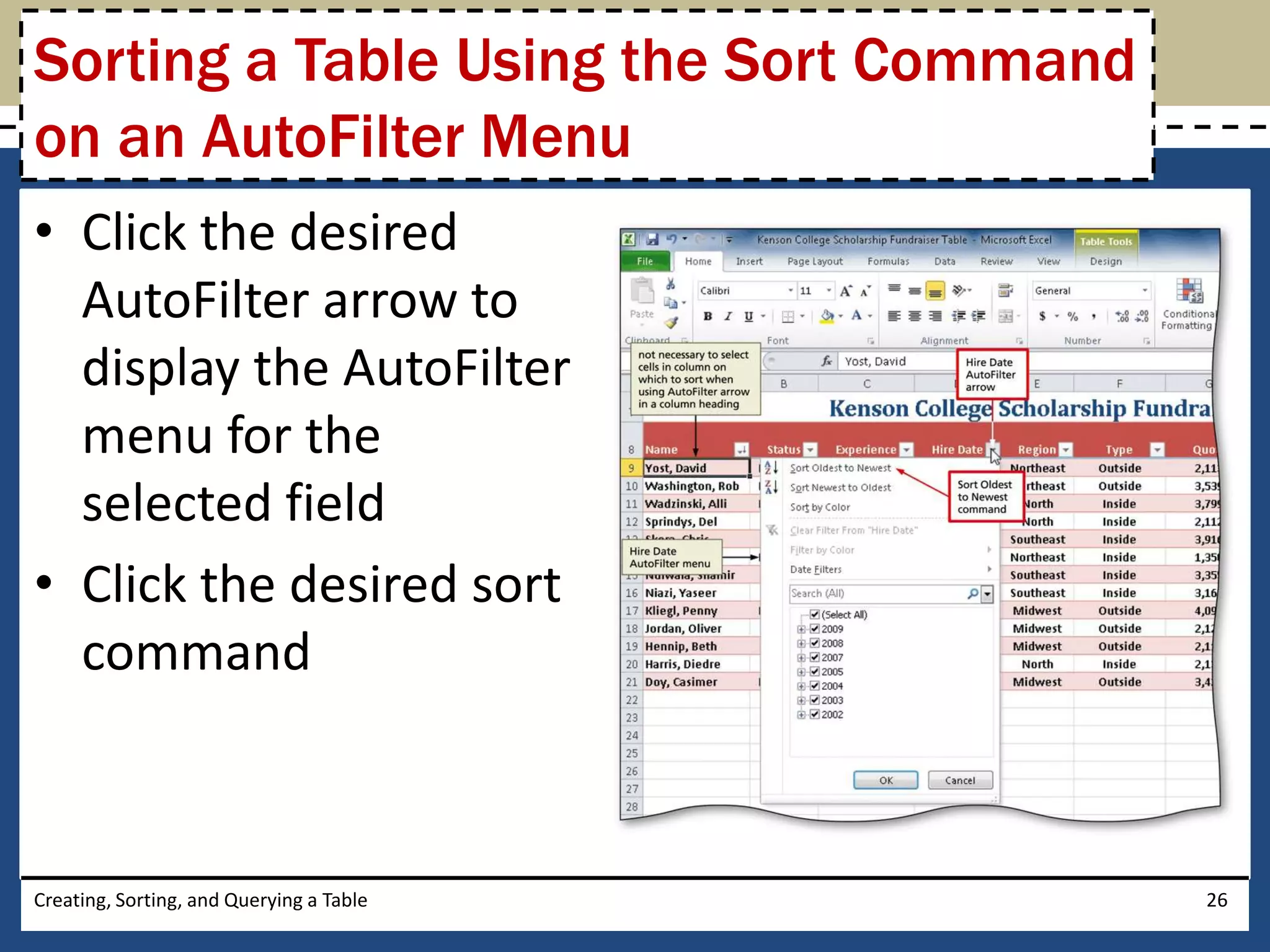

26. Sorting a Table Using the Sort Command
on an AutoFilter Menu
• Click the desired
AutoFilter arrow to
display the AutoFilter
menu for the
selected field
• Click the desired sort
command
Creating, Sorting, and Querying a Table 26

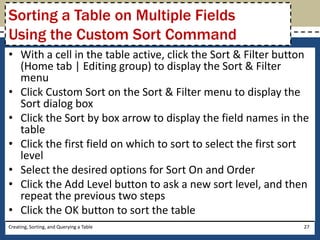

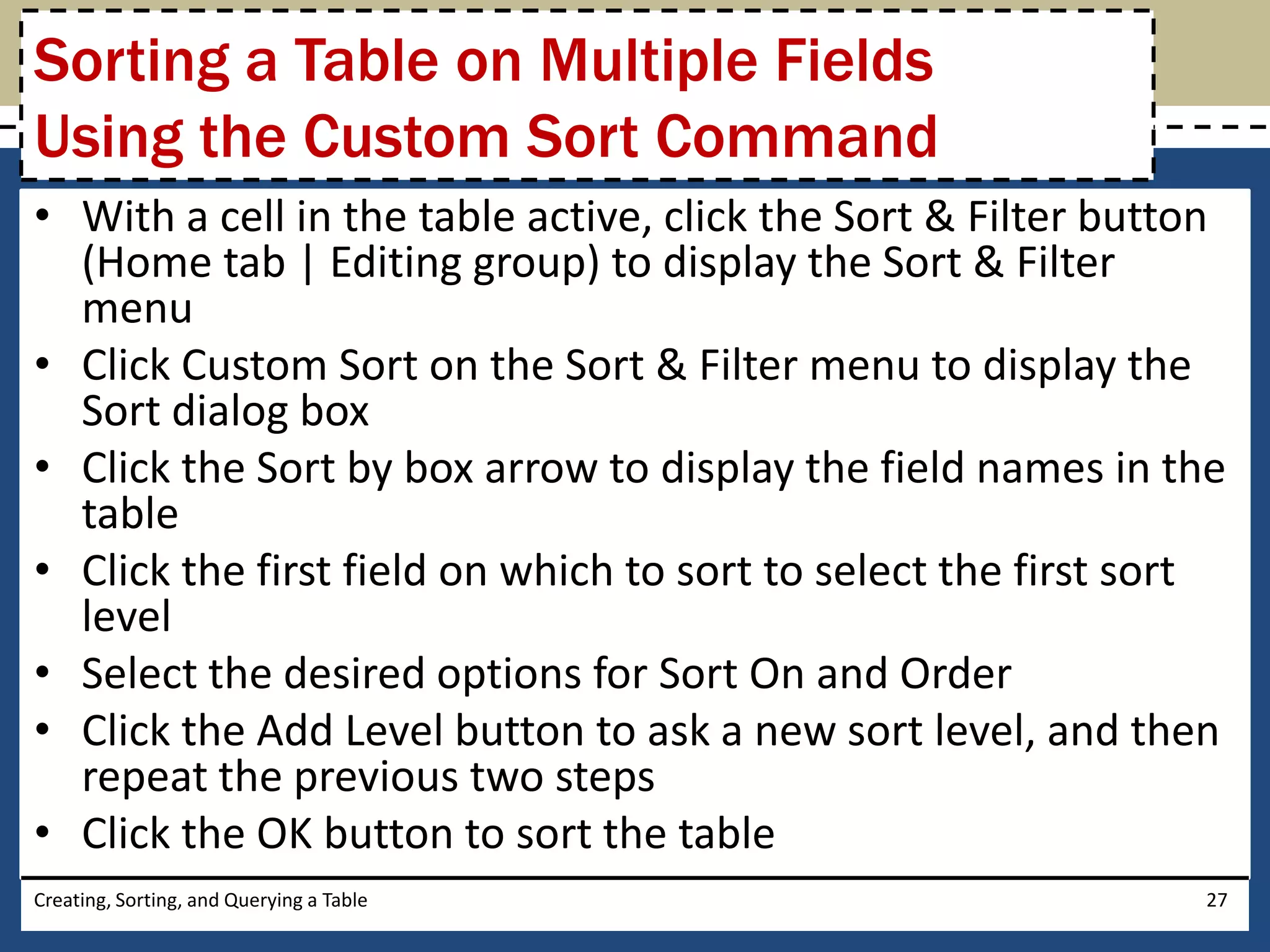

27. Sorting a Table on Multiple Fields
Using the Custom Sort Command
• With a cell in the table active, click the Sort & Filter button
(Home tab | Editing group) to display the Sort & Filter
menu
• Click Custom Sort on the Sort & Filter menu to display the
Sort dialog box
• Click the Sort by box arrow to display the field names in the
table
• Click the first field on which to sort to select the first sort
level
• Select the desired options for Sort On and Order
• Click the Add Level button to ask a new sort level, and then
repeat the previous two steps
• Click the OK button to sort the table
Creating, Sorting, and Querying a Table 27

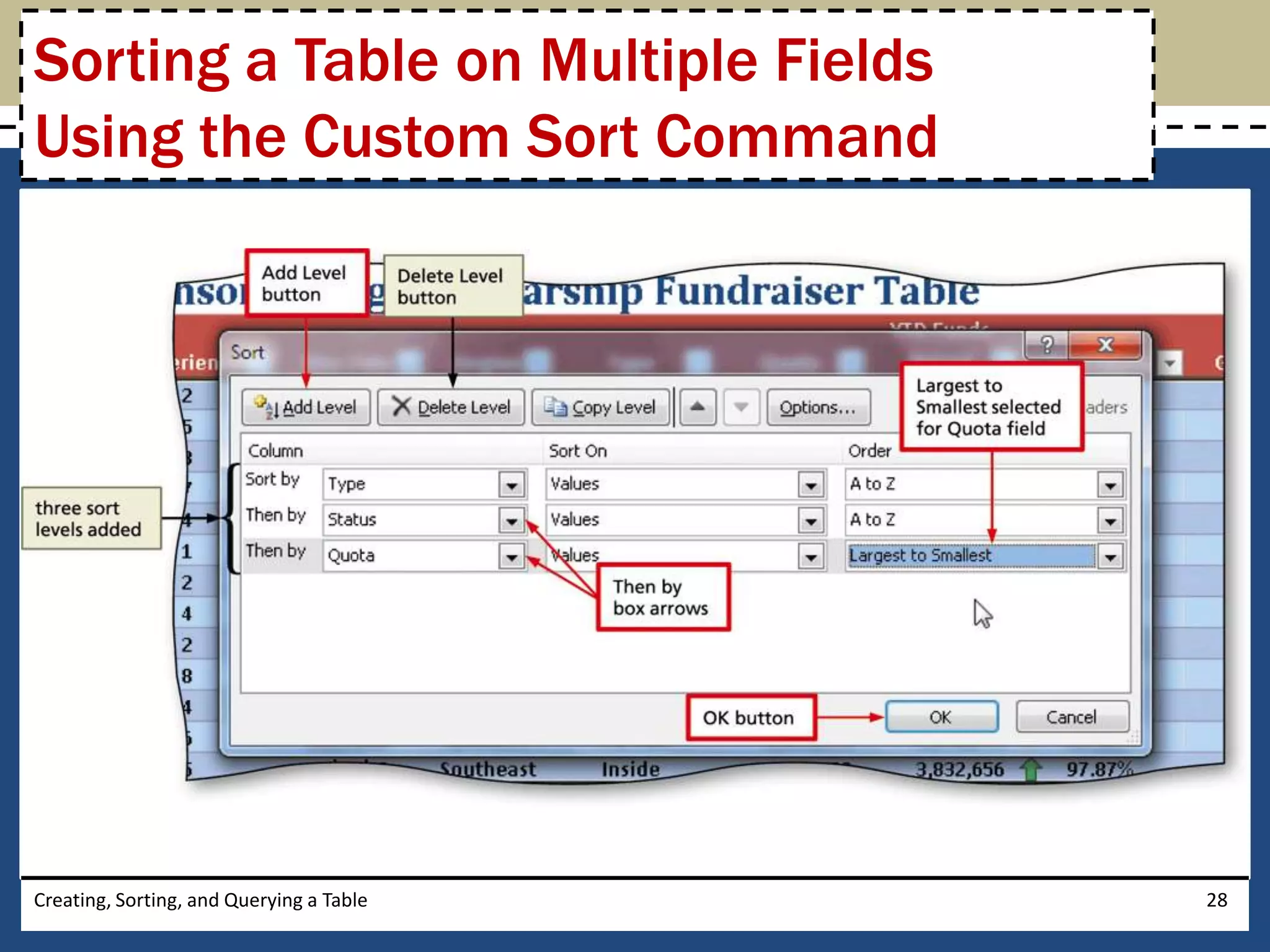

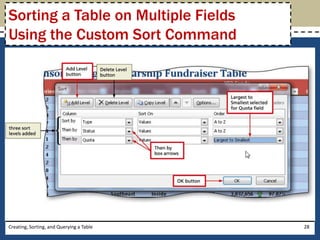

28. Sorting a Table on Multiple Fields
Using the Custom Sort Command
Creating, Sorting, and Querying a Table 28

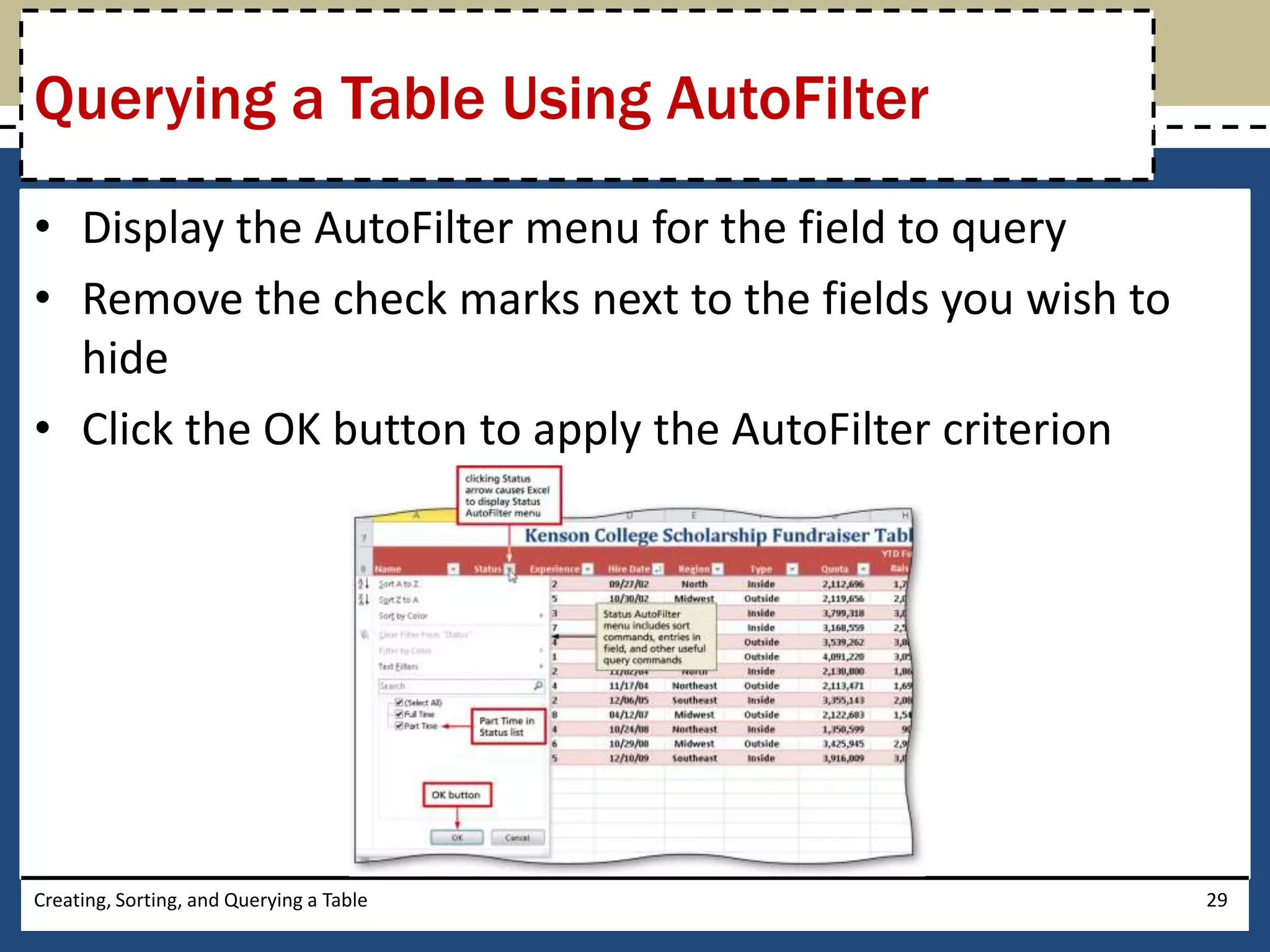

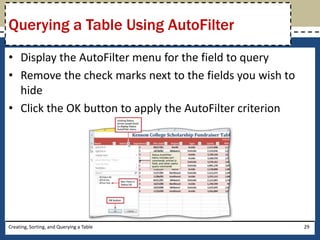

29. Querying a Table Using AutoFilter
• Display the AutoFilter menu for the field to query
• Remove the check marks next to the fields you wish to
hide
• Click the OK button to apply the AutoFilter criterion
Creating, Sorting, and Querying a Table 29

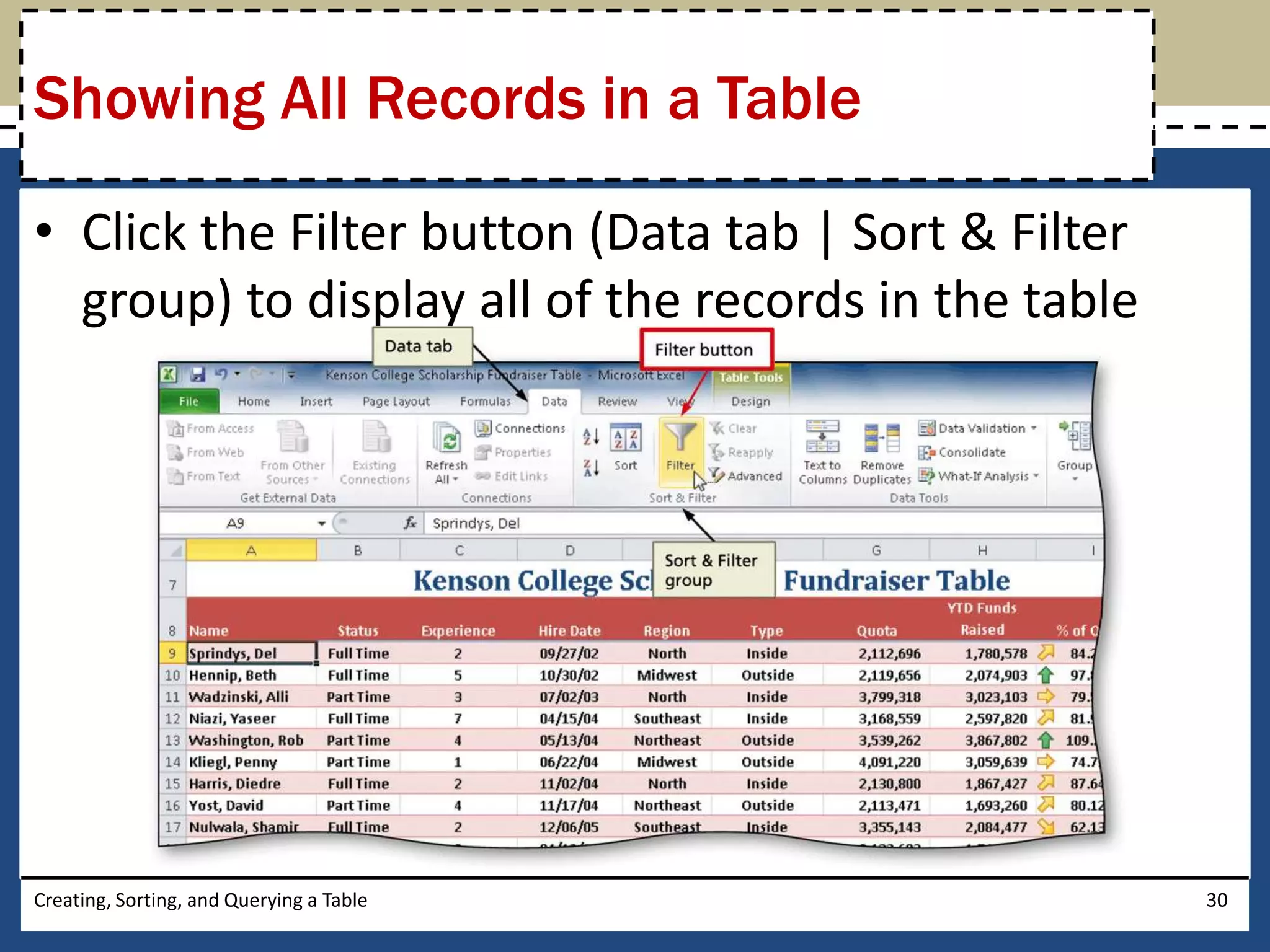

30. Showing All Records in a Table
• Click the Filter button (Data tab | Sort & Filter
group) to display all of the records in the table
Creating, Sorting, and Querying a Table 30

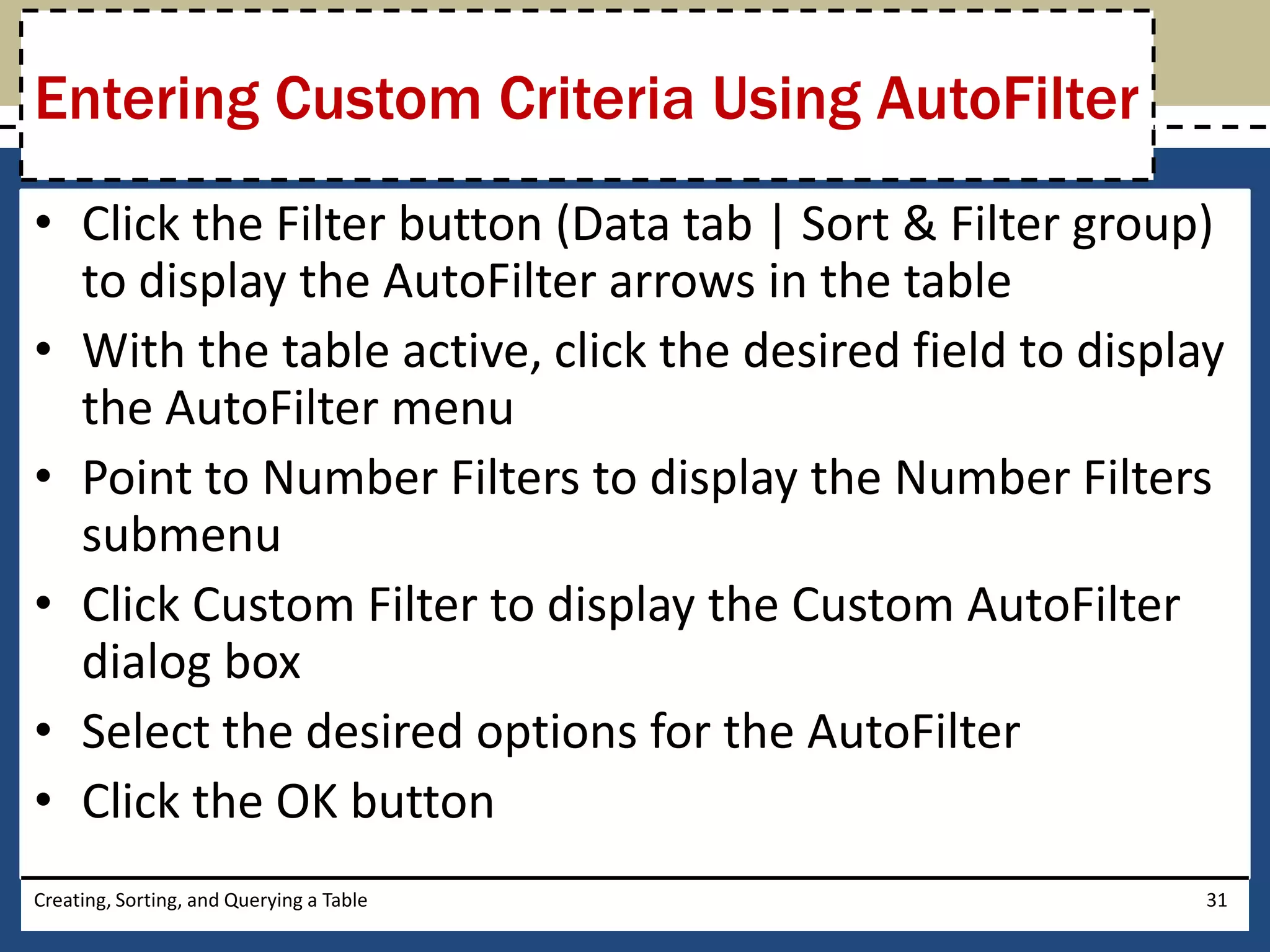

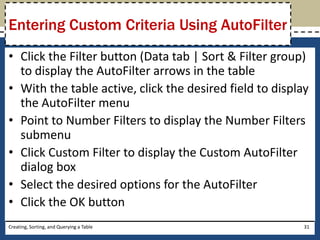

31. Entering Custom Criteria Using AutoFilter
• Click the Filter button (Data tab | Sort & Filter group)
to display the AutoFilter arrows in the table
• With the table active, click the desired field to display
the AutoFilter menu
• Point to Number Filters to display the Number Filters
submenu
• Click Custom Filter to display the Custom AutoFilter
dialog box
• Select the desired options for the AutoFilter
• Click the OK button
Creating, Sorting, and Querying a Table 31

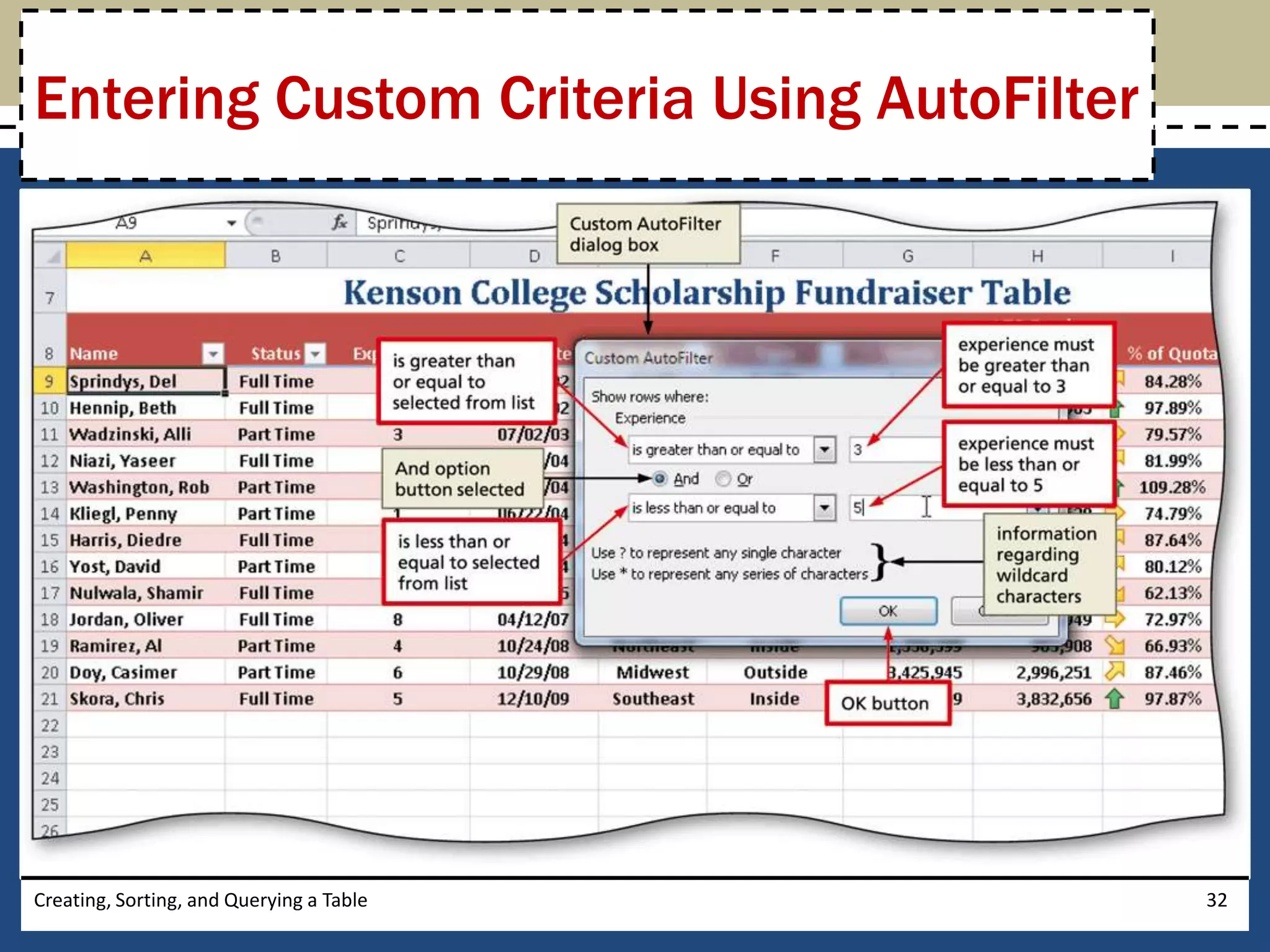

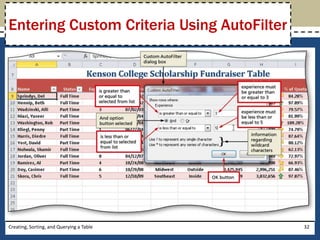

32. Entering Custom Criteria Using AutoFilter
Creating, Sorting, and Querying a Table 32

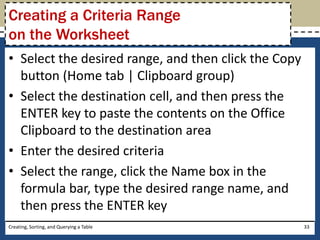

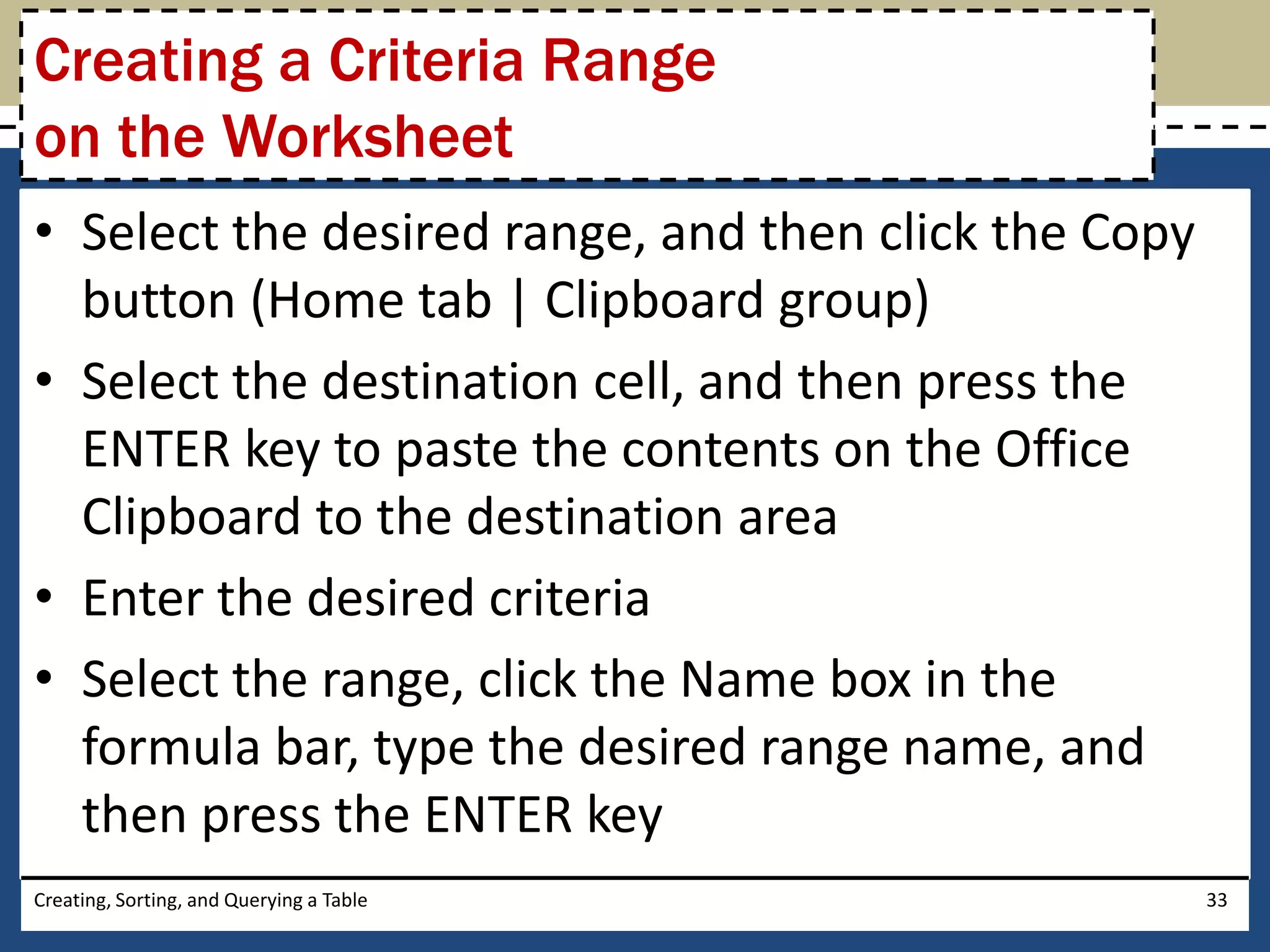

33. Creating a Criteria Range
on the Worksheet
• Select the desired range, and then click the Copy
button (Home tab | Clipboard group)
• Select the destination cell, and then press the
ENTER key to paste the contents on the Office
Clipboard to the destination area
• Enter the desired criteria
• Select the range, click the Name box in the
formula bar, type the desired range name, and
then press the ENTER key
Creating, Sorting, and Querying a Table 33

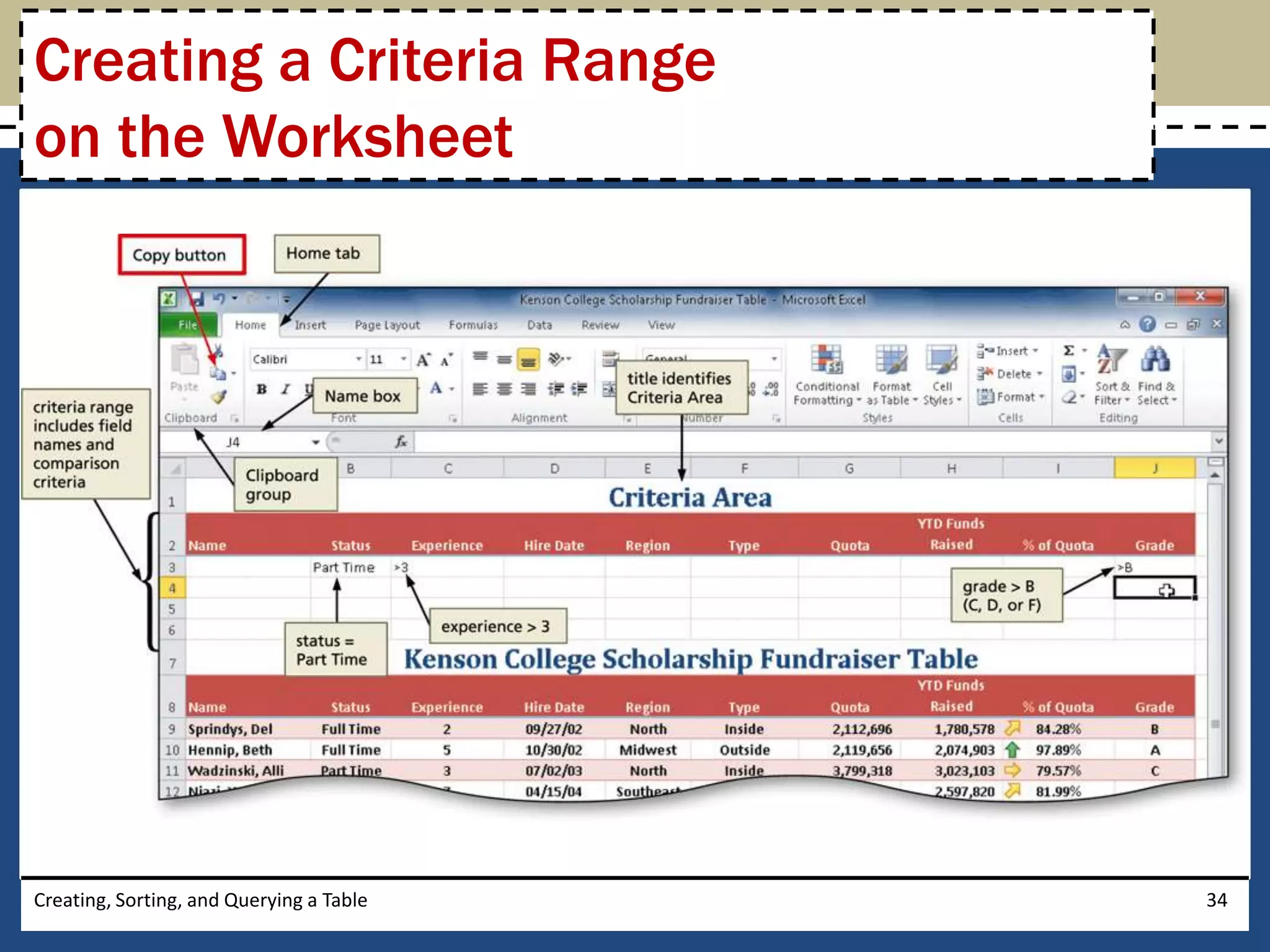

34. Creating a Criteria Range
on the Worksheet
Creating, Sorting, and Querying a Table 34

35. Querying a Table Using the Advanced
Filter Dialog Box
• Activate the table
• Click the Advanced button (Data tab | Sort &
Filter group) to display the Advanced Filter dialog
box
• Click the OK button to hide all records that do not
meet the comparison criteria
Creating, Sorting, and Querying a Table 35

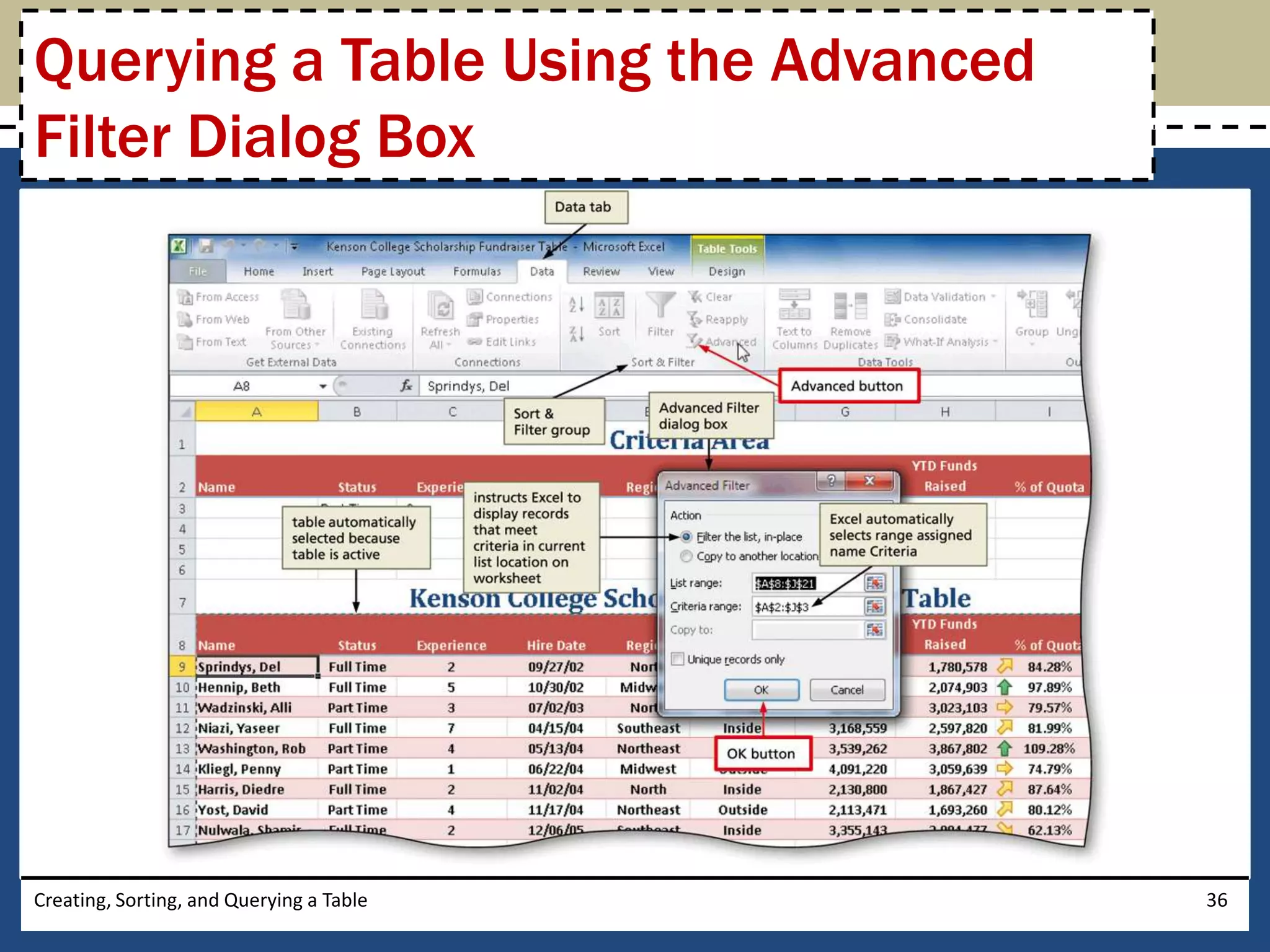

36. Querying a Table Using the Advanced
Filter Dialog Box
Creating, Sorting, and Querying a Table 36

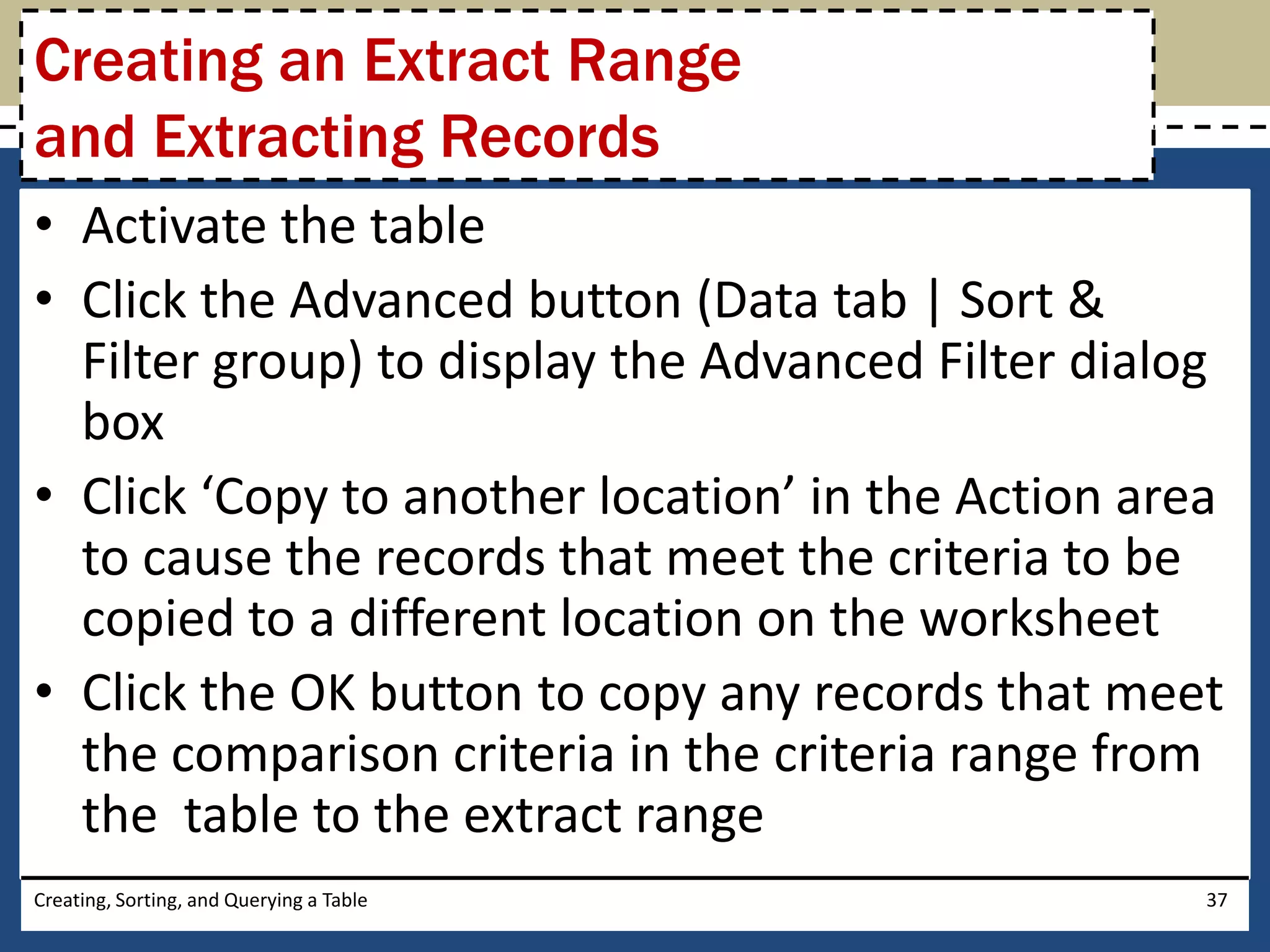

37. Creating an Extract Range
and Extracting Records
• Activate the table
• Click the Advanced button (Data tab | Sort &
Filter group) to display the Advanced Filter dialog
box
• Click ‘Copy to another location’ in the Action area
to cause the records that meet the criteria to be
copied to a different location on the worksheet
• Click the OK button to copy any records that meet
the comparison criteria in the criteria range from
the table to the extract range
Creating, Sorting, and Querying a Table 37

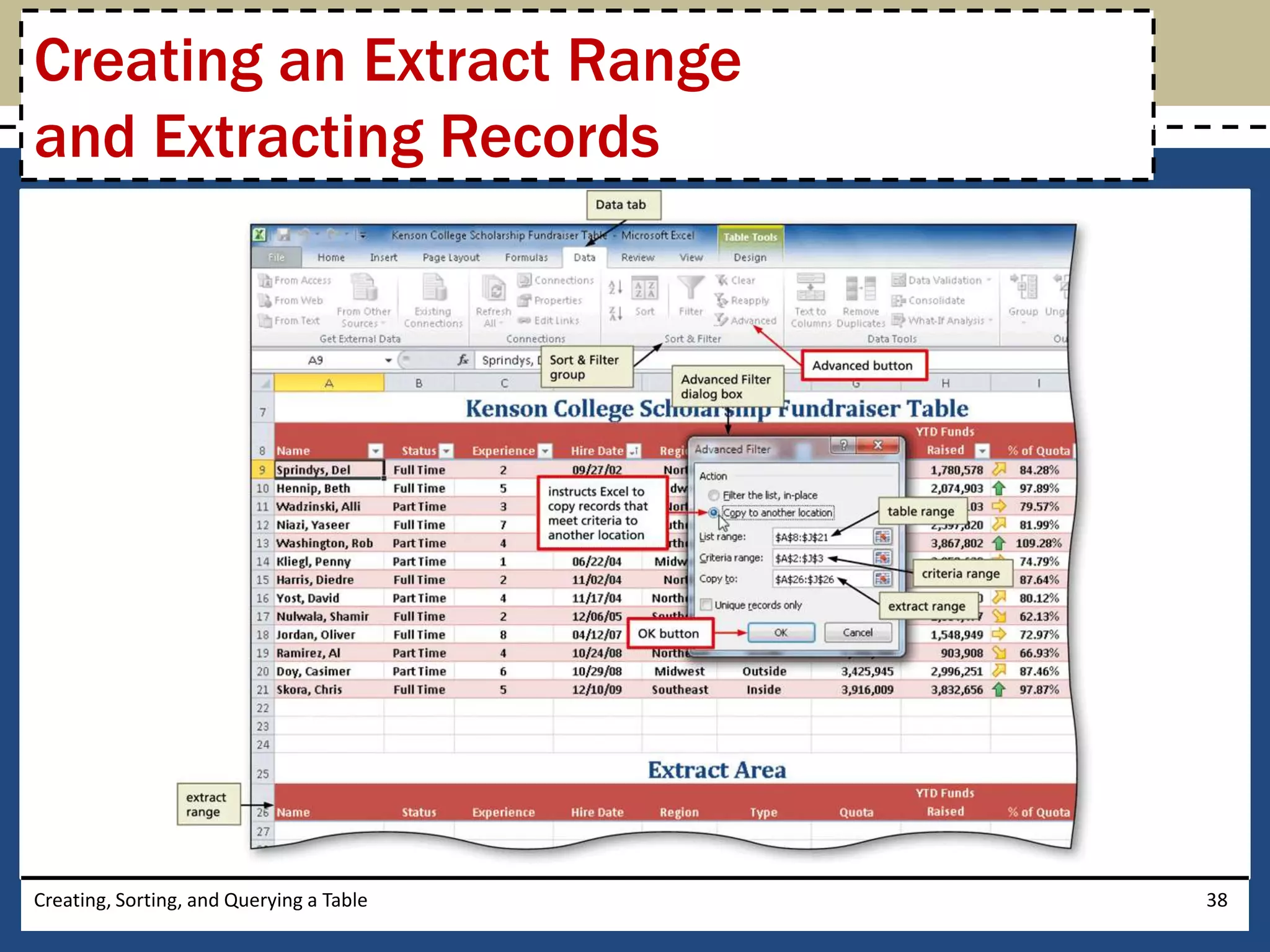

38. Creating an Extract Range
and Extracting Records
Creating, Sorting, and Querying a Table 38

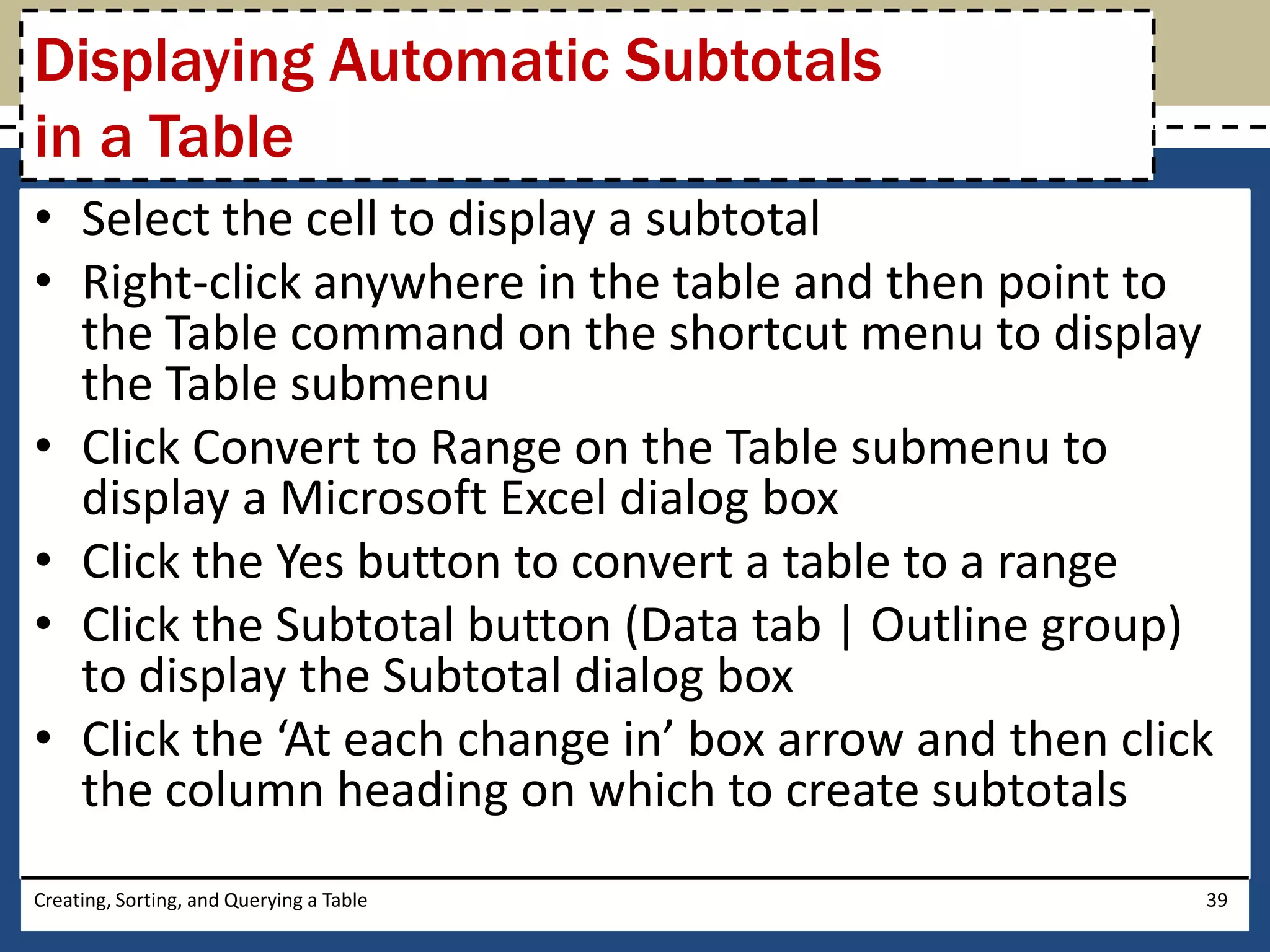

39. Displaying Automatic Subtotals
in a Table
• Select the cell to display a subtotal
• Right-click anywhere in the table and then point to
the Table command on the shortcut menu to display
the Table submenu
• Click Convert to Range on the Table submenu to
display a Microsoft Excel dialog box
• Click the Yes button to convert a table to a range
• Click the Subtotal button (Data tab | Outline group)
to display the Subtotal dialog box
• Click the ‘At each change in’ box arrow and then click
the column heading on which to create subtotals
Creating, Sorting, and Querying a Table 39

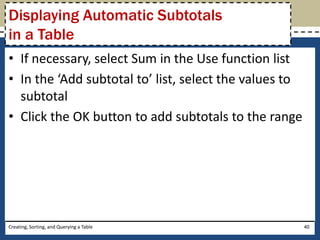

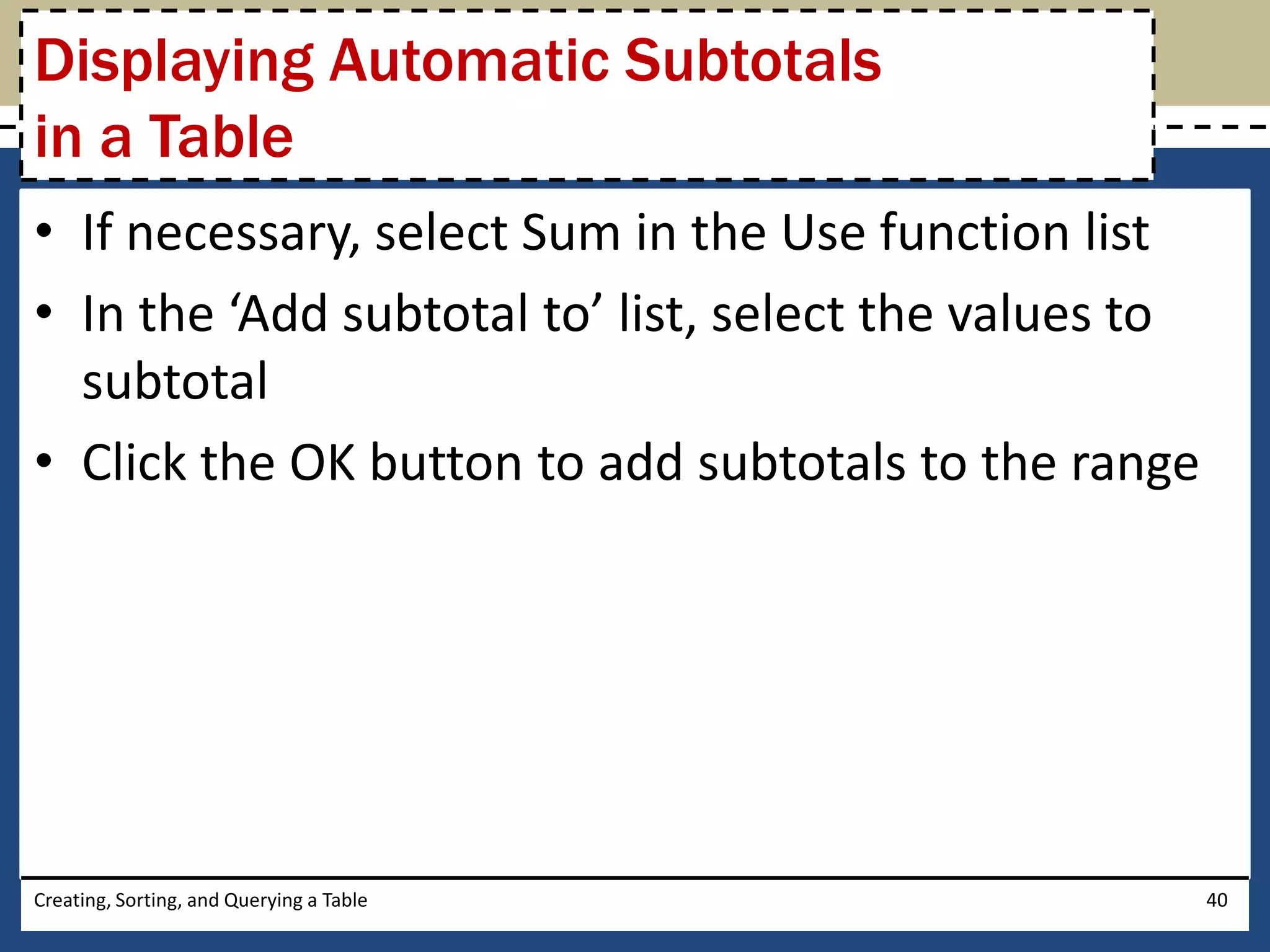

40. Displaying Automatic Subtotals
in a Table
• If necessary, select Sum in the Use function list
• In the ‘Add subtotal to’ list, select the values to
subtotal
• Click the OK button to add subtotals to the range
Creating, Sorting, and Querying a Table 40

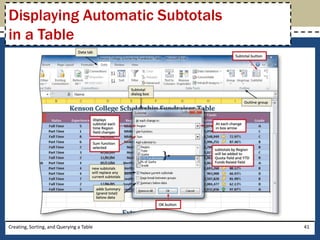

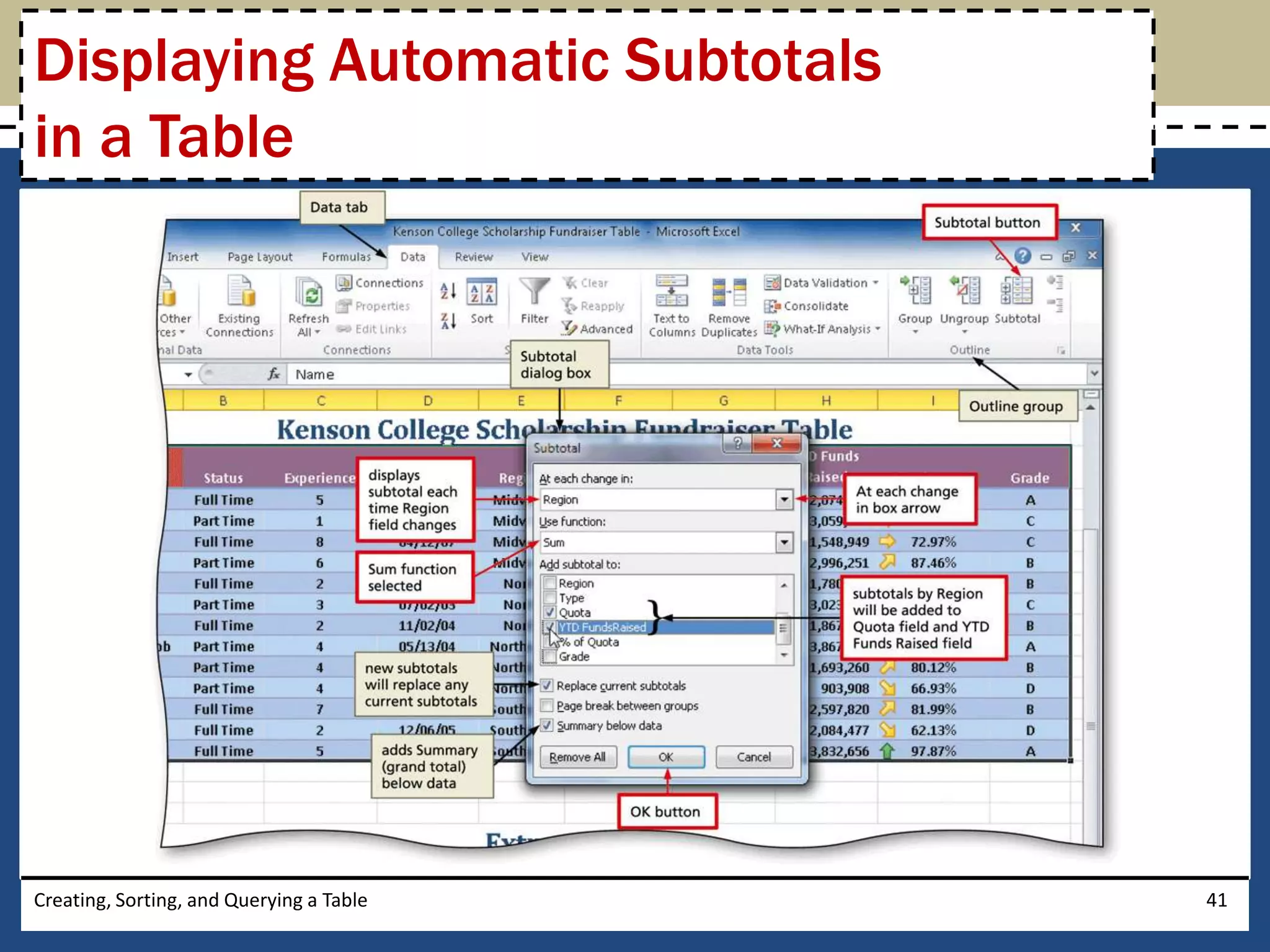

41. Displaying Automatic Subtotals
in a Table
Creating, Sorting, and Querying a Table 41

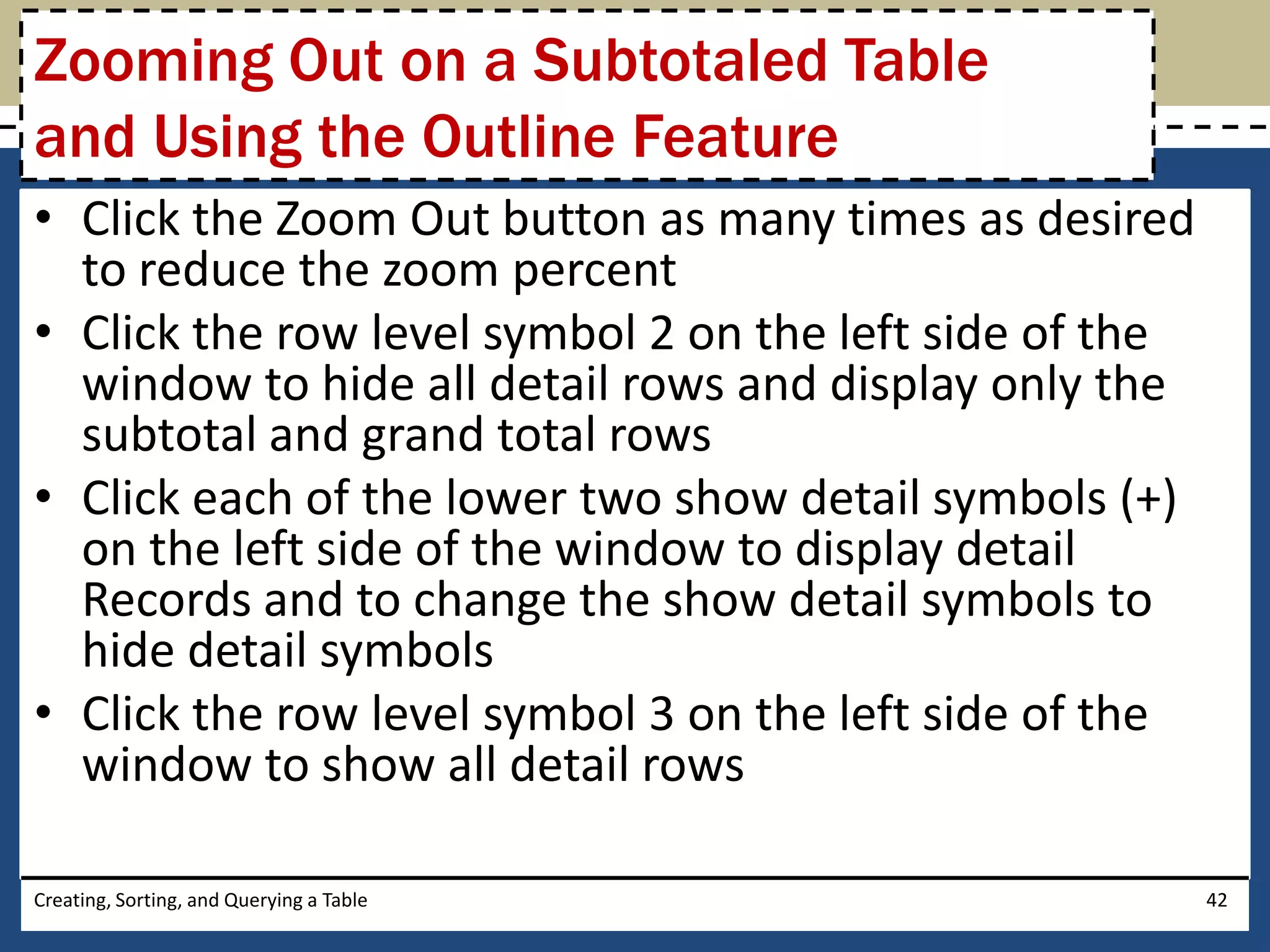

42. Zooming Out on a Subtotaled Table
and Using the Outline Feature
• Click the Zoom Out button as many times as desired
to reduce the zoom percent
• Click the row level symbol 2 on the left side of the
window to hide all detail rows and display only the
subtotal and grand total rows
• Click each of the lower two show detail symbols (+)
on the left side of the window to display detail
Records and to change the show detail symbols to
hide detail symbols
• Click the row level symbol 3 on the left side of the
window to show all detail rows
Creating, Sorting, and Querying a Table 42

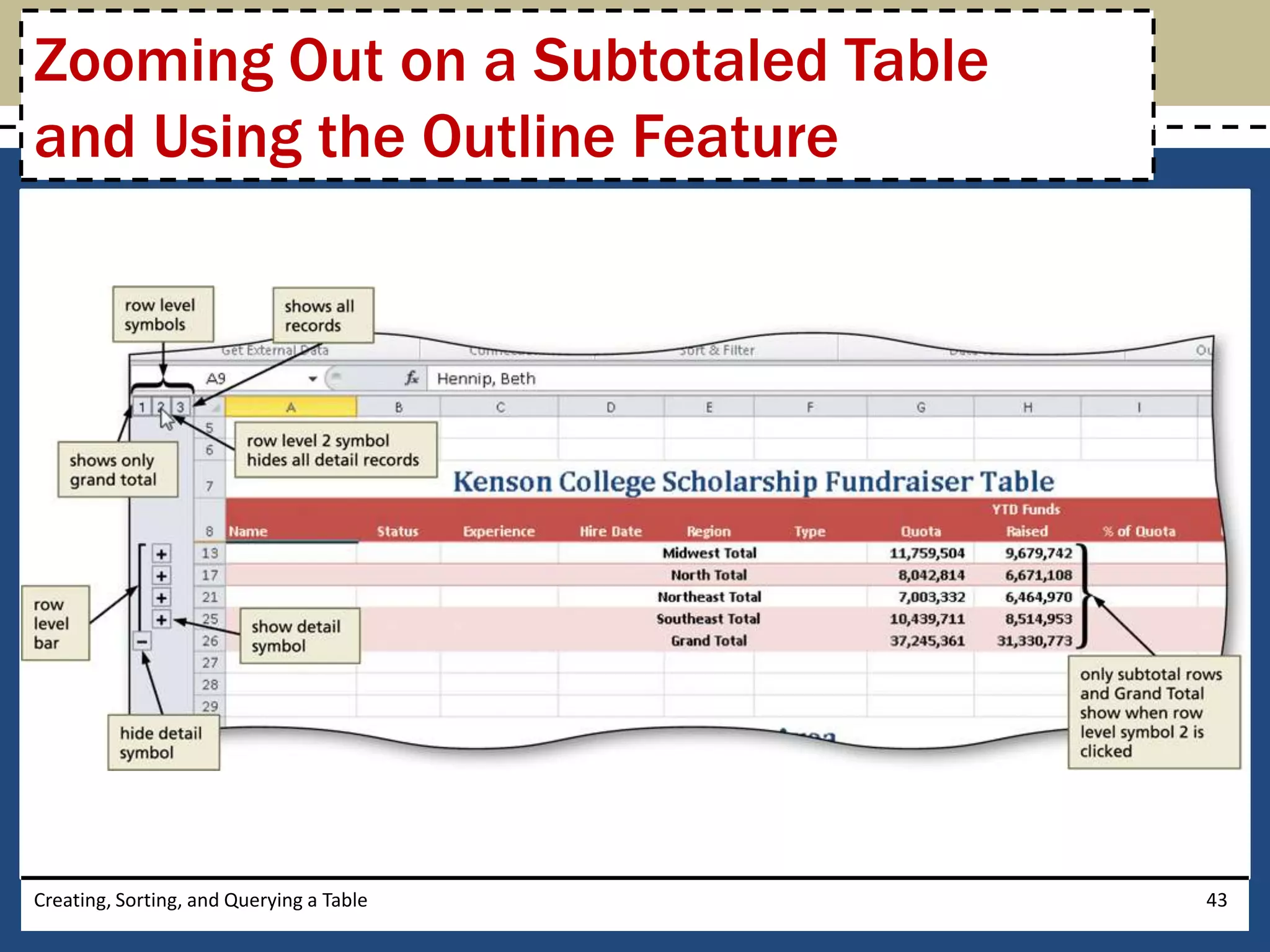

43. Zooming Out on a Subtotaled Table
and Using the Outline Feature
Creating, Sorting, and Querying a Table 43

44. Removing Automatic Subtotals
from a Table
• Click the Subtotal button (Data tab | Outline
group) to display the Subtotal dialog box
• Click the Remove All button (Subtotal dialog box)
to remove all subtotals and close the Subtotal
dialog box
Creating, Sorting, and Querying a Table 44

45. Removing Automatic Subtotals
from a Table
Creating, Sorting, and Querying a Table 45

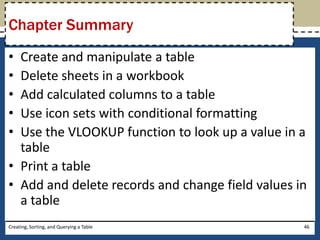

46. Chapter Summary
• Create and manipulate a table
• Delete sheets in a workbook
• Add calculated columns to a table
• Use icon sets with conditional formatting
• Use the VLOOKUP function to look up a value in a
table
• Print a table
• Add and delete records and change field values in
a table
Creating, Sorting, and Querying a Table 46

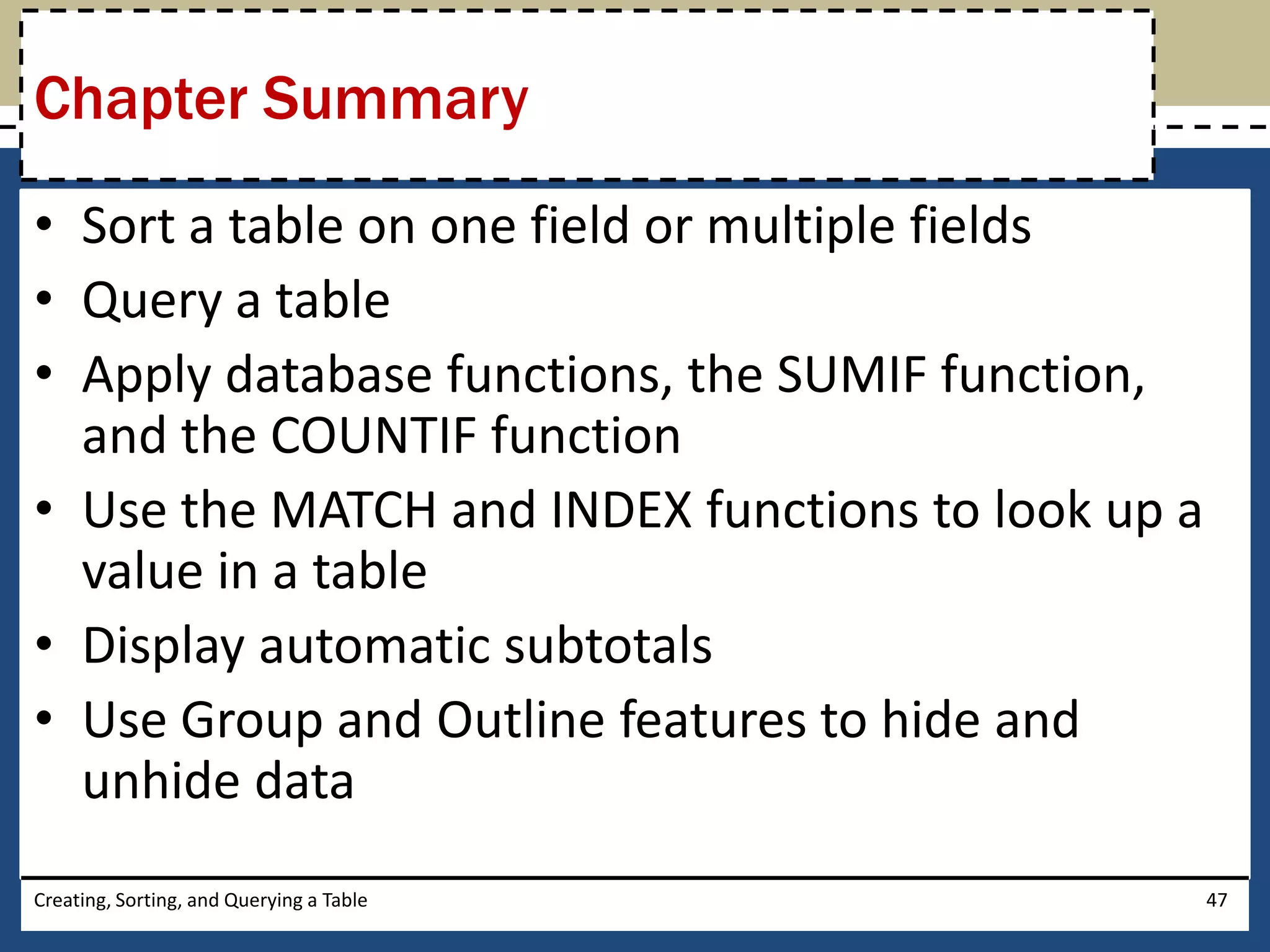

47. Chapter Summary
• Sort a table on one field or multiple fields
• Query a table
• Apply database functions, the SUMIF function,
and the COUNTIF function
• Use the MATCH and INDEX functions to look up a
value in a table
• Display automatic subtotals
• Use Group and Outline features to hide and
unhide data
Creating, Sorting, and Querying a Table 47

48. Microsoft
Excel 2010
Chapter 5 Complete
