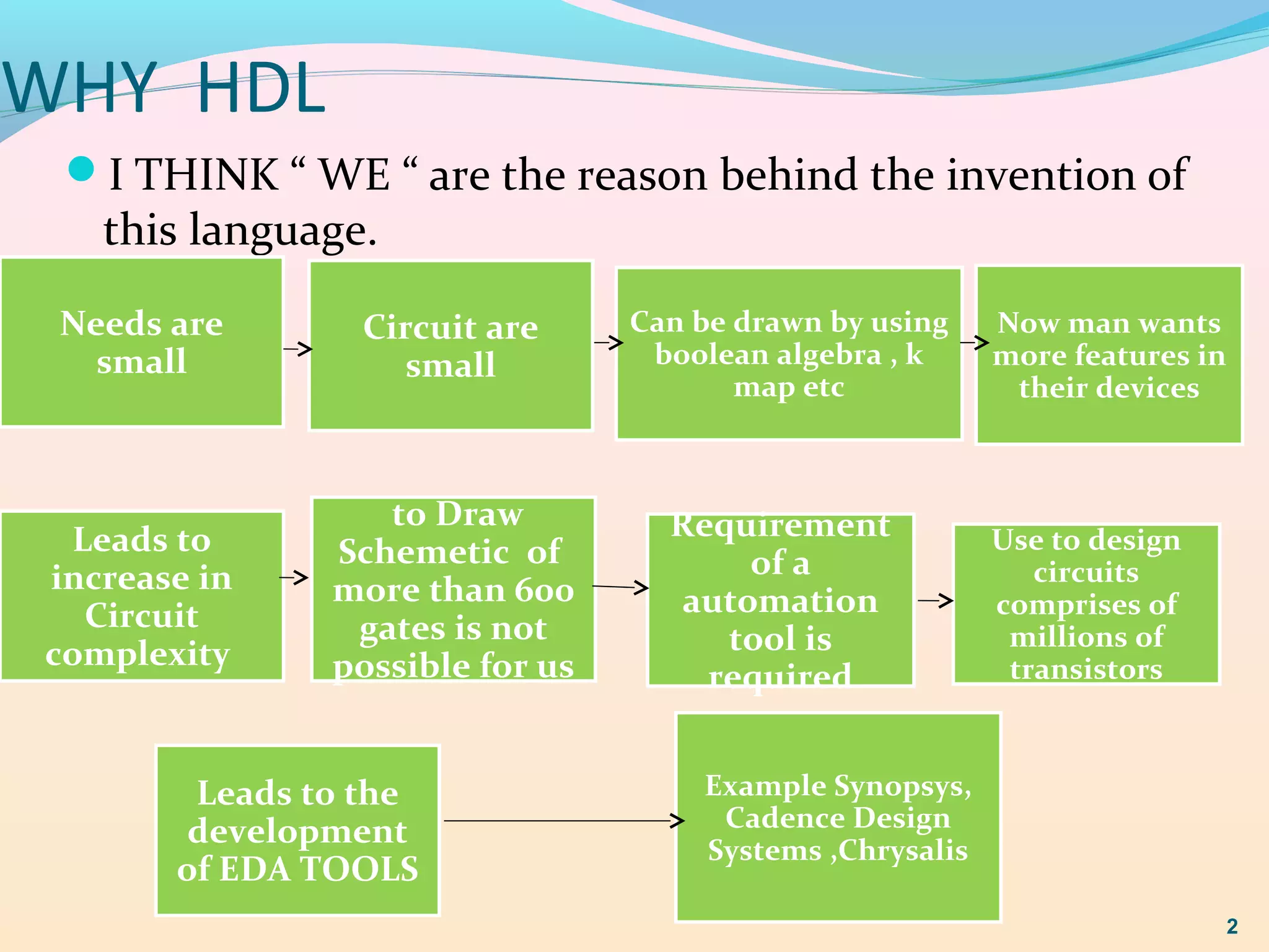

2. WHY HDL
I THINK “ WE “ are the reason behind the invention of
this language.
2
Needs are
small
Circuit are
small
Leads to
increase in
Circuit
complexity
to Draw
Schemetic of
more than 600
gates is not
possible for us
Leads to the
development
of EDA TOOLS
Can be drawn by using
boolean algebra , k
map etc
Now man wants
more features in
their devices
Requirement
of a
automation
tool is
required
Use to design
circuits
comprises of
millions of
transistors
Example Synopsys,
Cadence Design
Systems ,Chrysalis
3. Hardware Description
Languages
Special-purpose languages
special constructs for hardware description
timing, concurrency, bit vectors, etc.
can usually include structural description
examples
Verilog
VHDL
Standard programming languages
add data types and objects for hardware
description
examples
C
C++
Matlab
4. 4
Simulation is the process of conducting experiments on a
model of a system for the purpose of understanding or
verifying the operation of the actual system.
In simple words it means
1. Take the input
2. Process the input
3. Output
Simulation in the VHDL/PLD methodology:
Functional verification verifies the functional operation
of a description.
Post-synthesis simulation verifies that the synthesizer
accurately translated the description to logic.
Timing simulation verifies that the synthesized logic,
when mapped to the target PLD, will meet the system’s
requirements.
5. Types of simulations:
1. Behavioral: use the system as black box.
2.Functional: checks the functionality and ignores
timing and just include unit delay.
3.Timing : system is partitioned into asic and timing
analysis is done. This is called static timing analysis
because outputs and inputs values are placed and then
timing is done.
4. Logic / gate level: logic cell is taken and its timing
and performance is done.
5. Switch level: models transistor as switches.
6.Transistor level: it requires models of transistor
describing their nonlinear voltage and current
characteristics(varitions).
7. Classification of Simulators
HDL-basedHDL-based: Design and testbench described
using HDL
Event-driven
Cycle-based
Schematic-basedSchematic-based: Design is entered graphically
using a schematic editor
EmulatorsEmulators: Design is mapped into FPGA hardware
for prototype simulation. Used to perform
hardware/software co-simulation.
8. 8
VHDL is an event-driven language.
A VHDL simulator must provide data structures and
algorithms that allow it to efficiently simulate the
execution of concurrent statements in a VHDL
program.
Simulator's sequential execution must be able to
provide the illusion of concurrency.
Changes in input and output signals occur in
simulation time: the time value maintained by the
simulator, as opposed to real time.
There are three common kinds of simulators:
time driven
event driven
cycle based (for simulation of sequental systems)
10. HOW
Simulation Algorithms
Compiled simulation
logic equations compiled to code
execute code - fast
works well with zero and unit delay models
difficult with general timing models
no use of latency, multi-rate behavior
Event-driven simulation
input changes cause evaluation of model, scheduling of output change event
use timing models to determine new event times
output change evaluated at scheduled time
advantage
real circuits have 10-30% activity
dormant parts of circuit are not evaluated
11. Event-driven Simulation
Event: change in logic value at a node, at a certain
instant of time → (V,T)
Event-driven: only considers active nodes
Efficient
Performs both timing and functional verification
All nodes are visible
Glitches are detected
Most heavily used and well-suited for all types of
designs
12. Event-Driven Logic
Simulation
Evaluate gate when inputs change
use logic model to compute new output value
use timing model to compute when output will
change
Schedule an output change event
store the event on a time-sorted event queue
Process events from the queue
output change evaluated at scheduled time
causes new events to be scheduled
5
5
7
5
5
5
0
0
0
1->0
(0)
0
1
1
1
0->1
(5)
1->0
(12)
1->0
(10)
13. Event-Driven Logic
Simulation
1. t=X: Schedule PI:1->0 at t=0
2. t=0: PI changes 1->0
Evaluate A, schedule A:0->1 at t=5
4. t=5: A changes 0->1
Evaluate B, schedule B:1->0 at t=10
Evaluate C, schedule C:1->0 at t=12
5. t=10: B changes 1->0, output
6. t=12: C changes 1->0, output
5
5
7
5
5
5
0
0
0
1->0
(0)
0
1
1
1
0->1
(5)
1->0
(12)
1->0
(10)
A
B
C
14. An event-driven VHDL example
process (count)
begin
my_count <= count;
trigger <= not trigger;
end process;
process (trigger)
begin
if (count<=15) then
count <= count + 1 after 1ns;
else
count <= 0 after 1ns;
end if;
end process;
Block
1
Block 2
Each process:
- loops forever
- waits for change in signal
from other process
15. A more hardware-oriented example
s(0) <= a(0) xor b(0) after 2ns;
c(0) <= a(0) and b(0) after 1ns;
s(1) <= a(1) xor b(1) xor c(0) after 2ns;
c(1) <= (a(1) and b(1)) or (b(1) and c(0)) or (c(0) and a(1)) after 1ns;
sum_out(1 to 0) <= s(1 to 0);
carry_out <= c(1);
and
a
b
and
xor
s(0)
c(0)
xor
xor
=>
s(1)
sum_out(1)
and
and
or
or
=>
=>
sum_out(0)
carry_out
16. A more hardware-oriented example
s(0) <= a(0) xor b(0) after 2ns;
c(0) <= a(0) and b(0) after 1ns;
s(1) <= a(1) xor b(1) xor c(0) after 2ns;
c(1) <= (a(1) and b(1)) or (b(1) and c(0)) or (c(0) and a(1)) after 1ns;
sum_out(1 to 0) <= s(1 to 0);
carry_out <= c(1);
and
a
b
and
xor
s(0)
c(0)
xor
xor
=>
s(1)
sum_out(1)
and
and
or
or
=>
=>
sum_out(0)
carry_out
Let's simulate:
a=11
b=01
Time = 0ns
(step1)
Red Boxes : evaluate
in current step
1
1
1
0
17. A more hardware-oriented example
s(0) <= a(0) xor b(0) after 2ns;
c(0) <= a(0) and b(0) after 1ns;
s(1) <= a(1) xor b(1) xor c(0) after 2ns;
c(1) <= (a(1) and b(1)) or (b(1) and c(0)) or (c(0) and a(1)) after 1ns;
sum_out(1 to 0) <= s(1 to 0);
carry_out <= c(1);
and
a
b
and
xor
s(0)
c(0)
xor
xor
=>
s(1)
sum_out(1)
and
and
or
or
=>
=>
sum_out(0)
carry_out
Let's
simulate:
a=11
b=01
Time = 0ns
(step2)
1
1
1
0 1
18. A more hardware-oriented example
s(0) <= a(0) xor b(0) after 2ns;
c(0) <= a(0) and b(0) after 1ns;
s(1) <= a(1) xor b(1) xor c(0) after 2ns;
c(1) <= (a(1) and b(1)) or (b(1) and c(0)) or (c(0) and a(1)) after 1ns;
sum_out(1 to 0) <= s(1 to 0);
carry_out <= c(1);
and
a
b
and
xor
s(0)
c(0)
xor
xor
=>
s(1)
sum_out(1)
and
and
or
or
=>
=>
sum_out(0)
carry_out
Let's
simulate:
a=11
b=01
Time = 0ns
(step3)
1
1
1
0 1 1
19. A more hardware-oriented example
s(0) <= a(0) xor b(0) after 2ns;
c(0) <= a(0) and b(0) after 1ns;
s(1) <= a(1) xor b(1) xor c(0) after 2ns;
c(1) <= (a(1) and b(1)) or (b(1) and c(0)) or (c(0) and a(1)) after 1ns;
sum_out(1 to 0) <= s(1 to 0);
carry_out <= c(1);
and
a
b
and
xor
s(0)
c(0)
xor
xor
=>
s(1)
sum_out(1)
and
and
or
or
=>
=>
sum_out(0)
carry_out
Let's
simulate:
a=11
b=01
Time = 0ns
(step4)
1
1
1
0 1 1 1
20. A more hardware-oriented example
s(0) <= a(0) xor b(0) after 2ns;
c(0) <= a(0) and b(0) after 1ns;
s(1) <= a(1) xor b(1) xor c(0) after 2ns;
c(1) <= (a(1) and b(1)) or (b(1) and c(0)) or (c(0) and a(1)) after 1ns;
sum_out(1 to 0) <= s(1 to 0);
carry_out <= c(1);
and
a
b
and
xor
s(0)
c(0)
xor
xor
=>
s(1)
sum_out(1)
and
and
or
or
=>
=>
sum_out(0)
carry_out
Let's
simulate:
a=11
b=01
Time = 1ns
(step1)
1
1
1
0 1 1 1
1
1
1
1
21. A more hardware-oriented example
s(0) <= a(0) xor b(0) after 2ns;
c(0) <= a(0) and b(0) after 1ns;
s(1) <= a(1) xor b(1) xor c(0) after 2ns;
c(1) <= (a(1) and b(1)) or (b(1) and c(0)) or (c(0) and a(1)) after 1ns;
sum_out(1 to 0) <= s(1 to 0);
carry_out <= c(1);
and
a
b
and
xor
s(0)
c(0)
xor
xor
=>
s(1)
sum_out(1)
and
and
or
or
=>
=>
sum_out(0)
carry_out
Let's
simulate:
a=11
b=01
Time = 1ns
(step2)
1
1
1
0 1 0 1
1
1
1
1
1
22. A more hardware-oriented example
s(0) <= a(0) xor b(0) after 2ns;
c(0) <= a(0) and b(0) after 1ns;
s(1) <= a(1) xor b(1) xor c(0) after 2ns;
c(1) <= (a(1) and b(1)) or (b(1) and c(0)) or (c(0) and a(1)) after 1ns;
sum_out(1 to 0) <= s(1 to 0);
carry_out <= c(1);
and
a
b
and
xor
s(0)
c(0)
xor
xor
=>
s(1)
sum_out(1)
and
and
or
or
=>
=>
sum_out(0)
carry_out
Let's
simulate:
a=11
b=01
Time = 1ns
(step3)
1
1
1
0 1 0 0
1
1
1
1
1
1
23. A more hardware-oriented example
s(0) <= a(0) xor b(0) after 2ns;
c(0) <= a(0) and b(0) after 1ns;
s(1) <= a(1) xor b(1) xor c(0) after 2ns;
c(1) <= (a(1) and b(1)) or (b(1) and c(0)) or (c(0) and a(1)) after 1ns;
sum_out(1 to 0) <= s(1 to 0);
carry_out <= c(1);
and
a
b
and
xor
s(0)
c(0)
xor
xor
=>
s(1)
sum_out(1)
and
and
or
or
=>
=>
sum_out(0)
carry_out
Let's
simulate:
a=11
b=01
Time = 1ns
(step4)
1
1
1
1
0 1 0 0
1
1
1
1
1
1
24. A more hardware-oriented example
s(0) <= a(0) xor b(0) after 2ns;
c(0) <= a(0) and b(0) after 1ns;
s(1) <= a(1) xor b(1) xor c(0) after 2ns;
c(1) <= (a(1) and b(1)) or (b(1) and c(0)) or (c(0) and a(1)) after 1ns;
sum_out(1 to 0) <= s(1 to 0);
carry_out <= c(1);
Let's
simulate:
a=11
b=01
Time = 1ns
(step5)
and
a
b
and
xor
s(0)
c(0)
xor
xor
=>
s(1)
sum_out(1)
and
and
or
or
=>
=>
sum_out(0)
carry_out
1
1
1
1
0 1 0 0
1
1
1
1
1
1
1
25. A more hardware-oriented example
s(0) <= a(0) xor b(0) after 2ns;
c(0) <= a(0) and b(0) after 1ns;
s(1) <= a(1) xor b(1) xor c(0) after 2ns;
c(1) <= (a(1) and b(1)) or (b(1) and c(0)) or (c(0) and a(1)) after 1ns;
sum_out(1 to 0) <= s(1 to 0);
carry_out <= c(1);
and
a
b
and
xor
s(0)
c(0)
xor
xor
=>
c(1)
carry_out
and
and
or
or
=>
=>
sum_out(0)
carry_out
Let's
simulate:
a=11
b=01
Time = 1ns
(step5)
1
1
1
1
0 1 0 0
1
1
1
1
1
1
1
That's enough - you get the point
The statement-(process-) dependencies define a network.
Changes are dynamically propagated through the network
26. Simulation
Algorithm
while (HaveEvents())
event = NextEvent(); /* time-sorted order
*/
currenttime = event->time; /* update global time
*/
event->gate->output = event->output/* change gate output
*/
print output if it is primary output;
for (all gates g in event->gate fan-out list)
newoutput = EvalGate(g); /* new gate output */
newtime = currenttime + g->delay; /* when it changes */
ScheduleEvent(g, newoutput, newtime);
27. Event Queue
Implementation
Events must be processed in time order
event queue must sort by time
Must be able to delete events
cancel obsolete events on a gate
Implementations
priority queue
O(logN) time to insert/delete for N-item queue
many implementations - AVL tree, heap, etc.
problem: N is often large
bucket queue - time wheel
divide time into time quanta Q, e.g. 1ps
circular buffer of N entries 1 quantum in size
can store events Q*N into future
events beyond buffer go into unsorted far list
O(1) time to insert, nearly so for delete
28. Event-driven
Simulation
Uses a timewheel to manage the relationship between
components
TimewheelTimewheel = list of all events not processed yet,
sorted in time (complete ordering)
When event is generated, it is put in the appropriate
point in the timewheel to ensure causality
31. Time Wheel
Operation
Insertion
if (eventtime - curtime >= WHEELLENGTH*quantum)
insert event into far list
else
insert at wheel[eventtime % (WHEELLENGTH*quantum)]
Deletion
i = curtime % (WHEELLENGTH*quantum)
while (wheel[i] == NULL)
if (i == WHEELLENGTH-1)
i = 0; timebase += (WHEELLENGTH*quantum);
for all events in far list
if (eventtime - timebase < WHEELLENGTH*quantum) insert
event into wheel
else i++
remove first event from wheel[i] list and
return it
32. 32
The LRM (Language Reference Manual) defines how an
event-driven simulator must execute the VHDL.
Simulator vendors implement this concepts.
An event-driven simulator performs three steps to
accomplish a simulation:
1) elaboration
2) initialization
3) repeated execution of simulation cycles
33. 33
Elaboration
Elaboration is the creation of a simulation model for a
design entity from its VHDL description. This simulation
model consists of a net of simulation processes.
During elaboration, all concurrent statements are
converted to equivalent simulation processes.
34. VHDL semantics: initialization
At the beginning of initialization, the current time, Tc is 0 ns.
The … effective value of each explicitly declared signal are computed,
and the current value of the signal is set to the effective value. …
Each ... process … is executed until it suspends.
The time of the next simulation cycle (… in this case … the 1st cycle), Tn
is calculated according to the rules of step f of the simulation cycle,
below.
35. VHDL semantics: The simulation
cycle (1)
According to the standard, the simulation cycle is as
follows:
a) Stop if Tn= time‘high
and “nothing else is to be done” at Tn.
The current time, Tc is set to Tn.
?
36. VHDL semantics: The simulation
cycle (2)
b) Each active explicit signal in the model is
updated. (Events may occur as a result.)
Previously computed entries in the queue are now assigned if their
time corresponds to the current time Tc.
New values of signals are not assigned before the next simulation
cycle, at the earliest.
Signal value changes result in events enable the execution of
processes that are sensitive to that signal.
c) ..
37. VHDL semantics: The simulation
cycle (3)
d
e
e
δ) ∀ P sensitive to s: if event on s in current
cycle: P resumes.
e) Each ... process that has resumed in the current simulation
cycle is executed until it suspends*.
*Generates future values for signal drivers.
38. VHDL semantics: The
simulation cycle (4)
f) Time Tn of the next simulation cycle = earliest of
1. time‘high (end of simulation time).
2. The next time at which a driver becomes active
3. The next time at which a process resumes
(determined by wait for statements).
Next simulation cycle (if any) will be a delta cycle if Tn = Tc.
f
39. δ-simulation cycles
…
Next simulation cycle (if any) will be a delta cycle if Tn = Tc.
Delta cycles are generated for delay-less models.
There is an arbitrary number of δ cycles between any 2
physical time instants:
40. Cycle-based
Simulation
Take advantage of the fact that most digital designs
are largely synchronous
• Synchronous circuit: state elements
change value on active edge of clock
• Only boundary nodes are evaluated
Internal Node
Boundary Node
L
a
t
c
h
e
s
L
a
t
c
h
e
s
