- 1. SAJJAD KHUDHUR ABBAS Ceo, Founder & Head of SHacademy Chemical Engineering , Al-Muthanna University, Iraq Oil & Gas Safety and Health Professional – OSHACADEMY Trainer of Trainers (TOT) - Canadian Center of Human Development Episode 53 : Computer Aided Process Engineering

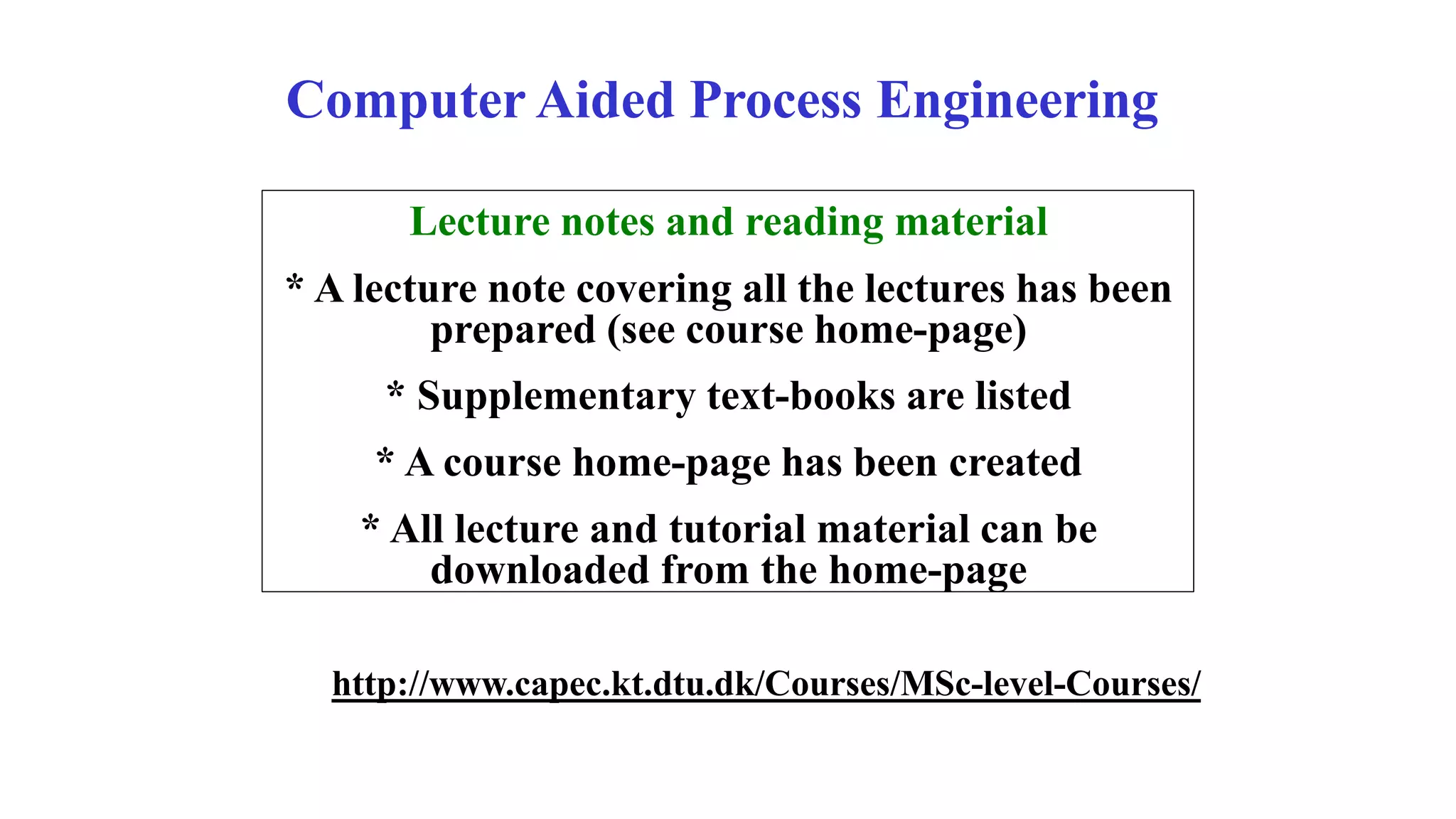

- 2. Computer Aided ProcessEngineering Lecture notes and reading material * A lecture note covering all the lectures has been prepared (see course home-page) * Supplementary text-books are listed * A course home-page has been created * All lecture and tutorial material can be downloaded from the home-page http://www.capec.kt.dtu.dk/Courses/MSc-level-Courses/

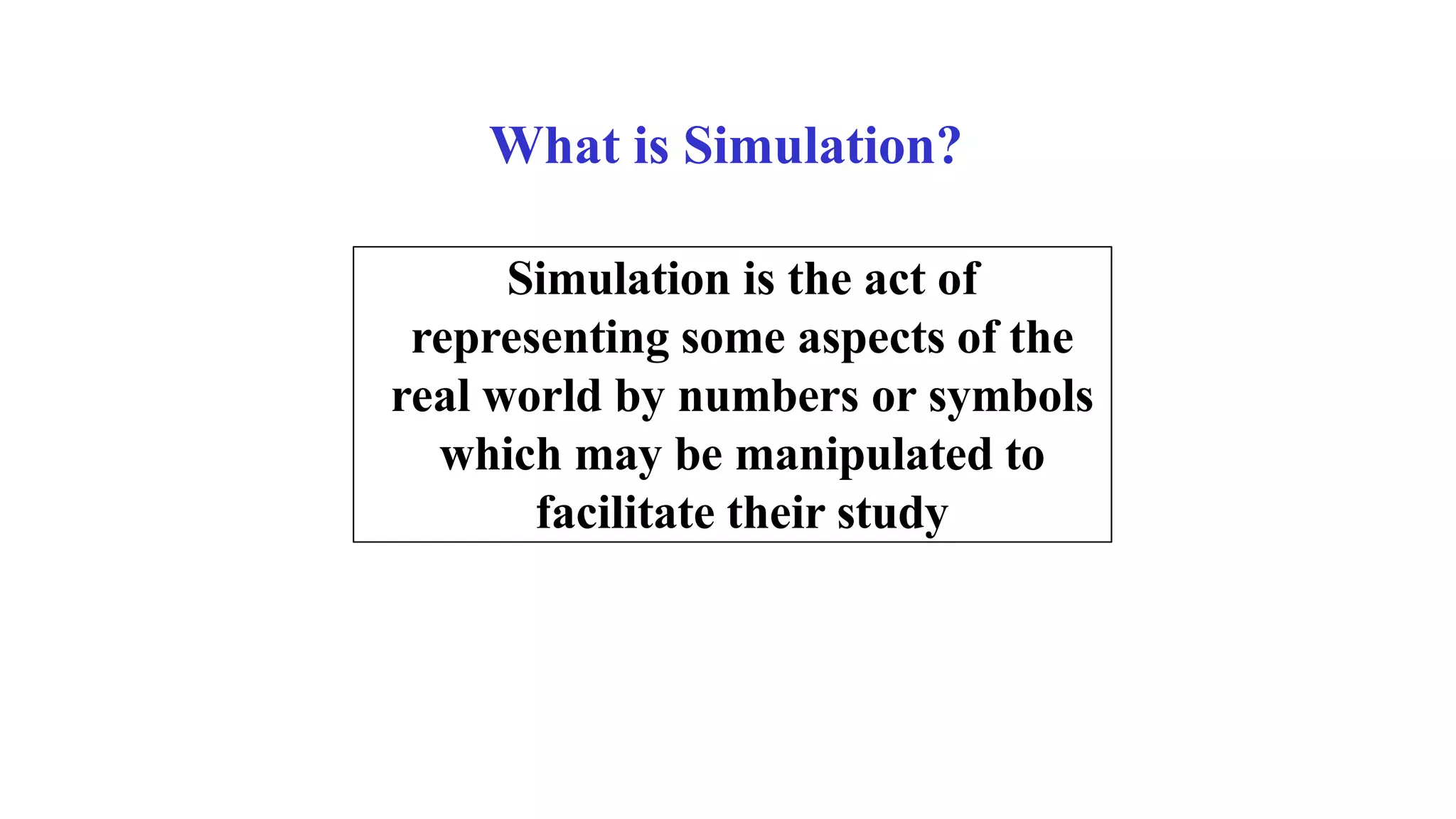

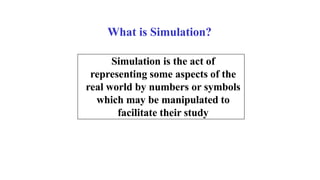

- 3. What is Simulation? Simulationis the act of representing some aspects of the real world by numbers or symbols which may be manipulated to facilitate their study

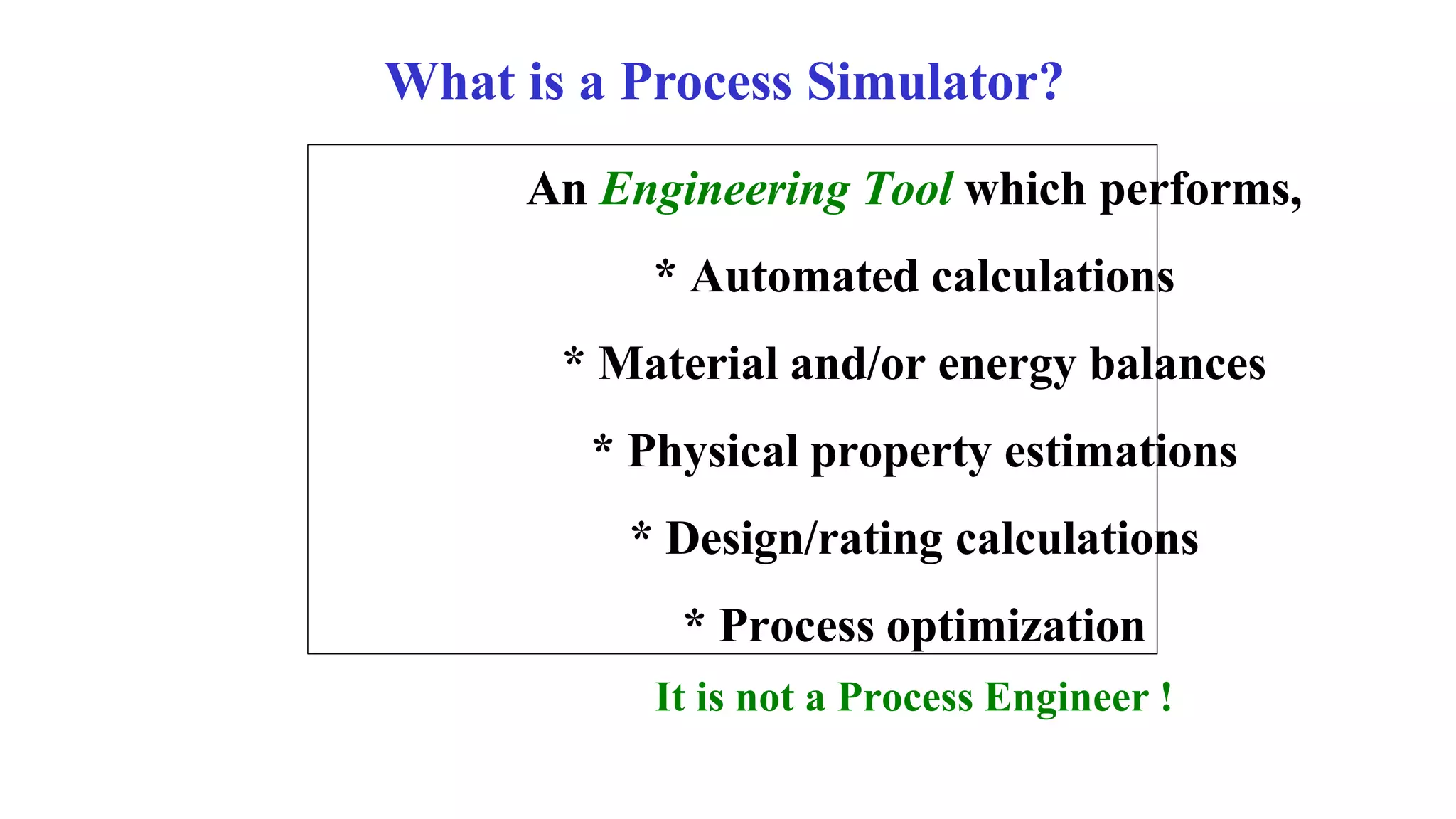

- 4. What is aProcess Simulator? An Engineering Tool which performs, * Automated calculations * Material and/or energy balances * Physical property estimations * Design/rating calculations * Process optimization It is not a Process Engineer !

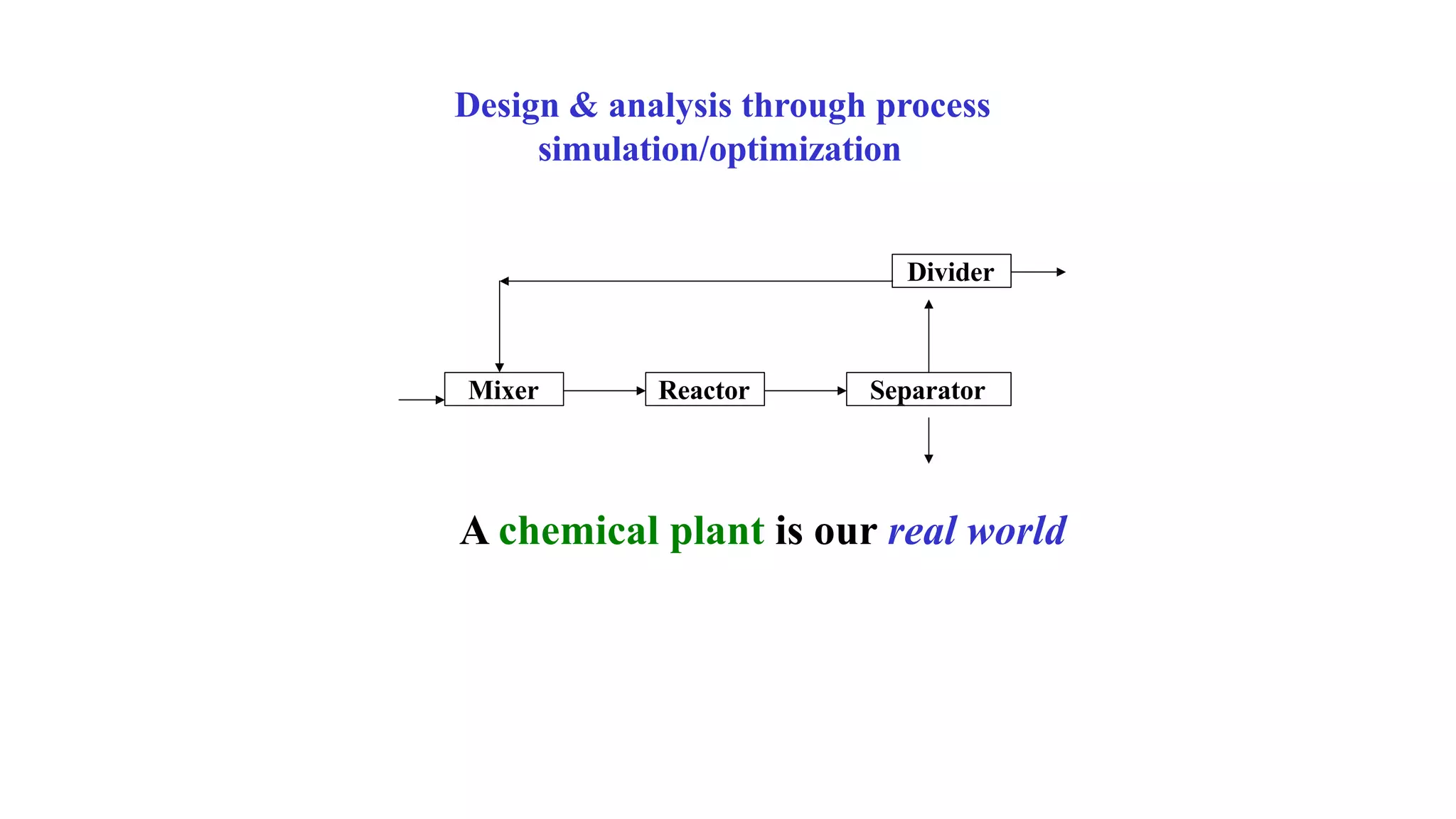

- 5. Design & analysisthrough process simulation/optimization Divider Mixer Reactor Separator A chemical plant is our real world

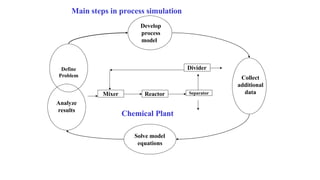

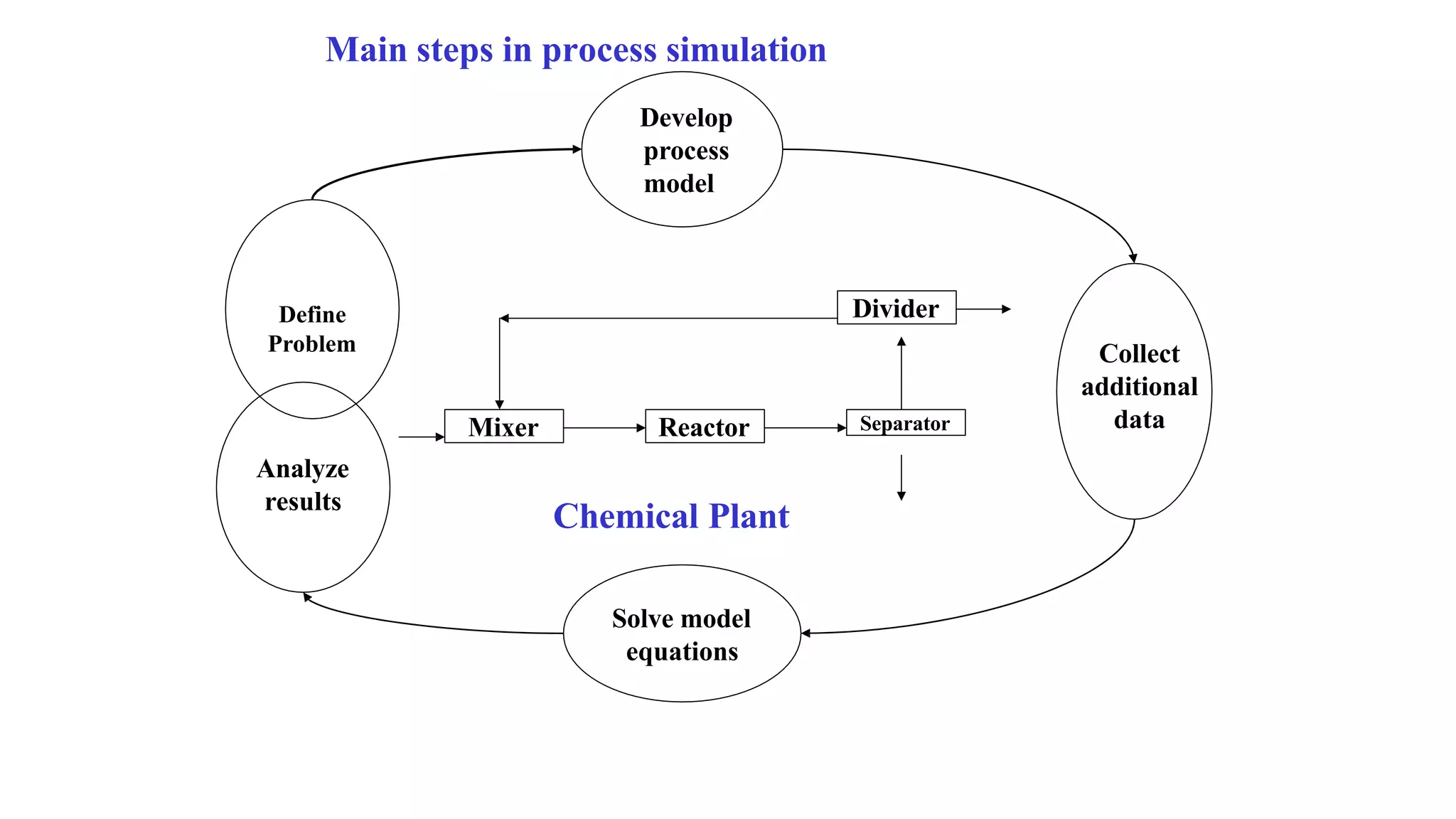

- 6. Separator Define Problem Analyze results Develop process model Collect additional data Solve model equations Main stepsin process simulation Divider Mixer Reactor Chemical Plant

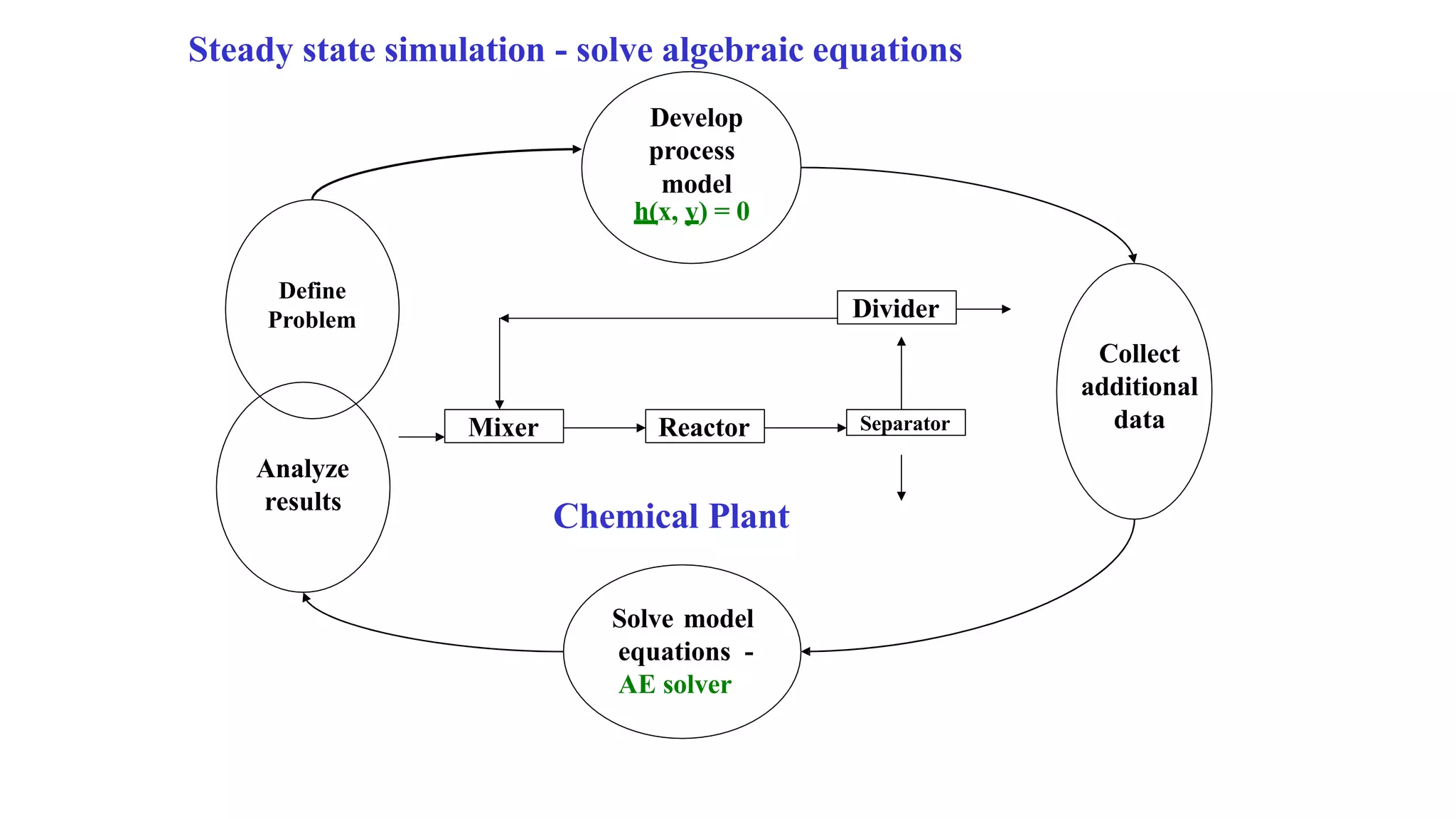

- 7. Separator Define Problem Analyze results Develop process model h(x, y) =0 Collect additional data Solve model equations - AE solver Steady state simulation - solve algebraic equations Divider Mixer Reactor Chemical Plant

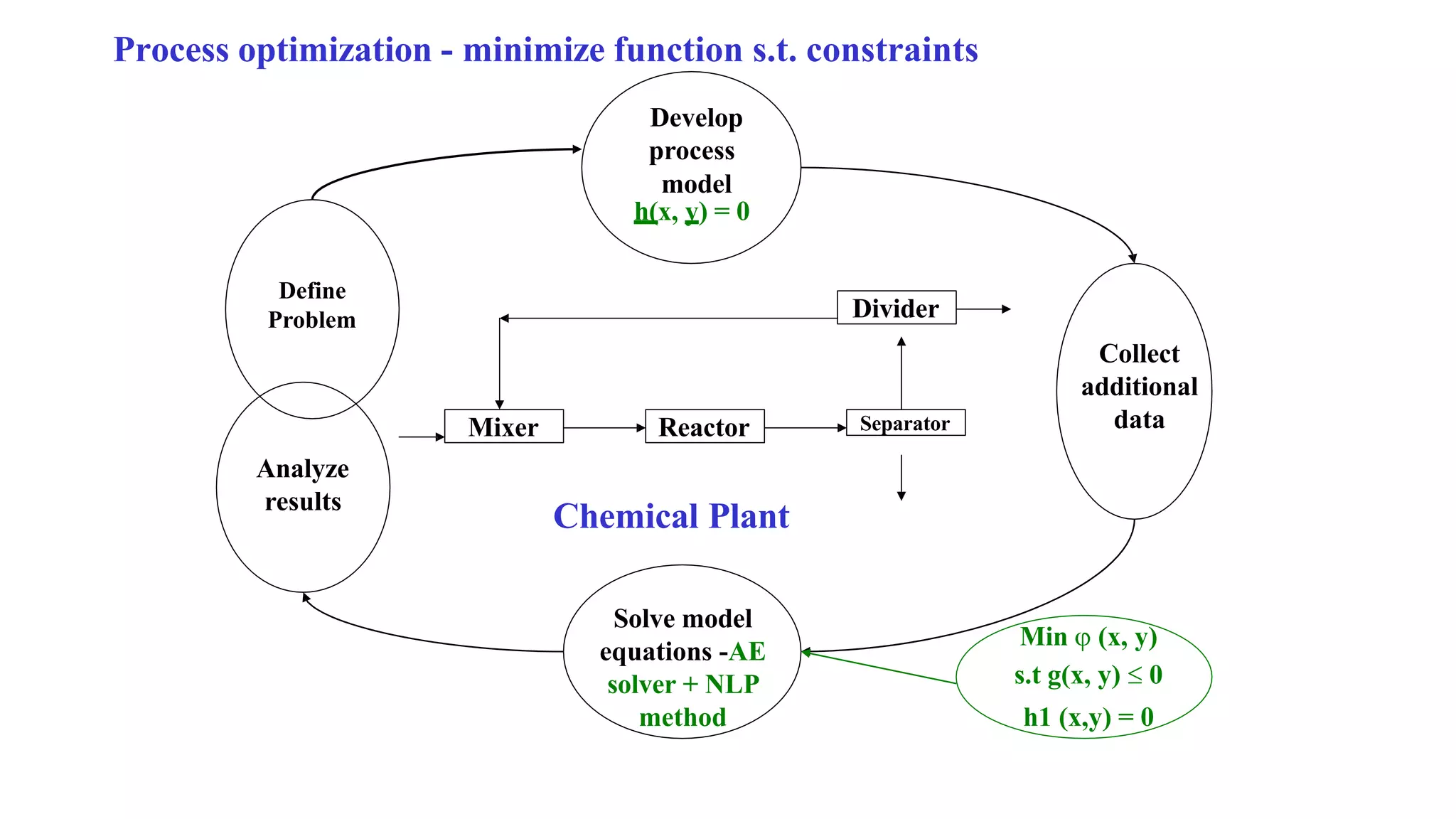

- 8. Separator Define Problem Analyze results Develop process model h(x, y) =0 Collect additional data Solve model equations -AE solver + NLP method Process optimization - minimize function s.t. constraints Min (x, y) s.t g(x, y) 0 h1 (x,y) = 0 Divider Mixer Reactor Chemical Plant

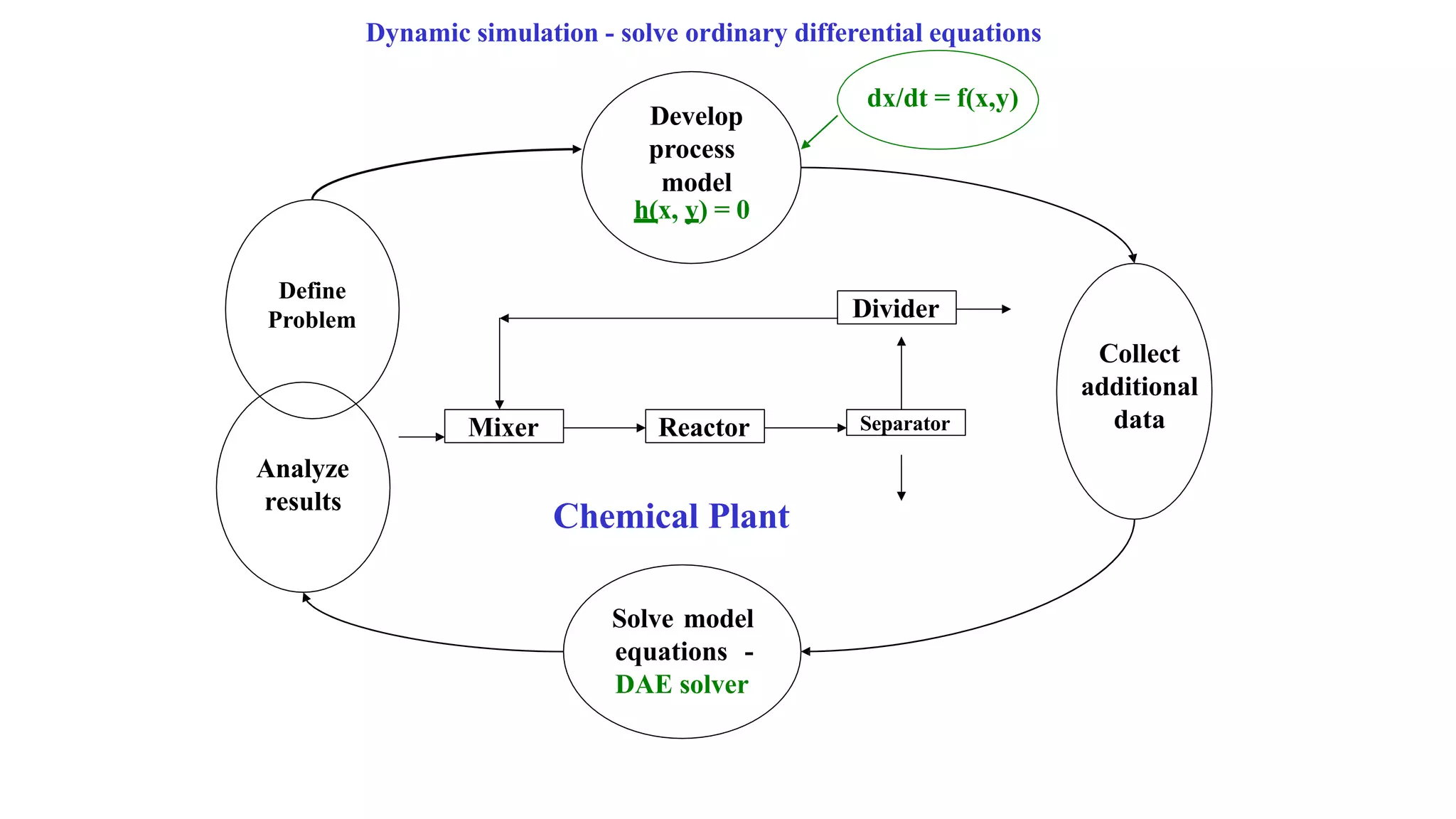

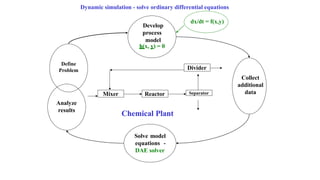

- 9. Separator Define Problem Analyze results Develop process model h(x, y) =0 Collect additional data Solve model equations - DAE solver Dynamic simulation - solve ordinary differential equations dx/dt = f(x,y) Divider Mixer Reactor Chemical Plant

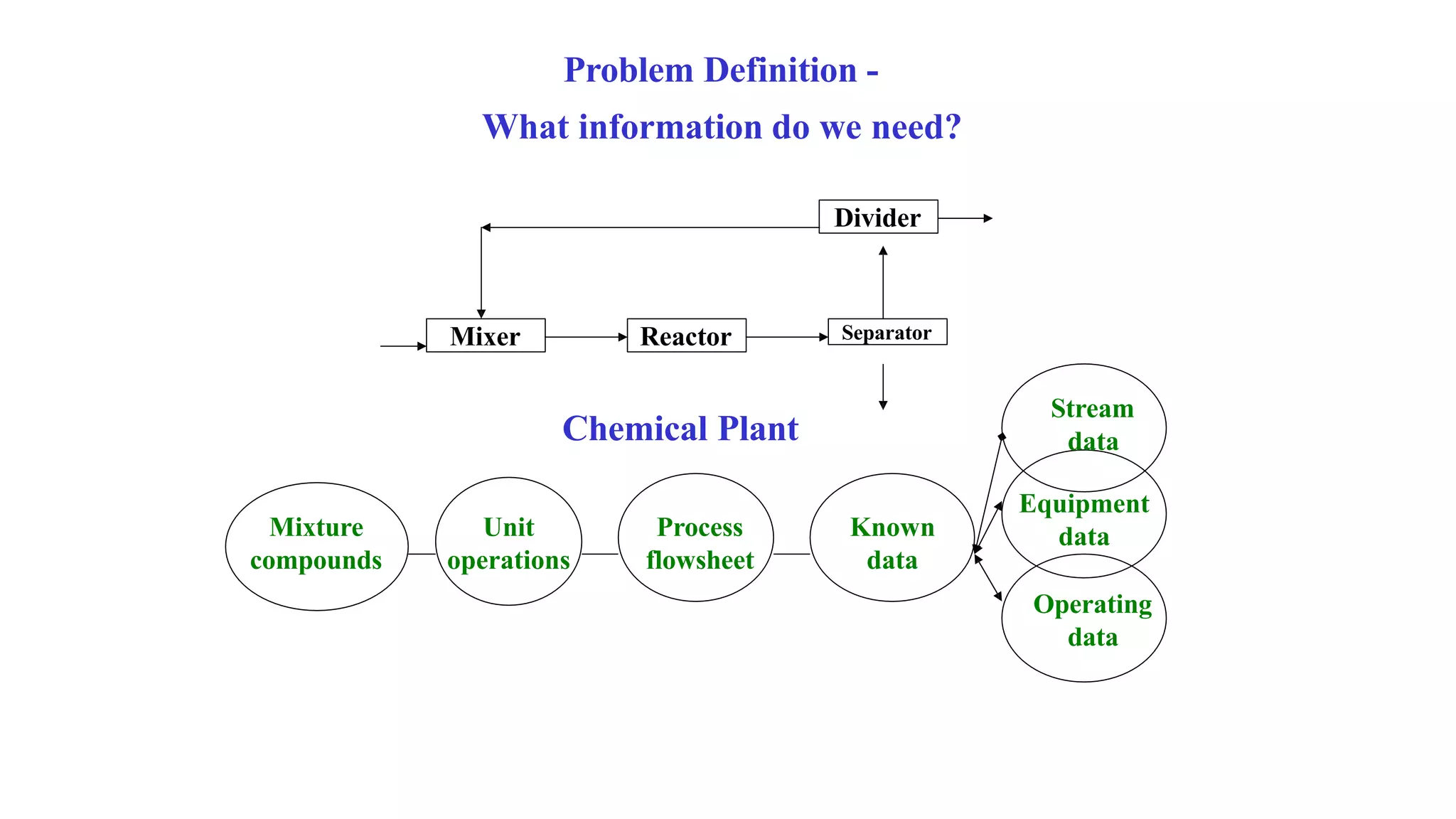

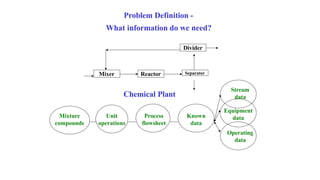

- 10. Problem Definition - Whatinformation do we need? Divider Mixer Reactor Separator Known data Stream data Equipment data Operating data Chemical Plant Unit operations Mixture compounds Process flowsheet

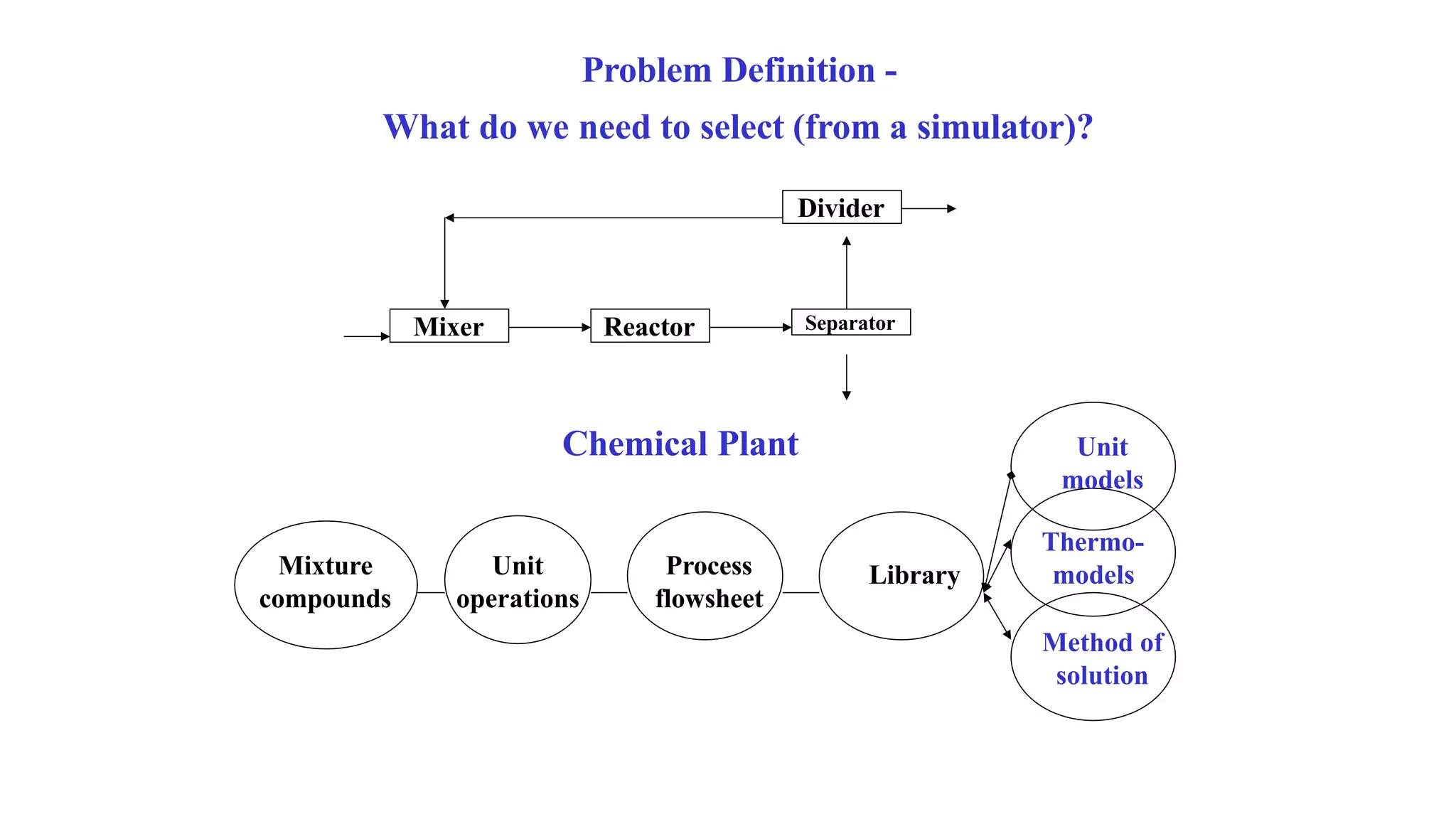

- 11. Problem Definition - Whatdo we need to select (from a simulator)? Divider Mixer Reactor Separator Library Unit models Thermo- models Method of solution Chemical Plant Unit operations Mixture compounds Process flowsheet

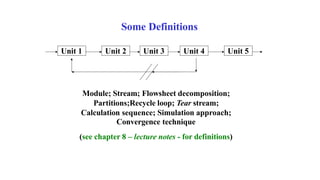

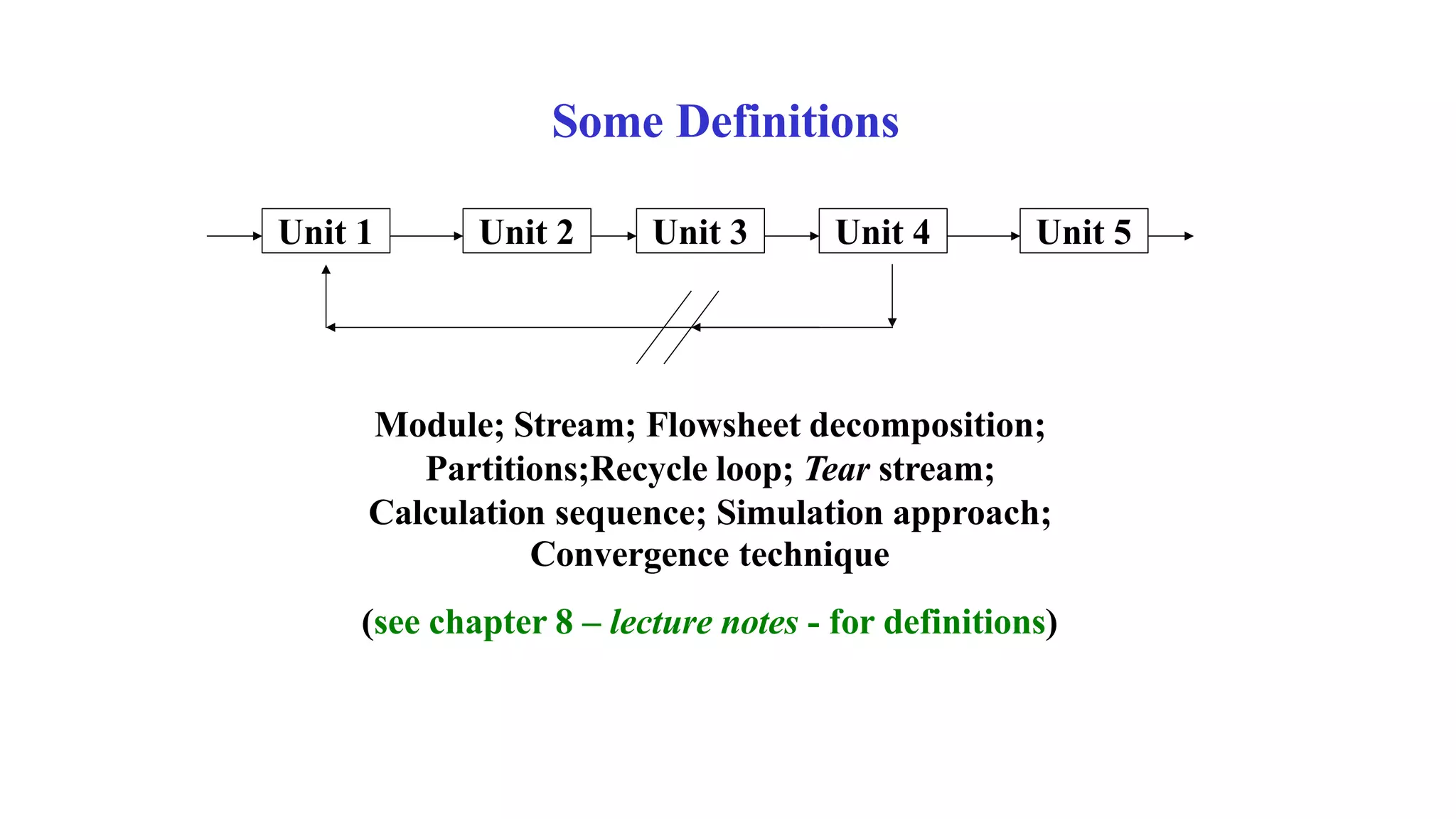

- 12. Some Definitions Unit 1Unit 2 Unit 3 Unit 4 Unit 5 Module; Stream; Flowsheet decomposition; Partitions;Recycle loop; Tear stream; Calculation sequence; Simulation approach; Convergence technique (see chapter 8 – lecture notes - for definitions)
