Entrepreneurship & Commerce in IT - 11 - Security & Encryption
The document outlines essential aspects of building and securing e-commerce websites, covering planning, system design, and security measures against online threats. It discusses various vulnerabilities, types of cyber threats, and specific security solutions to protect e-commerce transactions and communications. Additionally, it emphasizes the importance of encryption and firewall protection in ensuring the safety of online systems.
More Related Content
Similar to Entrepreneurship & Commerce in IT - 11 - Security & Encryption
Entrepreneurship & Commerce in IT - 11 - Security & Encryption
- 1. Entrepreneurship & Commerce inIT 11 Sachintha Gunasena MBCS http://lk.linkedin.com/in/sachinthadtg
- 2. Recap so far… SachinthaGunasena MBCS http://lk.linkedin.com/in/sachinthadtg

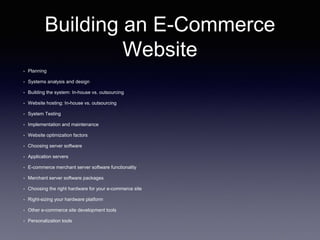

- 3. Building an E-Commerce Website •Planning • Systems analysis and design • Building the system: In-house vs. outsourcing • Website hosting: In-house vs. outsourcing • System Testing • Implementation and maintenance • Website optimization factors • Choosing server software • Application servers • E-commerce merchant server software functionality • Merchant server software packages • Choosing the right hardware for your e-commerce site • Right-sizing your hardware platform • Other e-commerce site development tools • Personalization tools
- 4.

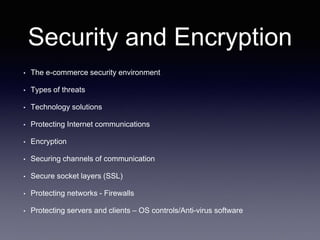

- 5. Security and Encryption •The e-commerce security environment • Types of threats • Technology solutions • Protecting Internet communications • Encryption • Securing channels of communication • Secure socket layers (SSL) • Protecting networks - Firewalls • Protecting servers and clients – OS controls/Anti-virus software

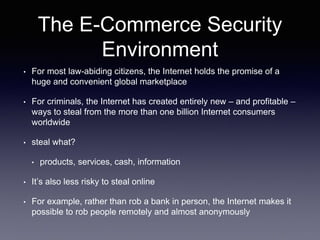

- 6. The E-Commerce Security Environment •For most law-abiding citizens, the Internet holds the promise of a huge and convenient global marketplace • For criminals, the Internet has created entirely new – and profitable – ways to steal from the more than one billion Internet consumers worldwide • steal what? • products, services, cash, information • It’s also less risky to steal online • For example, rather than rob a bank in person, the Internet makes it possible to rob people remotely and almost anonymously

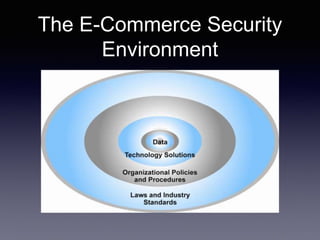

- 7.

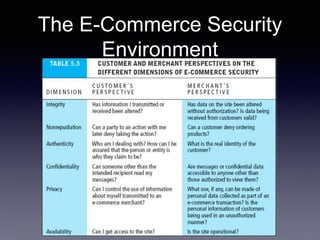

- 8.

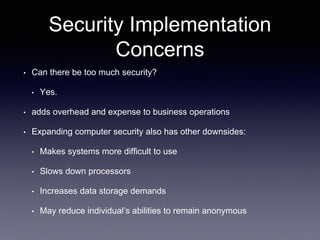

- 9. Security Implementation Concerns • Canthere be too much security? • Yes. • adds overhead and expense to business operations • Expanding computer security also has other downsides: • Makes systems more difficult to use • Slows down processors • Increases data storage demands • May reduce individual’s abilities to remain anonymous

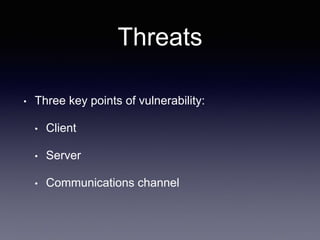

- 10. Threats • Three keypoints of vulnerability: • Client • Server • Communications channel

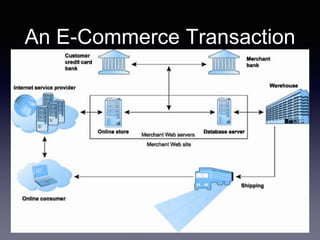

- 11.

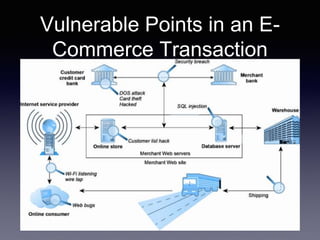

- 12. Vulnerable Points inan E- Commerce Transaction

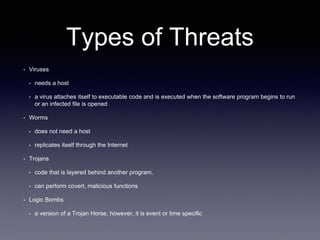

- 13. Types of Threats •Viruses • needs a host • a virus attaches itself to executable code and is executed when the software program begins to run or an infected file is opened • Worms • does not need a host • replicates itself through the Internet • Trojans • code that is layered behind another program, • can perform covert, malicious functions • Logic Bombs • a version of a Trojan Horse, however, it is event or time specific

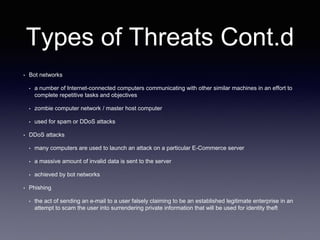

- 14. Types of ThreatsCont.d • Bot networks • a number of Internet-connected computers communicating with other similar machines in an effort to complete repetitive tasks and objectives • zombie computer network / master host computer • used for spam or DDoS attacks • DDoS attacks • many computers are used to launch an attack on a particular E-Commerce server • a massive amount of invalid data is sent to the server • achieved by bot networks • Phishing • the act of sending an e-mail to a user falsely claiming to be an established legitimate enterprise in an attempt to scam the user into surrendering private information that will be used for identity theft

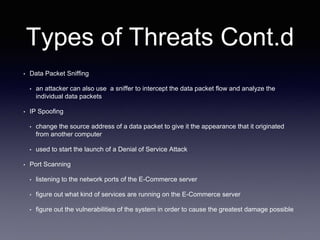

- 15. Types of ThreatsCont.d • Data Packet Sniffing • an attacker can also use a sniffer to intercept the data packet flow and analyze the individual data packets • IP Spoofing • change the source address of a data packet to give it the appearance that it originated from another computer • used to start the launch of a Denial of Service Attack • Port Scanning • listening to the network ports of the E-Commerce server • figure out what kind of services are running on the E-Commerce server • figure out the vulnerabilities of the system in order to cause the greatest damage possible

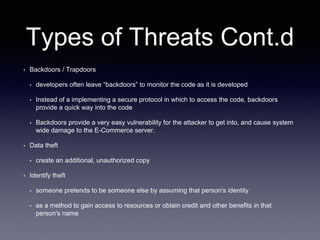

- 16. Types of ThreatsCont.d • Backdoors / Trapdoors • developers often leave “backdoors” to monitor the code as it is developed • Instead of a implementing a secure protocol in which to access the code, backdoors provide a quick way into the code • Backdoors provide a very easy vulnerability for the attacker to get into, and cause system wide damage to the E-Commerce server. • Data theft • create an additional, unauthorized copy • Identify theft • someone pretends to be someone else by assuming that person's identity • as a method to gain access to resources or obtain credit and other benefits in that person's name

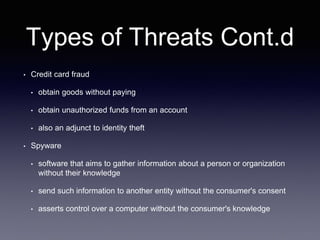

- 17. Types of ThreatsCont.d • Credit card fraud • obtain goods without paying • obtain unauthorized funds from an account • also an adjunct to identity theft • Spyware • software that aims to gather information about a person or organization without their knowledge • send such information to another entity without the consumer's consent • asserts control over a computer without the consumer's knowledge

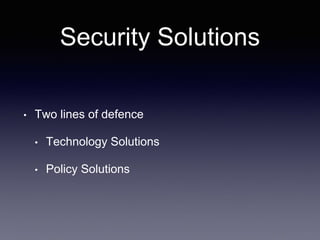

- 18. Security Solutions • Twolines of defence • Technology Solutions • Policy Solutions

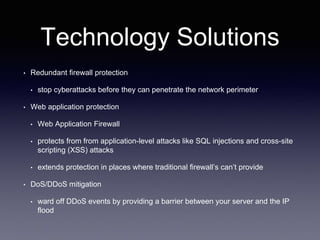

- 19. Technology Solutions • Redundantfirewall protection • stop cyberattacks before they can penetrate the network perimeter • Web application protection • Web Application Firewall • protects from from application-level attacks like SQL injections and cross-site scripting (XSS) attacks • extends protection in places where traditional firewall’s can’t provide • DoS/DDoS mitigation • ward off DDoS events by providing a barrier between your server and the IP flood

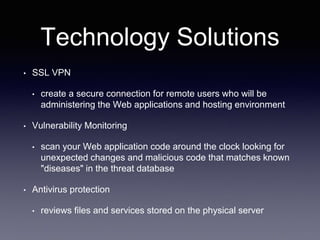

- 20. Technology Solutions • SSLVPN • create a secure connection for remote users who will be administering the Web applications and hosting environment • Vulnerability Monitoring • scan your Web application code around the clock looking for unexpected changes and malicious code that matches known "diseases" in the threat database • Antivirus protection • reviews files and services stored on the physical server
- 21. Technology Solutions • Twofactor authentication • requires Web site administrators to go through two layers of security before obtaining access to the hosting environment • unique because it challenges you with something you know and something you have • prevents password leaks • Encrypted backup, service monitoring and response • read more

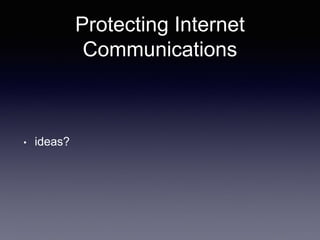

- 22.

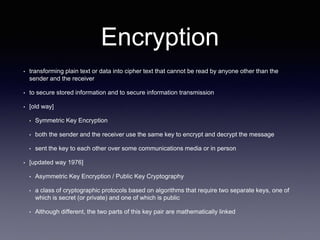

- 23. Encryption • transforming plaintext or data into cipher text that cannot be read by anyone other than the sender and the receiver • to secure stored information and to secure information transmission • [old way] • Symmetric Key Encryption • both the sender and the receiver use the same key to encrypt and decrypt the message • sent the key to each other over some communications media or in person • [updated way 1976] • Asymmetric Key Encryption / Public Key Cryptography • a class of cryptographic protocols based on algorithms that require two separate keys, one of which is secret (or private) and one of which is public • Although different, the two parts of this key pair are mathematically linked

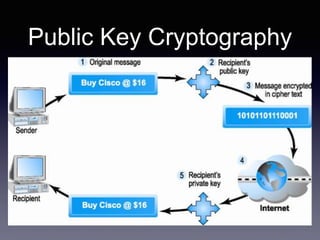

- 24.
- 25. Limitations to Encryption •All forms of encryption have limitations • It is not effective against insiders • Protecting private keys may also be difficult because they are stored on insecure desktop and laptop computers • Additional technology solutions exist for securing channels of communications, networks, and servers/clients

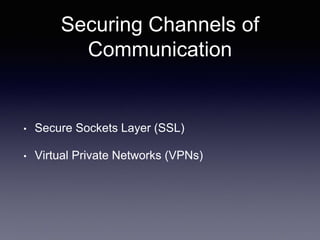

- 26. Securing Channels of Communication •Secure Sockets Layer (SSL) • Virtual Private Networks (VPNs)
- 27. Secure Socket Layer(SSL) • Transport Layer Security (TLS) and its predecessor, Secure Sockets Layer (SSL), both of which are frequently referred to as 'SSL', are cryptographic protocols designed to provide communications security over a computer network • use X.509 certificates and hence asymmetric cryptography to • authenticate the counterpart with whom they are communicating • and to negotiate a symmetric session key • session key is then used to encrypt data flowing between the parties

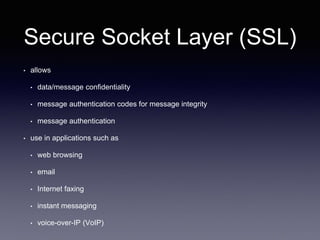

- 28. Secure Socket Layer(SSL) • allows • data/message confidentiality • message authentication codes for message integrity • message authentication • use in applications such as • web browsing • email • Internet faxing • instant messaging • voice-over-IP (VoIP)

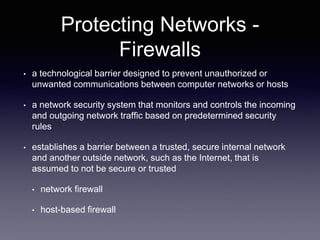

- 29. Protecting Networks - Firewalls •a technological barrier designed to prevent unauthorized or unwanted communications between computer networks or hosts • a network security system that monitors and controls the incoming and outgoing network traffic based on predetermined security rules • establishes a barrier between a trusted, secure internal network and another outside network, such as the Internet, that is assumed to not be secure or trusted • network firewall • host-based firewall

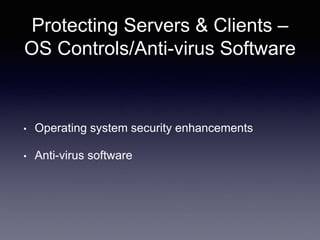

- 30. Protecting Servers &Clients – OS Controls/Anti-virus Software • Operating system security enhancements • Anti-virus software

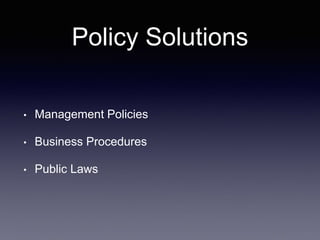

- 31. Policy Solutions • ManagementPolicies • Business Procedures • Public Laws

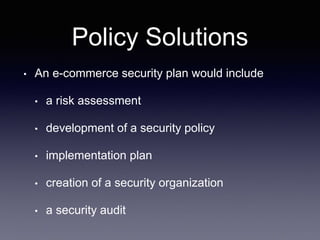

- 32. Policy Solutions • Ane-commerce security plan would include • a risk assessment • development of a security policy • implementation plan • creation of a security organization • a security audit

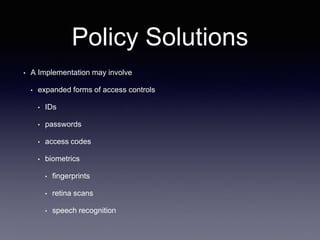

- 33. Policy Solutions • AImplementation may involve • expanded forms of access controls • IDs • passwords • access codes • biometrics • fingerprints • retina scans • speech recognition

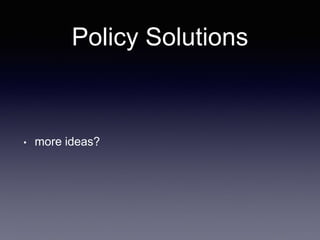

- 34.
- 35. References • http://www.technologyexecutivesclub.com/Articles/security/artThreatstoEcommerceServers.php • http://www.slideshare.net/Timothy212/ebusiness-environment-and-analysis •http://www.slideshare.net/omvikram/securityecommerce?qid=ae6a3149-f235-4e7d-81f0- 9e45da47bcd5&v=qf1&b=&from_search=4 • http://www.applicure.com/solutions/ecommerce-security • http://www.ecommercetimes.com/story/69577.html • http://www.ehow.com/how_5303365_protect-privacy-internet.html • http://www.slate.com/blogs/future_tense/2013/06/07/how_to_secure_and_encrypt_your_email_and_other_communications_fro m_prism.html • http://www.ecommerce-digest.com/staying-safe.html • http://econ.ucsb.edu/~doug/245a/Papers/ECommerce%20Privacy.pdf • http://www.zurich.ibm.com/pdf/news/Konsbruck.pdf • http://www.slideshare.net/m8817/security-in-ecommerce • http://paws.kettering.edu/~aborcher/articles/CC001.PDF • https://en.wikipedia.org/wiki/Transport_Layer_Security • https://en.wikipedia.org/wiki/Public-key_cryptography
- 36. Next Up… • WebPayment Systems Sachintha Gunasena MBCS http://lk.linkedin.com/in/sachinthadtg
- 37. Thank you. Sachintha GunasenaMBCS http://lk.linkedin.com/in/sachinthadtg
