1. Embedding Jaspersoft into your PHP
Application
Mariano Luna
Senior Sales Engineer, Jaspersoft
January 22, 2013

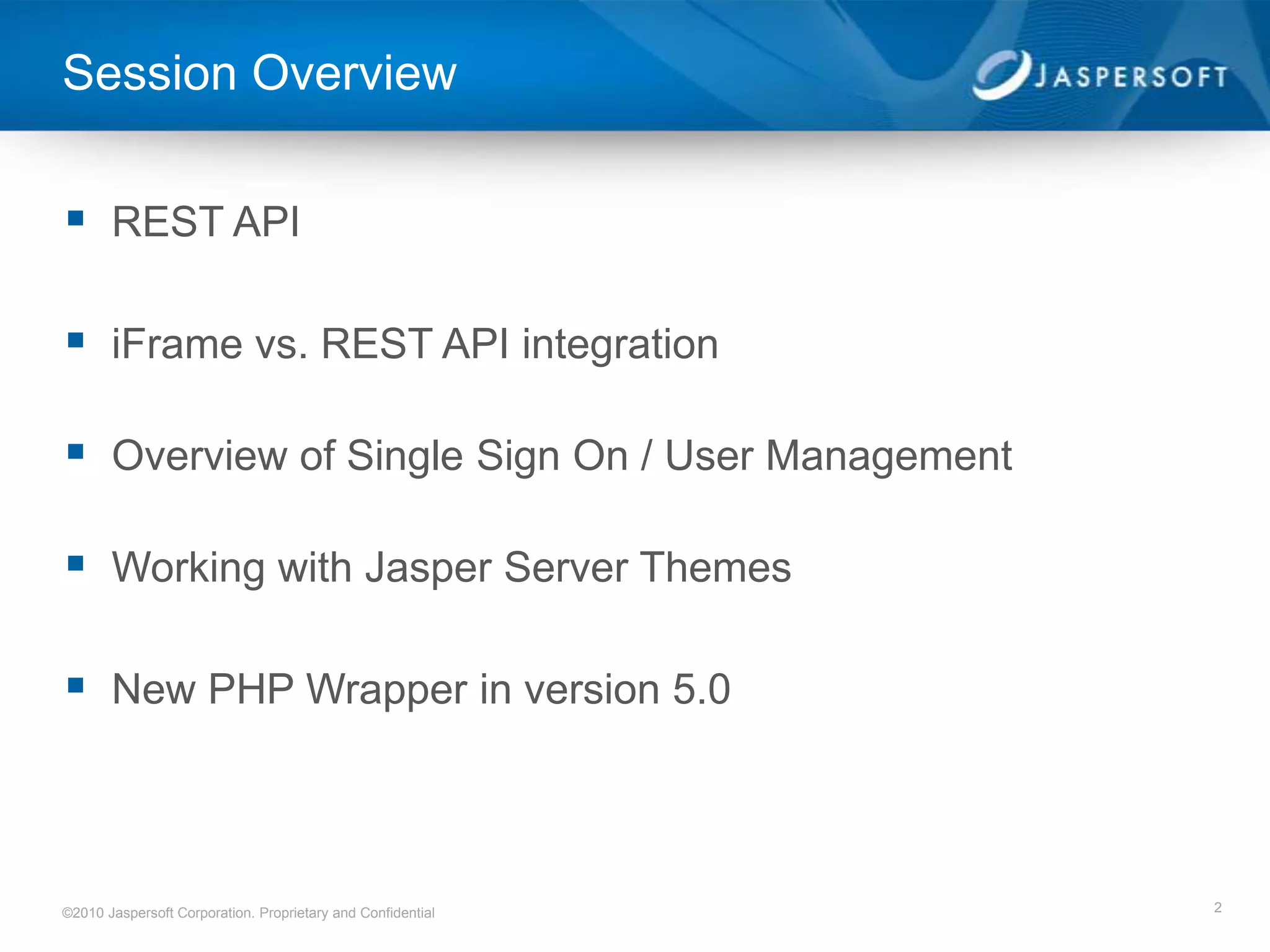

2. Session Overview
 REST API
 iFrame vs. REST API integration
 Overview of Single Sign On / User Management
 Working with Jasper Server Themes
 New PHP Wrapper in version 5.0
©2010 Jaspersoft Corporation. Proprietary and Confidential 2

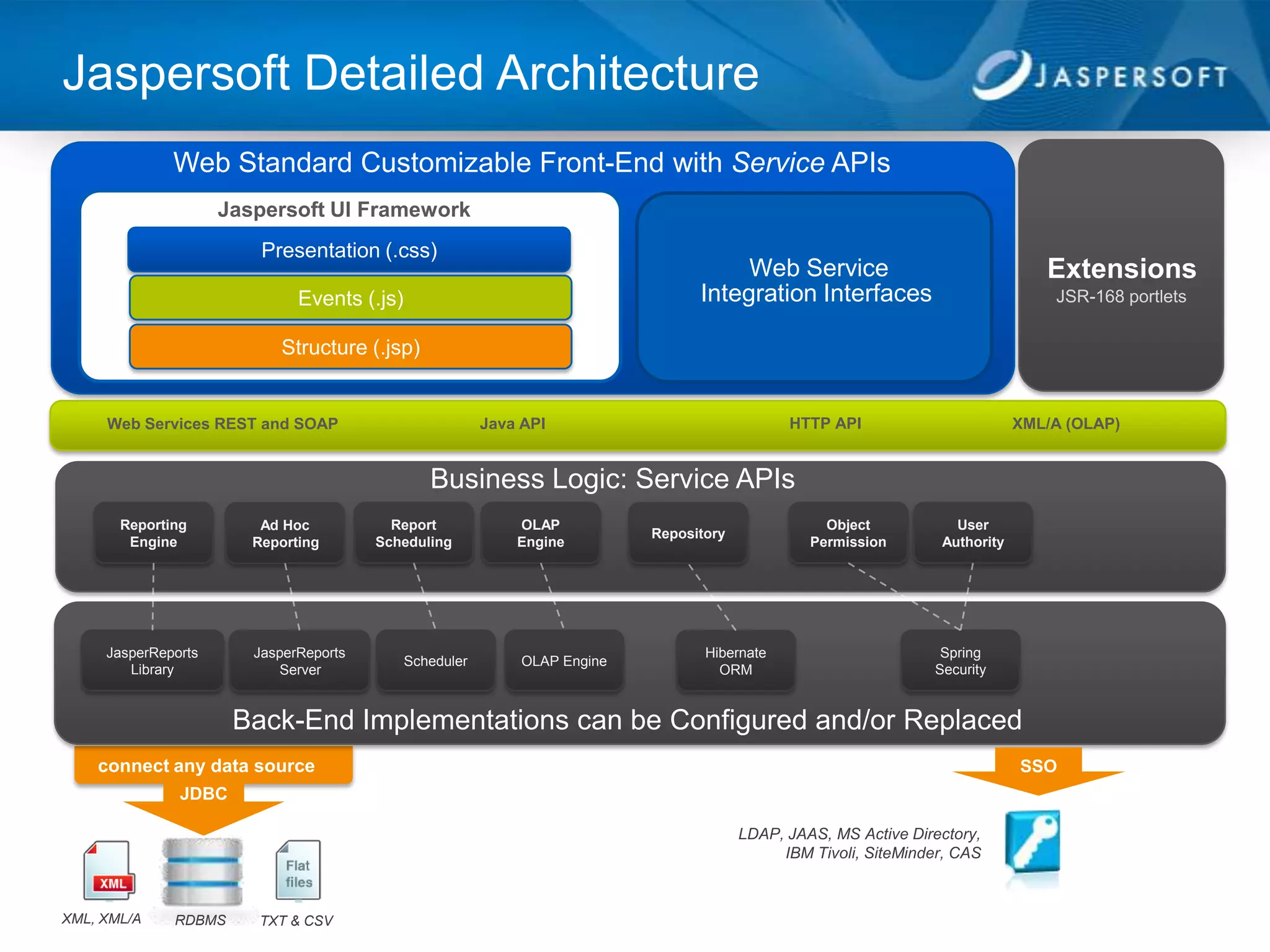

3. Jaspersoft Detailed Architecture
Web Standard Customizable Front-End with Service APIs
Jaspersoft UI Framework
Presentation (.css)
Web Service Extensions
Events (.js) Integration Interfaces JSR-168 portlets
Structure (.jsp)
Web Services REST and SOAP Java API HTTP API XML/A (OLAP)
Business Logic: Service APIs
Reporting Ad Hoc Report OLAP Object User
Repository
Engine Reporting Scheduling Engine Permission Authority
JasperReports JasperReports Hibernate Spring
Scheduler OLAP Engine
Library Server ORM Security
Back-End Implementations can be Configured and/or Replaced
connect any data source SSO
JDBC
LDAP, JAAS, MS Active Directory,
IBM Tivoli, SiteMinder, CAS
XML, XML/A RDBMS TXT & CSV

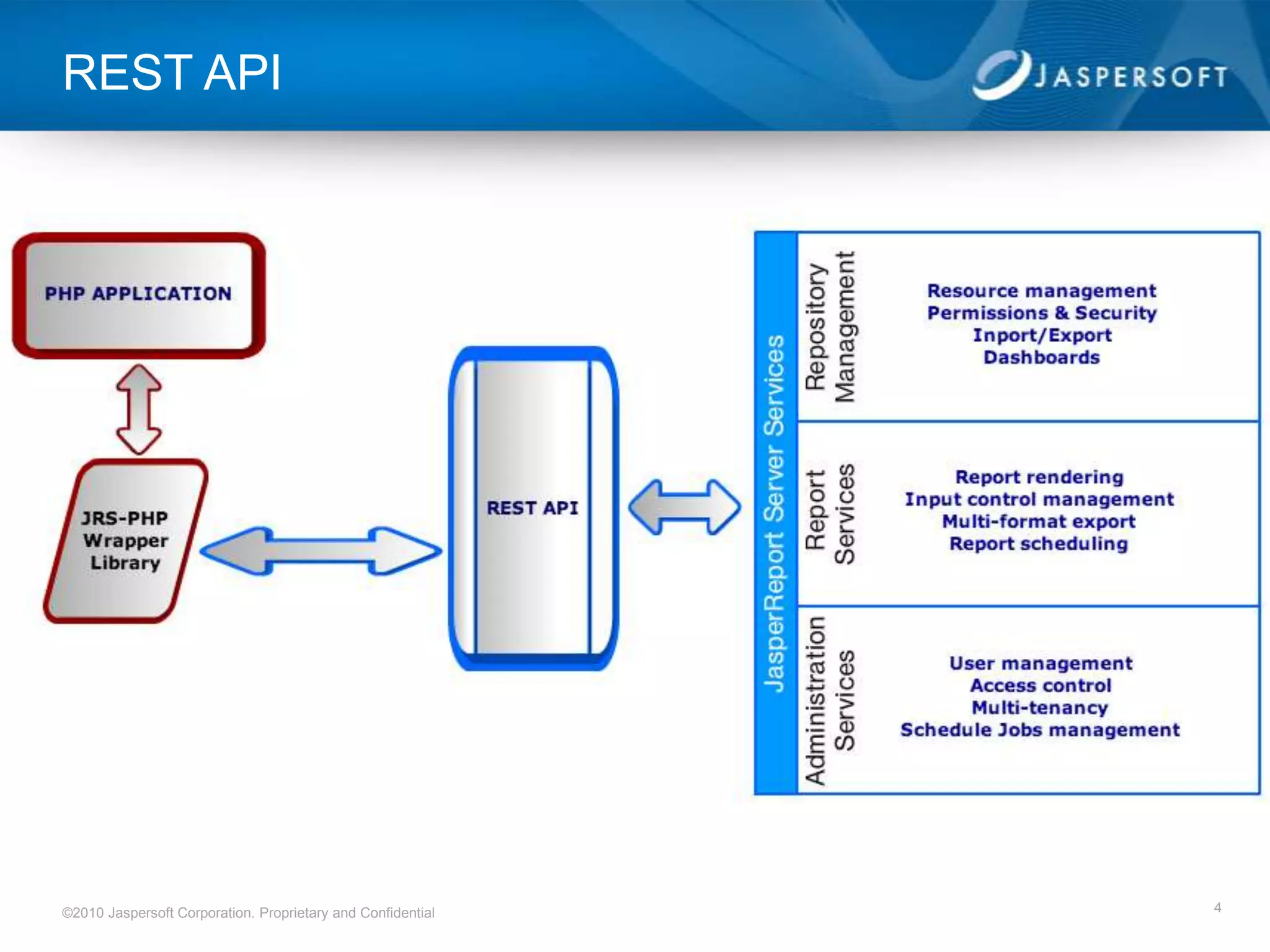

4. REST API
©2010 Jaspersoft Corporation. Proprietary and Confidential 4

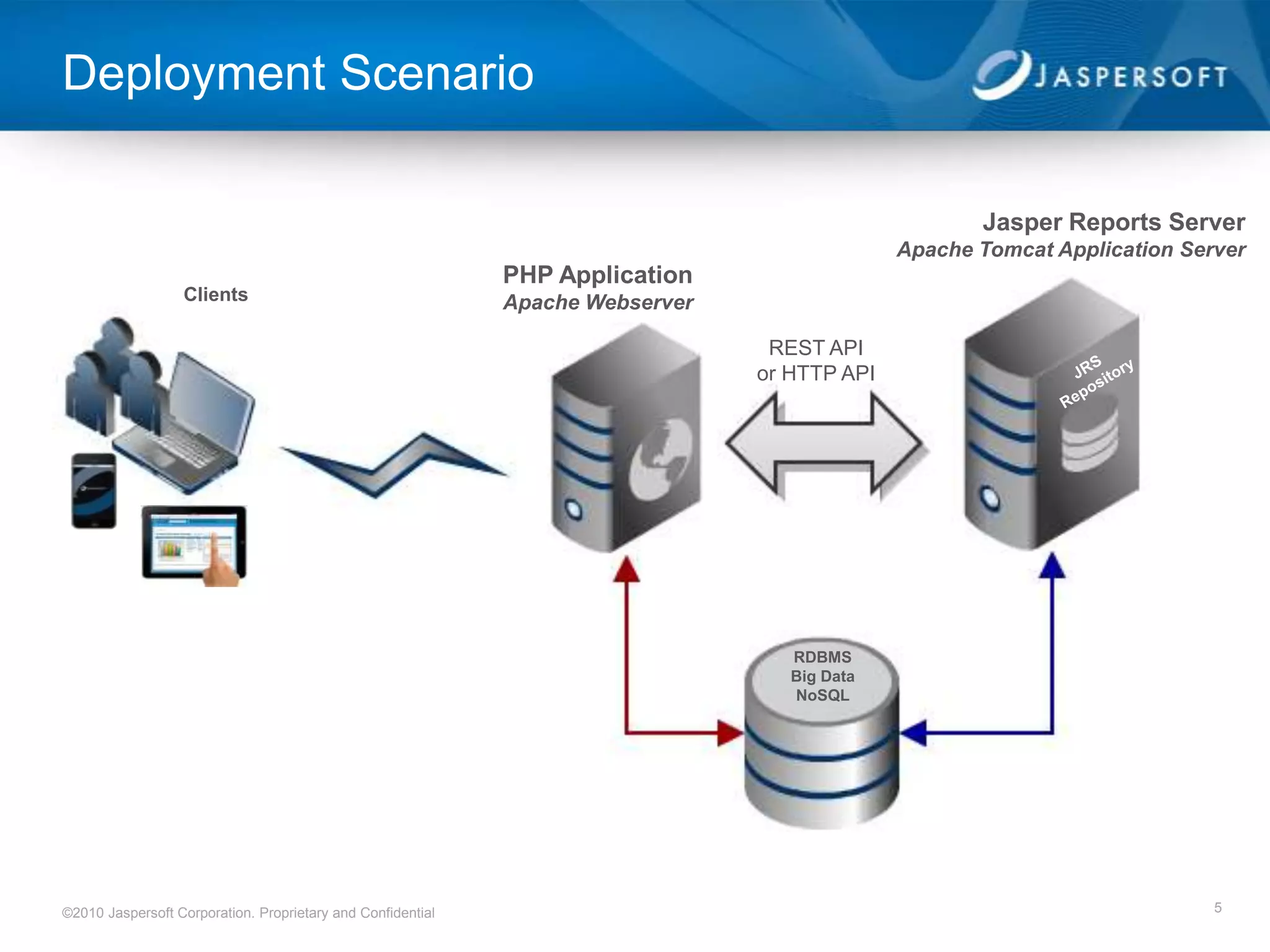

5. Deployment Scenario
Jasper Reports Server
Apache Tomcat Application Server
PHP Application
Clients Apache Webserver
REST API
or HTTP API
RDBMS
Big Data
NoSQL
©2010 Jaspersoft Corporation. Proprietary and Confidential 5

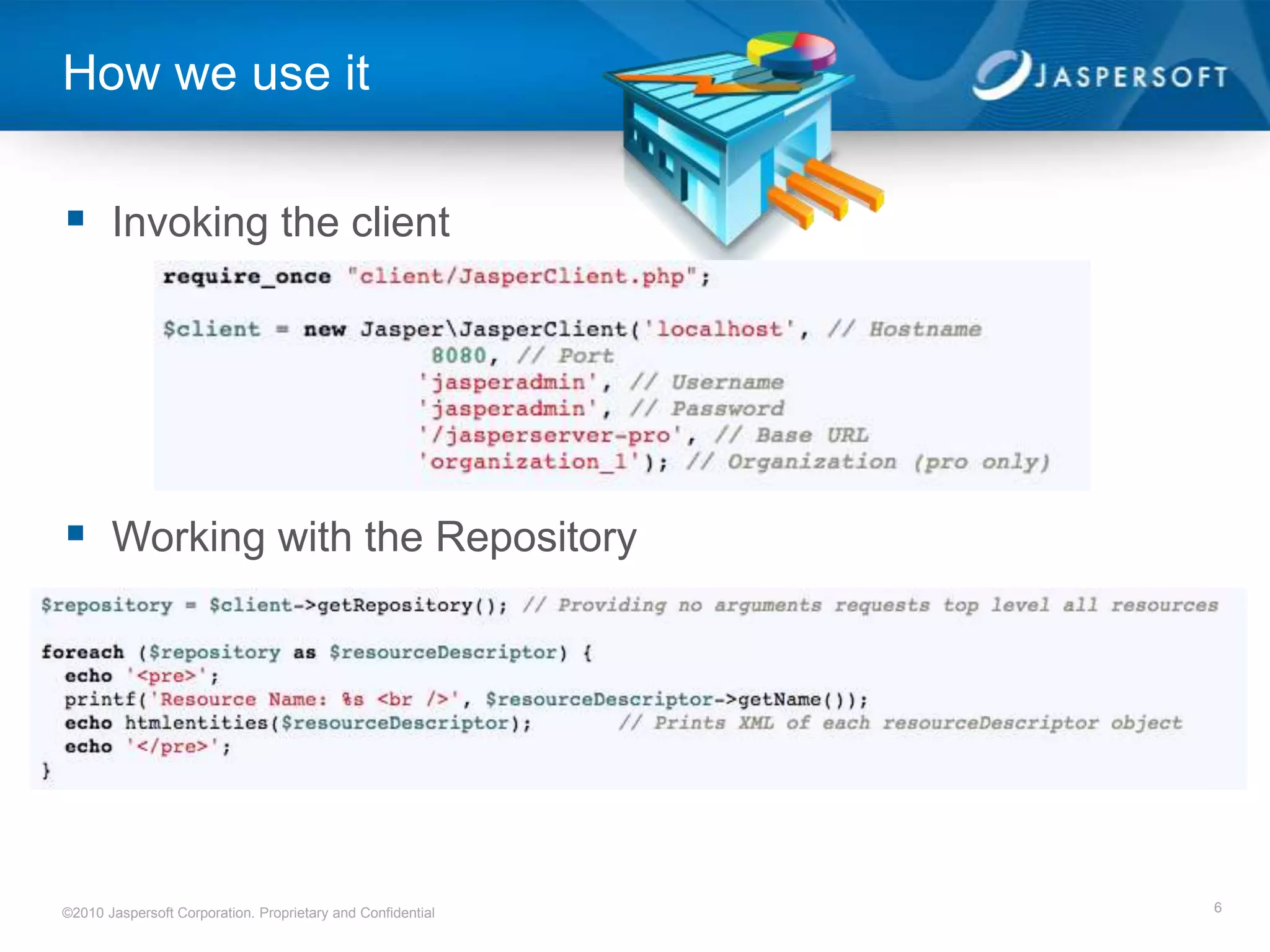

6. How we use it
 Invoking the client
 Working with the Repository
©2010 Jaspersoft Corporation. Proprietary and Confidential 6

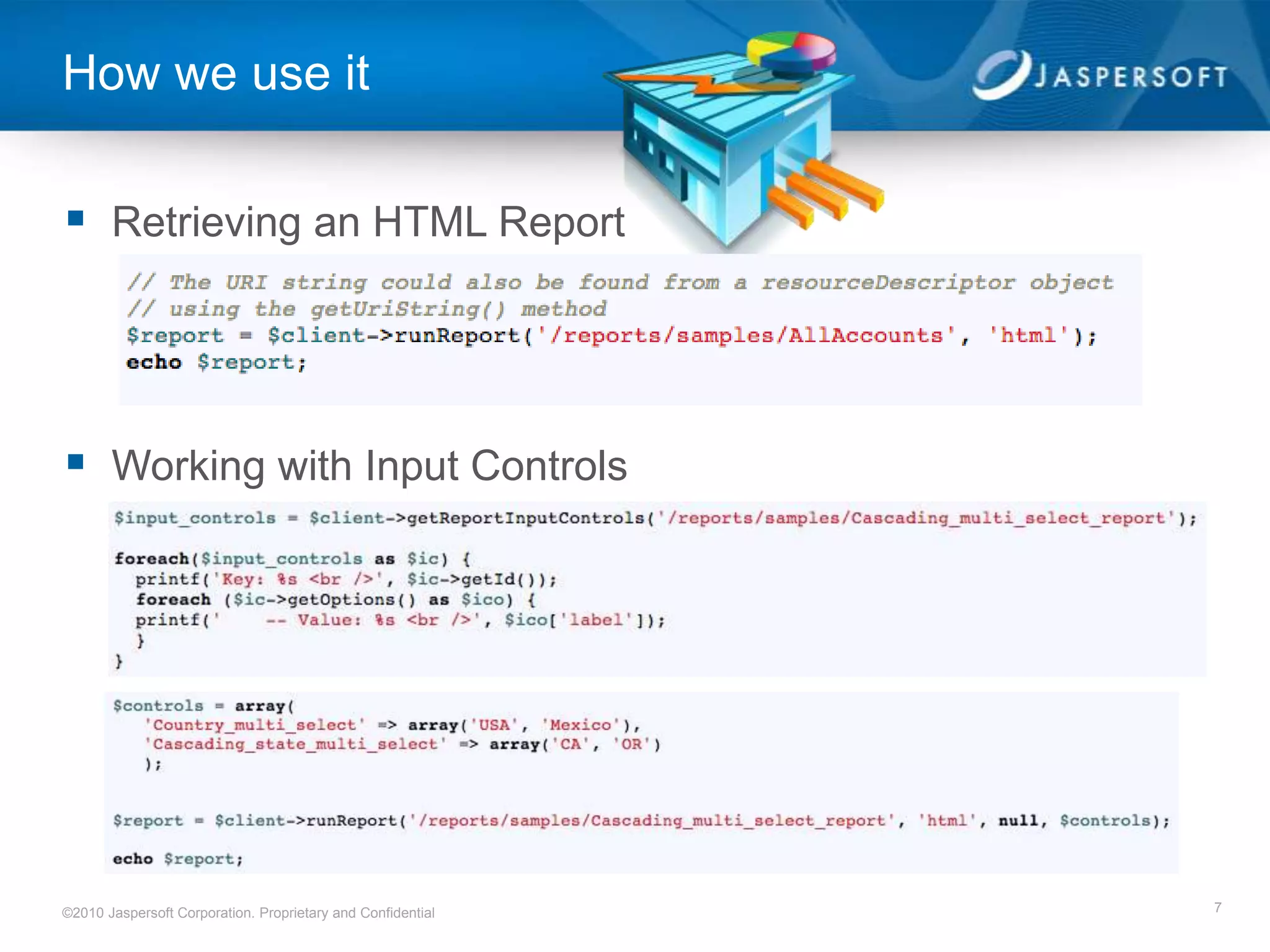

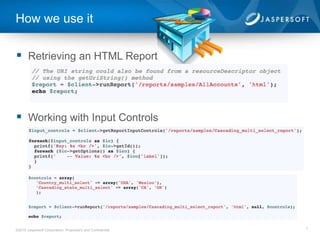

7. How we use it
 Retrieving an HTML Report
 Working with Input Controls
©2010 Jaspersoft Corporation. Proprietary and Confidential 7

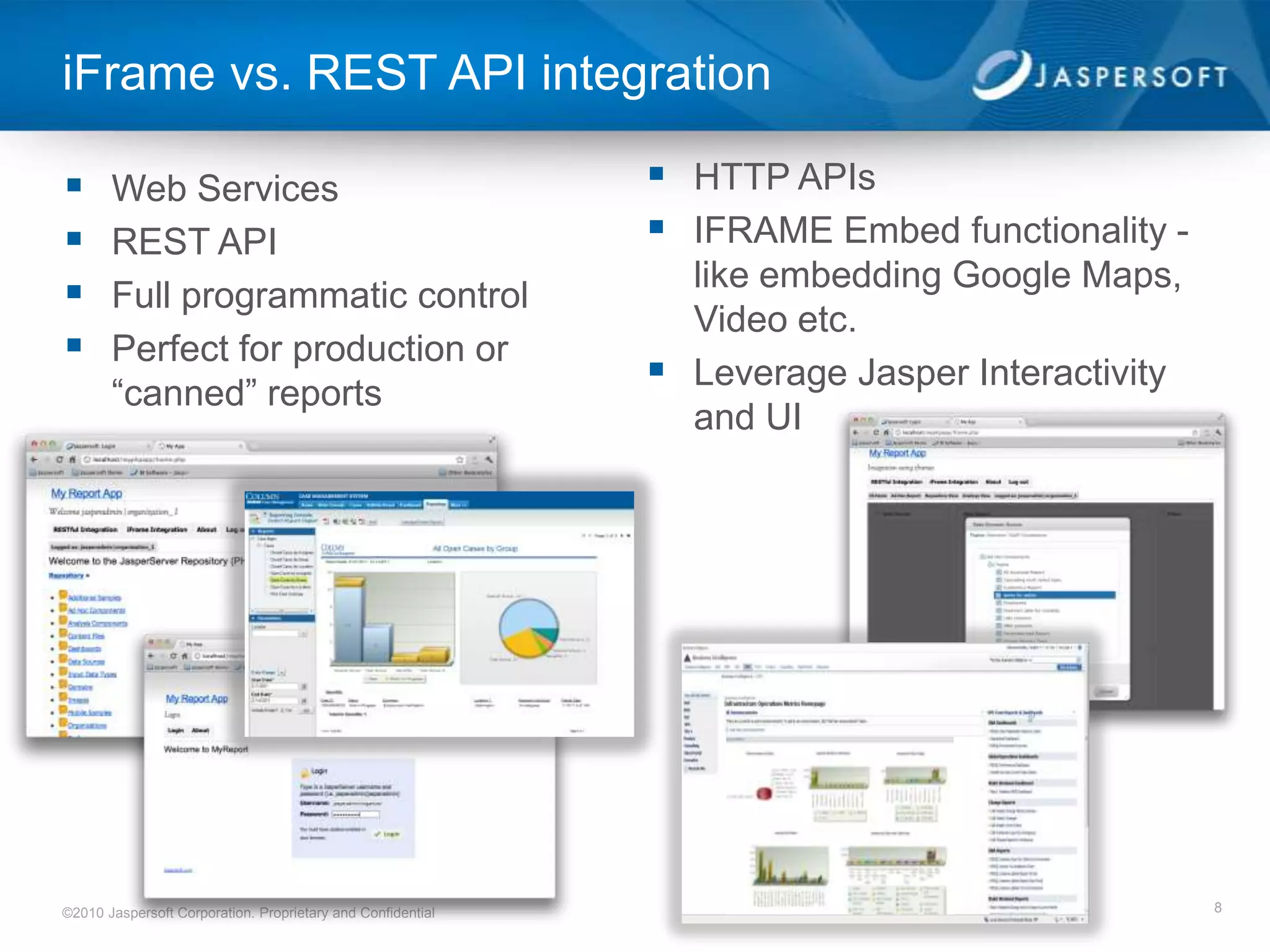

8. iFrame vs. REST API integration
 Web Services  HTTP APIs
 REST API  IFRAME Embed functionality -
like embedding Google Maps,
 Full programmatic control
Video etc.
 Perfect for production or
“canned” reports
 Leverage Jasper Interactivity
and UI
©2010 Jaspersoft Corporation. Proprietary and Confidential 8

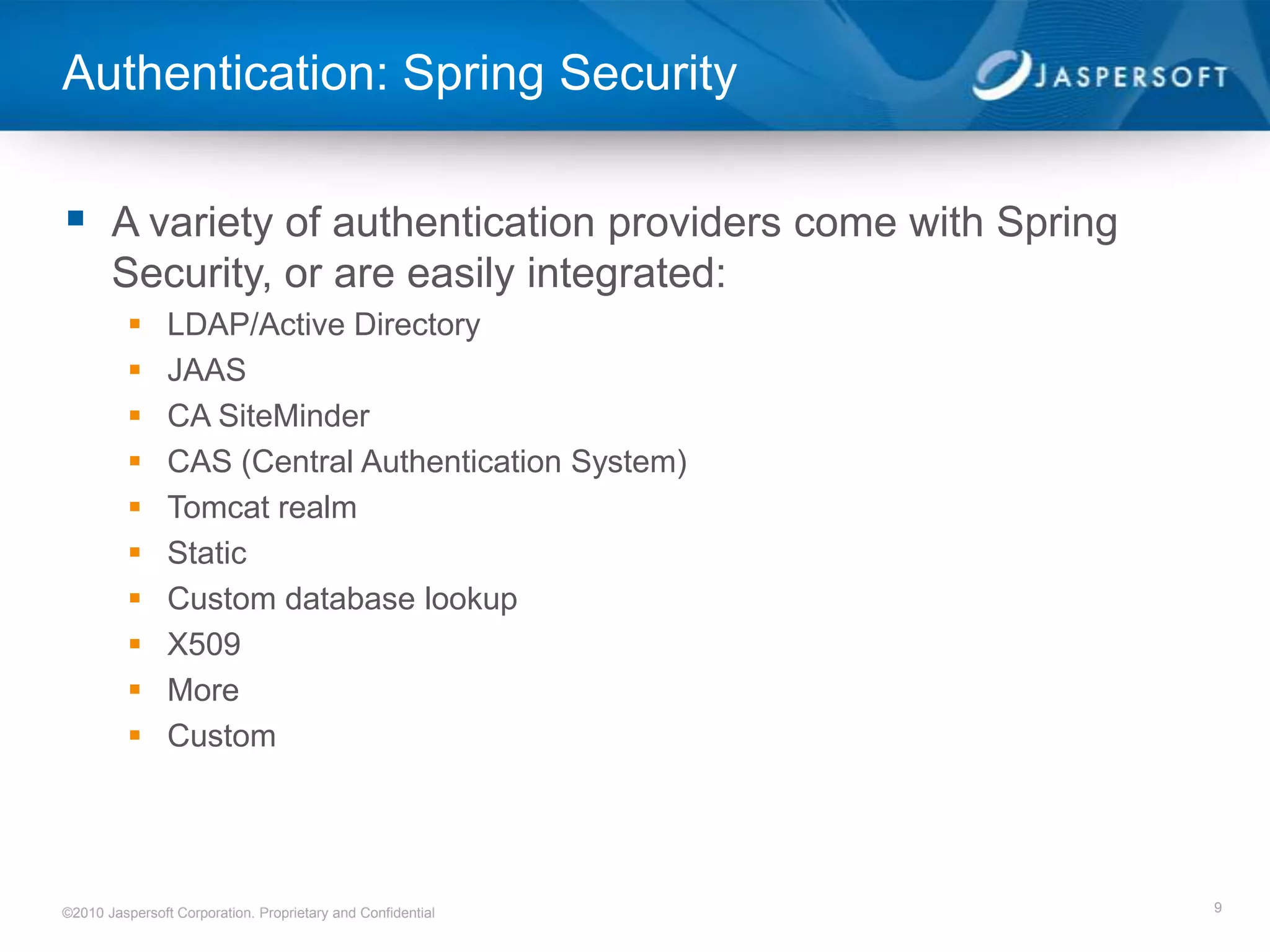

9. Authentication: Spring Security
 A variety of authentication providers come with Spring
Security, or are easily integrated:
 LDAP/Active Directory
 JAAS
 CA SiteMinder
 CAS (Central Authentication System)
 Tomcat realm
 Static
 Custom database lookup
 X509
 More
 Custom
©2010 Jaspersoft Corporation. Proprietary and Confidential 9

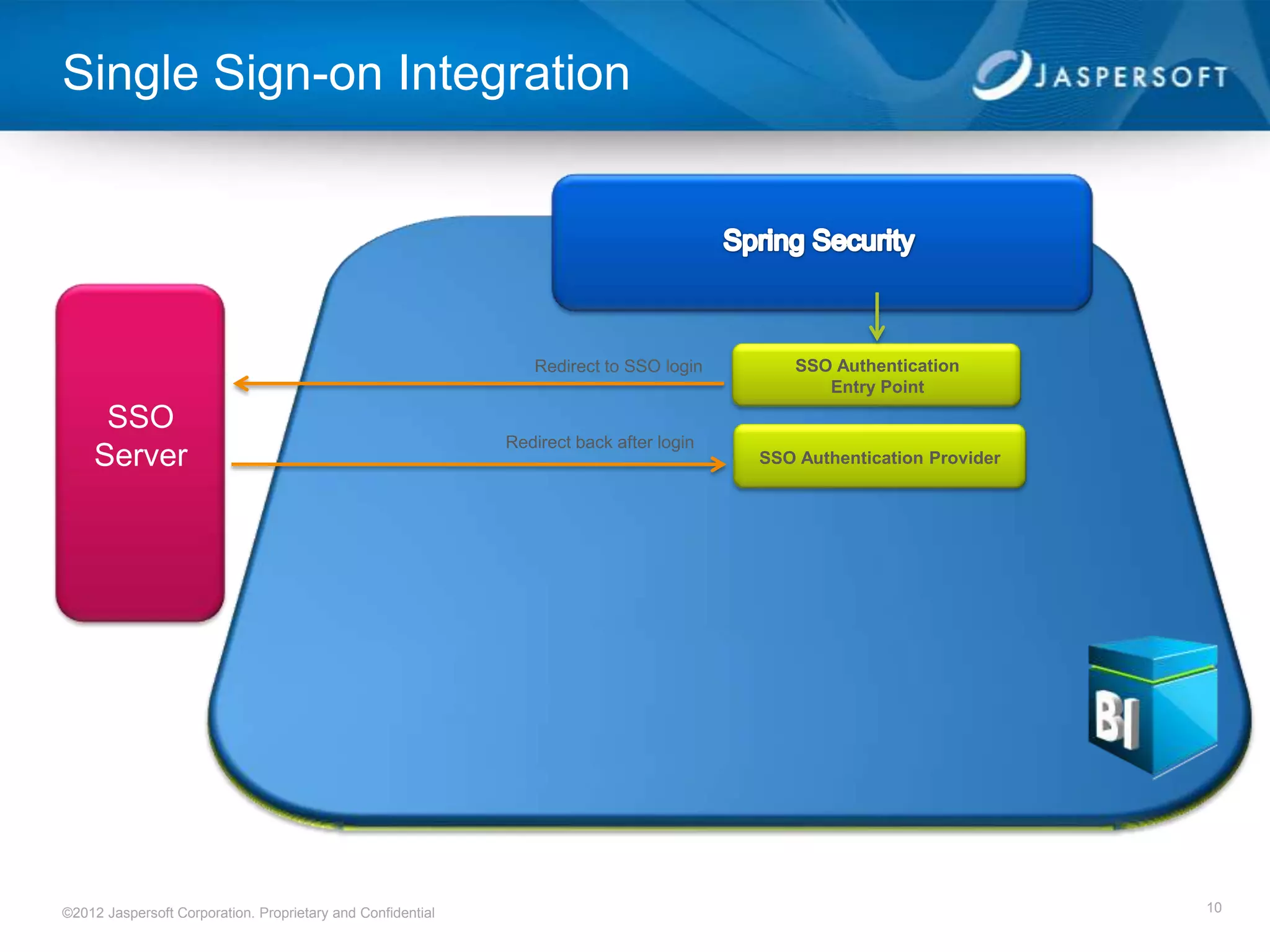

10. Single Sign-on Integration
Redirect to SSO login SSO Authentication
Entry Point
SSO
Redirect back after login
Server SSO Authentication Provider
©2012 Jaspersoft Corporation. Proprietary and Confidential 10

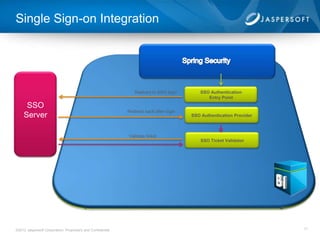

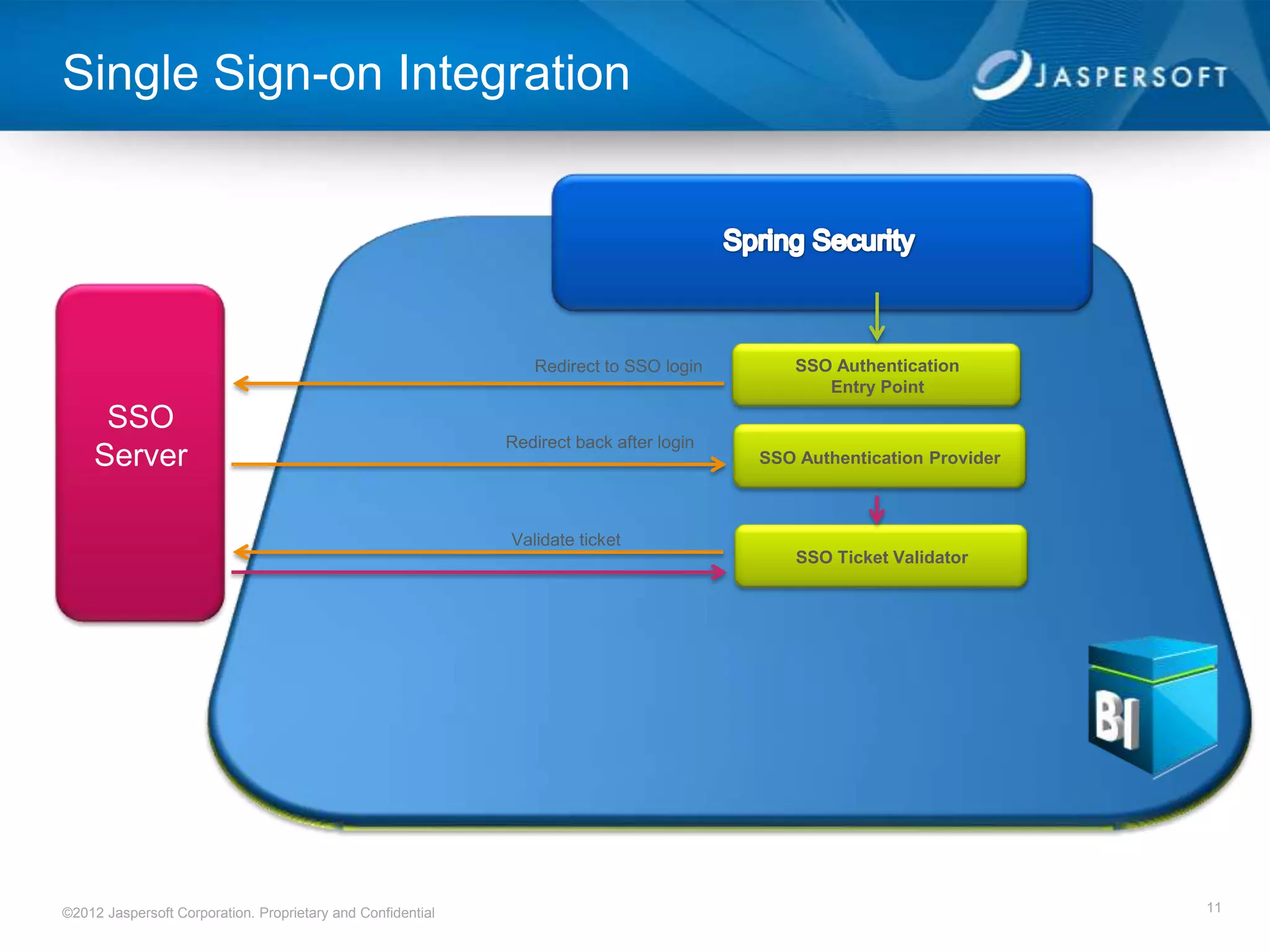

11. Single Sign-on Integration
Redirect to SSO login SSO Authentication
Entry Point
SSO
Redirect back after login
Server SSO Authentication Provider
Validate ticket
SSO Ticket Validator
©2012 Jaspersoft Corporation. Proprietary and Confidential 11

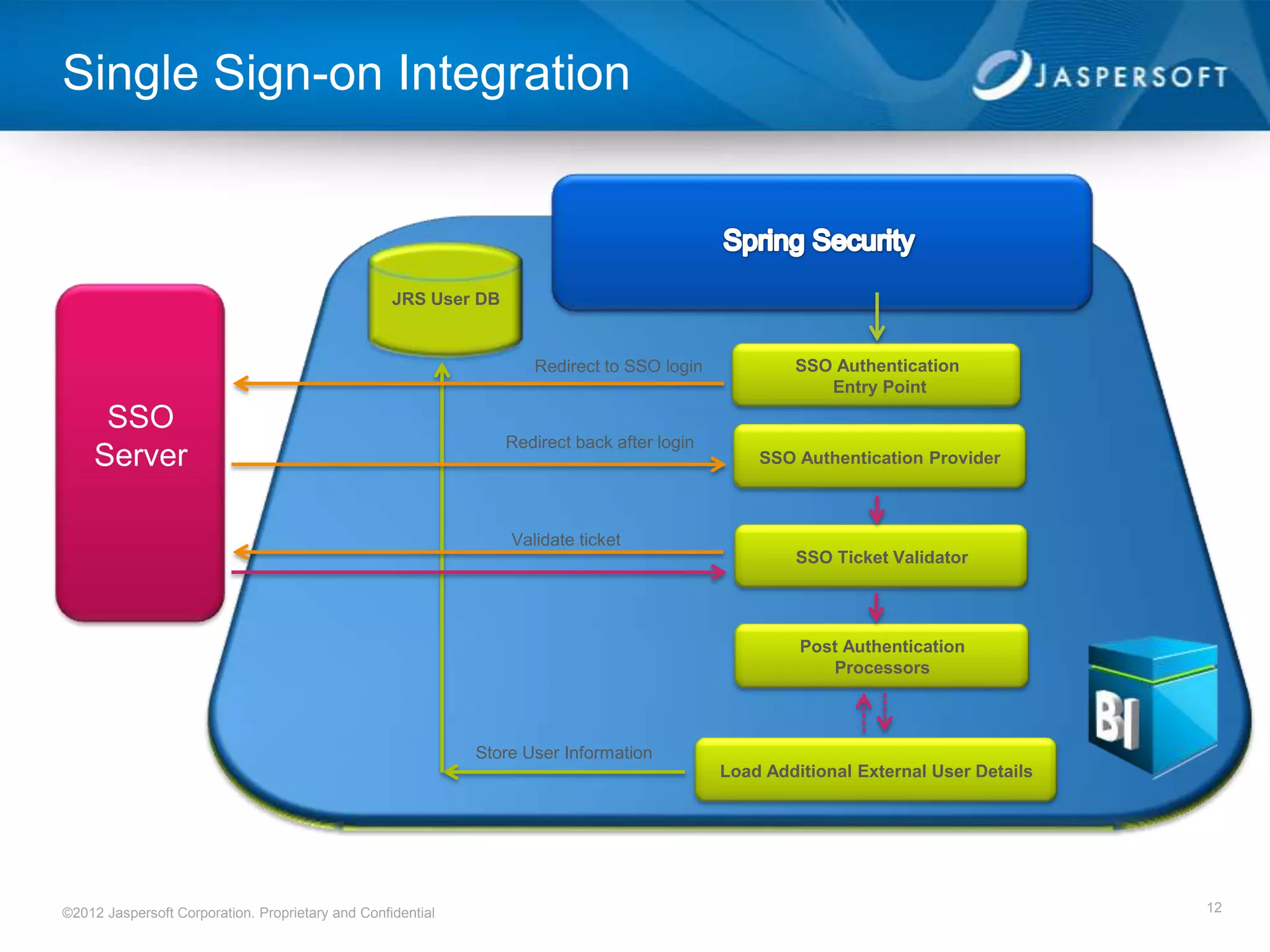

12. Single Sign-on Integration
JRS User DB
Redirect to SSO login SSO Authentication
Entry Point
SSO
Redirect back after login
Server SSO Authentication Provider
Validate ticket
SSO Ticket Validator
Post Authentication
Processors
Store User Information
Load Additional External User Details
©2012 Jaspersoft Corporation. Proprietary and Confidential 12

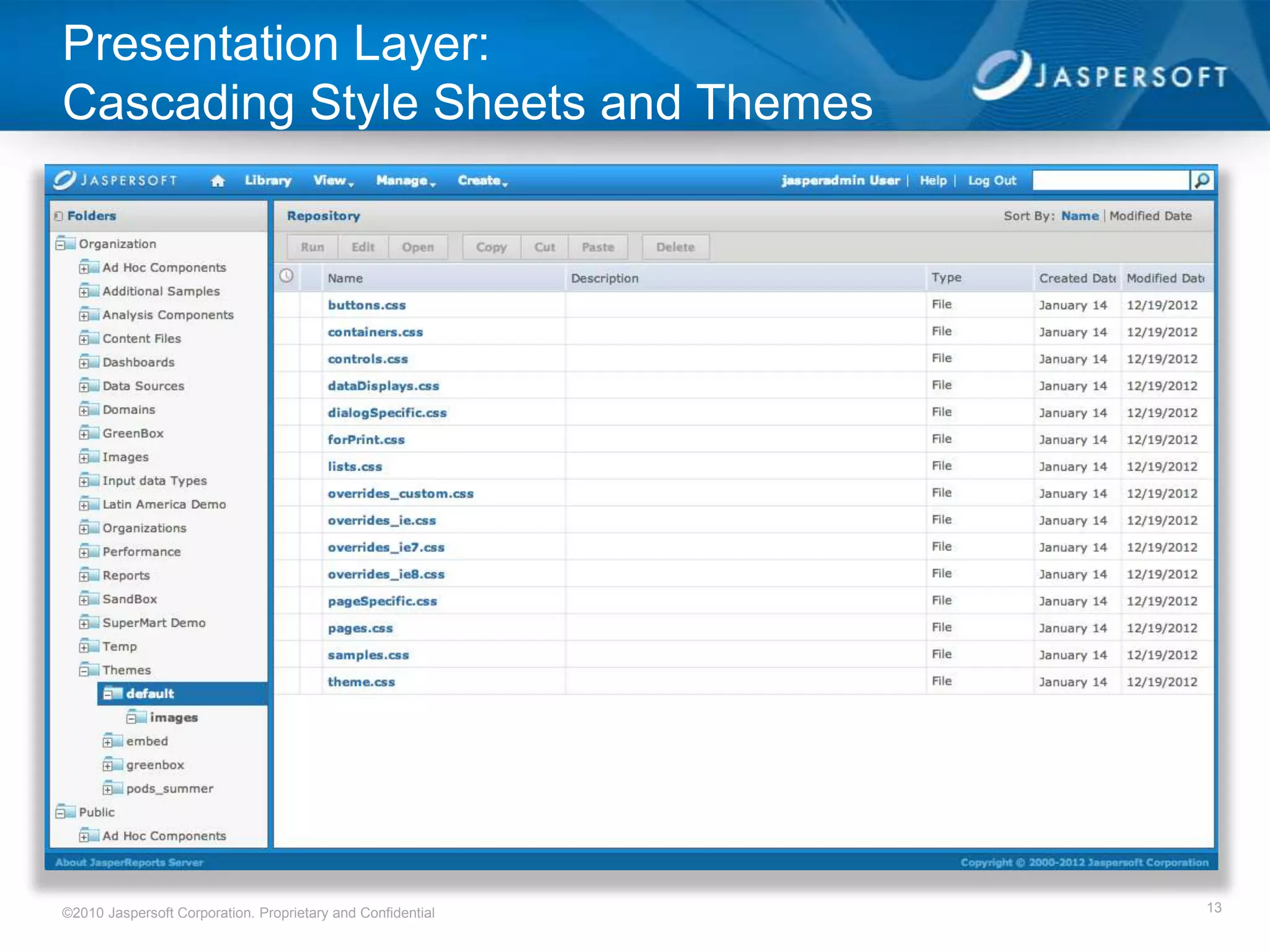

13. Presentation Layer:
Cascading Style Sheets and Themes
©2010 Jaspersoft Corporation. Proprietary and Confidential 13

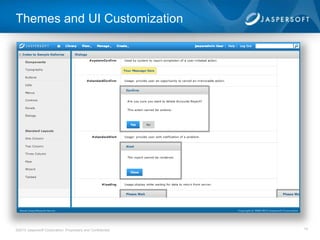

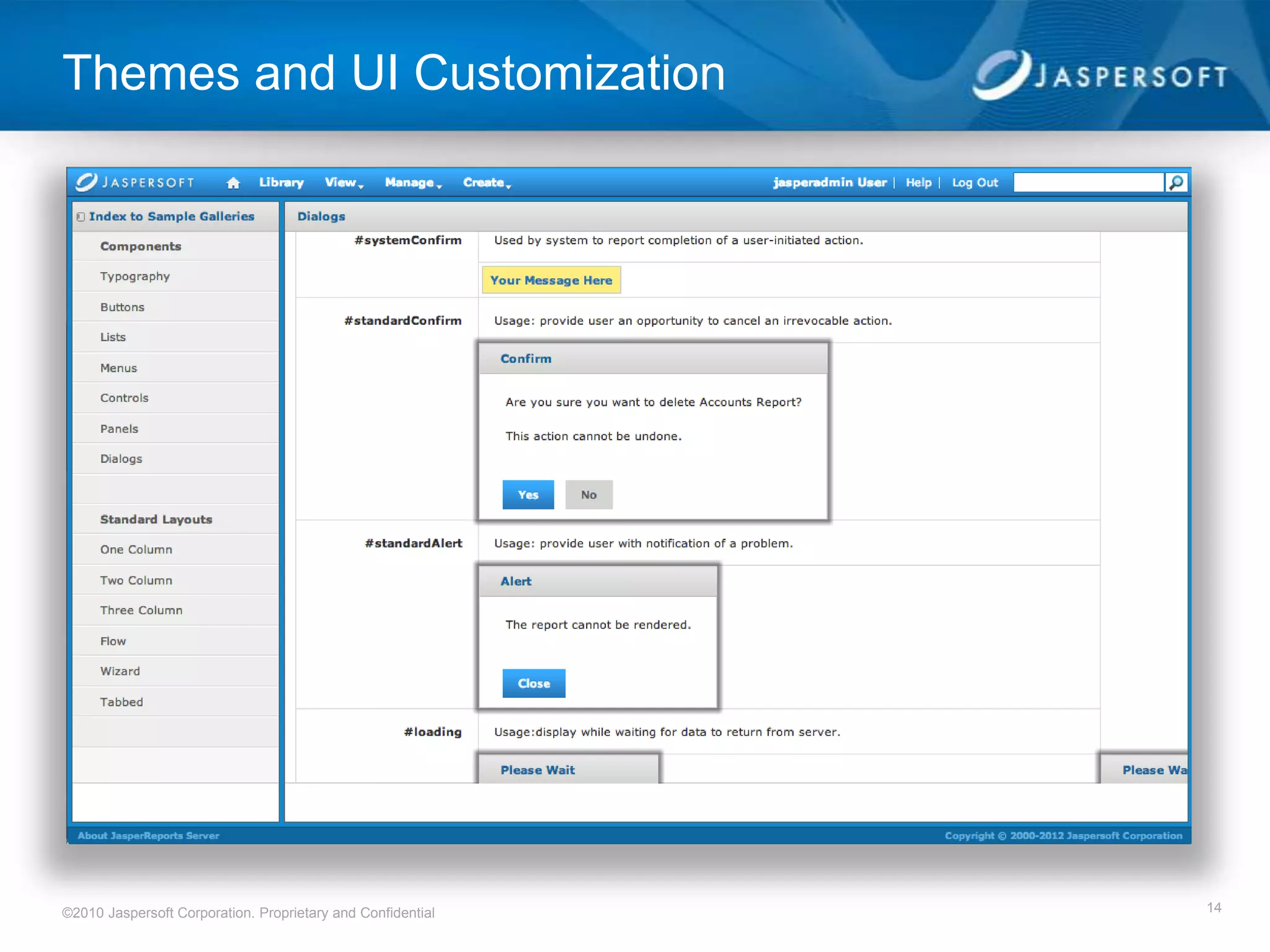

14. Themes and UI Customization
©2010 Jaspersoft Corporation. Proprietary and Confidential 14

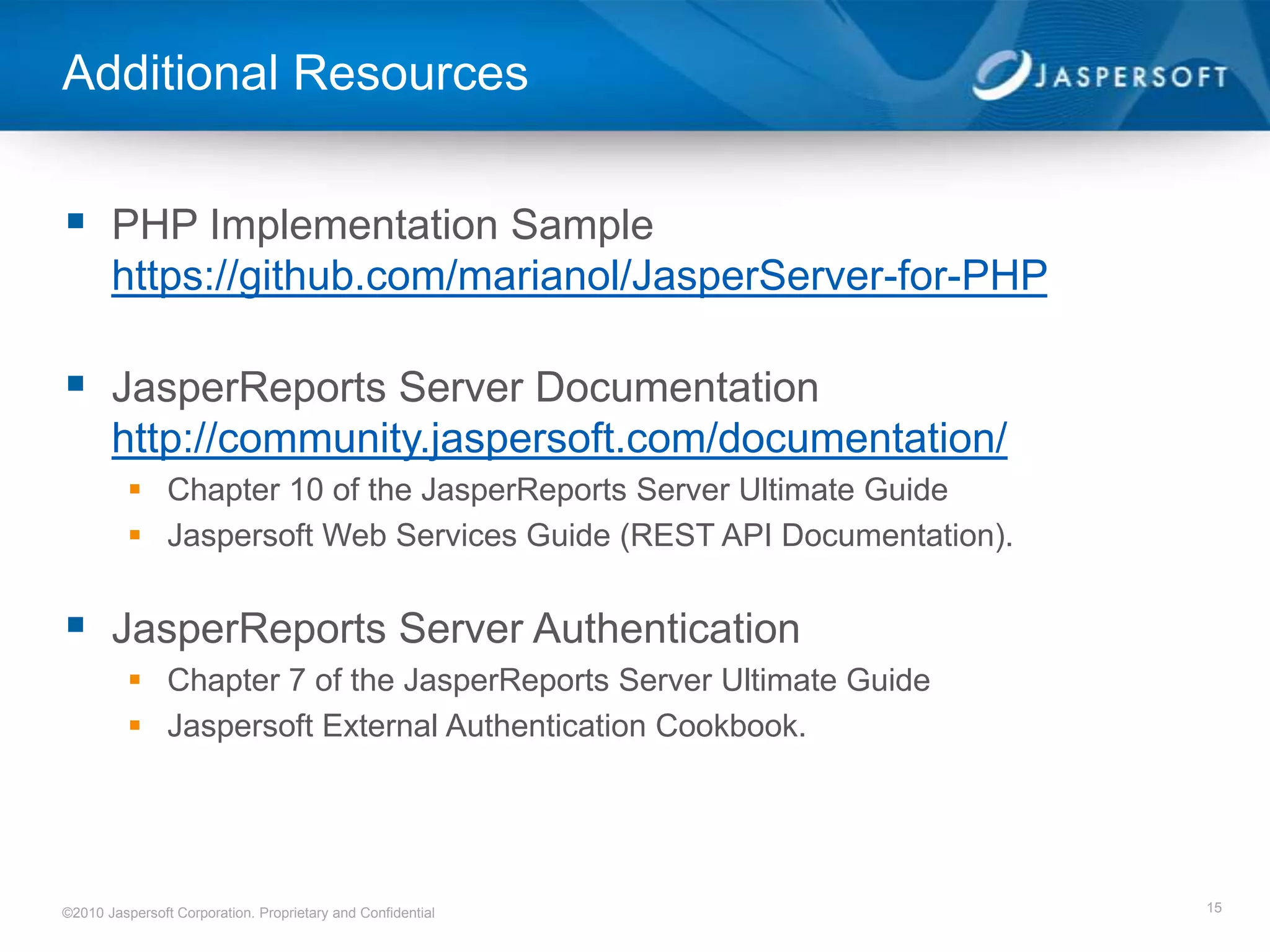

15. Additional Resources
 PHP Implementation Sample
https://github.com/marianol/JasperServer-for-PHP
 JasperReports Server Documentation
http://community.jaspersoft.com/documentation/
 Chapter 10 of the JasperReports Server Ultimate Guide
 Jaspersoft Web Services Guide (REST API Documentation).
 JasperReports Server Authentication
 Chapter 7 of the JasperReports Server Ultimate Guide
 Jaspersoft External Authentication Cookbook.
©2010 Jaspersoft Corporation. Proprietary and Confidential 15
