Google App Engine is a PaaS that allows developers to run their own applications in Google's infrastructure. It supports automatic scaling and load balancing. Apps run in a sandbox with restrictions and quotas. Key services include the datastore, memcache, mail, and task queues. Developers use Google-provided APIs and tools to build, deploy, host and manage their applications on Google's scalable infrastructure.

1. Google App Engine at a glance
Stefan Christoph

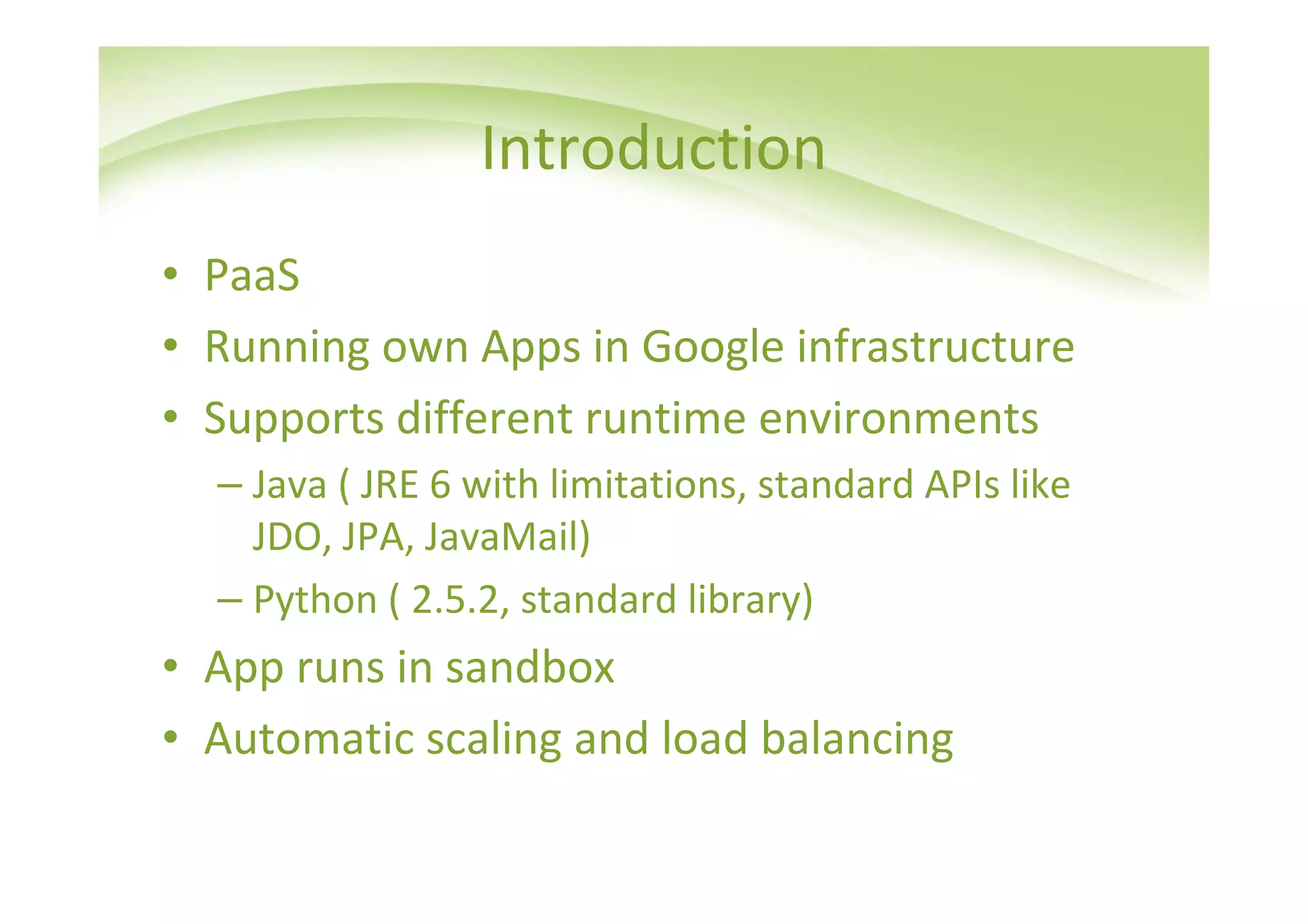

2. Introduction
• PaaS
• Running own Apps in Google infrastructure
• Supports different runtime environments
– Java ( JRE 6 with limitations, standard APIs like
JDO, JPA, JavaMail)
– Python ( 2.5.2, standard library)
• App runs in sandbox
• Automatic scaling and load balancing

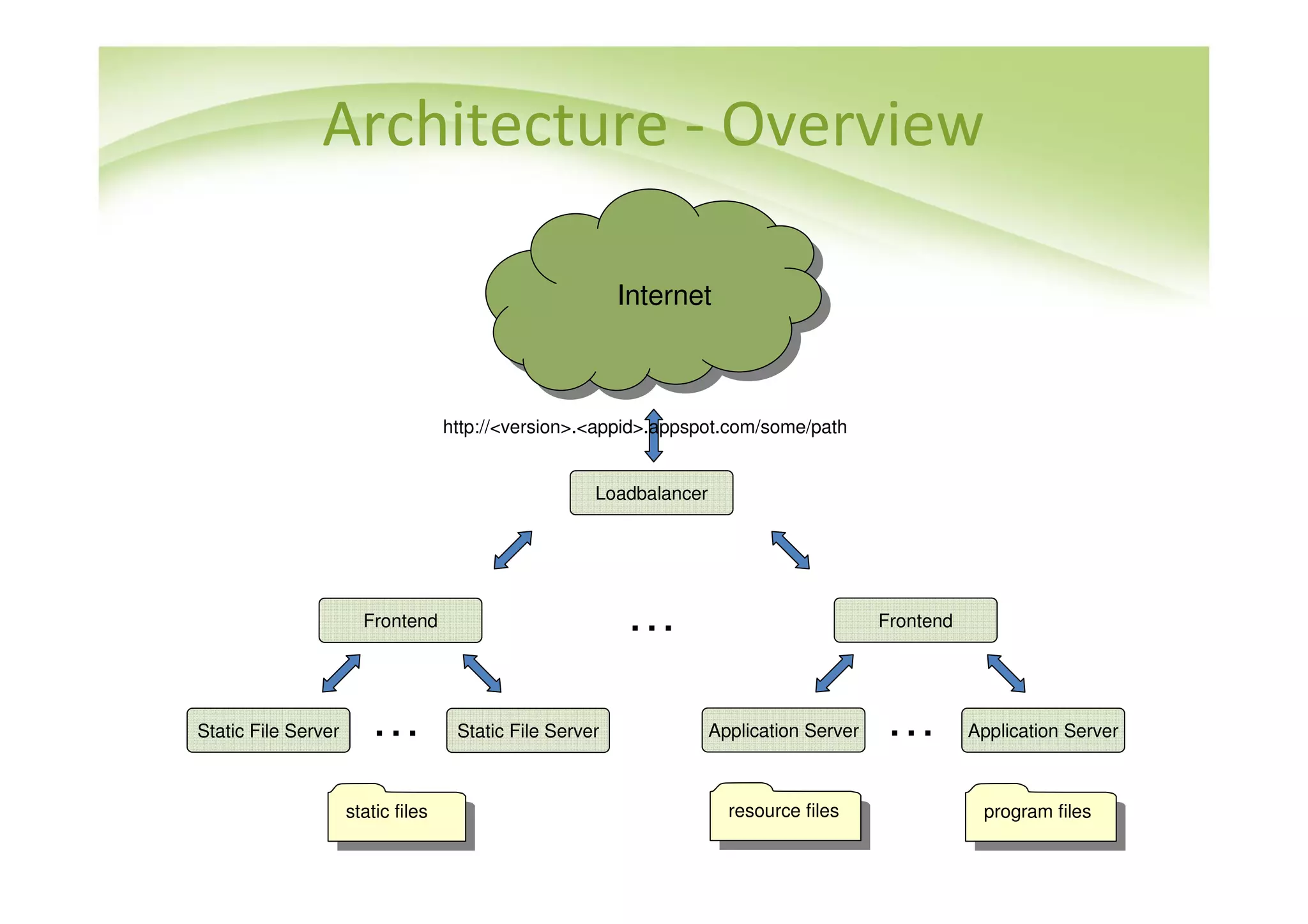

3. Architecture - Overview
Internet
Internet
http://<version>.<appid>.appspot.com/some/path
Loadbalancer
Frontend … Frontend
Static File Server … Static File Server Application Server … Application Server
static files resource files program files
static files resource files program files

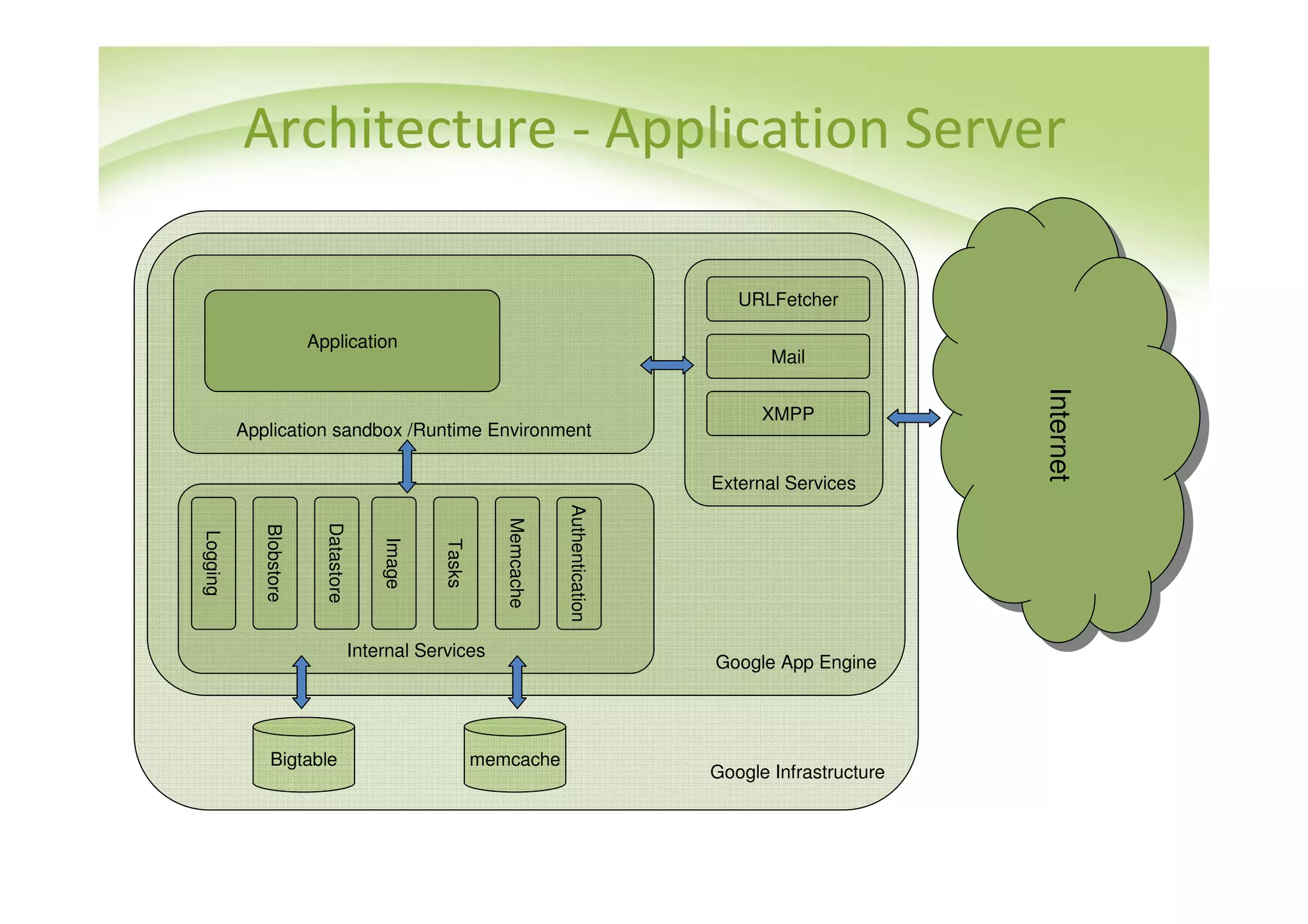

4. Architecture - Application Server
URLFetcher
Application
Mail
Internet
Internet
XMPP
Application sandbox /Runtime Environment
External Services
Authentication
Memcache
Datastore
Blobstore
Logging
Tasks
Internal Services
Google App Engine
Bigtable memcache
Google Infrastructure

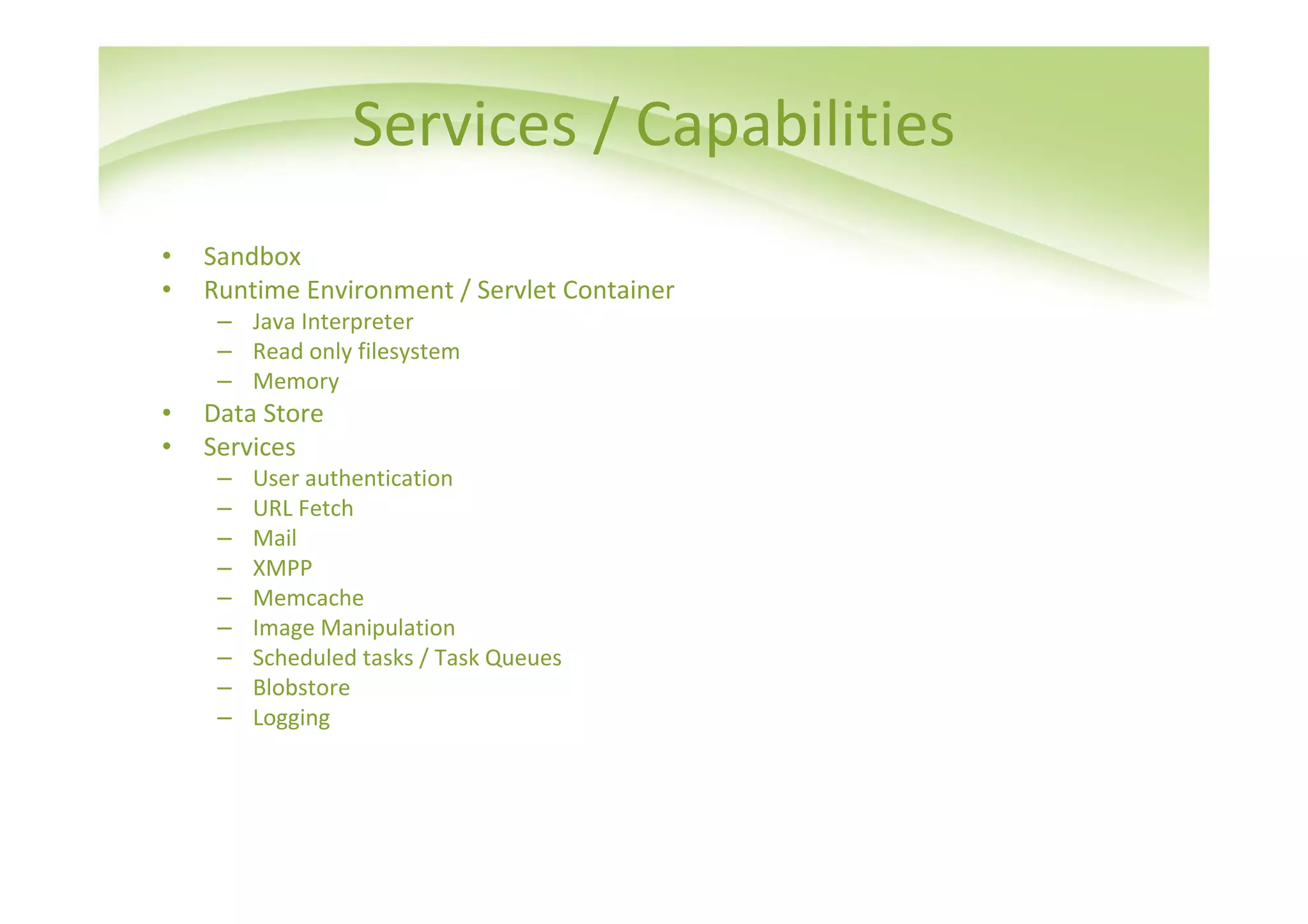

5. Services / Capabilities
• Sandbox
• Runtime Environment / Servlet Container
– Java Interpreter
– Read only filesystem
– Memory
• Data Store
• Services
– User authentication
– URL Fetch
– Mail
– XMPP
– Memcache
– Image Manipulation
– Scheduled tasks / Task Queues
– Blobstore
– Logging

6. Limitations
• Programming Model
– Application runs in sandbox and can not
• Write to filesystem
• Make arbitary network connections
• Use multiple threads/processes
• Perform long-lasting processing
• Permissions
• Know about other instances/applications
– Sandbox restrictions are implemented as JVM
• Quotas (Requests, In/Out bandwidth, CPU time, API calls)
– Billable Quotas
• Set by the application owner to keep in budget
– Fixed Quotas
• Set by GAE to ensure integrity of the system

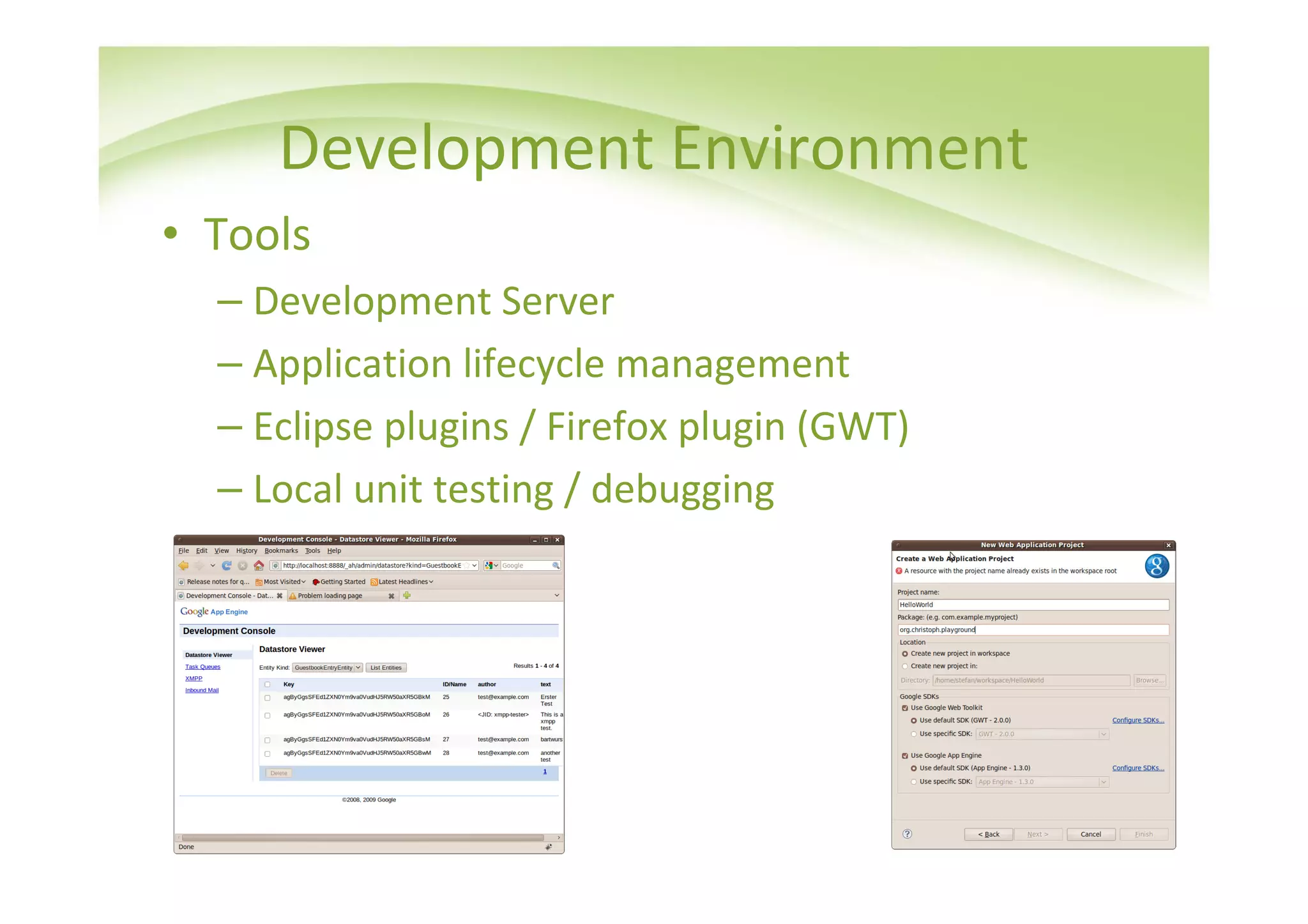

7. Development Environment
• Tools
– Development Server
– Application lifecycle management
– Eclipse plugins / Firefox plugin (GWT)
– Local unit testing / debugging

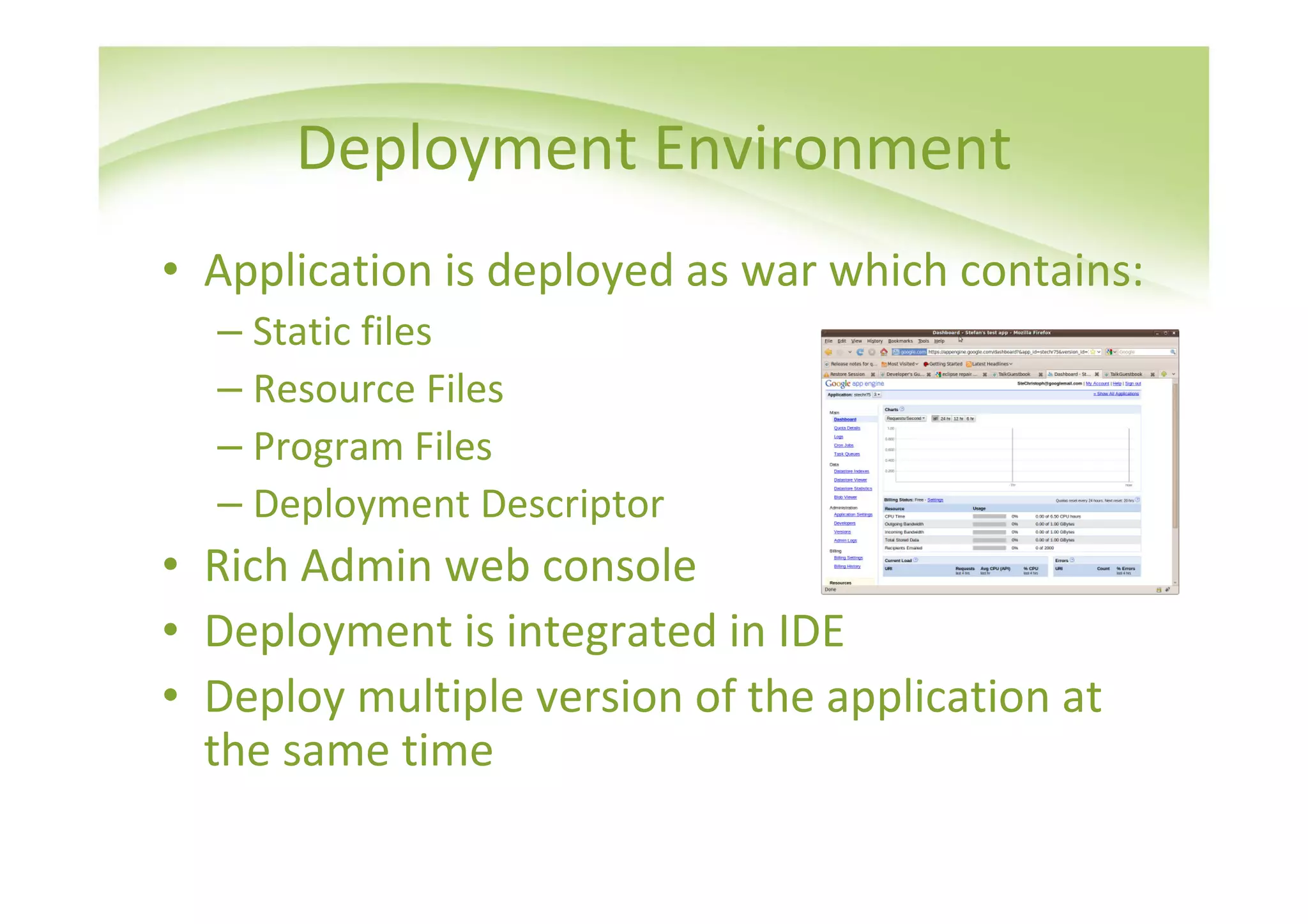

8. Deployment Environment
• Application is deployed as war which contains:
– Static files
– Resource Files
– Program Files
– Deployment Descriptor
• Rich Admin web console
• Deployment is integrated in IDE
• Deploy multiple version of the application at
the same time

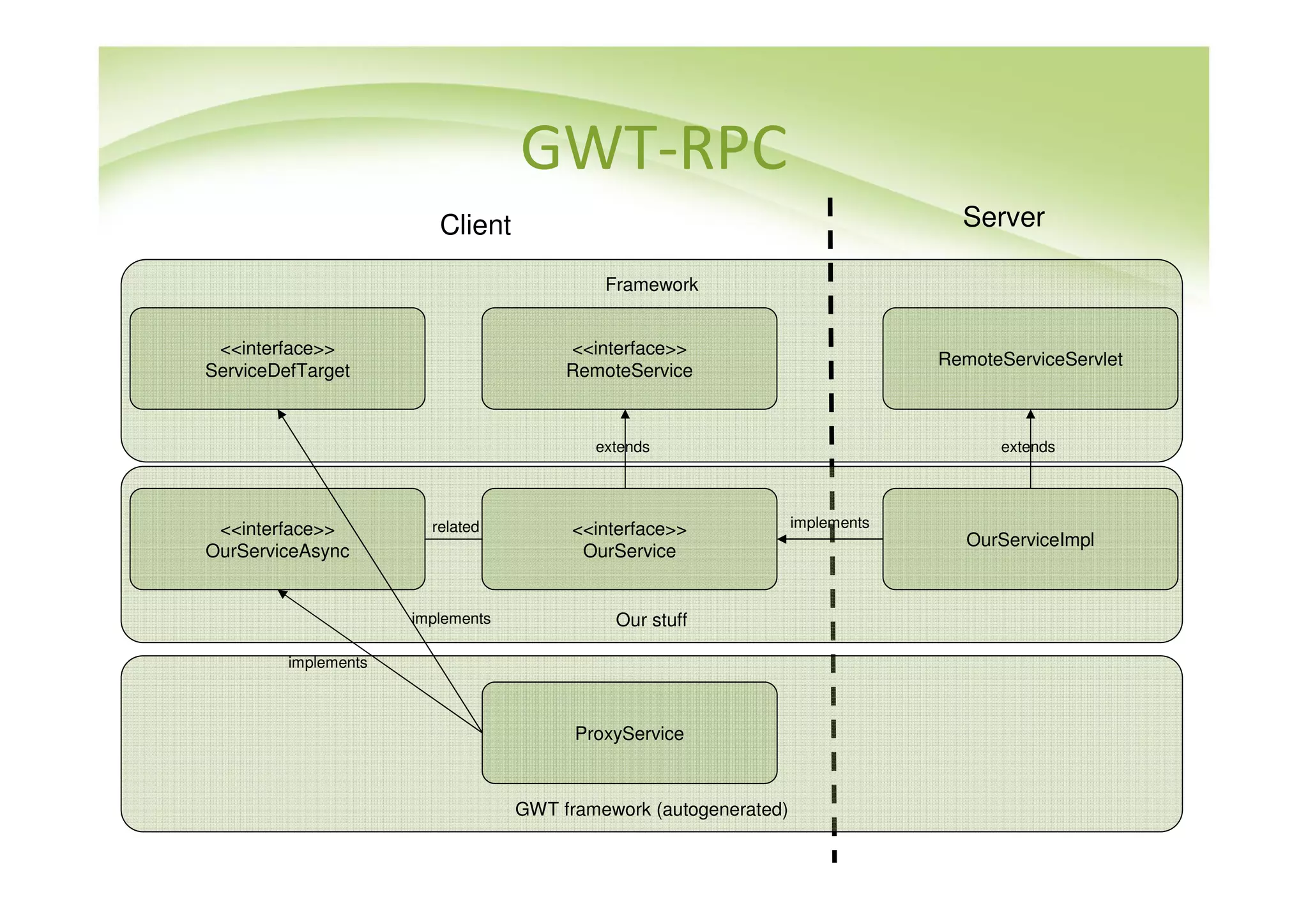

9. GWT-RPC
Client Server
Framework
<<interface>> <<interface>>
RemoteServiceServlet
ServiceDefTarget RemoteService
extends extends
<<interface>> related <<interface>> implements
OurServiceImpl
OurServiceAsync OurService
implements Our stuff
implements
ProxyService
GWT framework (autogenerated)

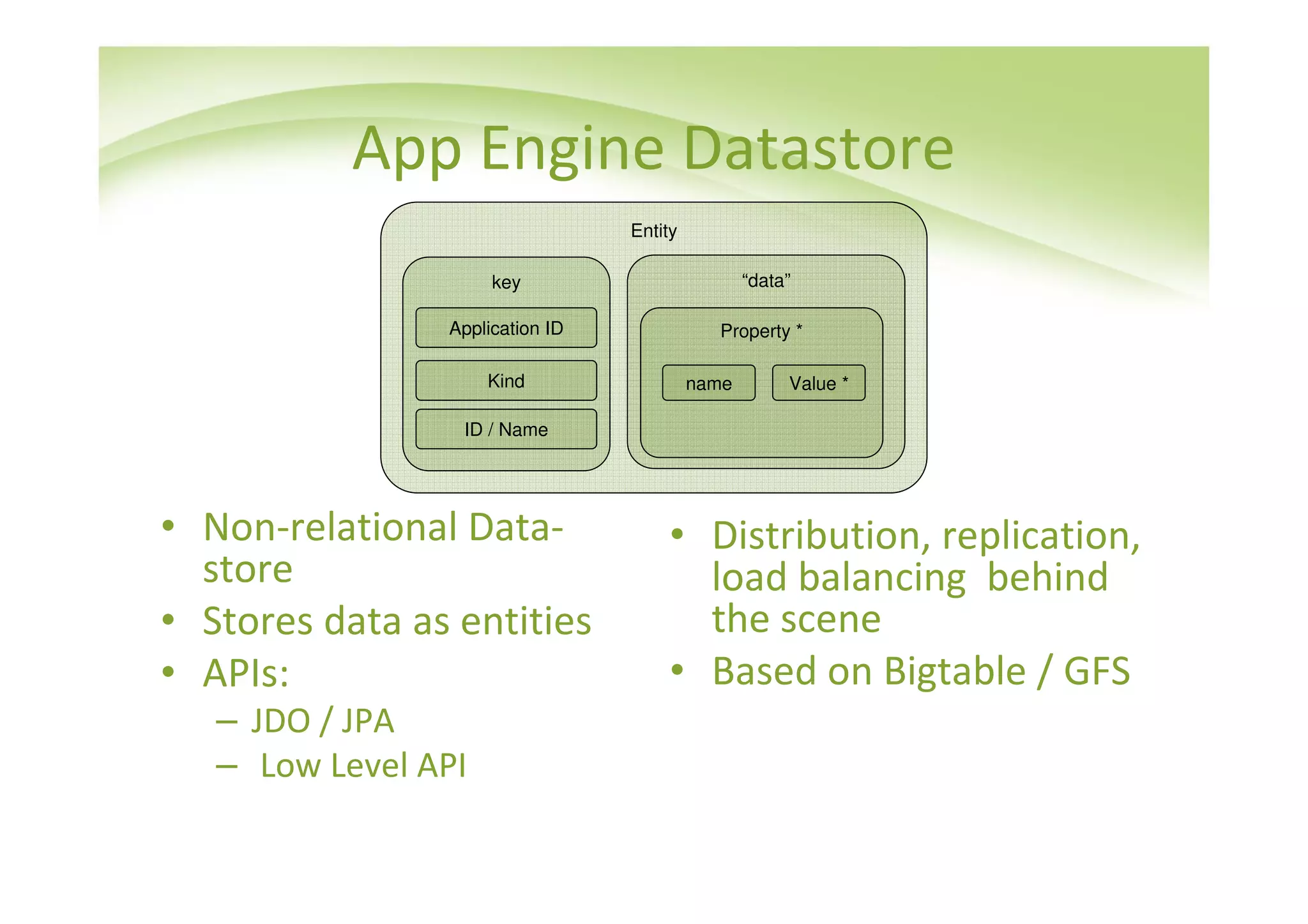

10. App Engine Datastore
Entity
key “data”
Application ID Property *
Kind name Value *
ID / Name
• Non-relational Data- • Distribution, replication,
store load balancing behind
• Stores data as entities the scene
• APIs: • Based on Bigtable / GFS
– JDO / JPA
– Low Level API

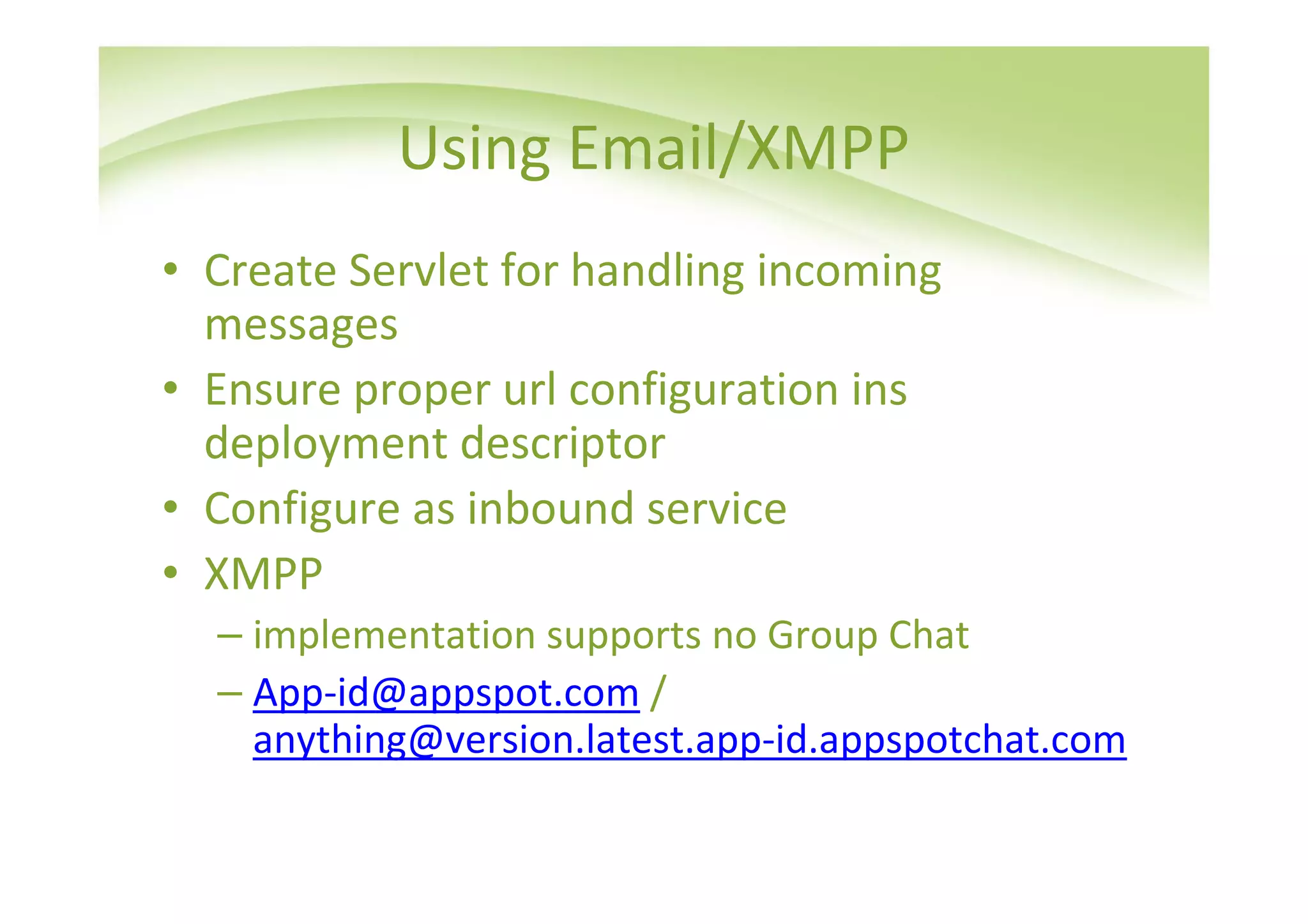

11. Using Email/XMPP
• Create Servlet for handling incoming
messages
• Ensure proper url configuration ins
deployment descriptor
• Configure as inbound service
• XMPP
– implementation supports no Group Chat
– App-id@appspot.com /
anything@version.latest.app-id.appspotchat.com

12. Logging
• Java.util.logging.Logger
• View in Administration Console
• Download logfiles
• Standard output / standard error are written
to the logs

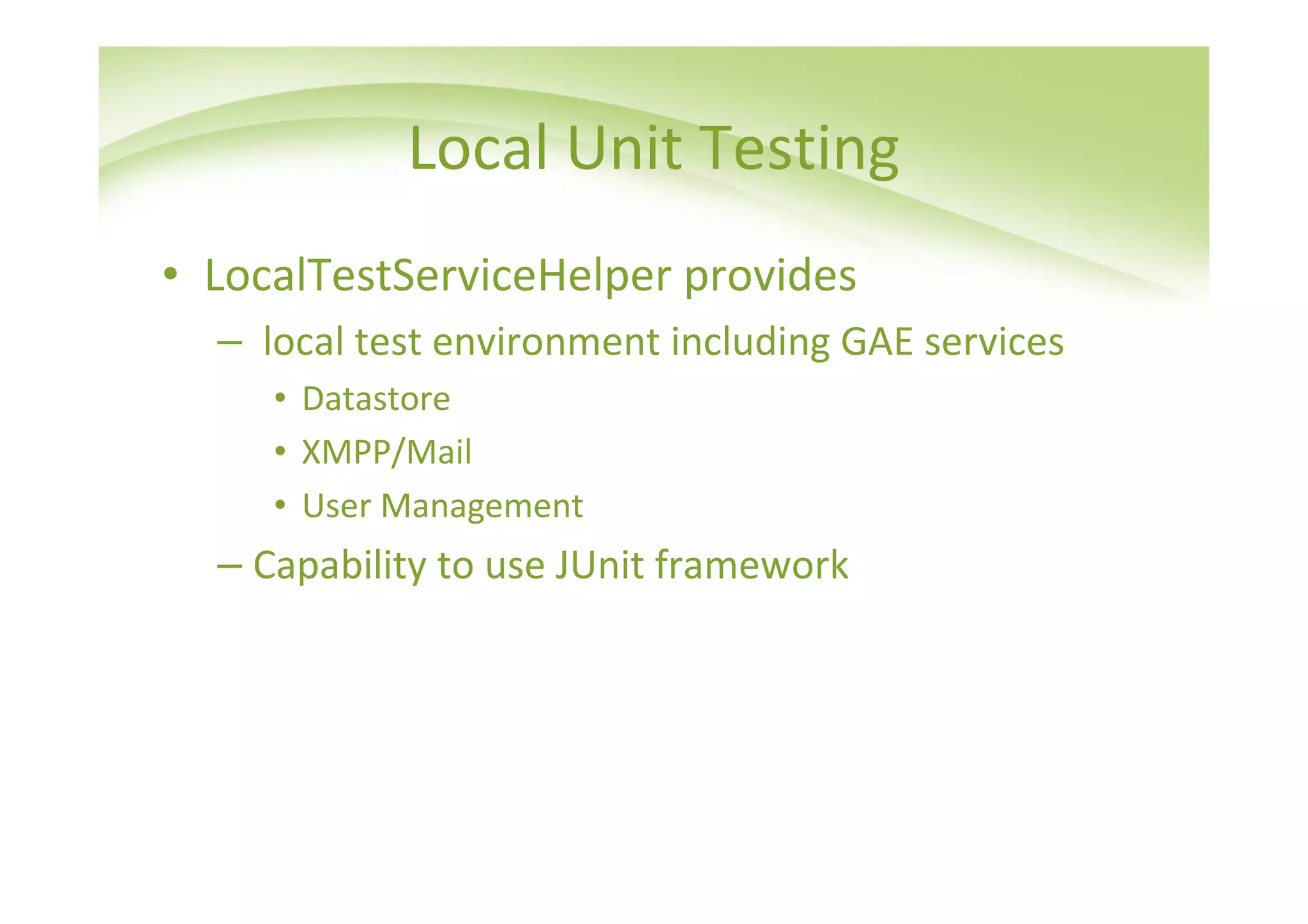

13. Local Unit Testing
• LocalTestServiceHelper provides
– local test environment including GAE services
• Datastore
• XMPP/Mail
• User Management
– Capability to use JUnit framework

14. Memcache Service
• Distributed in memory cache
• Configurable expiration time but
• Unreliable might be vanished at any time
• Supported Interfaces :
– JACHE (JSR 107: JCACHE – Java Temporary
Caching API)
– The Low-Level Memcache API (documentation)

15. User Management – Google Accounts
• Optional feature
• Utilize Google Authentication system in your
own application -> focus on business logic
• Access to Google account data -> email, id
• Access constraints based on roles
– Declarative in deployment descriptor (URL
based)
– programmatically

16. Managing Applications
• Administration Console
@http://appengine.google.com/a/yourdomai
n.com
– Application Dashboard
– Multiple application versions
– Analyzing log files (including admin)
– Analyzing resource usage

17. Further Readings
• Google App Engine documentation
• GWT documentation
• “Beginning Java Google App” – Kyle Roche,
Jeff Douglas
• “Programming Google App Engine” – Dan
Sanderson
