1. apiGrove
An Open Source API Management Engine
Presented by Greg Thompson (@gmthomps), Head of Architecture, Applications Enablement Solutions
Alcatel-Lucent
October 2012
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

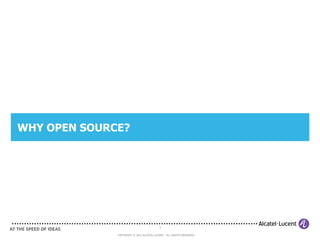

2. WHY OPEN SOURCE?
2
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

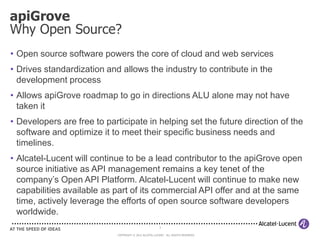

3. apiGrove
Why Open Source?
• Open source software powers the core of cloud and web services
• Drives standardization and allows the industry to contribute in the
development process
• Allows apiGrove roadmap to go in directions ALU alone may not have
taken it
• Developers are free to participate in helping set the future direction of the
software and optimize it to meet their specific business needs and
timelines.
• Alcatel-Lucent will continue to be a lead contributor to the apiGrove open
source initiative as API management remains a key tenet of the
company’s Open API Platform. Alcatel-Lucent will continue to make new
capabilities available as part of its commercial API offer and at the same
time, actively leverage the efforts of open source software developers
worldwide.
3
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

4. apiGrove INTRODUCTION
4
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

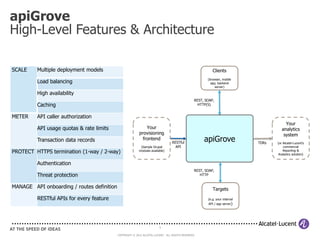

5. apiGrove
High-Level Features & Architecture
SCALE Multiple deployment models Clients
(browser, mobile
Load balancing app, backend
server)
High availability
REST, SOAP,
Caching HTTP(S)
METER API caller authorization
Your
API usage quotas & rate limits Your analytics
provisioning system
Transaction data records frontend
RESTful
apiGrove TDRs (or Alcatel-Lucent’s
(Sample Drupal API commercial
PROTECT HTTPS termination (1-way / 2-way) modules available) Reporting &
Analytics solution)
Authentication
REST, SOAP,
Threat protection HTTP
MANAGE API onboarding / routes definition Targets
RESTful APIs for every feature (e.g. your internal
API / app server)
5
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

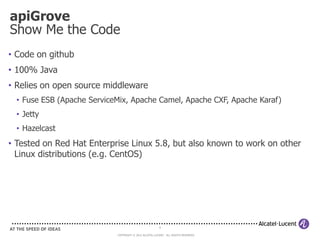

6. apiGrove
Show Me the Code
• Code on github
• 100% Java
• Relies on open source middleware
• Fuse ESB (Apache ServiceMix, Apache Camel, Apache CXF, Apache Karaf)
• Jetty
• Hazelcast
• Tested on Red Hat Enterprise Linux 5.8, but also known to work on other
Linux distributions (e.g. CentOS)
6
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

7. apiGrove
Freemium Business Model
• apiGrove = Open Source version
• Licensed under Apache v2 terms
• Project to be publicly announced in September
• Premium API Management Engine = Commercial version
• Same code base as apiGrove
• Additional features: Security (XML/WSDL validation), Rate limit accuracy in cluster
(Speaker Manager), SNMP
• Support and professional services by Alcatel-Lucent (bug fixes, custom integration)
• Optionally integrated within Alcatel-Lucent’s Open API Platform :
• Service Composition Framework (orchestration framework and value-added services: SMS,
Location, Device Capabilities, and more)
• Reporting and Analytics (data mining on API usage)
• Business Management Suite (monetization model for APIs and associated workflow)
• Provisioning and management system (web frontend, management interface, directory)
7
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

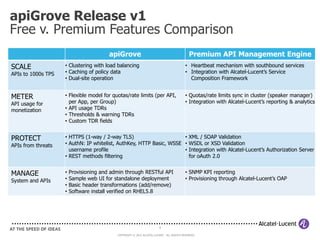

8. apiGrove Release v1
Free v. Premium Features Comparison
apiGrove Premium API Management Engine
SCALE • Clustering with load balancing • Heartbeat mechanism with southbound services
APIs to 1000s TPS • Caching of policy data • Integration with Alcatel-Lucent’s Service
• Dual-site operation Composition Framework
METER • Flexible model for quotas/rate limits (per API, • Quotas/rate limits sync in cluster (speaker manager)
API usage for per App, per Group) • Integration with Alcatel-Lucent’s reporting & analytics
monetization • API usage TDRs
• Thresholds & warning TDRs
• Custom TDR fields
PROTECT • HTTPS (1-way / 2-way TLS) • XML / SOAP Validation
APIs from threats • AuthN: IP whitelist, AuthKey, HTTP Basic, WSSE • WSDL or XSD Validation
username profile • Integration with Alcatel-Lucent’s Authorization Server
• REST methods filtering for oAuth 2.0
MANAGE • Provisioning and admin through RESTful API • SNMP KPI reporting
System and APIs • Sample web UI for standalone deployment • Provisioning through Alcatel-Lucent’s OAP
• Basic header transformations (add/remove)
• Software install verified on RHEL5.8
8
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

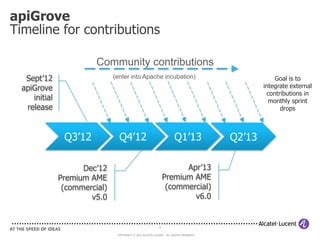

9. apiGrove
Timeline for contributions
Community contributions
Sept’12 (enter into Apache incubation) Goal is to
apiGrove integrate external
contributions in
initial monthly sprint
release drops
Q3’12 Q4’12 Q1’13 Q2’13
Dec’12 Apr’13
Premium AME Premium AME
(commercial) (commercial)
v5.0 v6.0
9
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

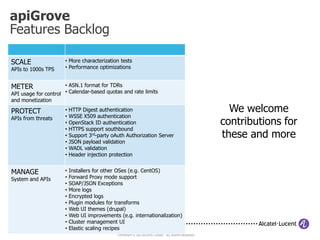

10. apiGrove
Features Backlog
SCALE • More characterization tests
APIs to 1000s TPS • Performance optimizations
METER • ASN.1 format for TDRs
API usage for control • Calendar-based quotas and rate limits
and monetization
PROTECT • HTTP Digest authentication We welcome
• WSSE X509 authentication
APIs from threats
• OpenStack ID authentication contributions for
• HTTPS support southbound
• Support 3rd-party oAuth Authorization Server these and more
• JSON payload validation
• WADL validation
• Header injection protection
MANAGE • Installers for other OSes (e.g. CentOS)
System and APIs • Forward Proxy mode support
• SOAP/JSON Exceptions
• More logs
• Encrypted logs
• Plugin modules for transforms
• Web UI themes (drupal)
• Web UI improvements (e.g. internationalization)
• Cluster management UI
• Elastic scaling recipes 10
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

11. DEMO
11
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

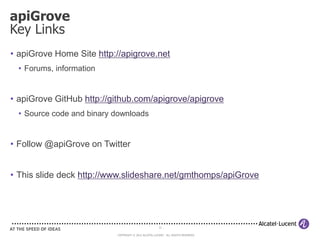

12. apiGrove
Key Links
• apiGrove Home Site http://apigrove.net
• Forums, information
• apiGrove GitHub http://github.com/apigrove/apigrove
• Source code and binary downloads
• Follow @apiGrove on Twitter
• This slide deck http://www.slideshare.net/gmthomps/apiGrove
12
COPYRIGHT © 2012 ALCATEL-LUCENT. ALL RIGHTS RESERVED.

13. THANK YOU ! … Q&As
