(1) The Nerves project aims to build small to mid-sized embedded systems using Erlang/OTP by creating a minimal embedded Linux environment that is cross-compiled to only include necessary libraries. (2) It uses Buildroot to customize a minimal init process and build OTP releases that can fully update systems. (3) The workflow involves developing OTP applications, cross-compiling binaries, generating an Erlang/OTP release, and burning the final system image to an SD card or updating firmware.

1. Embedded Erlang, Nerves, and
SumoBots
Frank Hunleth
Twitter: @fhunleth
Erlang Factory 2015

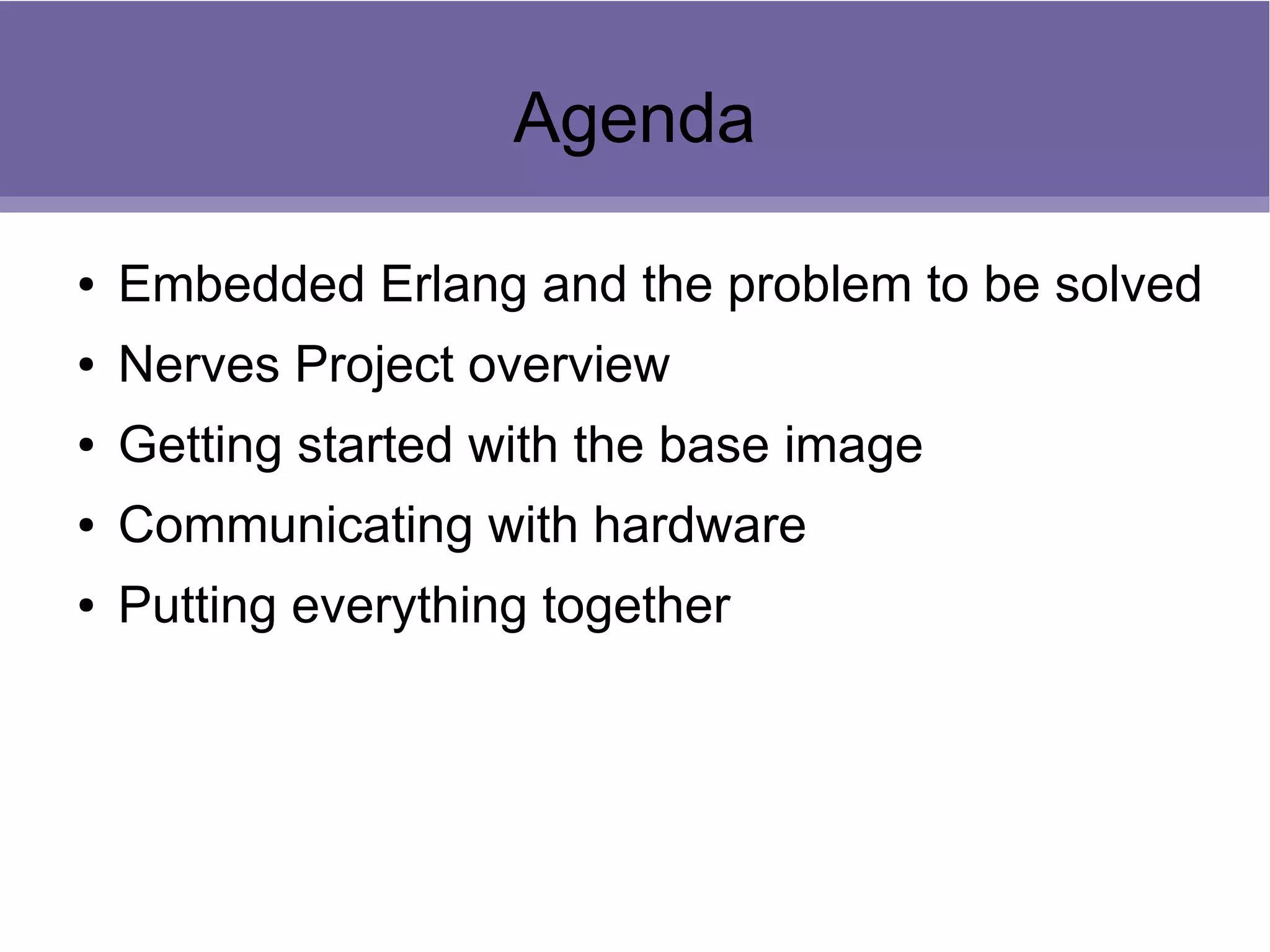

2. Agenda
● Embedded Erlang and the problem to be solved
● Nerves Project overview
● Getting started with the base image
● Communicating with hardware
● Putting everything together

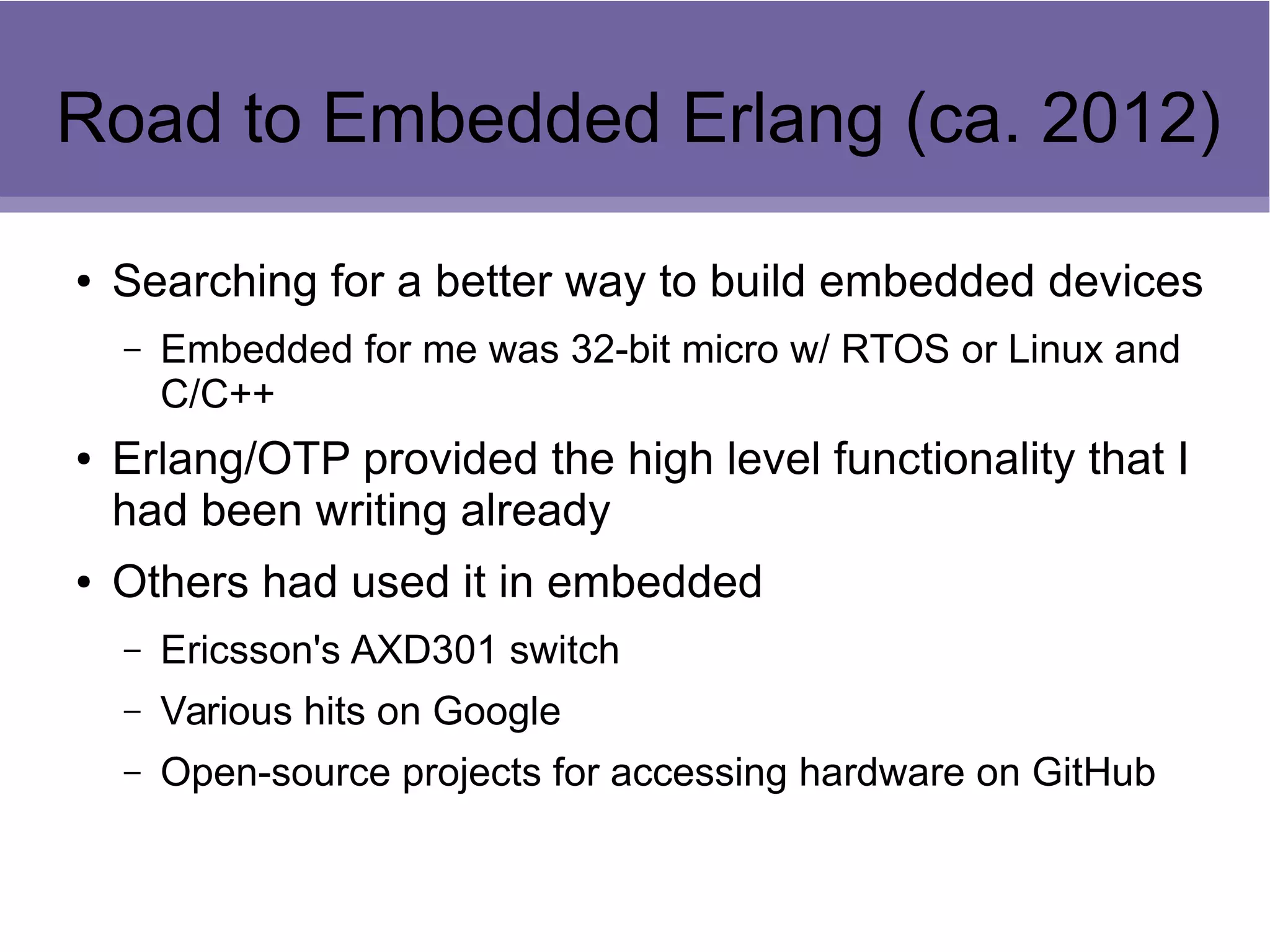

3. Road to Embedded Erlang (ca. 2012)
● Searching for a better way to build embedded devices
– Embedded for me was 32-bit micro w/ RTOS or Linux and
C/C++
● Erlang/OTP provided the high level functionality that I
had been writing already
● Others had used it in embedded
– Ericsson's AXD301 switch
– Various hits on Google
– Open-source projects for accessing hardware on GitHub

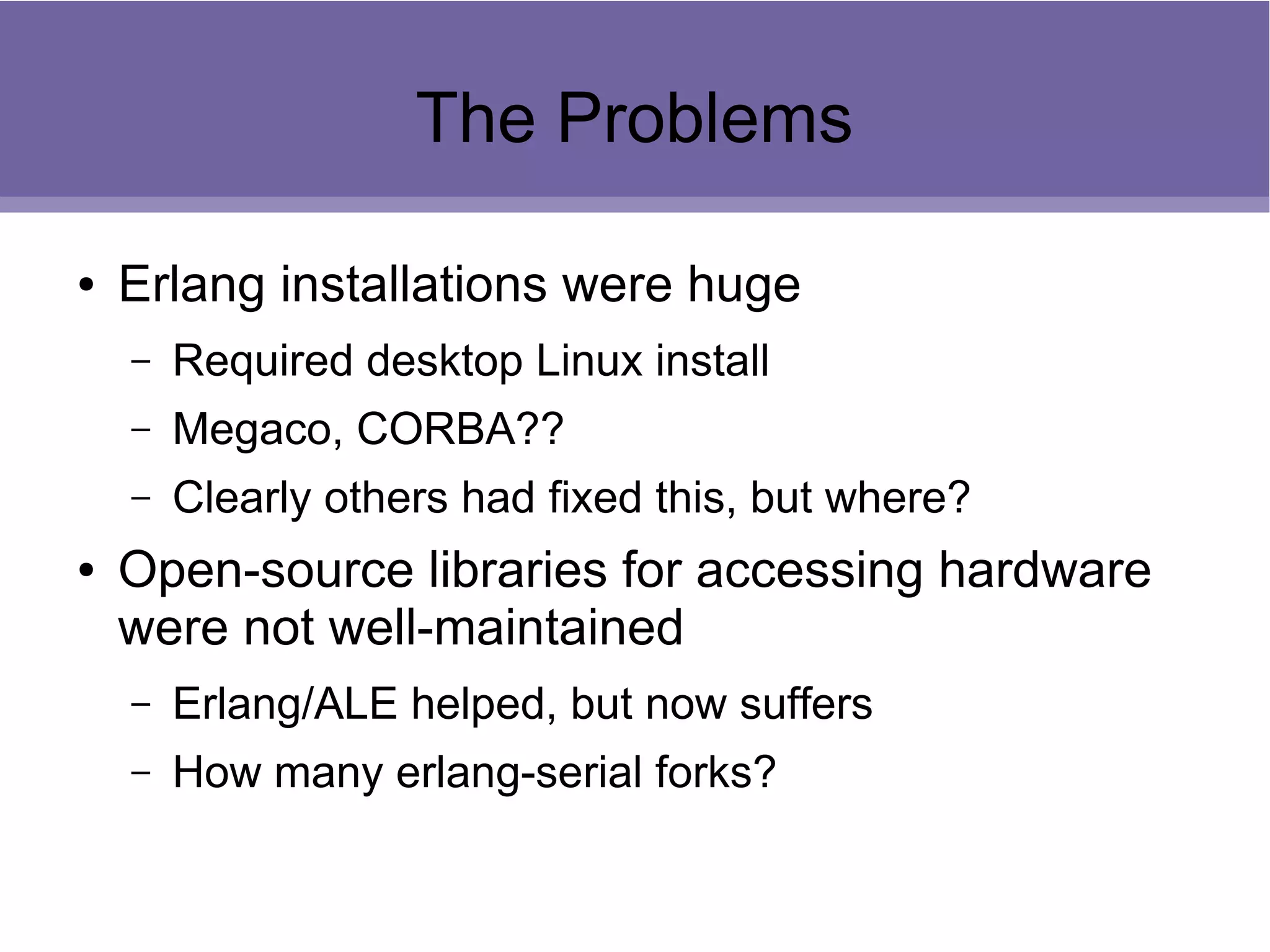

4. The Problems
● Erlang installations were huge
– Required desktop Linux install
– Megaco, CORBA??
– Clearly others had fixed this, but where?
● Open-source libraries for accessing hardware
were not well-maintained
– Erlang/ALE helped, but now suffers
– How many erlang-serial forks?

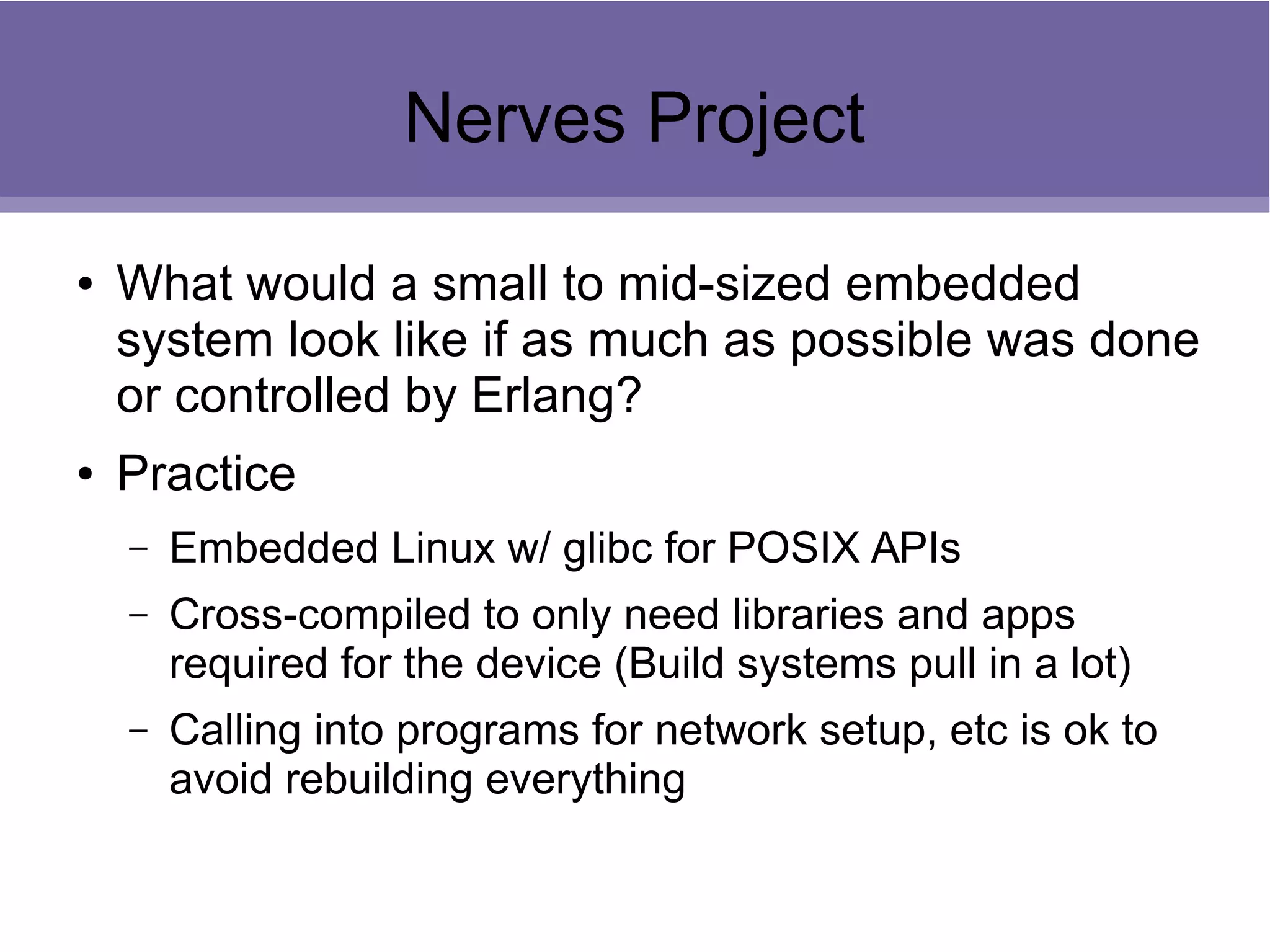

5. Nerves Project
● What would a small to mid-sized embedded
system look like if as much as possible was done
or controlled by Erlang?
● Practice
– Embedded Linux w/ glibc for POSIX APIs
– Cross-compiled to only need libraries and apps
required for the device (Build systems pull in a lot)
– Calling into programs for network setup, etc is ok to
avoid rebuilding everything

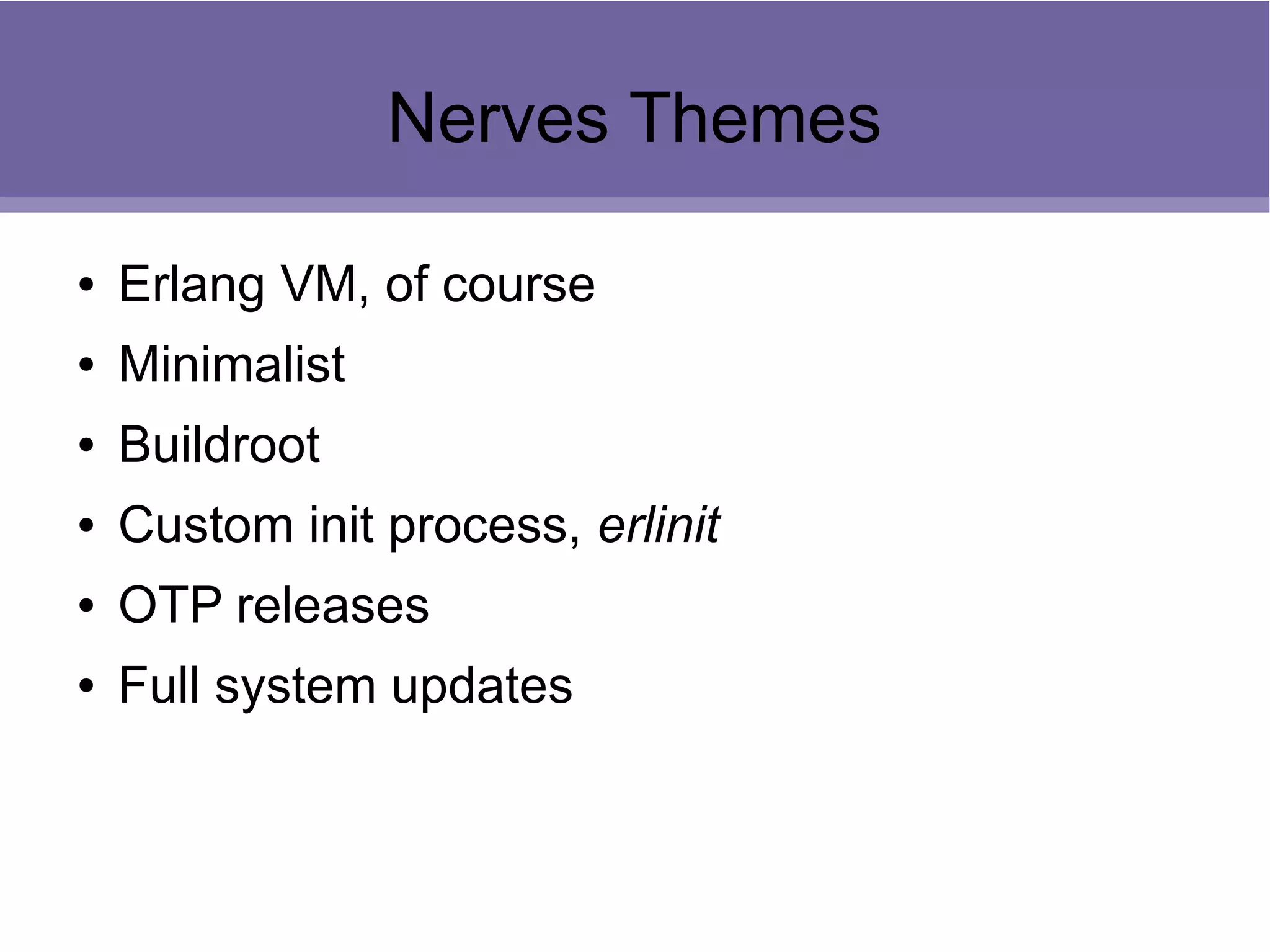

6. Nerves Themes
● Erlang VM, of course
● Minimalist
● Buildroot
● Custom init process, erlinit
● OTP releases
● Full system updates

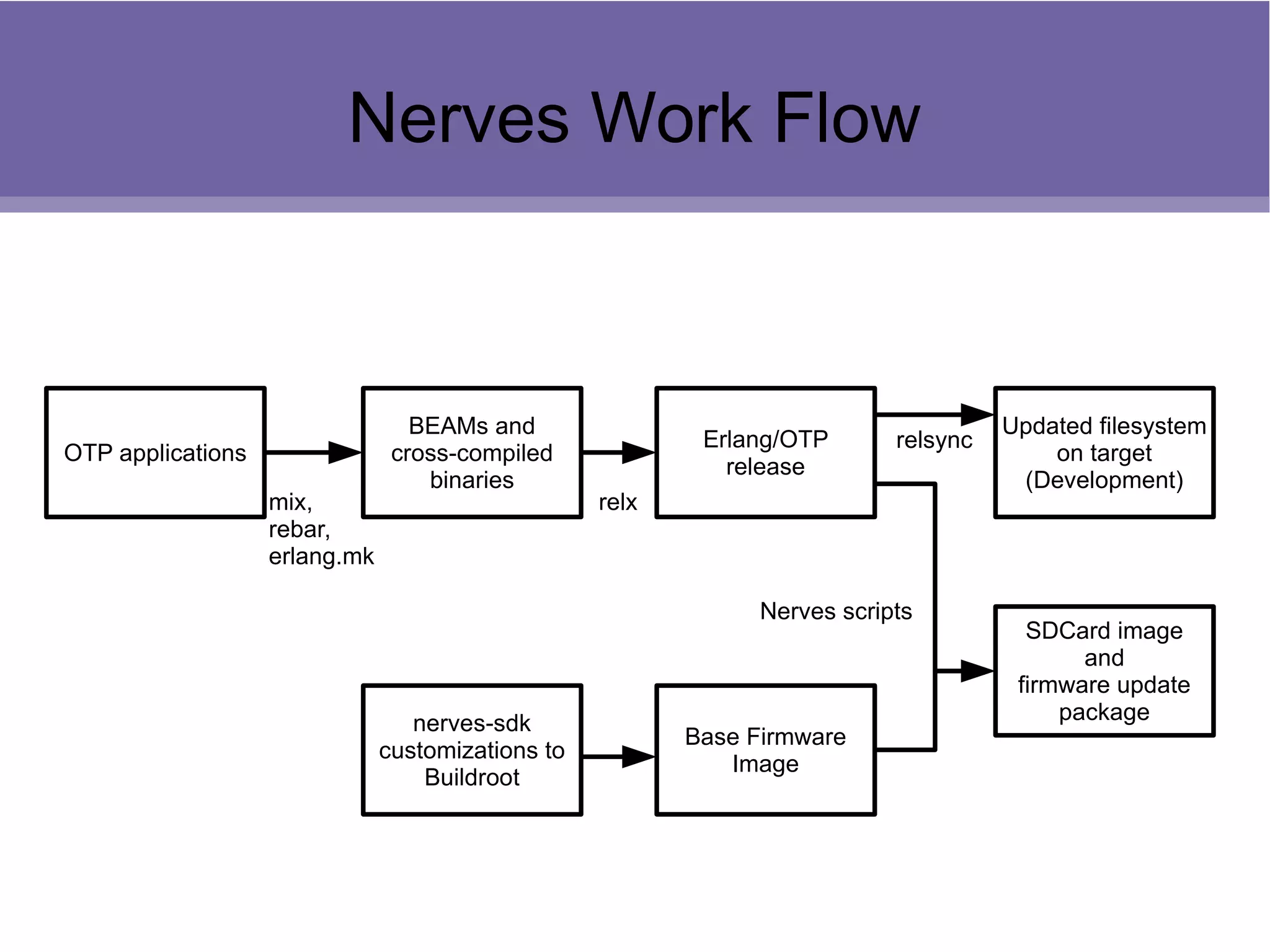

7. Nerves Work Flow
OTP applications
BEAMs and
cross-compiled
binaries
Erlang/OTP
release
Base Firmware
SDCard image
and
firmware update
package
mix,
rebar,
erlang.mk
relx
Nerves scripts
nerves-sdk
customizations to
Buildroot
Updated filesystem
on target
(Development)
relsync

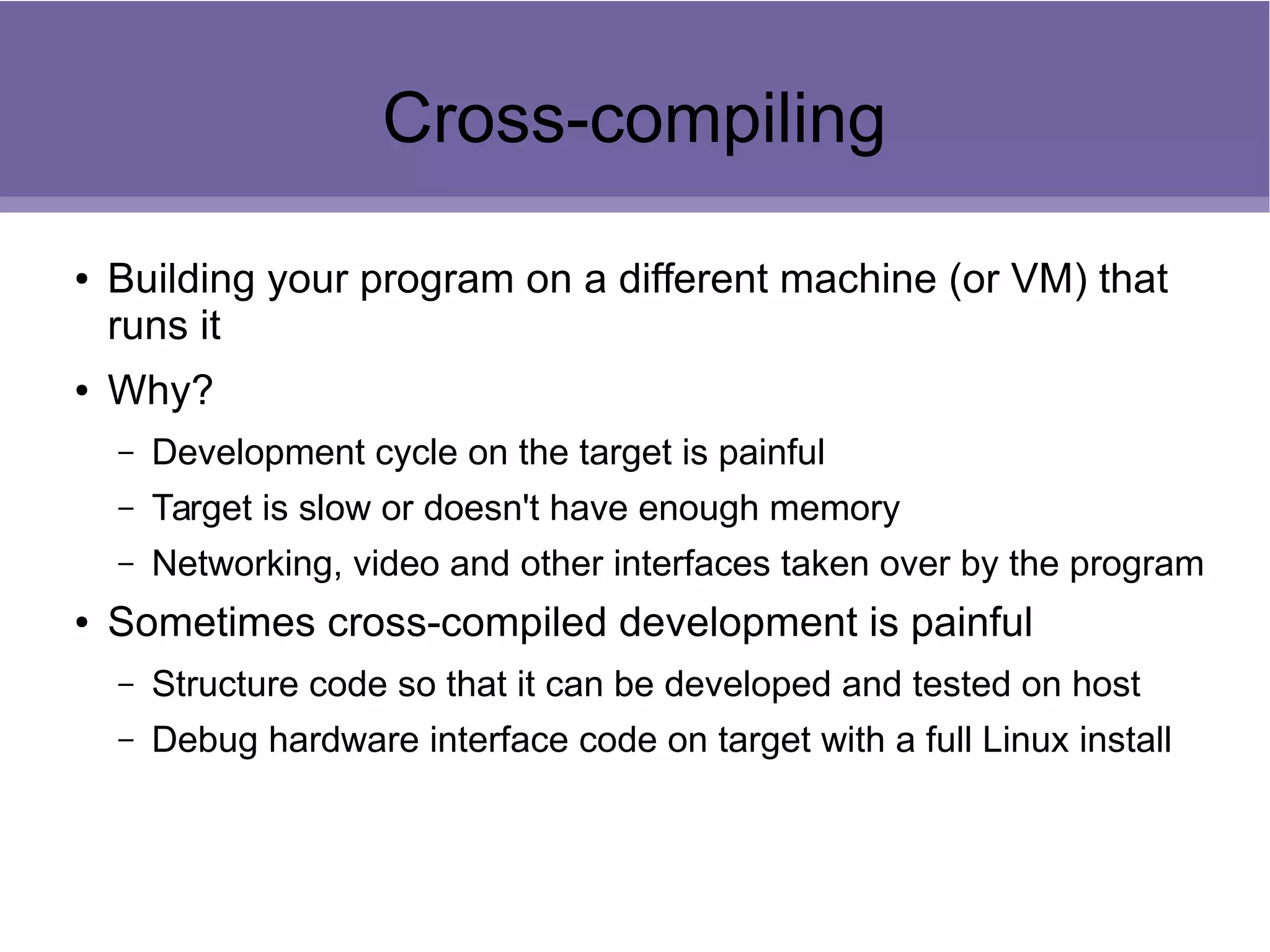

8. Cross-compiling
● Building your program on a different machine (or VM) that
runs it
● Why?
– Development cycle on the target is painful
– Target is slow or doesn't have enough memory
– Networking, video and other interfaces taken over by the program
● Sometimes cross-compiled development is painful
– Structure code so that it can be developed and tested on host
– Debug hardware interface code on target with a full Linux install

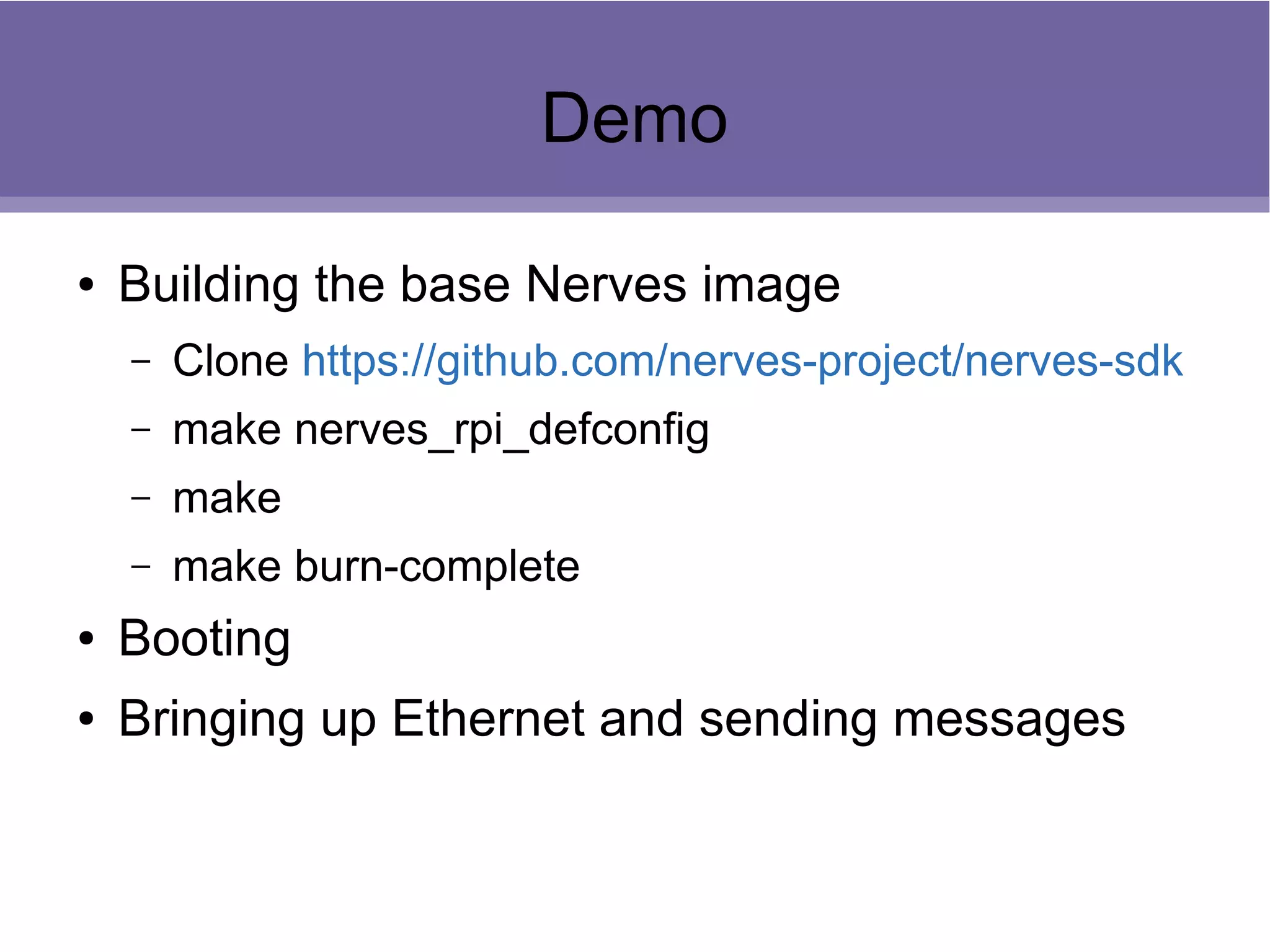

9. Demo
● Building the base Nerves image
– Clone https://github.com/nerves-project/nerves-sdk
– make nerves_rpi_defconfig
– make
– make burn-complete
● Booting
● Bringing up Ethernet and sending messages

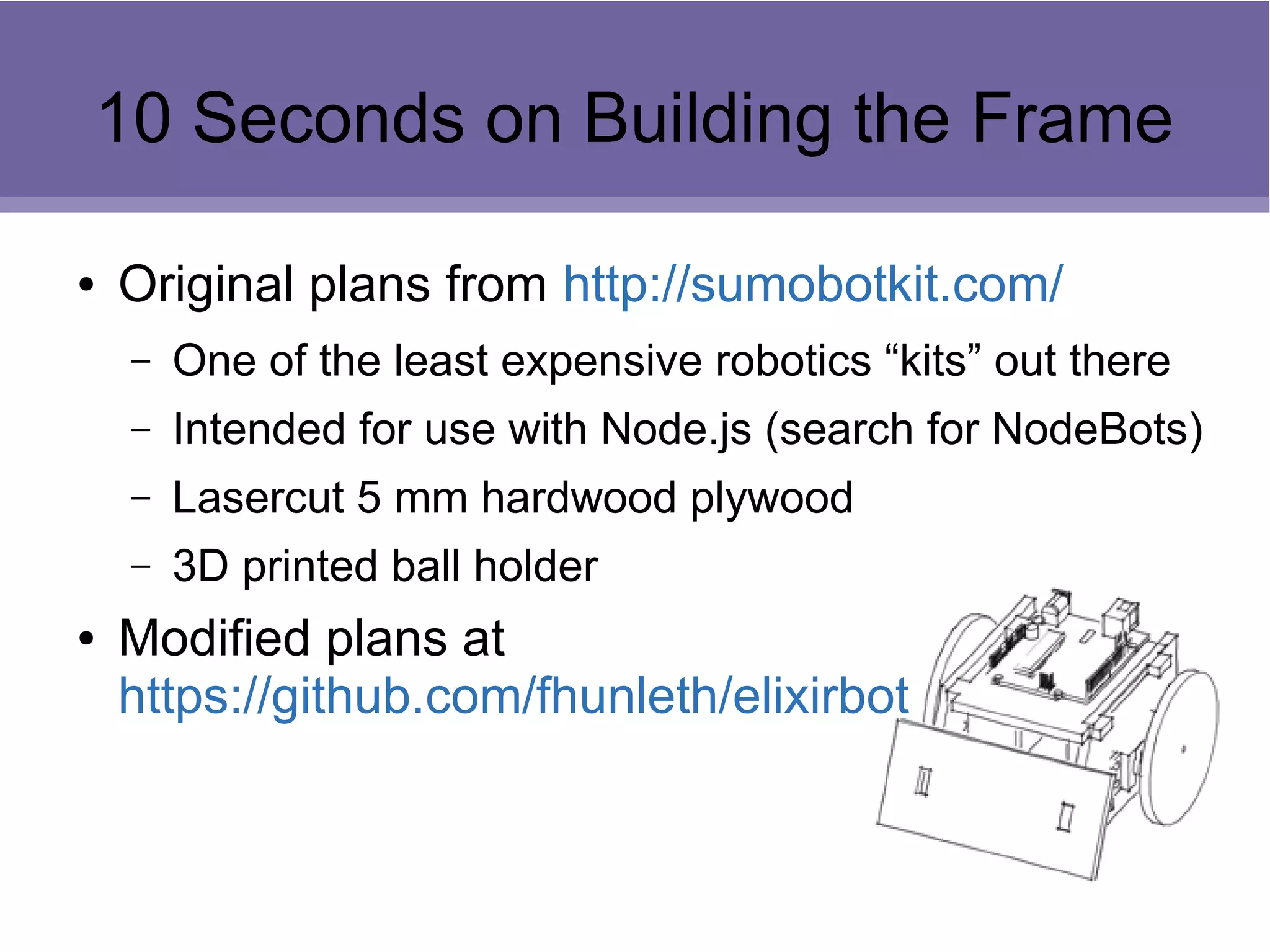

10. 10 Seconds on Building the Frame
● Original plans from http://sumobotkit.com/
– One of the least expensive robotics “kits” out there
– Intended for use with Node.js (search for NodeBots)
– Lasercut 5 mm hardwood plywood
– 3D printed ball holder
● Modified plans at
https://github.com/fhunleth/elixirbot

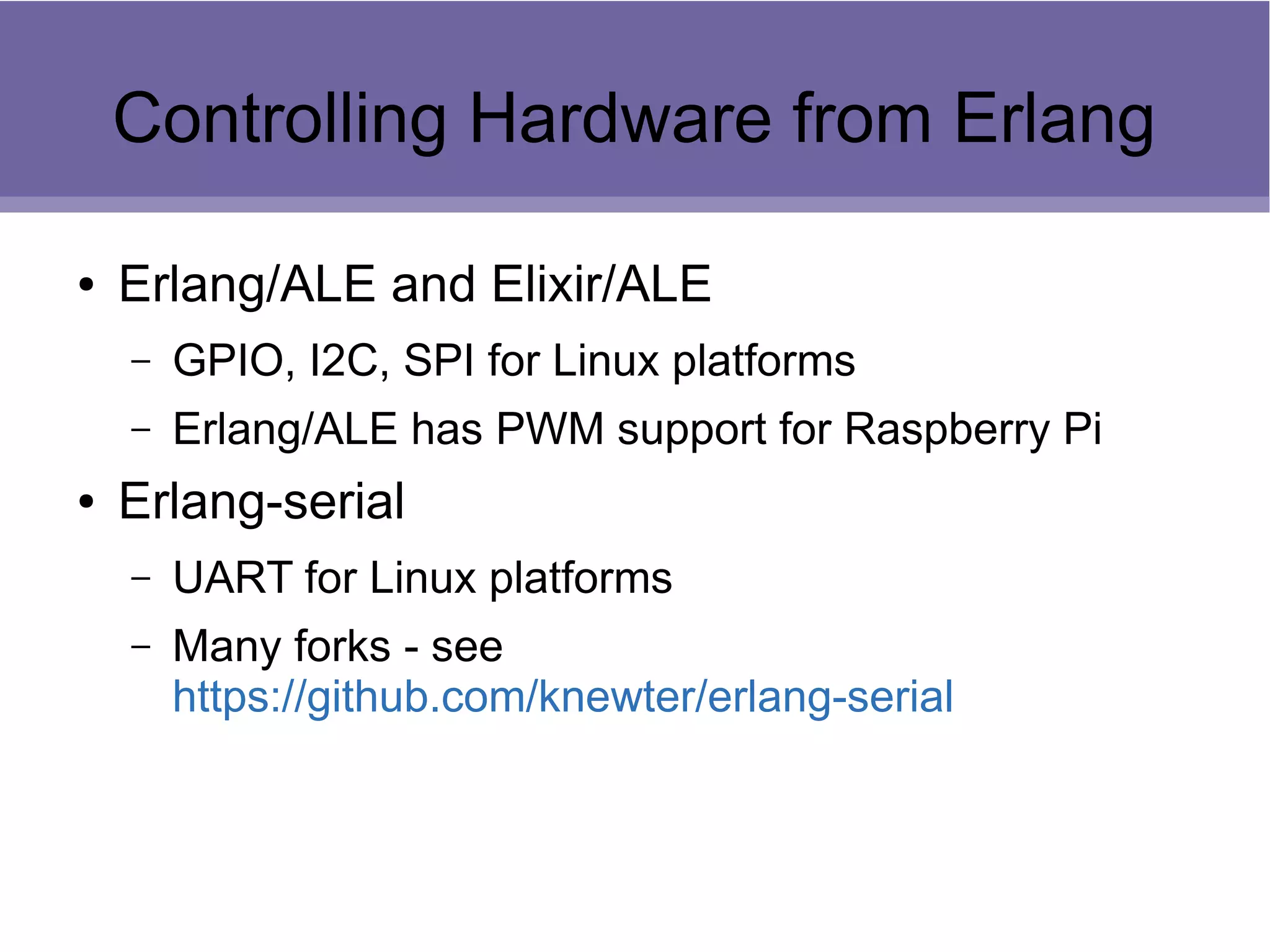

11. Controlling Hardware from Erlang
● Erlang/ALE and Elixir/ALE
– GPIO, I2C, SPI for Linux platforms
– Erlang/ALE has PWM support for Raspberry Pi
● Erlang-serial
– UART for Linux platforms
– Many forks - see
https://github.com/knewter/erlang-serial

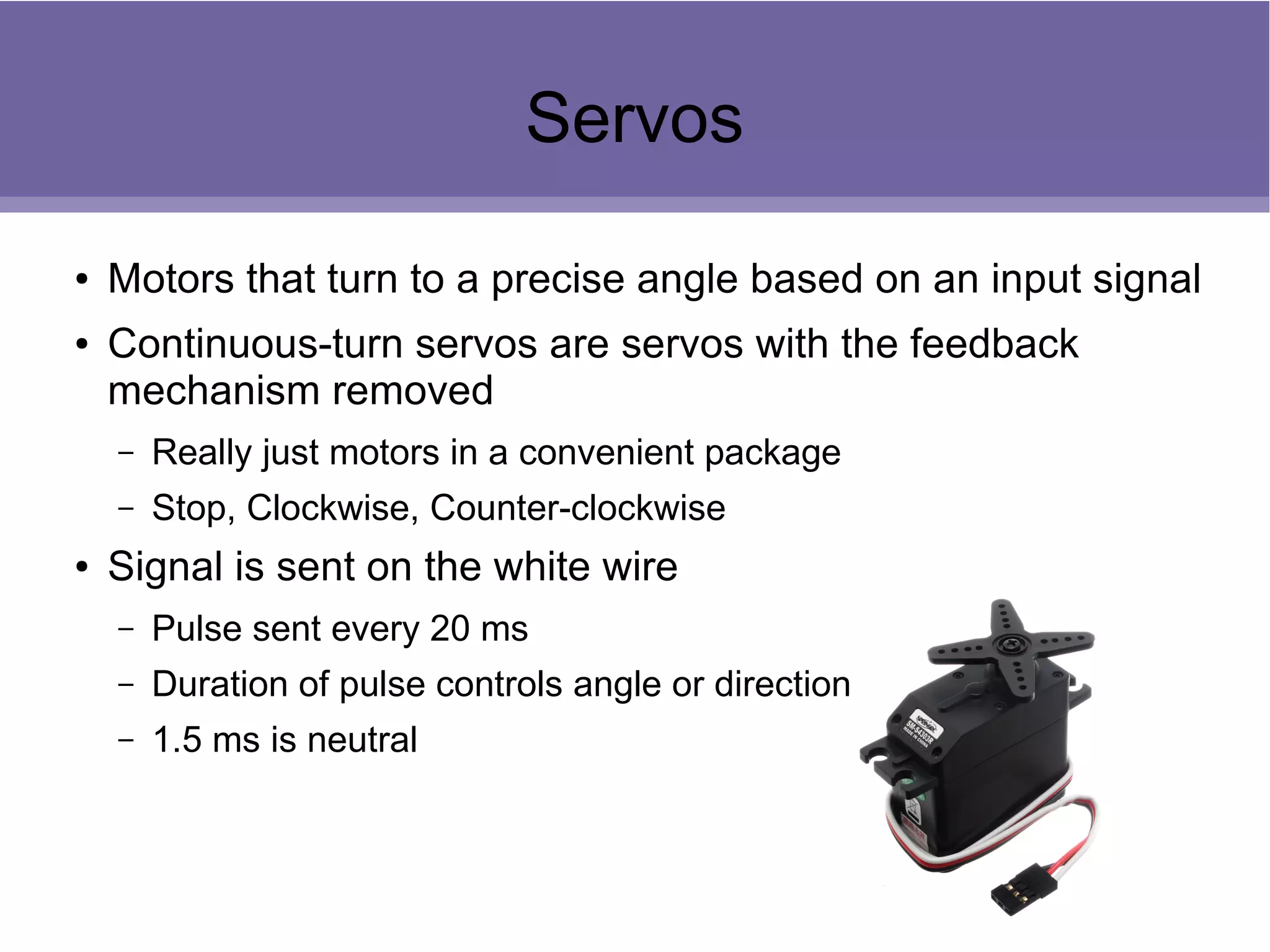

12. Servos
● Motors that turn to a precise angle based on an input signal
● Continuous-turn servos are servos with the feedback
mechanism removed
– Really just motors in a convenient package
– Stop, Clockwise, Counter-clockwise
● Signal is sent on the white wire
– Pulse sent every 20 ms
– Duration of pulse controls angle or direction
– 1.5 ms is neutral

13. Servo Control Strategies
● Option 1
– Gpio.write(myservo, 1)
– :timer.sleep(1.5)
– Gpio.write(myservo, 0)
– :timer.sleep(20 - 1.5)
● Issues
– Pulse durations must be consistent (within microseconds) or the
servo is unstable
– Much better implemented in C (called software PWM)
– Even C has trouble on Linux due to context switches, etc.

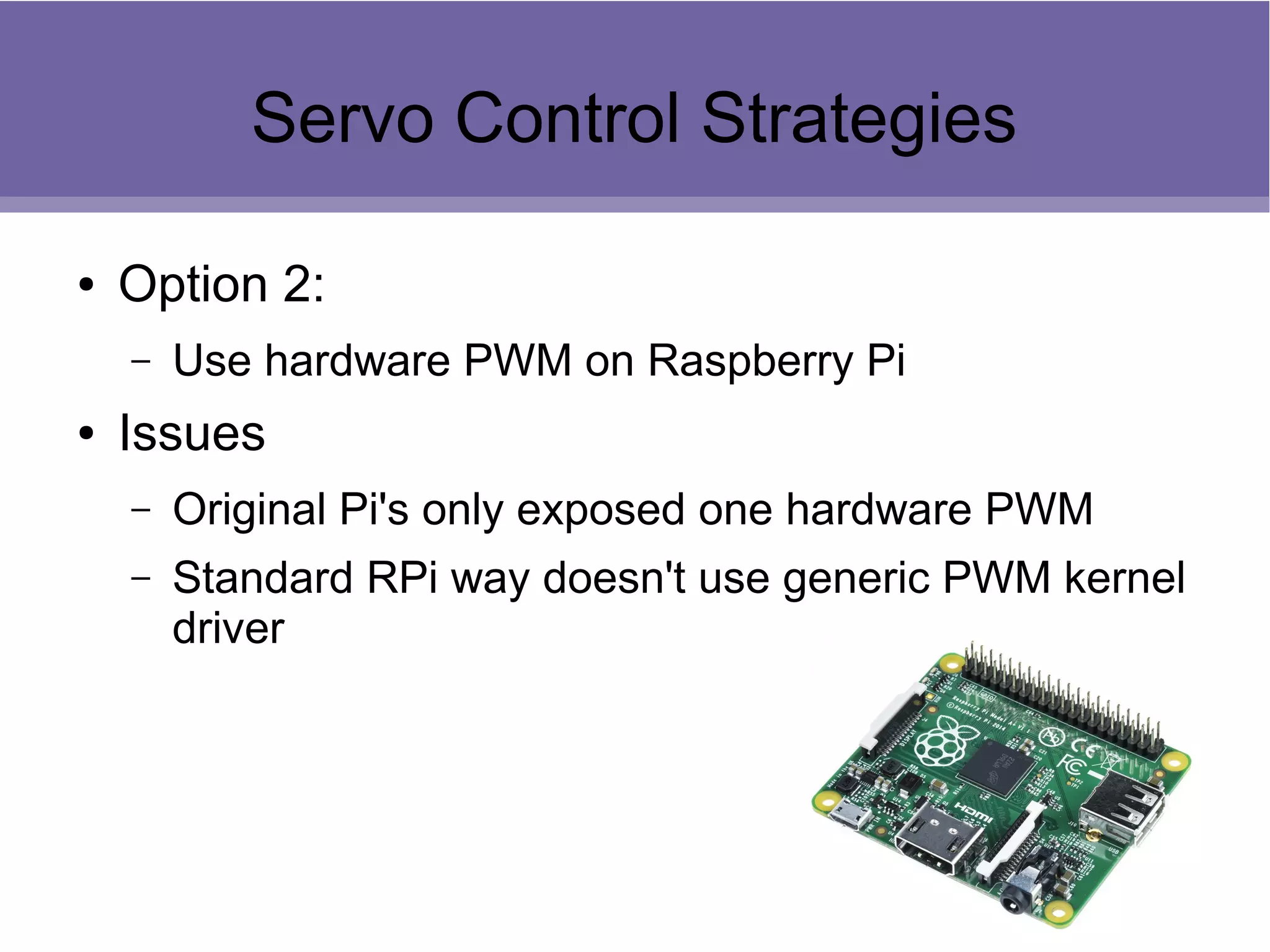

14. Servo Control Strategies
● Option 2:
– Use hardware PWM on Raspberry Pi
● Issues
– Original Pi's only exposed one hardware PWM
– Standard RPi way doesn't use generic PWM kernel
driver

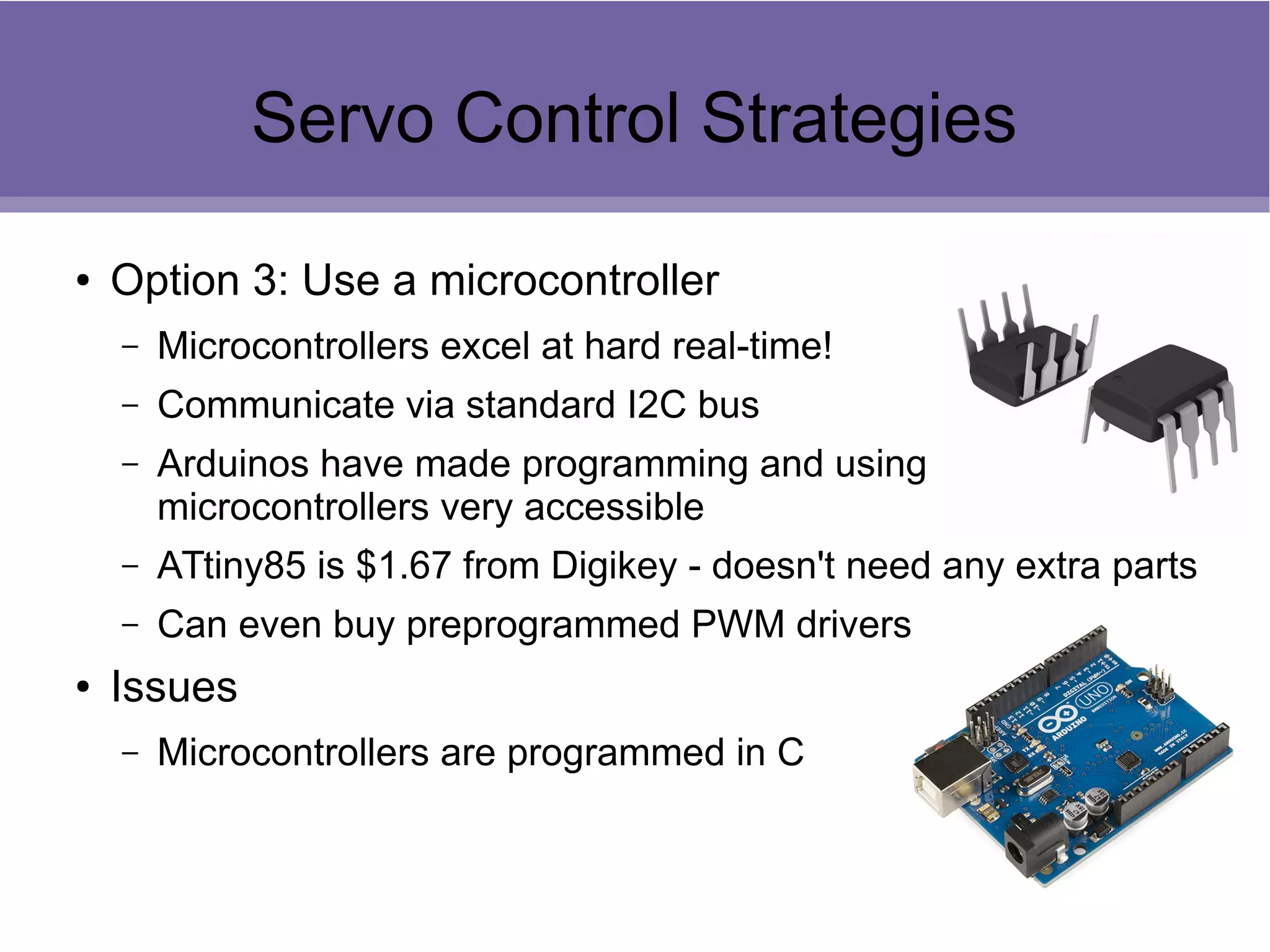

15. Servo Control Strategies
● Option 3: Use a microcontroller
– Microcontrollers excel at hard real-time!
– Communicate via standard I2C bus
– Arduinos have made programming and using
microcontrollers very accessible
– ATtiny85 is $1.67 from Digikey - doesn't need any extra parts
– Can even buy preprogrammed PWM drivers
● Issues
– Microcontrollers are programmed in C

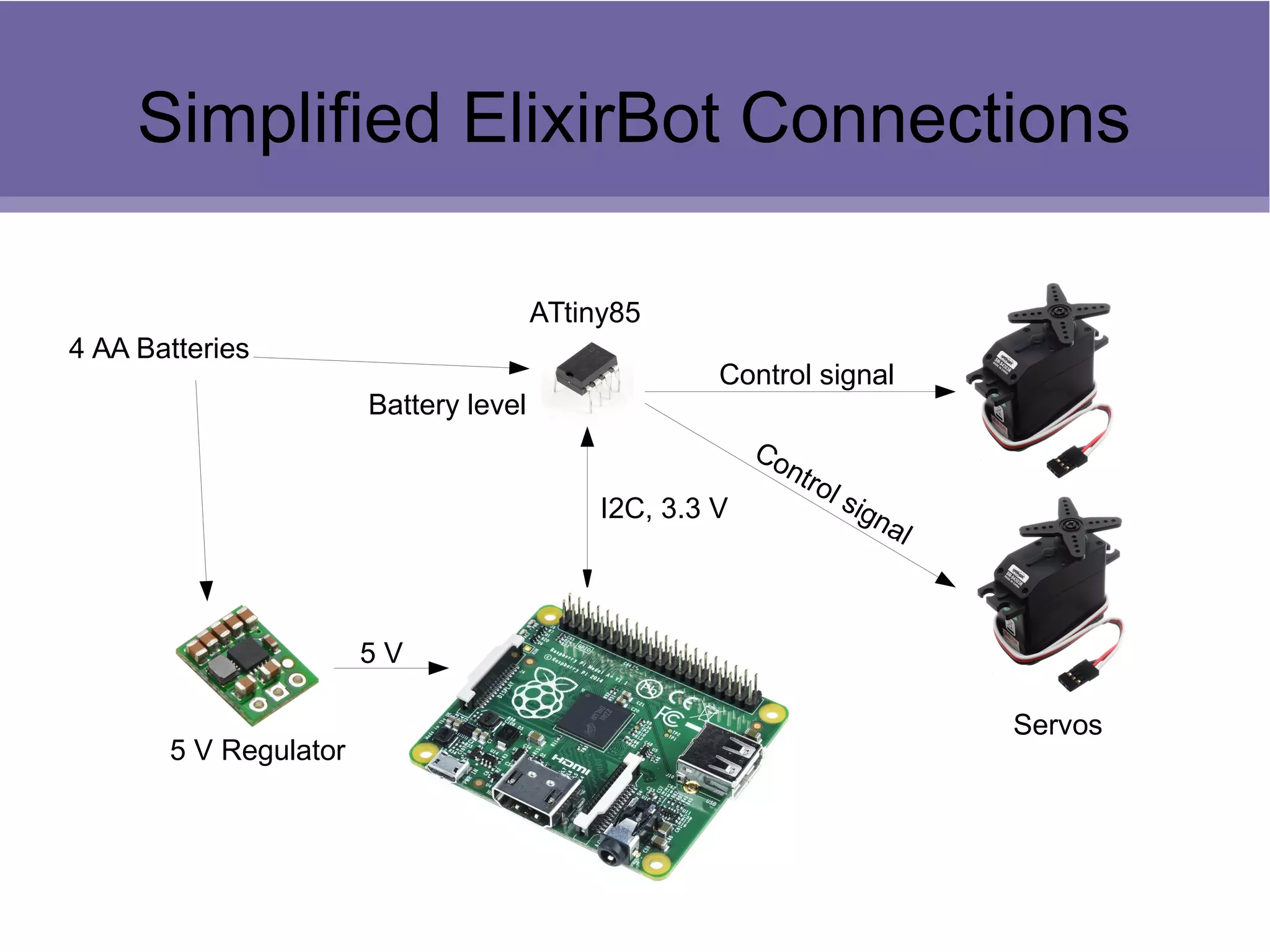

16. Simplified ElixirBot Connections
4 AA Batteries
5 V
I2C, 3.3 V
5 V Regulator
ATtiny85
Servos
Battery level
Control signal
Control signal

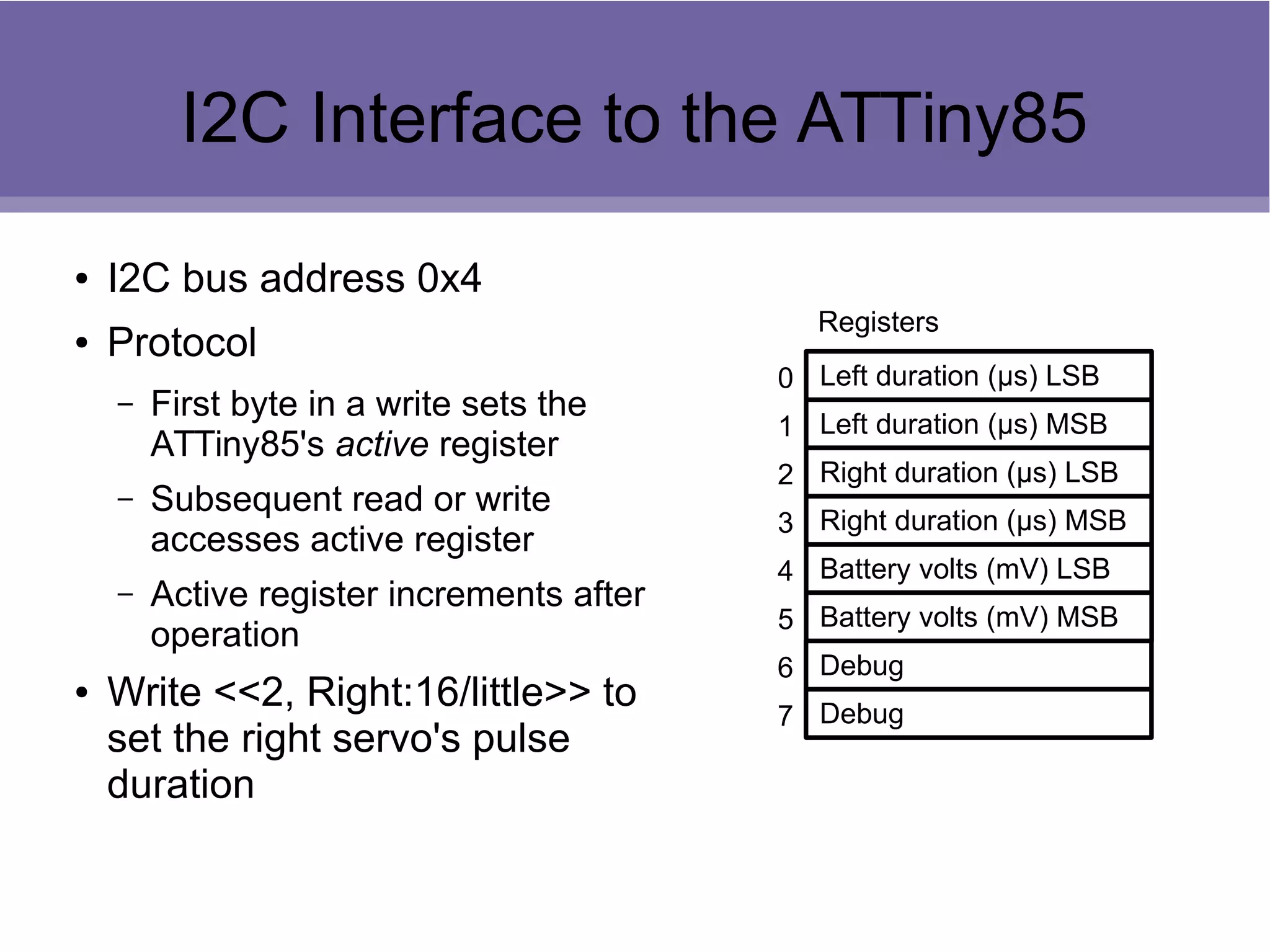

17. I2C Interface to the ATTiny85
● I2C bus address 0x4
● Protocol
– First byte in a write sets the
ATTiny85's active register
– Subsequent read or write
accesses active register
– Active register increments after
operation
● Write <<2, Right:16/little>> to
set the right servo's pulse
duration
Left duration (μs) LSB
Left duration (μs) MSB
Right duration (μs) LSB
Right duration (μs) MSB
Battery volts (mV) LSB
Battery volts (mV) MSB
Registers
0
1
2
3
4
5
Debug
Debug
6
7

18. Demo
● Create a new Elixir project that uses Nerves
● Pull in Elixir/ALE
● Communicate via I2C to the ATTiny85
● Move the robot

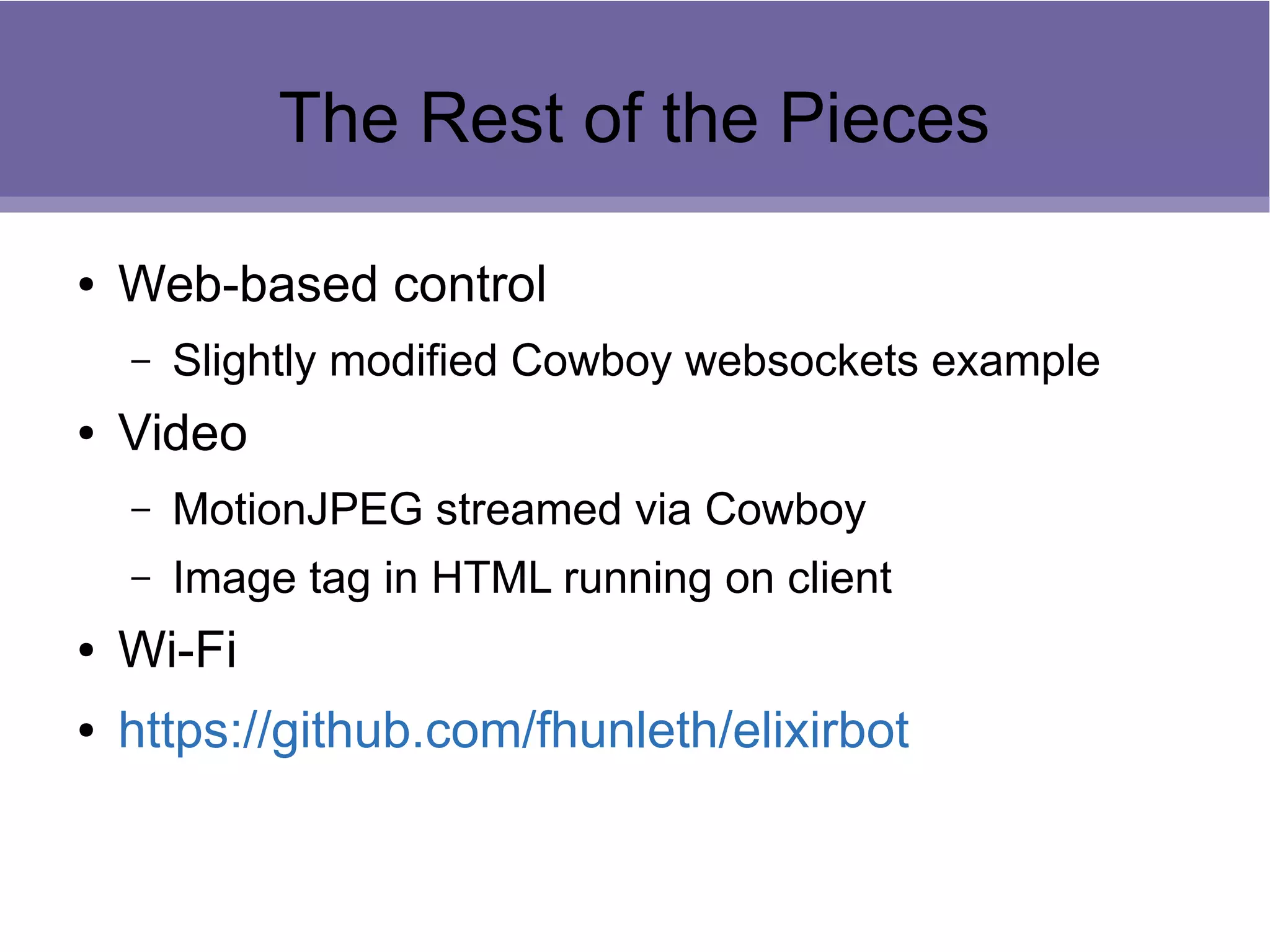

19. The Rest of the Pieces
● Web-based control
– Slightly modified Cowboy websockets example
● Video
– MotionJPEG streamed via Cowboy
– Image tag in HTML running on client
● Wi-Fi
● https://github.com/fhunleth/elixirbot

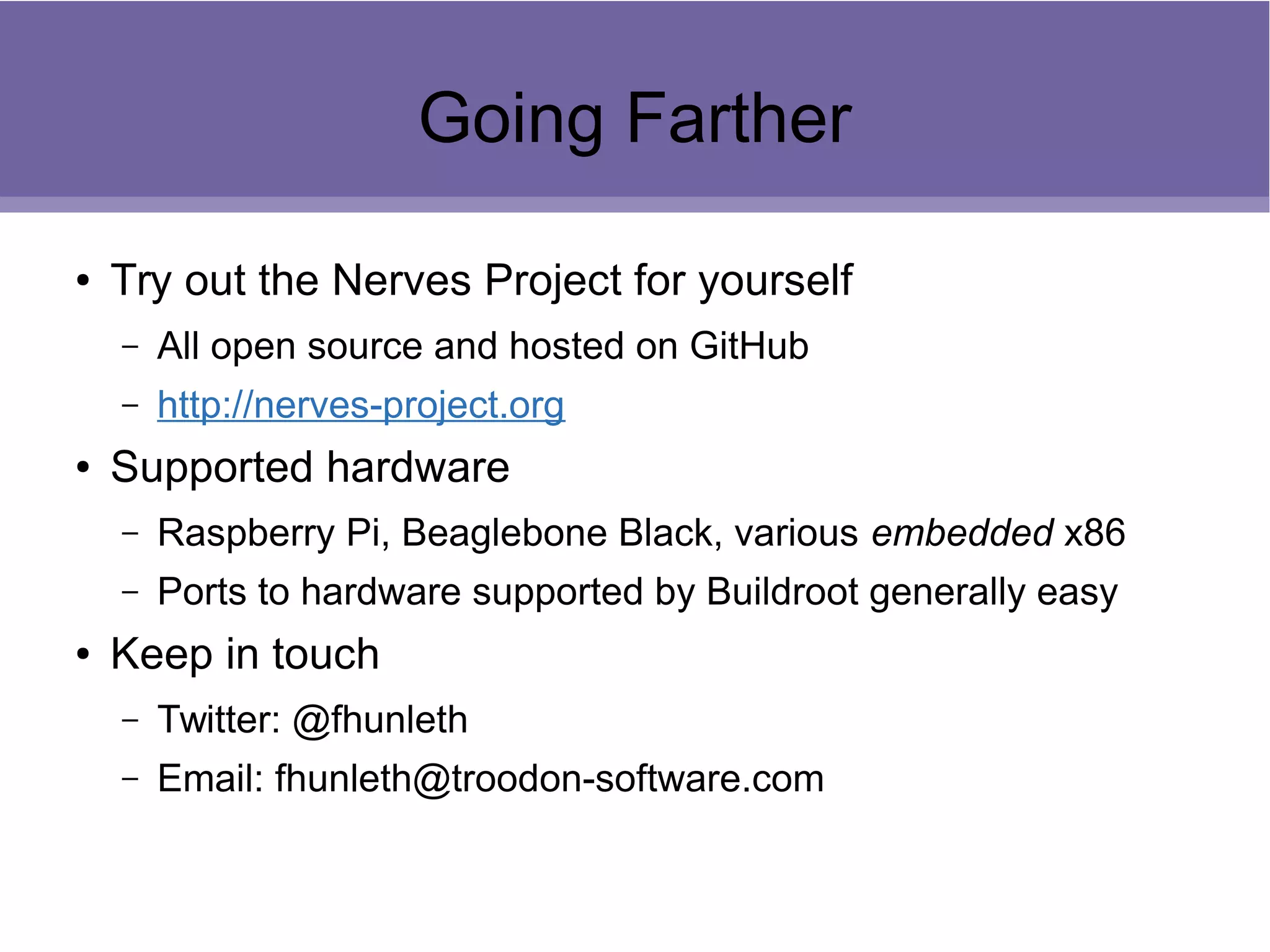

20. Going Farther
● Try out the Nerves Project for yourself
– All open source and hosted on GitHub
– http://nerves-project.org
● Supported hardware
– Raspberry Pi, Beaglebone Black, various embedded x86
– Ports to hardware supported by Buildroot generally easy
● Keep in touch
– Twitter: @fhunleth
– Email: fhunleth@troodon-software.com

21. Embedded Erlang, Nerves, and
SumoBots
Frank Hunleth
Twitter: @fhunleth
Erlang Factory 2015
