IMAGE | GREENTECHMEDIA ELECTRIC VEHICLE GRID SIMULATOR WRI Electric Mobility | April 2, 2020
AGENDA  Current model inputs and outputs  Case studies  Future model improvements
EV GRID SIMULATOR
SIMULATOR INPUTS  Setting: Multiple use cases (commercial, industrial, residential)  Level of analysis: Distribution transformer  Time interval: 15-minute intervals over 24 hours

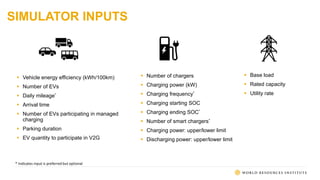

SIMULATOR INPUTS  Vehicle energy efficiency (kWh/100km)  Number of EVs  Daily mileage*  Arrival time  Number of EVs participating in managed charging  Parking duration  EV quantity to participate in V2G  Base load  Rated capacity  Utility rate  Number of chargers  Charging power (kW)  Charging frequency*  Charging starting SOC  Charging ending SOC*  Number of smart chargers*  Charging power: upper/lower limit  Discharging power: upper/lower limit * Indicates input is preferred but optional

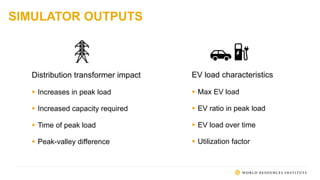

SIMULATOR OUTPUTS Distribution transformer impact  Increases in peak load  Increased capacity required  Time of peak load  Peak-valley difference EV load characteristics  Max EV load  EV ratio in peak load  EV load over time  Utilization factor
MODEL INSIGHTS  Optimized EV charging strategy  Time-sensitive electricity cost analysis  Electricity cost and demand charge mitigation  Determine VGI potential based on vehicle and infrastructure specifications.  Energy potential of parked vehicles  Viability of various VGI applications

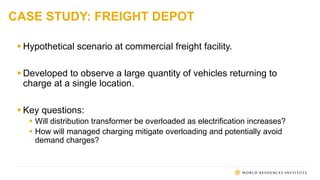

CASE STUDY: FREIGHT DEPOT  Hypothetical scenario at commercial freight facility.  Developed to observe a large quantity of vehicles returning to charge at a single location.  Key questions:  Will distribution transformer be overloaded as electrification increases?  How will managed charging mitigate overloading and potentially avoid demand charges?
CASE STUDY: FREIGHT DEPOT Unmanaged Charging Managed Charging Number of vehicles: 150 Max capacity: 2400 kW

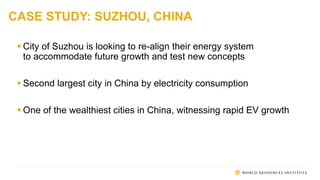

CASE STUDY: SUZHOU, CHINA  City of Suzhou is looking to re-align their energy system to accommodate future growth and test new concepts  Second largest city in China by electricity consumption  One of the wealthiest cities in China, witnessing rapid EV growth
CASE STUDY: SUZHOU, CHINA 0 1000 2000 3000 4000 5000 6000 0:00 1:15 2:30 3:45 5:00 6:15 7:30 8:45 10:00 11:15 12:30 13:45 15:00 16:15 17:30 18:45 20:00 21:15 22:30 23:45 kW 33%EV penetration 66%EV penetration 100%EV penetration Base load Distribution capacity 80% of Distribution capacity 0 500 1000 1500 2000 2500 3000 3500 4000 4500 00:00 01:15 02:30 03:45 05:00 06:15 07:30 08:45 10:00 11:15 12:30 13:45 15:00 16:15 17:30 18:45 20:00 21:15 22:30 23:45 kW 33%EV penetration 66%EV penetration 100%EV penetration Base load Distribution capacity 80% of Distribution capacity 0 1000 2000 3000 4000 5000 6000 7000 8000 0:00 1:15 2:30 3:45 5:00 6:15 7:30 8:45 10:00 11:15 12:30 13:45 15:00 16:15 17:30 18:45 20:00 21:15 22:30 23:45 kW 33%EV penetration 66%EV penetration 100%EV penetration Base load Distribution capacity 80% of Distribution capacity Case 1: Office Case 2: Commercial Complex Case 3: Residential Neighborhood Suzhou modelling results indicate that residential distribution feeders are most vulnerable to (or potentially hinder) large EV deployment
EV GRID SIMULATOR
