What are EVs ?
Electric vehicles (EVs) run on electricity only. They are propelled by one or more electric motors powered
by rechargeable battery packs.

4. M.TECH. AUTOMOTIVE ELECTRONICS 4
 Energy efficient.
 Reduced energy dependence
 Regenerative Braking
 Easy to make Autonomous Vehicle
 Easy Driving
 Pollution Free
Benefits of Electric Vehicle

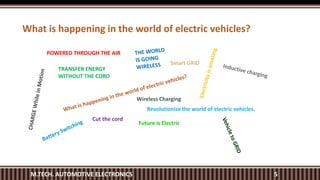

5. What is happening in the world of electric vehicles?
M.TECH. AUTOMOTIVE ELECTRONICS 5
POWERED THROUGH THE AIR
TRANSFER ENERGY
WITHOUT THE CORD
Revolutionise the world of electric vehicles.
Cut the cord
Smart GRID
Wireless Charging
Future is Electric

6. M.TECH. AUTOMOTIVE ELECTRONICS 6

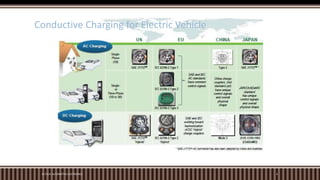

Conductive Charging for Electric Vehicle

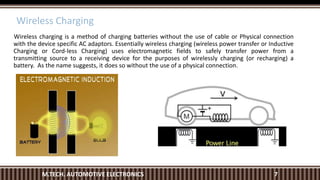

7. Wireless charging is a method of charging batteries without the use of cable or Physical connection
with the device specific AC adaptors. Essentially wireless charging (wireless power transfer or Inductive
Charging or Cord-less Charging) uses electromagnetic fields to safely transfer power from a
transmitting source to a receiving device for the purposes of wirelessly charging (or recharging) a
battery. As the name suggests, it does so without the use of a physical connection.
Wireless Charging
M.TECH. AUTOMOTIVE ELECTRONICS 7

8. M.TECH. AUTOMOTIVE ELECTRONICS 8

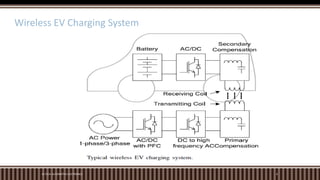

Wireless EV Charging System

9. M.TECH. AUTOMOTIVE ELECTRONICS 9

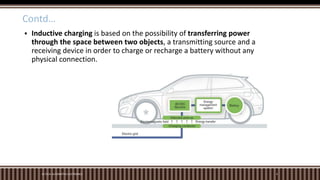

 Inductive charging is based on the possibility of transferring power
through the space between two objects, a transmitting source and a
receiving device in order to charge or recharge a battery without any
physical connection.
Contd…

10. M.TECH. AUTOMOTIVE ELECTRONICS 10
1. Power Supply
2. Transmitting Pad
3. Wireless Electricity and Data Transfer
4. Receiver Pad
5. System Controller
6. Battery
Wireless Charging System

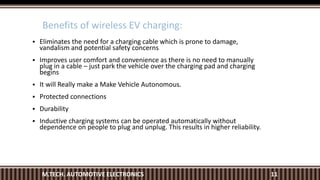

11. Benefits of wireless EV charging:
11M.TECH. AUTOMOTIVE ELECTRONICS
 Eliminates the need for a charging cable which is prone to damage,
vandalism and potential safety concerns
 Improves user comfort and convenience as there is no need to manually
plug in a cable – just park the vehicle over the charging pad and charging
begins
 It will Really make a Make Vehicle Autonomous.
 Protected connections
 Durability
 Inductive charging systems can be operated automatically without
dependence on people to plug and unplug. This results in higher reliability.

12. M.TECH. AUTOMOTIVE ELECTRONICS 12

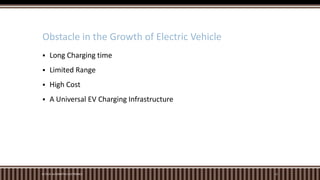

 Long Charging time
 Limited Range
 High Cost
 A Universal EV Charging Infrastructure
Obstacle in the Growth of Electric Vehicle

13. M.TECH. AUTOMOTIVE ELECTRONICS 13
Smaller
Battery
Less
Weight
Less
Cost
More
Charging
Instant
More
Driving
Range
The greater the number of charging
instances the smaller the EV battery
could be and the lower the lost.

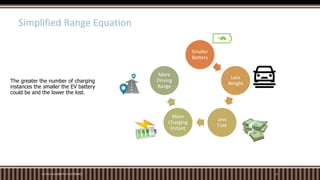

Simplified Range Equation

14. M.TECH. AUTOMOTIVE ELECTRONICS 14
THE RISE OF ELECTRIC VEHICLE

15. M.TECH. AUTOMOTIVE ELECTRONICS 15

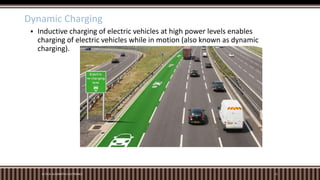

 Inductive charging of electric vehicles at high power levels enables
charging of electric vehicles while in motion (also known as dynamic
charging).
Dynamic Charging

16. M.TECH. AUTOMOTIVE ELECTRONICS 16
Contd…

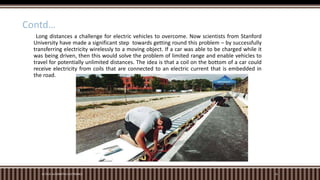

Long distances a challenge for electric vehicles to overcome. Now scientists from Stanford
University have made a significant step towards getting round this problem – by successfully
transferring electricity wirelessly to a moving object. If a car was able to be charged while it
was being driven, then this would solve the problem of limited range and enable vehicles to
travel for potentially unlimited distances. The idea is that a coil on the bottom of a car could
receive electricity from coils that are connected to an electric current that is embedded in
the road.

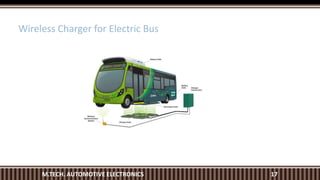

17. Wireless Charger for Electric Bus
M.TECH. AUTOMOTIVE ELECTRONICS 17

18. M.TECH. AUTOMOTIVE ELECTRONICS 18

19. M.TECH. AUTOMOTIVE ELECTRONICS 19

20. M.TECH. AUTOMOTIVE ELECTRONICS 20

21. M.TECH. AUTOMOTIVE ELECTRONICS 21
1) Jianmin Jiang Department of Computing University of Surrey, Guilford, UK “Dynamic wireless charging of
electric vehicles on the move with Mobile Energy Disseminators”
2) Chun Qiu, K.T. Chau, Chunhua Liu, Department of Electrical and Electronic Engineering, The University of
Hong Kong “Overview of wireless power transfer for electric vehicle charging”
3) https://www.qualcomm.com/
4) https://www.pluglesspower.com/learn-about-plugless/
5) https://www.ornl.gov/
References
