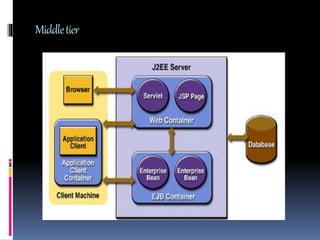

This document summarizes an e-examination system project that allows users to take online exams securely from anywhere. It includes modules for user registration and login, question paper creation, the examination interface, and an administrator module. The system uses a MySQL database with tables for users, questions, exams, and results. It follows a three-tier architecture with presentation, application, and data tiers to separate the user interface from the business logic and data storage. Hardware requirements include a PC and software requirements are a Windows OS, MySQL, Java technologies like JSP for development. Context and data flow diagrams show how users and administrators interact with the database through the system.

1. project on E-examination Systempresented by:-Aurobindonayakregd no-070128307 branch- cse

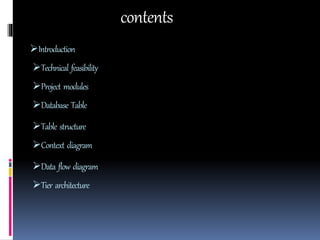

2. contentsIntroduction

3. Technical feasibility

4. Project modules

5. Database Table

6. Table structure

7. Context diagram

8. Data flow diagram

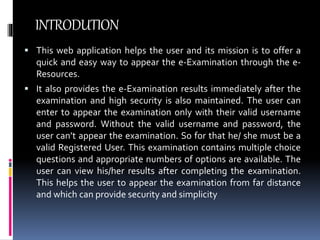

9. Tier architectureINTRODUTIONThis web application helps the user and its mission is to offer a quick and easy way to appear the e-Examination through the e-Resources. It also provides the e-Examination results immediately after the examination and high security is also maintained. The user can enter to appear the examination only with their valid username and password. Without the valid username and password, the user can’t appear the examination. So for that he/ she must be a valid Registered User. This examination contains multiple choice questions and appropriate numbers of options are available. The user can view his/her results after completing the examination. This helps the user to appear the examination from far distance and which can provide security and simplicity

10. and other beneficial features to the user. Apart from this e-Examination, this web application also provides some other facilities like:Anybody can be a valid Registered User of this web application absolutely free of cost. After taking the information from the user through online, this web application will provide the username and password to the user. This is called as Registration process of the User Creation.Anybody can appear e-Examination of different streams of different subjects for evaluating his/her own performance.The biggest advantage of accessing this web application is that any valid user can access this site as well as download the e-Resources which are available as knowledge management.

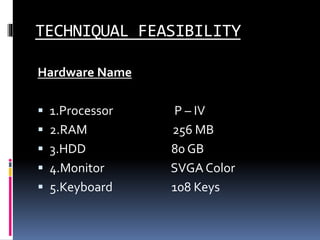

11. TECHNIQUAL FEASIBILITYHardware Name1.Processor P – IV2.RAM 256 MB3.HDD 80 GB4.Monitor SVGA Color5.Keyboard 108 Keys

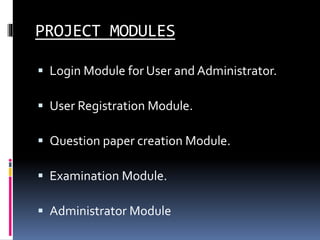

12. PROJECT MODULESLogin Module for User and Administrator.User Registration Module.Question paper creation Module.Examination Module.Administrator Module

13. Software Required:1.Operating System: Windows XP with SP – ver. 2.02.Database: MS ACCESS3.Designing Tools: HTML, JAVA SCRIPT4.Scripting Language: JSP5.Web Server: Apache Tomcat 5.26.IDE (Integrated Development Environment): Macromedia Dreamweaver 8.07. Browser:Internet Explorer 6.0

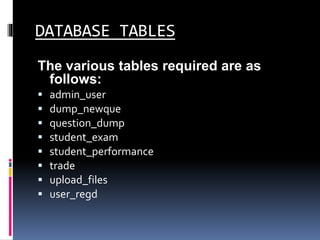

14. DATABASE TABLESThe various tables required are as follows:admin_userdump_newquequestion_dumpstudent_examstudent_performancetradeupload_filesuser_regd

15. Admin_user

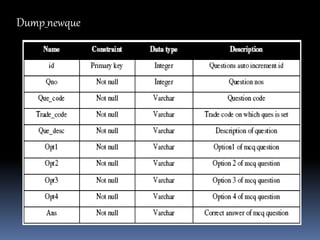

16. Dump_newque

17. Question_dump

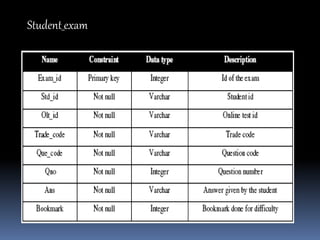

18. Student_exam

19. Student_performance

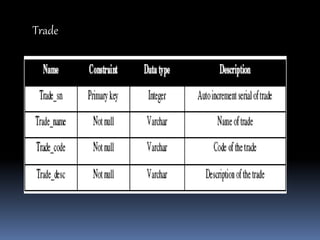

20. Trade

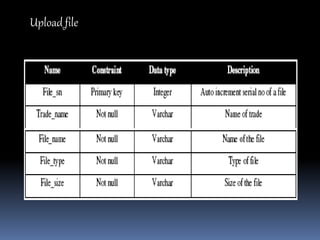

21. Upload_file

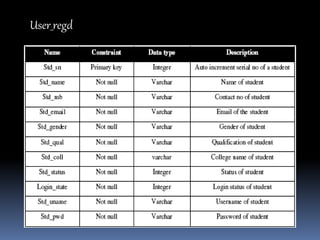

22. User_regd

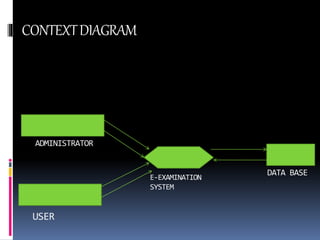

23. CONTEXT DIAGRAMADMINISTRATORDATA BASEE-EXAMINATION SYSTEMUSER

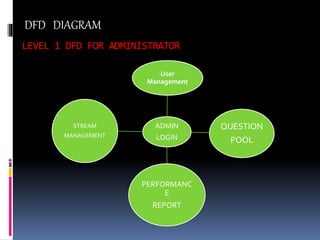

24. DFD DIAGRAMLEVEL 1 DFD FOR ADMINISTRATOR
