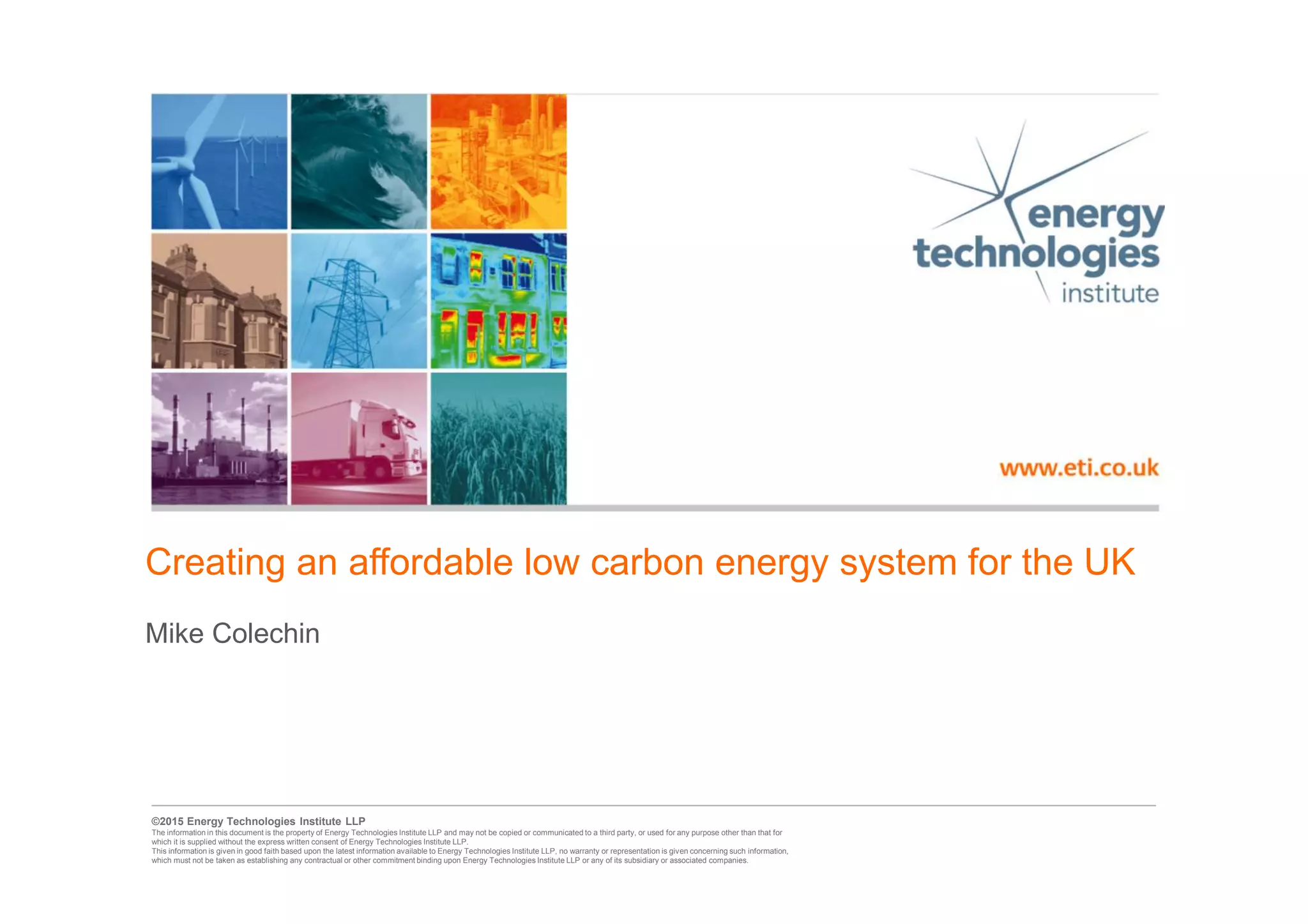

Creating an affordable low carbon energy system for the UK
Mike Colechin

2. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

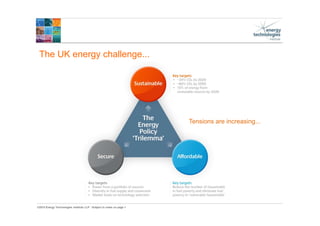

The UK energy challenge...
Tensions are increasing...

3. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

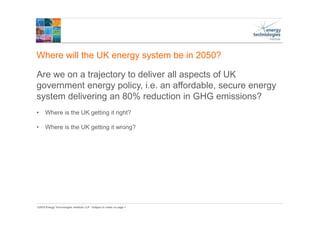

Where will the UK energy system be in 2050?
Are we on a trajectory to deliver all aspects of UK
government energy policy, i.e. an affordable, secure energy
system delivering an 80% reduction in GHG emissions?
• Where is the UK getting it right?
• Where is the UK getting it wrong?

4. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

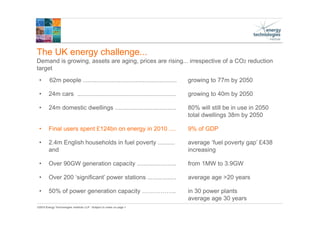

The UK energy challenge...
Demand is growing, assets are aging, prices are rising... irrespective of a CO2 reduction
target
• 62m people ....................................................... growing to 77m by 2050
• 24m cars .......................................................... growing to 40m by 2050
• 24m domestic dwellings .................................... 80% will still be in use in 2050
total dwellings 38m by 2050
• Final users spent £124bn on energy in 2010 .... 9% of GDP
• 2.4m English households in fuel poverty .......... average ‘fuel poverty gap’ £438
and increasing
• Over 90GW generation capacity ....................... from 1MW to 3.9GW
• Over 200 ‘significant’ power stations ................. average age >20 years
• 50% of power generation capacity …………….. in 30 power plants
average age 30 years

5. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

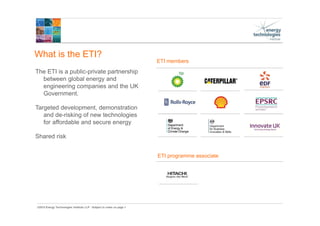

What is the ETI?
The ETI is a public-private partnership
between global energy and
engineering companies and the UK
Government.
Targeted development, demonstration
and de-risking of new technologies
for affordable and secure energy
Shared risk
ETI programme associate
ETI members

6. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1
What we do...
System level
strategic planning
Technology
development &
demonstration
Delivering
knowledge &
innovation

7. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

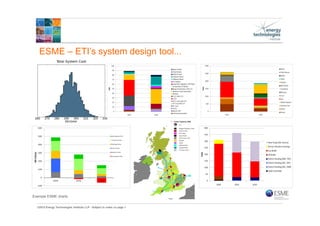

ESME – ETI’s system design tool...
Example ESME charts

8. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

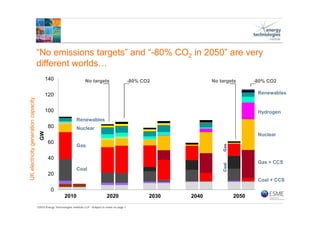

“No emissions targets” and “-80% CO2 in 2050” are very
different worlds…
0
20
40
60
80
100
120
140
2010 2020 2030 2040 2050
GW
Gas + CCS
Nuclear
Hydrogen
Renewables
GasCoal
No targets -80% CO2
UKelectricitygenerationcapacity
Coal + CCS
No targets -80% CO2
Coal
Gas
Nuclear
Renewables

9. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1
0
20
40
60
80
100
120
140
2010 2020 2030 2040 2050
GW
Gas + CCS
Nuclear
Hydrogen
Renewables
GasCoal
No targets -80% CO2
UKelectricitygenerationcapacity
Coal + CCS
No targets -80% CO2
Coal
Gas
Nuclear
Renewables
As long as we prepare NOW, decisions on 2050 can wait…
but not for long

10. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

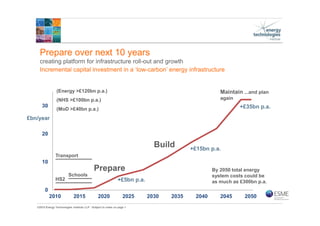

Prepare over next 10 years
creating platform for infrastructure roll-out and growth
0
10
20
30
2010 2015 2020 2025 2030 2035 2040 2045 2050
Transport
HS2
Schools
£bn/year
(NHS >£100bn p.a.)
(MoD >£40bn p.a.)
+£5bn p.a.
+£15bn p.a.
+£35bn p.a.
(Energy >£120bn p.a.)
By 2050 total energy
system costs could be
as much as £300bn p.a.
Prepare
Build
Maintain ...and plan
again
Incremental capital investment in a ‘low-carbon’ energy infrastructure

11. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

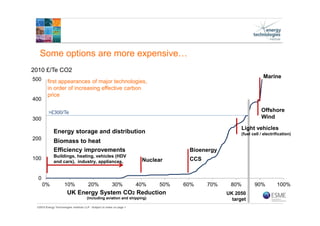

Some options are more expensive…
0
100
200
300
400
500
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
2010 £/Te CO2
UK Energy System CO2 Reduction
(including aviation and shipping)
Efficiency improvements
Buildings, heating, vehicles (HDV
and cars), industry, appliances,
Energy storage and distribution
Biomass to heat
UK 2050
target
>£300/Te Offshore
Wind
Light vehicles
(fuel cell / electrification)
Nuclear
Bioenergy
CCS
Marine
first appearances of major technologies,
in order of increasing effective carbon
price

12. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

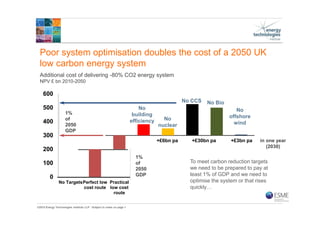

Poor system optimisation doubles the cost of a 2050 UK
low carbon energy system
Additional cost of delivering -80% CO2 energy system
NPV £ bn 2010-2050
0
100
200
300
400
500
600
No TargetsPerfect low
cost route
Practical
low cost
route
No
building
efficiency
packages
No Nuclear No CCS No Bio No
Offshore
Wind
No CCS No Bio
No
nuclear
No
offshore
wind
No
building
efficiency
1%
of
2050
GDP
1%
of
2050
GDP
+£30bn pa+£6bn pa +£3bn pa in one year
(2030)
To meet carbon reduction targets
we need to be prepared to pay at
least 1% of GDP and we need to
optimise the system or that rises
quickly…

13. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

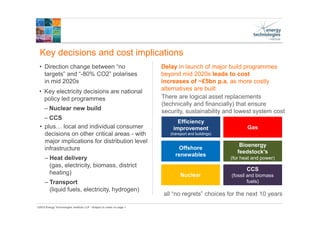

Key decisions and cost implications
• Direction change between “no
targets” and “-80% CO2” polarises
in mid 2020s
Delay in launch of major build programmes
beyond mid 2020s leads to cost
increases of ~£5bn p.a. as more costly
alternatives are built• Key electricity decisions are national
policy led programmes
– Nuclear new build
– CCS
• plus… local and individual consumer
decisions on other critical areas - with
major implications for distribution level
infrastructure
– Heat delivery
(gas, electricity, biomass, district
heating)
– Transport
(liquid fuels, electricity, hydrogen)
There are logical asset replacements
(technically and financially) that ensure
security, sustainability and lowest system cost
Nuclear
Gas
Bioenergy
feedstock's
(for heat and power)
CCS
(fossil and biomass
fuels)
Efficiency
improvement
(transport and buildings)
Offshore
renewables
all “no regrets” choices for the next 10 years

14. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

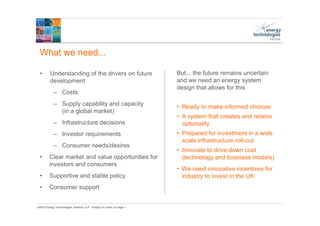

What we need...
• Understanding of the drivers on future
development
– Costs
– Supply capability and capacity
(in a global market)
– Infrastructure decisions
– Investor requirements
– Consumer needs/desires
• Clear market and value opportunities for
investors and consumers
• Supportive and stable policy
• Consumer support
But... the future remains uncertain
and we need an energy system
design that allows for this
• Ready to make informed choices
• A system that creates and retains
optionality
• Prepared for investment in a wide
scale infrastructure roll-out
• Innovate to drive down cost
(technology and business models)
• We need innovative incentives for
industry to invest in the UK

15. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

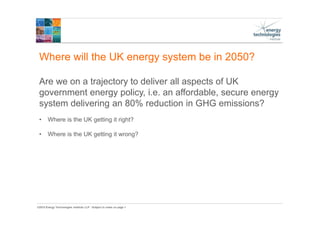

Where will the UK energy system be in 2050?
Are we on a trajectory to deliver all aspects of UK
government energy policy, i.e. an affordable, secure energy
system delivering an 80% reduction in GHG emissions?
• Where is the UK getting it right?
• Where is the UK getting it wrong?

16. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1
* 2010 UK consumption divided by 60M Notes: 1. Passenger transport figure excludes international air travel
(people in the UK) 2. Data excludes heavy industry
0 1000 2000 3000 4000 5000 6000
Space heating- domestic(Th)
Space heating- commercial (Th)
Waterheating- domestic(Th)
Waterheating- commercial (Th)
Processheating(Th)
Cooking- domestic(Th)
Cooking- commercial (Th)
14,000 passengerkm(Th)
4,250 GoodsTe km (Th)
Lighting
Appliances
Motors
Compressedair
Ventilation/AC
IT, etc
Refrigeration
Other
Energy kWh p.a.

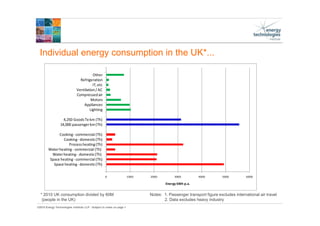

Individual energy consumption in the UK*...

17. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1
Source: UKERC (2011)

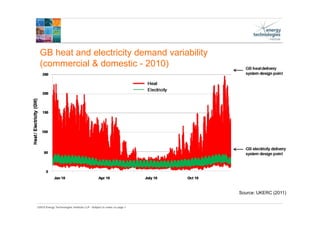

GB heat and electricity demand variability
(commercial & domestic - 2010)

18. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1
0
50
100
150
200
250
300 00:00
01:00
02:00
03:00
04:00
05:00
06:00
07:00
08:00
09:00
10:00
11:00
12:00
13:00
14:00
15:00
16:00
17:00
18:00
19:00
20:00
21:00
22:00
23:00
Time of Day
Other personal
Entertainment
Holidays/day trips
Shopping
Education
Business
Commuting
Average hour = 100
Data source: Department for Transport (2005-2009 data, weekday journeys only)
Road traffic density peaks at around 8am and 3pm

19. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

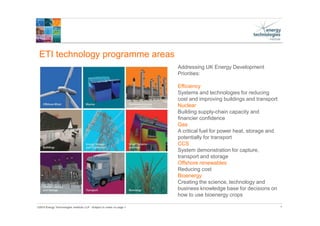

ETI technology programme areas
4.
Addressing UK Energy Development
Priorities:
Efficiency
Systems and technologies for reducing
cost and improving buildings and transport
Nuclear
Building supply-chain capacity and
financier confidence
Gas
A critical fuel for power heat, storage and
potentially for transport
CCS
System demonstration for capture,
transport and storage
Offshore renewables
Reducing cost
Bioenergy
Creating the science, technology and
business knowledge base for decisions on
how to use bioenergy crops

20. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

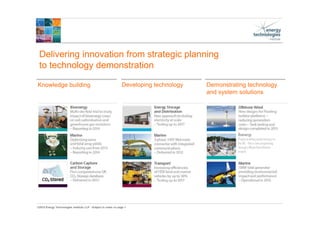

Delivering innovation from strategic planning
to technology demonstration
Knowledge building Developing technology Demonstrating technology
and system solutions
Bioenergy
Projectprofiling waste arising's in
the UK – this is now progressing
through a Waste Gassification
project

21. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

22. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

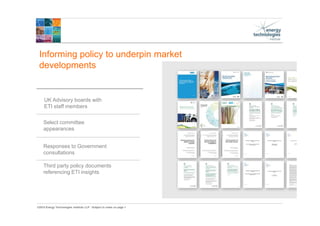

Informing policy to underpin market
developments
UK Advisory boards with
ETI staff members
Select committee
appearances
Responses to Government
consultations
Third party policy documents
referencing ETI insights

23. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

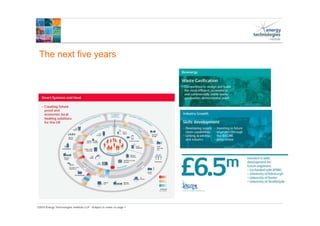

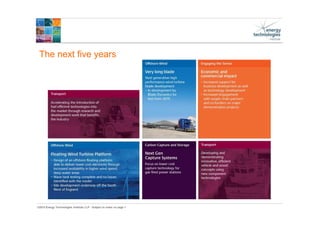

The next five years

24. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1
The next five years

25. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1
Where will the UK energy system be in 2050?
Are we on a trajectory to deliver all aspects of UK
government energy policy, i.e. an affordable, secure energy
system delivering an 80% reduction in GHG emissions?
• Where is the UK getting it right?
• Where is the UK getting it wrong?

26. ©2015 Energy Technologies Institute LLP - Subject to notes on page 1

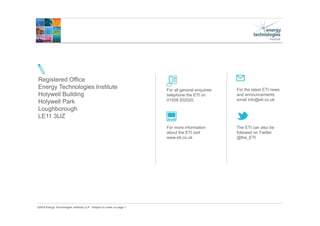

For more information
about the ETI visit
www.eti.co.uk
For the latest ETI news
and announcements
email info@eti.co.uk
The ETI can also be
followed on Twitter
@the_ETI
Registered Office
Energy Technologies Institute
Holywell Building
Holywell Park
Loughborough
LE11 3UZ
For all general enquiries
telephone the ETI on
01509 202020.
