1. EAP-TLS
KARRI HUHTANEN
RADIATOR SOFTWARE OY

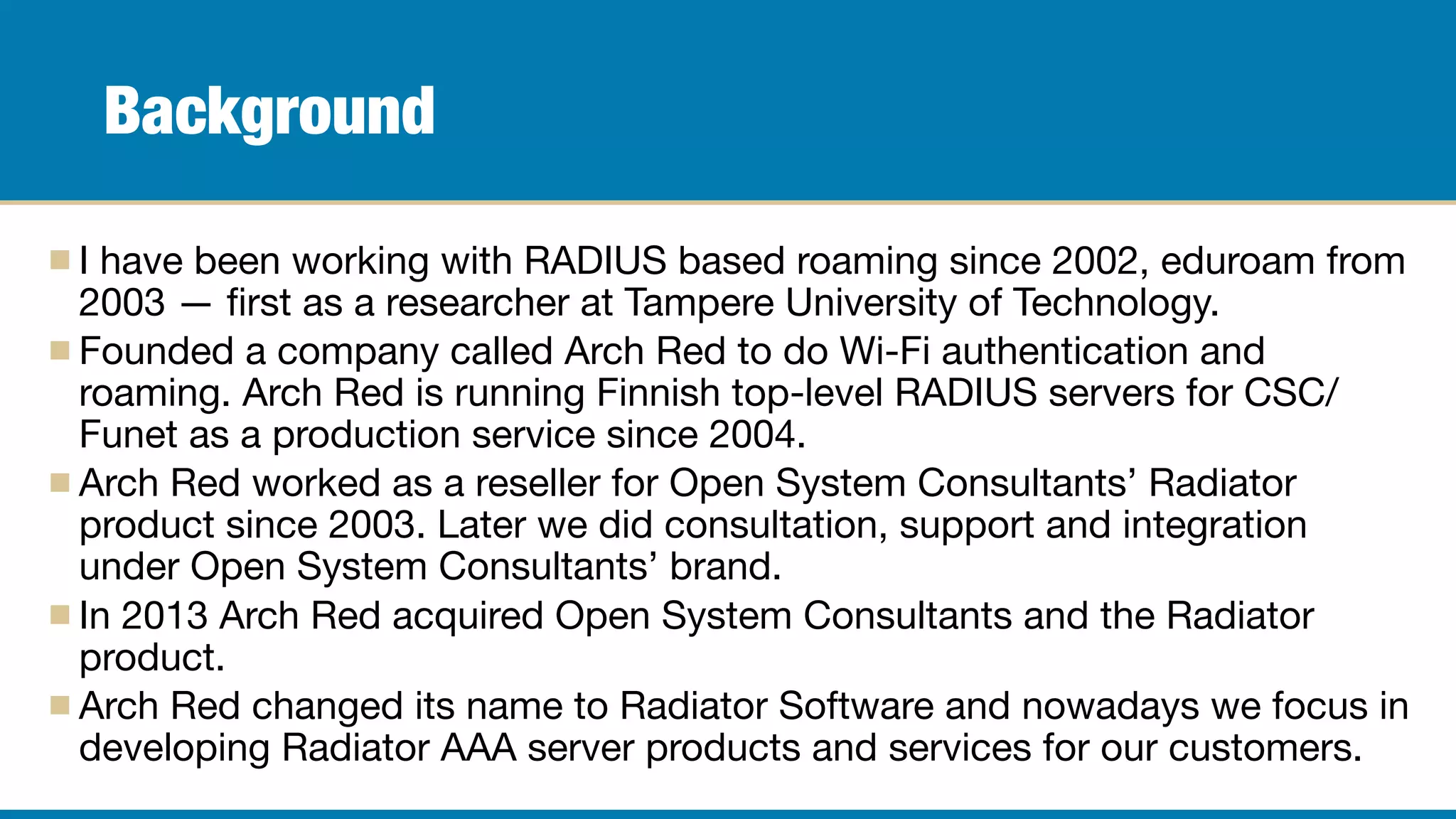

2. Background
I have been working with RADIUS based roaming since 2002, eduroam from
2003 — first as a researcher at Tampere University of Technology.
Founded a company called Arch Red to do Wi-Fi authentication and
roaming. Arch Red is running Finnish top-level RADIUS servers for CSC/
Funet as a production service since 2004.
Arch Red worked as a reseller for Open System Consultants’ Radiator
product since 2003. Later we did consultation, support and integration
under Open System Consultants’ brand.
In 2013 Arch Red acquired Open System Consultants and the Radiator
product.
Arch Red changed its name to Radiator Software and nowadays we focus in
developing Radiator AAA server products and services for our customers.

3. EAP-TLS is easy …
… for RADIUS server. At the minimum one needs only to
configure RADIUS server certificate and the CA certificate for
client certificate verification.
… to configure improperly. Understanding how certificates,
certificate revocation, root and intermediate CAs, PKI etc works
requires significant effort. Designing and deploying working
model requires even more.
… only when one does not need to care about the client
certificates, their configuration, provisioning and
management.

4. Deploying EAP-TLS
never start or settle requirements because of a product, solution
or technology
start with defining and designing
policies (validity, expiry times, authorisation, usage …)
PKI (hierarchy: CAs, intermediate CAs, certificate usage …)
configuration management
certificate provisioning
certificate requirements (roaming, use, technology …)
… but do pilot /trials simultaneously to learn and to see how
things do (or do not) work or scale with real users and
infrastructure

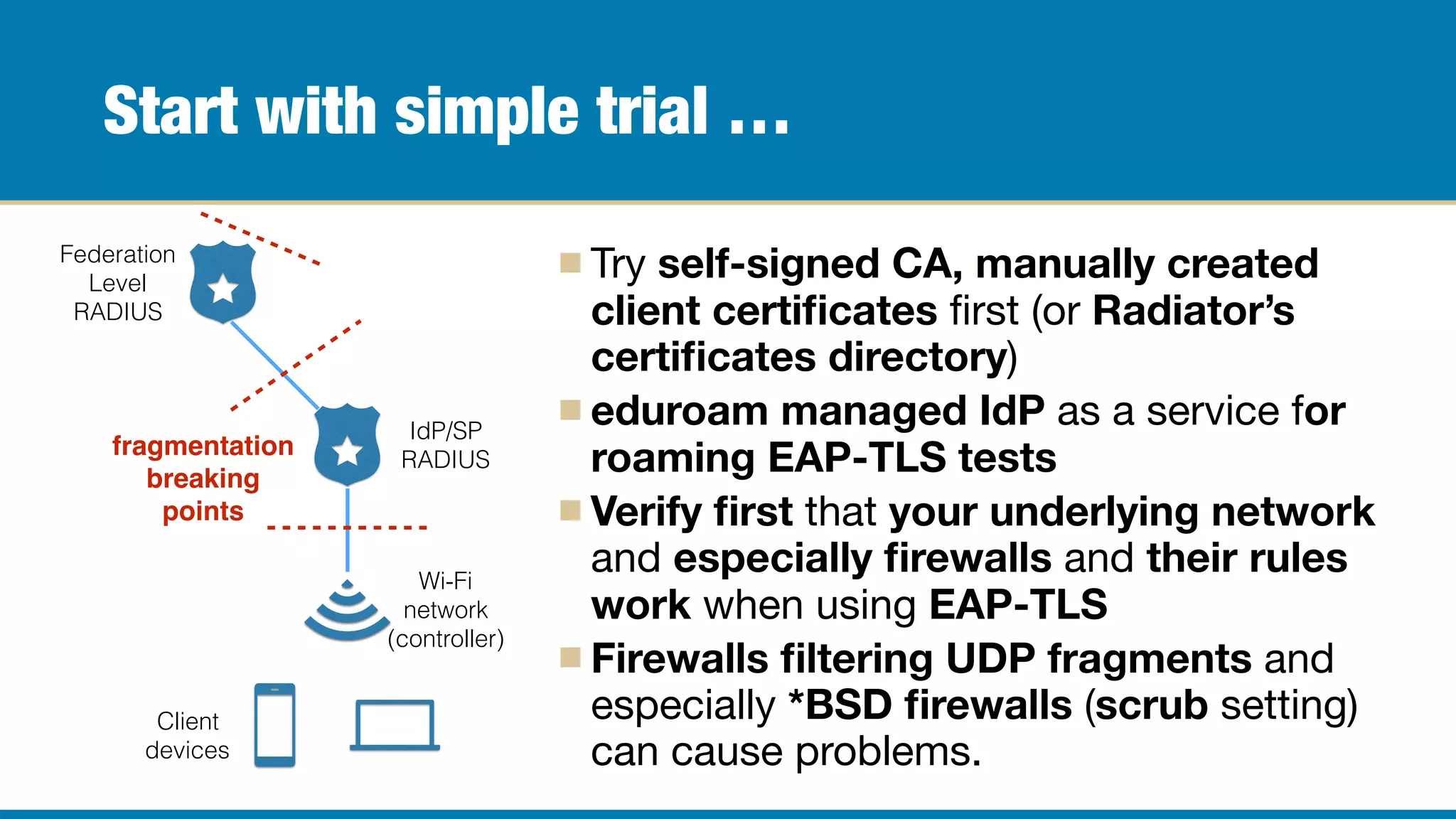

5. Start with simple trial …
Try self-signed CA, manually created
client certificates first (or Radiator’s
certificates directory)
eduroam managed IdP as a service for
roaming EAP-TLS tests
Verify first that your underlying network
and especially firewalls and their rules
work when using EAP-TLS
Firewalls filtering UDP fragments and
especially *BSD firewalls (scrub setting)
can cause problems.
Federation
Level
RADIUS
IdP/SP
RADIUS
Wi-Fi
network
(controller)
Client
devices
fragmentation
breaking
points

6. Why? Because network level has a lot to test…
Large certificates, long certificate chains can cause network
devices to fragment EAP-TLS authentication in different ways.
Firewalls configured to analyse/assemble or drop UDP/
RADIUS fragments may cause TLS communication to fail.
TLS communication failures can only be logged / detected in
the end user device or home organisation RADIUS.
eduroam managed IdP uses smaller elliptic curve based
certificates => does not proof that all certificates work
Radiator tips: EAPTLS_TraceState (for TLS debugging),
EAPTLS_MaxFragmentSize (adjust TLS max fragment size)

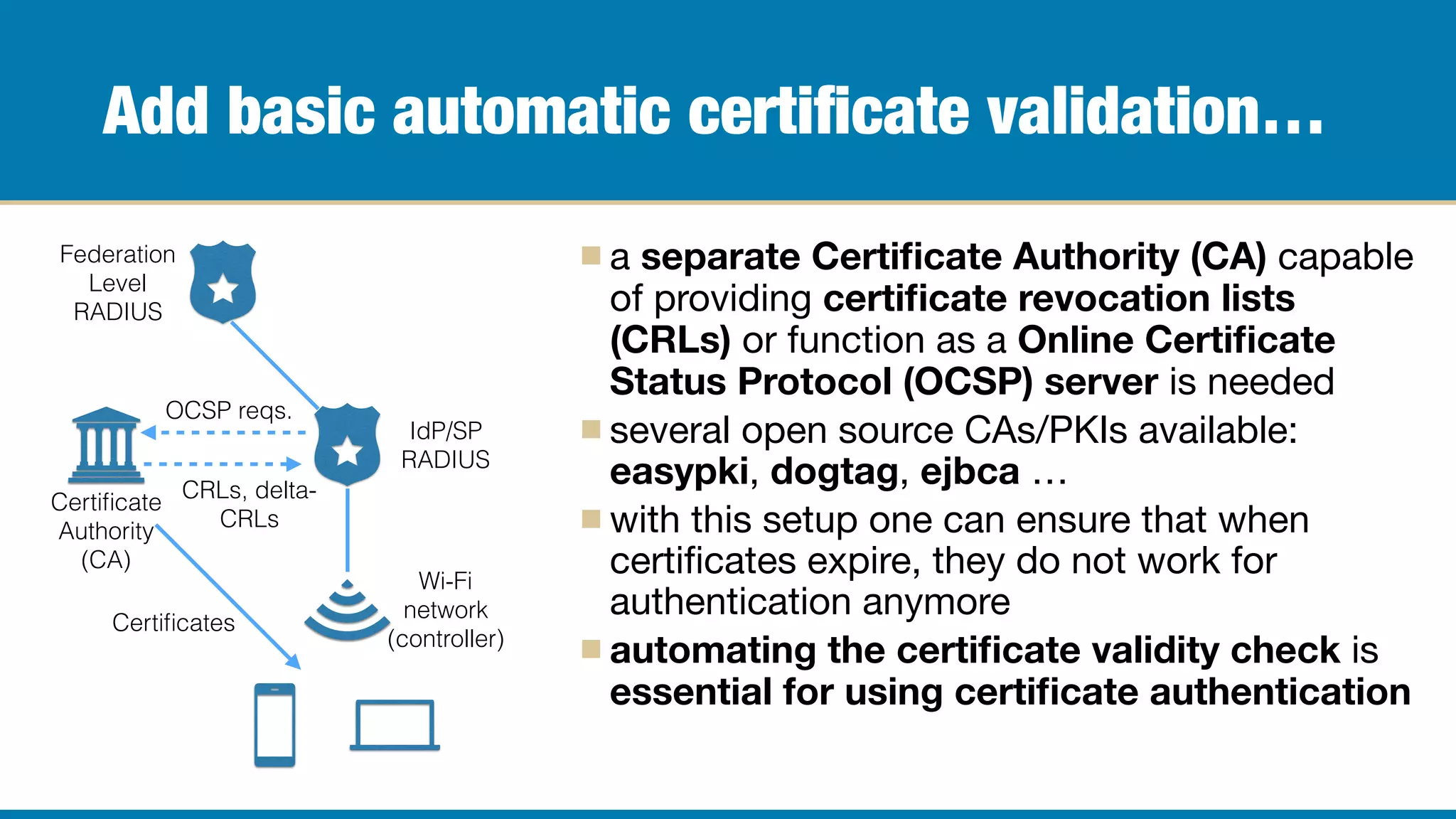

7. Add basic automatic certificate validation…
a separate Certificate Authority (CA) capable
of providing certificate revocation lists
(CRLs) or function as a Online Certificate
Status Protocol (OCSP) server is needed
several open source CAs/PKIs available:
easypki, dogtag, ejbca …
with this setup one can ensure that when
certificates expire, they do not work for
authentication anymore
automating the certificate validity check is
essential for using certificate authentication
Federation
Level
RADIUS
IdP/SP
RADIUS
Wi-Fi
network
(controller)
Certificate
Authority
(CA)
OCSP reqs.
CRLs, delta-
CRLs
Certificates

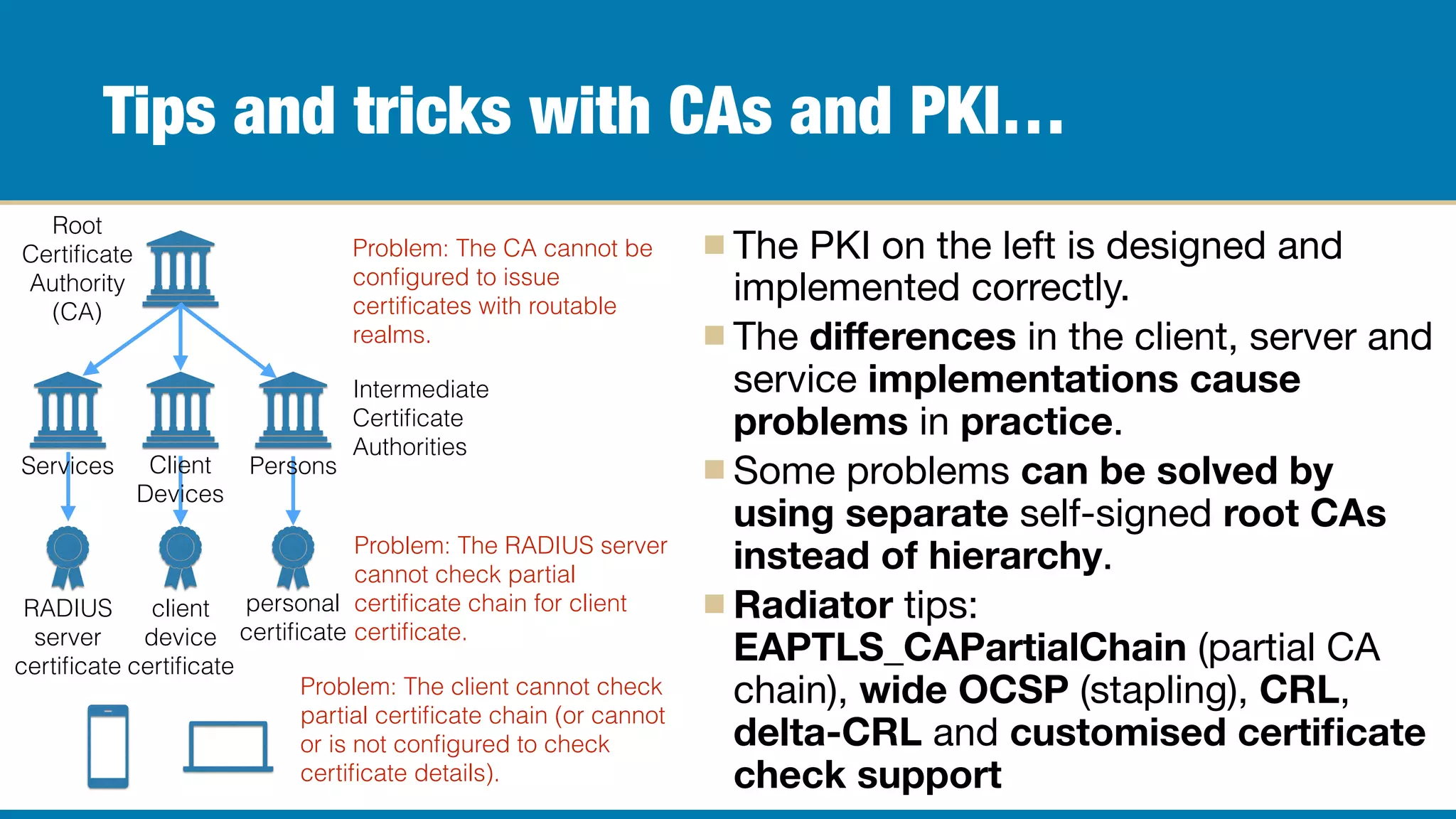

8. Tips and tricks with CAs and PKI…
The PKI on the left is designed and
implemented correctly.
The differences in the client, server and
service implementations cause
problems in practice.
Some problems can be solved by
using separate self-signed root CAs
instead of hierarchy.
Radiator tips:
EAPTLS_CAPartialChain (partial CA
chain), wide OCSP (stapling), CRL,
delta-CRL and customised certificate
check support
Root
Certificate
Authority
(CA)
Intermediate
Certificate
Authorities
RADIUS
server
certificate
client
device
certificate
personal
certificate
PersonsClient
Devices
Services
Problem: The client cannot check
partial certificate chain (or cannot
or is not configured to check
certificate details).
Problem: The RADIUS server
cannot check partial
certificate chain for client
certificate.
Problem: The CA cannot be
configured to issue
certificates with routable
realms.

9. Add connection to authorisation database…
Authorisation database can be Active
Directory, LDAP, SQL with additional
information about the client certificate.
CA, CRLs and OCSP can be sometimes
replaced by client certificate check
against the authorisation database.
Authorisation database can contain
additional information such as VLAN
assignments, account active/locked etc.
How flexible/complex/simple the
authorisation checks can be depends on
the IdP RADIUS product.
Federation
Level
RADIUS
IdP
RADIUS
Wi-Fi
network
(controller)
Certificate
Authority
(CA)
OCSP reqs.
CRLs, delta-
CRLs
Certificates
LDAP,
SQL,
etc.
IdP
Authorisation
Database
(AD, LDAP,
SQL)

10. <Handler Realm=/^karrin.net$/>
Identifier AUTH-HANDLER-KARRIN-NET
AccountingAccepted
<AuthBy SQL>
Identifier AUTH-HANDLER-KARRIN-NET-AUTHBY-SQL
DBSource dbi:SQLite:dbname=/etc/radiator/userdb.sqlite3
AuthSelect SELECT PASSWORD,CHECKATTR,REPLYATTR FROM USERIDS WHERE
USERID=? AND STATUS='ACTIVE'
AuthSelectParam %0
AuthColumnDef 0, User-Password, check
AuthColumnDef 1, GENERIC, check
AuthColumnDef 2, GENERIC, reply
NoDefault
#EAPTLS_TraceState
#EAPType TLS,PEAP
EAPType TLS,TTLS,PEAP
EAPTLS_CertificateType PEM
#EAPTLS_Protocols TLSv1.2
EAPTLS_CAFile %D/certificates/karrin-net-people-ca.crt
# allow partial chain (whole CA chain is not validated)
EAPTLS_CAPartialChain
EAPTLS_CertificateChainFile %D/certificates/wifi.karrin.net-bundle.crt
EAPTLS_PrivateKeyFile %D/certificates/wifi.karrin.net.key
EAPTLS_MaxFragmentSize 1000
EAPAnonymous %0
EAPTLS_CopyToInnerRequest NAS-IP-Address, NAS-Identifier, NAS-Port,
Calling-Station-Id, Called-Station-Id, Operator-Name, Chargeable-User-Identity
AutoMPPEKeys
</AuthBy>
AuthLog AUTHLOG-FILE
AcctLog ACCTLOG-FILE
</Handler>
sqlite> .schema userids
CREATE TABLE USERIDS(
USERID TEXT NOT NULL,
PASSWORD TEXT NOT NULL,
CHECKATTR TEXT,
REPLYATTR TEXT,
STATUS TEXT NOT NULL);
CREATE INDEX IDX_USERID ON USERIDS(USERID);
CREATE INDEX IDX_USERID_STATUS ON
USERIDS(USERID,STATUS);
sqlite> select * from userids;
kh+ipad@karrin.net|********||Tunnel-
Type=1:VLAN,Tunnel-Medium-Type=1:Ether_802,Tunnel-
Private-Group-ID=1:64|ACTIVE
kh+nexus6@karrin.net|********||Tunnel-
Type=1:VLAN,Tunnel-Medium-Type=1:Ether_802,Tunnel-
Private-Group-ID=1:64|ACTIVE
kh+exopc@karrin.net|********||Tunnel-Medium-
Type=1:Ether_802,Tunnel-Private-Group-ID=1:128|ACTIVE
kh+exopc2@karrin.net|********||Tunnel-Medium-
Type=1:Ether_802,Tunnel-Private-Group-ID=1:256|ACTIVE
Radiator EAP-TLS handler and
sqlite3 authorisation database
for certificate authentication and
dynamic VLAN selection.

11. Deploy certificate management service…
Properly distributing and configuring
certificates in the end user devices is
difficult.
For managed devices (Windows domain/
Intune) or for Apple devices it is easier,
but Android/Linux devices are hard.
Currently there seems to be no better
approach than to have an app in the
device talking to a service.
One commercial option is SecureW2.
Certificate signing requests created in
the actual device are even harder.
IdP
RADIUS
Wi-Fi
network
(controller)
Certificate
Management
Service
OCSP reqs.
CRLs, delta-
CRLs
Certificates
LDAP,
SQL,
etc.
IdP
Authorisation
Database
(AD, LDAP,
SQL)
Certificate
(signing)
requests
Certificate
request
authorisation
requests

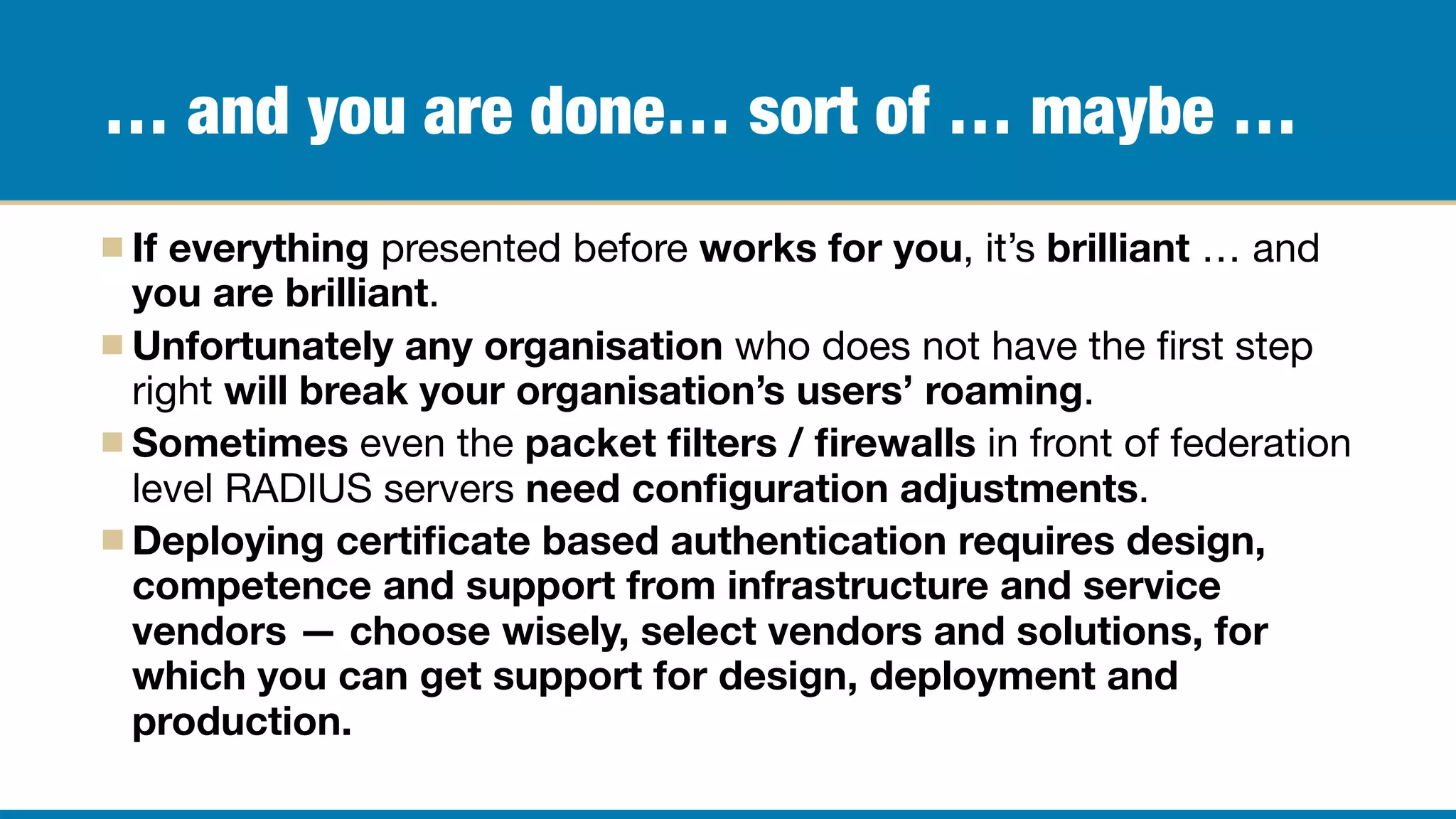

12. … and you are done… sort of … maybe …
If everything presented before works for you, it’s brilliant … and
you are brilliant.
Unfortunately any organisation who does not have the first step
right will break your organisation’s users’ roaming.
Sometimes even the packet filters / firewalls in front of federation
level RADIUS servers need configuration adjustments.
Deploying certificate based authentication requires design,
competence and support from infrastructure and service
vendors — choose wisely, select vendors and solutions, for
which you can get support for design, deployment and
production.

13. Questions?
Find this presentation and more from:
https://blog.radiatorsoftware.com/
https://slideshare.net/radiatorsoftware/
https://slideshare.net/khuhtanen/
https://twitter.com/OSCRadiator
This presentation will be presented second time in the JISC govroam stakeholders’ meeting
(23rd of October 2019 in London, United Kingdom)
