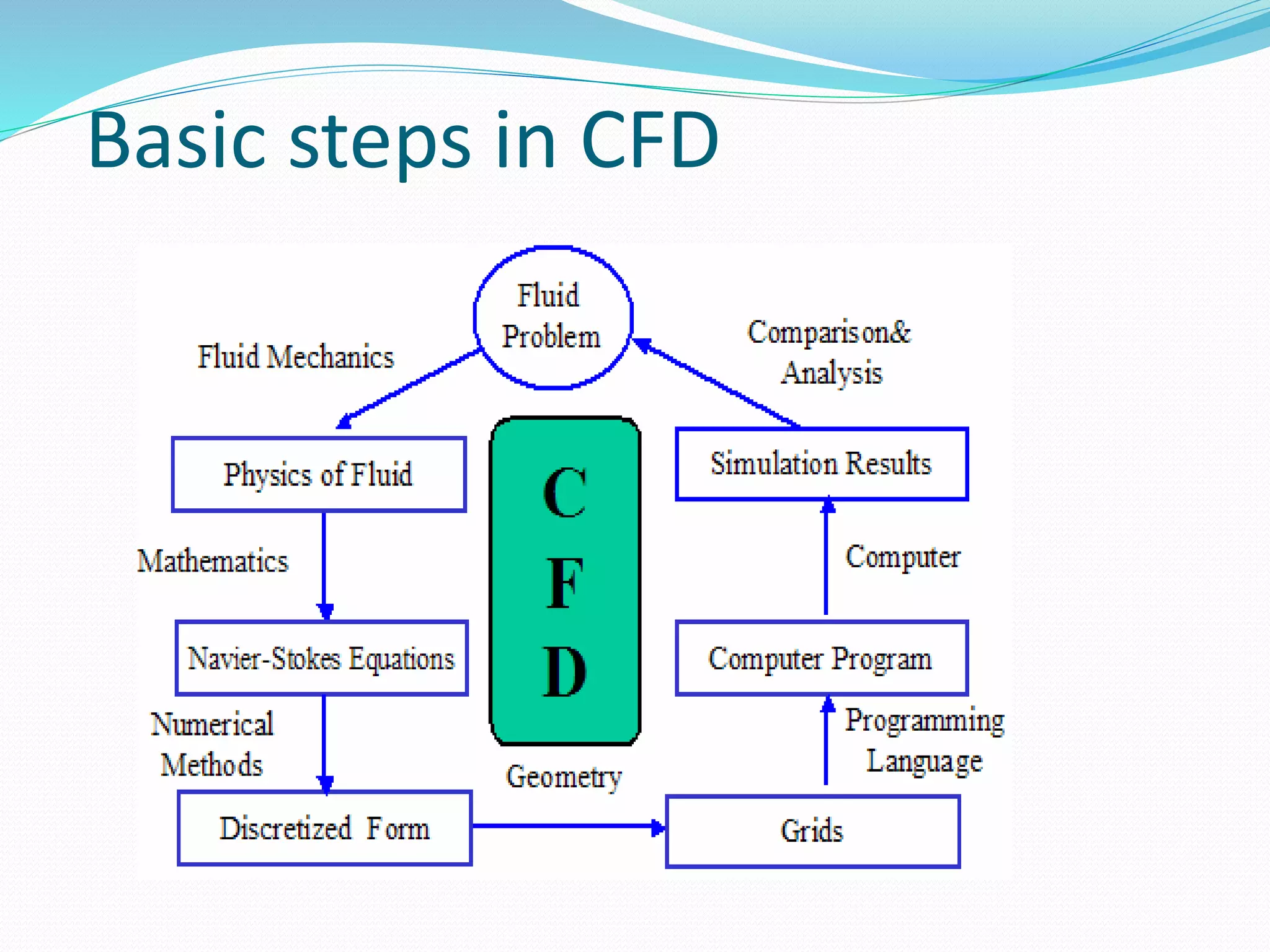

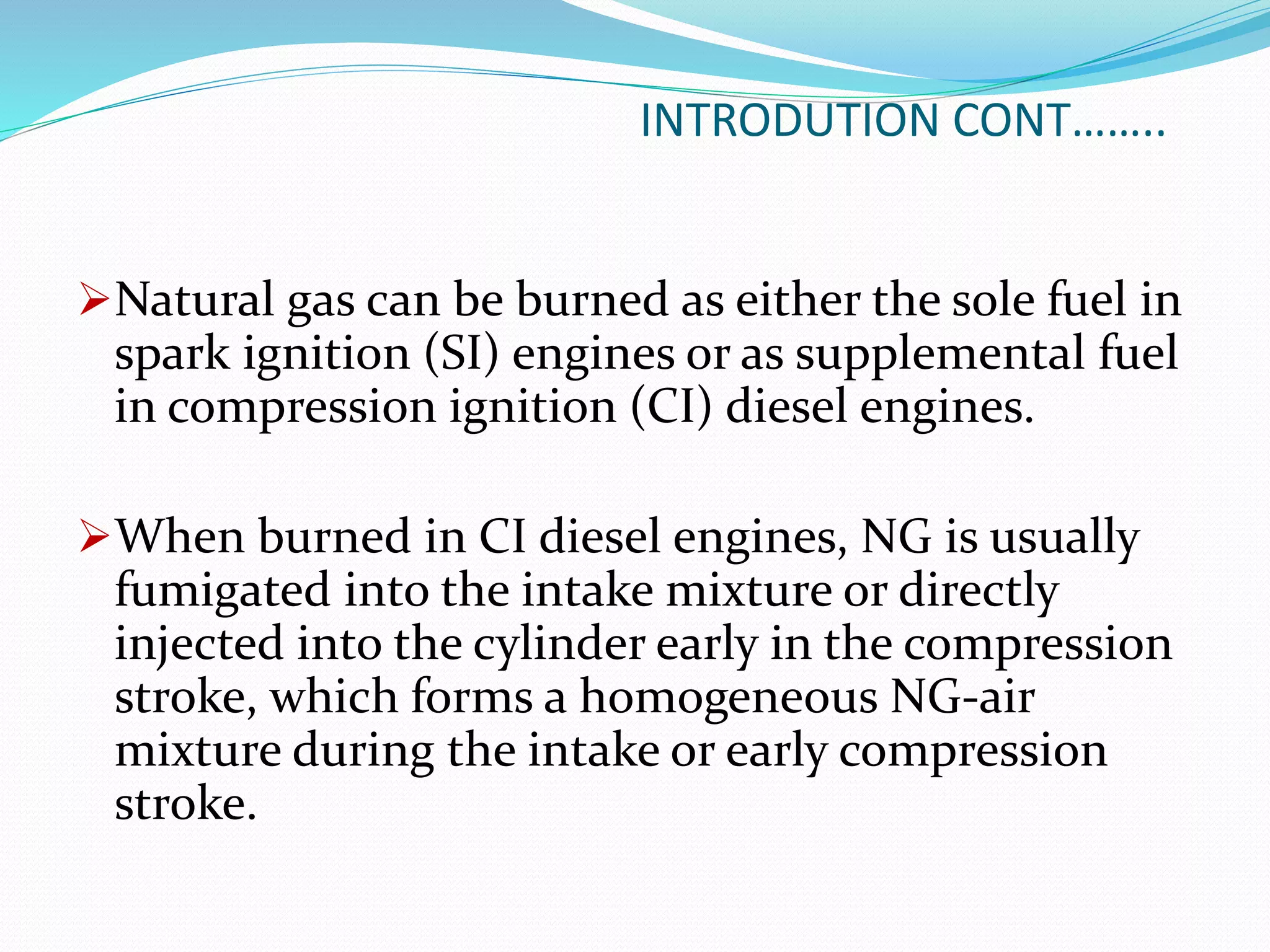

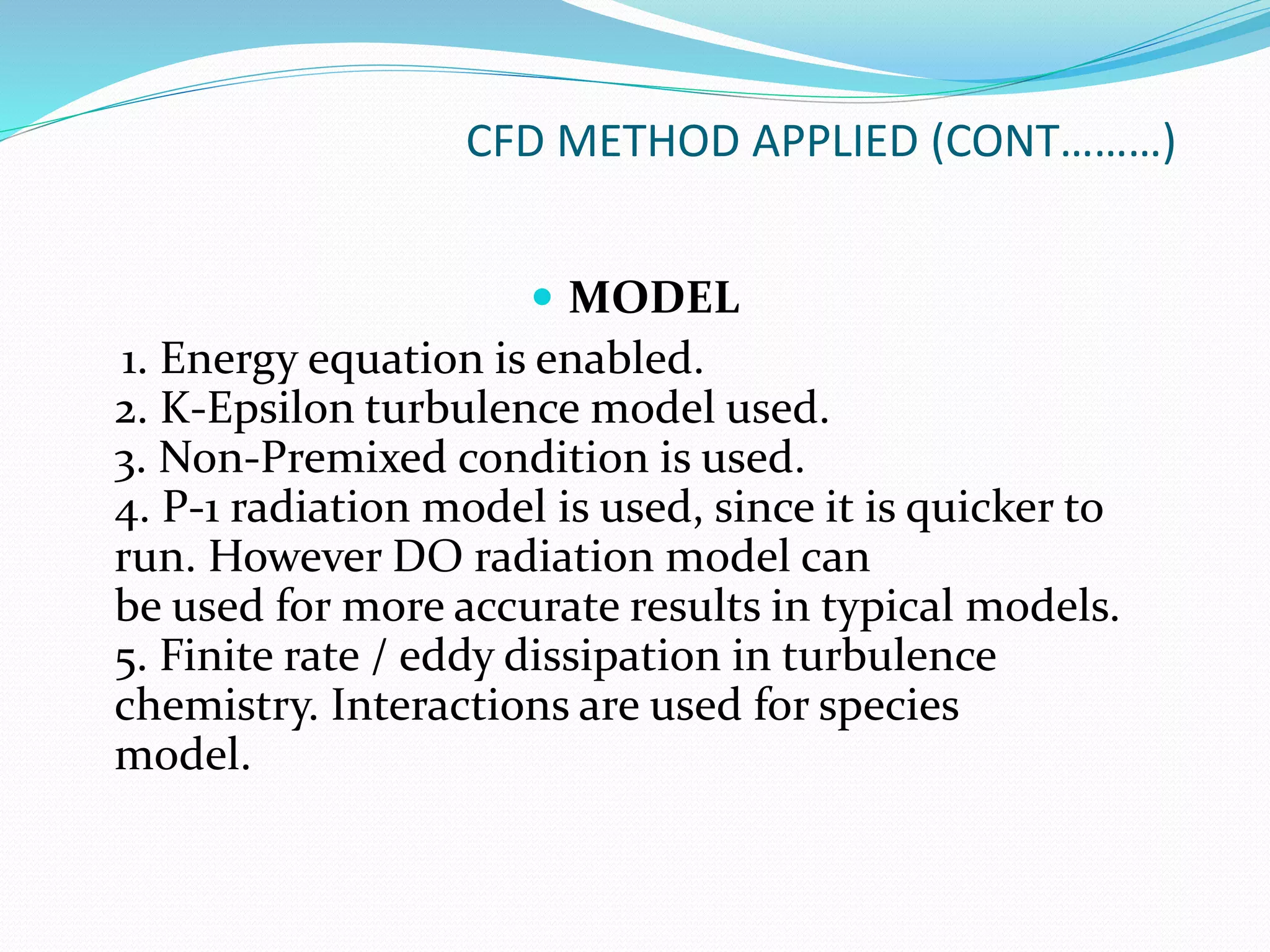

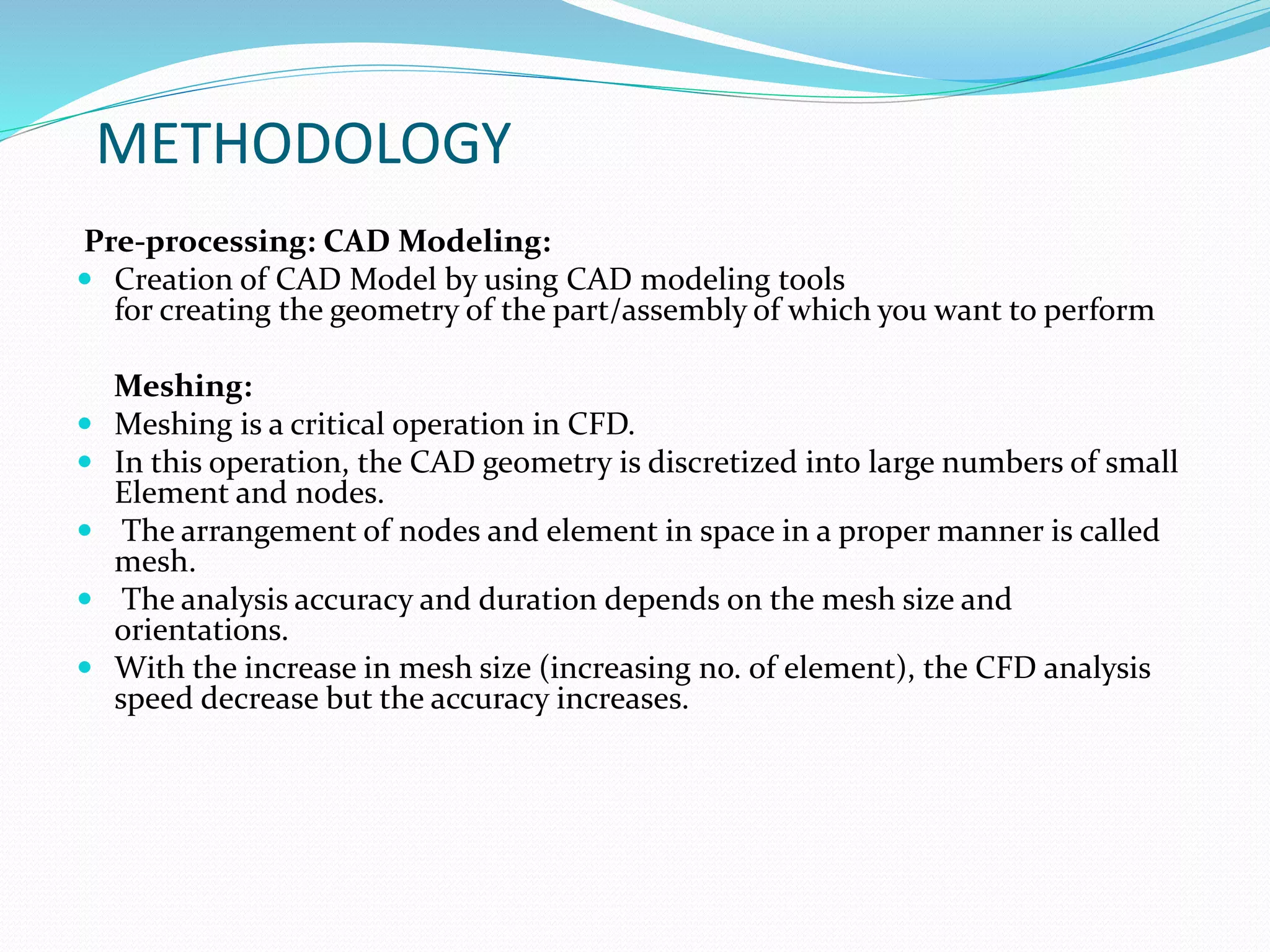

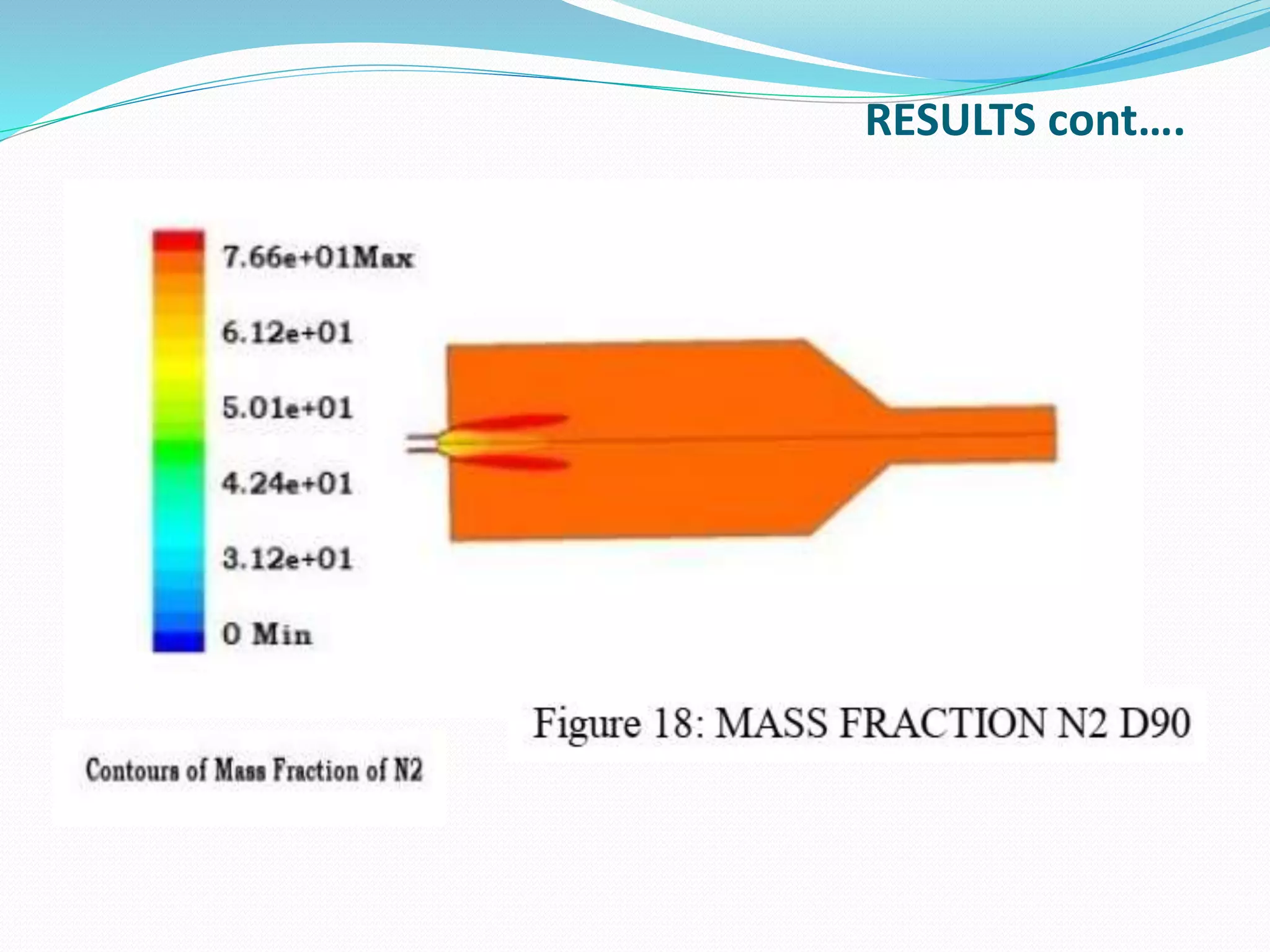

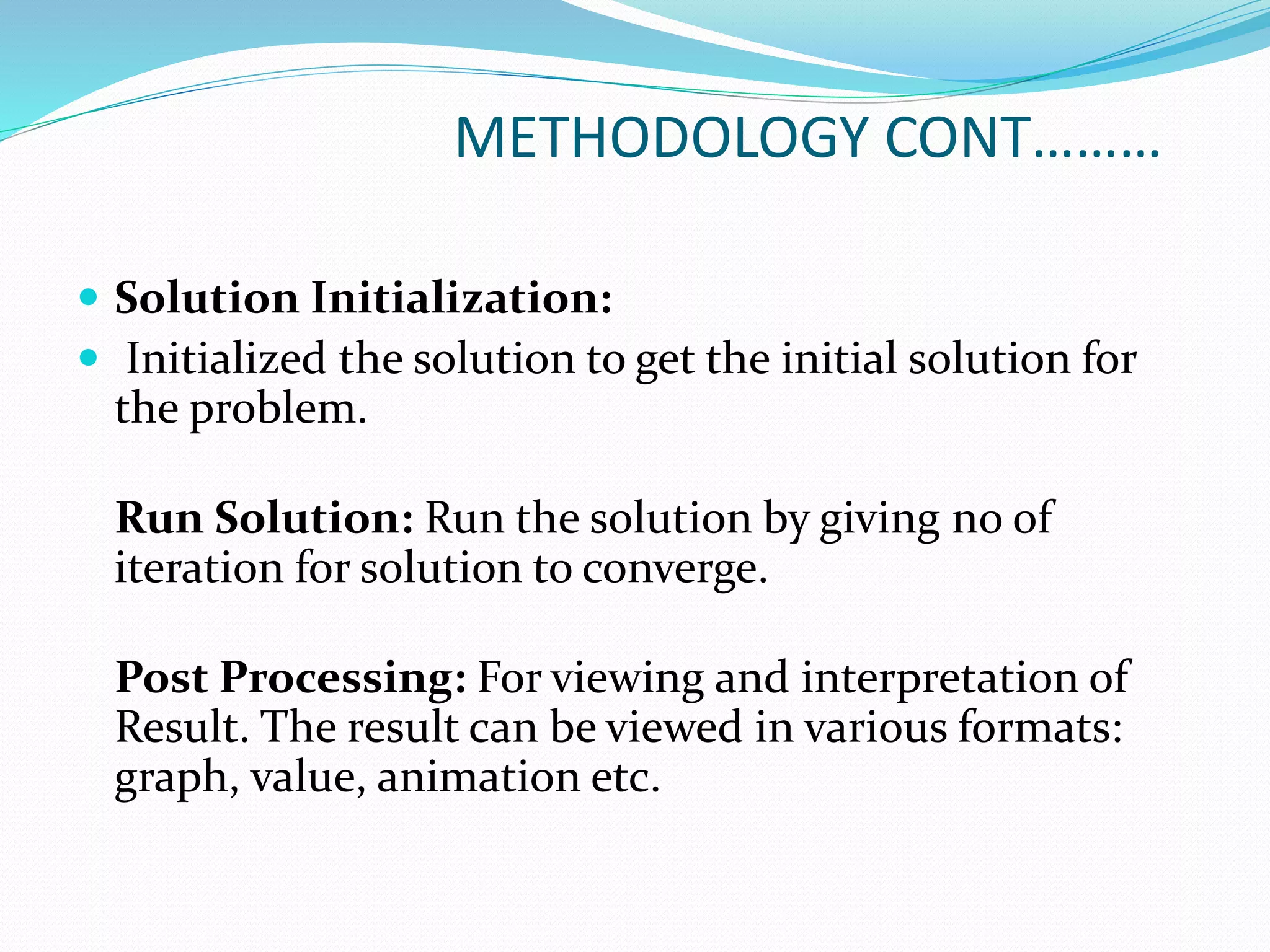

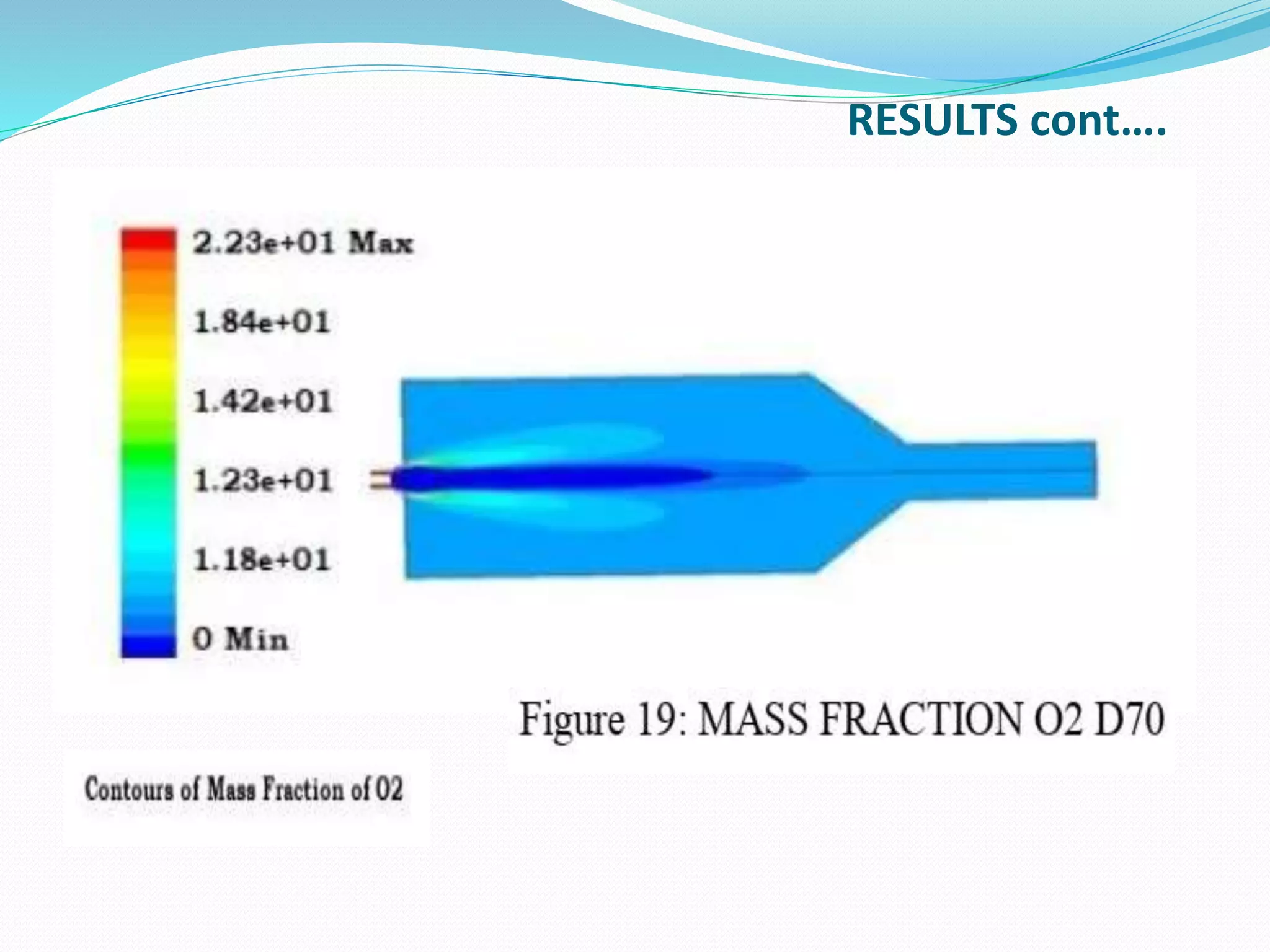

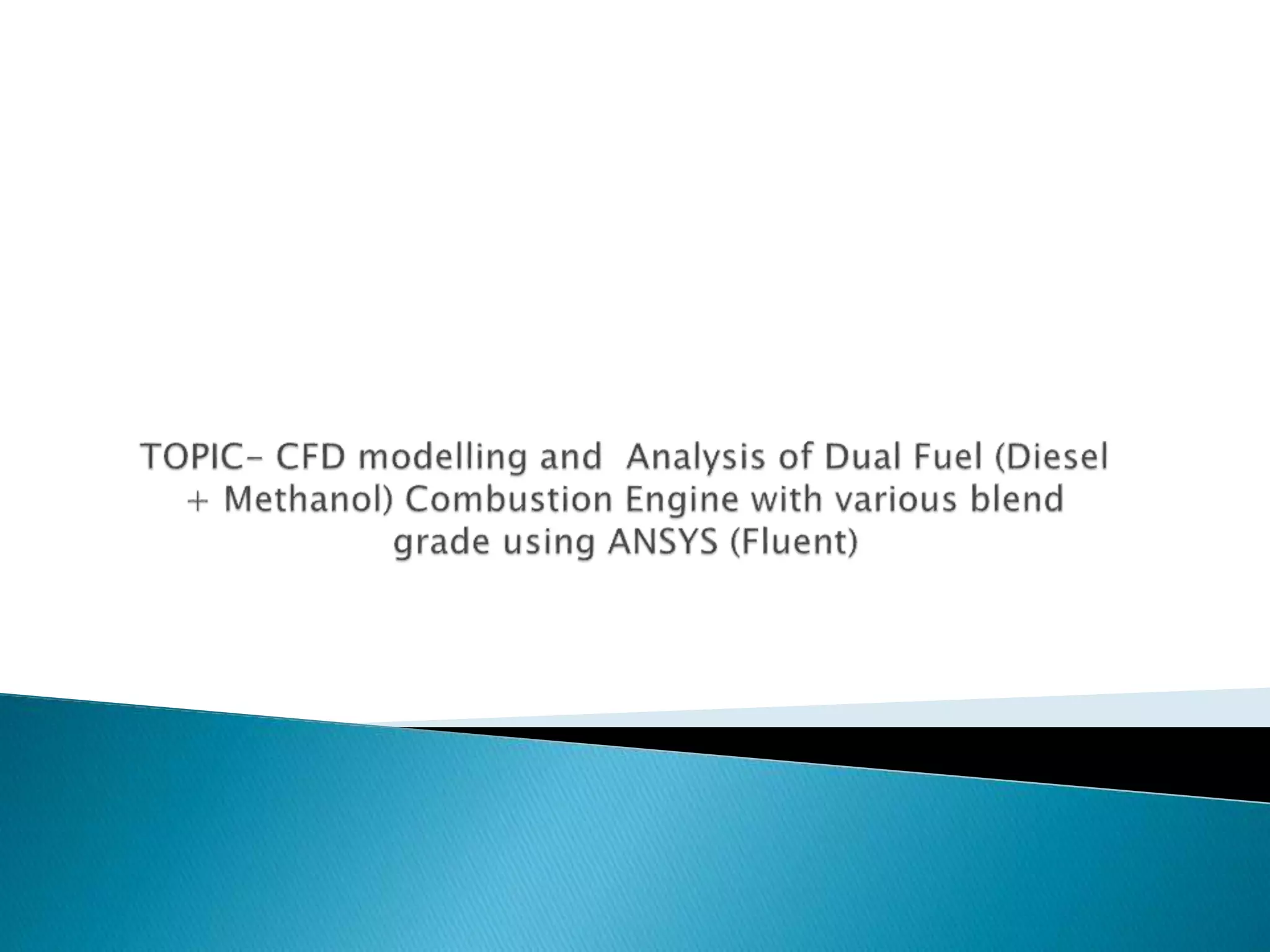

This document discusses CFD modelling and analysis of a dual fuel combustion engine that uses diesel and methanol blends. It provides background on alternative fuels such as biodiesel, ethanol, natural gas, and methanol. It then discusses blended fuels and biofuels before introducing CFD modelling. The advantages of methanol blending are listed, including reduced emissions and improved combustion due to methanol's oxygen content and physical properties. Methodology, results, and conclusions are also mentioned.

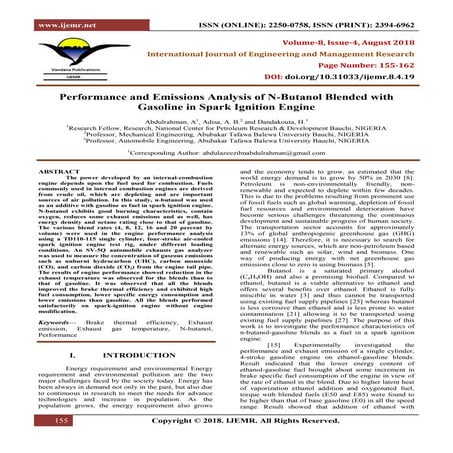

Performance and Emissions Analysis of N-Butanol Blended with Gasoline in Spar...Dr. Amarjeet Singh
The power developed by an internal-combustion
engine depends upon the fuel used for combustion. Fuels
commonly used in internal combustion engines are derived
from crude oil, which are depleting and are important
sources of air pollution. In this study, n-butanol was used
as an additive with gasoline as fuel in spark ignition engine.
N-butanol exhibits good burning characteristics, contain
oxygen, reduces some exhaust emissions and as well, has
energy density and octane rating close to that of gasoline.
The various blend rates (4, 8, 12, 16 and 20 percent by
volume) were used in the engine performance analysis
using a TD110-115 single cylinder, four-stroke air-cooled
spark ignition engine test rig, under different loading
conditions. An SV-5Q automobile exhausts gas analyzer
was used to measure the concentration of gaseous emissions
such as unburnt hydrocarbon (UHC), carbon monoxide
(CO), and carbon dioxide (CO2
) from the engine tail pipe.
The results of engine performance showed reduction in the
exhaust temperature was observed for the blends than to
that of gasoline. It was observed that all the blends
improved the brake thermal efficiency and exhibited high
fuel consumption, lower specific energy consumption and
lower emissions than gasoline. All the blends performed
satisfactorily on spark-ignition engine without engine
modification.
Generally the fuels which are sourced from plants or waste products and are known as alternative or bio-fuels.
Pure Plant Oil (PPO) is also known as SVO – straight vegetable oil. It is not a bio diesel.
Bio methanol is the product of the trans esterification of vegetable/waste oil or animal fats.
Bio ethanol is mainly used in petrol engines to deliver higher performance and reduced emissions.
Natural gas, a fossil fuel comprised mostly of methane, is one of the cleanest burning alternative fuels.
Performance and Emissions Analysis of N-Butanol Blended with Gasoline in Spar...Dr. Amarjeet Singh
The power developed by an internal-combustion
engine depends upon the fuel used for combustion. Fuels
commonly used in internal combustion engines are derived
from crude oil, which are depleting and are important
sources of air pollution. In this study, n-butanol was used
as an additive with gasoline as fuel in spark ignition engine.
N-butanol exhibits good burning characteristics, contain
oxygen, reduces some exhaust emissions and as well, has
energy density and octane rating close to that of gasoline.
The various blend rates (4, 8, 12, 16 and 20 percent by
volume) were used in the engine performance analysis
using a TD110-115 single cylinder, four-stroke air-cooled
spark ignition engine test rig, under different loading
conditions. An SV-5Q automobile exhausts gas analyzer
was used to measure the concentration of gaseous emissions
such as unburnt hydrocarbon (UHC), carbon monoxide
(CO), and carbon dioxide (CO2
) from the engine tail pipe.
The results of engine performance showed reduction in the
exhaust temperature was observed for the blends than to
that of gasoline. It was observed that all the blends
improved the brake thermal efficiency and exhibited high
fuel consumption, lower specific energy consumption and
lower emissions than gasoline. All the blends performed
satisfactorily on spark-ignition engine without engine
modification.
Generally the fuels which are sourced from plants or waste products and are known as alternative or bio-fuels.
Pure Plant Oil (PPO) is also known as SVO – straight vegetable oil. It is not a bio diesel.
Bio methanol is the product of the trans esterification of vegetable/waste oil or animal fats.
Bio ethanol is mainly used in petrol engines to deliver higher performance and reduced emissions.
Natural gas, a fossil fuel comprised mostly of methane, is one of the cleanest burning alternative fuels.
A ppt on Alternative Fuels.
I hope this ppt would be useful for u all.
It describes the different types of alternative fuels which can be used in today's era
for saving the excessive consumption of conventional fuels.
Alternative fuels are also known as Non-Conventional fuels or Green Fuels.
Electricity:
-> electricity is mechanical power.
->they release stored chemical energy on combustion.
->Electricity used topower vehicles is commonly provided by batteries, but recently fuel cells are also being explored.
battery:
->it is device which is used to store electrical energy.
->in this chemical reactions are converted in to electrical powers
Advantages of electric fuel:
->The advantages of electric fuel/fuel cells are No tailpipe emissions.
->Vehicles using electric fuel demand less
maintenance.
->Electric fuel vehicle have less moving parts
to service and replace.
->Fuel cells vehicles are highly efficient.
->Fuel cells have high power density .
Disadvantages of electric fuel:
-> Batteries may take time in charging .
->Noble metal required for somefuel cells thereby increasing the cost.
->Impurities in the hydrogen can hamper cell
performance.
-> Costly technology
BIOHYDROGEN:
1slide:
->Biohydrogen is 1st generation biofuel and it is produced biologically
->Hydrogen can be produced from a number of different sources, including natural gas,water, methanol etc ..,
->Two methods are generally used to produce hydrogen:
(1) Electrolysis
(2) Synthesis gas production from steam reforming or partial oxidation
2slide:
Electrolysis:
-> 2 H2O(l) → 2 H2(g) + O2(g)
electrolysis of water diagram.......
3 slide:
Synthesis gas production from steam reforming or
partial oxidation:
.
-> C + ½ O2 → CO
-> CO + H2O → CO2 + H2
syntesis diagram.......,.
4slide:
Advantages:
->Hydrogen-air mixture burns nearly10timesfaster than gasoline-air mixture.
->Hydrogen has high self-ignition temperaturebut requires very little energy to ignite it
->.Clean exhaust, produces no CO2.
->As a fuel it is very efficient as there are no losses associated with throttling.
Disadvantages:
There is danger of back fire and induction ignition.
->Though low inexhaust,it produces toxic NOx
->it is diifficult to handle and store,requiring highcapital and running cost.
.
Alternative fuels, known as non-conventional or advanced fuels, are any materials or substances that can be used as fuels other than conventional fuels like;fossil fuels (petroleum (oil), coal, and natural.
Approximately 90% of our energy are met by fossil fuels Alternative fuels are consumed to provide energy to power an engine.
Well there are a few alternatives:
Bio diesel
Natural Gas
Propane
Hydrogen
Methanol
Ethanol
Electricity

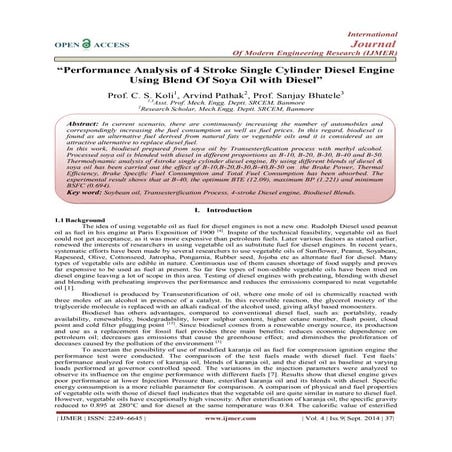

Performance Analysis of 4 Stroke Single Cylinder Diesel Engine Using Blend O...IJMER
In current scenario, there are continuously increasing the number of automobiles and
correspondingly increasing the fuel consumption as well as fuel prices. In this regard, biodiesel is
found as an alternative fuel derived from natural fats or vegetable oils and it is considered as an
attractive alternative to replace diesel fuel.
In this work, biodiesel prepared from soya oil by Transesterification process with methyl alcohol.
Processed soya oil is blended with diesel in different proportions as B-10, B-20, B-30, B-40 and B-50.
Thermodynamic analysis of 4stroke single cylinder diesel engine, By using different blends of diesel &
soya oil has been carried out the effect of B-10,B-20,B-30,B-40,B-50 on the Brake Power, Thermal
Efficiency, Brake Specific Fuel Consumption and Total Fuel Consumption has been absorbed. The
experimental result shows that at B-40, the optimum BTE (12.09), maximum BP (1.221) and minimum
BSFC (0.694)
A ppt on Alternative Fuels.
I hope this ppt would be useful for u all.
It describes the different types of alternative fuels which can be used in today's era
for saving the excessive consumption of conventional fuels.
Alternative fuels are also known as Non-Conventional fuels or Green Fuels.
Electricity:
-> electricity is mechanical power.
->they release stored chemical energy on combustion.
->Electricity used topower vehicles is commonly provided by batteries, but recently fuel cells are also being explored.
battery:
->it is device which is used to store electrical energy.
->in this chemical reactions are converted in to electrical powers
Advantages of electric fuel:
->The advantages of electric fuel/fuel cells are No tailpipe emissions.
->Vehicles using electric fuel demand less
maintenance.
->Electric fuel vehicle have less moving parts
to service and replace.
->Fuel cells vehicles are highly efficient.
->Fuel cells have high power density .
Disadvantages of electric fuel:
-> Batteries may take time in charging .
->Noble metal required for somefuel cells thereby increasing the cost.
->Impurities in the hydrogen can hamper cell
performance.
-> Costly technology
BIOHYDROGEN:
1slide:
->Biohydrogen is 1st generation biofuel and it is produced biologically
->Hydrogen can be produced from a number of different sources, including natural gas,water, methanol etc ..,
->Two methods are generally used to produce hydrogen:
(1) Electrolysis
(2) Synthesis gas production from steam reforming or partial oxidation
2slide:
Electrolysis:
-> 2 H2O(l) → 2 H2(g) + O2(g)
electrolysis of water diagram.......
3 slide:
Synthesis gas production from steam reforming or
partial oxidation:
.
-> C + ½ O2 → CO
-> CO + H2O → CO2 + H2
syntesis diagram.......,.
4slide:
Advantages:
->Hydrogen-air mixture burns nearly10timesfaster than gasoline-air mixture.
->Hydrogen has high self-ignition temperaturebut requires very little energy to ignite it
->.Clean exhaust, produces no CO2.
->As a fuel it is very efficient as there are no losses associated with throttling.
Disadvantages:
There is danger of back fire and induction ignition.
->Though low inexhaust,it produces toxic NOx
->it is diifficult to handle and store,requiring highcapital and running cost.
.
Alternative fuels, known as non-conventional or advanced fuels, are any materials or substances that can be used as fuels other than conventional fuels like;fossil fuels (petroleum (oil), coal, and natural.
Approximately 90% of our energy are met by fossil fuels Alternative fuels are consumed to provide energy to power an engine.
Well there are a few alternatives:
Bio diesel
Natural Gas
Propane
Hydrogen
Methanol
Ethanol
Electricity
Performance Analysis of 4 Stroke Single Cylinder Diesel Engine Using Blend O...IJMER
In current scenario, there are continuously increasing the number of automobiles and
correspondingly increasing the fuel consumption as well as fuel prices. In this regard, biodiesel is
found as an alternative fuel derived from natural fats or vegetable oils and it is considered as an
attractive alternative to replace diesel fuel.
In this work, biodiesel prepared from soya oil by Transesterification process with methyl alcohol.
Processed soya oil is blended with diesel in different proportions as B-10, B-20, B-30, B-40 and B-50.
Thermodynamic analysis of 4stroke single cylinder diesel engine, By using different blends of diesel &
soya oil has been carried out the effect of B-10,B-20,B-30,B-40,B-50 on the Brake Power, Thermal
Efficiency, Brake Specific Fuel Consumption and Total Fuel Consumption has been absorbed. The
experimental result shows that at B-40, the optimum BTE (12.09), maximum BP (1.221) and minimum
BSFC (0.694)
Experimental Investigation of Twin Cylinder Diesel Engine Using Diesel & Met...IJMER
In view of increasing pressure on crude oil reserves and environmental degradation as an
outcome, fuels like methanol may present a sustainable solution as it can be produced from a wide
range of carbon based feedstock. The present investigation evaluates methanol as a diesel engine fuel.
The objectives of this report is to analyze the fuel consumption and the emission characteristic of a
twin cylinder diesel engine that are using Methanol & compared to usage of ordinary diesel that are
available in the market. This report describes the setups and the procedures for the experiment which
is to analyze the emission characteristics and fuel consumption of diesel engine due to usage of the
both fuels. Detail studies about the experimental setup and components have been done before the
experiment started. Data that are required for the analysis is observed from the experiments.
Calculations and analysis have been done after all the required data needed for the thesis is obtained.
The experiment used diesel engine with no load which means no load exerted on it. A four stroke Twin
cylinder diesel engine was adopted to study the brake thermal efficiency, brake specific energy
consumption, and emissions at zero load & full load with the fuel of methanol. In this study, the diesel
engine was tested using 100% methanol. By the end of the report, the successful of the project have
been started which is Diesel engine is able to run with Methanol but the engine needs to run by using
diesel fuel first, then followed by methanol and finished with diesel fuel as the last fuel usage before the
engine turned off. The performance of the engine using Methanol fuel compared to the performance of
engine with diesel fuel. Experimental results of Methanol and Diesel fuel are also compared.
USAGE OF ETHANOL BLENDED PETROL: EXPERIMENTAL INVESTIGATIONS OF REDUCTION IN ...P singh
An experimental study was conducted to evaluate what extent ethanol blends in Petrol helps in reduction of pollution levels of SI engines exhaust emissions. Ethanol blends E5, E10, E15, E20, E22 were tested and found considerable reductions in the pollutant levels of CO, CO2, HC. The results indicate better combustions in petrol engine with ethanol blends. The reductions in HC and CO were to the extent of 80% to 90% compared to pure petrol fuelled IC engine.
Welcome to WIPAC Monthly the magazine brought to you by the LinkedIn Group Water Industry Process Automation & Control.
In this month's edition, along with this month's industry news to celebrate the 13 years since the group was created we have articles including
A case study of the used of Advanced Process Control at the Wastewater Treatment works at Lleida in Spain
A look back on an article on smart wastewater networks in order to see how the industry has measured up in the interim around the adoption of Digital Transformation in the Water Industry.
Event Management System Vb Net Project Report.pdfKamal Acharya
In present era, the scopes of information technology growing with a very fast .We do not see any are untouched from this industry. The scope of information technology has become wider includes: Business and industry. Household Business, Communication, Education, Entertainment, Science, Medicine, Engineering, Distance Learning, Weather Forecasting. Carrier Searching and so on.
My project named “Event Management System” is software that store and maintained all events coordinated in college. It also helpful to print related reports. My project will help to record the events coordinated by faculties with their Name, Event subject, date & details in an efficient & effective ways.
In my system we have to make a system by which a user can record all events coordinated by a particular faculty. In our proposed system some more featured are added which differs it from the existing system such as security.
Democratizing Fuzzing at Scale by Abhishek Aryaabh.arya
Presented at NUS: Fuzzing and Software Security Summer School 2024
This keynote talks about the democratization of fuzzing at scale, highlighting the collaboration between open source communities, academia, and industry to advance the field of fuzzing. It delves into the history of fuzzing, the development of scalable fuzzing platforms, and the empowerment of community-driven research. The talk will further discuss recent advancements leveraging AI/ML and offer insights into the future evolution of the fuzzing landscape.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
TECHNICAL TRAINING MANUAL GENERAL FAMILIARIZATION COURSEDuvanRamosGarzon1
AIRCRAFT GENERAL
The Single Aisle is the most advanced family aircraft in service today, with fly-by-wire flight controls.
The A318, A319, A320 and A321 are twin-engine subsonic medium range aircraft.
The family offers a choice of engines
Quality defects in TMT Bars, Possible causes and Potential Solutions.PrashantGoswami42
Maintaining high-quality standards in the production of TMT bars is crucial for ensuring structural integrity in construction. Addressing common defects through careful monitoring, standardized processes, and advanced technology can significantly improve the quality of TMT bars. Continuous training and adherence to quality control measures will also play a pivotal role in minimizing these defects.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
1. - CFD modelling and Analysis
of Dual Fuel (Diesel +
Methanol) Combustion Engine
with various blend grade
using ANSYS (Fluent)

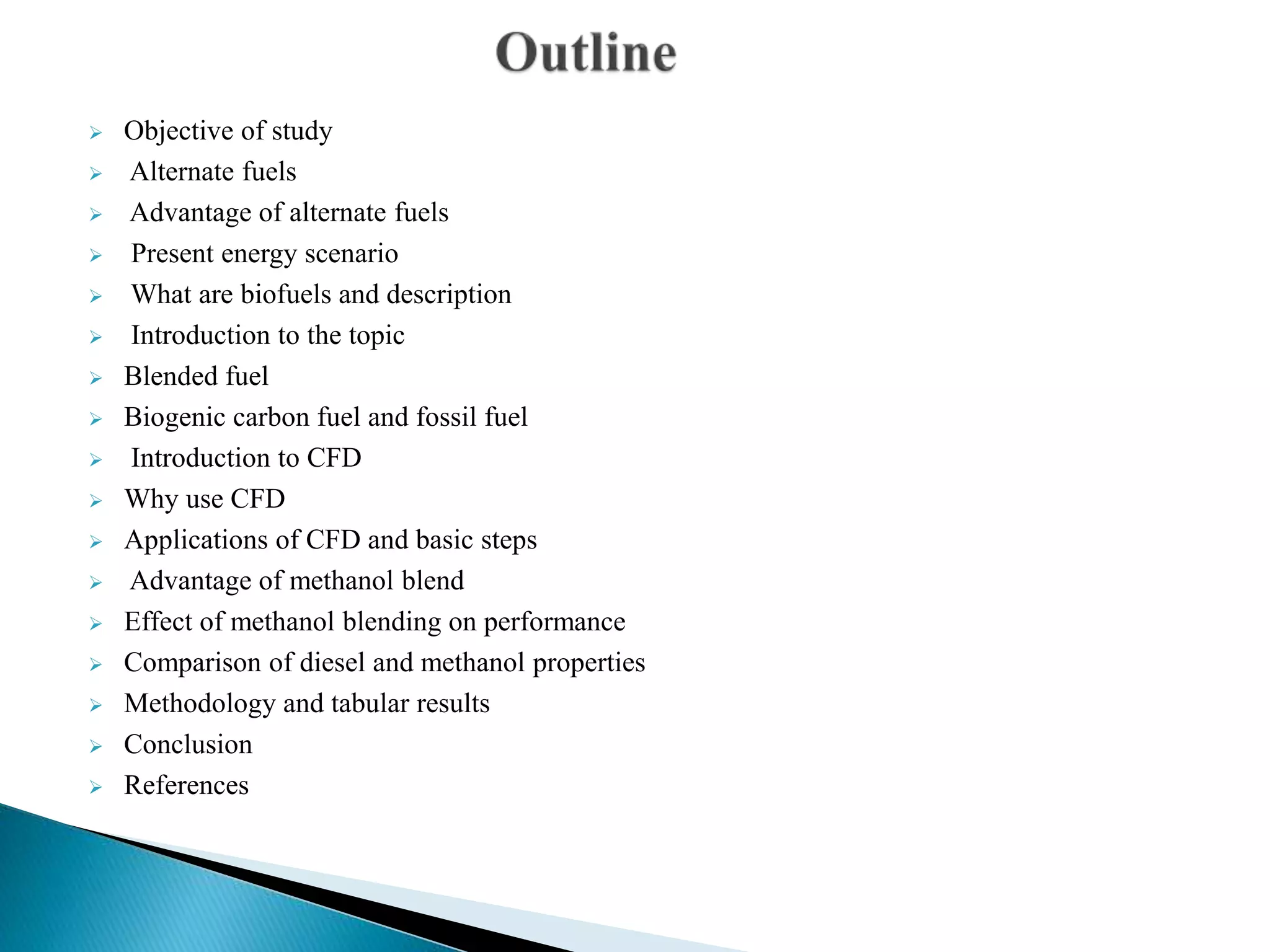

2. Objective of study
Alternate fuels
Advantage of alternate fuels
Present energy scenario
What are biofuels and description
Introduction to the topic
Blended fuel
Biogenic carbon fuel and fossil fuel

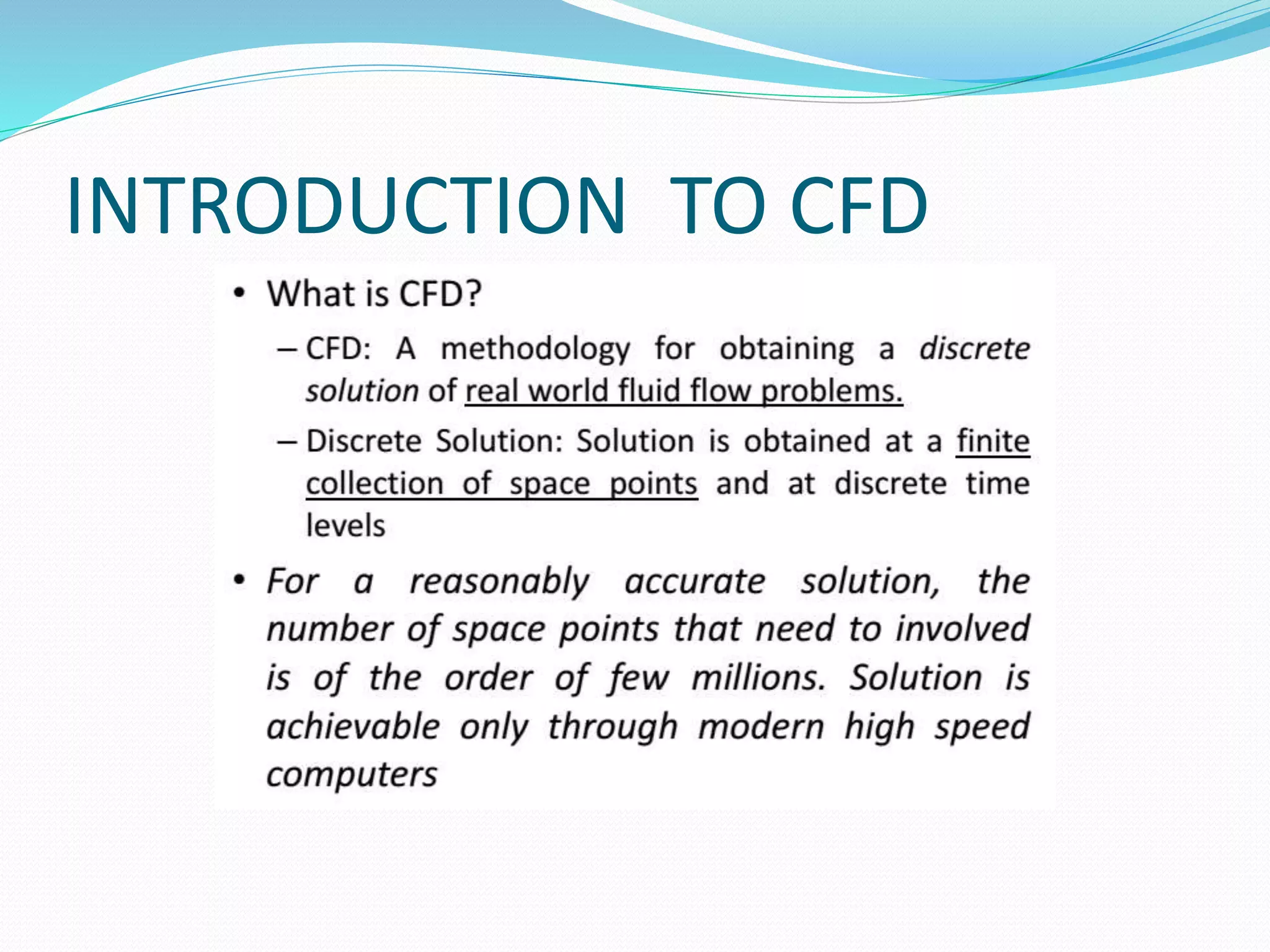

Introduction to CFD
Why use CFD
Applications of CFD and basic steps
Advantage of methanol blend
Effect of methanol blending on performance

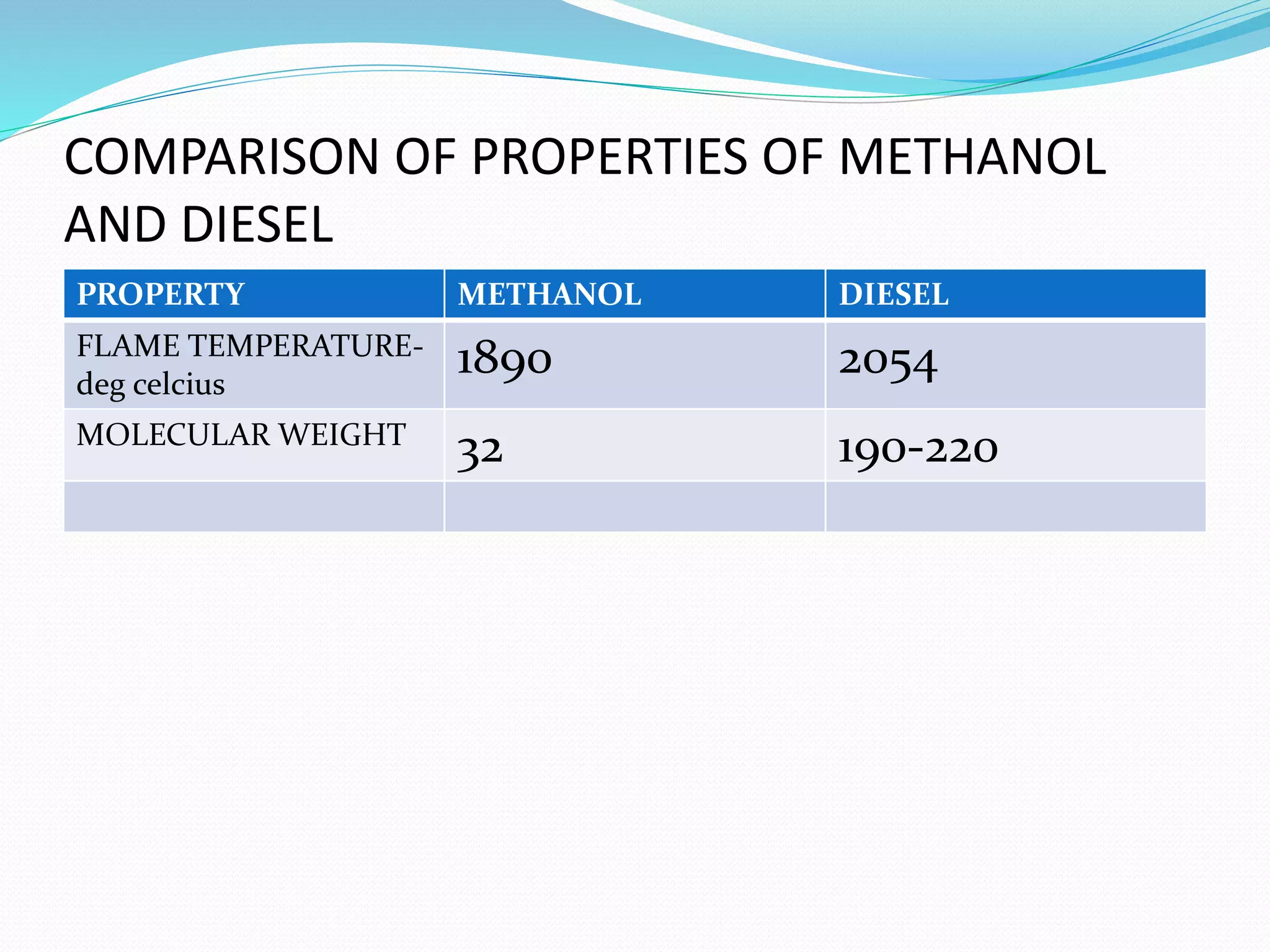

Comparison of diesel and methanol properties
Methodology and tabular results
Conclusion

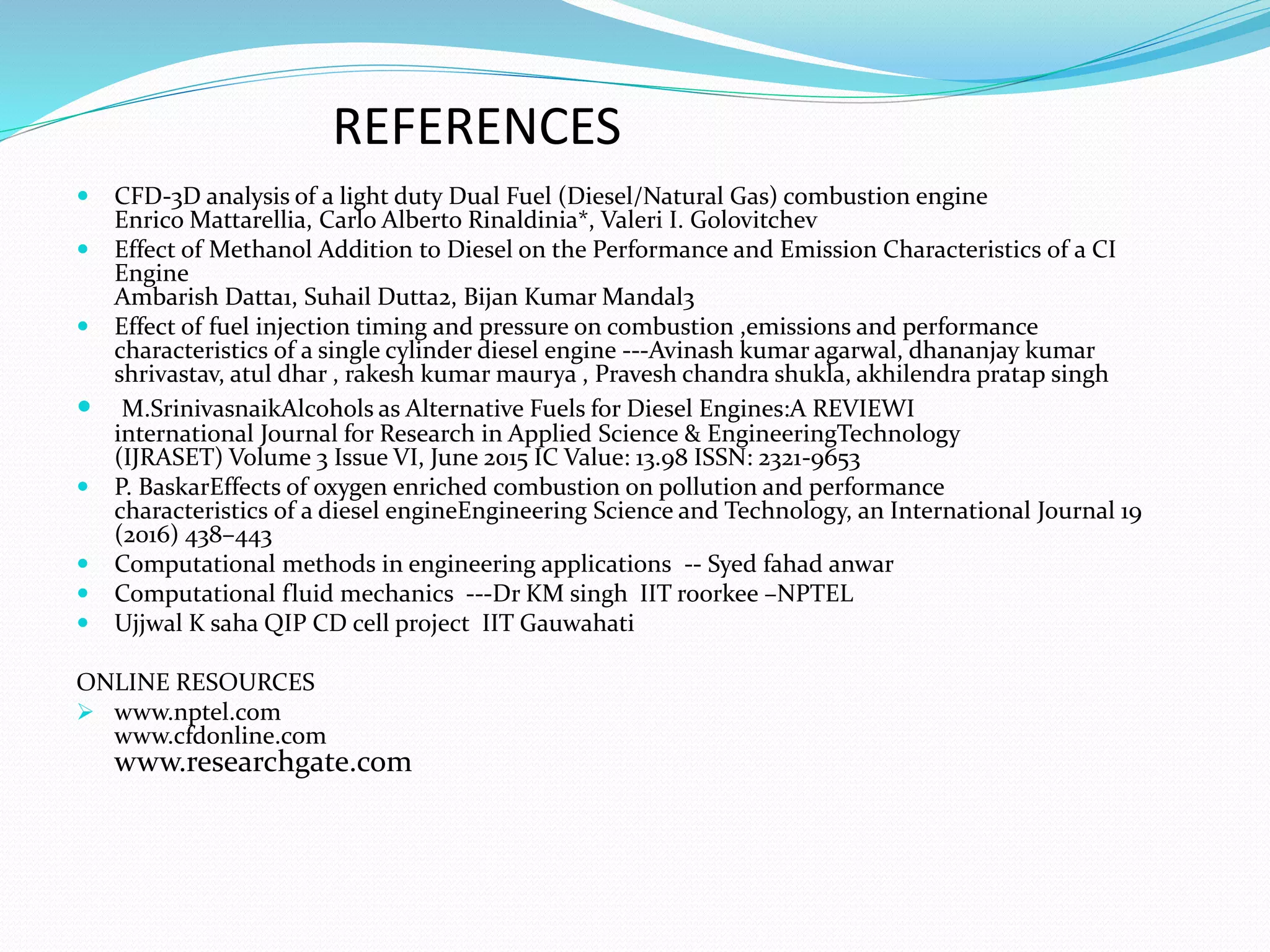

References
3.
4.

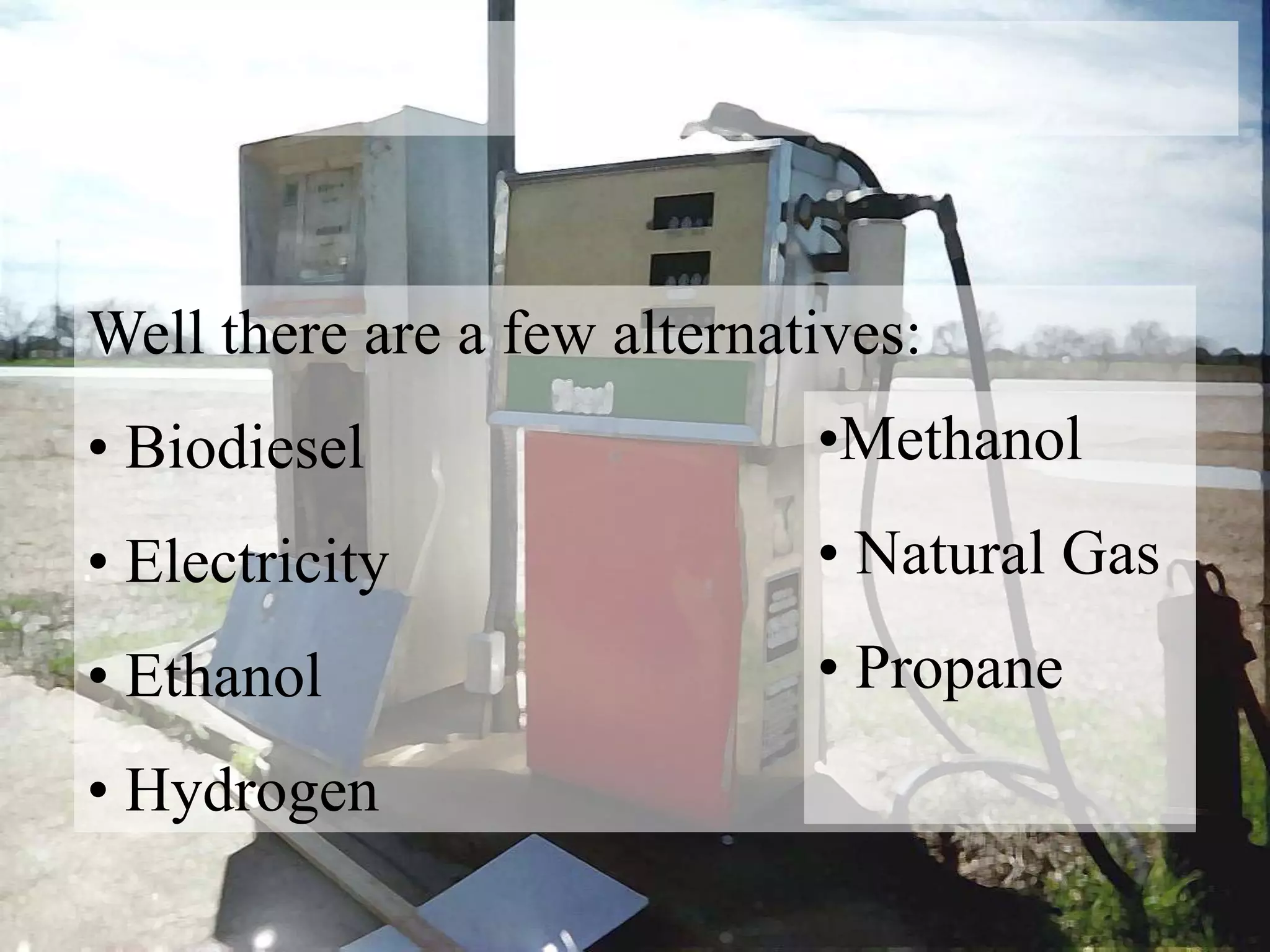

5. Well there are a few alternatives:
• Biodiesel
• Electricity
• Ethanol
• Hydrogen
•Methanol
• Natural Gas
• Propane

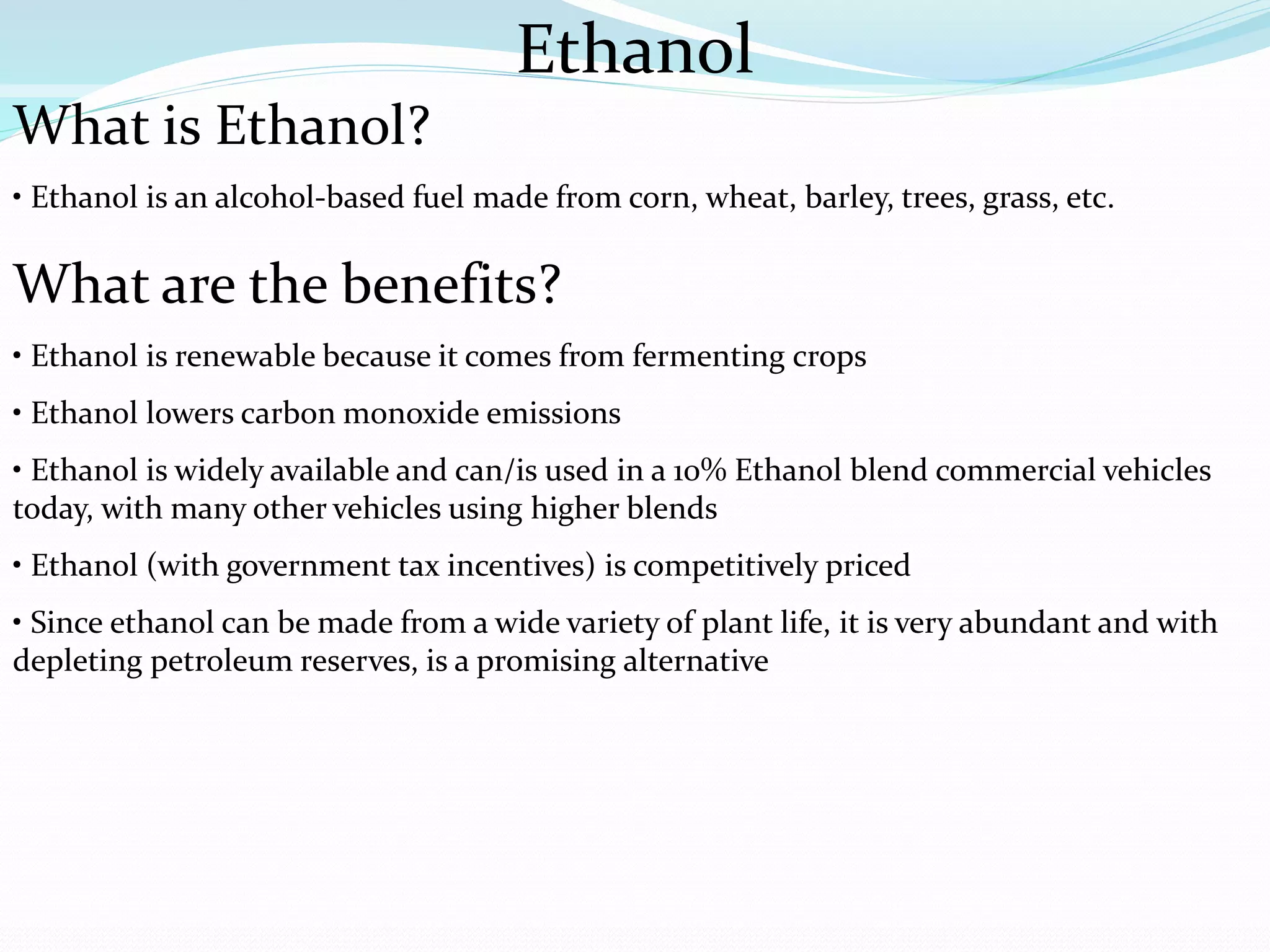

6. Ethanol
What is Ethanol?
• Ethanol is an alcohol-based fuel made from corn, wheat, barley, trees, grass, etc.
What are the benefits?
• Ethanol is renewable because it comes from fermenting crops
• Ethanol lowers carbon monoxide emissions
• Ethanol is widely available and can/is used in a 10% Ethanol blend commercial vehicles
today, with many other vehicles using higher blends
• Ethanol (with government tax incentives) is competitively priced
• Since ethanol can be made from a wide variety of plant life, it is very abundant and with
depleting petroleum reserves, is a promising alternative

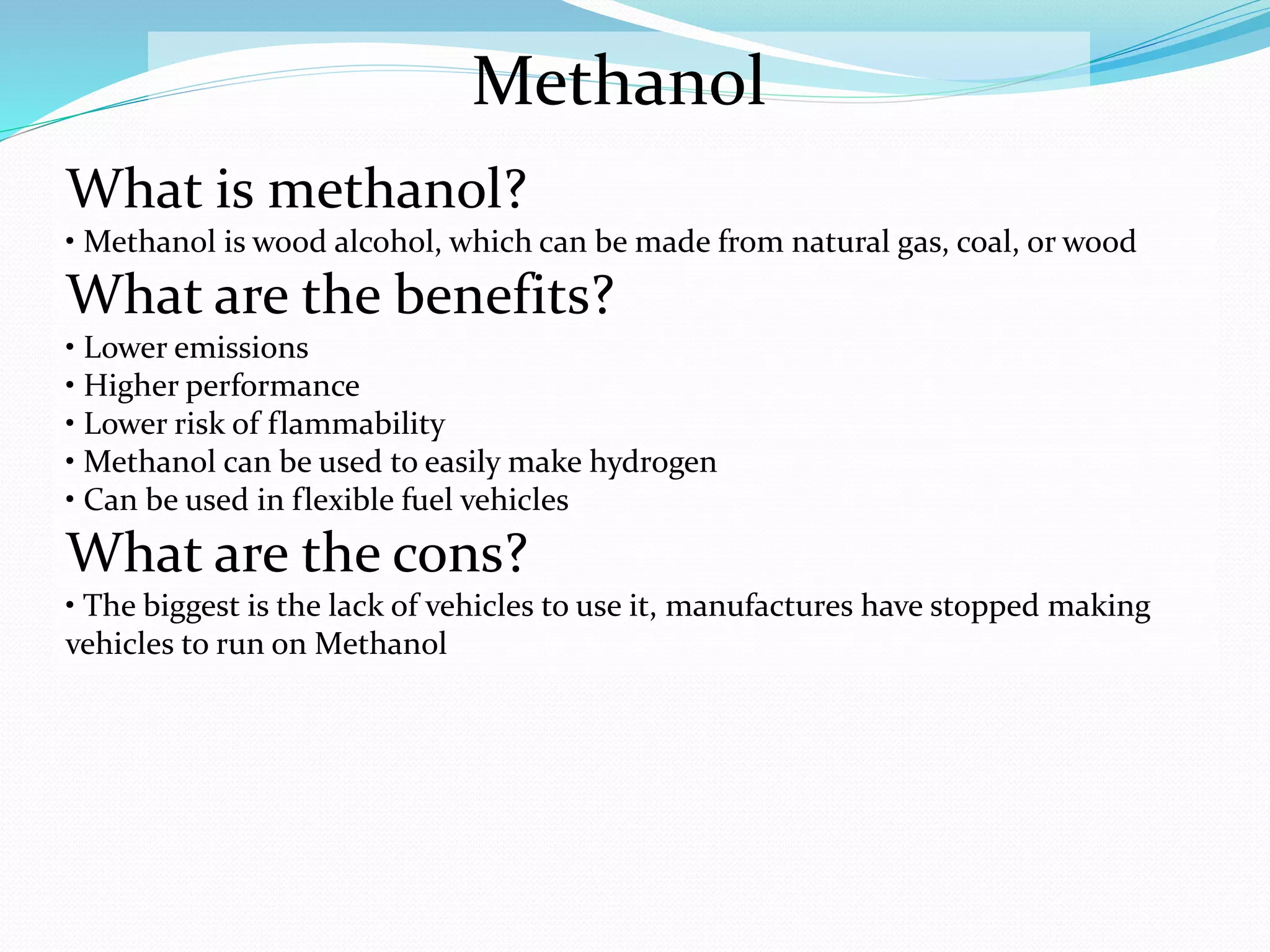

7. Methanol
What is methanol?
• Methanol is wood alcohol, which can be made from natural gas, coal, or wood
What are the benefits?
• Lower emissions
• Higher performance
• Lower risk of flammability
• Methanol can be used to easily make hydrogen
• Can be used in flexible fuel vehicles
What are the cons?
• The biggest is the lack of vehicles to use it, manufactures have stopped making
vehicles to run on Methanol

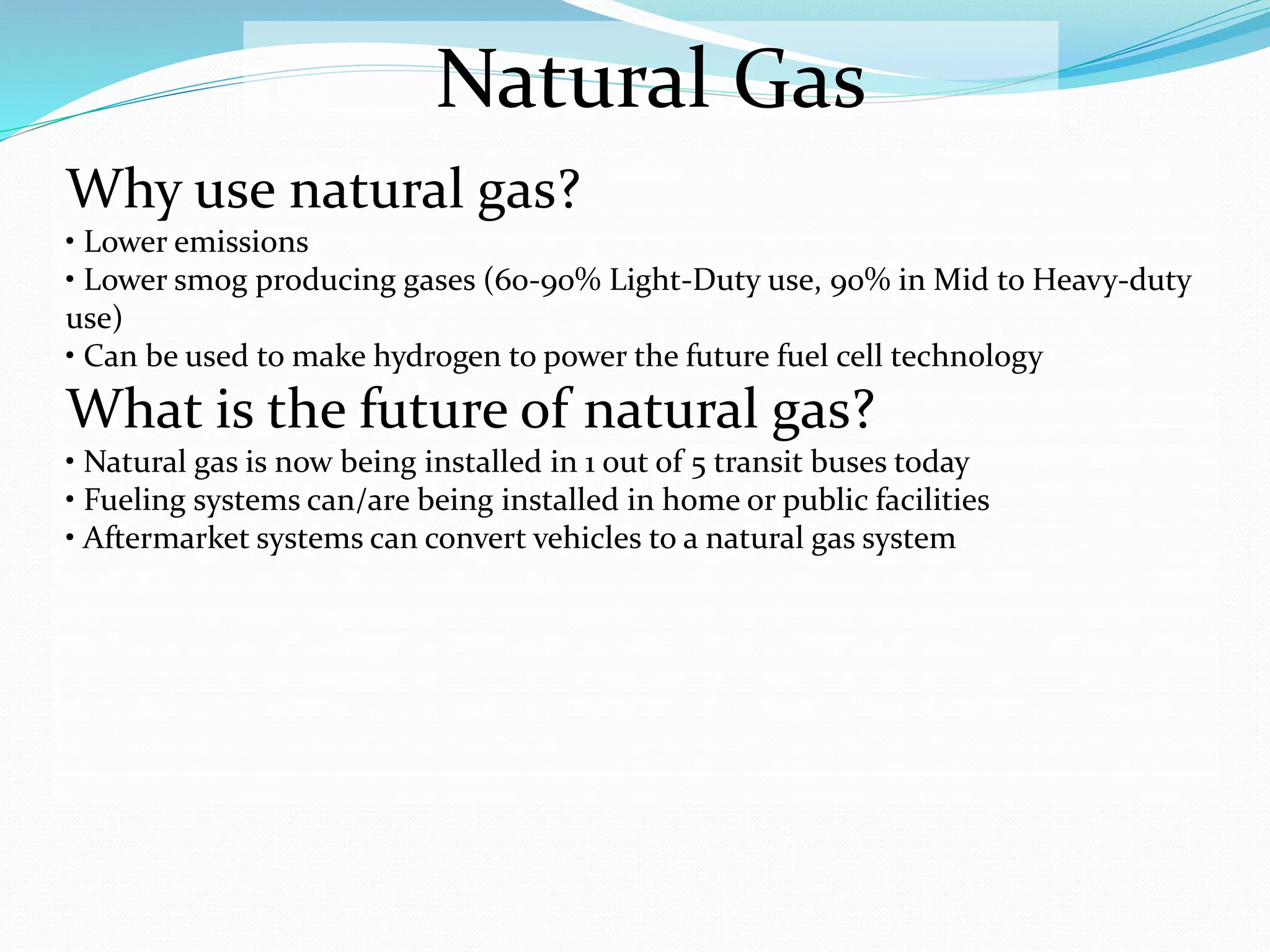

8. Natural Gas
Why use natural gas?
• Lower emissions
• Lower smog producing gases (60-90% Light-Duty use, 90% in Mid to Heavy-duty
use)
• Can be used to make hydrogen to power the future fuel cell technology
What is the future of natural gas?
• Natural gas is now being installed in 1 out of 5 transit buses today
• Fueling systems can/are being installed in home or public facilities
• Aftermarket systems can convert vehicles to a natural gas system

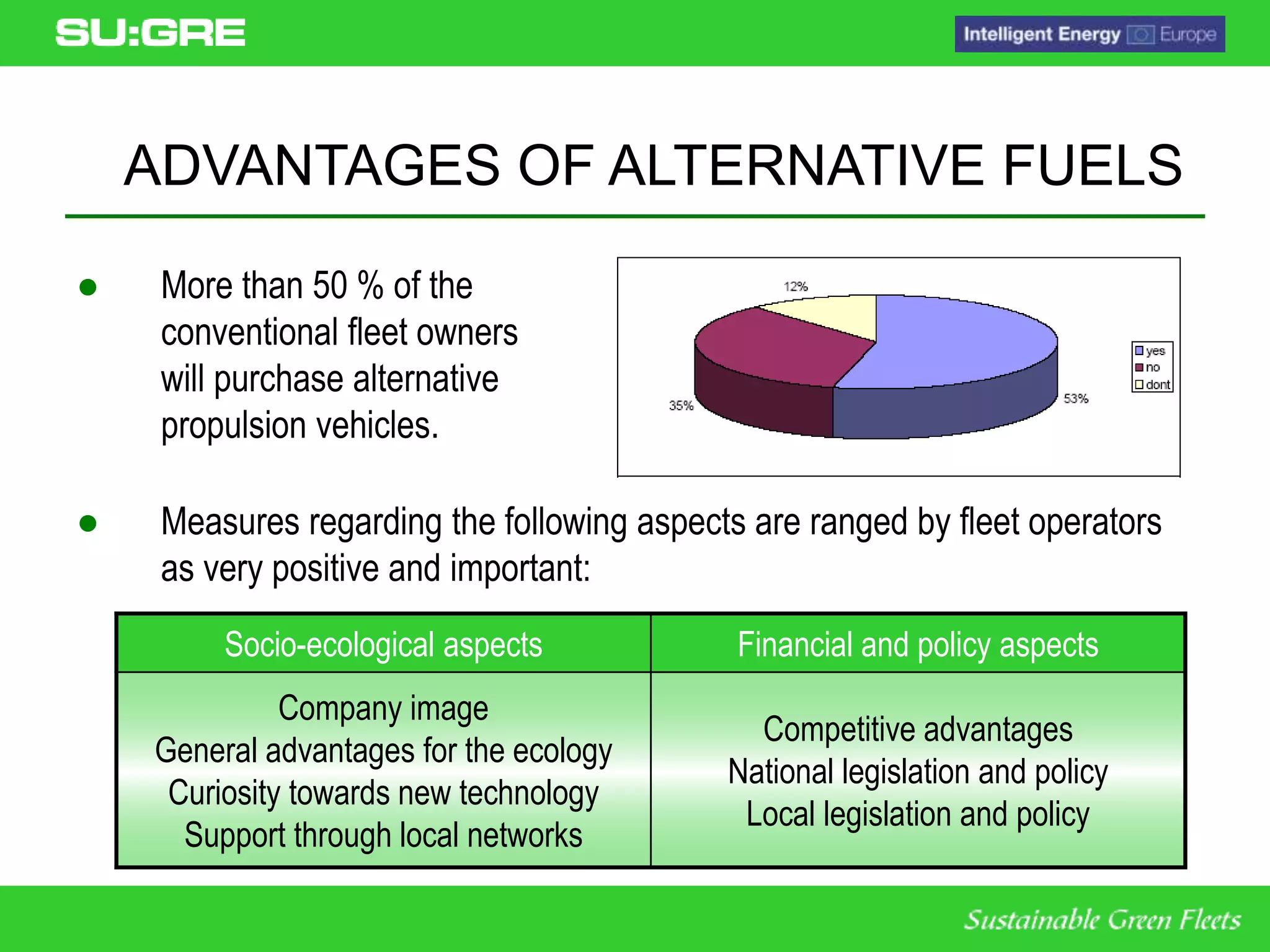

9. ● More than 50 % of the
conventional fleet owners
will purchase alternative
propulsion vehicles.
● Measures regarding the following aspects are ranged by fleet operators
as very positive and important:
Socio-ecological aspects Financial and policy aspects
Company image
General advantages for the ecology
Curiosity towards new technology
Support through local networks
Competitive advantages
National legislation and policy
Local legislation and policy
ADVANTAGES OF ALTERNATIVE FUELS
10. PRESENT ENERGY SCENARIO
In the EU, transport is
responsible for an estimated
21% of all greenhouse gas
emissions.
Fossil oil is the main energy
source with a 98%
contribution to all transport
fuels.
Drivers can greatly reduce
these impacts:
choosing cleaner vehicles
driving more efficiently
In most cases these measures
will lead to:
financial savings
environmental benefits
More information

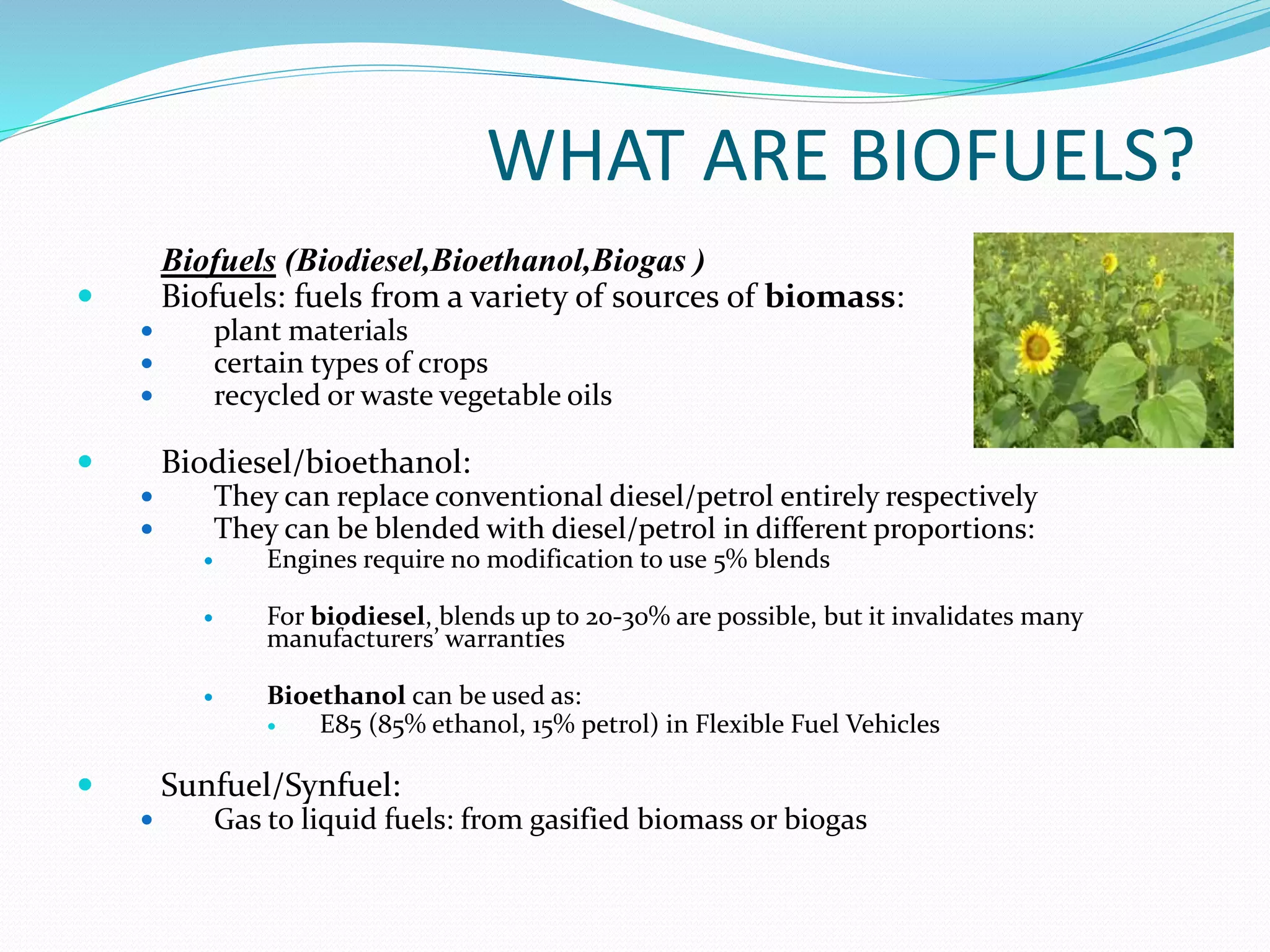

11. WHAT ARE BIOFUELS?
Biofuels (Biodiesel,Bioethanol,Biogas )
Biofuels: fuels from a variety of sources of biomass:
plant materials
certain types of crops
recycled or waste vegetable oils
Biodiesel/bioethanol:
They can replace conventional diesel/petrol entirely respectively
They can be blended with diesel/petrol in different proportions:
Engines require no modification to use 5% blends
For biodiesel, blends up to 20-30% are possible, but it invalidates many
manufacturers’ warranties
Bioethanol can be used as:
E85 (85% ethanol, 15% petrol) in Flexible Fuel Vehicles
Sunfuel/Synfuel:
Gas to liquid fuels: from gasified biomass or biogas

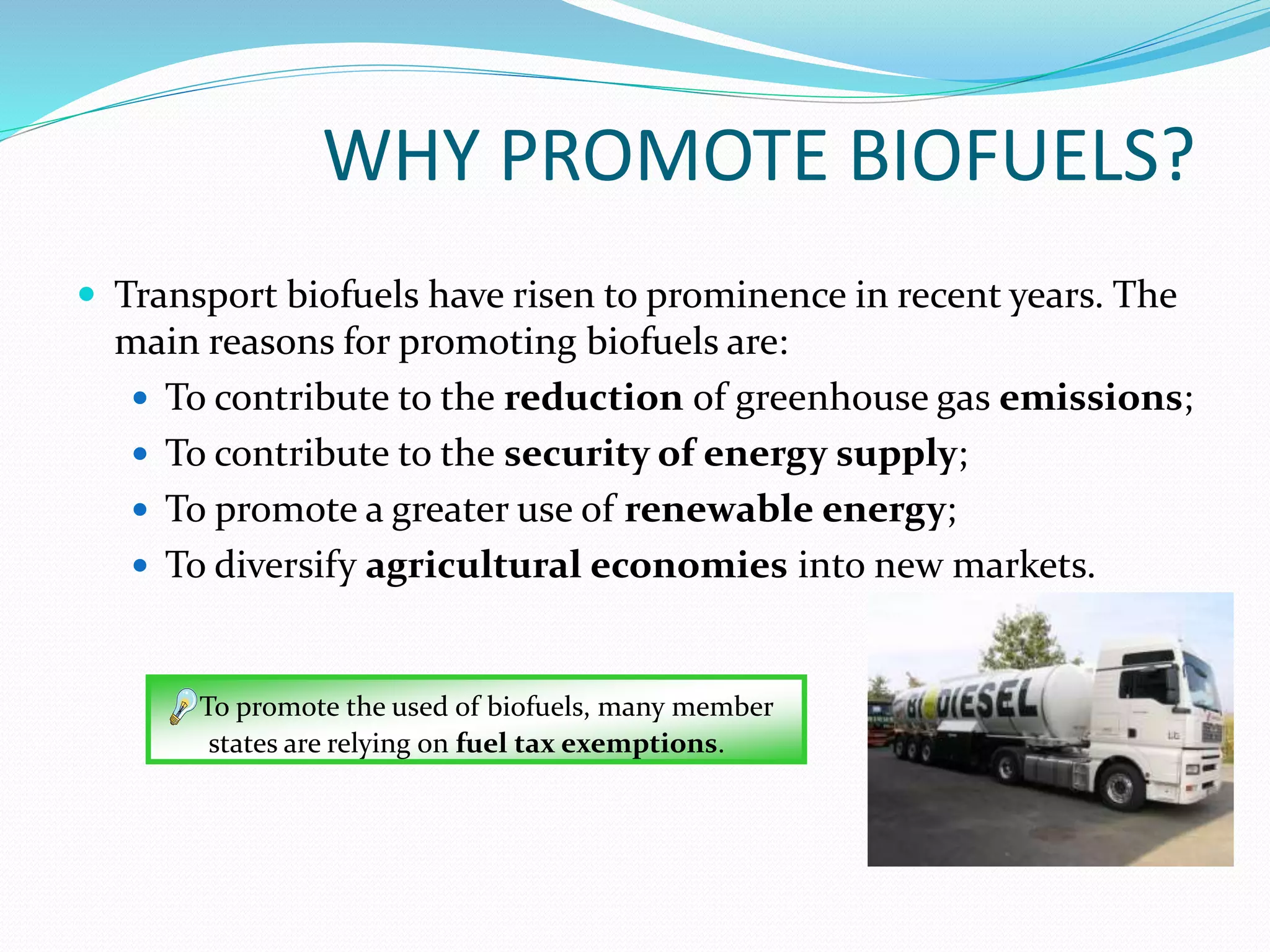

12. Transport biofuels have risen to prominence in recent years. The
main reasons for promoting biofuels are:
To contribute to the reduction of greenhouse gas emissions;
To contribute to the security of energy supply;
To promote a greater use of renewable energy;
To diversify agricultural economies into new markets.
WHY PROMOTE BIOFUELS?
To promote the used of biofuels, many member
states are relying on fuel tax exemptions.

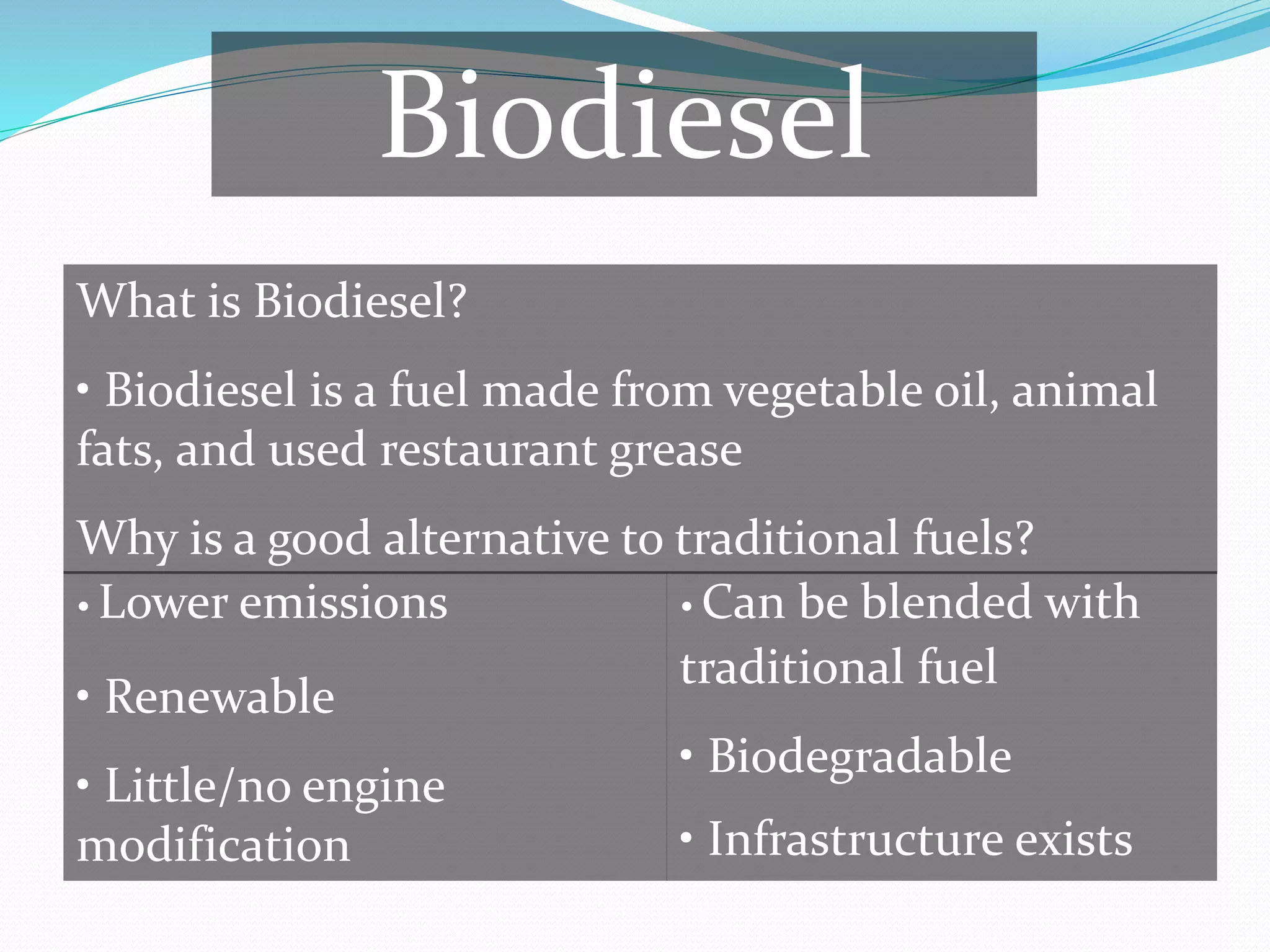

13. Biodiesel
What is Biodiesel?
• Biodiesel is a fuel made from vegetable oil, animal
fats, and used restaurant grease
Why is a good alternative to traditional fuels?
• Lower emissions
• Renewable
• Little/no engine
modification
• Can be blended with
traditional fuel
• Biodegradable
• Infrastructure exists

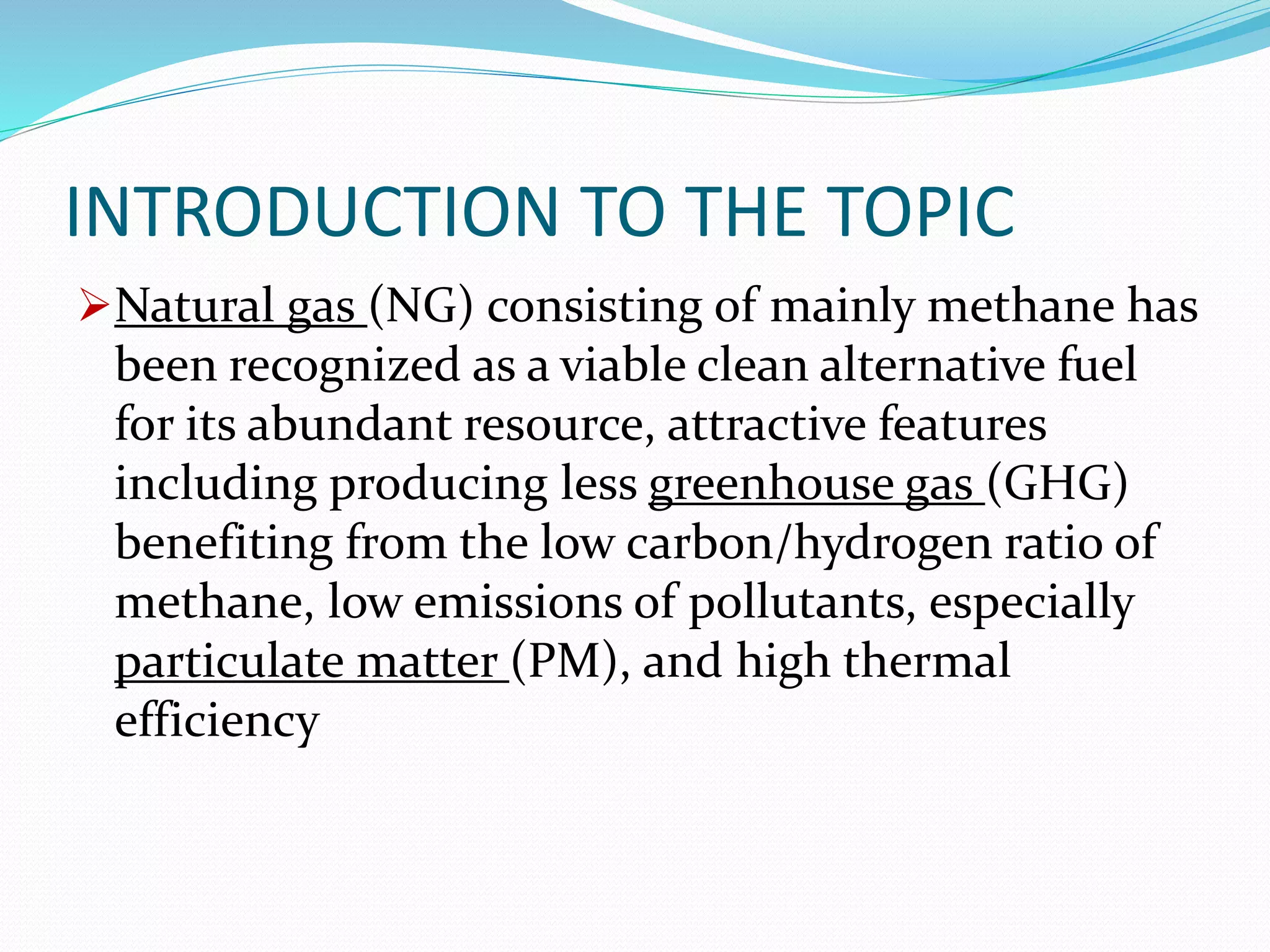

14. INTRODUCTION TO THE TOPIC
Natural gas (NG) consisting of mainly methane has
been recognized as a viable clean alternative fuel
for its abundant resource, attractive features
including producing less greenhouse gas (GHG)
benefiting from the low carbon/hydrogen ratio of
methane, low emissions of pollutants, especially
particulate matter (PM), and high thermal
efficiency
15. INTRODUTION CONT……..
Natural gas can be burned as either the sole fuel in
spark ignition (SI) engines or as supplemental fuel
in compression ignition (CI) diesel engines.
When burned in CI diesel engines, NG is usually
fumigated into the intake mixture or directly
injected into the cylinder early in the compression
stroke, which forms a homogeneous NG-air
mixture during the intake or early compression
stroke.

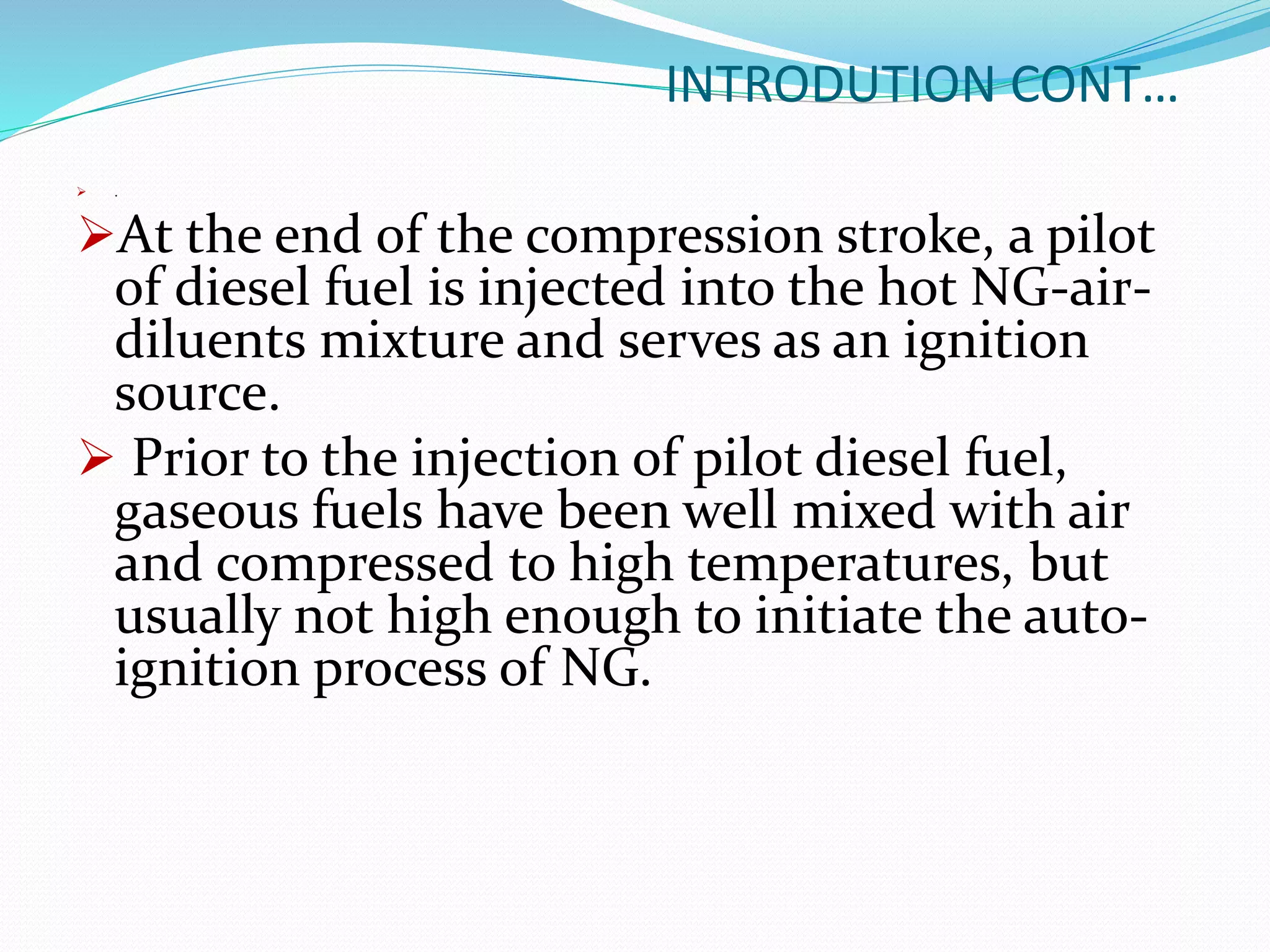

16. INTRODUTION CONT…
.
At the end of the compression stroke, a pilot
of diesel fuel is injected into the hot NG-air-
diluents mixture and serves as an ignition
source.
Prior to the injection of pilot diesel fuel,
gaseous fuels have been well mixed with air
and compressed to high temperatures, but
usually not high enough to initiate the auto-
ignition process of NG.

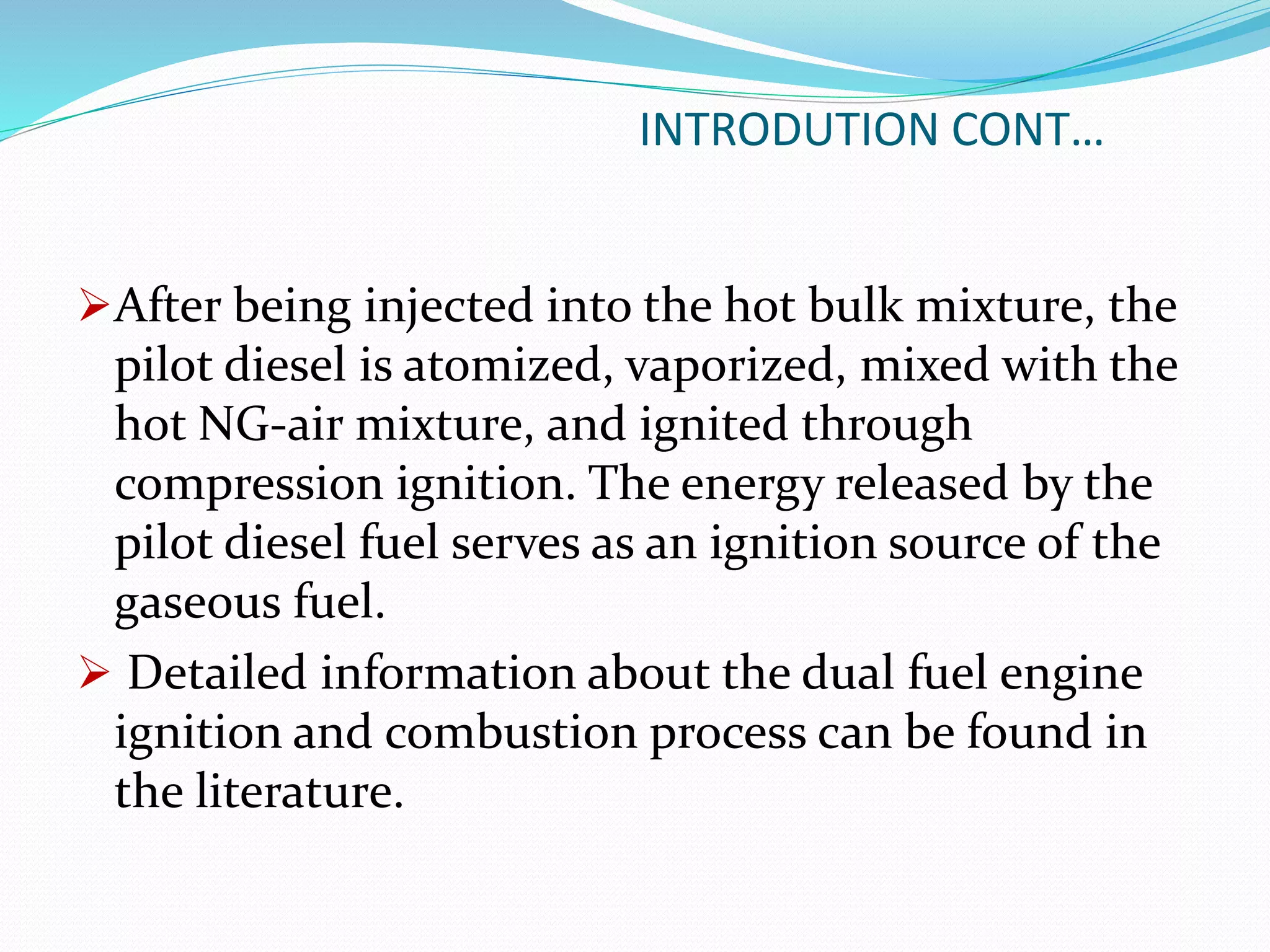

17. INTRODUTION CONT…
After being injected into the hot bulk mixture, the
pilot diesel is atomized, vaporized, mixed with the
hot NG-air mixture, and ignited through
compression ignition. The energy released by the
pilot diesel fuel serves as an ignition source of the
gaseous fuel.
Detailed information about the dual fuel engine
ignition and combustion process can be found in
the literature.

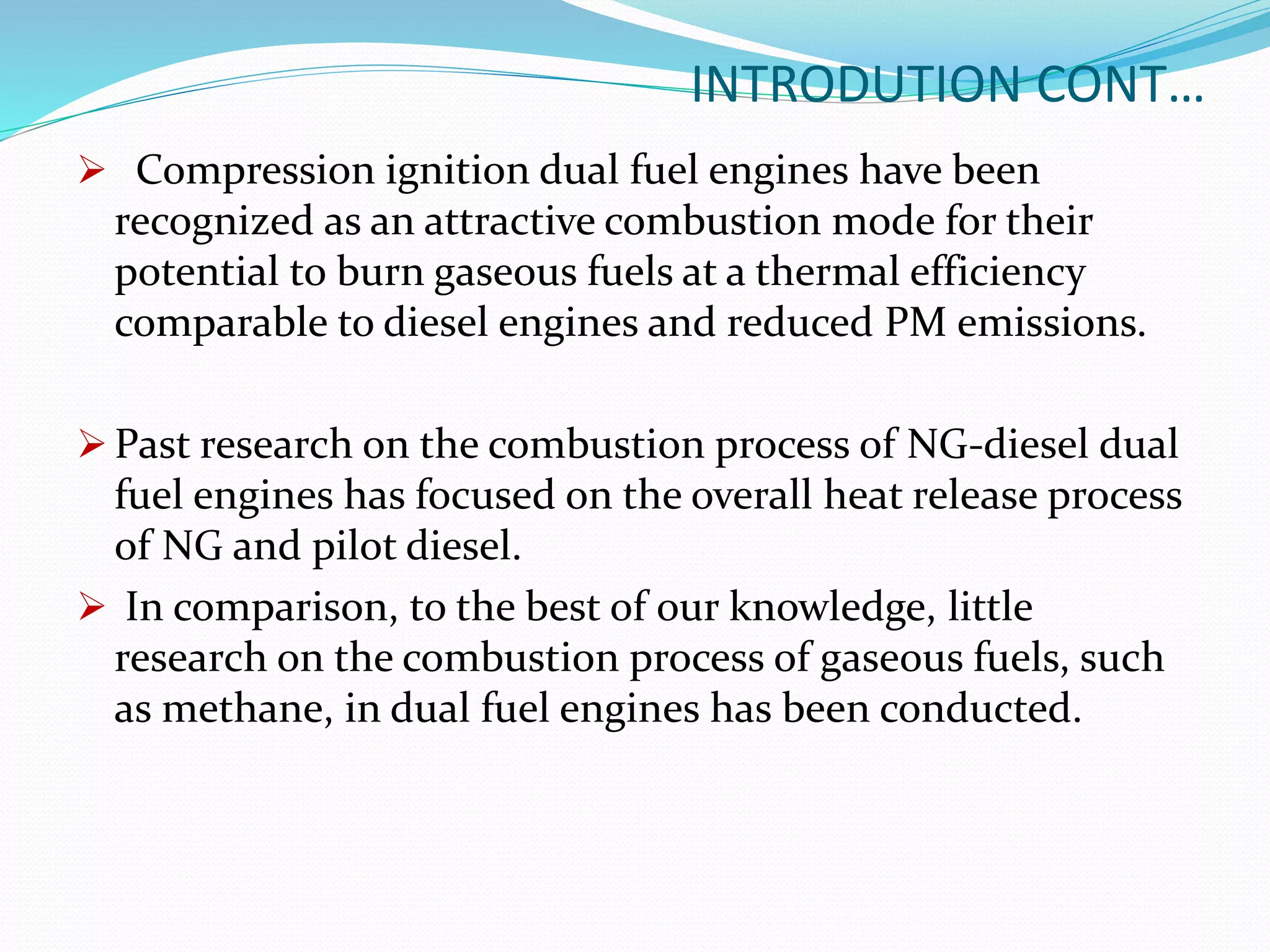

18. INTRODUTION CONT…
Compression ignition dual fuel engines have been
recognized as an attractive combustion mode for their
potential to burn gaseous fuels at a thermal efficiency
comparable to diesel engines and reduced PM emissions.
Past research on the combustion process of NG-diesel dual
fuel engines has focused on the overall heat release process
of NG and pilot diesel.
In comparison, to the best of our knowledge, little
research on the combustion process of gaseous fuels, such
as methane, in dual fuel engines has been conducted.

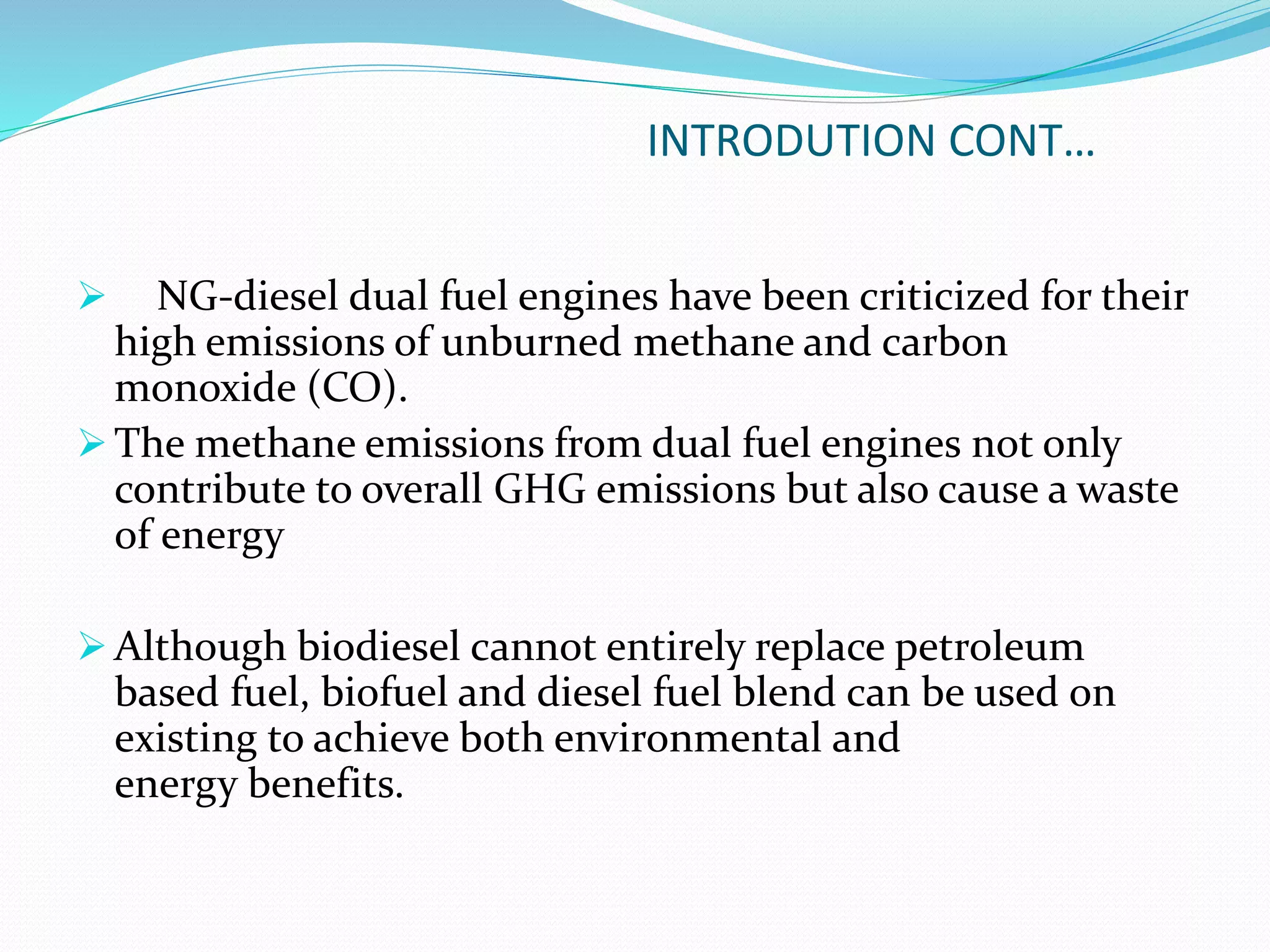

19. INTRODUTION CONT…
NG-diesel dual fuel engines have been criticized for their
high emissions of unburned methane and carbon
monoxide (CO).
The methane emissions from dual fuel engines not only
contribute to overall GHG emissions but also cause a waste
of energy
Although biodiesel cannot entirely replace petroleum
based fuel, biofuel and diesel fuel blend can be used on
existing to achieve both environmental and
energy benefits.

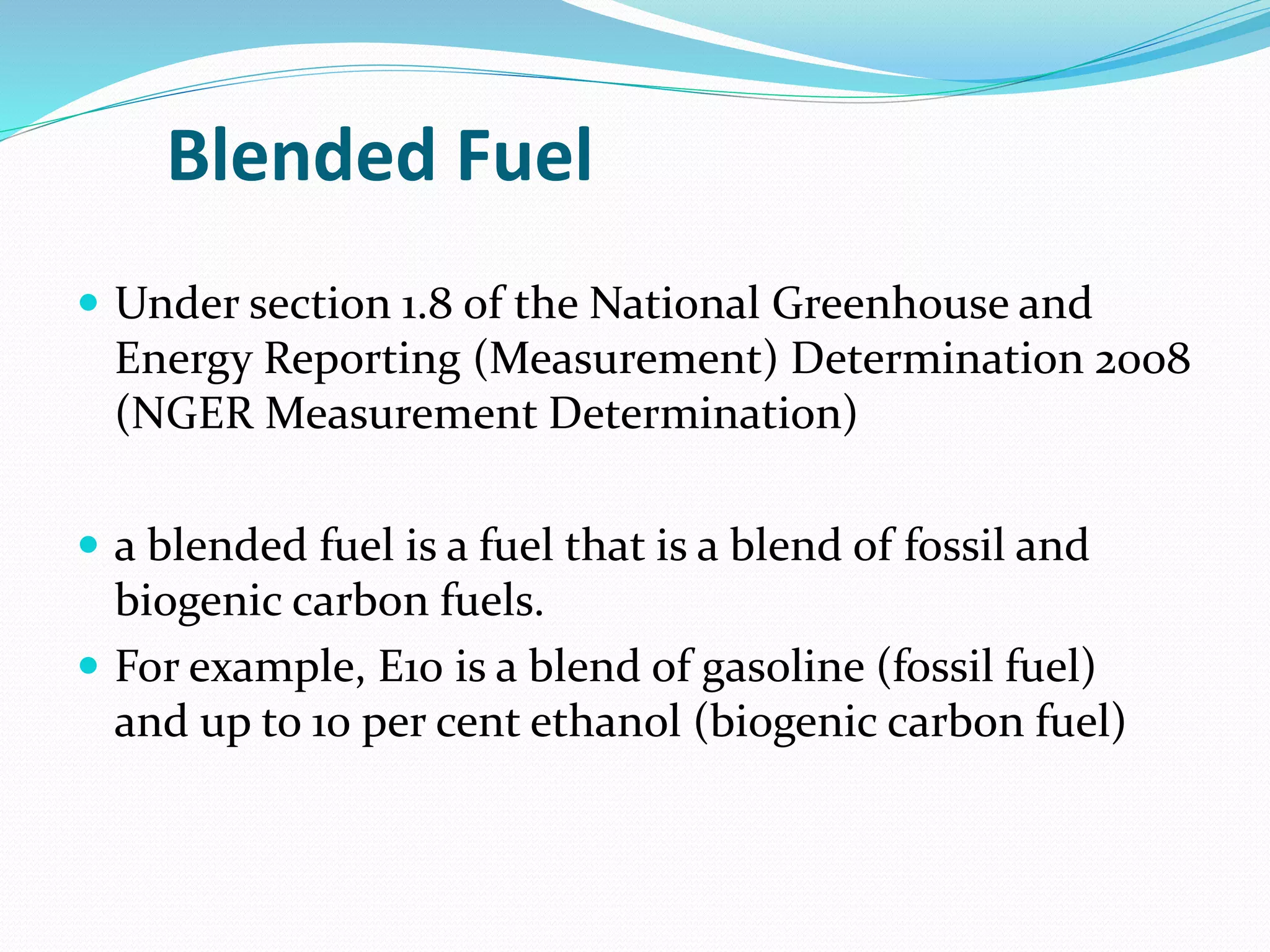

20. Blended Fuel
Under section 1.8 of the National Greenhouse and
Energy Reporting (Measurement) Determination 2008
(NGER Measurement Determination)
a blended fuel is a fuel that is a blend of fossil and
biogenic carbon fuels.
For example, E10 is a blend of gasoline (fossil fuel)
and up to 10 per cent ethanol (biogenic carbon fuel)

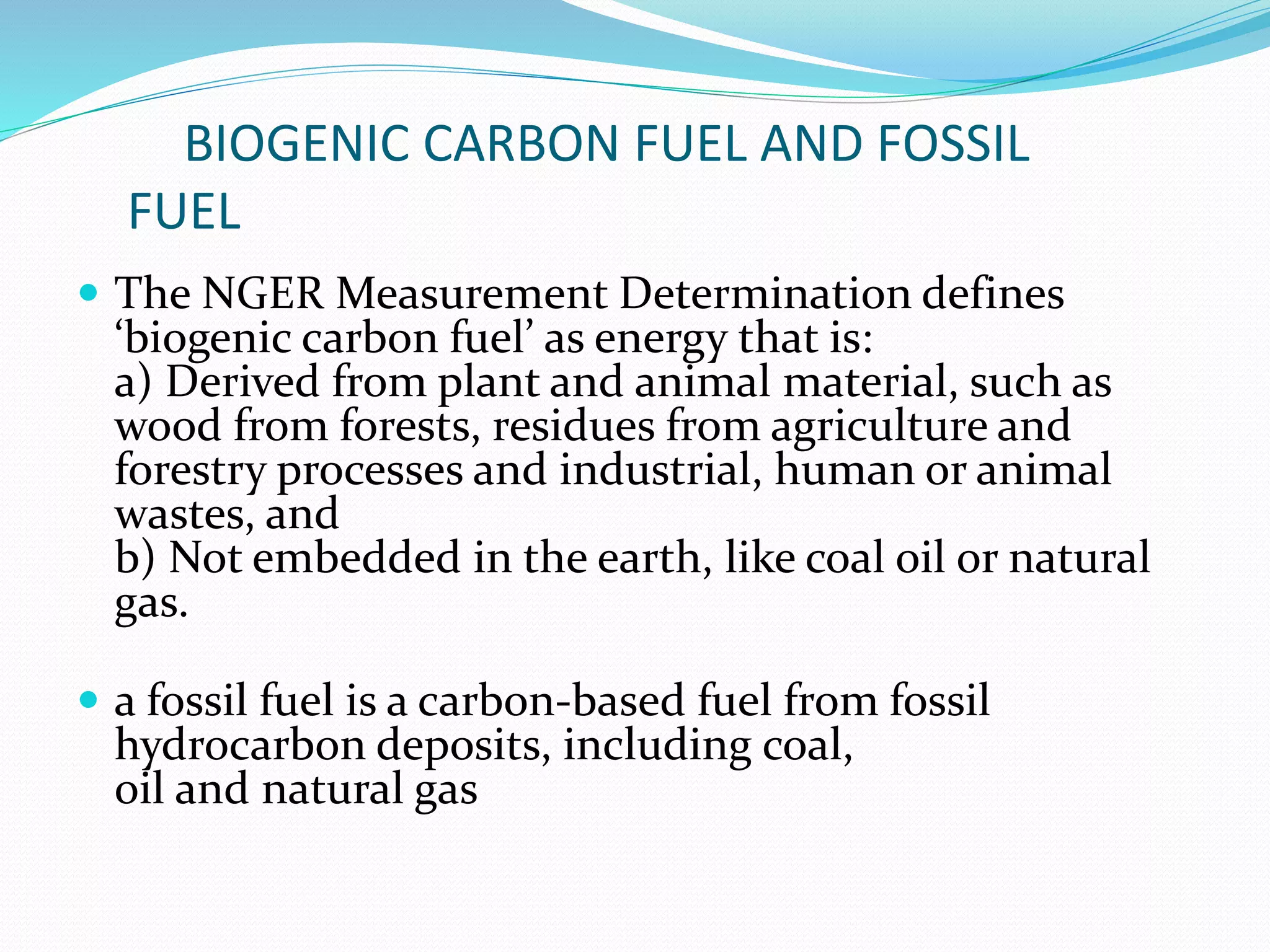

21. BIOGENIC CARBON FUEL AND FOSSIL
FUEL
The NGER Measurement Determination defines
‘biogenic carbon fuel’ as energy that is:
a) Derived from plant and animal material, such as
wood from forests, residues from agriculture and
forestry processes and industrial, human or animal
wastes, and
b) Not embedded in the earth, like coal oil or natural
gas.
a fossil fuel is a carbon-based fuel from fossil
hydrocarbon deposits, including coal,
oil and natural gas
23. Why use CFD?
Analysis and Design
Simulation-based design instead of “build & test”
More cost effective and more rapid.
Simulation of physical fluid phenomena that are difficult
for experiments.
Full scale simulations (e.g., ships and airplanes)
Environmental effects (wind, weather, etc.)
Hazards (e.g., explosions, radiation, pollution)
Physics (e.g., planetary boundary layer, stellar
evolution)
Knowledge and exploration of flow physics

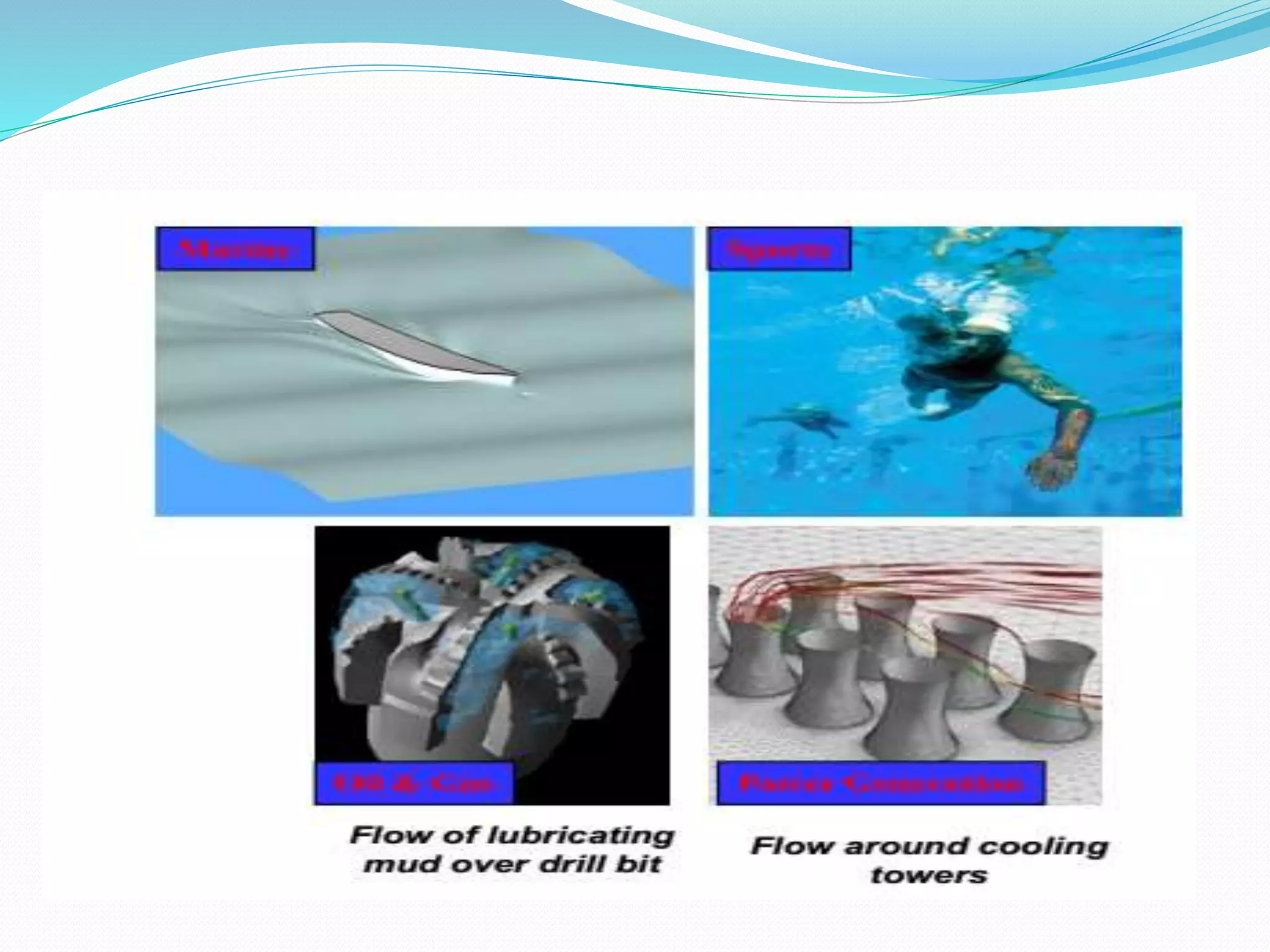

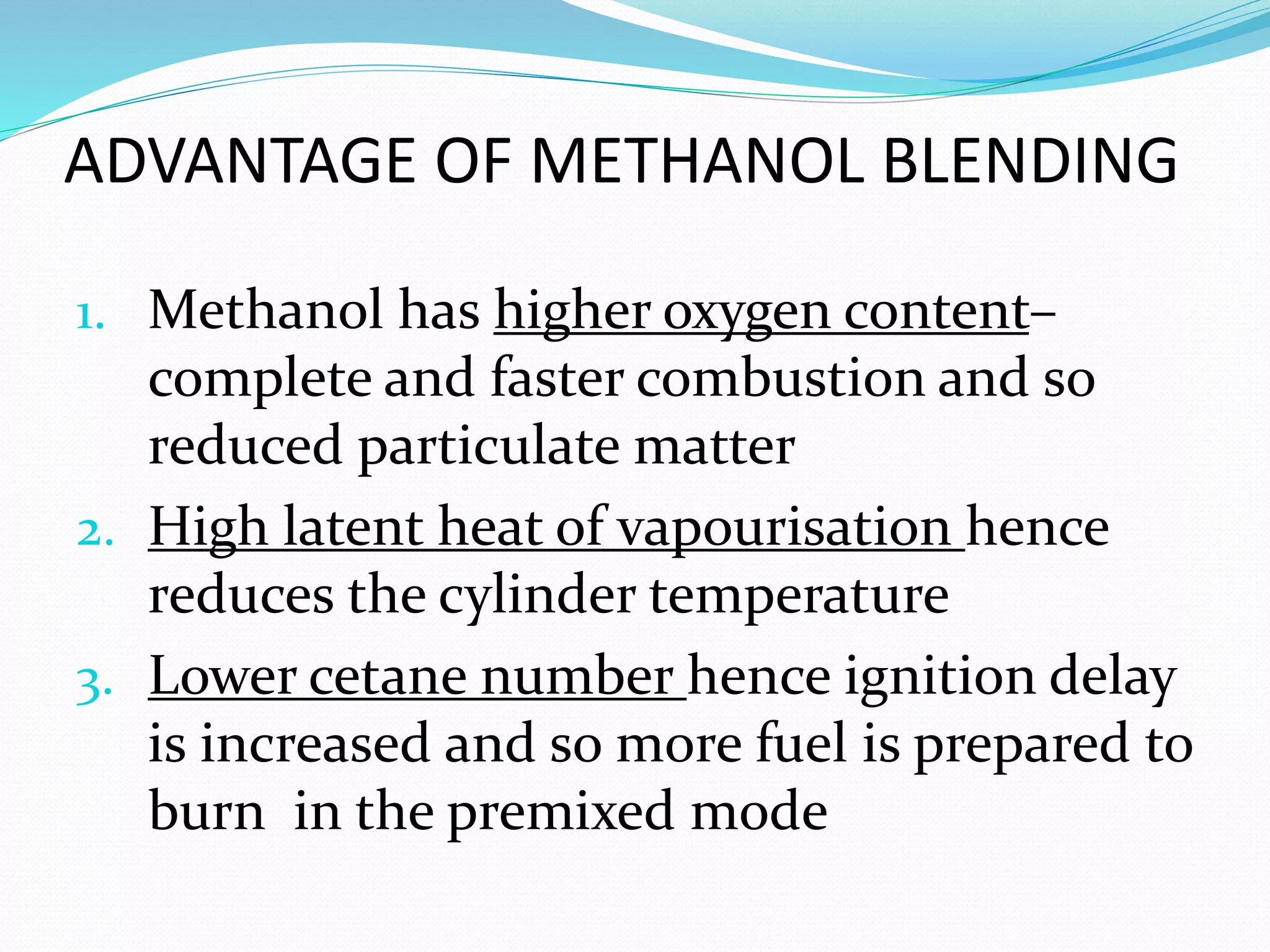

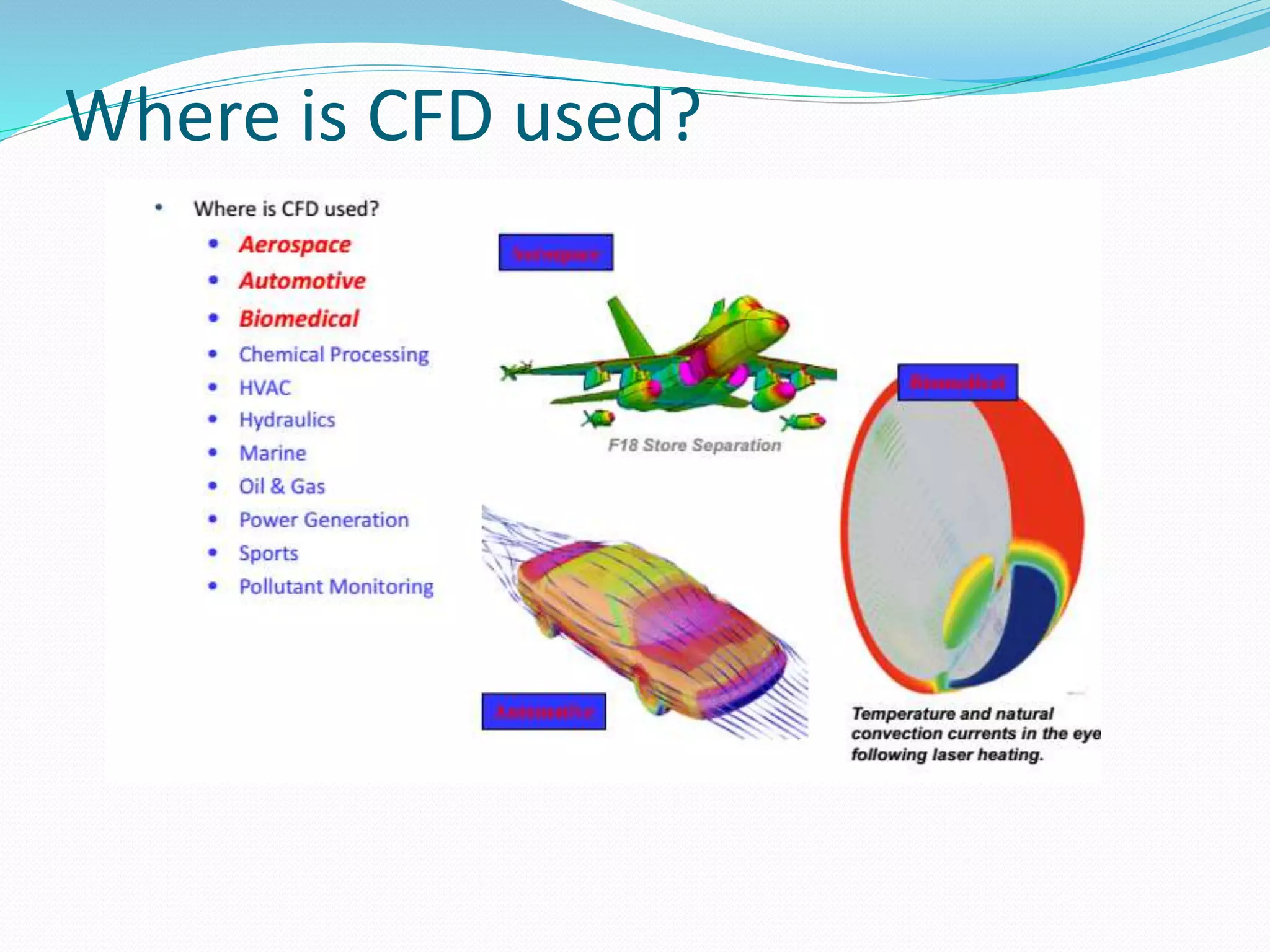

27. ADVANTAGE OF METHANOL BLENDING
1. Methanol has higher oxygen content–
complete and faster combustion and so
reduced particulate matter
2. High latent heat of vapourisation hence
reduces the cylinder temperature
3. Lower cetane number hence ignition delay
is increased and so more fuel is prepared to
burn in the premixed mode
28. ADVANTAGE OF METHANOL BLENDING CONT--
4.Due to more oxygen content the diffusion combustion
is faster and so overall combustion duration reduces
5. Due to more oxygen content the combustion
effeciency increases and so due to lower flame
temperature the heat losses in the cylinder walls
reduces hence reducing the maximum temperature
and so reducing the NOx formation tendency
6. Methanol has higher H/C ratio and due to the high
burning velocity of hydrogen and so efffective
combustion speed increases and also H atoms have
high heating value than C atoms

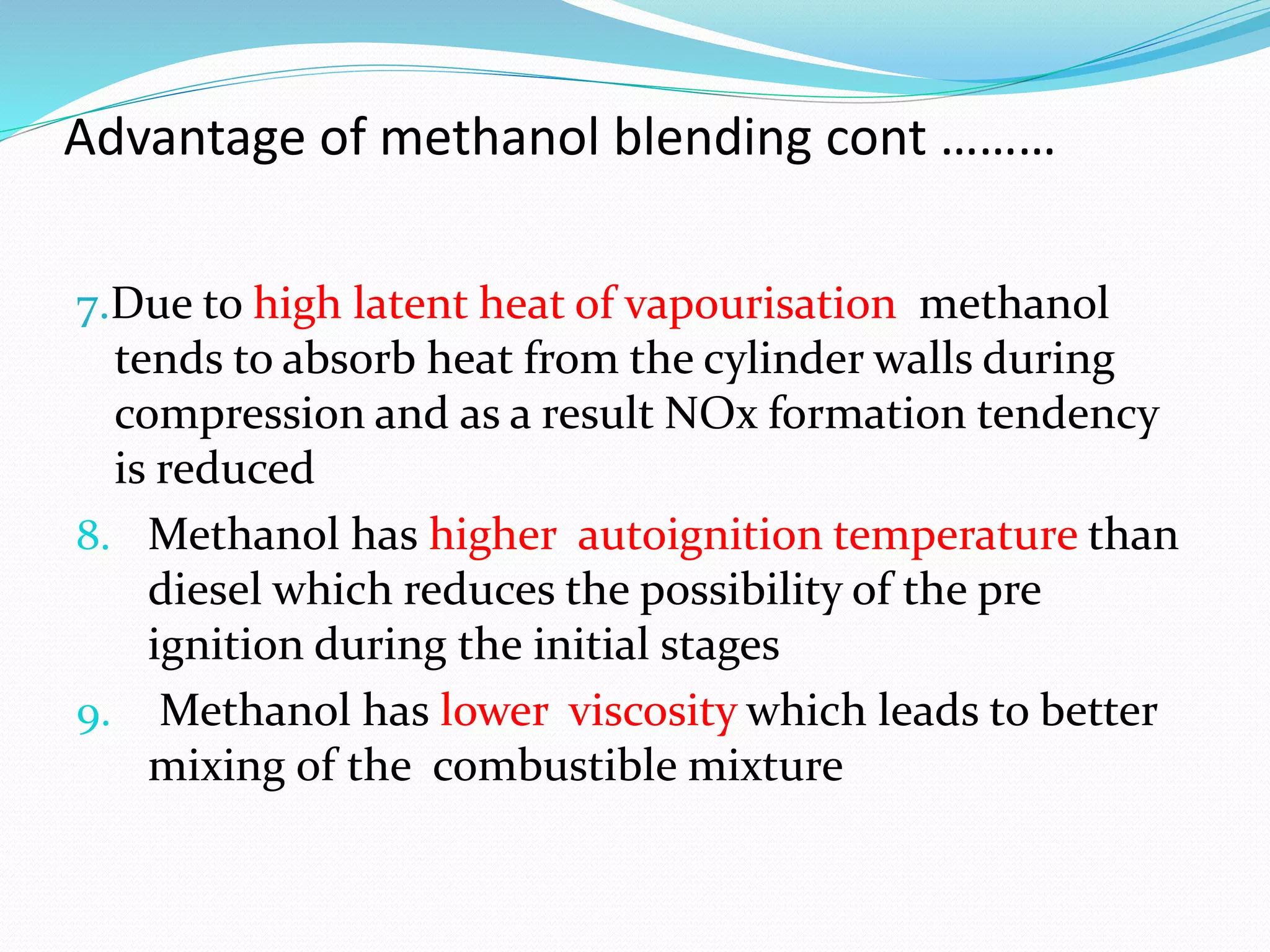

29. Advantage of methanol blending cont ………
7.Due to high latent heat of vapourisation methanol
tends to absorb heat from the cylinder walls during
compression and as a result NOx formation tendency
is reduced
8. Methanol has higher autoignition temperature than
diesel which reduces the possibility of the pre
ignition during the initial stages
9. Methanol has lower viscosity which leads to better
mixing of the combustible mixture
30. EFFECT OF METHANOL BLENDING ON PERFORMANCE
Due to better combustion as a result of oxygen
content the heat losses to the cylinder walls is reduced
and so the thermal effeciency increases
The temperature is maintained due to high heat
absorbing capacity of methanol and as a result the
work of the compression is reduced and so the
effective effeciency gets increased
There is reduction in particulate emissions , carbon
based emissions and reduction in NOx formation
tendency

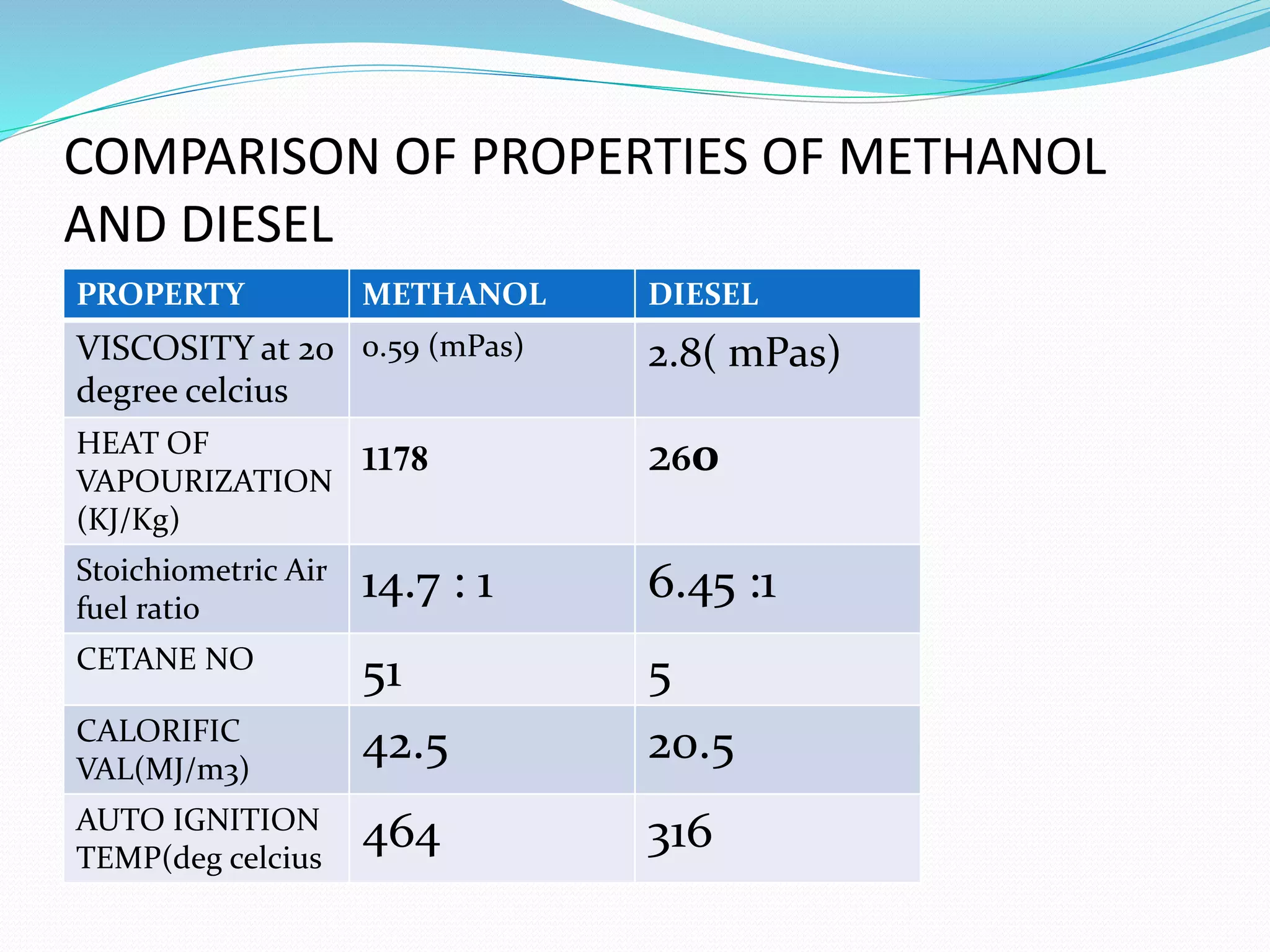

31. COMPARISON OF PROPERTIES OF METHANOL
AND DIESEL
PROPERTY METHANOL DIESEL
VISCOSITY at 20
degree celcius
0.59 (mPas) 2.8( mPas)
HEAT OF
VAPOURIZATION
(KJ/Kg)
1178 260
Stoichiometric Air
fuel ratio
14.7 : 1 6.45 :1
CETANE NO
51 5
CALORIFIC
VAL(MJ/m3)
42.5 20.5
AUTO IGNITION
TEMP(deg celcius
464 316
32. COMPARISON OF PROPERTIES OF METHANOL
AND DIESEL
PROPERTY METHANOL DIESEL
FLAME TEMPERATURE-
deg celcius
1890 2054
MOLECULAR WEIGHT
32 190-220
33. METHODOLOGY
Pre-processing: CAD Modeling:
Creation of CAD Model by using CAD modeling tools
for creating the geometry of the part/assembly of which you want to perform
Meshing:
Meshing is a critical operation in CFD.
In this operation, the CAD geometry is discretized into large numbers of small
Element and nodes.
The arrangement of nodes and element in space in a proper manner is called
mesh.
The analysis accuracy and duration depends on the mesh size and
orientations.
With the increase in mesh size (increasing no. of element), the CFD analysis
speed decrease but the accuracy increases.
34. METHODOLOGY CONT………
Type of Solver:
Choose the solver for the problem from Pressure Based and
density based solver.
Physical model:
Choose the required physical model for the problem i.e.
laminar, turbulent, energy, multi-phase, etc
Material Property: Choose the Material property of
flowing fluid

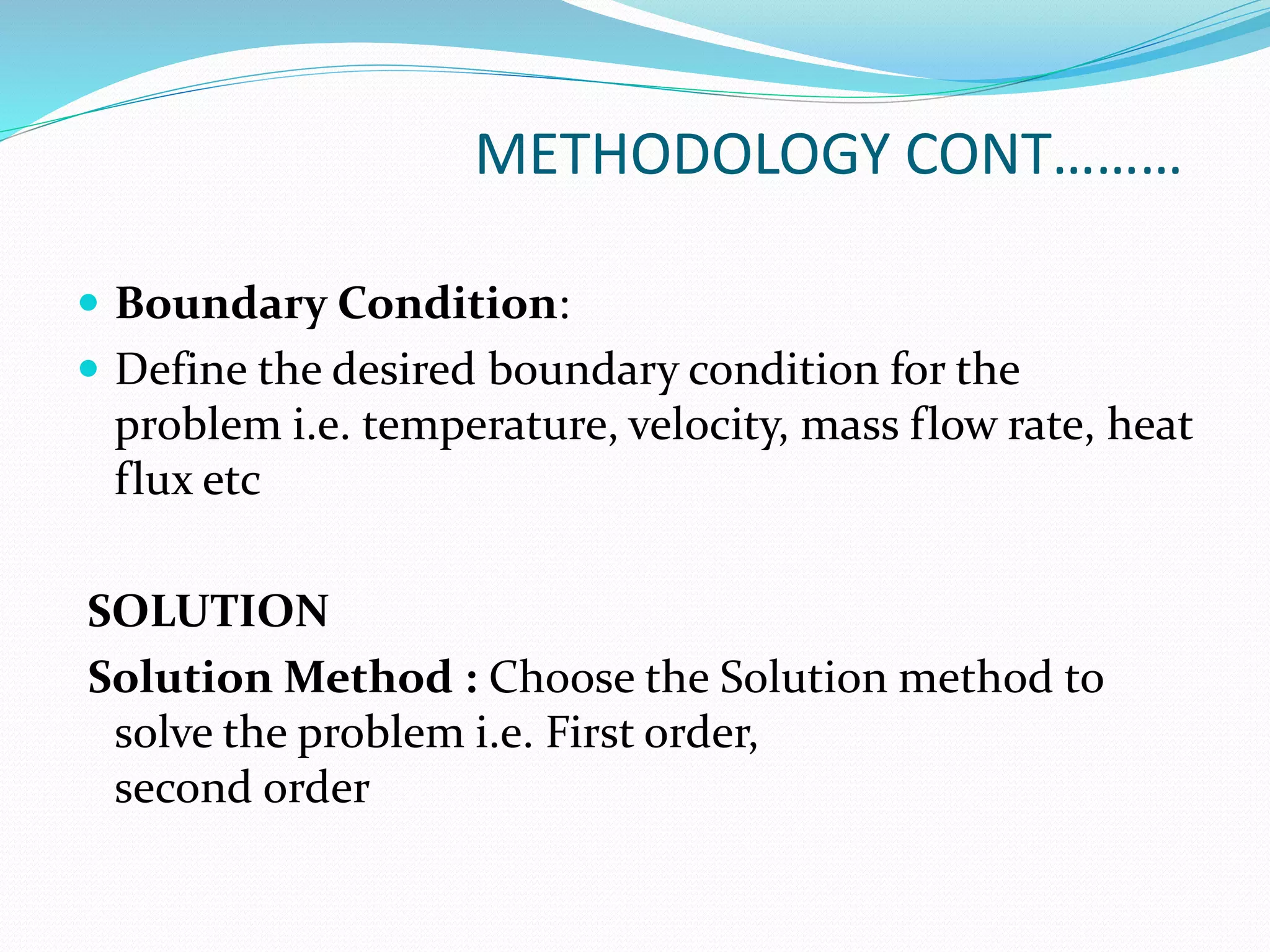

35. METHODOLOGY CONT………
Boundary Condition:
Define the desired boundary condition for the
problem i.e. temperature, velocity, mass flow rate, heat
flux etc
SOLUTION
Solution Method : Choose the Solution method to
solve the problem i.e. First order,
second order
36. METHODOLOGY CONT………
Solution Initialization:
Initialized the solution to get the initial solution for
the problem.
Run Solution: Run the solution by giving no of
iteration for solution to converge.
Post Processing: For viewing and interpretation of
Result. The result can be viewed in various formats:
graph, value, animation etc.
37. CFD METHOD APPLIED (METHODOLOGY CONT)
The model was simulated and the required geometry
configurations were pre-processed in ANSYS 14.5.
This following section illustrates the method used in the
CFD simulations in this particular study.
STEP A] GEOMETRY OR MODEL FORMATION

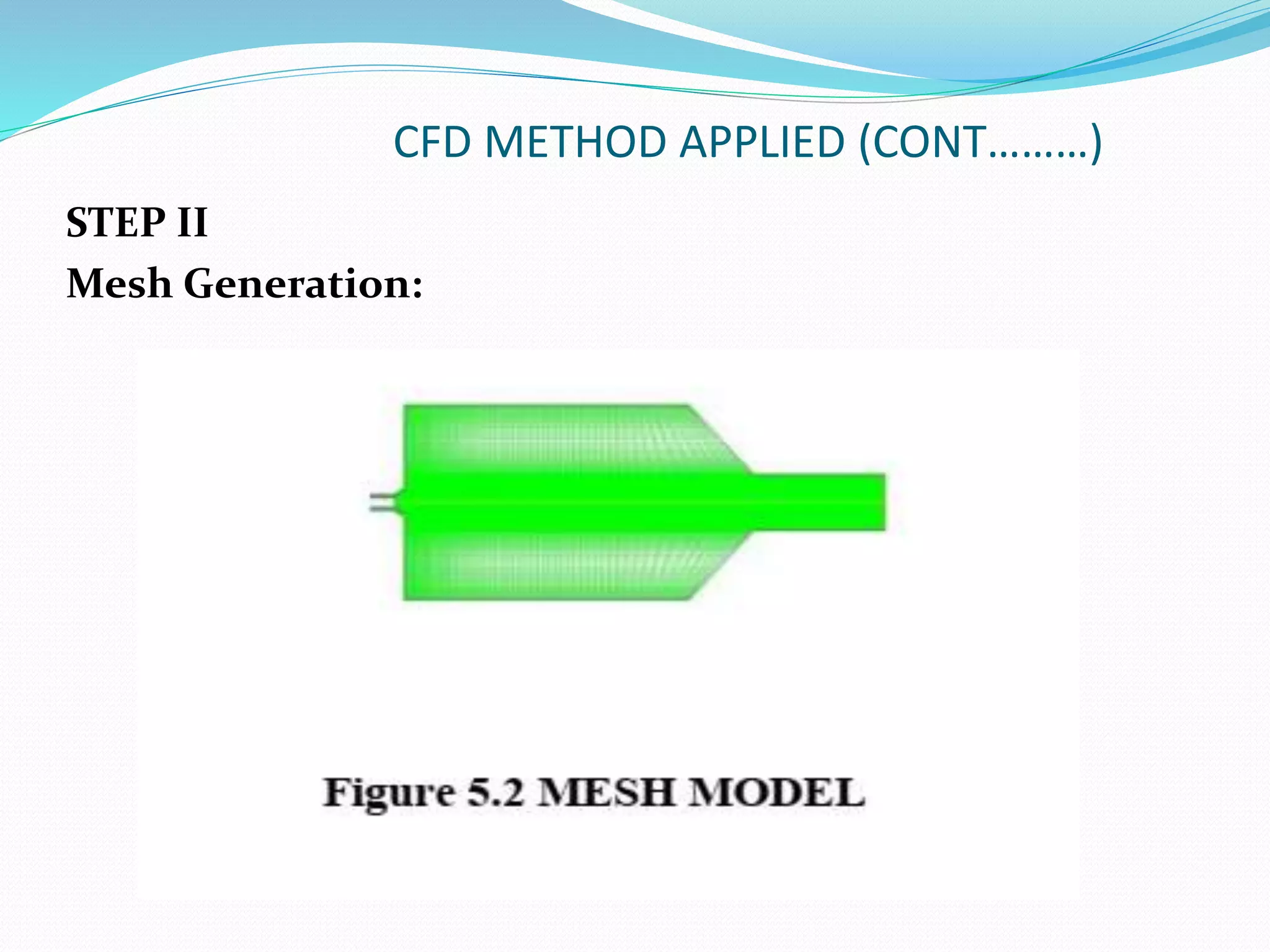

STEP B] MESH GENERATION
STEP C] MESH CHECKING
STEP D] SIMULATION SET UP
STEP E] SOLUTIONS
38. CFD METHOD APPLIED (CONT………)

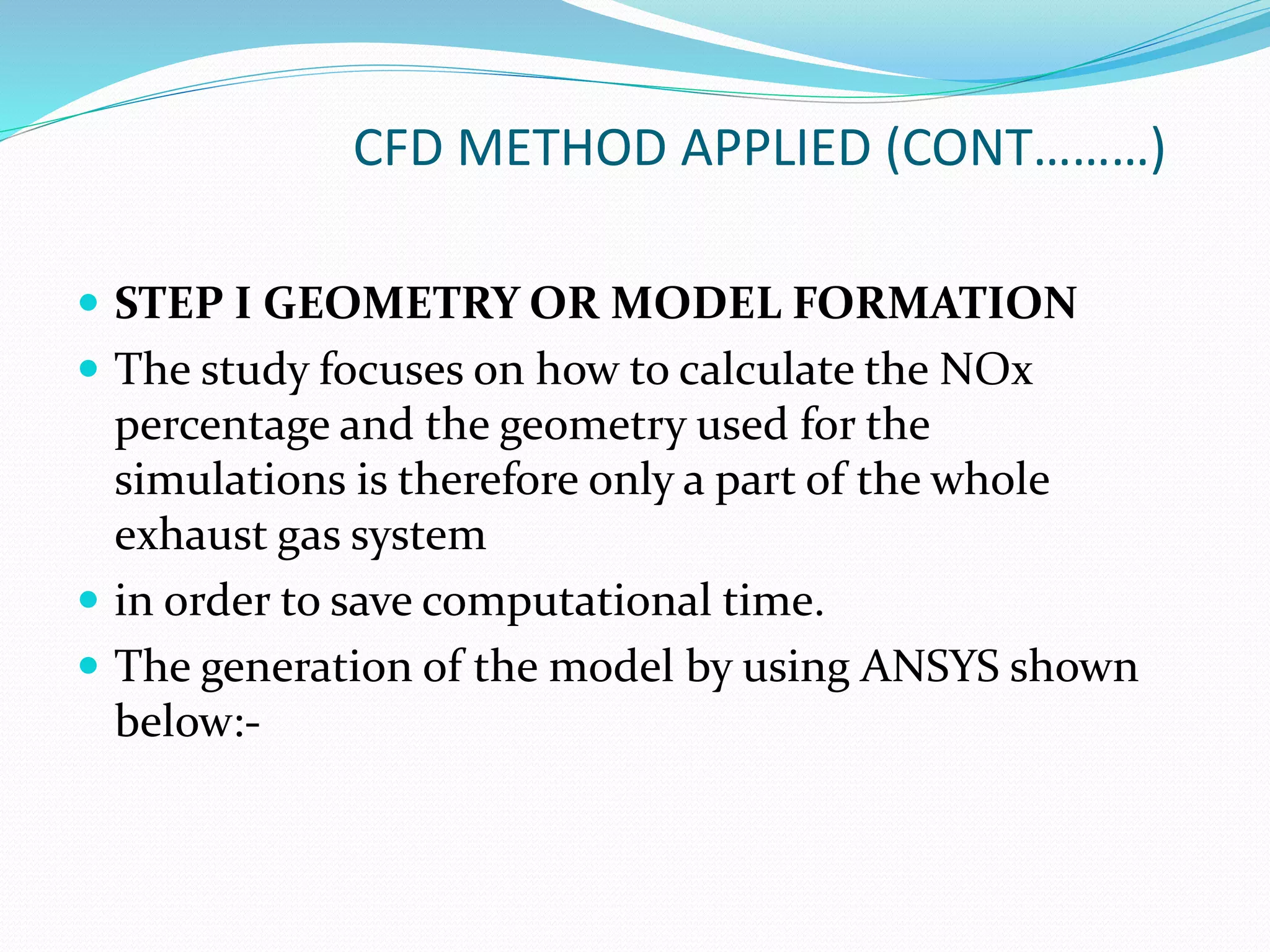

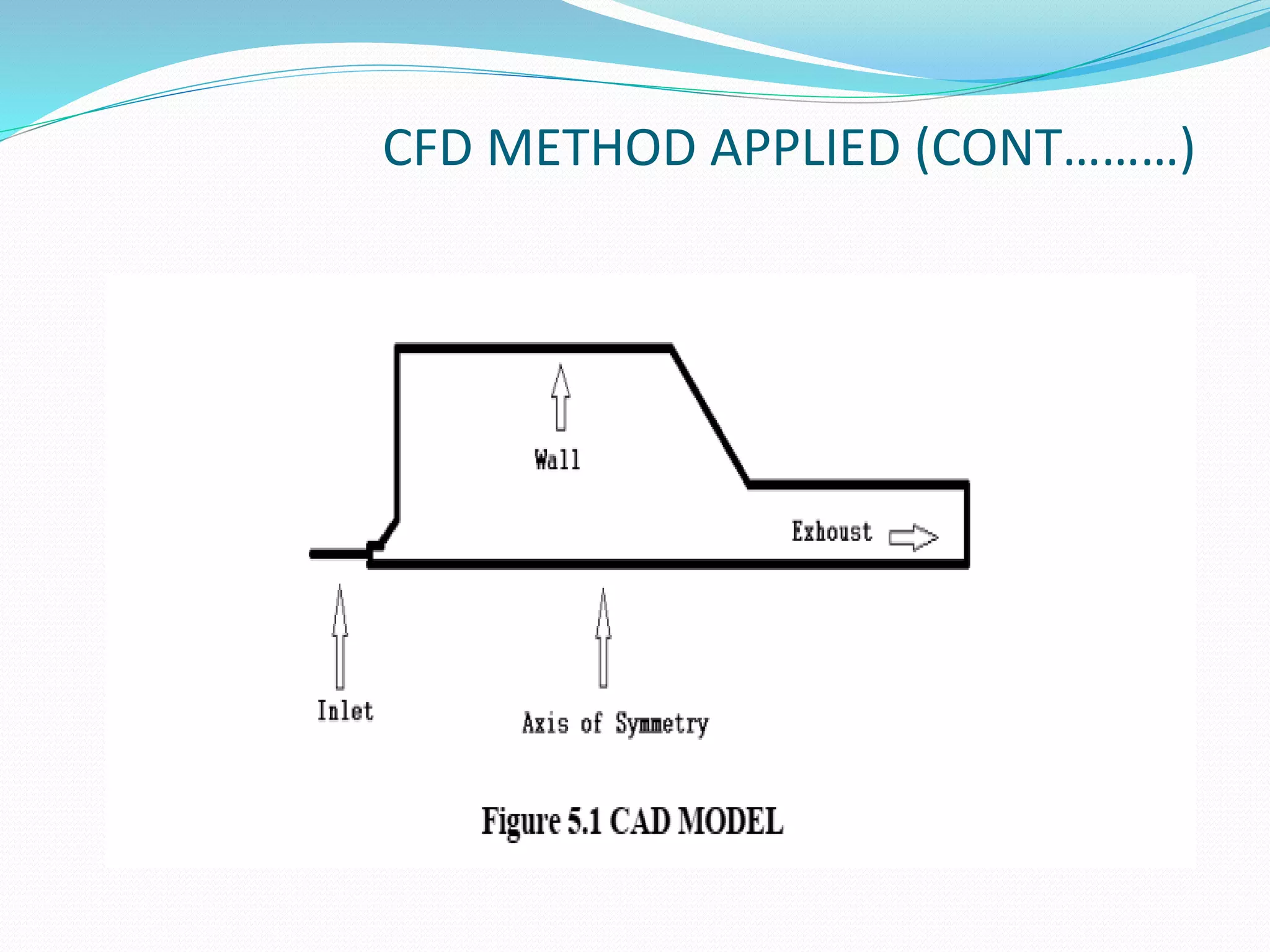

STEP I GEOMETRY OR MODEL FORMATION
The study focuses on how to calculate the NOx
percentage and the geometry used for the
simulations is therefore only a part of the whole
exhaust gas system
in order to save computational time.
The generation of the model by using ANSYS shown
below:-
41. CFD METHOD APPLIED (CONT………)

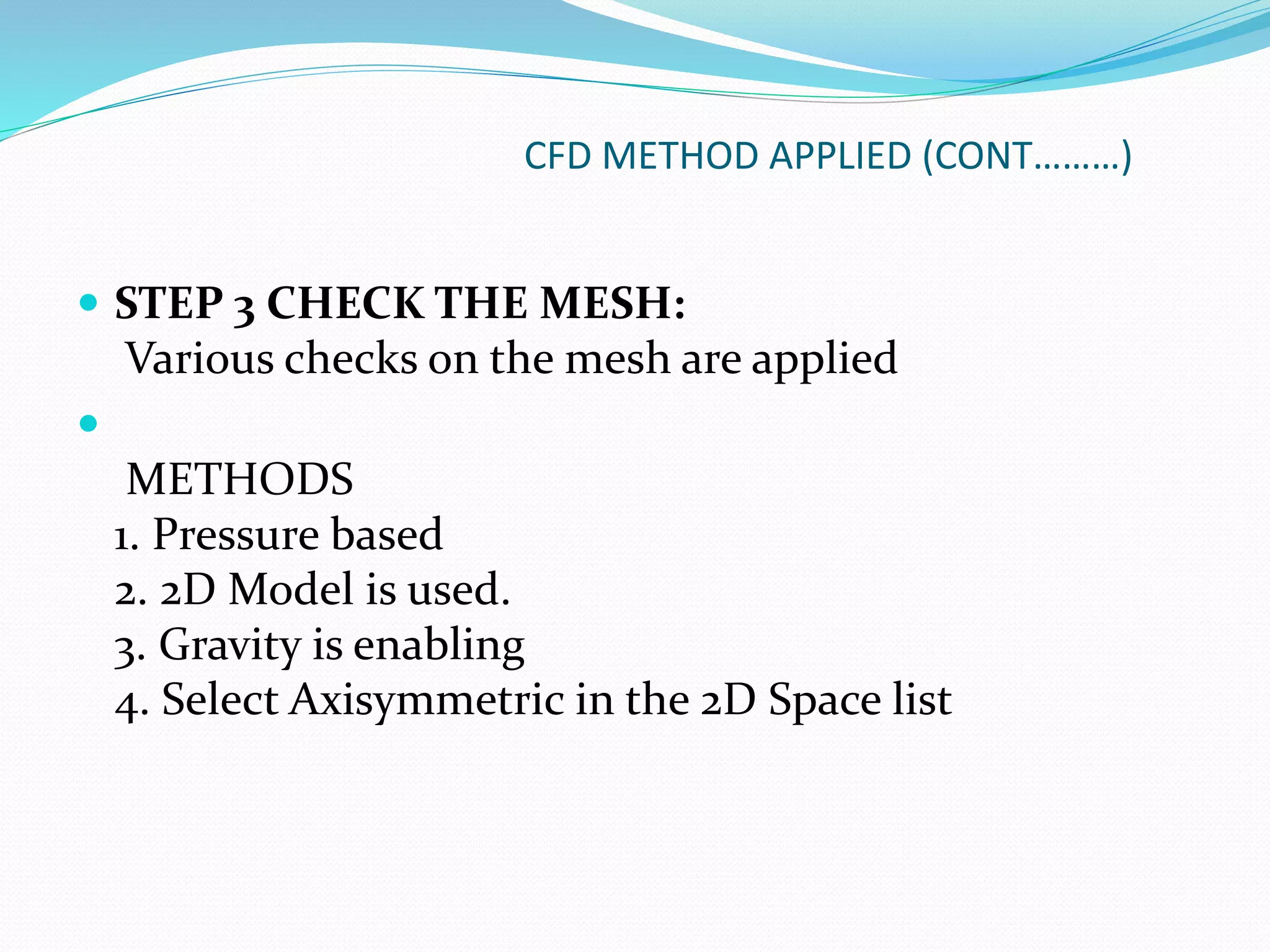

STEP 3 CHECK THE MESH:
Various checks on the mesh are applied
METHODS
1. Pressure based
2. 2D Model is used.
3. Gravity is enabling
4. Select Axisymmetric in the 2D Space list
42. CFD METHOD APPLIED (CONT………)
MODEL
1. Energy equation is enabled.
2. K-Epsilon turbulence model used.
3. Non-Premixed condition is used.
4. P-1 radiation model is used, since it is quicker to
run. However DO radiation model can
be used for more accurate results in typical models.
5. Finite rate / eddy dissipation in turbulence
chemistry. Interactions are used for species
model.
43. CFD METHOD APPLIED (CONT………)
STEP 4
SIMULATION SET UP
Boundary conditions
1. Mass Flow Air inlet: - Mass flow rate is 0.5 kg/s,
2. Mass flow Fuel inlet – 0.05 kg/ s of Mixture
MATERIAL
1. Diesel + Methanol- In Present study we have used five
different type of blends and analyze
by CFD tools on the basis of temperature , velocity ,
pressure and emissions like Cox and NOx
44. CFD METHOD APPLIED (CONT………)

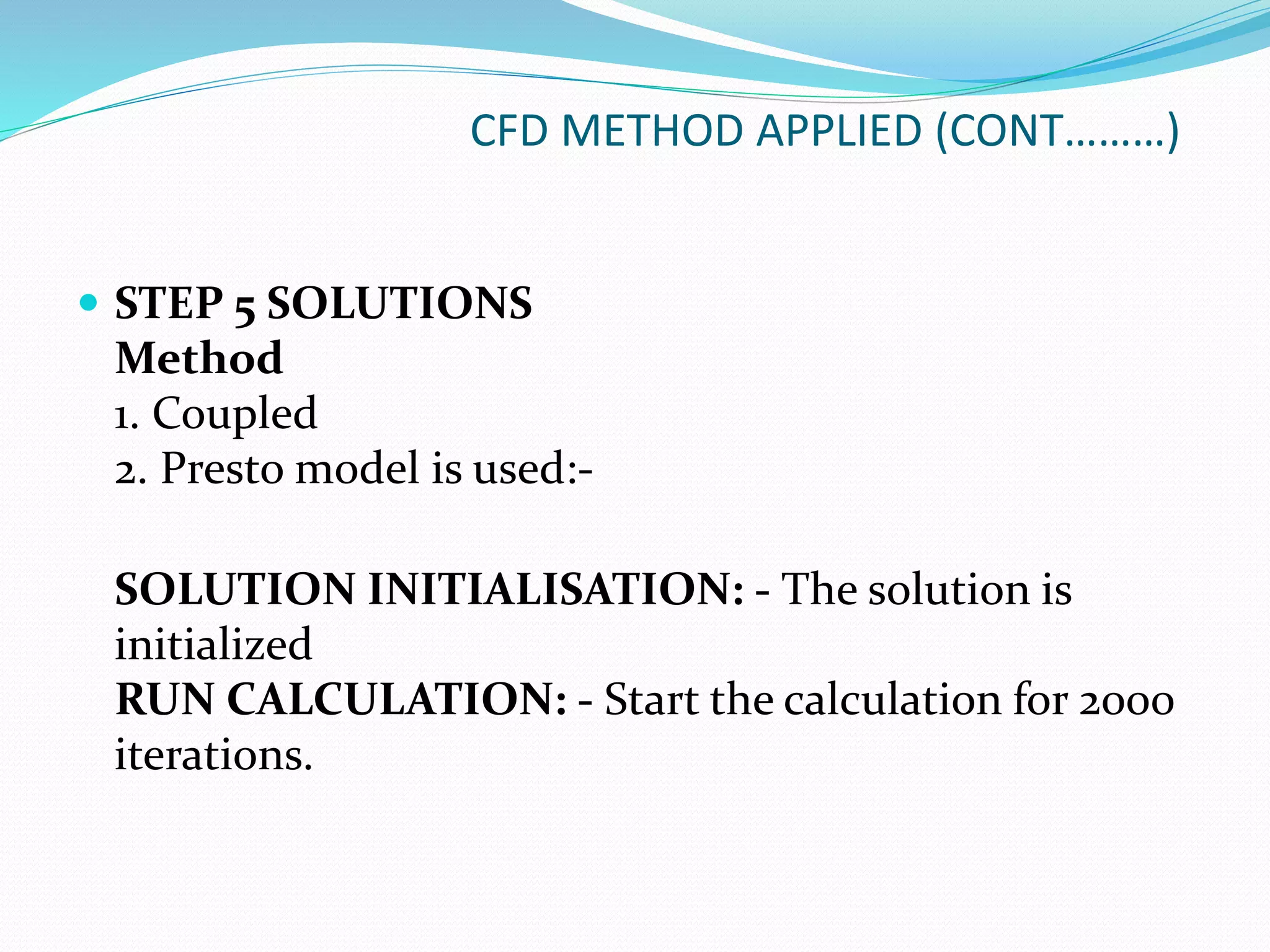

STEP 5 SOLUTIONS
Method
1. Coupled
2. Presto model is used:-
SOLUTION INITIALISATION: - The solution is
initialized
RUN CALCULATION: - Start the calculation for 2000
iterations.

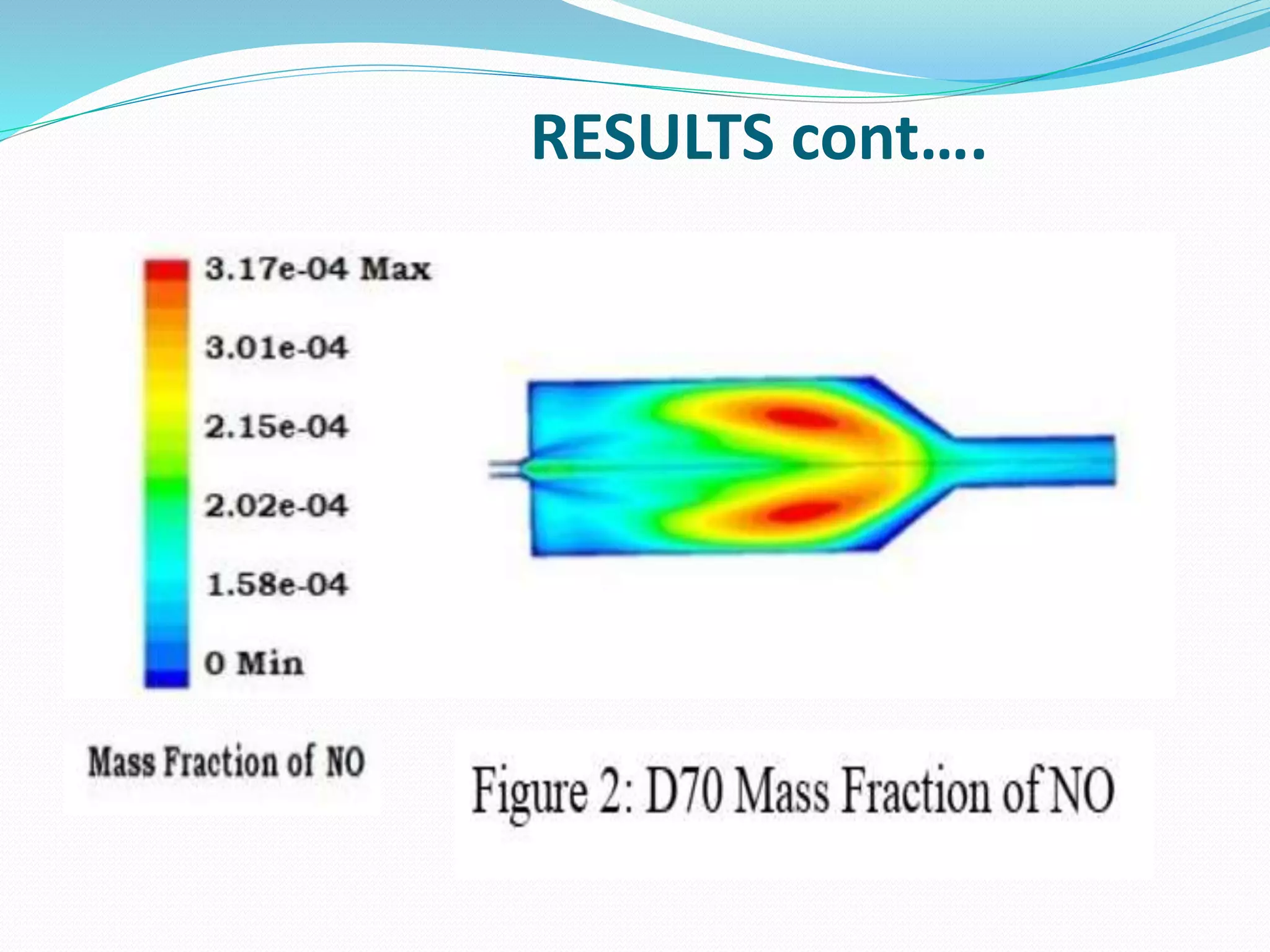

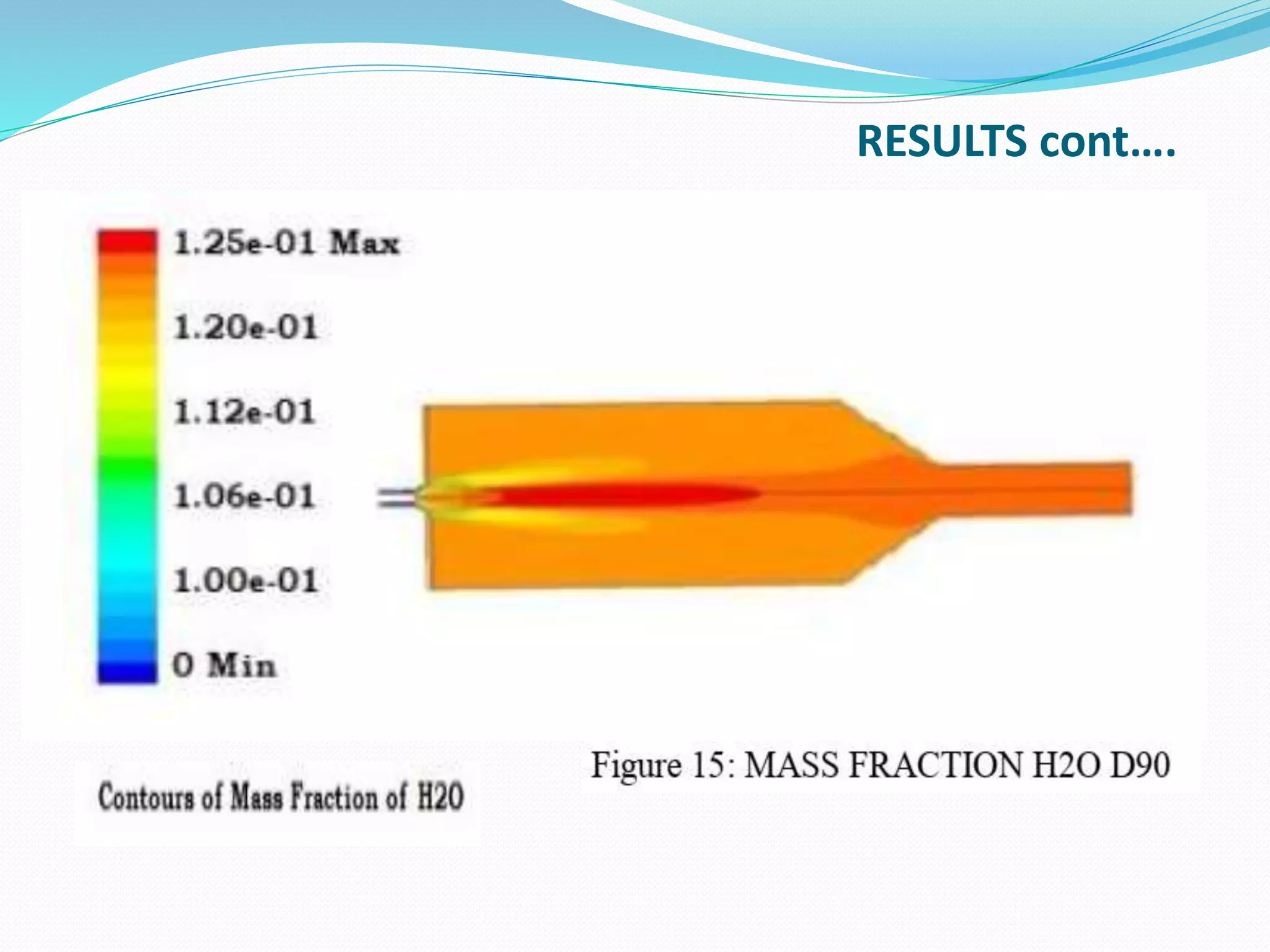

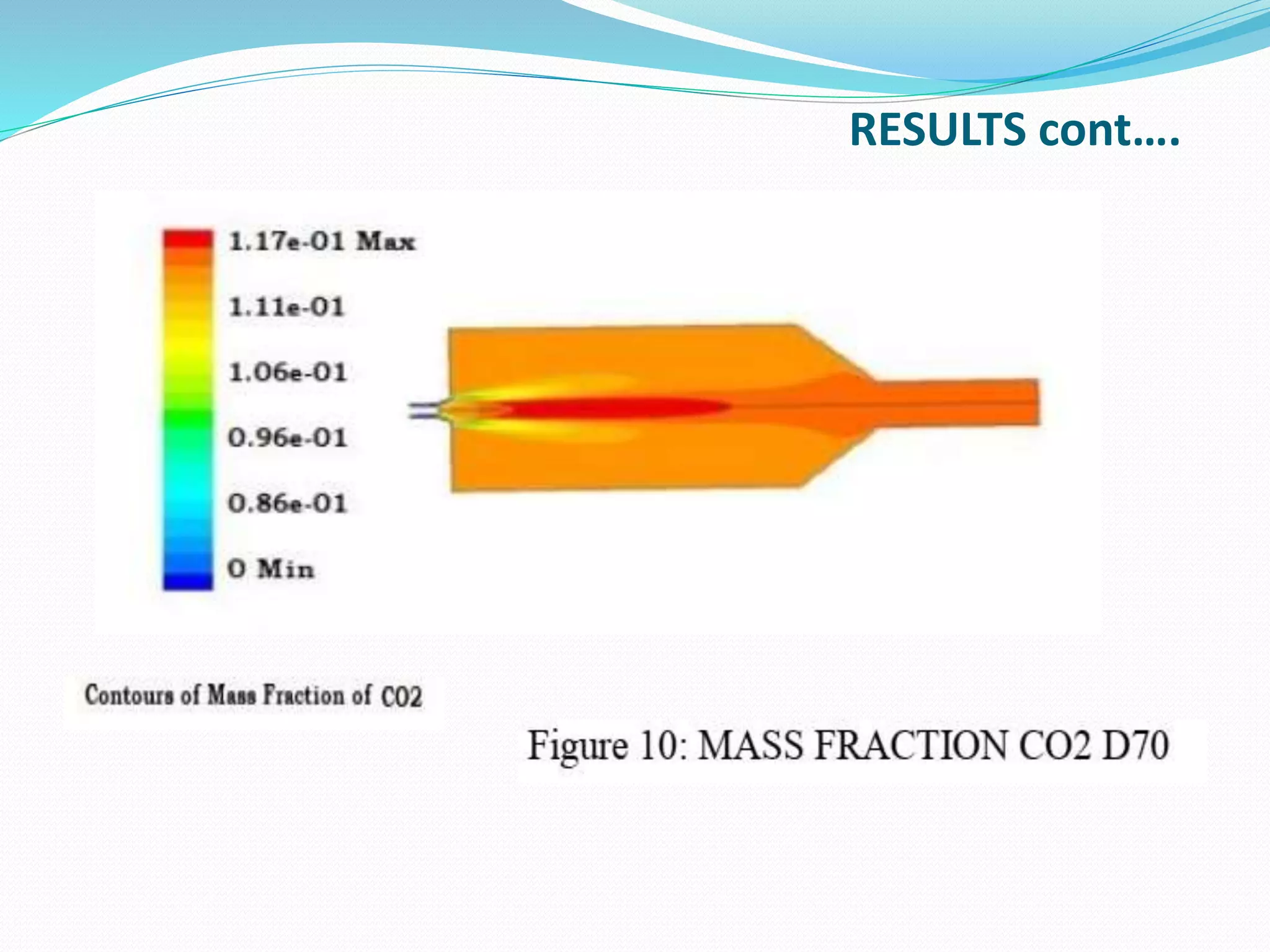

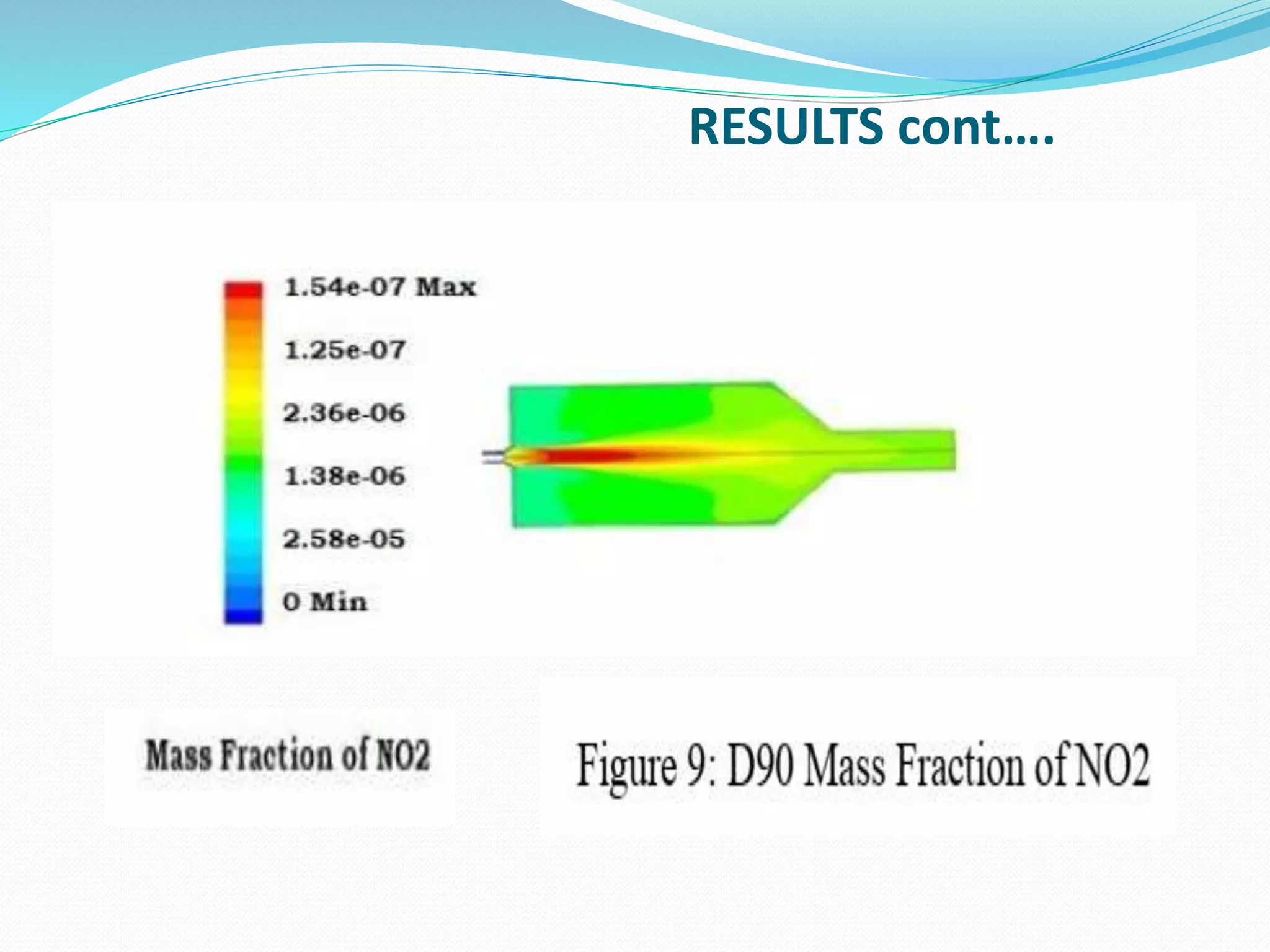

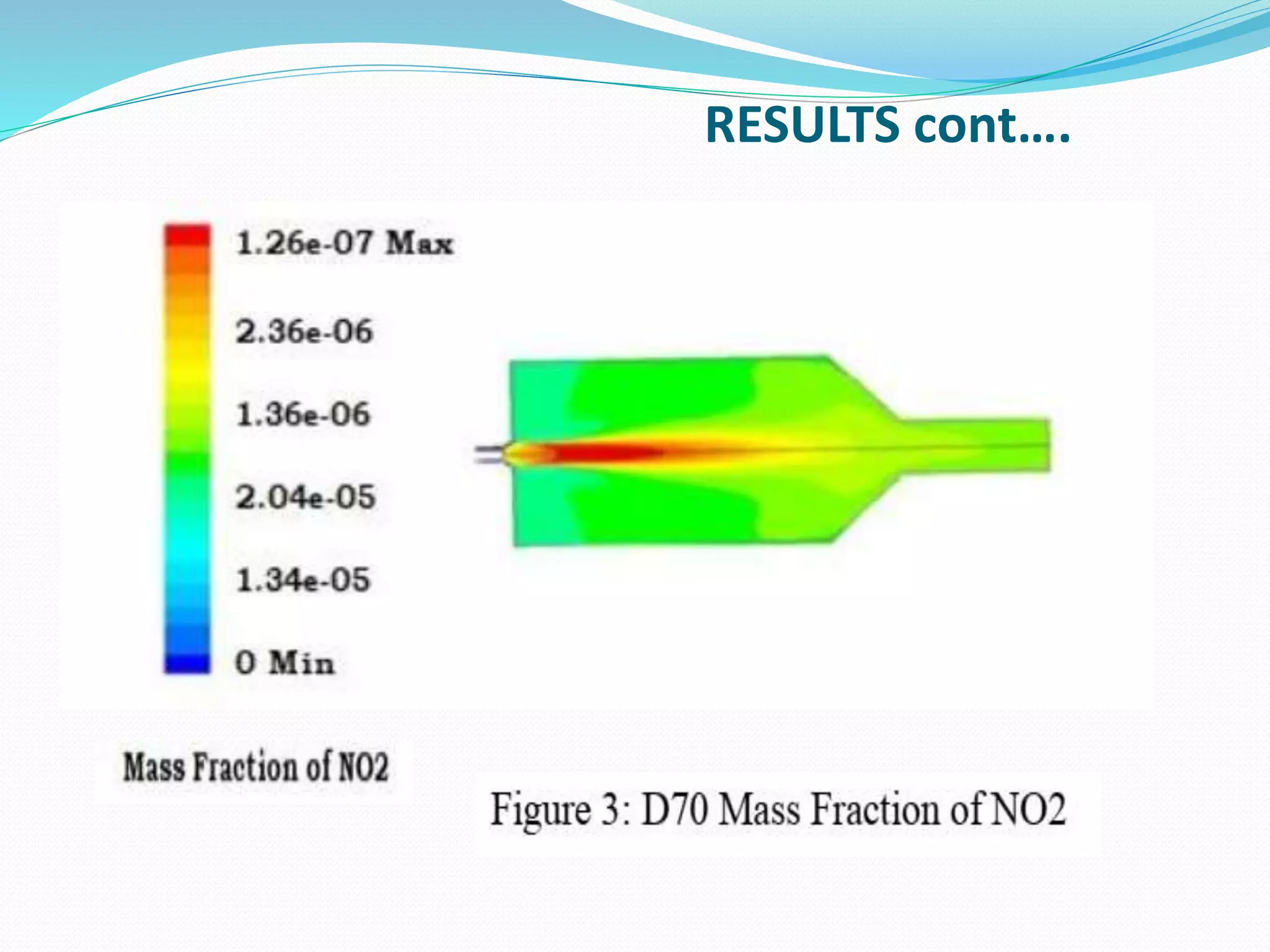

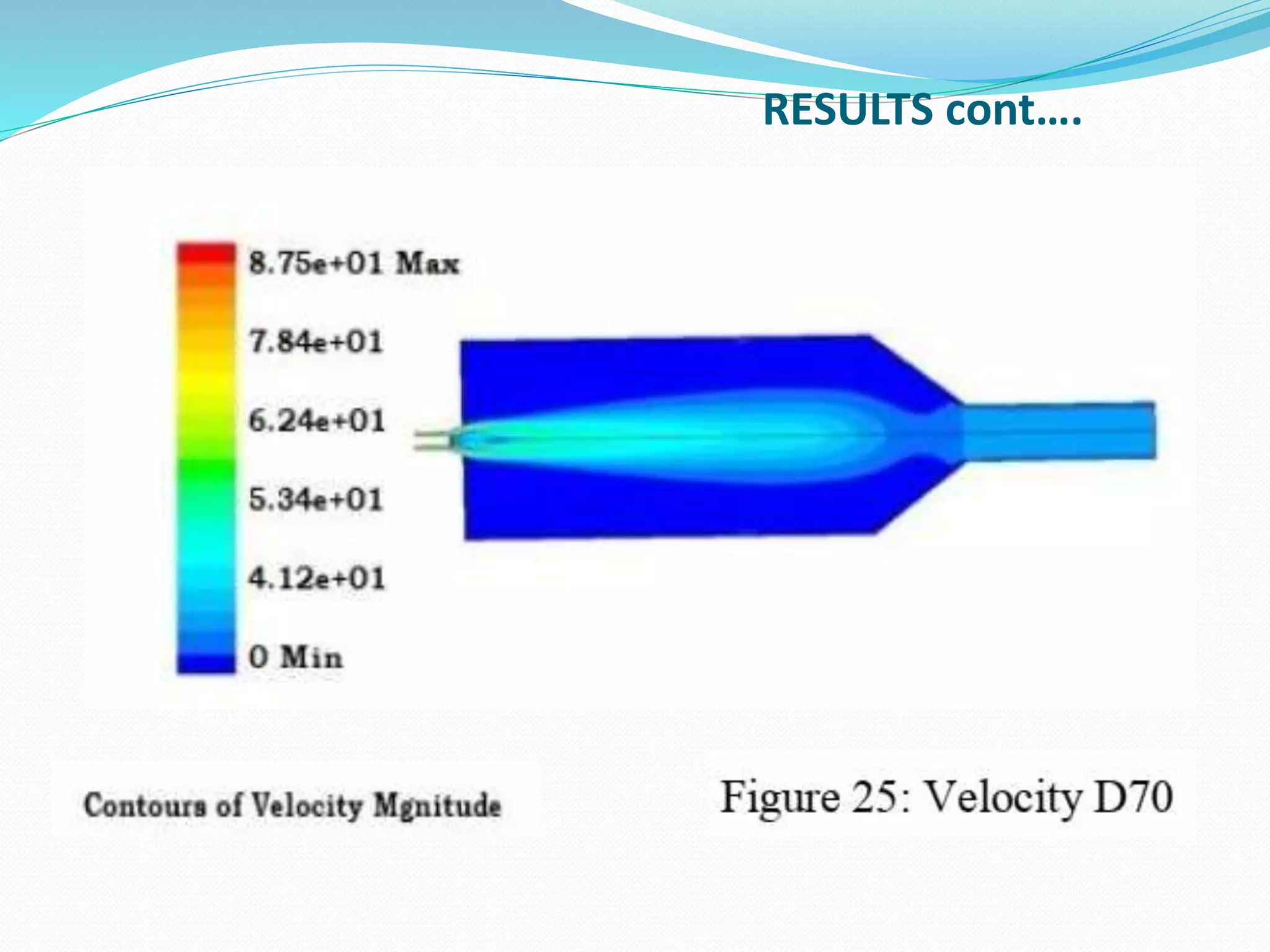

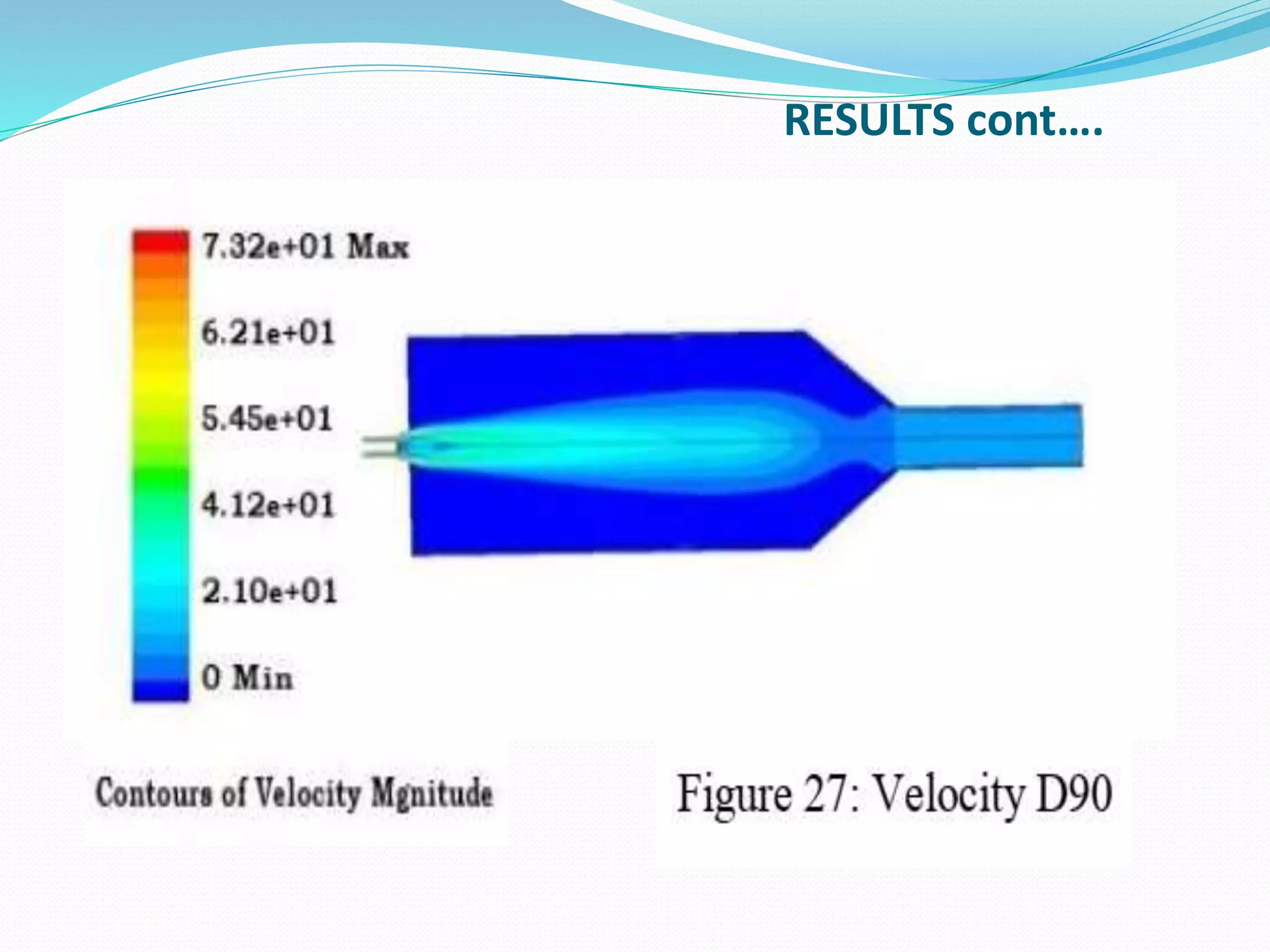

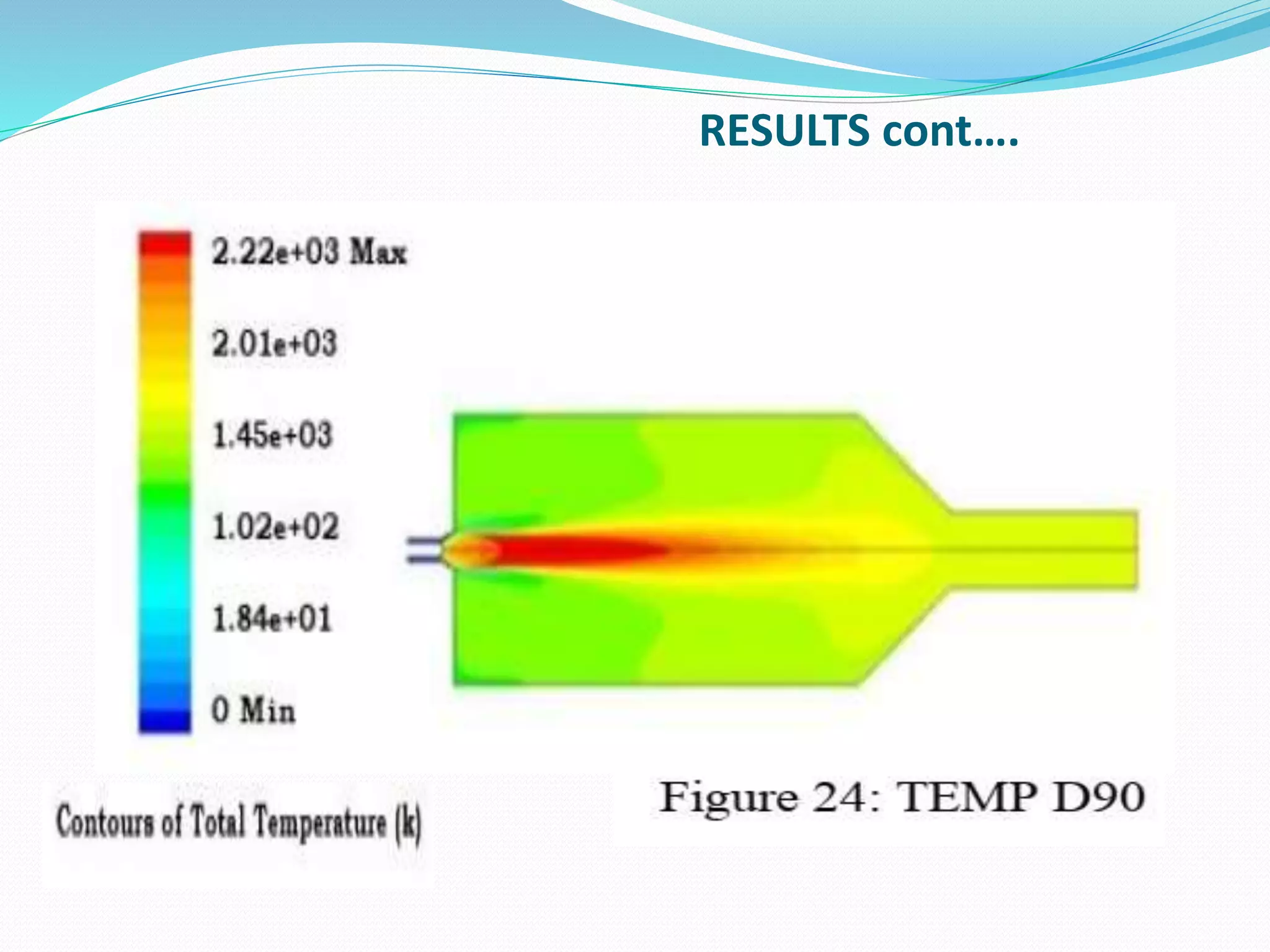

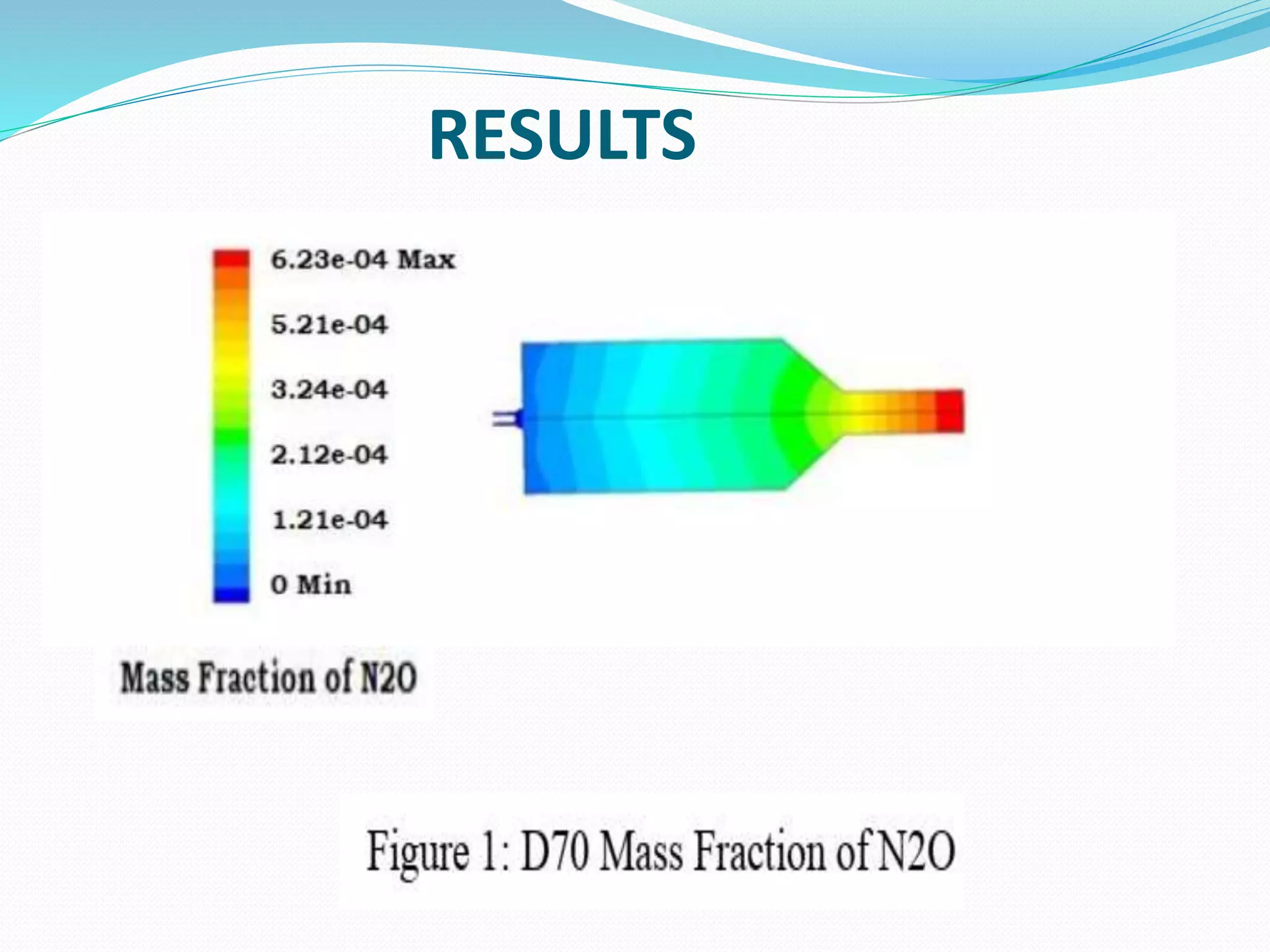

64. conclusion
In present study we investigate the Dual fuel
system (Diesel + Methanol) with non premixed
model

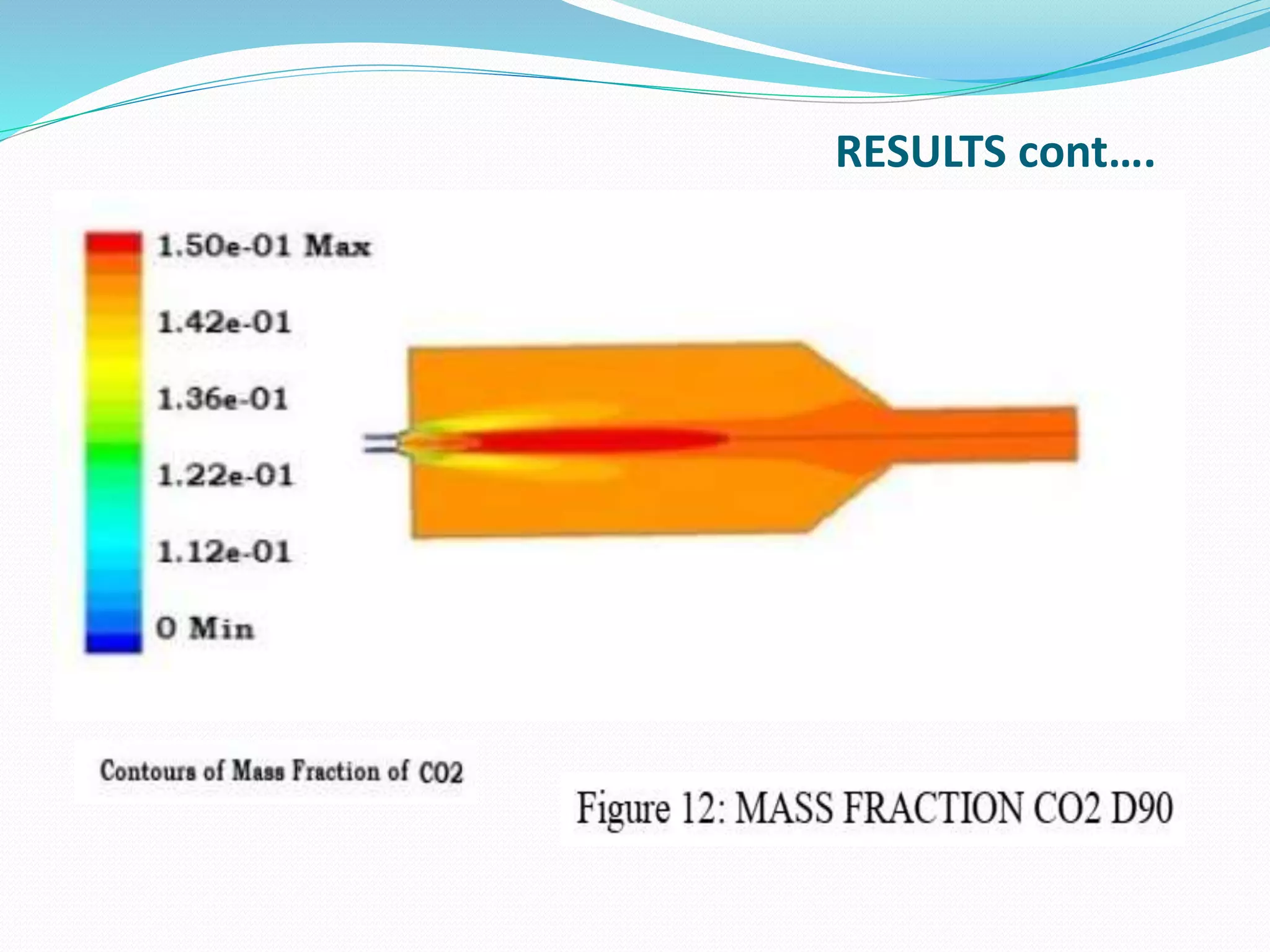

Comparison of the resuts like temperature
,velocity and mass fraction of the pollutant
emissions
Simulation results shows in table no. 1 that
temperature is increasing with increase in
percentages of alternate fuels

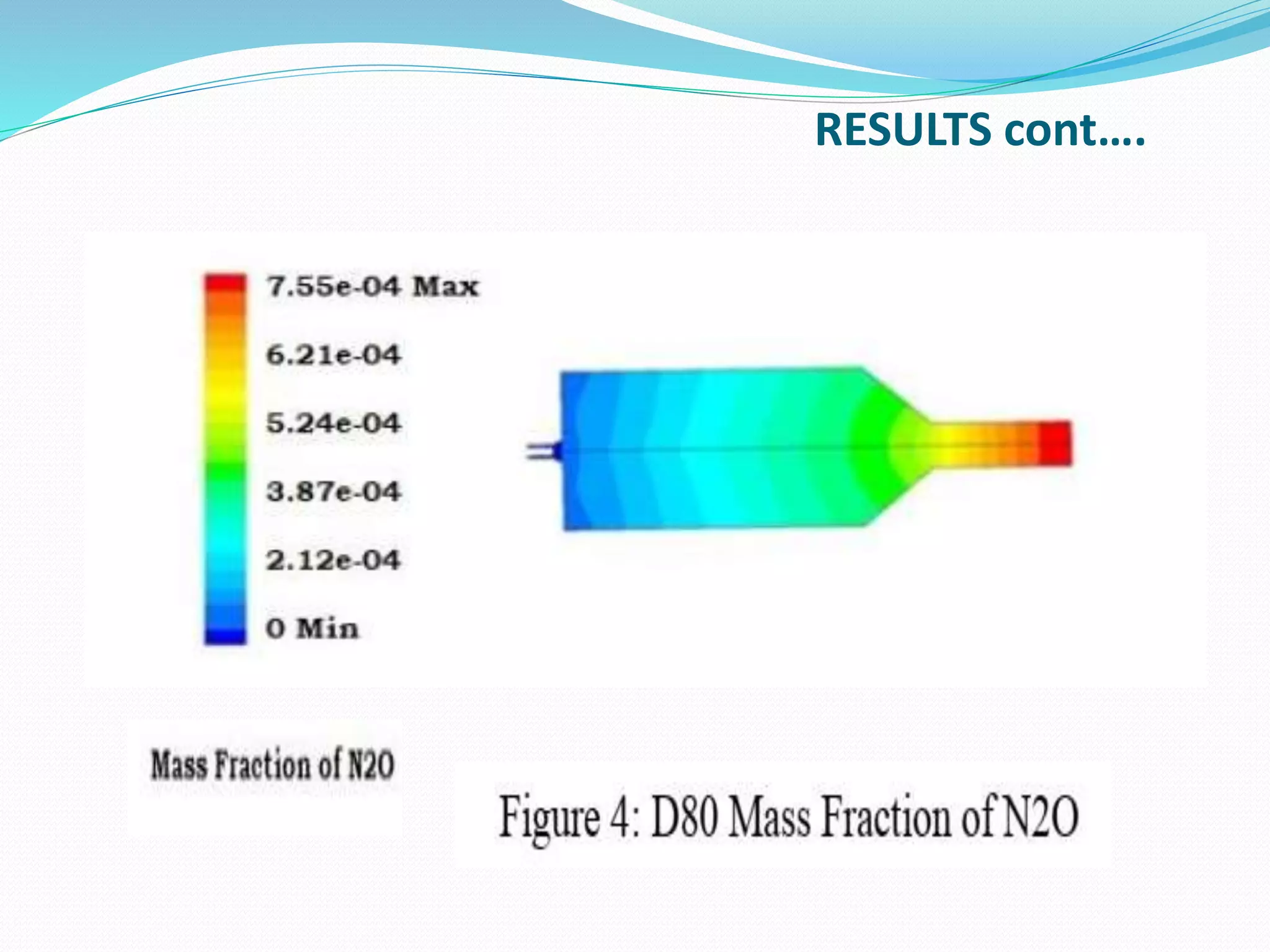

65. Conclusion cont……….
Simulation results in Table no. 2 are clearly shows that
mass fraction of NO, NO2 and N2O is decreasing as we
increasing the percentages of methanol.
In current work we are taking Methanol as a Alternate
fuel which is cheaper in cost and easily available as
compare to the conventional fuels.
66. REFERENCES
CFD-3D analysis of a light duty Dual Fuel (Diesel/Natural Gas) combustion engine
Enrico Mattarellia, Carlo Alberto Rinaldinia*, Valeri I. Golovitchev
Effect of Methanol Addition to Diesel on the Performance and Emission Characteristics of a CI
Engine
Ambarish Datta1, Suhail Dutta2, Bijan Kumar Mandal3
Effect of fuel injection timing and pressure on combustion ,emissions and performance
characteristics of a single cylinder diesel engine ---Avinash kumar agarwal, dhananjay kumar
shrivastav, atul dhar , rakesh kumar maurya , Pravesh chandra shukla, akhilendra pratap singh
M.SrinivasnaikAlcohols as Alternative Fuels for Diesel Engines:A REVIEWI
international Journal for Research in Applied Science & EngineeringTechnology
(IJRASET) Volume 3 Issue VI, June 2015 IC Value: 13.98 ISSN: 2321-9653
P. BaskarEffects of oxygen enriched combustion on pollution and performance
characteristics of a diesel engineEngineering Science and Technology, an International Journal 19
(2016) 438–443
Computational methods in engineering applications -- Syed fahad anwar
Computational fluid mechanics ---Dr KM singh IIT roorkee –NPTEL
Ujjwal K saha QIP CD cell project IIT Gauwahati
ONLINE RESOURCES
www.nptel.com
www.cfdonline.com
www.researchgate.com
