1. Drilling the async Library
By :-
SAHIL SAWHNEY
Software Consultant
KNOLDUS SOFTWARE LLP
By :-
SAHIL SAWHNEY
Software Consultant
KNOLDUS SOFTWARE LLP

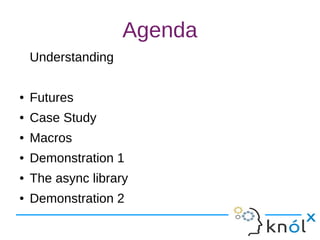

2. Agenda
Understanding
● Futures
● Case Study
● Macros
● Demonstration 1
● The async library
● Demonstration 2

3. Prologue
async library is an asynchronous programming
facility for Scala that offers a direct API for working
with Futures.
It was added in Scala version 2.10 and is
implemented using macros. Its main constructs,
async and await, are inspired by similar constructs
introduced in C# 5.0.
async library is an asynchronous programming
facility for Scala that offers a direct API for working
with Futures.
It was added in Scala version 2.10 and is
implemented using macros. Its main constructs,
async and await, are inspired by similar constructs
introduced in C# 5.0.

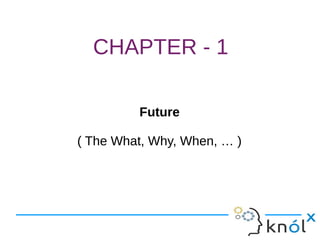

4. CHAPTER - 1
Future
( The What, Why, When, … )
Future
( The What, Why, When, … )

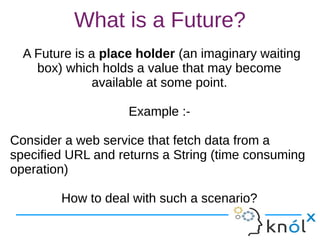

5. What is a Future?
A Future is a place holder (an imaginary waiting
box) which holds a value that may become
available at some point.
Example :-

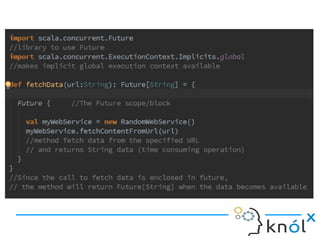

Consider a web service that fetch data from a
specified URL and returns a String (time consuming
operation)
How to deal with such a scenario?
A Future is a place holder (an imaginary waiting
box) which holds a value that may become
available at some point.
Example :-
Consider a web service that fetch data from a
specified URL and returns a String (time consuming
operation)
How to deal with such a scenario?

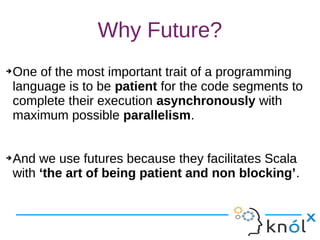

7. Why Future?
➔One of the most important trait of a programming
language is to be patient for the code segments to
complete their execution asynchronously with
maximum possible parallelism.
➔And we use futures because they facilitates Scala
with ‘the art of being patient and non blocking’.
➔One of the most important trait of a programming
language is to be patient for the code segments to
complete their execution asynchronously with
maximum possible parallelism.
➔And we use futures because they facilitates Scala
with ‘the art of being patient and non blocking’.

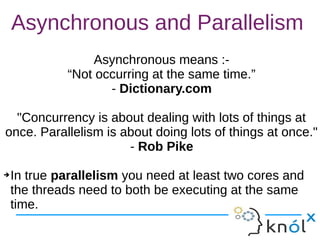

8. Asynchronous and Parallelism
Asynchronous means :-
“Not occurring at the same time.”
- Dictionary.com
"Concurrency is about dealing with lots of things at
once. Parallelism is about doing lots of things at once."
- Rob Pike
➔In true parallelism you need at least two cores and
the threads need to both be executing at the same
time.
Asynchronous means :-
“Not occurring at the same time.”
- Dictionary.com
"Concurrency is about dealing with lots of things at
once. Parallelism is about doing lots of things at once."
- Rob Pike
➔In true parallelism you need at least two cores and
the threads need to both be executing at the same
time.

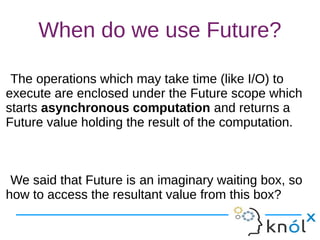

9. When do we use Future?
The operations which may take time (like I/O) to
execute are enclosed under the Future scope which
starts asynchronous computation and returns a
Future value holding the result of the computation.
We said that Future is an imaginary waiting box, so
how to access the resultant value from this box?
The operations which may take time (like I/O) to
execute are enclosed under the Future scope which
starts asynchronous computation and returns a
Future value holding the result of the computation.
We said that Future is an imaginary waiting box, so
how to access the resultant value from this box?

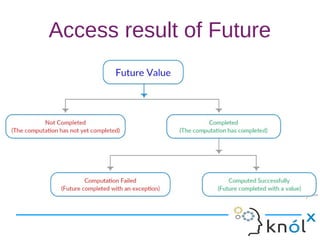

10. Access result of Future

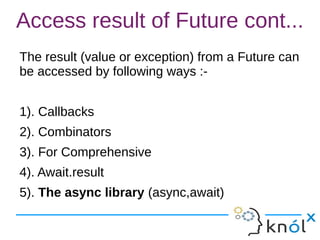

11. Access result of Future cont...
The result (value or exception) from a Future can
be accessed by following ways :-
1). Callbacks
2). Combinators
3). For Comprehensive
4). Await.result
5). The async library (async,await)

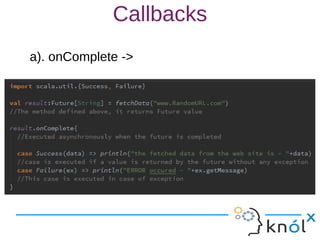

12. Callbacks
a). onComplete ->

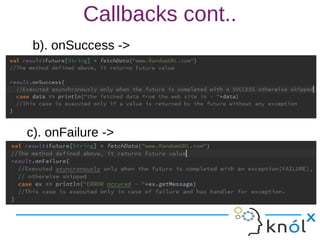

13. Callbacks cont..
b). onSuccess ->
c). onFailure ->

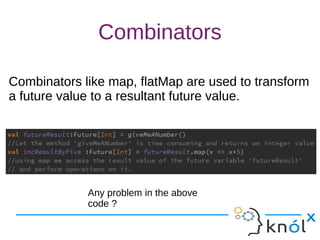

14. Combinators
Combinators like map, flatMap are used to transform
a future value to a resultant future value.
Combinators like map, flatMap are used to transform
a future value to a resultant future value.
Any problem in the above
code ?

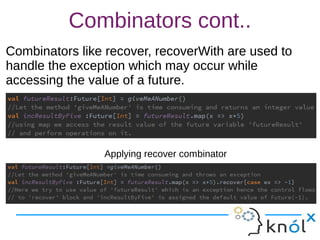

15. Combinators cont..
Combinators like recover, recoverWith are used to
handle the exception which may occur while
accessing the value of a future.
Combinators like recover, recoverWith are used to
handle the exception which may occur while
accessing the value of a future.
Applying recover combinator

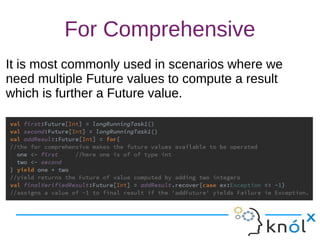

16. For Comprehensive
It is most commonly used in scenarios where we
need multiple Future values to compute a result
which is further a Future value.
It is most commonly used in scenarios where we
need multiple Future values to compute a result
which is further a Future value.

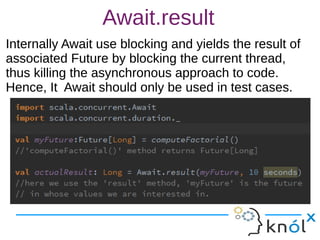

17. Await.result
Internally Await use blocking and yields the result of
associated Future by blocking the current thread,
thus killing the asynchronous approach to code.
Hence, It Await should only be used in test cases.
Internally Await use blocking and yields the result of
associated Future by blocking the current thread,
thus killing the asynchronous approach to code.
Hence, It Await should only be used in test cases.

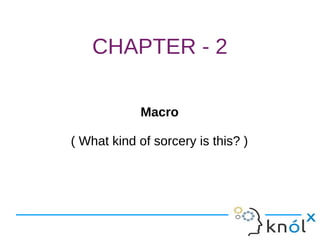

18. CHAPTER - 2
Macro
( What kind of sorcery is this? )
Macro
( What kind of sorcery is this? )

19. What is macro?
➔In Scala macros are a way to implement compile
time reflection.
➔These are ‘special functions’ as using macros we
can access the compiler API’s (using the context)
which provide us with the privilege to manage the
AST(Abstract Syntax Tree) generated by the
compiler.
➔AST is a data structure used by the Scala compiler
to store the information about the compiled code
➔In Scala macros are a way to implement compile
time reflection.
➔These are ‘special functions’ as using macros we
can access the compiler API’s (using the context)
which provide us with the privilege to manage the
AST(Abstract Syntax Tree) generated by the
compiler.
➔AST is a data structure used by the Scala compiler
to store the information about the compiled code

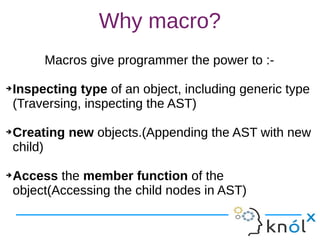

20. Why macro?
Macros give programmer the power to :-
➔Inspecting type of an object, including generic type
(Traversing, inspecting the AST)
➔Creating new objects.(Appending the AST with new
child)
➔Access the member function of the
object(Accessing the child nodes in AST)
Macros give programmer the power to :-
➔Inspecting type of an object, including generic type
(Traversing, inspecting the AST)
➔Creating new objects.(Appending the AST with new
child)
➔Access the member function of the
object(Accessing the child nodes in AST)

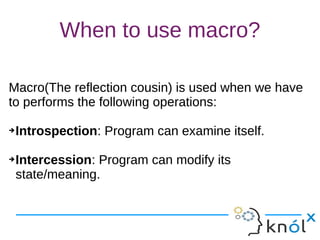

21. When to use macro?
Macro(The reflection cousin) is used when we have
to performs the following operations:
➔Introspection: Program can examine itself.
➔Intercession: Program can modify its
state/meaning.
Macro(The reflection cousin) is used when we have
to performs the following operations:
➔Introspection: Program can examine itself.
➔Intercession: Program can modify its
state/meaning.

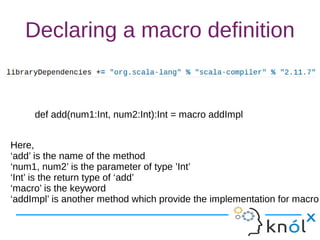

22. Declaring a macro definition
def add(num1:Int, num2:Int):Int = macro addImpl
Here,
‘add’ is the name of the method
‘num1, num2’ is the parameter of type ’Int’
‘Int’ is the return type of ‘add’
‘macro’ is the keyword
‘addImpl’ is another method which provide the implementation for macro

23. Implementing a macro
Macro implementation is a method which defines the
functionality of macro.
It is a bit different from the normal methods in a way
that the macro implementation work on AST and is
called at the compile time (by compiler) with AST of
the parameters rather than the parameter itself and
also returns an AST of its return value.
Macro implementation is a method which defines the
functionality of macro.
It is a bit different from the normal methods in a way
that the macro implementation work on AST and is
called at the compile time (by compiler) with AST of
the parameters rather than the parameter itself and
also returns an AST of its return value.

24. Reify, Splice!!! Whats that?
Macros implementation method returns an AST and
this is achieved using the ‘reify’ and ‘splice’ method.
a). reify() – The ‘reify’ method is in itself a macro
which turns the code enclosed in its scope into its
corresponding AST and type.
b). splice() – The ‘splice’ method is a programmatic
antonym of ‘reify’ as it turns the AST into a value with
corresponding type. It can only be used inside the
scope of ‘reify’.
Macros implementation method returns an AST and
this is achieved using the ‘reify’ and ‘splice’ method.
a). reify() – The ‘reify’ method is in itself a macro
which turns the code enclosed in its scope into its
corresponding AST and type.
b). splice() – The ‘splice’ method is a programmatic
antonym of ‘reify’ as it turns the AST into a value with
corresponding type. It can only be used inside the
scope of ‘reify’.

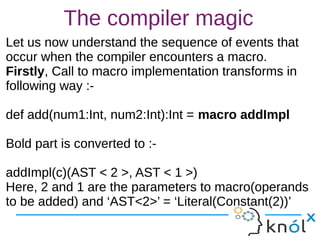

25. The compiler magic
Let us now understand the sequence of events that
occur when the compiler encounters a macro.
Firstly, Call to macro implementation transforms in
following way :-
def add(num1:Int, num2:Int):Int = macro addImpl
Bold part is converted to :-
addImpl(c)(AST < 2 >, AST < 1 >)
Here, 2 and 1 are the parameters to macro(operands
to be added) and ‘AST<2>’ = ‘Literal(Constant(2))’
Let us now understand the sequence of events that
occur when the compiler encounters a macro.
Firstly, Call to macro implementation transforms in
following way :-
def add(num1:Int, num2:Int):Int = macro addImpl
Bold part is converted to :-
addImpl(c)(AST < 2 >, AST < 1 >)
Here, 2 and 1 are the parameters to macro(operands
to be added) and ‘AST<2>’ = ‘Literal(Constant(2))’

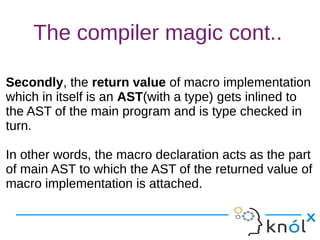

26. The compiler magic cont..
Secondly, the return value of macro implementation
which in itself is an AST(with a type) gets inlined to
the AST of the main program and is type checked in
turn.
In other words, the macro declaration acts as the part
of main AST to which the AST of the returned value of
macro implementation is attached.
Secondly, the return value of macro implementation
which in itself is an AST(with a type) gets inlined to
the AST of the main program and is type checked in
turn.
In other words, the macro declaration acts as the part
of main AST to which the AST of the returned value of
macro implementation is attached.

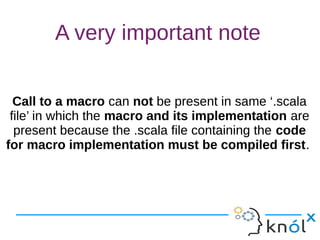

27. A very important note
Call to a macro can not be present in same ‘.scala
file’ in which the macro and its implementation are
present because the .scala file containing the code
for macro implementation must be compiled first.
Call to a macro can not be present in same ‘.scala
file’ in which the macro and its implementation are
present because the .scala file containing the code
for macro implementation must be compiled first.

28. CHAPTER - 3
Async library
( Finally :D )
Async library
( Finally :D )

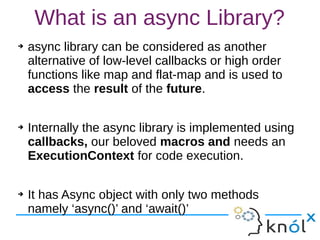

29. What is an async Library?
➔ async library can be considered as another
alternative of low-level callbacks or high order
functions like map and flat-map and is used to
access the result of the future.
➔ Internally the async library is implemented using
callbacks, our beloved macros and needs an
ExecutionContext for code execution.
➔ It has Async object with only two methods
namely ‘async()’ and ‘await()’

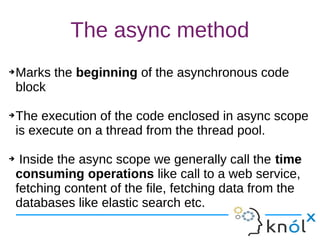

30. The async method
➔Marks the beginning of the asynchronous code
block
➔The execution of the code enclosed in async scope
is execute on a thread from the thread pool.
➔ Inside the async scope we generally call the time
consuming operations like call to a web service,
fetching content of the file, fetching data from the
databases like elastic search etc.
➔Marks the beginning of the asynchronous code
block
➔The execution of the code enclosed in async scope
is execute on a thread from the thread pool.
➔ Inside the async scope we generally call the time
consuming operations like call to a web service,
fetching content of the file, fetching data from the
databases like elastic search etc.

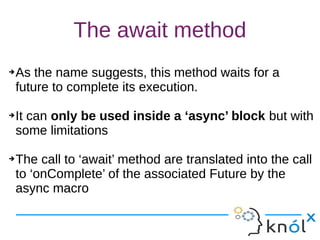

31. The await method
➔As the name suggests, this method waits for a
future to complete its execution.
➔It can only be used inside a ‘async’ block but with
some limitations
➔The call to ‘await’ method are translated into the call
to ‘onComplete’ of the associated Future by the
async macro
➔As the name suggests, this method waits for a
future to complete its execution.
➔It can only be used inside a ‘async’ block but with
some limitations
➔The call to ‘await’ method are translated into the call
to ‘onComplete’ of the associated Future by the
async macro

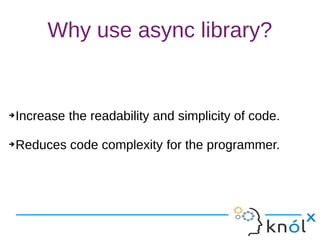

32. Why use async library?
➔Increase the readability and simplicity of code.
➔Reduces code complexity for the programmer.
➔Increase the readability and simplicity of code.
➔Reduces code complexity for the programmer.

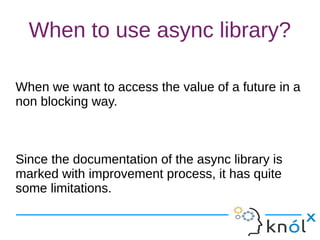

33. When to use async library?
When we want to access the value of a future in a
non blocking way.
Since the documentation of the async library is
marked with improvement process, it has quite
some limitations.
When we want to access the value of a future in a
non blocking way.
Since the documentation of the async library is
marked with improvement process, it has quite
some limitations.

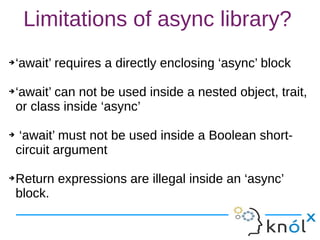

34. Limitations of async library?
➔‘await’ requires a directly enclosing ‘async’ block
➔‘await’ can not be used inside a nested object, trait,
or class inside ‘async’
➔ ‘await’ must not be used inside a Boolean short-
circuit argument
➔Return expressions are illegal inside an ‘async’
block.
➔‘await’ requires a directly enclosing ‘async’ block
➔‘await’ can not be used inside a nested object, trait,
or class inside ‘async’
➔ ‘await’ must not be used inside a Boolean short-
circuit argument
➔Return expressions are illegal inside an ‘async’
block.

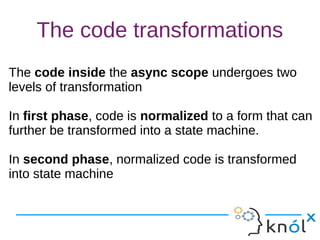

35. The code transformations
The code inside the async scope undergoes two
levels of transformation
In first phase, code is normalized to a form that can
further be transformed into a state machine.
In second phase, normalized code is transformed
into state machine
The code inside the async scope undergoes two
levels of transformation
In first phase, code is normalized to a form that can
further be transformed into a state machine.
In second phase, normalized code is transformed
into state machine

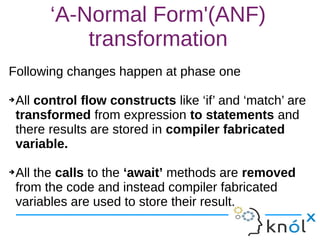

36. ‘A-Normal Form'(ANF)
transformation
Following changes happen at phase one
➔All control flow constructs like ‘if’ and ‘match’ are
transformed from expression to statements and
there results are stored in compiler fabricated
variable.
➔All the calls to the ‘await’ methods are removed
from the code and instead compiler fabricated
variables are used to store their result.
Following changes happen at phase one
➔All control flow constructs like ‘if’ and ‘match’ are
transformed from expression to statements and
there results are stored in compiler fabricated
variable.
➔All the calls to the ‘await’ methods are removed
from the code and instead compiler fabricated
variables are used to store their result.

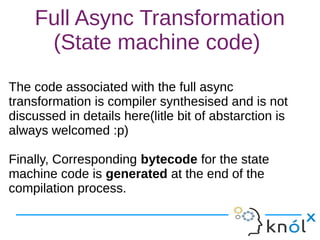

37. Full Async Transformation
(State machine code)
The code associated with the full async
transformation is compiler synthesised and is not
discussed in details here(litle bit of abstarction is
always welcomed :p)
Finally, Corresponding bytecode for the state
machine code is generated at the end of the
compilation process.
The code associated with the full async
transformation is compiler synthesised and is not
discussed in details here(litle bit of abstarction is
always welcomed :p)
Finally, Corresponding bytecode for the state
machine code is generated at the end of the
compilation process.

38. A very important note
Call to a macro can not be present in same ‘.scala
file’ in which the macro and its implementation are
present because the .scala file containing the code
for macro implementation must be compiled first.
Call to a macro can not be present in same ‘.scala
file’ in which the macro and its implementation are
present because the .scala file containing the code
for macro implementation must be compiled first.

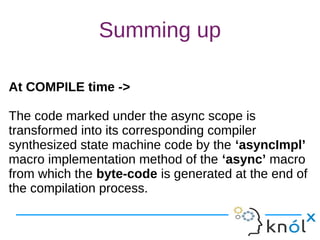

39. Summing up
At COMPILE time ->
The code marked under the async scope is
transformed into its corresponding compiler
synthesized state machine code by the ‘asyncImpl’
macro implementation method of the ‘async’ macro
from which the byte-code is generated at the end of
the compilation process.
At COMPILE time ->
The code marked under the async scope is
transformed into its corresponding compiler
synthesized state machine code by the ‘asyncImpl’
macro implementation method of the ‘async’ macro
from which the byte-code is generated at the end of
the compilation process.

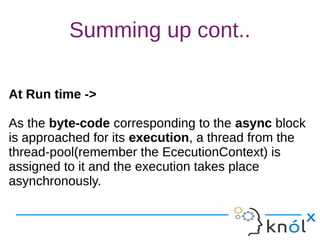

40. Summing up cont..
At Run time ->
As the byte-code corresponding to the async block
is approached for its execution, a thread from the
thread-pool(remember the EcecutionContext) is
assigned to it and the execution takes place
asynchronously.
At Run time ->
As the byte-code corresponding to the async block
is approached for its execution, a thread from the
thread-pool(remember the EcecutionContext) is
assigned to it and the execution takes place
asynchronously.

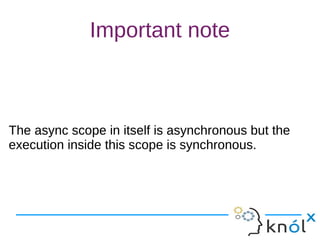

41. Important note
The async scope in itself is asynchronous but the
execution inside this scope is synchronous.
The async scope in itself is asynchronous but the
execution inside this scope is synchronous.

42. Demonstration →
https://github.com/knoldus/async-await-example

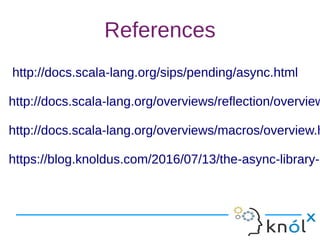

43. References
http://docs.scala-lang.org/sips/pending/async.html
http://docs.scala-lang.org/overviews/reflection/overview
http://docs.scala-lang.org/overviews/macros/overview.h
https://blog.knoldus.com/2016/07/13/the-async-library-i
http://docs.scala-lang.org/sips/pending/async.html
http://docs.scala-lang.org/overviews/reflection/overview
http://docs.scala-lang.org/overviews/macros/overview.h
https://blog.knoldus.com/2016/07/13/the-async-library-i

44. Any Questions?

45. Arigato Gozaimasu !!!
