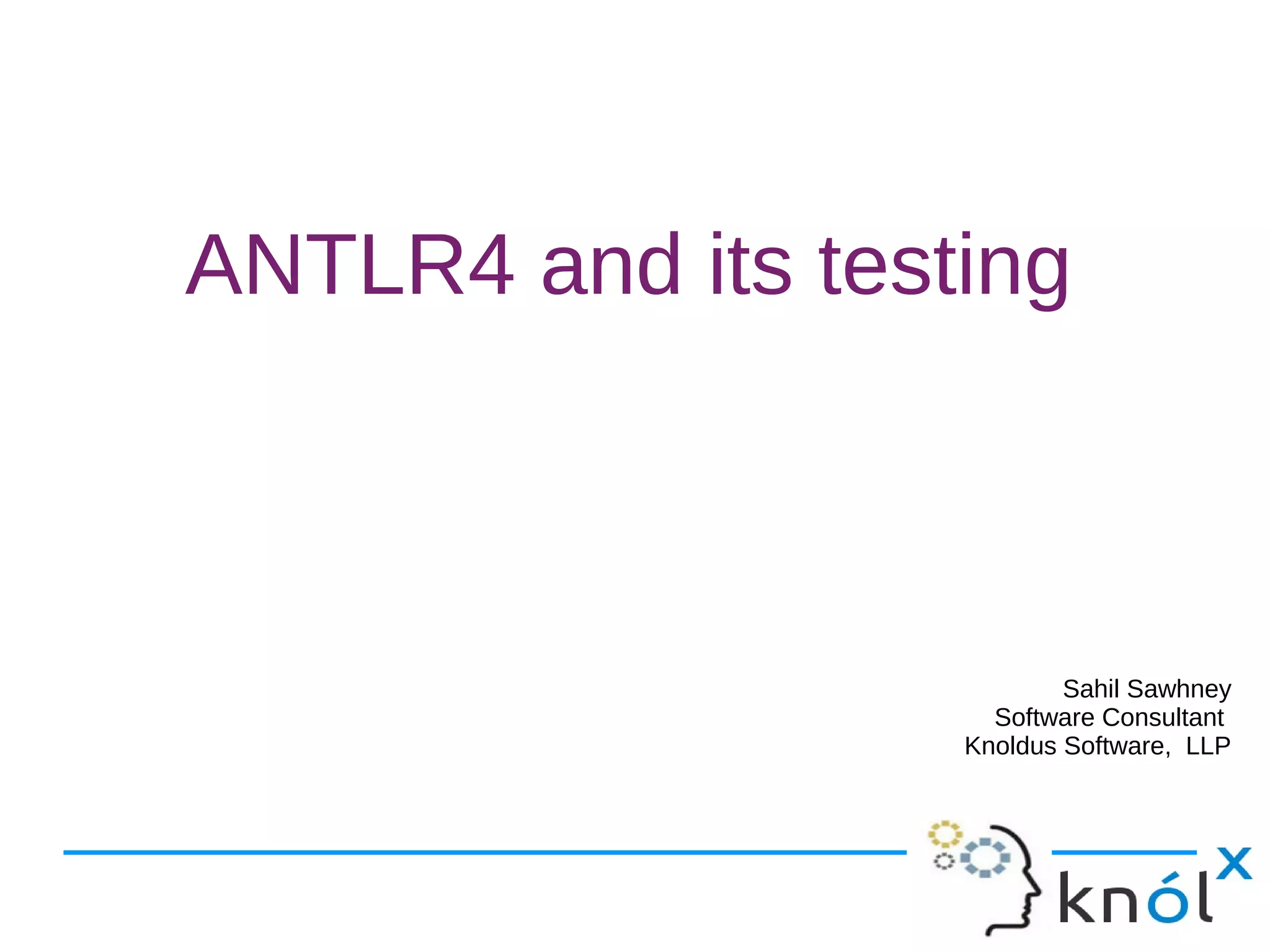

1. ANTLR4 and its testing
Sahil Sawhney
Software Consultant
Knoldus Software, LLP

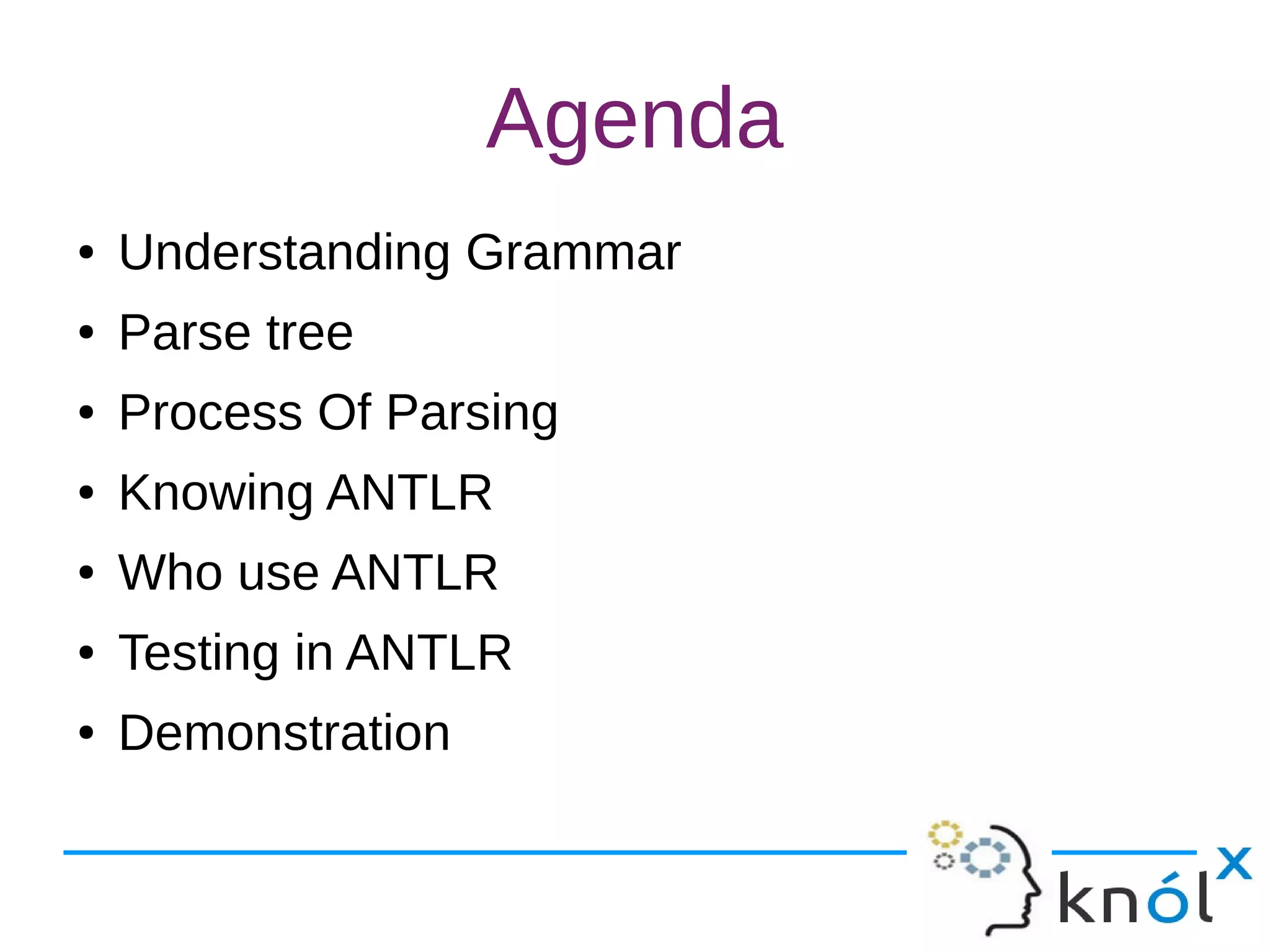

2. Agenda
● Understanding Grammar
● Parse tree
● Process Of Parsing
● Knowing ANTLR
● Who use ANTLR
● Testing in ANTLR
● Demonstration

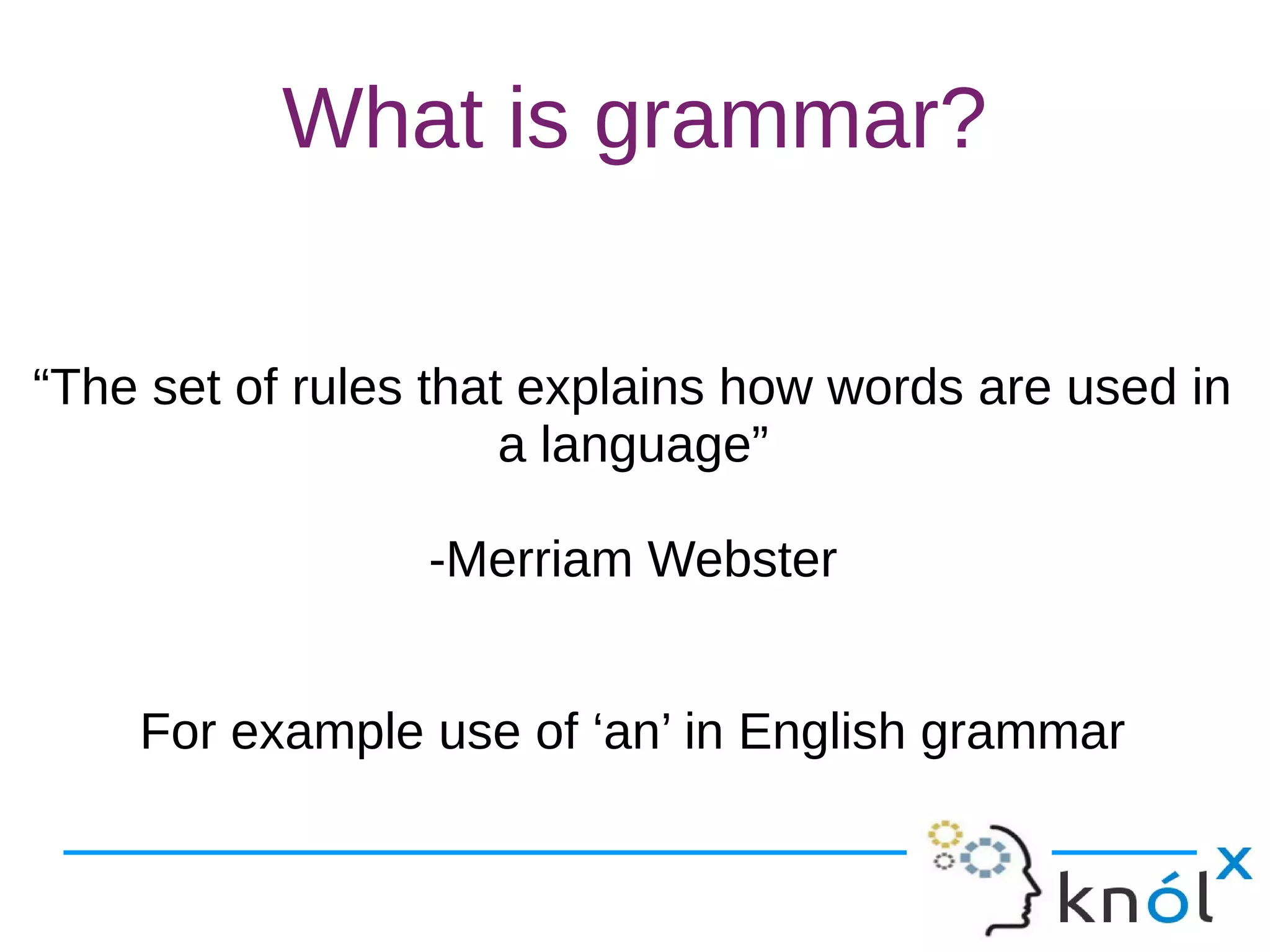

3. What is grammar?
“The set of rules that explains how words are used in
a language”
-Merriam Webster
For example use of ‘an’ in English grammar

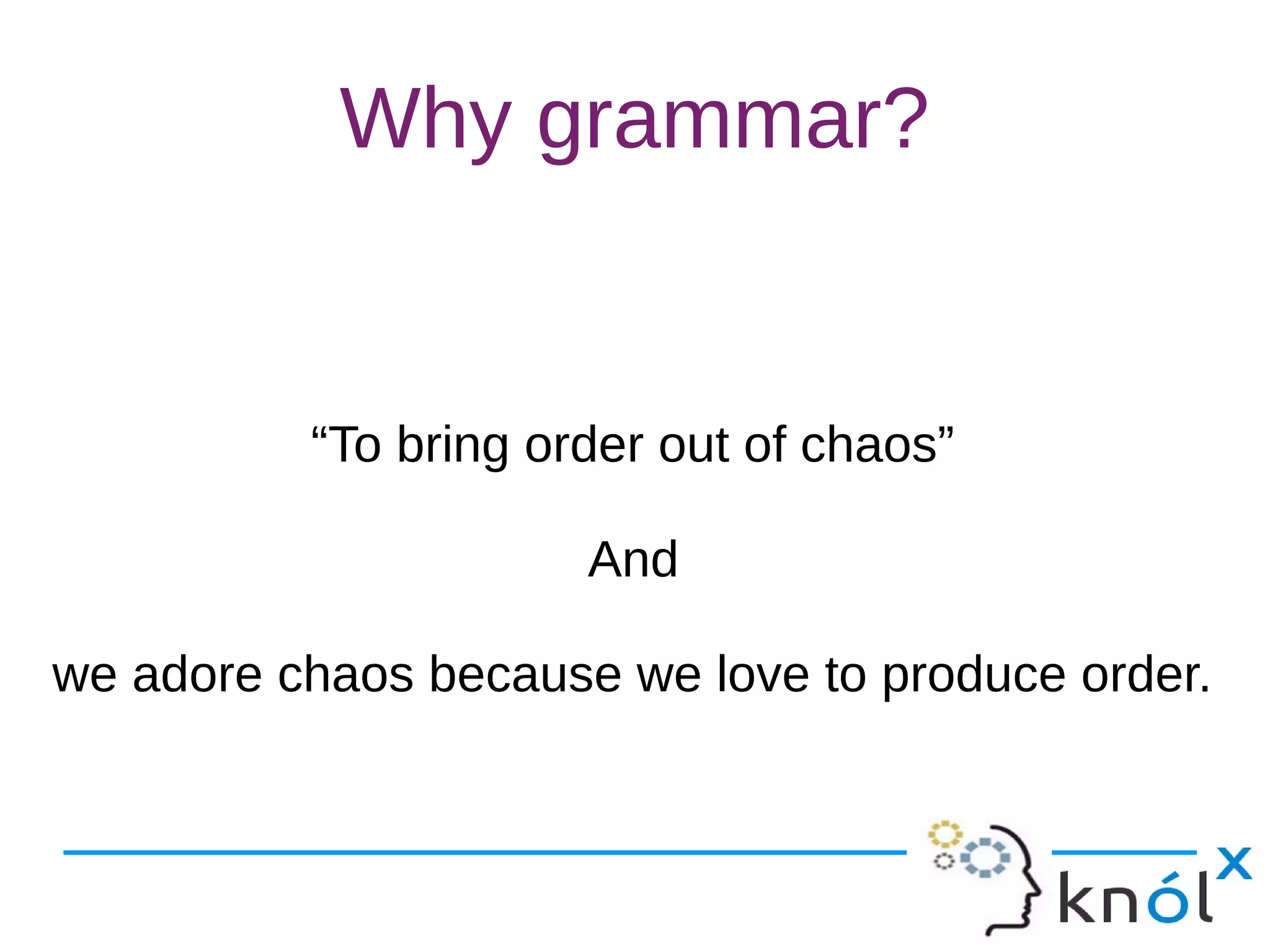

4. Why grammar?
“To bring order out of chaos”
And
we adore chaos because we love to produce order.

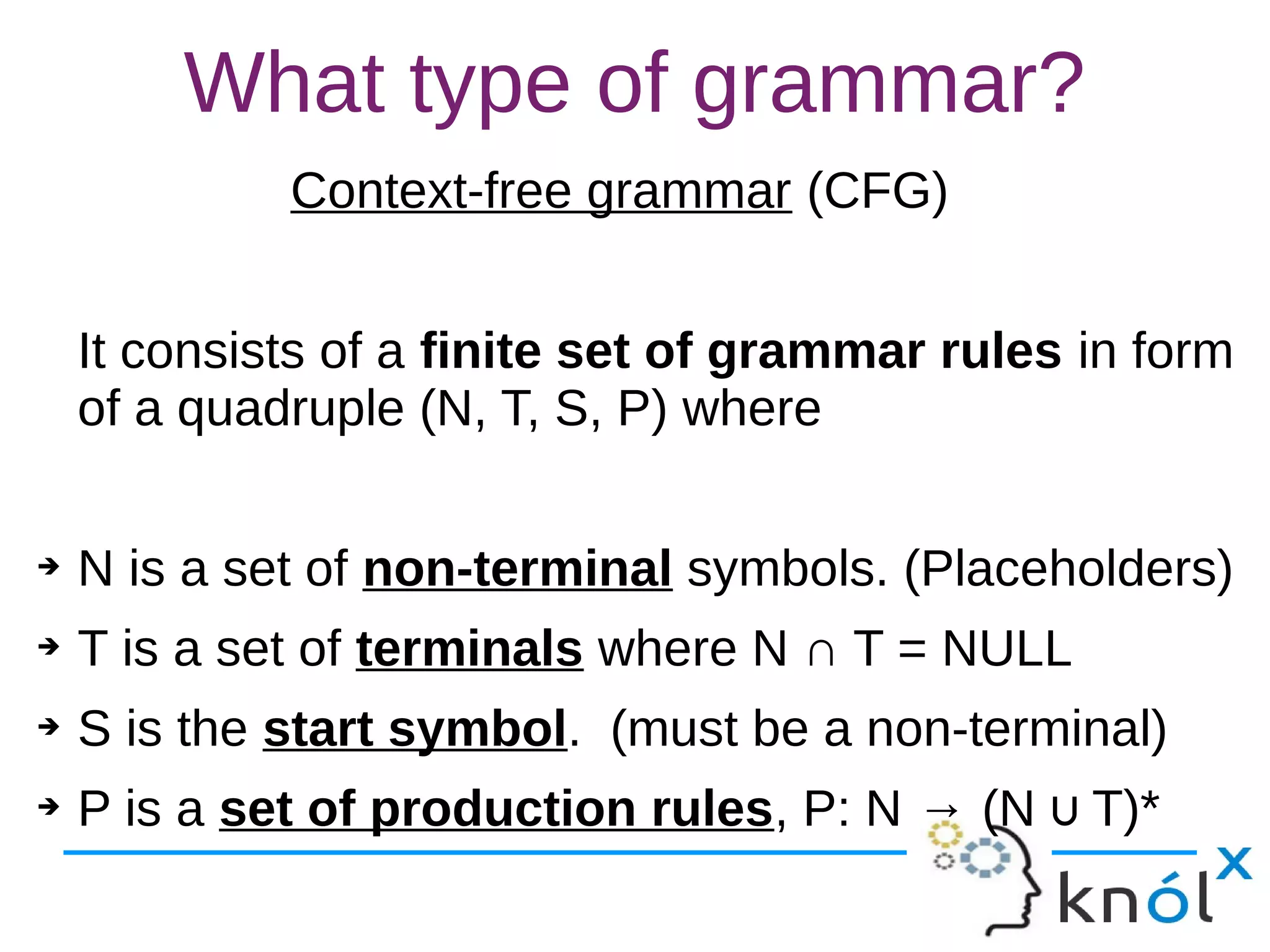

5. What type of grammar?
Context-free grammar (CFG)
It consists of a finite set of grammar rules in form
of a quadruple (N, T, S, P) where
➔ N is a set of non-terminal symbols. (Placeholders)
➔ T is a set of terminals where N ∩ T = NULL
➔ S is the start symbol. (must be a non-terminal)
➔ P is a set of production rules, P: N → (N T)*∪

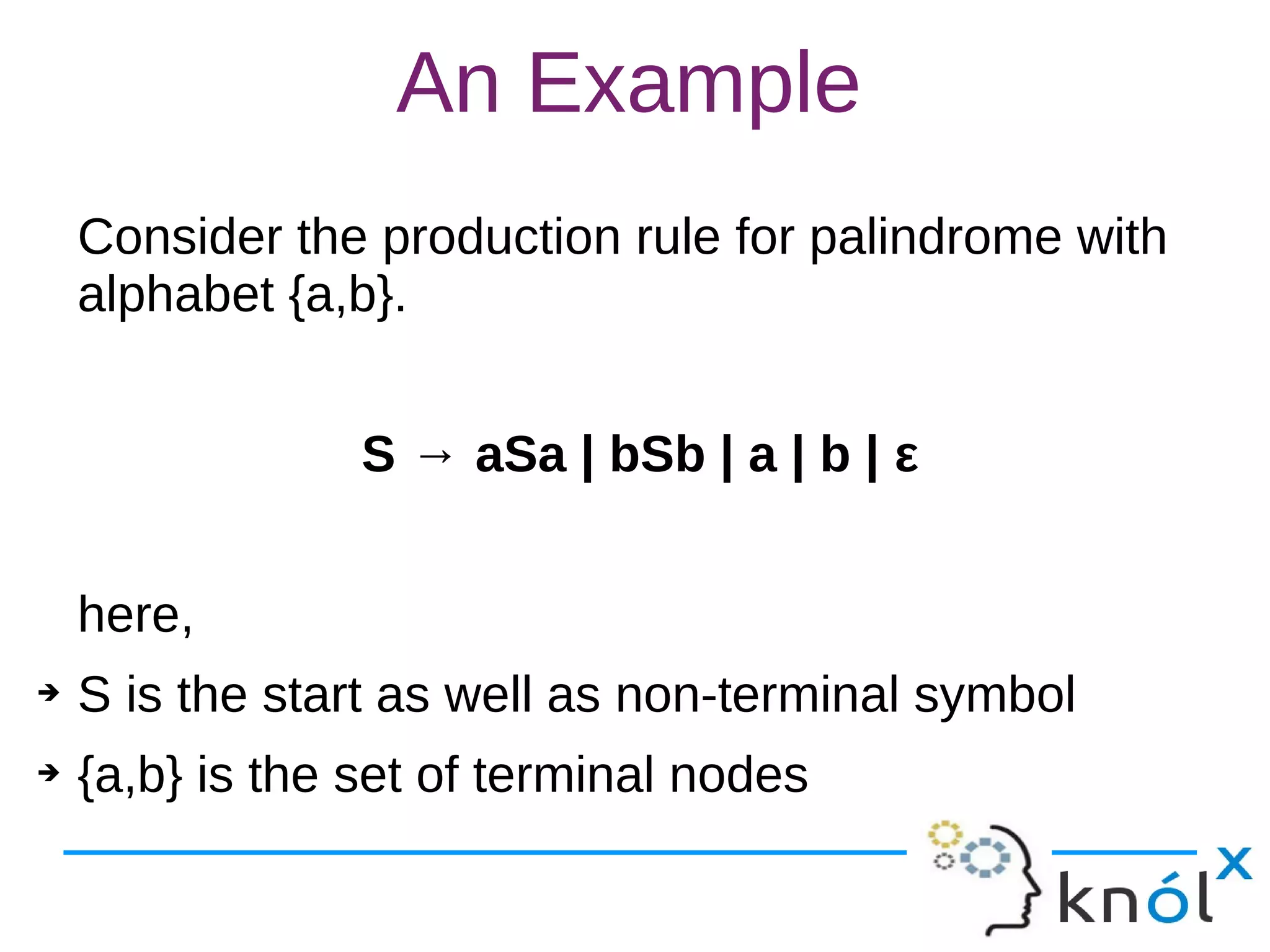

6. An Example
Consider the production rule for palindrome with
alphabet {a,b}.
S → aSa | bSb | a | b | ε
here,
➔ S is the start as well as non-terminal symbol
➔ {a,b} is the set of terminal nodes

7. Example Cont...

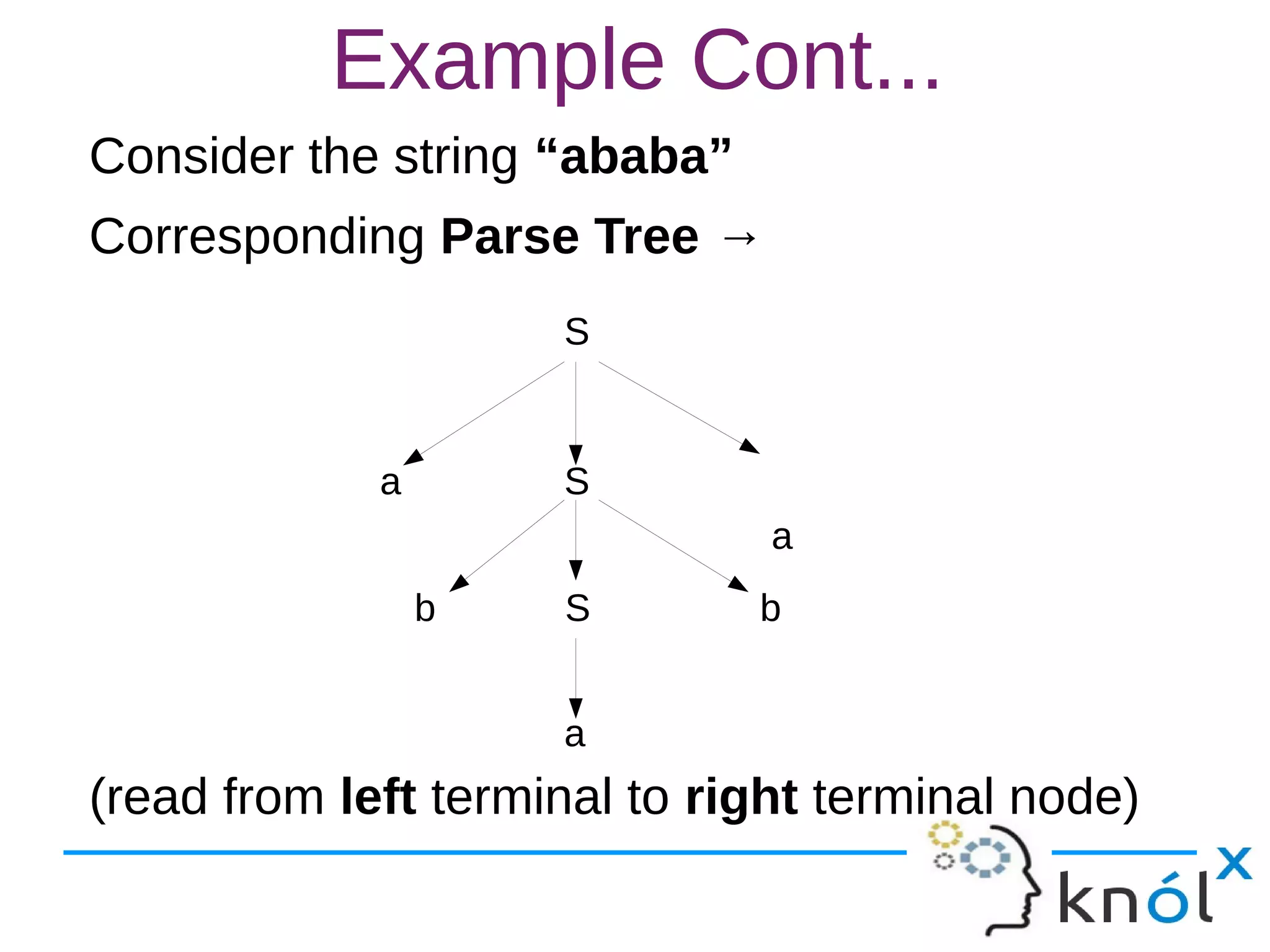

Consider the string “ababa”
Corresponding Parse Tree →
(read from left terminal to right terminal node)
S
a S
a
b bS
a

8. What is a parse tree?
A parse tree for a grammar G is a tree where
➔ The root is the start symbol for G
➔ The interior nodes are the nonterminals of G
➔ The leaf nodes are the terminal symbols of G
A terminal string is considered valid with respect to
a grammar only if there exists a valid parse tree for
the input string among all possible parse trees.

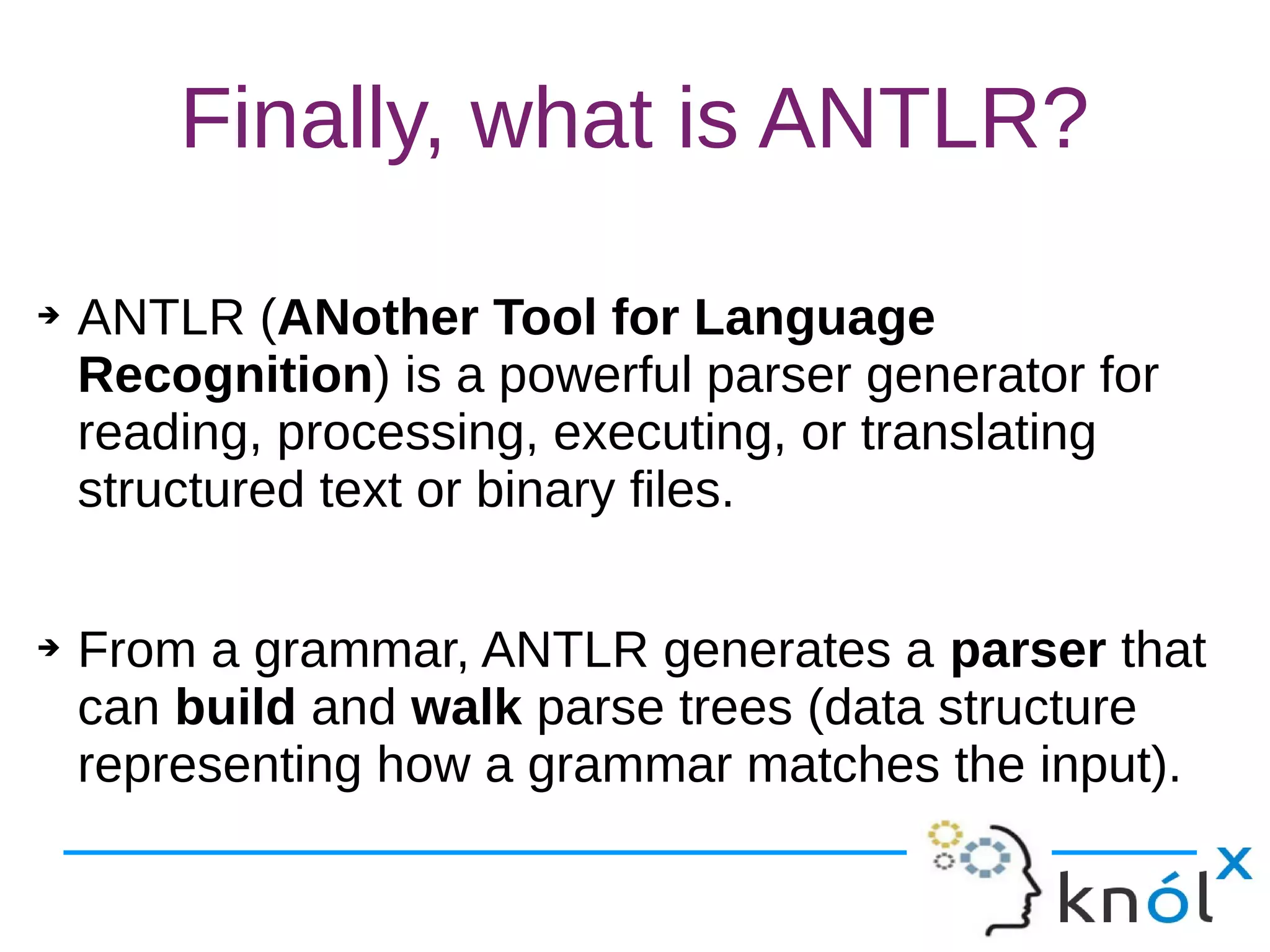

9. Finally, what is ANTLR?
➔ ANTLR (ANother Tool for Language
Recognition) is a powerful parser generator for
reading, processing, executing, or translating
structured text or binary files.
➔ From a grammar, ANTLR generates a parser that
can build and walk parse trees (data structure
representing how a grammar matches the input).

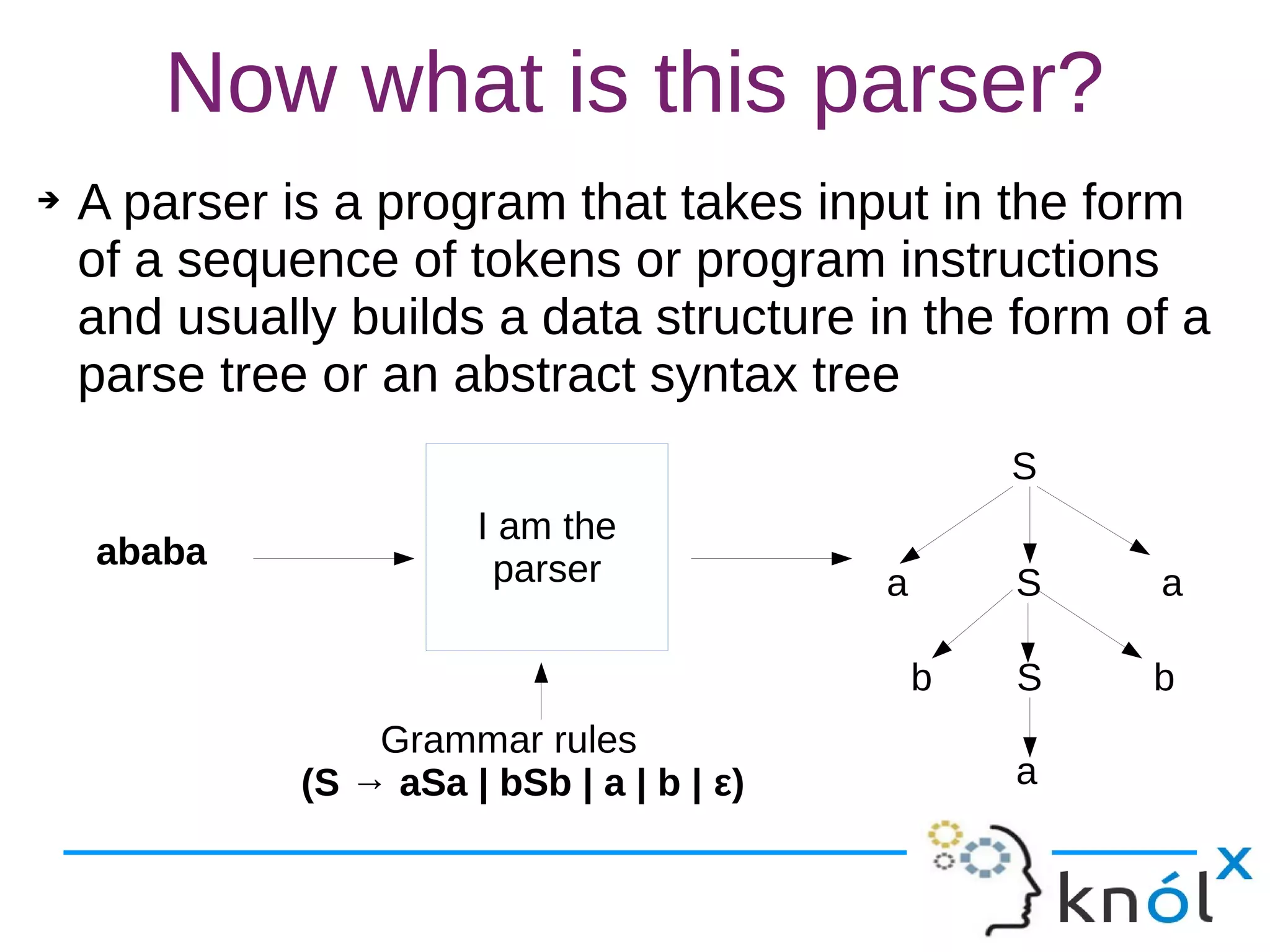

10. Now what is this parser?
➔ A parser is a program that takes input in the form
of a sequence of tokens or program instructions
and usually builds a data structure in the form of a
parse tree or an abstract syntax tree
ababa
I am the
parser
Grammar rules
(S → aSa | bSb | a | b | ε)
S
a S a
b bS
a

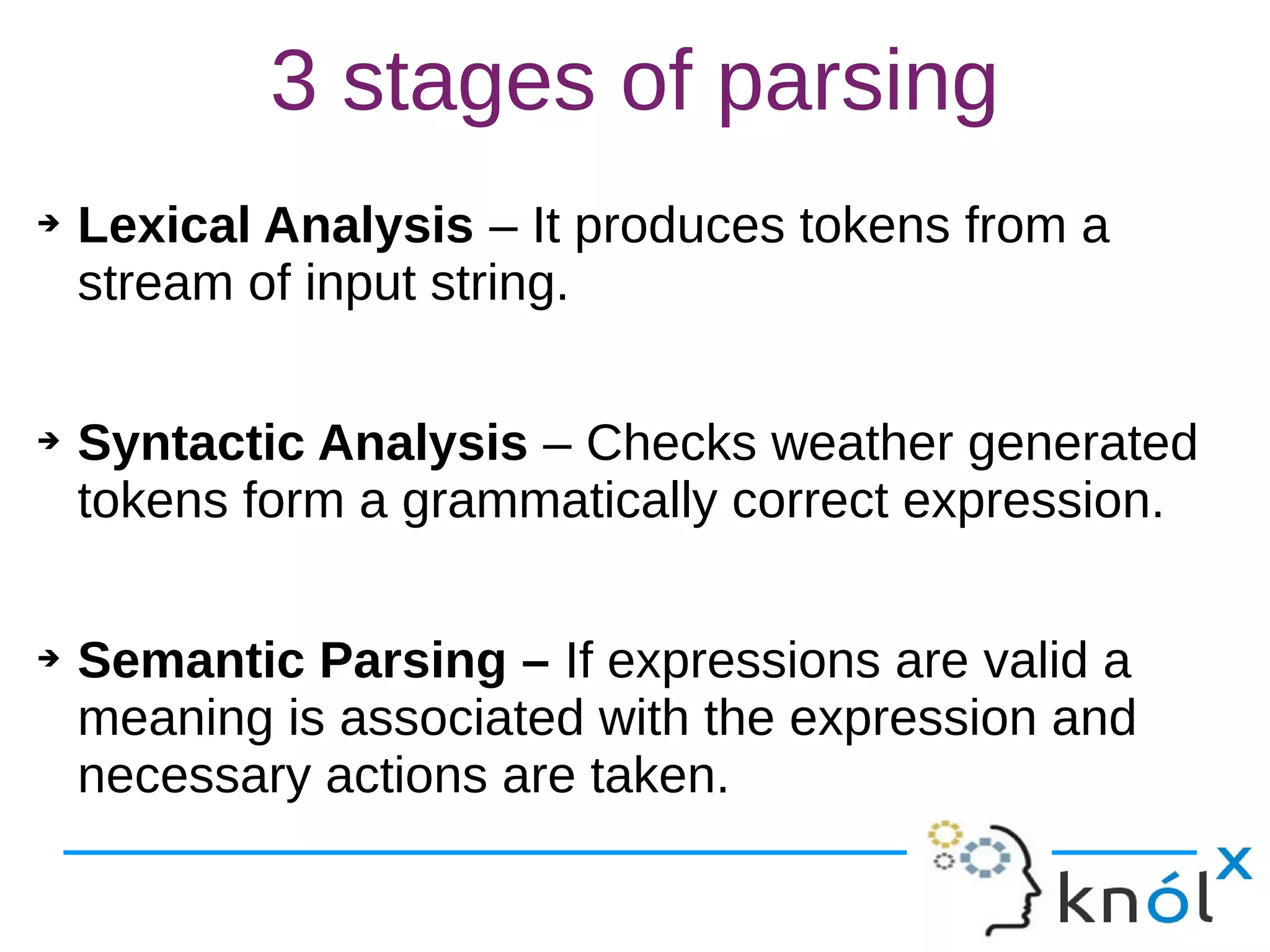

11. 3 stages of parsing
➔ Lexical Analysis – It produces tokens from a
stream of input string.
➔ Syntactic Analysis – Checks weather generated
tokens form a grammatically correct expression.
➔ Semantic Parsing – If expressions are valid a
meaning is associated with the expression and
necessary actions are taken.

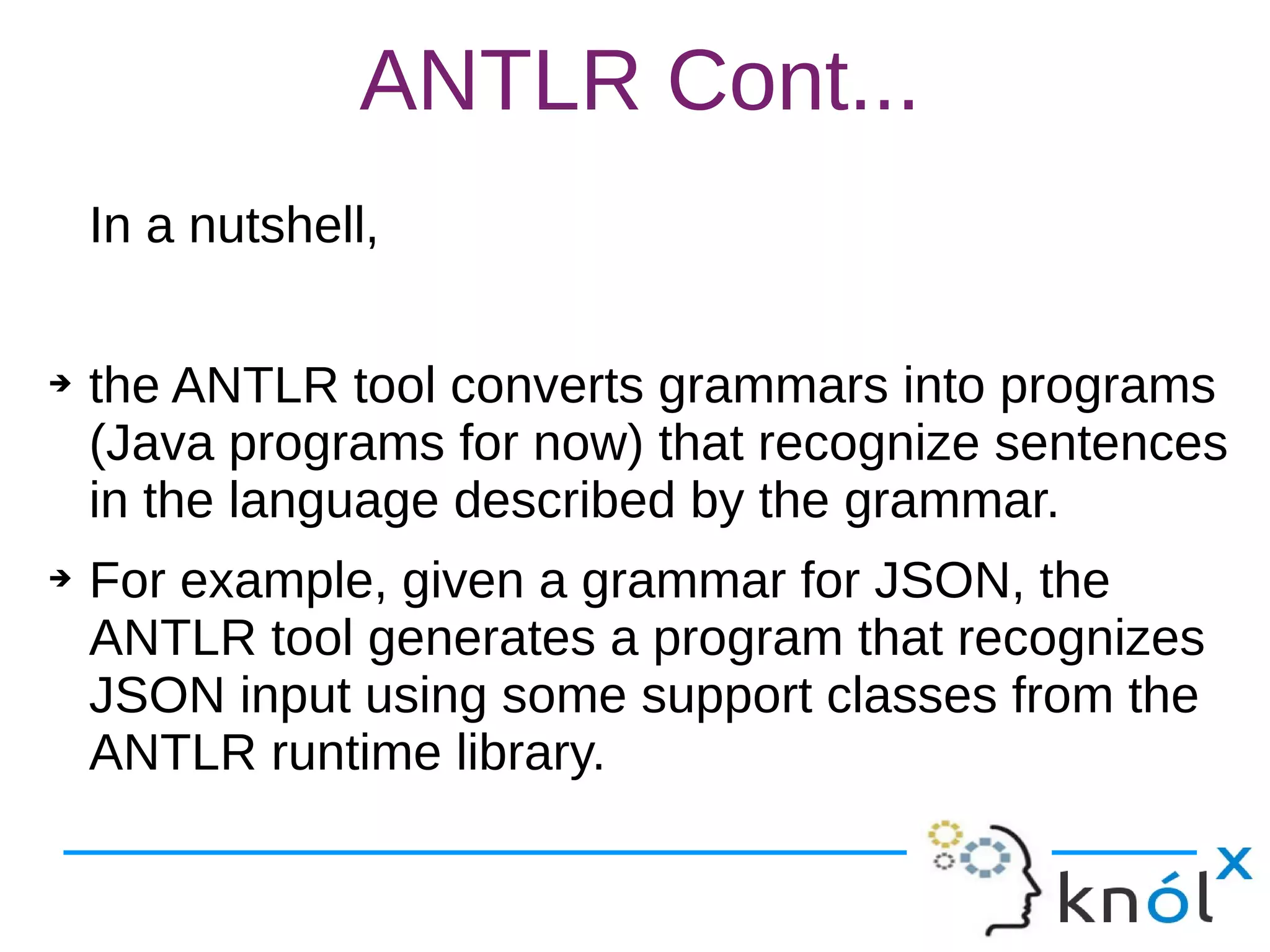

12. ANTLR Cont...
In a nutshell,
➔ the ANTLR tool converts grammars into programs
(Java programs for now) that recognize sentences
in the language described by the grammar.
➔ For example, given a grammar for JSON, the
ANTLR tool generates a program that recognizes
JSON input using some support classes from the
ANTLR runtime library.

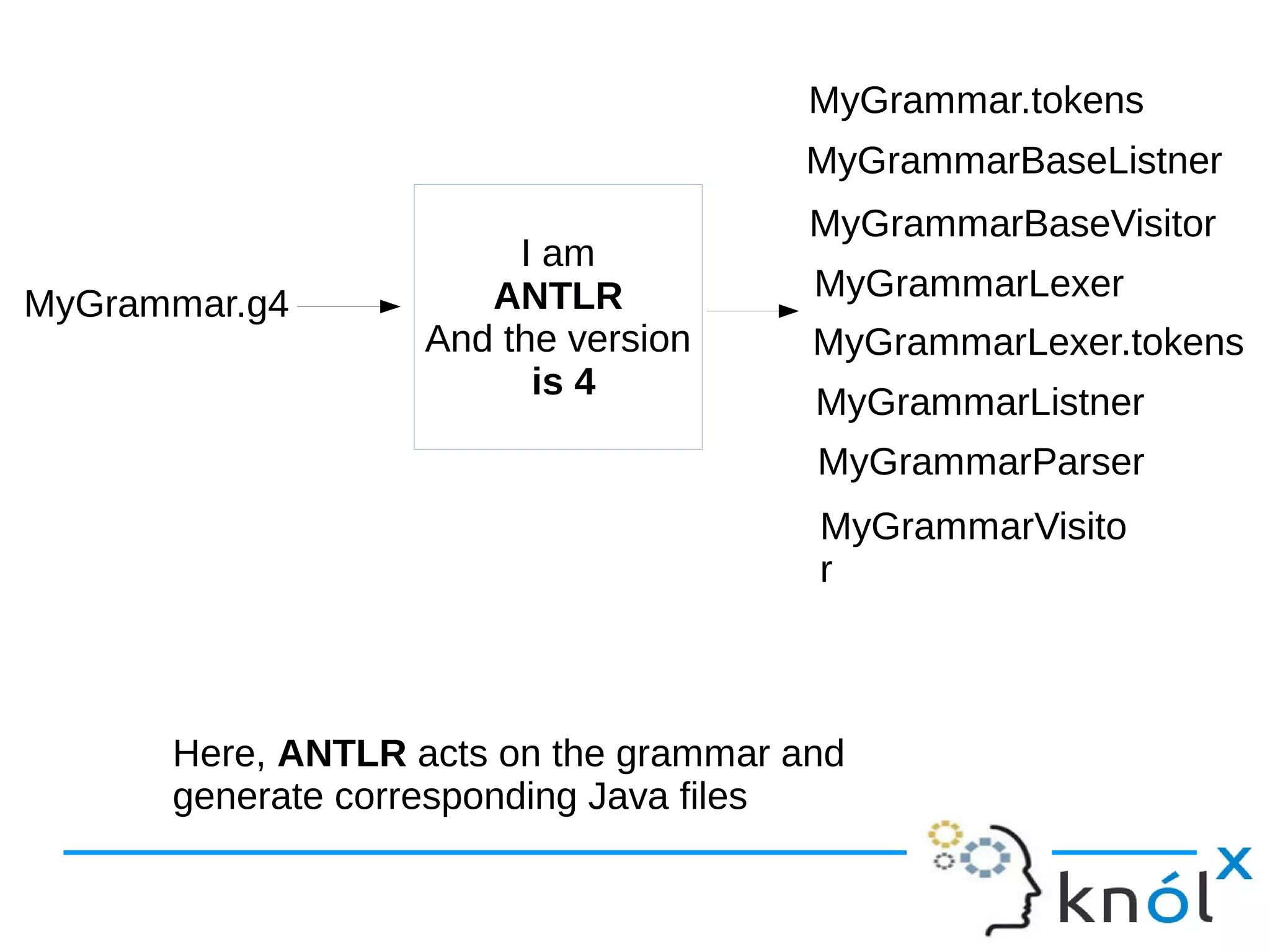

13. MyGrammar.g4
I am
ANTLR
And the version
is 4
MyGrammar.tokens
MyGrammarBaseListner
MyGrammarBaseVisitor
MyGrammarLexer
MyGrammarLexer.tokens
MyGrammarListner
MyGrammarParser
MyGrammarVisito
r
Here, ANTLR acts on the grammar and
generate corresponding Java files

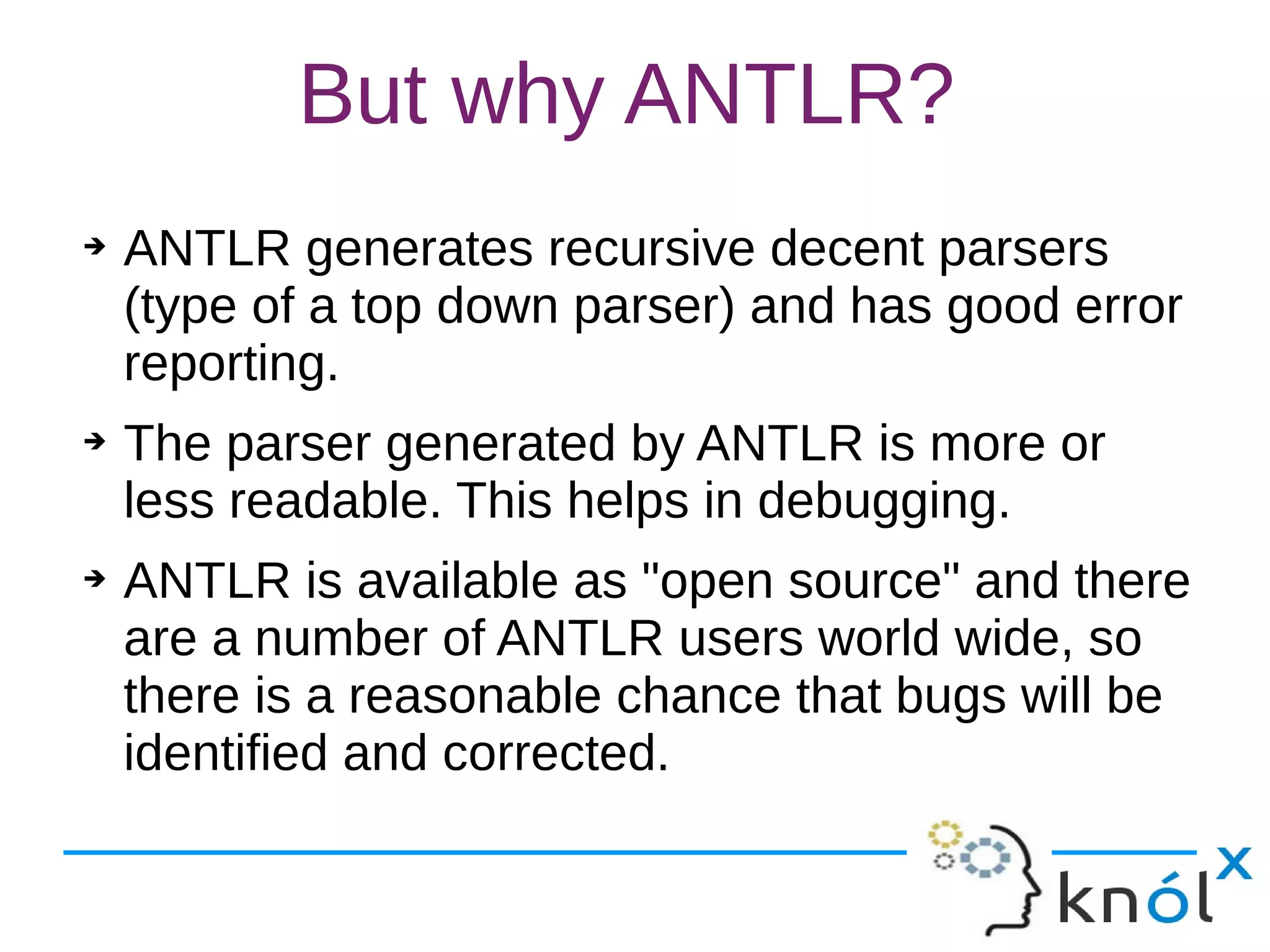

14. But why ANTLR?
➔ ANTLR generates recursive decent parsers
(type of a top down parser) and has good error
reporting.
➔ The parser generated by ANTLR is more or
less readable. This helps in debugging.
➔ ANTLR is available as "open source" and there
are a number of ANTLR users world wide, so
there is a reasonable chance that bugs will be
identified and corrected.

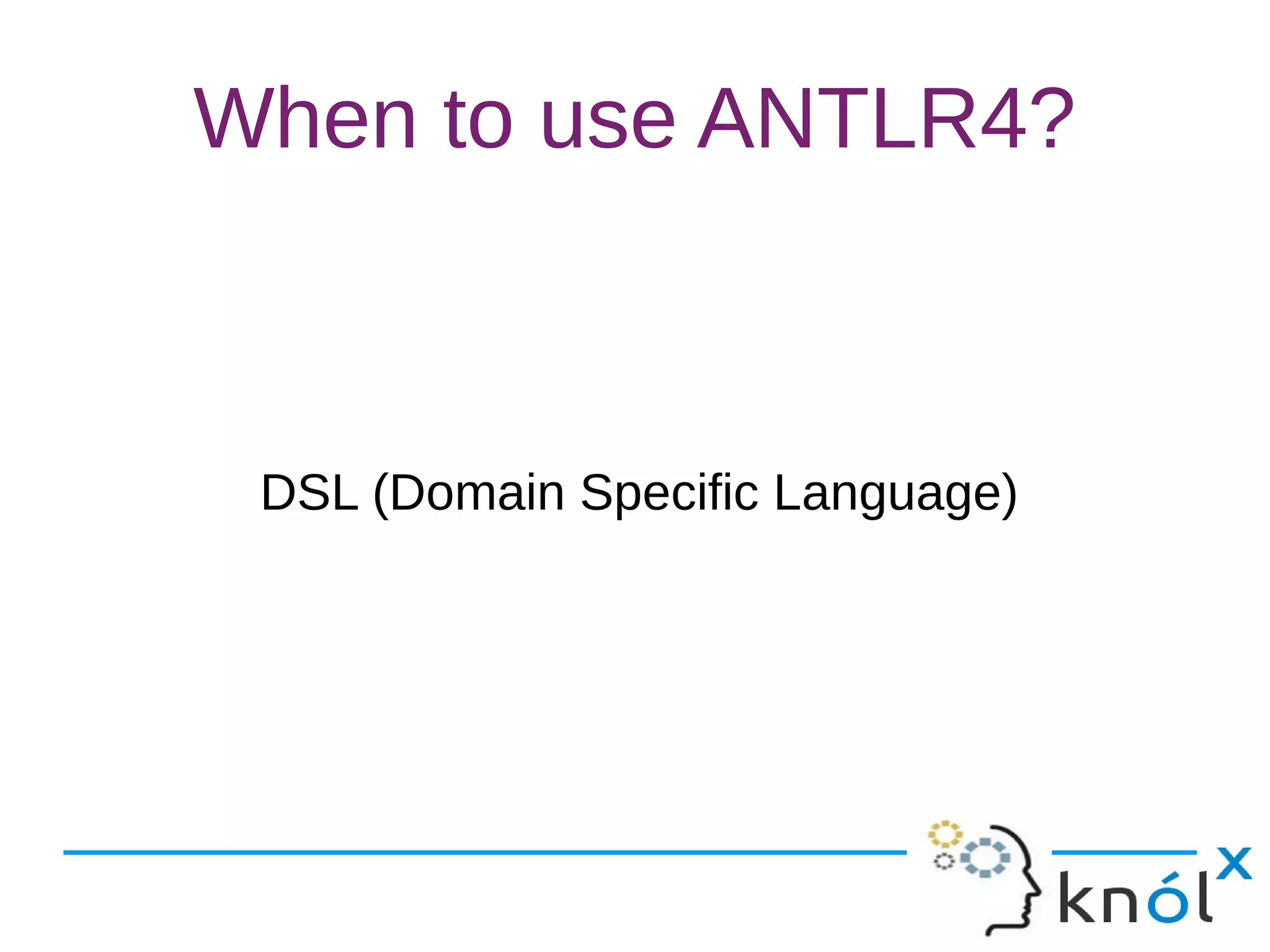

15. When to use ANTLR4?
DSL (Domain Specific Language)

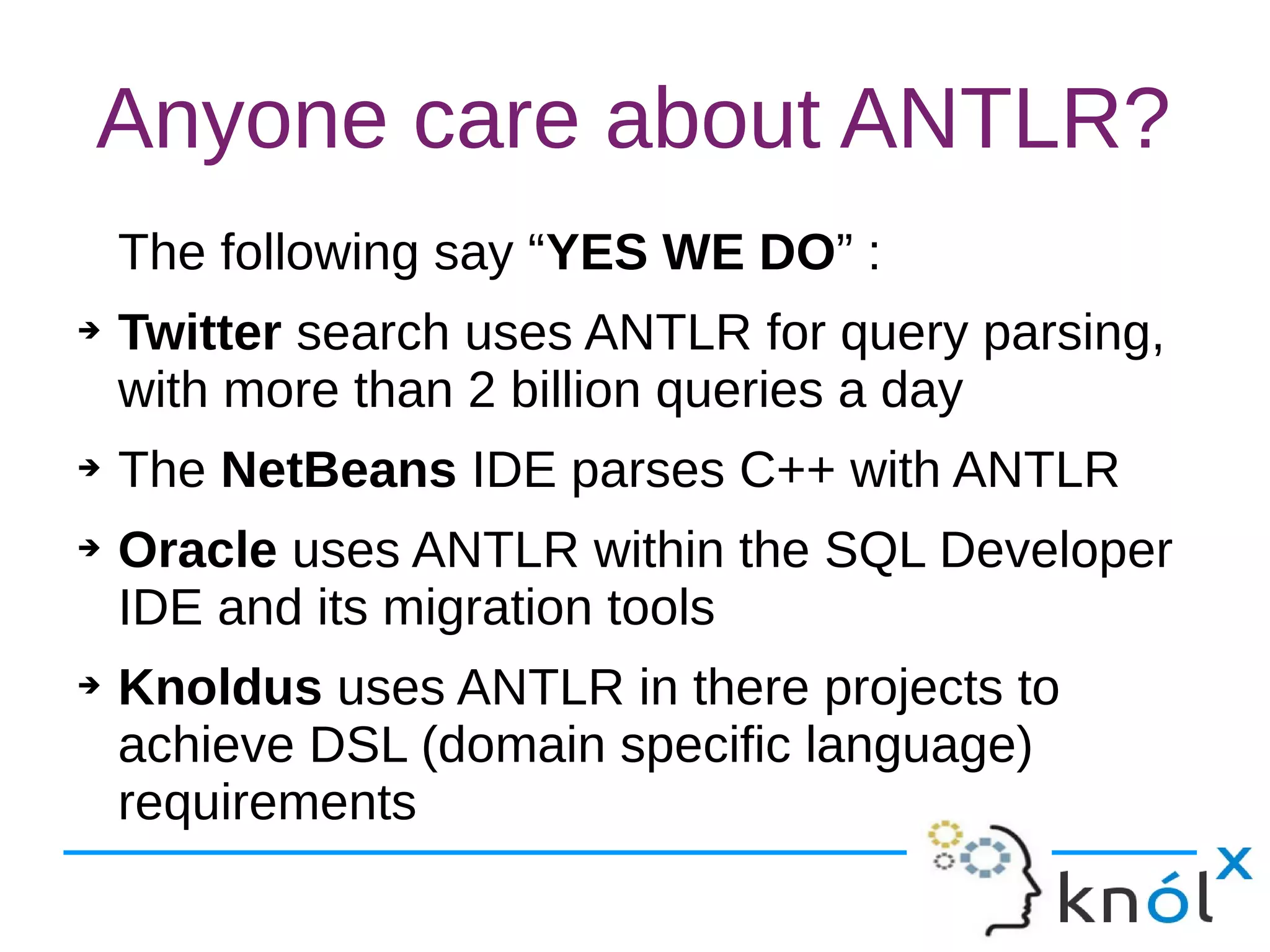

16. Anyone care about ANTLR?
The following say “YES WE DO” :
➔ Twitter search uses ANTLR for query parsing,
with more than 2 billion queries a day
➔ The NetBeans IDE parses C++ with ANTLR
➔ Oracle uses ANTLR within the SQL Developer
IDE and its migration tools
➔ Knoldus uses ANTLR in there projects to
achieve DSL (domain specific language)
requirements

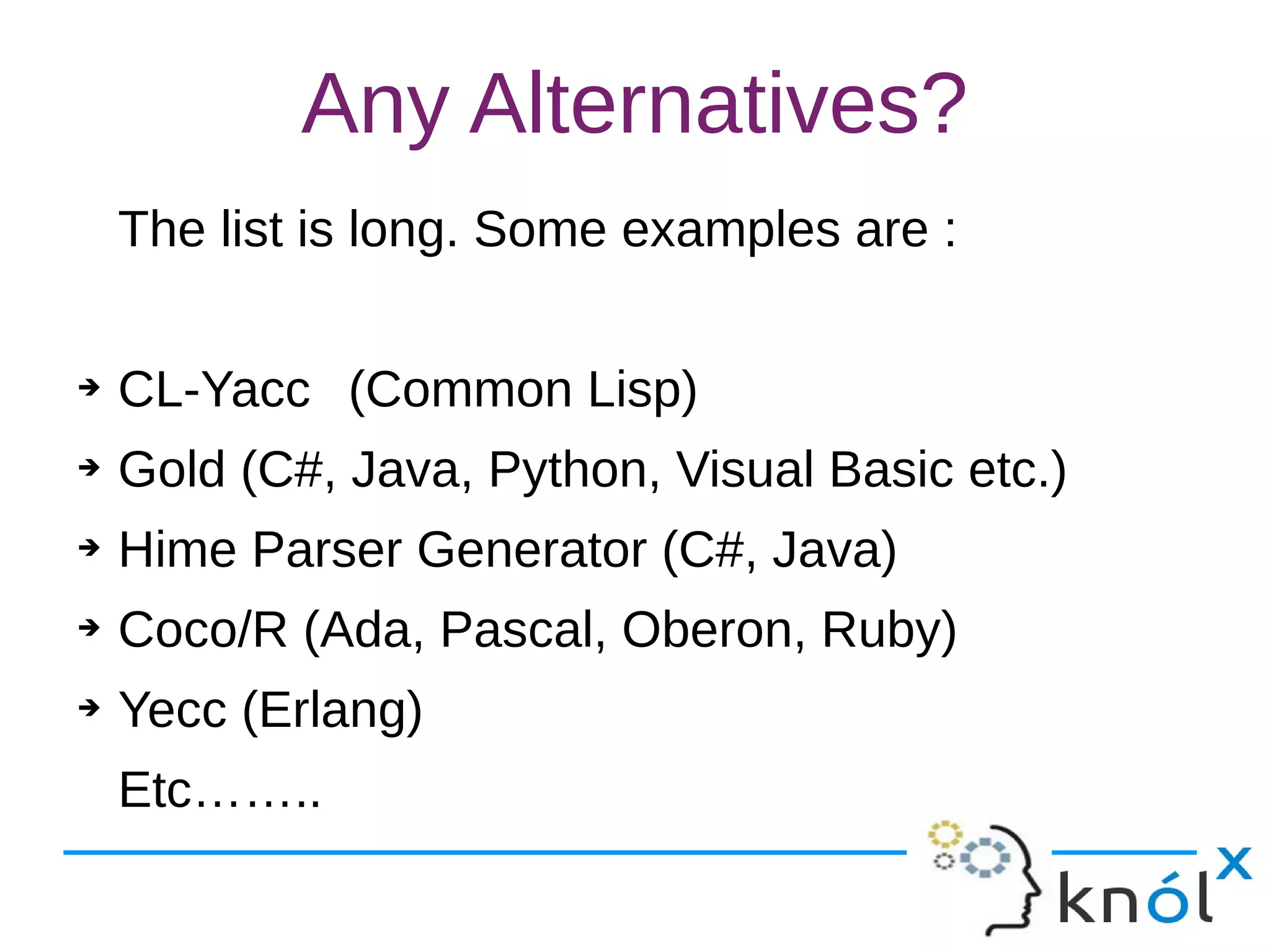

17. Any Alternatives?
The list is long. Some examples are :
➔ CL-Yacc (Common Lisp)
➔ Gold (C#, Java, Python, Visual Basic etc.)
➔ Hime Parser Generator (C#, Java)
➔ Coco/R (Ada, Pascal, Oberon, Ruby)
➔ Yecc (Erlang)
Etc……..

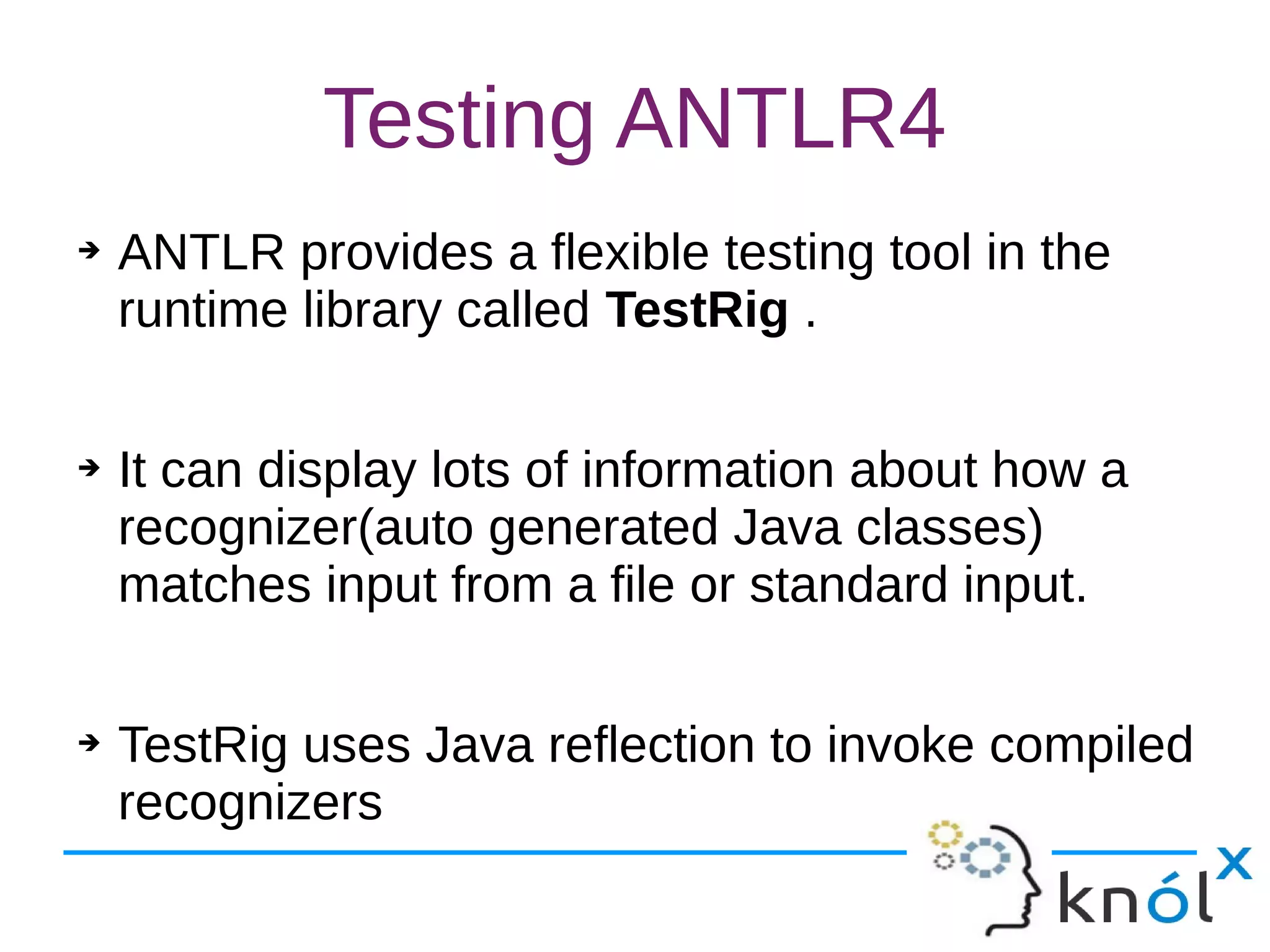

18. Testing ANTLR4
➔ ANTLR provides a flexible testing tool in the
runtime library called TestRig .
➔ It can display lots of information about how a
recognizer(auto generated Java classes)
matches input from a file or standard input.
➔ TestRig uses Java reflection to invoke compiled
recognizers

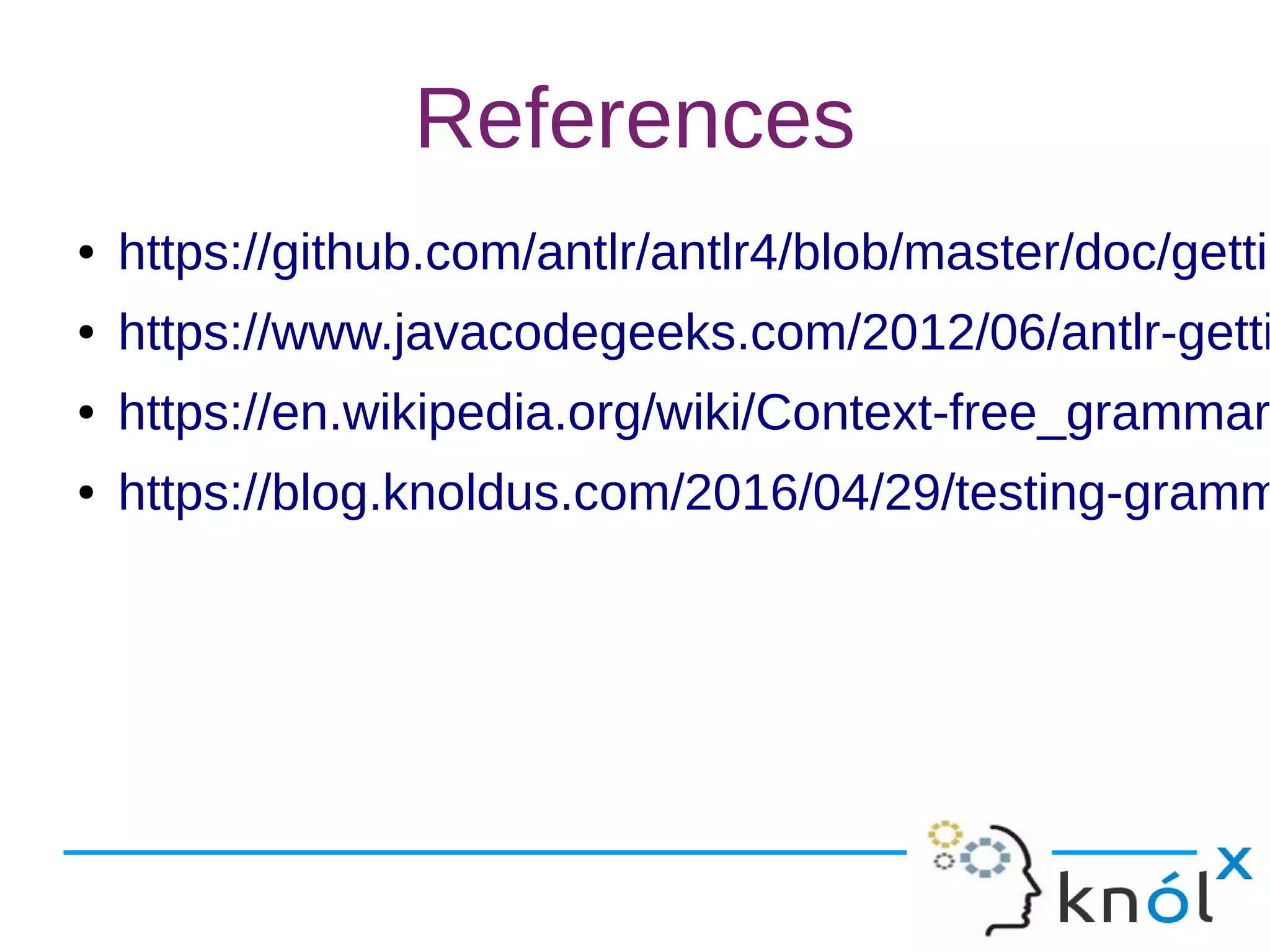

19. References
● https://github.com/antlr/antlr4/blob/master/doc/gettin
● https://www.javacodegeeks.com/2012/06/antlr-getti
● https://en.wikipedia.org/wiki/Context-free_grammar
● https://blog.knoldus.com/2016/04/29/testing-gramm

20. Any Question?

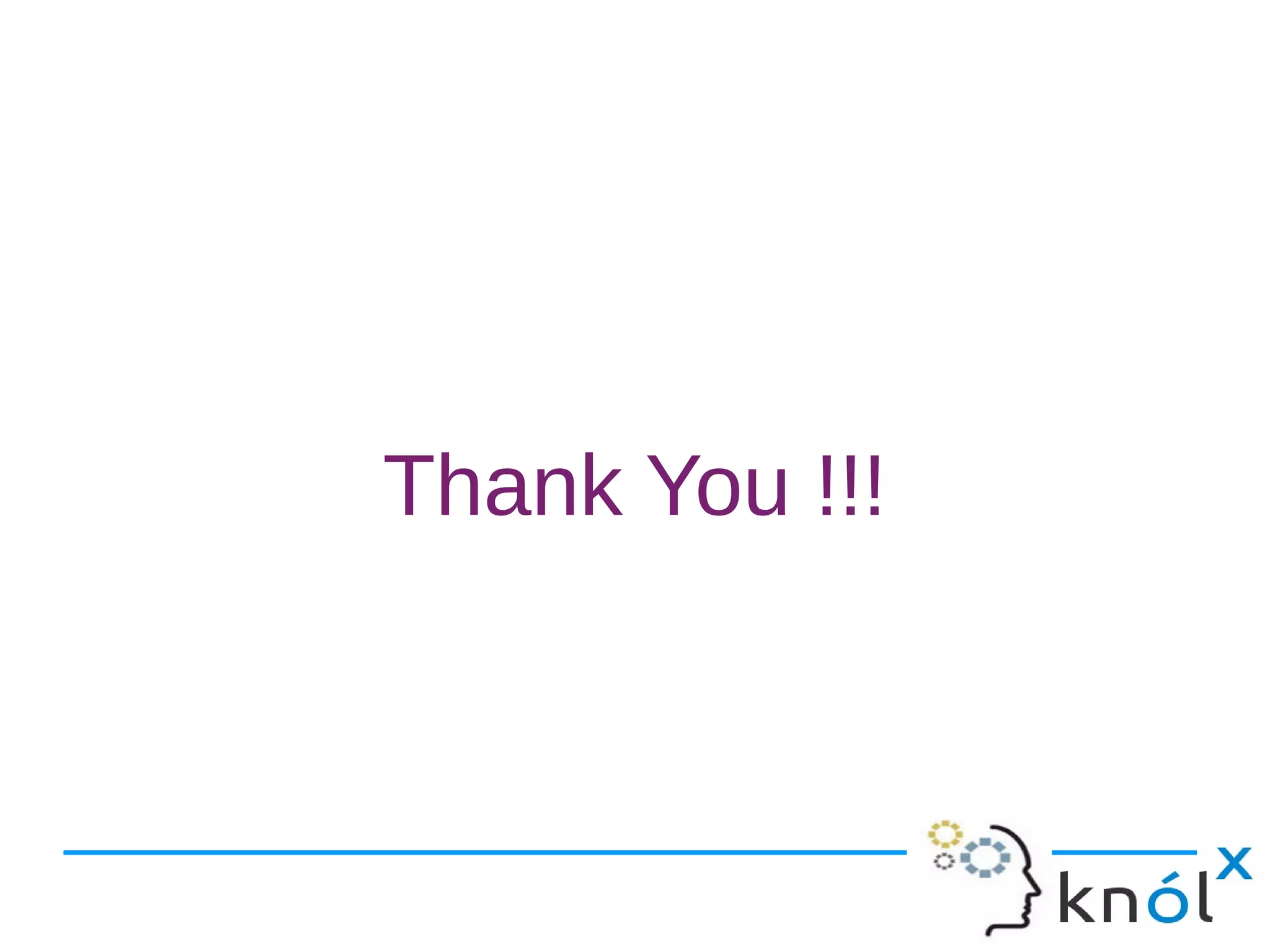

21. Thank You !!!
