1. Docker 101 and Why Docker Powers Eclipse Che
Patrick Chanezon, Docker

2. French
Polyglot
Platforms
Software Plumber
San Francisco
Developer Relations
@chanezon

3. PublicHybridPrivate
Ops Devops Developers

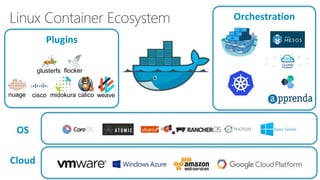

4. Linux Container Ecosystem
flockerglusterfs
weavecalicomidokuracisconuage
Cloud
OS
Plugins
Orchestration

5. The world needs
tools of mass innovation

6. A programmable Internet would be the ultimate
tool of mass innovation

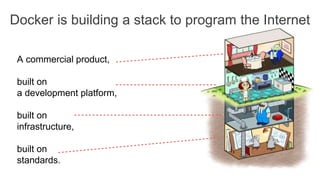

7. A commercial product,
built on
a development platform,
built on
infrastructure,
built on
standards.
Docker is building a stack to program the Internet

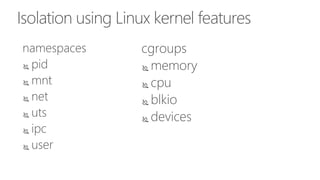

8. Isolation using Linux kernel features
namespaces
 pid
 mnt
 net
 uts
 ipc
 user
cgroups
 memory
 cpu
 blkio
 devices

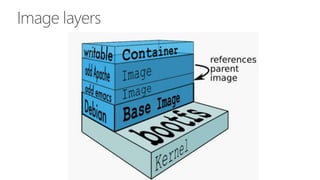

9. Image layers

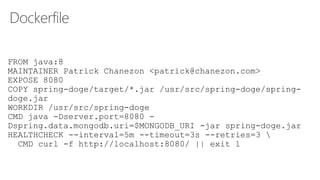

10. Dockerfile
FROM java:8
MAINTAINER Patrick Chanezon <patrick@chanezon.com>
EXPOSE 8080
COPY spring-doge/target/*.jar /usr/src/spring-doge/spring-
doge.jar
WORKDIR /usr/src/spring-doge
CMD java -Dserver.port=8080 -
Dspring.data.mongodb.uri=$MONGODB_URI -jar spring-doge.jar
HEALTHCHECK --interval=5m --timeout=3s --retries=3
CMD curl -f http://localhost:8080/ || exit 1

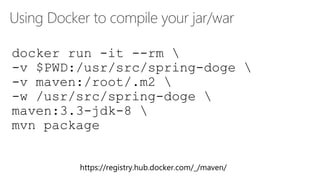

11. Using Docker to compile your jar/war
https://registry.hub.docker.com/_/maven/
docker run -it --rm
-v $PWD:/usr/src/spring-doge
-v maven:/root/.m2
-w /usr/src/spring-doge
maven:3.3-jdk-8
mvn package

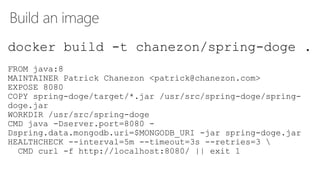

12. Build an image
docker build -t chanezon/spring-doge .
FROM java:8
MAINTAINER Patrick Chanezon <patrick@chanezon.com>
EXPOSE 8080
COPY spring-doge/target/*.jar /usr/src/spring-doge/spring-
doge.jar
WORKDIR /usr/src/spring-doge
CMD java -Dserver.port=8080 -
Dspring.data.mongodb.uri=$MONGODB_URI -jar spring-doge.jar
HEALTHCHECK --interval=5m --timeout=3s --retries=3
CMD curl -f http://localhost:8080/ || exit 1

13. Analyzing images
docker images java
docker history java:8

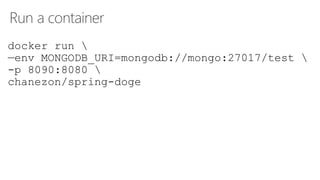

14. Run a container
docker run
—env MONGODB_URI=mongodb://mongo:27017/test
-p 8090:8080
chanezon/spring-doge

15. docker-compose: running multiple containers
 Run your stack with one command: docker-compose up
 Describe your stack with one file: docker-compose.yml
version: '2'
services:
web:
image: chanezon/spring-doge
ports:
- "8080:8080"
links: ["mongo"]
environment:
- MONGODB_URI=mongodb://mongo:27017/test
mongo:
image: mongo

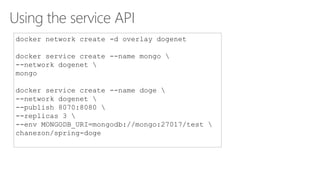

16. Using the service API
docker network create -d overlay dogenet
docker service create --name mongo
--network dogenet
mongo
docker service create --name doge
--network dogenet
--publish 8070:8080
--replicas 3
--env MONGODB_URI=mongodb://mongo:27017/test
chanezon/spring-doge

17. Demo

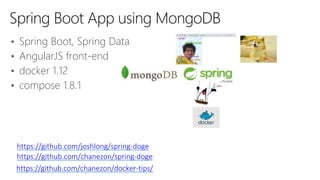

18. • Spring Boot, Spring Data
• AngularJS front-end
• docker 1.12
• compose 1.8.1
Spring Boot App using MongoDB
https://github.com/joshlong/spring-doge
https://github.com/chanezon/docker-tips/
https://github.com/chanezon/spring-doge

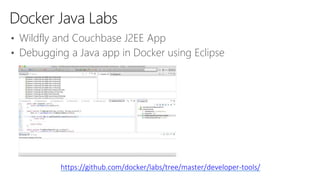

19. Docker Java Labs
https://github.com/docker/labs/tree/master/developer-tools/
• Wildfly and Couchbase J2EE App
• Debugging a Java app in Docker using Eclipse

20. What’s New?

21. 1.
Developer experience

22. 1. Get out of the way
The best tools…
2. Adapt to you
3. Make the
powerful simple

23. Docker for Mac Docker for Windows

24. 2.
Orchestration

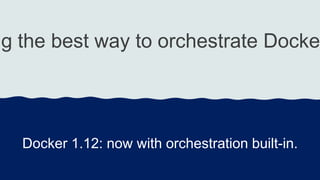

25. ng the best way to orchestrate Docke
Docker 1.12: now with orchestration built-in.

26. Swarm mode
Service API
Cryptographic node identity
Built-in routing mesh
Docker 1.12: now with orchestration built-in.

27. Using the beta? You already have 1.12 installed.
> docker swarm init
> docker service create

28. 3.
Ops experience

29. Deep integration with native load-balancers, templates,
SSH keys, ACLs, scaling groups, firewall rules…
beta.docker.com

30. Distributed Application Bundle
www.docker.com/dab
A portable format for multi-container applications

32. Docker Store Beta

33. Docker CaaS

34. Goals
+ +
Agility Portability Control

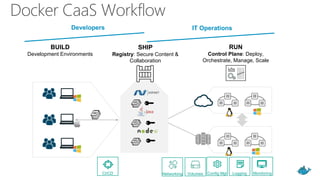

35. BUILD
Development Environments
SHIP
Registry: Secure Content &
Collaboration
RUN
Control Plane: Deploy,
Orchestrate, Manage, Scale
Networking Volumes MonitoringLoggingConfig MgtCI/CD
IT Operations
Developers IT Operations
Docker CaaS Workflow

36. Docker Universal Control Plane
Integrated
Security
Docker Engine
Container runtime, orchestration, networking, volumes, plugins
Docker Trusted Registry
Operating
Systems Config Mgt Monitoring LoggingCI/CD ..more..Images Networking Volumes
VirtualizationPublic Cloud Physical
Docker Datacenter

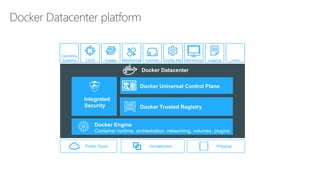

Docker Datacenter platform

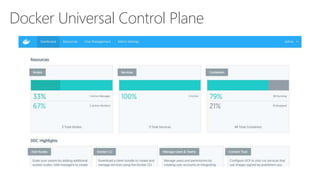

37. Docker Universal Control Plane

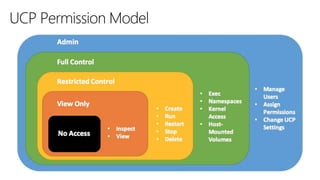

38. UCP Permission Model

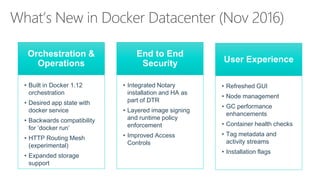

39. What’s New in Docker Datacenter (Nov 2016)
Orchestration &
Operations
• Built in Docker 1.12
orchestration
• Desired app state with
docker service
• Backwards compatibility
for ‘docker run’
• HTTP Routing Mesh
(experimental)
• Expanded storage
support
End to End
Security
• Integrated Notary
installation and HA as
part of DTR
• Layered image signing
and runtime policy
enforcement
• Improved Access
Controls
User Experience
• Refreshed GUI
• Node management
• GC performance
enhancements
• Container health checks
• Tag metadata and
activity streams
• Installation flags

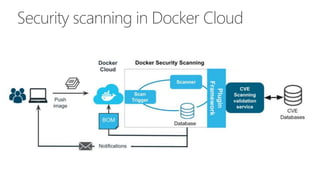

40. Security scanning in Docker Cloud

41. Thank You

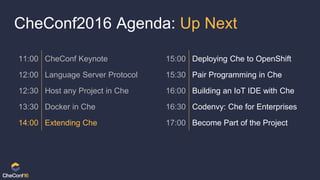

42. CheConf2016 Agenda: Up Next
11:00 CheConf Keynote 15:00 Deploying Che to OpenShift
12:00 Language Server Protocol 15:30 Pair Programming in Che
12:30 Host any Project in Che 16:00 Building an IoT IDE with Che
13:30 Docker in Che 16:30 Codenvy: Che for Enterprises
14:00 Extending Che 17:00 Become Part of the Project
