![Configuration
Example config file (zk.conf): Group configuration = Instance + Flavor
{
"Properties": {
/* raw configuration
*/
}
}
{
"groups" : {
"my_zookeeper_nodes" : {
"Properties" : {
"Instance" : {
"Plugin": "instance-vagrant",
"Properties": {
"Box": "bento/ubuntu-16.04"
}
},
"Flavor" : {
"Plugin": "flavor-zookeeper",
"Properties": {
"type": "member",
"IPs": ["192.168.1.200", "192.168.1.201",
"192.168.1.202"]
}
}
}
}
}](https://image.slidesharecdn.com/alibabacloudconference-2016-dockerenterprise-170214164739/85/Alibaba-Cloud-Conference-2016-Docker-Enterprise-73-320.jpg)
Uploaded byJohn Willis
Alibaba Cloud Conference 2016 - Docker Enterprise
This document provides an overview of Docker and John Willis, including: 1. John Willis is the director of ecosystem development at Docker and has extensive experience in the DevOps field, including founding DevOps conferences and companies. 2. It discusses DevOps practices that Docker enables, like continuous delivery, version control, and automating everything. 3. Docker aims to eliminate friction in the development cycle by providing tools for mass innovation through a programmable internet and container platform.
More Related Content
Similar to Alibaba Cloud Conference 2016 - Docker Enterprise
Alibaba Cloud Conference 2016 - Docker Enterprise
- 1. What’s New inDocker John Willis Director of Ecosystem Development
- 2. About Me • Oneof the founding members of the “Devops” movement. • Author of the “Devops Handbook”. • Author of the “Introduction to Devops” on Linux Foundation edX. • Podcaster at devopscafe.org • Devops Enterprise Summit - Cofounder • Found of Socketplane (Acquired by Docker) • Formally Director of Devops at Dell • Formally Director at Chef • 10 Startups over 25 years 2 Github: botchagalupe/my-presentations Twitter: botchagalupe Wechat: botchagalupe

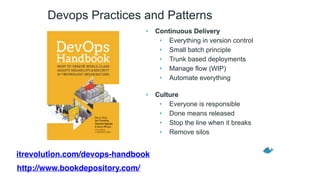

- 3. Devops Practices andPatterns • Continuous Delivery • Everything in version control • Small batch principle • Trunk based deployments • Manage flow (WIP) • Automate everything • Culture • Everyone is responsible • Done means released • Stop the line when it breaks • Remove silos 3 itrevolution.com/devops-handbook http://www.bookdepository.com/
- 4. The world needs toolsof mass innovation
- 5. A programmable Internetwould be the ultimate tool of mass innovation
- 6. Let’s eliminate frictionin the development cycle

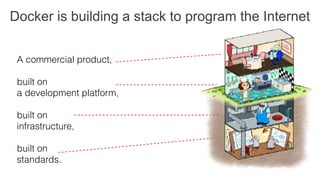

- 7. A commercial product, builton a development platform, built on infrastructure, built on standards. Docker is building a stack to program the Internet

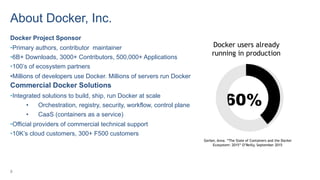

- 8. 8 Docker Project Sponsor •Primaryauthors, contributor maintainer •6B+ Downloads, 3000+ Contributors, 500,000+ Applications •100’s of ecosystem partners •Millions of developers use Docker. Millions of servers run Docker Commercial Docker Solutions •Integrated solutions to build, ship, run Docker at scale • Orchestration, registry, security, workflow, control plane • CaaS (containers as a service) •Official providers of commercial technical support •10K’s cloud customers, 300+ F500 customers About Docker, Inc. Gerber, Anna. “The State of Containers and the Docker Ecosystem: 2015” O’Reilly, September 2015 Docker users already running in production 60%
- 9. China is partof Worldwide Docker Community Meetups in Beijing, Changsha, Chengdu, Chongqing, Dalian, Fuzhou, Guangzhou, Hangzhou, Hong Kong, Nanjing, Qingdao, Shanghai, Shenzen, Suzhou, Tianjin, Wuhan, Xi’an, Xiamen, and Zhuhai

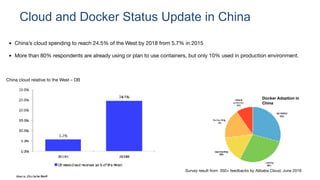

- 10. Cloud and DockerStatus Update in China China cloud relative to the West – DB ! China’s cloud spending to reach 24.5% of the West by 2018 from 5.7% in 2015 ! More than 80% respondents are already using or plan to use containers, but only 10% used in production environment. Survey result from 350+ feedbacks by Alibaba Cloud, June 2016 Docker Adoption in China
- 11. Other Government Sample of DockerCustomers Financial Services Healthcare Consumer Education Tech Services 11

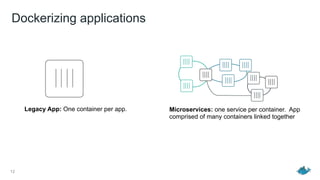

- 12. Dockerizing applications 12 Legacy App:One container per app. Microservices: one service per container. App comprised of many containers linked together

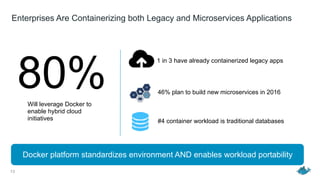

- 13. Enterprises Are Containerizingboth Legacy and Microservices Applications 13 80% 46% plan to build new microservices in 2016 #4 container workload is traditional databases 1 in 3 have already containerized legacy apps Will leverage Docker to enable hybrid cloud initiatives Docker platform standardizes environment AND enables workload portability

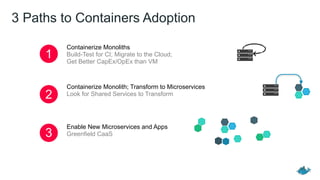

- 14. 3 Paths toContainers Adoption 1 Containerize Monoliths Build-Test for CI; Migrate to the Cloud; Get Better CapEx/OpEx than VM 2 3 Containerize Monolith; Transform to Microservices Look for Shared Services to Transform Enable New Microservices and Apps Greenfield CaaS

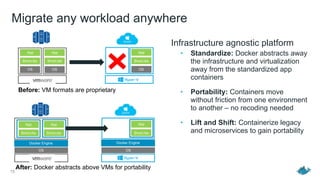

- 15. Migrate any workloadanywhere Infrastructure agnostic platform • Standardize: Docker abstracts away the infrastructure and virtualization away from the standardized app containers • Portability: Containers move without friction from one environment to another – no recoding needed • Lift and Shift: Containerize legacy and microservices to gain portability 15 Bins/Libs App OS Bins/Libs App OS Bins/Libs App OS Before: VM formats are proprietary Bins/Libs App Bins/Libs App Bins/Libs App OS After: Docker abstracts above VMs for portability Docker Engine OS Docker Engine
- 16. Infrastructure optimization withDocker Swisscom • 20:1 VM consolidation ratio • Running the same 400 MongoDB instances in 400 containers in 20 VMs • Reduce CapEx and OpEx costs Leading Energy Company • Containerize legacy apps for portability • Entire cloud to datacenter site migration in 5 months • Dramatically accelerated release process 16
- 17. 17 Enable Modern AppInitiatives with CaaS Cloud Migration Hybrid Cloud Multi Cloud Modernizing Apps DevOps CI/CD DevOps Cloud DevOpsApps
- 18. 18 Enterprises Can DecideHow To Adopt Enable CI and DevOps Better Resource Usage Enable Cloud Initiatives Transform iteratively Ship faster, with better reliability Enable developers to self service Enable business transformations Containerize Build New AppsContainerize & Transform

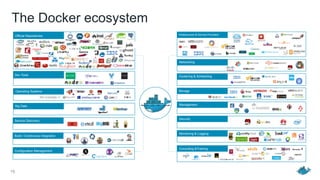

- 19. The Docker ecosystem DevTools Official Repositories Operating Systems Big Data Service Discovery Build / Continuous Integration Configuration Management Consulting &Training Management Storage Clustering & Scheduling Networking Infrastructure & Service Providers Storage Security Monitoring & Logging 19
- 20. Docker and AlibabaAnnounce Commercial Agreement • Localized Docker image store and distribution for Docker Hub on Alibaba Cloud • Alibaba will resell Commercially Supported (CS) Docker Engine and Docker Datacenter, enabling enterprises to manage their production workloads across the entire application lifecycle. • Alibaba will provide enterprise support options for CS Docker Engine and Docker Datacenter, backed by Docker, Inc. 20
- 21.

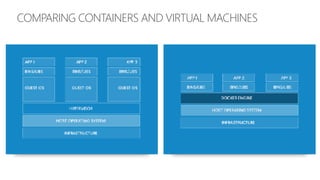

- 22. COMPARING CONTAINERS ANDVIRTUAL MACHINES

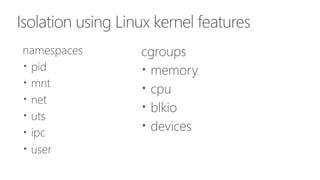

- 23. Isolation using Linuxkernel features namespaces ● pid ● mnt ● net ● uts ● ipc ● user cgroups ● memory ● cpu ● blkio ● devices
- 24.

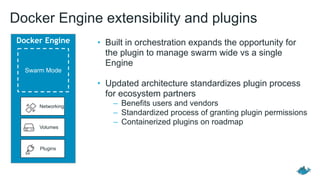

- 25. Docker Engine extensibilityand plugins • Built in orchestration expands the opportunity for the plugin to manage swarm wide vs a single Engine • Updated architecture standardizes plugin process for ecosystem partners – Benefits users and vendors – Standardized process of granting plugin permissions – Containerized plugins on roadmap Docker Engine Networking Swarm Mode Volumes Plugins
- 26.
- 27. 1. Get outof the way The best tools… 2. Adapt to you 3. Make the powerful simple
- 28. Docker for MacDocker for Windows
- 29.
- 30. Introducing the bestway to orchestrate Docker: Docker. Docker 1.12: now with orchestration built-in.
- 31. Swarm mode Service API Nodeidentity Built-in routing mesh Docker 1.12: now with orchestration built-in.
- 32. Combine your enginesin swarms of any scale Self-organizing, self-healing No external data store required No single points of failure Infrastructure-agnostic topology Swarm mode
- 33. Desired state reconciliation Scaling Rollingupdates Advanced scheduling Application-specified health checks Rescheduling on node failure Docker Service API

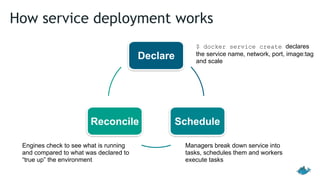

- 34. How service deploymentworks Declare ScheduleReconcile $ docker service create declares the service name, network, port, image:tag and scale Managers break down service into tasks, schedules them and workers execute tasks Engines check to see what is running and compared to what was declared to “true up” the environment
- 35. API Allocator Orchestrator Scheduler Dispatcher R A F T Manager Node Worker Executor Worker Node Acceptscommand from client and creates service object Reconciliation loop for service objects and creates tasks Allocates IP addresses to tasks Assigns tasks to nodes Checks in on workers docker service create Connects to dispatcher to check on assigned tasks How service deployment works Executes the tasks assigned to worker node

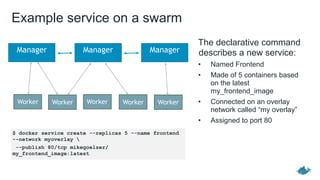

- 36. Manager ManagerManager Worker WorkerWorkerWorkerWorker Example service on a swarm The declarative command describes a new service: • Named Frontend • Made of 5 containers based on the latest my_frontend_image • Connected on an overlay network called “my overlay” • Assigned to port 80 $ docker service create --replicas 5 --name frontend --network myoverlay --publish 80/tcp mikegoelzer/ my_frontend_image:latest

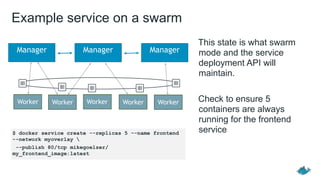

- 37. Manager ManagerManager Worker WorkerWorkerWorkerWorker Example service on a swarm This state is what swarm mode and the service deployment API will maintain. Check to ensure 5 containers are always running for the frontend service$ docker service create --replicas 5 --name frontend --network myoverlay --publish 80/tcp mikegoelzer/ my_frontend_image:latest
- 38. Manager ManagerManager Worker WorkerWorkerWorkerWorker Example service on a swarm This command creates a new service to join an existing overlay network to communicate with frontend $ docker service create --name redis --network myoverlay redis:latest
- 39. Built-in Routing Mesh Swarm-wideoverlay networking Container-native load-balancing DNS-based service discovery No separate cluster to setup Works with your existing load-balancers Rock-solid kernel-only data path with IPVS

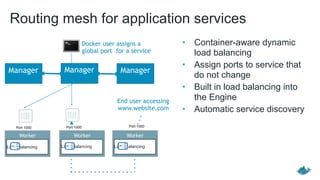

- 40. Routing mesh forapplication services • Container-aware dynamic load balancing • Assign ports to service that do not change • Built in load balancing into the Engine • Automatic service discovery Worker Load Balancing Worker Load Balancing Worker Load Balancing Port 1000Port 1000 Port 1000 Manager ManagerManager Docker user assigns a global port for a service End user accessing www.website.com
- 41. Docker 1.12 isSimple > docker swarm init > docker service create

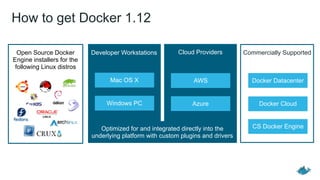

- 42. How to getDocker 1.12 Mac OS X Developer Workstations Cloud Providers Windows PC AWS Azure Commercially Supported Docker Datacenter CS Docker Engine Docker Cloud Open Source Docker Engine installers for the following Linux distros Optimized for and integrated directly into the underlying platform with custom plugins and drivers
- 43.
- 44. Deep integration withnative load-balancers, templates, SSH keys, ACLs, scaling groups, firewall rules… beta.docker.com
- 45. Distributed Application Bundle experimental www.docker.com/dab Aportable format for multi-container applications
- 46. 5 Goldilocks and the3 XaaS Just rightToo highToo low IaaS PaaS CaaS

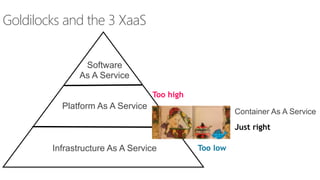

- 47. 5 Goldilocks and the3 XaaS Platform As A Service Infrastructure As A Service Software As A Service Too high Too low Just right Container As A Service

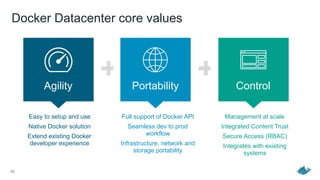

- 48. Docker Datacenter corevalues 48 Management at scale Integrated Content Trust Secure Access (RBAC) Integrates with existing systems Full support of Docker API Seamless dev to prod workflow Infrastructure, network and storage portability Easy to setup and use Native Docker solution Extend existing Docker developer experience + +Agility Portability Control

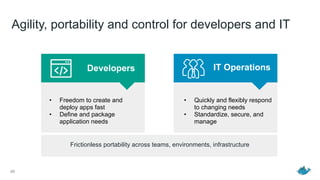

- 49. Agility, portability andcontrol for developers and IT Developers IT Operations • Freedom to create and deploy apps fast • Define and package application needs • Quickly and flexibly respond to changing needs • Standardize, secure, and manage Frictionless portability across teams, environments, infrastructure 49

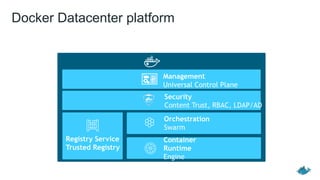

- 50. Docker Datacenter platform Management UniversalControl Plane Security Content Trust, RBAC, LDAP/AD Orchestration Swarm Container Runtime Engine Registry Service Trusted Registry

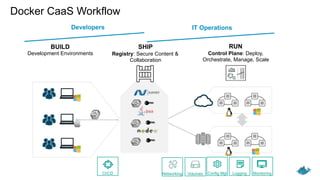

- 51. BUILD Development Environments SHIP Registry: SecureContent & Collaboration RUN Control Plane: Deploy, Orchestrate, Manage, Scale Networking Volumes MonitoringLoggingConfig MgtCI/CD IT Operations Developers IT Operations Docker CaaS Workflow

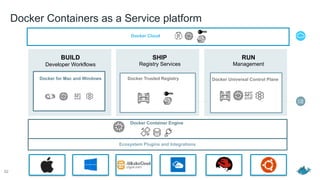

- 52. Docker Containers asa Service platform 52 BUILD Developer Workflows SHIP Registry Services RUN Management Docker for Mac and Windows Docker Trusted Registry Docker Universal Control Plane Docker Cloud Docker Container Engine Ecosystem Plugins and Integrations
- 53.
- 54. Docker UCP 1.1- DTR 2.0 • HA • Unified Auth • Compose deployment • UI to add nodes

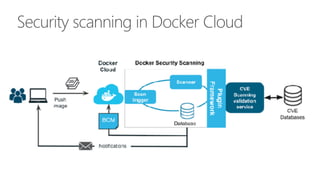

- 55. Security scanning inDocker Cloud
- 56.
- 57.

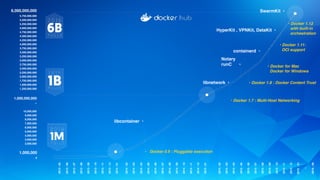

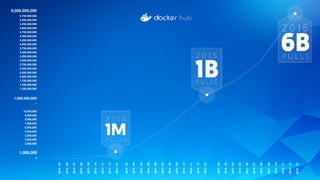

- 58. 2013-05 2013-06 2013-07 2013-08 2013-09 2013-10 2013-11 2013-12 2014-01 1,000,000 0 2014-02 2014-03 2014-04 2014-05 2014-06 2014-07 2014-08 2014-09 2014-10 2014-11 2014-12 2015-01 2015-02 2015-03 2015-04 2015-05 2015-06 2015-07 2015-08 2015-09 2015-10 2015-11 2015-12 2016-01 ~ 2016-09 1,000,000,000 ~ 10,000,000 9,000,000 8,000,000 7,000,000 6,000,000 5,000,000 4,000,000 3,000,000 2,000,000 6,000,000,000 5,750,000,000 5,500,000,000 5,250,000,000 5,000,000,000 4,750,000,000 4.500,000,000 4,250,000,000 4,000,000,000 3,750,000,000 3,500,000,000 3,250,000,000 3,000,000,000 2,750,000,000 2,500,000,000 2,250,000,000 2,000,000,000 1,750,000,000 1,500,000,000 1,250,000,000 Notary runC • containerd • HyperKit, VPNKit, DataKit • SwarmKit • libcontainer • libnetwork • • Docker 1.8 : Docker Content Trust • Docker for Mac Docker for Windows • Docker 1.12 with built-in orchestration • Docker 0.9 : Pluggable execution • Docker 1.7 : Multi-Host Networking • Docker 1.11: OCI support
- 59.
- 64.
- 65. InfraKit A toolkit forbuilding declarative, self- healing infrastructure.

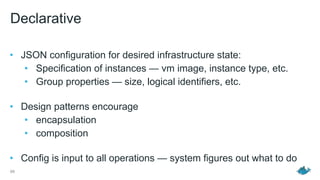

- 66. Declarative • JSON configurationfor desired infrastructure state: • Specification of instances — vm image, instance type, etc. • Group properties — size, logical identifiers, etc. • Design patterns encourage • encapsulation • composition • Config is input to all operations — system figures out what to do 66
- 67. Self-healing • Composed ofa set of active components / processes that • monitor infrastructure state • detect state divergence • take actions • Continuous monitoring and reconciliation — always on • No downtime — rolling update 67

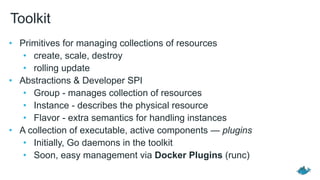

- 68. Toolkit • Primitives formanaging collections of resources • create, scale, destroy • rolling update • Abstractions & Developer SPI • Group - manages collection of resources • Instance - describes the physical resource • Flavor - extra semantics for handling instances • A collection of executable, active components — plugins • Initially, Go daemons in the toolkit • Soon, easy management via Docker Plugins (runc)
- 69.

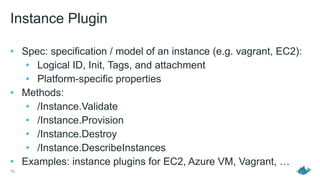

- 70. Instance Plugin • Spec:specification / model of an instance (e.g. vagrant, EC2): • Logical ID, Init, Tags, and attachment • Platform-specific properties • Methods: • /Instance.Validate • /Instance.Provision • /Instance.Destroy • /Instance.DescribeInstances • Examples: instance plugins for EC2, Azure VM, Vagrant, … 70

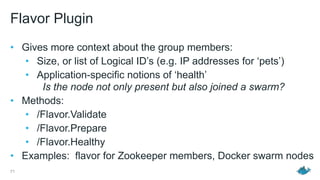

- 71. Flavor Plugin • Givesmore context about the group members: • Size, or list of Logical ID’s (e.g. IP addresses for ‘pets’) • Application-specific notions of ‘health’ Is the node not only present but also joined a swarm? • Methods: • /Flavor.Validate • /Flavor.Prepare • /Flavor.Healthy • Examples: flavor for Zookeeper members, Docker swarm nodes 71

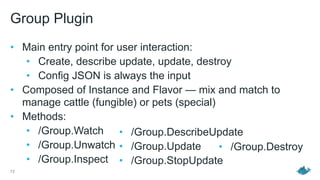

- 72. Group Plugin • Mainentry point for user interaction: • Create, describe update, update, destroy • Config JSON is always the input • Composed of Instance and Flavor — mix and match to manage cattle (fungible) or pets (special) • Methods: • /Group.Watch • /Group.Unwatch • /Group.Inspect 72 • /Group.DescribeUpdate • /Group.Update • /Group.StopUpdate • /Group.Destroy

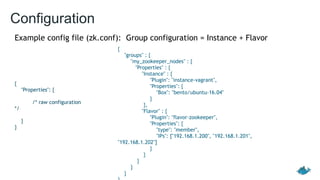

- 73. Configuration Example config file(zk.conf): Group configuration = Instance + Flavor { "Properties": { /* raw configuration */ } } { "groups" : { "my_zookeeper_nodes" : { "Properties" : { "Instance" : { "Plugin": "instance-vagrant", "Properties": { "Box": "bento/ubuntu-16.04" } }, "Flavor" : { "Plugin": "flavor-zookeeper", "Properties": { "type": "member", "IPs": ["192.168.1.200", "192.168.1.201", "192.168.1.202"] } } } } }

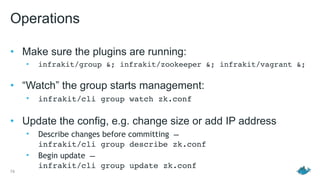

- 74. Operations • Make surethe plugins are running: • infrakit/group &; infrakit/zookeeper &; infrakit/vagrant &; • “Watch” the group starts management: • infrakit/cli group watch zk.conf • Update the config, e.g. change size or add IP address • Describe changes before committing — infrakit/cli group describe zk.conf • Begin update — infrakit/cli group update zk.conf 74

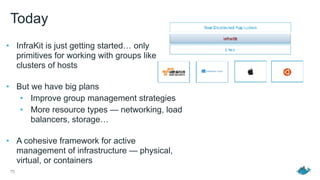

- 75. Today 75 • InfraKit isjust getting started… only primitives for working with groups like clusters of hosts • But we have big plans • Improve group management strategies • More resource types — networking, load balancers, storage… • A cohesive framework for active management of infrastructure — physical, virtual, or containers

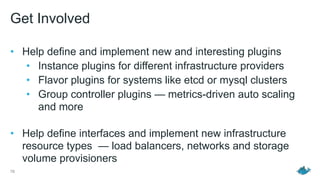

- 76. Get Involved • Helpdefine and implement new and interesting plugins • Instance plugins for different infrastructure providers • Flavor plugins for systems like etcd or mysql clusters • Group controller plugins — metrics-driven auto scaling and more • Help define interfaces and implement new infrastructure resource types — load balancers, networks and storage volume provisioners 76

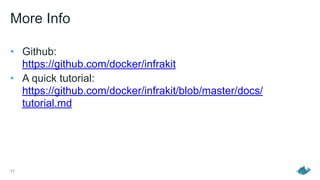

- 77. More Info • Github: https://github.com/docker/infrakit • A quick tutorial: https://github.com/docker/infrakit/blob/master/docs/ tutorial.md 77
