1. Building Reusable Development
Environments with Docker
Harold Dost
Raastech, Inc.
CC BY 3.0 US, Harold A. Dost III 1

2. About Me
Harold Dost (@hdost)
7+ years of Oracle Middleware
experience
OCE (SOA Foundation Practitioner)
Oracle ACE Associate
From Michigan
blog.raastech.com
CC BY 3.0 US, Harold A. Dost III 2

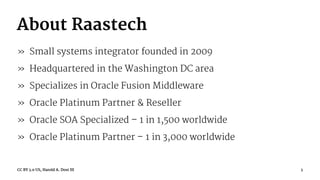

3. About Raastech
» Small systems integrator founded in 2009
» Headquartered in the Washington DC area
» Specializes in Oracle Fusion Middleware
» Oracle Platinum Partner & Reseller
» Oracle SOA Specialized – 1 in 1,500 worldwide
» Oracle Platinum Partner – 1 in 3,000 worldwide
CC BY 3.0 US, Harold A. Dost III 3

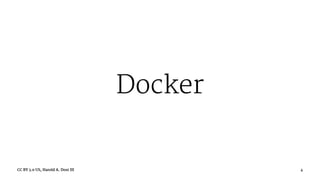

4. Docker
CC BY 3.0 US, Harold A. Dost III 4

5. The Docker Ecosystem
CC BY 3.0 US, Harold A. Dost III 5

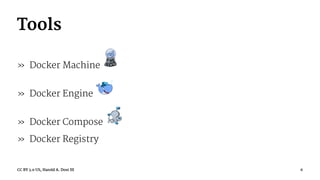

6. Tools
» Docker Machine
» Docker Engine
» Docker Compose
» Docker Registry
CC BY 3.0 US, Harold A. Dost III 6

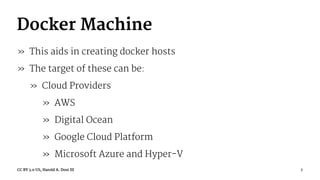

7. Docker Machine
» This aids in creating docker hosts
» The target of these can be:
» Cloud Providers
» AWS
» Digital Ocean
» Google Cloud Platform
» Microsoft Azure and Hyper-V
CC BY 3.0 US, Harold A. Dost III 7

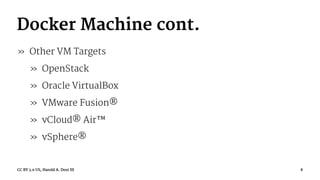

8. Docker Machine cont.
» Other VM Targets
» OpenStack
» Oracle VirtualBox
» VMware Fusion®
» vCloud® Air™
» vSphere®
CC BY 3.0 US, Harold A. Dost III 8

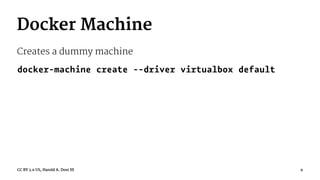

9. Docker Machine
Creates a dummy machine
docker-machine create --driver virtualbox default
CC BY 3.0 US, Harold A. Dost III 9

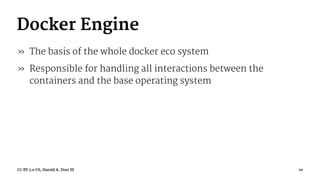

10. Docker Engine
» The basis of the whole docker eco system
» Responsible for handling all interactions between the
containers and the base operating system
CC BY 3.0 US, Harold A. Dost III 10

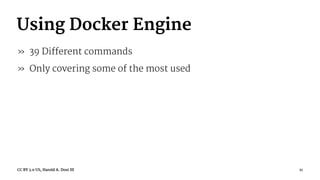

11. Using Docker Engine
» 39 Different commands
» Only covering some of the most used
CC BY 3.0 US, Harold A. Dost III 11

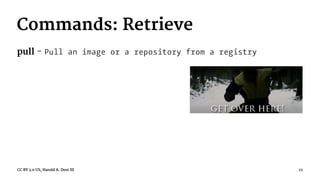

12. Commands: Retrieve
pull - Pull an image or a repository from a registry
CC BY 3.0 US, Harold A. Dost III 12

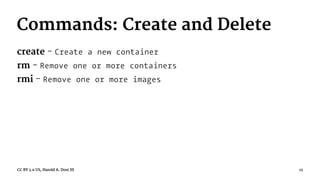

13. Commands: Create and Delete
create - Create a new container
rm - Remove one or more containers
rmi - Remove one or more images
CC BY 3.0 US, Harold A. Dost III 13

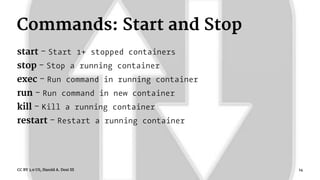

14. Commands: Start and Stop
start - Start 1+ stopped containers
stop - Stop a running container
exec - Run command in running container
run - Run command in new container
kill - Kill a running container
restart - Restart a running container
CC BY 3.0 US, Harold A. Dost III 14

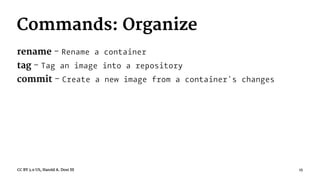

15. Commands: Organize
rename - Rename a container
tag - Tag an image into a repository
commit - Create a new image from a container's changes
CC BY 3.0 US, Harold A. Dost III 15

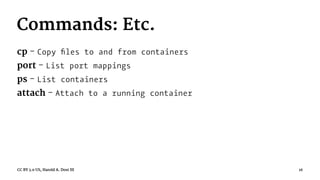

16. Commands: Etc.
cp - Copy files to and from containers
port - List port mappings
ps - List containers
attach - Attach to a running container
CC BY 3.0 US, Harold A. Dost III 16

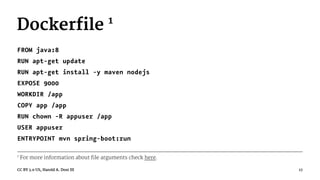

17. Dockerfile 1
FROM java:8
RUN apt-get update
RUN apt-get install -y maven nodejs
EXPOSE 9000
WORKDIR /app
COPY app /app
RUN chown -R appuser /app
USER appuser
ENTRYPOINT mvn spring-boot:run
1
For more information about file arguments check here.
CC BY 3.0 US, Harold A. Dost III 17

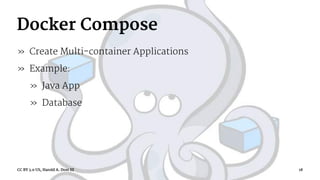

18. Docker Compose
» Create Multi-container Applications
» Example:
» Java App
» Database
CC BY 3.0 US, Harold A. Dost III 18

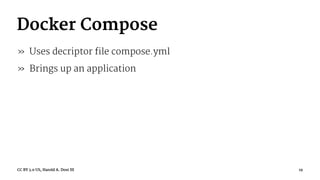

19. Docker Compose
» Uses decriptor file compose.yml
» Brings up an application
CC BY 3.0 US, Harold A. Dost III 19

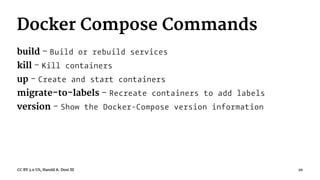

20. Docker Compose Commands
build - Build or rebuild services
kill - Kill containers
up - Create and start containers
migrate-to-labels - Recreate containers to add labels
version - Show the Docker-Compose version information
CC BY 3.0 US, Harold A. Dost III 20

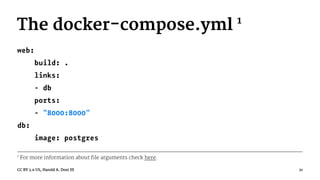

21. The docker-compose.yml 1
web:
build: .
links:
- db
ports:
- "8000:8000"
db:
image: postgres
1
For more information about file arguments check here.
CC BY 3.0 US, Harold A. Dost III 21

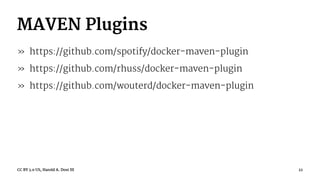

22. MAVEN Plugins
» https://github.com/spotify/docker-maven-plugin
» https://github.com/rhuss/docker-maven-plugin
» https://github.com/wouterd/docker-maven-plugin
CC BY 3.0 US, Harold A. Dost III 22

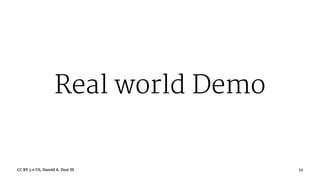

23. Real world Demo
CC BY 3.0 US, Harold A. Dost III 23

24. Using Docker Machine
CC BY 3.0 US, Harold A. Dost III 24

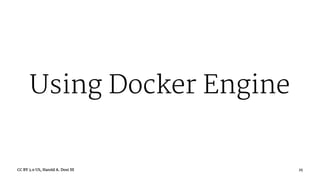

25. Using Docker Engine
CC BY 3.0 US, Harold A. Dost III 25

26. Running Composed
Docker Containers
CC BY 3.0 US, Harold A. Dost III 26

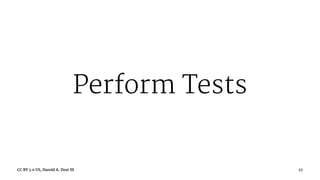

27. Perform Tests
CC BY 3.0 US, Harold A. Dost III 27

28. Combining Docker
with CI
CC BY 3.0 US, Harold A. Dost III 28

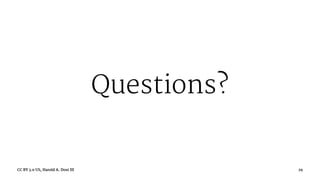

29. Questions?
CC BY 3.0 US, Harold A. Dost III 29
