Introduction to Docker
The document provides an overview of Docker, explaining its architecture, basic commands, and the differences between containers and virtual machines. It details the Docker workflow, including building and running containers, managing images, and pushing images to a registry, along with insights into Linux kernel features that support containerization. Additionally, it touches on orchestration tools, container security, and the benefits of using containers for development and operations.
More Related Content
Similar to Introduction to Docker
Introduction to Docker
- 1.
- 2.
- 3.
- 4. WHAT IS A CONTAINER? Contains the completeruntime environment Application Dependencies

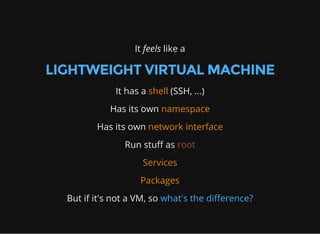

- 5. It feels likea LIGHTWEIGHT VIRTUAL MACHINE It has a shell (SSH, ...) Has its own namespace Has its own network interface Run stuff as root Services Packages But if it's not a VM, so what's the difference?

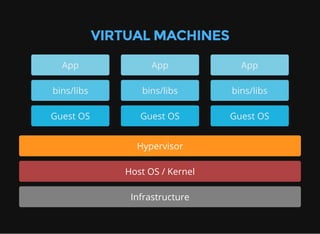

- 6. VIRTUAL MACHINES App bins/libs Guest OS App bins/libs Guest OS App bins/libs GuestOS Hypervisor Host OS / Kernel Infrastructure

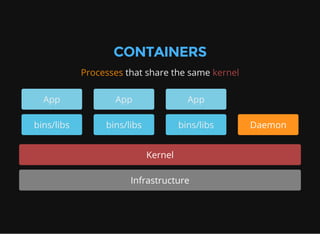

- 7. CONTAINERS Processes that sharethe same kernel App bins/libs App bins/libs App bins/libs Daemon Kernel Infrastructure
- 8.
- 9.

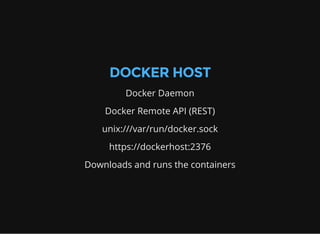

- 10. DOCKER HOST Docker Daemon Docker RemoteAPI (REST) unix:///var/run/docker.sock https://dockerhost:2376 Downloads and runs the containers
- 11.

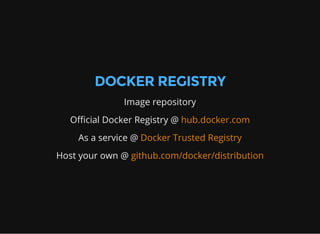

- 12. DOCKER REGISTRY Image repository Official DockerRegistry @ hub.docker.com As a service @ Docker Trusted Registry Host your own @ github.com/docker/distribution

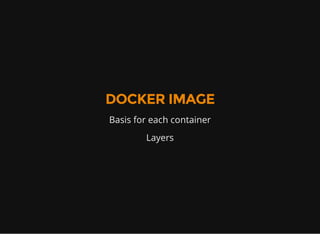

- 13. DOCKER IMAGE Basis for eachcontainer Layers
- 14. LAYERS Top layer isthrown away when container stops Writeable Container Image: My application Image: Java 8 Base Image: Ubuntu bootfs (Kernel)
- 15. CONTENT ADDRESSABLE IMAGE IDS Previously random UUIDs Securehash of image and layer data (SHA-256) Separation of images and layers ID collision prevention Data integrity Migration needed from pre-1.10

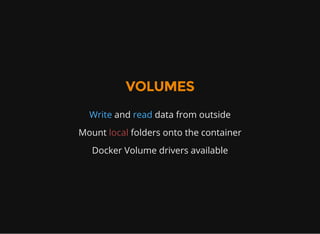

- 16. VOLUMES Write and readdata from outside Mount local folders onto the container Docker Volume drivers available
- 17.
- 18.
- 19.

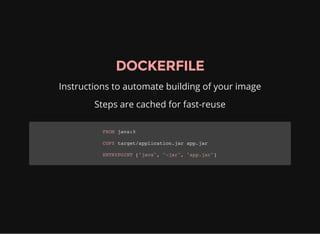

- 20. DOCKERFILE Instructions to automatebuilding of your image Steps are cached for fast-reuse FROM java:8 COPY target/application.jar app.jar ENTRYPOINT ["java", "-jar", "app.jar"]

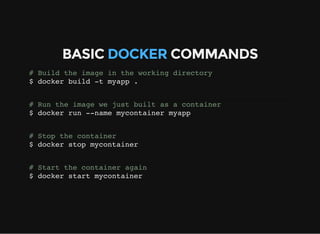

- 21. BASIC DOCKER COMMANDS # Build theimage in the working directory $ docker build -t myapp . # Run the image we just built as a container $ docker run --name mycontainer myapp # Stop the container $ docker stop mycontainer # Start the container again $ docker start mycontainer
- 22. MANAGE CONTAINERS AND IMAGES # List runningcontainers $ docker ps # List all containers, including stopped $ docker ps -a # List all images $ docker images # Remove an image $ docker rmi myapp
- 23. PUSH DOCKER IMAGES TO THE REGISTRY # Login toDocker Registry $ docker login --username=tomverelst --email=tom.verelst@or dina.be # Push the image to the Docker Registry $ docker push myapp
- 24.
- 25. WARNING Real low-level Linuxstuff ahead!

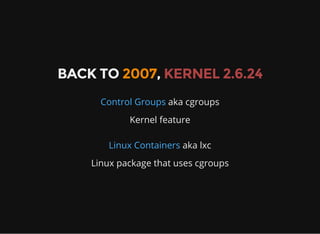

- 26. BACK TO 2007, KERNEL 2.6.24 Control Groups akacgroups Kernel feature Linux Containers aka lxc Linux package that uses cgroups
- 27.

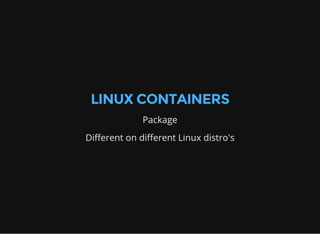

- 28. LINUX CONTAINERS Package Different on differentLinux distro's

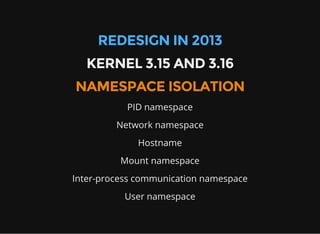

- 29. REDESIGN IN 2013 KERNEL 3.15 AND 3.16 NAMESPACE ISOLATION PID namespace Network namespace Hostname Mountnamespace Inter-process communication namespace User namespace

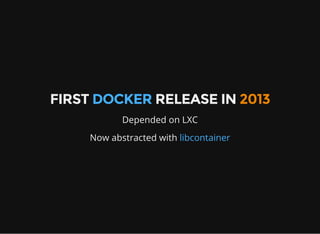

- 30. FIRST DOCKER RELEASE IN 2013 Depended on LXC Nowabstracted with libcontainer
- 31.
- 32.
- 33.
- 34. DevOps DEV Application and dependencies Insideof the container OPS Infrastructure Outside of the container
- 35. CONTINUOUS INTEGRATION Same artifact forall environments No more "It worked on my laptop" Run your builds and tests inside containers
- 36. Orchestration Compose Machine SwarmNetworking

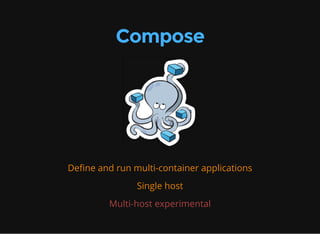

- 37. Compose Define and runmulti-container applications Single host Multi-host experimental
- 38. Machine Create and provisionmachines as Docker hosts
- 39. Create new Dockerhosts Run containers on these new hosts
- 40.
- 41. Swarm Clustering tool Turn multiplehosts into one virtual host Service discovery Scheduling

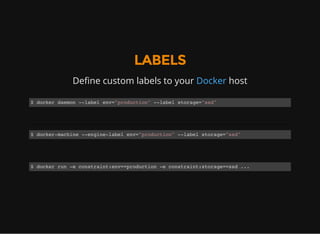

- 43. LABELS Define custom labelsto your Docker host $ docker daemon --label env="production" --label storage="ssd" $ docker-machine --engine-label env="production" --label storage="ssd" $ docker run -e constraint:env==production -e constraint:storage==ssd ...
- 44.
- 45. Networking Create overlay networks Replaceslinks (bridge) Network plugins (Weave) Embedded DNS server
- 46.
- 47.
- 48.
- 49.
- 52. etcd etcd etcdDockerDocker Docker CoreOS host CoreOS host CoreOS host Host #1 Host #2 Host #3 etcd fleetctl etcdctl fleetd nServices systemd service files pool Docker containers Docker containers Docker containers Local machine
- 53.
- 54.

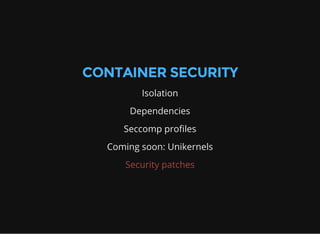

- 56. CONTAINER SECURITY Isolation Dependencies Seccomp profiles Coming soon:Unikernels Security patches

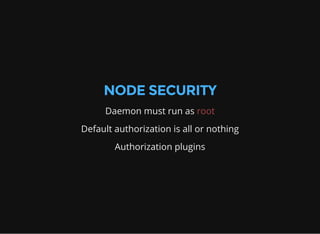

- 57. NODE SECURITY Daemon must runas root Default authorization is all or nothing Authorization plugins
- 58.
