- 1. Intelligent WAN Architecture Enablingthe Digital Enterprise Steven Wood – Principal Engineer,Architect - IWAN
- 2. • Business Driversand Outcomes • IWAN Architecture Overview • Orchestration & Automation • Product Portfolio • Closing Agenda
- 3. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Enterprise WAN - What’s Going on? • WAN bandwidth needs are growing! • Increasing use of Cloud, BYOD/IOE and Video driving increased traffic • The Data Center is Exploding • Private DC -> Hybrid Cloud • It’s all about Application Delivery • IT budgets flat or declining • Transport/bandwidth costs are majority of WAN budget • These trends are driving WAN modernization • Lower cost transports – Internet, LTE, Carrier Ethernet • Cloud Endpoints, Security, Threat Protection • Application performance monitoring and optimization • Fast IT Delivery Models • Software Defined WAN Is Your Network Ready? 3

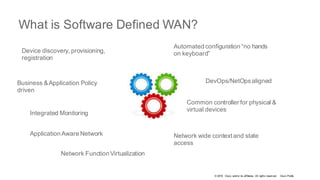

- 4. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public What is Software Defined WAN? Device discovery, provisioning, registration Automated configuration “no hands on keyboard” DevOps/NetOpsaligned Network wide context and state access Common controller for physical & virtual devices Business &Application Policy driven Integrated Monitoring Network Function Virtualization Application Aware Network

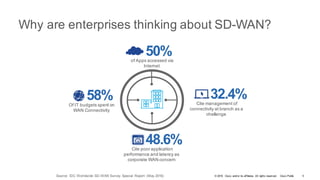

- 5. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Why are enterprises thinking about SD-WAN? Of IT budgets spent on WAN Connectivity 58% of Apps accessed via Internet 50% Cite poor application performance and latency as corporate WAN concern 48.6% Cite management of connectivity at branch as a challenge 32.4% Source: IDC Worldwide SD-WAN Survey Special Report (May 2016) 5

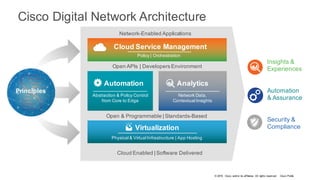

- 6. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Cisco Digital Network Architecture Automation Abstraction & Policy Control from Core to Edge Open & Programmable | Standards-Based Open APIs | Developers Environment Cloud Service Management Policy | Orchestration Virtualization Physical & Virtual Infrastructure | App Hosting Analytics Network Data, Contextual Insights Insights & Experiences Automation & Assurance Security & Compliance Network-Enabled Applications Cloud Enabled | Software Delivered Principles
- 7. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Automation Abstraction and Policy Control from Core to Edge Open and Programmable | Standards-Based Open APIs | Developers Environment Cloud Service Management Policy | Orchestration Virtualization Physical and Virtual Infrastructure | App Hosting Analytics Network Data, Contextual Insights Network-enabled Applications Cloud-enabled | Software-delivered Cisco DNA – How IWAN Fits Virtualization Network Overlays Enterprise NFV Service Virtualization APIC-EM IWAN SD-WAN Orchestration IWAN App for APIC-EM Campus Access Automation Netconf & Yang Model support REST API access DNA-Assurance Streaming Data collection;Netflow; SNMP; Syslog, others Scalable processing and analytics Assurance and Debug Applications DNA-Center Landing Pointfor Cisco Services Security IWAN Campus Wireless Assurance Cloud Ready Network Hybrid cloud Access – SaaS/IaaS/vPC Cloud-based Network Controller
- 8. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Internet as part of a Hybrid Enterprise WAN Commodity Transports Viable Now Dramatic Bandwidth, Price Performance Benefits Higher Network Availability Improved Application Performance 8

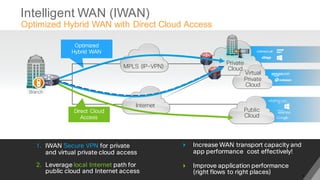

- 9. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Intelligent WAN (IWAN) Optimized Hybrid WAN with Direct Cloud Access Optimized Hybrid WAN Branch Direct Cloud Access Private Cloud Virtual Private Cloud Public Cloud 1. IWAN Secure VPN for private and virtual private cloud access 2. Leverage local Internet path for public cloud and Internet access 4 Increase WAN transport capacity and app performance cost effectively! 4 Improve application performance (right flows to right places) MPLS (IP-VPN) Internet 9

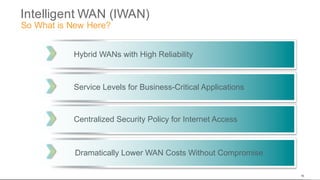

- 10. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Intelligent WAN (IWAN) So What is New Here? Optimized Secure Transport Branch Direct Cloud Access Private Cloud Virtual Private Cloud Public Cloud 1. IWAN Secure transport for private and virtual private cloud access 2. Leverage local Internet path for public cloud and Internet access 4 Increase WAN transport capacity and app performance cost effectively! 4 Improve application performance (right flows to right places) MPLS (IP-VPN) Internet Hybrid WANs with High Reliability Service Levels for Business-Critical Applications Centralized Security Policy for Internet Access Dramatically Lower WAN Costs Without Compromise 10

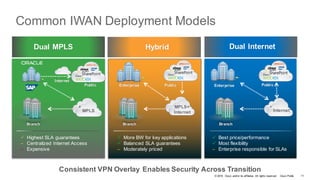

- 11. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Common IWAN Deployment Models Dual MPLS Internet ü Highest SLA guarantees – Centralized Internet Access – Expensive Public MPLS Branch MPLS ü More BW for key applications ü Balanced SLA guarantees – Moderately priced PublicEnterprise Branch MPLS+ Internet Consistent VPN Overlay Enables Security Across Transition ü Best price/performance ü Most flexibility – Enterprise responsible for SLAs Internet Branch Enterprise Public Hybrid Dual Internet Internet 11

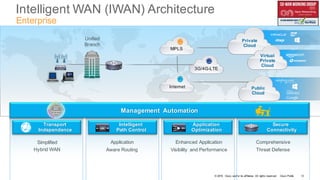

- 12. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Intelligent WAN (IWAN) Architecture Enterprise MPLS Unified Branch 3G/4G-LTE Internet Private Cloud Virtual Private Cloud Public Cloud Application Optimization Enhanced Application Visibility and Performance Secure Connectivity Comprehensive Threat Defense Intelligent Path Control Application Aware Routing Transport Independence Simplified Hybrid WAN Management Automation 12

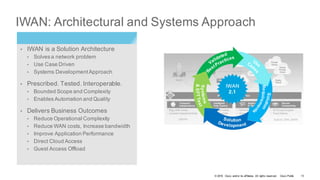

- 13. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public IWAN: Architectural and Systems Approach • IWAN is a Solution Architecture • Solves a network problem • Use Case Driven • Systems DevelopmentApproach • Prescribed. Tested. Interoperable. • Bounded Scope and Complexity • Enables Automation and Quality • Delivers Business Outcomes • Reduce Operational Complexity • Reduce WAN costs, Increase bandwidth • Improve Application Performance • Direct Cloud Access • Guest Access Offload IWAN 2.1 13
- 14.
- 15. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Simplifies WAN Design Dynamic Full-Meshed Connectivity Proven Robust Security Flexible Secure IWAN Overlay Over Any Transport SecureFlexible • Easy multi-homing with several providers • Single routing control plane over the top of provider networks • Consistentdesign over all WAN transport types • Scalable Hub-n-spoke with dynamic full mesh topology • Industry Certified security compliance • Scalable high-performance cryptography in hardware ISR WAN Internet MPLS ASR 1000 ASR 1000 Transport-Independent Data CenterBranch 15

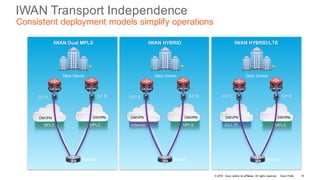

- 16. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public IWAN Transport Independence Consistent deployment models simplify operations Internet MPLS Branch DMVPN DMVPN IWAN HYBRID Data Center ISR ASR 1000 ASR 1000 ISP A SP B 4G/LTE Branch DMVPN IWAN HYBRID/LTE Data Center ISP C SP B ASR 1000 MPLS Branch MPLS DMVPN IWAN Dual MPLS Data Center ISR ASR 1000 ASR 1000 SP A SP B DMVPN MPLS DMVPN ISR ASR 1000 16

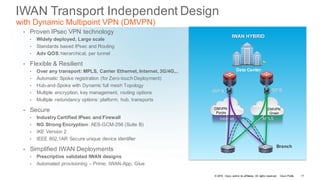

- 17. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public IWAN Transport Independent Design with Dynamic Multipoint VPN (DMVPN) • Proven IPsec VPN technology • Widely deployed, Large scale • Standards based IPsec and Routing • Adv QOS: hierarchical, per tunnel • Flexible & Resilient • Over any transport: MPLS, Carrier Ethernet, Internet, 3G/4G,.. • Automatic Spoke registration (for Zero-touch Deployment) • Hub-and-Spoke with Dynamic full mesh Topology • Multiple encryption, key management, routing options • Multiple redundancy options: platform, hub, transports • Secure • Industry Certified IPsec and Firewall • NG Strong Encryption: AES-GCM-256 (Suite B) • IKE Version 2 • IEEE 802.1AR Secure unique device identifier • Simplified IWAN Deployments • Prescriptive validated IWAN designs • Automated provisioning – Prime, IWAN-App, Glue Branch Internet MPLS DMVPN Purple DMVPN Green IWAN HYBRID Data Center ISP A SP B 17

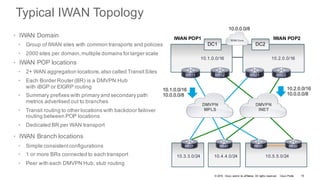

- 18. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Typical IWAN Topology 10.3.3.0/24 10.4.4.0/24 10.5.5.0/24 BR11 BR12 BR21 BR22 DMVPN MPLS DMVPN INET BR31 BR41 10.1.0.0/16 10.2.0.0/16 BR51 BR52 • IWAN Domain • Group of IWAN sites with common transports and policies • 2000 sites per domain,multiple domains for larger scale • IWAN POP locations • 2+ WAN aggregation locations,also called TransitSites • Each Border Router (BR) is a DMVPN Hub with iBGP or EIGRP routing • Summary prefixes with primary and secondary path metrics advertised out to branches • Transit routing to other locations with backdoor failover routing between POP locations • Dedicated BR per WAN transport • IWAN Branch locations • Simple consistentconfigurations • 1 or more BRs connected to each transport • Peer with each DMVPN Hub, stub routing IWAN POP1 IWAN POP2 10.2.0.0/16 10.0.0.0/8 DC1 WAN Core DC2 10.1.0.0/16 10.0.0.0/8 10.0.0.0/8 18
- 19. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Highly Redundant Large Scale Topology 10.3.3.0/24 10.4.4.0/24 10.5.5.0/24 BR31 BR41 BR51 BR52 BR12 IWAN POP1 IWAN POP2 DMVPN MPLS DMVPN INET BR11 BR14BR13 BR22BR21 BR24BR23 10.1.0.0/16 10.2.0.0/16 10.0.0.0/8 10.1.0.0/16 10.2.0.0/16 10.0.0.0/8 • Support for multiple BRs per transport • Horizontal scaling and redundancy • Support for Multiple POPs • Different Prefix • Common Prefix DC1 DCI WAN Core DC2 19
- 20. Intelligent Path Control ImprovingApplication Delivery and WAN Efficiency

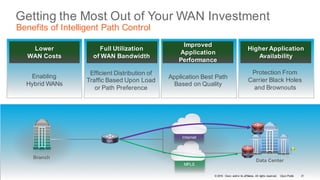

- 21. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Getting the Most Out of Your WAN Investment Benefits of Intelligent Path Control Data Center Branch ASR 1000 ASR 1000 ISR MPLS Internet Enabling Hybrid WANs Efficient Distribution of Traffic Based Upon Load or Path Preference Application Best Path Based on Quality Protection From Carrier Black Holes and Brownouts Lower WAN Costs Full Utilization of WAN Bandwidth Improved Application Performance Higher Application Availability 21
- 22. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public What is Performance Routing (PfR)? MPLS Internet Branch BR BR Data Center MC “Performance Routing (PfR) provides additional intelligence to classic routing to track and verify the quality of a path over a Wide Area Networking (WAN) to determine the best path for application traffic....” MC+BR 22

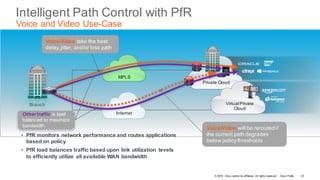

- 23. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Intelligent Path Control with PfR Voice and Video Use-Case Branch MPLS Internet Virtual Private Cloud Private Cloud • PfR monitors network performance and routes applications based on policy • PfR load balances traffic based upon link utilization levels to efficiently utilize all available WAN bandwidth Other traffic is load balanced to maximize bandwidth Voice/Video will be rerouted if the current path degrades below policy thresholds Voice/Video take the best delay,jitter, and/or loss path 23
- 24. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Load Balancing Maximizing Link Utilization to Increase Available Bandwidth • Traffic distributed across all paths to efficiently use all WAN bandwidth • Load Balancing based upon link utilization levels • External links can have different bandwidth capacities MPLS = 1.5Mbps Internet = 15Mbps ISR WAN Internet MPLS ASR 1000 ASR 1000 Data Center 50% T1 = 750kbps 50% 15Mbps = 7.5Mbps 24

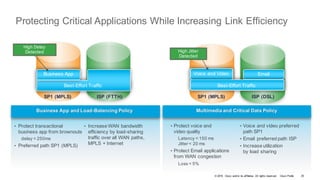

- 25. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public SP1 (MPLS) ISP (FTTH) • Protect voice and video quality Latency < 150 ms Jitter < 20 ms • Protect Email applications from WAN congestion Loss < 5% • Voice and video preferred path SP1 • Email preferred path ISP • Increase utilization by load sharing Multimedia and Critical Data Policy Business App Best-Effort Traffic High Delay Detected SP1 (MPLS) ISP (DSL) Voice and Video High Jitter Detected Email Best-Effort Traffic Protecting Critical Applications While Increasing Link Efficiency • Protect transactional business app from brownouts delay < 250ms • Preferred path SP1 (MPLS) • Increase WAN bandwidth efficiency by load-sharing traffic over all WAN paths, MPLS + Internet Business App and Load-Balancing Policy 25

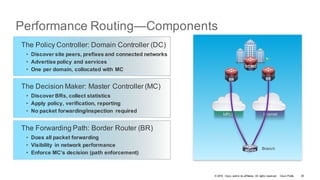

- 26. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Performance Routing—Components The Decision Maker: Master Controller (MC) • Discover BRs, collect statistics • Apply policy, verification, reporting • No packet forwarding/inspection required The Forwarding Path: Border Router (BR) • Does all packet forwarding • Visibility in network performance • Enforce MC’s decision (path enforcement) The Policy Controller: Domain Controller (DC) • Discover site peers, prefixes and connected networks • Advertise policy and services • One per domain, collocated with MC MPLS Internet BranchMC+BR BR BR DC/MC 26
- 27.

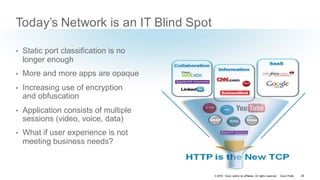

- 28. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Today’s Network is an IT Blind Spot • Static port classification is no longer enough • More and more apps are opaque • Increasing use of encryption and obfuscation • Application consists of multiple sessions (video, voice, data) • What if user experience is not meeting business needs? 28

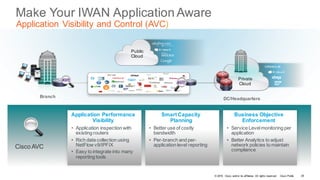

- 29. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Branch Private Cloud Make Your IWAN Application Aware Application Visibility and Control (AVC) DC/Headquarters Public Cloud Cisco AVC Application Performance Visibility • Application inspection with existing routers • Rich data collection using NetFlow v9/IPFIX • Easy to integrate into many reporting tools Smart Capacity Planning • Better use of costly bandwidth • Per-branch and per- application level reporting Business Objective Enforcement • Service Levelmonitoring per application • Better Analytics to adjust network policies to maintain compliance AVC AVC 29

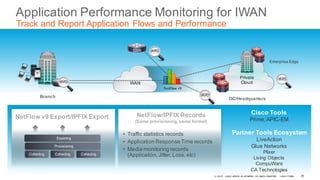

- 30. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Private Cloud Application Performance Monitoring for IWAN Track and Report Application Flows and Performance WAN NetFlow v9 Enterprise Edge AVC AVC CSR NetFlow/IPFIX Records (Same provisioning, same format) • Traffic statistics records • Application Response Time records • Media monitoring records (Application,Jitter, Loss, etc) Cisco Tools Prime,APIC-EM Partner Tools Ecosystem LiveAction Glue Networks Plixer Living Objects CompuWare CA Technologies Collecting Collecting Collecting Provisioning Exporting NetFlow v9 Export/IPFIX Export Branch DC/Headquarters AVC AVC 30

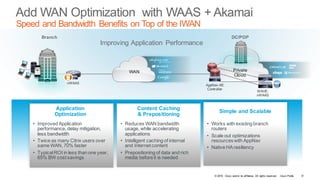

- 31. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Private Cloud Add WAN Optimization with WAAS + Akamai Speed and Bandwidth Benefits on Top of the IWAN Branch DC/POP Application Optimization • Improved Application performance, delay mitigation, less bandwidth • Twice as many Citrix users over same WAN, 70% faster • TypicalROI in less than one year, 65% BW cost savings Content Caching & Prepositioning Simple and Scalable • Works with existing branch routers • Scale out optimizations resourceswith AppNav • Native HA resiliency vWAAS AppNav-XE Controller CSR WAVE, vWAAS WAN Improving Application Performance • Reduces WAN bandwidth usage, while accelerating applications • Intelligent caching of internal and Internet content • Prepositioning of data and rich media before it is needed 31

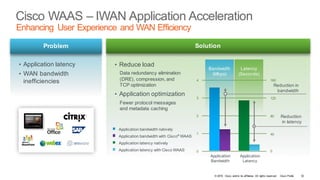

- 32. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Cisco WAAS – IWAN Application Acceleration Enhancing User Experience and WAN Efficiency Solution • Reduce load Data redundancy elimination (DRE), compression, and TCP optimization • Application optimization Fewer protocol messages and metadata caching Problem • Application latency • WAN bandwidth inefficiencies Application bandwidth with Cisco® WAAS Application bandwidth natively Application latency natively Application latency with Cisco WAAS 0 0 1 2 3 4 40 80 120 160 Application Bandwidth Application Latency Bandwidth (Mbps) Latency (Seconds) Reduction in bandwidth Reduction in latency 32
- 33. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Akamai Connect accelerates HTTP/HTTPS applications, video and content in the branch, while maximizing existing enterprise network bandwidth Branch End-User Akamai Connect integrated into Cisco ISR-AX routers ISR-AX+AC INTERNET Akamai Intelligent Platform Data Center WAAS WAN IWAN – Application Acceleration with Akamai Connect 33

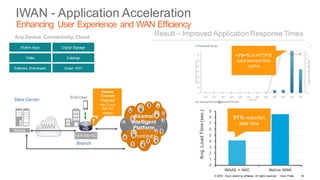

- 34. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Branch End-User Akamai Connect integrated into Cisco ISR-AX routers ISR-AX+AC Akamai Intelligent Platform INTERNET Data Center WAAS WAN IWAN - Application Acceleration Enhancing User Experience and WAN Efficiency Mobile Apps Video Software Downloads Digital Signage Catalogs Guest WiFi Any Device, Connectivity, Cloud Result – Improved Application Response Times ~70+% of HTTP/S data served from cache 0 1 2 3 4 5 6 7 8 9 WAAS + AKC Native WAN Avg.LoadTime(sec.) 51% reduction load time 34
- 35.

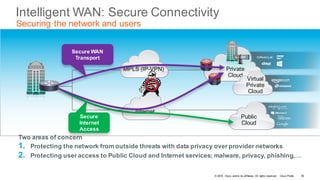

- 36. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Intelligent WAN: Secure Connectivity Securing the network and users Secure WAN Transport Branch MPLS (IP-VPN) Internet Secure Internet Access Private Cloud Virtual Private Cloud Public Cloud Two areas of concern 1. Protecting the network from outside threats with data privacy over provider networks 2. Protecting user access to Public Cloud and Internet services; malware, privacy, phishing,… 36
- 37. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Securing the IWAN Transport IPSec VPN and Access Control • Step 1: Authenticate hardware and software Trust Anchor Module verification • Step 2: Secure Transport Proven IPsec VPN overlay Strong Cryptography:IKEv2 + AES-GCM 256 F-VRF to isolate provider networks • Step 3: Protect the Site IOS Zone-based Firewall or ACLs protection Role based access to router w/ logging Minimize exposure Provider assigned addressing to hide routers Don’tput tunnel addresses into DNS MPLS Internet Branch ASR 1000 ASR 1000 ISP A ISP C Data Center 37
- 38. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public MPLS Internet Branch ASR 1000 ASR 1000 ISP A ISP C Data Center Add Network Integrated Threat Defense IOS Zone-Based Firewall • Control the Perimeter: • External and internal protection: internal network is no longer trusted • Protocol anomaly detection and stateful inspection • Communicate Securely: • Call flow awareness (SIP, SCCP, H323) • Prevent DoS attacks • Flexible: • Split Tunnel-Branch direct Internet access • Internal FW— addresses regulatory compliances • Integrated: • No need for additional devices, expenses and power • Works with other IWAN Services: CWS, WAAS, UCS-E,… • Manageable: • APIC-EM, Prime, CLI, SNMP, CCP, and CSM 38

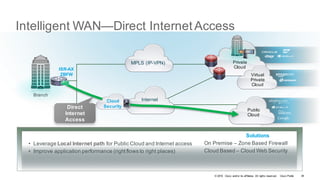

- 39. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Intelligent WAN—Direct Internet Access Branch MPLS (IP-VPN) Internet Direct Internet Access Private Cloud Virtual Private Cloud Public Cloud • Leverage Local Internet path for Public Cloud and Internet access • Improve application performance (rightflows to right places) Solutions On Premise – Zone Based Firewall Cloud Based – Cloud Web Security Cloud Security ISR-AX ZBFW 39

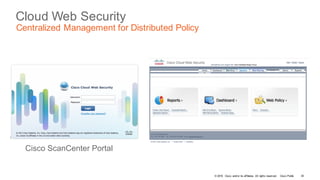

- 40. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Cloud Web Security Centralized Management for Distributed Policy Cisco ScanCenter Portal 40

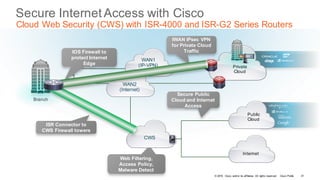

- 41. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Secure Internet Access with Cisco Cloud Web Security (CWS) with ISR-4000 and ISR-G2 Series Routers Secure Public Cloud and Internet Access ISR Connector to CWS Firewall towers Web Filtering, Access Policy, Malware Detect WAN1 (IP-VPN) CWS Private Cloud Public Cloud Branch WAN2 (Internet) IWAN IPsec VPN for Private Cloud TrafficIOS Firewall to protect Internet Edge Internet 41
- 42.

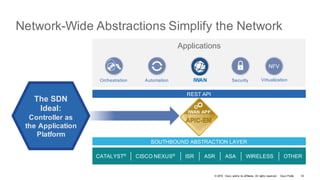

- 43. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Network-Wide Abstractions Simplify the Network Applications SecurityOrchestration Automation SOUTHBOUND ABSTRACTION LAYER REST API CATALYST® CISCO NEXUS® ASRISR WIRELESSASA OTHER SDN Ideal: Controller as the Application Platform The SDN Ideal: Controller as the Application Platform Virtualization 43 IWAN APIC-EM IWAN APP

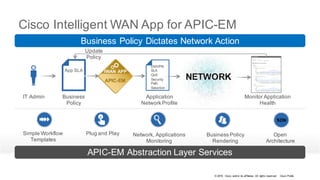

- 44. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Cisco Intelligent WAN App for APIC-EM IT Admin App SLA DMVPN SLA QoS Security Path Selection Business Policy Application Network Profile NETWORK SDN Simple Workflow Templates Plug and Play Business Policy Rendering Open Architecture Network, Applications Monitoring APIC-EM Abstraction Layer Services Business Policy Dictates Network Action APIC-EM IWAN APP Monitor Application Health Update Policy

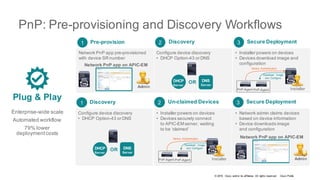

- 45. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public PnP: Pre-provisioning and Discovery Workflows Plug & Play Enterprise-wide scale Automated workflow 79% lower deploymentcosts Pre-provision1 Discovery2 Secure Deployment3 Discovery1 Un-claimed Devices2 Secure Deployment3 Network PnP app pre-provisioned with device SR number Configure device discovery • DHCP Option-43 or DNS • Installer powers on devices • Devices download image and configuration • Installer powers on devices • Devices securely connect to APIC-EM server, waiting to be ‘claimed’ • Network admin claims devices based on device information • Device downloads image and configuration Configure device discovery • DHCP Option-43 or DNS Network PnP app on APIC-EM Admin EM DHCP Server DNS Server OR PnP-Agent PnP-Agent EM Device Authentication Download Image and Configure Installer Network PnP app on APIC-EM Admin EM DHCP Server DNS Server OR PnP-Agent PnP-Agent EM Device Authentication Download Image and Configure Installer

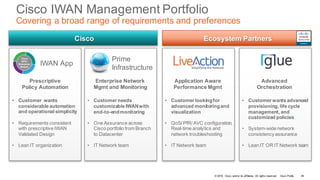

- 46. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Cisco IWAN Management Portfolio Covering a broad range of requirements and preferences • Customer wants advanced provisioning, life cycle management, and customized policies • System-wide network consistencyassurance • Lean IT OR IT Network team Cisco Prime Infrastructure • Customer needs customizable IWANwith end-to-endmonitoring • One Assurance across Cisco portfolio from Branch to Datacenter • IT Network team Enterprise Network Mgmt and Monitoring Ecosystem Partners IWAN App • Customer wants considerable automation and operational simplicity • Requirements consistent with prescriptive IWAN Validated Design • Lean IT organization Prescriptive Policy Automation • Customer lookingfor advanced monitoringand visualization • QoS/ PfR/ AVC configuration, Real-time analytics and network troubleshooting • IT Network team Application Aware Performance Mgmt Advanced Orchestration 46

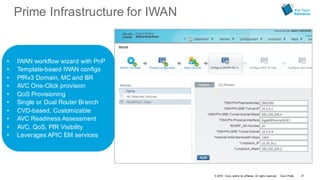

- 47. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Prime Infrastructure for IWAN • IWAN workflow wizard with PnP • Template-based IWAN configs • PfRv3 Domain, MC and BR • AVC One-Click provision • QoS Provisioning • Single or Dual Router Branch • CVD-based, Customizable • AVC Readiness Assessment • AVC, QoS, PfR Visibility • Leverages APIC EM services For Your Reference 47

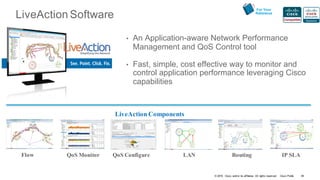

- 48. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public LiveAction Software • An Application-aware Network Performance Management and QoS Control tool • Fast, simple, cost effective way to monitor and control application performance leveraging Cisco capabilities LiveAction Components Flow QoS Monitor QoS Configure RoutingLAN IP SLA For Your Reference 48
- 49. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Glue Networks IWAN Orchestration • Cloud-based SaaS subscription model • Eliminates manual building of WANs • Automated WAN orchestration and management • Quick configuration updates and IOS upgrades • Rapidly delivers nextgen and IWAN features • Forward compatible with SDN APIs for app aware WANs • Broadband and MPLS support for centralized hybrid WAN management for IWAN For Your Reference 49
- 50. Cisco IWAN ProductPortfolio

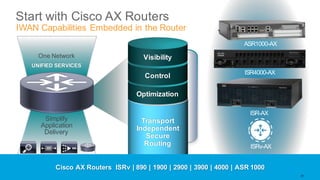

- 51. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Start with Cisco AX Routers IWAN Capabilities Embedded in the Router ISR-AX Simplify Application Delivery One Network UNIFIED SERVICES ISR4000-AX Transport Independent Secure Routing Optimization Control Visibility Cisco AX Routers ISRv | 890 | 1900 | 2900 | 3900 | 4000 | ASR 1000 51 ISRv-AX ASR1000-AX

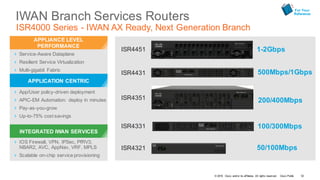

- 52. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public IWAN Branch Services Routers ISR4000 Series - IWAN AX Ready, Next Generation Branch INTEGRATED IWAN SERVICES APPLICATION CENTRIC APPLIANCE LEVEL PERFORMANCE 4 IOS Firewall, VPN, IPSec, PfRV3, NBAR2, AVC, AppNav, VRF, MPLS 4 Scalable on-chip service provisioning 4 App/User policy-driven deployment 4 APIC-EM Automation: deploy in minutes 4 Pay-as-you-grow 4 Up-to-75% cost savings 4 Service-Aware Dataplane 4 Resilient Service Virtualization 4 Multi-gigabit Fabric ISR4431 ISR4351 ISR4331 ISR4321 ISR4451 500Mbps/1Gbps 200/400Mbps 100/300Mbps 50/100Mbps 1-2Gbps For Your Reference 52
- 53. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public IWAN Aggregation Border Routers ASR1000 - IWAN AX Ready, High Performance Routers INTEGRATED IWAN SERVICES BUSINESS-CRITICALRESILIENCY COMPACT, POWERFUL ROUTER 4 IOS Firewall, VPN, IPSec, PfRV3, NBAR2, AVC, AppNav, VRF, MPLS 4 Scalable on-chip service provisioning 4 Separate control and data planes 4 Hardware and software redundancy 4 In-service software upgrades 4 Line-rate performance 2.5G to 200G+ with services enabled 4 Crypto performance from 2G to 60G+ 4 Flexible I/O: SPAs and Ethernet LCs § 2.5G Upgradeable to 5G, 10G, 20G § Up to 8G Crypto Throughput § 5G Upgradeable to 10G, 20G, 36G § Up to 4G Crypto Throughput § Modular,Redundantup to 200G § Up to 60G Crypto Throughput ASR1001-X ASR1002-X Modular ASR1006-X For Your Reference 53 § 44G Upgradeable to 100G § 8, 16, 25G Crypto Throughput ASR1002-HX New New

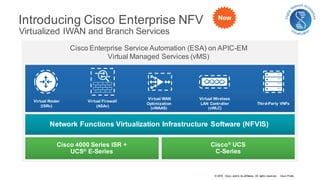

- 54. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Cisco Enterprise Service Automation (ESA) on APIC-EM Virtual Managed Services (vMS) Introducing Cisco Enterprise NFV Virtualized IWAN and Branch Services Cisco 4000 Series ISR + UCS® E-Series Network Functions Virtualization Infrastructure Software (NFVIS) Virtual Router (ISRv) Virtual Firewall (ASAv) Virtual WAN Optimization (vWAAS) Virtual Wireless LAN Controller (vWLC) Third-Party VNFs New Cisco® UCS C-Series
- 55.
- 56. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public IWAN Vision and Strategy Secure VPN Overlay, Any Transport, Bandwidth Efficiency,Application SLA Secure, Simple,Centralized Policy Automation Global Policies,Cloud POPs, Mobility, Optimization,Cloud Security vRouter, vService and App Orchestration Campus/WAN/DC INTELLIGENT VIRTUALIZATION AUTOMATION CLOUD INTEGRATION SERVICE VIRTUALIZATION ENTERPRISE DNA 56

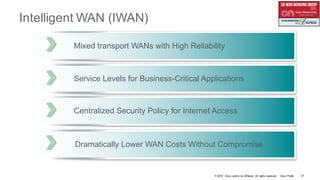

- 57. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Intelligent WAN (IWAN) Optimized Secure Transport Branch Direct Cloud Access Private Cloud Virtual Private Cloud Public Cloud MPLS (IP-VPN) Internet Mixed transport WANs with High Reliability Service Levels for Business-Critical Applications Centralized Security Policy for Internet Access Dramatically Lower WAN Costs Without Compromise 57
