Cisco IWAN – Intelligent Connectivity for Today’s Reality
- 2. Cisco Intelligent WAN: Enablingthe Next-Gen Branch Technical Overview
- 3. Cisco Confidential 3©2013-2014 Cisco and/or its affiliates. All rights reserved. Agenda IWAN Introduction and Business Drivers Intelligent Path Control Transport Independent Design Application Visibility Secure Connectivity for Direct Internet Connectivity IWAN Management Summary

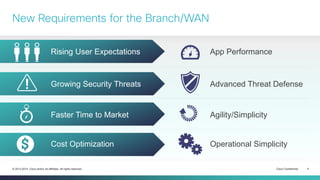

- 4. Cisco Confidential 4©2013-2014 Cisco and/or its affiliates. All rights reserved. New Requirements for the Branch/WAN Rising User Expectations Growing Security Threats Faster Time to Market Cost Optimization App Performance Advanced Threat Defense Operational Simplicity Agility/Simplicity

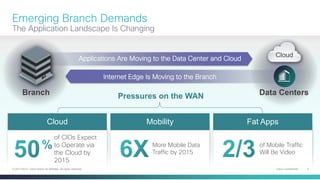

- 5. Cisco Confidential 5©2013-2014 Cisco and/or its affiliates. All rights reserved. Emerging Branch Demands The Application Landscape Is Changing Applications Are Moving to the Data Center and Cloud Internet Edge Is Moving to the Branch Branch Cloud Data Centers of CIOs Expect to Operate via the Cloud by 2015 More Mobile Data Traffic by 2015 of Mobile Traffic Will Be Video Pressures on the WAN Fat AppsMobilityCloud
- 6. Cisco Confidential 6©2013-2014 Cisco and/or its affiliates. All rights reserved. Commodity Transports Viable Now Internet Becoming an Extension of Enterprise WAN Dramatic Bandwidth, Price Performance Benefits Higher Network Availability Improved Performance Over Internet

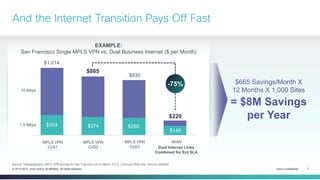

- 7. Cisco Confidential 7©2013-2014 Cisco and/or its affiliates. All rights reserved. And the Internet Transition Pays Off Fast EXAMPLE: San Francisco Single MPLS VPN vs. Dual Business Internet ($ per Month) 1.5 Mbps 10 Mbps $220 $140 $830 $260 $885 $274 $1,014 $303 Dual Internet Links Combined for Ent SLA -75% iWANMPLS VPN CoS3 MPLS VPN CoS2 MPLS VPN CoS1 Source: Telegeography MPLS VPN pricing for San Francisco as of March 2013; Comcast Web site; Verizon website

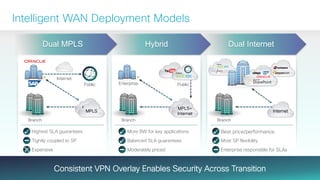

- 8. Cisco Confidential 8©2013-2014 Cisco and/or its affiliates. All rights reserved. Intelligent WAN Deployment Models Dual InternetHybridDual MPLS Consistent VPN Overlay Enables Security Across Transition Expensive Highest SLA guarantees Tightly coupled to SP Internet Branch Public MPLS MPLS Branch Public MPLS+ Internet Branch Internet More BW for key applications Moderately priced Balanced SLA guarantees Enterprise Best price/performance Enterprise responsible for SLAs Most SP flexibility

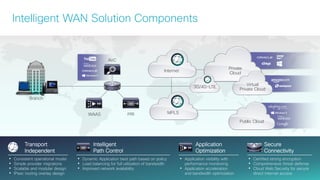

- 9. Cisco Confidential 9©2013-2014 Cisco and/or its affiliates. All rights reserved. Intelligent WAN Solution Components Branch Internet MPLS Private Cloud Virtual Private Cloud Public Cloud 3G/4G-LTE AVC WAAS PfR Transport Independent • Consistent operational model • Simple provider migrations • Scalable and modular design • IPsec routing overlay design • Dynamic Application best path based on policy • Load balancing for full utilization of bandwidth • Improved network availability Intelligent Path Control • Application visibility with performance monitoring • Application acceleration and bandwidth optimization Application Optimization • Certified strong encryption • Comprehensive threat defense • Cloud Web Security for secure direct Internet access Secure Connectivity
- 10.
- 11. Cisco Confidential 11©2013-2014 Cisco and/or its affiliates. All rights reserved. Transport Independent Comprehensive WAN Transport Support with Secure, Full Mesh Connectivity SecureFlexibleTransport-independent Simplifies WAN Design Easy multi-homing over any carrier service offering Single routing control plane with minimal peering to the provider Dynamic Full-Meshed Connectivity Consistent design over all transports Automatic site-to-site IPsec tunnels Zero-touch hub configuration for new spokes Proven Robust Security Consistent design over all transports Automatic site-to-site IPsec tunnels Zero-touch hub configuration for new spokes WAN Internet Branch MPLS Data Center ASR 1000 ASR 1000 ISR-G2

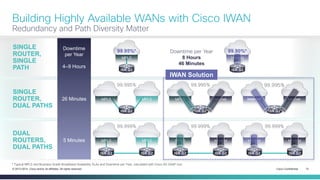

- 12. Cisco Confidential 12©2013-2014 Cisco and/or its affiliates. All rights reserved. SINGLE ROUTER, SINGLE PATH SINGLE ROUTER, DUAL PATHS DUAL ROUTERS, DUAL PATHS Building Highly Available WANs with Cisco IWAN Redundancy and Path Diversity Matter Downtime per Year 4–9 Hours 5 Minutes 26 Minutes * Typical MPLS and Business Grade Broadband Availability SLAs and Downtime per Year, calculated with Cisco AS DAAP tool. Downtime per Year 8 Hours 46 Minutes IWAN Solution MPLS 99.95%* ISR G2 MPLS 99.995% MPLS ISR G2 Internet 99.90%* ISR G2 MPLS 99.995% Internet ISR G2 Internet 99.995% Internet ISR G2 InternetMPLS 99.999% ISR G2 ISR G2 InternetInternet 99.999% ISR G2 ISR G2 99.999% MPLS ISR G2 MPLS ISR G2
- 13. Intelligent Path Control: PerformanceRouting (PfR) Improving Application Delivery and WAN Efficiency
- 14. Cisco Confidential 14©2013-2014 Cisco and/or its affiliates. All rights reserved. “Performance Routing (PfR) provides additional intelligence to classic routing technologies to track the performance of, or verify the quality of, a path between two devices over a Wide Area Networking (WAN) infrastructure to determine the best egress or ingress path for application traffic....” What Is Performance Routing (PfR)? DSL Cable BranchMC+BR BR BR Data Center MC • Cisco IOS technology • Two components: Master controller and border router
- 15. Cisco Confidential 15©2013-2014 Cisco and/or its affiliates. All rights reserved. PATH CONTROL METRICS ADAPTIVE PfR Enhances Classical Routing Classical PfR • Topological state • Least cost path • Static user preference • Path cost • Interface state • Delay • Jitter • Bandwidth Responds To: • Measured performance changes (degradation) Responds To: • Link and node state changes (up/down) • Application-aware • Policy controlled • Measured performance +

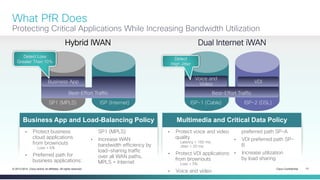

- 16. Cisco Confidential 17©2013-2014 Cisco and/or its affiliates. All rights reserved. SP1 (MPLS) ISP (Internet) Business App Hybrid IWAN Best-Effort Traffic Detect Loss Greater Than 10% ISP-1 (Cable) ISP-2 (DSL) Voice and Video Dual Internet iWAN Detect High Jitter VDI Best-Effort Traffic What PfR Does Protecting Critical Applications While Increasing Bandwidth Utilization • Protect business cloud applications from brownouts Loss < 5% • Preferred path for business applications: SP1 (MPLS) • Increase WAN bandwidth efficiency by load-sharing traffic over all WAN paths, MPLS + Internet Business App and Load-Balancing Policy • Protect voice and video quality Latency < 150 ms; Jitter < 20 ms • Protect VDI applications from brownouts Loss < 5% • Voice and video preferred path SP-A • VDI preferred path SP- B • Increase utilization by load sharing Multimedia and Critical Data Policy

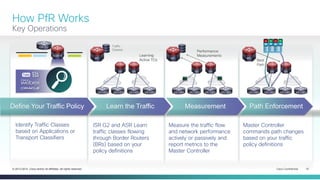

- 17. Cisco Confidential 18©2013-2014 Cisco and/or its affiliates. All rights reserved. Master Controller commands path changes based on your traffic policy definitions Best Path BR BR MC MC+BR MC+BR MC+BR MC+BR Measure the traffic flow and network performance actively or passively and report metrics to the Master Controller Performance Measurements BR BR MC MC+BR MC+BR MC+BR MC+BR ISR G2 and ASR Learn traffic classes flowing through Border Routers (BRs) based on your policy definitions Learning Active TCs BR BR MC+BR MC+BR MC+BR MC+BR Traffic Classes MC Identify Traffic Classes based on Applications or Transport Classifiers ASR1K ISR G2 How PfR Works Key Operations Path EnforcementMeasurementLearn the TrafficDefine Your Traffic Policy
- 18. Cisco Confidential 19©2013-2014 Cisco and/or its affiliates. All rights reserved. Choose your policy actions for various traffic classes Alternate path selection based on flexible criteria Example: Defining Application Performance Policy Link Load Balancing Max Utilization Link-Group Path Preference Bandwidth Costs ($) Application Reachability Delay Loss MOS Jitter FLEXIBLE CRITERIA Load-BalanceRemaining Traffic Critical Application 1. Link-Group: Path-B 2. Loss 4. Delay Voice/Video 1. Link-Group: Path-A 2. Loss 3. Jitter 4. Delay
- 19.

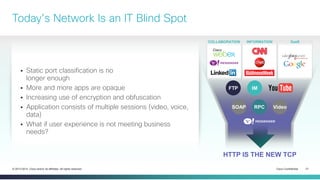

- 20. Cisco Confidential 21©2013-2014 Cisco and/or its affiliates. All rights reserved. HTTP IS THE NEW TCP Today’s Network Is an IT Blind Spot Static port classification is no longer enough More and more apps are opaque Increasing use of encryption and obfuscation Application consists of multiple sessions (video, voice, data) What if user experience is not meeting business needs? COLLABORATION SaaSINFORMATION RPCSOAP Video IMFTP

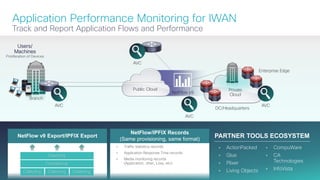

- 21. Cisco Confidential 22©2013-2014 Cisco and/or its affiliates. All rights reserved. Application Performance Monitoring for IWAN Track and Report Application Flows and Performance Public Cloud DC/Headquarters Private Cloud Enterprise Edge • Traffic statistics records • Application Response Time records • Media monitoring records (Application, Jitter, Loss, etc) NetFlow/IPFIX Records (Same provisioning, same format) • ActionPacked • Glue • Plixer • Living Objects • CompuWare • CA Technologies • InfoVista PARTNER TOOLS ECOSYSTEMNetFlow v9 Export/IPFIX Export Collecting Collecting Collecting Provisioning Exporting AVC AVC NetFlow v9 AVC Branch Proliferation of Devices Users/ Machines AVC CSR

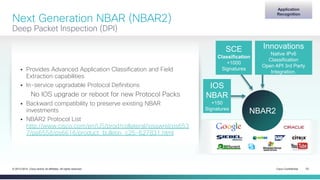

- 22. Cisco Confidential 23©2013-2014 Cisco and/or its affiliates. All rights reserved. Next Generation NBAR (NBAR2) Deep Packet Inspection (DPI) Provides Advanced Application Classification and Field Extraction capabilities In-service upgradable Protocol Definitions No IOS upgrade or reboot for new Protocol Packs Backward compatibility to preserve existing NBAR investments NBAR2 Protocol List http://www.cisco.com/en/US/prod/collateral/iosswrel/ps653 7/ps6558/ps6616/product_bulletin_c25-627831.html Application Recognition NBAR2 IOS NBAR +150 Signatures SCE Classification +1000 Signatures Innovations Native IPv6 Classification Open API 3rd Party Integration.
- 23. Cisco Confidential 24©2013-2014 Cisco and/or its affiliates. All rights reserved. Performance Collection and Exporting HTTP HTTP Voice and Video Performance (Media Monitoring) Advanced Monitoring 30% of traffic is voice and video Critical Applications Performance (Application Response Time) 40% of traffic is critical applications Perf. Collection and Exporting Integrated performance monitoring and advanced metrics for different type of applications and use cases What applications, how much bandwidth, flow direction? (Flexible Netflow and NBAR/NBAR2) Basic Monitoring

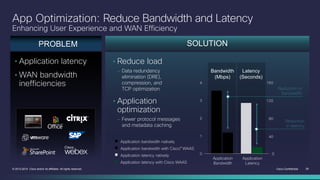

- 24. Cisco Confidential 25©2013-2014 Cisco and/or its affiliates. All rights reserved. SOLUTION • Reduce load – Data redundancy elimination (DRE), compression, and TCP optimization • Application optimization – Fewer protocol messages and metadata caching PROBLEM • Application latency • WAN bandwidth inefficiencies Application bandwidth with Cisco® WAAS Application bandwidth natively Application latency natively Application latency with Cisco WAAS 0 0 1 2 3 4 40 80 120 160 Application Bandwidth Application Latency Bandwidth (Mbps) Latency (Seconds) Reduction in bandwidth Reduction in latency App Optimization: Reduce Bandwidth and Latency Enhancing User Experience and WAN Efficiency

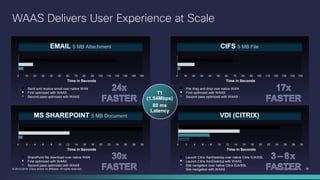

- 25. Cisco Confidential 26©2013-2014 Cisco and/or its affiliates. All rights reserved. EMAIL 5 MB Attachment CIFS 5 MB File WAAS Delivers User Experience at Scale Send and receive email over native WAN First optimized with WAAS Second pass optimized with WAAS 100 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Time in Seconds T1 (1.54Mbps) 80 ms Latency MS SHAREPOINT 5 MB Document VDI (CITRIX) 100 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Time in Seconds File drag and drop over native WAN First optimized with WAAS Second pass optimized with WAAS SharePoint file download over native WAN First optimized with WAAS Second pass optimized with WAAS 20 4 6 8 10 12 14 16 18 20 22 24 26 28 30 Time in Seconds Launch Citrix XenDesktop over native Citrix ICA/SSL Launch Citrix XenDesktop with WAAS Site navigation over native Citrix ICA/SSL Site navigation with WAAS 20 4 6 8 10 12 14 16 18 20 22 24 26 28 30 Time in Seconds

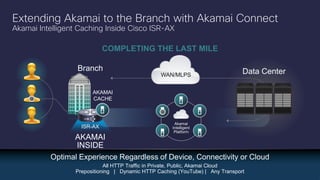

- 26. Cisco Confidential 27©2013-2014 Cisco and/or its affiliates. All rights reserved. Akamai Intelligent Platform Extending Akamai to the Branch with Akamai Connect Akamai Intelligent Caching Inside Cisco ISR-AX COMPLETING THE LAST MILE Branch ISR-AX AKAMAI INSIDE AKAMAI CACHE Optimal Experience Regardless of Device, Connectivity or Cloud All HTTP Traffic in Private, Public, Akamai Cloud Prepositioning | Dynamic HTTP Caching (YouTube) | Any Transport Data CenterWAN/MLPS
- 27.

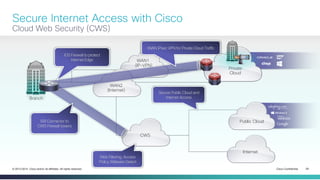

- 28. Cisco Confidential 29©2013-2014 Cisco and/or its affiliates. All rights reserved. Private Cloud Secure Internet Access with Cisco Cloud Web Security (CWS) WAN1 (IP-VPN) CWS Public Cloud Internet WAN2 (Internet) Branch IOS Firewall to protect Internet Edge Secure Public Cloud and Internet Access ISR Connector to CWS Firewall towers Web Filtering, Access Policy, Malware Detect IWAN IPsec VPN for Private Cloud Traffic
- 29. Cisco Confidential 30©2013-2014 Cisco and/or its affiliates. All rights reserved. MPLS (IP-VPN) Internet Private Cloud Virtual Private Cloud Public Cloud Branch Cisco ISR CWS Connector How it Works HQ Routes HQ Traffic Default Route WAN Tunnel CWS Connector Internet DSL Interface Cisco ISR G2 with CWS Cloud Connector— FUNCTIONS: • Authenticate router and client to CWS cloud • Intercept HTTP/HTTPS traffic based on ACL filters • Add user credentials header for identifying policy to be applied • Traffic Relay: replace client Source IP address with Egress address • Redirect to CWS for scanning • Act as HTTP proxy to complete requests • Allow/Block or Warn based on user or group policy • Scan for Malware
- 30.
- 31. Cisco Confidential 32©2013-2014 Cisco and/or its affiliates. All rights reserved. Cisco Prime Infrastructure Provides Enterprise and Integrator life-cycle network management applications Glue Networks Delivers Cloud based simplified deployment portal LiveAction IWAN AVC and PfR Configuration and Monitoring SDN ready with OnePK Comprehensive programmability kit to enable SDN provisioning applications IWAN Network Management Solutions From Cisco and NMS Partners
- 32. Cisco Confidential 33©2013-2014 Cisco and/or its affiliates. All rights reserved. Simplified Deployment Prime Infrastructure Transport Independent Design Prime Infrastructure Intelligent Path Control Application Optimization WAAS Central Manager Secure Internet Connectivity Prime Infrastructure Network Health and Status Prime Infrastructure IWAN 1.0 Management Tool Matrix (AVC)
- 33.

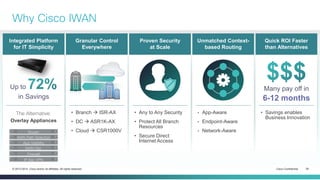

- 34. Cisco Confidential 35©2013-2014 Cisco and/or its affiliates. All rights reserved. Why Cisco IWAN Up to in Savings The Alternative: Overlay Appliances App Visibility andControl IP Sec VPN WAN Opt. Firewall WAN Path Selection Router Integrated Platform for IT Simplicity • Branch ISR-AX • DC ASR1K-AX • Cloud CSR1000V Granular Control Everywhere • Savings enables Business Innovation Many pay off in 6-12 months Quick ROI Faster than Alternatives • Any to Any Security • Protect All Branch Resources • Secure Direct Internet Access Proven Security at Scale • App-Aware • Endpoint-Aware • Network-Aware Unmatched Context- based Routing
- 35. Cisco Confidential 36©2013-2014 Cisco and/or its affiliates. All rights reserved. Start with Cisco AX Routers IWAN Capabilities Embedded in the Router Simplify Application Delivery One Network UNIFIED SERVICES ASR1000-AX ISR-AX Cisco AX Routers: ISR-4000-AX | ASR1000-AX Transport Independent Routing Secure Connectivity Intelligent Path Control Application Optimization
- 36. Cisco Confidential 37©2013-2014 Cisco and/or its affiliates. All rights reserved. Cisco Confidential IWAN Branch Services Routers INTEGRATED IWAN SERVICES APPLICATION CENTRIC APPLIANCE LEVEL PERFORMANCE IOS Firewall, VPN, IPSec, PfRV3, NBAR2, AVC, AppNav, VRF, MPLS Scalable on-chip service provisioning App/User policy-driven deployment APIC_EM Automation: deploy in minutes Pay-as-you-grow Up-to-75% cost savings Service-Aware Dataplane Resilient Service Virtualization Multi-gigabit Fabric ISR4000 Series - IWAN AX Ready, Next Generation Branch ISR4431 ISR 4351 ISR 4331 ISR4321 ISR4451 500Mbps/1Gb ps 200/400Mbps 100/300Mbps 50/100Mbps 1-2Gbps NEW! NEW! NEW! NEW!
- 37. Cisco Confidential 38©2013-2014 Cisco and/or its affiliates. All rights reserved. Cisco Confidential IWAN Aggregation Border Routers ASR1000 - IWAN AX Ready, High Performance Routers INTEGRATED IWAN SERVICES BUSINESS-CRITICAL RESILIENCY COMPACT, POWERFUL ROUTER IOS Firewall, VPN, IPSec, PfRV3, NBAR2, AVC, AppNav, VRF, MPLS Scalable on-chip service provisioning Separate control and data planes Hardware and software redundancy In-service software upgrades Line-rate performance 2.5G to 200G+ with services enabled Crypto performance from 2G to 60G+ Flexible I/O: SPAs and Ethernet LCs 2.5G Upgradeable to 5G, 10G, 20G Up to 8G Crypto Throughput 5G Upgradeable to 10G, 20G, 36G Up to 4G Crypto Throughput Modular, Redundant up to 200G Up to 60G Crypto Throughput ASR1001-X ASR1002-X Modular ASR1006 NEW!
- 38. Cisco Confidential 39©2013-2014 Cisco and/or its affiliates. All rights reserved. Branch MPLS (IP-VPN) Internet Private Cloud Virtual Private Cloud Public Cloud Secure WANTransport Direct Internet Access Intelligent WAN (IWAN) Internet As WAN with High Reliability SLAs for Business-Critical Applications Centralized Security Policy for Internet Access Dramatically Lower WAN Costs without Compromise
- 39.
