TechWiseTV Workshop: SD-WAN Security
- 1. Reza Koohrangpour, KuralArangasamy May 8, 2019 Cisco SD-WAN Security
- 2. • SD-WAN securityChallenges • Cisco SD-WAN Security • Technical Demo AGENDA
- 3. IaaSSaaS Internet Data Center & Campus Corporate Software Critical Infrastructure Enterprise WAN Remote DevicesUsers Branch IOTMobile devices Users (guests) Traffic Backhaul (MPLS) WANEDGE WANEDGE Limitations to traditional WAN topology • Traffic must be backhauled to datacenters for security • Latency in connection to cloud applications • Multi-cloud environments are the new normal • Branches and device policy require manual configuration • New devices and clouds require new configurations • Deployment is not centrally managed Bad user experience Expensive to deploy Complex management

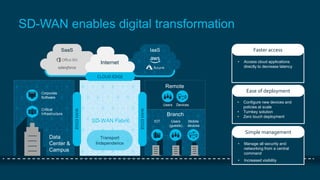

- 4. SaaS Corporate Software Critical Infrastructure SD-WAN Fabric Remote DevicesUsers Branch IOT Mobile devices Users (guests) Transport Independence WANEDGE WANEDGE IaaS Internet CLOUDEDGE Data Center & Campus SD-WAN enables digital transformation • Access cloud applications directly to decrease latency • Manage all security and networking from a central command • Increased visibility • Configure new devices and policies at scale • Turnkey solution • Zero touch deployment Faster access Ease of deployment Simple management
- 5. SaaS IaaS Internet Corporate Software Critical Infrastructure Remote DevicesUsers Branch IOT Mobile devices Users (guests) NOSECURITYEXISTINGSECURITY BASIC/NOSECURITY SD-WAN Fabric Data Center & Campus SD-WAN exposes new security challenges • Exposed connections as traffic is no longer backhauled to the data center • Traffic throughout the fabric must be secure from threats, segmented, and private. • Threats inside the network inevitably lead to inside-out traffic to malicious infrastructures Outside-in threats Inside-out threats Internal threats
- 6. Remote DevicesUsers SaaS IaaS Data Center & Campus Corporate Software Critical InfrastructureBranch IOT Mobile devices Users (guests) BASIC/NOSECURITY SD-WAN Fabric NO SECURITY Internet EXISTINGSECURITY Direct internet access exposes connections • Unauthorized access • Denial of service attacks • Untrusted access • Lateral movement • Compliance • Man-in-the-Middle • Malware infection • Command & control • Phishing attacks • Untrusted users/devices Outside-in threats Inside-out threats Internal threats
- 7. SaaS IaaS Internet Data Center & Campus Corporate Software Critical Infrastructure Remote DevicesUsers Branch IOTMobile devices Users (guests) BASIC/NOSECURITY SD-WAN Fabric NO SECURITYEXISTINGSECURITY Defend against bad destinations & data breaches • Unauthorized access • Denial of service attacks • Ransomware • Untrusted access • Lateral movement • Compliance • Man-in-the-Middle • Malware infection • Command & control • Phishing attacks • Untrusted users/devices Outside-in threats Inside-out threats Internal threats
- 8. SaaS Internet Corporate Software Critical Infrastructure Remote DevicesUsers Branch IOT Mobile devices Users (guests) WANEDGE SD-WAN Fabric IaaS CLOUDEDGE WANEDGE Data Center & Campus Policy and access gaps expand attack surface • Unauthorized access • Denial of service attacks • Ransomware • Untrusted access • Lateral movement • Compliance • Man-in-the-Middle Outside-in threats Internal threats • Malware infection • Command & control • Phishing attacks • Untrusted users/devices Inside-out threats

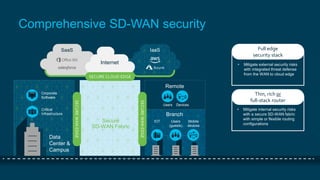

- 9. SaaS Corporate Software Critical Infrastructure Secure SD-WAN Fabric Remote DevicesUsers Branch IOT Mobile devices Users (guests) SECUREWANEDGE IaaS Internet SECURECLOUD EDGE SECUREWANEDGE Data Center & Campus Comprehensive SD-WAN security • Mitigate external security risks with integrated threat defense from the WAN to cloud edge • Mitigate internal security risks with a secure SD-WAN fabric with simple or flexible routing configurations Full edge security stack Thin, rich or full-stack router
- 10. Corporate Software Data Center & Campus Critical Infrastructure SD-WAN Fabric IaaS Remote DevicesUsers SaaS Branch IOTMobile devices Users (guests) SECURE CLOUD EDGE Internet SECUREWANEDGE SECUREWANEDGE Enterprise-grade security embedded • Firewall and intrusion prevention embedded plus URL filtering and malware sandboxing for inside-out • Single console to manage routing and security • Shortest time to threat detection powered by Talos Outside-in SD-WAN security
- 11. Corporate Software Data Center & Campus Critical Infrastructure SaaS SD-WAN Fabric Remote DevicesUsers Branch IOTMobile devices Users (guests) SECUREWANEDGE IaaS Internet SECURE CLOUD EDGE SECUREWANEDGE Simplified cloud security • Umbrella’s Secure Internet Gateway protects users and devices and protects data sent to and from the cloud • Duo’s Multi-Factor Authentication verifies that only trusted users and devices access cloud & on-prem apps Inside-out SD-WAN security
- 12. Remote DevicesUsers SaaS Corporate Software Critical Infrastructure Secure SD-WAN Fabric Branch IOT Mobile devices Users (guests) SECUREWANEDGE SECUREWANEDGE Internet IaaS SECURECLOUD EDGE Data Center & Campus Secure internal connections • End to end segmentation to stop breach propagation, enforce regulatory compliance, and promote network (and application) layer security • Zero-trust authentication and full payload encryption between edge routers Internal SD-WAN security
- 13. Data Center & Campus SaaS Secure SD-WANFabric SECUREWANEDGE Internet IaaS SECURE CLOUD EDGE Branch SECUREWANEDGE Remote Simple and automated security • Integrated connectivity and security solutions in one box • Transport agnostic: Mix and match any protocol with any transport • Zero touch provisioning of new branches WAN Router Enterprise Firewall NETWORKING SECURITY WEB VOICE VIDEO Any Transport BROADBAND MPLS 4/5G
- 14. Secure SD-WAN Fabric Branch SaaS IaaS Internet Data Center &Campus Remote (On-VPN) • Configure policy efficiently through automation at scale • Manage security and networking from one console • Ease of manageability • Increased visibility across the network Unified Dashboard Centralized, simple management Global policy Location policy Connection policy
- 15. Integrated, hardened, cloud-managed fromWAN to cloud edge #1 in networking for flexibility and scalability #1 in security for efficacy and simplicity routing intelligence and threat intelligence on certified trustworthy infrastructure

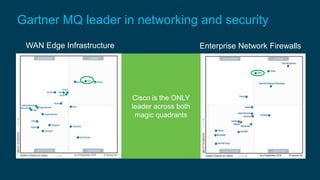

- 16. Gartner MQ leaderin networking and security WAN Edge Infrastructure Enterprise Network Firewalls Cisco is the ONLY leader across both magic quadrants
- 17.

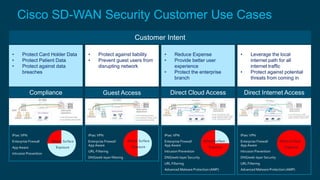

- 18. Customer Intent • Protectagainst liability • Prevent guest users from disrupting network Guest Access IPsec VPN Enterprise Firewall App Aware URL-Filtering DNS/web-layer filtering • Leverage the local internet path for all internet traffic • Protect against potential threats from coming in Direct Internet Access IPsec VPN Enterprise Firewall App Aware Intrusion Prevention DNS/web-layer Security URL Filtering Advanced Malware Protection (AMP) • Protect Card Holder Data • Protect Patient Data • Protect against data breaches Compliance IPsec VPN Enterprise Firewall App Aware Intrusion Prevention • Reduce Expense • Provide better user experience • Protect the enterprise branch Direct Cloud Access IPsec VPN Enterprise Firewall App Aware Intrusion Prevention DNS/web-layer Security URL Filtering Advanced Malware Protection (AMP) Attack surface Exposure Attack Surface Exposure Risk Attack Surface Exposure Attack Surface Exposure Risk Attack Surface Exposure Cisco SD-WAN Security Customer Use Cases
- 19. Cisco SD-WAN Security Managein Cloud or On-Prem Provisioning ReportingMonitoring Troubleshooting Branch Edge vManageEdge Router Flexibility Branch Edge Cloud Edge Enterprise FW App Aware IPS URL filter Managing CSRENCS w/ISRvISR 4/1K ASR1K vEdges (Viptela) Only FW Adv Malware DNS/Web-Layer Security Full Edge Security Only App Aware FW and DNS/web-layer security

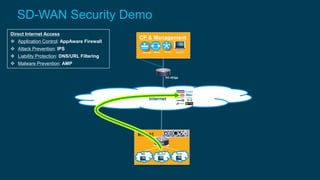

- 20. SD-WAN Security Demo Internet DC-vEdge Branch1 CSR PCINon-PCI Guest VPN FW URLF AMPIPS Direct Internet Access Application Control: AppAware Firewall Attack Prevention: IPS Liability Protection: DNS/URL Filtering Malware Prevention: AMP CP & Management vManage vBond vSmart Jump PC
- 21. Thank you forwatching. For more information, please visit: cisco.com/go/sdwan-security
