1. Iter
13 Julio, 2016
Salvador Rodríguez Dávila
@srdzdv

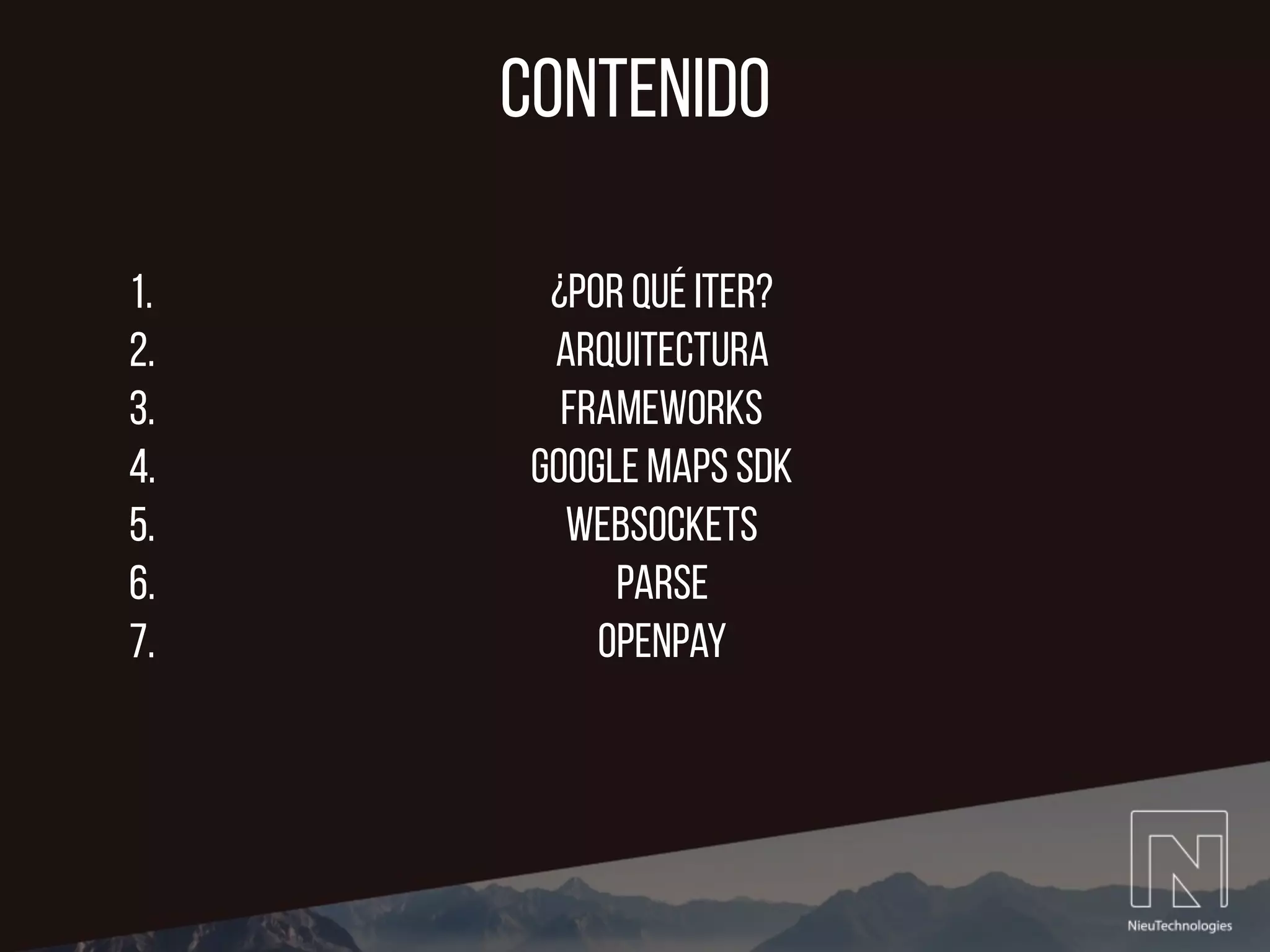

2. Contenido
1. ¿Por qué iter?
2. Arquitectura
3. frameworks
4. google maps sdk
5. websockets
6. parse
7. openpay

3. ¿Por qué iter?
Precio
ecología
equidad

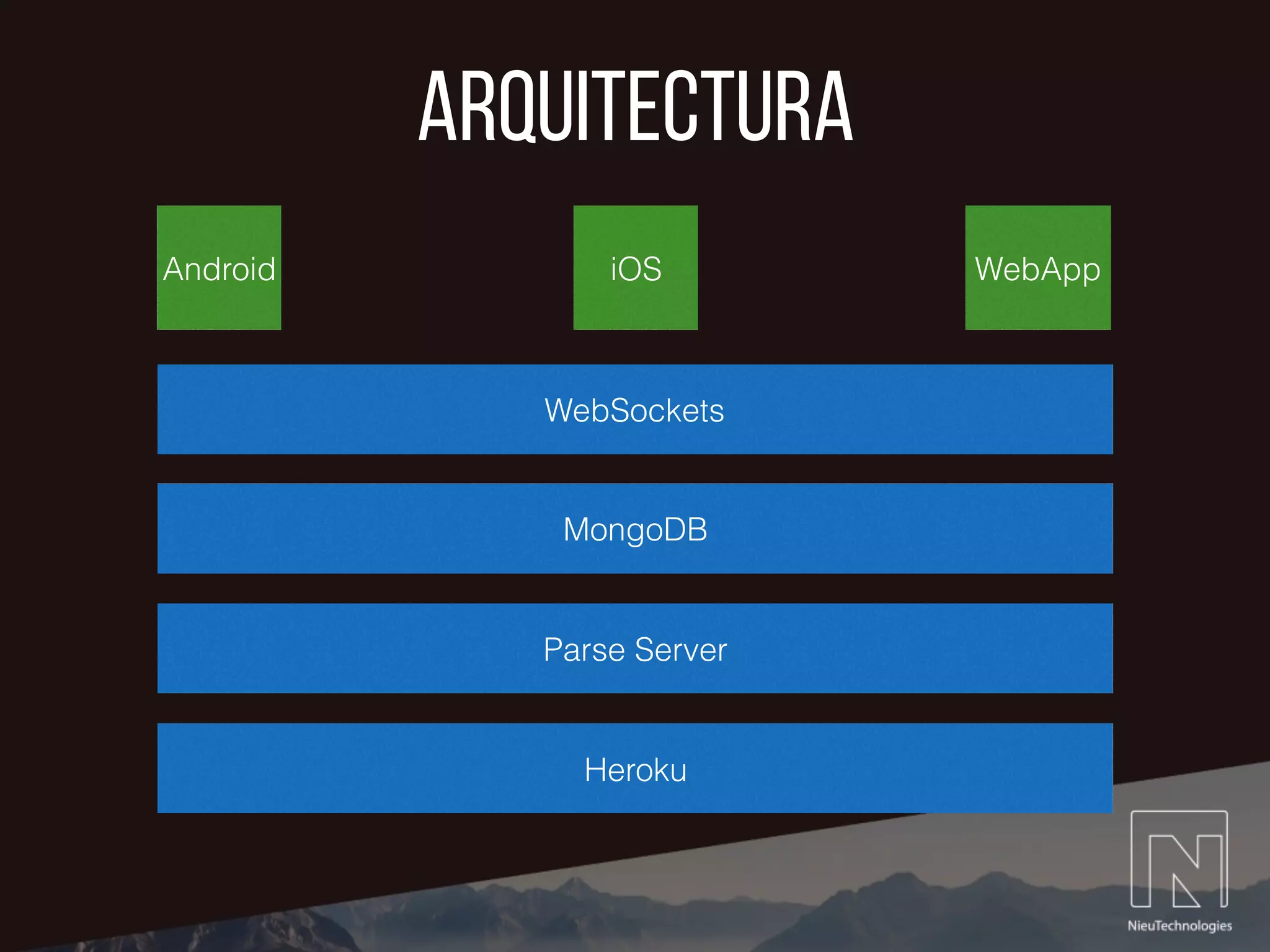

4. Arquitectura
iOSAndroid WebApp
WebSockets
Parse Server
MongoDB
Heroku

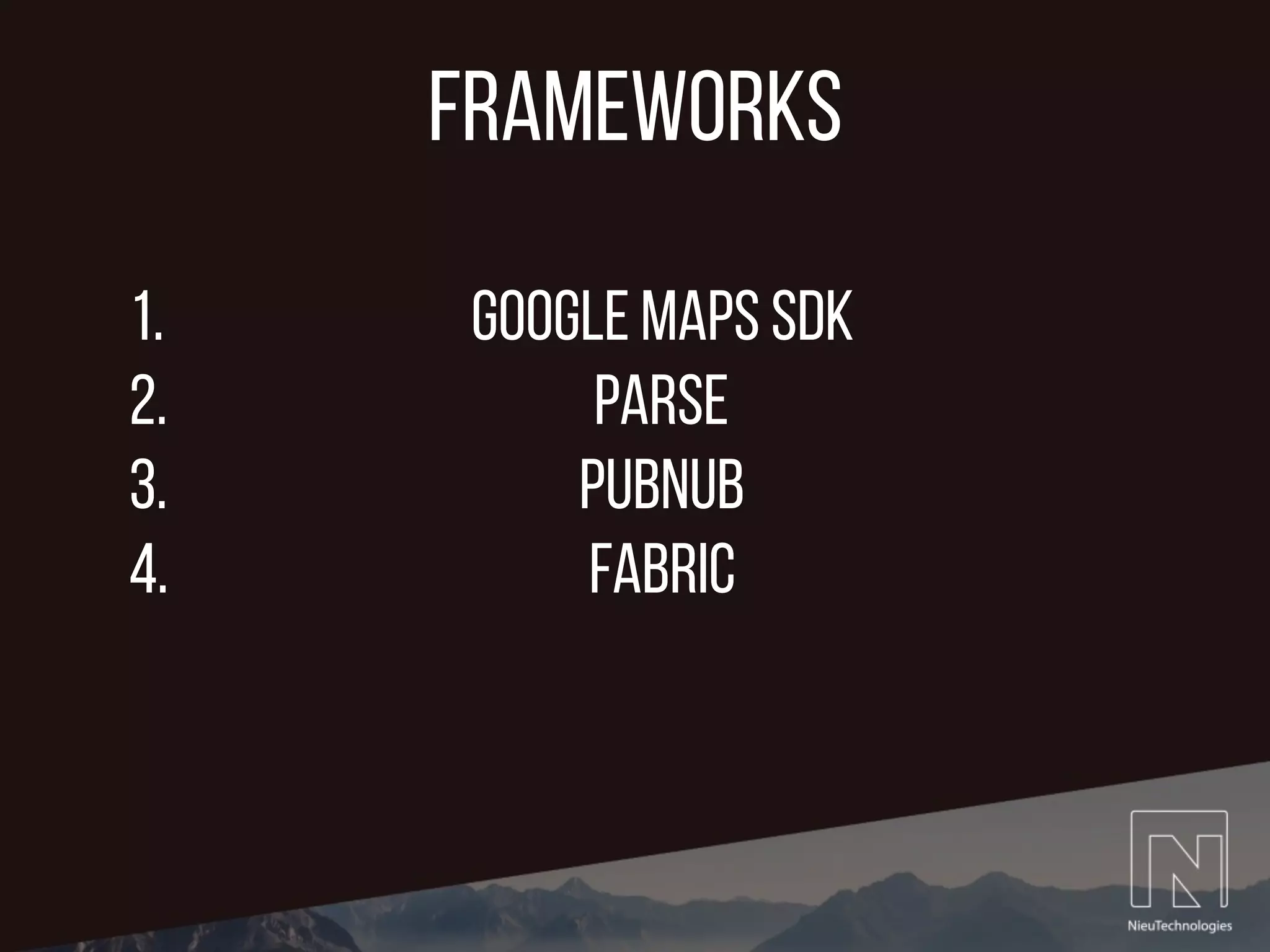

5. frameworks
1. Google Maps SDK
2. Parse
3. PubNub
4. Fabric

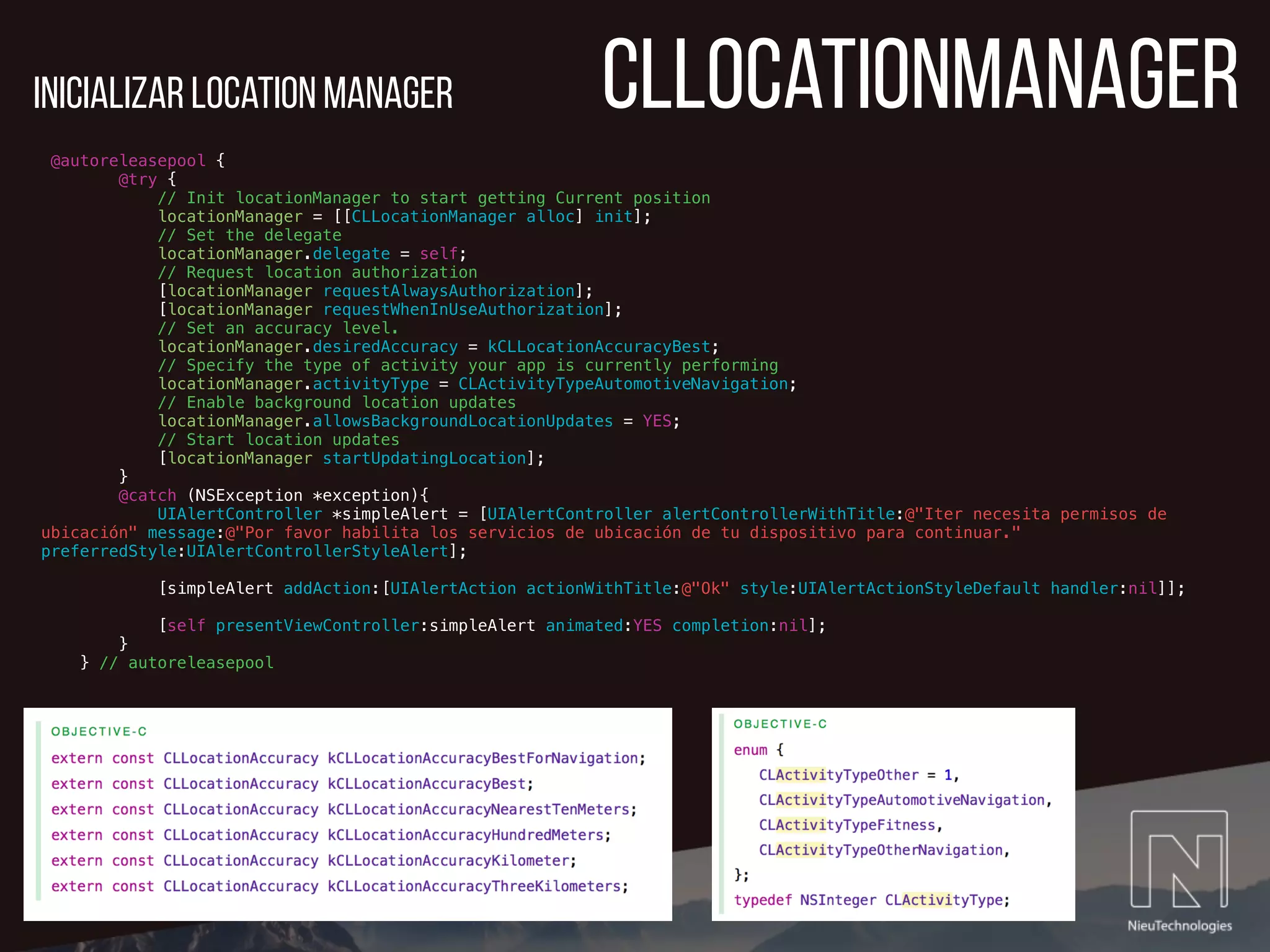

6. CLLocationmanager
@autoreleasepool {
@try {
// Init locationManager to start getting Current position
locationManager = [[CLLocationManager alloc] init];
// Set the delegate
locationManager.delegate = self;
// Request location authorization
[locationManager requestAlwaysAuthorization];
[locationManager requestWhenInUseAuthorization];
// Set an accuracy level.
locationManager.desiredAccuracy = kCLLocationAccuracyBest;
// Specify the type of activity your app is currently performing
locationManager.activityType = CLActivityTypeAutomotiveNavigation;
// Enable background location updates
locationManager.allowsBackgroundLocationUpdates = YES;
// Start location updates
[locationManager startUpdatingLocation];
}
@catch (NSException *exception){
UIAlertController *simpleAlert = [UIAlertController alertControllerWithTitle:@"Iter necesita permisos de
ubicación" message:@"Por favor habilita los servicios de ubicación de tu dispositivo para continuar."
preferredStyle:UIAlertControllerStyleAlert];
[simpleAlert addAction:[UIAlertAction actionWithTitle:@"Ok" style:UIAlertActionStyleDefault handler:nil]];
[self presentViewController:simpleAlert animated:YES completion:nil];
}
} // autoreleasepool
Inicializar location manager

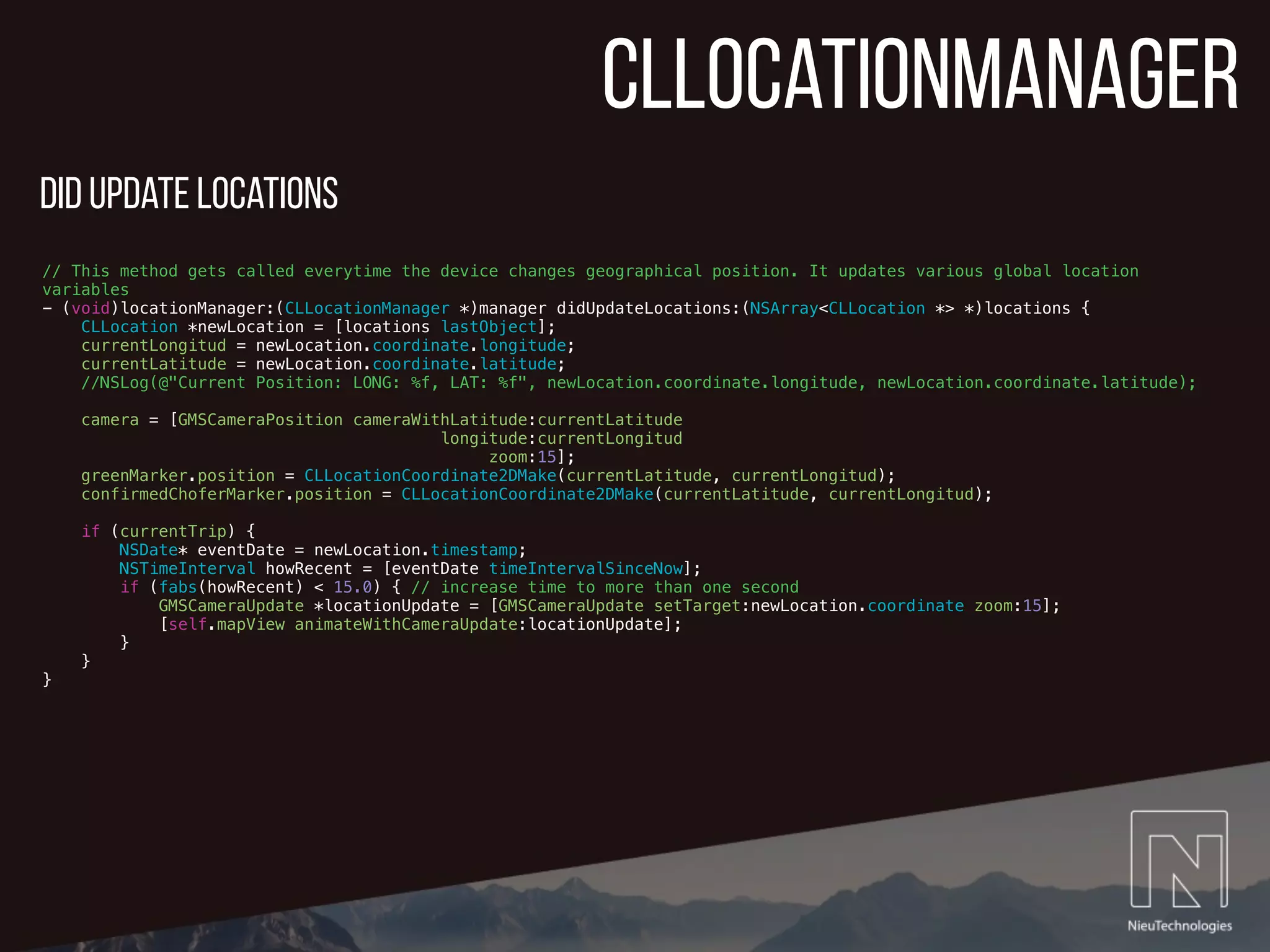

7. CLLocationmanager
// This method gets called everytime the device changes geographical position. It updates various global location
variables
- (void)locationManager:(CLLocationManager *)manager didUpdateLocations:(NSArray<CLLocation *> *)locations {
CLLocation *newLocation = [locations lastObject];
currentLongitud = newLocation.coordinate.longitude;
currentLatitude = newLocation.coordinate.latitude;
//NSLog(@"Current Position: LONG: %f, LAT: %f", newLocation.coordinate.longitude, newLocation.coordinate.latitude);
camera = [GMSCameraPosition cameraWithLatitude:currentLatitude
longitude:currentLongitud
zoom:15];
greenMarker.position = CLLocationCoordinate2DMake(currentLatitude, currentLongitud);
confirmedChoferMarker.position = CLLocationCoordinate2DMake(currentLatitude, currentLongitud);
if (currentTrip) {
NSDate* eventDate = newLocation.timestamp;
NSTimeInterval howRecent = [eventDate timeIntervalSinceNow];
if (fabs(howRecent) < 15.0) { // increase time to more than one second
GMSCameraUpdate *locationUpdate = [GMSCameraUpdate setTarget:newLocation.coordinate zoom:15];
[self.mapView animateWithCameraUpdate:locationUpdate];
}
}
}
did update locations

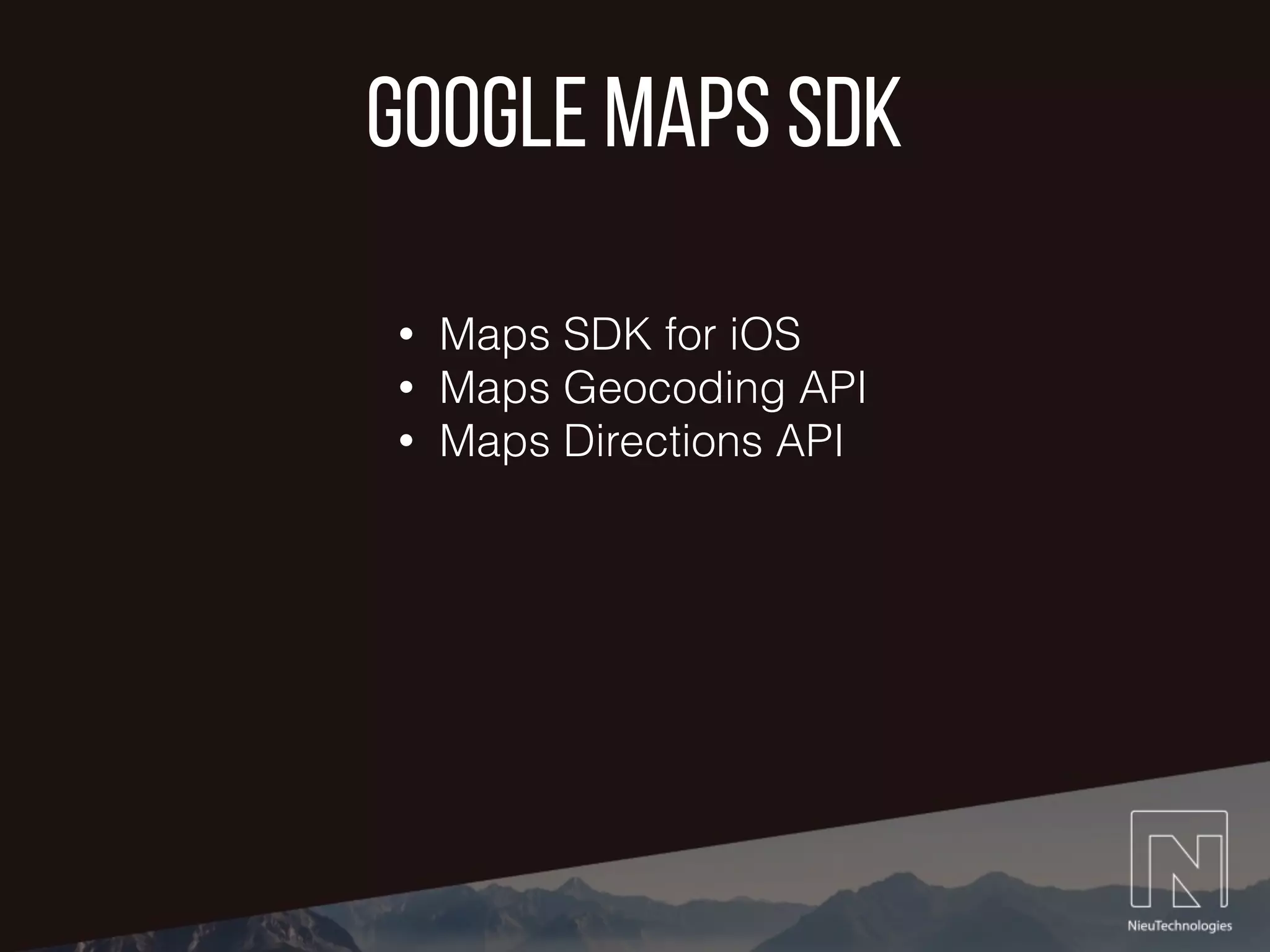

8. google maps sdk
• Maps SDK for iOS
• Maps Geocoding API
• Maps Directions API

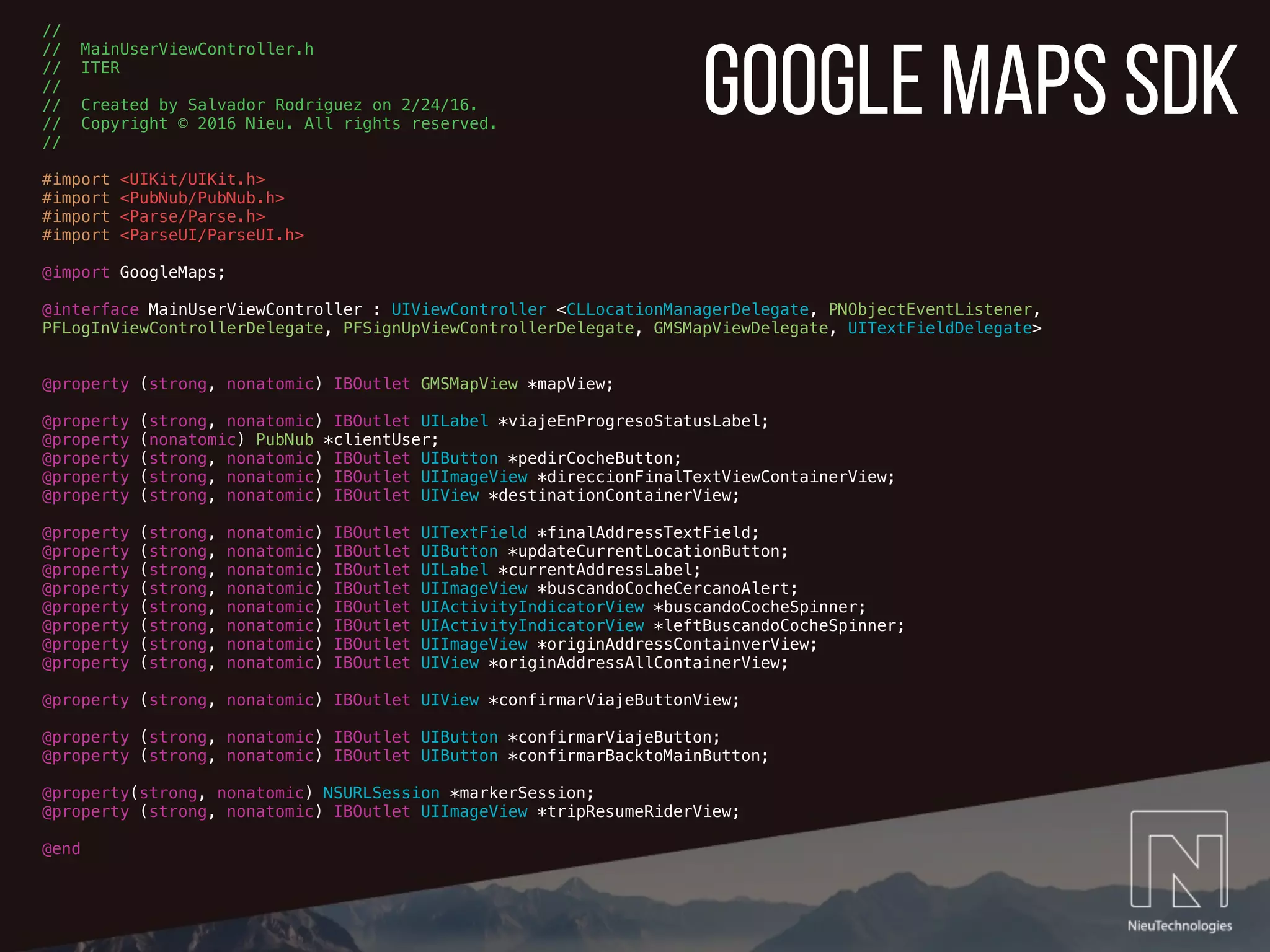

9. google maps sdk
//
// MainUserViewController.h
// ITER
//
// Created by Salvador Rodriguez on 2/24/16.
// Copyright © 2016 Nieu. All rights reserved.
//
#import <UIKit/UIKit.h>
#import <PubNub/PubNub.h>
#import <Parse/Parse.h>
#import <ParseUI/ParseUI.h>
@import GoogleMaps;
@interface MainUserViewController : UIViewController <CLLocationManagerDelegate, PNObjectEventListener,
PFLogInViewControllerDelegate, PFSignUpViewControllerDelegate, GMSMapViewDelegate, UITextFieldDelegate>
@property (strong, nonatomic) IBOutlet GMSMapView *mapView;
@property (strong, nonatomic) IBOutlet UILabel *viajeEnProgresoStatusLabel;
@property (nonatomic) PubNub *clientUser;
@property (strong, nonatomic) IBOutlet UIButton *pedirCocheButton;
@property (strong, nonatomic) IBOutlet UIImageView *direccionFinalTextViewContainerView;
@property (strong, nonatomic) IBOutlet UIView *destinationContainerView;
@property (strong, nonatomic) IBOutlet UITextField *finalAddressTextField;
@property (strong, nonatomic) IBOutlet UIButton *updateCurrentLocationButton;
@property (strong, nonatomic) IBOutlet UILabel *currentAddressLabel;
@property (strong, nonatomic) IBOutlet UIImageView *buscandoCocheCercanoAlert;
@property (strong, nonatomic) IBOutlet UIActivityIndicatorView *buscandoCocheSpinner;
@property (strong, nonatomic) IBOutlet UIActivityIndicatorView *leftBuscandoCocheSpinner;
@property (strong, nonatomic) IBOutlet UIImageView *originAddressContainverView;
@property (strong, nonatomic) IBOutlet UIView *originAddressAllContainerView;
@property (strong, nonatomic) IBOutlet UIView *confirmarViajeButtonView;
@property (strong, nonatomic) IBOutlet UIButton *confirmarViajeButton;
@property (strong, nonatomic) IBOutlet UIButton *confirmarBacktoMainButton;
@property(strong, nonatomic) NSURLSession *markerSession;
@property (strong, nonatomic) IBOutlet UIImageView *tripResumeRiderView;
@end

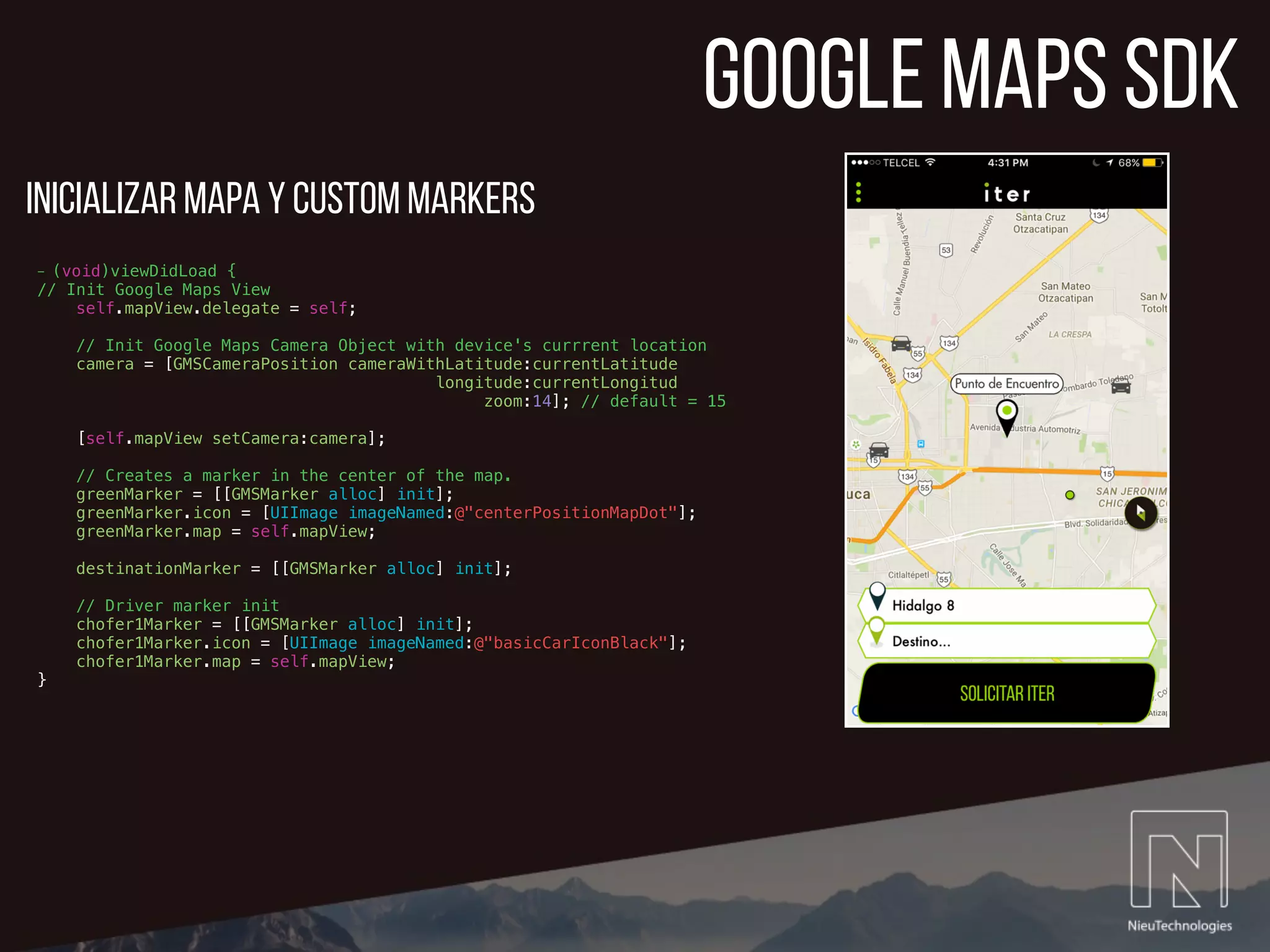

10. google maps sdk
- (void)viewDidLoad {
// Init Google Maps View
self.mapView.delegate = self;
// Init Google Maps Camera Object with device's currrent location
camera = [GMSCameraPosition cameraWithLatitude:currentLatitude
longitude:currentLongitud
zoom:14]; // default = 15
[self.mapView setCamera:camera];
// Creates a marker in the center of the map.
greenMarker = [[GMSMarker alloc] init];
greenMarker.icon = [UIImage imageNamed:@"centerPositionMapDot"];
greenMarker.map = self.mapView;
destinationMarker = [[GMSMarker alloc] init];
// Driver marker init
chofer1Marker = [[GMSMarker alloc] init];
chofer1Marker.icon = [UIImage imageNamed:@"basicCarIconBlack"];
chofer1Marker.map = self.mapView;
}
Inicializar Mapa y custom markers

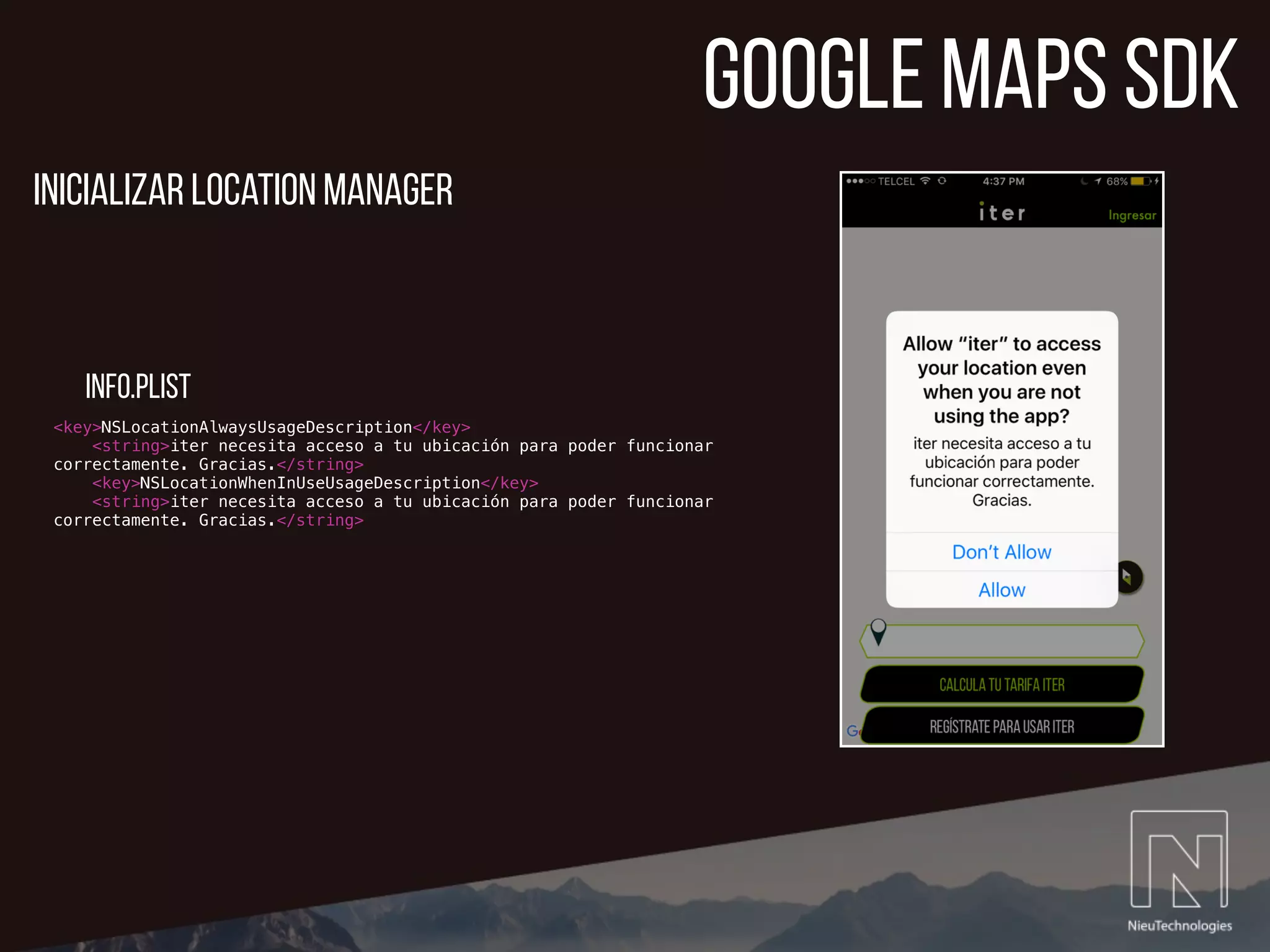

11. google maps sdk
<key>NSLocationAlwaysUsageDescription</key>
<string>iter necesita acceso a tu ubicación para poder funcionar
correctamente. Gracias.</string>
<key>NSLocationWhenInUseUsageDescription</key>
<string>iter necesita acceso a tu ubicación para poder funcionar
correctamente. Gracias.</string>
Inicializar location manager
info.plist

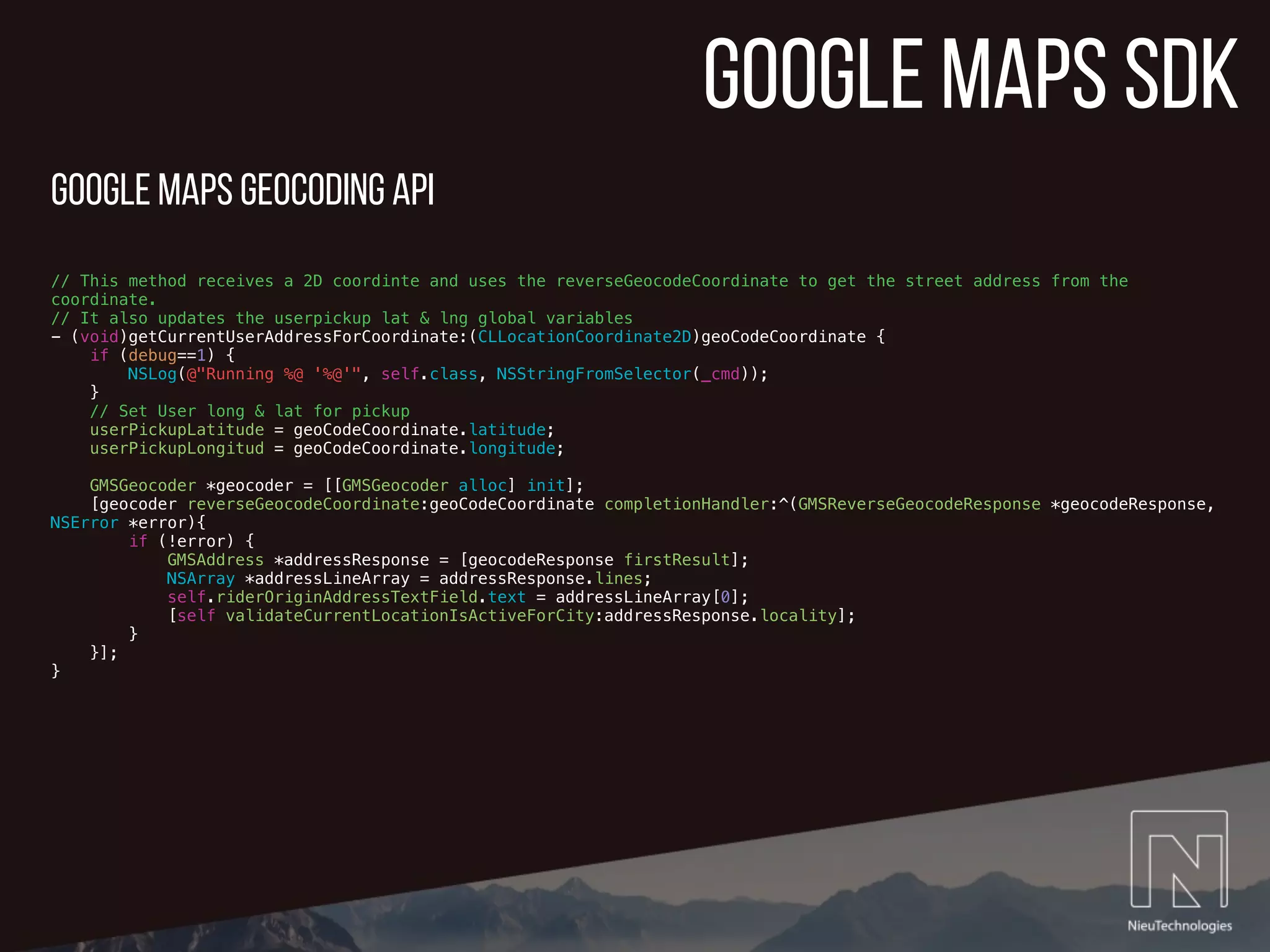

12. google maps sdk
// This method receives a 2D coordinte and uses the reverseGeocodeCoordinate to get the street address from the
coordinate.
// It also updates the userpickup lat & lng global variables
- (void)getCurrentUserAddressForCoordinate:(CLLocationCoordinate2D)geoCodeCoordinate {
if (debug==1) {
NSLog(@"Running %@ '%@'", self.class, NSStringFromSelector(_cmd));
}
// Set User long & lat for pickup
userPickupLatitude = geoCodeCoordinate.latitude;
userPickupLongitud = geoCodeCoordinate.longitude;
GMSGeocoder *geocoder = [[GMSGeocoder alloc] init];
[geocoder reverseGeocodeCoordinate:geoCodeCoordinate completionHandler:^(GMSReverseGeocodeResponse *geocodeResponse,
NSError *error){
if (!error) {
GMSAddress *addressResponse = [geocodeResponse firstResult];
NSArray *addressLineArray = addressResponse.lines;
self.riderOriginAddressTextField.text = addressLineArray[0];
[self validateCurrentLocationIsActiveForCity:addressResponse.locality];
}
}];
}
google Maps Geocoding API

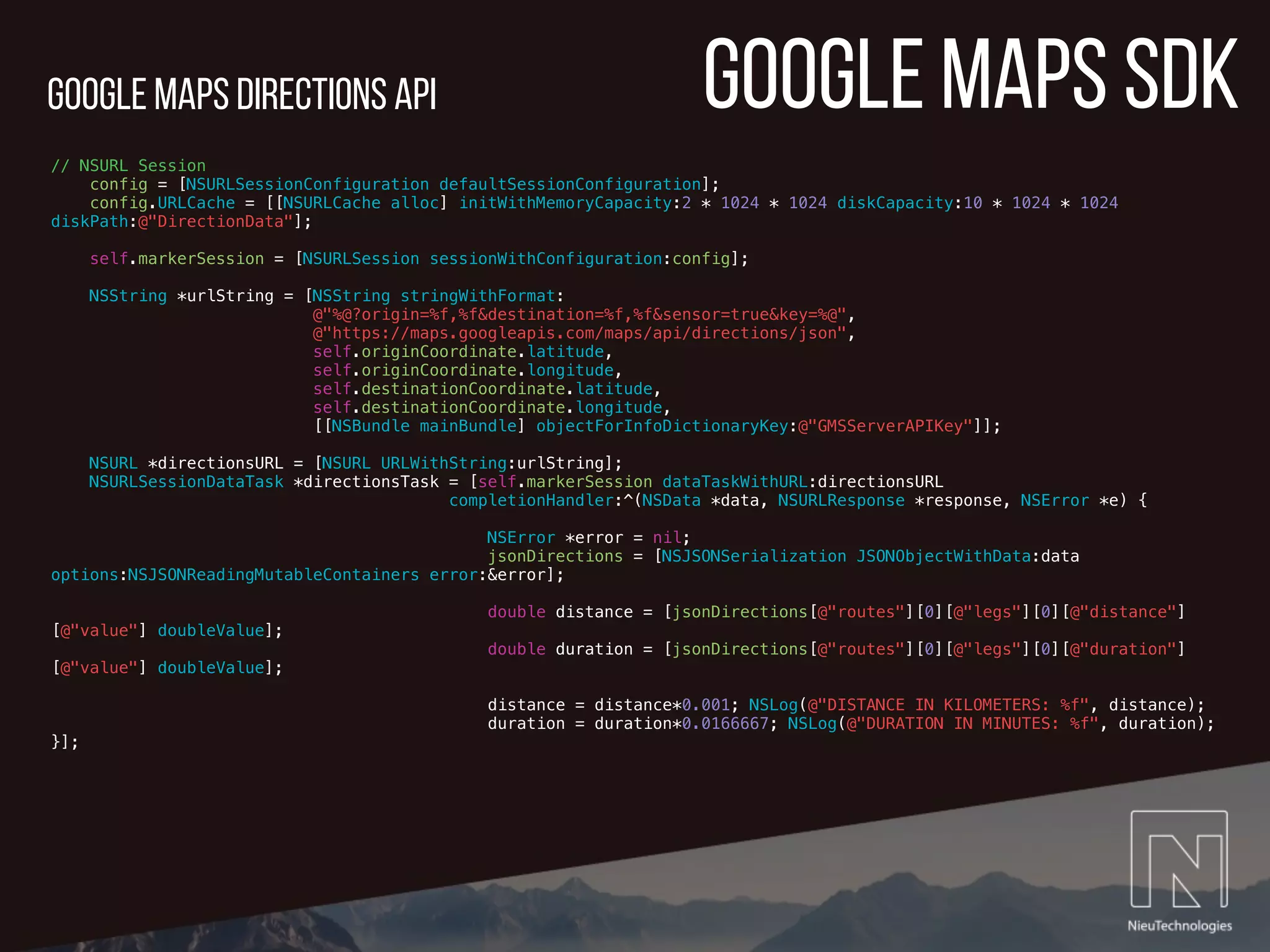

13. google maps sdk
// NSURL Session
config = [NSURLSessionConfiguration defaultSessionConfiguration];
config.URLCache = [[NSURLCache alloc] initWithMemoryCapacity:2 * 1024 * 1024 diskCapacity:10 * 1024 * 1024
diskPath:@"DirectionData"];
self.markerSession = [NSURLSession sessionWithConfiguration:config];
NSString *urlString = [NSString stringWithFormat:
@"%@?origin=%f,%f&destination=%f,%f&sensor=true&key=%@",
@"https://maps.googleapis.com/maps/api/directions/json",
self.originCoordinate.latitude,
self.originCoordinate.longitude,
self.destinationCoordinate.latitude,
self.destinationCoordinate.longitude,
[[NSBundle mainBundle] objectForInfoDictionaryKey:@"GMSServerAPIKey"]];
NSURL *directionsURL = [NSURL URLWithString:urlString];
NSURLSessionDataTask *directionsTask = [self.markerSession dataTaskWithURL:directionsURL
completionHandler:^(NSData *data, NSURLResponse *response, NSError *e) {
NSError *error = nil;
jsonDirections = [NSJSONSerialization JSONObjectWithData:data
options:NSJSONReadingMutableContainers error:&error];
double distance = [jsonDirections[@"routes"][0][@"legs"][0][@"distance"]
[@"value"] doubleValue];
double duration = [jsonDirections[@"routes"][0][@"legs"][0][@"duration"]
[@"value"] doubleValue];
distance = distance*0.001; NSLog(@"DISTANCE IN KILOMETERS: %f", distance);
duration = duration*0.0166667; NSLog(@"DURATION IN MINUTES: %f", duration);
}];
google Maps directions API

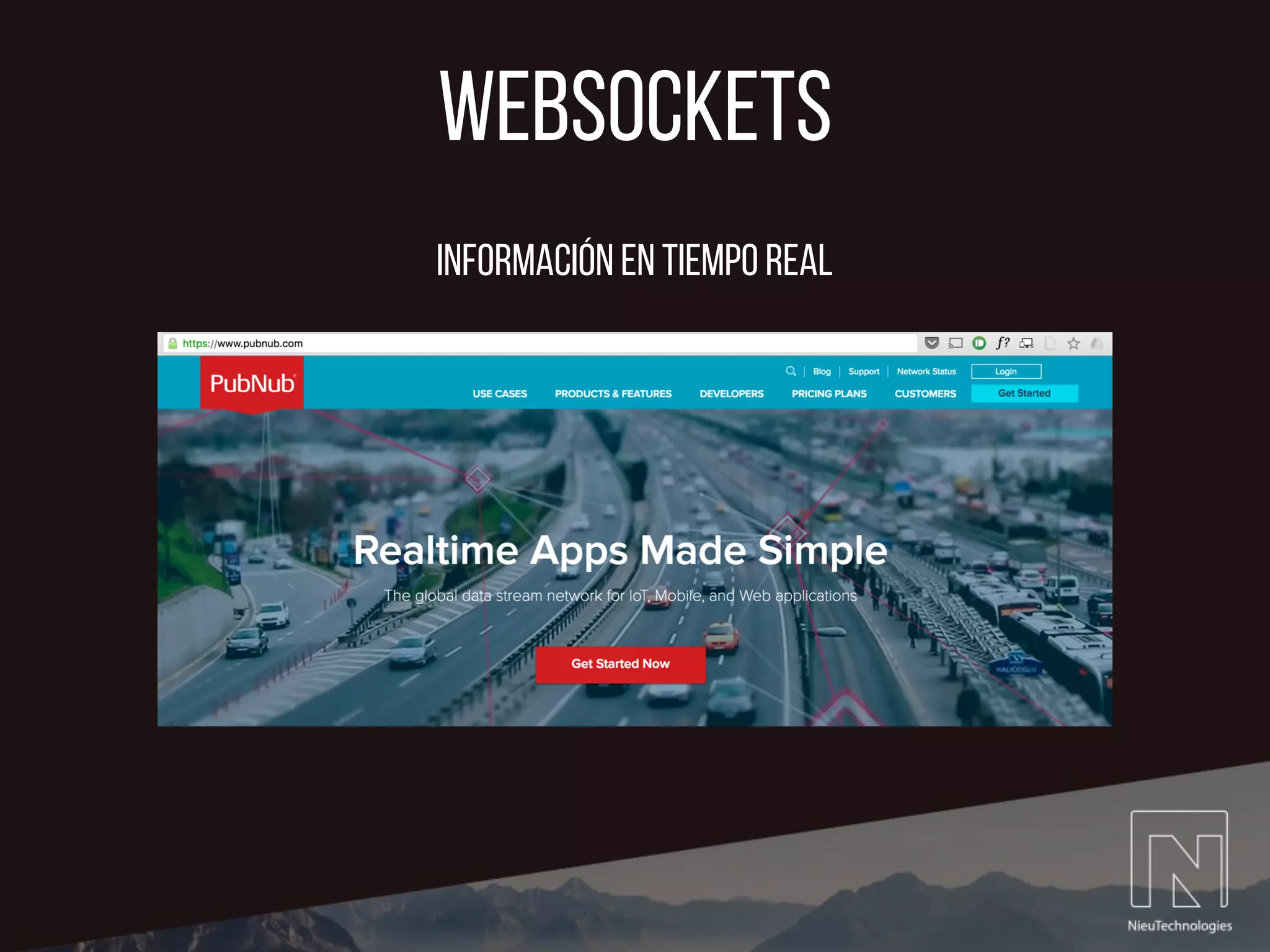

14. websockets
Información en tiempo real

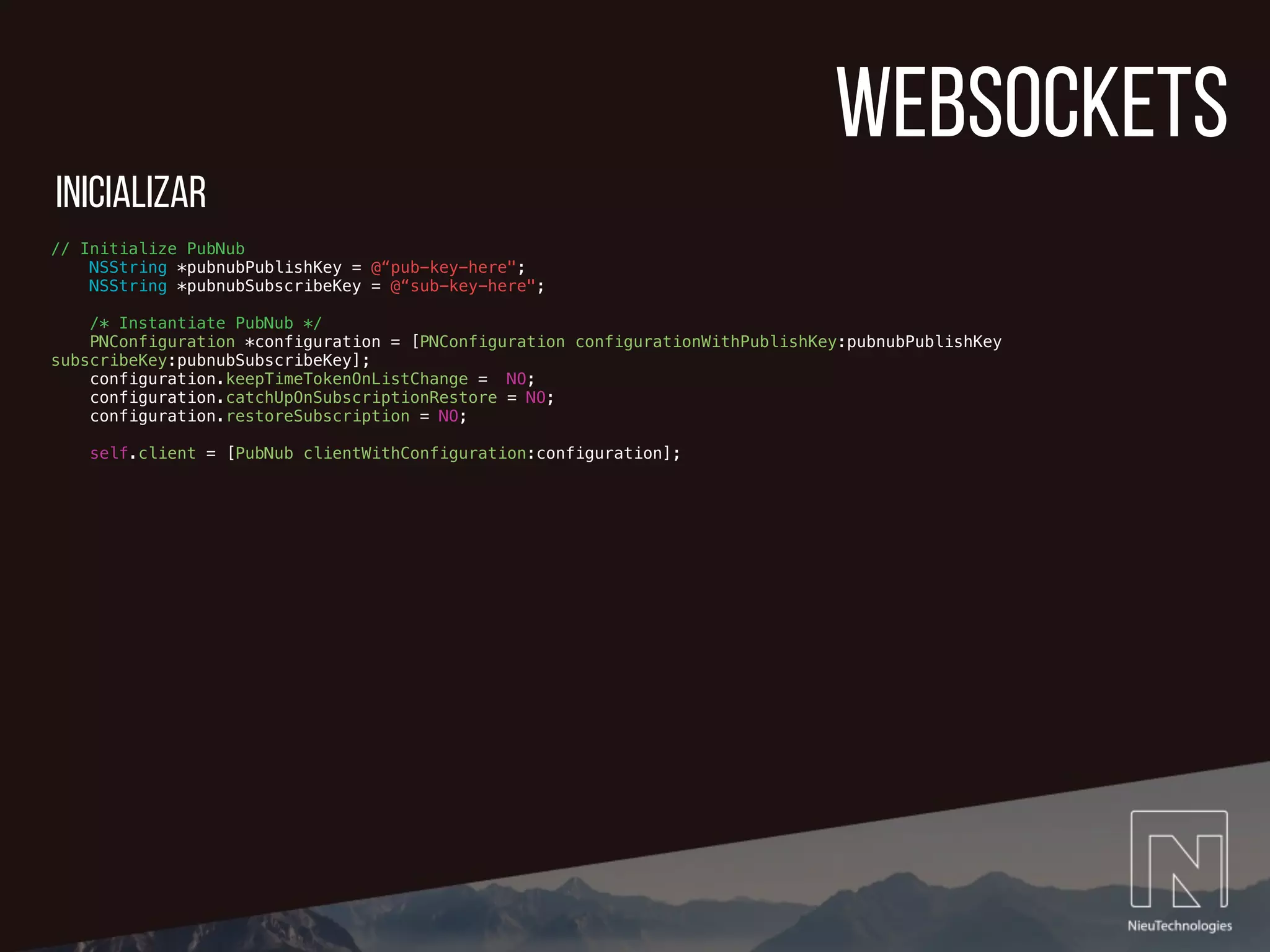

15. websockets
// Initialize PubNub
NSString *pubnubPublishKey = @“pub-key-here";
NSString *pubnubSubscribeKey = @“sub-key-here";
/* Instantiate PubNub */
PNConfiguration *configuration = [PNConfiguration configurationWithPublishKey:pubnubPublishKey
subscribeKey:pubnubSubscribeKey];
configuration.keepTimeTokenOnListChange = NO;
configuration.catchUpOnSubscriptionRestore = NO;
configuration.restoreSubscription = NO;
self.client = [PubNub clientWithConfiguration:configuration];
inicializar

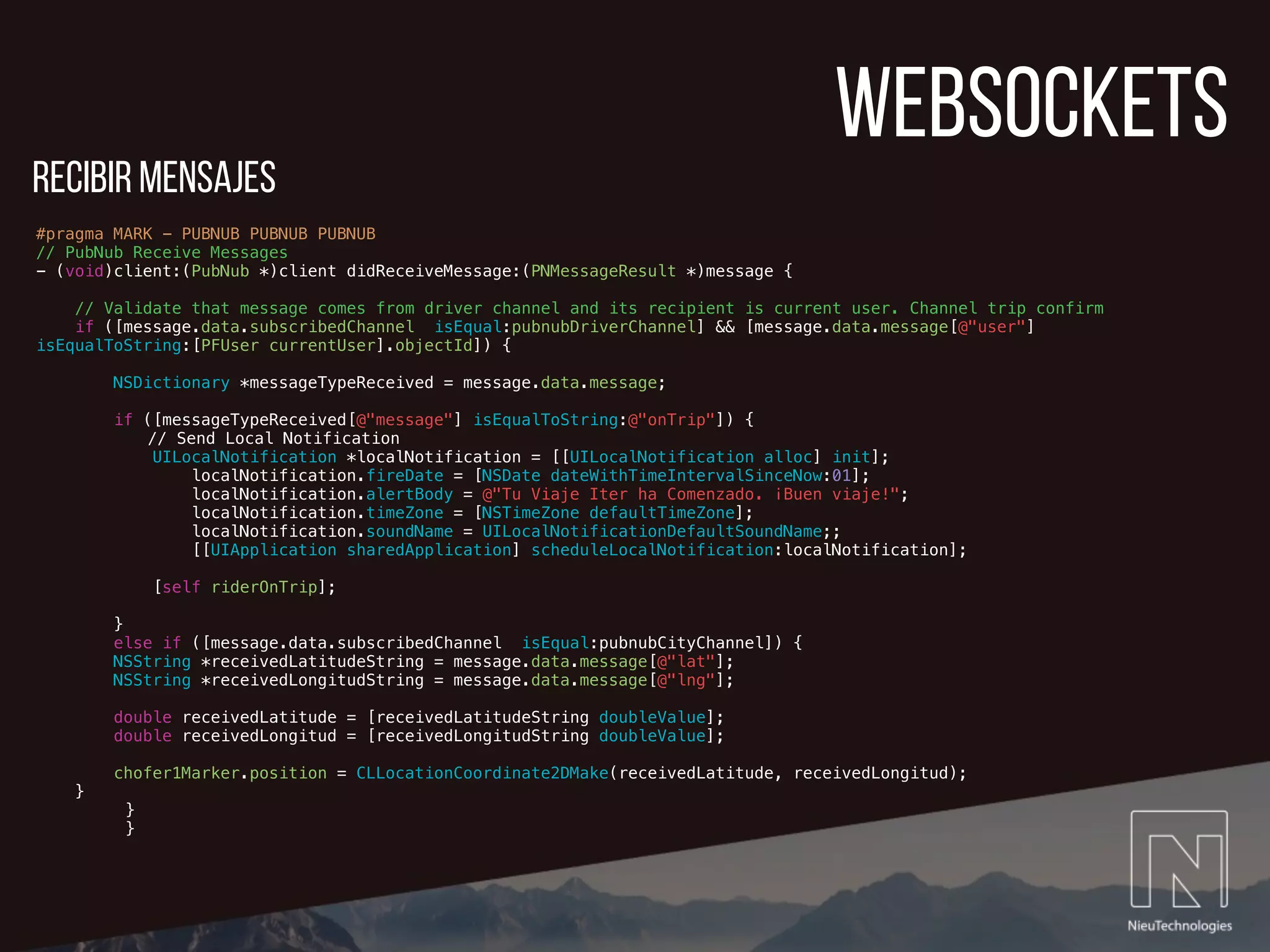

16. websockets
#pragma MARK - PUBNUB PUBNUB PUBNUB
// PubNub Receive Messages
- (void)client:(PubNub *)client didReceiveMessage:(PNMessageResult *)message {
// Validate that message comes from driver channel and its recipient is current user. Channel trip confirm
if ([message.data.subscribedChannel isEqual:pubnubDriverChannel] && [message.data.message[@"user"]
isEqualToString:[PFUser currentUser].objectId]) {
NSDictionary *messageTypeReceived = message.data.message;
if ([messageTypeReceived[@"message"] isEqualToString:@"onTrip"]) {
// Send Local Notification
UILocalNotification *localNotification = [[UILocalNotification alloc] init];
localNotification.fireDate = [NSDate dateWithTimeIntervalSinceNow:01];
localNotification.alertBody = @"Tu Viaje Iter ha Comenzado. ¡Buen viaje!";
localNotification.timeZone = [NSTimeZone defaultTimeZone];
localNotification.soundName = UILocalNotificationDefaultSoundName;;
[[UIApplication sharedApplication] scheduleLocalNotification:localNotification];
[self riderOnTrip];
}
else if ([message.data.subscribedChannel isEqual:pubnubCityChannel]) {
NSString *receivedLatitudeString = message.data.message[@"lat"];
NSString *receivedLongitudString = message.data.message[@"lng"];
double receivedLatitude = [receivedLatitudeString doubleValue];
double receivedLongitud = [receivedLongitudString doubleValue];
chofer1Marker.position = CLLocationCoordinate2DMake(receivedLatitude, receivedLongitud);
}
}
}
recibir mensajes

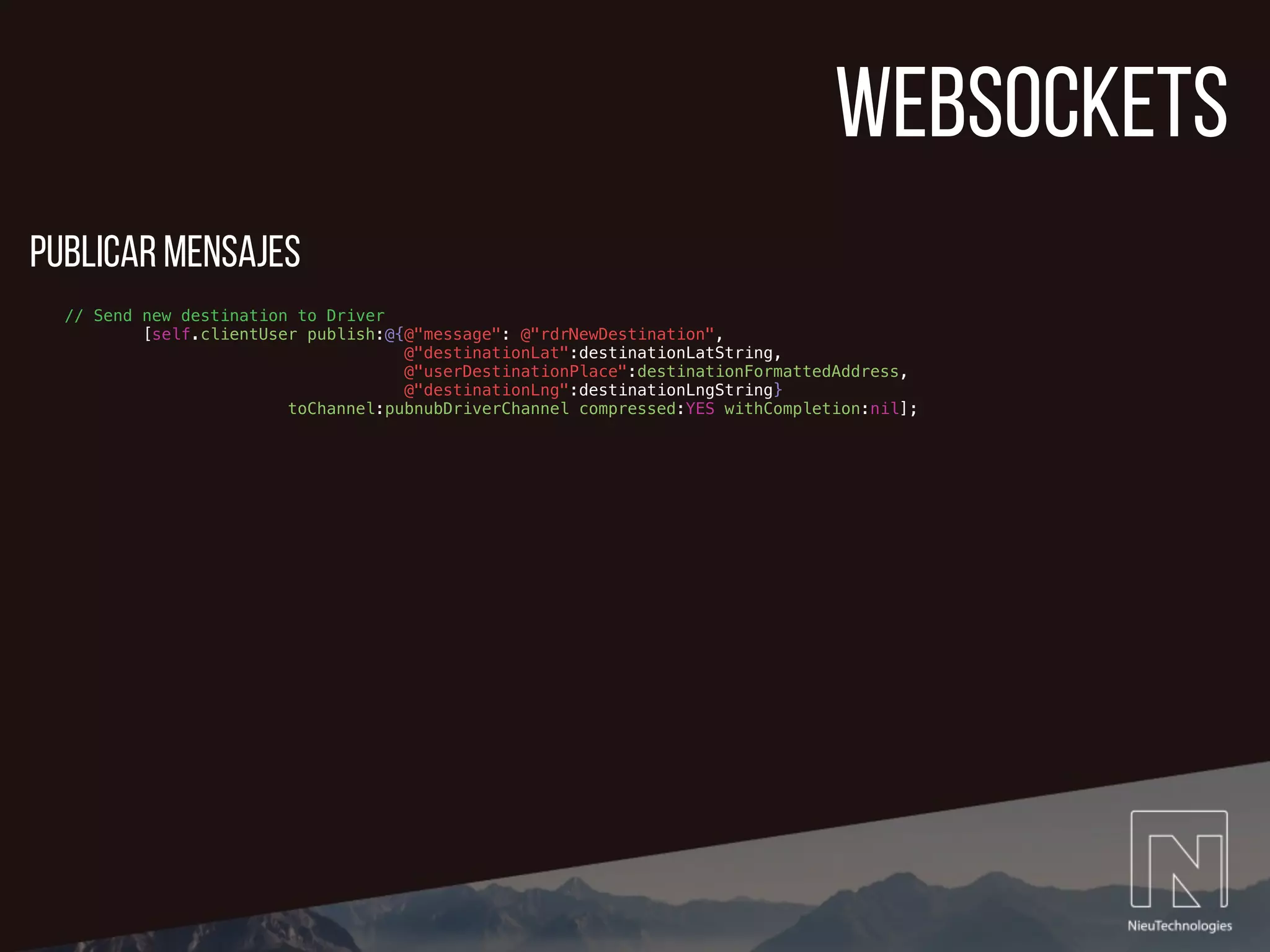

17. websockets
// Send new destination to Driver
[self.clientUser publish:@{@"message": @"rdrNewDestination",
@"destinationLat":destinationLatString,
@"userDestinationPlace":destinationFormattedAddress,
@"destinationLng":destinationLngString}
toChannel:pubnubDriverChannel compressed:YES withCompletion:nil];
publicar mensajes

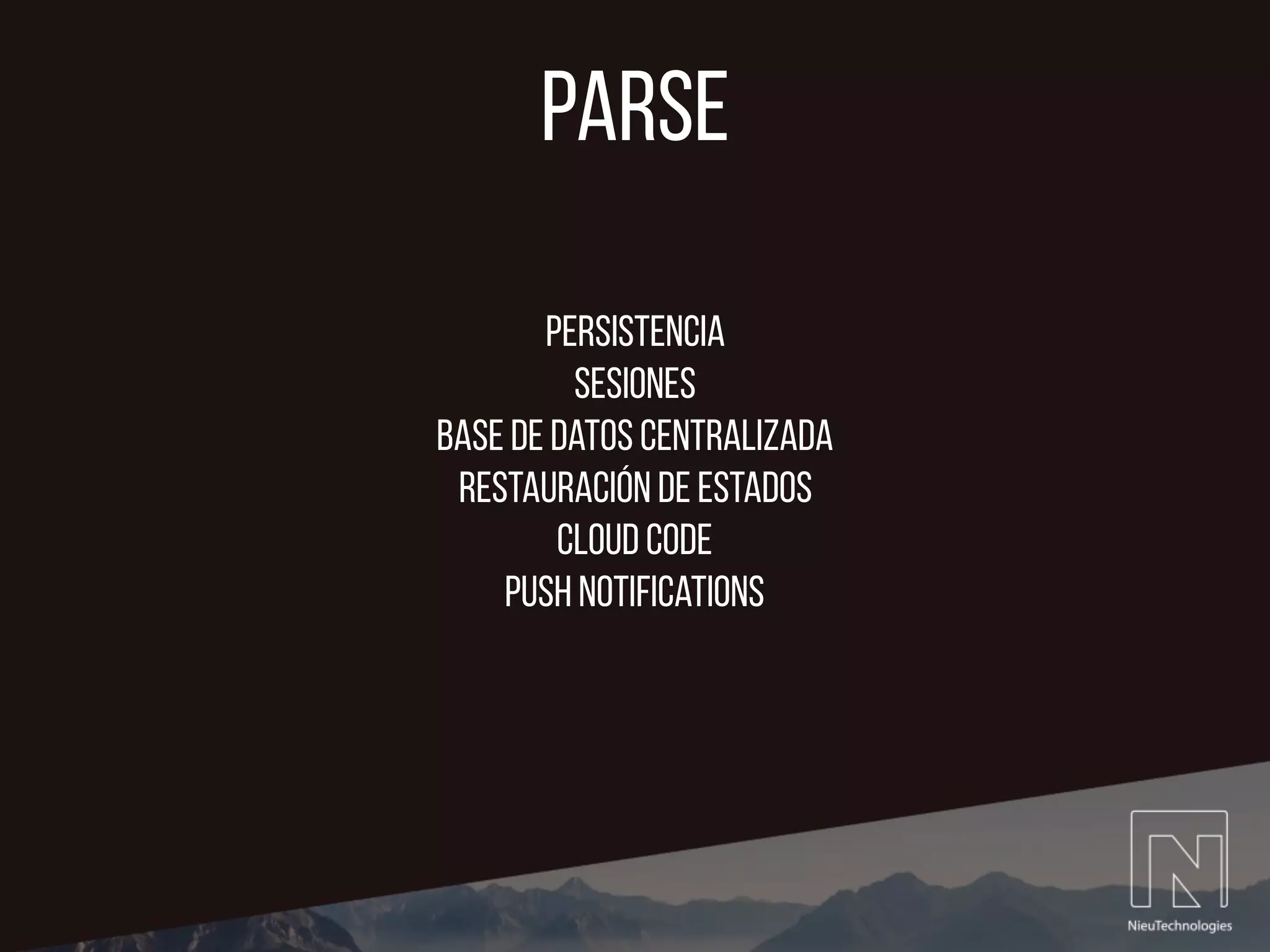

18. parse
Persistencia
Sesiones
base de datos centralizada
Restauración de estados
cloud code
push notifications

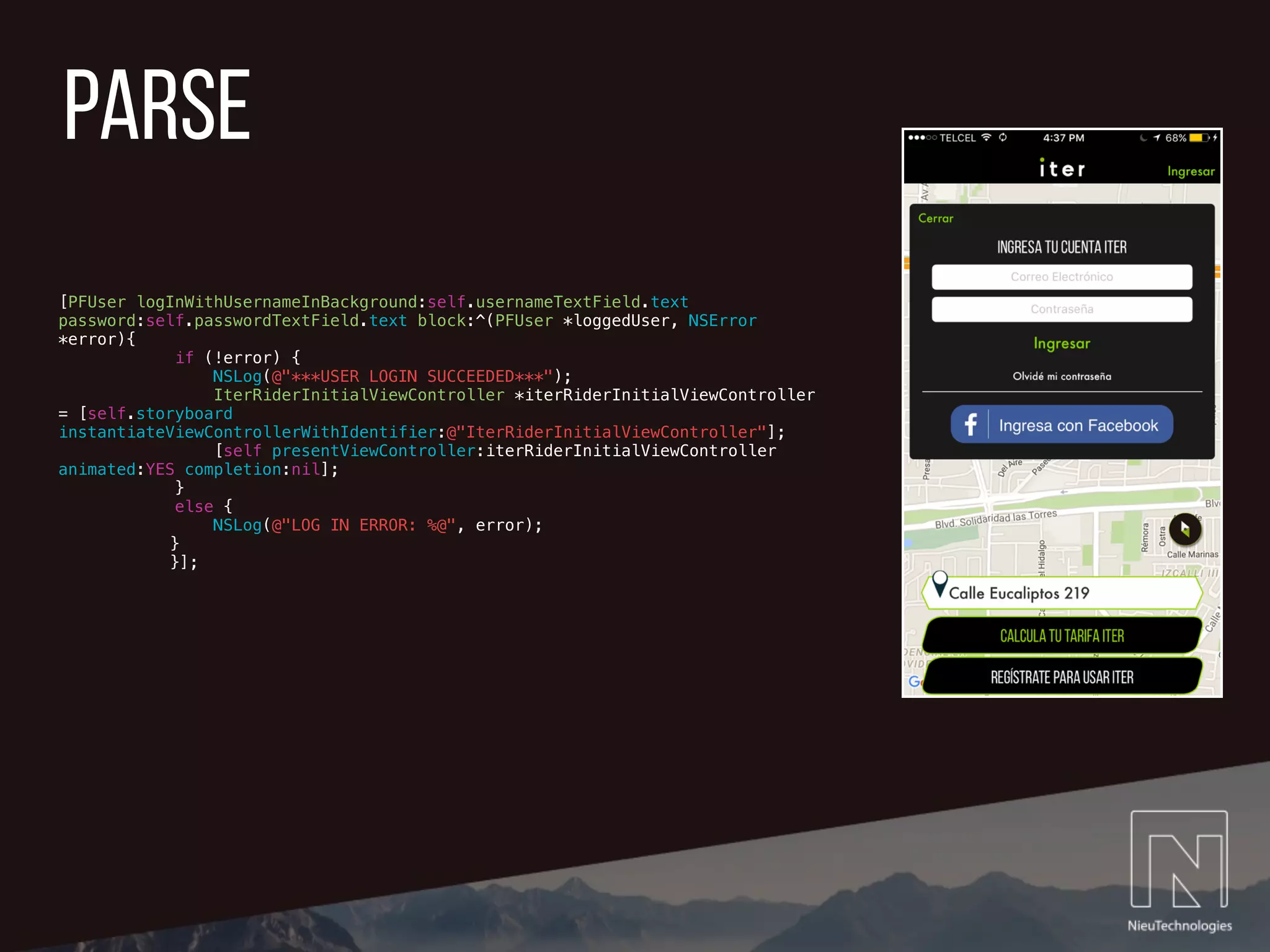

19. parse
[PFUser logInWithUsernameInBackground:self.usernameTextField.text
password:self.passwordTextField.text block:^(PFUser *loggedUser, NSError
*error){
if (!error) {
NSLog(@"***USER LOGIN SUCCEEDED***");
IterRiderInitialViewController *iterRiderInitialViewController
= [self.storyboard
instantiateViewControllerWithIdentifier:@"IterRiderInitialViewController"];
[self presentViewController:iterRiderInitialViewController
animated:YES completion:nil];
}
else {
NSLog(@"LOG IN ERROR: %@", error);
}
}];

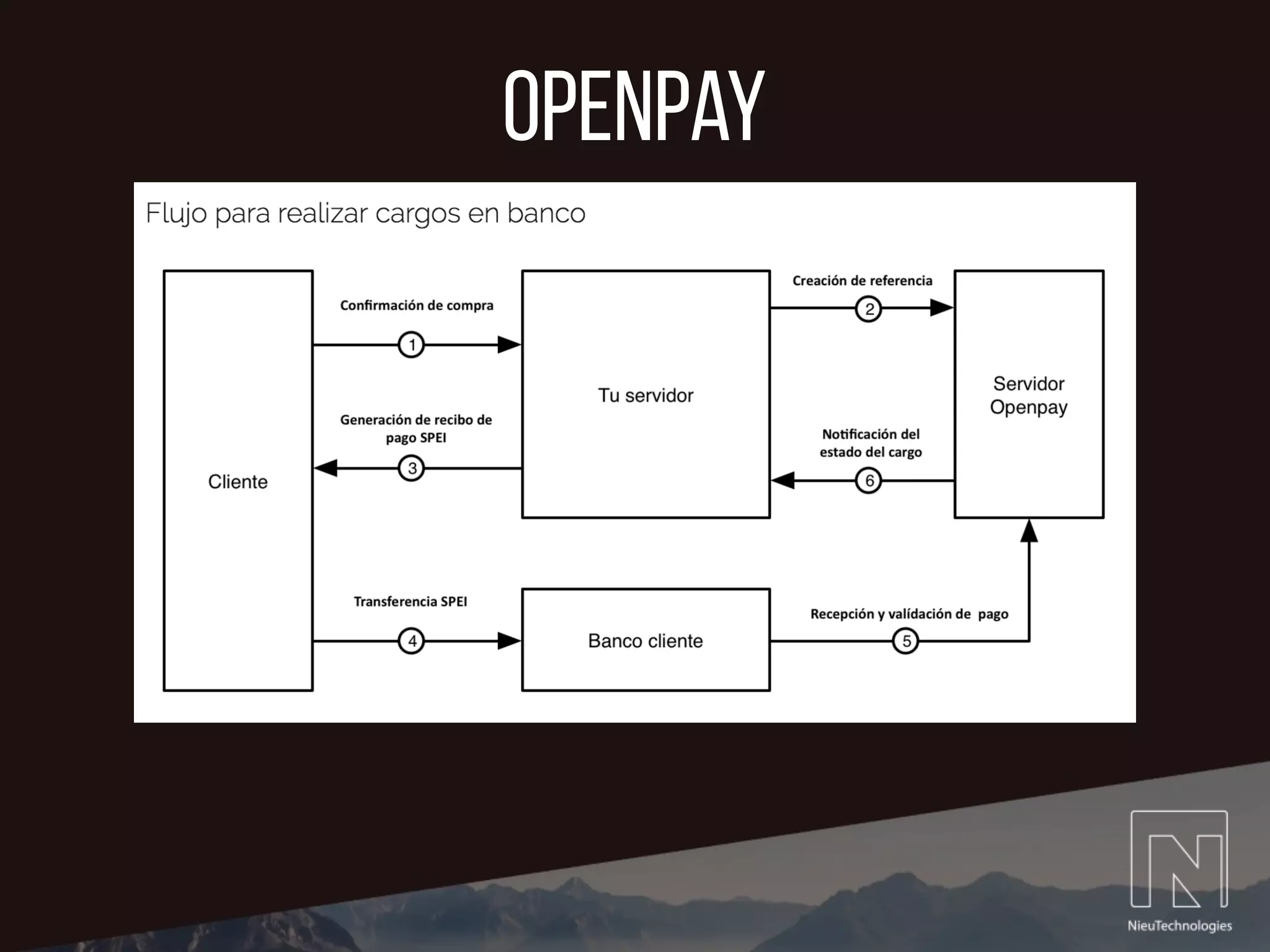

20. openpay

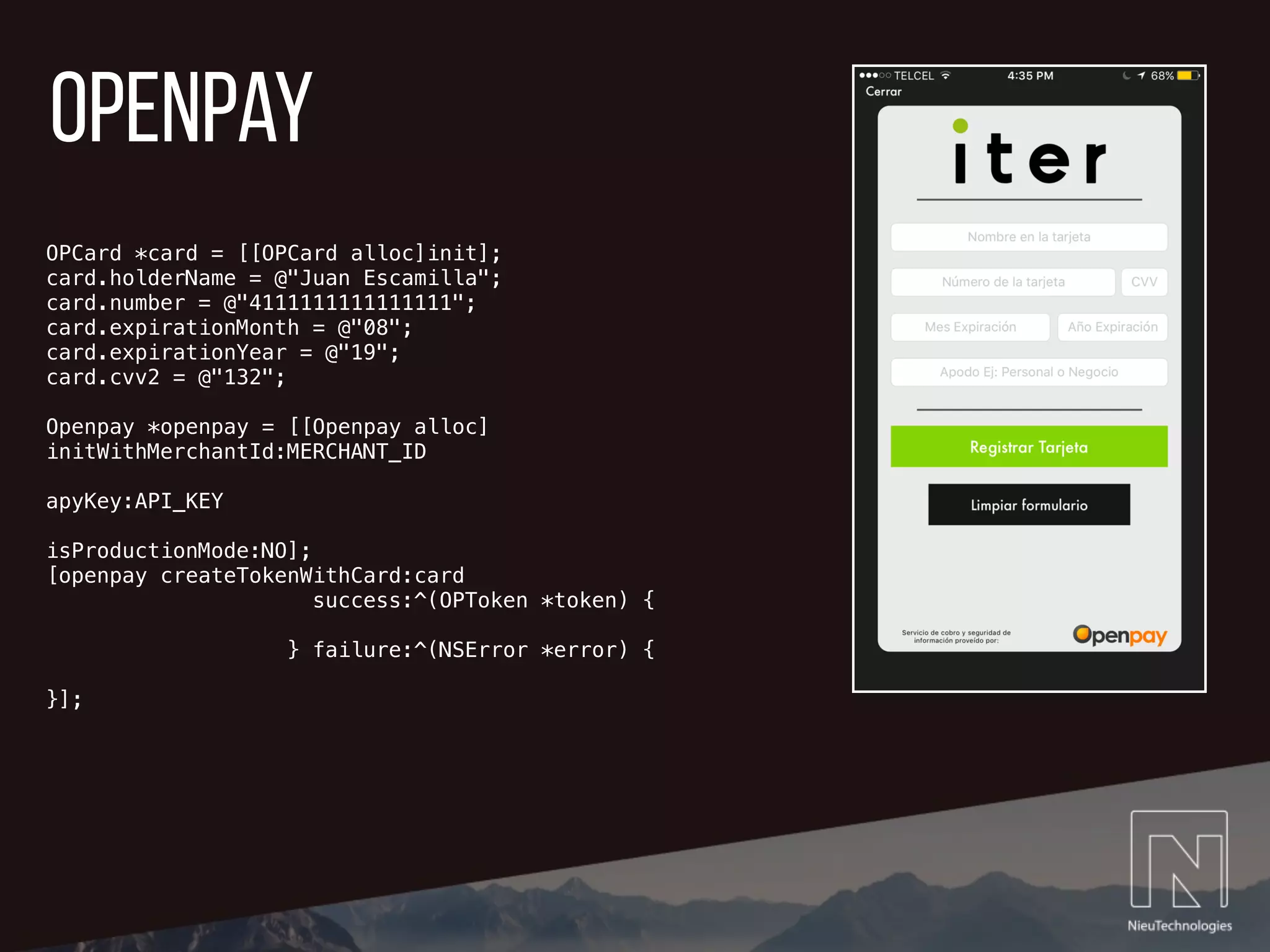

21. openpay
OPCard *card = [[OPCard alloc]init];
card.holderName = @"Juan Escamilla";
card.number = @"4111111111111111";
card.expirationMonth = @"08";
card.expirationYear = @"19";
card.cvv2 = @"132";
Openpay *openpay = [[Openpay alloc]
initWithMerchantId:MERCHANT_ID
apyKey:API_KEY
isProductionMode:NO];
[openpay createTokenWithCard:card
success:^(OPToken *token) {
} failure:^(NSError *error) {
}];
