A talk i had about the solid principles at AngularJS-IL meetup #15. AngularJS is a great framework, it give you the tools you need to build robust single page web applications. Nut a good design and architecture are framework agnostic. By applying some well known object oriented principles to our angular application we can achieve more clean and modular code base.

1. HOW ANGULAR
CAN SOLVE
ALL YOUR PROBLEMS
Nir Kaufman

2. IT CAN’T

3. Nir Kaufman
- I don’t really need glasses to see
- This photo is a photoshop
- In reality I’m in color (and fatter)
Head of AngularJS Development @ 500Tech

4. INTRODUCTION

5. “We are not happy with our app.
it should be modular,
easy to extend and maintain.
It’s hard to understand the flow,
feels like a spaghetti
of presentation and business logic.
- frontend team at {{ company.name }}

6. WE NEED A BETTER
FRAMEWORK

9. WHAT DO WE NEED?

10. COMPONENTS

11. A clean way of organizing
your UI code into self-contained,
reusable chunks

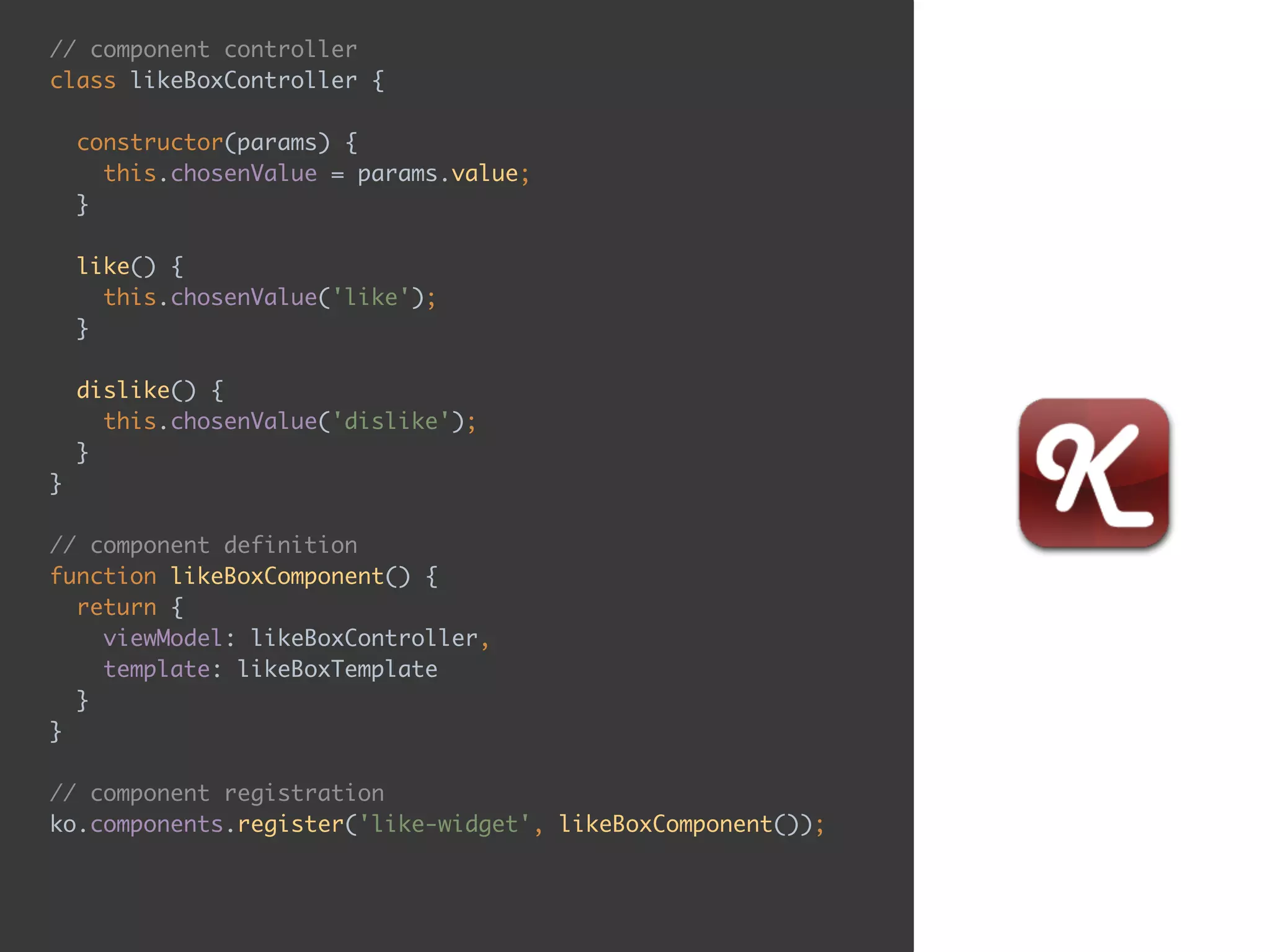

12. // component controller
class likeBoxController {
constructor(params) {
this.chosenValue = params.value;
}
like() {
this.chosenValue('like');
}
dislike() {
this.chosenValue('dislike');
}
}
// component definition
function likeBoxComponent() {
return {
viewModel: likeBoxController,
template: likeBoxTemplate
}
}
// component registration
ko.components.register('like-widget', likeBoxComponent());

13. // component controller
class likeBoxController {
constructor() {
this.chosenValue = null;
}
like() {
this.chosenValue = 'like';
}
dislike() {
this.chosenValue = 'dislike';
}
}
// component definition
function likeBoxComponent() {
return {
controller: likeBoxController,
scope: { params: ‘=chosenValue' },
controllerAs: 'LikeBox',
bindToController: true,
template: likeBoxTemplate
}
}
angular.module('app', [])
.directive('likeWidget', likeBoxComponent);

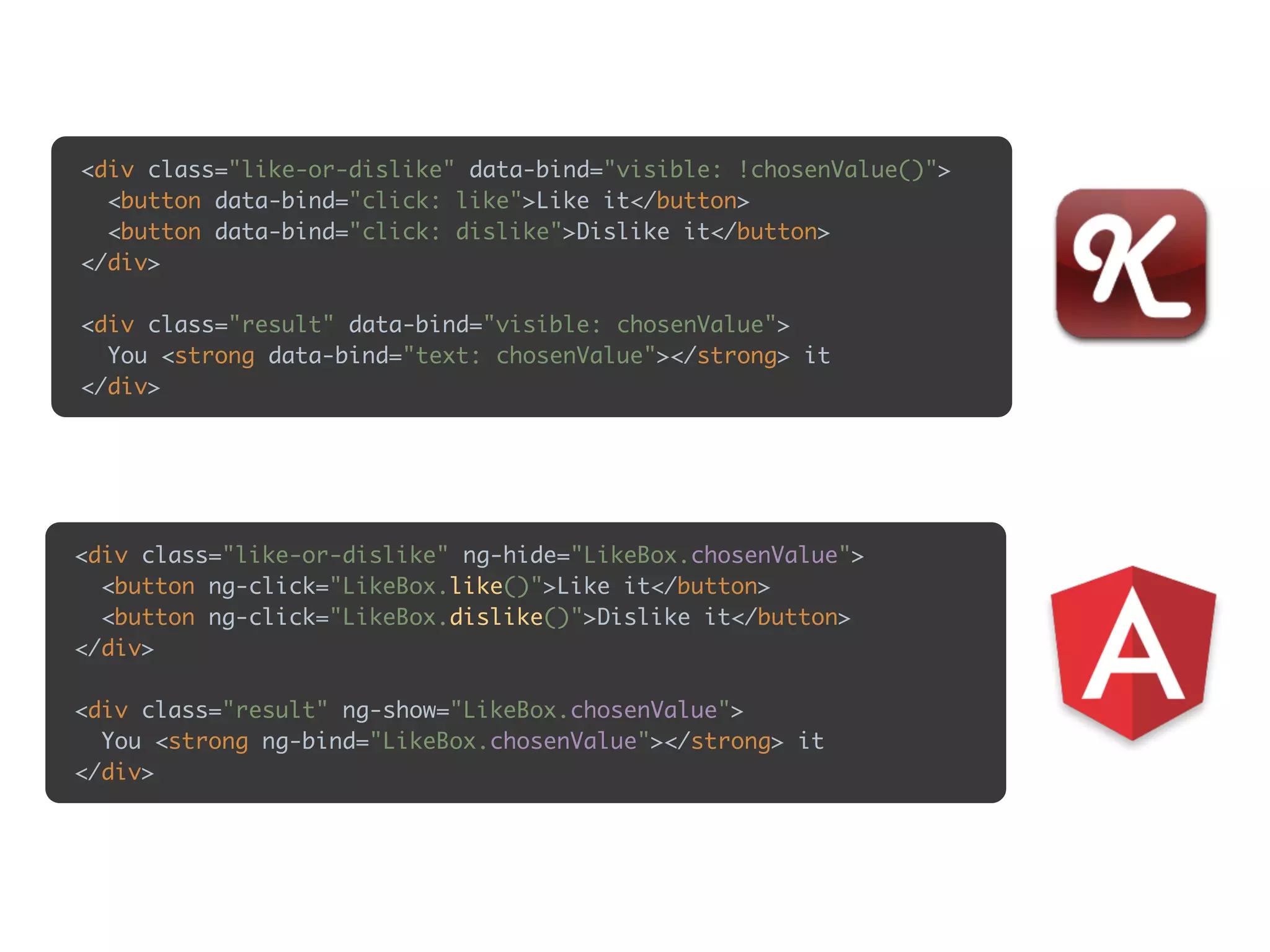

14. <div class="like-or-dislike" data-bind="visible: !chosenValue()">
<button data-bind="click: like">Like it</button>
<button data-bind="click: dislike">Dislike it</button>
</div>
<div class="result" data-bind="visible: chosenValue">
You <strong data-bind="text: chosenValue"></strong> it
</div>
<div class="like-or-dislike" ng-hide="LikeBox.chosenValue">
<button ng-click="LikeBox.like()">Like it</button>
<button ng-click="LikeBox.dislike()">Dislike it</button>
</div>
<div class="result" ng-show="LikeBox.chosenValue">
You <strong ng-bind="LikeBox.chosenValue"></strong> it
</div>

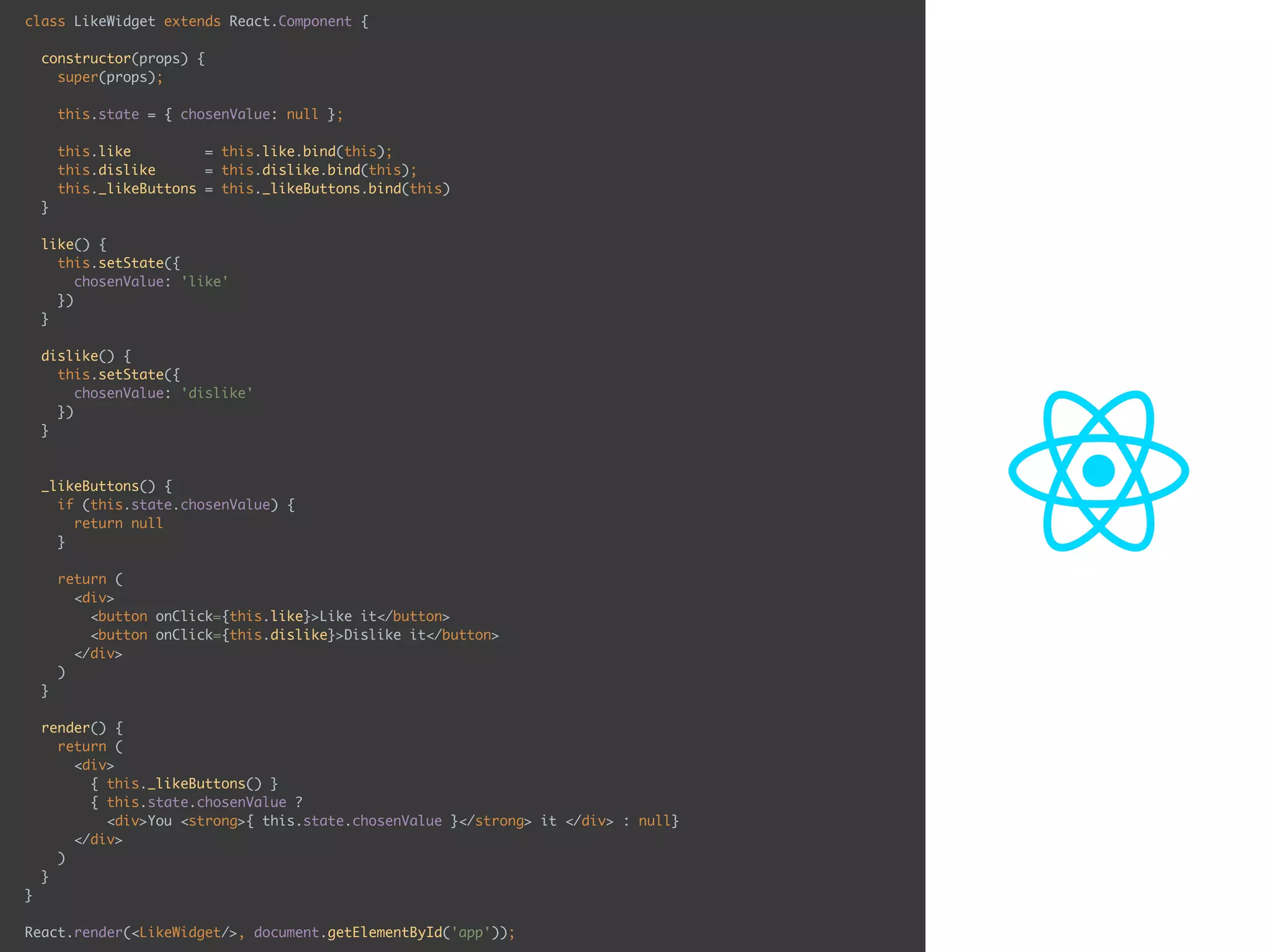

15. class LikeWidget extends React.Component {
constructor(props) {
super(props);
this.state = { chosenValue: null };
this.like = this.like.bind(this);
this.dislike = this.dislike.bind(this);
this._likeButtons = this._likeButtons.bind(this)
}
like() {
this.setState({
chosenValue: 'like'
})
}
dislike() {
this.setState({
chosenValue: 'dislike'
})
}
_likeButtons() {
if (this.state.chosenValue) {
return null
}
return (
<div>
<button onClick={this.like}>Like it</button>
<button onClick={this.dislike}>Dislike it</button>
</div>
)
}
render() {
return (
<div>
{ this._likeButtons() }
{ this.state.chosenValue ?
<div>You <strong>{ this.state.chosenValue }</strong> it </div> : null}
</div>
)
}
}
React.render(<LikeWidget/>, document.getElementById('app'));

16. MVW PATTERN

17. Keep your business logic
separate from your user interface

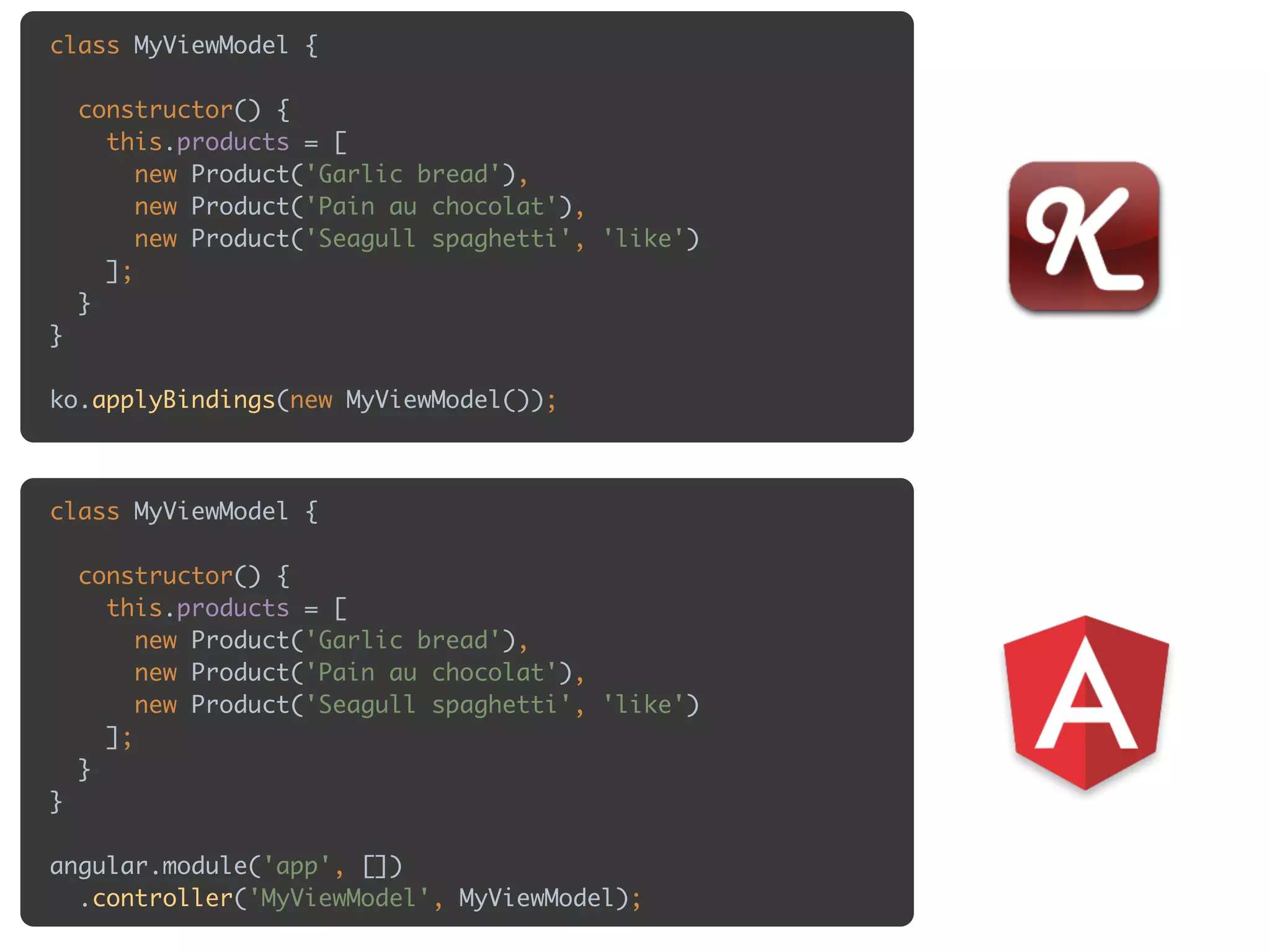

18. class MyViewModel {
constructor() {
this.products = [
new Product('Garlic bread'),
new Product('Pain au chocolat'),
new Product('Seagull spaghetti', 'like')
];
}
}
ko.applyBindings(new MyViewModel());
class MyViewModel {
constructor() {
this.products = [
new Product('Garlic bread'),
new Product('Pain au chocolat'),
new Product('Seagull spaghetti', 'like')
];
}
}
angular.module('app', [])
.controller('MyViewModel', MyViewModel);

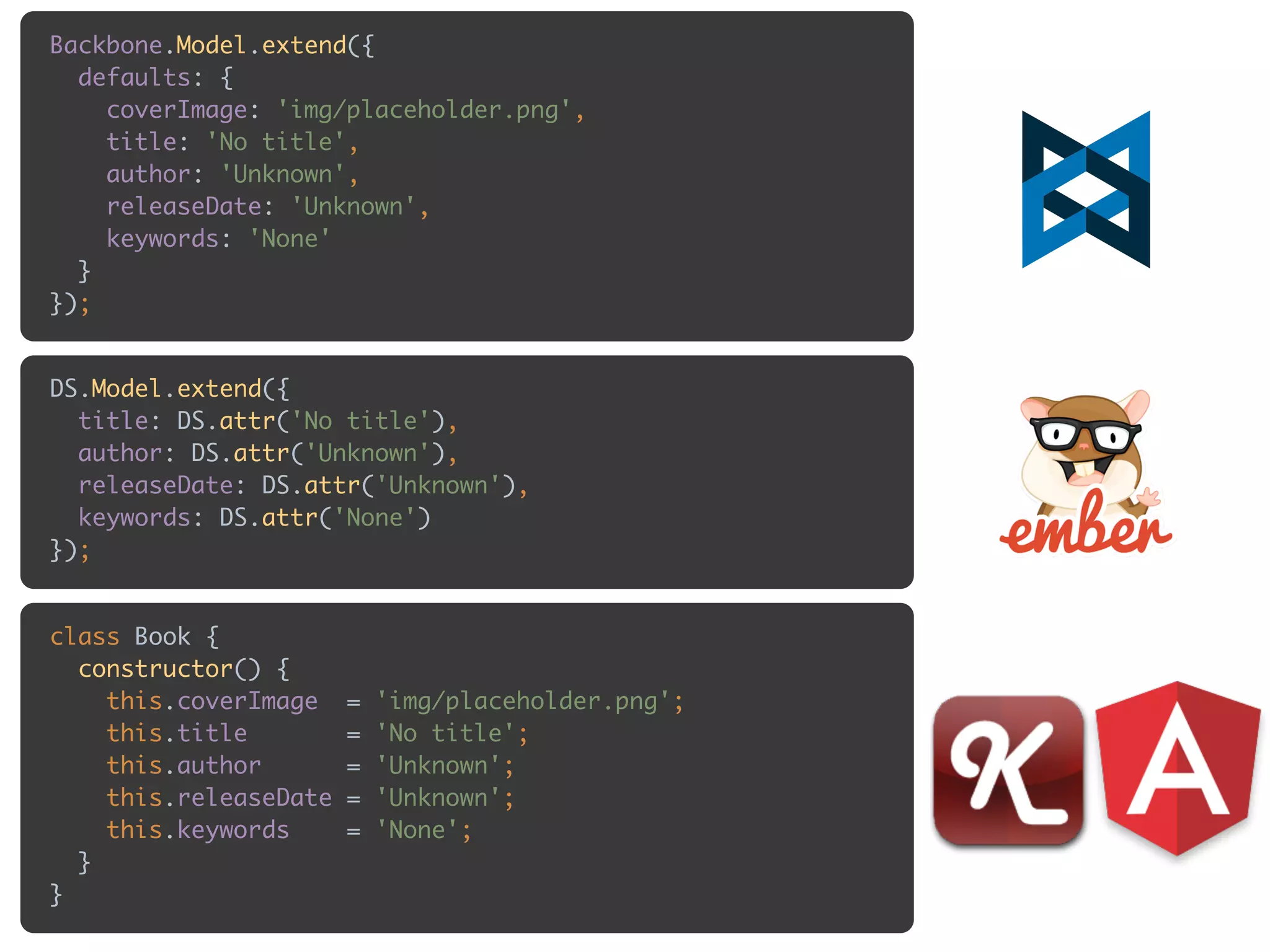

19. Backbone.Model.extend({
defaults: {
coverImage: 'img/placeholder.png',
title: 'No title',
author: 'Unknown',
releaseDate: 'Unknown',
keywords: 'None'
}
});
DS.Model.extend({
title: DS.attr('No title'),
author: DS.attr('Unknown'),
releaseDate: DS.attr('Unknown'),
keywords: DS.attr('None')
});
class Book {
constructor() {
this.coverImage = 'img/placeholder.png';
this.title = 'No title';
this.author = 'Unknown';
this.releaseDate = 'Unknown';
this.keywords = 'None';
}
}

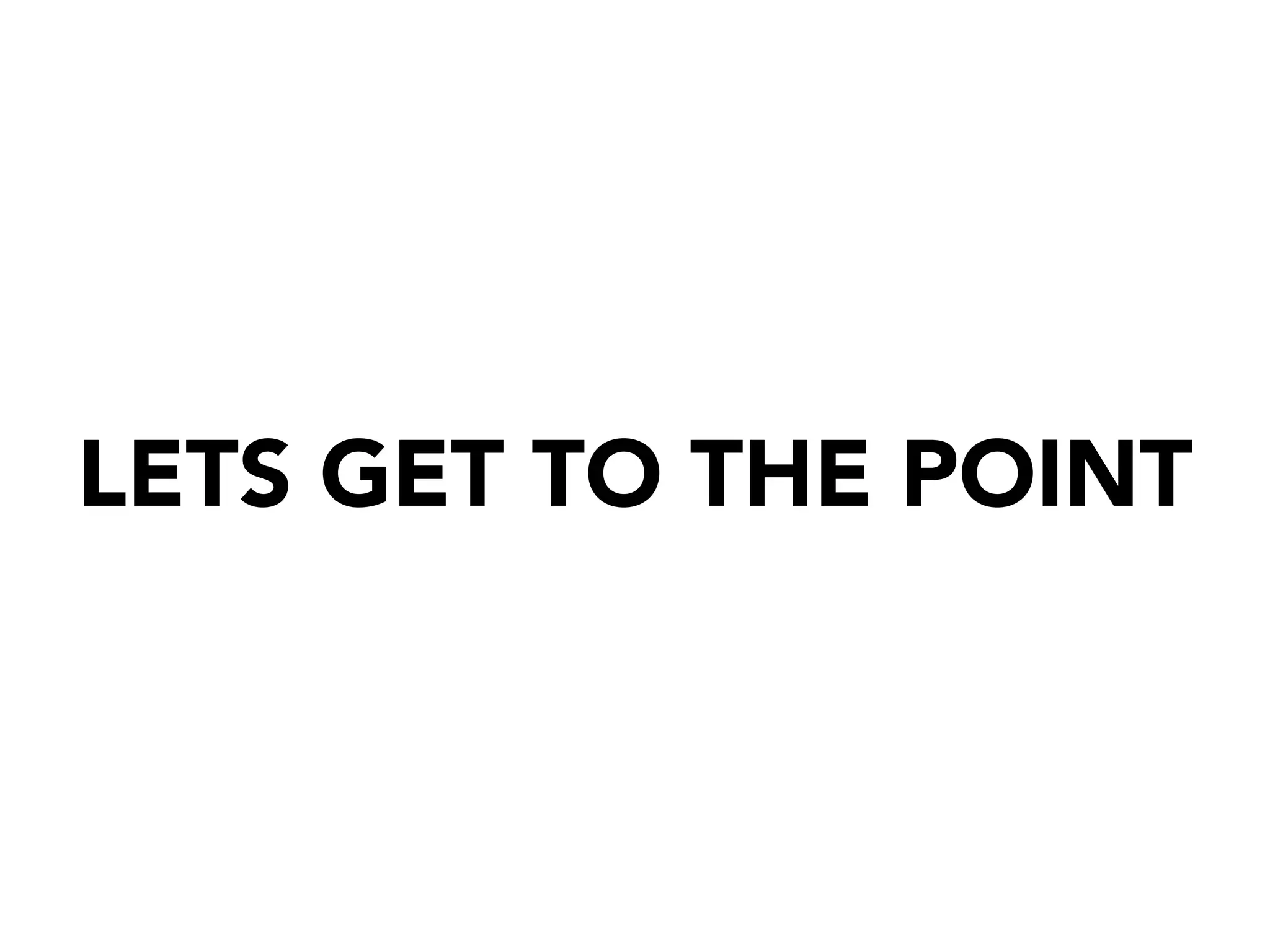

20. LETS GET TO THE POINT

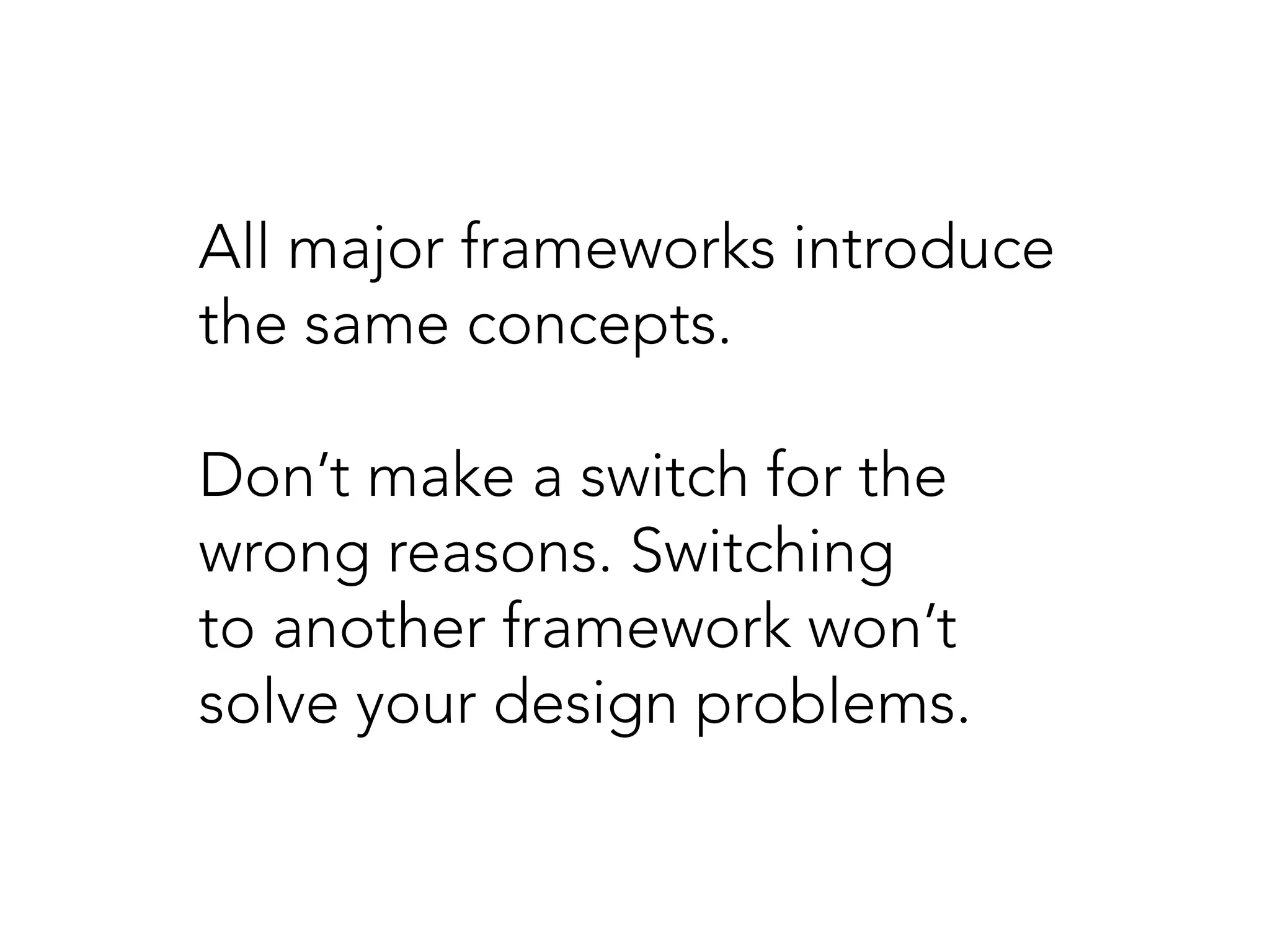

21. All major frameworks introduce
the same concepts.
Don’t make a switch for the
wrong reasons. Switching
to another framework won’t
solve your design problems.

22. OBJECT ORIENTED
PROGRAMMING

23. CONSIDER TYPESCRIPT
I used to hate it…

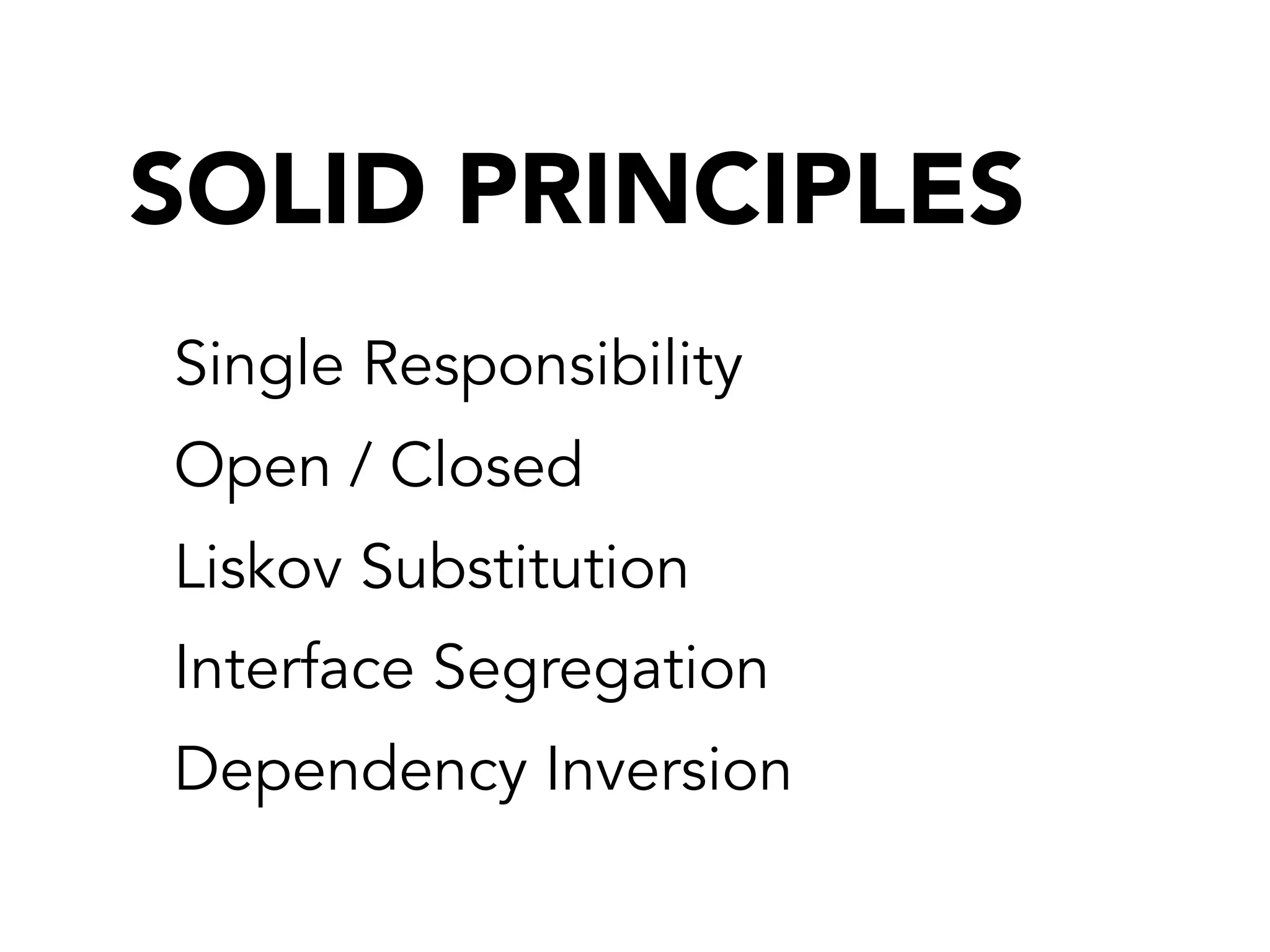

24. SOLID PRINCIPLES
Single Responsibility
Open / Closed
Liskov Substitution
Interface Segregation
Dependency Inversion

25. S.O.L.I.D
Single Responsibility Principle

26. A module should have one,
and only one reason to change

27. // module declarations
angular.module('app', [
'ui.router',
'LocalStorageModule',
'app.states'
])
.config(($stateProvider, $httpProvider, localStorageServiceProvider) => {
// start routing
$stateProvider
.state('dashboard', {
url: '/dashboard',
templateUrl: 'states/dashboard/dashboard.html',
controller: 'DashboardController'
})
.state('users', {
url: '/users',
templateUrl: 'states/users/users.html',
controller: 'UsersController'
});
// http configuration
$httpProvider.useApplyAsync(true);
$httpProvider.useLegacyPromiseExtensions(false);
$httpProvider.interceptors.push(($log) => {
return {
'request': function (config) {
$log.debug(config);
return config;
}
};
});
// storage configurations
localStorageServiceProvider
.setPrefix('myApp')
.setStorageType('sessionStorage')
});
// start engines
angular.bootstrap(document, ['app']);
4 reasons
to change
this module:
add dependency
add new state
configure http service
configure storage service

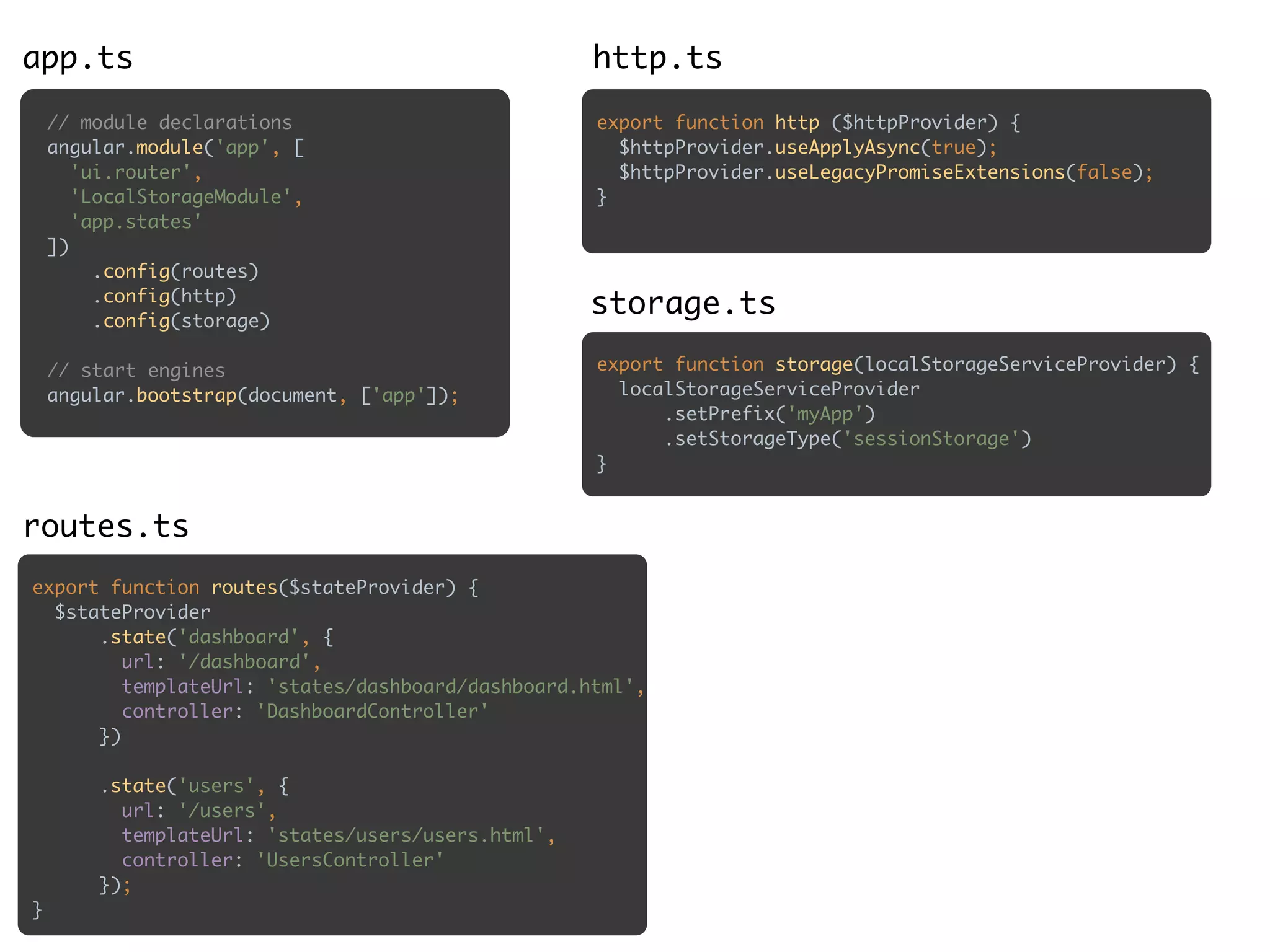

28. // module declarations
angular.module('app', [
'ui.router',
'LocalStorageModule',
'app.states'
])
.config(routes)
.config(http)
.config(storage)
// start engines
angular.bootstrap(document, ['app']);
export function routes($stateProvider) {
$stateProvider
.state('dashboard', {
url: '/dashboard',
templateUrl: 'states/dashboard/dashboard.html',
controller: 'DashboardController'
})
.state('users', {
url: '/users',
templateUrl: 'states/users/users.html',
controller: 'UsersController'
});
}
routes.ts
app.ts
export function http ($httpProvider) {
$httpProvider.useApplyAsync(true);
$httpProvider.useLegacyPromiseExtensions(false);
}
http.ts
export function storage(localStorageServiceProvider) {
localStorageServiceProvider
.setPrefix('myApp')
.setStorageType('sessionStorage')
}
storage.ts

29. // module declarations
angular.module('app', [
'ui.router',
'LocalStorageModule',
'app.states'
])
.config(routes)
.config(http)
.config(storage)
// start engines
angular.bootstrap(document, ['app']);

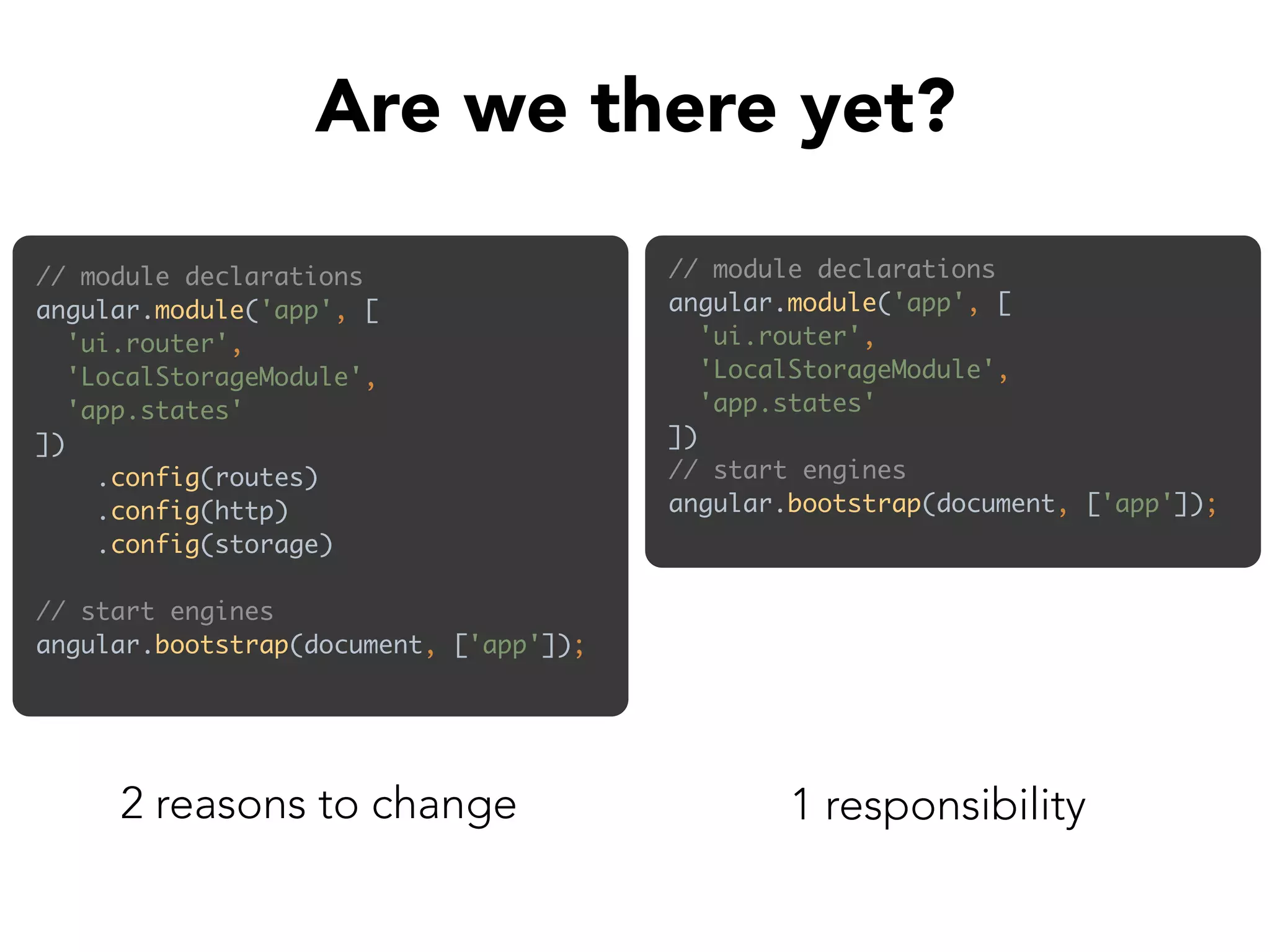

Are we there yet?
2 reasons to change
// module declarations
angular.module('app', [
'ui.router',
'LocalStorageModule',
'app.states'
])
// start engines
angular.bootstrap(document, ['app']);
1 responsibility

30. S.O.L.I.D
Open / Closed Principle

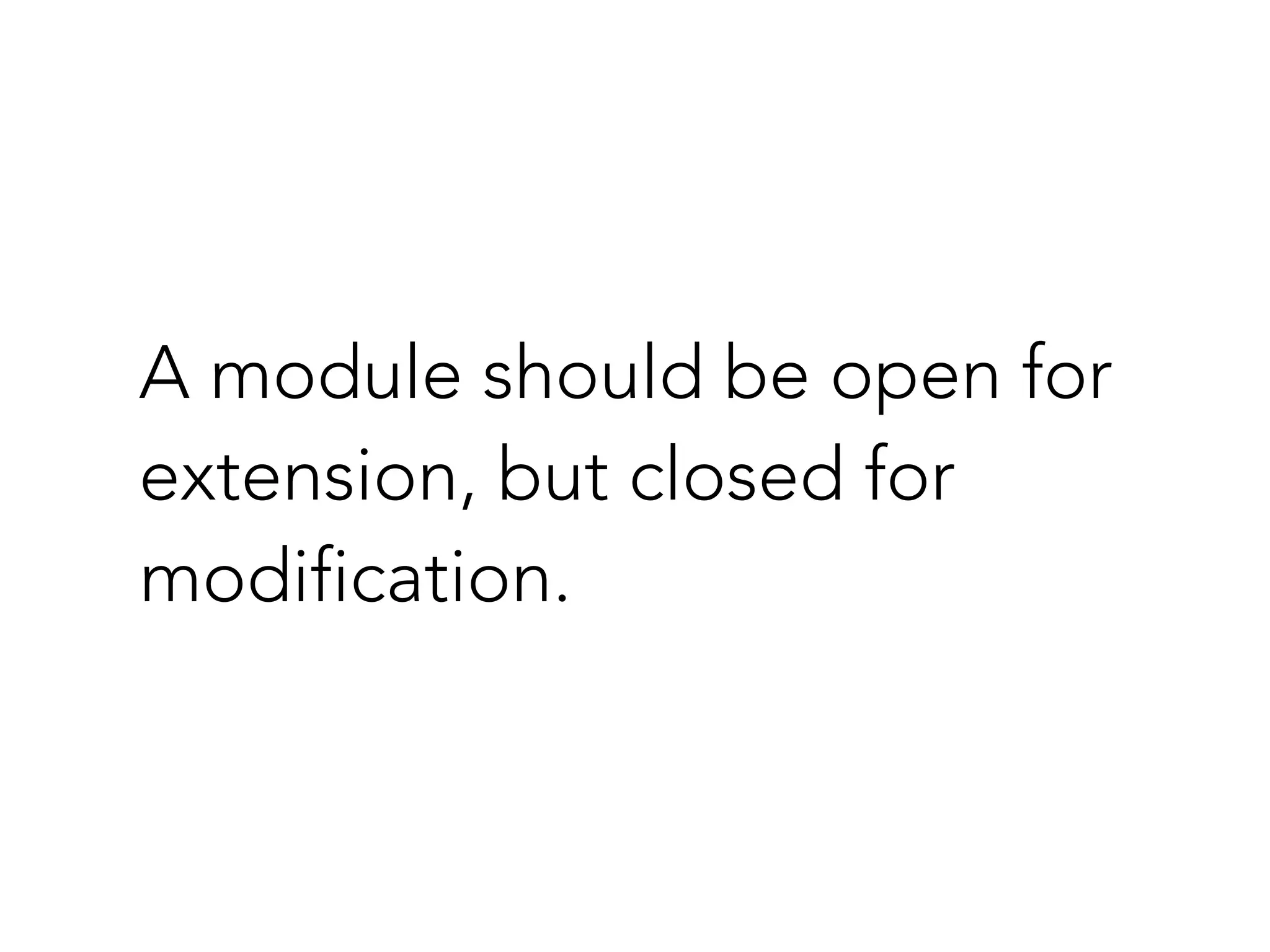

31. A module should be open for
extension, but closed for
modification.

32. class Modal {
constructor($modal) {
this.modal = $modal;
}
show(type) {
switch (type) {
case 'login':
this.showLoginModal();
break;
case 'info':
this.showInfoModal();
break;
}
}
showLoginModal() {
this.modal.open({
template: 'loginModal.html',
controller: ‘loginModalController’
})
}
showInfoModal() {
this.modal.open({
template: 'infoModal.html',
controller: 'infoModalController'
})
}
}
class Controller {
constructor(Modal) {
this.Modal = Modal;
}
showLogin(){
this.Modal.show('login');
}
}
We need to add
new Modals to
our system

33. class Modal {
constructor($modal) {
this.modal = $modal;
this.modals = new Map();
}
register(type, config) {
this.modals.set(type, config)
}
$get() {
return { show: this.show }
}
show(type) {
if(this.modals.has(type)){
this.modal.open(this.modals.get(type))
}
}
}
angular.module('app', [])
.config(ModalProvider => {
ModalProvider.register('lostPassword', {
template: 'lostPassword.html',
controller: 'lostPasswordController'
})
});
class Controller {
constructor(Modal) {
this.Modal = Modal;
}
showLogin(){
this.Modal.show('lostPassword');
}
}
Write code that
can be extended

34. S.O.L.I.D
Liskov Substitution Principle

35. Child classes should never
break the parent class type definitions

36. IT’S ABOUT
INHERITANCE

37. DON’T DO IT

38. S.O.L.I.D
Interface Segregation Principle

39. Many specific interfaces
are better than one generic interface

40. I just want to make a copy

41. class LocalStorage {
private storage;
private $window;
constructor($window, $q) {
this.$window = $window;
}
setStorageType(type:string) {
if (type === 'local') {
return this.storage = this.$window.localStorage;
}
if (type === 'db') {
return this.storage = new PouchDB('DB');
}
}
setLocalItem(key:string, data) {
if (this.db) {
return this.db.put(JSON.parse(data))
}
return this.storage.setItem(key, JSON.stringify(data));
}
put(data) {
this.storage.put(JSON.parse(data))
}
getLocalItem(key:string):string {
let deferred = this.$q.defer();
if (this.db) {
this.db.get(key).then( result => deferred.resolve() )
}
deferred.resolve(this.storage.getItem());
return deferred.promise;
}
}
No client should be
forced to depend on
methods it doesn’t use

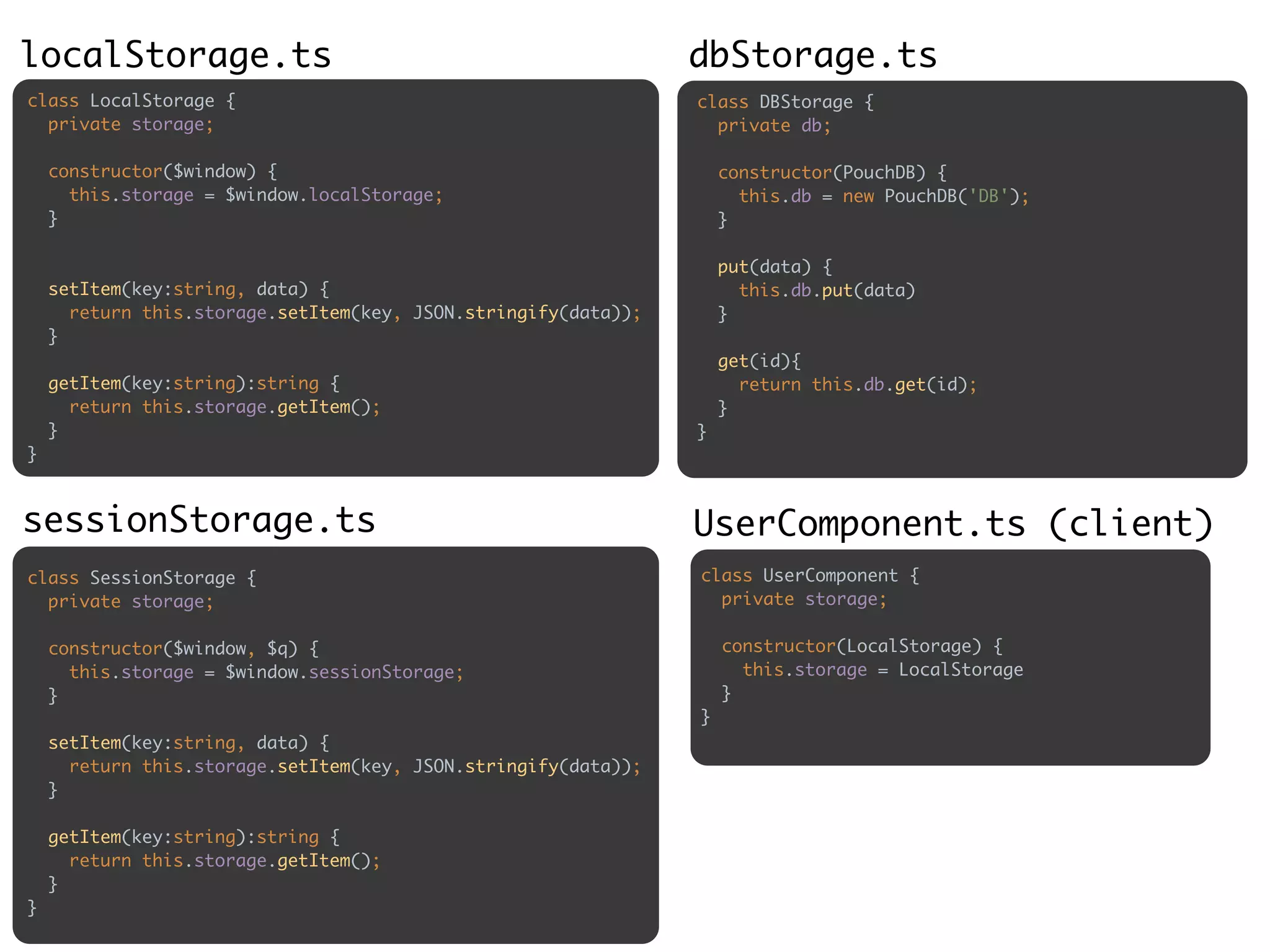

42. class LocalStorage {
private storage;
constructor($window) {
this.storage = $window.localStorage;
}
setItem(key:string, data) {
return this.storage.setItem(key, JSON.stringify(data));
}
getItem(key:string):string {
return this.storage.getItem();
}
}
class SessionStorage {
private storage;
constructor($window, $q) {
this.storage = $window.sessionStorage;
}
setItem(key:string, data) {
return this.storage.setItem(key, JSON.stringify(data));
}
getItem(key:string):string {
return this.storage.getItem();
}
}
localStorage.ts
sessionStorage.ts
class DBStorage {
private db;
constructor(PouchDB) {
this.db = new PouchDB('DB');
}
put(data) {
this.db.put(data)
}
get(id){
return this.db.get(id);
}
}
dbStorage.ts
UserComponent.ts (client)
class UserComponent {
private storage;
constructor(LocalStorage) {
this.storage = LocalStorage
}
}

43. S.O.L.I.D
Dependency Inversion Principle

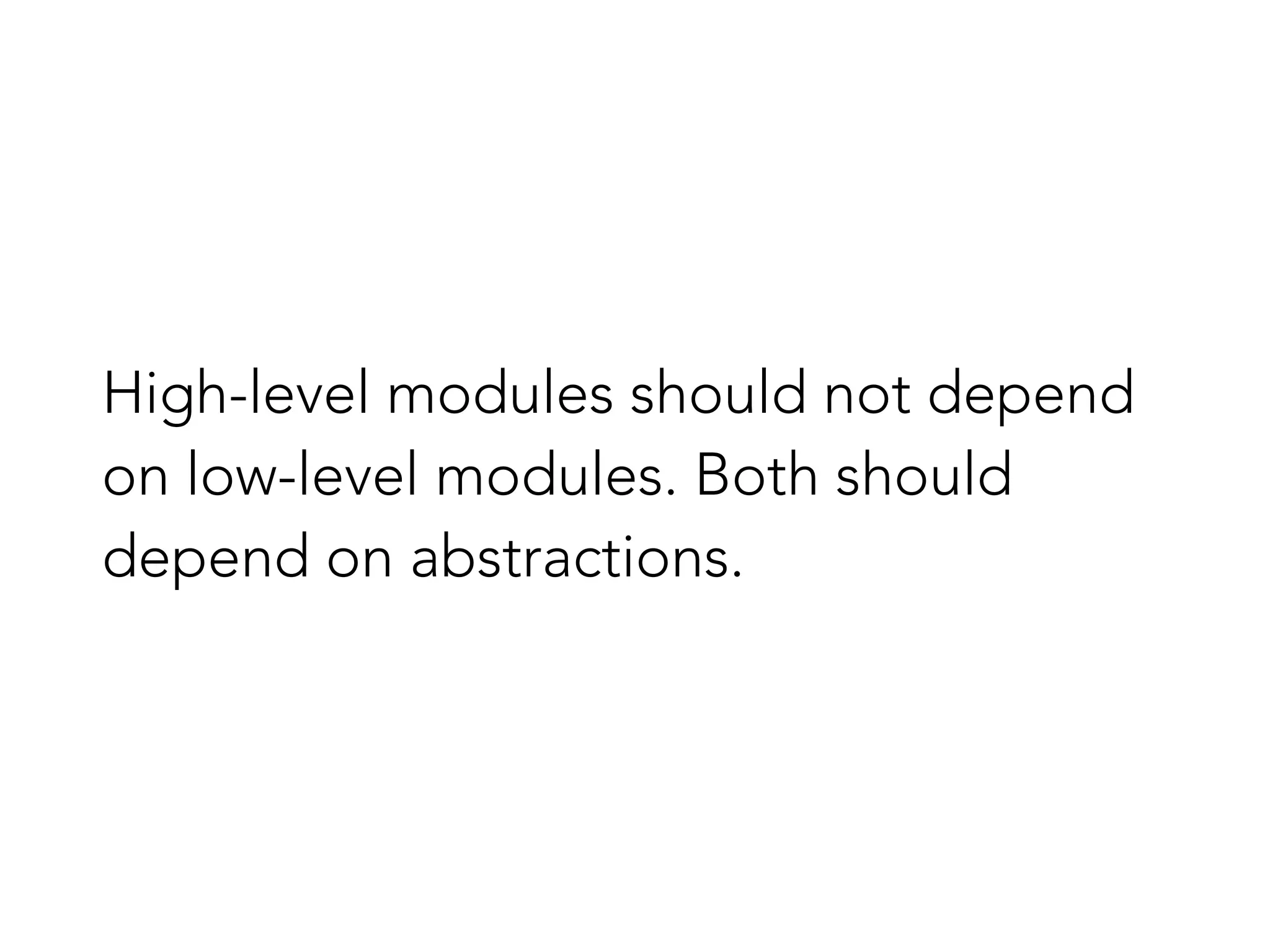

44. High-level modules should not depend
on low-level modules. Both should
depend on abstractions.

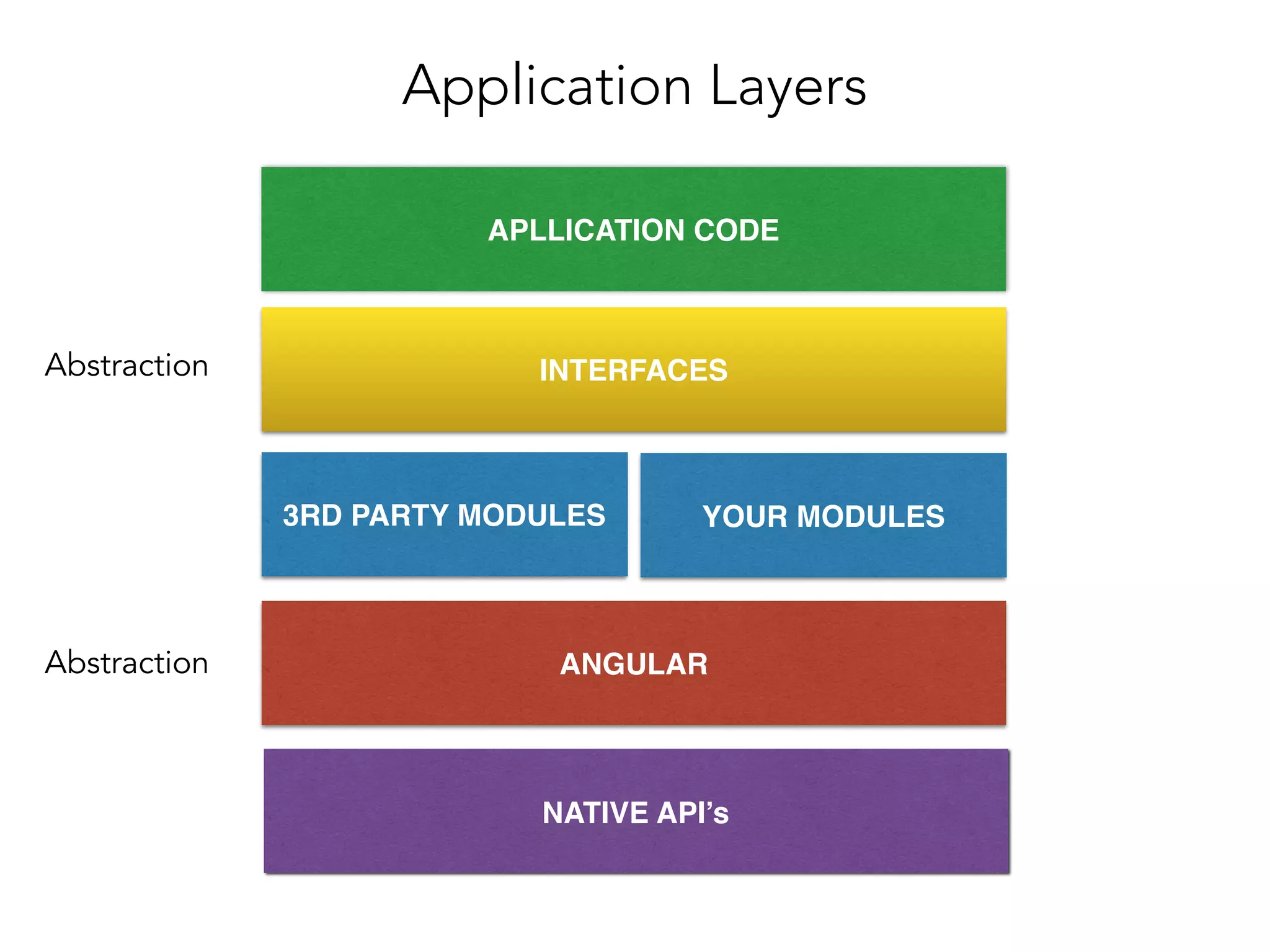

45. NATIVE API’s
ANGULAR
3RD PARTY MODULES
APLLICATION CODE
INTERFACES
Application Layers
YOUR MODULES
Abstraction
Abstraction

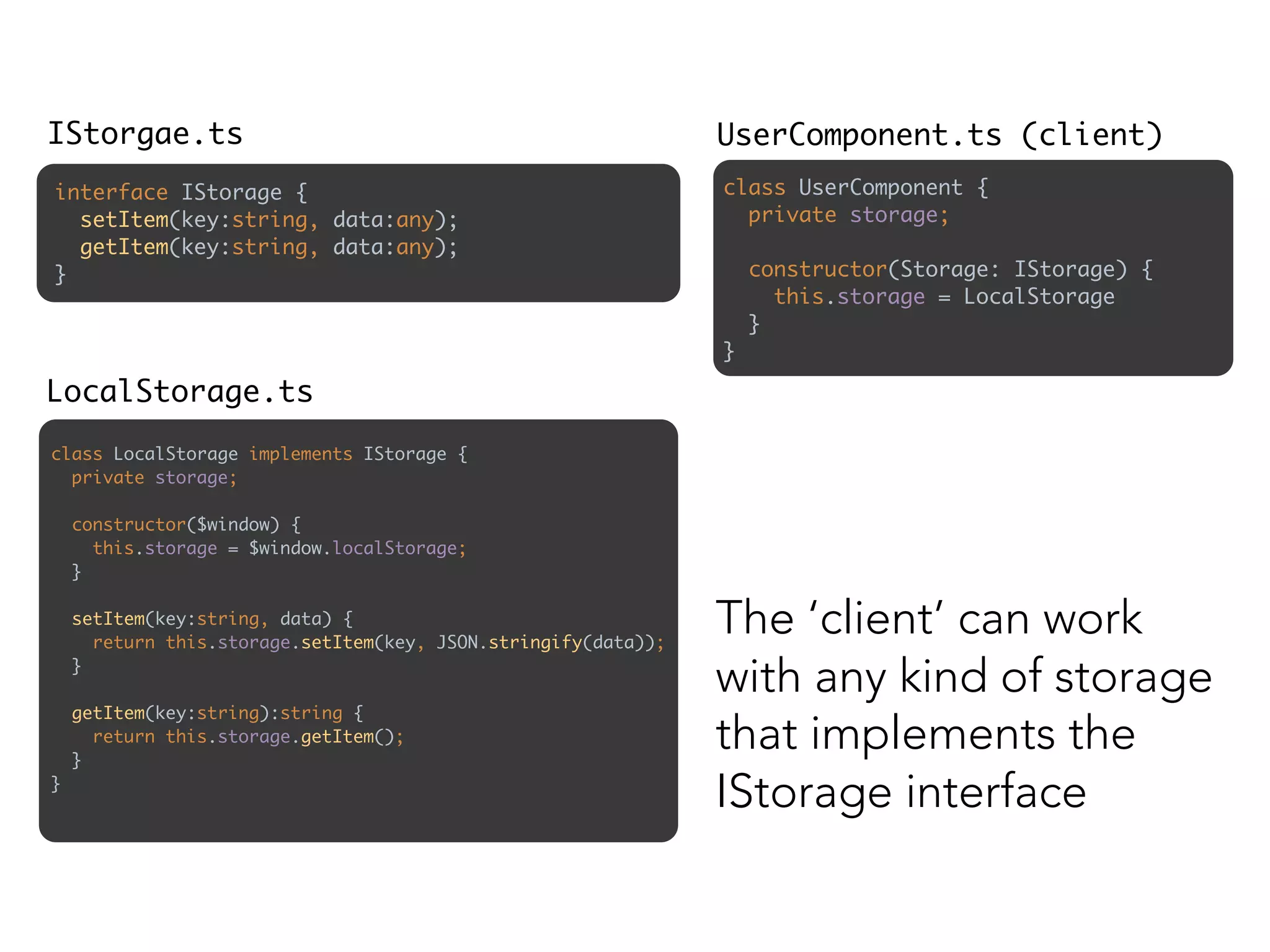

46. interface IStorage {
setItem(key:string, data:any);
getItem(key:string, data:any);
}
IStorgae.ts UserComponent.ts (client)
class UserComponent {
private storage;
constructor(Storage: IStorage) {
this.storage = LocalStorage
}
}
LocalStorage.ts
class LocalStorage implements IStorage {
private storage;
constructor($window) {
this.storage = $window.localStorage;
}
setItem(key:string, data) {
return this.storage.setItem(key, JSON.stringify(data));
}
getItem(key:string):string {
return this.storage.getItem();
}
}
The ‘client’ can work
with any kind of storage
that implements the
IStorage interface

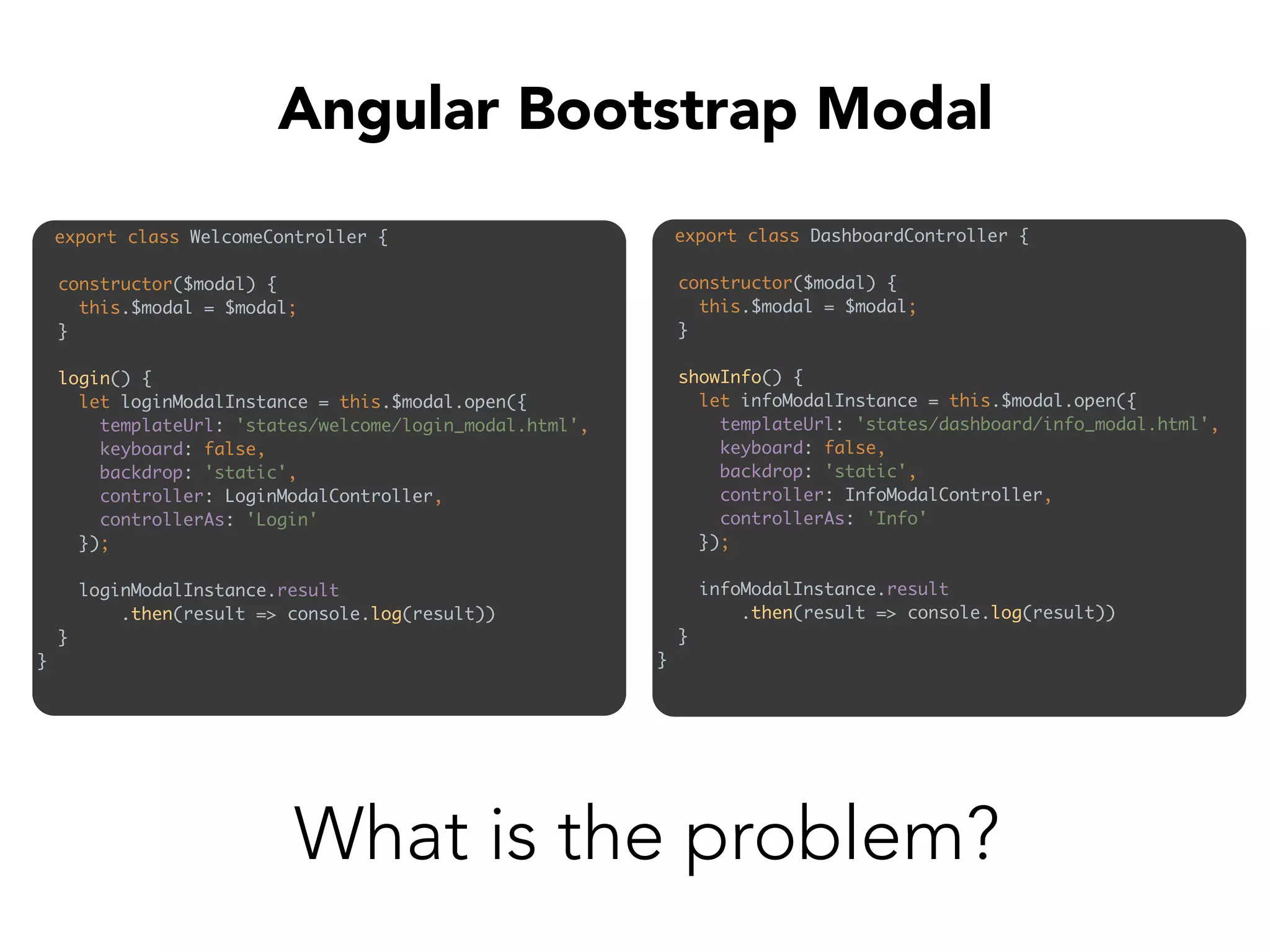

47. export class WelcomeController {
constructor($modal) {
this.$modal = $modal;
}
login() {
let loginModalInstance = this.$modal.open({
templateUrl: 'states/welcome/login_modal.html',
keyboard: false,
backdrop: 'static',
controller: LoginModalController,
controllerAs: 'Login'
});
loginModalInstance.result
.then(result => console.log(result))
}
}
Angular Bootstrap Modal
export class DashboardController {
constructor($modal) {
this.$modal = $modal;
}
showInfo() {
let infoModalInstance = this.$modal.open({
templateUrl: 'states/dashboard/info_modal.html',
keyboard: false,
backdrop: 'static',
controller: InfoModalController,
controllerAs: 'Info'
});
infoModalInstance.result
.then(result => console.log(result))
}
}
What is the problem?

48. class Modal {
constructor($modal) {
this.modal = $modal;
this.modals = new Map();
}
register(type, config) {
this.modals.set(type, config)
}
$get() {
return { show: this.show }
}
show(type) {
if(this.modals.has(type)){
this.modal.open(this.modals.get(type))
}
}
}
Abstraction without TypeScript

49. SUMMARY

50. DON’T MAKE A
SWITCH FOR
THE WRONG
REASONS

51. DESIGN PATTENS
MATTER

52. GOOD DESIGN
IS FRAMEWORK
AGNOSTIC

53. THANK YOU!

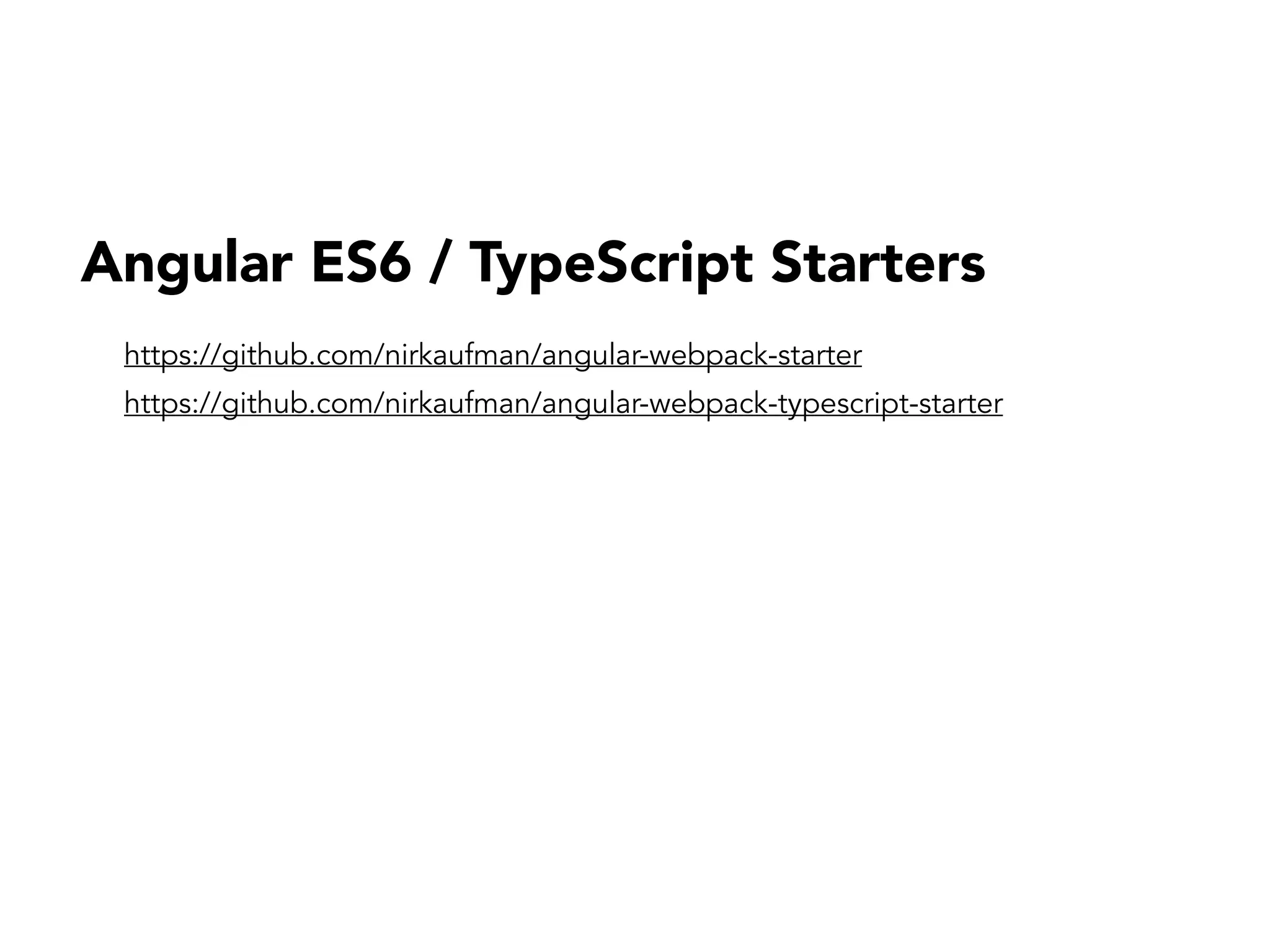

54. Angular ES6 / TypeScript Starters
https://github.com/nirkaufman/angular-webpack-starter
https://github.com/nirkaufman/angular-webpack-typescript-starter

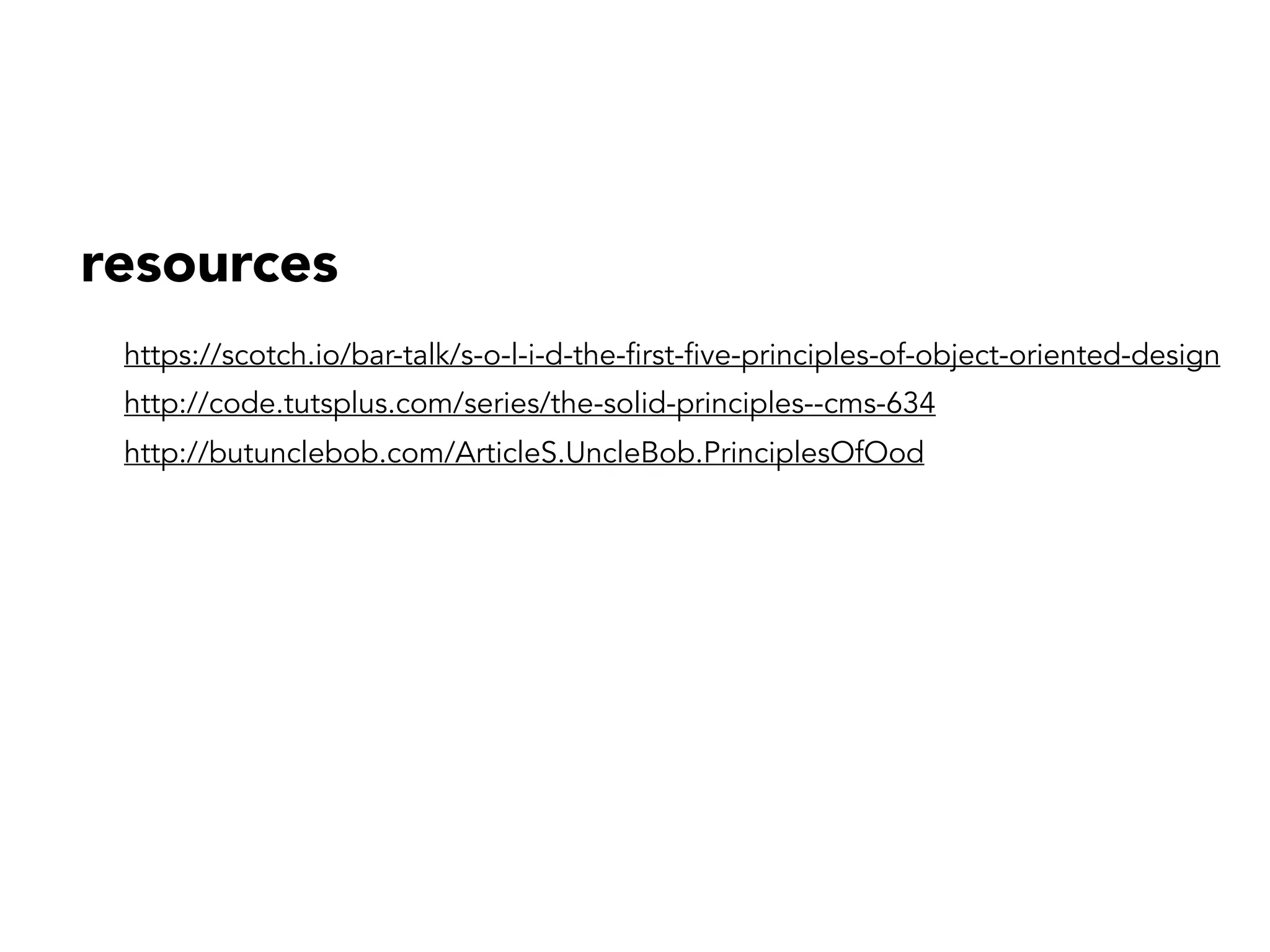

55. resources
https://scotch.io/bar-talk/s-o-l-i-d-the-first-five-principles-of-object-oriented-design
http://code.tutsplus.com/series/the-solid-principles--cms-634
http://butunclebob.com/ArticleS.UncleBob.PrinciplesOfOod

56. Read our blog:
http://blog.500tech.com
Nir Kaufman
nir@500tech.com
