1. Wilson Cycles and the Opening of the North
Atlantic & Norwegian – Greenland Sea
Chris Parry DEA Norge AS
EAGE, Vienna, June 1st, 2016

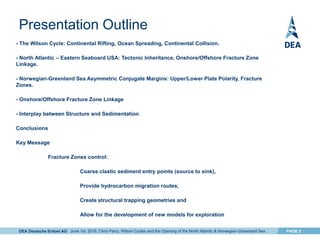

2. DEA Deutsche Erdoel AG PAGE 2
- The Wilson Cycle: Continental Rifting, Ocean Spreading, Continental Collision.
- North Atlantic – Eastern Seaboard USA: Tectonic Inheritance, Onshore/Offshore Fracture Zone
Linkage.

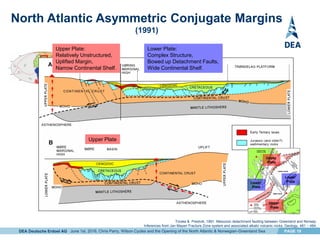

- Norwegian-Greenland Sea Asymmetric Conjugate Margins: Upper/Lower Plate Polarity, Fracture
Zones.
- Onshore/Offshore Fracture Zone Linkage
- Interplay between Structure and Sedimentation
Conclusions
Key Message
Fracture Zones control:
Coarse clastic sediment entry points (source to sink),
Provide hydrocarbon migration routes,
Create structural trapping geometries and
Allow for the development of new models for exploration
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
Presentation Outline
3. DEA Deutsche Erdoel AG PAGE 3

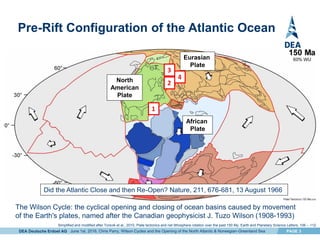

Pre-Rift Configuration of the Atlantic Ocean
African
Plate
North
American
Plate
Eurasian
Plate
The Wilson Cycle: the cyclical opening and closing of ocean basins caused by movement
of the Earth's plates, named after the Canadian geophysicist J. Tuzo Wilson (1908-1993)
1
2
3
Simplified and modified after Torsvik et al., 2010, Plate tectonics and net lithosphere rotation over the past 150 My. Earth and Planetary Science Letters, 106 – 112.
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
Did the Atlantic Close and then Re-Open? Nature, 211, 676-681, 13 August 1966
4
4. DEA Deutsche Erdoel AG PAGE 4

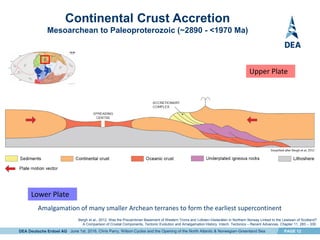

Continental Crust Accretion
Mesoarchean to Paleoproterozoic (~2890 - <1970 Ma)
Amalgamation of many smaller Archean terranes to form the earliest supercontinent
Bergh et al., 2012. Was the Precambrian Basement of Western Troms and Lofoten-Vesterålen in Northern Norway Linked to the Lewisian of Scotland?
A Comparison of Crustal Components, Tectonic Evolution and Amalgamation History. Intech. Tectonics – Recent Advances, Chapter 11, 283 – 330.
Lower Plate
Upper Plate
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
5. DEA Deutsche Erdoel AG PAGE 5
Wilson Cycle: Continental Rifting
Hot Spot related
Triple Junction
Terrane boundary: zone
of intense deformation
• Continental crust starts to rupture along rifts that meet at
triple junctions located over hot spots, which are characterized
by alkaline volcanism.
• Archean basement terrane boundaries are zones of intense
deformation which are subsequently reactivated during the
crustal rupture.
• Failed rift arms form major continental drainage systems and
control the location of delta development.
Modified after Dewey & Burke,1974, Hot Spots and Continental Break-up: Implications for Collisional Orogeny. Geology, 57 – 60.
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea

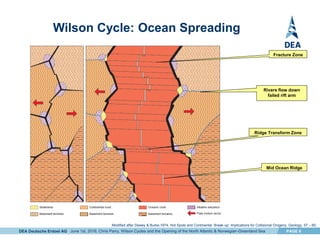

6. DEA Deutsche Erdoel AG PAGE 6
Wilson Cycle: Ocean Spreading
Rivers flow down
failed rift arm
Mid Ocean Ridge
Ridge Transform Zone
Fracture Zone
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
Modified after Dewey & Burke,1974, Hot Spots and Continental Break-up: Implications for Collisional Orogeny. Geology, 57 – 60.
7. DEA Deutsche Erdoel AG PAGE 7

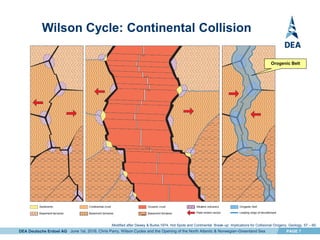

Wilson Cycle: Continental Collision
Orogenic Belt
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
Modified after Dewey & Burke,1974, Hot Spots and Continental Break-up: Implications for Collisional Orogeny. Geology, 57 – 60.
8. DEA Deutsche Erdoel AG PAGE 8

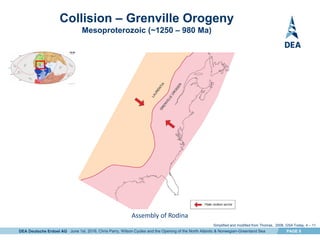

Collision – Grenville Orogeny
Mesoproterozoic (~1250 – 980 Ma)
Assembly of Rodina
Simplified and modified from Thomas, 2006, GSA Today, 4 – 11.
1
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea

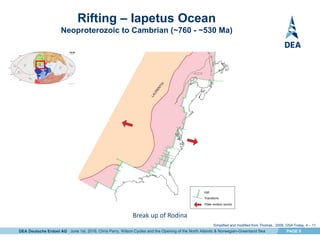

9. DEA Deutsche Erdoel AG PAGE 9
Rifting – Iapetus Ocean
Neoproterozoic to Cambrian (~760 - ~530 Ma)
1
Break up of Rodina
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
Simplified and modified from Thomas, 2006, GSA Today, 4 – 11.
10. DEA Deutsche Erdoel AG PAGE 10

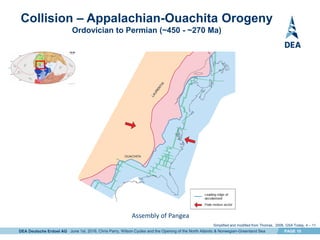

Collision – Appalachian-Ouachita Orogeny
Ordovician to Permian (~450 - ~270 Ma)
Assembly of Pangea
1
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
Simplified and modified from Thomas, 2006, GSA Today, 4 – 11.

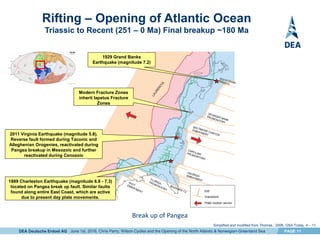

11. DEA Deutsche Erdoel AG PAGE 11
Rifting – Opening of Atlantic Ocean
Triassic to Recent (251 – 0 Ma) Final breakup ~180 Ma
Modern Fracture Zones
inherit Iapetus Fracture
Zones
1889 Charleston Earthquake (magnitude 6.6 - 7.3)
located on Pangea break up fault. Similar faults
found along entire East Coast, which are active
due to present day plate movements.
1929 Grand Banks
Earthquake (magnitude 7.2)
2011 Virginia Earthquake (magnitude 5.8).
Reverse fault formed during Taconic and
Alleghenian Orogenies, reactivated during
Pangea breakup in Mesozoic and further
reactivated during Cenozoic
1
Break up of Pangea
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
Simplified and modified from Thomas, 2006, GSA Today, 4 – 11.
12. DEA Deutsche Erdoel AG PAGE 12
Continental Crust Accretion
Mesoarchean to Paleoproterozoic (~2890 - <1970 Ma)
Amalgamation of many smaller Archean terranes to form the earliest supercontinent
Bergh et al., 2012. Was the Precambrian Basement of Western Troms and Lofoten-Vesterålen in Northern Norway Linked to the Lewisian of Scotland?
A Comparison of Crustal Components, Tectonic Evolution and Amalgamation History. Intech. Tectonics – Recent Advances, Chapter 11, 283 – 330.
2
Lower Plate
Upper Plate
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
13. DEA Deutsche Erdoel AG PAGE 13

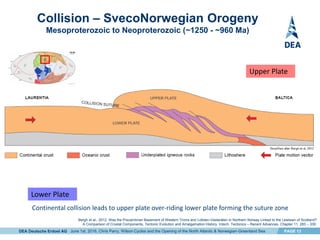

Continental collision leads to upper plate over-riding lower plate forming the suture zone
Collision – SvecoNorwegian Orogeny
Mesoproterozoic to Neoproterozoic (~1250 - ~960 Ma)
2
Lower Plate
Upper Plate
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
Bergh et al., 2012. Was the Precambrian Basement of Western Troms and Lofoten-Vesterålen in Northern Norway Linked to the Lewisian of Scotland?
A Comparison of Crustal Components, Tectonic Evolution and Amalgamation History. Intech. Tectonics – Recent Advances, Chapter 11, 283 – 330.
14. DEA Deutsche Erdoel AG PAGE 14

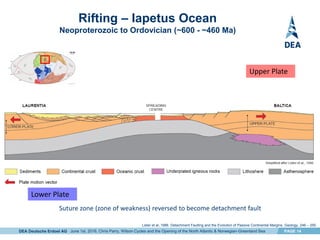

Suture zone (zone of weakness) reversed to become detachment fault
Rifting – Iapetus Ocean
Neoproterozoic to Ordovician (~600 - ~460 Ma)
2
Lister et al.,1986. Detachment Faulting and the Evolution of Passive Continental Margins. Geology, 246 – 250.
Lower Plate
Upper Plate
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
15. DEA Deutsche Erdoel AG PAGE 15

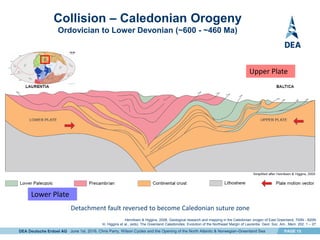

Detachment fault reversed to become Caledonian suture zone
Collision – Caledonian Orogeny
Ordovician to Lower Devonian (~600 - ~460 Ma)
2
Henriksen & Higgins, 2008, Geological research and mapping in the Caledonian orogen of East Greenland, 700N - 820N.
In: Higgins et al., (eds), The Greenland Caledonides: Evolution of the Northeast Margin of Laurentia. Geol. Soc. Am., Mem. 202, 1 – 27.
Lower Plate
Upper Plate
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
16. DEA Deutsche Erdoel AG PAGE 16

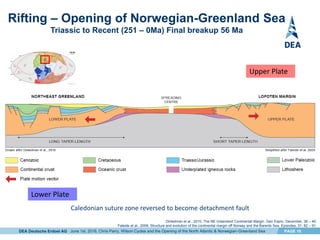

Rifting – Opening of Norwegian-Greenland Sea
Triassic to Recent (251 – 0Ma) Final breakup 56 Ma
2
Caledonian suture zone reversed to become detachment fault
Dinkelman et al., 2010, The NE Greenland Continental Margin. Geo Expro, December, 36 – 40.
Faleide et al., 2008, Structure and evolution of the continental margin off Norway and the Barents Sea. Episodes, 31, 82 – 91.
Lower Plate
Upper Plate
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
17. DEA Deutsche Erdoel AG PAGE 17

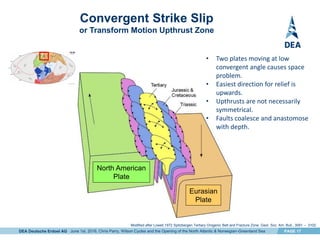

Convergent Strike Slip
or Transform Motion Upthrust Zone
3
Modified after Lowell,1972 Spitzbergen Tertiary Orogenic Belt and Fracture Zone. Geol. Soc. Am. Bull., 3091 – 3102.
Eurasian
Plate
North American
Plate
• Two plates moving at low
convergent angle causes space
problem.
• Easiest direction for relief is
upwards.
• Upthrusts are not necessarily
symmetrical.
• Faults coalesce and anastomose
with depth.
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
18. DEA Deutsche Erdoel AG PAGE 18

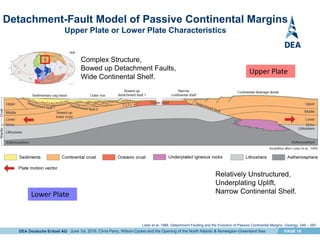

Detachment-Fault Model of Passive Continental Margins
Upper Plate or Lower Plate Characteristics
2 Complex Structure,
Bowed up Detachment Faults,
Wide Continental Shelf.
Lower Plate
Upper Plate
Relatively Unstructured,
Underplating Uplift,
Narrow Continental Shelf.
Lister et al.,1986. Detachment Faulting and the Evolution of Passive Continental Margins. Geology, 246 – 250.
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
19. DEA Deutsche Erdoel AG PAGE 19
North Atlantic Asymmetric Conjugate Margins
(1991)
Torske & Prestvik, 1991. Mesozoic detachment faulting between Greenland and Norway:
Inferences from Jan Mayen Fracture Zone system and associated alkalic volcanic rocks. Geology, 481 – 484.
Lower
PlateLower
Plate
Lower Plate:
Complex Structure,
Bowed up Detachment Faults,
Wide Continental Shelf.
Upper
Plate
Upper
Plate
Upper Plate
Upper Plate:
Relatively Unstructured,
Uplifted Margin,
Narrow Continental Shelf.
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
20. DEA Deutsche Erdoel AG PAGE 20

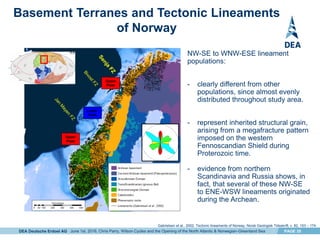

Basement Terranes and Tectonic Lineaments
of Norway
Lower
Plate
Upper
Plate
Upper
Plate
NW-SE to WNW-ESE lineament
populations:
- clearly different from other
populations, since almost evenly
distributed throughout study area.
- represent inherited structural grain,
arising from a megafracture pattern
imposed on the western
Fennoscandian Shield during
Proterozoic time.
- evidence from northern
Scandinavia and Russia shows, in
fact, that several of these NW-SE
to ENE-WSW lineaments originated
during the Archean.
Gabrielsen et al., 2002. Tectonic lineaments of Norway, Norsk Geologisk Tidsskrift, v. 82, 153 – 174.
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
21. DEA Deutsche Erdoel AG PAGE 21

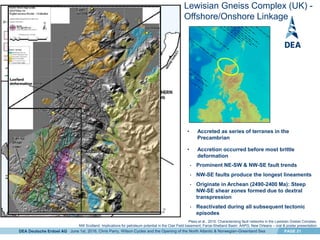

Lewisian Gneiss Complex (UK) -
Offshore/Onshore Linkage
• Accreted as series of terranes in the
Precambrian
• Accretion occurred before most brittle
deformation
Pless et al., 2010. Characterising fault networks in the Lewisian Gneiss Complex,
NW Scotland: Implications for petroleum potential in the Clair Field basement, Faroe-Shetland Basin. AAPG, New Orleans – oral & poster presentation
• Prominent NE-SW & NW-SE fault trends
• NW-SE faults produce the longest lineaments
• Originate in Archean (2490-2400 Ma): Steep
NW-SE shear zones formed due to dextral
transpression
• Reactivated during all subsequent tectonic
episodes
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
22. DEA Deutsche Erdoel AG PAGE 22

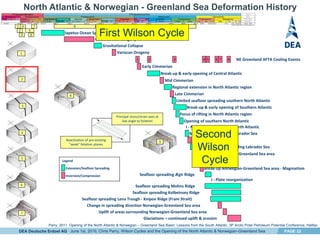

North Atlantic & Norwegian - Greenland Sea Deformation History
1
2
3
4
5
7
1
2
3
4
5
6
7 8 9
6
Iapetus Ocean Spreading
Variscan Orogeny
1 2 3 4 5 6 7 8 NE Greenland AFTA Cooling Events
Break-up & early opening of Central Atlantic
Regional extension in North Atlantic region
Limited seafloor spreading southern North Atlantic
Focus of rifting in North Atlantic region
Opening of southern North Atlantic
I - Main rift axis northern North Atlantic
Main rift axis moved to Labrador Sea
Seafloor spreading Labrador Sea
Rifting in Norwegian-Greenland Sea area
Break-up Norwegian-Greenland Sea area - Magmatism
Seafloor spreading Ægir Ridge
I - Plate reorganization
Change in spreading direction Norwegian-Greenland Sea area
Uplift of areas surrounding Norwegian-Greenland Sea area
Glaciations – continued uplift & erosion
Seafloor spreading Kolbeinsey Ridge
Seafloor spreading Mohns Ridge
Seafloor spreading Lena Trough - Knipov Ridge (Fram Strait)
Break-up & early opening of Southern Atlantic
Caledonidian Orogeny
Gravitational Collapse
8
9
Principal stress/strain axes at
low angle to foliation
Reactivation of pre-existing
”weak” foliation planes
U Cretaceous Inversion
Early Cimmerian
Mid Cimmerian
Late Cimmerian
Laramide Orogeny
Extension/Seafloor Spreading
Inversion/Compression
Legend
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
First Wilson Cycle
Second
Wilson
Cycle
Parry, 2011. Opening of the North Atlantic & Norwegian – Greenland Sea Basin: Lessons from the South Atlantic. 3P Arctic Polar Petroleum Potential Conference, Halifax
23. DEA Deutsche Erdoel AG PAGE 23

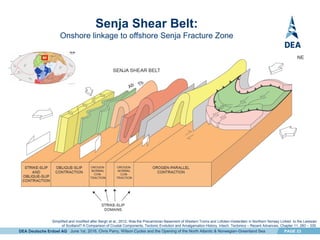

Senja Shear Belt:
Onshore linkage to offshore Senja Fracture Zone
Simplified and modified after Bergh et al., 2012. Was the Precambrian Basement of Western Troms and Lofoten-Vesterålen in Northern Norway Linked to the Lewisian
of Scotland? A Comparison of Crustal Components, Tectonic Evolution and Amalgamation History. Intech. Tectonics – Recent Advances, Chapter 11, 283 – 330.
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
24. DEA Deutsche Erdoel AG PAGE 24

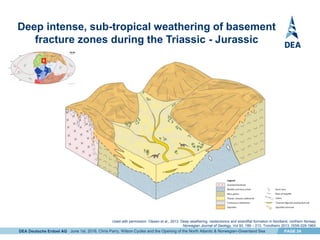

Deep intense, sub-tropical weathering of basement
fracture zones during the Triassic - Jurassic
Used with permission: Olesen et al., 2013. Deep weathering, neotectonics and strandflat formation in Nordland, northern Norway.
Norwegian Journal of Geology, Vol 93, 189 – 213. Trondheim 2013, ISSN 029-196X.
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
25. DEA Deutsche Erdoel AG PAGE 25

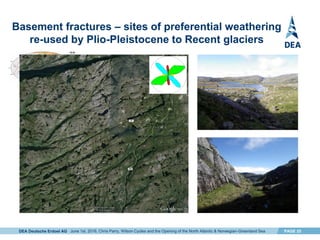

Basement fractures – sites of preferential weathering
re-used by Plio-Pleistocene to Recent glaciers
4
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
26. DEA Deutsche Erdoel AG PAGE 26

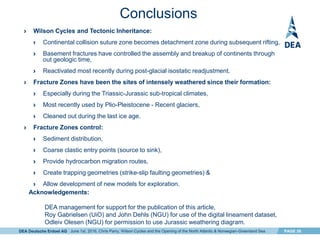

Conclusions
› Wilson Cycles and Tectonic Inheritance:
› Continental collision suture zone becomes detachment zone during subsequent rifting,
› Basement fractures have controlled the assembly and breakup of continents through
out geologic time,
› Reactivated most recently during post-glacial isostatic readjustment.
› Fracture Zones have been the sites of intensely weathered since their formation:
› Especially during the Triassic-Jurassic sub-tropical climates,
› Most recently used by Plio-Pleistocene - Recent glaciers,
› Cleaned out during the last ice age.
› Fracture Zones control:
› Sediment distribution,
› Coarse clastic entry points (source to sink),
› Provide hydrocarbon migration routes,
› Create trapping geometries (strike-slip faulting geometries) &
› Allow development of new models for exploration.
Acknowledgements:
DEA management for support for the publication of this article,
Roy Gabrielsen (UiO) and John Dehls (NGU) for use of the digital lineament dataset,
Odleiv Olesen (NGU) for permission to use Jurassic weathering diagram.
June 1st, 2016, Chris Parry, Wilson Cycles and the Opening of the North Atlantic & Norwegian-Greenland Sea
