Clean Architecture
This document discusses clean architecture principles for mobile applications. It describes common iOS code smells like god view controllers and tightly coupled code. The document introduces SOLID principles to improve code quality and testability. It then outlines architectural layers including entities, use cases, interface adapters, and frameworks. The layers are arranged based on the dependency rule, where inner layers do not depend on outer ones. Specific patterns like MVC, MVP, MVVM, VIPER and repositories are presented for each layer. The document emphasizes designing applications that are decoupled from frameworks and user interfaces to improve reusability and flexibility.
More Related Content
Clean Architecture
- 1. Clean Architecture Iván ÁlvarezFrías Erik Jhordan González Reyes ivan.alvarez@schibsted.com.mx @Ivanhoe github.com/ivanhoe erik.gonzalez@schibsted.com.mx @ErikJhordan_Rey github.com/erikcaffrey
- 2. “Clean code alwayslooks like it was written by someone who cares”
- 3.

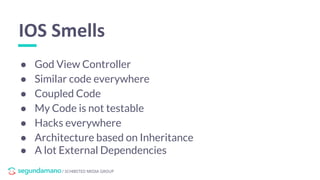

- 4. / SCHIBSTED MEDIAGROUP ● God View Controller ● Similar code everywhere ● Coupled Code ● My Code is not testable ● Hacks everywhere ● Architecture based on Inheritance ● A lot External Dependencies IOS Smells
- 5.

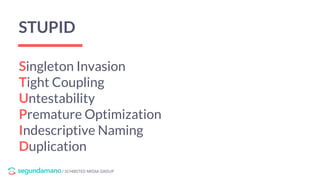

- 6. / SCHIBSTED MEDIAGROUP STUPID Singleton Invasion Tight Coupling Untestability Premature Optimization Indescriptive Naming Duplication

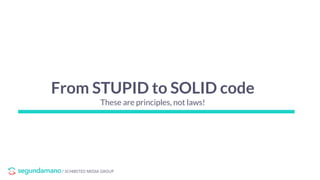

- 7. / SCHIBSTED MEDIAGROUP From STUPID to SOLID code These are principles, not laws!
- 8. / SCHIBSTED MEDIAGROUP
- 9.

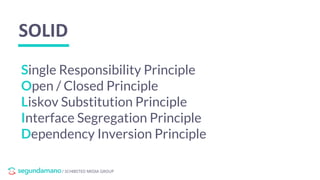

- 10. / SCHIBSTED MEDIAGROUP SOLID Single Responsibility Principle Open / Closed Principle Liskov Substitution Principle Interface Segregation Principle Dependency Inversion Principle
- 11. “Depend upon abstractions.Do not depend upon concrete classes”
- 12.
- 13. / SCHIBSTED MEDIAGROUP Architecture #By Martin Fowler “Architecture as a word we use when we want to talk about design but want to puff it up to make it sound important.”
- 14.

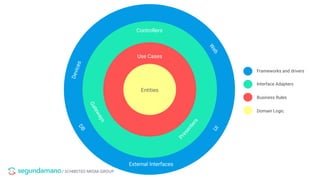

- 15. / SCHIBSTED MEDIAGROUP Entities Use Cases Controllers Gateways Presenters Devices W ebUI DB External Interfaces Frameworks and drivers Interface Adapters Business Rules Domain Logic
- 16.

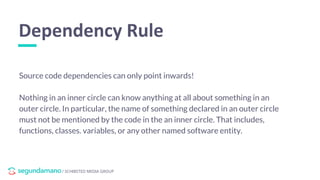

- 17. / SCHIBSTED MEDIAGROUP Source code dependencies can only point inwards! Nothing in an inner circle can know anything at all about something in an outer circle. In particular, the name of something declared in an outer circle must not be mentioned by the code in the an inner circle. That includes, functions, classes. variables, or any other named software entity. Dependency Rule
- 18.

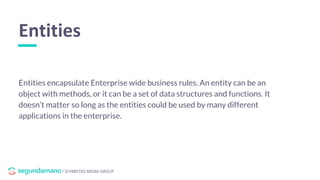

- 19. / SCHIBSTED MEDIAGROUP Entities encapsulate Enterprise wide business rules. An entity can be an object with methods, or it can be a set of data structures and functions. It doesn’t matter so long as the entities could be used by many different applications in the enterprise. Entities
- 20.

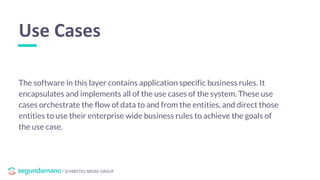

- 21. / SCHIBSTED MEDIAGROUP The software in this layer contains application specific business rules. It encapsulates and implements all of the use cases of the system. These use cases orchestrate the flow of data to and from the entities, and direct those entities to use their enterprise wide business rules to achieve the goals of the use case. Use Cases
- 22.

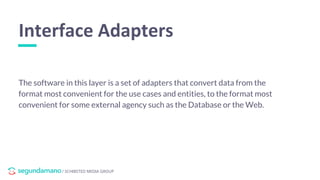

- 23. / SCHIBSTED MEDIAGROUP The software in this layer is a set of adapters that convert data from the format most convenient for the use cases and entities, to the format most convenient for some external agency such as the Database or the Web. Interface Adapters
- 24.

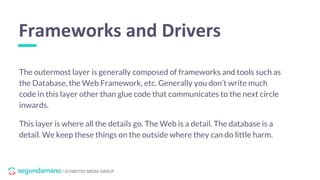

- 25. / SCHIBSTED MEDIAGROUP The outermost layer is generally composed of frameworks and tools such as the Database, the Web Framework, etc. Generally you don’t write much code in this layer other than glue code that communicates to the next circle inwards. This layer is where all the details go. The Web is a detail. The database is a detail. We keep these things on the outside where they can do little harm. Frameworks and Drivers
- 26.

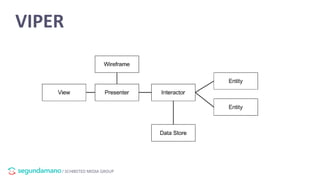

- 27. / SCHIBSTED MEDIAGROUP VIPER

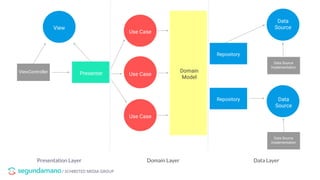

- 28. / SCHIBSTED MEDIAGROUP View PresenterViewController Use Case Use Case Use Case Domain Model Data Source Implementation Repository Repository Data Source Data Source Data Source Implementation Presentation Layer Domain Layer Data Layer
- 29.
- 30. / SCHIBSTED MEDIAGROUP

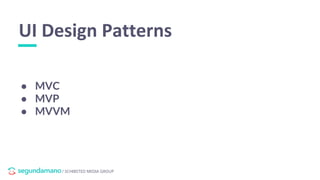

- 31. / SCHIBSTED MEDIAGROUP ● MVC ● MVP ● MVVM UI Design Patterns
- 32. Talk Schedule Model View Controller Model What todisplay? View How it’s displayed? Controller Formatting the model for display and handling events like user input.

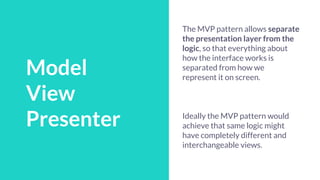

- 33. Talk Schedule Model View Presenter The MVPpattern allows separate the presentation layer from the logic, so that everything about how the interface works is separated from how we represent it on screen. Ideally the MVP pattern would achieve that same logic might have completely different and interchangeable views.

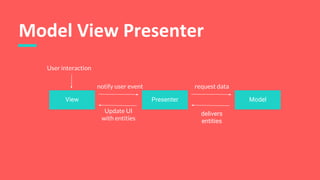

- 34. Model View Presenter ViewPresenter Model User interaction notify user event request data Update UI with entities delivers entities

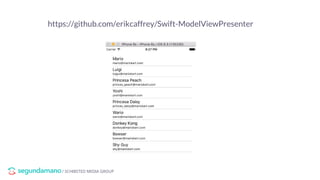

- 35. / SCHIBSTED MEDIAGROUP https://github.com/erikcaffrey/Swift-ModelViewPresenter
- 36. Talk Schedule Model View ViewModel Is anarchitectural approach used to abstract the state and behaviour of a view, which allows us to separate the development of the UI from the business logic.

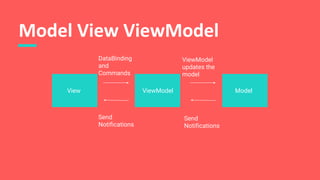

- 37. Model View ViewModel ViewViewModel Model DataBinding and Commands ViewModel updates the model Send Notifications Send Notifications

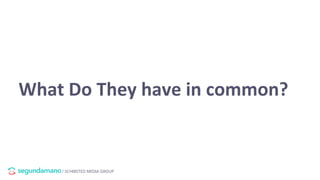

- 38. / SCHIBSTED MEDIAGROUP What Do They have in common?
- 39. Allows separate theview from the business logic and data logic.
- 40. / SCHIBSTED MEDIAGROUP What pattern Should I use?

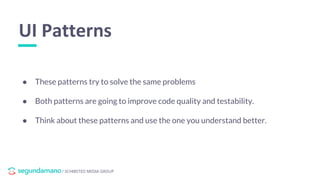

- 41. / SCHIBSTED MEDIAGROUP ● These patterns try to solve the same problems ● Both patterns are going to improve code quality and testability. ● Think about these patterns and use the one you understand better. UI Patterns
- 42.

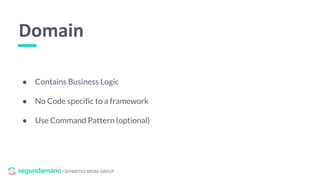

- 43. / SCHIBSTED MEDIAGROUP ● Contains Business Logic ● No Code specific to a framework ● Use Command Pattern (optional) Domain
- 44. / SCHIBSTED MEDIAGROUP Command Pattern Holding all your business logic, its main component is UseCase that gives you an easy way to define your application use cases and execute them in a background thread.
- 45.

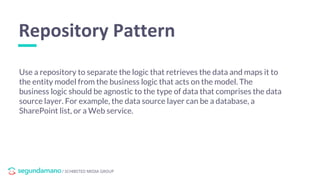

- 46. / SCHIBSTED MEDIAGROUP Use a repository to separate the logic that retrieves the data and maps it to the entity model from the business logic that acts on the model. The business logic should be agnostic to the type of data that comprises the data source layer. For example, the data source layer can be a database, a SharePoint list, or a Web service. Repository Pattern

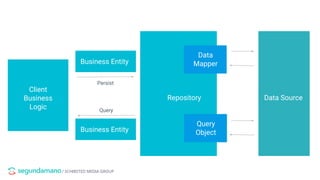

- 47. / SCHIBSTED MEDIAGROUP Data Mapper Repository Client Business Logic Business Entity Business Entity Persist Query Query Object Data Source

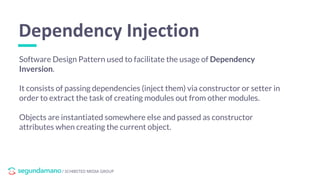

- 48. / SCHIBSTED MEDIAGROUP Software Design Pattern used to facilitate the usage of Dependency Inversion. It consists of passing dependencies (inject them) via constructor or setter in order to extract the task of creating modules out from other modules. Objects are instantiated somewhere else and passed as constructor attributes when creating the current object. Dependency Injection

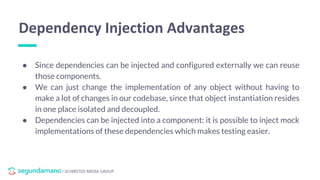

- 49. / SCHIBSTED MEDIAGROUP ● Since dependencies can be injected and configured externally we can reuse those components. ● We can just change the implementation of any object without having to make a lot of changes in our codebase, since that object instantiation resides in one place isolated and decoupled. ● Dependencies can be injected into a component: it is possible to inject mock implementations of these dependencies which makes testing easier. Dependency Injection Advantages

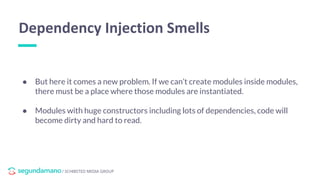

- 50. / SCHIBSTED MEDIAGROUP ● But here it comes a new problem. If we can’t create modules inside modules, there must be a place where those modules are instantiated. ● Modules with huge constructors including lots of dependencies, code will become dirty and hard to read. Dependency Injection Smells
- 51.
- 52.

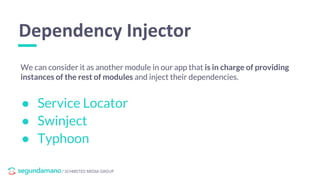

- 53. / SCHIBSTED MEDIAGROUP We can consider it as another module in our app that is in charge of providing instances of the rest of modules and inject their dependencies. Dependency Injector ● Service Locator ● Swinject ● Typhoon

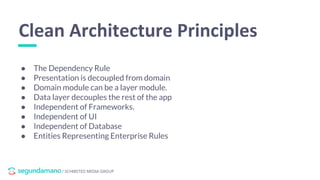

- 54. / SCHIBSTED MEDIAGROUP Clean Architecture Principles ● The Dependency Rule ● Presentation is decoupled from domain ● Domain module can be a layer module. ● Data layer decouples the rest of the app ● Independent of Frameworks. ● Independent of UI ● Independent of Database ● Entities Representing Enterprise Rules

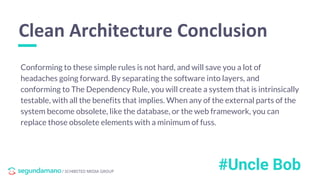

- 55. / SCHIBSTED MEDIAGROUP Conforming to these simple rules is not hard, and will save you a lot of headaches going forward. By separating the software into layers, and conforming to The Dependency Rule, you will create a system that is intrinsically testable, with all the benefits that implies. When any of the external parts of the system become obsolete, like the database, or the web framework, you can replace those obsolete elements with a minimum of fuss. Clean Architecture Conclusion #Uncle Bob
- 56.
- 57. / SCHIBSTED MEDIAGROUP Routing ● Segues ● TabBarViewController ● NavigationViewController ● Push ● Search Solution ● Navigator ● Wireframe
- 58.
- 59. / SCHIBSTED MEDIAGROUP

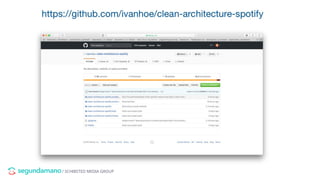

- 60. / SCHIBSTED MEDIAGROUP
- 61. / SCHIBSTED MEDIAGROUP

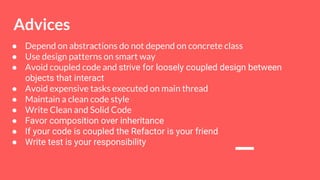

- 62. ● Depend onabstractions do not depend on concrete class ● Use design patterns on smart way ● Avoid coupled code and strive for loosely coupled design between objects that interact ● Avoid expensive tasks executed on main thread ● Maintain a clean code style ● Write Clean and Solid Code ● Favor composition over inheritance ● If your code is coupled the Refactor is your friend ● Write test is your responsibility Advices
- 63. 01 02 https://blog.8thlight.com/uncle-bob/2012/08/13/the-clean-architecture.html Uncle Bob -Clean Architecture https://www.youtube.com/watch?v=WpkDN78P884 Uncle Bob - Architecture the lost years 03 Further Reading 04 https://speakerdeck.com/karumi/architecting-your-apps-for-ui-testing Alberto Gragera - Architecting your apps for UI Testing https://erikcaffrey.github.io/ANDROID-clean-architecture/ Erik Jhordan Rey - Clean Architecture
- 64.
- 65. Find me Erik JhordanGonzález Reyes Mobile Engineer github.com/erikcaffrey erik.gonzalez@schibsted.com.mx erikcaffrey.github.io @ErikJhordan_Rey +Erik Jhordan Rey Find me Iván Álvarez Frías Software Engineer github.com/ivanhoe ivan.alvarez@schibsted.com.mx iosdevelopers.mx @Ivanhoe +Ivan ??
- 66. Thank You {NS CoderMéxico}!
